Water 2017, 9(5), 345; https://doi.org/10.3390/w9050345

Article
Using δ15N and δ18O Signatures to Evaluate Nitrate Sources and Transformations in Four Inflowing Rivers, North of Taihu Lake
by Da Li 1,2, Xia Jiang 2 and Binghui Zheng 1,2,*
1
Division of Groundwater and Soil Environment, School of Environment, Tsinghua University, Beijing 100084, China
2
State Key Laboratory of Environmental Criteria and Risk Assessment, Chinese Research Academy of Environment Sciences, Beijing 100012, China
*
Author to whom correspondence should be addressed.
Academic Editor: Maurizio Barbieri
Received: 28 February 2017 / Accepted: 8 May 2017 / Published: 17 May 2017

Abstract

:
Taihu Lake is the third largest freshwater lake in China. Due to rapid economic development and excessive nutrient discharges, there is serious eutrophication in the northern part of the lake. Nitrogen (N) is one of the key factors for eutrophication in Taihu Lake, which mainly comes from the rivers around the lake. Samples from four inflowing rivers were analysed for δ15N and δ18O isotopes in December 2013 to identify the different sources of nitrogen in the northern part of Taihu Lake. The results indicated that the water quality in Taihu Lake was clearly influenced by the water quality of the inflowing rivers and nitrate (NO3-N) was the main component of the soluble inorganic nitrogen in water. The soil organic N represented more than 70% of the total NO3-N loads in the Zhihugang. Domestic sewage was the major NO3-N source in the Liangxi river, with a contribution of greater than 50%. Soil organic N and domestic sewage, with contributions of more than 30% and 35% respectively, were the major NO3-N sources in the Lihe river and Daxigang river. Denitrification might be responsible for the shifting δ15N-NO3 and δ18O-NO3 values in the Daxigang river, and a mixing process may play a major role in N transformations in the Lihe river in winter. The results of this study will be useful as reference values for reducing NO3 pollution in the inflowing rivers in the north of Taihu Lake.
Keywords:
nitrate; stable isotopes; nitrate sources; nitrogen transformations; denitrification

1. Introduction

Taihu Lake is the third largest freshwater lake in China, with an area of 2338 km2 and an average depth of 2 m. The average growth rate of Gross Domestic Product (GDP) was 13.46% and the average growth rate of the population was 5.24‰ from 1991 to 2008 in Taihu Lake basin. This growth has resulted in large quantities of nutrients being discharged into Taihu Lake, which have caused eutrophication of the lake [1]. After years of environmental regulation, eutrophication problems are still serious. It has been reported that the main source of pollution into Taihu Lake was from the rivers around the lake, and nitrogen (N) was the main pollutant of these rivers [2,3,4]. Paired-sample T test analysis indicated that the input of total nitrogen (TN) to Taihu Lake was different (p = 0.034 < 0.05) between the 1990s and the early 21st century, and the inputs of TN to Taihu Lake were still rising (Figure 1) [5,6]. Some research illustrated that the inflowing rivers in the west or northwest of Taihu Lake were seriously polluted, and more than 70% of the TN entering Taihu Lake was from the northern rivers [7]. Therefore, it is important and necessary to study the sources of N in the northern rivers. With the rapid development of the economy and the population increases in recent decades, excess nitrogenous substances have drained into the rivers [8] from synthetic N fertilizers [9], animal wastes and manure, sewage, and atmospheric deposition [10], which has caused adverse effects on the water’s ecological environment, such as eutrophication and the degradation of ecosystems (National Research Council, 2000). According to the date of pollutants of Taihu Lake in 1998, the pollutants from domestic sewage and agriculture accounted for 25% and 28% of TN, respectively [11]. It is necessary to identify the sources and transformations of nitrate in water to control nitrate pollution.
Surface water systems are very vulnerable to nitrate pollution. The sources of nitrate are mainly rain, chemical fertilizers, sewage and animal wastes, and nitrate derived from nitrification. Due to the distinct isotopic characteristics of nitrate, stable isotope techniques have been used to identify the sources of nitrate-nitrogen [12,13]. The range of δ15N values of artificial fertilizers generally extends from −6‰ to +6‰. There are some natural factors and biological activities that cause small variations in the N isotopic ratios of soil organic N, such as soil depth, vegetation types, mineralization and nitrification. Therefore, δ15N values for soil organic N generally range from 0‰ to +8‰ [14,15]. The N isotopic ratios in sewage and manure are more highly enriched than those of the other NO3-N sources. During the storage, treatment, and application of sewage and animal wastes, the ammonia in the sewage evaporates, causing 15N enrichment in the residual NH4+-N. The remaining NH4+-N is subsequently oxidized into δ15N-enriched nitrate. As a result of this process, the δ15N values of sewage generally range from +8‰ to +20‰ [16,17].
However, as a result of fractionation, the N isotope composition of NO3 could change during transformation [18]. For example, ammonification and denitrification results in N isotope fractionation between organic matter and NH4+ [19,20]. Therefore, the NO3-N source cannot be identified reliably by using the δ15N-NO3 technique on its own. In order to solve this problem, a dual isotope method with analysis of δ15N and δ18O values of nitrate (i.e., δ15N-NO3 and δ18O-NO3) has been used to identify NO3-N sources [21,22]. Researchers have found that δ18O-NO3 is not only helpful for identifying sources of NO3-N, but it is also useful to help distinguish between NO3-N from atmosphere deposition, biological processes in soil and chemical fertilizers, and to study biological denitrification processes in water [23,24,25,26,27,28] . It has been suggested that δ18O was more useful for separating atmospheric NO3-N deposition from biologically-produced soil NO3-N than δ15N [28]. The δ18O values in NO3-N fertilizers range from +17‰ to +25‰ and the δ18O values of atmospheric NO3-N deposition are higher than 60‰ [29].
Many studies have used N and O stable isotope ratios to identify the sources of nitrate in Taihu Lake. In those studies of Taihu Lake, the researchers found that the value of 15N-NO3 in winter was lowest of the four seasons, and human activities were the main source of nitrate of Taihu Lake in winter, but agriculture was the main source of nitrate of Taihu Lake in spring and summer [30,31]. In some studies, some researchers found that in winter, the biodegradation was weak and the N and O stable isotopes were similar from year to year in Taihu Lake basin [32]. Some research found that the main source of N pollution of water in Taihu basin was not the N fertilizer from farmland but the domestic sewage and human and animal excreta discharged into the water, and the atmospheric deposition was also another source of the surface waters [33]. But, in some studies, the results indicated that the non-domestic sewage (not the domestic sewage) was the primary source of nitrate pollution in Taihu Lake [34]. The nitrate of groundwater was also a risk of lake eutrophication and water safety [35], but not the main nitrate source in Taihu Lake [36]. These studies have covered many fields, such as the nitrate source of Taihu Lake in different seasons, the reliability of the method to trace the nitrate source, and so on. However, the results of these studies have shown some inconsistencies with the main source of nitrate in Taihu Lake in the same season or the same region, and the contribution of the main sources has not been quantified either.
In order to obtain more reliable results, samples were collected in winter and N and O stable isotopes were used to identify and quantify the nitrate sources in four rivers (Zhihugang river, Liangxi river, Lihe river, and Daxigang river) flowing into the lake. We hope the results of this study will be useful as reference values for reducing NO3-N pollution in the inflowing rivers in the north of Taihu Lake, and assist the management of land-use and pollution-source control in the watershed.

2. Study Area

The Zhihugang river and the Liangxi river connect with Meiliang Bay, which is located in the northwest of Taihu Lake. Land in the watershed is mainly used for growing crops, industry and human settlements. According to data for the period from 2005 to 2007, the mean TN concentrations in the Zhihugang and Liangxi rivers were 5.38 mg/L and 6.90 mg/L respectively [37]. The Lihe and the Daxigang rivers are located to the northeast of Taihu Lake; they flow into Gonghu Bay. These catchments are dominated by forests and cropland, and land bordering the rivers which is used for construction [38]. Basic information about the Zhihugang, Liangxi, Lihe, and Daxigang rivers is shown in Table 1.

3. Sample Collection and Measurement

Water samples were collected from the Zhihugang (ZH), Liangxi (LX), Lihe (LH), and Daxigang (DX) rivers from 5 to 15 December 2013. Sampling sites ZH1, LX1, LH1, and DX1 were located in the upper reaches of the rivers and were surrounded by many industries and houses. Sampling sites ZH4, LX4, LH4, and DX4 were located in the estuaries to Taihu Lake. Sampling sites ZH2, LX2, LX3, LH2, LH3, DX2, and DX3 were adjacent to settlements and cropland. Sampling sites ZH3 and LH3 were located in industrial areas (Figure 2).
pH and dissolved oxygen (DO) were determined directly in situ using a multi-parameter water quality monitoring instrument (METTLER TOLEDO, SevenGo Duo pro, SG68, America). Calibration of sensors was performed before the measurements. Ammonium (NH4+-N) was measured with Nessler’ reagent; nitrate nitrogen (NO3-N) and total nitrogen (TN) were determined through ultraviolet spectrophotometry and the alkaline potassium persulfate oxidation-UV spectrophotometric method (GB3838-2002) respectively. Chloride (Cl) were measured using silver nitrate titration. Detection limits were 0.025, 0.02, 0.003 and 0.5 mg/L for NH4+-N, NO3-N, TN, and chloride (Cl) respectively. Total organic carbon (TOC) concentrations were determined by a TOC-V Analyser (SHIMADZU -TNM-1, Japan), with an estimated detection limit of 0.05 μg/L.
The concentrations of δ15N-NO3 and δ18O-NO3 were determined by the denitrifier method [41,42,43] using a stable isotope ratio mass spectrometer. The USGS-32 (180 ± 0.5‰, 25.7 ± 0.4‰), USGS-34 (−1.8 ± 0.2‰, −27.9 ± 0.4‰), USGS-35 (2.7 ± 0.3‰, 57.5 ± 0.4‰) and IAEA-N3 (4.7 ± 0.3‰, 25.6 ± 0.5‰) international reference materials for δ15N and δ18O were used to calibrate the sample data after correction for blanks. The sample detection error was 0.2‰.
The isotope results are expressed in δ units defined as:
δsample(‰) = ((Rsample − Rstandard)/Rstandard) × 1000
where R represents the 15N/14N or 18O/16O ratio, expressed as δ15N and δ18O. δ15N and δ18O were expressed relative to air and the Vienna standard mean ocean water (V-SMOW), respectively.

4. Results and Discussion

4.1. Physicochemical Characteristic of Water Samples

Information on the water chemistry and concentrations of dissolution inorganic nitrogen (DIN) of the samples are presented in Table 2. The pH of the Zhihugang, Liangxi, Lihe, and Daxigang rivers ranged from 7.72 to 7.94 (mean = 7.79), 8.46 to 8.58 (mean = 8.51), 8.08 to 8.53 (mean = 8.30), and from 8.09 to 8.84 (mean = 8.42), respectively. The four rivers were slightly alkaline. DO in the Zhihugang, Liangxi, Lihe, and Daxigang Rivers ranged from 5.90 to 9.24 mg/L (mean = 7.23 mg/L), 10.49 to 10.73 mg/L (mean = 10.60 mg/L), 8.37 to 10.07 mg/L (mean = 9.47 mg/L), and from 8.66 to 11.38 mg/L (mean = 9.84 mg/L), respectively. The method of Paired-sample T test indicated that DO in Zhihugang river was significantly different from Liangxi river and Li river (p = 0.022 and p = 0.042, respectively), and was not significantly different with Daxigang river (p = 0.082); and there was a significant difference between Liangxi river and Lihe river (p = 0.046), but not with Daxigang river (p = 0.314).
Concentrations of NH4+-N in the Zhihugang, Liangxi, Lihe, and Daxigang rivers ranged from 1.09 to 4.75 mg/L (mean = 2.52 mg/L), 0.13 to 0.46 mg/L (mean = 0.35 mg/L), 0.10 to 0.51 mg/L (mean = 0.27 mg/L), and from 0.24 to 1.61 mg/L (mean = 0.72 mg/L), respectively. The highest concentration of NH4+-N in four rivers appeared at ZH3, LX1, LX4, LH1, DX1, and lowest concentration appeared at ZH2, LX2, LH3, DX4, respectively. NO3-N concentrations in the Zhihugang, Liangxi, Lihe, and Daxigang rivers ranged from 2.40 to 4.45 mg/L (mean = 3.43 mg/L), 0.76 to 0.83 mg/L (mean = 0.79 mg/L), 0.29 to 0.53 mg/L (mean = 0.42 mg/L), and from 0.43 to 3.31 mg/L (mean = 1.20 mg/L), respectively. The highest concentrations of NO3-N in four rivers appeared at ZH1, LX2, LH1 and DX1, and the lowest concentrations appeared at ZH3, LX4, LH2 and DX3. TN concentrations in the Zhihugang, Liangxi, Lihe, and Daxigang rivers ranged from 4.45 to 7.50 mg/L (mean = 6.12 mg/L), 1.18 to 1.35 mg/L (mean = 1.26 mg/L), 0.71 to 1.35 mg/L (mean = 1.08 mg/L), and from 1.14 to 5.12 mg/L (mean = 2.31 mg/L) respectively.
By one-way analysis of Variance (ANOVA) analysis of NH4+, NO3 and TN of four rivers (p = 0.015 < 0.05, 0.001 < 0.05 and 0.00 < 0.05, respective), the concentration of NH4+, NO3 and TN in four rivers had significant differences, and it might indicate that the sources in the four rivers were different.
Variations of the NH4+-N, NO3-N, and TN concentrations in the Zhihugang river, Liangxi river, Lihe river, and Daxigang rivers are shown in Figure A1 (shown in Appendix A). Because of the extensive area the Grand Canal basin covers and the large number of industries and residential areas within it, NH4+-N and NO3-N concentrations are high in the Grand Canal. The NH4+-N and NO3-N concentrations at site ZH1 in the Zhihugang river and at site DX1 in the Daxigang river were higher than at the other sampling sites because of inputs from the Grand Canal and high density population and factories around the sample sites. The NH4+-N and NO3-N concentrations at LX1 were lower than those at ZH1 and DX1, because the NH4+-N and NO3-N concentrations in the Grand Canal were lower in the section that fed the Liangxi river than in the section that fed the Zhihugang and Daxigang rivers [44] and there is lower density of population and factories. NH4+-N and NO3-N concentrations were higher at the source of the Lihe river (LH1) than at the other sampling sites in this river; this is because LH1 is located at the junction of two rivers, one of which (the Liangtang river) received inputs from the Grand Canal. Out of all the rivers, there was more variation in the NH4+-N and NO3-N concentrations in the Zhihugang river, mainly because it is the longest of the four rivers, and there are more pollution sources with a wide range of NH4+-N and NO3-N concentrations along the river [45,46,47]. The NH4+-N and NO3-N concentrations were higher in Meiliang Bay than in Gonghu Bay, and the NH4+-N and NO3-N concentrations were higher at ZH4 and LX4 than at LH4 and DX4, because of mixing processes.
NO3-N concentrations were higher than NH4+-N concentrations in the four rivers, and NO3-N in the four rivers was not from the nitrification of NH4+-N in water, but from the external pollution sources. Pearson correlation analysis (shown in Appendix A, Table A1) showed that there were no strong positive relationships between DO and NO3-N or negative relationships between DO and NH4+-N, but there was a strong positive relationship between NO3-N and NH4+-N (p < 0.01). The low temperatures (≈5 ± 3 °C) were not beneficial for nitrification (Brookshire, et al., 2011), indicating that nitrification in surface water might be not intense in our study. As reported, water quality and level of eutrophication in Meiliang Bay were more severe than in Gonghu Bay [48,49]. It indicated that the water quality of rivers had significant effect to the lake, and it is necessary to study the nitrate source and N transformation of the rivers.

4.2. Nitrate Sources and Nitrogen Transformation

The values of δ15N-NO3 and δ18O-NO3 in the Zhihugang river ranged from +4.83‰ to +9.15‰ and from −0.12‰ to −7.65‰, with mean values of +7.52‰ to −4.46‰, respectively (Table 2). The values of δ15N-NO3 and δ18O-NO3 in the Liangxi river ranged from +10.81‰ to +15.11‰ and from +0.11‰ to +9.38‰, with mean values of +12.50‰ and +4.49‰ respectively. The values of δ15N-NO3 and δ18O-NO3 in the Lihe river ranged from +7.94‰ to +11.62‰ and from −5.00‰ to +12.35‰ (Table 2), with mean values of +9.47‰ and +4.63‰ respectively. The δ15N-NO3 values in the Lihe river gradually declined in clear steps, such that the δ15N-NO3 value at L3 was negative, and was different from the values at the other Lihe river sites. The δ15N-NO3 and δ18O-NO3 values in the Daxigang river ranged from +5.04‰ to +13.64‰ and from −12.26‰ to +1.01‰, with mean values of +9.39‰ and −5.42‰ respectively. The δ15N-NO3 and δ18O-NO3 values in the Daxigang river fluctuated significantly, indicating that N transformations may be influenced by a range of factors, such as microbial nitrification, denitrification, mixing or assimilation by algae [25,26,50,51].
The δ15N values in water in this study ranged from +4‰ to +15‰ (Table 2), which indicates that the NO3-N source of these four rivers is very complicated. Because of the wide variability of NO3-N from different sources, in this study we used the δ18O-NO3 ratio to help identify NO3-N sources [15,52]. The δ18O-NO3 values in our samples were lower than 15‰, further suggesting that neither atmospheric precipitation [29] (δ18O-NO3 > 60‰,) nor nitrate-fertilizer is major sources of riverine nitrate in our study.
After one-way ANOVA analysis of δ15N-NO3 and δ18O-NO3 in the four rivers, it was found there were no significant differences of δ15N-NO3 (p = 0.071 > 0.05), but significant differences of δ18O-NO3 (p = 0.032 < 0.05) in the four rivers. Thus, we inferred that the sources of nitrate in the four rivers might be different.
Figure 3 shows that there may be differences between the NO3-N sources in the four rivers. The NO3-N that primarily originates from sewage has δ15N-NO3 values of nearly 10‰, such as were reported for sites ZH1, ZH3, ZH4, and DX1. These sites could be assigned to one source. Water samples with a low NO3-N content, such as those at sites LH3, LH4, and DX3, have δ15N-NO3 values between +3‰ and +8‰, suggesting that the NO3-N might be originally derived from nitrification of ammonium in precipitation, fertilizer, sewage and manure, as well as soil organic N. But the value of δ18O-NO3 at these sites was from −12.26‰ to +2.56‰, that was much less than the value of δ18O-NO3 coming from the nitrification of ammonium (+25‰–+75‰) in precipitation and fertilizer (+17‰–+25‰) [53,54,55]. Thus we inferred that the source of nitrate of these sites was from soil organic N (−10‰–+15‰) [56]. The low water temperature (≈5 ± 3 °C) and the high dissolved oxygen (DO > 6 mg/L) was not beneficial for denitrification, and there was no significant negative correlation between NO3 and δ15N-NO3 by Pearson correlation analysis, so we inferred that the denitrification at these points was not the main reason for the low concentration of nitrate nitrogen and high δ15N-NO3 values in the water [57,58]. So the samples with low NO3-N concentrations have δ15N-NO3 values greater than 10‰, which indicates that the NO3-N was the result of a mixture of sewage and soil organic N; this was the case at sampling sites ZX2, LX1, LX2, LX3, LX4, LH1, LH2, DX2, and DX4.
Several influence factors were found, which influence isotopic compositions of NO3-N sources, such as mixing, ammonification, nitrification, denitrification and so on. Although each NO3-N source has its own distinctive isotopic composition, the mixture may lead the intermediate values. The ammonification and nitrification results in some fractionation of δ15N-NO3, the enrichment factors are between −1‰ to +1‰ and 12‰ to 29‰ [59]. Microbial denitrification may result in some fractionation of δ15N-NO3 and δ18O-NO3, however the enrichment factors are within −40‰ to −5‰ and −18‰ to −8‰ respectively [60,61]. Therefore, Cl may be a useful indicator of sewage and manure, because of its stability in water and its resistance to physical, chemical and biological processes. Therefore, the NO3-N/Cl ratio can be used to obtain further information about the effects of N transformation processes, such as dilution or denitrification [21,53]. The Cl concentrations in the Zhihugang river gradually declined along the river (Table 2), and there was generally a positive correlation (Figure 4, R2 = 0.7223) between Cl and NO3-N, which indicates that mixing and dilution processes had a major effect on NO3-N transport. A positive relationship (Figure 5) was found between δ15N-NO3 and δ18O-NO3, with a linear regression slope of 0.8628 in the Zhihugang river, which indicated that denitrification occurred in the Zhihugang river but less significantly. There was little variation in Cl concentrations in the Liangxi river (Table 2), and Cl and NO3-N in the Liangxi river were not correlated (Figure 4, R2 = 0.4555), which indicates that mixing and dilution processes had limited effects on NO3-N transport. There was a negative correlation between δ15N-NO3 and δ18O-NO3 in the Liangxi river (Figure 5, k = −0.4337), which suggests that denitrification may not be the reason for the shift in the δ15N-NO3 and δ18O-NO3 values, and δ18O-NO3 values indicates a mixing of different nitrate sources. Algae would easily grow in the Liangxi river because of its slow flow, and assimilation by algae would lead to enrichment of residual NO3-N with heavy isotopes [62,63]; this helps explain the low NH4+-N and NO3-N concentrations, and the high δ15N-NO3 values, in the Liangxi river.
The ranges of Cl concentrations in Lihe river exhibited no large variation, but a positive correlation (Figure 4, R2 = 0.6497) between Cl and NO3-N had been observed, indicating that the mixing process had an effect on nitrate transportation in Lihe river. No negative relationship between NO3-N and δ15N/ δ18O-NO3 was observed (not shown) in the Lihe river. But a positive relationship was found between δ15N-NO3 and δ18O-NO3 with the slope of the linear regression of 3.95 (Figure 5, R2 = 0.8526) in Lihe river, which indicated that denitrification might be responsible for the shifting δ15N-NO3 and δ18O-NO3 values, although the slope was bigger than that reported for denitrification (1.3–2.1) [64,65,66]. No clear positive correlation (Figure 4, R2 = 0.2651) between Cl and NO3-N was observed, but a gradual decline of Cl concentrations was observed in the Daxigang river, which may indicate that dilution plays a major role in the variation of Cl and NO3. A strong positive (Figure 5) between δ15N-NO3 and δ18O-NO3, with a linear regression slope of 1.0797 of the Daxigang river (Figure 5, R2 = 0.378), which indicated that denitrification might be mainly responsible for the shifting δ15N-NO3 and δ18O-NO3 values.

4.3. Quantification of Nitrate Sources in Rivers

The sampling sites were close to areas of human habitation, agricultural land and forest land [68]. In order to quantify the NO3-N sources in the rivers, it was assumed that the nitrate of the rivers mainly comes from three sources (chemical fertilizer, soil organic N, and sewage) because of the type of land use around the rivers. When NO3-N from these three sources was mixed together, an isotope mixing model could be used to determine the relative importance of these sources. The mixing model is described by the following formulae:
δ15NM = f1δ15Nc + f2δ15Nson + f3δ15Ns
δ18OM = f1δ18Oc + f2δ18Oson + f3δ18Os
1 = fc + fson + fs,
where δ15NM and δ18OM are the NO3-N isotope values from the mixture. The subscripts c, son and s represent the NO3-N sources of chemical fertilizer, soil organic N and sewage. f is defined as the proportional contribution of the respective source. Results of the calculations are shown in Table 3.
As shown in Table 3, nitrification of soil organic N and sewage were the dominant NO3-N source in Liangxi, Lihe, and Daxigang rivers, which is consistent with results of Ding et al. [36]. In this paper, nitrification of soil organic N, but not the sewage, was the dominant NO3-N source in the Zhihugang river, which was inconsistent with the results of Chen et al. [70]. The reason for this difference might be that there are a lot of tributaries and farmland in the Zhihugang river basin, and also the fact that winter is the wheat season in the Taihu basin. During the wheat season, NO3-N accounted for 62–91% of the TN [71] that entered the main channel of the Zhihugang river through surface runoff or tributaries. This result indicated that the main source of nitrate in the Zhihugang river was soil organic N in winter. Domestic sewage was the major NO3-N source in the Liangxi river, which is consistent with the results of Lin et al. [30]. Domestic sewage and soil organic N were the major NO3-N sources in the Lihe river and the Daxigang river, which is consistent with the results of Yang et al. [72].
In order to assist pollution source control in the watershed, the annual amount of NO3-N imported to the four rivers has been quantified. The estimating formula is described by the following formulae:
T (NO3-N)I (ton/a) = Ci (mg/L) × Qi (m3/a) × fi (%) × 106
where T (NO3-N)I are the annual total amounts of the three NO3-N sources (chemical fertilizer, soil organic N, and sewage). Ci is the average concentration of NO3-N of four rivers. According the Table 2, the average concentration of NO3-N in the Zhihugang, Liangxi, Lihe and Daxigang rivers was 3.42 (mg/L), 0.79 (mg/L), 0.41 (mg/L) and 1.20 (mg/L) respectively. fi are the contributions of the respective sources of NO3-N. Qi was the annual runoff of four rivers (Table 1). Results of the calculations are shown in Table 4.
Table 4 shows that the annual amounts of NO3-N in the Zhihugang river and Daxigang river were higher than the annual amounts of TN in the two rivers (in Table 1).This could be because the annual amount of TN in the four rivers in Table 1 was the net amount of TN, but the result of the Table 4 was the gross amount. But this result indicates that nitrate pollution was the main nitrogen pollution in the Zhihugang and Daxigang rivers, and the N transformations in the two rivers were complicated, such as the denitrification. So, pollution control and harnessing in the Zhihugang and Daxigang river basins should be strengthened. Annual amounts of NO3-N from sewage in the four rivers discharging into Meiliang Bay and Gonghu Bay were 34.8 to 207.6 ton and 70.7 to 98.9 ton respectively. Some reports have shown that the annual average proportions of the domestic sewage source in Meiliang Bay and Gonghu Bay were 17.2% and 15.3% respectively [34]. Based on the results of Zhen et al. [34] and Wang et al. [40], annual total amounts of NO3-N from sewage discharging into Meiliang Bay and Gonghu Bay were about 357 and 253 ton respectively. The sewage was not the main NO3-N source in Zhihugang river, but the maximum annual amount of NO3-N from sewage accounted for about 51.5% of annual total amounts NO3-N imported into Meiliang Bay. Therefore, it is very necessary to pay attention to the control of sewage pollution in the watershed of the Zhihugang river.

5. Conclusions

Results from this study of four rivers to the north of Taihu Lake show that the water quality of the rivers to the northwest of Taihu Lake was worse than that of rivers in the northeast (according to the national quality standards for surface waters, China (GB3838-2002)). Also, NO3-N was the dominant inorganic N species in the four rivers during the sampling season. It means that we need more strict protection measures, emission standards and wastewater treatment with the abilities of denitrification to protect the rivers to the northwest of Taihu Lake. Because it was winter, we ignored the contribution of atmospheric NO3-N to rivers. Soil organic N, with a contribution from 75.06% to 79.47%, was the major NO3-N source in the Zhihugang. Domestic sewage, with a contribution from 56.70% to 71.13%, was the major NO3-N source in the Liangxi river. Dilution and mixing processes may play a major role in N transformations in the Zhihugang river, but might contribute to assimilation by algae in the Liangxi river. Soil organic N and domestic sewage were the main NO3-N sources in the Lihe and Daxigang rivers, with contributions greater than 30% and 35% respectively. Denitrification might result in the enrichment of heavy isotopes of NO3-N in the Daxigang river, but mixing process may play a major role in N transformations in the Lihe river. The maximum annual amount of NO3-N from sewage in the Zhhugang river was highest of the four rivers. Therefore, while sewage was not the main NO3-N source in the Zhihugang river, it is very necessary that we pay attention to the control of sewage pollution in the watershed of the Zhihugang river.

Acknowledgments

We thank Zhongqi Song and Caiyun Zhang for their help during the sample collection. We also thank Environmental Stable Isotope Lab of Chinese Academy of Agricultural Sciences (AESIL, CAAS) for their help during the sample analysis. We greatly appreciate the comments from the three anonymous reviewers. This study is financially supported by the Major Science and Technology Program for Water Pollution Control and Treatment (2012ZX07101-001), China.

Author Contributions

Da Li, Xia Jiang and Binghui Zheng conceived, designed, conducted and analyzed experimental data of this research; Da Li wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest. The founding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results.

Ethical Statement

In this paper, I guarantee that information I provide above is correct, and any part of the paper has not been published or being reviewed elsewhere, and that I did not violate ethical standards and there is no plagiarism in this study.

Appendix A

Figure A1. Spatial variations of (a) NH4+-N; (b) NO3—N; and (c) TN in the Zhihugang, Liangxi, Lihe and Daxigang rivers.
Figure A1. Spatial variations of (a) NH4+-N; (b) NO3—N; and (c) TN in the Zhihugang, Liangxi, Lihe and Daxigang rivers.
Water 09 00345 g006
Table A1. Correlation coefficients between nitrogen and physicochemical variables in the Zhihugang, Liangxi, Lihe and Daxigang rivers.
Table A1. Correlation coefficients between nitrogen and physicochemical variables in the Zhihugang, Liangxi, Lihe and Daxigang rivers.
Zhihugang River
pHDOTOCClNH4+-NNO3-NTN
pH10.0130.992 **−0.783−0.993 **−0.993 **−0.023
DO 10.136−0.391−0.060−0.060−0.933 *
TOC 1−0.806−0.986 **−0.986 **−0.124
Cl 10.8500.8500.550
NH4+ 11.000 **0.106
NO3 10.106
TN 1
Liangxi River
pHDOTOCCl-NH4+-NNO3-NTN
pH10.1960.349−0.073−0.591−0.5910.075
DO 10.7040.0570.4180.418−0.959 *
TOC 1−0.652−0.256−0.256−0.553
Cl- 10.6750.675−0.172
NH4+ 11.000 **−0.642
NO3 1−0.642
TN 1
Lihe River
pHDOTOCCl-NH4+-NNO3-NTN
pH1−0.077−0.2750.3580.2570.2570.479
DO 10.212−0.047−0.625−0.6250.297
TOC 1−0.982 *−0.895−0.895−0.832
Cl 10.8060.8060.922
NH4+ 11.000 **0.530
NO3 10.530
TN 1
Daxigang River
pHDOTOCCl-NH4+-NNO3-NTN
pH10.993 **−0.963 *−0.713−0.533−0.533−0.362
DO 1−0.632−0.971 *−0.620−0.620−0.463
TOC 10.5320.0350.035−0.169
Cl 10.5150.5150.373
NH4+ 11.000 **0.978 *
NO3 10.978 *
TN 1
Notes: * Correlation is significant at the 0.05 level (2-tailed). **. Correlation is significant at the 0.01 level (2-tailed).

References

  1. Li, Y.K. The Population and Regional Economies Development Collaborative Researeh about Taihu Lake Basin (1990-); College of Law and Political Seience, Zhejiang Normal University: Jinhua, China, 2011; pp. 22–40. [Google Scholar]
  2. Qian, Y.C.; He, P. An Analysison the Changes in the Water Quality in Taihu Basin during 1998–2006. Acta Agric. Univ. Jiangxiensis 2009, 2, 371–374. [Google Scholar]
  3. Yu, H.; Yan, S.W.; Xu, J. Multivariate statistical analysis of river water quality around Taihu Lake. Resour. Environ. Yangtze Basin 2010, 19, 696–702. [Google Scholar]
  4. Chen, X.F.; Chuai, X.M.; Zheng, J.; Liu, T.; Yang, L.Y. Nitrogen Fluxes and Its Self-Purification Capacity in Lake Taihu. Environ. Sci. 2012, 33, 2309–2314. [Google Scholar]
  5. Liu, H.; Sum, H. A case study on Wuxi city: Relationship between economic growth and water environment. Resour. Ind. 2009, 11, 146–149. [Google Scholar]
  6. Wu, Y.L.; Xu, H.; Yang, G.J.; Zhu, G.W.; Qin, B.Q. Progress in nitrogen pollution research in Lake Taihu. J. Lake Sci. 2014, 26, 19–28. [Google Scholar]
  7. Zhai, S.H.; Zhang, H.J. Water quantity and waste load variation of rivers around Lake Taihu from 2000 to 2002. J. Lake Sci. 2006, 18, 225–230. [Google Scholar]
  8. Curt, M.D.; Aguado, P.; Sánchez, G.; Bigeriego, M.; Fernández, J. Nitrogen isotope ratios of synthetic and organic sources of nitrate water contamination in Spain. Water Air Soil Pollut. 2004, 151, 135–142. [Google Scholar] [CrossRef]
  9. Smil, V. Nitrogen in crop production: An account of global flows. Glob. Biogeochem. Cycles 1999, 13, 465–472. [Google Scholar] [CrossRef]
  10. Benkovitz, C.M.; Scholtz, M.T.; Pacyna, J.; Tarrasón, L.; Dignon, J.; Voldner, E.C.; Spiro, P.A.; Logan, J.A.; Graedel, T.E. Global gridded inventories of anthropogenic emissions of sulfur and nitrogen. J. Geophys. Res. 1996, 101, 29239–29253. [Google Scholar] [CrossRef]
  11. Qin, B.; Xu, P.; Wu, Q.; Luo, L.; Zhang, Y. Environmental issues of Lake Taihu, China. Hydrobiologia 2007, 581, 3–14. [Google Scholar] [CrossRef]
  12. Wells, E.R.; Krothe, N.C. Seasonal fluctuation in δ15N of groundwater nitrate in a mantled karst aquifer due to macropore transport of fertilizer-derived nitrate. J. Hydrol. 1989, 112, 191–201. [Google Scholar] [CrossRef]
  13. Mayer, B.; Boyer, E.W.; Goodale, C.; Jaworski, N.A.; Breemen, N.V.; Howarth, R.W.; Seitzinger, S.; Billen, G.; Lajtha, K.; Nadelhoffer, K.; et al. Sources of nitrate in rivers draining sixteen watersheds in the northeastern U.S.: Isotopic constraints. Biogeochemistry 2002, 57/58, 171–197. [Google Scholar] [CrossRef]
  14. Mayer, B.; Bollwerk, S.M.; Mansfeldt, T.; Hütter, B.; Veizer, J. The oxygen isotope composition of nitrate generated by nitrification in acid forest floors. Geochim. Cosmochim. Acta 2001, 65, 2743–2756. [Google Scholar] [CrossRef]
  15. Li, S.L.; Liu, C.Q.; Li, J.; Liu, X.L.; Chetelat, B.; Wang, B.L.; Wang, F.S. Assessment of the sources of nitrate in the Changjiang River, China using a nitrogen and oxygen isotopic approach. Environ. Sci. Technol. 2010, 44, 1573–1578. [Google Scholar] [CrossRef] [PubMed]
  16. Kendall, C.; Elliott, E.M.; Wankel, S.D. Tracing anthropogenic inputs of nitrogen to ecosystems. In Stable Isotopes in Ecology and Environmental Science, 2nd ed.; Michener, R., Lajtha, K., Eds.; Blackwell Publishing: Oxfordshire, UK, 2007; pp. 375–449. [Google Scholar]
  17. Hales, H.C.; Ross, D.S.; Lini, A. Isotopic signature of nitrate in two contrasting watersheds of Brush Brook, Vermont, USA. Biogeochemistry 2007, 84, 51–66. [Google Scholar] [CrossRef]
  18. Kellman, L.; Hillaire-Marcel, C. Nitrate cycling in streams: Using natural abundances of NO315N to measure in-situ denitrification. Biogeochemistry 1998, 43, 273–292. [Google Scholar] [CrossRef]
  19. Delwiche, C.; Steyn, P. Nitrogen isotope fractionation in soils and microbial reactions. Environ. Sci. Technol. 1970, 4, 929–935. [Google Scholar] [CrossRef]
  20. Macko, S.A.; Ostrom, N.E. Molecular and pollution studies using stable isotope. In Stable Isotopes in Ecology and Environmental Science; Lajtha, K., Michner, R., Eds.; Blackwell Scientific: Oxford, UK, 1994; pp. 45–62. [Google Scholar]
  21. Widory, D.; Kloppmann, W.; Chery, L.; Bonnin, J.; Rochdi, H.; Guinamant, J.L. Nitrate in groundwater, an isotope multi-tracer approach. J. Contam. Hydrol. 2004, 72, 165–188. [Google Scholar] [CrossRef] [PubMed]
  22. Seiler, R.L. Combined use of 15N and 18O of nitrate and 11B to evaluate nitrate contamination in groundwater. Appl. Geochem. 2005, 20, 1626–1636. [Google Scholar] [CrossRef]
  23. Böttcher, J.; Strebel, O.; Voerkelius, S.; Schmidt, H.L. Using isotope fractionation of nitrate nitrogen and nitrate oxygen for evaluation of microbial denitrification in a sandy aquifer. J. Hydrol. 1990, 114, 413–424. [Google Scholar] [CrossRef]
  24. Mengis, M.; Schiff, S.L.; Harris, M.; English, M.C.; Aravena, R.; Elgood, R.J.; Maclean, A. Multiple geochemical and isotopic approaches for assessing ground water NO3 elimination in a riparian zone. Ground Water 1999, 37, 448–457. [Google Scholar] [CrossRef]
  25. Fukada, T.; Hiscock, K.M.; Dennis, P.F.; Grischek, T. A dual isotope approach to identify denitrification in ground water at a river bank infiltration site. Water Res. 2003, 37, 3070–3078. [Google Scholar] [CrossRef]
  26. Panno, S.V.; Hackley, K.C.; Kelly, W.R.; Hwang, H.-H. Isotopic evidence of nitrate sources and denitrification in the Mississippi River, Illinois. J. Environ. Qual. 2006, 35, 495–504. [Google Scholar] [CrossRef] [PubMed]
  27. Durka, W.; Schulze, E.D.; Gebauer, G.; Voerkelius, S. Effects of forest decline on uptake and leaching of deposited nitrate determined from 15N and 18O measurements. Nature 1994, 372, 765–767. [Google Scholar] [CrossRef]
  28. Wassenaar, L.I. Evaluation of the origin and fate of nitrate in the Abbotsford Aquifer using the isotopes of 15N and 18O in NO3. Appl. Geochem. 1995, 10, 391–405. [Google Scholar] [CrossRef]
  29. Koba, K.; Tokuchi, N.; Wada, E.; Nakajima, T.; Iwatsubo, G. Intermittent denitrification: The application of δ15N natural abundance method to a forested ecosystem. Geochim. Cosmochim. Acta 1997, 61, 5043–5050. [Google Scholar] [CrossRef]
  30. Lin, L.; Wu, J.L.; Zeng, H.-A.; Liu, W. Stable nitrogen isotope tracing anthropogenic influence on Lake Taihu. J. Lake Sci. 2012, 4, 546–552. [Google Scholar] [CrossRef]
  31. Townsend-Small, A.; McCarthy, M.J.; Brandes, J.A.; Yang, L.; Zhang, L.; Gardner, W.S. Stable isotopic composition of nitrate in Lake Taihu, China, and major inflow rivers. Hydrobiologia 2007, 581, 135–140. [Google Scholar] [CrossRef]
  32. Chen, Z.X. Using Nitrogen and Oxygen Isotopic Composition in Dissolved Nitrate to Identify Nitrate Source in Taihu Lake and Chaohu Lake, China. Ph.D. Thesis, University of Science and Technology of China, Hefei, China, 2012. [Google Scholar]
  33. Xie, Y.X.; Xiong, Z.Q.; Xing, G.X.; Sun, G.Q.; Zhu, Z.L. Assessment of nitrogen pollutant sources in surface waters of Taihu Lake region. Pedosphere 2007, 17, 200–208. [Google Scholar] [CrossRef]
  34. Zhen, S.; Zhu, W. Analysis of isotope tracing of domestic sewage sources in Taihu Lake—A case study of Meiliang Bay and Gonghu Bay. Ecol. Indic. 2016, 66, 113–120. [Google Scholar] [CrossRef]
  35. Zhu, J.G.; Liu, G.; Han, Y.; Zhang, Y.L.; Xing, G.X. Nitrate distribution and denitrification in the saturated zone of paddy field under rice/wheat rotation. Chemosphere 2003, 50, 725–732. [Google Scholar] [CrossRef]
  36. Ding, J.T.; Xi, B.D.; Rutai, G.B.; He, L.S.; Liu, H.L.; Dai, X.L.; Yu, Y.J. Identifying diffused nitrate sources in a stream in an agricultural field using a dual isotopic approach. Sci. Total Environ. 2014, 484, 10–18. [Google Scholar] [CrossRef] [PubMed]
  37. Zhang, X.Q.; Chen, Q.W. Spatial-temporal characteristic of water quality in Lake Taihu and its relationship with algal bloom. J. Lake Sci. 2011, 23, 339–347. [Google Scholar]
  38. Li, H.P.; Huang, W.Y.; Yang, G.S.; Liu, X.M. Non-point pollutant concentrations for diferent land uses in Lihe River watershed of Taihu Region. China Environ. Sci. 2006, 26, 243–247. [Google Scholar]
  39. System Planning of Wuxi. Available online: https://wenku.baidu.com/view/5835764002d276a200292ec2.html?from=search (accessed on 18 December 2007).
  40. Wang, P.; Wang, C. Water Quality in Taihu Lake and the Effects of the Water Transfer from the Yangtze River to Taihu Lake Project. Compr. Water Qual. Purif. 2014, 4, 136–161. [Google Scholar] [CrossRef]
  41. Sigman, D.M.; Casciotti, K.L.; Andreani, M.; Barford, C.; Galanter, M.; Böhlke, J.K. A bacterial method for the nitrogen isotopic analysis of nitrate in seawater and freshwater. Anal. Chem. 2001, 73, 4145–4153. [Google Scholar] [CrossRef] [PubMed]
  42. Casciotti, K.L.; Sigman, D.M.; Hastings, M.G.; Bohlke, J.K.; Hilkert, A. Measurement of the oxygen isotopic composition of nitrate in seawater and freshwater using the denitrifier method. Anal. Chem. 2002, 74, 4905–4912. [Google Scholar] [CrossRef] [PubMed]
  43. Wankel, S.D.; Kendall, C.; Francis, C.A.; Paytan, A. Nitrogen sources and cycling in the San Francisco Bay Estuary: A nitrate dual isotopic composition approach. Limnol. Oceanogr. 2006, 51, 1654–1664. [Google Scholar] [CrossRef]
  44. Wang, X.L.; Han, J.Y.; Xu, L.G.; Zhang, Q. Spatial and seasonal variations of the contamination within water body of the The Grand Canal, China. Environ. Pollut. 2010, 158, 1513–1520. [Google Scholar]
  45. Liang, T.; Wang, S.N.; Cao, H.Y.; Zhang, C.S.; Li, H.T.; Li, H.P.; Song, W.C.; Chong, Z.Y. Estimation of ammonia nitrogen load from nonpoint sources in the Xitiao River catchment, China. J. Environ. Sci. 2008, 20, 1195–1201. [Google Scholar] [CrossRef]
  46. Francois, P.; Tangomo, M.; Hibbs, J.; Bonetti, E.J.; Boehme, C.C.; Notomi, T.; Perkins, M.D.; Schrenzel, J. Robustness of a loop-mediated isothermal amplification reaction for diagnostic applications. Fems Immunol. Med. Microbiol. 2011, 62, 41–48. [Google Scholar] [CrossRef] [PubMed]
  47. Ma, X.; Li, Y.; Zhang, M.; Zheng, F.; Du, S. Assessment and analysis of non-point source nitrogen and phosphorus loads in the Three Gorges Reservoir Area of Hubei Province, China. Sci. Total Environ. 2011, 412–413, 154–161. [Google Scholar] [CrossRef] [PubMed]
  48. Hu, L.; Hu, W.; Zhai, S.; Wu, H. Effects on water quality following water transfer in Lake Taihu, China. Ecological Engineering 2010, 36, 471–481. [Google Scholar] [CrossRef]
  49. Chen, J.; Xie, P.; Man, Z.M.; Niu, Y.; Tao, M.; Deng, X.W.; Wang, Q. A systematic study on spatial and seasonal patterns of eight taste and odor compounds with relation to various biotic and abiotic parameters in Gonghu Bay of Lake Taihu, China. Sci. Total Environ. 2010, 409, 314–325. [Google Scholar] [CrossRef] [PubMed]
  50. Kendall, C. Tracing sources and cycling of nitrate in catchments. In Isotope Tracers in Catchmenthydrology; Kendall, C., Mcdonnell, J.J., Eds.; Elsevier: Amsterdam, The Netherlands, 1998; pp. 519–576. [Google Scholar]
  51. Fogel, M.L.; Cifuentes, L.A. Isotope fractionation during primary production. In Organic Geochemistry; Engel, M.H., Macko, S.A., Eds.; Plenum Press: New York, NY, USA, 1993; pp. 73–98. [Google Scholar]
  52. Hollocher, T.C. Source of the oxygen atoms of nitrate in the oxidation of nitrite by Nitrobacter agilis and evidence against a P-O-N anhydride mechanism in oxidative phosphorylation. Arch. Biochem. Biophys. 1984, 233, 721–727. [Google Scholar] [CrossRef]
  53. Xue, D.M.; Botte, J.; De Baets, B.; Accoe, F.; Nestler, A.; Taylor, P.; Van Cleemput, O.; Berglund, M.; Boeckx, P. Present limitations and future prospects of stable isotope methods for nitrate source identification in surface- and groundwater. Water Res. 2009, 43, 1159–1170. [Google Scholar] [CrossRef] [PubMed]
  54. Singleton, M.J.; Esser, B.K.; Moran, J.E.; Hudson, G.B.; McNab, W.W.; Harter, T. Saturated zone denitrification: Potentialfor natural attenuation of nitrate contamination in shallow groundwater under dairy operations. Environ. Sci. Technol. 2007, 41, 759–765. [Google Scholar] [CrossRef] [PubMed]
  55. Lee, K.S.; Bong, Y.S.; Lee, D.; Kim, Y.; Kim, K. Tracing the sources of nitrate in the Han River watersheds in Korea, using δ15N-NO3 and δ18O-NO3 values. Sci. Total Environ. 2008, 395, 117–124. [Google Scholar] [CrossRef] [PubMed]
  56. Umezawa, Y.; Hosono, T.; Onodera, S.; Siringan, F.; Buapeng, S.; Delinom, R.; Yoshimizu, C.; Tayasu, I.; Nagata, T.; Taniguchi, M. Sources of nitrate and ammonium contamination in ground water under developing Asianmegacities. Sci. Total Environ. 2008, 404, 361–376. [Google Scholar] [CrossRef] [PubMed]
  57. Aravena, R.; Robertson, W.D. Use of multiple isotope tracers to evaluate denitrification in ground water: Study of nitrate from a large-flux septic system plume. Ground Water 1998, 36, 975–982. [Google Scholar] [CrossRef]
  58. Xu, J.R.; Wang, Y.S.; Yin, J.P.; Wang, Q.J.; Zhang, F.Q.; He, L.; Sun, C.C. Transformation of dissolved inorganic nitrogen species and nitrigication and denitrification processes in the near sea section of Zhujiang river. Acta Sci. Circumst. 2005, 25, 686–692. [Google Scholar]
  59. Kendall, C.; Grim, E. Combustion tube method for measurement of nitrogen isotope ratios using calcium oxide for total removal of carbon dioxide and water. Anal. Chem. 1990, 62, 526–529. [Google Scholar] [CrossRef]
  60. Sebilo, M.; Billen, G.; Grably, M.; Mariotti, A. Isotopic composition of nitrate-nitrogen as a marker of riparian and benthic denitrification at the scale of the whole Seine river system. Biogeochemistry 2003, 63, 35–51. [Google Scholar] [CrossRef]
  61. Lehmann, M.F.; Reichert, P.; Bernasconi, S.M.; Barbieri, A.; McKenzie, A. Modelling nitrogen and oxygen isotope fractionation during denitrification in a lacustrine redoxtransition zone. Geochim. Cosmochim. Acta 2003, 67, 2529–2542. [Google Scholar] [CrossRef]
  62. Battaglin, W.A.; Kendall, C.; Chang, C.C.; Silva, S.R.; Campbell, D. Chemical and isotopic evidence of nitrogen transformationin the Mississippi River, 1997−98. Hydrol. Process. 2001, 15, 1285–1300. [Google Scholar] [CrossRef]
  63. Johannsen, A.; Dähnke, K.; Emeis, K. Isotopic composition of nitrate in five German rivers discharging into the North Sea. Org. Geochem. 2008, 39, 1678–1689. [Google Scholar] [CrossRef]
  64. Zhang, Y.; Li, F.D.; Zhang, Q.Y.; Li, J.; Liu, Q. Tracing nitrate pollution sources and transformation in surface- and ground-waters using environmental isotopes. Sci. Total Environ. 2014, 490, 213–222. [Google Scholar] [CrossRef] [PubMed]
  65. Yue, F.J.; Li, S.L.; Liu, C.Q.; Zhao, Z.Q.; Hu, J. Using dual isotopes to evaluate sources and transformation of nitrogen in the Liao River, northeast China. Appl. Geochem. 2013, 36, 1–9. [Google Scholar] [CrossRef]
  66. Granger, J.; Sigman, D.M.; Needoba, J.A.; Harrison, P.J. Coupled nitrogen and oxygen isotope fractionation of nitrate during assimilation by cultures of marine phytoplankton. Limnol. Oceanogr. 2004, 49, 1763–1773. [Google Scholar] [CrossRef]
  67. Widory, D.; Petelet-Giraud, E.; Brenot, A.; Bronders, J.; Tirez, K.; Boeckx, P. Improving the management of nitrate pollution in water by the use of isotope monitoring: The δ15N, δ18O and δ11B triptych. Isot. Environ. Health Stud. 2013, 49, 29–47. [Google Scholar] [CrossRef] [PubMed]
  68. Wang, X.L.; Lu, Y.L.; Han, J.Y.; He, G.Z.; Wang, T.Y. Identification of anthropogenic influences on water quality of rivers in Taihu watershed. J. Environ. Sci. 2007, 19, 475–481. [Google Scholar] [CrossRef]
  69. Amberger, A.; Schmidt, H.L. Naturliche isotopengehalte von nitrat als indikatoren fur dessen Herkunft. Geochim. Cosmochim. Acta 1987, 51, 2699–2705. [Google Scholar] [CrossRef]
  70. Chen, Y.W.; Fan, C.X.; Katrin, T.; Dokulil, M. Changes of nutrients and phytoplankton chlorophyll-a in a large shallow lake Taihu, China: An 8-year investigation. Hydrobiologia 2003, 506, 273–279. [Google Scholar] [CrossRef]
  71. Tian, Y.H.; Yin, B.; Yang, L.Z.; Yin, S.X.; Zhu, Z.L. Nitrogen runoff and leaching losses during rice-wheat rotations in Taihu Lake region, China. Pedosphere 2007, 4, 445–456. [Google Scholar] [CrossRef]
  72. Yang, L.Z. The Water Environment Synthetically Regulation Planning and Research of Daxigang River and Xiaoxigang River; Nanjing Agricultural University: Nanjing, China, 2005; pp. 12–47. [Google Scholar]

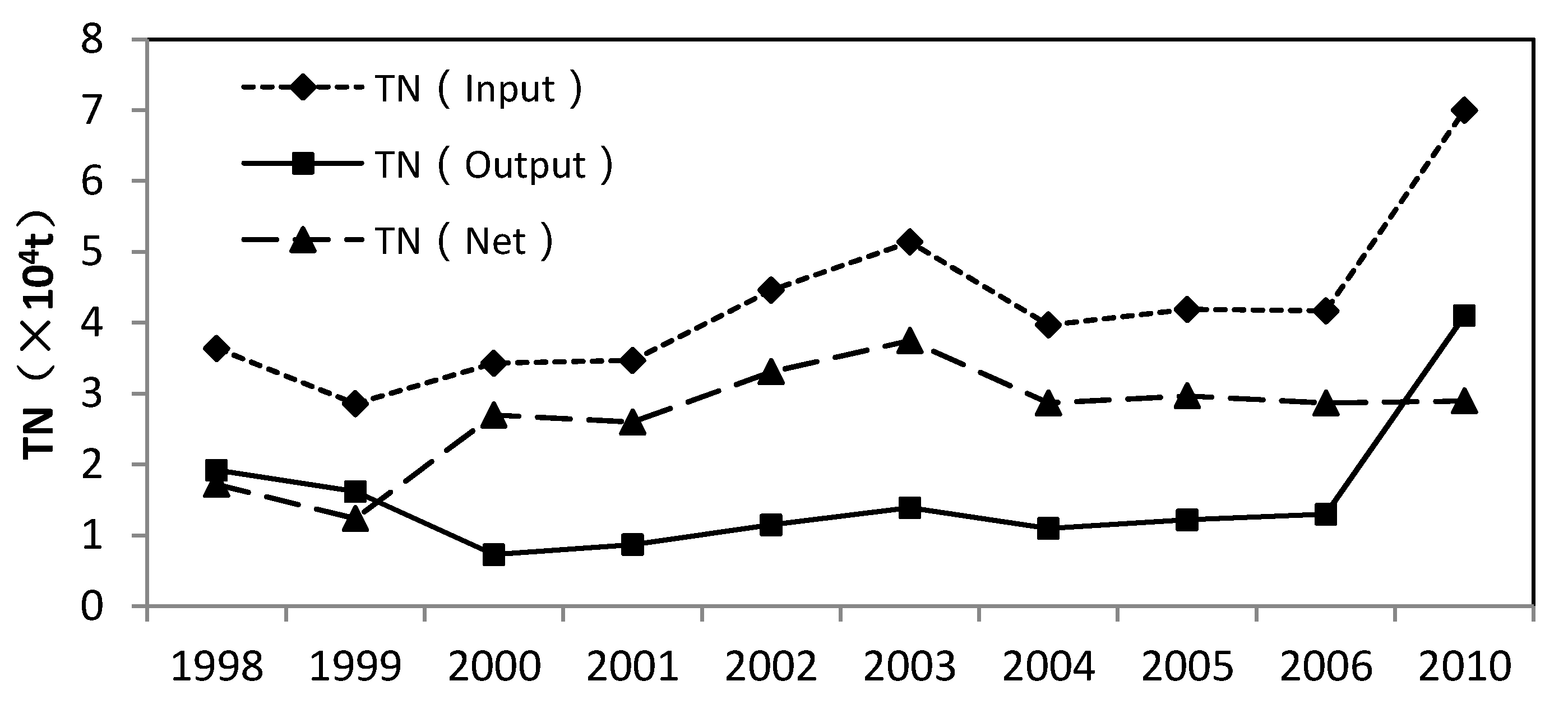

Figure 1. Total Nitrogen (TN) input and output throughout the years in Taihu Lake [2,4].
Figure 1. Total Nitrogen (TN) input and output throughout the years in Taihu Lake [2,4].
Water 09 00345 g001
Figure 2. Location of the rivers studied (Zhihugang, Liangxi, Lihe, and Daxigang rivers) and their sampling sites.
Figure 2. Location of the rivers studied (Zhihugang, Liangxi, Lihe, and Daxigang rivers) and their sampling sites.
Water 09 00345 g002

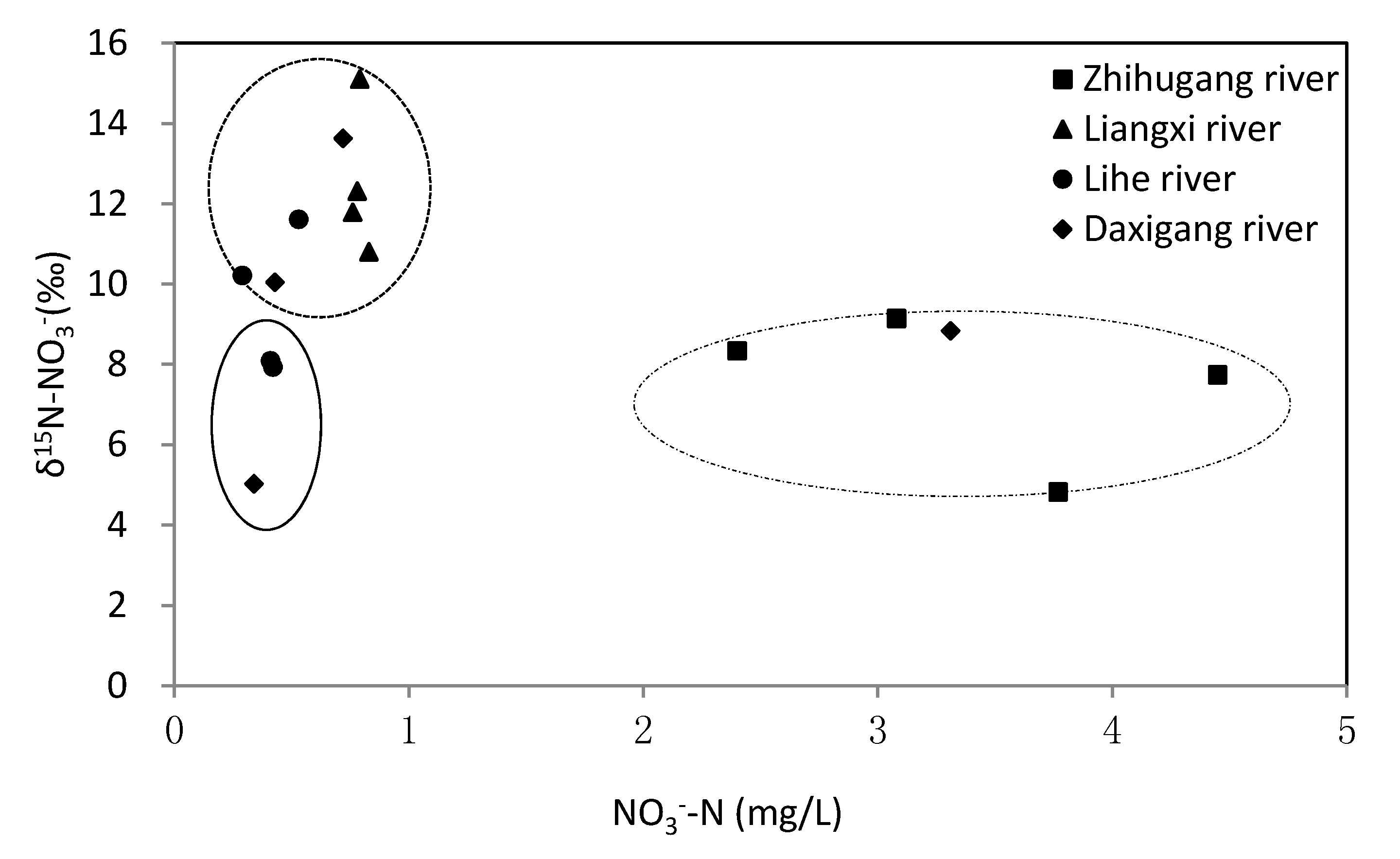

Figure 3. Relationships between NO3-N and δ15N-NO3 in the Zhihugang, Liangxi, Lihe, and Daxigang rivers.
Figure 3. Relationships between NO3-N and δ15N-NO3 in the Zhihugang, Liangxi, Lihe, and Daxigang rivers.
Water 09 00345 g003
Figure 4. Relationships between Cl and NO3-N concentrations in the Zhihugang, Liangxi, Lihe, and Daxigang rivers.
Figure 4. Relationships between Cl and NO3-N concentrations in the Zhihugang, Liangxi, Lihe, and Daxigang rivers.
Water 09 00345 g004
Figure 5. Relationships between δ15N and δ18O of NO3-N in the Zhihugang, Liangxi, Lihe, and Daxigang rivers. The isotopic compositions of various sources in the diagram were modified after [15,16,53,67].
Figure 5. Relationships between δ15N and δ18O of NO3-N in the Zhihugang, Liangxi, Lihe, and Daxigang rivers. The isotopic compositions of various sources in the diagram were modified after [15,16,53,67].
Water 09 00345 g005
Table 1. Hydrologic data of the four studied rivers and annual amounts of contaminants imported.
Table 1. Hydrologic data of the four studied rivers and annual amounts of contaminants imported.
River NameConnected Lake AreaLength
(km)
Bottom Width
(m)
Annual Runoff
(×108 m3)
Annual Amounts of Contaminants Imported (ton)
TNTP
Zhihugang river a,bMeiliang Bay20.5120–403.15930.1533.33
Liangxi river a,bMeiliang Bay7.9715–600.42280.8011.36
Lihe river aGongHu Bay6.87101.07910.6037.61
Daxigang river a,bGongHu Bay5.0481.31105.4029.10
Notes: a [39]; b [40].
Table 2. Physicochemical characteristics and isotopic compositions of water in four studied rivers (mean values ± SD).
Table 2. Physicochemical characteristics and isotopic compositions of water in four studied rivers (mean values ± SD).
SamplepHDOClTOCNH4+-NNO3-NTNδ15N-NO3δ18O-NO3
(mg/L)(mg/L)(mg/L)(mg/L)(mg/L)(mg/L)(‰)(‰)
ZH17.66 ± 0.236.24 ± 0.33166.7 ± 2.428.9 ± 2.22.95 ± 0.434.45 ± 0.737.50 ± 1.037.75 ± 0.2−0.12 ± 0.1
ZH27.72 ± 0.337.55 ± 0.4490.7 ± 4.333.4 ± 2.11.09 ± 0.233.77 ± 0.435.12 ± 0.634.83 ± 0.1−7.65 ± 0.2
ZH37.94 ± 0.235.9 ± 0.2377.1 ± 3.248.4 ± 4.24.75 ± 0.372.40 ± 0.127.34 ± 1.318.35 ± 0.2−6.28 ± 0.2
ZH47.84 ± 0.349.24 ± 0.4681.9 ± 2.343.9 ± 2.21.25 ± 0.223.08 ± 0.274.55 ± 0.689.15 ± 0.1−3.78 ± 0.2
LX18.46 ± 0.3110.49 ± 0.1359.9 ± 3.128.4 ± 2.70.46 ± 0.240.79 ± 0.221.35 ± 0.2315.11 ± 0.24.35 ± 0.1
LX28.48 ± 0.1310.68 ± 0.2363.1 ± 2.729.2 ± 4.20.13 ± 0.040.83 ± 0.211.18 ± 0.3310.81 ± 0.25.32 ± 0.1
LX38.53 ± 0.3210.73 ± 0.5159.1 ± 2.145.5 ± 1.70.32 ± 0.110.78 ± 0.141.18 ± 0.3212.32 ± 0.10.11 ± 0.2
LX48.58 ± 0.3110.57 ± 0.2361.4 ± 3.331.1 ± 1.90.46 ± 0.130.76 ± 0.171.33 ± 0.2811.80 ± 0.29.38 ± 0.1
LH18.37 ± 0.368.37 ± 0.3863.7 ± 5.124.6 ± 2.30.51 ± 0.130.53 ± 0.311.14 ± 0.2111.62 ± 0.212.35 ± 0.2
LH28.23 ± 0.439.57 ± 0.5320.4 ± 4.231.8 ± 2.90.21 ± 0.030.29 ± 0.030.71 ± 0.5310.22 ± 0.28.67 ± 0.1
LH38.08 ± 0.539.87 ± 0.3761.8 ± 1.125.5 ± 3.30.10 ± 0.030.42 ± 0.111.14 ± 0.137.94 ± 0.2−5.00 ± 0.1
LH48.53 ± 0.3810.07 ± 0.4968.2 ± 1.625.4 ± 2.50.24 ± 0.110.41 ± 0.151.35 ± 0.238.10 ± 0.12.52 ± 0.1
DX18.20 ± 0.318.79 ± 0.33110.9 ± 2.130.2 ± 1.61.61 ± 0.553.31 ± 0.415.12 ± 0.538.84 ± 0.21.01 ± 0.2
DX28.09 ± 0.458.66 ± 0.53129.5 ± 3.633.1 ± 1.70.57 ± 0.110.72 ± 0.231.30 ± 0.3913.64 ± 0.2−1.47 ± 0.1
DX38.84 ± 0.3411.38 ± 0.5647.7 ± 1.825.9 ± 2.20.46 ± 0.180.34 ± 0.021.68 ± 0.325.04 ± 0.2−12.26 ± 0.1
DX48.56 ± 0.5310.53 ± 0.4354.8 ± 1.932.7 ± 2.20.24 ± 0.020.43 ± 0.111.14 ± 0.1310.05 ± 0.2−8.96 ± 0.1
Table 3. Contribution of nitrate sources in rivers.
Table 3. Contribution of nitrate sources in rivers.
River NameNM (‰)OM (‰)Contributions of the Respective Sources
Chemical Fertilizer (%)Soil Organic N (%)Sewage (%)
Zhihugang river7.51−4.465.43–19.4575.06–79.471.44–17.04
Liangxi river12.514.497.68–9.8527.89–35.6356.70–71.13
Lihe river9.474.6315.50–26.9733.24–41.2035.43–48.51
Daxigang river9.395.4217.79–29.0130.09–38.4835.06–49.36
Value of different NO3-N sources
chemical fertilizer a0–0.817 c–19
soil organic N a6.6–9−10–−9
Sewage b15–16.310–11
Notes: a Date from [64]; b Data from [16];c [69].
Table 4. Import of nitrate in the four rivers.
Table 4. Import of nitrate in the four rivers.
River NameAnnual Amounts of NO3-N (ton)Respective Sources Imported (ton)
Chemical FertilizerSoil Organic NSewage
Zhihugang river1078.858.5–209.8809.8–857.315.5–183.8
Liangxi river33.52.5–3.39.3–11.919..3–23.8
Lihe river44.136.8–11.914.6–15.715.6–21.4
Daxigang river157.227.9–45.647.3–60.455.1–77.5

© 2017 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Back to TopTop
