# Modeling the Influence of River Cross-Section Data on a River Stage Using a Two-Dimensional/Three-Dimensional Hydrodynamic Model

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Description of Study Area

^{2}, which includes part of the southwestern rugged foothills and fertile coastal plains. The tide is the primary tidal constituent at the river mouth and has a mean tidal range below 1 m. Based on the tidal classification [21], the Tsengwen River mouth can be classified as a microtidal estuary [22,23]. The average annual rainfall for the drainage basin is 2643 mm, with a contrasting rainfall pattern between dry and wet seasons. The dry and wet seasons are October–April and May–September, respectively. Thus, the river discharge varies seasonally with a high discharge of 411 × 10

^{3}m

^{3}/day in the wet season and a low discharge of 14 × 10

^{3}m

^{3}/day in the dry season. In the wet season, episodic flooding from heavy monsoon rains and typhoons is not unusual and critically affects the river discharge and the suspended load.

## 3. Materials and Methods

#### 3.1. Methods for Resampling River Cross-Section Data

#### 3.2. Interpolation Methods

#### 3.2.1. Linear Interpolation

#### 3.2.2. Inverse Distance Weighting (IDW)

#### 3.2.3. Natural Neighbor (NN)

#### 3.3. Three-Dimensional (3D) Hydrodynamic Model

#### 3.4. Two-Dimensional (2D) Hydrodynamic Model

#### 3.5. Model Implementation

#### 3.6. Assessment of the Model Performance

## 4. Results

#### 4.1. Simulation of the River Stage Using Different Cross-Section Data

^{3}/s. Although the simulated river stages using the original cross-section data show an acceptable result at the Mashan Bridge (Figure 10a), the simulated river stage cannot be lowered, even if there has been a decrease in the river flows (Figure 11a). This result means that the riverbed elevations interpolated by the original cross-section data are higher than the actual ones. The simulated river stages using the resampled cross-section data based on the IDW and NN methods extremely overestimate the measured river stages at both the Mashan Bridge and Xinzhong stations shown in Figure 10c,d and Figure 11c,d.

#### 4.2. Comparison of the Simulated River Stage Using the 2D and 3D Models

^{−4}m

^{2}/s [22].

#### 4.3. Model Sensitivity

## 5. Discussion

^{3}/s. It can be explained using the simplified momentum equation. If the Coriolis force, tidal effect, atmospheric pressure at the free surface, and wind shear stress are neglected, and a steady state is assumed, the momentum equation can be expressed as:

## 6. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## Appendix A

## Appendix B

## References

- Yoshida, H.; Dittrich, A. 1D unsteady-state flow simulation of a section of the upper Rhine. J. Hydrol.
**2002**, 269, 78–88. [Google Scholar] [CrossRef] - Juez, C.; Lacasta, A.; Murillo, J.; Garcia-Navarro, P. An efficient GPU implementation for a faster simulation of unsteady bed-load transport. J. Hydraul. Res.
**2016**, 54, 275–288. [Google Scholar] [CrossRef] - Caviedes-Voullieme, D.; Morales-Hernandez, M.; Lopez-Marijuan, I.; García-Navarro, P. Reconstruction of 2D river beds by appropriate interpolation of 1D cross-sectional information for flood simulation. Environ. Model. Softw.
**2014**, 61, 206–228. [Google Scholar] [CrossRef] - Merwade, V.M.; Cook, A.; Coonrod, J. GIS techniques for creating river terrain models for hydrodynamic modeling and flood inundation mapping. Environ. Model. Softw.
**2008**, 23, 1300–1311. [Google Scholar] [CrossRef] - Chen, W.B.; Liu, W.C.; Wu, C.Y. Coupling of a one-dimensional river routing model and a three-dimensional ocean model to predict overbank flows in a complex river-ocean system. Appl. Math. Model.
**2013**, 37, 6163–6176. [Google Scholar] [CrossRef] - Kasvi, E.; Alho, P.; Lotsari, E.; Wang, Y.S.; Kukko, A.; Hyyppa, H.; Hyppa, J. Two-dimensional and three-dimensional computational models in hydrodynamic and morphodynamic reconstructions of a river bend: Sensitivity and functionality. Hydrol. Process.
**2015**, 29, 1604–1629. [Google Scholar] [CrossRef] - Horritt, M.S.; Bates, P.D.; Mattinson, M.J. Effects of mesh resolution and topographic representation in 2D finite volume models of shallow water fluvial flow. J. Hydrol.
**2006**, 329, 306–314. [Google Scholar] [CrossRef] - Casas, A.; Benito, G.; Thorndycraft, V.; Rico, M. The topographic data source of digital terrain models. Earth Surf. Process. Landf.
**2006**, 31, 444–456. [Google Scholar] [CrossRef] - Flanagin, M.; Grenotton, A.; Ratcliff, J.; Shaw, K.B.; Sample, J.; Abdelguerfi, M. Hydraulic splines-a hybrid approach to modeling river channel geometries. Comput. Sci. Eng.
**2007**, 9, 4–15. [Google Scholar] [CrossRef] - Jha, S.K.; Mariethoz, G.; Kelly, B.F. Bathymetry fusion using multiple-point geostatistics: Novelty and challenges in representing non-stationary bedforms. Environ. Model. Softw.
**2013**, 50, 66–76. [Google Scholar] [CrossRef] - Tomczak, M. Spatial interpolation and it uncertainty using automated anisotropic inverse distance weighting (IDW)-cross-validation/Jackknife approach. J. Geogr. Inform. Decis. Anal.
**1998**, 2, 18–30. [Google Scholar] - Schappi, B.; Perona, P.; Schneider, P.; Burlando, P. Integrating river cross section measurements with digital terrain models for improved flow modeling applications. Comput. Geosci.
**2010**, 36, 707–716. [Google Scholar] [CrossRef] - Legleiter, C.J.; Kyriakidis, P.C. Spatial prediction of river channel topography by kriging. Earth Surf. Process. Landf.
**2008**, 33, 841–867. [Google Scholar] [CrossRef] - Cook, A.; Merwade, V. Effect of topographic data, geometric configuration and modeling approach on flood inundation mapping. J. Hydrol.
**2009**, 377, 131–142. [Google Scholar] [CrossRef] - Horritt, M.S.; Bates, P.D. Effects of spatial resolution on a raster based model of flood flow. J. Hydrol.
**2001**, 253, 239–249. [Google Scholar] [CrossRef] - Liu, X. Airborne LiDAR for DEM generation: Some critical issues. Prog. Phys. Geogr.
**2008**, 32, 31–49. [Google Scholar] - Wang, C.K.; Philpot, W.D. Using airborne bathymetric Lidar to detect bottom type variation in shallow waters. Remote Sens. Environ.
**2007**, 106, 123–135. [Google Scholar] [CrossRef] - Dal Cin, C.; Moens, L.; Dierickx, P.; Bastin, G.; Zech, Y. An integrated approach for realtime floodmap forecasting on the Belgian Meuse River. Nat. Hazards
**2005**, 36, 237–256. [Google Scholar] - Merwade, V. Effect of spatial trends on interpolation of river bathymetry. J. Hydrol.
**2009**, 371, 169–181. [Google Scholar] [CrossRef] - Zhang, Y.; Xian, C.; Chen, H.; Grieneisen, M.L.; Liu, J.; Zhang, M. Spatial interpolation of river channel topography using the shortest temporal distance. J. Hydrol.
**2016**, 542, 450–462. [Google Scholar] [CrossRef] - Dyer, K.R. Estuaries: A Physical Introduction; Wiley: New York, NY, USA, 1997. [Google Scholar]
- Chen, W.B.; Liu, W.C. Modeling flood inundation induced by river flow and storm surge over a river basin. Water
**2014**, 6, 3182–3199. [Google Scholar] [CrossRef] - Wei, H.P.; Yeh, K.C.; Liou, J.J.; Chen, Y.M.; Cheng, C.T. Estimating the risk of river flow under climate change in the Tsengwen River Basin. Water
**2016**, 8, 81. [Google Scholar] [CrossRef] - Isaaks, E.H.; Srivastava, R.M. Applied Geostatistics; Oxford University Press: New York, NY, USA, 1989; pp. 257–258. [Google Scholar]
- Sibson, R. A brief description of natural neighbor interpolation. In Interpreting Multivariate Data; Barnett, V., Ed.; John Wiley and Sons: New York, NY, USA, 1981; Volume 21, pp. 21–36. [Google Scholar]
- Zhang, Y.; Baptisa, A.M. SELFE: A semi-implicit Eulerian-Lagrangian finite-element model for cross-scale ocean circulation. Ocean Model.
**2008**, 21, 71–96. [Google Scholar] [CrossRef] - Zhang, Y.J.; Witter, R.C.; Priest, G.R. Tsunami-tide interaction in 1964 Prince William Sound tsunami. Ocean Model.
**2011**, 40, 246–259. [Google Scholar] [CrossRef] - Zhang, Y.; Ye, F.; Stanev, E.V.; Grashorn, S. Seamless cross-scale modeling with SCHISM. Ocean Model.
**2016**, 102, 64–81. [Google Scholar] [CrossRef] - Juez, C.; Murillo, J.; Garcia-Navarro, P. 2D simulation of granular flow over irregular steep slopes using global and local coordinates. J. Comput. Phys.
**2013**, 255, 166–204. [Google Scholar] [CrossRef] - Langendoen, E.J.; Mendoza, A.; Abad, J.D.; Tassi, P.; Wang, D.; Ata, R.; Kadi Abederrezzak, E.K.; Hevouet, J.M. Improved numerical modeling of morphodynamics of rivers with steep banks. Adv. Water Resour.
**2016**, 93, 4–14. [Google Scholar] [CrossRef] - Zu, T.; Gana, J.; Erofeevac, S.Y. Numerical study of the tide 456 and tidal dynamics in the South China Sea. Deep Sea Res. Part I
**2008**, 55, 137–154. [Google Scholar] [CrossRef] - Prandle, D. The influence of bed friction and vertical eddy viscosity on tidal propagation. Cont. Shelf Res.
**1997**, 17, 1367–1374. [Google Scholar] [CrossRef] - Kim, T.B.; Choi, S. Depth-averaged modeling of vegetated open-channel flows using finite element method. In Advances in Water Resources and Hydraulic Engineering, Proceedings of the 16th IAHR-APD Congress and 3rd Symposium of IAHR-ISHS; Spring: Berlin/Heidelberg, Germany, 2008; Volume 2, pp. 411–416. [Google Scholar]
- Dean, R.G.; Dalrymple, R.A. Coastal Processes with Engineering Applications; Cambridge University Press: Cambridge, UK, 2004. [Google Scholar]
- Miller, A.J.; Cluer, B.L. Modeling considerations for simulation of flow in bedrock channels. In Rivers over Rock: Fluvial Processes in Bedrock Channels; Tinkler, K.J., Wohl, B.L., Eds.; Geophysical Monograph Series; American Geophysical Union: Washington, DC, USA, 2013; Volume 107, pp. 61–104. [Google Scholar]
- Large, W.G.; Pond, S. Open ocean momentum flux measurements in moderate to strong winds. J. Phys. Oceanogr.
**1981**, 11, 324–336. [Google Scholar] [CrossRef] - Powell, M.D.; Vickery, P.J.; Reinhold, T.A. Reduced drag coefficient for high wind speeds in tropical cyclones. Nature
**2003**, 422, 279–283. [Google Scholar] [CrossRef] [PubMed]

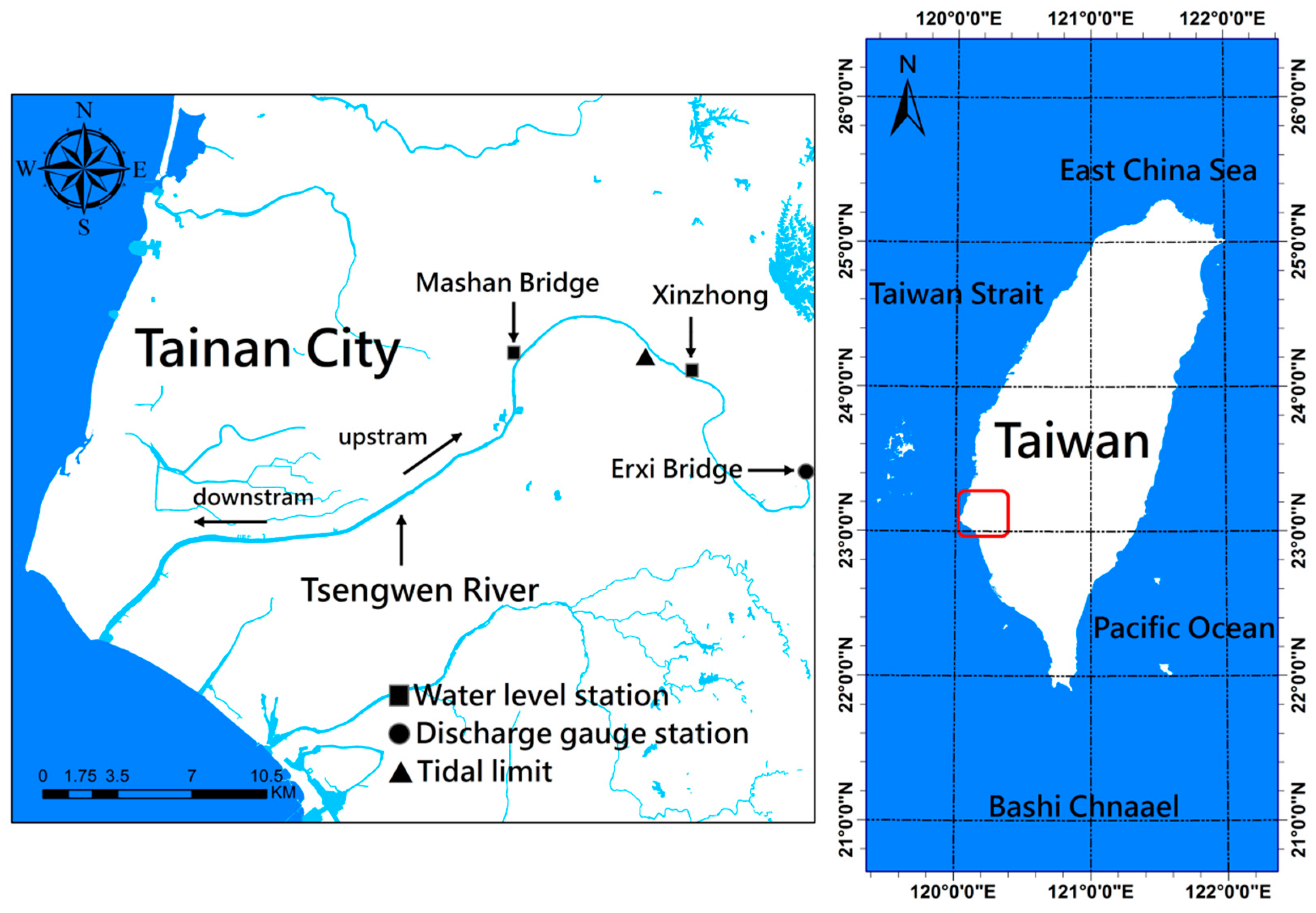

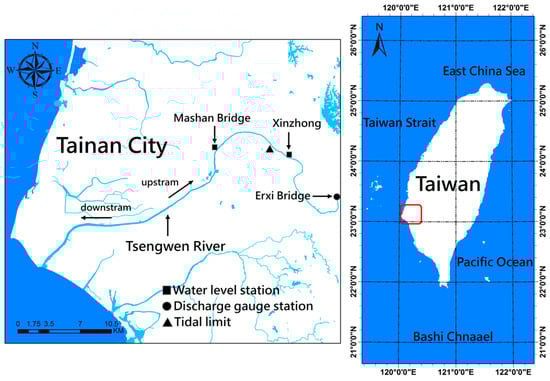

**Figure 1.**Maps of the study area (white, blue, and cyan represent land, ocean, and river, respectively).

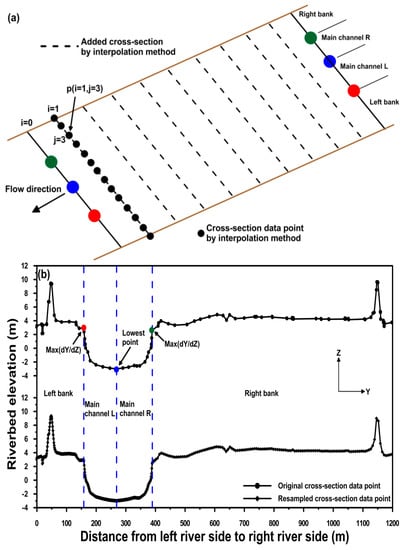

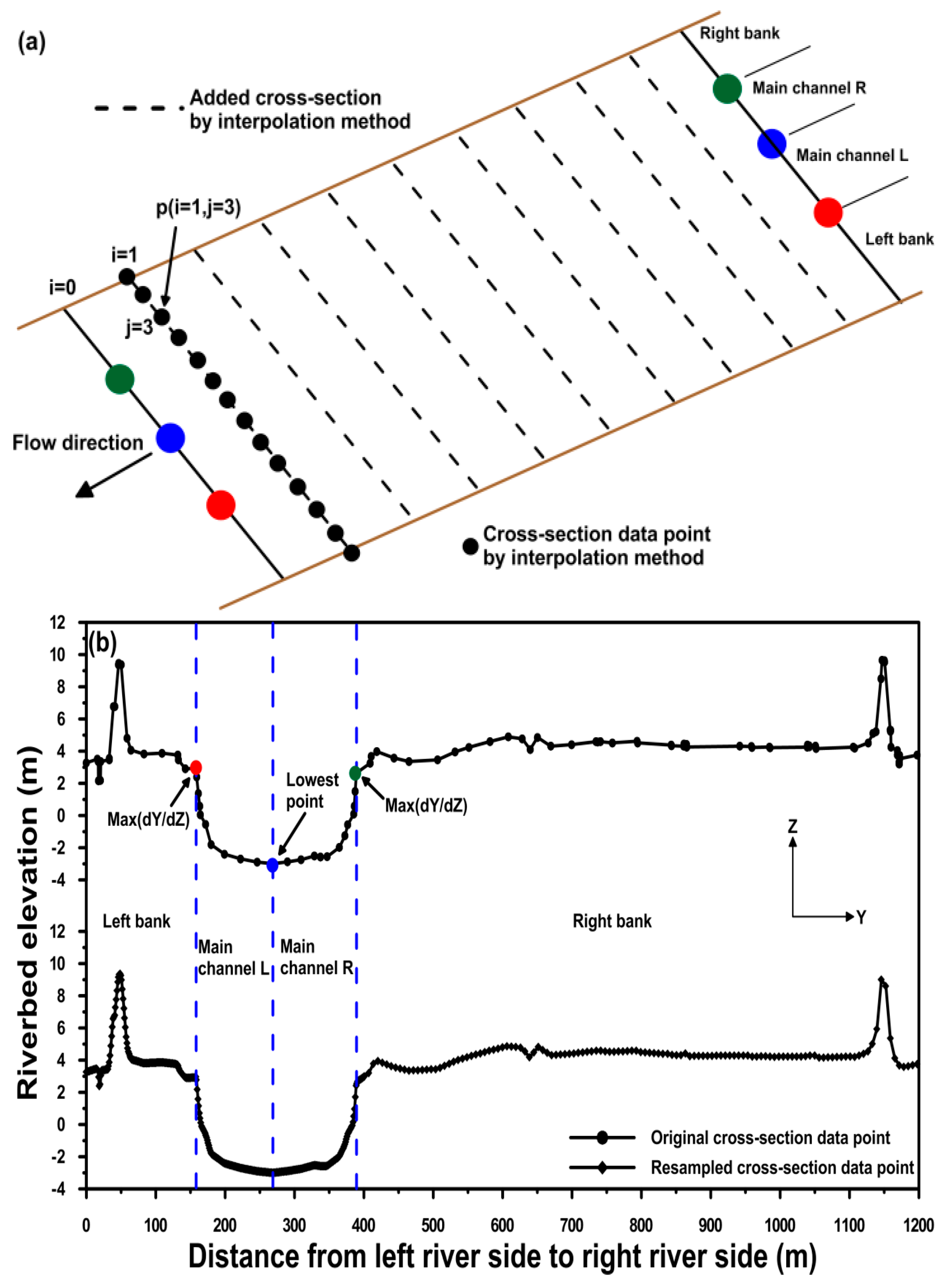

**Figure 2.**(

**a**) Conceptual diagram of the resampling method (L and R represent the main channel at left part and right part); and (

**b**) comparison of the original and resampled cross-sectional data points generated by the linear interpolation method.

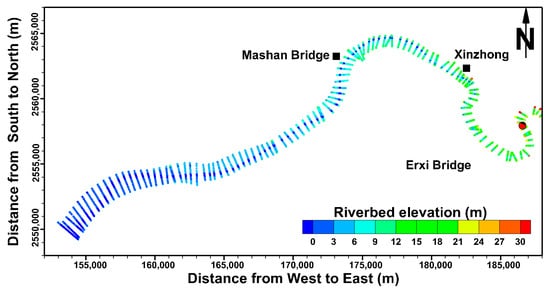

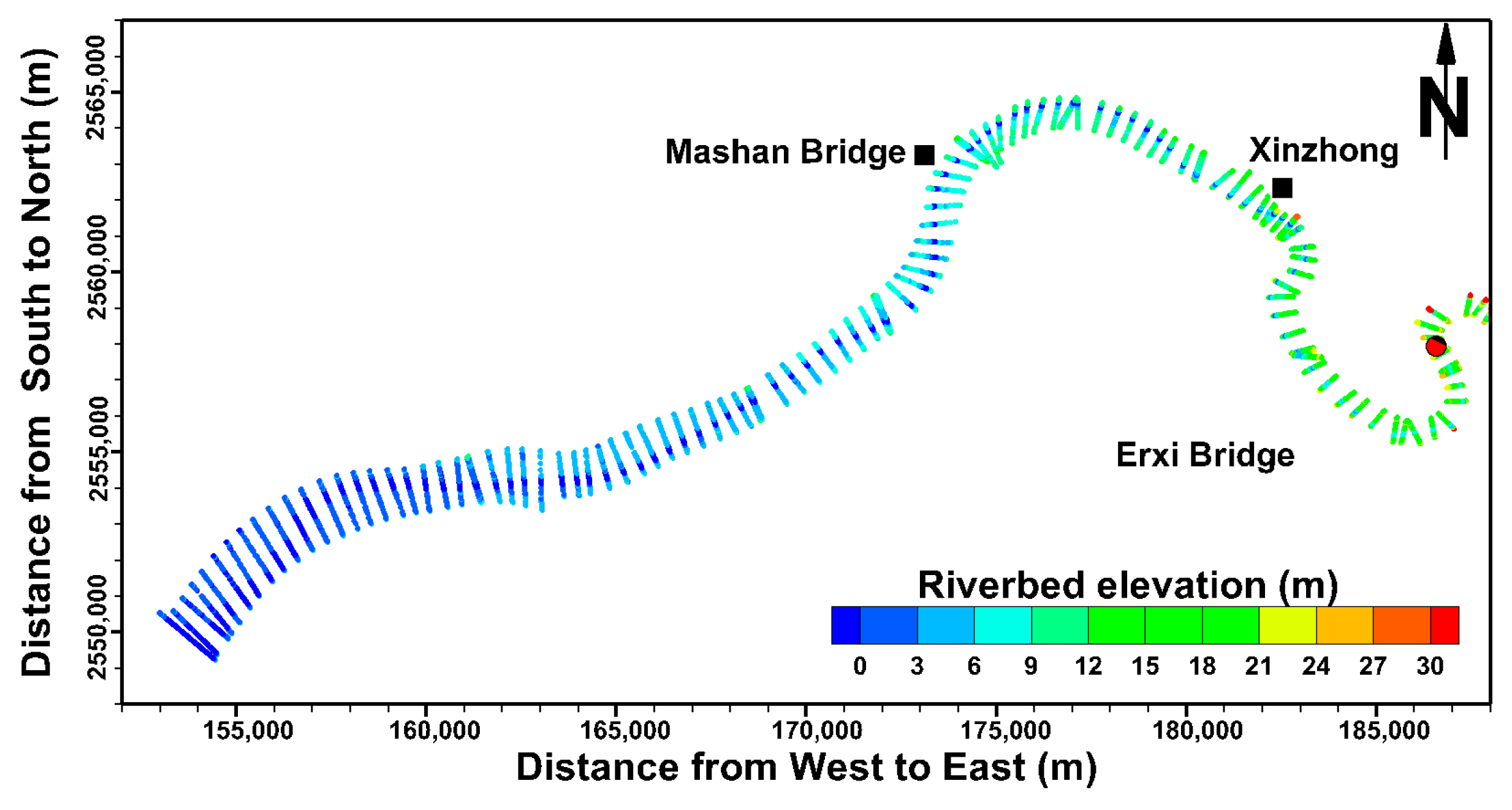

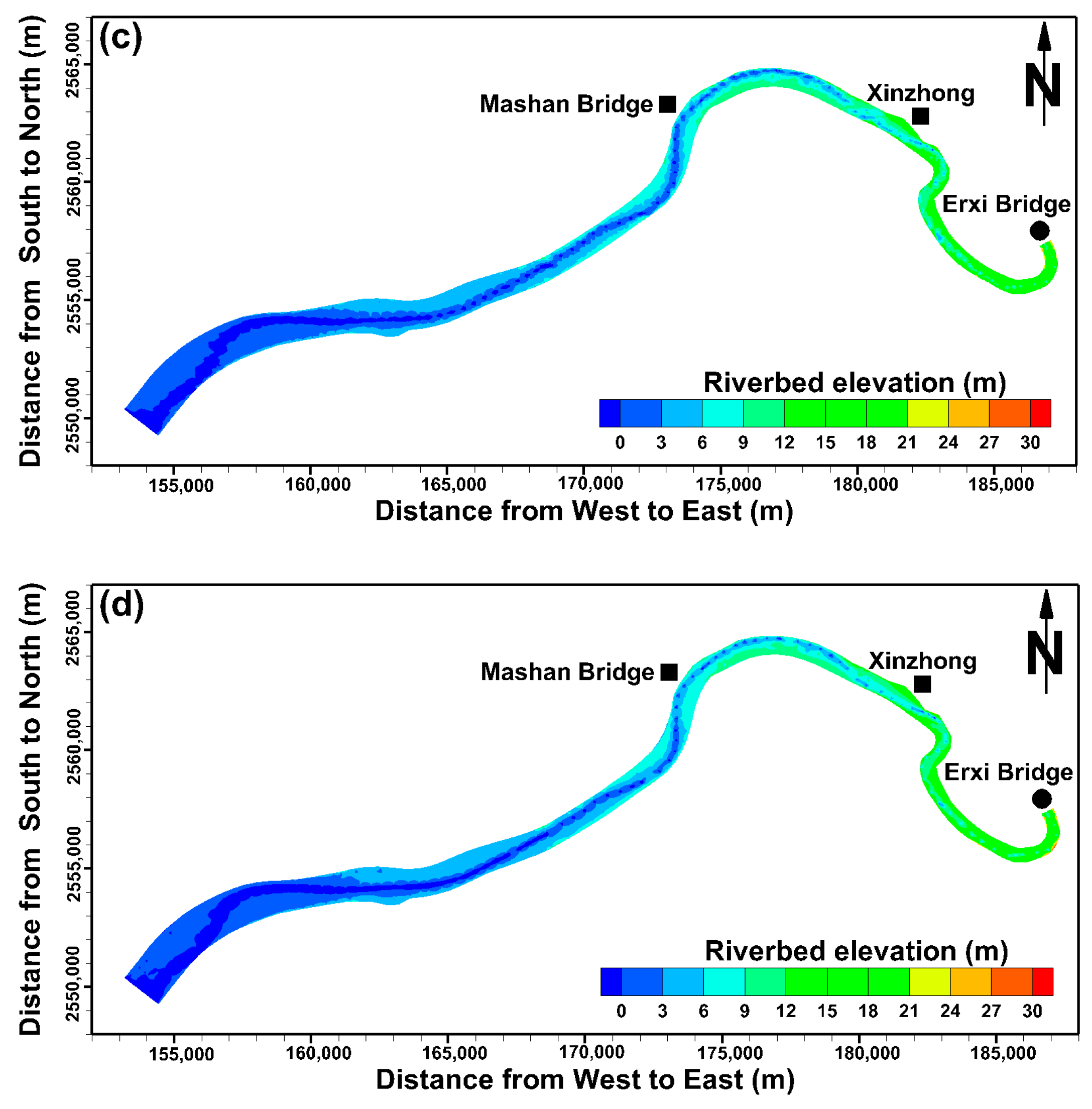

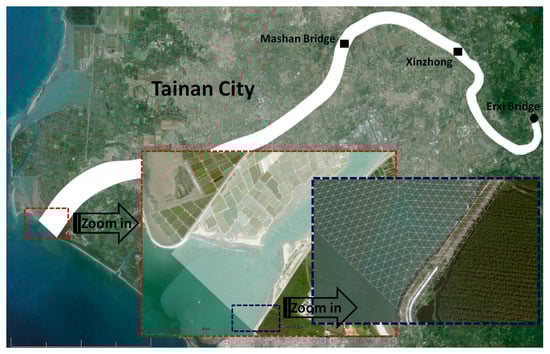

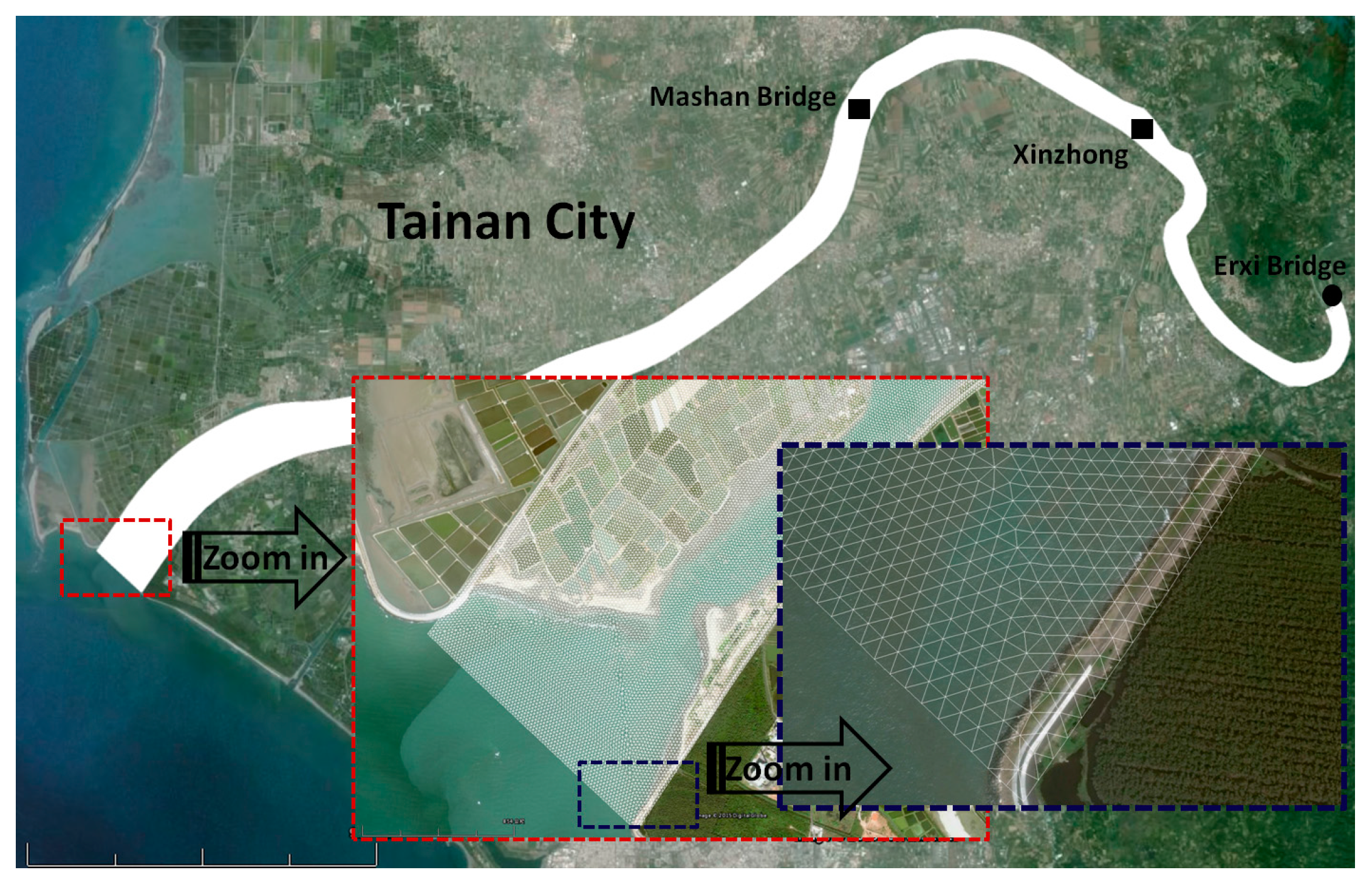

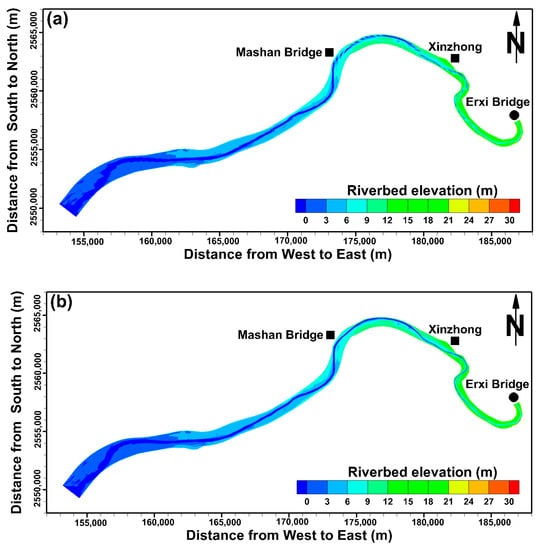

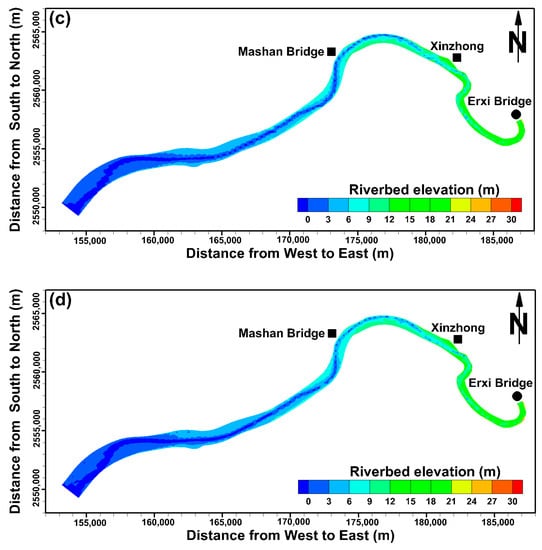

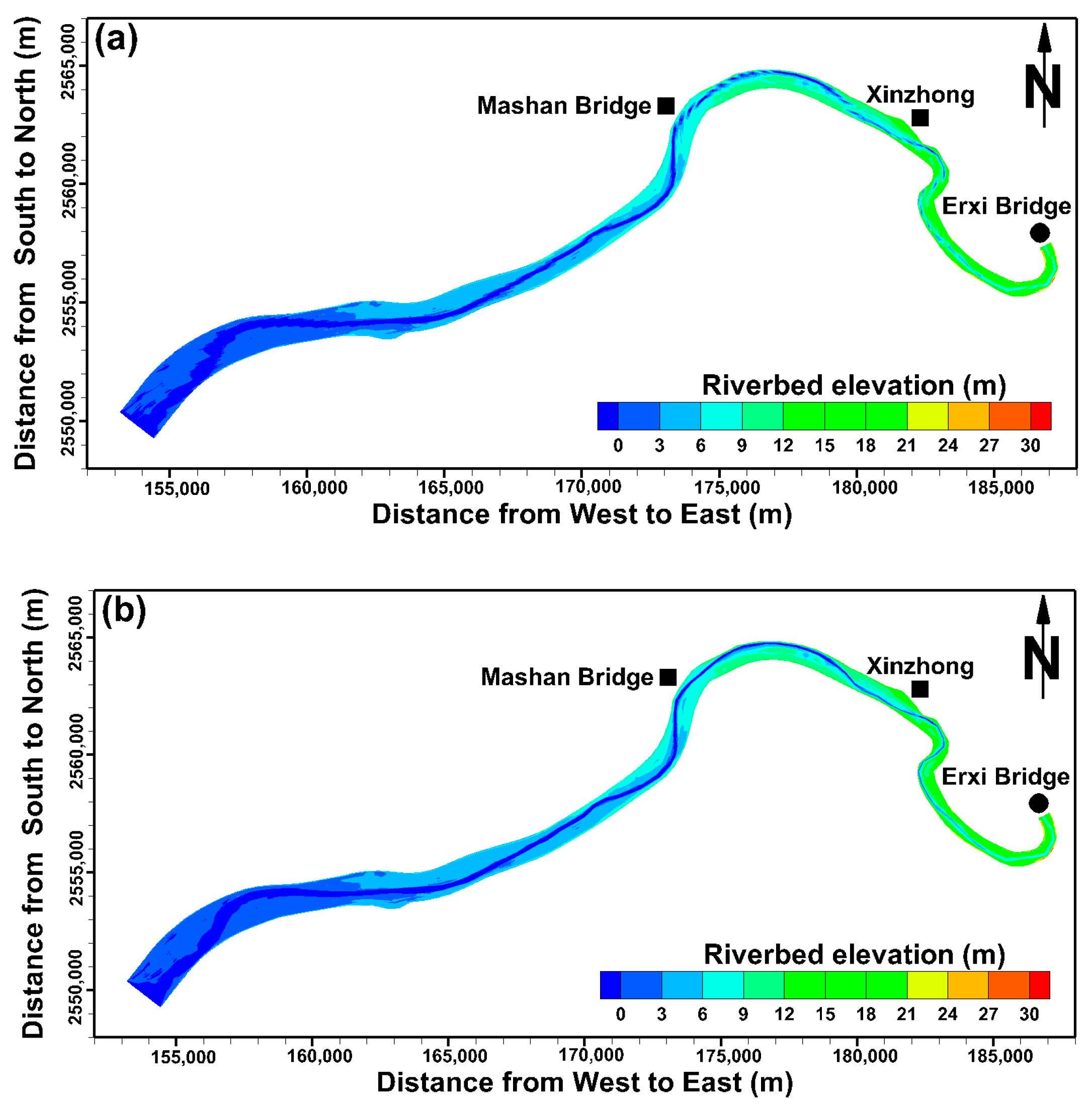

**Figure 5.**River bed elevation used for hydrodynamic modeling: (

**a**) original cross-sectional data; and resampled cross-section data using: (

**b**) the interpolation method; (

**c**) the inverse distance weighting (IDW) method; and (

**d**) the natural neighbor (NN) method.

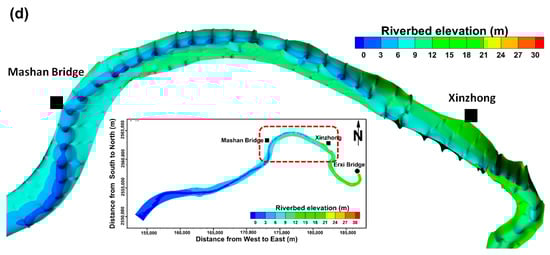

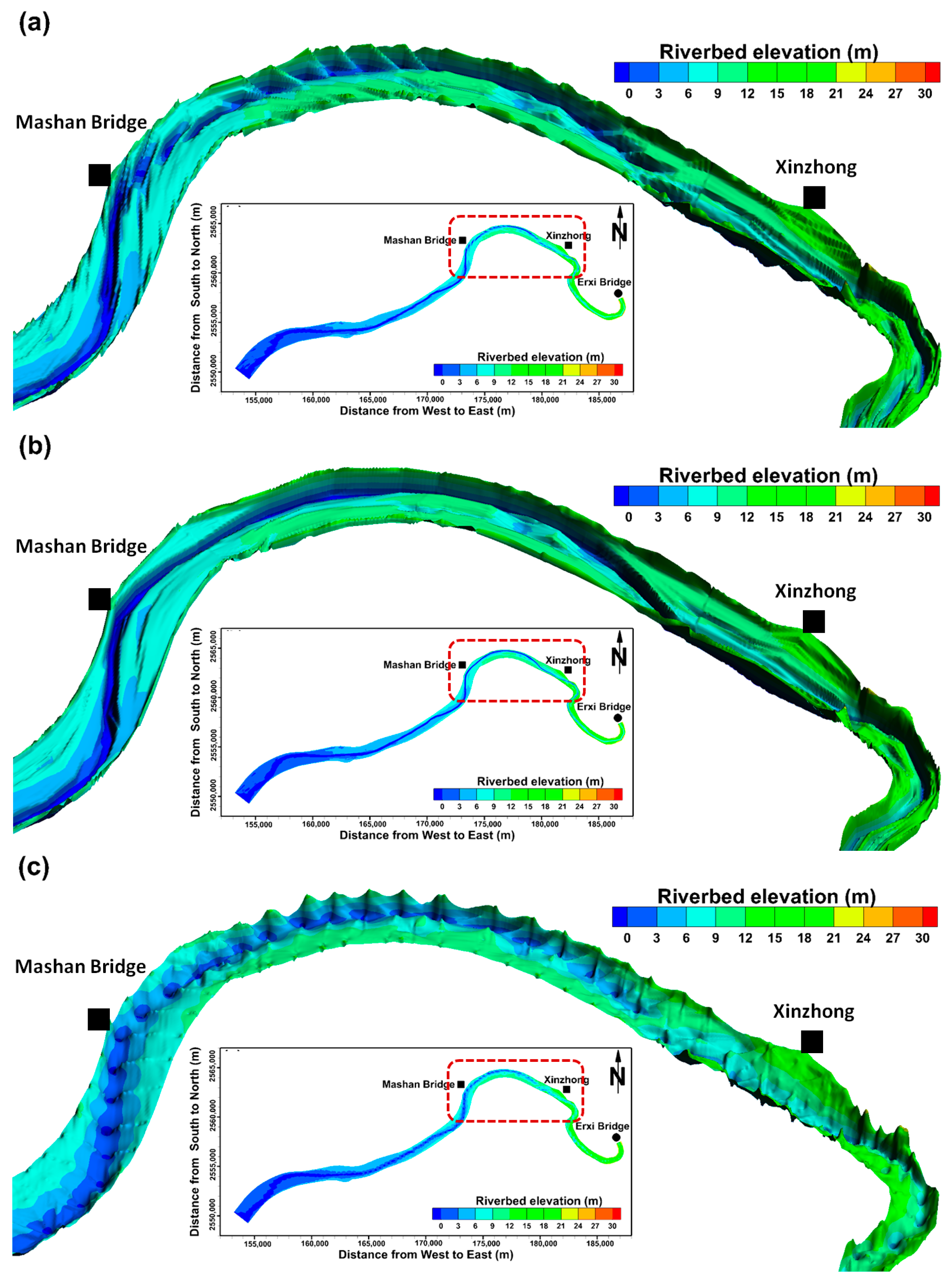

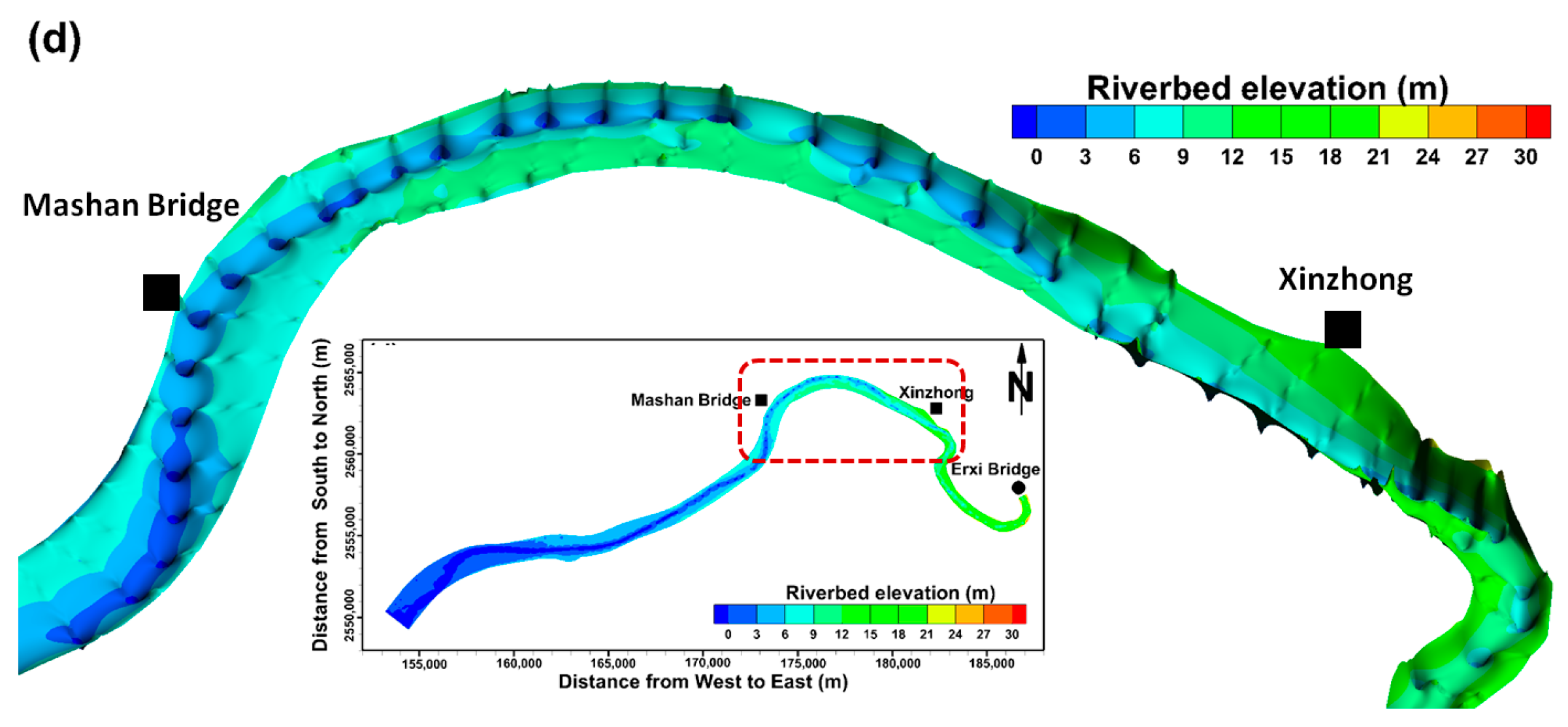

**Figure 6.**A 3D view of the river bed elevation of the hydrodynamic model using: (

**a**) the original data; and resampled data according to: (

**b**) the linear interpolation method; (

**c**) the IDW method; and (

**d**) the NN method. The red dashed box in the sub-figure represents the location of the 3D view river segment in the Tsengwen River.

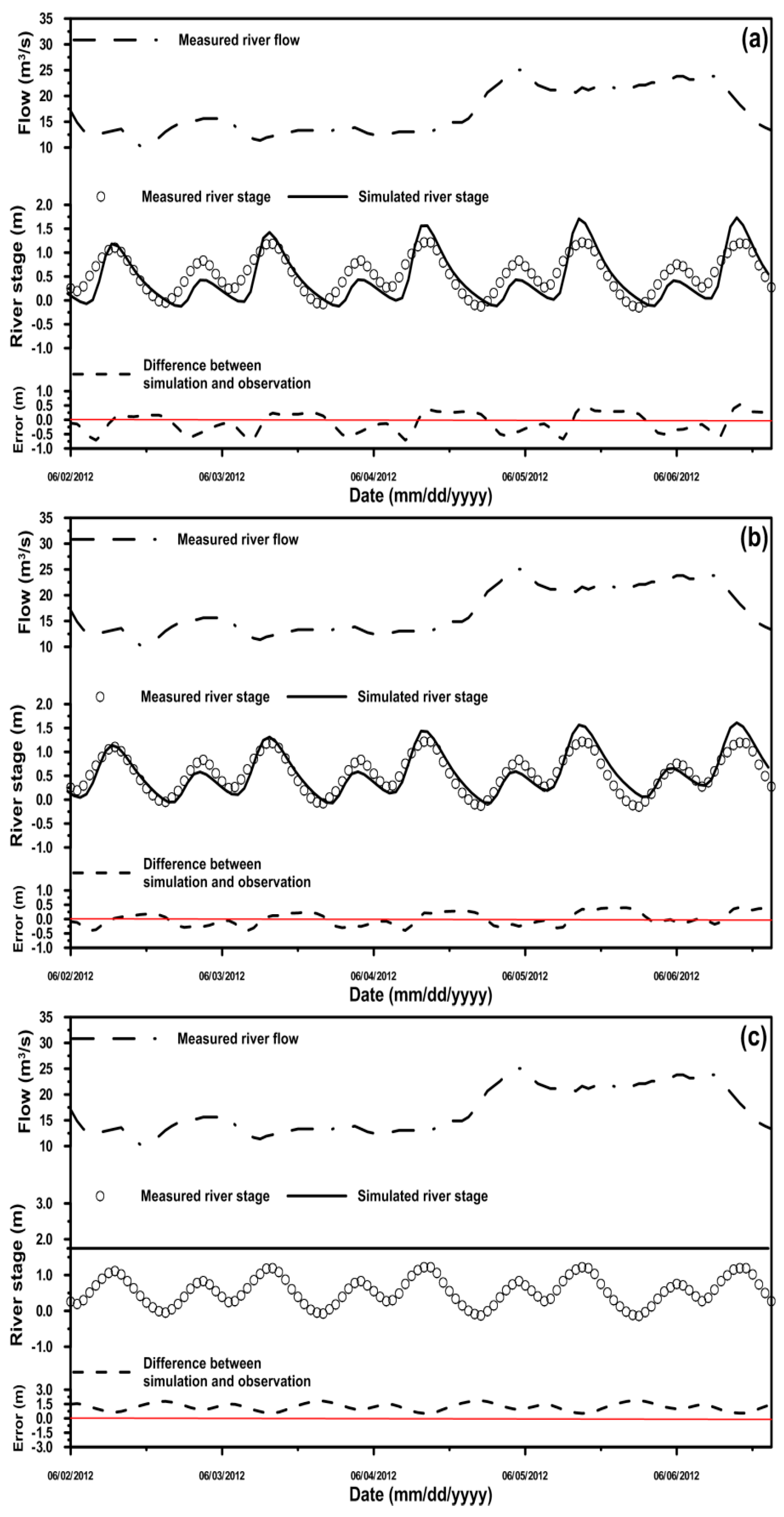

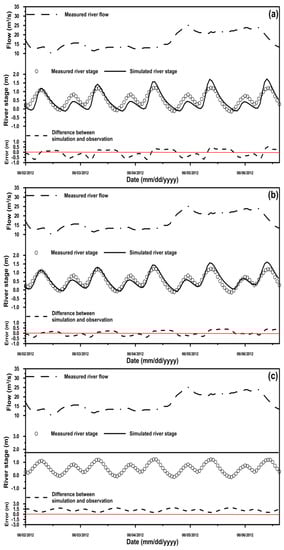

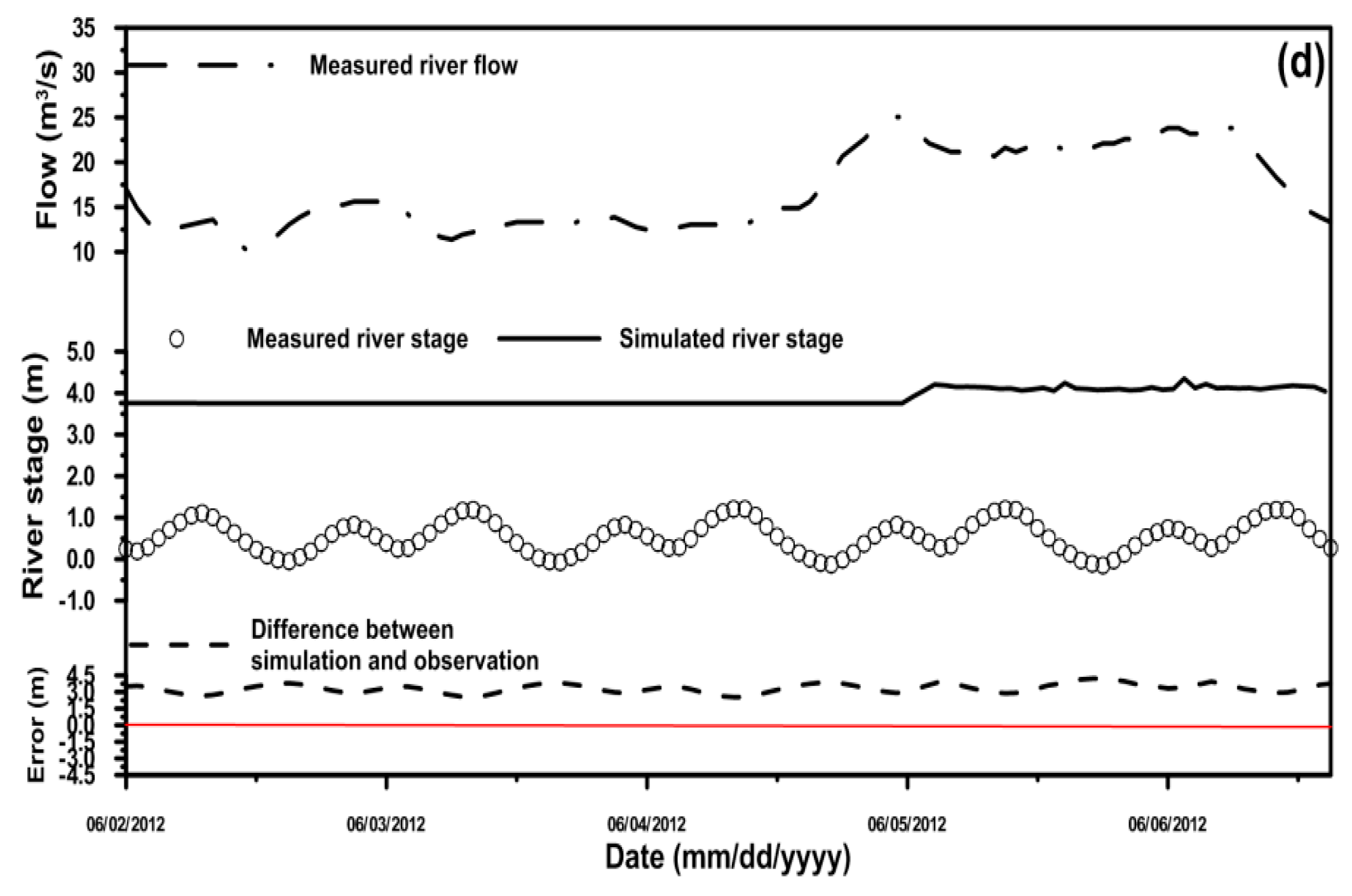

**Figure 7.**A comparison of the simulated and observed river stages at the Mashan Bridge under the low flow condition using the 2D model with the: (

**a**) original cross-section data; and resampled cross-section data according to: (

**b**) the linear interpolation method; (

**c**) the IDW method; and (

**d**) the NN method.

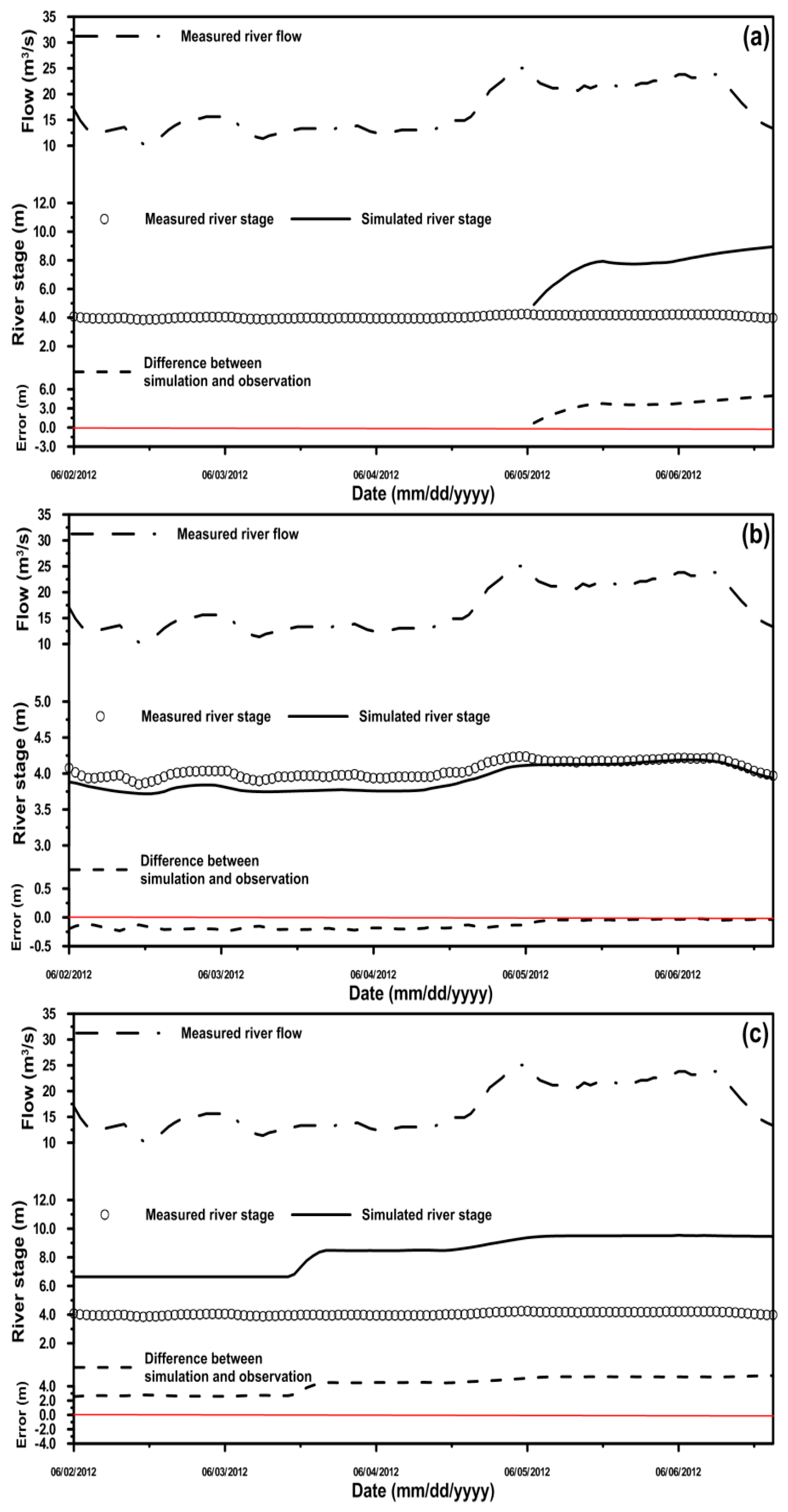

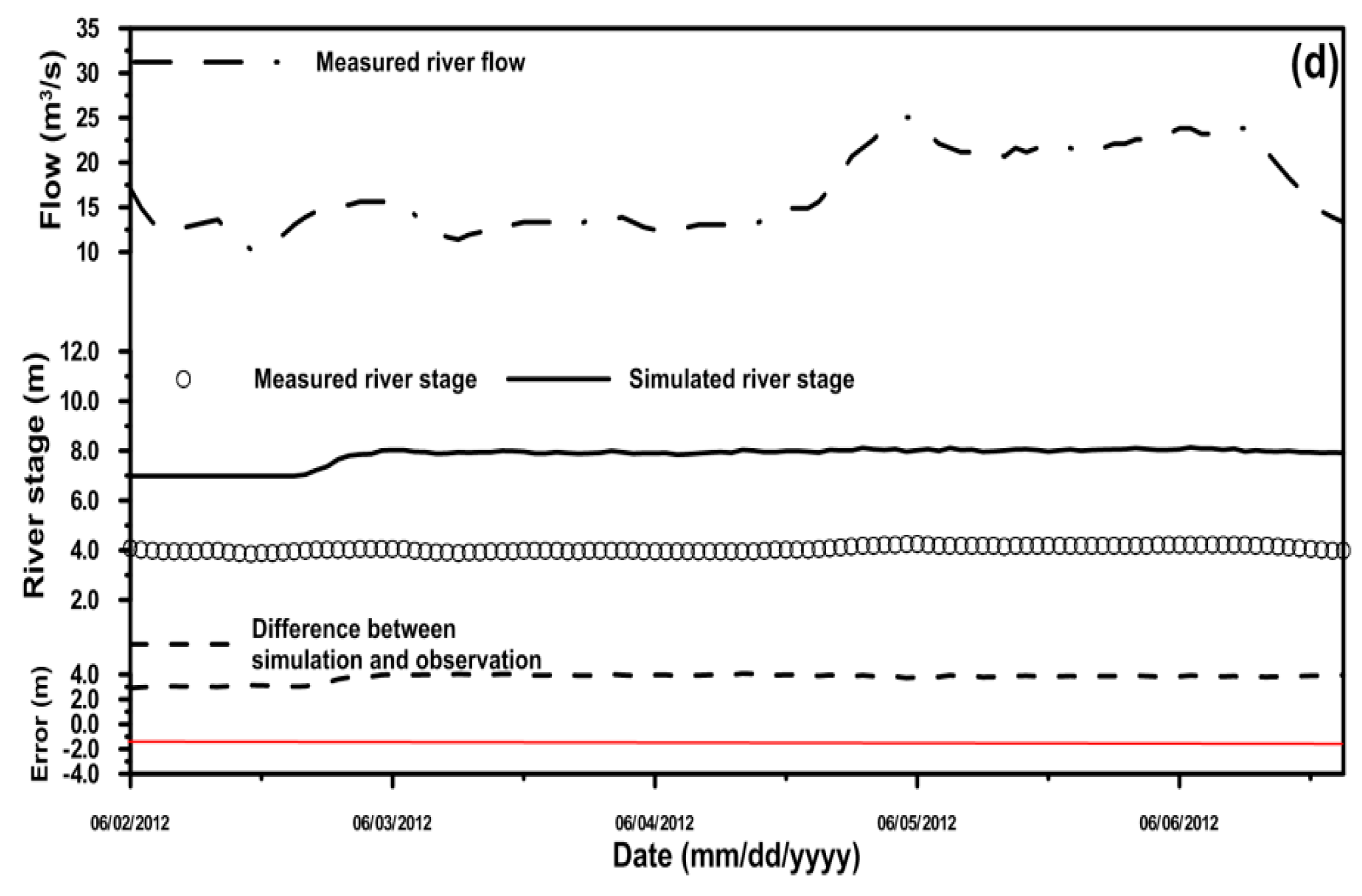

**Figure 8.**A comparison of the simulated and observed river stages at the Xinzhong station under low flow conditions using the 2D model with the: (

**a**) original cross-section data; and resampled cross-section data according to: (

**b**) the linear interpolation method; (

**c**) the IDW method, and (

**d**) the NN method.

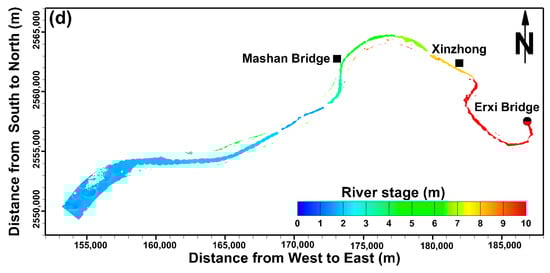

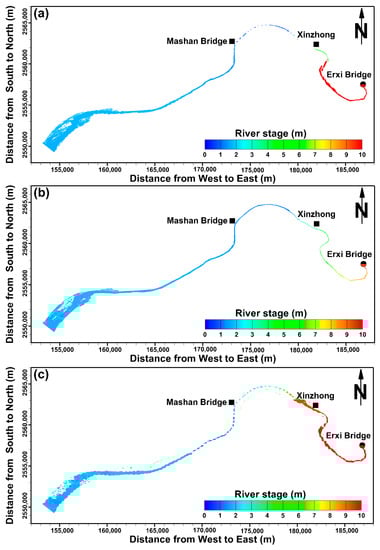

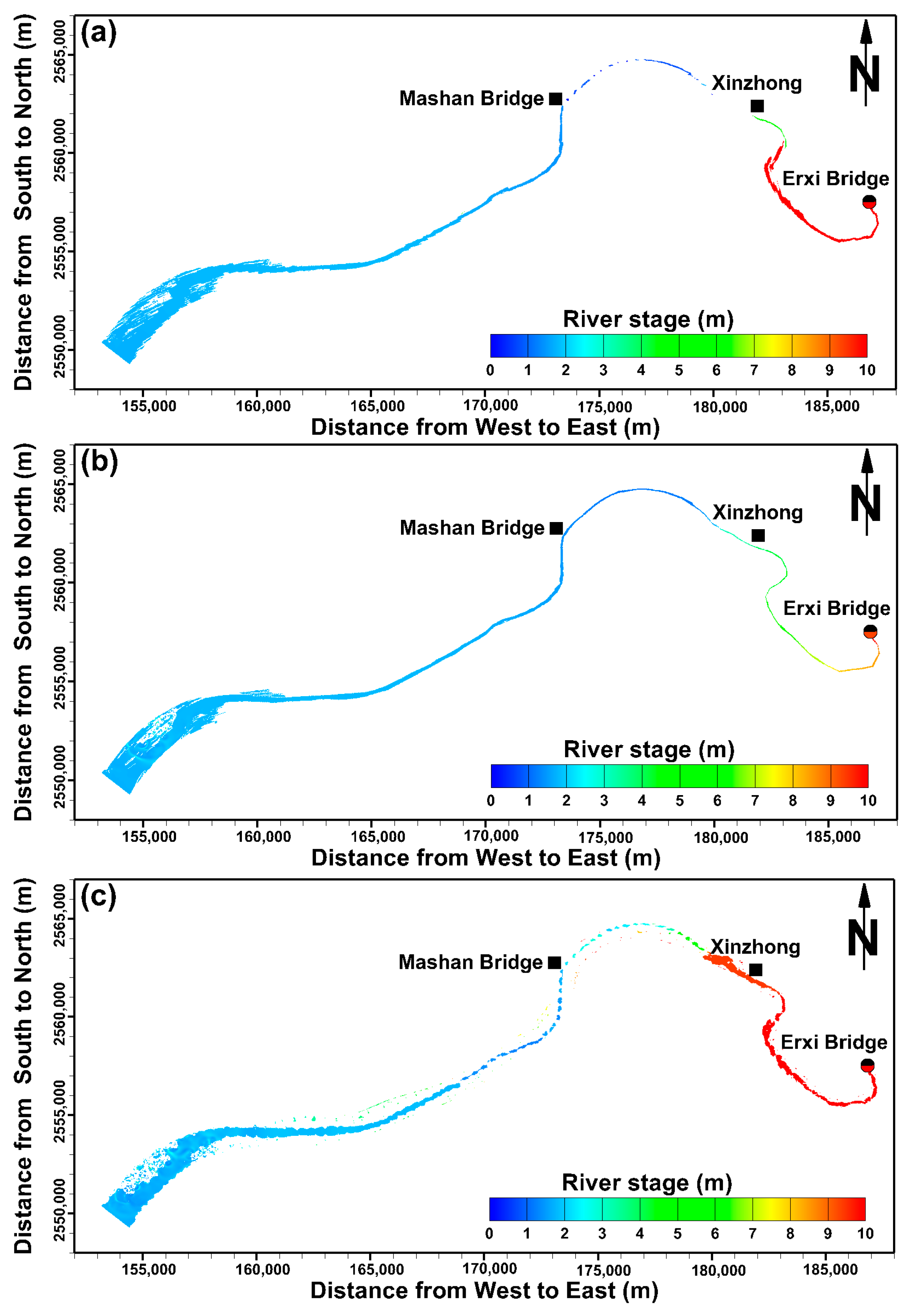

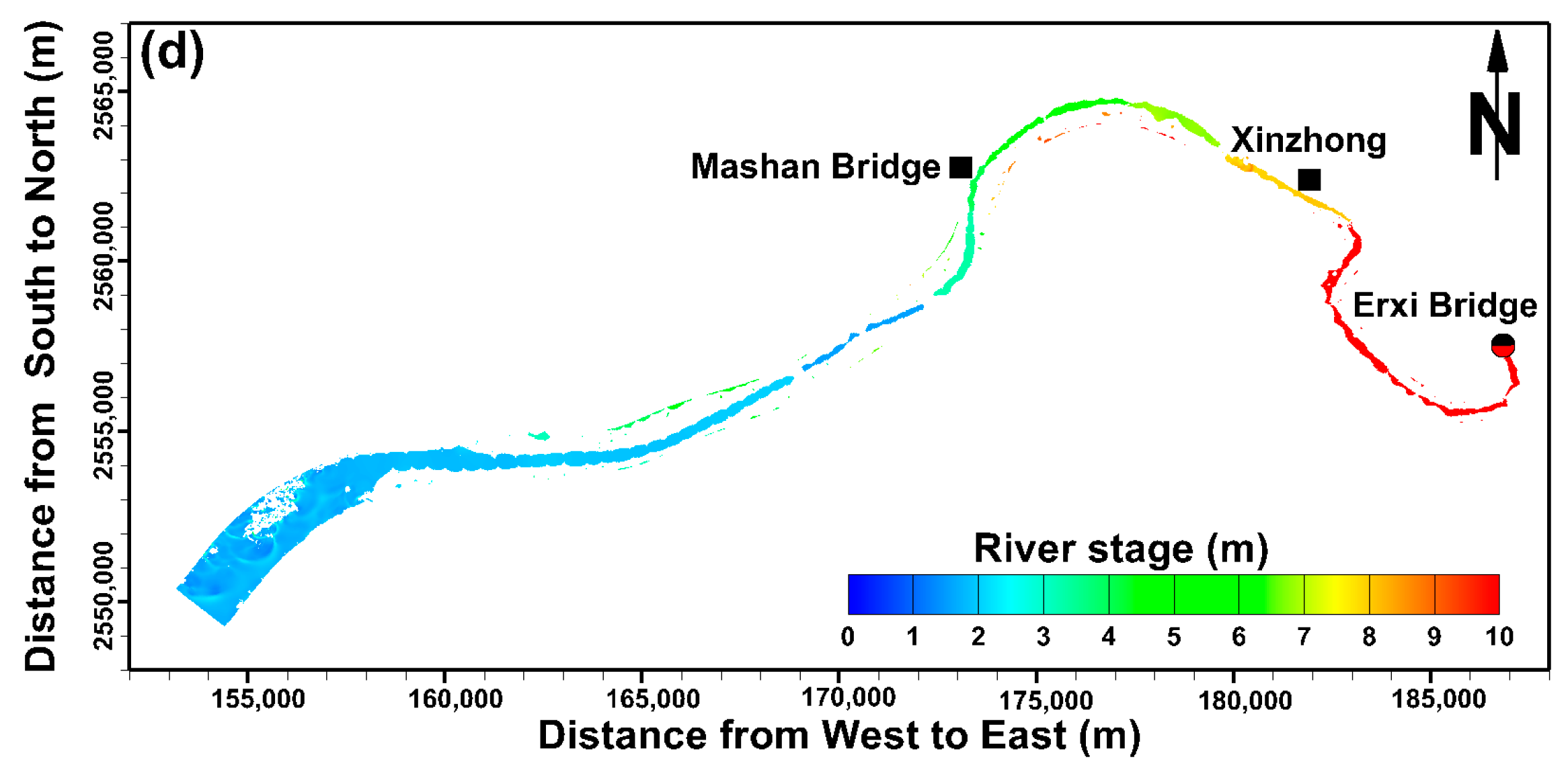

**Figure 9.**Simulated river stage distribution at 618 1:00 on 5 June 2012, under the low flow condition using the 2D model with the: (

**a**) original cross-section data; and resampled cross-section data according to: (

**b**) the linear interpolation method; (

**c**) the IDW method; and (

**d**) the NN method.

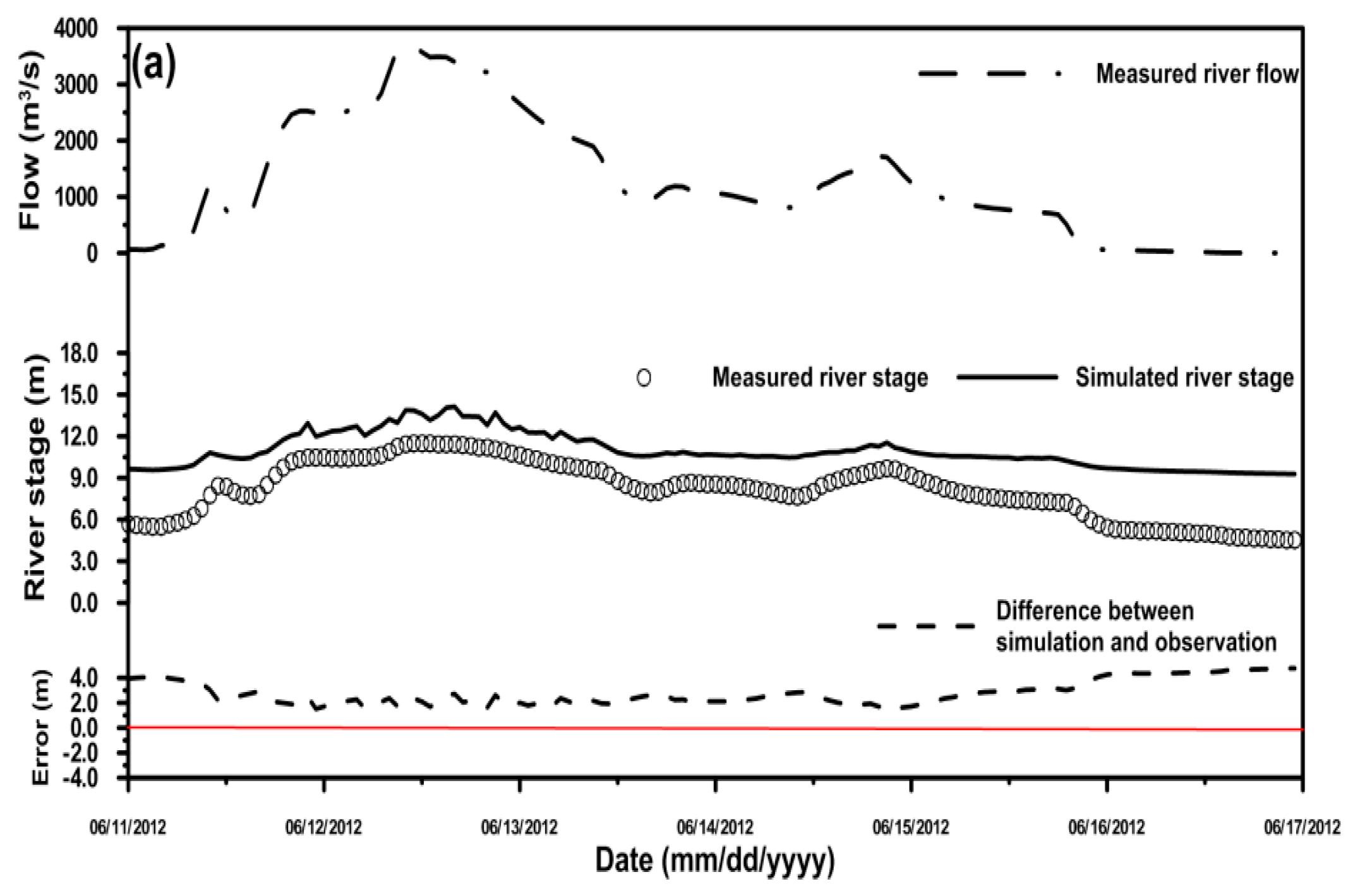

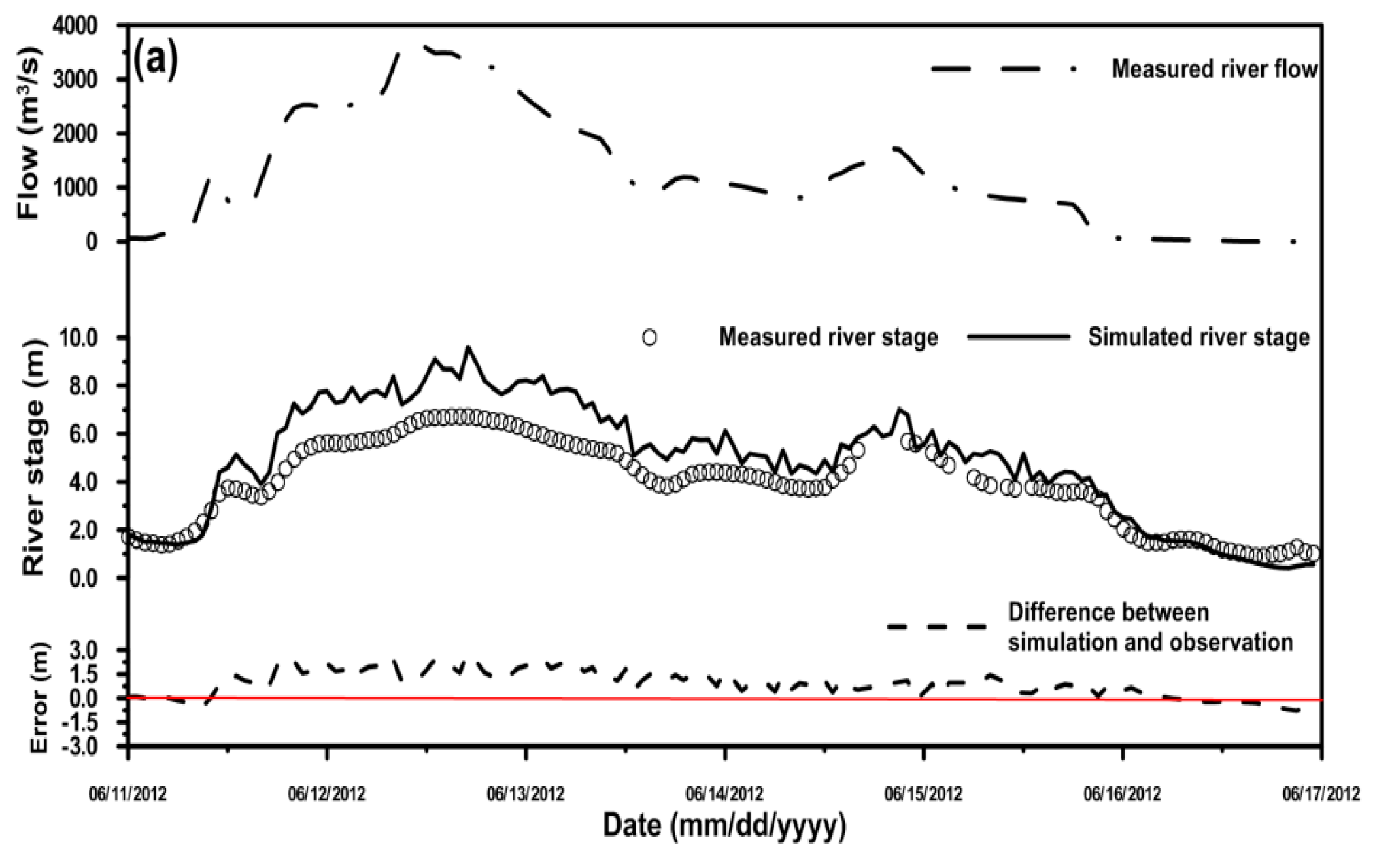

**Figure 10.**A comparison of the simulated and observed river stages at the Mashan Bridge under the high flow condition using the 2D model with the: (

**a**) original cross-section data; and resampled cross-section data according to: (

**b**) the linear interpolation method; (

**c**) the IDW method; and (

**d**) the NN method.

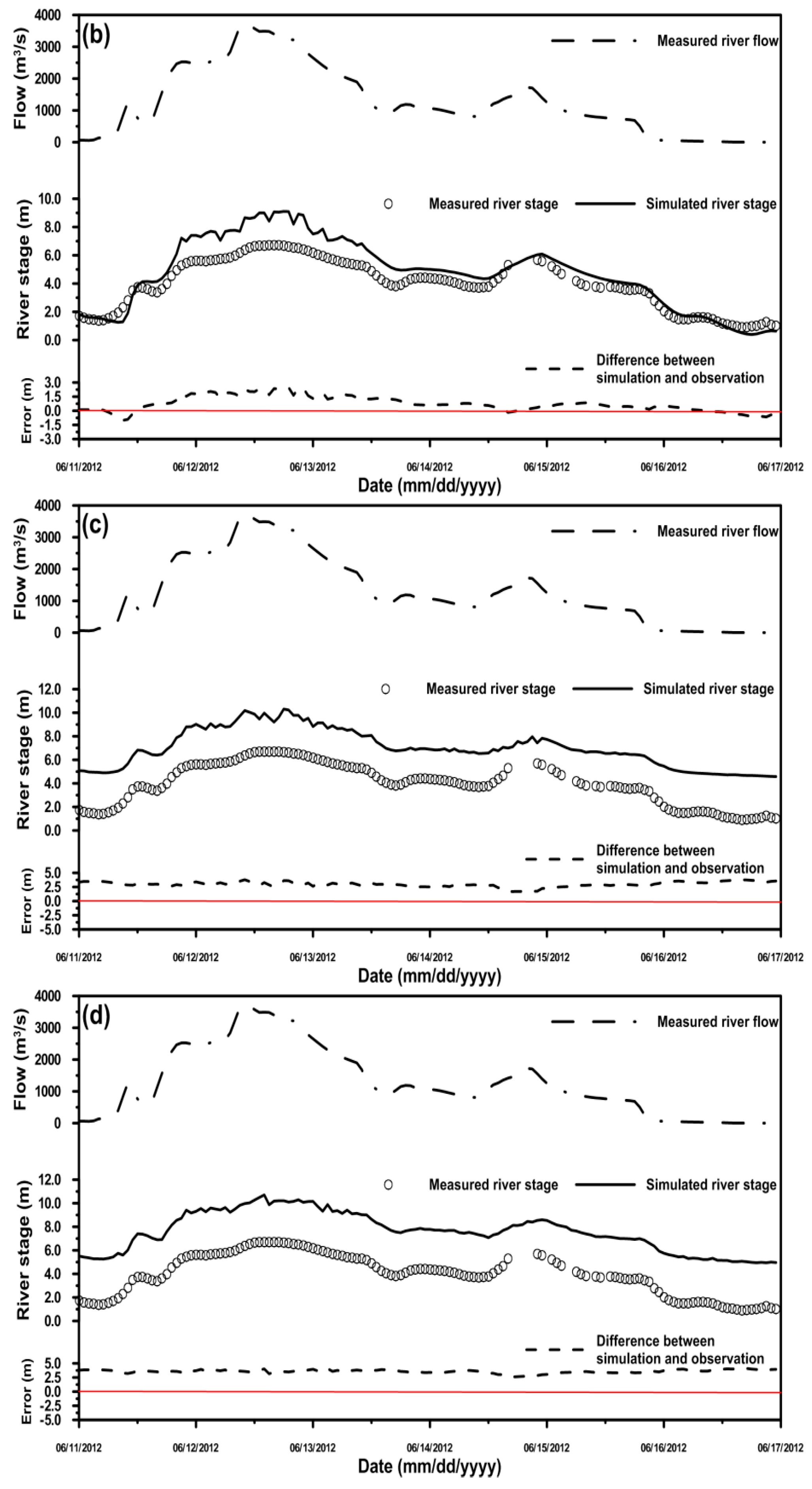

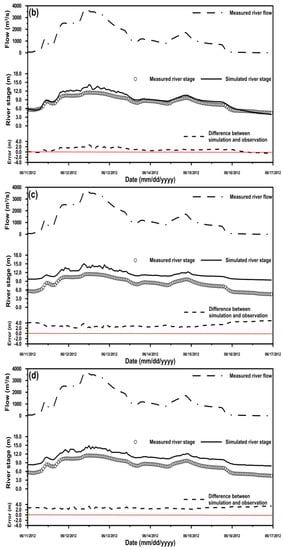

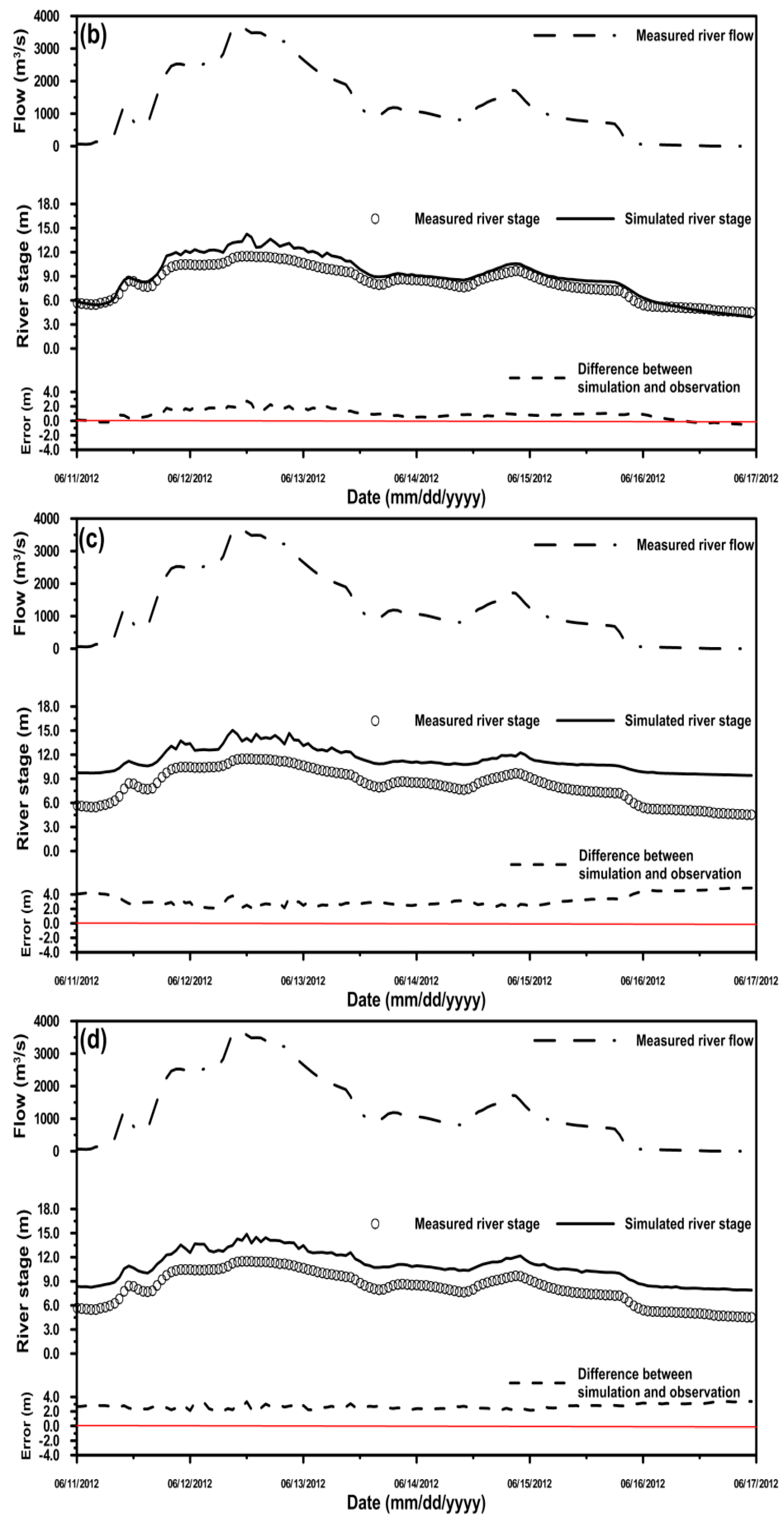

**Figure 11.**A comparison of the simulated and observed river stages at the Xinzhong station under high flow conditions using the 2D model with the: (

**a**) original cross-section data; and resampled cross-section data according to: (

**b**) the linear interpolation method; (

**c**) the IDW method; and (

**d**) the NN method.

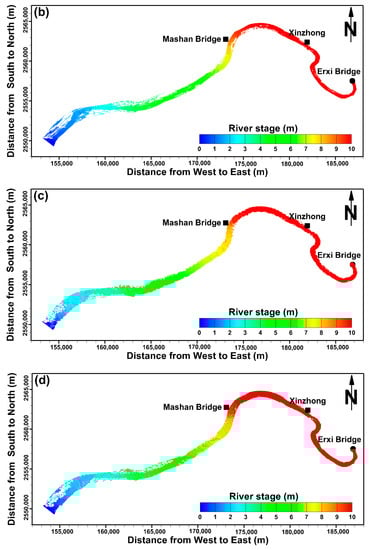

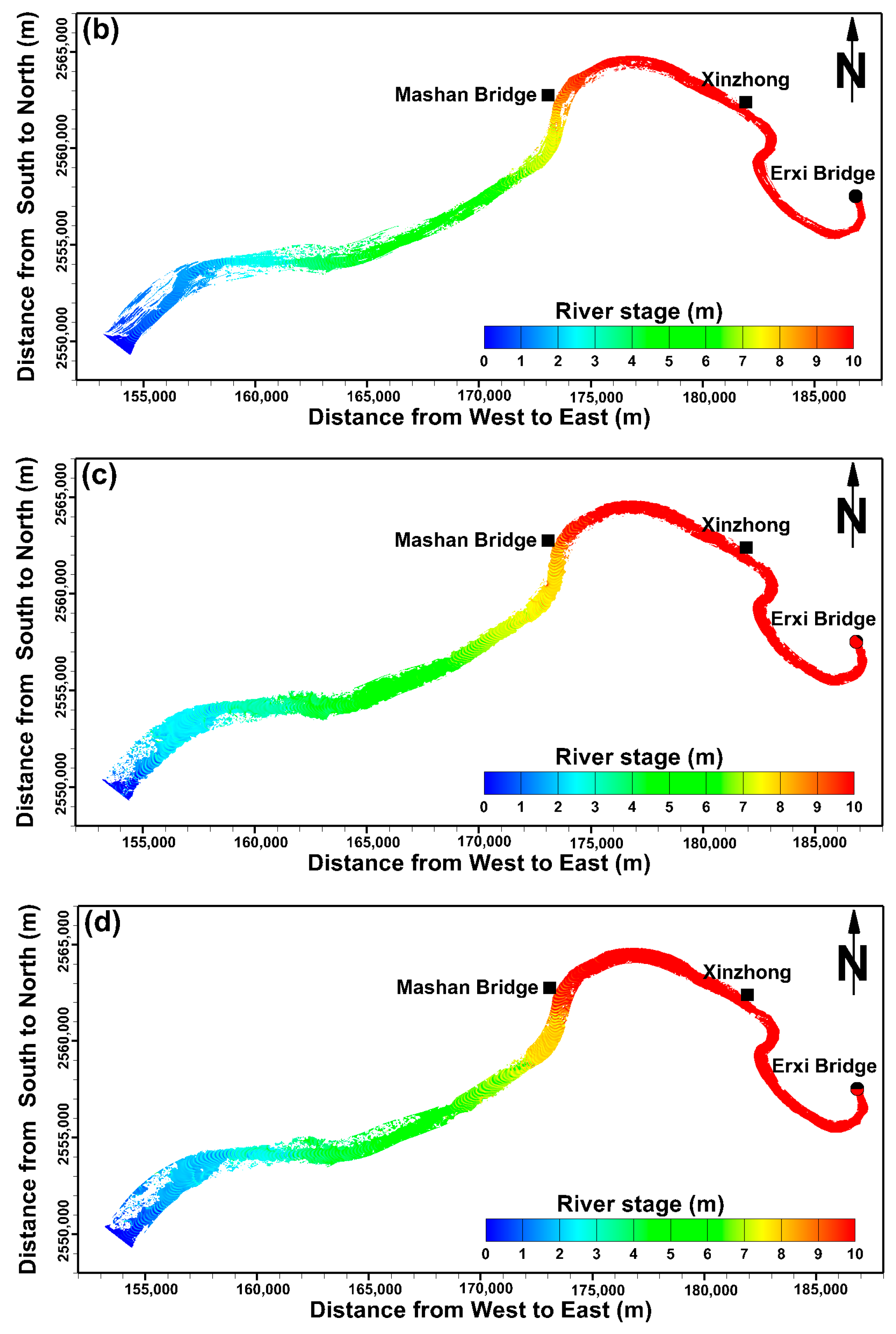

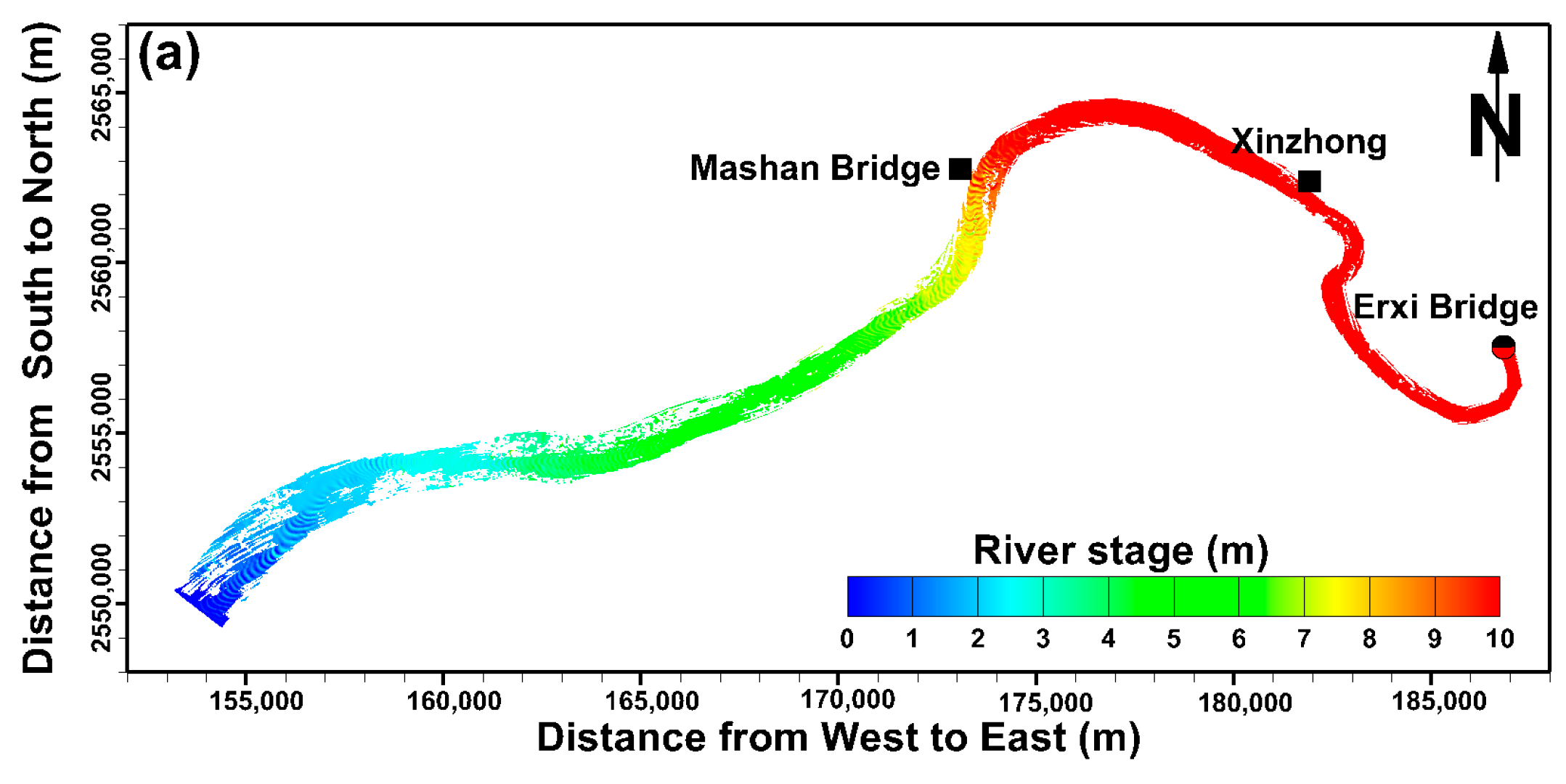

**Figure 12.**Simulated river stage distributions at 12:00 on 12 June 2012, under the high flow condition using the 2D model with the: (

**a**) original cross-section data; and resampled cross-section data according to: (

**b**) the linear interpolation method; (

**c**) the IDW method; and (

**d**) the NN method.

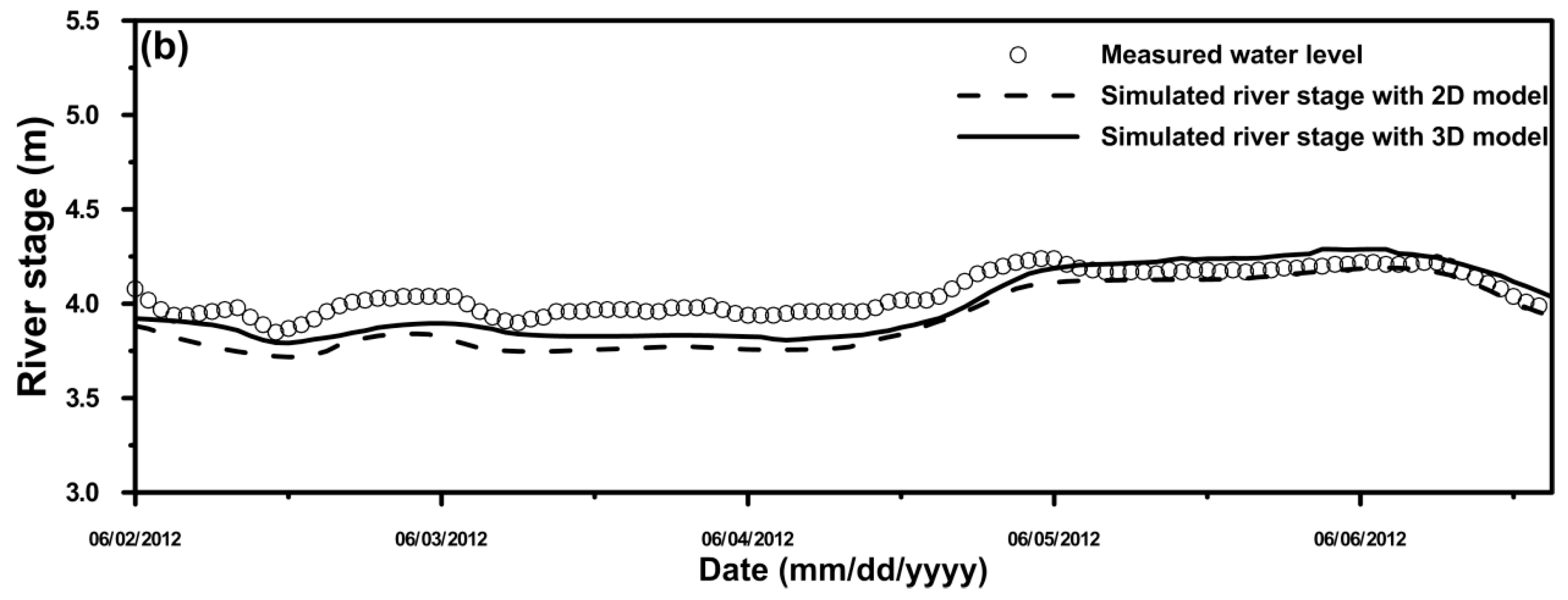

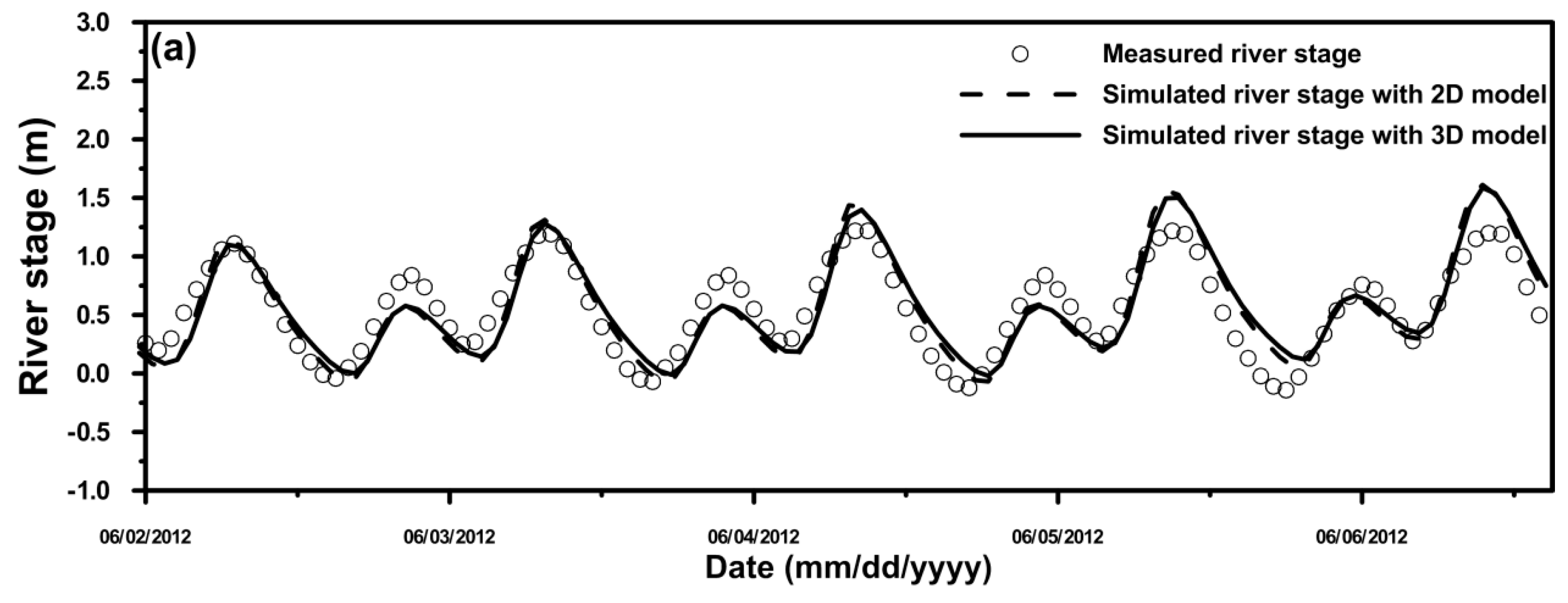

**Figure 13.**Comparison of the simulated river stages using the 2D and 3D models with the resampled cross-section data under the low flow condition at: (

**a**) Mashan Bridge; and (

**b**) Xinzhong station.

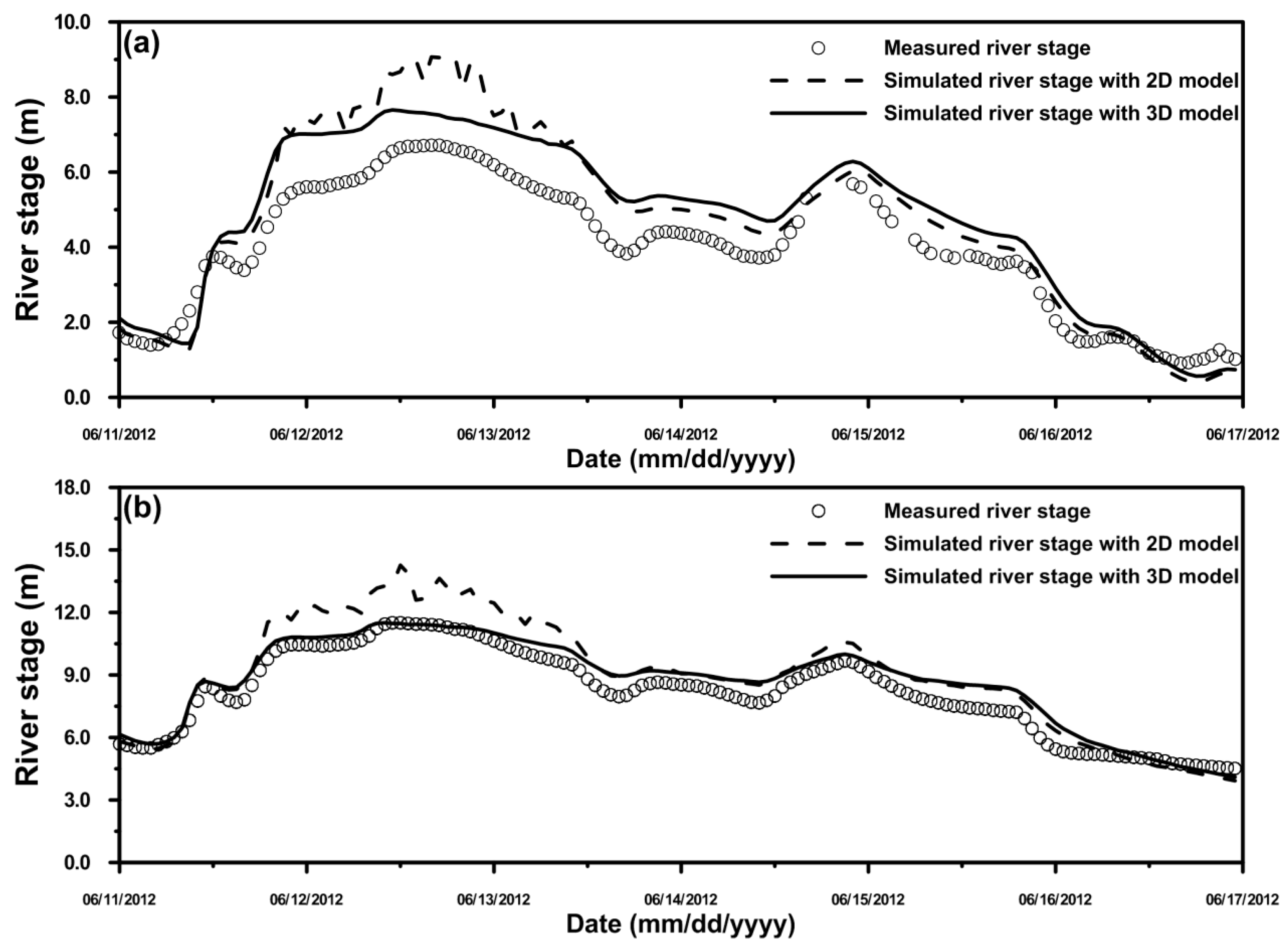

**Figure 14.**Comparison of the simulated river stages using the 2D and 3D models with the resampled cross-section data under the high flow condition at: (

**a**) Mashan Bridge; and (

**b**) Xinzhong station.

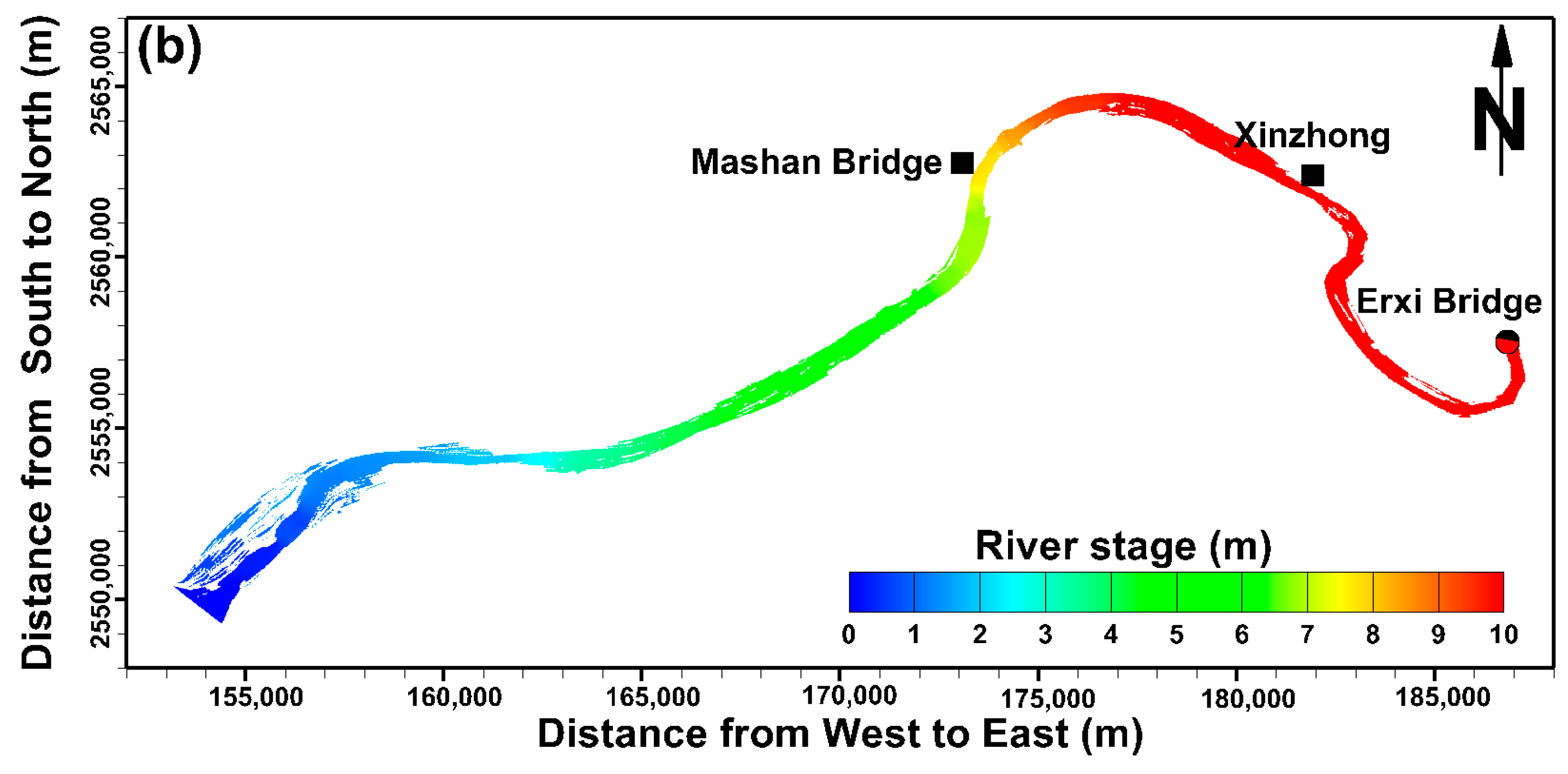

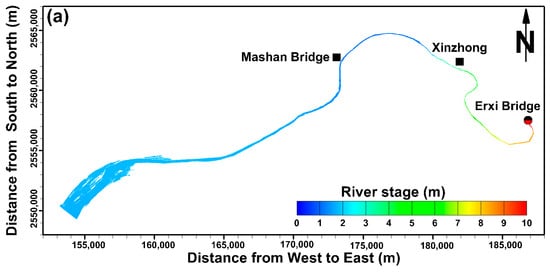

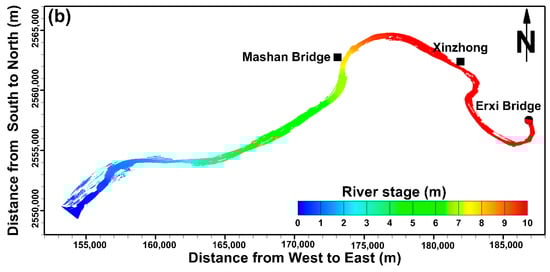

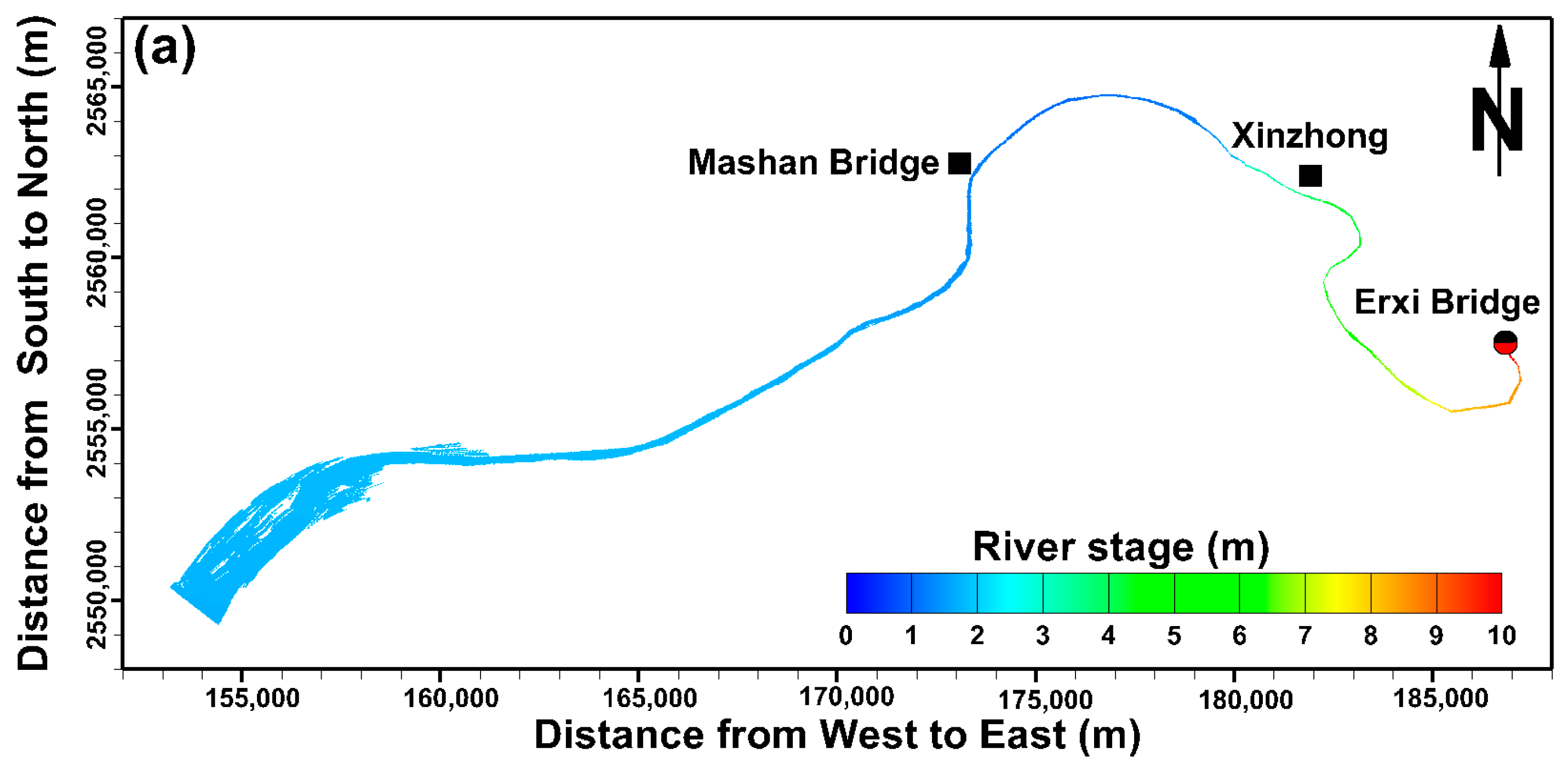

**Figure 15.**Simulated river stage distribution using the 3D model with the resampled cross-section data: (

**a**) at 1:00 on 5 June 2012 (low flow condition); and (

**b**) at 12:00 on 12 June 2012 (high flow condition).

**Table 1.**Statistical error between the simulated and measured river stages under the low flow condition.

Condition | Station | MAE (m) | RMSE (m) | PBIAS (%) |
---|---|---|---|---|

2D modeling with original cross-section data | Mashan Bridge | 0.304 | 0.346 | −17.13 |

Xinzhong | 3.627 | 3.750 | 87.090 | |

2D modeling with the linear interpolation method | Mashan Bridge | 0.203 | 0.232 | 1.229 |

Xinzhong | 0.133 | 0.151 | −3.285 | |

2D modeling with the IDW method | Mashan Bridge | 1.190 | 1.250 | 214.385 |

Xinzhong | 4.220 | 4.367 | 104.055 | |

2D modeling with the NN method | Mashan Bridge | 3.328 | 3.353 | 599.405 |

Xinzhong | 3.760 | 3.774 | 92.715 | |

3D modeling with the linear interpolation method | Mashan Bridge | 0.216 | 0.253 | 3.390 |

Xinzhong | 0.096 | 0.105 | −1.404 |

**Table 2.**Statistical error between the simulated and measured river stages under the high flow condition.

Condition | Station | MAE (m) | RMSE (m) | PBIAS (%) |
---|---|---|---|---|

2D modeling with original cross-section data | Mashan Bridge | 1.018 | 1.238 | 22.981 |

Xinzhong | 2.794 | 2.956 | 34.254 | |

2D modeling with the linear interpolation method | Mashan Bridge | 0.911 | 1.135 | 19.670 |

Xinzhong | 0.934 | 1.093 | 10.499 | |

2D modeling with the IDW method | Mashan Bridge | 3.038 | 3.063 | 77.010 |

Xinzhong | 3.192 | 3.293 | 39.133 | |

2D modeling with the NN method | Mashan Bridge | 3.613 | 3.623 | 91.595 |

Xinzhong | 2.690 | 2.711 | 32.978 | |

3D modeling with the linear interpolation method | Mashan Bridge | 0.858 | 0.950 | 19.428 |

Xinzhong | 0.546 | 0.645 | 6.267 |

Condition | Station | Maximum Rate of River Stage (%) |
---|---|---|

2D modeling with increasing 50% BDC | Mashan Bridge | 0.615 |

Xinzhong | 0.081 | |

2D modeling with decreasing 50% BDC | Mashan Bridge | −1.037 |

Xinzhong | −0.069 | |

3D modeling with increasing 50% BDC | Mashan Bridge | 0.208 |

Xinzhong | 0.002 | |

3D modeling with decreasing 50% BDC | Mashan Bridge | −0.353 |

Xinzhong | −0.005 | |

3D modeling with increasing 50% VEV | Mashan Bridge | 0.001 |

Xinzhong | 0.009 | |

3D modeling with decreasing 50% VEV | Mashan Bridge | −0.006 |

Xinzhong | −0.007 |

Condition | Station | Maximum Rate of River Stage (%) |
---|---|---|

2D modeling with increasing 50% BDC | Mashan Bridge | 2.612 |

Xinzhong | 5.960 | |

2D modeling with decreasing 50% BDC | Mashan Bridge | −0.267 |

Xinzhong | −4.217 | |

3D modeling with increasing 50% BDC | Mashan Bridge | 1.309 |

Xinzhong | 0.329 | |

3D modeling with decreasing 50% BDC | Mashan Bridge | −0.0003 |

Xinzhong | −0.0001 | |

3D modeling with increasing 50% VEV | Mashan Bridge | 0.943 |

Xinzhong | 0.506 | |

3D modeling with decreasing 50% VEV | Mashan Bridge | −0.945 |

Xinzhong | −0.508 |
