Determination of the Geogenic Metal Background in Surface Water: Benchmarking Methodology for the Rivers of Saxony-Anhalt, Germany
Abstract
:1. Introduction
2. Materials and Methods
- A double procedure for the elimination of all sampling locations from the database which have anthropogenic influence,

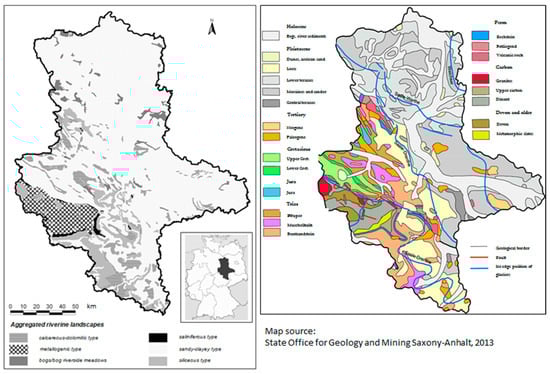

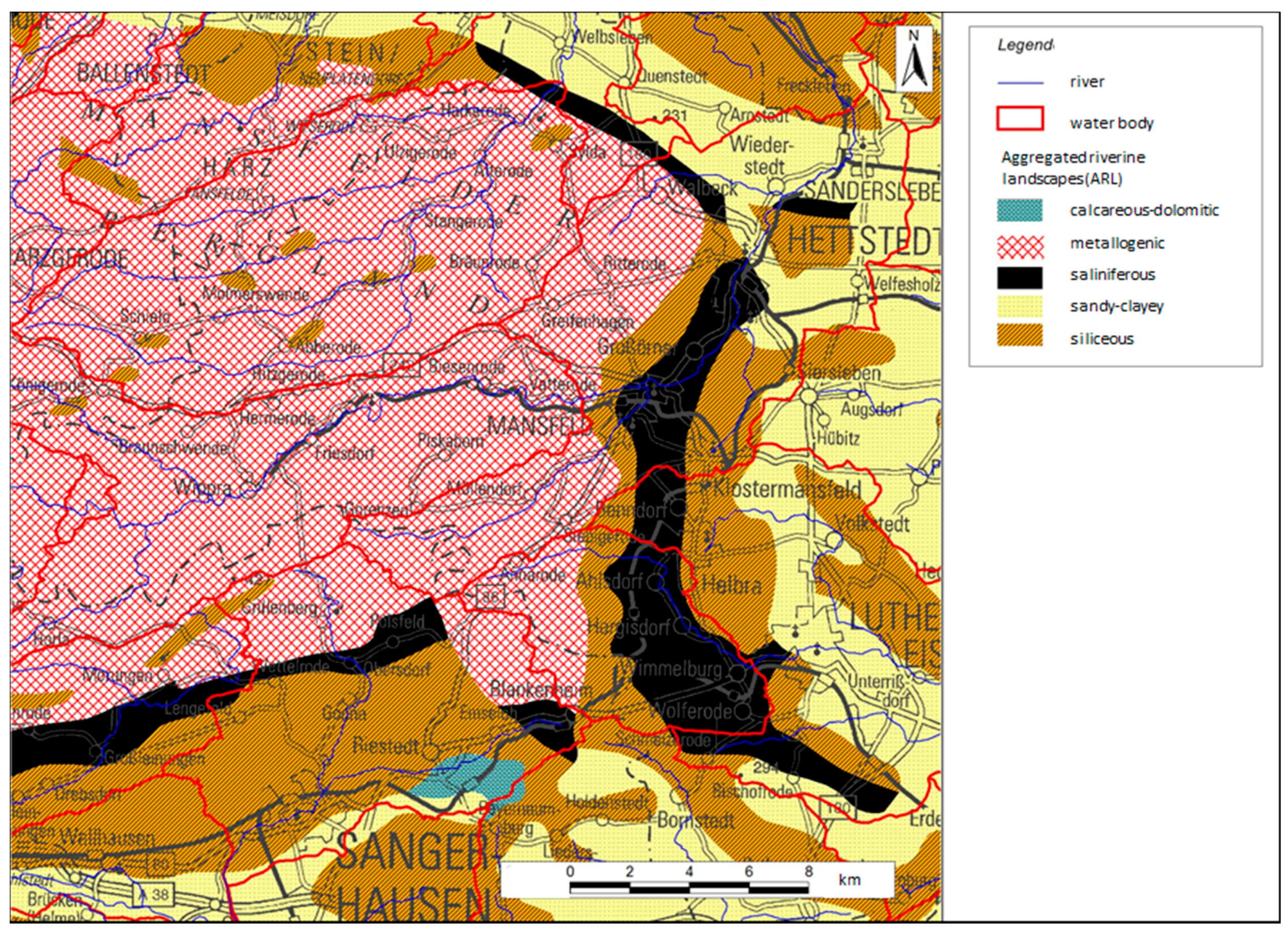

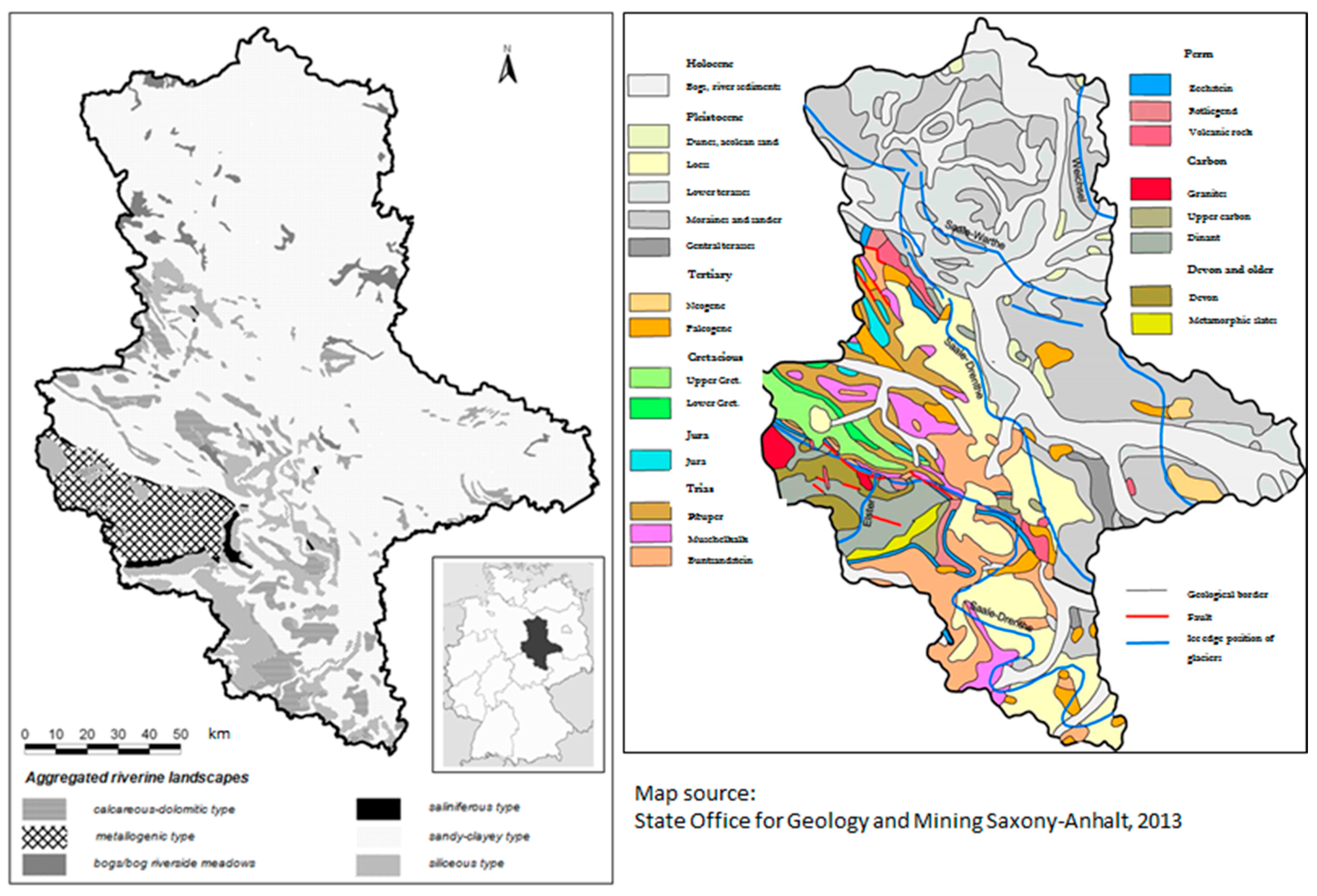

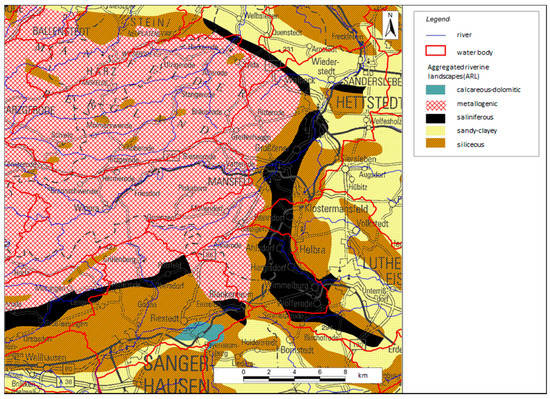

- GIS-based allocation of the sampling points with respect to the respective “aggregated riverine landscapes”, being the evaluation units,
- Assessment of the geogenic background data by calculation of statistical parameters with data pre-selection in order to extract the anthropogenic uninfluenced rivers per AGL, and
- Validation of the background data using the Germany-wide background levels calculated by Birke et al. [41] as a benchmark.
- headwaters are originating in woodlands (≥95% forest),
- exclusion of sampling locations affected by point sources, and dischargers, as well as diffuse sources (agricultural land use, transport); point sources were considered sampling locations, in whose catchment areas mining activities, like mines, mining piles, and smelters are identified, as well as contaminated sites, settlements, and industry, and
- increased concentrations of nitrate (>5 mg/L), ammonium (>0.5 mg/L) and phosphate (>10 μg/L) as indicators for the identification of anthropogenic influence, including analysis of selected sampling locations in terms of the concentrations of NO3-N, NH4-N, and PO4-P as indicator parameters for agricultural land use.
3. Results
3.1. Comparison of Results without the Pre-Selection of Data
3.2. Results of the Statistical Analysis with Pre-Selection of the Data
3.3. Validation of the Results

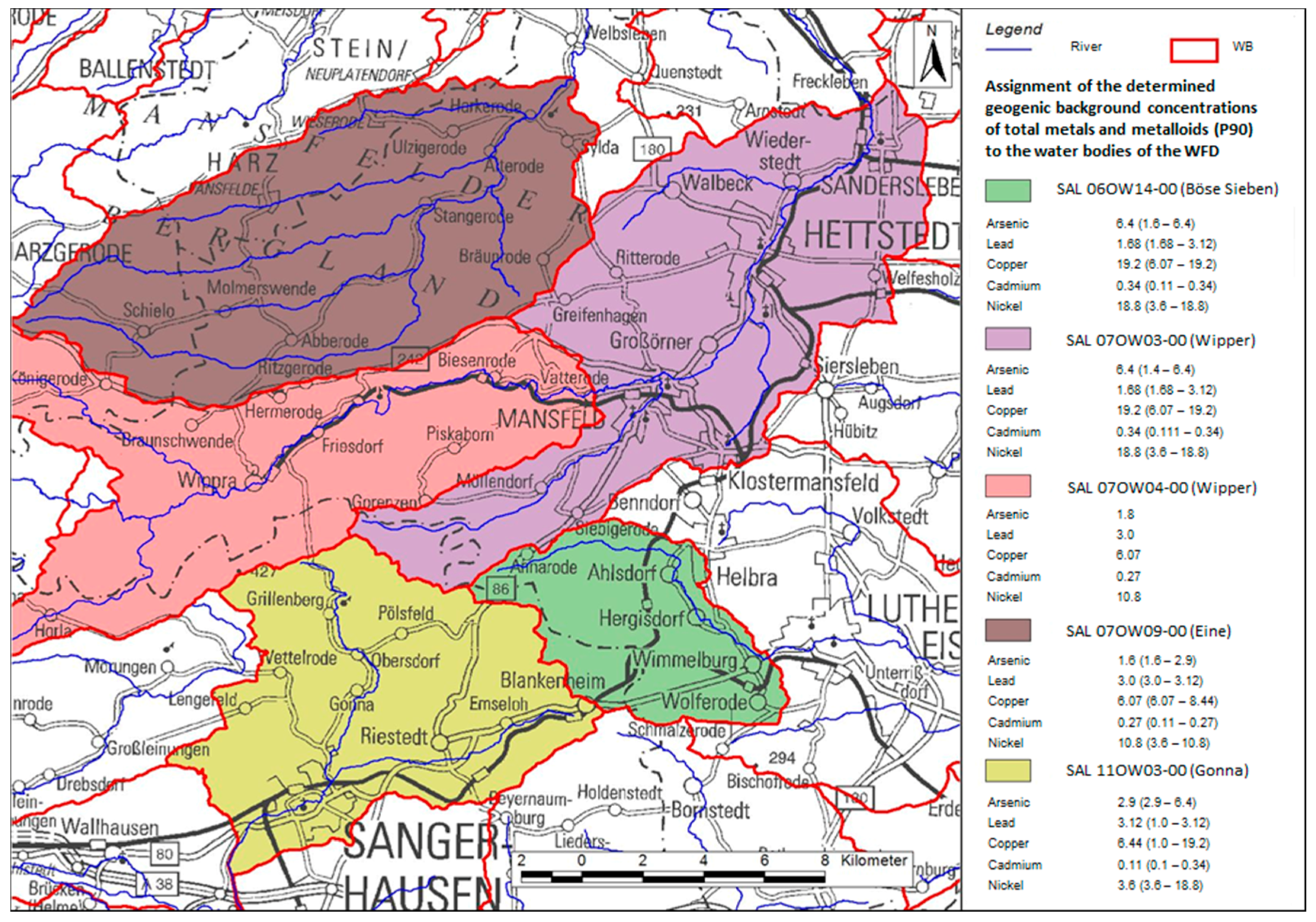

3.4. Spatial Visualization of the Results
4. Discussion
5. Conclusions
calcareous-dolomitic riverine landscape: | Al, B, Ba, Cd, Co, Cr, Se, U |
metallogenic riverine landscape: | Al, As, Be, Cd, Co, Fe, Mn, Ni, Pb, Zn |
bogs and riverside meadows: | Fe, Mn, Mo |
saliniferous riverine landscape: | Ag, As, B, Cr, Cu, Mo, Ni, Pb, Se, Ti |
sandy-clayey riverine landscape: | Al, Fe, Mn, U |
siliceous riverine landscape: | Ag, Be, Cu, Mo, Ni, Pb, V |
Acknowledgments
Author Contributions
Conflicts of Interest
References
- Directive 2000/60/EC of the European Parliament and of the Council 23 October 2000 Establishing a Framework for Community Action in the Field of Water Policy; European Union, 2000; pp. 1–73. Available online: http://www.fao.org/faolex/results/details/en/?details=LEX-FAOC023005 (accessed on 23 January 2017).
- Directive 2008/105/EC of the European Parliament and of the Council of 16 December 2008 on Environmental Quality Standards in the Field of Water Policy, Amending and Subsequently Repealing Council Directives 82/176/EEC, 83/513/EEC, 84/156/EEC, 84/491/EEC, 86/280/EEC and Amending Directive 2000/60/EC of the European Parliament and of the Council; European Union, 2008; pp. 84–97. Available online: http://eur-lex.europa.eu/legal-content/EN/TXT/?uri=CELEX%3A32008L0105 (accessed on 23 January 2017).
- Directive 2013/39/EU of the European Parliament and of the Council of 12 August 2013 Amending Directives 2000/60/EC and 2008/105/EC as Regards Priority Substances in the Field of Water Policy Text with EEA Relevance; European Union, 2013; pp. 1–17. Available online: http://eur-lex.europa.eu/legal-content/EN/ALL/?uri=CELEX%3A32013L0039 (accessed on 24 January 2017).
- Directive 2000/60/EC of the European Parliament and of the Council 23 October 2000 Establishing a Framework for Community Action in the Field of Water Policy; Article 4: Environmental Objectives; European Union, 2000; pp. 1–73. Available online: http://www.fao.org/faolex/results/details/en/?details=LEX-FAOC023005 (accessed on 23 January 2017).
- German Federal Water Act: Act on Managing Water Resources, in the Version Published on 31 July 2009 (Federal Law Gazette l S. 2585), Most Recently Amended by an Act of 4 August 2016 (Federal Law Gazette l S. 1972). Article 29: Deadlines for the Achievement of the Management Objectives. 2009. Available online: http://www.gesetze-im-internet.de/whg_2009/BJNR258510009.html (accessed on 23 January 2017).
- German Federal Water Act: Act on Managing Water Resources, in the Version Published on 31 July 2009 (Federal Law Gazette l S. 2585), Most Recently Amended by an Act of 4 August 2016 (Federal Law Gazette l S. 1972). Article 30: Deviating Management Objectives. 2009. Available online: http://www.gesetze-im-internet.de/whg_2009/BJNR258510009.html (accessed on 23 January 2017).
- German Federal Water Act: Act on Managing Water Resources, in the Version Published on 31 July 2009 (Federal Law Gazette l S. 2585), Most Recently Amended by an Act of 4 August 2016 (Federal Law Gazette l S. 1972). Article 31: Exemptions to the Management Objectives. 2009. Available online: http://www.gesetze-im-internet.de/whg_2009/BJNR258510009.html (accessed on 23 January 2017).
- Directive 2000/60/EC of the European Parliament and of the Council 23 October 2000 Establishing a Framework for Community Action in the Field of Water Policy. Article 4(4): Extension of Deadlines; European Union, 2000; pp. 1–73. Available online: http://www.fao.org/faolex/results/details/en/?details=LEX-FAOC023005 (accessed on 23 January 2017).
- Directive 2000/60/EC of the European Parliament and of the Council 23 October 2000 Establishing a Framework for Community Action in the Field of Water Policy. Article 4(5): Less Stringent Environmental Objectives; European Union, 2000; pp. 1–73. Available online: http://www.fao.org/faolex/results/details/en/?details=LEX-FAOC023005 (accessed on 23 January 2017).
- Grützmacher, G.; Kumar, P.J.S.; Rustler, M.; Hannappel, S.; Sauer, U. Geogenic groundwater contamination—Definition, occurrence and relevance for drinking water production. Zbl. Geol. Paläont. Teil I 2013, 1, 69–75. [Google Scholar]
- Xu, L.; Li, J. Speciation and degrees of contamination of metals in sediments from upstream and downstream reaches along the catchment of the Southern Bohai Sea, China. Int. J. Environ. Res. Public Health 2015, 12, 7959–7973. [Google Scholar] [CrossRef] [PubMed]
- Sims, D.B.; Francis, A. Anthropogenic influences on geogenic trace elements and contamination in wash sediments from historical mining activities in the Carnation wash system, Nelson, Nevada (USA). Int. J. Soil Sediment Water 2010, 3, 2. [Google Scholar]
- Benoit, G.; Rozan, T. The influence of size distribution on the particle concentration effect and trace metal partitioning in rivers. Geochim. Cosmochim. Acta 1999, 63, 113–127. [Google Scholar] [CrossRef]
- Stallard, R.F.; Edmond, J.R. Geochemistry of the Amazon. 2. The influence of geology and weathering environment on the dissolved load. J. Geophys. Res. 1983, 88, 9671–9688. [Google Scholar] [CrossRef]
- Reimann, C.; Garrett, R.G. Geochemical background—Concept and reality. Sci. Total Environ. 2005, 350, 12–27. [Google Scholar] [CrossRef] [PubMed]
- Hawkes, H.E.; Webb, J.S. Geochemistry in Mineral Exploration; Harper: New York, NY, USA, 1962. [Google Scholar]
- Schleyer, R.; Kerndorff, H. Die Grundwasserqualität Westdeutscher Trinkwasserressourcen—Eine Bestandsaufnahme für den Vorbeugenden Grundwasserschutz Sowie zur Erkennung von Grundwasserverunreinigungen; VCH Verlagsgesellschaft Mbh: Weinheim, Germany, 1992. [Google Scholar]
- Griffioen, J.; Passier, H.F.; Klein, J. Comparison of selection methods to deduce natural background levels for groundwater units. Environ. Sci. Technol. 2008, 42, 4863–4869. [Google Scholar] [CrossRef] [PubMed]
- Hinsby, K.; Condesso de Melo, M.T.; Dahl, M. European case studies supporting the derivation of natural background levels and groundwater threshold values for the protection of dependent ecosystems and human health. Sci. Total Environ. 2008, 401, 1–20. [Google Scholar] [CrossRef] [PubMed]
- Matschullat, J.; Heinrichs, H.; Schneider, J.; Siewers, U. Heavy metals and water acidification—Contributions to the behavior of pollutants in forested ecosystems, Harz Mountains. Z. Dtsch. Geol. Ges. Band 1990, 141, 139–150. [Google Scholar]
- Matschullat, J.; Ottenstein, R.; Reimann, C. Geochemischer Hintergrund—Berechenbar? Springer: Berlin, Germany, 2000. [Google Scholar]
- Mast, M.A.; Verplanck, P.L.; Wringht, W.G.; Bove, D.J. Characterization of background water quality. U.S. Geol. Surv. Prof. Pap. 2007, 1651, 347–386. [Google Scholar]
- Hall, L.E.; Ekoniak, P.E. Determination of natural background metal loading to Boulder Creek at baseflow conditions, Iron Mountain Mines, Redding, California. Abstr. Programs Geol. Soc. Am. 1997, 29, 129. [Google Scholar]
- Nordstrom, D.K. Hydrogeochemical processes governing the origin, transport and fate of major and trace elements from mine wastes and mineralized rock to surface waters. Appl. Geochem. 2011, 26, 1777–1791. [Google Scholar] [CrossRef]
- Nordstrom, D.K. Baseline and premining geochemical characterization of mined sites. Appl. Geochem. 2015, 57, 17–34. [Google Scholar] [CrossRef]
- Zuurdeeg, B.W.; van Enk, R.J.; Vriend, S.P. Natuurlijke Achtergrond Gehalten van Zware Metalen en Enkele Andere Sporenelementen in Nederlands Oppervlaktewater; Geochem-Research: Utrecht, The Netherlands, 1992. (In Dutch) [Google Scholar]
- Laane, R.W.P.M. Background Concentrations of Natural Compounds in Rivers, Sea, Water, Atmosphere and Mussels; Report DGW-92.033; Directorate-General of Public Works and Water Management: The Hague, The Netherlands, 1992. [Google Scholar]
- Crommentuijn, T.; Polder, M.D.; van de Plassche, E.J. Maximum Permissible Concentrations and Negligible Concentrations for Metals, Taking Background Concentrations into Account; National Institute of Public Health and the Environment Bilthoven: Bilthoven, The Netherlands, 1997. [Google Scholar]
- Ander, L.E.; Casper, S. Determination of Metal Background Reference Concentrations: Feasibility Study; Science Report—SC050063; Environment Agency: Bristol, UK, 2008.
- Peters, A.; Merrington, G.; Crane, M. Estimation of Background Reference Concentrations for Metals in UK Freshwaters; Water Framework Directive-United Kingdom Technical Advisory Group (WFD-UKTAG): Edinburgh, Scotland, UK, 2012. [Google Scholar]
- Osté, L.A.; Zwolsman, G.J.; Klein, J. Methods to Derive Natural Background Concentrations of Metals in Surface Water and Application of Two Methods in a Case Study; Deltares: Utrecht, The Netherlands, 2012. [Google Scholar]
- Briem, E. Die Fließgewässerlandschaften der Bundesrepublik Deutschland—Teil 1: Fließgewässerformen, -Strukturen Und-Typologie; Ein kleines Handbuch der abiotischen Fließgewässerkunde: Dörrenbach, Hennef, Germany, 2000. [Google Scholar]
- Schneider, P.; Neitzel, P.; Schaffrath, M.; Schlumprecht, H. Leitbildorientierte Physikalisch-Chemische Gewässerbewertung—Referenzbedingungen und Qualitätsziele; UBA: Berlin, Germany, 2003. [Google Scholar]
- Schneider, P.; Neitzel, P.; Schaffrath, M.; Schlumprecht, H. Physico-chemical assessment of the reference status in German surface waters: A contribution to the establishment of the EC water framework Directive 2000/60/EG in Germany. Hydrochim. Hydrobiol. Acta 2003, 31, 49–63. [Google Scholar] [CrossRef]
- Neitzel, P.L.; Schneider, P.; Schlumprecht, H. Physico-Chemical Surface Water Conditions of Catchments with Metallogenic Origin: A Contribution to the Establishment of the EC Water Framework Directive 2000/60/EG in Germany; Springer: Heidelberg, Germany, 2002. [Google Scholar]
- Hellmann, H. Lehrbuch der Hydrologie, Bd. 2: Qualitative Hydrologie—Wasserbeschaffenheit und Stoffflüsse; Verlag Gebrüder Borntraeger: Berlin/Stuttgart, Germany, 1999. [Google Scholar]
- Kunkel, R.; Voigt, H.-J.; Wendland, F.; Hannappel, S. Die Natürliche, Ubiquitär Überprägte Grundwasserbeschaffenheit in Deutschland; Schriften des Forschungszentrums Jülich GmbH: Jülich, Germany, 2004; Volume 47. [Google Scholar]
- Müller, G. Schwermetalle in den Sedimenten des Rheins—Veränderungen seit 1971. Umschau 1979, 79, S778–S789. [Google Scholar]
- Greif, A.; Klemm, W. Abschlussbericht zum Forschungs- und Entwicklungsvorhaben “Ableitung von Referenzwerten Geogener Hintergrundbelastungen für Schwermetalle in der Wasserphase Sowie im Schwebstoffbürtigen Sediment Sächsischer Fließgewässer”; TU Bergakademie Freiberg, Institut für Mineralogie, Sächsisches Landesamt für Umwelt und Geologie: Freiberg, Germany, 2005. [Google Scholar]
- Schneider, P.; Gottschalk, N.; Lämmel, A.; Voigt, I. Ermittlung von Metalloid-Hintergrundwerten für die Gewässer Oker, Oder, Sieber, Söse und Innerste des Westharzes. Wasser Abfall 2014, 16, 32–41. [Google Scholar] [CrossRef]
- Birke, M.; Rauch, U.; Raschka, H.; Wehner, H.; Kringel, R.; Gäbler, H.-E.; Kriete, C.; Siewers, U.; Kantor, W. Geochemischer Atlas der Bundesrepublik Deutschland. Verteilung Anorganischer und Organischer Parameter in Oberflächenwässern und Bachsedimenten; Bundesanstalt für Geowissenschaften und Rohstoffe: Hannover, Germany, 2006. [Google Scholar]
- Rentsch, J. Regionale Geochemische Prospektion Harz, Teil 1 und 2. Abschlußbericht; Zentrales Geologisches Institut der DDR: Berlin, Germany, 1984. [Google Scholar]
- Norra, S.; Huck, K.; Schmidt, F.; Kramar, U.; Stüben, D. Untersuchung zur Ableitung von Geogenen Hintergrundwerten für die Fließgewässer in Baden-Württemberg; Universität Karlsruhe (Institut für Petrografie und Geochemie), Landesanstalt für Umweltschutz Baden-Württemberg: Karlsruhe, Germany, 2000. [Google Scholar]
- Environmental Systems Research Institute (ESRI). ArcGIS Release 10.1; Environmental Systems Research Institute: Redlands, CA, USA, 2012. [Google Scholar]
- Ordinance on the Protection of Surface Waters (Surface Waters Ordinance) of 20 July 2011; Federal Law Gazette BGBl; BGBI: Bonn, Germany, 2011; pp. 1429–1469.
- Bachmann, G.H.; Ehling, B.C.; Eichner, R.; Schwab, M. Geologie von Sachsen-Anhalt; Schweizerbart’sche Verlagsbuchhandlung: Stuttgart, Germany, 2008. [Google Scholar]
- Zech, J.; Jeffries, T.; Faust, D.; Ullrich, B.; Linnemann, U. U/Pb-dating and geochemical characterization of the Brocken and the Ramberg Pluton, Harz Mountains, Germany. Geol. Saxonica J. Cent. Eur. Geol. 2010, 56, 9–24. [Google Scholar]
- Mohr, K. Geologie und Minerallagerstätten des Harzes, 2nd ed.; Schweizerbart’sche, E.: Stuttgart, Germany, 1993. [Google Scholar]
- Liessmann, W. Historischer Bergbau im Harz—Kurzführer; Springer: Berlin/Heidelberg, Germany, 2010. [Google Scholar]
- Schneider, P.; Nilius, U.; Lämmel, A.; Schmitt, A.; Voigt, I. 1000 Years of Mining: What Means Geogenic Background of Metals in the Rivers of the Harz Mountains? In Mining Meets Water—Conflicts and Solutions, Proceedings of the International Mine Water Association (IMWA) 2016 Conference, Leipzig, Germany, 11–15 June 2016; Drebenstedt, C., Paul, M., Eds.; Technical University Mining Academy Freiberg: Freiberg, Germany, 2016; pp. 45–53. [Google Scholar]
- Salminen, R.; Batista, M.J.; Bidovec, M.; Demetriades, A.; de Vivo, B.; de Vos, W.; Duris, M.; Gilucis, A.; Gregorauskiene, V.; Halamic, J.; et al. Geochemical Atlas of Europe. Part 1: Background Information, Methodology and Maps; Geological Survey of Finland: Espoo, Finland, 2005; p. 526. [Google Scholar]
- Schneider, P.; Reincke, H.; Engelmann, U.; Rohde, S. Uranium—A problem in the Elbe Catchment Area? In The New Uranium Mining Boom—Challenge and Lessons Learned; Merkel, B.J., Schipek, M., Eds.; Springer: Berlin/Heidelberg, Germany, 2011; pp. 779–788. [Google Scholar]
Criterion | Statistical Approach with Pre-Selection | Procedure without Pre-Selection |
---|---|---|
Genetic classification of data | aggregated riverine landscapes by Schneider et al. [33,34] | none |
Preselection of database | yes | no |
Statistical parameter for derivation of geogenic background | 50th percentile (median) 90th percentile | 50th percentile (median) 84.1st percentile (according to [17]) 90th percentile |
Advantage | Genetic classification of data (here ARLs) allows for the allocation of areas with increased concentrations to the geological setting Data for large data sets (>80,000) can be processed (meta catchment scale, here about 300 water bodies with several sampling locations) through the use of GIS Existing data from county monitoring activities can be included after verification and selection Sensitive also to very low detection limits as usually the geogenic concentrations are low | Served for the separation of the anthropogenic proportion of the concentration of an element in a groundwater from the geogenic proportion, regardless of the geological setting [17] |
Disadvantage | Database for suspended matter needs to be improved | Methodology derived from about 2800 datasets from groundwater extraction wells for groundwater [17], not applicable for surface water No pre-selection causes that there is no consideration of external effects which can affect the geogenic concentration Genetic classification of data is not foreseen |
Total Phase [μg/L] | Calcareous-Dolomitic | Siliceous | Metallogenic | Bogs/Bog Riverside Meadows | Saliniferous | Sandy-Clayey | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Parameter | P(50) | P(90) | P(50) | P(90) | P(50) | P(90) | P(50) | P(90) | P(50) | P(90) | P(50) | P(90) |
Al | 215 | 1110 | 25 | 157 | 120 | 278 | 25 | 68 | 25 | 84 | 25 | 346 |
Sb | 0.5 | 1.0 | 0.5 | 1.0 | 0.25 | 1.0 | 0.55 | 1.0 | 0.25 | 1.0 | 1.0 | 1.0 |
As | 0.25 | 1.08 | 0.5 | 2.64 | 0.25 | 2.5 | 0.57 | 1.6 | 0.8 | 7.7 | 0.5 | 1.61 |
Ba | 70 | 100 | 66 | 240 | 14.5 | 56.5 | 60 | 146 | 13 | 110 | 57 | 87.6 |
Be | 0.025 | 0.166 | 0.125 | 0.39 | 0.064 | 0.22 | 0.025 | 0.46 | 0.025 | 0.071 | 0.025 | 0.09 |
Pb | 0.5 | 0.9 | 0.5 | 0.7 | 0.5 | 3.4 | 0.5 | 0.7 | 0.5 | 1.0 | 0.5 | 1.0 |
B | 25 | 51 | 25 | 108 | 25.0 | 26.4 | 56 | 138 | 80 | 320 | 25 | 100 |
Cd | 0.025 | 0.122 | 0.08 | 0.24 | 0.08 | 0.30 | 0.025 | 0.05 | 0.1 | 0.22 | 0.025 | 0.06 |
Cr | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 0.1 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
Fe | 285 | 2337 | 25 | 787 | 160 | 664 | 800 | 1650 | 25 | 35 | 1000 | 3315 |
Co | 0.2 | 1.76 | 0.3 | 1.0 | 0.5 | 6.5 | 0.1 | 1.0 | 0.1 | 0.5 | 0.23 | 1.2 |
Cu | 1.0 | 1.0 | 1.0 | 18.0 | 1.0 | 3.5 | 1.0 | 2.9 | 1.0 | 1.0 | 1.0 | 1.4 |
Mn | 88 | 235 | 5.0 | 180 | 41 | 290 | 160 | 380 | 5.0 | 20 | 229 | 758 |
Mo | 0.5 | 0.5 | 1.0 | 5.9 | 0.5 | 0.5 | 0.5 | 1.2 | 0.5 | 7.7 | 0.5 | 0.5 |
Ni | 2.0 | 6.85 | 1.0 | 31.0 | 1.0 | 5.5 | 1.0 | 2.1 | 1.0 | 2.5 | 1.0 | 3,4 |
Hg | 0.025 | 0.025 | 0.025 | 0.025 | 0.015 | 0.05 | 0.01 | 0.04 | 0.01 | 0.025 | 0.01 | 0.025 |
Se | 0.5 | 0.8 | 0.5 | 1.5 | 0.4 | 0.6 | 0.5 | 1.2 | 1.3 | 2.4 | 0.5 | 0.5 |
Ag | 0.05 | 0.05 | 0.05 | 0.80 | 0.05 | 0.05 | 0.05 | 0.08 | 0.05 | 0.09 | 0.05 | 0.05 |
Ti | 2.5 | 2.5 | 2.5 | 8.9 | 2.5 | 2.5 | 2.5 | 11.3 | 2.5 | 2.5 | 2.5 | 2.5 |
Tl | 0.025 | 0.01 | 0.1 | 0.1 | 0.1 | 0.1 | 0.025 | 0.025 | 0.025 | 1.0 | 0.025 | 0.025 |
U | 3.8 | 6.92 | 1.2 | 4.2 | 0.25 | 0.95 | 0.257 | 2.25 | 0,93 | 4.10 | 0.25 | 5.55 |
V | 0.5 | 5.0 | 0.5 | 5.9 | 0.5 | 5.0 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Zn | 5.0 | 32.4 | 5.0 | 24.4 | 5.0 | 25.0 | 5.0 | 14.0 | 10.0 | 19.8 | 5.0 | 21.0 |
Sn | 0.25 | 0.5 | 0.25 | 0.5 | 0.25 | 0.5 | 0.5 | 0.5 | 0.25 | 0.5 | 0.5 | 0.5 |
Total Phase [μg/L] | Calcareous-Dolomitic | Siliceous | Metallogenic | Bogs/Bog Riverside Meadows | Saliniferous | Sandy-Clayey | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Parameter | P(50) | P(90) | P(50) | P(90) | P(50) | P(90) | P(50) | P(90) | P(50) | P(90) | P(50) | P(90) |
Al | 5.0 | 150 | 5.0 | 25 | 7.5 | 71 | 5.0 | 25 | 5.0 | 25 | 25 | 189 |
Sb | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
As | 0.25 | 1.0 | 0.25 | 1.30 | 0.8 | 5.3 | 0.25 | 0.9 | 1.2 | 13.0 | 0.25 | 0.8 |
Ba | 68 | 165 | 70 | 109 | 31.5 | 104 | 70 | 159 | 40 | 101 | 85 | 146 |
Be | 0.025 | 0.06 | 0.025 | 0.325 | 0.015 | 0.203 | 0.02 | 0.025 | 0.015 | 0.062 | 0.025 | 0.025 |
Pb | 0.5 | 0.5 | 0.5 | 2.9 | 0.5 | 2.8 | 0.5 | 0.5 | 0.5 | 1.3 | 0.5 | 0.5 |
B | 54 | 277 | 29 | 110 | 20.5 | 38.0 | 60 | 154 | 94 | 385 | 73 | 108 |
Cd | 0.025 | 0.376 | 0.05 | 0.28 | 0.13 | 0.45 | 0.025 | 0.025 | 0.052 | 0.28 | 0.025 | 0.05 |
Cr | 1.0 | 4.0 | 1.0 | 2.2 | 0.5 | 2.0 | 0.75 | 1.8 | 1.0 | 4.0 | 1.0 | 1.4 |
Fe | 42.5 | 729 | 40 | 252 | 146 | 1039 | 195 | 947 | 36 | 317 | 155 | 821 |
Fe(II) | 15 | 306 | 15 | 253 | 140 | 477 | 364 | 1343 | 15 | 53 | 86 | 598 |
Co | 0.1 | 2.2 | 1.0 | 0.8 | 0.1 | 8.1 | 0.1 | 0.8 | 0.1 | 1.8 | 0.1 | 1.2 |
Cu | 1.0 | 4.0 | 1.0 | 23 | 1.0 | 4.4 | 1.0 | 4.0 | 1.0 | 7.1 | 1.0 | 2.9 |
Mn | 5.0 | 156 | 5.0 | 81 | 100 | 1969 | 152 | 357 | 5.0 | 55 | 144 | 570 |
Mo | 0.15 | 0.5 | 0.15 | 2.1 | 0.15 | 0.5 | 0.25 | 1.0 | 0.5 | 7.6 | 0.5 | 0.5 |
Ni | 3.9 | 10.8 | 2.05 | 34.0 | 1.2 | 26.4 | 1.0 | 3.9 | 5.0 | 24.0 | 1.3 | 5.5 |
Hg | 0.005 | 0.01 | 0.005 | 0.01 | 0.005 | 0.01 | 0.01 | 0.01 | 0.005 | 0.01 | 0.01 | 0.01 |
Se | 0.5 | 2.5 | 0.5 | 1.4 | 0.4 | 0.5 | 0.4 | 0.5 | 1.9 | 11.2 | 0.5 | 1.5 |
Ag | 0.05 | 0.06 | 0.05 | 0.14 | 0.01 | 0.05 | 0.01 | 0.05 | 0.05 | 0.18 | 0.05 | 0.05 |
Ti | 2.5 | 6.0 | 2.5 | 6.1 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 14 | 2.5 | 4.1 |
Tl | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 |
U | 2.4 | 7.0 | 0.6 | 3.95 | 0.025 | 0.55 | 0.254 | 1.17 | 1.0 | 4.0 | 0.25 | 5.16 |
V | 0.15 | 0.5 | 0.15 | 2.8 | 0.15 | 0.5 | 0.15 | 0.5 | 0.15 | 0.5 | 0.5 | 0.5 |
Zn | 5.0 | 34.0 | 13.5 | 32.0 | 5.0 | 172 | 5.0 | 12.2 | 11.5 | 32.0 | 2.0 | 16.1 |
Sn | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Total Phase [mg/kg] | Siliceous | Bogs/Bog Riverside Meadows | Sandy-Clayey | |||
---|---|---|---|---|---|---|
Parameter | P(50) | P(90) | P(50) | P(90) | P(50) | P(90) |
Sb | - | - | - | - | 10 | 10 |
As | 13 | 14.6 | 38.1 | 45 | 24 | 34.5 |
Ba | - | - | - | - | 516 | 558. |
Be | - | - | - | - | 1.5 | 2.6 |
Pb | 47 | 52.4 | 55.1 | 77.66 | 45 | 109 |
B | - | - | - | - | 13.5 | 33.3 |
Cd | 0.6 | 0.68 | 4.4 | 5.58 | 0.9 | 1.31 |
Cr | 50 | 52.4 | 126 | 210.8 | 65.5 | 109.1 |
Fe | 34,700 | 35,900 | 205,000 | 233,200 | 126,500 | 228,900 |
Co | - | - | - | - | 16 | 21.4 |
Cu | 89 | 96.2 | 49 | 65.7 | 58 | 96.2 |
Mn | 2000 | 15,040 | 16,800 | 35,200 | 4875 | 14,710 |
Mo | - | - | - | - | 1 | 2.5 |
Ni | 28 | 28 | 104 | 151.6 | 35.5 | 51.2 |
Hg | 0.4 | 0.4 | 0.9 | 1.64 | 0.2 | 0.3 |
Se | - | - | - | - | 1 | 1 |
Ag | - | - | - | - | 0.5 | 1 |
Ti | - | - | - | - | 552 | 890.4 |
Tl | - | - | - | - | 0.5 | 0.5 |
U | - | - | - | - | 1.2 | 2.27 |
V | - | - | - | - | 56 | 69.9 |
Zn | 260 | 276 | 850 | 1068 | 317 | 439,1 |
Sn | - | - | - | - | 5 | 5 |
Total Phase [μg/L] | Span over all Types of ARL in Saxony-Anhalt—with Pre-Selection | Span of the Data of the Geochemical Map for Saxony-Anhalt—without Pre-Selection | |||
---|---|---|---|---|---|
Parameter | Min P(50) | Max P(50) | Min P(50) | Mean P(50) | Max P(50) |
Al | 25 | 215 | 1 | 10 | 250 |
As | 0.25 | 0.8 | 0.19 | 1.5 | 4.5 |
Ba | 13 | 70 | 9 | 30 | 80 |
Pb | 0.5 | 0.5 | 0.02 | 0.2 | 1.1 |
B | 25 | 80 | 20 | 60 | 350 |
Cd | 0.025 | 0.1 | 0.005 | 0.05 | 0.3 |
Cr | 1.0 | 1.0 | 0.03 | 0.2 | 1.3 |
Fe | 25 | 1000 | 10 | 90 | 1800 |
Cu | 1.0 | 1.0 | 0.4 | 1.1 | 6.0 |
Se | 0.4 | 1.3 | 0.08 | 1.07 | 3.58 |
Ag | 0.05 | 0.05 | 0.002 | 0.004 | 0.006 |
Tl | 0.025 | 0.1 | 0.002 | 0.013 | 0.17 |
U | 0.25 | 3.8 | 0.07 | 0.7 | 7 |
Zn | 5.0 | 10.0 | 0.5 | 2.7 | 14 |
Para-Meter [μg/L] | EQS 2011/Since 2015 | Calcareous-Dolomitic | Metallogenic | Bogs/Riverside Meadows | Saliniferous | Sandy-Clayey | Siliceous |
---|---|---|---|---|---|---|---|
As | –/1.0 | 1.0 | 5.3 | 0.9 | 13.0 | 0.8 | 1.3 |
Ag | 0.02/0.02 | 0.06 | 0.05 | 0.05 | 0.18 | 0.05 | 0.14 |
Cd | 0.08–0.25 */0.15 | 0.376 | 0.450 | 0.025 | 0.280 | 0.050 | 0.280 |
Hg | 0.05/0.07 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
Ni | 20/4.0 | 10.8 | 26.4 | 3.9 | 24.0 | 5.5 | 34.0 |
Pb | 7.2/1.2 | 0.5 | 2.8 | 0.5 | 1.3 | 0.5 | 2.9 |
Se | 3.0/3.0 | 2.5 | 0.5 | 0.5 | 11.2 | 1.5 | 1.4 |
Tl | 0.2/0.2 | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 |
Calcareous-dolomitic | 0.25 | [μg/L] | ||
Metallogenic | 0.09 | [μg/L] | Background value > EQS | |
Bogs/riverside meadows | 0.25 | [μg/L] | ||
Saliniferous | 0.15 | [μg/L] | P90 | 90th percentile |
Sandy-clayey | 0.25 | [μg/L] | italic | Value below detection limit |
© 2017 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license ( http://creativecommons.org/licenses/by/4.0/).
Share and Cite
Schneider, P.; Nilius, U.; Gottschalk, N.; Süß, A.; Schaffrath, M.; Löser, R.; Lange, T. Determination of the Geogenic Metal Background in Surface Water: Benchmarking Methodology for the Rivers of Saxony-Anhalt, Germany. Water 2017, 9, 75. https://doi.org/10.3390/w9020075
Schneider P, Nilius U, Gottschalk N, Süß A, Schaffrath M, Löser R, Lange T. Determination of the Geogenic Metal Background in Surface Water: Benchmarking Methodology for the Rivers of Saxony-Anhalt, Germany. Water. 2017; 9(2):75. https://doi.org/10.3390/w9020075
Chicago/Turabian StyleSchneider, Petra, Ulf Nilius, Nicole Gottschalk, Annegret Süß, Martin Schaffrath, Ralf Löser, and Thomas Lange. 2017. "Determination of the Geogenic Metal Background in Surface Water: Benchmarking Methodology for the Rivers of Saxony-Anhalt, Germany" Water 9, no. 2: 75. https://doi.org/10.3390/w9020075
APA StyleSchneider, P., Nilius, U., Gottschalk, N., Süß, A., Schaffrath, M., Löser, R., & Lange, T. (2017). Determination of the Geogenic Metal Background in Surface Water: Benchmarking Methodology for the Rivers of Saxony-Anhalt, Germany. Water, 9(2), 75. https://doi.org/10.3390/w9020075
