Implications of Extracellular Polymeric Substance Matrices of Microbial Habitats Associated with Coastal Aquaculture Systems

Abstract

Coastal zones support fisheries that provide food for humans and feed for animals. The decline of fisheries worldwide has fostered the development of aquaculture. Recent research has shown that extracellular polymeric substances (EPS) synthesized by microorganisms contribute to sustainable aquaculture production, providing feed to the cultured species, removing waste and contributing to the hygiene of closed systems. As ubiquitous components of coastal microbial habitats at the air–seawater and seawater–sediment interfaces as well as of biofilms and microbial aggregates, EPS mediate deleterious processes that affect the performance and productivity of aquaculture facilities, including biofouling of marine cages, bioaccumulation and transport of pollutants. These biomolecules may also contribute to the persistence of harmful algal blooms (HABs) and their impact on cultured species. EPS may also exert a positive influence on aquaculture activity by enhancing the settling of aquaculturally valuable larvae and treating wastes in bioflocculation processes. EPS display properties that may have biotechnological applications in the aquaculture industry as antiviral agents and immunostimulants and as a novel source of antifouling bioproducts.

1. Introduction

Coastal regions are comprised of the continental shelf (to a depth of 200 m), the intertidal zone and adjacent land within 100 km of the coastline [1]. Coasts include rocky shores, sandy beaches, mudflats, saltmarshes, mangrove forests, deltas and coral reefs [2]. These regions provide goods and services including recognizable mineral and oil resources, construction materials, human and animal food, recreation and living sites, energy sources and biotechnological products, among others [1,3], along with less tangible benefits including ecosystem services such as erosion and flood control, carbon sequestration and wildlife habitat [4]. Production of food for human populations derived from fishing activity is one of the most important services provided by coastal zones. The decline of fisheries worldwide has fostered the development of marine aquaculture [5], an economic activity that accounts for approximately 40% of the world aquaculture production; it reached a production of 24 million tonnes in 2012 [6]. If the definition of coasts given above is taken into consideration, marine aquaculture activities according to Lucas [7] might include extensive and intensive freshwater aquaculture production, if the production facilities are located within 100 km of the coastline. However, using a more restricted definition and for the purpose of this review, marine aquaculture will refer to culturing activities of marine species in shore-based installations (i.e., marine fishes), marine cage aquaculture and shellfish farming. This emphasis is justified since shellfish and finfish productions represent 25% of global animal marine aquaculture, 75% being for shellfish production (e.g., mussel, oyster, lobster) and the remainder for finfish such as salmon and bream [6], because both open-ocean and deep-sea aquaculture are still nascent fields.

On the other hand, microorganisms occupy major coastal habitats, thriving either as planktonic communities in the water column, as benthic assemblages on hard and soft bottoms, or as epi/endobiotic components when associated with living plants and animals [8,9]. Microorganisms contribute to sustainable aquaculture practices primarily by serving as food sources and maintaining water quality by recycling the excess nutrients derived from faeces, dead organisms and unconsumed food [10]. It is well established that microorganisms occur as biofilms in natural ecosystems; these biofilms are complex microbial communities attached to surfaces and held together within a matrix of self-produced extracellular polymeric substances (EPS) or exopolymers [11,12]. EPS may also be associated with microbial communities present on interfaces such as neuston (air–seawater), microphytobenthos (seawater–sediment) or cellular aggregates, such as bioflocs, as well as be part of transparent exopolymeric particles (TEP) [13,14,15,16]. TEPs have already been extensively studied in aquatic ecosystems [17,18], thus they will be only be discussed here in the context of coastal aquaculture. It is often stated that EPS represent up to 90% of the total organic matter comprising biofilm or microbial aggregate biomass [12]; EPS are also excreted into the surrounding medium, contributing to the pool of dissolved organic matter (DOM) or as precursors of TEP [18,19]. EPS play a key role in primary productivity, trophic linkage and mobilization of pollutants mediated by marine microbial communities [3,11].

It has recently been recognized that microbial EPS may contribute to aquaculture in a number of ways. In a recent review, Joyce and Utting [20] described the roles played by EPS in hatcheries by attracting commensal bacteria and sequestering nutrients, which contribute to hygiene, stabilization of larval rearing systems, production of microalgal feed and in the development of the larval gut microflora. This review is restricted to describing the influences of EPS in coastal aquaculture systems. First, we provide a view of the ubiquity of microbial habitats, highlighting their biofilm/microbial aggregate lifestyle and the relevance of constitutive EPS that mediate processes relevant to coastal aquaculture settings. We have limited our analysis to studies describing actual or potential impact of EPS on aquaculture systems in marine cage aquaculture, shellfish farming and in shore-based systems cultivating marine species, as they represent most of the current activity in marine aquaculture. We felt it appropriate also to emphasize EPS properties that may have future biotechnological implications for the aquaculture industry.

2. Biofilm and Aggregates Dominate Microbial Habitats in Coastal Zones

It has been well documented that most microbes occur as biofilm communities, which have been the dominant microbial life form on Earth [21]. The term ‘biofilm’ was coined and first described by Costerton et al. [22] and has evolved ever since. Microorganisms can develop as biofilms on a number of different surfaces in aquatic and terrestrial environments, as well as on living tissues, medical devices and industrial systems [23,24]. Biofilms and sessile biofilm-like structures (for instance, neuston and microbial mats), although commonly associated with solid-surfaces, may occur on any type of interface including air-liquid, liquid-liquid, solid-liquid, or air-solid interfaces [25]. There are numerous features that distinguish microbial cells in biofilms from those in planktonic (free-living) communities. These include, high population densities, access to nutrients in both nutrient-poor and nutrient-rich situations and especially the presence of an EPS matrix [26]. EPS confer on biofilms mechanical stability, binding of water, sorption of organic and inorganic molecules, enhanced resistance towards antimicrobials and may act as a diffusion barrier, creating a microenvironment surrounding cells for optimal extracellular enzyme activity [12].

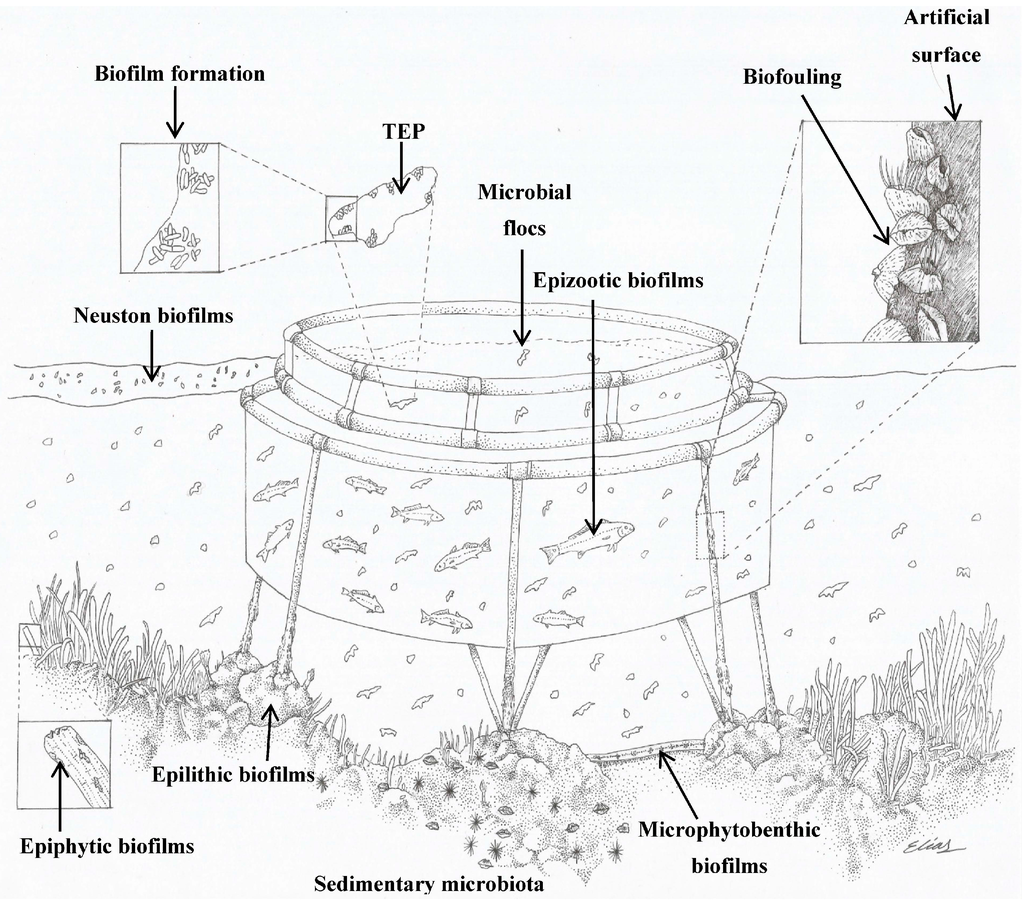

Substrata such as rocks, sediment beds, plants and animal tissues, along with any submerged artificial surface (nets, piers, buoys, floating platforms and ship hulls) are available for microbial colonization in marine ecosystems. For the purpose of this review, we consider the floating microbial communities occurring at the air–water interface (bioflocs and microneuston) along with microbial mats and microphytobenthic communities (water-solid interfaces) analogous to true biofilms (i.e., biofilm-like). These inclusions are based on key structural and functional traits displayed by biofilms, including high cell density, microcolonial aggregation and occurrence of exopolymeric matrices that embed cells.

Neuston biofilms dwell on the air–water interface of the atmosphere and the surface of the water column. The concentration of hydrophobic and surface-active substances (materials that can greatly reduce the surface tension of water, i.e., surfactants or biosurfactants) and bacterial cells within neuston communities may be three orders of magnitude higher than in bulk water [27]. Biodiversity of microbial neuston includes the distribution of bacterial species, generic variants of one species, and cells within the different phases of cell cycles or different stages of the life cycle [13]. Due to this diversity of species and different trophic levels that coexist in this habitat, the microneuston is a particular microbial community [13,28]. Microbial neuston and its associated EPS contribute substantially to the formation of the sea-surface microlayer (SML), a boundary between the atmosphere and seawater surface [29]. The SML is a hydrated gelatinous layer of polymeric nature, in which the polysaccharide fraction dominates. The presence of SML may have important, not yet recognized, implications for coastal aquaculture, by retarding oxygen exchange and thereby negatively impacting cultured marine animal species (finfish), or also, given their surfactant nature and chemistry, trapping airborne hydrophobic pollutants and metals, and transferring them to the water column and ultimately to the sediment phase, where cultured finfish and particle-feeding invertebrates can potentially ingest them.

On the other hand, the biofilms occurring at the water-solid interfaces are more conspicuous. These can be classified as epibiotic biofilms, when developing associated with the outer body surface (tissues of living organisms) or simply as biofilms when they grow on inanimate surfaces. Epibiotic biofilms are in turn classified as epiphytic biofilms (also often termed periphyton [30]), when they develop mainly on submerged plants (leaves, blades, stipe, holdfast) and, in principle, also those microbial populations surrounding phytoplankton (phycosphere) [14]. Epiphytic biofilms are comprised of algae, fungi, bacteria and protozoa, in which the phototrophic component (prokaryotic and eukaryotic) usually dominates [15]. These populations play a major role in primary productivity and thus provide a food source for fish, crustaceans and mollusks [31], transferring carbon along the food web in both freshwater and coastal marine ecosystems [32,33]. Also, when microbial biofilms colonize branches of decayed wood from mangrove swamps and other coastal woody tree species, the term epixylic communities applies [34]. The consequences of epiphytic biofilm development include both deleterious and positive effects on the host [35]. The same applies for microbial–animal interactions in the form of epizootic biofilms that live in intimate association with the bodies and tissues of marine organisms. The composition and density of epizootic bacterial communities associated with marine organisms greatly varies both at temporal and spatial scales within individuals, among species, habitats, regions, and seasons [30].

According to Martinez et al. [1], rocky shores are important geomorphological features of the world’s coastal zones. Hard bottoms are readily colonized by epilithic (rock-surface) biofilms comprising algae, bacteria and fungi, and associated microfauna. Other hard substrata such as concrete supports of piers and bridges are also colonized by this type of biofilm. Interesting to note is that estuaries in Australia, the United States and Europe have had more than 50% of their natural coastline modified with artificial structures [36]. Therefore, concrete and other building materials represent a significant novel microbial habitat in the coastal zone. Epilithic microalgae and cyanobacteria generally account for more than 30% of the total biofilm biomass, and such phototrophs influence both the biomass and diversity of non-photosynthetic bacteria [37]. These biofilm communities are important for primary production and biogeochemical cycling of carbon and nutrients along tropical intertidal rocky shores [38]. On the other hand, microbial flocs, defined as aggregated suspended sediments composed of microorganisms (bacteria and algae), are structured by a tangled EPS network that traps particles, colloids, cations and dead cells [39]. Settling microbial flocs may form a dynamic interface between the water column and the sediments, significantly impacting biogeochemical cycling in shallow waters, driving fixed carbon from highly productive suspended flocs to the sediments, influencing benthic metabolism [40]. Microphytobenthic biofilms are communities found in the upper millimeters of the sedimentary phase and are involved in stabilizing the particles from flocs. In highly turbid intertidal areas, microphytobenthic biofilms contribute up to 50% of primary production, representing a significant food source for cultivated oysters [41]. The fact that sandy shores are found on 16% of the coastal countries and given the high share of carbon fixation contributed by microphytobenthic biofilms, it is likely that these microbial communities have a major role at the planet level, mediating the flux of nutrients between sediment and the water column, a process where EPS may have a substantial relevance [42].

Marine biofilms also grow associated with immersed artificial substrata including those comprised of metals, polymers and composites [43,44]. The formation of biofilms on a newly submerged substrate facilitates the subsequent colonization of macroorganisms such as invertebrate larvae and algal spores [45]. Biofilms can mediate not only the level of colonization but also the type of macrofoulers. Microbial biofilms provide chemical cues for specific colonizers; these microbial cues interplay with chemical cues from conspecific individuals that contribute to the colonization process [46,47]. There is an international consensus on the highly deleterious influence of biofouling on marine infrastructure and the shipping industry around the world [48], by reducing the flow of water through the net, affecting oxygen supply and the waste removal, which in turn increase the susceptibility of farmed fish to diseases [49]. Figure 1 depicts a marine coastal ecosystem with integrated aquaculture systems, focusing on the most relevant microbial habitats.

3. Extracellular Polymeric Substances (EPS) as Key Components of Biofilms and Microbial Aggregates

The EPS matrix accounts for more than 90% of the mass of biofilms on a dry weight basis [12]. EPS exist at different cellular levels and can thus be divided into bound EPS (sheaths, capsular polymers, transparent condensed gels, loosely bound polymers, and attached organic materials) and soluble EPS (soluble macromolecules, colloids, and slimes) [50]. Bound EPS as their name implies are closely bound with external surfaces of cells, while soluble EPS are weakly bound to cells or dissolved into the surrounding solution [51]. The chemistry of EPS varies and may thus include high molecular weight organic molecules such as polysaccharides, proteins, nucleic acids, lipids and a lesser proportion of other low molecular weight nonpolymeric constituents [52]. Some EPS are neutral macromolecules, but most are polyanionic and contain abundant functional groups, such as carboxyl, phosphoric, amine and hydroxyl groups. These functional groups are negatively charged and play a role in metal adsorption by electrostatic attractions [53]. However, the composition and quantity of the EPS vary depending on the type of microorganisms, age of the biofilms and the different environmental conditions under which the biofilms exist [52].

EPS serve several ecological functions in biofilms. These include, but are not restricted to, aggregation of bacterial cells (bioflocs) and provision of physical means of adherence to surfaces (biofilms). They also serve as immediate microenvironments to optimize extracellular enzymatic activity, sorption of nutrients, and enhanced exchange of genetic information and resistance towards antimicrobials. They also provide a protective barrier and a reservoir of water which is important under desiccation stress, in particular for intertidal biofilms [12,21]. A major pool of EPS in marine environments is represented by transparent exopolymer particles (TEP), which are transparent microgels, abundant (10³ to 10⁶ mL⁻¹) in both open oceans and coastal waters with size ranging from <1 μm to 200 μm [17,18]. TEP occur extensively in the marine environment and have several origins. They may derive directly from EPS of phytoplankton and bacteria, arising from degradation processes of marine snow and other detrital material, or may even be formed abiotically from organic precursors [17,54]. Independently of the origin, TEP exhibit in general surface-active behavior and represent the main vehicle for fast downward flux of organic matter and sedimentation of particulate matter in oceans [54]. TEP are likely of high relevance in coastal areas where aquaculture is developed, given the close coupling of planktonic and benthic process typical of shallow waters. Surprisingly, there is scant information on the occurrence of TEP in aquacultural settings, despite the fact that they can be considered as a significant fraction of the bioflocs in inshore facilities or in marine cages. In addition, EPS derived from TEP may play an active role in coating submerged surfaces, forming primary films that lead to intense microbial colonization [11]. Despite the process described above, the relevance of EPS in aquaculture has just recently caught the attention of researchers. In a seminal review, Joyce and Utting [20] summarized EPS implications in closed, controlled aquaculture systems (hatcheries). These authors highlighted the impact of EPS in microalgal feed production and larval rearing systems. These processes are highly relevant to inland culturing of marine species in closed recirculating systems, but may have limited implications in coastal open aquaculture. These implications are discussed below.

4. Microbial EPS Interacting with Coastal Aquaculture Systems: Practical Implications

4.1. Control of Biofouling

The colonization of immersed surfaces by micro and macroorganisms is a complex sequential process. Upon immersion, surfaces are conditioned by adsorbed organics, such as polysaccharides and proteins. Conditioned surfaces are then colonized by bacteria (first settlers), diatoms, and other microorganisms bound together in a matrix of EPS (biofilm) [24,55,56]. EPS are responsible in the adhesion of bacteria to the surfaces [57]. The ability of bacteria to perform this initial attachment is controlled by both environmental and genetic factors, such as nutrient levels, temperature, pH and the presence of genes encoding motility functions [58,59]. Over time, as biofilms grow and reach mature stages, they increase in cell density and structural complexity [51]. Subsequent microbial interactions may lead to attachment and growth of invertebrates (i.e., barnacles, tunicates, mussels, bryozoans, polychaetes, tubeworms) and macroalgae (i.e., Enteromorpha intestinalis, Ulothrix zonata) over a period of days or weeks [30,60]. When biofilms lead to the settlement of macroorganisms on artificial immersed surfaces, the phenomenon is named biofouling [30].

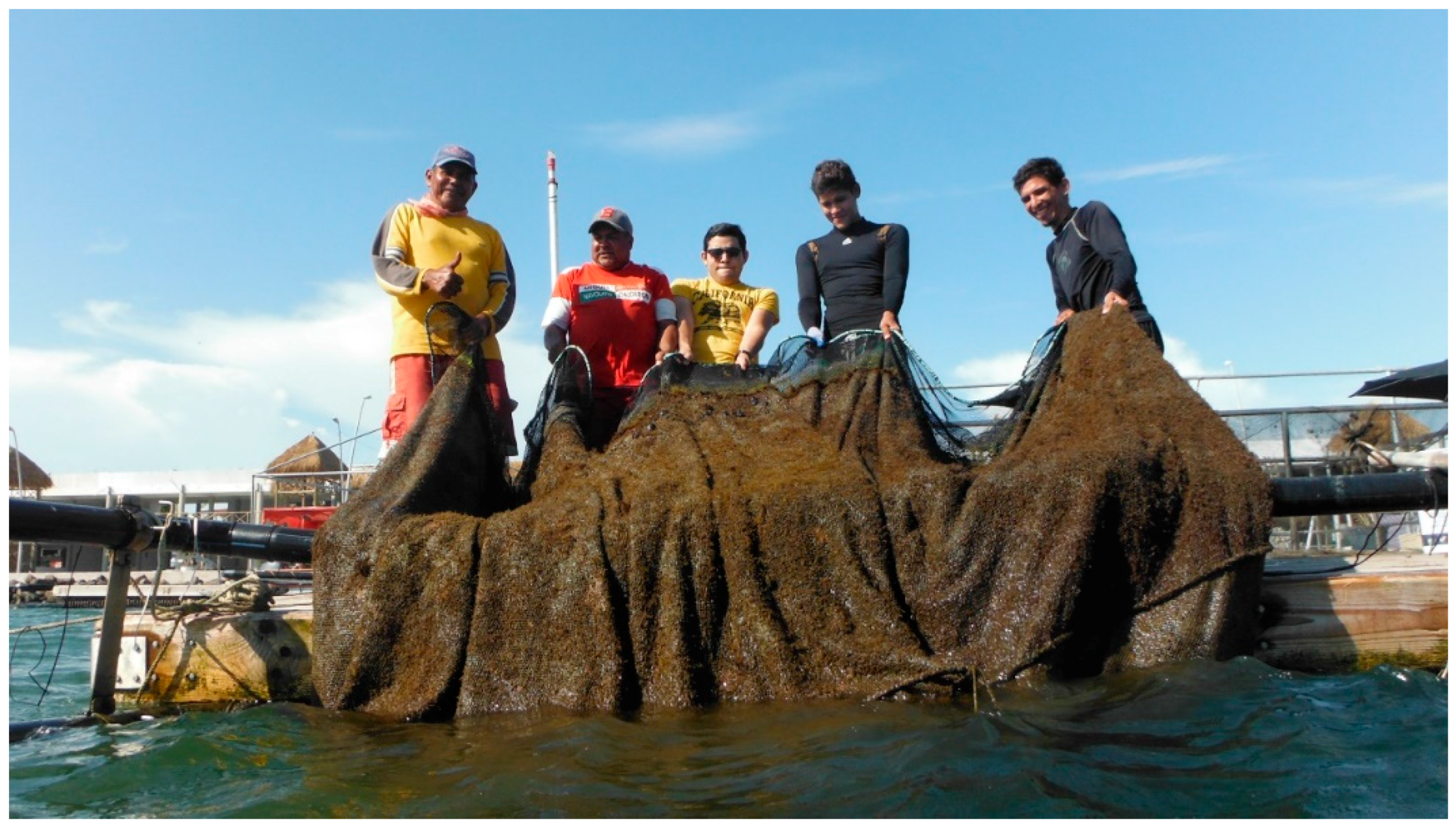

Marine biofouling is a worldwide problem affecting artificial substrates such as nets, piers, buoys, floating platforms and ship hulls (Figure 2) [61]. In marine aquaculture, biofouling is a major problem and expense factor, whose damage includes both the target culture species and/or cultivation infrastructure, which are exposed to a diverse array of fouling organisms with significant production impacts [62]. For example, in shellfish aquaculture, the key impact is the direct fouling of stock causing physical damage [63,64], mechanical interference [65], biological competition and environmental modification [48,66,67], while infrastructure is also impacted. Regarding finfish aquaculture, biofouling affects infrastructure causing restriction of water exchange [68], which increases disease risk [69] and causes deformation of cages and structures [67]. For example, the hydroid Ectoleura larynx (syn. Tubularia larynx) is already one of the most common and troublesome biofouling species for Norwegian finfish aquaculture [70].

The direct economic cost of biofouling control to the aquaculture industry is substantial, with conservative estimates of 5%–10% of production costs attributed to biofouling. Globally, this equates to a cost of US $1.5 to 3 billion per year [71]. The impact of biofouling is highly detrimental to the cost-effective production of fish and shellfish in marine aquaculture [72]. The control of biofouling in aquaculture is achieved through the avoidance of natural recruitment [73], physical removal [74] and the use of antifoulants [75,76]. Frequent net cleaning damages the mesh, stresses the animals and the eventual replacement of nets increases costs and thus decreases profit margins [76]. The use of chemical antifoulants that contain biocides such as cuprous oxide, copper isothianate, copper pyrithione, zinc pyrithione and zinc oxide ECONIA paints have proven effective on nets, but their use is undesirable because of environmental effects from broad-spectrum, metal-based toxins, together with consumer concerns, which can damage market image [76,77].

There is an urgent need to develop improved, less toxic means of controlling biofouling of surfaces in marine environments, both because of increasingly restrictive environmental regulations, such as the ban on tributyltin paints [78] and the high costs of registration of antifouling paints [79]. Considering the key role that biofilms appear to play as primary colonizers, in the adhesion of biofouling communities (plants and animals), it seems a reasonable strategy to search for novel compounds exhibiting antifouling activity against dominant members of biofilms. Furthermore, since EPS mediate the irreversible attachment of microorganisms to surfaces, the search of natural compounds that interfere with EPS adhesion (including other EPS) would be useful in providing insight into the molecular mechanisms of microbial adhesion to inert surfaces (metals, polymers, etc.). In this connection, in a preliminary study, extracellular polysaccharide formulations purified from marine bacteria as potential antifouling agents were evaluated [80]. EPS from Alteromonas, Pseudomonas, and Vibrio spp. inhibited preliminary biofouling (primarily, bacteria) over the test period. None of the formulations evaluated showed any evidence of antimicrobial activity or cytotoxicity. Another EPS with anti-biofilm activity (preliminary to biofouling) was isolated from marine bacterium Oceanobacillus iheyensis BK6 and exhibited activity against a former biofilm strain of Staphylococcus aureus [81]. S. aureus has been reported as inhabiting a marine recirculating aquaculture system [82]. Similarly, a marine bacterium Marinobacter litoralis was isolated for its ability to produce extracellular lipopolysaccharide, which has shown inhibitory activity towards swarming motility and biofilm formation by Pseudomonas aeruginosa [83], a model study bacterium for anti-biofilm activity on industrial surfaces. Also, anti-adhesive and anti-settlement activity toward marine invertebrates has been shown. In a study, the antiadhesive potential of extracellular proteases of Pseudoalteromonas issachenkonii UST041101-043 against bryozoans was demonstrated [84]. Given that EPS of biofilms are considered adhesion promoters for marine invertebrates [85], there are few scientific publications dealing with evaluation of their antifouling properties. However, there is a clear potential for the use of bacterial EPS for antifouling purposes. For example, EPS used in the form of permanent coating or grafted to other organic films may affect biofilm formation by preventing bacterial adhesion on marine surfaces by modifications of their physical characteristics [81]. Another advantage is that EPS do not contain toxic heavy metals or other molecules harmful to the marine environment.

4.2. Enhancement of Colonization of Aquaculturally Valuable Larvae by EPS

Microbial colonization is a process that represents one of the most crucial and complex stages in the life cycle of marine invertebrates, not only with regard to biofouling, but also critically important in aquaculture for increasing the percentage of larval settlement and metamorphosis [85]. An issue tightly coupled with biofouling, is the potential of using selected EPS to promote enhanced colonization of substrata by larvae of organisms in aquaculture. Although related, this is a seldomly researched topic, although the relevance for aquaculture appears obvious. In this regard, it is important to note that chemical cues play a pivotal role in invertebrate settlement. A variety of chemical cues of microbial, plant and animal origin mediate the settlement process. For this reason, many studies have been conducted to evaluate the potential of a variety of chemical cues to enhance settlement of marine invertebrates in aquaculture. For example, one study evaluated chemical cues (natural biofilm and macroalgae) to enhance settlement of the sea urchin Tripneustes gratilla [86]. Macroalgae-conditioned seawater combined with natural biofilm induced significantly higher settlement than to the biofilm alone. In a similar study, the larval settlement of the common Australian sea urchin Heliocidars erythrogramma was evaluated in response to bacteria from the surface of coralline algae [87]. The results, through molecular and culture-based analyses, suggested that the biofilm on plants was important for significant settlement. Microbial biofilms may provide inductive cues that identify attractive substrata for larval settlement [88] and this is perhaps explained, at least partially, by EPS. Chemical cues can be surface-bound EPS of bacterial biofilms or water-soluble EPS produced by both planktonic bacteria and biofilms [89]. For example, specific bacterial (Halomonas sp.)—microalgal (Amphora sp.) biofilms were effective for promoting the larval settlement of Argopecten purpuratus (Lamarck, 1819) on artificial spat-collecting materials [90]. Also, larval settlement and metamorphosis of Pinctada fucata, a species of great value in the hatchery industry, was demonstrated in response to natural biofilms [91]. The authors found that these processes were influenced by the biofilm community structure and extracellular products rather than the microbial abundance. Recently, the effect of natural biofilms on settlement of plantigrades of Mytilus coruscus, an important aquaculture species in China [92], was demonstrated. Plantigrades settled in response to natural biofilms, the percentage of plantigrade settlement being related to biofilm age and presence of EPS. This also appears to be the case for Bugula neritina, a marine-fouling organism with high economic value in aquaculture for the production of antineoplasic agents [93,94]. Furthermore, the influence of EPS on settlement of seaweeds has also been documented. In this regard, an EPS secreted by the endophytic bacterium Bacillus flexus (GU592213) facilitated the primary settlement of zoospores of Ulva fasciata [95]. U. fasciata is the commercial source of a biopolymer with binding properties used to manufacture certain aquaculture feeds [96]. However, EPS alone do not necessarily imply facilitated settling of organisms. For example, Patil and Anil [97] found a positive influence of diatom exopolymers combined with bacterial biofilms on metamorphosis of the barnacle Balanus amphitrite, but an opposite influence when EPS were tested alone [98].

Chemical cues that signal habitat and illicit larval settlement are a common denominator for a wide range of sessile marine taxa with settlement initiated in response to conspecifics, host organisms and microbial biofilms. For aquaculture, this is a developing field of research that requires maturing before reproducibility in performance of technologies is attained. At present, studies on the chemical cues of the tropical sponge Rhopaloeides odorabile [99,100] represent the first step toward assessment of the aquaculture potential of marine invertebrates.

Ocean acidification (OA), a recently recognized phenomenon of global concern, may negatively influence the settling of aquaculturally valuable marine invertebrates. The increase of atmospheric CO₂ concentrations has led to higher levels of CO₂ in the oceans, yielding as a consequence an altered state of the carbon seawater chemistry and reduction of pH [101,102]. These changes affect directly the marine organisms that possess carbonate structures such as shells and spicules. An indirect and not obvious impact may also take place due to OA by negatively altering early stages of settling [103]. This influence may be related to pH shifts that induce changes of signaling molecules needed for settlement [104,105,106]. In this sense, it has been observed that OA may induce shifts in microbial communities [104,105]. These changes may not only alter the composition of microbial communities, a factor that plays a role in affecting the settlement of invertebrates [106,107], but also alter the conformational state and calcium-binding properties of marine microorganisms [108]. Both changes in microbial diversity and EPS biofilms could cause ecosystem alterations, and these alterations may affect the ecosystem of economical valuable species [109,110].

4.3. EPS-Based Flocculation with Potential in Waste Treatment Processes of Coastal Aquaculture

Coastal zones are prone to environmental impact and contamination due to urban development and other human activities. These include but are not restricted to habitat loss and/or modification, excessive harvesting of wild seed/spawners, introduction of exotic species, unintended release of cultured animals, spread of diseases, deleterious interactions with wild populations, misuse of chemicals and antibiotics, and release of wastes [1,111,112,113]. The release of wastes is perhaps one of the most relevant impacts affecting coastal ecosystems. Wastes entering coastal zones contain a variety of harmful substances including biological contaminants, such as pathogenic microorganisms (i.e., viruses, bacteria and protozoans) and organic matter (i.e., nitrates, phosphates); persistent organic compounds (i.e., organochlorines and polycyclic aromatic hydrocarbons) and other pollutants (i.e., heavy metals, plastic debris and nanoparticles) [114,115,116]. Wastes entering the coastal zones can occur as suspended particles (larger than 100 μm, e.g., sludge), colloids (0.001–1 μm e.g., organic and inorganic pollutants, proteinaceous materials, some algae, and bacteria) and dissolved molecules (smaller than 0.001 μm e.g., individual molecules or ions) [117,118,119]. Removal of particles in aquaculture is critical for maintaining culture water quality in closed systems [117], and for minimizing interactions of environmental contaminants with biota in open systems, as they may induce shifts in phytoplankton and zooplankton communities, thus altering food webs and biogeochemical processes that can potentially affect cultured species in cages [120,121].

Wastewater from aquaculture (mainly intensive land-based aquaculture) contains considerable amounts of nitrogen, phosphorous and organic carbon [120,122]. The most common solid-removal units used for aquaculture are settling basins that are based on separation by gravity, hydrocyclones or swirl separators, which allows more rapid separation of the particles from the liquid, microscreen filters that are based on screening particles that are larger than the screen’s mesh size, and granular/porous media filters that are based on the passage of water through a medium on which the solids are deposited [123]. After their removal, the concentrated solids are usually discharged from the recirculating aquaculture system either into receiving water bodies, the local sewer system, or a decentralized treatment unit, most commonly waste-stabilization ponds (WSPs) [123].

Disposal of aquaculture sludge into wastewater-treatment systems is often prohibited as it usually involves high volumes with high organic matter content and/or salts that might interfere with the treatment of municipal sludge. The activated sludge process is the most common biological process that is used in wastewater treatment. Sludge flocculation transforms microbial cells into aggregates, which regulates the performance of biomass–water separation and is thus crucial to the overall treatment result of the activated sludge process [124]. EPS are present in varying quantities in sludge and are thought to be of considerable importance in the removal of pollutants from wastewater, in bioflocculation and settling, and in the dewatering of activated sludge [125]. Flocculation is one of the most widely used processes for the removal of suspended and dissolved solids, colloids and organic matter present in industrial wastewater [126]. In this process, after the addition of coagulant and/or flocculant, finely divided or dispersed particles are aggregated or agglomerated together to form large particles of such a size (flocs) that they settle and thus clarify the system [127]. Up to now, a wide range of flocculants have been developed or designed to improve the flocculation process in wastewater treatment, including synthetic or natural organic flocculants. Natural organic flocculants, or bioflocculants (i.e., bacterial EPS), have emerged as promising alternative materials to replace conventional flocculants because they are safe and biodegradable and produce no secondary pollution [122], and thus may be applied for aquaculture purposes. Due to their physical–chemical properties, EPS displaying flocculant activity can destabilize the colloidal particles by increasing the ionic strength and giving some reduction in the zeta potential and thus a decreased thickness of the diffused part of the electrical double layer. Alternatively, they could specifically adsorb counterions to neutralize the particle charge because they have particular macromolecular structures with a variety of functional groups that can interact with contaminants [53,128]. There is a large number of publications related to EPS as flocculants in industrial processes such as wastewater treatment, downstream processing and food and fermentation processes [51,129,130], but no reference, to our knowledge, of marine aquaculture system applications.

4.4. Interactions of EPS-Contaminants in Coastal Aquaculture Systems

Advancement of science during the last ten years has improved our understanding of interactions between microbial EPS and contaminants. It is documented that microorganisms participate in metal binding in coastal areas primarily through excretion of siderophores, organic acids and enzymes [131], but their role in metal binding by releasing EPS is less well understood. For example, in one study, the role of EPS as carriers of heavy metals in the marine food chain was demonstrated. Copper and lead bacterial EPS complexes were given to the benthic polychaete Hediste diversicolor as feed. EPS were shown to serve as effective natural organic ligands binding dissolved copper and lead at a range of concentrations and pH values, suggesting this route can concentrate metals through the marine food chain [132]. Other cultured benthic deposit-feeders such as sea cucumbers, may also concentrate metals, although this may vary given that various factors influence metal sorption by EPS, including metal concentration, incubation time, pH and salinity of the medium. Another interaction that should be considered in coastal aquaculture relates to pathogen transmission. It has been shown that EPS can promote transmission of terrestrially derived pathogens. In a study, the zoonotic parasite Toxoplasma gondii was used as a model to evaluate EPS-mediated mechanisms that promote transmission of this pathogen to marine fauna and humans. Transparent exopolymers were shown to enhance T. gondii association with marine aggregates, and EPS-derived from biofilms on macroalgae also captured T. gondii from the water [133]. On the other hand, natural organic matter (NOM) has an important effect by trapping metals via the carboxyl groups in NOM [134,135]. Higher rates of metal trapping by sinking NOM may occur in aquaculture areas as a biogeochemical consequence of eutrophication, which is a phenomenon seldom acknowledged. In addition, sedimentary microorganisms may also contribute significantly to NOM in coastal areas. It can be hypothesized that EPS representing an important fraction of sedimentary natural organic matter may be relevant in coastal aquaculture. The EPS can transport NOM through the water column. The influence of bacterial EPS composition and quantity on the biosorption of natural organic matter (NOM) has been shown in research using two bacterial species (Pseudomonas aeruginosa and Pseudomonas putida) [135]. P. aeruginosa produced an EPS with polysaccharides as the primary component, whereas P. putida produced protein-based EPS. The results indicated that the composition and quantity of the EPS had a profound impact on biosorption, which corresponded to an increased presence of carboxyl groups in polysaccharide-based EPS of P. aeruginosa for bridging with the carboxyl groups on the NOM. Carboxyl content in both EPS and NOM appeared to be linked to increased biosorption via bridging with divalent ions. Divalent ion concentrations in the aquatic environment will promote biosorption processes, permitting functional group interactions between EPS and NOM. Likewise, the implications of biofilms in metal pollution derived from fish farming [136] has been examined. It was found that fish feed waste enhanced the accumulation of organic matter and metal contamination in biofilm communities, suggesting the role of biofilms as a sink for contaminants, with implications for metal transfer in the cultured species and surrounding coastal habitats. Interestingly, biofloc technology (BFT) has been considered as a key method for increasing the aquaculture activity and improving the immunostatus of the organisms. It is commonly believed that closed systems conserve water and reduce pollution problems. Biofloc technology has been considered as a novel ecological technique used to reduce nitrogen concentration and remove pollutants. As far as we are aware, there is no study describing the potential of bioflocs as reservoirs of pollutants and their ability of transferring them to cultured organisms. Since biofilms are an important issue in the fields of marine science, several microbial ecology studies are needed to better understand their role as bioindicators for aquaculture in coastal zones.

4.5. EPS Associated with Phytoplankton Blooms Influence Coastal Aquaculture

Naturally occurring phytoplankton blooms have been responsible for serious problems of aquaculture, fisheries and public health in many coastal waters throughout the world [137,138]. These proliferations are termed harmful algal blooms (HABs) [139]. HABs may disrupt ecosystems by either producing specific toxins or by causing anoxia during the decay process of settled algal biomass and by physical interferencing with gases exchange when clogging the gills of fishes and filter-feeding animals [137,138,139]. Marine aquaculture activities have been affected worldwide by phytoplankton blooms, including cultured species such as mussels in Spain and Germany, and fish farms in China [140,141,142]. Recent HAB events in 2016 affecting salmon farms in Chile exemplify the threat of HABs towards marine aquaculture. HABs occur when environmental conditions are adequate for algal proliferation and when high levels of nutrients are released into the coastal zone [142]. It is known that EPS are released when high densities of phytoplankton are reached, a phenomenon also seen in closed systems [20]. There is scarce information regarding the role of EPS in HAB occurrence and their impact on cultured species. Some studies, however, suggest that EPS associated with HAB-producing species may contribute to their persistence or impact on phytoplankton and zooplankton communities serving as food for cultured species [143]. In a previous study, it was shown that the polysaccharide-protein EPS produced by Heterosigma akashiwo, a typical HAB species, inhibited the growth of co-ocurring aquaculturally relevant phytoplankton species such as Skelotonema costatum and Thalassiosira rotula. Furthermore, these EPS stimulated the growth of H. akashiwo and other harmful dinoflagellates, Prorocentrum spp. and Heterocapsa circularisquama [144]. This suggests that EPS may facilitate the persistence of H. akashiwo and other HAB species both through direct stimulation and indirectly, aiding to outcompete other phytoplankton species. These biomolecules could help H. akashiwo succeed in establishing dense cyst beds, which give the next generation an advantage by allowing extensive reinoculation of the water column. On the other hand, the release of EPS by non-toxic marine phytoplankton species may have consequences on aquaculture, as exemplified by the marine phytoplankton Phaeocystis spp., which excretes polysaccharides, forming TEP. It has been shown that TEP could serve as a food source, which would imply a positive effect in aquaculture. However, a study observed a decrease of the feeding rates of copepods and euphausiids in the presence of polysaccharides excreted by Pheaocystis sp. [145]. Taken together, these studies suggest that under real conditions HAB populations and non-toxic phytoplankton communities could release EPS that may pose a negative impact on marine aquaculture, an implication that has not been highlighted before. Further studies are required to determine if the impact of EPS occurs at the global scale.

4.6. EPS-Based Products for Aquaculture Applications

The increased demand for natural polymers for various industrial applications in recent years has led to a renewed interest in the search for novel EPS. Various microbial EPS possess novel and unique properties that have found applications in the food, pharmaceutical, biomedical and cosmetic fields [146]. Their usefulness is mostly related to their properties as thickening, stabilizing, binding and structure-creation agents [147]. Physical and dynamic properties displayed by EPS such as adsorption, viscosity, solubility and biodegradability depend upon their macromolecular composition (polysaccharides, proteins, lipids, nucleic acids, humic substances) and structural conformation [147,148]. Based on these properties, EPS may find applications as biotechnological products in aquaculture as bioemulsifiers, biosurfactants, biosorbents, bioflocculants, foods, antifouling agents, antivirals, immunostimulants and immunomodulators [148,149,150] as discussed below.

Point sources of pollutants such as excess nutrients, hazardous organics, heavy metals, hydrocarbons and nanoparticles affect marine aquaculture activities [151,152]. For example, petroleum from accidental oil spills has been reported near active aquacultural areas [153]. EPS-based products may aid in developing bioremediation strategies for accidental spills of hydrocarbons as EPS emulsifying and surfactant activities may help in their biodegradation. An EPS synthesized by the marine strain Microbacterium sp. MC3B-10 was characterized previously to have surfactant activity against aliphatic hydrocarbons and hinted at a potential metal-binding activity [154]. This EPS was termed microbactan and was extensively characterized [155]. Bioassay-based toxicity testing showed that microbactan is not toxic. Microbactan emulsified aromatic hydrocarbons and oils to various extents. The stability of the emulsion in the model reached its highest level (94%) at 50 °C, pH 10 and 3.5% NaCl content, which sets similar conditions in marine aquaculture. Also, Gutierrez et al. [156] characterized two EPS from a marine Halomonas species. Purification and chemical analysis revealed both EPS to be glycoproteins of high molecular weight with emulsifying activity against hydrocarbons under neutral and acidic pH conditions.

Metal-binding properties of EPS could be applied in aquaculture activities. For example, EPS produced by Halomonas sp. TG39 have metal-binding properties and mediate their bioavailability to eukaryotic phytoplankton [157]. This was demonstrated through experiments employing Fe-limited growth conditions for the marine diatom Thalassiosira weissfloggii, which has been widely used as live feed in aquaculture [158]. Likewise, Hassler et al. [159] evaluated the role of EPS of Pseudoalteromonas sp.; a common marine bacterium, in iron speciation, solubilization and bioavailability for phytoplankton species. This study was the first to demonstrate iron interaction with natural EPS under conditions that are relevant to iron-limited marine regions. They found that the presence of EPS decreased Fe precipitation and increased Fe concentrations in solution. Analysis of bioavailability of the Fe–EPS complexes with Chaetoceros sp. CS 624 and Phaeocytis sp. CS243 showed that Fe–EPS complexes were strongly bioavailable, with only a three-fold decreased bioavailability as compared to inorganic Fe. This effect of EPS on the solubility and bioavailability of iron can increase the residence time of bioavailable iron in the euphotic zone and therefore increase primary productivity. This increased primary production may benefit aquaculture in coastal areas because EPS could improve nutrient uptake rather than increase the amount of food.

As already covered, EPS induce flocculation and this may find a novel biotechnological application in marine aquaculture. In microalgal aquaculture, flocculation and flotation are two efficient biomass harvesting techniques. The flotation technique occurs when air or gas is transformed into bubbles through a solid/liquid suspension; as a result, solid particles get attached to gaseous molecules and are carried up and accumulated on the surface [160]. In flocculation, the dispersed microalgal cells aggregate and form larger particles with a higher sedimentation rate. Flocculation can be induced either by chemicals (i.e., Zn²⁺, Al³⁺ or Fe³⁺) or biological flocculants (i.e., EPS, cellulose, chitosan) [161]. For example, harvesting of the marine microalga Nannochloropsis oceanica DUT01 by flocculation with EPS produced by Solibacillus silvestris isolate W01 has been evaluated. The EPS showed a 90% flocculating efficiency on N. oceanica and no metal ion was required for the flocculation process [150]. Harvesting of the microalga Chlorella vulgaris was tested via flocculation-flotation with EPS produced by Cobetia marina L03 [162]. The results indicated that the bioflocculant from C. marina L03 could be used to effectively harvest C. vulgaris via flotation. They observed a flotation efficiency of over 90% when 20 mg·L⁻¹ EPS was tested for flocculating the microalgal cells with 5 mM CaCl₂. This bioflocculant was stable over a range of pHs (6–8) and temperatures (10–40 °C), which is a harvesting advantage for cost-effective production of microalgal bioproducts. The use of microalgal bacterial flocs in sequential batch reactors is a novel approach used for aquaculture wastewater treatment [163,164]. Microalgal bacterial flocs are aggregations of microalgae and bacteria, and because of their larger size, they settle quickly by gravity. Also, another strategy for finding effective EPS is the screening of flocculants produced by bacteria isolated from bioflocs in aquaculture systems [165].

Finally, antiviral and immunomodulatory properties of EPS against salmonid viruses have been established [149]. Dextrans synthesized by Lactobacillus sakei MN1 and Leuconostoc mesentetoroides RTF10 were evaluated in infected BF-2 and EPC fish cell-line monolayers for antiviral activity [146]. In vivo assays using dextran of L. sakei MN1 confirmed antiviral activity and immunomodulatory activity. These results indicate the compound’s potential utility as an antiviral agent in aquaculture. Similarly, microbial levan is widely used in aquaculture as food and immunostimulant [166]. A novel potential application of EPS is the proposal for a formulation of a marine antimicrobial and bacterial polysaccharides to increase cultured pearl production after bacterial pathogenesis [167]. The authors found that while the antimicrobial controls the bacteria, the EPS function as biobarrier filming agents, covering the damaged tissue.

Table 1. Microbial EPS with applications in aquaculture systems.

EPS	Microorganism	Application	Reference
Dextran	Lactobacillus sakei MN1	Antiviral and immunomodulatory activity against salmonid viruses	[149]
Levan	Bacillus megaterium 1	Immunostimulant for Cyprinus carpio juveniles	[168]
Levan	Bacillus megaterium 1	Immunomodulatory in Cyprinus carpio fry (Linnaeus 1758) exposed to fipronil	[169]
Levan	Aerobacter sp.	Immunostimulant for Labeo rohita Hamilton juveniles	[170]
Glucan	Paenibacillus polymyxa JB115	Feed additive immunomodulator	[171]
EPS	Solibacillus silvestris W01	Bioflocculant for harvesting of marine microalga Nannochloropsis oceanica	[150]
Polyhydroxybutyrate	Brevibacterium casei MSI04	Antiadhesive against shrimp pathogenic vibrios	[172]

provides a list of microbial EPS with potential applications in aquaculture systems.

5. Conclusions

Microorganisms occur in natural habitats and colonize aquaculture facilities in the coastal zone. They occupy major coastal habitats at interfaces of air–seawater (microbial neuston), seawater–sediment (microphytobenthos), hard bottoms (epilithic biofilms) or growing suspended in the water column in microbial cellular aggregates. Key constituents of such microbial communities are the extracellular polymeric substances (EPS) matrices that mediate processes relevant to coastal aquaculture settings. EPS have both beneficial and detrimental impacts on aquaculture systems such as marine cage aquaculture, shellfish farms and shore-based systems cultivating marine species. Detrimental roles played by EPS include the initial biofouling of marine cages, the bioconcentration of pollutants in coastal habitats where aquaculture activities take place, and increasing the residence and impact of harmful algal blooms. EPS play beneficial roles by sustaining valuable processes in bioflocculation, enhancing larval settlement of aquaculture-relevant species and as antivirals and immunostimulants. Potential biotechnological applications of EPS in marine aquaculture include the development of novel antifouling agents and development of a combined treatment with marine antimicrobials to increase survival of mollusks.

Future research avenues need to be explored to advance our current understanding of this field. Further work needs to be carried out in order to determine the chemistry and functional properties of naturally occurring EPS. Also, the potential of EPS to interfere with the irreversible attachment of microorganisms to surfaces and subsequent biofouling needs to be studied in detail to provide an insight into the molecular mechanisms of microbial adhesion to inert surfaces with relevance to aquaculture, which is of paramount importance to develop novel antifoulants. The biotechnological potential of EPS as promotors of attachment of commercial larvae is still in an early stage of research; before reproducibility can be achieved, the technology needs to be refined. Finally, in order to determine at quantitative levels the interaction of selected pollutants on EPS and microbial flocs, mesocosm studies mimicking the coastal environment are required to determine the pathways of pollution transport, partition and ultimate fate, using model organisms of aquaculture relevance.
