Article

Real-Time Risk Rate Quantification Model and Early Warning Method for Earth–Rock Dams Under Sudden Changes in Reservoir Water Levels

1
Nanjing Hydraulic Research Institute, Nanjing 210029, China
2
College of Water Conservancy & Hydropower Engineering, Hohai University, Nanjing 210098, China
3
Dam Safety Management Center of the Ministry of Water Resources, Nanjing 210029, China
*
Author to whom correspondence should be addressed.
Water 2025, 17(21), 3046; https://doi.org/10.3390/w17213046
Submission received: 8 September 2025 / Revised: 3 October 2025 / Accepted: 9 October 2025 / Published: 23 October 2025

Abstract

Under the influence of global climate change, extreme weather events have become more frequent, and earth and rockfill dams often encounter unconventional working conditions such as sudden changes in reservoir water levels during operation. These abrupt changes are characterized by their strong suddenness and rapid rate of change, which can be challenging for traditional numerical analysis methods due to slow modeling and time-consuming calculations, presenting certain limitations. Therefore, an approach has been developed that integrates seepage monitoring data into the failure probability analysis and early warning methods for earth and rockfill dams. Based on the model’s prediction results, dynamic safety warning indicators for the effect of single measurement points on earth and rockfill dams under sudden reservoir water level changes have been quantitatively designed. A risk probability function reflecting the relationship between the residuals of seepage monitoring effects and the risk rate has been constructed to calculate the risk rate of single measurement points for dam seepage effects. By employing the Copula function, which considers the differences and correlations in monitoring effect amounts across different parts of the dam, the single-point seepage risk rates are elevated to a multi-point seepage risk rate analysis. This enables the quantification of the overall seepage risk rate of dams under sudden reservoir water level changes. Case study results show that the safety model has high prediction accuracy. The joint risk rate of the dam based on the Copula function can simultaneously consider spatial correlations and individual differences among multiple measurement points, effectively reducing the interference of randomness in the calculation of single-point risk rates. This method successfully achieves the dynamic transformation of actual seepage effect measurements into risk rates, providing a theoretical basis and technical support for the operational management and safety monitoring of earth and rockfill dams during emergency events.

1. Introduction

In recent years, due to the impact of global climate change, the frequency [1], intensity [2], duration, and impact range [3] of various extreme climate events have been increasing. The safety issues of earth–rock dam engineering under unconventional conditions such as sudden changes in reservoir water levels have become important subjects that urgently need research. Addressing these issues is of great significance for ensuring the safe and efficient operation of earth–rock dam engineering and for disaster prevention and mitigation.
Extensive engineering experience [4,5] indicates that the failure and destruction of earth–rock dams is a progressive development process that transitions from gradual changes to abrupt failures, exhibiting certain precursors to destruction. If abnormal monitoring signal values can be detected in advance, it will enable a comprehensive understanding of the operational risks of earth–rock dams, providing favorable support for the safety and long-term service of dam projects [6,7]. Currently, many experts and scholars, both domestically and internationally, are researching the safety of earth–rock dam projects. For instance, Moharrami et al. [8] studied the impact of the horizontal drainage capability of the upstream slope of earth–rock dams on slope stability under conditions of rapid water level decline. Moellmann et al. [9] considered the effects of transient seepage within the dam body and employed finite element analysis to determine the probability of instability of the dam slope under declining reservoir levels. With the advancements in monitoring of earth–rock dams in data generation [10], collection [11], storage [12], and processing capabilities [13], monitoring data analysis and early warning technologies have developed rapidly. Tang et al. [14] established a risk assessment model for earth–rock dams using a Bayesian network combined with the maximum expectation algorithm, identifying three key factors influencing dam failure. Assaad et al. [15] utilized neural network algorithms to assess the potential hazard levels of dams in the United States, providing a more efficient, rapid prediction model for dam safety managers. Zhu et al. [16] developed an adaptive differential evolution algorithm combined with a fuzzy clustering iterative method to evaluate the similarities in life loss during dam failure incidents and validated its effectiveness through case studies. These theories and methods effectively address common issues in traditional risk warning mechanisms for earth–rock dams, such as false alarms, insufficient foresight, and delays in warning feedback, laying a foundational basis for the safety monitoring and long-term service of dam projects. However, abrupt changes in reservoir water levels and other unconventional conditions exhibit strong suddenness and significant variability, leading to non-linear evolution characteristics and dynamic time-varying properties in the risk rates of earth–rock dam operations. Furthermore, due to differences in the timing and location of load applications, modeling and analyzing only single measurement points may overlook the correlations of the entire dam structure and the differences among various monitoring points. At the same time, conventional finite element modeling or other structural calculation methods are relatively complex and time-consuming, making it difficult to make timely decisions under high-risk conditions and failing to meet the time-sensitive requirements of engineering practice. The key scientific problem that needs to be resolved is how to accurately characterize and provide quick warnings for the risk rates of earth–rock dams under abrupt reservoir water level changes. The Copula function [17,18,19], as a joint distribution function capable of depicting the correlation characteristics of random variables and the overall data structure among these variables, offers advantages such as simplicity and strong generalization ability. By utilizing the Copula function to calculate the operational risk rates of earth–rock dams under abrupt reservoir water level fluctuations, we can simultaneously consider the structural differences and data correlations among measurement points, thereby achieving real-time quantification of the overall risk rate of earth–rock dams under these conditions.
In situ monitoring data encompass comprehensive safety information for earth–rock dams over time, effectively reflecting their structural conditions and the characteristics of the loads they experience. This study integrates seepage monitoring data into the failure probability analysis and early warning methods for earth–rock dams. Based on the model’s prediction results, safety warning indicators for earth–rock dams under abrupt reservoir water level changes are quantitatively designed. By constructing a risk probability function that reflects the relationship between the residuals of seepage monitoring effects and the risk rates, the single-point risk rate of the seepage effect quantities can be calculated. Abrupt reservoir water level changes lead to different responses in various parts of the dam, and by incorporating the Copula function, we consider the differences and correlations in monitoring effects across different parts of the dam. This approach extends the analysis from single-point seepage risk rates to multi-point seepage risk rates, thereby achieving the quantification of the overall seepage risk rate of the earth–rock dam under abrupt reservoir water level changes. This provides a theoretical basis and technical support for the operational management and safety monitoring of earth–rock dam projects during emergency situations.

2. Seepage Safety Monitoring Model and Risk Rate Quantification for Earth–Rock Dams

Traditional risk rate analysis of hydraulic structures is mostly based on the limit state of the structure to construct a functional model [20,21], without combining engineering monitoring data for targeted extraction. If engineering monitoring information can effectively reflect the operational status of the project, it can be used to construct a seepage safety monitoring model for earth–rock dams based on the characteristics of earth–rock dam seepage. The residual sequence between the model fitting value and the measured value is obtained, and the probability distribution function of the residual value is constructed to determine the seepage risk rate, achieving the quantification of the risk rate for single monitoring points of earth–rock dam seepage monitoring effect quantities.

2.1. Seepage Safety Monitoring Model for Earth–Rock Dams

Analysis of the measured data from the piezometer water levels in earth–rock dams indicates [22,23] that they are mainly influenced by upstream and downstream water levels h u , h d , rainfall h p , and the time-varying h θ permeability characteristics of the dam material. A schematic diagram of the influencing factors is shown in Figure 1. Due to the seepage time lag between the reservoir water level and the piezometer water level, the piezometer water level lags behind the reservoir water level, with the upstream water level component represented by the previous reservoir water level H ¯ u i . The downstream water level component uses the water level on the day of monitoring H d as a factor. During rainfall, due to the time lag of rainwater infiltration into the dam body, the previous rainfall p ¯ i amount is used as a factor. The time-dependent component h θ comprehensively reflects the structural particle changes in the dam body caused by variations in soil moisture content over time, as well as other trend changes influenced by time. A combination of polynomial and logarithmic functions is selected to construct the expression for the seepage safety monitoring model of the earth–rock dam as follows:
δ ( H , t ) = h u + h d + h p + h θ = i = 1 m 1 a u i H ¯ u i + a d H d + i = 1 m 2 d i p ¯ i + c 1 ξ + c 2 ln ξ + d
In the equation, H represents the water level; H ¯ u i is the average reservoir water level for the i days preceding the monitoring day, generally, i = 1, 2, 5, …, m1; H d is the downstream water level on the monitoring day; p ¯ i is the previous rainfall for the i days preceding the monitoring day, generally, i = 1, 2, 5, …, m2; t is the cumulative number of days from the monitoring day to the first measurement day, and ξ = t/100; aui, ad, di, c1 and c2 are the fitting coefficients; and d is the constant term.

2.2. Quantification of Seepage Risk Rate at Single Measurement Points

The seepage safety monitoring model for earth–rock dams describes the correlation between seepage monitoring effect quantities and various influencing factors. Based on statistical principles, if the seepage monitoring effect quantity is treated as a random variable and follows a normal distribution, then the corresponding residuals of the regression model will also follow a normal distribution. For the residuals of the seepage monitoring effect quantities, under a given significance level α , P a = α they represent a low-probability event [24,25]. Specifically, if the measured values significantly deviate from the mean of the normal distribution of fitted values when the earth–rock dam is operating normally, it indicates that the dam is currently in an abnormal state, and there exists a certain probability of structural failure. Therefore, the difference between the measured values and the fitted values of the seepage monitoring quantity reflects the deviation of the measurement point’s operational state from conventional operating conditions, meaning that the residual values contain monitoring information characterizing seepage abnormalities at that measurement point. Thus, the residual values are expressed as a probability distribution function to quantify the likelihood of failure at that measurement point, achieving the risk rate quantification of seepage monitoring effect quantities for a single measurement point in the earth–rock dam. Using the monitoring information such as the reservoir water level H i , rainfall p i , and time ξ i as input variables for the combined model, the residual series of the model fitting values and measured values is obtained. By constructing the probability distribution function of the residual values, the risk rate of seepage at the measurement point is characterized, enabling the risk rate quantification of seepage monitoring effect quantities at a single measurement point in the earth–rock dam [26].
The risk rate function expression for a single seepage monitoring point of the earth–rock dam is:
P i = K · μ i μ i δ i μ i + μ i δ i 1 2 π σ exp δ i μ i 2 2 σ 2 d δ i
where P i is the risk rate of the monitoring point effect quantity; K is the risk rate coefficient; μ i is the predicted value of the effect quantity; δ i is the measured value of the effect quantity; σ is the residual standard deviation. According to statistical principles and safety monitoring theory, there exists P R > R d e s i g n = 1 α , where R is the design allowable value in the dam safety criterion, and the seepage measured value follows a normal distribution, so P δ i < δ m 1 = α 2 and P δ i > δ m 2 = 1 α 2 , where δ 1 ,   δ 2 are the upper and lower limits of the monitoring index.

3. Quantitative Analysis of Earth–Rock Dam Risk Rate Based on Copula Functions

Traditional risk rate analysis for hydraulic structures largely relies on constructing limit state functions based on structural performance, and has not yet effectively combined project monitoring data for targeted extraction. Effectively interpreting engineering monitoring information would directly reflect the operational characteristics of the project. By constructing a risk probability function that reflects the relationship between the residuals of seepage monitoring effects and risk rates, the single-point risk rate of seepage effect quantities in earth–rock dams can be calculated. Incorporating the Copula function allows us to consider the differences and correlations in monitoring effect quantities across various parts of the dam, thereby enhancing the analysis from single-point seepage risk rates to multi-point seepage risk rates. This approach facilitates the quantification of the overall seepage risk rate of earth–rock dams under abrupt reservoir water level changes.

3.1. Risk Rate Quantification Analysis for Earth–Rock Dams Based on Copula Function

The Copula function was first proposed by Sklar in 1959 and applied to financial risk calculation. It has since been widely used in hydrological flood and geotechnical parameter uncertainty calculation fields [27]. It has shown strong model generalization ability in constructing joint probability distribution functions. According to Copula theory, any multidimensional joint distribution function can be decomposed into several marginal distribution functions and a Copula function, where the Copula function uniquely describes the correlation structure between the marginal distributions. If we let the joint distribution function of a d-dimensional random vector x 1 , x 2 , , x d be F x 1 , x 2 , , x d , the marginal distribution functions be F 1 , F 2 , , F d , and C be the Copula function characterizing the correlation between the random vectors x 1 , x 2 , , x d , then the joint distribution of the d-dimensional vector x 1 , x 2 , , x d can be expressed as:
F x 1 , x 2 , , x d = C F 1 x 1 , F 2 x 2 , , F d x d
The risk rate of a single monitoring point on an earth–rock dam is represented as F = P ( X ε t ) , using the probability distribution function of the seepage residual value. For multiple monitoring points, an n-dimensional Copula model is used. In this case, the multi-point risk rate Ps is calculated as follows:
P S t = F X 1 ε 1 t X 2 ε 2 t X n ε n t
In the formula, Xi represents the sequence of measured values at the ith monitoring point of the earth–rock dam over different time periods, i = 1, 2, … n.
Therefore, the risk rate quantification model for earth–rock dams essentially combines the risk rate functions of multiple monitoring points by utilizing Copula functions, thereby constructing an overall risk rate analysis model for the dam. In this model, the risk rate function of each individual monitoring point serves as the marginal distribution function, while the risk rate function of multiple monitoring points constitutes the joint distribution function.
Based on Copula function theory [28], the potential marginal distribution functions for the risk rates at each monitoring point of the earth–rock dam are selected. The data structure is then evaluated using three statistical parameters: the Kolmogorov–Smirnov (K-S) test, the Root Mean Square Error (RMSE), and the Akaike Information Criterion (AIC). This process helps determine the optimal Copula function for analyzing the overall seepage risk rate of the earth–rock dam. Six commonly used distributions, namely Normal, Lognormal, Gamma, Weibull, Exponential, and Rayleigh, are selected as possible marginal distributions for each monitoring data. The probability density functions and parameters of the selected six marginal distributions are shown in Table 1.
Based on the determined marginal distribution functions of each measurement point, a quantification model for the overall risk rate of the earth–rock dam is constructed. Five common Copula functions (i.e., Gaussian Copula, t-Copula, Frank Copula, Gumbel Copula, and Clayton Copula) are used to construct the joint distribution functions. The parameters for the selected Copula functions are estimated using the maximum likelihood estimation method [28], and the structure of the data is tested with three statistical parameters to determine the optimal Copula function expression for the joint distribution function. This allows for further calculation of the overall risk rate of the earth–rock dam.

3.2. Quantification Process of Operation Risk Rate for Earth–Rock Dams Under Sudden Changes in Reservoir Water Levels

Based on the above, the steps for calculating the overall risk rate of seepage in earth–rock dams under sudden changes in reservoir water levels are as follows, and the flowchart is shown in Figure 2.
(1)
Based on the seepage monitoring data of earth–rock dams under rapid reservoir water level changes, construct a seepage safety monitoring model for single monitoring points of earth–rock dams, and determine the marginal probability density function of the seepage risk rate of monitoring points by fitting the difference between the measured value and the fitting value.
(2)
Use the maximum likelihood estimation method (MLE) to perform parameter estimation for the optimal Copula function.
(3)
Employ the K-S test, Root Mean Square Error (RMSE), and Akaike Information Criterion (AIC) to assess the data structure and select the optimal Copula function.
(4)
Establish the seepage risk rate model for the earth–rock dam based on the Copula function and calculate the overall risk rate of the dam.
(5)
Define the risk rate thresholds for each level of damage based on the building classification; if the risk rate does not exceed the threshold, the structure is considered safe; if it exceeds the threshold, it is deemed unsafe.

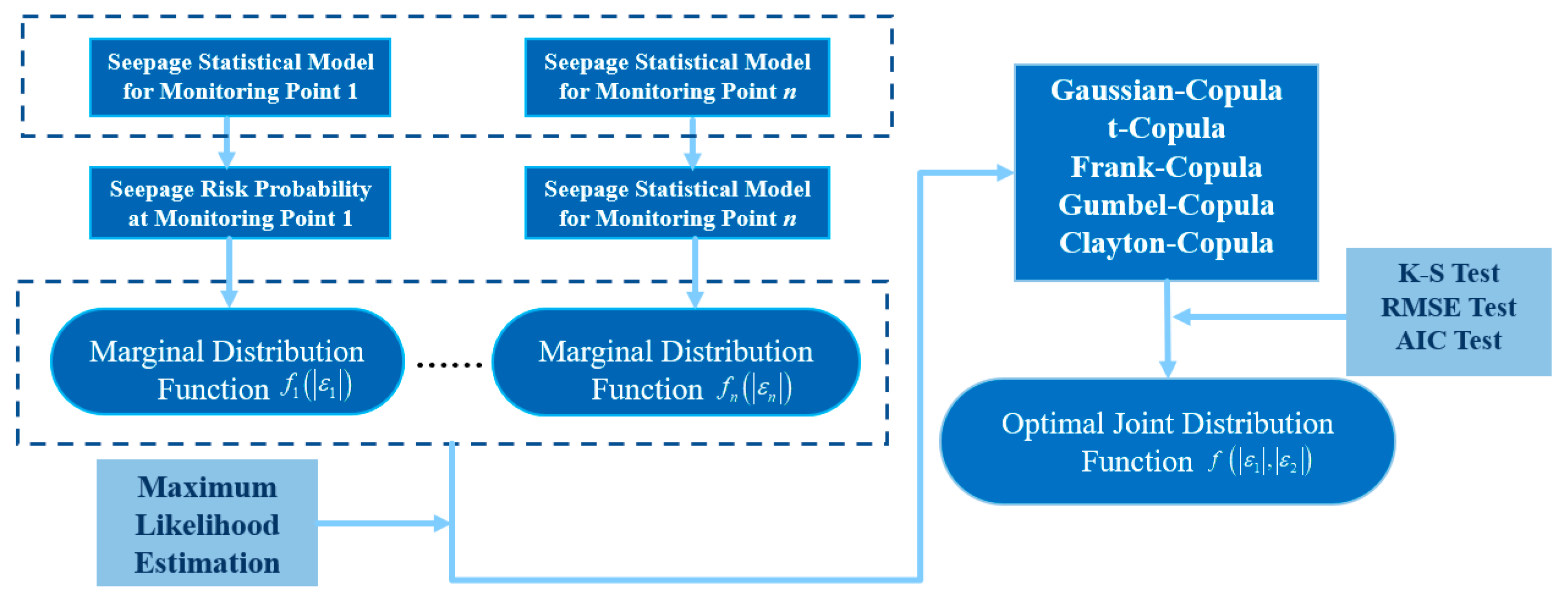

Figure 2. Flow chart for calculating the operational risk rate of earth–rock dams under rapid reservoir water level changes.
Figure 2. Flow chart for calculating the operational risk rate of earth–rock dams under rapid reservoir water level changes.
Water 17 03046 g002

4. Early Warning Methods for Earth–Rock Dams Under Sudden Changes in Reservoir Water Levels

4.1. Risk Rate Early Warning for Earth–Rock Dams

During the construction and operation of earth–rock dams, there are always two states: reliable (safe, applicable, durable) and unreliable (unsafe, inapplicable, non-durable). To correctly reflect the working state of the earth–rock dam, a functional model is usually used for description.
If the basic random factors of the earth–rock dam are X 1 , X 2 , , X n , the functional function is Z, the resistance random factor is R, and the load effect random factor is S, then the functional function can be expressed as:
Z = g ( X 1 , X 2 X n ) = g ( R , S ) = R S
When Z > 0, it indicates a reliable state; when Z < 0, it indicates an unreliable state; and when Z = 0, it indicates a limit state, where Z-R-S = 0 is called the limit state equation, representing the boundary between the reliable and unreliable states of the earth–rock dam, which is a threshold for the working state of the earth–rock dam. The “Unified Standard for Reliability Design of Hydraulic and Hydroelectric Engineering Structures (GB 50199—2013)” [29] defines the target reliability β t and allowable risk rate P r f for different safety levels of hydraulic and hydroelectric engineering, as shown in Table 2. This method defines the failure probability by setting different safety level reliabilities, and this paper uses it as the basis for early warning of the risk rate of earth–rock dams.

4.2. Single Measurement Point Early Warning

Dynamic early warning for single measurement points in earth–rock dams is generally based on historical monitoring data of the point experiencing adverse conditions. Warning indicators are proposed for coping with such conditions by assessing and predicting the capability of withstanding potential loads based on the point’s past ability to endure applied loads, thus determining the alarm values and extreme values of monitoring effect quantities under those loads. At the same time, the reliability indicators in the standards serve as limit state indicators that ensure the structure’s continuous load-bearing capacity during its service life. Falling below this standard indicates the termination of the structure’s lifespan. Typically, hydraulic engineering failures do not occur at this limit state; rather, during a certain service period, the engineering reliability index may fall below the target reliability. However, after appropriate repairs, the structure’s reliability can meet the requirements again. Therefore, to provide a safety warning for the operational state of earth–rock dam projects and to timely reinforce and eliminate risks, it is often necessary to apply a reduction to the target reliability index used in practical engineering. Here, α β t is defined as the target reliability index for assessing the state of an in-service earth–rock dam project, and a reduction factor α = 0.85 is selected based on “The Theory and Application of Engineering Structural Reliability” [30,31]. In distinguishing between the safe state and the warning state for single measurement points in earth–rock dam projects, the reliability index α β t 1 = 3.7 × 0.85 3.0 is set as the target reliability for the distribution of measured values, generating a primary control line for the measured value distribution, with a corresponding allowable risk rate of P r f = 1.35 × 10 3 ; this is designated as a Type I warning indicator P f 1 . When the single measurement point reaches the warning state or emergency state, the reliability index α β t 1 = 4.2 × 0.85 3.5 is set as the target reliability for the distribution of measured values, creating a secondary control line for the measured value distribution, with a corresponding allowable risk rate of P rf = 2.33 × 10 4 ; this is designated as a Type II emergency indicator P f 2 .
(1) Training Zone. Assume there is a series of measurement points in a certain area x i , 1 , 2 , , n , where n is the temporal length. A model is established for the measurement point as described in Section 2, yielding the correlation coefficient R and standard deviation S. The historical measurement values of the point and the model fitting values are input into the training zone of the model shown in Figure 3.
(2) Judgment Zone. As the measured values are updated, the actual measured value of the point x i + 1 , along with the corresponding upstream water level H ¯ u i + 1 , downstream water level H d i + 1 , rainfall p ¯ i + 1 , and time θ i + 1 , are input. The updated measurement value of the point and the model prediction values are input into the judgment zone of the model shown in Figure 3.
(3) Comparison Zone. Based on the model fit values X ^ i + 1 , a central line is generated, and combined with the confidence interval method and the target reliability indicators corresponding to the two-level warning indicators α β t 1 and α β t 2 , the upper and lower control lines for the slope safety monitoring values are generated. The first-level control line is denoted as X ^ i + 1 ± 3 s , and the second-level control line as X ^ i + 1 ± 3.5 s . Additionally, by calculating the real-time risk rates P f of the measurement point values, the real-time risks and statuses of the measurement points can be assessed. The first type of warning indicator corresponds to the real-time risk rate calculated when the measurement value distribution meets the target reliability β = 3.0 , the second type of emergency indicator corresponds to the real-time risk rate calculated when the measurement value distribution meets the target reliability β = 3.5 .

5. Application Example

The maximum height of a certain earth–rock dam is 35.5 m, with a crest elevation of 181.80 m and a wave-dissipation wall crest elevation of 183.00 m. The crest width is 7.0 m, with a design flood level corresponding to a 100-year return period at 177.89 m, resulting in a storage capacity of 548 million m3. The check flood level for a 5000-year return period corresponds to a water level of 180.82 m, resulting in a storage capacity of 680 million m3. The seepage monitoring layout diagram of the earth–rock dam and the schematic diagram of the earth–rock dam cross-section are shown in Figure 4 and Figure 5.
The seepage monitoring data from the reservoir between 23 July 2010 and 12 May 2017 is selected as the training set, while the seepage monitoring data from 19 May 2017 to 31 July 2020 is used as the test set. The ratio of the training set to the test set is 4:1. The test set data (from 19 May 2017 to 31 July 2020) includes two segments of rapid water level rises and one segment of rapid water level decline. This representative data demonstrates the effectiveness of the quantitative risk rate assessment and early warning methods for earth–rock dams under abrupt reservoir water level changes. The environmental conditions of the reservoir and the water levels of the piezometers are shown in Figure 6.

5.1. Dynamic Warning for Earth–Rock Dams Under Sudden Changes in Reservoir Water Level

Based on the seepage monitoring data of the earth–rock dam, seepage statistical models for each monitoring point are constructed. The models are fitted using the least squares method to obtain the model fitting values and residuals, as shown in Figure 7. The correlation coefficients and standard deviations of the models are shown in Table 3.
From the results presented in Table 3, it can be inferred that the overall accuracy of the model is high. The constructed statistical model is capable of effectively simulating the dynamic variations in piezometric water levels, which indicates that the selection of factors is reasonable.
The safety monitoring model for earth–rock dams demonstrates high accuracy, with fitting results that are authentic and reliable. This aids in enhancing the effectiveness and credibility of establishing dynamic warning indicators and risk rate quantification based on model fitting results. It can realistically reflect the seepage field of an earth–rock dam under the combined load effect of sudden reservoir water level changes, and it can also provide monitoring and warning for areas without installed measurement points. Based on the seepage fitting values at each measurement point obtained from the hybrid neural network model, primary and secondary control lines are sequentially generated according to the method described in Section 4.2 for dynamic warning at measurement points 1+141-1, 1+143-1, and 1+666-1 on the dam, as shown in Figure 8.
From Figure 8, it can be observed that the historical measurement values, fitted values, updated measurement values, and predicted values for each monitoring point generally fall within the envelope area of the first-level upper and lower control lines. At this time, the state of the earth–rock dam and the predicted results of the safety monitoring model are quite similar, indicating that the model can reasonably describe the safety state of the dam under both rapid water level decline and rise conditions. This suggests that the model is well-constructed and possesses strong generalization capabilities. During this period, there were two instances of rapid water level rise and one instance of rapid water level decline. During the rapid water level rise phase, all monitoring points exhibited a contraction state within the first and second control line areas. Conversely, during the water level decline phase, the process lines of the monitoring points showed a more relaxed state in relation to the first and second control lines. Additionally, the rates of change in the piezometric water levels at each monitoring point were inconsistent, which is attributed to the spatial variability of the permeability coefficients and parameter uncertainty at each seepage monitoring point. This variability led to different response rates to the rising and falling water levels. The results obtained align with the fundamental principles and objective facts regarding seepage changes in earth–rock dams under abrupt reservoir water level changes, effectively interpreting engineering monitoring information and intuitively reflecting the operational characteristics of the project.

5.2. Risk Rate Analysis Model for Single Measurement Points in Earth–Rock Dams

Based on the model fitted values and measured values, a residual sequence was obtained, and the corresponding risk rate for each individual monitoring point was calculated. Six commonly used kernel density non-parametric distributions—Normal, Lognormal, Gamma, Weibull, Exponential, and Rayleigh—were selected as potential marginal distributions for the risk rate data at each monitoring point. Parameter estimation was performed for the risk rate at each monitoring point, and the distribution fitting curves for the risk rate of each monitoring point were plotted based on the probability density functions of each distribution, as shown in Figure 9.
The K-S test is used to evaluate whether the random variable (X) follows the selected marginal distribution. A smaller K-S test statistic indicates a better fit between the random variable (X) and the distribution. The parameters to be estimated for the single-point risk rate marginal distribution function of monitoring point 1+341-1, along with the K-S test results, are presented in Table 4. According to the test parameters of various assumed distributions and the results of the K-S test, the minimum K-S test statistic for monitoring point 1+341-1 is 0.0742, with corresponding parameters ( δ 1 = 1.0541) and ( δ 2 = 0.0887). Therefore, the optimal marginal distribution probability function for monitoring point 1+341-1 is determined to be a Gamma distribution. Due to space limitations, the K-S test values for the remaining monitoring points are also used to select the best marginal distributions.
Limited by space, the calculation of the real-time risk rate for monitoring point 1+341-1 is shown in Figure 10, while the remaining monitoring points are calculated and integrated into subsequent steps. From Figure 10, it can be observed that high risk rates mainly occur during abrupt changes in reservoir water levels. For example, on 20 July 2018, the risk rate exceeded 0.9, indicating a sudden rise in reservoir water levels. This suggests that the dam is affected by the rising reservoir water level, putting the earth–rock dam in a loaded state. Under the immense thrust of water, the overall stability of the earth–rock dam decreases, resulting in a higher probability of failure. On 11 October 2019, there was a sudden drop in reservoir water levels, and the risk rate also exceeded 0.9. In this case, the earth–rock dam is normally in a stable seepage phase at the regular water level. When the water level drops suddenly, the upstream dam loses the pressure from the water, making it susceptible to landslides. Thus, the risk rate of the earth–rock dam is higher during sudden water level declines. Consequently, the significant fluctuations in the rate of change in reservoir water levels are the primary factors contributing to the increased real-time risk rate of the earth–rock dam. When the reservoir water level remains relatively stable, the calculated risk rates based on the prototype monitoring data are lower. There are two reasons for this situation: first, the seepage safety monitoring model is quite sensitive to changes in reservoir water levels, and the impact of the water level influencing factor in the model is significant, resulting in higher risk rates during sudden changes compared to more stable phases. Additionally, the dam experiences disturbances during rapid changes in water load and unloading rates, making the safety margin of the earth–rock dam lower during these periods than during stable water level operations, which is also one of the factors leading to higher risk rates.

5.3. Real-Time Seepage Risk Rate Quantification Model for Earth–Rock Dams Under Sudden Changes in Reservoir Water Levels

After determining the marginal distribution functions for each single variable, based on the overall risk rate calculation process for earth–rock dams, the best joint distribution function is selected to calculate the parameters θ 1 and θ 2 of each joint distribution function. Compare their K-S test values, ERMSE, and D AIC values to obtain the parameters and evaluation metrics of each Copula function (Table 5).
The AIC value can simultaneously account for the goodness of fit and simplicity of the random variable (X), representing the relative amount of information loss for the candidate joint distribution functions. Therefore, the one with the minimum value is considered the optimal joint distribution function. The RMSE reflects the difference between the theoretical probability of the selected joint distribution function and the empirical probability of the sample data; the smaller the difference, the better the fit. Comparing the parameters to be estimated for each Copula function and the results of various test indicators, the minimum values corresponding to the K-S test, RMSE, and AIC are 0.0124, 0.0314, and 0.4412, respectively. The corresponding parameter for these values is 0.1281, indicating that the best joint probability distribution function is the Frank Copula function. Additionally, Gauss Copula and conventional weights are used as comparisons to calculate the risk rates at sections 1+141, 1+143, and 1+666, as shown in Figure 11.
For a given set of multivariate samples, the optimal form of the Copula function for its marginal distribution is uncertain. As a non-parametric estimation method, it fits and computes based solely on the distribution patterns of the raw samples. From Figure 11a–c, it can be observed that the time series curve of the joint risk rate obtained from the Frank Copula function is essentially the same as that from the Gaussian Copula method. This confirms that the former is a reasonable joint probability distribution function for multiple monitoring points. In contrast, the joint risk rate calculated using the objective weighting method is significantly higher than that obtained from the two Copula function methods. This is because the objective weighting method utilizes fixed weights for each monitoring point and does not account for different variations under various loads and conditions. As noted earlier, abrupt changes in reservoir water levels and other unconventional conditions exhibit strong suddenness and significant variability, with the risk rates of earth–rock dam operations displaying nonlinear evolution characteristics and dynamic time-varying properties. By incorporating the Copula function to consider the spatial correlations and individual differences in the monitoring effects across various parts of the dam, the interference from the randomness of individual monitoring points can be effectively reduced, thereby achieving the dynamic conversion of measured seepage effects and risk rates under sudden reservoir water level changes. When most monitoring points simultaneously exhibit high risk rates, it is likely that the earth–rock dam is in an abnormal operating state, potentially facing extreme loads or structural damage not covered by the existing observational data. Therefore, the observed overall risk rate may be elevated, necessitating further monitoring and verification of the causes of these anomalies.
Figure 12 shows the process of the overall operational risk rate of the earth–rock dam under sudden changes in reservoir water level. At the same time, whether comparing the risk rate of a single monitoring point or the multi-point risk rate of the cross-section shown in Figure 11, the overall risk rate shows a declining trend. This is because, unless there is a sudden change in the structural performance of the earth–rock dam, the probability of multiple monitoring points simultaneously exhibiting abnormalities due to other factors decreases as the number of monitoring points increases, thereby reducing the joint risk rate. It can be observed that as time and water levels change, the operational risk rate of the earth–rock dam exhibits an increasing trend. According to the “Unified Standard for Reliability Design of Water Conservancy and Hydroelectric Engineering Structures (GB 50199—2013),” this earth–rock dam is classified as a Grade I structure, with a corresponding Type II damage risk rate of 1.34 × 10−5. Therefore, it can be concluded that the dam is currently in a relatively safe state, with reasonable seepage monitoring at all measurement points and no significant abnormalities.

6. Conclusions

In response to the frequent occurrences of extreme climate phenomena and the inability to quantify the operational risk rates of earth–rock dams in real-time under sudden changes in reservoir water levels, this paper incorporates seepage monitoring data into the failure probability analysis and early warning methods for earth–rock dams. A quantification model and early warning method for the operational risk rate of earth–rock dams are constructed based on Copula function theory. By combining engineering case studies, the effectiveness of the model is validated, leading to the following conclusions:
(1)
By constructing a risk probability function that reflects the relationship between the residuals of seepage monitoring effects and risk rates, the single-point risk rate of seepage effect quantities in earth–rock dams is calculated. Incorporating the Copula function considers the spatial correlations and individual differences in monitoring effects across various parts of the dam, effectively reducing the interference from the randomness of individual monitoring points. This approach achieves the dynamic conversion of measured seepage effects and risk rates under abrupt reservoir water level changes, effectively interpreting engineering monitoring information and intuitively reflecting the real-time operational characteristics of the project. Meanwhile, it can serve as a reference and provide practical guidance for dam scheduling and flood release under conditions of abrupt water level fluctuations.
(2)
Two types of warning indicators are quantitatively designed for the alert status of earth–rock dams under sudden water level changes. A dynamic warning method for monitoring effect quantities at a specific earth–rock dam is proposed based on the confidence interval method, indicating that the first and second control lines of the dam are in a contracted state during abrupt water level changes. Quantitative analysis of the overall risk rate of the earth–rock dam based on Copula function theory shows that high-risk periods primarily occur during rapid fluctuations in reservoir water level rates, with the overall risk rate decreasing as the number of monitoring points increases. It is advised to pay close attention to changes in reservoir water levels during operational management and to minimize the rate of water level fluctuations whenever possible. Furthermore, in the subsequent application of the model, it can be integrated with the real-time decision-making system for dam safety, so that dam safety information elements can be promptly transformed into real-time decision-making content, thereby laying a foundation for ensuring the safety of people’s lives and property and achieving the stable operation of dams.

Author Contributions

Conceptualization, X.L. and W.Y.; Methodology, X.L.; Software, X.L. and Q.L.; Formal analysis, X.L.; Resources, W.Y. and B.L.; Data curation, F.M.; Writing—original draft, X.L. and F.M.; Writing—review & editing, X.L., W.Y. and H.L.; Visualization, Q.L. and H.L.; Supervision, W.Y. and B.L.; Funding acquisition, W.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research has been supported by the National Natural Science Foundation of China, Grant/Award Number: U2243244, U2243223, U24A20171, Graduate Thesis Foundation of Nanjing Hydraulic Research Institute, Grant/Award Number: Yy724004, Special Fund for Basic Scientific Research of Central Public Research Institutes, Grant/Award Number: Y722005 and Y723005.

Data Availability Statement

The datasets presented in this article are not readily available because the data are part of an ongoing study. Requests to access the datasets should be directed to xiangluo@hhu.edu.cn.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Newman, R.; Noy, I. The Global Costs of Extreme Weather that are Attributable to Climate Change. SSRN Electron. J. 2022. [Google Scholar] [CrossRef]
  2. Nanditha, J.S.; Kushwaha, A.P.; Singh, R.; Malik, I.; Solanki, H.; Chuphal, D.S.; Dangar, S.; Mahto, S.S.; Vegad, U.; Mishra, V. The Pakistan Flood of August 2022: Causes and Implications. Earth’s Future 2023, 11, e2022EF003230. [Google Scholar] [CrossRef]
  3. Li, Y.; Bao, T.; Huang, X.; Chen, H.; Xu, B.; Shu, X.; Zhou, Y.; Cao, Q.; Tu, J.; Wang, R.; et al. Underwater Crack Pixel-Wise Identification and Quantification for Dams via Lightweight Semantic Segmentation and Transfer Learning. Autom. Constr. 2022, 144, 104600. [Google Scholar] [CrossRef]
  4. Ye, W.; Ma, F.; Hu, J.; Li, Z. Seepage behaviors of inclined wall dams under drought-flood abrupt alternation. Chin. J. Geotech. Eng. 2018, 40, 1923–1929. [Google Scholar] [CrossRef]
  5. Yan, C.; Tu, J.; Li, D.; Guo, S.; Liang, H. The Failure Mechanism of Concrete Gravity Dams considering Different Nonlinear Models under Strong Earthquakes. Shock Vib. 2021, 2021, 5558284. [Google Scholar] [CrossRef]
  6. Ma, J.; Cheng, J.C.P.; Jiang, F.; Chen, W.; Wang, M.; Zhai, C. A bi-directional missing data imputation scheme based on LSTM and transfer learning for building energy data. Energy Build. 2020, 216, 109941. [Google Scholar] [CrossRef]
  7. Su, H.; Li, J.; Wen, Z.; Fu, Z. Dynamic non-probabilistic reliability evaluation and service life prediction for arch dams considering time-varying effects. Appl. Math. Model. 2016, 40, 6908–6923. [Google Scholar] [CrossRef]
  8. Moharrami, A.; Hassanzadeh, Y.; Salmasi, F.; Moradi, G.; Moharrami, G. Performance of the horizontal drains in upstream shell of earth dams on the upstream slope stability during rapid drawdown conditions. Arab. J. Geosci. 2014, 7, 1957–1964. [Google Scholar] [CrossRef]
  9. Moellmann, A.; Vermeer, P.A.; Huber, M. A probabilistic finite element analysis of embankment stability under transient seepage conditions. Georisk Assess. Manag. Risk Eng. Syst. Geohazards 2011, 5, 110–119. [Google Scholar] [CrossRef]
  10. Ye, W.; Ma, F.; Hu, J.; Li, Z.; Gu, X. Centrifugal model tests on danger incubation and catastrophic process of inclined wall dams under drought-flood abrupt alternation. Chin. J. Geotech. Eng. 2023, 45, 2100–2109. [Google Scholar] [CrossRef]
  11. Li, B.; Yang, J.; Hu, D. Dam monitoring data analysis methods: A literature review. Struct. Control Health Monit. 2019, 27, e2501. [Google Scholar] [CrossRef]
  12. Li, Y.; Zhao, H.; Wei, Y.; Bao, T.; Li, T.; Wang, Q.; Wang, N.; Zhao, M. Vision-Guided Crack Identification and Size Quantification Framework for Dam Underwater Concrete Structures. Struct. Health Monit. 2024, 24, 2125–2148. [Google Scholar] [CrossRef]
  13. Kang, F.; Liu, J.; Li, J.; Li, S. Concrete dam deformation prediction model for health monitoring based on extreme learning machine. Struct. Control Health Monit. 2017, 24, e1997. [Google Scholar] [CrossRef]
  14. Tang, X.; Chen, A.; He, J. Optimized variable selection of Bayesian network for dam risk analysis: A case study of earth dams in the United States. J. Hydrol. 2023, 617, 129091. [Google Scholar] [CrossRef]
  15. Assaad, R.; El-adaway, I.H. Evaluation and Prediction of the Hazard Potential Level of Dam Infrastructures Using Computational Artificial Intelligence Algorithms. J. Manag. Eng. 2020, 36, 04020051. [Google Scholar] [CrossRef]
  16. Zhu, Y.; Niu, X.; Gu, C.; Dai, B.; Huang, L. A Fuzzy Clustering Logic Life Loss Risk Evaluation Model for Dam-Break Floods. Complexity 2021, 2021, 7093256. [Google Scholar] [CrossRef]
  17. Nelsen, R.B. An Introduction to Copulas; Springer: New York, NY, USA; London, UK, 2011. [Google Scholar]
  18. He, M.; Li, H.; Xu, J.; Wang, H.; Xu, W.; Chen, S. Estimation of unloading relaxation depth of Baihetan Arch Dam foundation using long-short term memory network. Water Sci. Eng. 2021, 14, 149–158. [Google Scholar] [CrossRef]
  19. Wang, S.; Liu, Y.; Zhou, H.; Zhang, Y.; Wu, Z.; Yang, Q. Experimental study on failure process of arch dam based on acoustic emission technique. Eng. Fail. Anal. 2019, 97, 128–144. [Google Scholar] [CrossRef]
  20. Zhou, Y.; Shu, X.; Bao, T.; Li, Y.; Zhang, K. Dam Safety Assessment through Data-Level Anomaly Detection and Information Fusion. Struct. Health Monit. 2022, 22, 2002–2021. [Google Scholar] [CrossRef]
  21. Gu, H.; Li, Y.; Fang, Y.; Wang, Y.; Yu, Y.; Wei, Y.; Xu, L.; Chen, Y. Environmental-Aware Deformation Prediction of Water-Related Concrete Structures Using Deep Learning. Comput.-Aided Civ. Infrastruct. Eng. 2025, 40, 2130–2151. [Google Scholar] [CrossRef]
  22. Li, Z.; Hu, Z.; Lin, G.; Li, J. A scaled boundary finite element method procedure for arch dam-water-foundation rock interaction in complex layered half-space. Comput. Geotech. 2021, 141, 104524. [Google Scholar] [CrossRef]
  23. Li, Y.; Bao, T.; Huang, X.; Wang, R.; Shu, X.; Xu, B.; Tu, J.; Zhou, Y.; Zhang, K. An Integrated Underwater Structural Multi-Defects Automatic Identification and Quantification Framework for Hydraulic Tunnel via Machine Vision and Deep Learning. Struct. Health Monit. 2022, 22, 2360–2383. [Google Scholar] [CrossRef]
  24. Lin, P.; Guan, J.; Peng, H.; Shi, J. Horizontal cracking and crack repair analysis of a super high arch dam based on fracture toughness. Eng. Fail. Anal. 2019, 97, 72–90. [Google Scholar] [CrossRef]
  25. Li, Y.; Bao, T.; Li, T.; Wang, R. A Robust Real-Time Method for Identifying Hydraulic Tunnel Structural Defects Using Deep Learning and Computer Vision. Comput.-Aided Civ. Infrastruct. Eng. 2022, 38, 1381–1399. [Google Scholar] [CrossRef]
  26. Gu, C.S.; Wu, Z.R. Dam and Dam Foundation Safety Monitoring Theories and Methods and Their Applications; Hohai University Press: Nanjing, China, 2006. [Google Scholar]
  27. Shao, C.; Gu, C.; Yang, M.; Xu, Y.; Su, H. A Novel Model of Dam Displacement Based on Panel Data. Struct. Control Health Monit. 2018, 25, e2037. [Google Scholar] [CrossRef]
  28. Li, Y.; Bao, T.; Gao, Z.; Shu, X.; Zhang, K.; Xie, L.; Zhang, Z. A New Dam Structural Response Estimation Paradigm Powered by Deep Learning and Transfer Learning Techniques. Struct. Health Monit. 2021, 21, 770–787. [Google Scholar] [CrossRef]
  29. GB 50199—2013; Ministry of Housing and Urban-Rural Development of the People’s Republic of China. Unified Design Standard for Reliability of Hydraulic Engineering Structures. China Planning Press: Beijing, China, 2014.
  30. Hu, J.; Ma, F.; Wu, S. Nonlinear finite-element-based structural system failure probability analysis methodology for gravity dams considering correlated failure modes. J. Cent. South Univ. 2017, 24, 178–189. [Google Scholar] [CrossRef]
  31. Li, Y.; Bao, T.; Chen, H.; Zhang, K.; Shu, X.; Chen, Z.; Hu, Y. A large-scale sensor missing data imputation framework for dams using deep learning and transfer learning strategy. Measurement 2021, 178, 109377. [Google Scholar] [CrossRef]

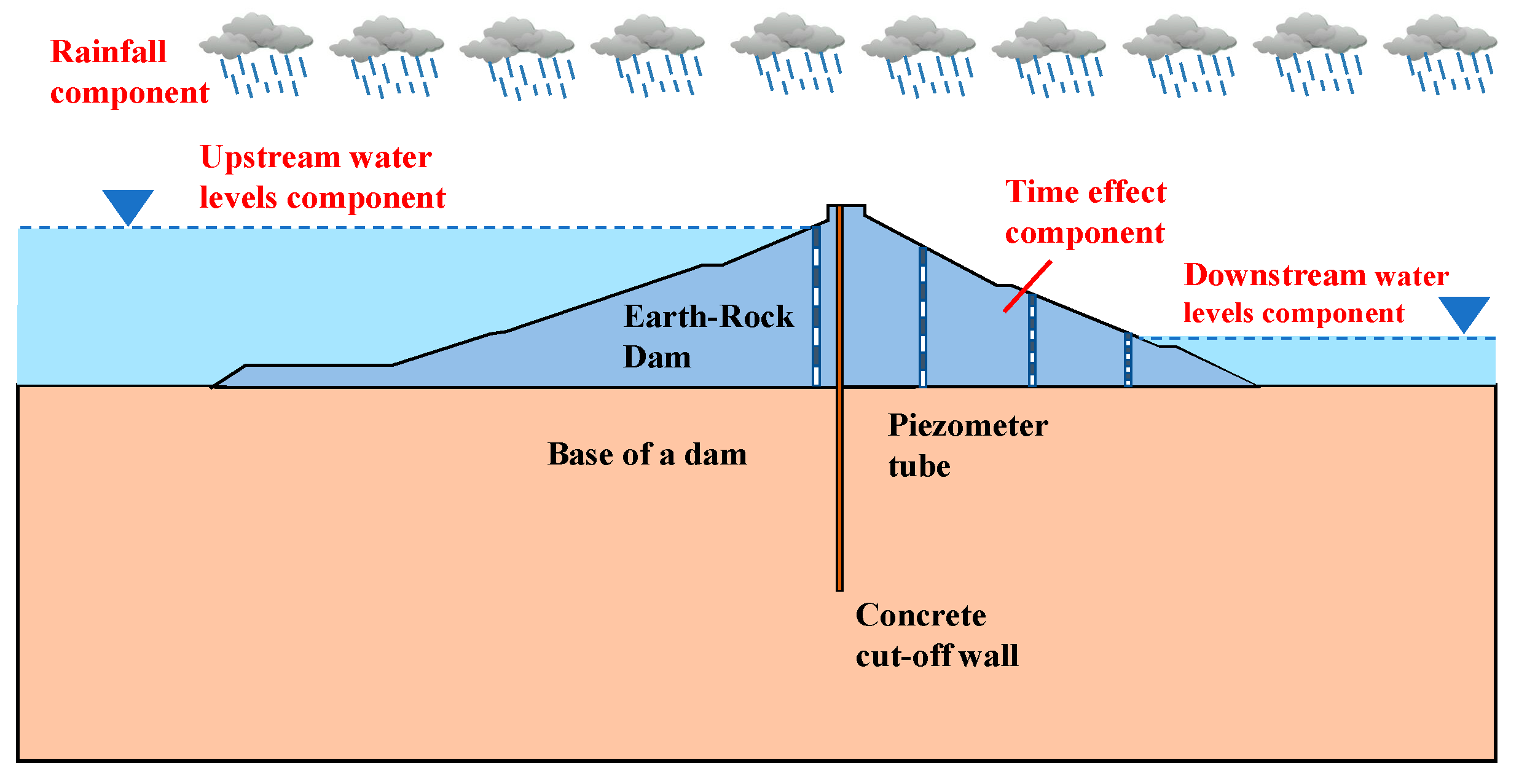

Figure 1. Schematic Diagram of Contributing Factors to the Statistical Model of Piezometer Water Levels in Earth–Rock Dams.
Figure 1. Schematic Diagram of Contributing Factors to the Statistical Model of Piezometer Water Levels in Earth–Rock Dams.
Water 17 03046 g001

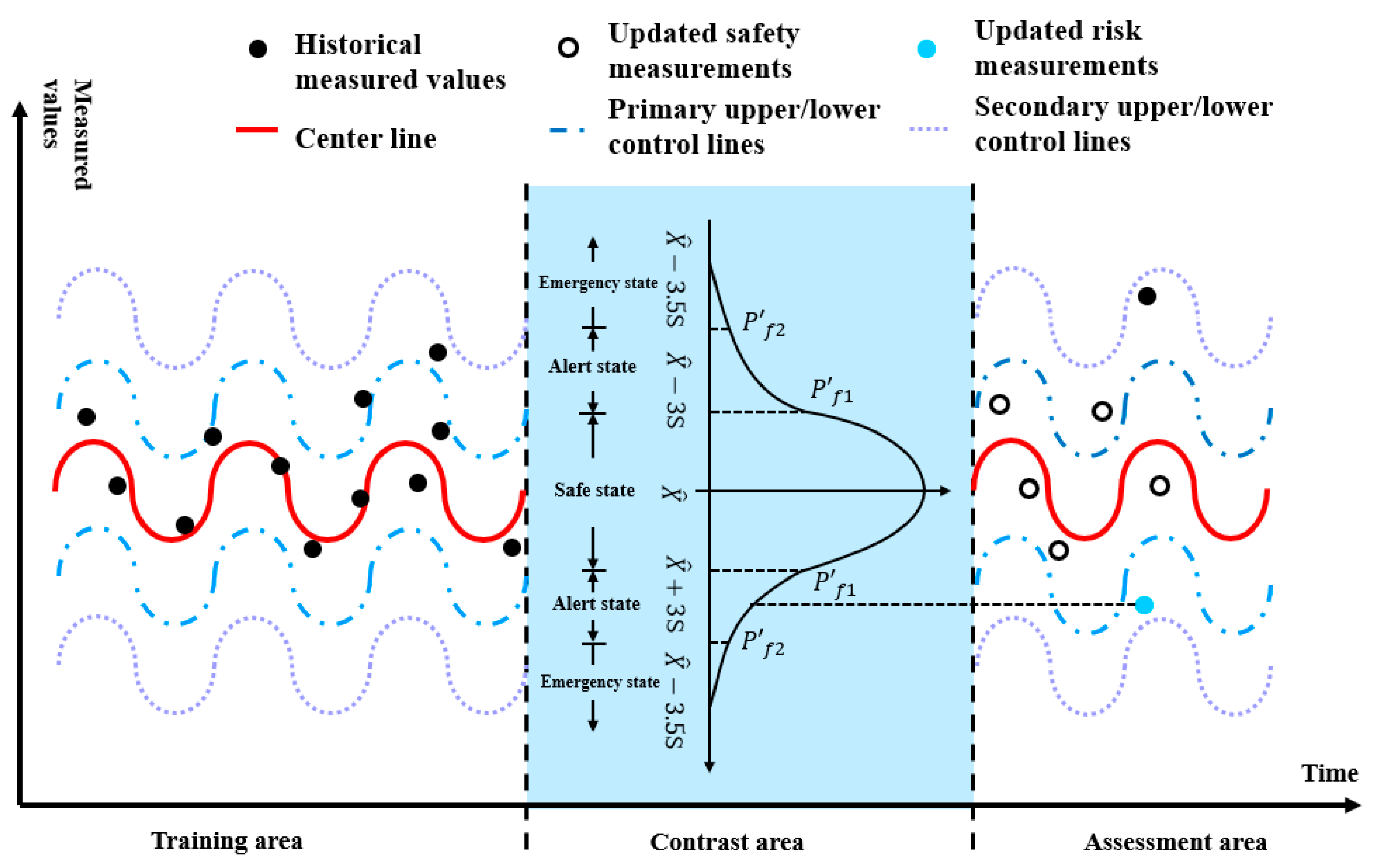

Figure 3. Schematic Diagram of Dynamic Early Warning Method for Single Measurement Points in Earth–Rock Dams Under Sudden Changes in Reservoir Water Levels.
Figure 3. Schematic Diagram of Dynamic Early Warning Method for Single Measurement Points in Earth–Rock Dams Under Sudden Changes in Reservoir Water Levels.
Water 17 03046 g003

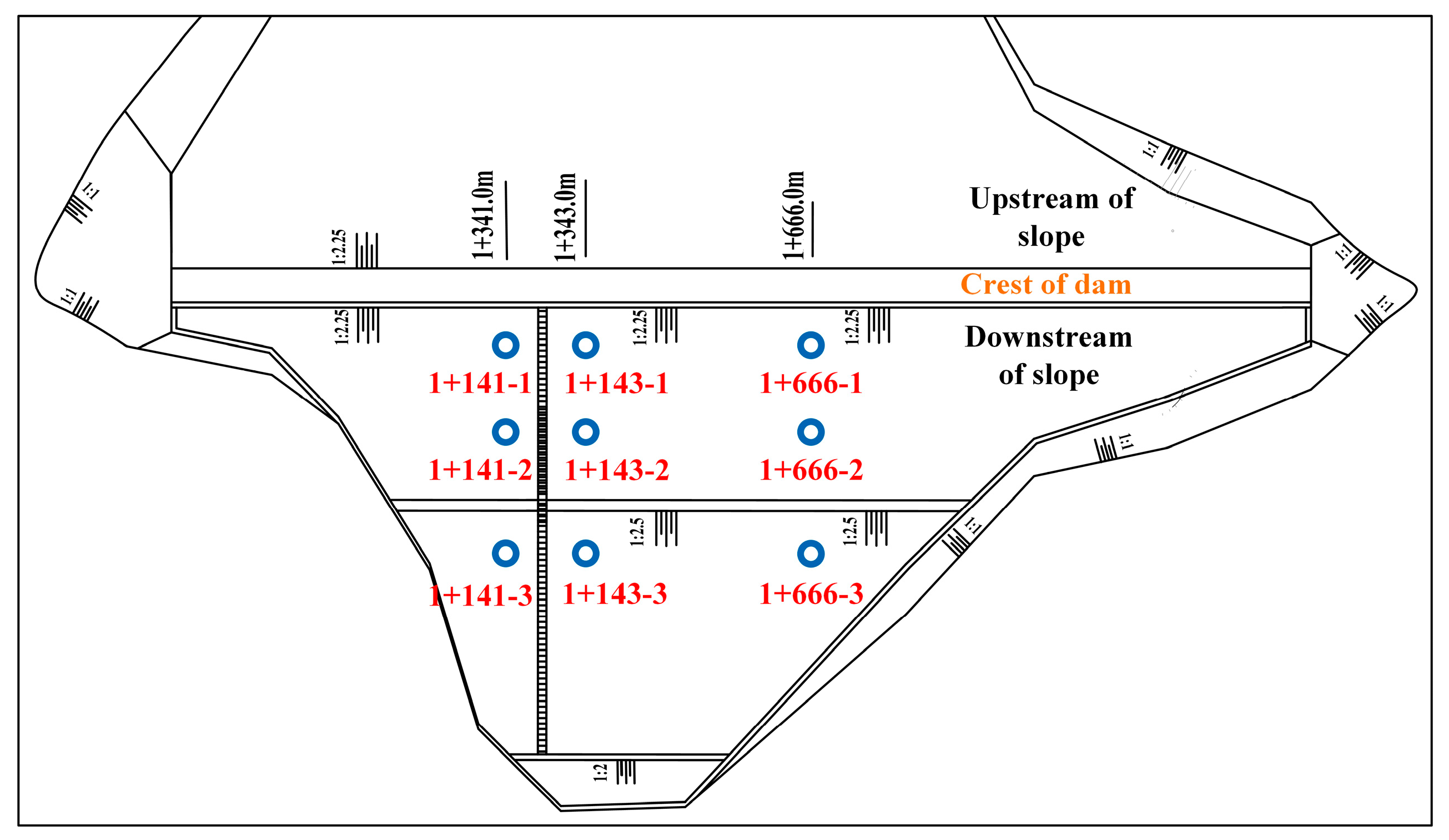

Figure 4. Schematic Diagram of Seepage Monitoring Point Arrangement for Earth–Rock Dam.
Figure 4. Schematic Diagram of Seepage Monitoring Point Arrangement for Earth–Rock Dam.
Water 17 03046 g004

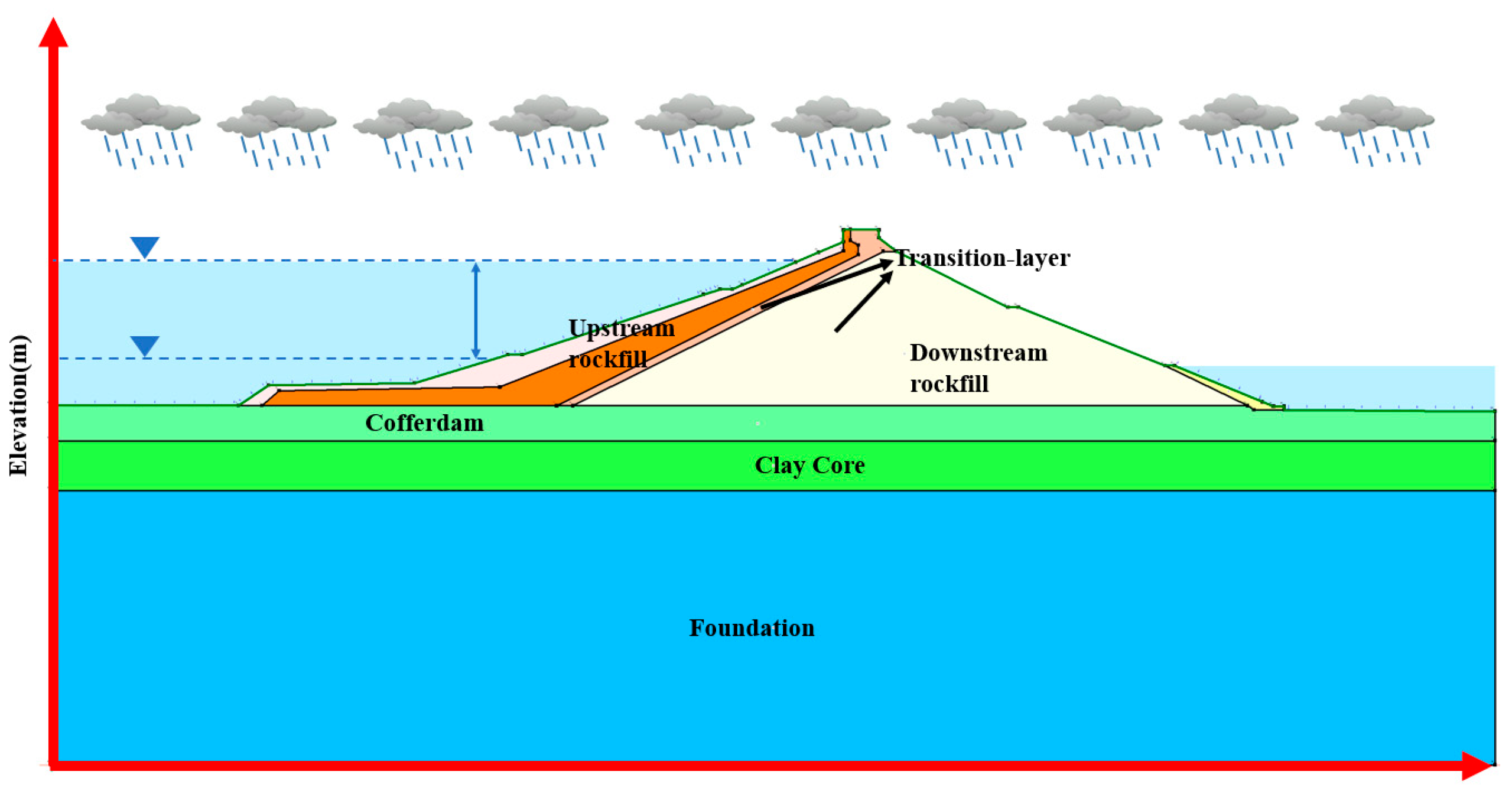

Figure 5. Schematic Diagram of Earth–Rock Dam Cross-Section.
Figure 5. Schematic Diagram of Earth–Rock Dam Cross-Section.
Water 17 03046 g005

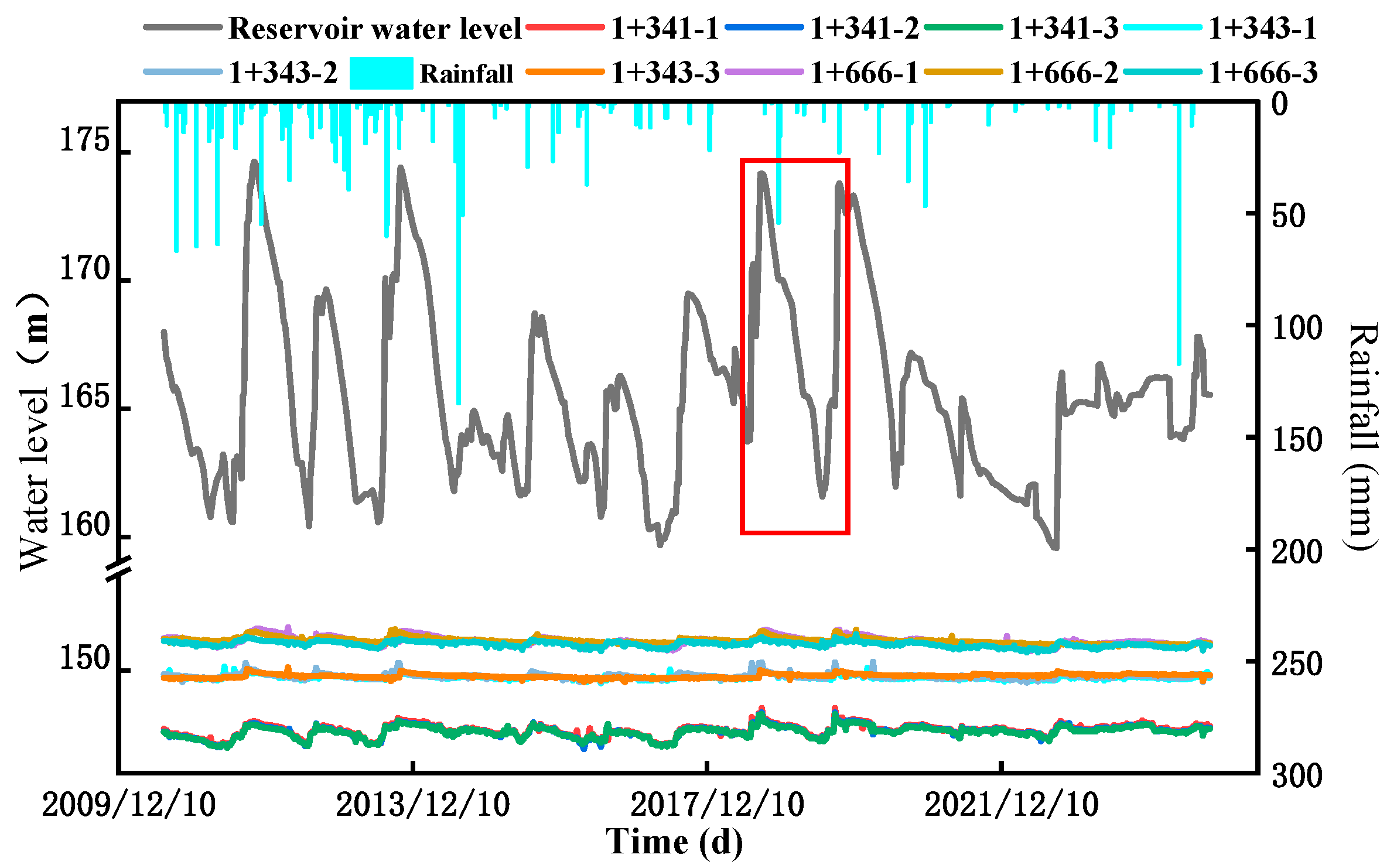

Figure 6. Environmental Conditions of the Earth–Rock Dam and Piezometric Water Levels at Monitoring Points.
Figure 6. Environmental Conditions of the Earth–Rock Dam and Piezometric Water Levels at Monitoring Points.
Water 17 03046 g006

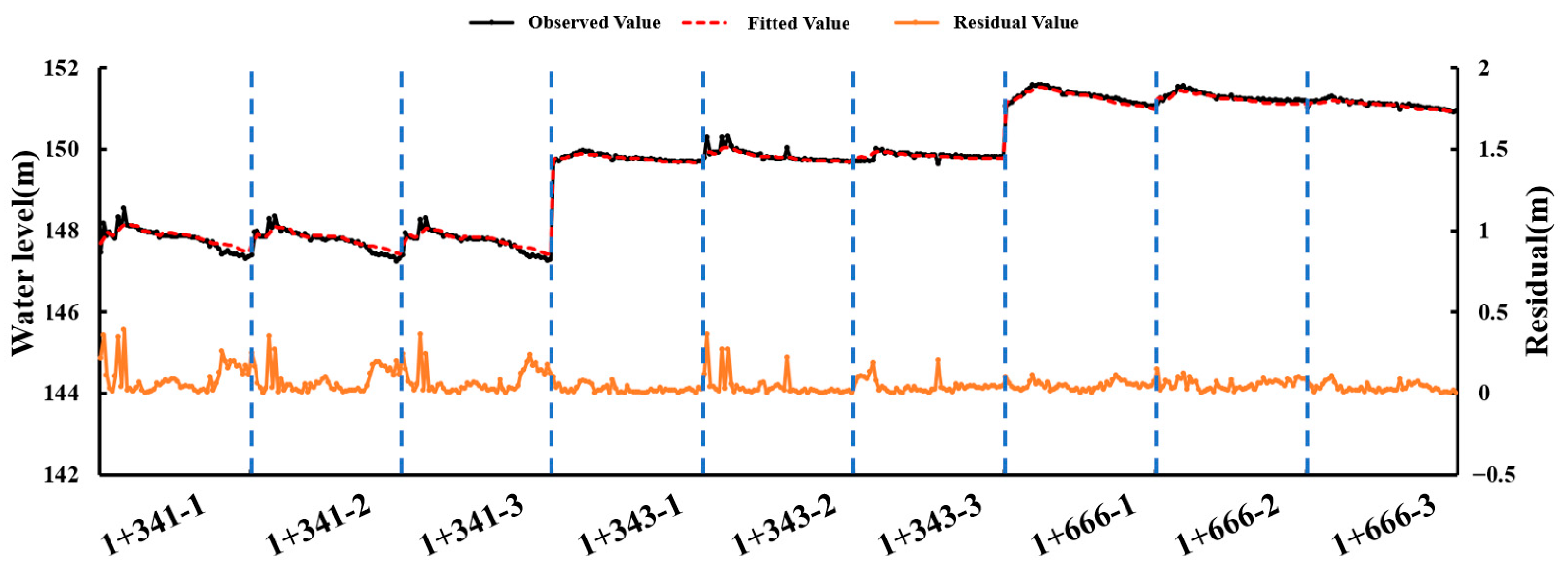

Figure 7. Measured values, fitting values, and corresponding residuals of the piezometric tubes in the earth–rock dam.
Figure 7. Measured values, fitting values, and corresponding residuals of the piezometric tubes in the earth–rock dam.
Water 17 03046 g007

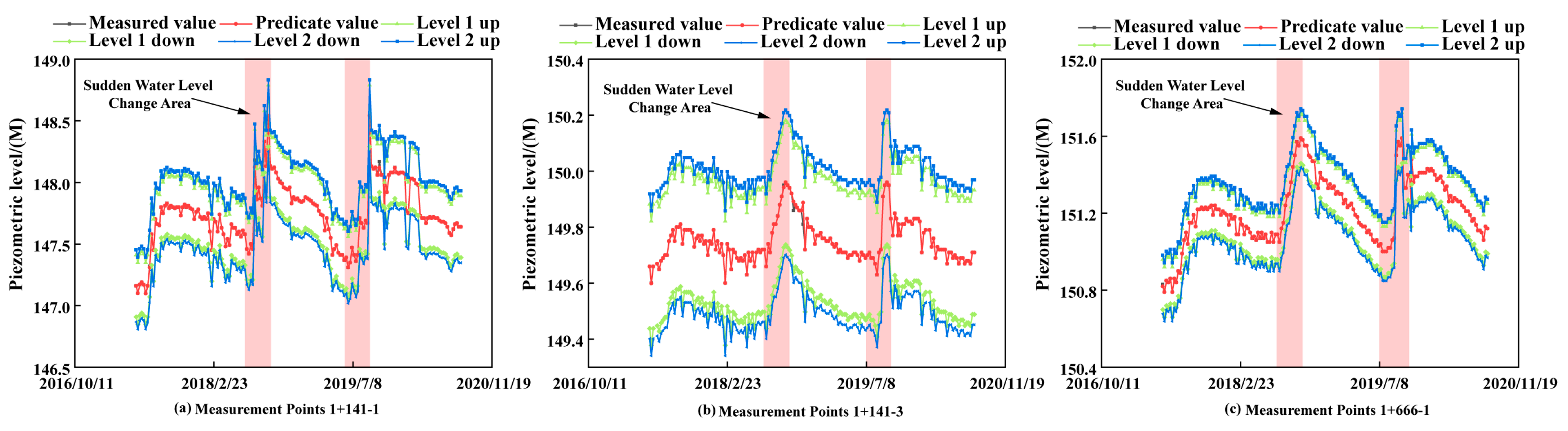

Figure 8. Dynamic Warning Diagram for Measurement Points 1+141-1, 1+143-1, and 1+666-1 on the Earth–Rock Dam.
Figure 8. Dynamic Warning Diagram for Measurement Points 1+141-1, 1+143-1, and 1+666-1 on the Earth–Rock Dam.
Water 17 03046 g008

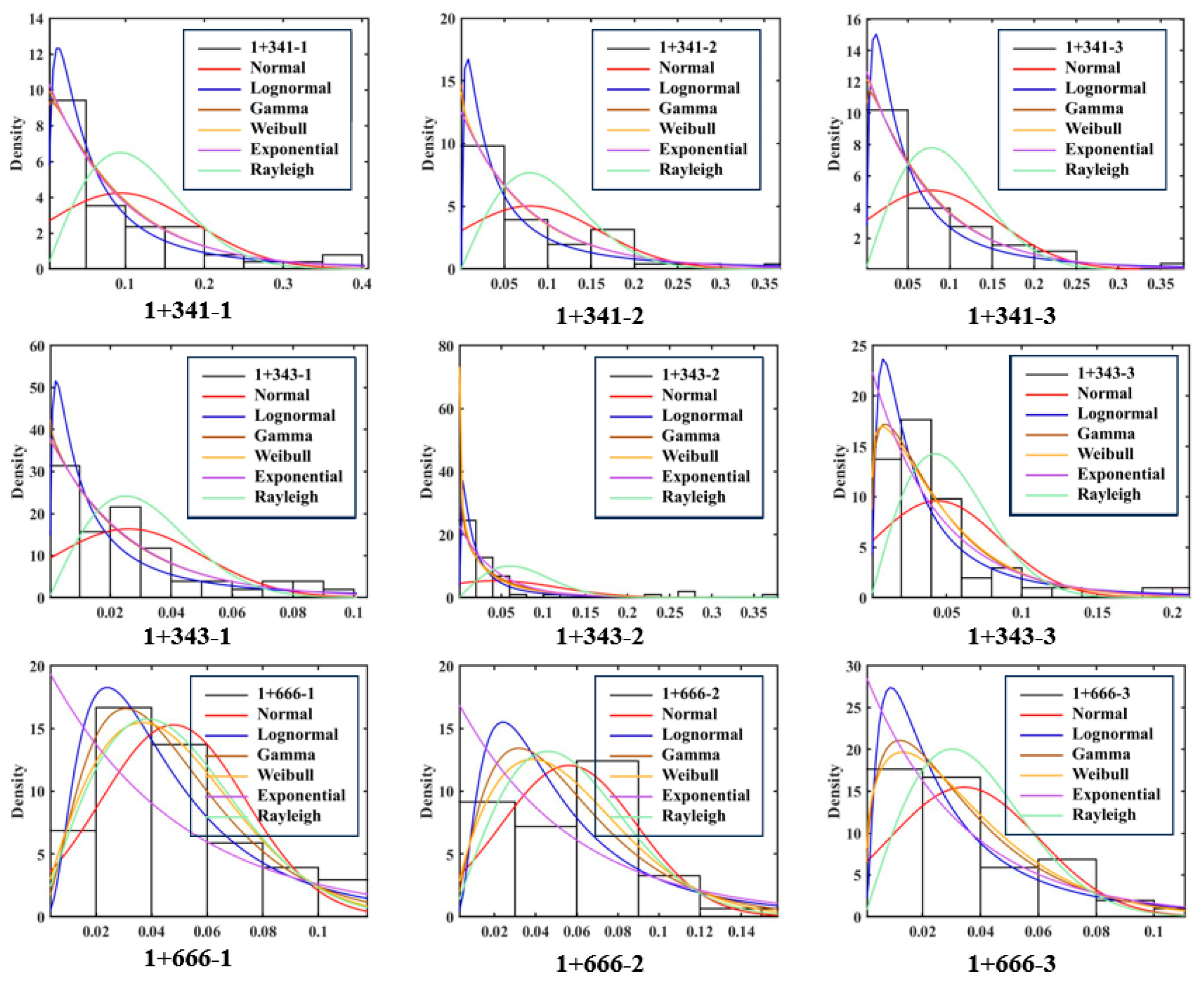

Figure 9. Fitted Distribution Curves of Seepage Risk Rates for Single Measurement Points.
Figure 9. Fitted Distribution Curves of Seepage Risk Rates for Single Measurement Points.
Water 17 03046 g009

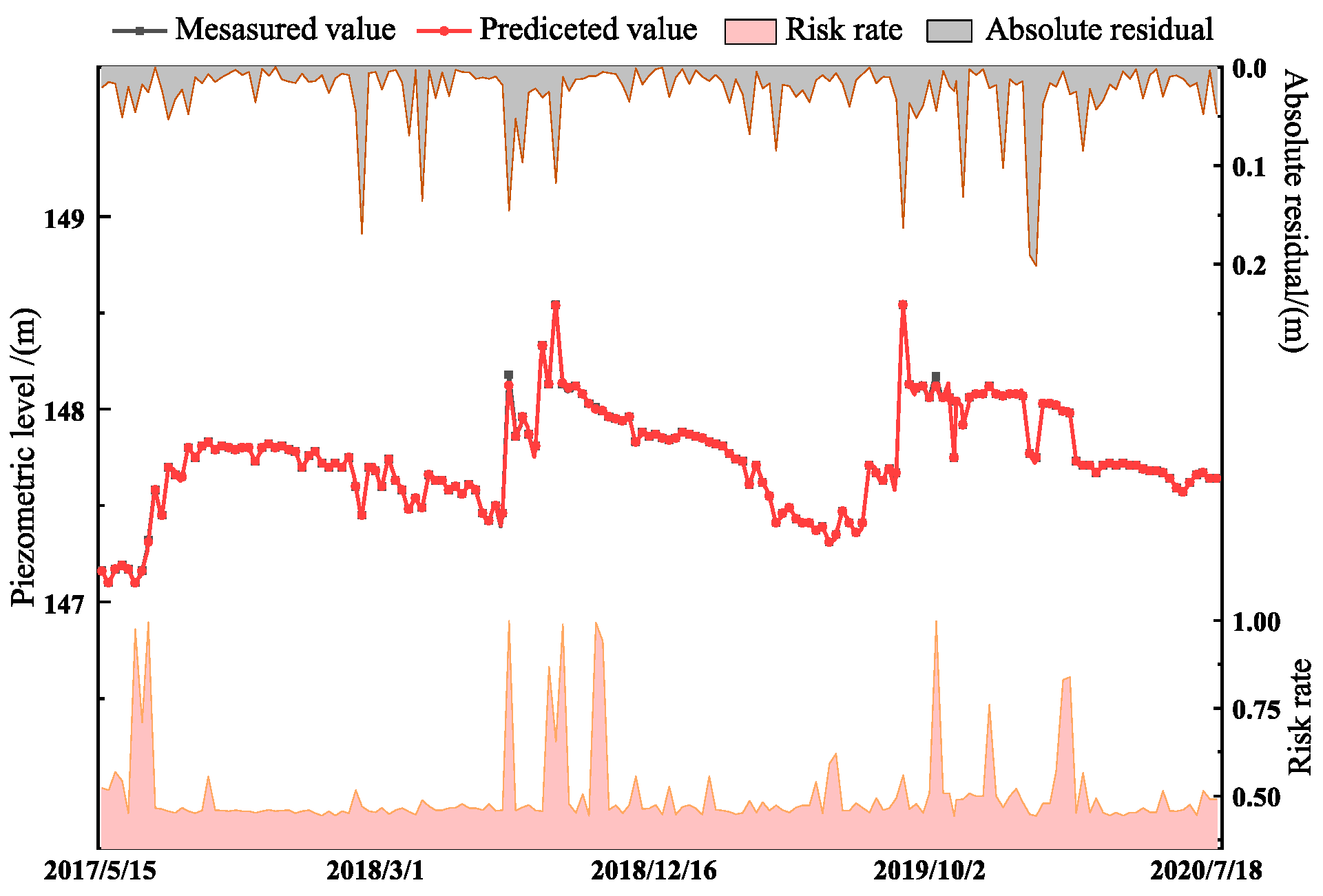

Figure 10. Real-Time Risk Rate for Measurement Point 1+341-1 Based on Observational Data.
Figure 10. Real-Time Risk Rate for Measurement Point 1+341-1 Based on Observational Data.
Water 17 03046 g010

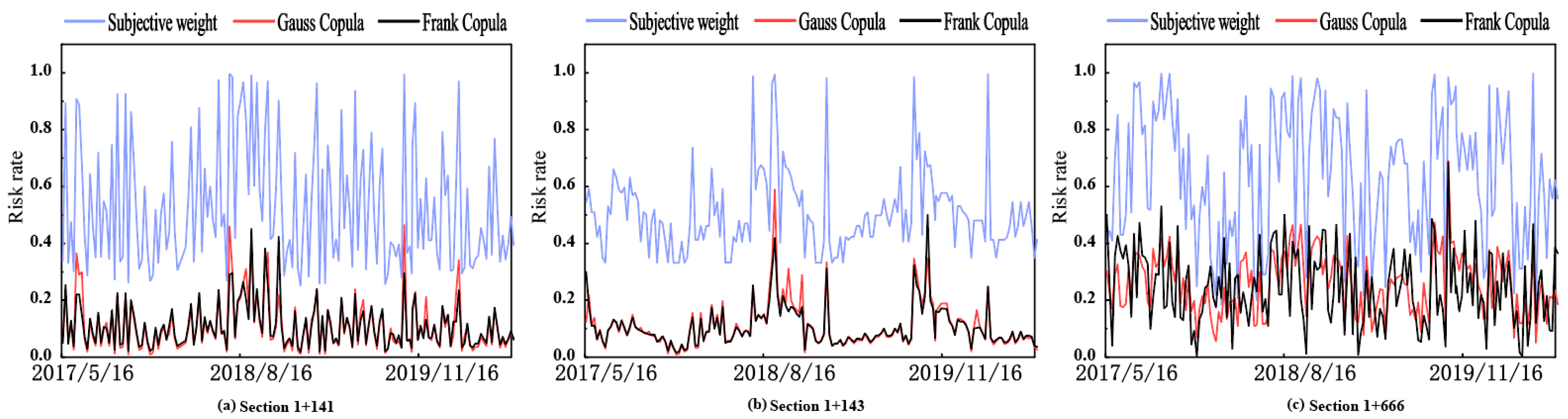

Figure 11. Real-Time Risk Rates for Sections 1+141, 1+143, and 1+666.
Figure 11. Real-Time Risk Rates for Sections 1+141, 1+143, and 1+666.
Water 17 03046 g011

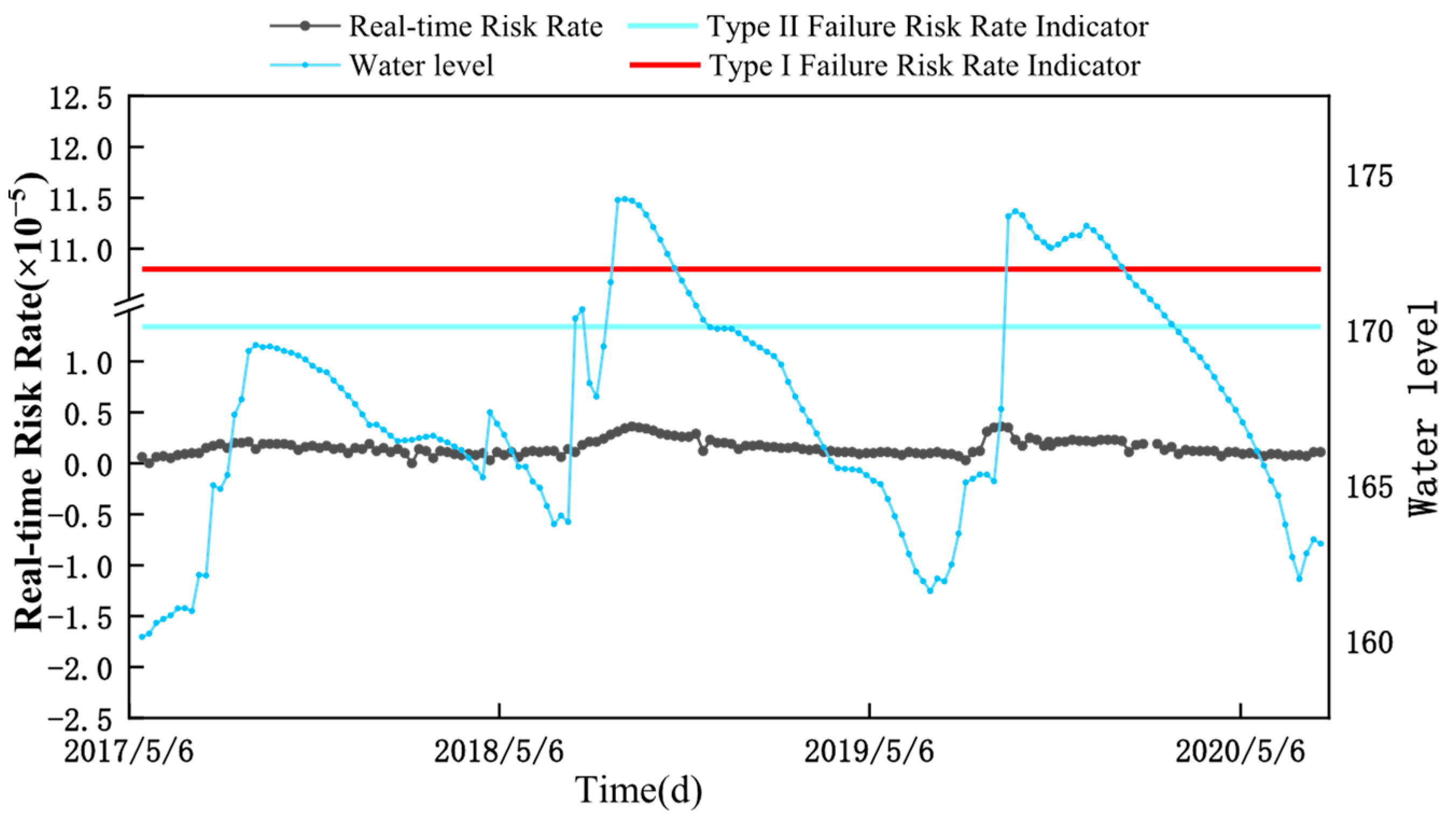

Figure 12. Operational Risk Rate of the Earth–Rock Dam Under Sudden Changes in Reservoir Water Level.
Figure 12. Operational Risk Rate of the Earth–Rock Dam Under Sudden Changes in Reservoir Water Level.
Water 17 03046 g012
Table 1. Selected marginal distribution probability density functions and parameters.
Table 1. Selected marginal distribution probability density functions and parameters.
Distribution TypeProbability Density FunctionParameters of Probability Density Function δ1, δ2
Normal 1 2 π σ exp ( ( x μ ) 2 2 σ 2 ) δ 1
Lognormal 1 x 2 π σ exp ln x μ 2 2 σ 2 δ 1
Gamma 1 δ 2 δ 1 Γ δ 1 x ( δ 1 1 ) exp ( x δ 2 ) δ 1 ,   δ 2
Weibull 1 x δ 2 2 π exp ( ln x δ 1 2 2 δ 2 2 ) δ 1 ,   δ 2
Exponential δ 2 δ 1 x δ 1 δ 2 1 exp ( x δ 1 δ 2 ) δ 1 ,   δ 2
Rayleigh x δ 1 2 exp ( x 2 2 δ 1 2 ) δ 1
Table 2. Target reliability and failure probability for different levels of hydraulic and hydroelectric engineering.
Table 2. Target reliability and failure probability for different levels of hydraulic and hydroelectric engineering.
Structural Safety LevelLevel ILevel IILevel III
Indicator MeasurementReliability IndexAllowable Risk RateReliability IndexAllowable Risk RateReliability IndexAllowable Risk Rate
Type I Failure3.71.08 × 10−43.26.87 × 10−42.73.47 × 10−3
Type II Failure4.21.34 × 10−53.71.08 × 10−43.26.87 × 10−4
Table 3. Coefficient of multiple correlation and standard deviation of the statistical model for the earth–rock dam’s piezometric tubes.
Table 3. Coefficient of multiple correlation and standard deviation of the statistical model for the earth–rock dam’s piezometric tubes.
SectionMonitoring PointMultiple Correlation CoefficientStandard Deviation
1+3411+341-10.9560.181
1+341-20.9620.177
1+341-30.9680.170
1+3431+343-10.9760.068
1+343-20.9820.103
1+343-30.9890.054
1+6661+666-10.9780.157
1+666-20.9830.106
1+666-30.9870.084
Table 4. Parameters to Be Estimated for Marginal Distribution Functions and Results of K-S Test Values.
Table 4. Parameters to Be Estimated for Marginal Distribution Functions and Results of K-S Test Values.
Monitoring PointDistribution TypeMarginal Distribution Function Estimated Parameters δ1, δ2Monitoring Point
1+341-1Normal0.0935 0.1715
Lognormal−2.91381.15450.0742
Gamma1.05410.08870.0879
Weibull0.09411.01380.0825
Exponential0.0935 0.0777
Rayleigh0.0942 0.3473
Table 5. Estimated parameters and test indicators of each Copula function.
Table 5. Estimated parameters and test indicators of each Copula function.
Distribution TypeEstimated Parameters θ1, θ2 of Copula FunctionK-S Test ValueERMSEDIAC
Gaussian1.0000−0.01920.08640.08751.5721
t1.0000−0.03020.09890.09941.6464
Frank0.12810.01240.03140.4412
Gumbel1.00570.13540.11781.9758
Clayton0.00140.20810.19332.1354
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Luo, X.; Ma, F.; Ye, W.; Lou, B.; Li, Q.; Li, H. Real-Time Risk Rate Quantification Model and Early Warning Method for Earth–Rock Dams Under Sudden Changes in Reservoir Water Levels. Water 2025, 17, 3046. https://doi.org/10.3390/w17213046

AMA Style

Luo X, Ma F, Ye W, Lou B, Li Q, Li H. Real-Time Risk Rate Quantification Model and Early Warning Method for Earth–Rock Dams Under Sudden Changes in Reservoir Water Levels. Water. 2025; 17(21):3046. https://doi.org/10.3390/w17213046

Chicago/Turabian Style

Luo, Xiang, Fuheng Ma, Wei Ye, Benxing Lou, Qiang Li, and Hanman Li. 2025. "Real-Time Risk Rate Quantification Model and Early Warning Method for Earth–Rock Dams Under Sudden Changes in Reservoir Water Levels" Water 17, no. 21: 3046. https://doi.org/10.3390/w17213046

APA Style

Luo, X., Ma, F., Ye, W., Lou, B., Li, Q., & Li, H. (2025). Real-Time Risk Rate Quantification Model and Early Warning Method for Earth–Rock Dams Under Sudden Changes in Reservoir Water Levels. Water, 17(21), 3046. https://doi.org/10.3390/w17213046

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
