Modeling and Load Capacity Analysis of Helical Anchors for Dam Foundation Reinforcement Against Water Disasters

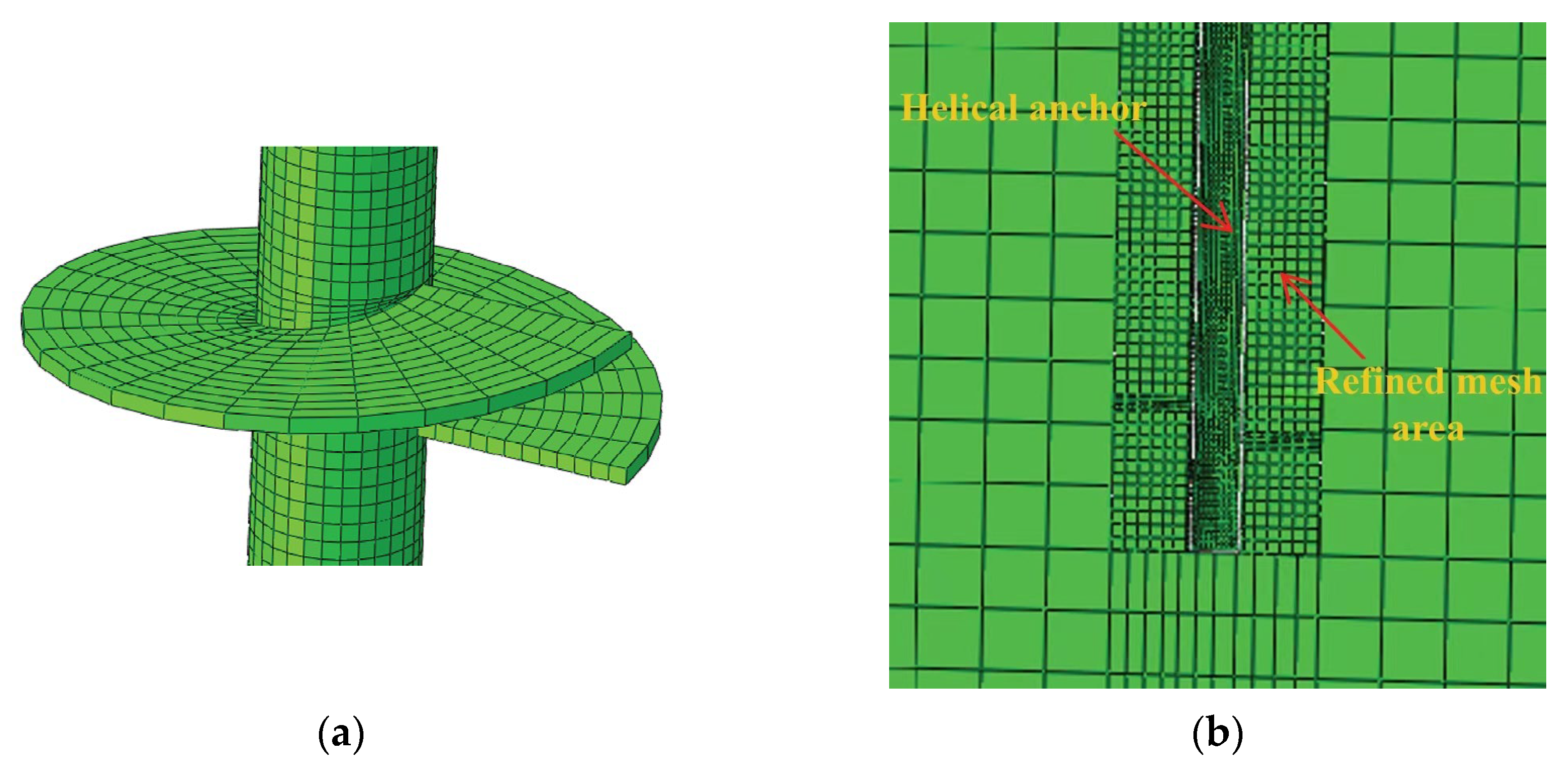

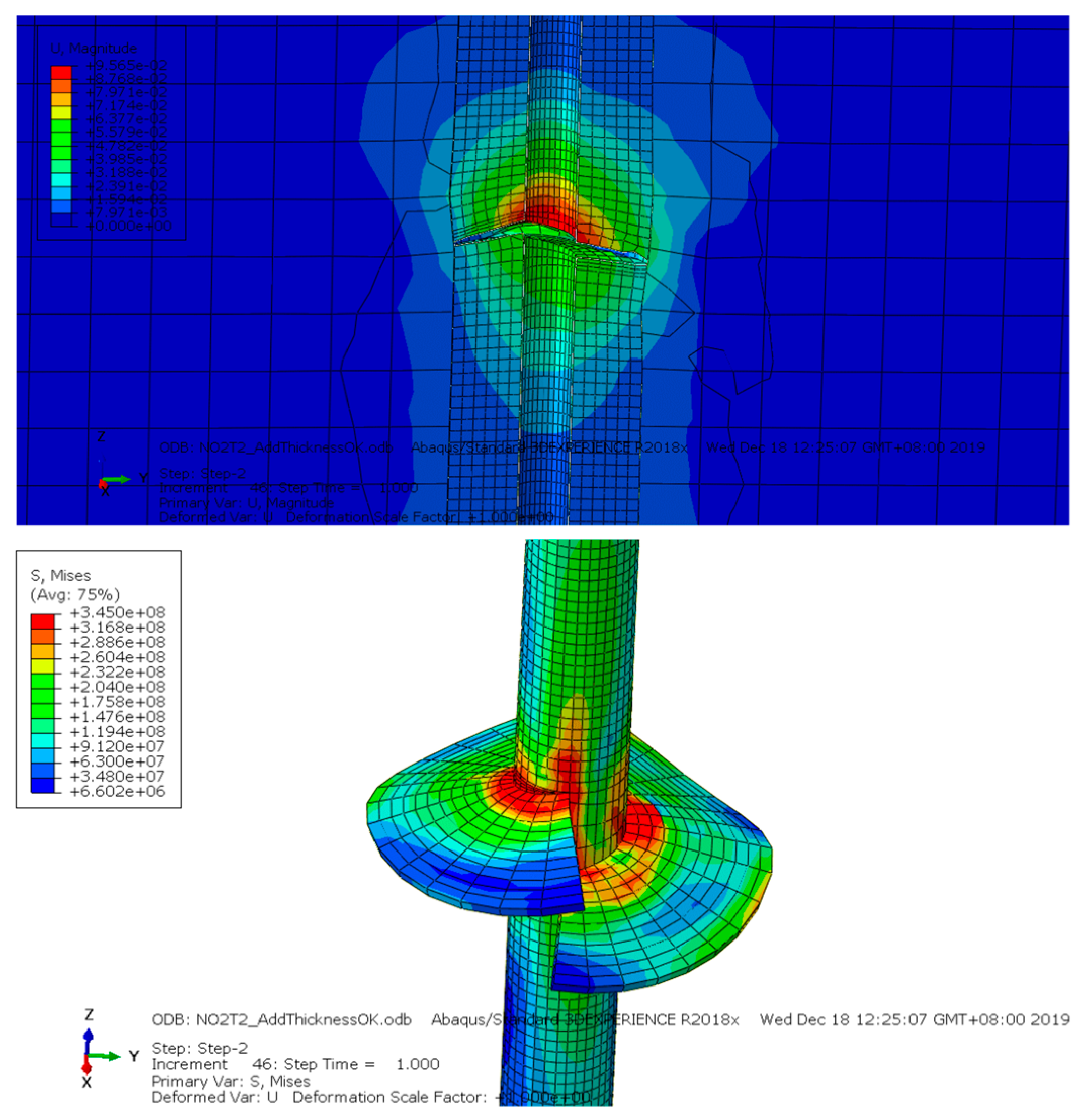

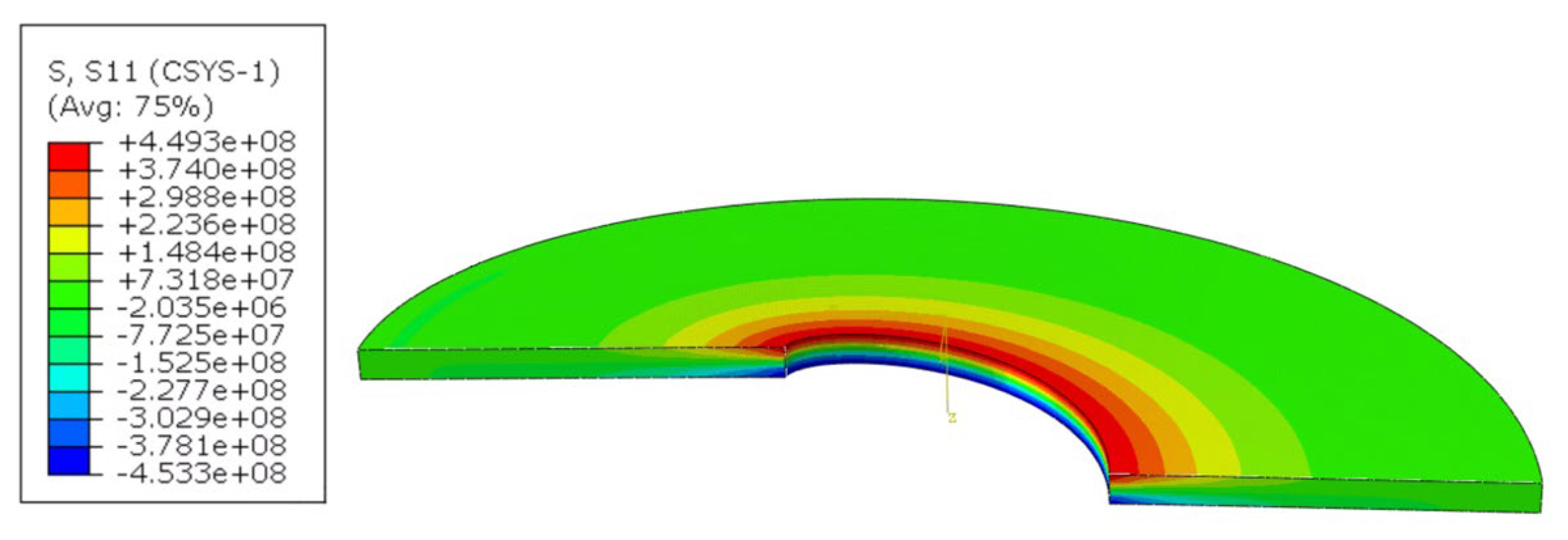

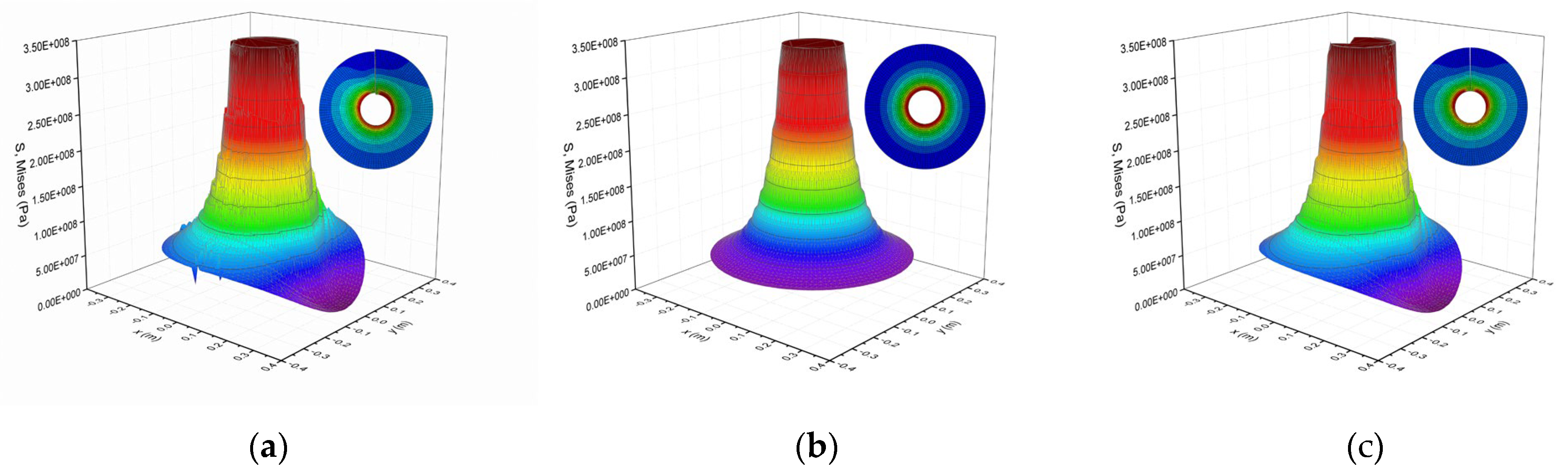

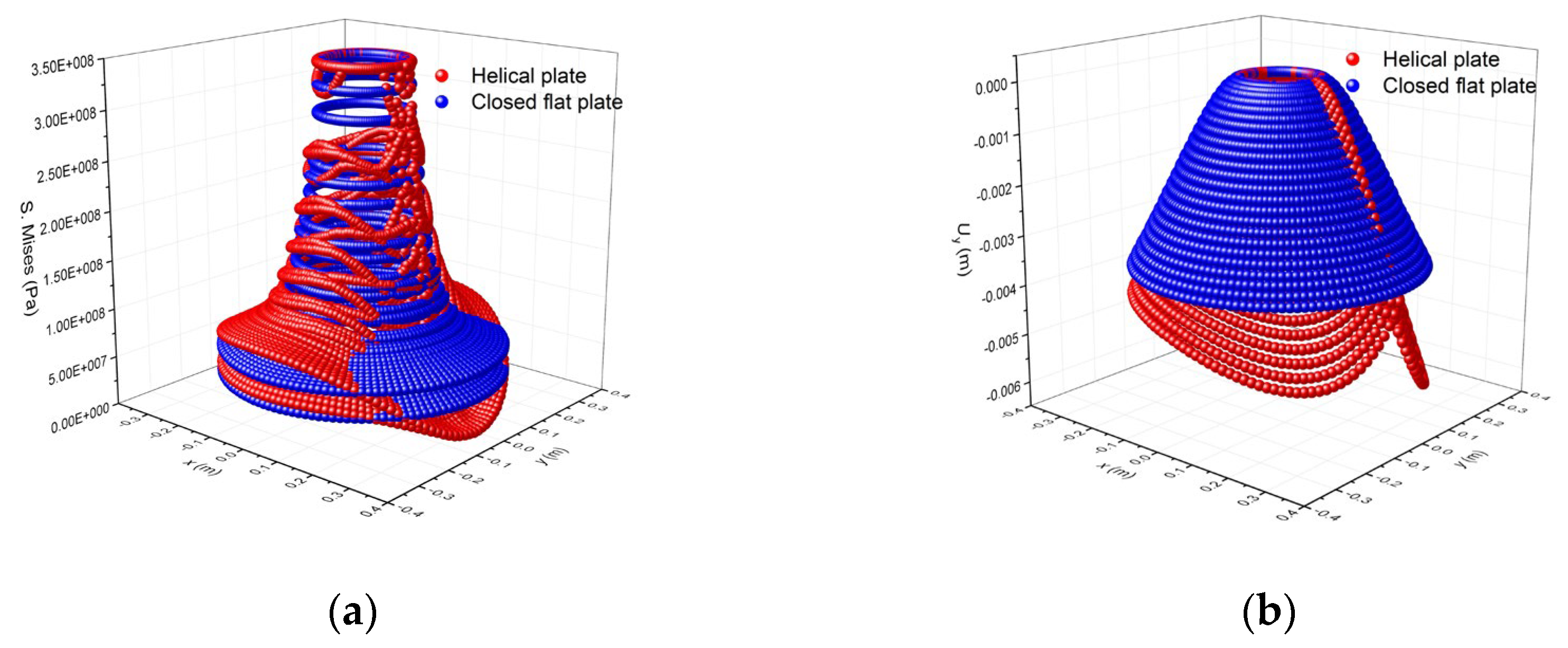

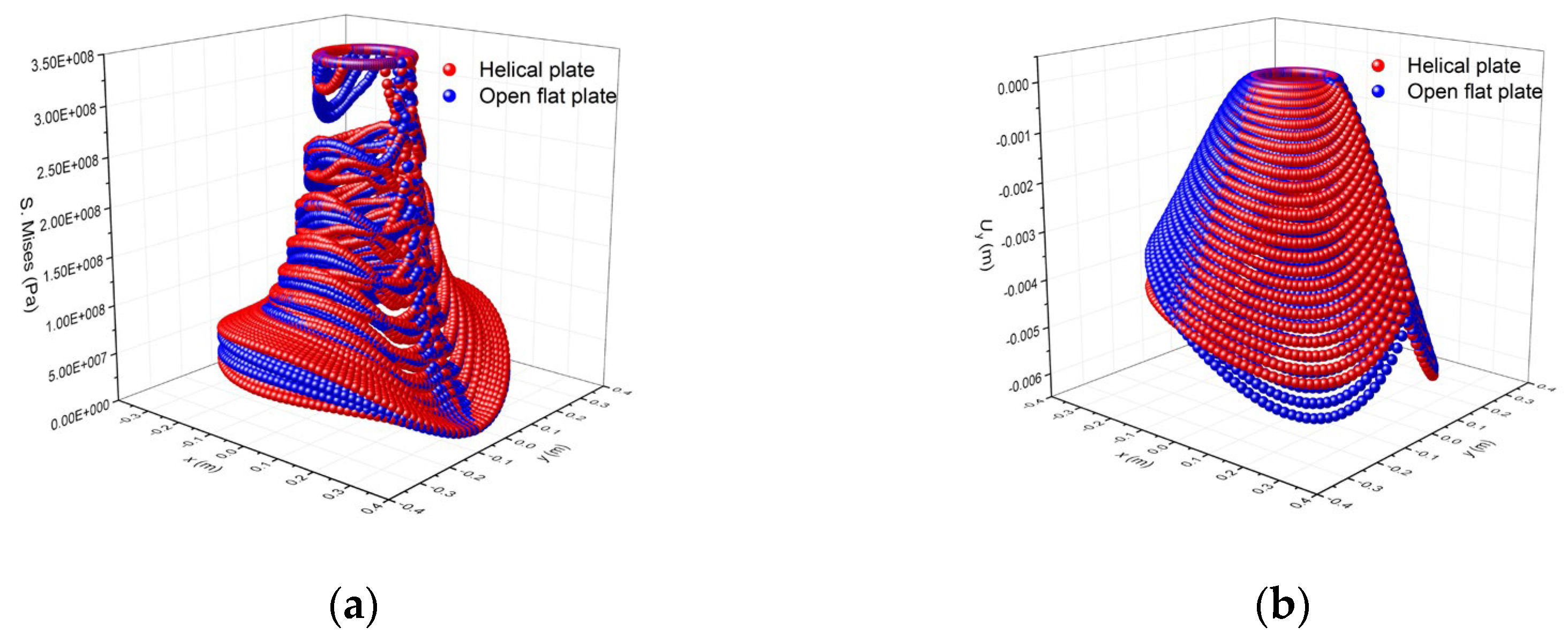

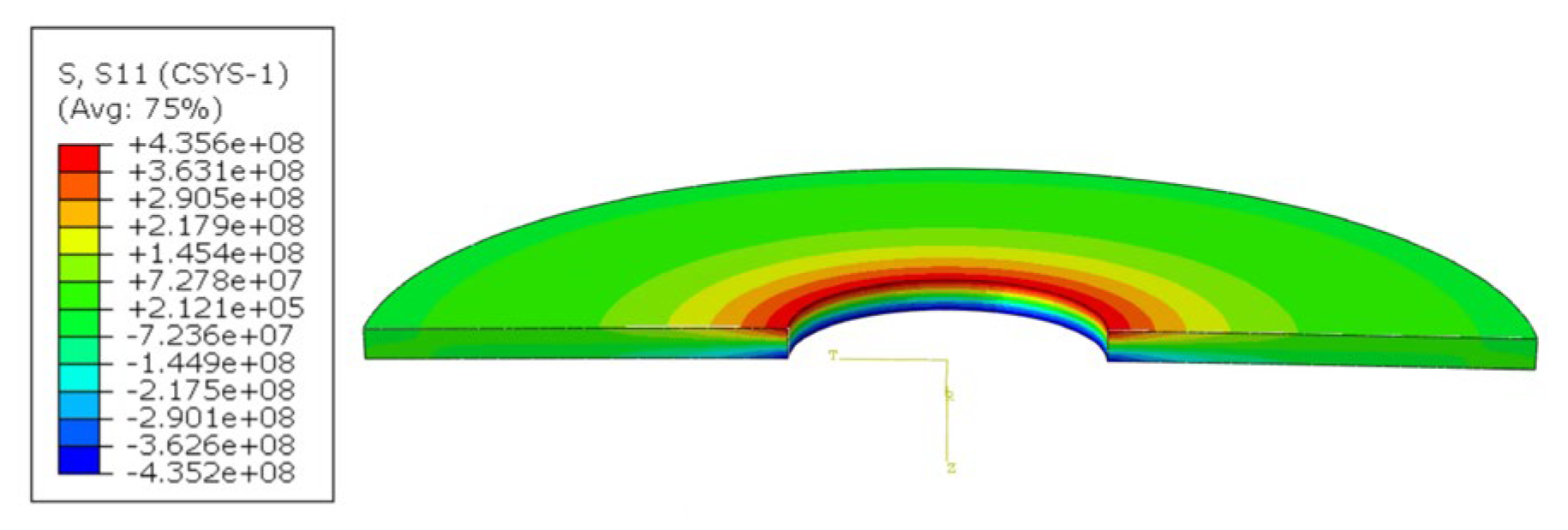

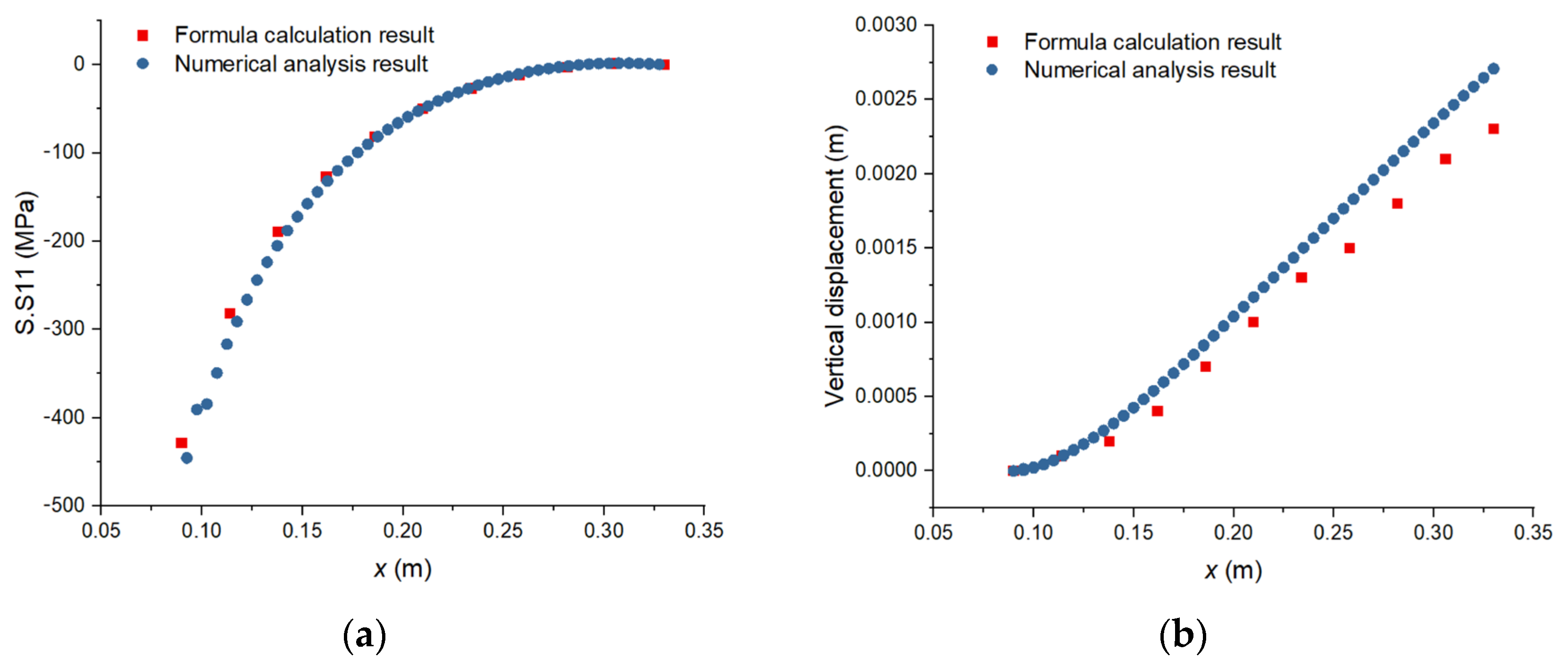

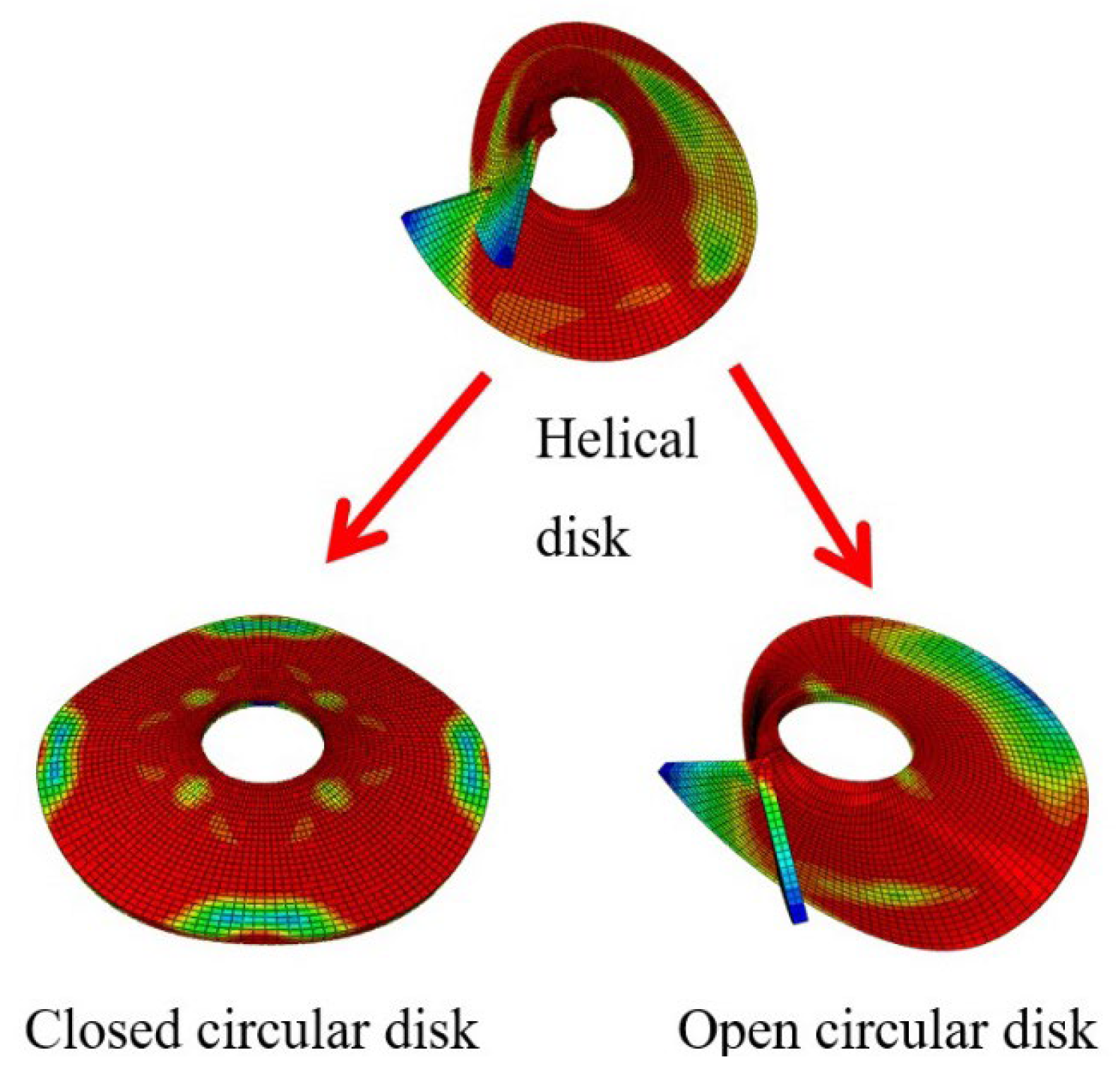

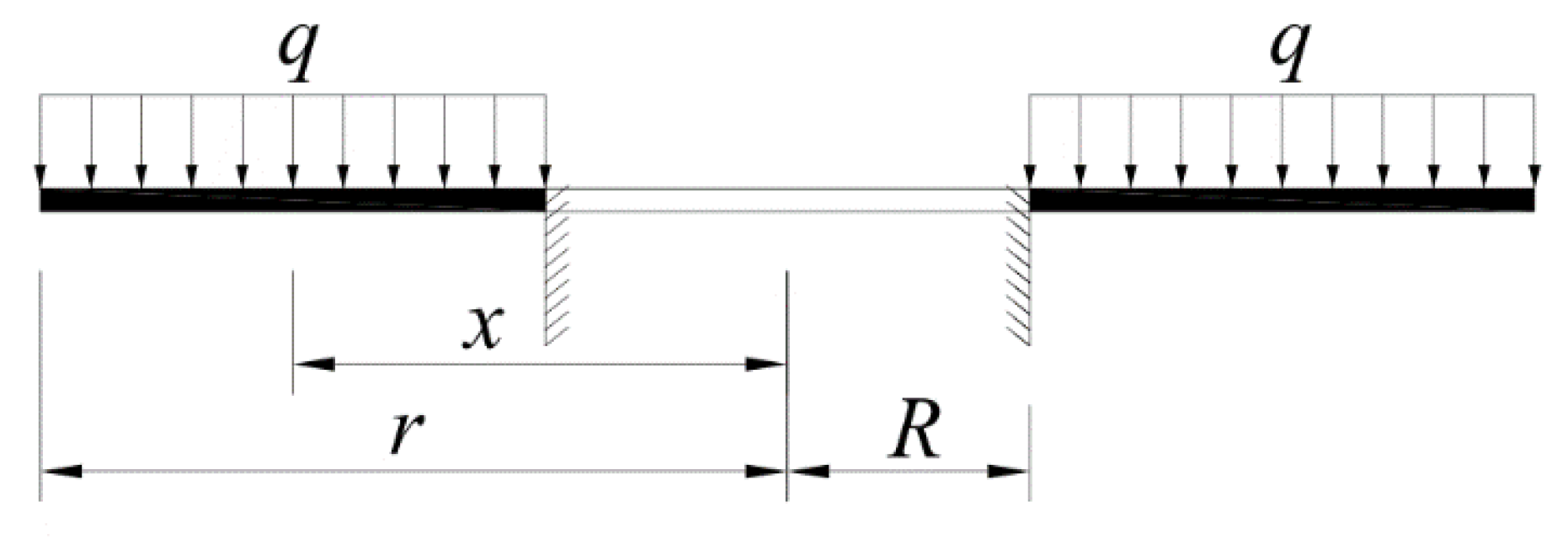

Hydraulic actions may compromise dam foundation stability. Helical anchors have been used in dam foundation reinforcement projects because of the advantages of large uplift and compression bearing capacity, fast installation, and convenient recovery. However, the research on the anchor plate, which plays a key role in the bearing performance of helical anchors, is insufficient at present. Based on the finite element model of helical anchor, this study reveals the failure mode and influencing factors of the anchor plate and establishes the theoretical model of deformation calculation. The results showed that the helical anchor plate had obvious bending deformation when the dam foundation reinforced with a helical anchor reached large deformation. The helical anchor plate can be simplified to a flat circular disk. The stress distribution of the closed flat disk and the open flat disk was consistent with that of the helical disk. The maximum deformation of the closed flat disk was slightly smaller than that of the helical disk (less than 6%), and the deformation of the open flat disk was consistent with that of the helical disk. The results fill the blank of the design basis of helical anchor plate and provide a reference basis for the engineering design.
