Economy of Scale of Energy Intensity in Aquifer Storage and Recovery (ASR)

by
Alyson H. Rapp
*,
Robert B. Sowby
and
Gustavious Williams
Department of Civil and Construction Engineering, Brigham Young University, Provo, UT 84604, USA
*
Author to whom correspondence should be addressed.
Water 2024, 16(3), 503; https://doi.org/10.3390/w16030503
Submission received: 14 December 2023 / Revised: 1 February 2024 / Accepted: 2 February 2024 / Published: 4 February 2024
(This article belongs to the Section Water-Energy Nexus)
Browse Figures
Versions Notes

Abstract

:
More water utilities are adopting aquifer storage and recovery (ASR) to balance long-term water supply and demand. Due to large implementation and operation costs, ASR projects need to be optimized, particularly for energy use, which is a major operating expense. This study examines the relationships among energy use, recharge, and recovery at two ASR projects in the western United States. The major finding is an economy of scale for recovery processes, but not for gravity-fed recharge processes. The economy of scale found is as follows: the energy intensity recovered decreases with volume. This suggests it is more energy-efficient to recover large volumes of water in one interval instead of recovering smaller volumes at more frequent intervals. The H2Oaks recovery process experienced a 78% decrease in energy intensity from 0 to 50,000 m3 recovered, while the Sand Hollow site experienced a 43% decrease in energy intensity from 0 to 50,000 m3 recovered. Statistical analyses of the recovery process showed p values lower than 0.0001, R2 values between 0.43 and 0.57, and a RMSE value between 0.55 and 2.1, indicating the presence of a moderate correlation between energy and volume. This economy of scale has been observed in multiple instances in water and wastewater treatment. This finding not only has applications to ASR but also to all recovery or recharge wells, whether or not they are paired with each other. Furthermore, this study confirms the need for more reliable and accessible energy data to fully understand the implications of the energy–water nexus.

1. Introduction

With the realization that surface freshwater sources are shrinking due to growing water demand from climate change and growing populations, many drinking water providers have turned to groundwater [1,2,3]. Their reliance on this source has led to significant drops in groundwater levels, with some areas around the world seeing declines between 91 and 274 m over the past 50 years [4,5,6]. Further, the average groundwater depletion rate in the United States increased from an average of 2.4 km3/year between 1900 and 1945 to an average of 13.6 km3/year between 1945 and 1960. It increased again to 23.9 km3/year between 2000 and 2008 [7]. These two issues of shrinking surface water sources and declining groundwater levels have led to two processes that have been gaining traction around the world called aquifer storage and recovery (ASR) and managed aquifer recharge (MAR) [8].
ASR was first developed in the 1950s and is composed of two parts: recharge and recovery. Recharge is the process where surface water is directly injected or infiltrated into underground aquifers, increasing storage in excessively wet seasons and helping to restore groundwater levels depleted by overuse. In recovery, water is extracted from wells to meet the demands of the community when other sources are running low [8], for example, during drought conditions or due to growing populations. ASR and MAR can have many benefits including expanding water storage capacity, not taking up land for water tanks (leaving land available for other uses), preventing water loss from evaporation, and storing unused water from water rights.
ASR is a water supply method that is highly integrated with what is known as the energy–water nexus. This nexus describes the interdependency of water production and energy production [4,9,10,11]. In ASR and other water supply processes, energy is needed to run equipment and operations such as pumps to pump water into or out of aquifers, metering equipment, SCADA systems, security features, lights, and equipment for water treatment processes. On the other hand, water is used in energy production to cool machinery, mine coal, produce thermoelectric and hydroelectric power, and to extract, produce, refine, and transport oil and natural gas. This interdependency leads to changes in the energy industry affecting the water industry, and vice versa.
The energy-for-water side of the nexus, while perhaps less well characterized than the water-for-energy side, has received much attention in the past decade. It was estimated that in 2010, 12.6% of energy consumed in the United States was for the production and distribution of water and steam [11]. It was further estimated that 4.7% of the United States’ energy was used by the public water sector [12]. These data show the dependency of the water sector on energy.
Energy intensity is a measurement used to aid in the comparison of this energy and water dependence. This value is defined as the amount of energy used to produce a unit of water. Typically, it is measured in units of kilowatt-hours per million gallons (kWh/MG) or kilowatt-hours per cubic meters (kWh/m3) [13,14,15]. Several studies agree that the energy intensities for drinking water in the United States are in the range of 0.07–3.0 kWh/m3 [4,12,14,15,16,17,18]. However, local conditions can vary energy intensity; a 2005 report from the California Energy Commission concluded that the theoretical lifecycle water energy intensity for California ranged from 0.50 to 9.88 kWh/m3 [12,19]. According to the pump energy intensity equation, it takes between 0.0026 and 0.0052 kWh to pump 1 m3 of water a height of 1 m. [20]. These variations can be attributed to differences in topography, climate, water quality, proximity from the water supply to the end user from area to area, and water extraction [12,13,21].
In regard to ASR, the recovery process has an extremely variable energy intensity that depends on the height the water needs to be pumped, the pressure the water is pumped to, the pumping rate, the frictional forces in the pumping system, and the pump and motor efficiency [18,22,23]. On the contrary, the energy intensity for recharge is typically low since many aquifers are recharged through infiltration basins or gravity-fed direct-injection wells.
With operations of the water sector using a large amount of energy, a significant portion of this sector’s total costs are those related to energy usage. Optimizing a service’s energy usage can substantially decrease these costs. In 2008, the Environmental Protection Agency (EPA) reported that 30–60% of a city’s energy bill concerned water and wastewater plants, with 40% of a water provider’s operational costs typically being energy-related. These data led the agency to conclude that the largest controllable costs in the water sector are those related to energy usage [10]. North Salt Lake, Utah, put this to the test by increasing their energy efficiency, which in turn decreased their production costs by 22% [24].
Many water utility agencies have a need and desire to optimize their energy usage, as was seen in a study that reviewed 29 guides on energy management [25]. From the reasoning above, it can be concluded that finding ways to optimize energy usage in the water industry, particularly in ASR wellfields, will likely lead to a decrease in energy intensity, leading to a greater cost benefit, a decrease in overall energy use, and long-term money savings for the water service [10,22,26]. This should be a sought-after goal.
Many studies have explored individual aspects of ASR or energy usage such as groundwater depletion [27], the energy–water nexus [4,9,10,15,28], water quality [29], and optimization [26,30]. Additionally, reports and journal articles were found from utility entities individually discussing energy usage and groundwater levels. However, we did not find any articles that analyzed the pairing of energy usage and ASR with observed data. We have attempted to do this through this study.
One possibly present trend is an economy of scale relationship between the volume of water recovered or recharged and the required energy intensity to do so. Studies have discovered an economy of scale in a wide range of industries and in a variety of scenarios, especially in the public service and water industries. In the water industry, economies of scale have been found in relating energy intensities of treated water to a water treatment plant’s size, or in relating the cost per volume treated to the total volume treated by a plant. In the energy sector, an economy of scale was found comparing the average cost per 1000 kWh and the total kilowatt-hour output. These economies of scale have also been found in education, sanitation, garbage collection, and urban transportation, among other sources [31,32,33,34,35,36]. While this trend exists in many aspects of the water sector, it has not been examined in ASR.
The objective of this paper is to examine energy and water data from two ASR wellfields in the western United States to determine if an economy of scale exists between energy intensity and the amount of volume recovered or recharged. By determining if this relationship exists and characterizing it using observed data, we can aid water utilities in better understanding the steps that can be taken to optimize the design and operations of future and current ASR projects. From an energy standpoint, this can lead to a decrease in energy intensity, decreasing overall energy use, and providing more energy sustainable operations. From a money standpoint, more energy-efficient operations would result in a decrease in energy costs, leading to a greater cost benefit, reducing operational costs, and leading to long-term money savings for the entity.

2. Materials and Methods

2.1. Study Sites

Figure 1 shows the location of the two study sites, H2Oaks and Sand Hollow. Each site is described below.

2.1.1. H2Oaks

The H2Oaks Aquifer Storage and Recovery Facility is operated by the San Antonio Water System (SAWS). It is located in Elmendorf, Texas, approximately 40 km south of downtown San Antonio, Texas, and has 29 operating ASR wells. As of July 2022, the site was the second-largest operating ASR wellfield in the United States. The construction of the H2Oaks facility was split into two phases. The first phase contained 17 wells and was completed in 2004; the second phase contained 12 wells and was completed in 2008 [2].
SAWS primarily supplies its service area with water from the Edwards Aquifer. In 1993, the Edwards Aquifer Authority (EAA) developed a permit program that limited the amount of water SAWS could take from the Edwards Aquifer in a given period. To mitigate the effects of the permit, SAWS constructed an ASR well field. When recovery from the Edwards Aquifer is not limited, water can be recovered, transported, and recharged into the Carrizo Aquifer. When recovery from the Edwards Aquifer is restricted or during the summer months when water demand is high, the water stored in the Carrizo Aquifer can be recovered and used [2]. These ASR wells are primarily used for recharge but are occasionally used for recovery when other water supply sources run low. Recharge occurs through gravity-fed injection through the same wells recovery takes place in.
The Carrizo Aquifer’s upper confining layer is composed of an Eocene-age Reklaw Formation that is 200 feet thick. This formation is underlain by a material termed Carrizo Sand. This sand is composed of medium to coarse-grained, non-calcareous sandstone that ranges from 700 to 800 feet thick. The target storage zone for this system is located in this layer and ranges from 300 to 400 feet thick. The Carrizo Sand layer is underlain by the lower confining unit for the aquifer system and is known as the Paleocene-age Wilcox Group. It ranges from 500 to 1100 feet and is composed of a mudstone that contains sandstone and lignite [2].
A typical ASR well site at SAWS is shown in Figure 2 and Figure 3. In these figures, one can see the piping and pump used for the recovery and recharge processes. Starting from the pump, water is recovered out of the aquifer and then enters the above ground (horizontal piping seen in Figure 2). Water then travels through this piping until it reaches the elbow at the right of the image, where it enters SAWS’ system. For recharge, water takes the same path as for the recovery process but backwards. Water travels from SAWS’ system into the elbow at the right of the image, into the above ground (horizontal piping as seen), and then down the well system. In Figure 2, the flowmeter that measures the inflows and outflows into the aquifer system can be seen. Figure 3 shows a more detailed image of the same pump seen in Figure 2.

2.1.2. Sand Hollow

The Sand Hollow ASR site is operated by the Washington County Water Conservancy District (WCWCD) and is located in the southern Utah desert near Hurricane, Utah. This project was completed in March 2002. Water is diverted from the Virgin River into the Sand Hollow Reservoir where the water infiltrates into the underlying aquifer. The aquifer is known as the Navajo Aquifer and is composed of Navajo Sandstone [37].
The reservoir has a storage capacity of 63,000,000 m3 [37]. Similar to the H2Oaks facility, Sand Hollow is primarily used for recharge, but water is occasionally recovered when needed. Recovery occurs through wells located in the surrounding area. There are a total of 20 production wells surrounding the reservoir, with 13 currently in operation [38]. A well house for the ASR well site at Sand Hollow can be seen in Figure 4.

2.2. Methods

For each well site, we computed a monthly sum for the volume recovered and/or recharged in cubic meters (m3). We normalized the amount of energy used per well site by its respective volume, yielding energy intensity in kilowatt-hours per cubic meter (kWh/m3). We compared the monthly volume and energy values, and then the monthly volume and the natural logarithm of energy intensity values, to look for patterns that could aid in optimizing energy usage. The natural logarithm transformation for energy intensity was necessary to linearize the data over several orders of magnitude and is common in the energy analysis of water facilities [21,39].
Microsoft Excel and the statistical software JMP Pro 16, were used to analyze data. Plots for each data set were created using JMP Pro 16. For ease of reference, E represents energy in kilowatt-hours (kWh), V represents volume in cubic meters (m3), and ln(E/V) represents the natural logarithm of energy intensity in kilowatt-hours per cubic meters (kWh/m3). The monthly values for each were plotted. The data plots used are as follows: E vs. V cluster plot, ln(E/V) vs. V scatter plot and trendline plot (divided into an upper panel with no trendlines and a lower panel with trendlines), ln(E/V) Actual vs. Predicted plot with regard to ln(V), and ln(E/V) scattered residuals plot. We generated trendlines for the bottom panel of the ln(E/V) vs. V trendline plot using the local kernel median method. These trendlines are only for the visual convenience of relating the points for each well. The E vs. V cluster plot for the recovery processes includes labeled groupings circled in red. These groupings were created through visual inspection and are there to aid with the discussion.
Statistical plots were created to analyze the data. The Actual vs. Predicted plot used values from the natural logarithm transformation to perform an ordinary least squares regression test. This plot reported a RMSE, R2, and p-value. The reported values were considered statistically significant if the p-value was less than or equal to 0.05, if the R2 value was equal to or greater than 0.8, or if the RMSE value was between 0.2 and 0.5. In a literature review conducted on economies of scale in the local public service provision, out of seventy-six analyzed studies, thirty-five (46%) used the ordinary least squares test, the largest percentage for a single test [33]. To remain consistent with the findings from this study and others, we selected this test.
The second statistical plot is known as a studentized residuals plot. This plot takes the observed values minus the predicted values and divides the difference by their standard deviation. If correlations are present among the residuals, it shows that the data are biased. There are three variations of this plot. For each data set, there is a plot organized by row number, monthly volume usage, or monthly energy usage.

2.2.1. H2Oaks Data Set

SAWS helped us obtain and interpret the data. Daily water and energy data for H2Oaks’ twenty-nine ASR wells were gathered from March 2013 to November 2022. Energy data for the ASR site are monitored by CPS Energy. Days when water metering equipment malfunctioned, as noted in the original records, were eliminated from the data set (broken pressure transducers, flowmeters, etc.).
Typically, only recovery or recharge occurred in each month. We isolated months where only recovery occurred from those where only recharge occurred. This allowed for a direct analysis of how the volume recovered or recharged impacted energy intensity. Months where both recovery and recharge occurred were few and eliminated from the data set.

2.2.2. Sand Hollow Data Set

WCWCD helped us obtain and interpret the data. The Investigations Chief at the U.S. Geological Survey (USGS) at the Utah Water Science Center has spent a significant amount of time working on a groundwater model for this site and helped us to better understand it.
We obtained monthly data for 12 of Sand Hollow’s operating ASR wells from January 2017 to October 2022. For this data set, we only considered the recovery process since the recharge process occurred through infiltration in the reservoir and could not be directly measured.
Energy data were provided in the form of costs instead of kilowatt-hours. We converted these costs into kilowatt-hours using the average industrial electricity price per year for the state of Utah as provided by the U.S. Energy Information Administration (EIA). Kilowatt-hours were used instead of costs to help avoid the influence of inflation and the differences in costs among different states. Table 1 gives the average industrial electricity price per year [40].

3. Results

3.1. H2Oaks Gravity-Fed Recharge

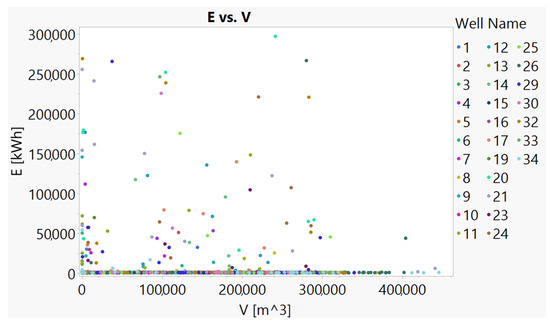

The H2Oaks recharge cluster plot is shown in Figure 5. In the middle of the graph are several scattered points. Some of these show a positive trend of increasing energy with increasing recharge. There are no points in the upper right corner of the plot, indicating that a large recharge volume does not necessarily correlate with a large energy usage. Along the y-axis are several points that show a wide range of energy values, despite a low recharge volume. The opposite is shown along the x-axis where there are a wide range of volume values, despite a low energy usage. The points along the x-axis are likely indicative of recharge being a gravity-fed process at this site, showing that energy use is not correlated with recharge at these points. Since the majority of the points fall into this category, this strongly implies that recharge is not correlated to energy use at the H2Oaks site. Since we concluded that there was no correlation between energy and volume usage, we decided to not make additional plots for this process.

3.2. H2Oaks Recovery

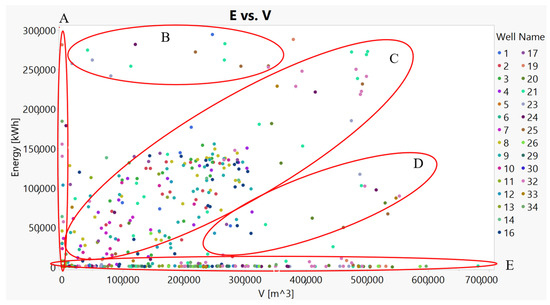

Figure 6 shows the H2Oaks recovery cluster plot. Many points in this plot have similar trends to what is seen in Figure 5. Groups A and E have points centralized along the axes while groups C and D show an increasing positive trend between energy and volume. Cluster B primarily shows volume usage increasing while energy usage stays relatively constant. Since Figure 6 shows a smaller concentration of points along the x-axis than for the recharge process, this likely indicates that there is a higher correlation between energy and volume for the H2Oaks recovery process than for the H2Oaks recharge process.
Figure 7 shows the ln(E/V) vs. V plot. This plot shows an exponentially decreasing trend indicating that energy intensity decreases with increasing volume—known as an economy of scale. Figure 7 displays two exponentially decreasing branches (one above the other). The lower branch clings more tightly to a line of best fit than the upper one. Spacing between the lines of best fit in the upper and lower curves seems to remain constant once approximately 200,000 m3 is recovered. This process experienced a 78% decrease in the natural logarithm of energy intensity from 0 to 50,000 m3, indicating that the greater the volume recovered in a given month, the less energy-intensive the process is. As can easily be seen through the trendlines in the bottom panel, monthly datapoints for each well frequently jump between the upper and lower branches of this curve. It is unknown why this plot has two branches or why the data points for a given well tend to jump between the two.
Figure 8 shows the actual vs. predicted plot for ln(E/V) with respect to ln(V). The blue line represents the null hypothesis (response is independent) and the red line represents the alternative hypothesis (response is dependent). The RMSE value is 2.1. This value is not statistically significant by our definition of 0.2–0.5. The R2 value is 0.43, again not statistically significant by our definition of 0.8. These values indicate that our points are not tightly centered around the line of best fit. The p value is less than 0.0001, showing that the results are statistically significant and that there is a high probability that our values have some correlation. While these values show that the datapoints are not heavily concentrated along the line of best fit, they do show some correlation.

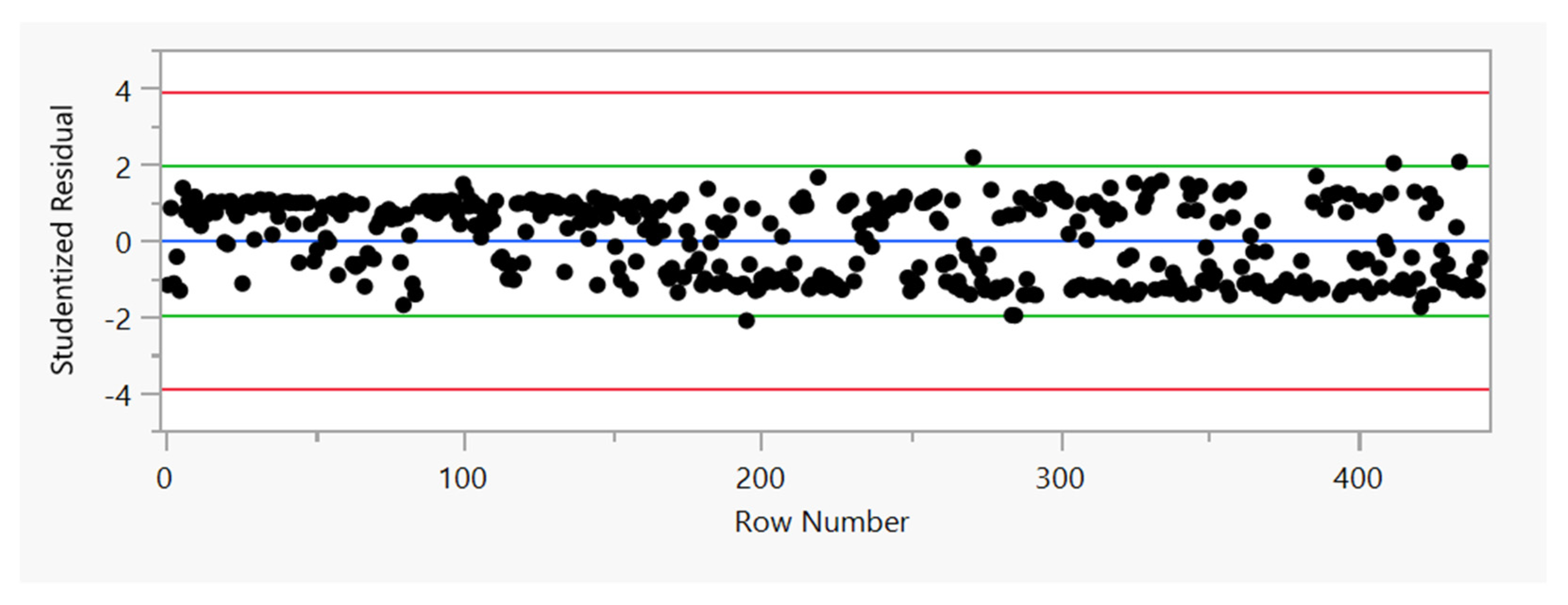

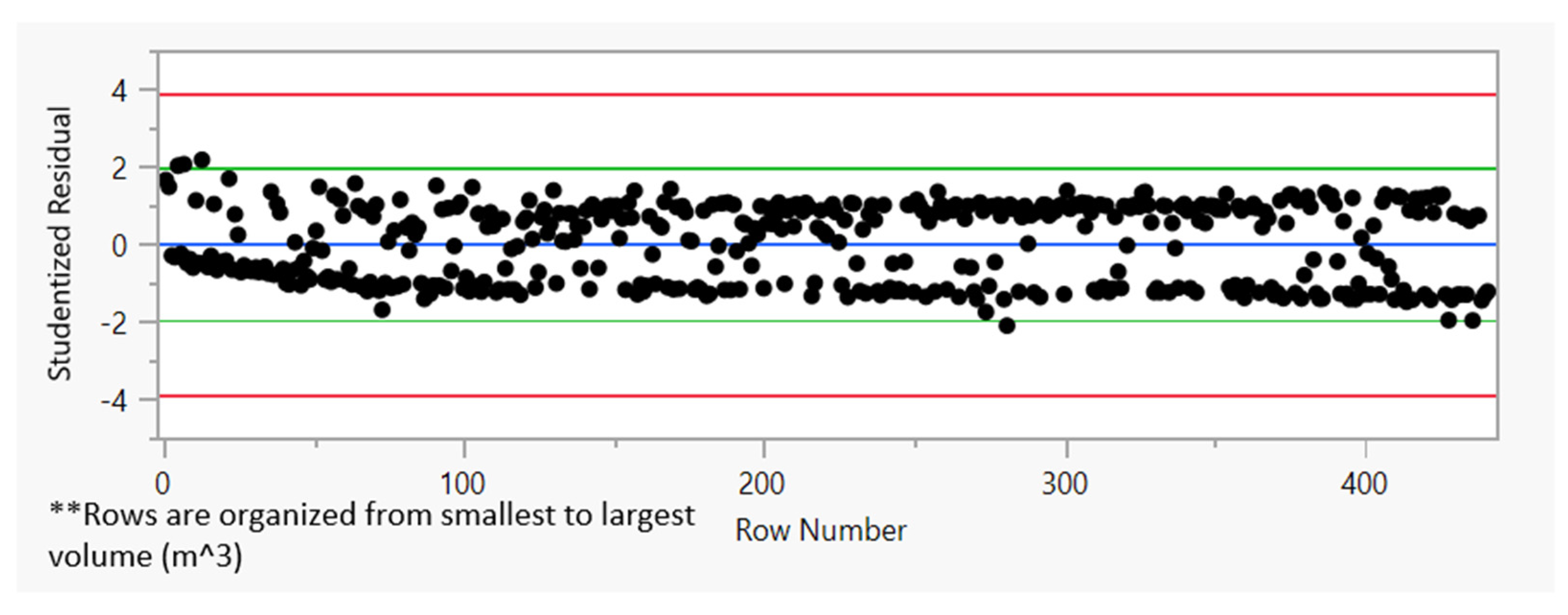

Figure 9, Figure 10 and Figure 11 show the studentized residuals organized by row number, volume, and energy, respectively. None of these figures have points outside of four studentized residuals (red line) which would indicate potential outliers. Additionally, each graph has a few points outside of two standardized residuals (green line). In Figure 9 and Figure 10, the majority of points are centered around zero studentized residuals (blue line) while in Figure 11 this is not the case. Figure 9 and Figure 10 do not show any correlations among the results. Figure 11 shows that the studentized residuals increase as the energy usage increases. This could be indicative of external variables or nonlinear effects influencing the relationship.
In addition to the above figures, a box and whisker plot was created for the H2Oaks Recovery data set to determine if any correlation exists between the volume recovered and which months the recovery took place. There was found to be no correlation between the two.
Figure 6, Figure 7, Figure 8, Figure 9, Figure 10 and Figure 11 show there is a moderately strong economy of scale between energy intensity and the volume recovered at the H2Oaks site. While the statistical plots show that energy intensity is not highly predictive of the volume recovered, they also show that there is correlation between the two. It is clear that although the economy of scale is not incredibly strong, an increase in the volume recovered does lead to a decrease in energy intensity.

3.3. Sand Hollow Recovery

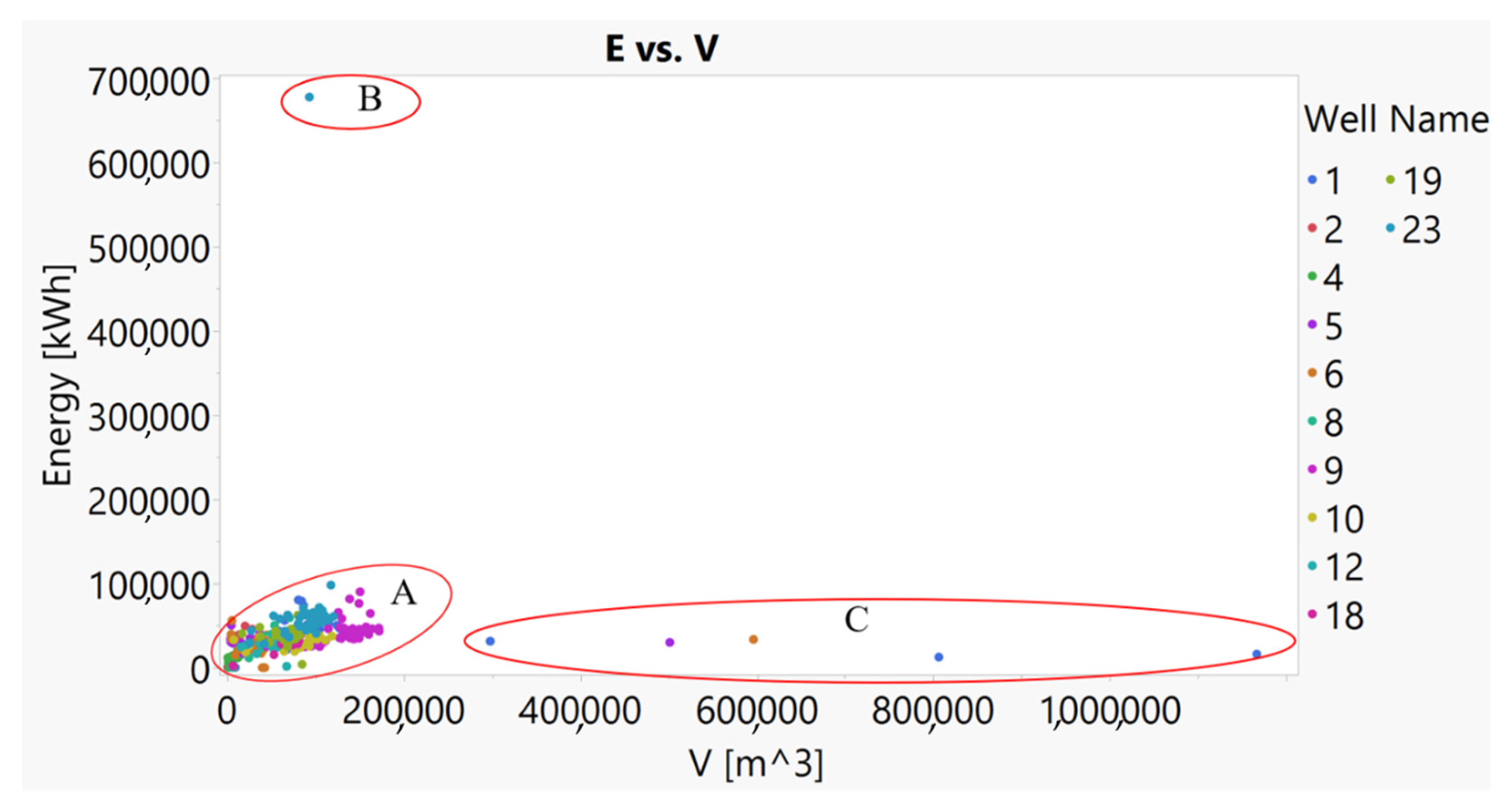

Figure 12 shows the Sand Hollow recovery cluster plot (recharge through the reservoir could not be analyzed). This plot shows a few trends similar to what was seen in Figure 6. One instance is group A in the Sand Hollow recovery cluster plot and group C in the H2Oaks recovery cluster plot. Both groups show a trend of increasing energy usage correlating with an increase in volume. Since the majority of points for the Sand Hollow recovery site fall into this category, it is likely that this site has an even greater correlation between energy usage and volume than the H2Oaks recovery site.
Group C in the Sand Hollow recovery cluster plot and group E in the H2Oaks recovery cluster plot look similar upon first inspection (both groups have points along the x-axis). While the largest volume recovered for the H2Oaks site was approximately 682,000 m3, the Sand Hollow site shows a maximum recovery volume greater than 1,000,000 m3, larger than the expected well capacity for each well at this site. After calculating the well capacity for several wells, it was determined that any values larger than 329,000 m3 were not credible and likely due to reading errors. We decided to eliminate all points in group C. Group B does not show any resemblance to the H2Oaks recovery cluster plot and is an outlier. Hence, only values in Group A were considered in the rest of the analysis. While equipment errors were denoted in the H2Oaks data, they were not denoted in the Sand Hollow data. We believe that this is the reason for the errors in group C.

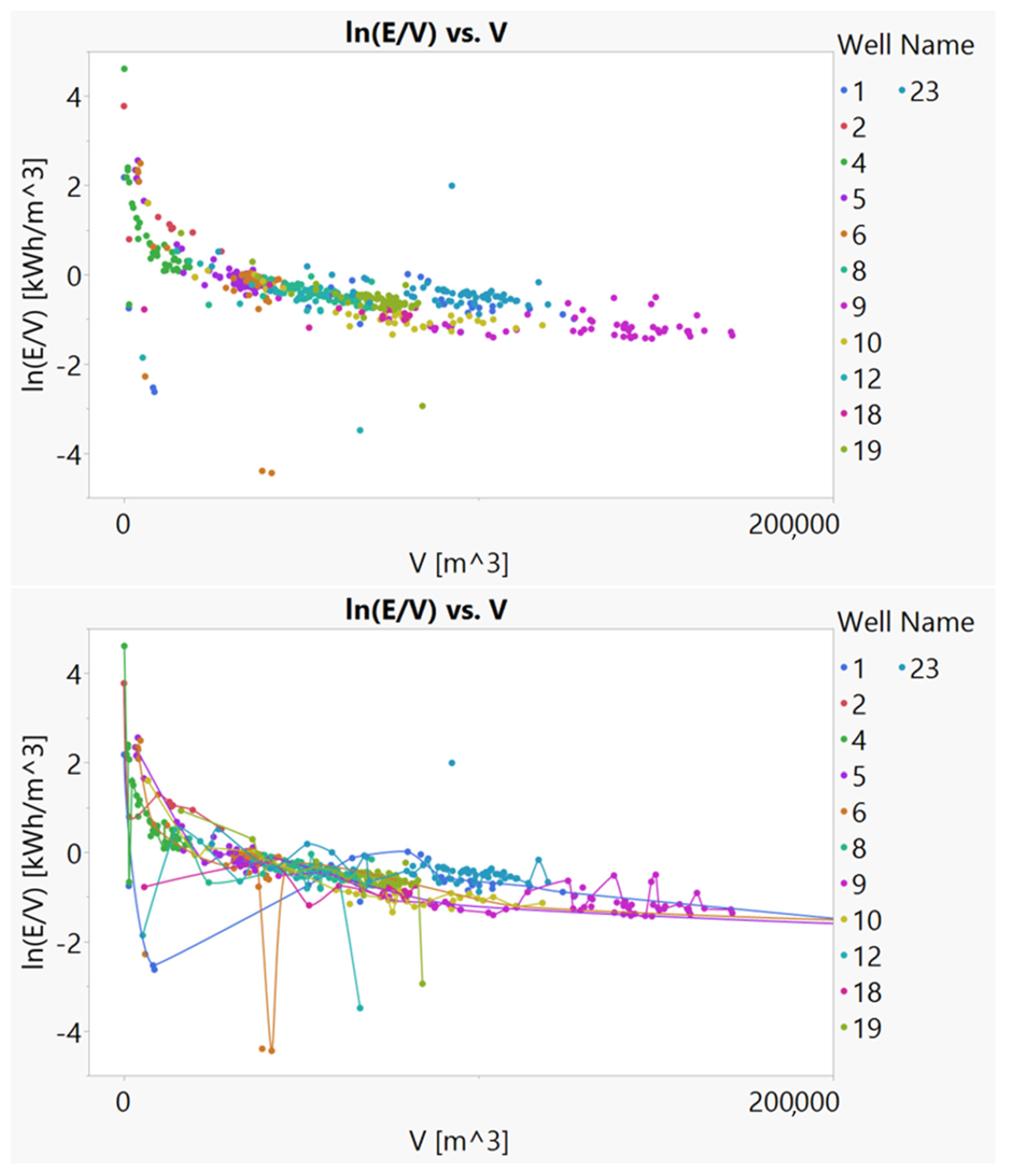

Figure 13 shows the ln(E/V) vs. V plot. This plot shows an economy of scale like in Figure 7. Figure 13 only displays one exponentially decreasing branch, unlike Figure 7 which displays two. The Sand Hollow recovery process experienced a 43% decrease in energy intensity from 0 to 50,000 m3 versus the H2Oaks recovery site which had a 78% decrease from 0 to 50,000 m3. While the percentage change varied, this confirms the general principle that the more water recovered in a month, the less energy-intensive the process becomes.

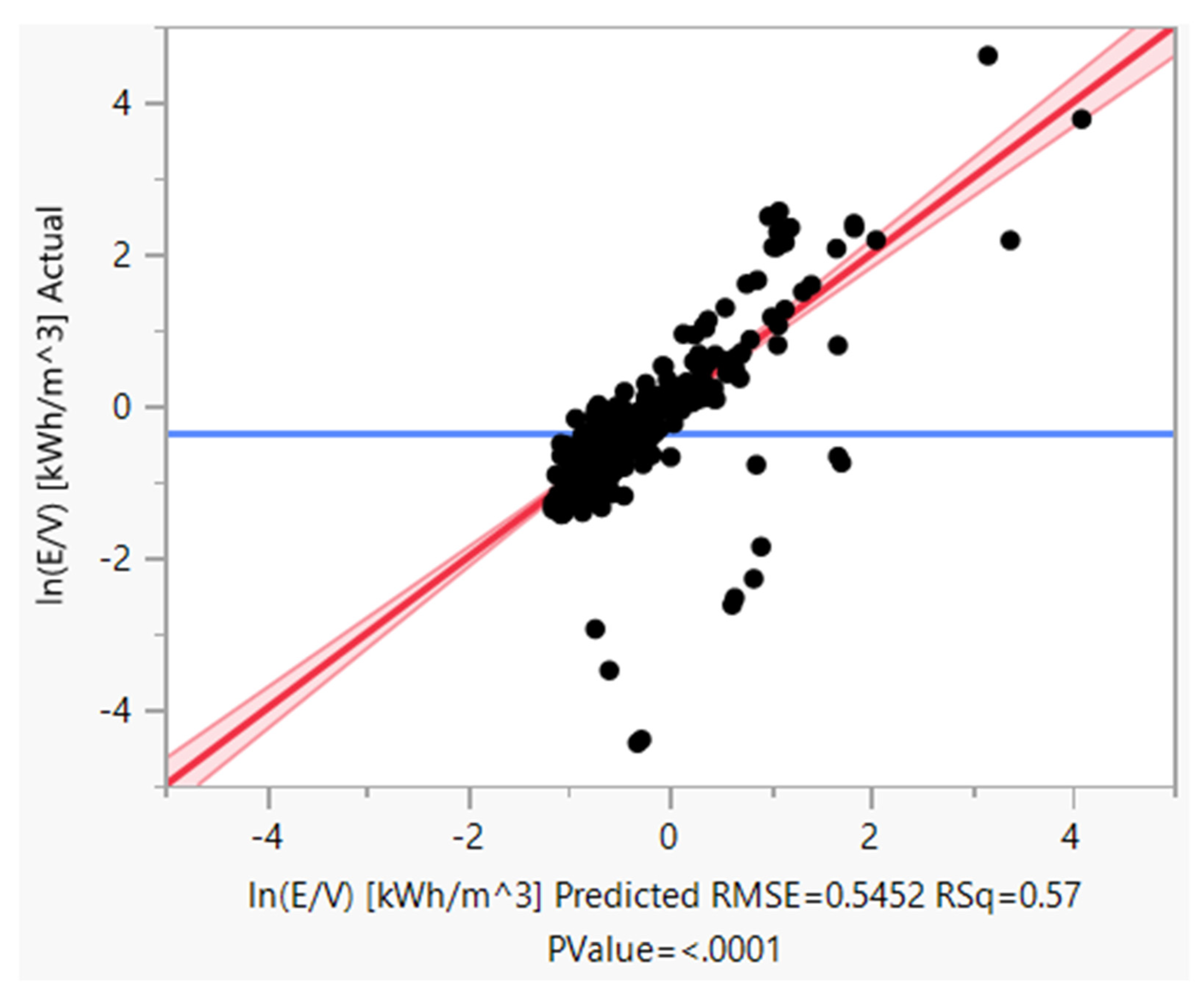

Figure 14 shows the actual vs. predicted plot for ln(E/V) with respect to ln(V). The blue line represents the null hypothesis (response is independent) and the red line represents the alternative hypothesis (response is dependent). The RMSE value is 0.55. This value is not statistically significant by our definition of 0.2–0.5, but is close to this range and significantly closer than the RMSE for the H2Oaks recovery process. The R2 value is 0.57, again not statistically significant by our definition of 0.8, but higher than for the H2Oaks recovery process. These values indicate that our points for the Sand Hollow recovery site are more tightly centered around the line of best fit than for the H2Oaks recovery site. The p value for this site is less than 0.0001 (same as the H2Oaks recovery site), showing that the results are statistically significant and that there is a high probability that our values have some correlation. While these values show that the datapoints are not heavily concentrated along the line of best fit by our statistical definition, they do show that a higher correlation is present for the Sand Hollow recovery site than for the H2Oaks recovery site.

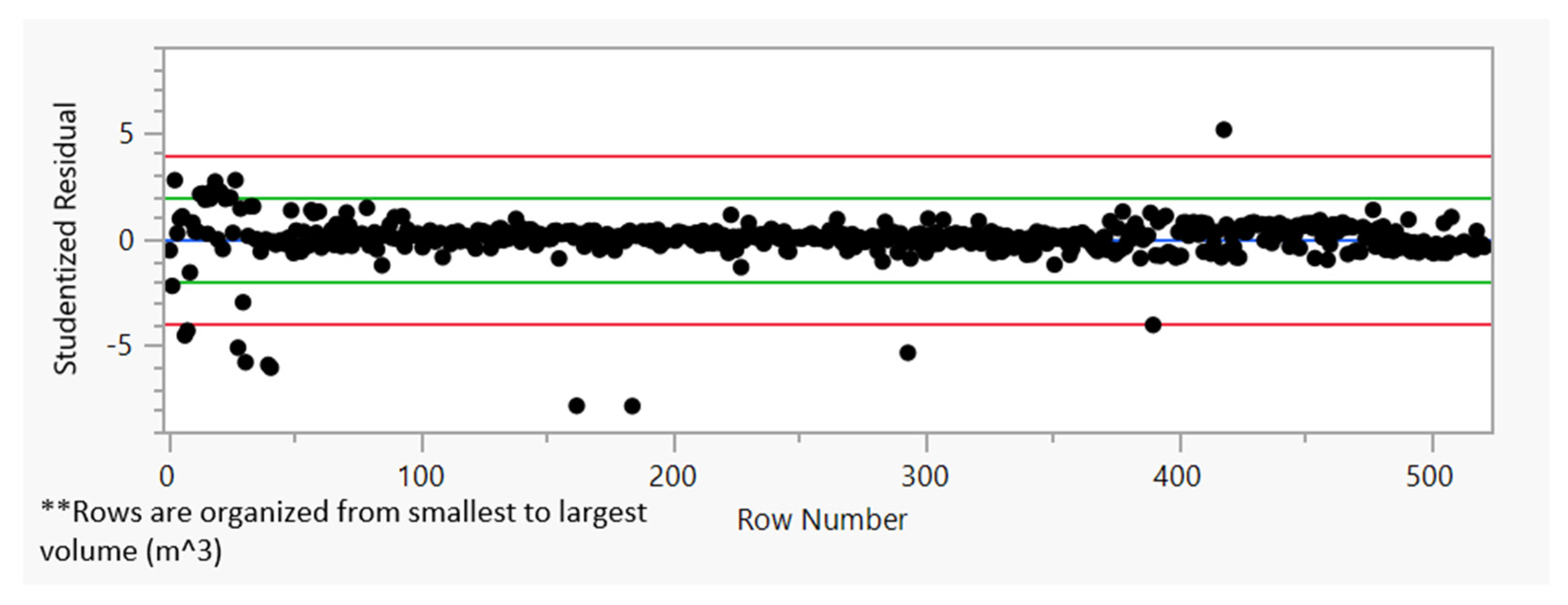

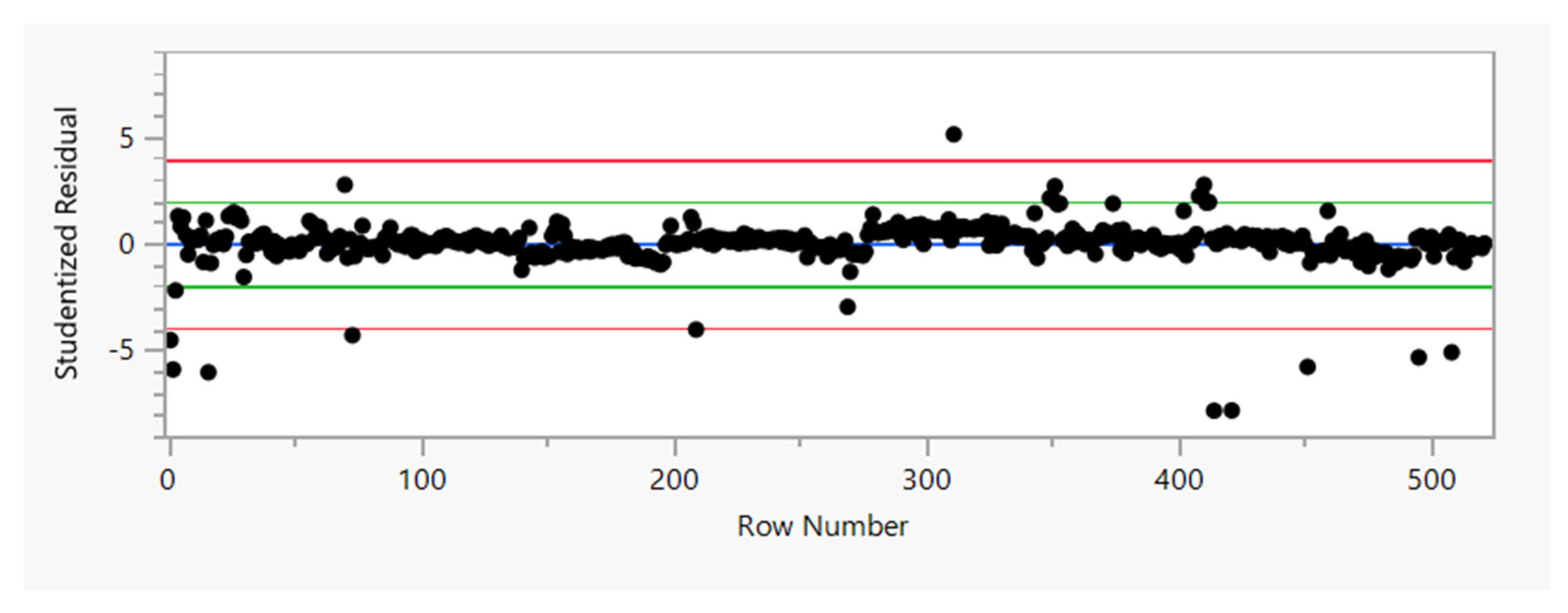

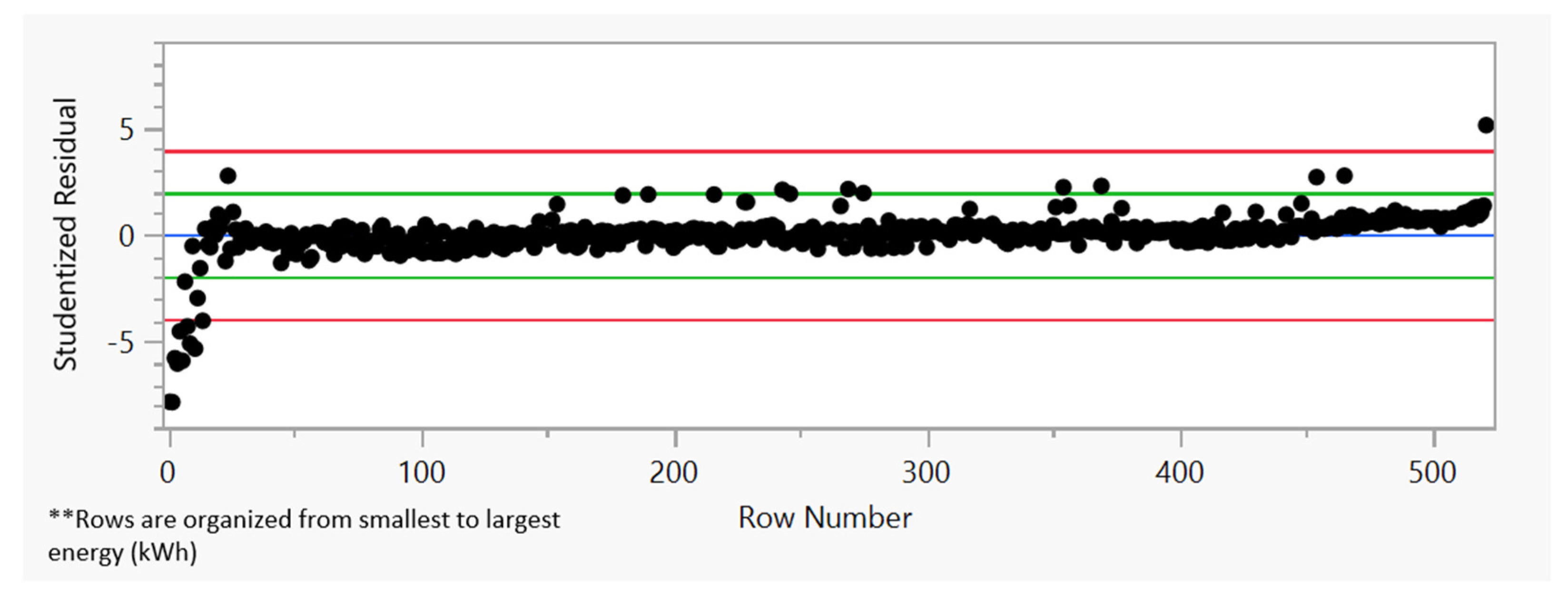

Figure 15, Figure 16 and Figure 17 show studentized residuals organized by row number, volume, and energy, respectively. Each figure shows points outside of four studentized residuals. This is represented by the red line and indicates the presence of potential outliers. There are a few points in each graph that show points outside of two studentized residuals. These are represented by the green line. There does not seem to be a significant correlation among the residuals for any of these plots. This would be indicated if the points were centered around zero studentized residuals (blue line). However, Figure 17 does show a slight increase in residuals toward the far-right side of the plot, similar to Figure 11, but not as exaggerated. This could be indicative of external variables or nonlinear effects influencing the relationship.
In addition to the above figures, a box and whisker plot was created for the Sand Hollow Recovery data to determine if any correlation exists between the volume recovered and which months the recovery took place. There was found to be no correlation between the two.
The Sand Hollow recovery data generally agree with the H2Oaks recovery data: energy intensity decreases with water volume. Figure 12, Figure 13, Figure 14, Figure 15, Figure 16 and Figure 17 show a moderately strong economy of scale between the natural logarithm of energy intensity and the volume recovered at the H2Oaks site. The data show that there is a stronger economy of scale relationship present for the Sand Hollow recovery process than for the H2Oaks recovery process.

4. Discussion

There are four major findings from this study, the first being an economy of scale in the recovery process, the second being no economy of scale in the recharge process, the third improving data coupling among water and energy data, and the fourth being the need for more studies relating ASR and energy use. Figure 7 and Figure 13 show a moderately strong economy of scale relationship between energy intensity and volume recovered. The greater the volume of water recovered, the less energy-intensive the recovery process becomes. On the other hand, Figure 5 shows that there is no relationship present between the volume recharged through gravity and the energy intensity, much less an economy of scale relationship.
It may seem counterintuitive that energy intensity decreases with an increase in volume recovered, since an increase in volume recovered would increase the distance the water would need to be pumped, increasing energy usage. However, the reason is attributed to several factors. One is the energy baseload required to run metering equipment, SCADA systems, security features, and the static head that needs to be overcome before any water moves. The energy baseload is relatively constant; as the volume increases, the energy baseload is divided by a larger water volume, decreasing the energy intensity overall. Another factor is that it takes a significant amount of energy to turn the recovery pumps on. Hence, the more frequently a pump is turned on, the greater the energy usage, even if only a small volume is recovered. This concept is similar to how one obtains better gas mileage going faster on the freeway than when going slower but frequently starting and stopping.
This economy of scale phenomenon, as seen in the recovery process, is very prevalent in the water industry. Economies of scale relating to water supply and water sanitation have been seen in various countries around the world including Portugal, Ireland, Spain, and multiple developing countries [33,41,42,43]. One study found an economy of scale between unit costs and the size of community water systems; as the size of community water systems increased, their unit costs decreased [35]. Another study found a similar trend between energy intensities and the volume of water produced among water treatment plants; the larger the volume of water produced, the less energy-intensive the process was found to be [31]. These trends have not only been found in the water industry, but also in services such as transportation, garbage collection, public schooling, and electricity [32,33].
This economy of scale recovery relationship has certain implications for the design and operation of energy- and cost-efficient ASR systems. From a recovery standpoint, the larger the ASR wellfield, the greater the volume recovered, and hence, the less energy-intensive the process is. Figure 7 and Figure 13 show that the largest drop in energy per unit volume of water occurs between a recharge or recovery volume of 0 and 10 m3, right at the beginning of the plot. Operators who recover after this initial drop (typically between 10 and 100 m3) will experience the greatest cost benefit, long-term money savings, a reduction in energy intensity, and more energy sustainable operations.
From a gravity-fed recharge perspective, the size of the site does not have any implications since no relationship was found between volume and energy. Since recharge and recovery were analyzed individually, it is highly likely that this concept can be applied to all recharge and recovery wells, whether or not they are paired with an ASR project.
While not considered in this study, it is possible that factors such as aquifer characteristics, pump efficiency, and groundwater levels could impact the energy intensity of ASR operations. Aquifer characteristics such as hydraulic conductivity, porosity, and specific yield could impact the intensity of the economy of scale, though the direction of impact, increasing or decreasing, is not clear. High values for these characteristics allow higher flow, but costs are mostly reliant on the energy required to lift a given volume of water, which would not change. Lower yielding soils may require less efficient pumps, or additional infrastructure could change energy requirements. Higher groundwater levels would mean that there is less distance between the water level and the distance the pump needs to transport the water, which means that the pump would take less energy to recover the same volume of water, decreasing the energy intensity and leading to lower energy costs. Further studies should be carried out to consider these factors.
Operators may also be able to see a larger cost benefit in operations by choosing more beneficial energy sources. Although extensive research has not been performed on this aspect in regard to ASR, there has been some discussion on this aspect relating to water utilities as a whole. However, a larger up-front cost switching to renewable energy may possibly save the owner money in the long run [44].
Another major finding from this study was the difficulty in finding easily accessible, long-term, detailed, and coupled energy and water data from water utilities across the United States [15,45,46]. With limited data, the analysis process was not straightforward and resulted in a substantial amount of manipulation to result in a usable format. Data manipulation takes a significant amount of time, making it difficult for individual utilities, especially those which are small and understaffed, to analyze their water and energy data. Due to this limitation, as well as a limited number of ASR projects in the United States, only two sites were analyzed in this study—one recharge process and two recovery processes. It will be beneficial for water utilities to consolidate energy and water data into a format that can be easily used for the future analysis of the energy–water nexus, either through their own staff or through the hiring of a consultant. This can aid in the development of more confident conclusions between ASR and the energy–water nexus, better guiding water utilities on how to design and operate ASR wellfields, as well as wellfields in general. Furthermore, the consolidation and analysis of a specific utility’s energy and water data will lead to more personalized savings for the respective utilities, further reducing energy usage and increasing savings.
The last major finding was a lack of studies about ASR and energy use. Many studies have explored individual aspects of ASR or energy usage such as groundwater depletion [27], the energy–water nexus [4,9,10,15,28], and water quality [29]. Additionally, reports and journal articles were found from utility entities individually discussing energy usage and groundwater levels. We found three articles discussing the optimization of ASR systems. To varying degrees, each touched on energy use in ASR facilities [26,30,47]. However, we did not find any articles that analyzed the pairing of energy usage and ASR with observed data from actual sites. This literature review clearly shows a gap in studies relating energy usage and ASR, highlighting the uniqueness of this study. In order to better understand the relationships between ASR and energy use, more studies need to be completed to address this.
There were several limitations to this study, one being the lack of sites with long-term and coupled energy and water data. Due to this, only two sites were studied. To confirm the accuracy of the conclusions in this paper, this study should be performed on additional ASR wellfields and active well sites. Another limitation is the fact that water and energy reading intervals typically do not overlap, leading to inconsistencies when comparing data. For example, a monthly reading may go from 1 November to 30 November, while the energy reading only goes from 1 November to 25 November causing the December month’s reading to start on 26 November. This variation in the time when energy readings take place is typical in the energy industry but leads to not achieving accurate comparisons between water and energy usage. Furthermore, limitations came from only considering electricity and not other energy sources such as natural gas [12,15], data inaccuracies, assumptions made, or errors introduced by deriving the energy use from the cost.
A limitation for the H2Oaks site was in isolating months when only recharge occurred, from those when only recovery occurred, and from those when both recharge and recovery occurred. This was done so that the recharge and recovery processes could be analyzed separately. Since in the majority of months, only recharge or recovery occurred, the majority of data did not have to be eliminated. However, months where both recovery and recharge occurred were eliminated. For the Sand Hollow site, a limitation was that the total energy usage had to be converted from cost to energy. While the EIA provided the yearly cost per kilowatt-hour for the state of Utah, these costs do not take into account potential changes in costs on a daily or monthly basis, nor do they account for changes in different regions in the state. Hence, the energy usage actually used will vary from that which was calculated. Furthermore, the demand charge was ignored in deriving the energy use from the Sand Hollow power bills, which can lead to overestimating energy use if the demand charge is a substantial portion of the expense. Another limitation is that malfunctions in measurement equipment were not denoted in the records for this site, and hence, errors due to these malfunctions were not eliminated from this data set.

5. Conclusions

While ASR projects have many benefits such as restoring depleted aquifers and preparing communities for drought [48,49,50,51], they are costly. This study aimed to make ASR wellfields more sustainable [52,53,54], by analyzing two ASR wellfields—H2Oaks in Texas and Sand Hollow in Utah—for relationships that could aid utilities in better understanding the connection between ASR and the energy–water nexus. An economy of scale relationship was found between energy intensity and the volume of water for the recovery processes, but not for the recharge process. This economy of scale is as follows: the greater the volume recovered in a set increment, the less energy-intensive the process becomes. The H2Oaks recovery process experienced a 78% decrease in energy intensity from 0 to 50,000 m3, while the Sand Hollow site experienced a 43% decrease in energy intensity from 0 to 50,000 m3 recovered.
Through finding this economy of scale relationship for recovery and characterizing it using observed data, we have aided water utilities in better understanding what steps can be taken to optimize the design and operations of future and current ASR projects, helping to fill a current research gap between energy usage and ASR. Further, we have found a way to increase the sustainability of ASR projects, allowing owners to benefit from these facilities while minimizing cost. A few of these steps include designing and operating large ASR wellfields with the storage capacity to recover large volumes of water at less frequent intervals instead of recovering small volumes of water at more frequent intervals. However, operators do not need to be concerned with the recharge process since an economy of scale relationship was not found for this process. This information is not only applicable to ASR wellfields, where recharge and recovery are paired, but also to any well undergoing one of these processes.
Applying this information can lead to many benefits for well operators. From an energy standpoint, this would likely lead to a decrease in energy intensity, decreasing overall energy use, and providing more sustainable energy operations. From a cost standpoint, the more energy-efficient operations would result in a decrease in energy costs, leading to a greater cost benefit, reducing operational costs, and leading to long-term money savings for the entity. Although not included in this study, we acknowledge that running a system in this manner could have potential negative impacts on water quality and aquifer conditions [29]. These should be considered before operating in this manner.
Future work should include improving energy and water data coupling among water suppliers, performing similar analyses on additional wellfields, and developing data-driven guidance to support the energy-efficient design and operation of ASR systems.

Author Contributions

A.H.R. contributed to the conceptualization, methodology, formal analysis, and writing—original draft, review, and editing. R.B.S. contributed to the conceptualization, methodology, formal analysis, and writing—review and editing. G.W. contributed to the formal analysis and writing—review and editing. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Civil and Construction Engineering Sustainability Lab at Brigham Young University.

Data Availability Statement

Data supporting reported results can be obtained by emailing Alyson H. Rapp at [email protected].

Acknowledgments

We would like to thank those at SAWS and WCWCD for helping us obtain and analyze data for their respective sites.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Mahajan, S.; Martinez, J. Water, water, but not everywhere: Analysis of shrinking water bodies using open access satellite data. Int. J. Sustain. Dev. World Ecol. 2021, 28, 326–338. [Google Scholar] [CrossRef]
  2. Snyder, G.L.; Pyne, R.D.G.; Morrison, K.; Nixon, K. San Antonio Water System, Texas Carrizo Aquifer Storage Recovery Program. Groundwater 2022, 60, 641–647. [Google Scholar] [CrossRef]
  3. Hutchinson, A.S.; Woodside, G.D.; Herndon, R.L. Increasing the Sustainable Yield of the Orange County Groundwater Basin with Managed Aquifer Recharge. Groundwater 2022, 60, 628–633. [Google Scholar] [CrossRef]
  4. DOE (United States Department of Energy). Energy Demands On Water Resources: Report to Congress on the Interdependency of Energy and Water (no. 201107); DOE: Washington, DC, USA, 2006.
  5. Rojanasakul, M.; Flavelle, C.; Migliozzi, B.; Murray, E. America Is Using Up Its Groundwater Like There’s No Tomorrow. New York Times, 28 August 2023. Available online: https://www.nytimes.com/interactive/2023/08/28/climate/groundwater-drying-climate-change.html (accessed on 1 November 2022).
  6. Searcey, D.; Erdenesanaa, D. A Tangle of Rules to Protect America’s Water is Falling Short. New York Times, 2 November 2023. Available online: https://www.nytimes.com/interactive/2023/11/02/climate/us-groundwater-depletion-rules.html?unlocked_article_code=1.70w.olqP.O3kwpYa6Ney6&smid=url-share (accessed on 1 November 2022).
  7. Konikow, L.F. Long-Term Groundwater Depletion in the United States. Groundwater 2015, 53, 2–9. [Google Scholar] [CrossRef]
  8. Pyne, R.D.G. Groundwater Recharge and Wells: A Guide to Aquifer Storage and Recovery, 1st ed.; CRC Press, Inc.: Boca Raton, FL, USA, 1995; p. 400. [Google Scholar]
  9. Hussey, K.; Pittock, J. The Energy—Water Nexus: Managing the Links between Energy and Water for a Sustainable Future. Ecol. Soc. 2012, 17, 31. [Google Scholar] [CrossRef]
  10. EPA (U.S. Environmental Protection Agency). Ensuring a Sustainable Future: An Energy Management Guidebook for Wastewater and Water Utilities; EPA: Washington DC, USA, 2008.
  11. Sanders, K.T.; Webber, M.E. Evaluating the energy consumed for water use in the United States. Environ. Res. Lett. 2012, 7, 034034. [Google Scholar] [CrossRef]
  12. Twomey, K.M.; Webber, M.E. Evaluating the Energy Intensity of the US Public Water System. In Proceedings of the ASME 2011 5th International Conference on Energy Sustainability, Washington, DC, USA, 7–10 August 2011. [Google Scholar] [CrossRef]
  13. Jones, S.C.; Sowby, R.B. Quantifying Energy Use in the US Public Water Industry—A Summary. ASCE EWRI Curr. 2014, 16, 6–9. [Google Scholar]
  14. Sowby, R.B.; Burian, S.J. Survey of Energy Requirements for Public Water Supply in the United States. J. AWWA 2017, 109, E320–E330. [Google Scholar] [CrossRef]
  15. Chini, C.M.; Stillwell, A.S. The State of U.S. Urban Water: Data and the Energy-Water Nexus. Water Resour. Res. 2018, 54, 1796–1811. [Google Scholar] [CrossRef]
  16. Cohen, R.; Wolff, G.; Nelson, B. Energy Down The Drain: The Hidden Costs of California’s Water Supply; Natural Resources Defense Council and Pacific Institute (NRDC): Oakland, CA, USA, 2004. [Google Scholar]
  17. Goldstein, R.; Smith, W. Water & Sustainability (Volume 4): US Electricity Consumption for Water Supply & Treatment—The Next Half Century; Electric Power Research Institute (EPRI): Palo Alto, CA, USA, 2002. [Google Scholar]
  18. Plappally, A.K.; Lienhard, V.J.H. Energy requirements for water production, treatment, end use, reclamation, and disposal. Renew. Sustain. Energy Rev. 2012, 16, 4818–4848. [Google Scholar] [CrossRef]
  19. Klein, G. California’s Water-Energy Relationship (California, USA); California Energy Commission (CEC): Sacramento, CA, USA, 2005.
  20. Sowby, R.B.; Krieger, K.M. Derivation and Use of Pump Energy Intensity Equation for Water System Energy Analysis. Authorea 2023. [Google Scholar] [CrossRef]
  21. Sowby, R.B.; Burian, S.J. Statistical Model and Benchmarking Procedure for Energy Use by US Public Water Systems. J. Sustain. Water Built Environ. 2018, 4, 04018010. [Google Scholar] [CrossRef]
  22. Ahlfeld, D.P.; Laverty, M.M. Analytical solutions for minimization of energy use for groundwater pumping. Water Resour. Res. 2011, 47, W06508. [Google Scholar] [CrossRef]
  23. Martin, D.L.; Dorn, T.W.; Melvin, S.R.; Corr, A.J.; Kranz, W.L. Evaluating Energy Use for Pumping Irrigation Water. In Proceedings of the 2011 Central Plains Irrigation Conference, Burlington, CO, USA, 22–23 February 2011; Available online: http://hdl.handle.net/10217/47726 (accessed on 10 December 2022).
  24. Sowby, R.B.; Jones, S.C.; Christiansen, S.; Jensen, M. Energy Management Program Leads to Operational Improvements. Opflow 2019, 45, 10–14. [Google Scholar] [CrossRef]
  25. Sowby, R.B.; Morehead, N.; Burdette, S. Review of Energy Management Guidance for Water and Wastewater Utilities. Energy Nexus 2023, 11, 100235. [Google Scholar] [CrossRef]
  26. Majumdar, S.; Miller, G.R.; Sheng, Z. Optimizing Multiwell Aquifer Storage and Recovery Systems for Energy Use and Recovery Efficiency. Groundwater 2021, 59, 629–643. [Google Scholar] [CrossRef] [PubMed]
  27. Hsieh, P.A. Deformation-Induced Changes in Hydraulic Head During Ground-Water Withdrawal. Groundwater 1996, 34, 1082–1089. [Google Scholar] [CrossRef]
  28. DOE (U.S. Department of Energy). The Water-Energy Nexus: Challenges and Opportunities; DOE: Washington, DC, USA, 2014; p. 238.
  29. Pyne, R.D.G. Water Quality in Aquifer Storage and Recovery (ASR) Wells. 2003. Available online: http://asrforum.com/fatestudy/documents/asrpopa111503.pdf (accessed on 25 October 2022).
  30. Fatkhutdinov, A.; Stefan, C. Multi-Objective Optimization of Managed Aquifer Recharge. Groundwater 2018, 57, 238–244. [Google Scholar] [CrossRef] [PubMed]
  31. Sowby, R.B.; Thompson, M.J. Energy Profiles of Nine Water Treatment Plants in the Salt Lake City Area of Utah and Implications for Planning, Design, and Operation. J. Environ. Eng. 2021, 147, 04021018. [Google Scholar] [CrossRef]
  32. Christensen, L.R.; Greene, W.H. Economies of Scale in U.S. Electric Power Generation. J. Politi Econ. 1976, 84, 655–676. [Google Scholar] [CrossRef]
  33. Gómez-Reino, J.L.; Lago-Peñas, S.; Martinez-Vazquez, J. Evidence on Economies of Scale in Local Public Service Provision: A Meta-Analysis. Int. Cent. Public Policy ICEEP Work. Papers 2021, 215, 16–21. [Google Scholar] [CrossRef]
  34. Kim, H.Y.; Clark, R.M. Economies of Scale and Scope in Water Supply. Reg. Sci. Urban Econ. 1988, 18, 479–502. [Google Scholar] [CrossRef]
  35. Shih, J.; Harrington, W.; Pizer, W.A.; Gillingham, K. Economies of scale in community water systems. J. AWWA 2006, 98, 100–108. [Google Scholar] [CrossRef]
  36. Cetrulo, T.B.; Marques, R.C.; Malheiros, T.F. An analytical review of the efficiency of water and sanitation utilities in developing countries. Water Res. 2019, 161, 372–380. [Google Scholar] [CrossRef] [PubMed]
  37. WCWCD (Washington County Conservancy District). Reservoirs. WCWCD. Available online: https://www.wcwcd.org/infrastructure/reservoirs/ (accessed on 22 September 2023).
  38. Marston, T.M.; Nelson, N.C. Assessment of Managed Aquifer Recharge at Sand Hollow Reservoir, Washington County, Utah, Updated to Conditions through 2016: U.S. Geological Survey Open-File Report 2018-1140; United States Geological Survey: Reston, VA, USA, 2018. [CrossRef]
  39. Carlson, S.W.; Walburger, A. Energy Index Development for Benchmarking Water and Wastewater Utilities; AwwaRF: Denver, CO, USA, 2007. [Google Scholar]
  40. EIA (U.S. Energy Information Administration). Electricity Data Browser. Available online: https://www.eia.gov/electricity/data/browser/ (accessed on 1 September 2023).
  41. Marques, R.C.; De Witte, K. Is big better? On scale and scope economies in the Portuguese water sector. Econ. Model. 2011, 28, 1009–1016. [Google Scholar] [CrossRef]
  42. Turley, G.; McDonagh, J.; McNena, S.; Grzedzinski, A. Optimum Territorial Reforms in Local Government: An Empirical Analysis of Scale Economies in Ireland. Econ. Soc. Rev. 2018, 49, 463–488. [Google Scholar]
  43. Prieto, Á.M.; Zofío, J.L.; Álvarez, I. Cost economies, urban patterns and population density: The case of public infrastructure for basic utilities. Pap. Reg. Sci. 2015, 94, 795–816. [Google Scholar] [CrossRef]
  44. Strazzabosco, A.; Conrad, S.; Lant, P.; Kenway, S. Expert Opinion on Influential Factors Driving Renewable Energy Adoption in the Water Industry. Renew. Energy 2020, 162, 754–765. [Google Scholar] [CrossRef]
  45. Chini, C.M.; Stillwell, A.S. Where Are All the Data? The Case for a Comprehensive Water and Wastewater Utility Database. J. Water Resour. Plan. Manag. 2017, 143, 01816005. [Google Scholar] [CrossRef]
  46. Sowby, R.B.; Burian, S.J.; Chini, C.M.; Stillwell, A.S. Data Challenges and Solutions in Energy-for-Water: Experience From Two Recent Studies. J. AWWA 2019, 111, 28–33. [Google Scholar] [CrossRef]
  47. Alqahtani, A.; Sale, T. Optimizing Aquifer Storage and Recovery Wellfield Operations to Minimize Energy Consumption. J. Water Resour. Plan. Manag. 2020, 146, 04020069. [Google Scholar] [CrossRef]
  48. Miller, K.; Milman, A.; Burson, M.; Tracy, J.; Kiparsky, M. Groundwater Recharge for Drought and Endangered Species Protection: The H2Oaks Aquifer to Aquifer Transfer for Storage and Recovery, San Antonio, Texas. Case Stud. Environ. 2021, 5, 1118198. [Google Scholar] [CrossRef]
  49. Alam, S.; Gebremichael, M.; Ban, Z.; Scanlon, B.R.; Senay, G.; Lettenmaier, D.P. Post-Drought Groundwater Storage Recovery in California’s Central Valley. Water Resour. Res. 2021, 57, e2021WR030352. [Google Scholar] [CrossRef]
  50. Wendt, E.D.; van Loon, A.F.; Scanlon, B.R.; Hannah, D.M. Managed aquifer recharge as a drought mitigation strategy in heavily-stressed aquifers. Environ. Res. Lett. 2021, 16, 014046. [Google Scholar] [CrossRef]
  51. Yang, Q.; Scanlon, B.R. How Much Water Can Be Captured from Flood Flows to Store in Depleted Aquifers for Mitigating Floods and Droughts? A Case Study from Texas. Environ. Res. Lett. 2019, 14, 054011. [Google Scholar] [CrossRef]
  52. Alqahtani, A.; Sale, T.; Ronayne, M.J.; Hemenway, C. Demonstration of Sustainable Development of Groundwater through Aquifer Storage and Recovery (ASR). Water Resour. Manag. 2021, 35, 429–445. [Google Scholar] [CrossRef]
  53. Gibson, M.T.; Campana, M.E.; Nazy, D. Estimating Aquifer Storage and Recovery (ASR) Regional and Local Suitability: A Case Study in Washington State, USA. Hydrology 2018, 5, 7. [Google Scholar] [CrossRef]
  54. Smith, W.B.; Miller, G.R.; Sheng, Z. Assessing Aquifer Storage and Recovery Feasibility in the Gulf Coastal Plains of Texas. J. Hydrol. Reg. Stud. 2017, 14, 92–108. [Google Scholar] [CrossRef]
Water 16 00503 g001

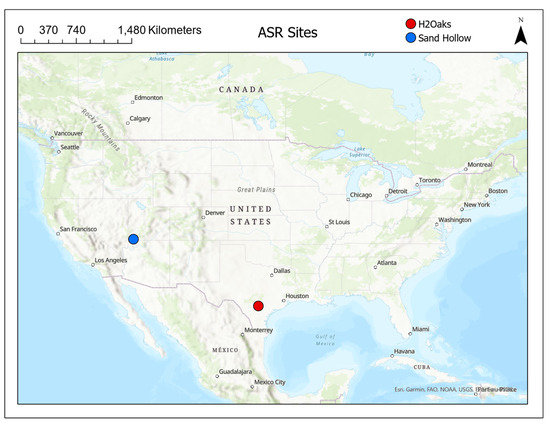

Figure 1. ASR study sites.
Figure 1. ASR study sites.
Water 16 00503 g001
Water 16 00503 g002

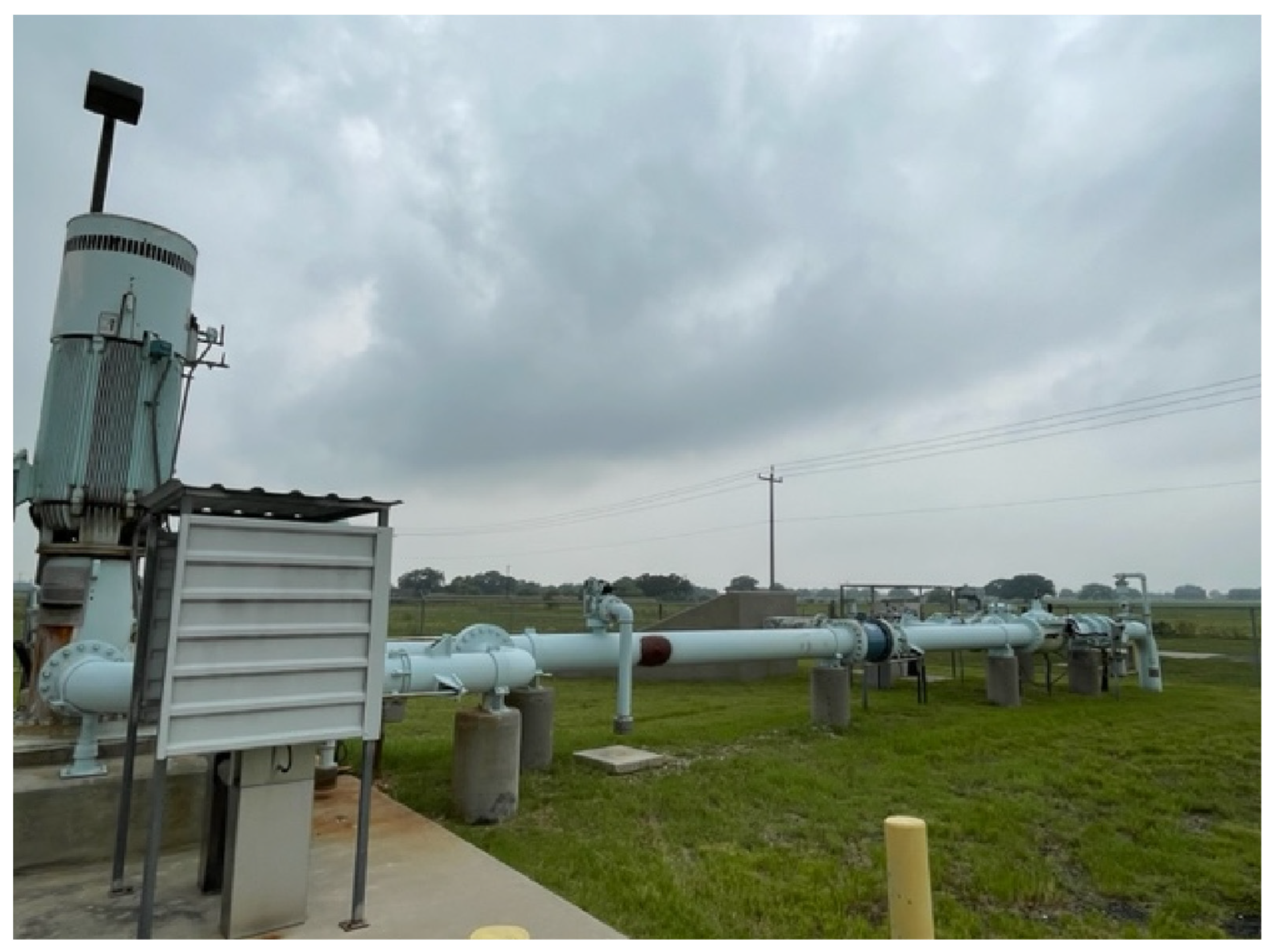

Figure 2. H2Oaks well site 21.
Figure 2. H2Oaks well site 21.
Water 16 00503 g002
Water 16 00503 g003

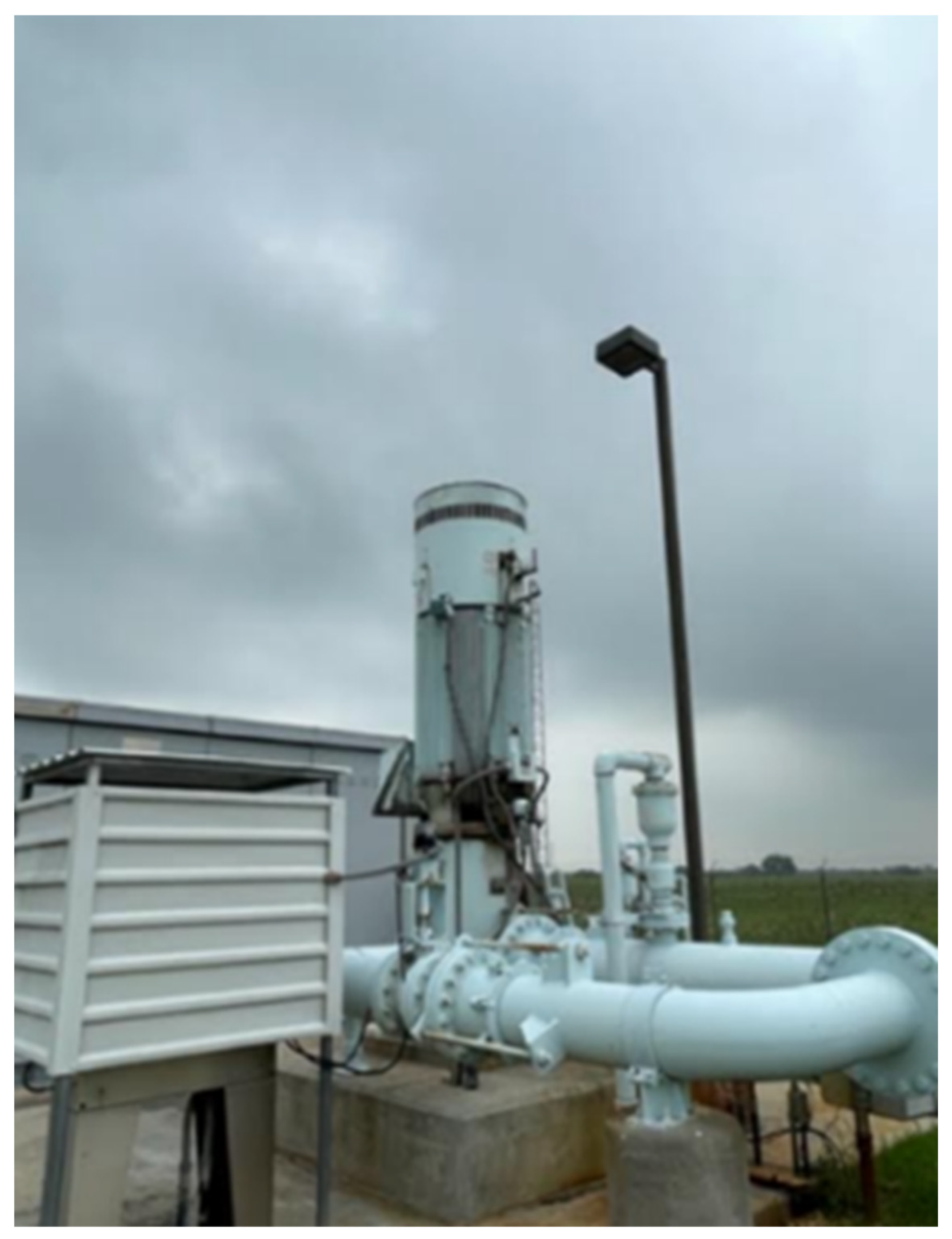

Figure 3. H2Oaks well site 21 pump.
Figure 3. H2Oaks well site 21 pump.
Water 16 00503 g003
Water 16 00503 g004

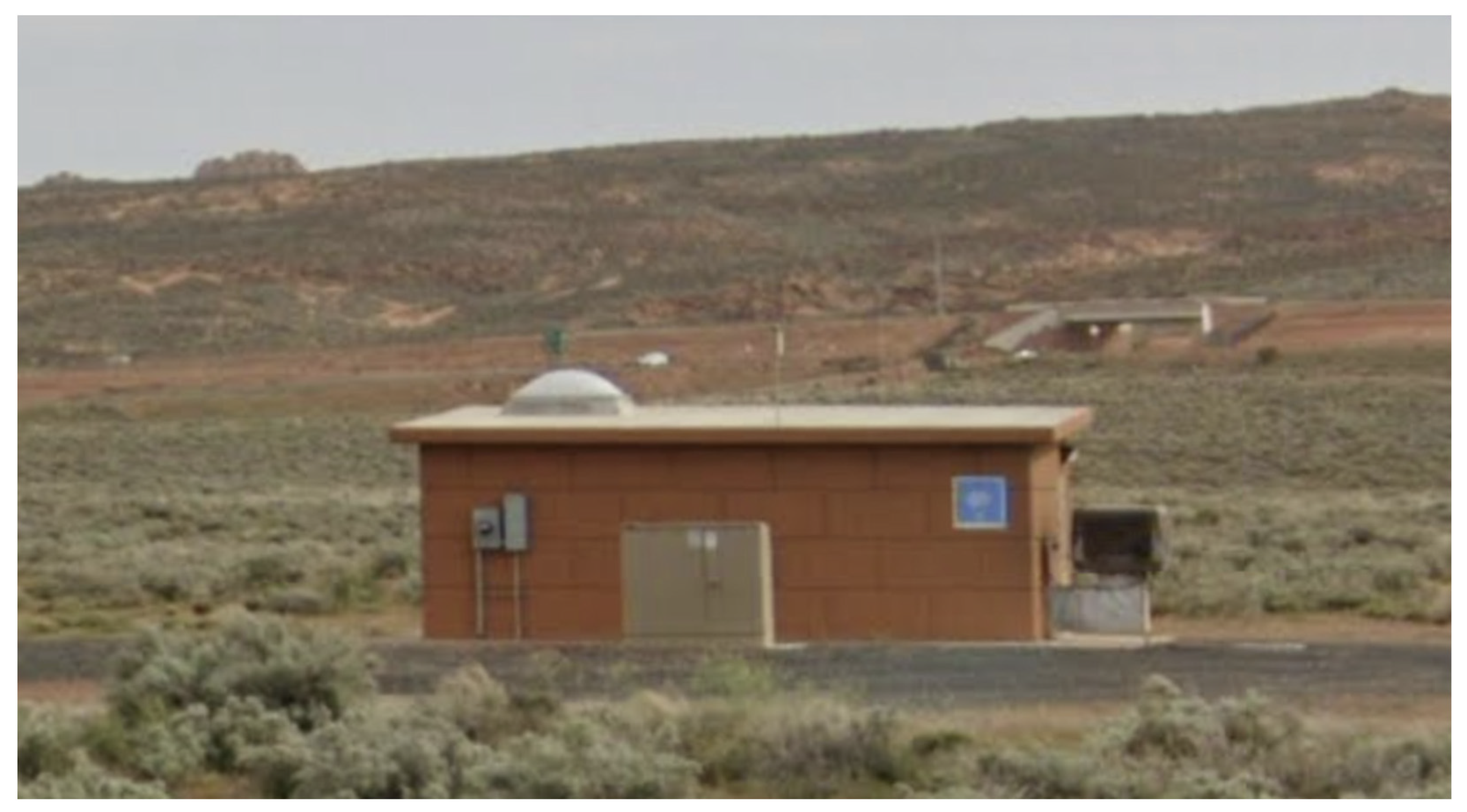

Figure 4. Sand Hollow ASR well house.
Figure 4. Sand Hollow ASR well house.
Water 16 00503 g004
Water 16 00503 g005

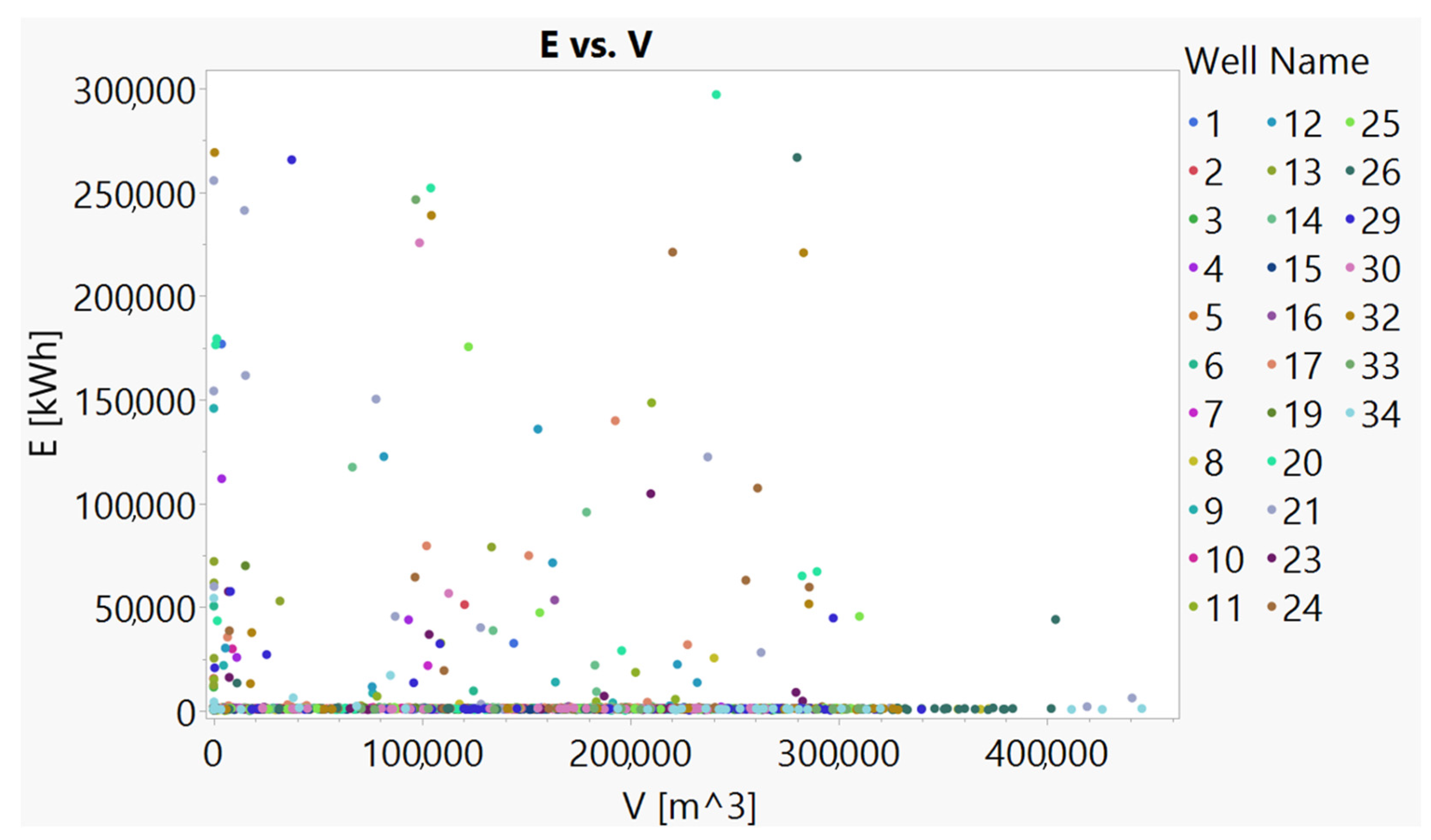

Figure 5. H2Oaks recharge—cluster plot.
Figure 5. H2Oaks recharge—cluster plot.
Water 16 00503 g005
Water 16 00503 g006

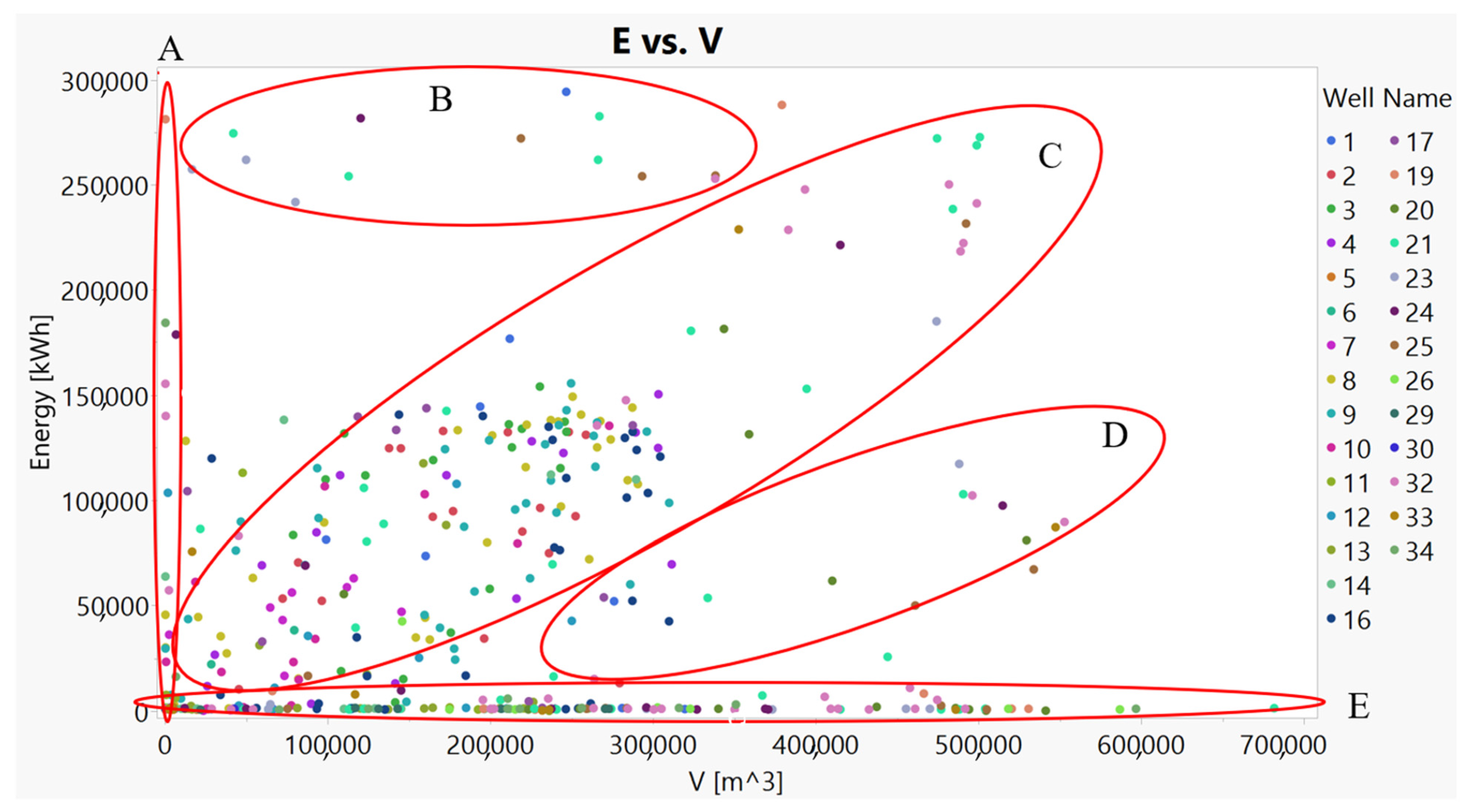

Figure 6. H2Oaks recovery—cluster plot.
Figure 6. H2Oaks recovery—cluster plot.
Water 16 00503 g006
Water 16 00503 g007

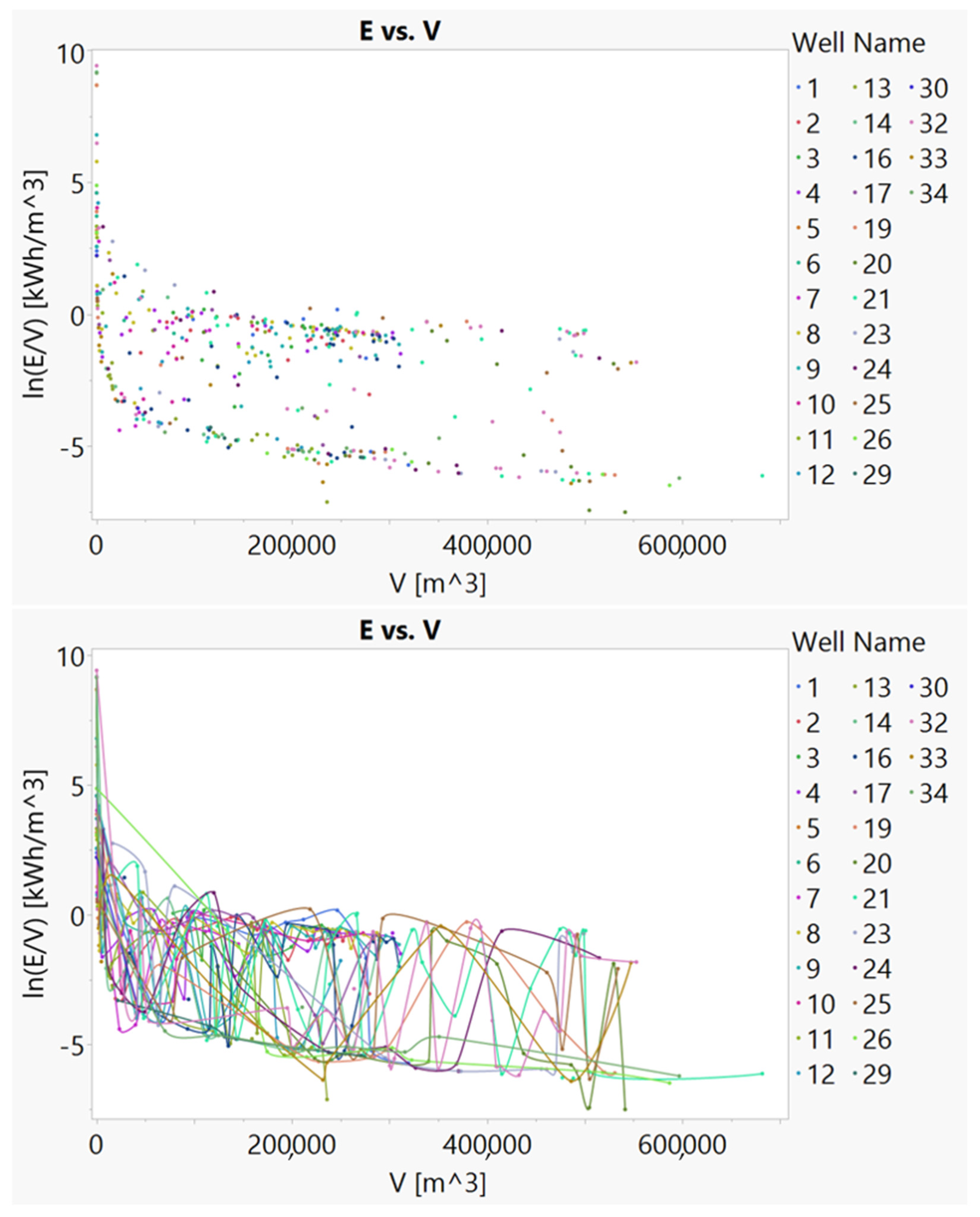

Figure 7. H2Oaks recovery—scatter plot. Both panels show the natural logarithm of energy intensity vs. volume. The lower panel connects observations from the same wells.
Figure 7. H2Oaks recovery—scatter plot. Both panels show the natural logarithm of energy intensity vs. volume. The lower panel connects observations from the same wells.
Water 16 00503 g007
Water 16 00503 g008

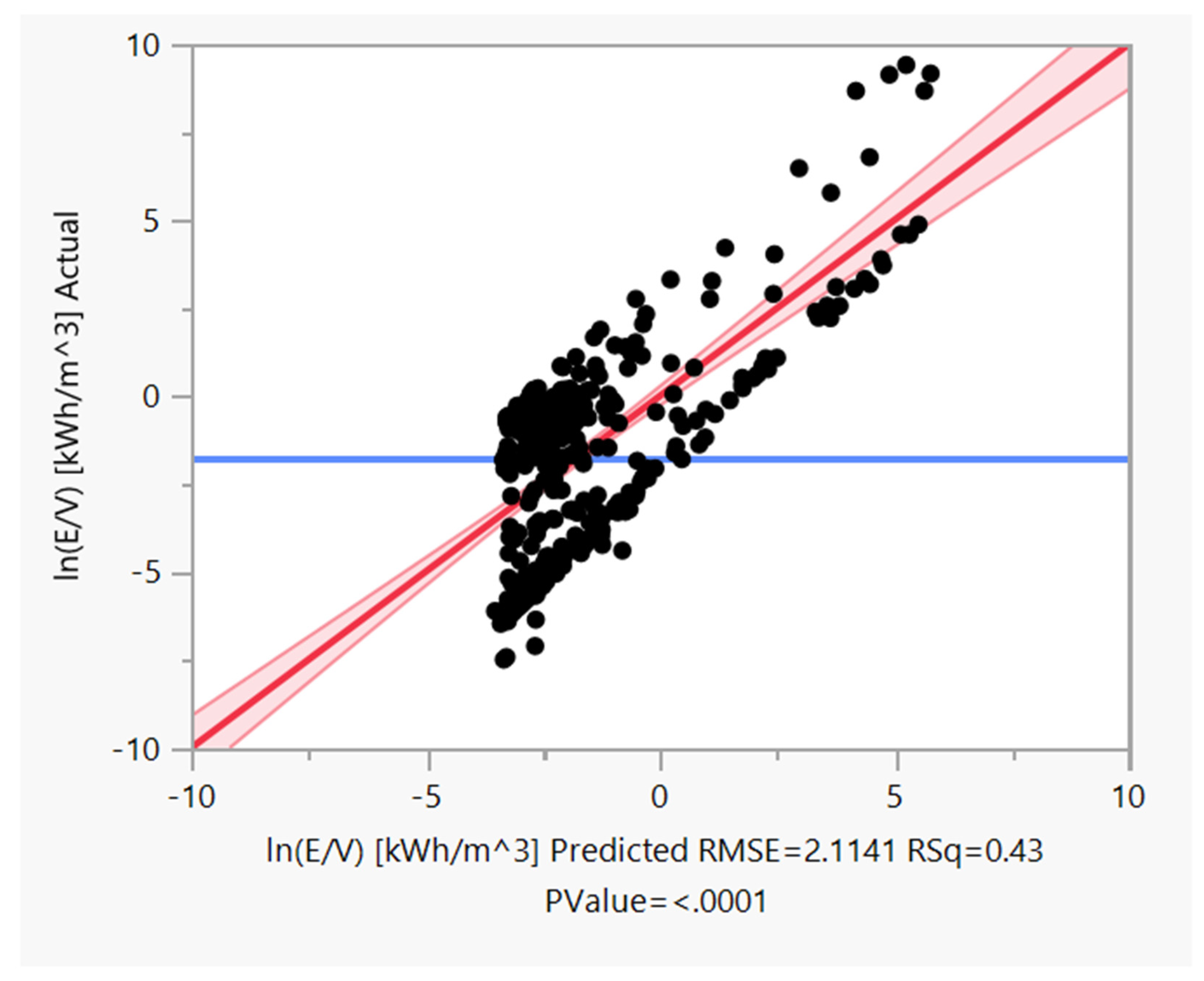

Figure 8. H2Oaks recovery—actual vs. predicted plot.
Figure 8. H2Oaks recovery—actual vs. predicted plot.
Water 16 00503 g008
Water 16 00503 g009
Figure 9. H2Oaks recovery—studentized residuals plot.
Figure 9. H2Oaks recovery—studentized residuals plot.
Water 16 00503 g009
Water 16 00503 g010
Figure 10. H2Oaks recovery—studentized residuals plot (volume). Rows are organized from smallest to largest volume (m3).
Figure 10. H2Oaks recovery—studentized residuals plot (volume). Rows are organized from smallest to largest volume (m3).
Water 16 00503 g010
Water 16 00503 g011

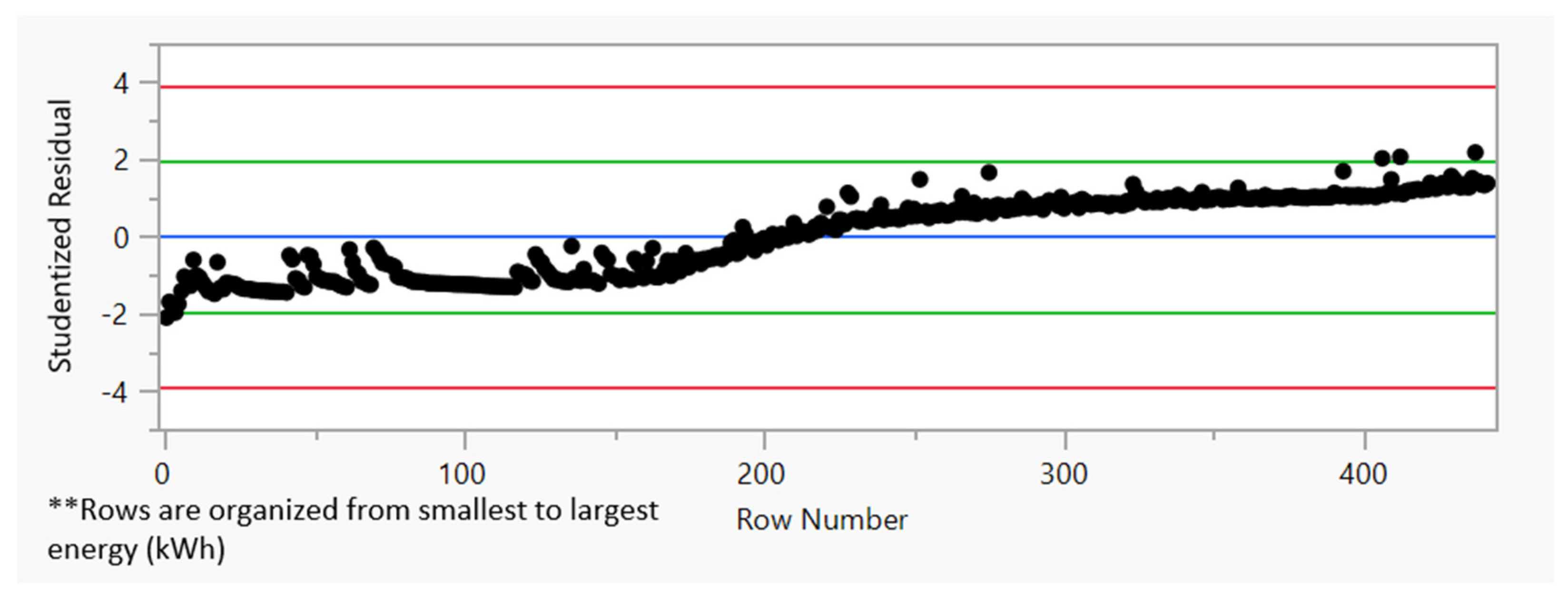

Figure 11. H2Oaks recovery—studentized residuals plot (energy). Rows are organized from smallest to largest energy (kWh).
Figure 11. H2Oaks recovery—studentized residuals plot (energy). Rows are organized from smallest to largest energy (kWh).
Water 16 00503 g011
Water 16 00503 g012
Figure 12. Sand Hollow recovery—cluster plot.
Figure 12. Sand Hollow recovery—cluster plot.
Water 16 00503 g012
Water 16 00503 g013
Figure 13. Sand Hollow recovery—scatter plot. Both panels show the natural logarithm of energy intensity vs. volume. The lower panel connects observations from the same wells.
Figure 13. Sand Hollow recovery—scatter plot. Both panels show the natural logarithm of energy intensity vs. volume. The lower panel connects observations from the same wells.
Water 16 00503 g013
Water 16 00503 g014
Figure 14. Sand Hollow recovery—actual vs. predicted plot.
Figure 14. Sand Hollow recovery—actual vs. predicted plot.
Water 16 00503 g014
Water 16 00503 g015
Figure 15. Sand Hollow recovery—studentized residuals plot.
Figure 15. Sand Hollow recovery—studentized residuals plot.
Water 16 00503 g015
Water 16 00503 g016
Figure 16. Sand Hollow recovery—studentized residuals plot (volume). Rows are organized from smallest to largest volume (m3).
Figure 16. Sand Hollow recovery—studentized residuals plot (volume). Rows are organized from smallest to largest volume (m3).
Water 16 00503 g016
Water 16 00503 g017
Figure 17. Sand Hollow recovery—studentized residuals plot (energy). Rows are organized from smallest to largest energy (kWh).
Figure 17. Sand Hollow recovery—studentized residuals plot (energy). Rows are organized from smallest to largest energy (kWh).
Water 16 00503 g017
Table 1. Average industrial electricity price USD/kWh—Utah (EIA).
Table 1. Average industrial electricity price USD/kWh—Utah (EIA).
YearUSD/kWh
20170.061
20180.059
20190.060
20200.059
20210.062
20220.069
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Rapp, A.H.; Sowby, R.B.; Williams, G. Economy of Scale of Energy Intensity in Aquifer Storage and Recovery (ASR). Water 2024, 16, 503. https://doi.org/10.3390/w16030503

AMA Style

Rapp AH, Sowby RB, Williams G. Economy of Scale of Energy Intensity in Aquifer Storage and Recovery (ASR). Water. 2024; 16(3):503. https://doi.org/10.3390/w16030503

Chicago/Turabian Style

Rapp, Alyson H., Robert B. Sowby, and Gustavious Williams. 2024. "Economy of Scale of Energy Intensity in Aquifer Storage and Recovery (ASR)" Water 16, no. 3: 503. https://doi.org/10.3390/w16030503

APA Style

Rapp, A. H., Sowby, R. B., & Williams, G. (2024). Economy of Scale of Energy Intensity in Aquifer Storage and Recovery (ASR). Water, 16(3), 503. https://doi.org/10.3390/w16030503

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
