INV-FLOW: New Possibilities to Evaluate the Technical Condition and Function of Extraction Wells
2. Materials and Methods
2.1. Apparatus Design

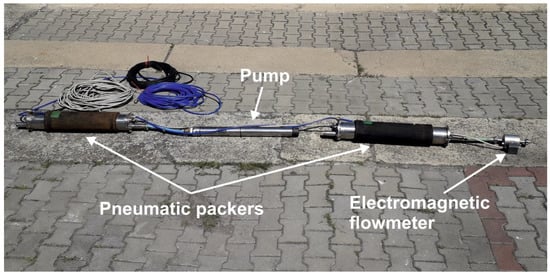

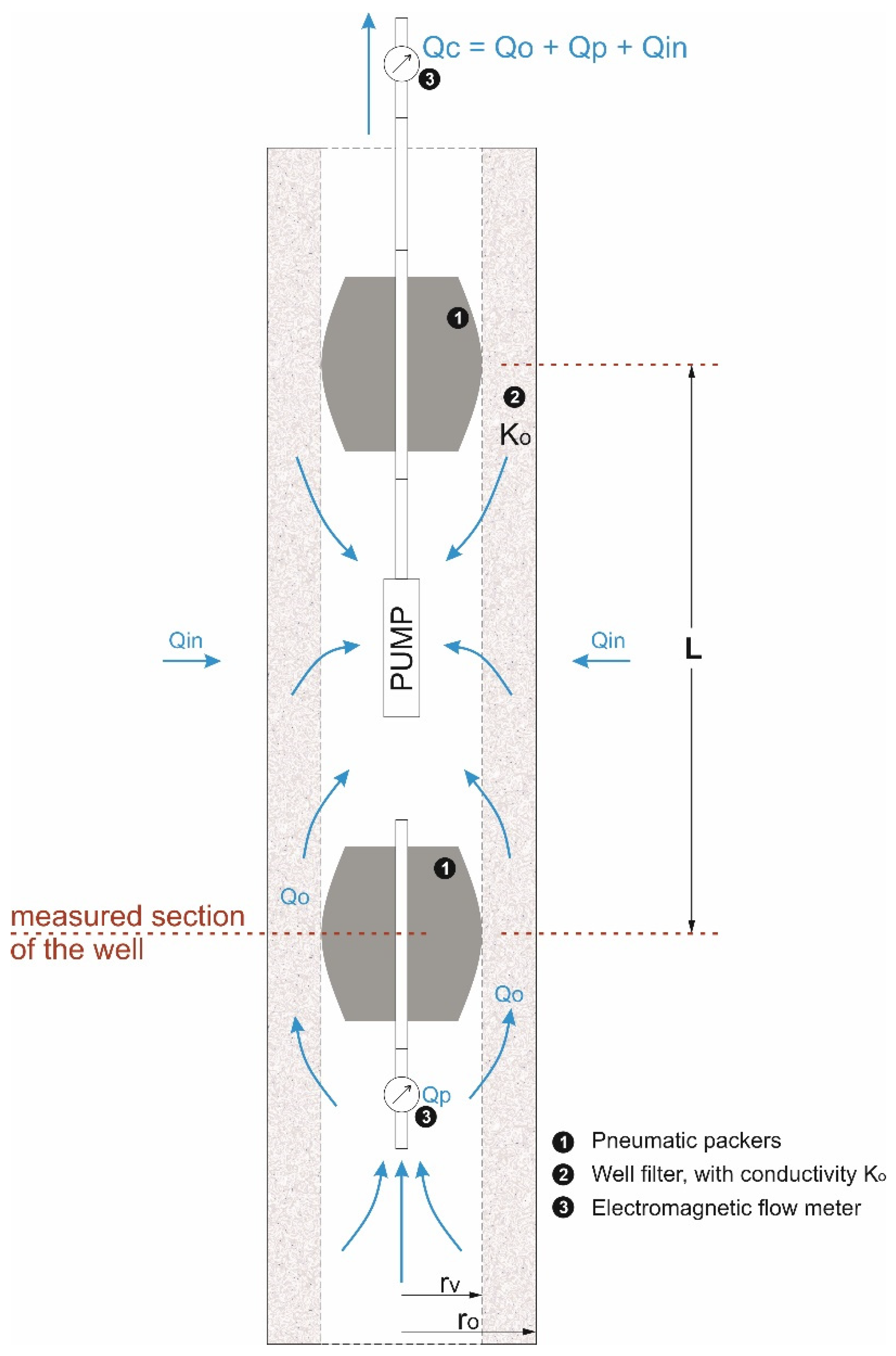

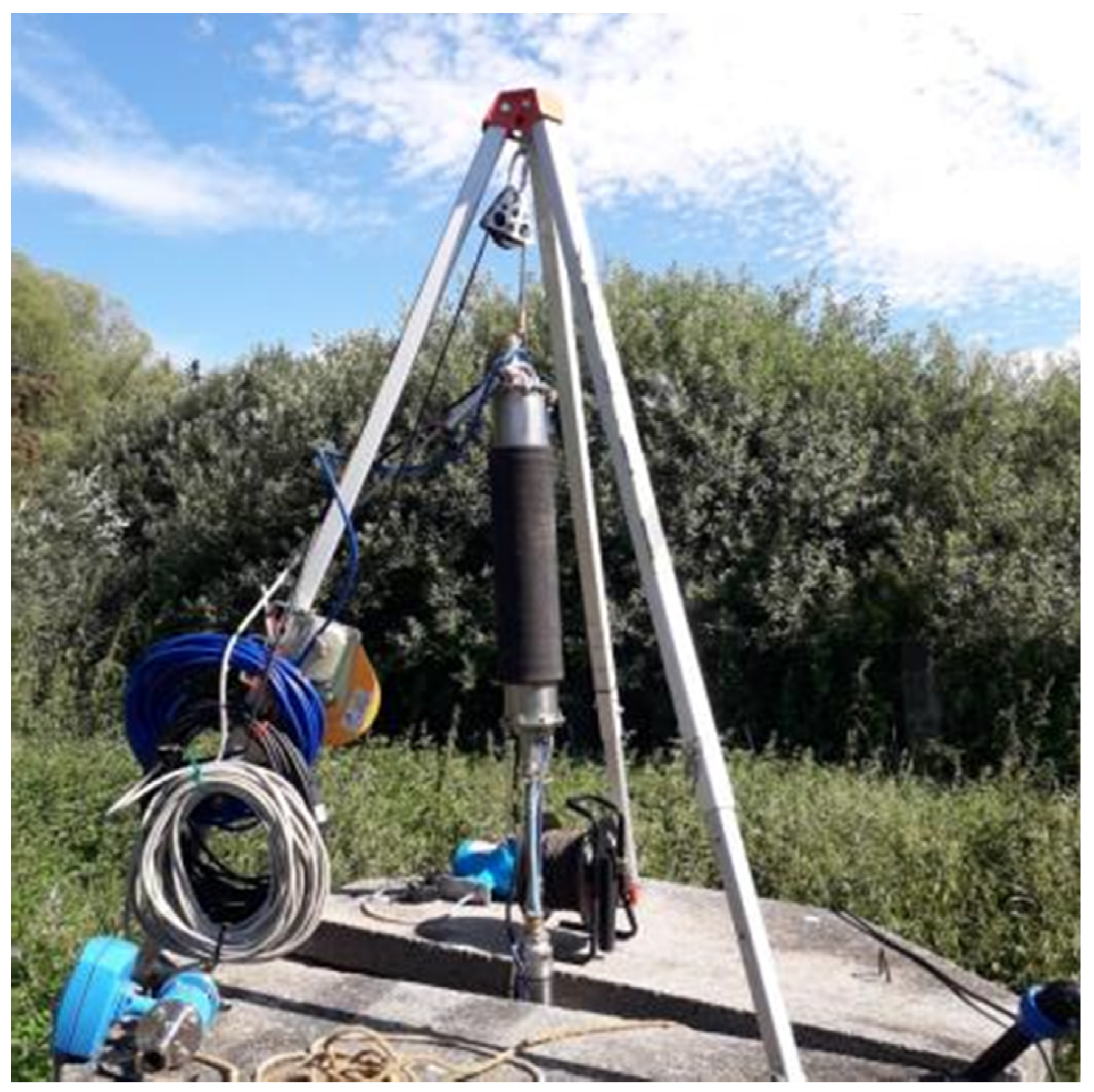

- Two pneumatic packers to seal the measured section of the extraction well. A through-flow pipe passes through the center of the packers. The packer’s bodies can accommodate three independent cables sealed at the flanges using watertight bushings. In the case of the INV-FLOW apparatus, these cables are used for (i) the electrical connection of the pump, (ii) the supply of compressed air for controlling the packers, and (iii) the electrical signal from the electromagnetic flowmeter.
- A pump located in the area between the packers, enabling the smooth regulation of the output.
- An electromagnetic flowmeter located at the ground surface for measuring the flow rate of water pumped from the extraction well.
- An electromagnetic flowmeter located under the lower packer inside the extraction well to measure the flow rate of water pumped through the lower packer.

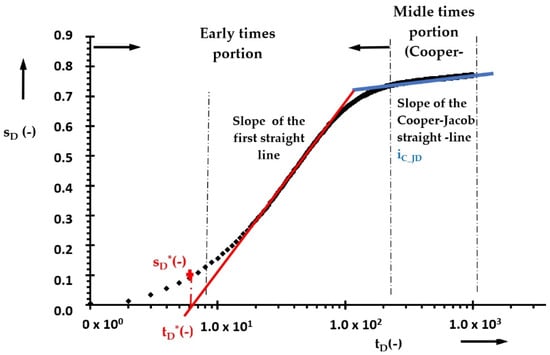

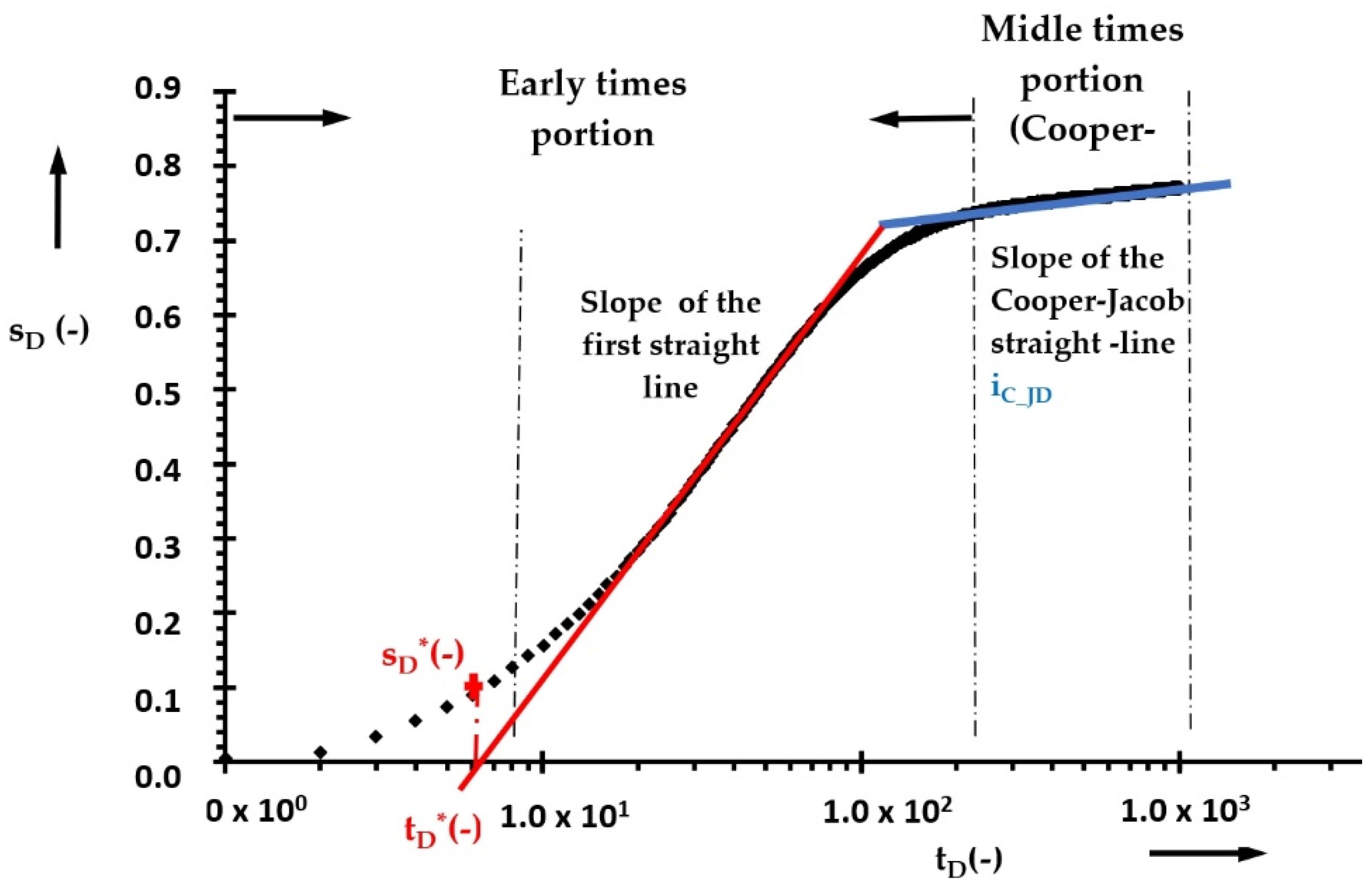

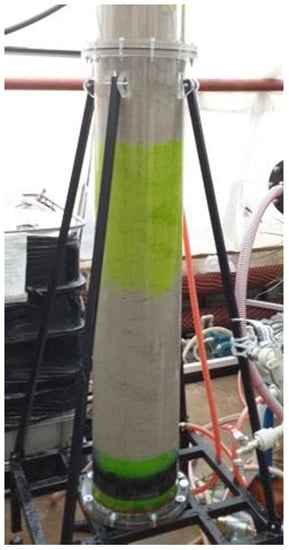

2.3. Laboratory Experiments

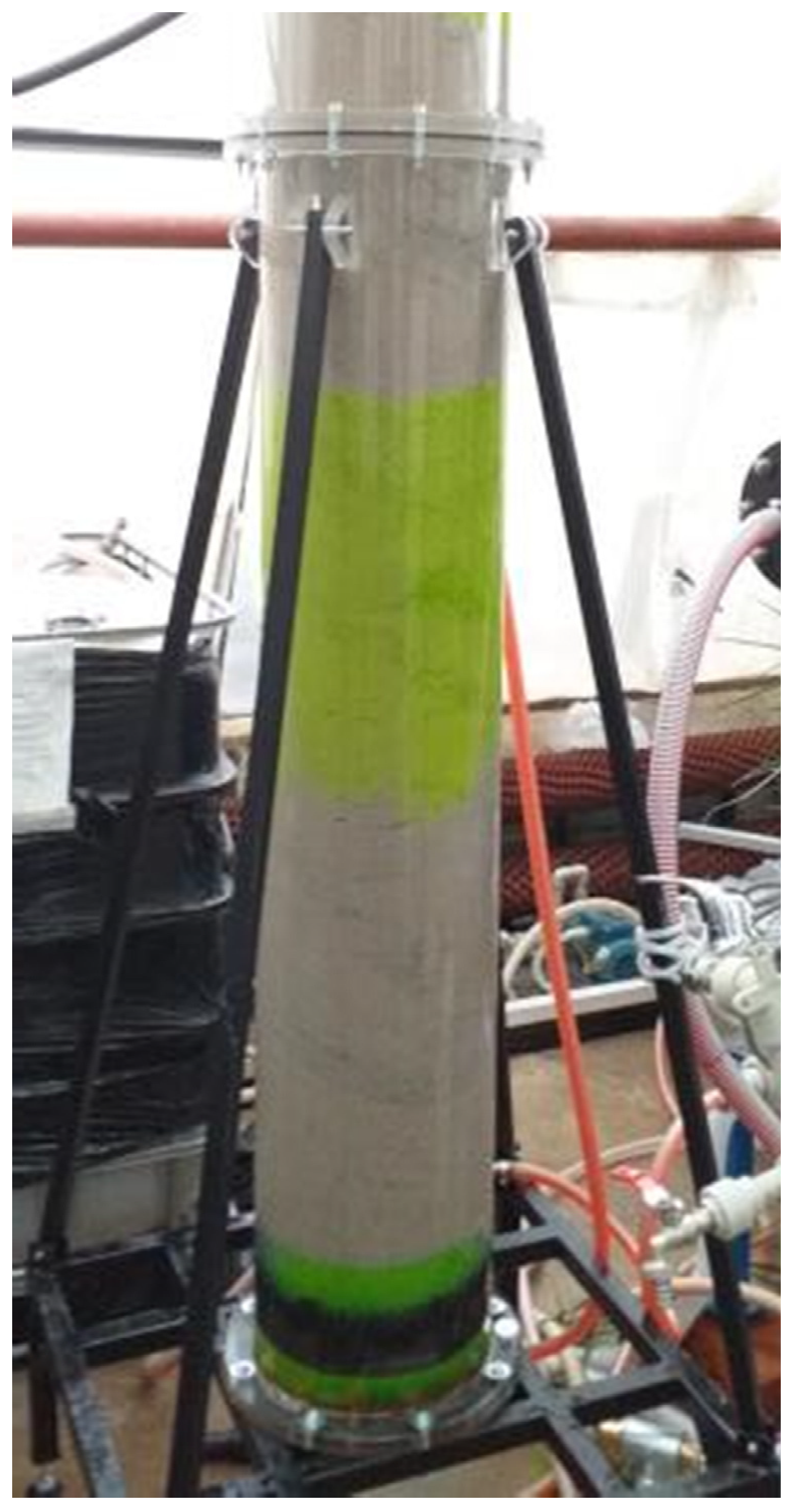

- Without clogging: glass beads of fraction d = 3–5 mm;
- Affected by clogging: a mixture of glass beads of fraction d = 3–5 mm and filter sand of fraction d = 0.5–1 mm.

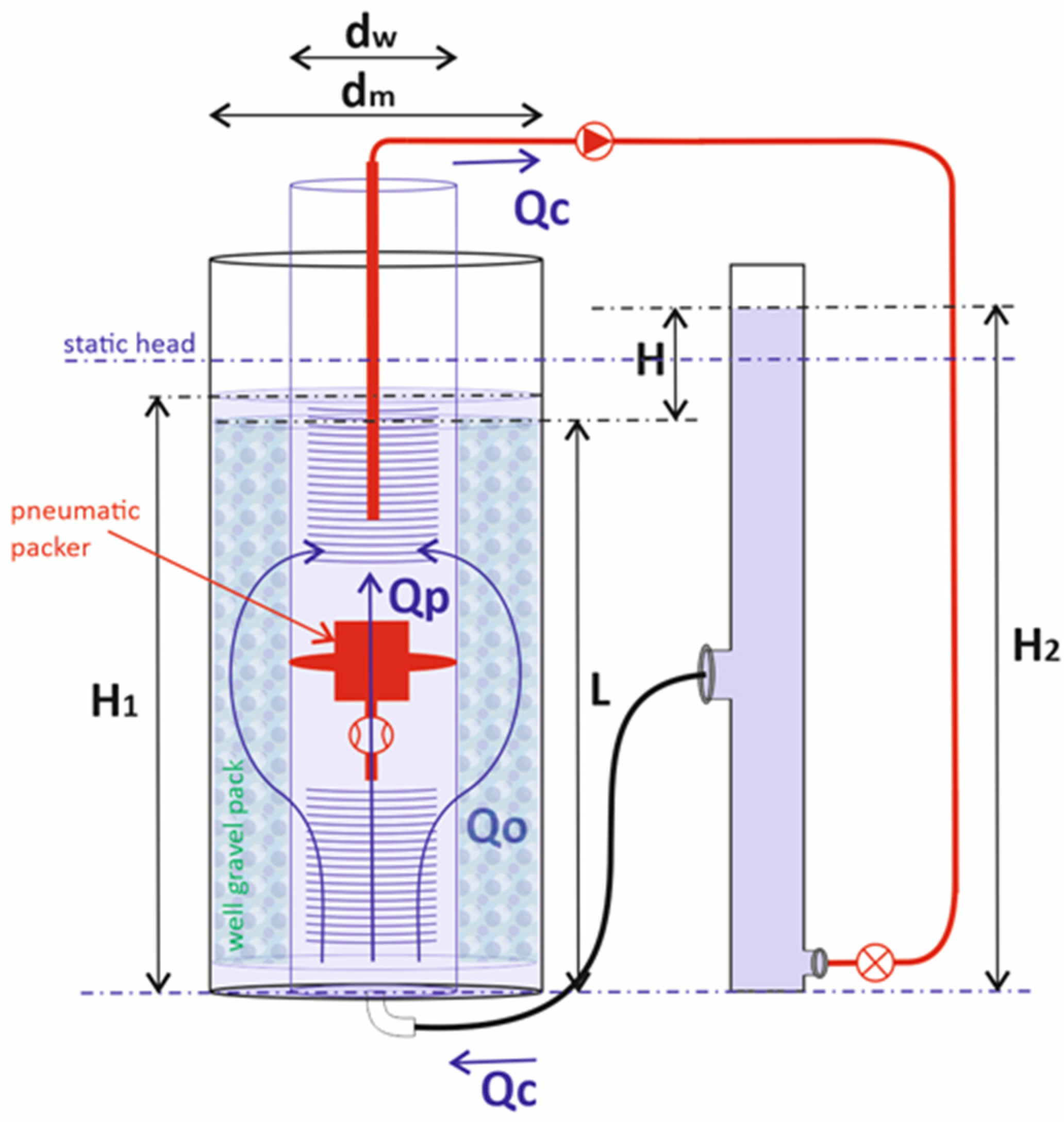

- dm (m)—inner diameter of the laboratory model of a hydrogeological well;
- dw (m)—outer diameter of the hydrogeological casing;
- Ao (m2)—area of the flow profile of the gravel pack;
- L (m)—height of the gravel pack.
- Qc (l/s)—total water flow in circulation;
- Qp (l/s)—water flow through the packer;
- H1 (m)—piezometric level in the DN300 flow profile (laboratory model);
- H2 (m)—piezometric level in the equalizing tank.
- Qo (m3/s)—component of vertical flow through the gravel pack;
- I (-)—hydraulic gradient;
- Ko (m/s)—hydraulic conductivity of the gravel pack.
2.4. Pilot Site, Geological and Hydrogeological Properties
- The well is operated as an extraction well;
- The results of pumping and recovery tests, geophysical logging and camera inspections of the extraction well are available;
- The well screen is located at a depth of <25 m below ground level (the depth range of the functional INV-FLOW apparatus);
- An observation well is in the vicinity of the measured extraction well;
- The extraction well casing diameter is in the range DN 175–DN 300 (range of the used functional INV-FLOW apparatus);
- There is variability between the tested extraction wells concerning the age of the extraction well and the well casing material.

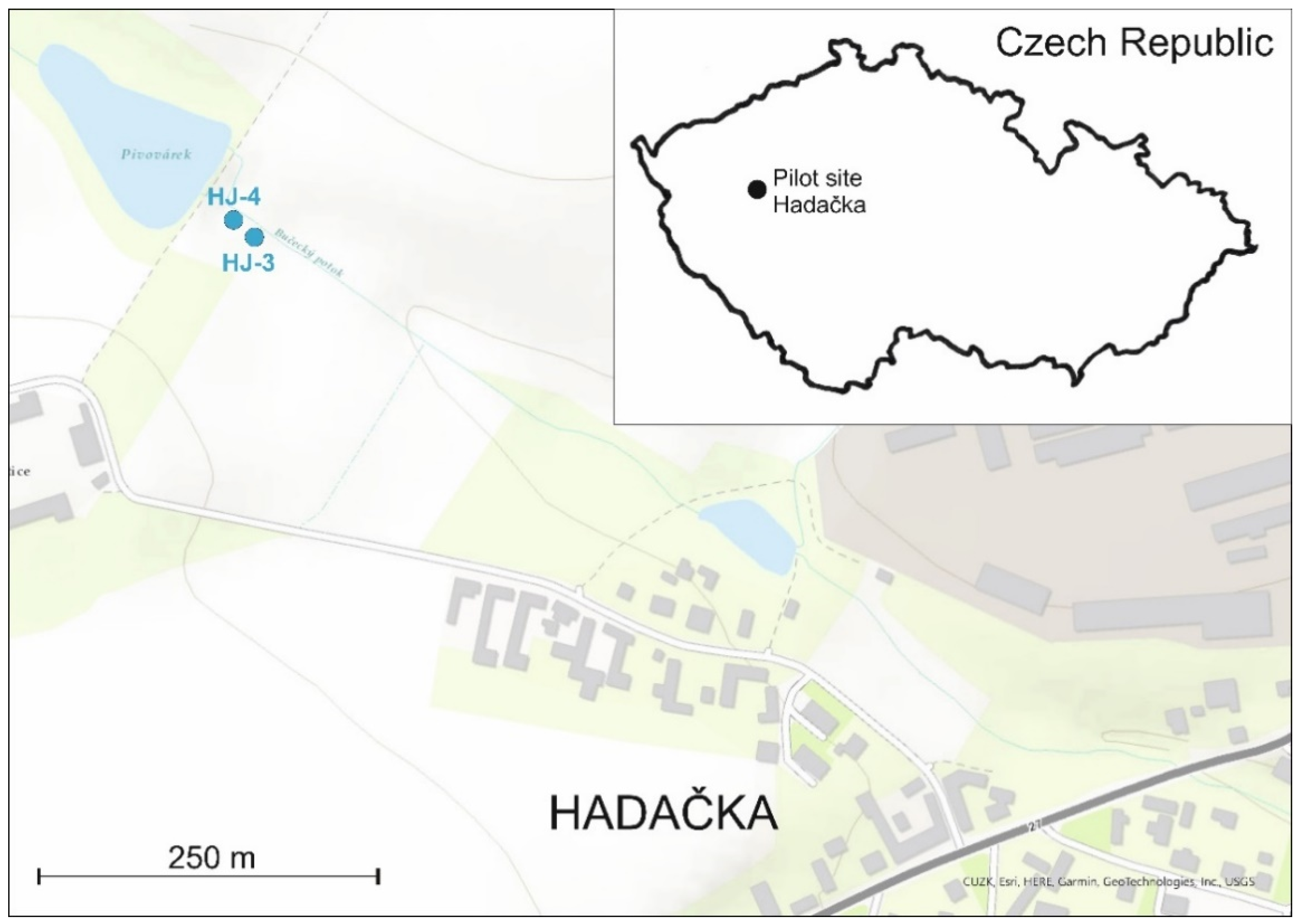

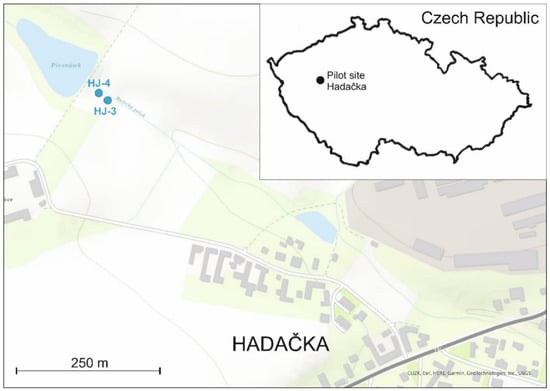

2.5. Hadačka Pilot Site
- 0–6 m b.g.l. steel well casing, DN 219/200;
- 6–27 m b.g.l. steel well screen, DN 219/200;
- 27–31 m b.g.l. steel well casing, DN 219/200.
- Signs of severe well clogging were present in the entire well screen;
- The well casing was damaged in the area 20.2–23.0 m b.g.l.
- A low degree of compaction of the gravel pack at 12–13 m b.g.l.—this section was considered to be the most permeable part of the extraction well with the lowest degree of clogging;
- Narrowing of the extraction well casing by up to 15 mm in section 17–17.5 m b.g.l., which was considered the area with the highest degree of clogging of the extraction well, showing the nature of incrustation.
- 0–14 m b.g.l. PVC well casing, DN 175 (195/8.5);
- 14–27 m b.g.l. PVC well screen, DN 175 (195/8.5);
- 27–35 m b.g.l. PVC well casing, DN 175 (195/8.5);
- 35–50 m b.g.l. PVC well screen, DN 175 (195/8.5);
- 50–54 m b.g.l. PVC well casing, DN 175 (195/8.5).
2.6. Pilot Test Experiments

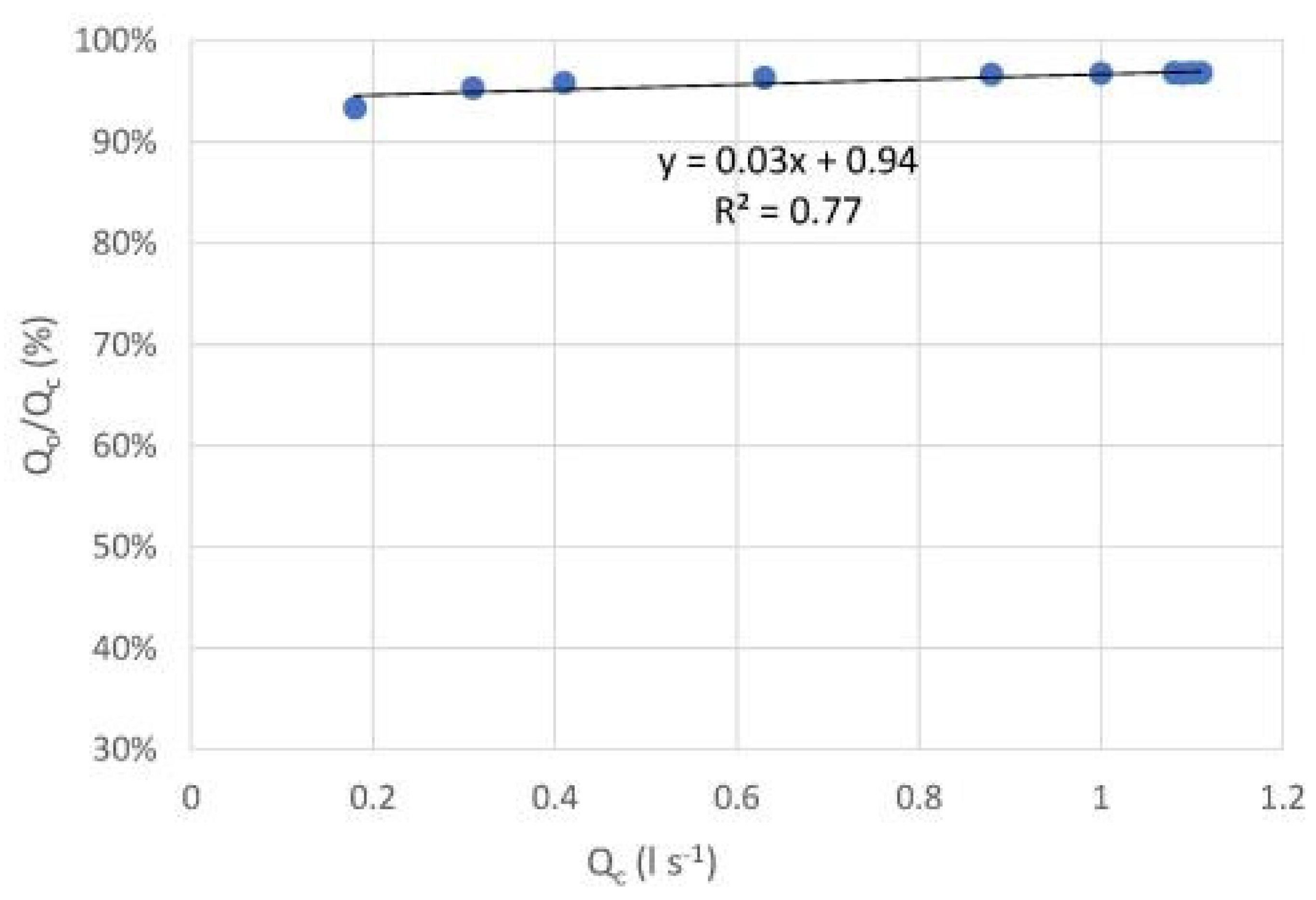

- One profile was measured—17.05 m b.g.l.;
- Eleven different flow rates Qc were set, from 0.18 l/s to 1.11 l/s.
- Two profiles were measured—11.75 m b.g.l. and 15.75 m b.g.l.
- In each profile, 13 different flow rates Qc were set, from 0.1 l/s to 0.8 l/s.

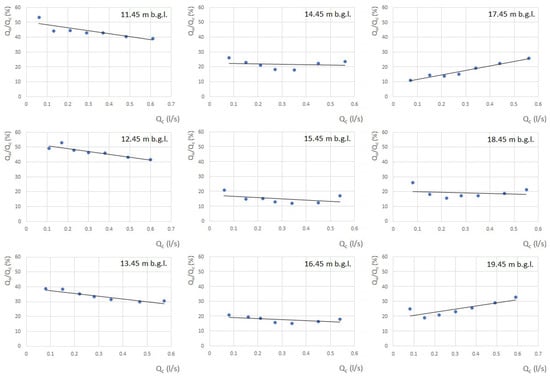

- Nine profiles were measured, from 11.45 m b.g.l. to 19.45 m b.g.l.
- In each of the profiles, seven different flow rates Qc were set, from 0.06 l/s to 0.61 l/s.

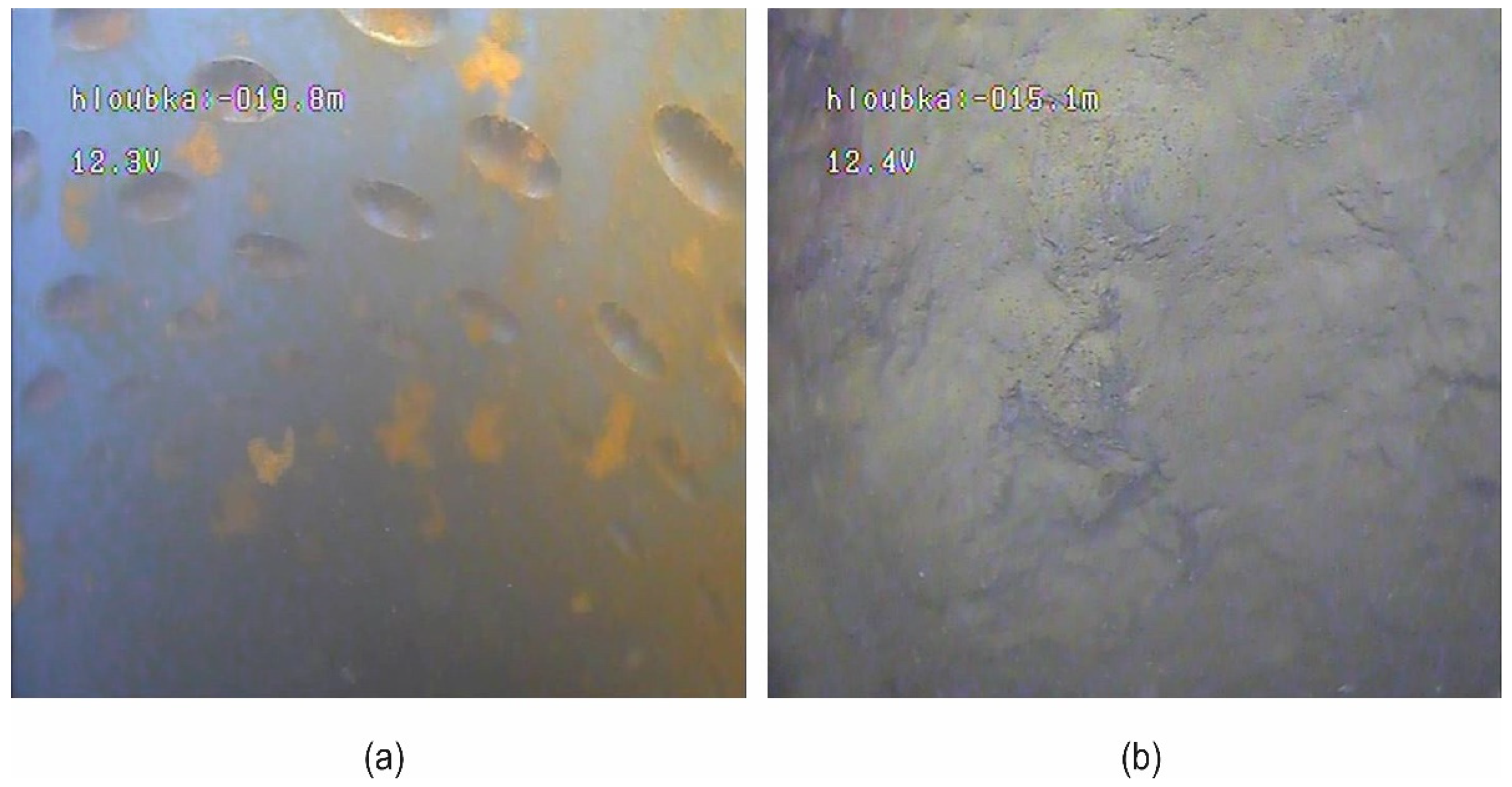

- According to the logging measurements , the water inflow from the surrounding aquifer was zero (Qin = 0) in the entire measured profile, mainly due to a high degree of clogging and incrustation of the well. Logging measurements showed only an upward flow of groundwater in the extraction well.
- Three pressure sensors were attached to the INV-FLOW apparatus to check the correct installation and operation of the apparatus. One sensor was located above the upper pneumatic packer, one in the space between the two packers near the pump, and the third below the lower pneumatic packer.
3. Results and Discussion
3.1. Laboratory Experiments

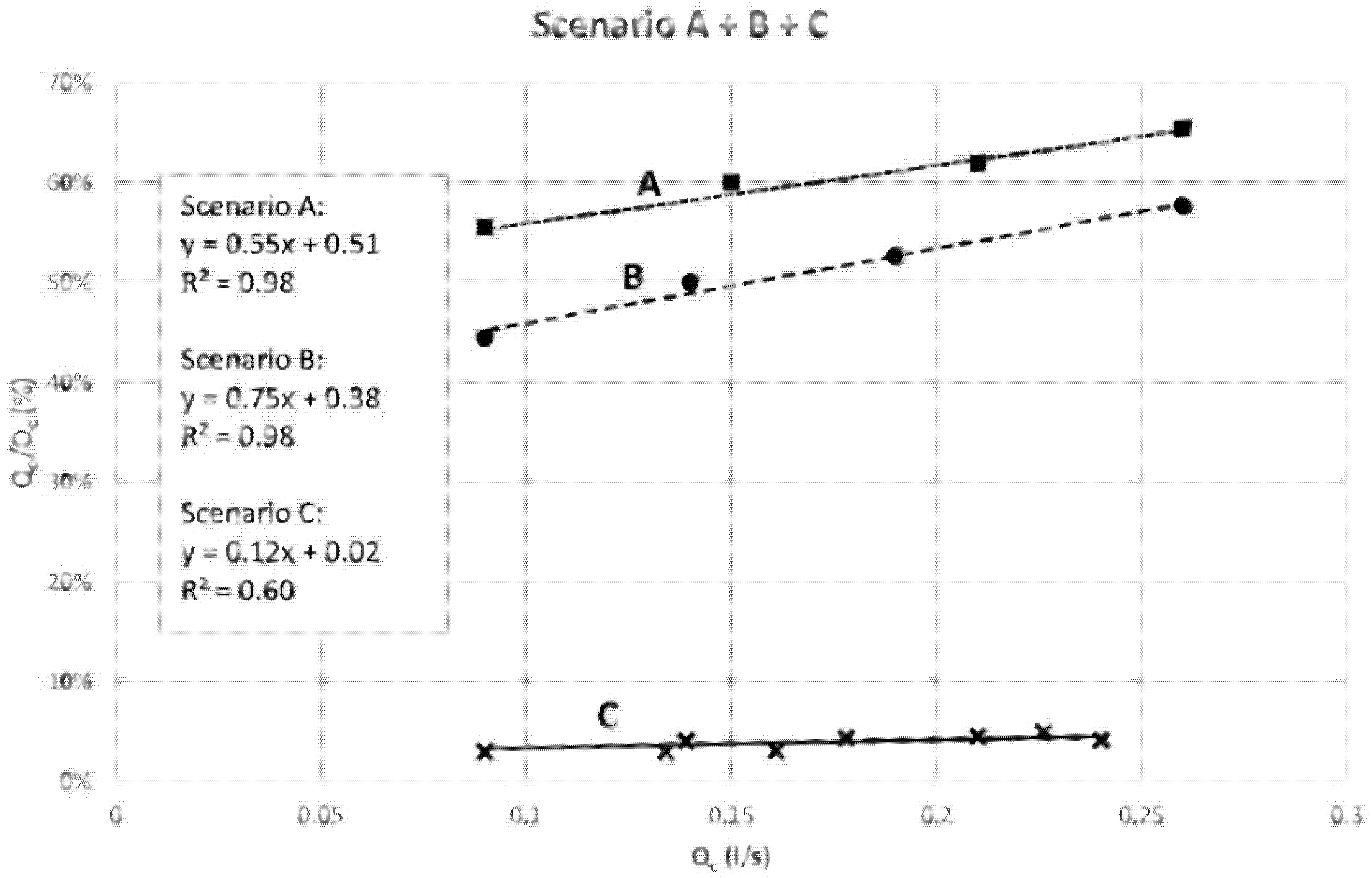

3.1.1. Scenario A
3.1.2. Scenario B
3.1.3. Scenario C
3.2. Pilot Test Experiments
3.2.1. Pilot Tests Carried Out on 2 July 2020: HJ-4 Extraction Well

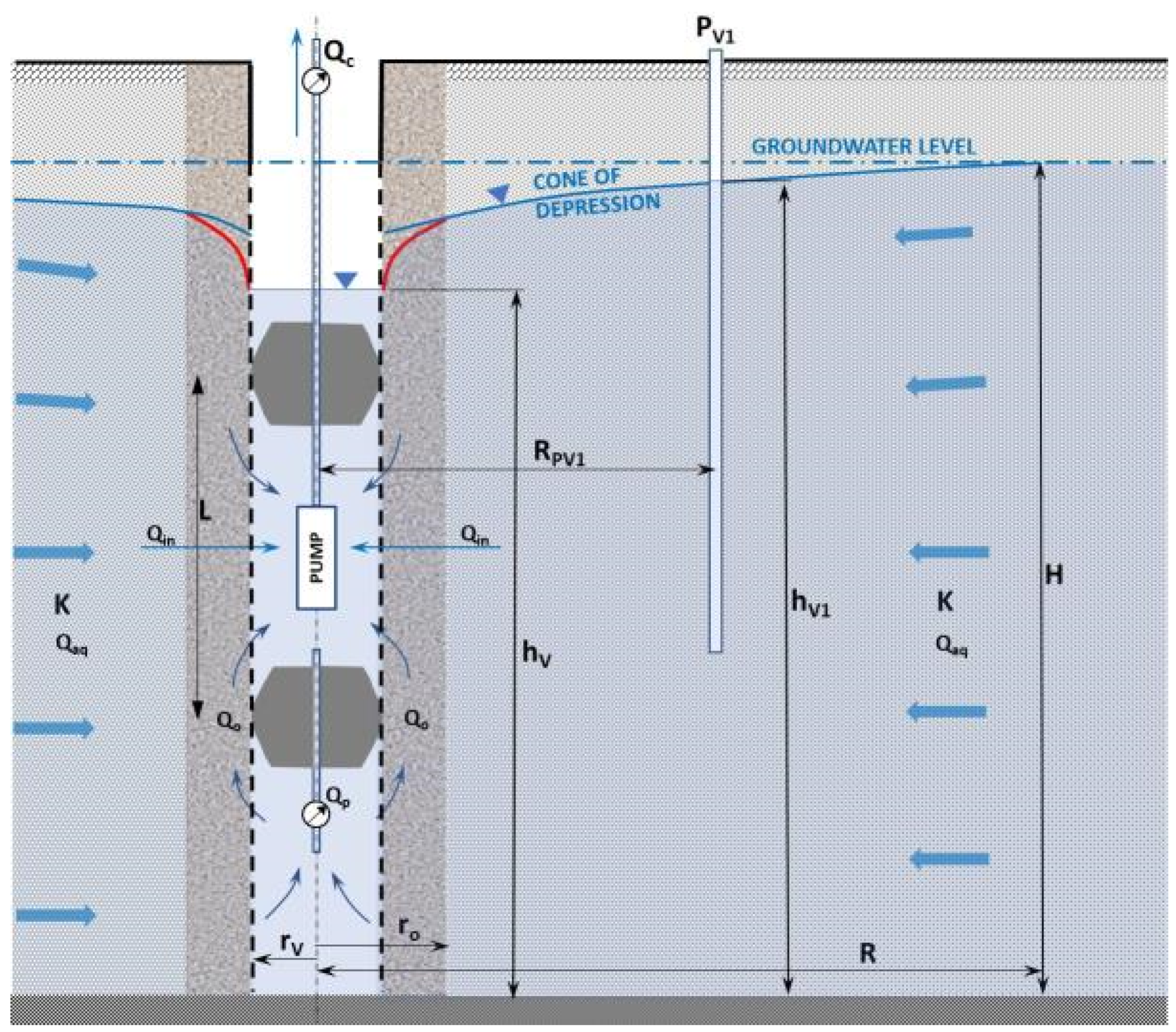

- Hydraulic conductivity of the aquifer in the surroundings of the HJ-4 extraction well: K = 1.75 × 10−6 m/s (Table 3);
- Radius of the HJ-4 casing: rv = 0.0875 m (Figure 2);
- Distance between the observation well (HJ-3) and the pumped extraction well (HJ-4): RPV1 = 20 m (Figure 2);
- Distance between pneumatic packers: L = 2.1 m (Figure 2);
- The thickness of the aquifer in the measured extraction well HJ-4 at the maximum pumping Qc = 1.11 l/s: hV = 49.1 m (the aquifer was calculated by subtracting the measured groundwater level in the extraction well HJ-4, 4.9 m b.g.l., from the total depth of the extraction well HJ-4 that reaches the base of the aquifer, 54 m b.g.l.);
- Aquifer thickness in the observation well HJ-3 at the maximum pumping Qc = 1.11 l/s: hV1 = 50.31 m (the aquifer thickness was calculated by subtracting the measured groundwater level in the HJ-3 observation well, 3.69 m b.g.l., from the total depth of the HJ-4 extraction well that reaches the aquifer base, 54 m b.g.l.); due to the small distance between extraction well HJ-4 and observation well HJ-3, the base of the aquifer can be considered to be approximately the same depth.

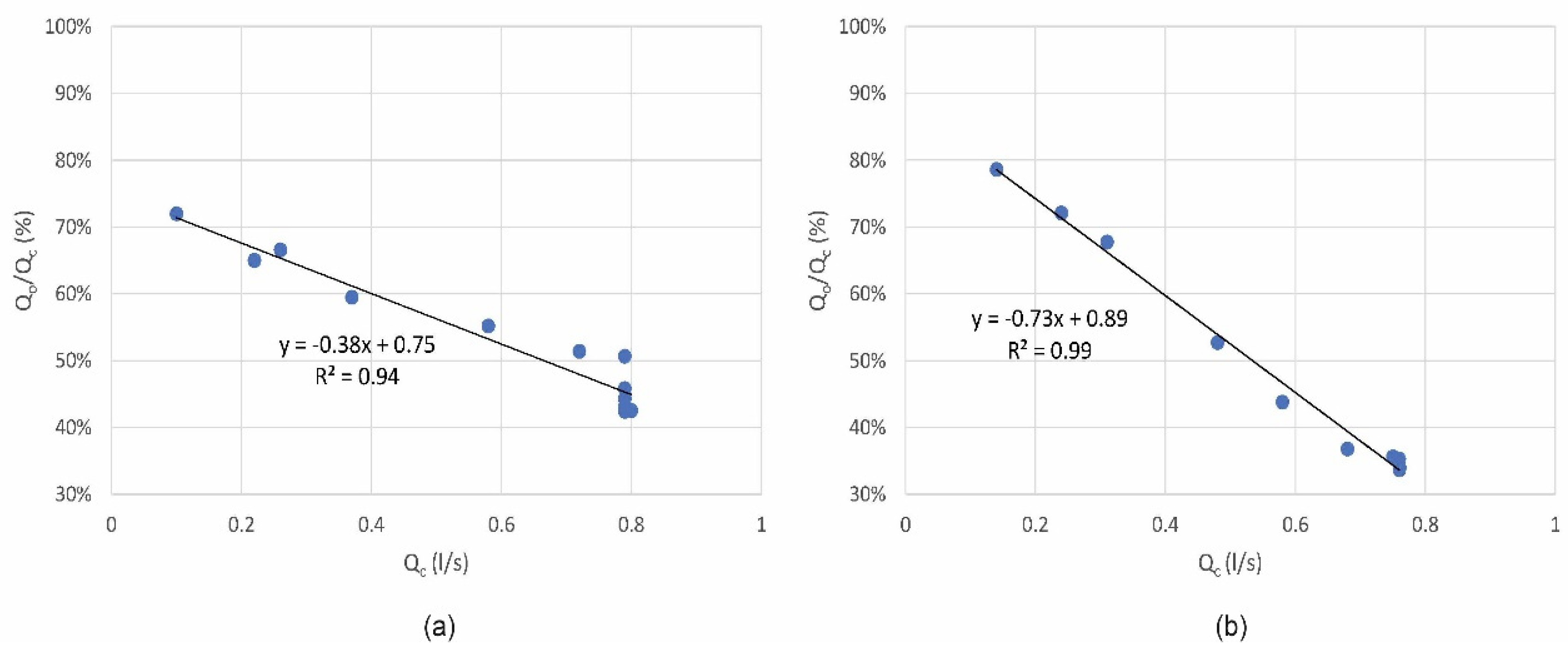

3.2.2. Pilot Tests Carried Out on 2 July 2020: HJ-3 Extraction Well

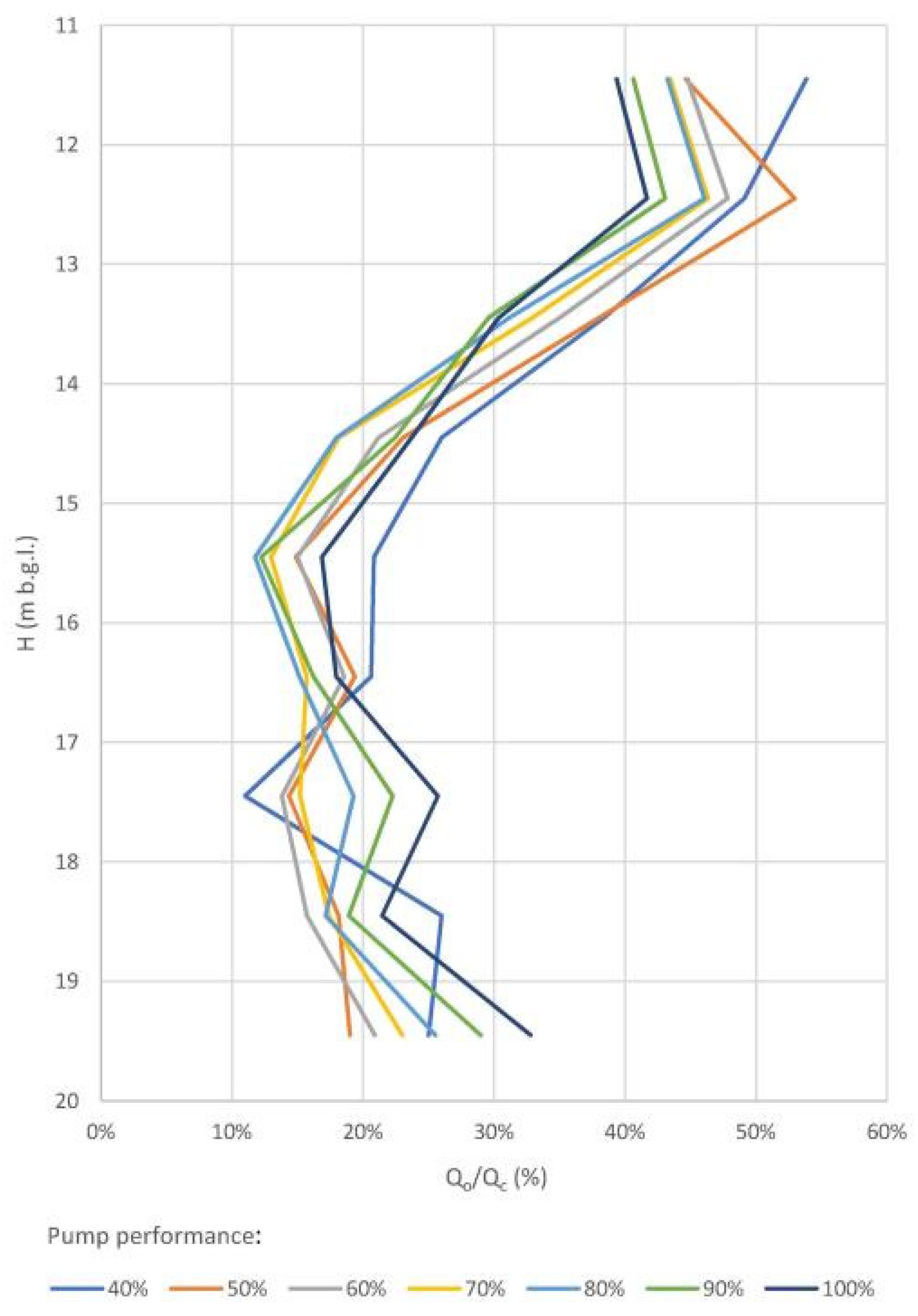

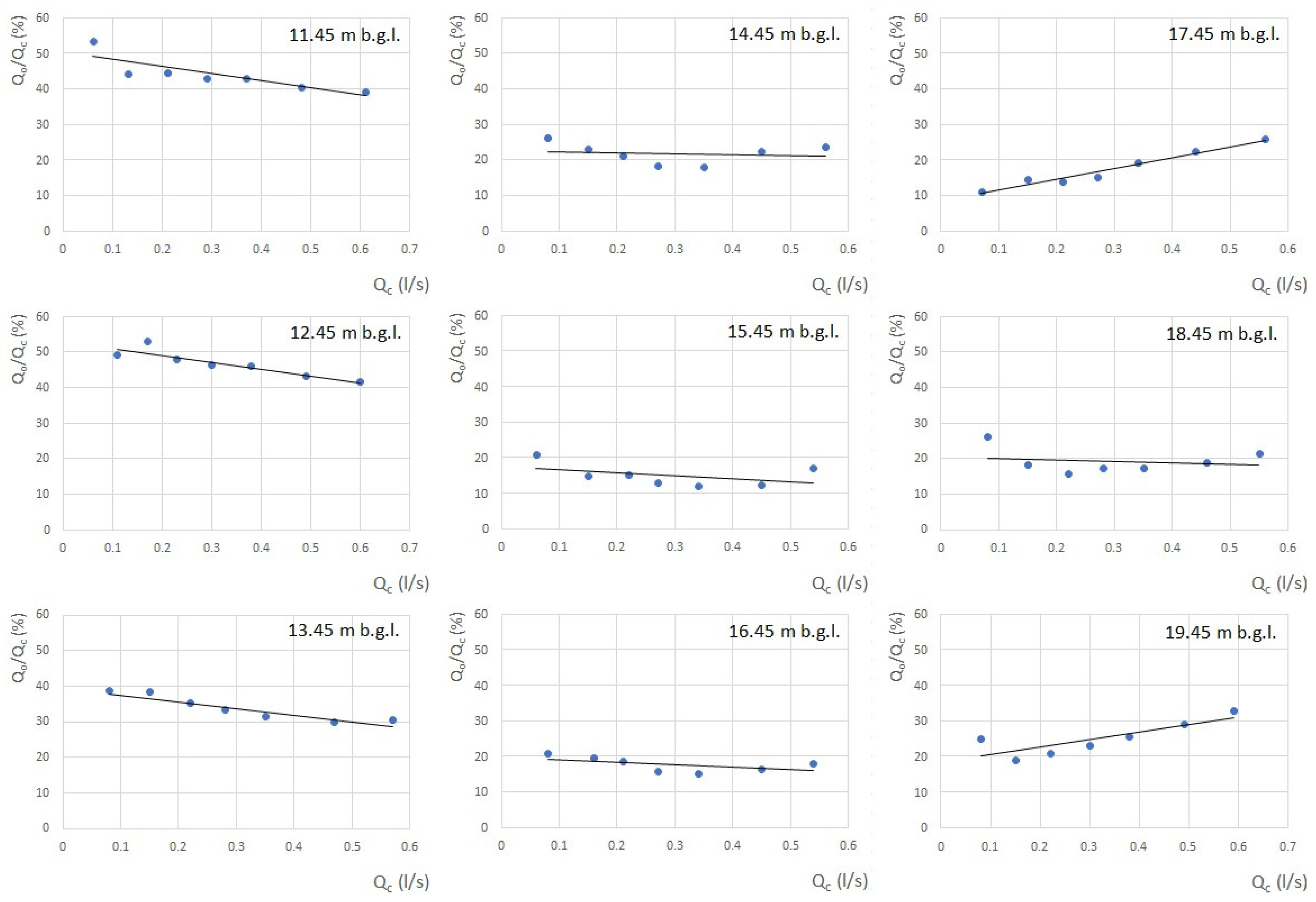

3.2.3. Pilot Tests Carried Out on 28 July 2020: HJ-3 Extraction Well
