Making Waves: Zero Liquid Discharge for Sustainable Industrial Effluent Management

Key Laboratory for City Cluster Environmental Safety and Green Development of the Ministry of Education, Institute of Environmental and Ecological Engineering, Guangdong University of Technology, Guangzhou 510006, China
School of Environmental Science and Engineering, Guangdong University of Technology, Guangzhou 510006, China
UNSW Water Research Centre, School of Civil and Environmental Engineering, University of New South Wales, Sydney, NSW 2052, Australia
Global Centre for Environmental Remediation, Faculty of Science, The University of Newcastle, Newcastle, NSW 2308, Australia
Shanghai Municipal Engineering Design Institute Group Co., Ltd., Shanghai 200092, China
Yangtze Eco-Environment Engineering Research Center (Shanghai), China Three Georges Co., Shanghai 200335, China
Author to whom correspondence should be addressed.
Water 2021, 13(20), 2852;
Received: 15 September 2021 / Revised: 11 October 2021 / Accepted: 11 October 2021 / Published: 13 October 2021
(This article belongs to the Special Issue Advanced Technologies for Sustainable Water Treatment)


Zero liquid discharge (ZLD) aims to minimize liquid waste generation whilst extend water supply, and this industrial strategy has attracted renewed interest worldwide in recent years. In spite of the advantages such as reduced water pollution and resource recovery from waste, there are several challenges to overcome prior to wider applications of ZLD. This study will examine the main processes involved in ZLD, and analyze their limitations and potential solutions. This study also differs from past reviews on the subject, by providing a summary of the challenges that were found light of in prevalent studies. To fulfill the sustainable vision, future research that can bridge the gap between the theoretical study and industrial practice is highlighted.

1. Introduction

The development of society and the bloom of industrial production, which consume a large number of raw materials [1], is placing increasing pressure on freshwater resources worldwide. According to the data from the Commission for Environmental Cooperation, low-income countries use 8% of their water for industrial use, while this number goes up to 59% in high-income countries [2]. The discharge of industrial effluent wastewater has posed threats to the environment and human health. To achieve a win-win situation of water conservation and pollution control, reclamation of the industrial effluents is attracting the attention from academic and industrial communities, with zero liquid discharge (ZLD) technologies that conform to this standpoint rising [3,4].
ZLD aims at eliminating any liquid waste leaving the plant or facility boundary, with the majority of water being recovered for reuse [3]. Nevertheless, this ambitious strategy has long been criticized by the high capital cost and intensive energy input because of the huge gap in the quality between the industrial effluent and reclaimed water for non-potable or recreational purposes [5]. Industrial effluents always contain various kinds of salts and refractory organic pollutants at elevated concentrations. While traditional wastewater treatment technologies such as coagulation and biological processes may contribute to decontamination, advanced treatment units are required to refine the treated water to meet the criteria for ZLD. Recent progress in reverse-osmosis (RO) has highlighted the viability of ZLD in the management of industrial effluent as compared to the early systems based on stand-alone thermal processes [4,6], and continuous innovation of technologies such as electrochemical and novel membrane-based processes provides opportunities to expand the applicability of ZLD at a reduced energy cost [7,8]. In 2020, the global ZLD market size has registered 6.37 billion USD, which is projected to reach 11.77 billion USD in 2028 [9]. The huge demand in chemical and petrochemical industries is one of the major factors driving ZLD market growth. Key players profiled in this field include GE Water & Process Technologies, Veolia Water Technologies, Aquatech International LLC, etc.
This article therefore aims to underscore the critical processes/units for ZLD deployment in sustainable industrial effluent management and to discuss the challenges that result from the mismatch between current research and demand in industrial applications. On the basis of the analyses, perspectives to facilitate the future research of industrial ZLD processes are provided.

2. Abatement of Organic Pollutants in ZLD

Abatement of organic pollutants was not an emphasis in early stage of ZLD as the industrial practice was mainly confined to the cooling system, in which the blowdown stream contains high hardness and total dissolved solids (TDS) but little organics [10]. More recently, the wastewater from core production and auxiliary units as well as domestic use has been included in the ZLD process. The dilute organic wastewater (e.g., streams from domestic use) is sent to a biological treatment system prior to the ZLD system while organic recovery and/or primary treatment units [11] would be first implemented if the feed contains organics of high concentrations. Taking coal chemical industry, an emerging niche for ZLD application, as an example, the organic wastewater contributes to 40–60% of the total [10], resulting in the installed capacity of a biological treatment system being around half that of a ZLD system. It should be noted that the biological treatment system is always termed “pretreatment unit”, which is excluded from a water reuse and ZLD system (Figure 1).
Biological processes such as activated sludge [12], biological aerated filter [13], and moving bed biofilm reactor [14] are widely used to remove the biodegradable organics from the industrial wastewater. While the effluent quality can be further improved via the integration of microfiltration and ultrafiltration in biological processes [15], the residual low molecular weight neutrals in the permeate are among the principal drivers that cause fouling of the downstream ZLD systems. Chemical precipitation/coagulation that is implemented to remove hardness ions (Ca2+ and Mg2+) and silica (SiO2) has shown good performance in removing residual organics from the feed of ZLD systems [11]. Recent innovations in coagulation (e.g., electrocoagulation) potentially decrease the operating cost from USD 0.5/m3 to < USD 0.3/m3 at a lower volume of sludge yield though more research activities are needed to address the low removal of non-polar, micromolecular substances that exhibit low affinity with the metal (oxy)hydroxide precipitates [16]. Rational adsorbents (e.g., functionalized carbon materials to induce hydrophobic and electron donor–acceptor interactions) can remove organics that have low Taft σ* constants and high steric effects [17]. With regards to the trade-off between selectivity (e.g., binding energy > 200 kJ/mol) and ease of regeneration, there has been recent interest in developing low-cost adsorbents that have high adsorption capacity whilst can be used as fuel for final disposal (e.g., lignite activated coke) [18].
Compared to the coagulation and adsorption technologies that separate and concentrate the refractory organics in a waste stream, advanced oxidation processes (AOPs) involve the use of strong oxidants (e.g., hydroxyl radicals, OH) to break down organics, ideally to CO2 and H2O. The importance of AOP units in ZLD also relates to the abatement of organics in the brine from the high-pressure RO systems. Limitations in conventional pretreatment options (e.g., low biological activities in a hypersaline environment, and competitive adsorption of major ions) necessitate the use of AOPs in ZLD regime. The Fenton and Fenton-like processes that are based on the donation of electrons to H2O2 to produce OH can powerfully degrade refractory organics [12]. While the resultant coagulation by ferric (oxy)hydroxides is beneficial to removal of organics, the yield of chemical sludge is criticized. Ozonation is also widely used in degradation of organics in the brine with the mechanisms related to the direct oxidation by molecular O3 and indirect oxidation by OH that are produced upon O3 decay. The radical yield is boosted in the presence of H2O2 (i.e., peroxone) or catalysts (i.e., catalytic ozonation) [19]. Note that although reactive oxygen species are the main strong oxidants in Fenton and ozonation processes, the abundant Cl in the brine may induce the transformation of oxidants, resulting in the reactive chlorine species (ClO, Cl and Cl2•−) playing a more important role in abatement of organic pollutants [20].

3. Desalination and Water Recovery in ZLD

The core unit of a ZLD system may include multi-stage membrane processes (that are intended to recover water and to further concentrate the brine) followed by thermal treatment [12]. The feed of ZLD is typically treated by ultrafiltration (UF)/RO dual-membrane processes, in which UF is applied to decrease the turbidity and the sludge density index (SDI). A regular UF/RO dual-membrane system can recover 60–75% of the effluent from the pretreatment system, with the integration of a proprietary technology, high-efficiency RO (HERO), resulting in an overall water recovery > 90–95%. To alleviate fouling and scaling in the membrane system, the HERO process is operated at elevated pH with use of pretreatment such as softening, ion exchange and CO2 removal [21]. The final RO brine is then sent to evaporation and crystallization units (Figure 1). Mechanical vapor compression (MVC) is commonly used in thermal concentrators and crystallizers [3]. While MVC concentrators and crystallizers are reliable to treat final brines with much higher salinity (>250 g/L) and viscosity, they are energy intensive (up to 60 kWh/m3 of treated feedwater [22]) and require ongoing efforts to reduce the overall energy consumption in ZLD.
However, in addition to the membrane fouling/scaling concerns, the application of RO in ZLD is also constrained by an upper operating salinity range (70–75 g/L) due to hydraulic pressure limitations. Non hydraulic pressure-driven processes including electrodialysis/electrodialysis reversal (ED/EDR) and forward osmosis (FO) have been introduced to bridge the salinity gap between the RO brine and the feed of crystallizers [3]. To avoid the dilute loss when a low-salinity product water is produced from an electrolyzer, ED/EDR is used as a partial desalination process; that is, ED/EDR concentrates RO brine to a salinity of 100–200 g/L whilst EDR effluent is further desalinated by RO or partially blended with RO permeate to obtain desired product water [23]. Compared to ED/EDR that is driven by an electrical gradient, FO utilizes an osmotic pressure difference to attain water transport across a semipermeable membrane. A full-scale ZLD system installed at Changxing power plant in Zhejiang, China applies FO process (with use of NH3/CO2 as the thermolytic draw solute) to concentrate RO brine to >220 g/L [24], which is then fed to a crystallizer for final treatment. More recently, novel RO technologies that can overcome the hydraulic pressure limit of conventional RO are proposed, including osmotically assisted RO and low-salt-rejection RO [25]. These innovative technologies can highly concentrate industrial wastewaters under moderate operating pressures.

4. Challenges, Research Needs and Future Opportunities in ZLD

4.1. Are the Capital Expenditures (CAPEX) too High?

The CAPEX of pretreatment units for ZLD is inexpensive and is similar to that of wastewater treatment. The UF/RO dual-membrane systems can be more expensive as they are operated under conditions to yield higher water recovery. The biggest expense of ZLD is on the thermal treatment section, and it is estimated that the evaporation/crystallization block contributes to 60–70% of the total equipment cost [26]. While the CAPEX varies with the treatment options and fluctuation of the water quality, a ZLD system runs upwards of USD 0.1–1 million at a flow rate of 1 m3/h (at an influent TDS of ~5 g/L and water recovery of 90–95%) [27,28]. This is considerably cheaper compared to that of the stand-alone thermal processes; however, the affordability of ZLD (i.e., 2–5 times CAPEX of conventional wastewater processes) is still a key concern especially in developing countries. Innovative technologies may improve the treatment efficiency but not necessarily reduce the CAPEX; for example, while use of nanofiltration-type FO in ZLD would enjoy a higher water flux and selective recovery of valuable solutes from waste streams, the water and salt revenues are compromised by the additional CAPEX [28].

4.2. How to Improve the Removal of Organics from the RO Brine?

The RO brine that enters the membrane concentrators and thermal crystallizers should have a chemical oxygen demand (COD) concentration less than 50–100 mg/L [29]. In addition to the technical requirements, the presence of dissolved organic matter (that partially originate from the biological treatment process) would influence the color of the mixed solids. Catalytic ozonation is one of the most widely investigated AOP to address this issue in ZLD, and Fe-based catalysts with abundant surface Lewis acid sits have shown high efficiency in decomposition of aqueous ozone and production of hydroxyl radicals. While there have been recent studies on the oxidative species that likely account for organics degradation in RO brine [20], our knowledge of this process is not complete. For instance, Cl of a high concentration influences not only the speciation of reactive oxidants but also the adsorption of organic pollutants onto the surface, which is deemed as a prerequisite for catalytic ozonation. Although the use of catalysts with high adsorption capacities improves the selectivity, this may cause the accumulation of intermediates and finally deposition of carbon on the active sites. More frequent maintenance (e.g., chemical depassivation or replenishment of catalysts) would be required. This important issue has surprisingly received limited attention.

4.3. Salt/Ammonia Recovery: Resource or Waste?

Recovery of salts from RO brine is potentially profitable to reduce the operating cost. Several salts such as NaCl, CaCl2 and MgCl2 (with a commercial sale price ranging from 65–400 USD/ton) can be produced depending on the feed composition [6]. However, the salt products from ZLD that always have a low grade of purity (e.g., 90–95%) are not good candidates for chlor-alkali industrial production; for example, the hardness ions in NaCl need to be removed because an excess of Mg2+ causes hydrogen evolution on the electrode, leading to an explosive mixture of H2 and Cl2 [30]. While the solid waste (or hypersaline brine) can be refined with the implementation of high-throughput and precise-selective processes (e.g., NF membranes), this inevitably increases the CAPEX and whether the final salt products offer a competitive price is open to discussion. Likewise, ammonia recovery from industrial effluent has attracted increasing interest. Acids are widely applied as the draw solutions to extract ammonia in membrane stripping [31,32,33]. While the market price of a more popular material, aqueous ammonia solution (USD 300/ton at 25 wt%), is more expensive than (NH4)2SO4 (USD 150/ton, purity > 98%), the production of aqueous ammonia solution from industrial effluent is quite challenging [31].
To illustrate the under-representation of these important topics to the state-of-knowledge, we carried out an unofficial Web of Science Core Collection search of the literature on “Zero Liquid Discharge”, from 2000 to 2021 (Figure 2). Among the 914 published articles retrieved from the database, a vast majority of research in this area has focused on “Water recovery”, “Membranes” and “Energy cost”, and there is emerging interest on “Organic removal”, “Brine management” and “Salt recovery”. As aforementioned, research on these topics has promoted our mechanistic and system-level knowledge to develop smart and efficient ZLD processes. According to the authors, continuous studies would be devoted to improving the energy efficiency of the membrane and thermal systems. For example, novel membrane materials (e.g., omniphobic and Janus membranes [34]) and desalination processes (e.g., solar membrane distillation [35] and capacitive deionization [36]) have been recently suggested as new paradigms for ZLD.
Based on the surveyed literature, it is apparent that more work is required to address challenges: (1) development of AOPs for organic oxidation at high salinity, and (2) development of technologies to improve the purity of salts recovered. In this effort, electroactive membrane technology may meet the niche for superior selectivity and precise capture/conversion of target organic pollutants in a complex water matrix (e.g., high salinity) [37]. Our group has developed various electroactive membranes to remove refractory organics and chelated heavy metals [1,38,39]. Recycling brine waste salt for reuse requires specific chelating materials that target specific cations, thereby removing the undesired contaminants while preserving NaCl concentration in the brine. Moreover, only 29 and 17 articles in the search mentioned “Capital cost” and “Life cycle assessment (LCA)” respectively (Figure 2). While such economic and environmental analysis at bench scale may be not rigid [40], it would be a nice start towards practical evaluation of potential technologies in ZLD. In this effort, facility digital twins that mimic hydraulics, controls and water quality offer a flight simulator model to optimize the process design and to compare every life cycle stage under different scenarios.

5. Concluding Remarks

The growing worldwide population is a major driver boosting the industry water consumption in the past decade, and this trend is expected to continue in the following years. The gap between industrial water supply and demand leads to a need for ZLD that brings the idea of internal water recycling to fruition. Most existing ZLD systems reply on biological, membrane and thermal processes for pretreatment, concentration and evaporation and crystallization of industrial effluents, with an average water recovery of 90–95% registered.
A quick evaluation of the ZLD process in this study highlights the importance of development and implementation of organic abatement and desalination & salt recovery technologies to accomplish the goal. Moreover, a reprioritization of research should be considered as there is under-representation of (i) developing novel routines to produce high-quality salt products that are ready for reuse, (ii) oxidizing refractory organic pollutants in RO brine at a high selectivity and efficiency, and (iii) deploying economic and environmental-impact analyses that are essential for full-scale applications. Better understanding of these important issues will facilitate the commercialization of industrial ZLD processes towards a more sustainable future.

Author Contributions

Conceptualization, Y.L. and J.M.; investigation, X.L. and X.K.; resources, Q.D.; writing—original draft preparation, Y.L. and J.M.; writing—review and editing, P.W. and X.M.; project administration, J.M.; funding acquisition, J.M. All authors have read and agreed to the published version of the manuscript.


This work was financially supported by the Program for Guangdong Introducing Innovative and Entrepreneurial Teams, grant number 2019ZT08L213.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data in Figure 2 was obtained from Web of Science Core Collection and is available at (accessed on 13 September 2021) with the permission of Clarivate Analytics.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Li, J.; Ma, J.; Dai, R.; Wang, X.; Chen, M.; Waite, T.D.; Wang, Z. Self-enhanced decomplexation of Cu-organic complexes and Cu recovery from wastewaters using an electrochemical membrane filtration system. Environ. Sci. Technol. 2021, 55, 655–664. [Google Scholar] [CrossRef] [PubMed]
  2. Ritchie, H.; Roser, M. Water use and stress, Our World in Data. 2017. Published online at Available online: (accessed on 4 September 2021).
  3. Tong, T.; Elimelech, M. The global rise of zero liquid discharge for wastewater management: Drivers, technologies, and future directions. Environ. Sci. Technol. 2016, 50, 6846–6855. [Google Scholar] [CrossRef]
  4. Yaqub, M.; Lee, W. Zero-liquid discharge (ZLD) technology for resource recovery from wastewater: A review. Sci. Total. Environ. 2019, 681, 551–563. [Google Scholar] [CrossRef] [PubMed]
  5. Mukherjee, M.; Jensen, O. Making water reuse safe: A comparative analysis of the development of regulation and technology uptake in the US and Australia. Saf. Sci. 2020, 121, 5–14. [Google Scholar] [CrossRef]
  6. Panagopoulos, A.; Haralambous, K.-J. Minimal liquid discharge (MLD) and zero liquid discharge (ZLD) strategies for wastewater management and resource recovery—Analysis, challenges and prospects. J. Environ. Chem. Eng. 2020, 8, 104418. [Google Scholar] [CrossRef]
  7. Zhang, C.; Ma, J.; Wu, L.; Sun, J.; Wang, L.; Li, T.; Waite, T.D. Flow electrode capacitive deionization (FCDI): Recent develop-ments, environmental applications, and future perspectives. Environ. Sci. Technol. 2021, 55, 4243–4267. [Google Scholar] [CrossRef] [PubMed]
  8. Liu, Y.; Liu, F.; Ding, N.; Hu, X.; Shen, C.; Li, F.; Huang, M.; Wang, Z.; Sand, W.; Wang, C.-C. Recent advances on electroactive CNT-based membranes for environmental applications: The perfect match of electrochemistry and membrane separation. Chin. Chem. Lett. 2020, 31, 2539–2548. [Google Scholar] [CrossRef]
  9. Research and Markets, Zero Liquid Discharge Systems Market Size, Share & Analysis, by System, by Technology, and by End-Use, and by Region, Forecast 2018–2028. Available online: (accessed on 4 September 2021).
  10. Xiong, R.; Wei, C. Current status and technology trends of zero liquid discharge at coal chemical industry in China. J. Water Process. Eng. 2017, 19, 346–351. [Google Scholar] [CrossRef]
  11. Mohammadtabar, F.; Khorshidi, B.; Hayatbakhsh, A.; Sadrzadeh, M. Integrated coagulation-membrane processes with zero liquid discharge (ZLD) configuration for the treatment of oil sands produced water. Water 2019, 11, 1348. [Google Scholar] [CrossRef][Green Version]
  12. Semblante, G.U.; Lee, J.Z.; Lee, L.Y.; Ong, S.L.; Ng, H.Y. Brine pre-treatment technologies for zero liquid discharge systems. Desalination 2018, 441, 96–111. [Google Scholar] [CrossRef]
  13. Wu, Q.; Li, W.-T.; Yu, W.-H.; Li, Y.; Li, A.-M. Removal of fluorescent dissolved organic matter in biologically treated textile wastewater by ozonation-biological aerated filter. J. Taiwan Inst. Chem. Eng. 2016, 59, 359–364. [Google Scholar] [CrossRef]
  14. Gupta, S.K.; Gupta, S. Closed loop value chain to achieve sustainable solution for tannery effluent. J. Clean. Prod. 2018, 213, 845–846. [Google Scholar] [CrossRef]
  15. Lin, H.; Gao, W.; Meng, F.; Liao, B.-Q.; Leung, K.-T.; Zhao, L.; Chen, J.; Hong, H. Membrane bioreactors for industrial wastewater Treatment: A critical review. Crit. Rev. Environ. Sci. Technol. 2012, 42, 677–740. [Google Scholar] [CrossRef]
  16. Haberkamp, J.; Ruhl, A.S.; Ernst, M.; Jekel, M. Impact of coagulation and adsorption on DOC fractions of secondary effluent and resulting fouling behaviour in ultrafiltration. Water Res. 2007, 41, 3794–3802. [Google Scholar] [CrossRef] [PubMed]
  17. Breitner, L.N.; Howe, K.J.; Minakata, D. Effect of functional chemistry on the rejection of low-molecular weight neutral organics through reverse osmosis membranes for potable reuse. Environ. Sci. Technol. 2019, 53, 11401–11409. [Google Scholar] [CrossRef] [PubMed]
  18. Zhang, C.; Li, J.; Chen, Z.; Cheng, F. Factors controlling adsorption of recalcitrant organic contaminant from bio-treated coking wastewater using lignite activated coke and coal tar-derived activated carbon. J. Chem. Technol. Biotechnol. 2017, 93, 112–120. [Google Scholar] [CrossRef]
  19. Yuan, Y.; Xing, G.; Garg, S.; Ma, J.; Kong, X.; Dai, P.; Waite, T.D. Mechanistic insights into the catalytic ozonation process using iron oxide-impregnated activated carbon. Water Res. 2020, 177, 115785. [Google Scholar] [CrossRef]
  20. Liu, Z.-Q.; Huang, C.; Li, J.-Y.; Yang, J.; Qu, B.; Yang, S.-Q.; Cui, Y.-H.; Yan, Y.; Sun, S.; Wu, X. Activated carbon catalytic ozona-tion of reverse osmosis concentrate after coagulation pretreatment from coal gasification wastewater reclamation for zero liq-uid discharge. J. Clean. Prod. 2021, 286, 124951. [Google Scholar] [CrossRef]
  21. Mukhopadhyay, D. Method and Apparatus for High Efficiency Reverse Osmosis Operation, 1997. U.S. Patent No. 09/242,249. U.S. Patent and Trademark Office. Available online: (accessed on 8 September 2021).
  22. Mickley, M. Survey of High-Recovery and Zero Liquid Discharge Technologies for Water Utilities, WateReuse Foundation 2008. Available online: (accessed on 8 September 2021).
  23. Loganathan, K.; Chelme-Ayala, P.; El-Din, M.G. Treatment of basal water using a hybrid electrodialysis reversal–reverse osmosis system combined with a low-temperature crystallizer for near-zero liquid discharge. Desalination 2015, 363, 92–98. [Google Scholar] [CrossRef]
  24. Oasys Water Inc. Changxing Power Plant Debuts the World’s First Forward Osmosis-Based Zero Liquid Discharge Applica-tion. Available online: (accessed on 9 September 2021).
  25. Wang, Z.; Feng, D.; Chen, Y.; He, D.; Elimelech, M. Comparison of energy consumption of osmotically assisted reverse osmosis and low-salt-rejection reverse osmosis for brine management. Environ. Sci. Technol. 2021, 55, 10714–10723. [Google Scholar] [CrossRef]
  26. SAMCO. How much Will a Zero Liquid Discharge System Cost Your Facility. Available online: (accessed on 9 September 2021).
  27. Othman, Z.A.; Linke, P.; Elhalwagi, M.M. A Systematic Approach for Targeting Zero Liquid Discharge in Industrial Parks. In Computer Aided Chemical Engineering; Elsevier BV: Amsterdam, The Netherlands, 2015; pp. 887–892. [Google Scholar]
  28. Mark, P. Improved Resource Recovery from Zero Liquid Discharge (ZLD) Processes Using Novel Forward Osmosis (FO) Membranes, Smart Water & Waste World, Shailesh Ramaswamy Iyer. 2019, pp. 32–33. Available online: (accessed on 10 September 2021).
  29. Cui, P.; Qian, Y.; Yang, S. New water treatment index system toward zero liquid discharge for sustainable coal chemical processes. ACS Sustain. Chem. Eng. 2018, 6, 1370–1378. [Google Scholar] [CrossRef]
  30. Garcia-Herrero, I.; Margallo, M.; Onandía, R.; Aldaco, R.; Irabien, A. Connecting wastes to resources for clean technologies in the chlor-alkali industry: A life cycle approach. Clean Technol. Environ. Policy. 2018, 20, 229–242. [Google Scholar] [CrossRef][Green Version]
  31. Zhang, C.; Ma, J.; Waite, T.D. The impact of absorbents on ammonia recovery in a capacitive membrane stripping system. Chem. Eng. J. 2020, 382, 122851. [Google Scholar] [CrossRef]
  32. Zhang, C.; Ma, J.; He, D.; Waite, T.D. Capacitive membrane stripping for ammonia recovery (CapAmm) from dilute wastewaters. Environ. Sci. Technol. Lett. 2017, 5, 43–49. [Google Scholar] [CrossRef]
  33. Zhang, C.; Ma, J.; Song, J.; He, C.; Waite, T.D. Continuous ammonia recovery from wastewaters using an integrated capacitive flow electrode membrane stripping system. Environ. Sci. Technol. 2018, 52, 14275–14285. [Google Scholar] [CrossRef] [PubMed]
  34. Yang, H.C.; Xie, Y.; Hou, J.; Cheetham, A.K.; Chen, V.; Darling, S.B. Janus membranes: Creating asymmetry for energy efficiency. Adv. Mater. 2018, 30, 1801495. [Google Scholar] [CrossRef]
  35. Dongare, P.; Alabastri, A.; Pedersen, S.; Zodrow, K.R.; Hogan, N.J.; Neumann, O.; Wu, J.; Wang, T.; Deshmukh, A.; Elimelech, M.; et al. Nanophotonics-enabled solar membrane distillation for off-grid water purification. Proc. Natl. Acad. Sci. USA 2017, 114, 6936–6941. [Google Scholar] [CrossRef][Green Version]
  36. Ma, J.; Ma, J.; Zhang, C.; Song, J.; Dong, W.; Waite, T.D. Flow-electrode capacitive deionization (FCDI) scale-up using a membrane stack configuration. Water Res. 2020, 168, 115186. [Google Scholar] [CrossRef]
  37. Liu, Y.; Gao, G.; Vecitis, C.D. Prospects of an Electroactive Carbon Nanotube Membrane toward Environmental Applications. Accounts Chem. Res. 2020, 53, 2892–2902. [Google Scholar] [CrossRef]
  38. Zheng, J.; Wang, Z.; Ma, J.; Xu, S.; Wu, Z. Development of an electrochemical ceramic membrane filtration system for efficient contaminant removal from waters. Environ. Sci. Technol. 2018, 52, 4117–4126. [Google Scholar] [CrossRef]
  39. Zheng, J.; Ma, J.; Wang, Z.; Xu, S.; Waite, T.D.; Wu, Z. Contaminant removal from source waters using cathodic electrochemical membrane filtration: Mechanisms and implications. Environ. Sci. Technol. 2017, 51, 2757–2765. [Google Scholar] [CrossRef] [PubMed]
  40. Chaplin, B.P. The prospect of electrochemical technologies advancing worldwide water treatment. Accounts Chem. Res. 2019, 52, 596–604. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Typical processes to achieve zero liquid discharge (ZLD) in management of industrial effluent.
Figure 1. Typical processes to achieve zero liquid discharge (ZLD) in management of industrial effluent.
Water 13 02852 g001

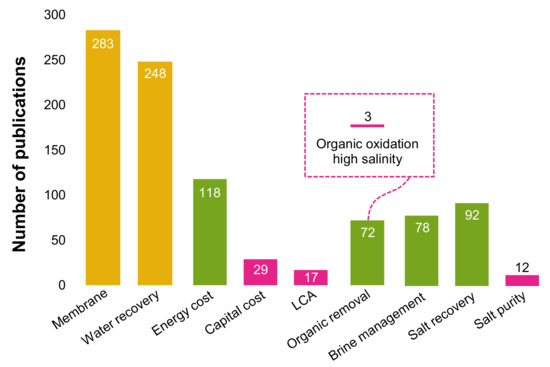

Figure 2. Literature survey of articles (Web of Science Core Collection) in topics related to “Zero liquid discharge” from 2000 to 2021 (search date: 13 September 2021).
Figure 2. Literature survey of articles (Web of Science Core Collection) in topics related to “Zero liquid discharge” from 2000 to 2021 (search date: 13 September 2021).
Water 13 02852 g002
