Article

Evaluating the Potential Hydrological Performance of a Bioretention Media with 100% Recycled Waste Components

1
Department of Civil & Structural Engineering, The University of Sheffield, Sir Frederick Mappin Building, Mappin Street, Sheffield S1 3JD, UK
2
School of Engineering, Newcastle University, Newcastle-upon-Tyne NE1 7RU, UK
3
National Green Infrastructure Facility, Newcastle-upon-Tyne NE4 5TG, UK
4
Department of Animal and Plant Sciences, The University of Sheffield, Alfred Denny Building, Western Bank, Sheffield S10 2TN, UK
*
Author to whom correspondence should be addressed.
Academic Editors: Gislain Lipeme Kouyi and Christian Berretta
Water 2021, 13(15), 2014; https://doi.org/10.3390/w13152014
Received: 25 June 2021 / Revised: 16 July 2021 / Accepted: 21 July 2021 / Published: 23 July 2021

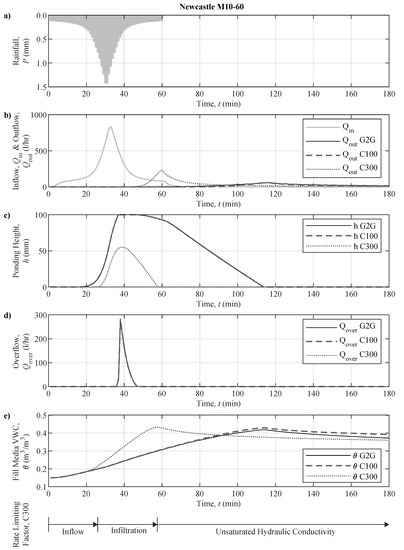

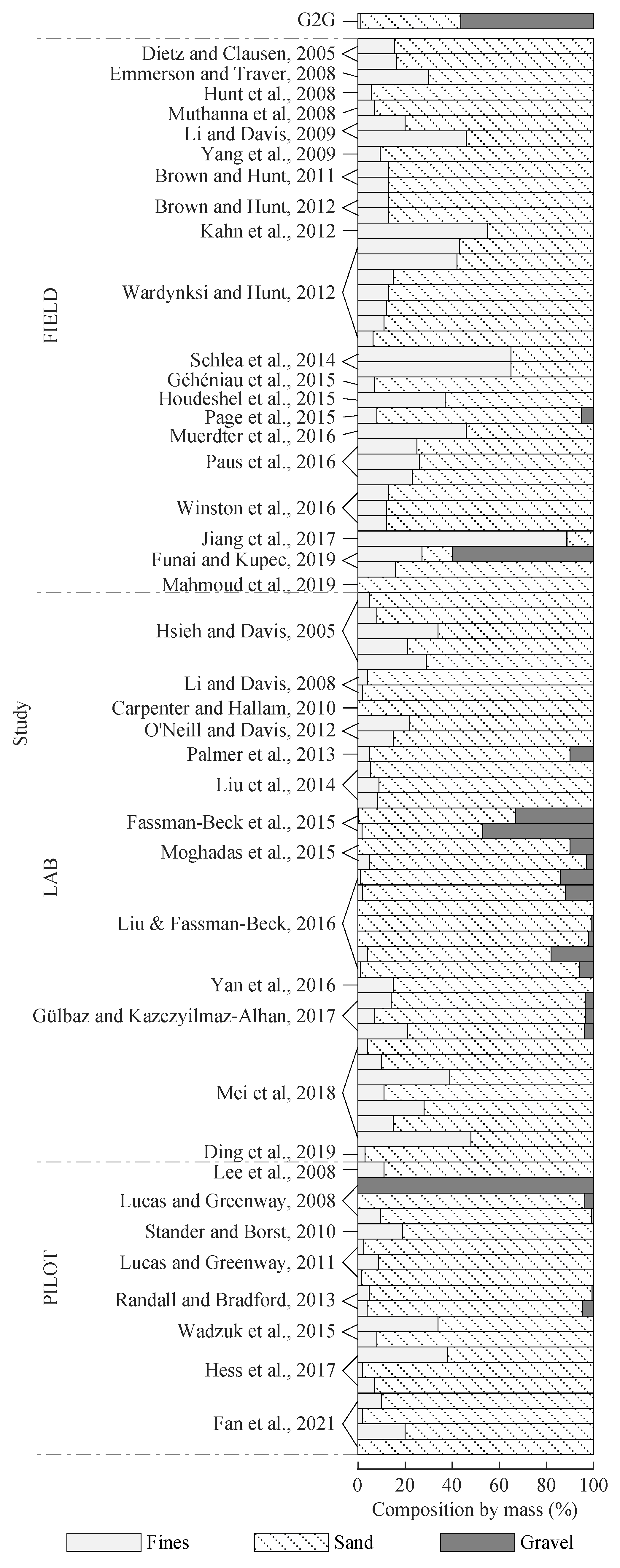

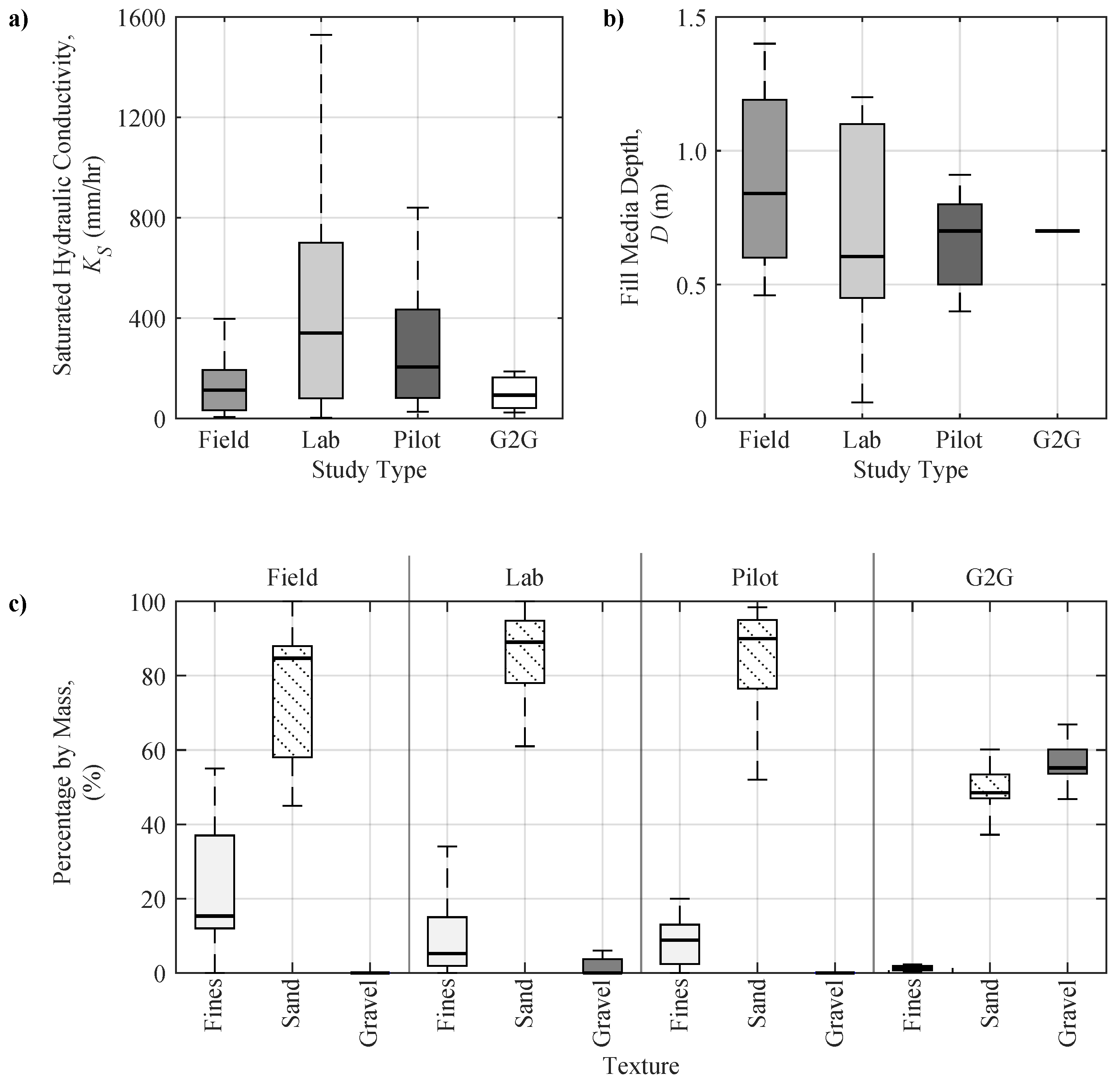

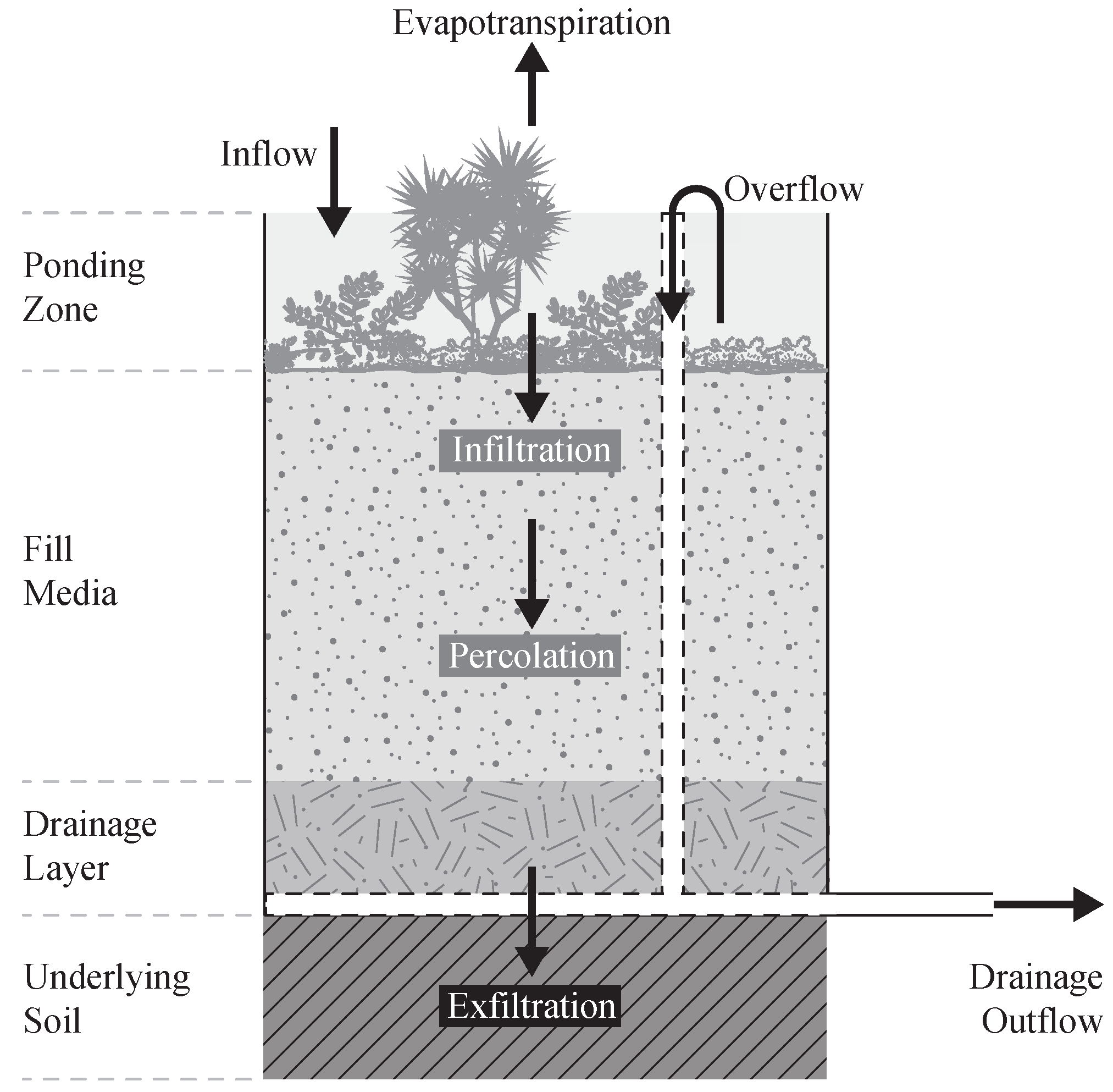

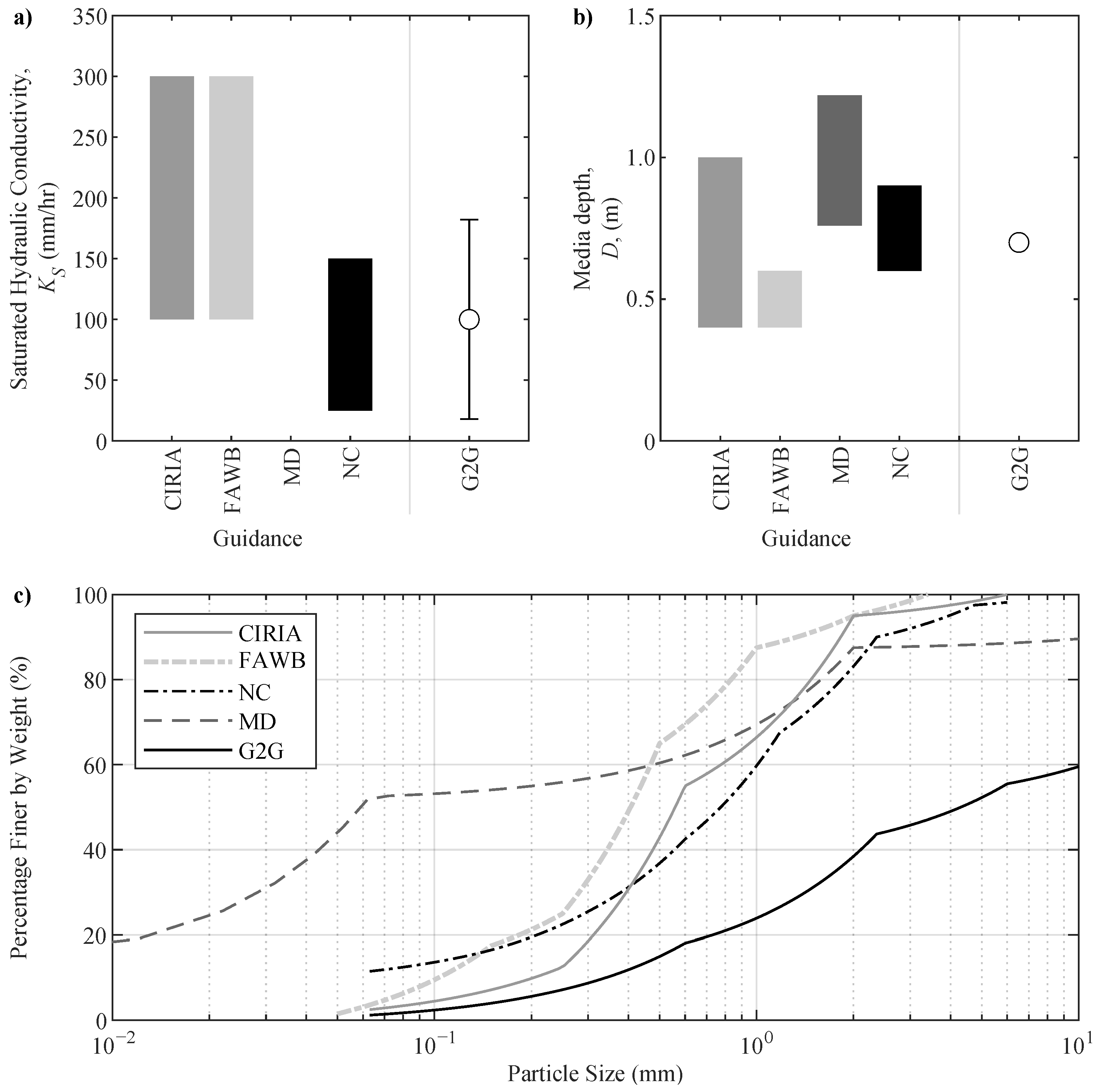

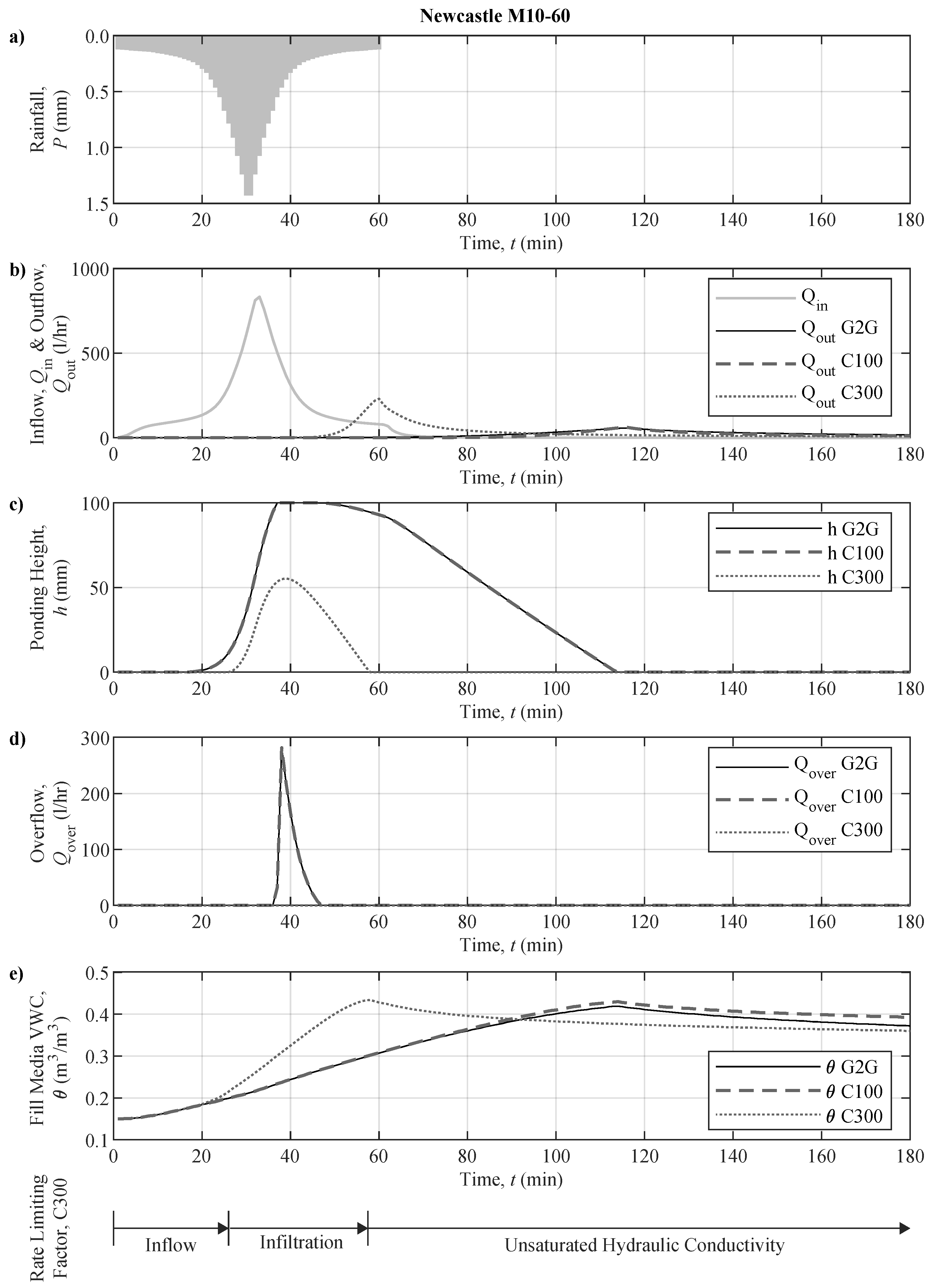

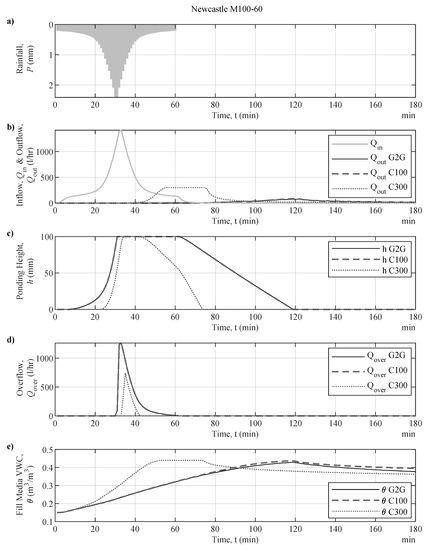

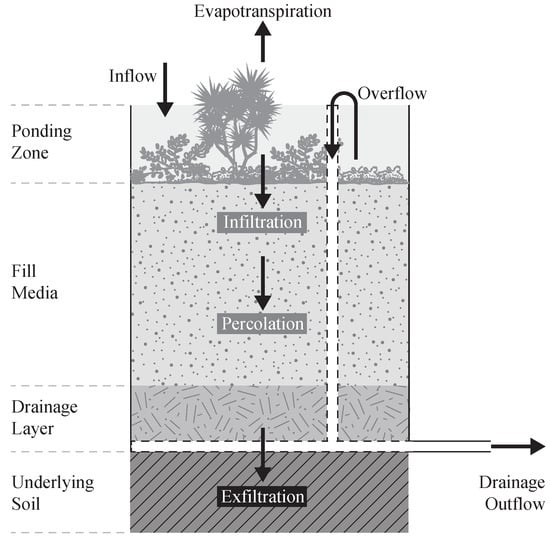

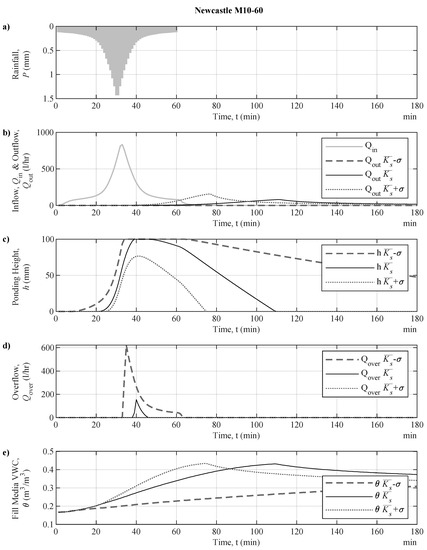

Bioretention systems are a popular type of Sustainable Drainage System (SuDS). However, their largest single component, the fill media, is often a non-sustainably sourced material. This study evaluates a bioretention fill media comprising 100% recycled waste components. The fill media components come from multiple waste streams, quarry waste from the construction sector, crushed glass and green waste compost from domestic waste, and sugar-beet washings from the food processing sector. The hydraulically important physical characteristics of the recycled fill media were evaluated against reported literature examples of bioretention fill media, alongside UK and international guidance documentation. The particle size distribution of the recycled fill media was found to be unlike that seen in the literature and was also not compliant with the UK’s CIRIA ’The SuDS Manual’ guidance (d6 mm = 45% vs. 0% target). However, this did not result in any additional non-compliance, with laboratory-derived saturated hydraulic conductivity (Ks=101 mm/h) and porosity (ϕ=44%) within recommended ranges (100Ks300 mm/h, ϕ>30%). SWMM was used to predict the performance of a bioretention system installed with the recycled fill media compared to UK guidance configured systems. It was found that the recycled fill media would have similar performance to a UK guidance compliant system, irrespective of its particle size distribution. Further work is required to validate the predicted performance of the recycled media. View Full-Text
Keywords: bioretention; hydrological performance; growing media; recycled waste; physical characteristics bioretention; hydrological performance; growing media; recycled waste; physical characteristics
Show Figures

Figure 1
