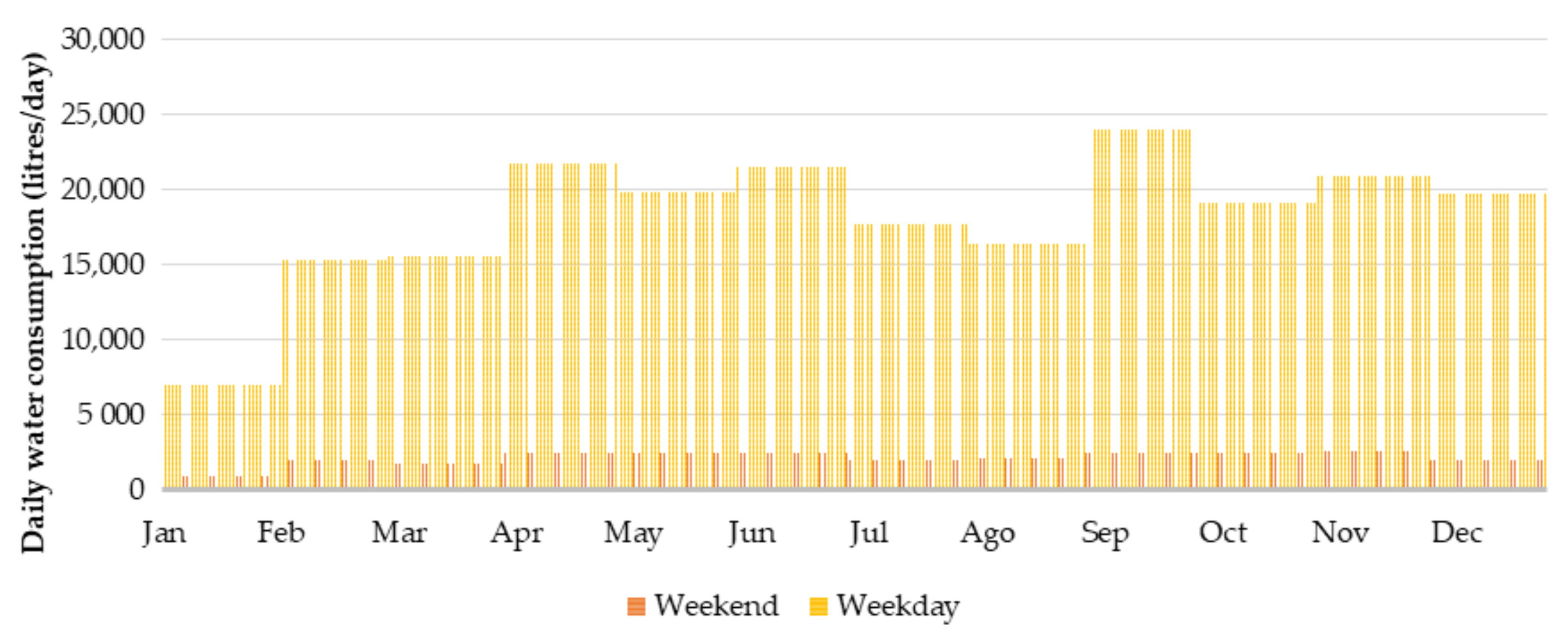

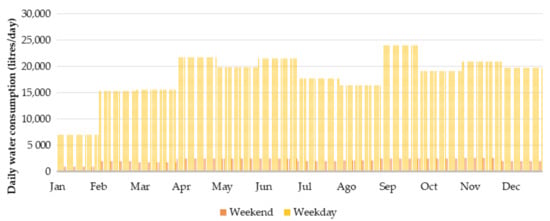

Numerical Study on the Hydrologic Characteristic of Permeable Friction Course Pavement
Article

Stormwater Harvested from Permeable Pavements as a Means to Save Potable Water in Buildings

Department of Civil Engineering, Federal University of Santa Catarina, Florianópolis 88040-900, Brazil
*
Author to whom correspondence should be addressed.
Academic Editor: Michael Richter
Water 2021, 13(14), 1896; https://doi.org/10.3390/w13141896
Received: 18 May 2021 / Revised: 17 June 2021 / Accepted: 5 July 2021 / Published: 8 July 2021

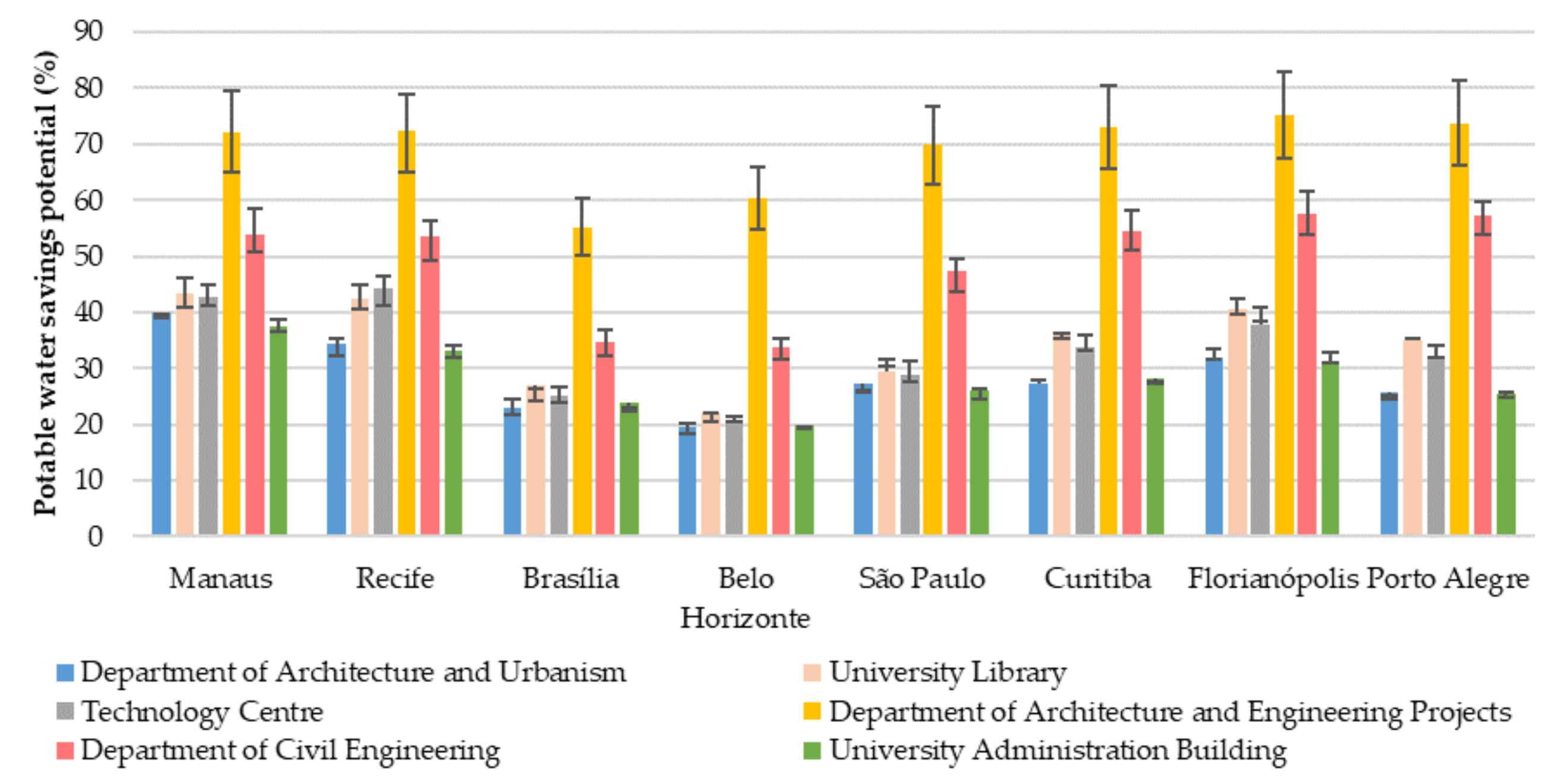

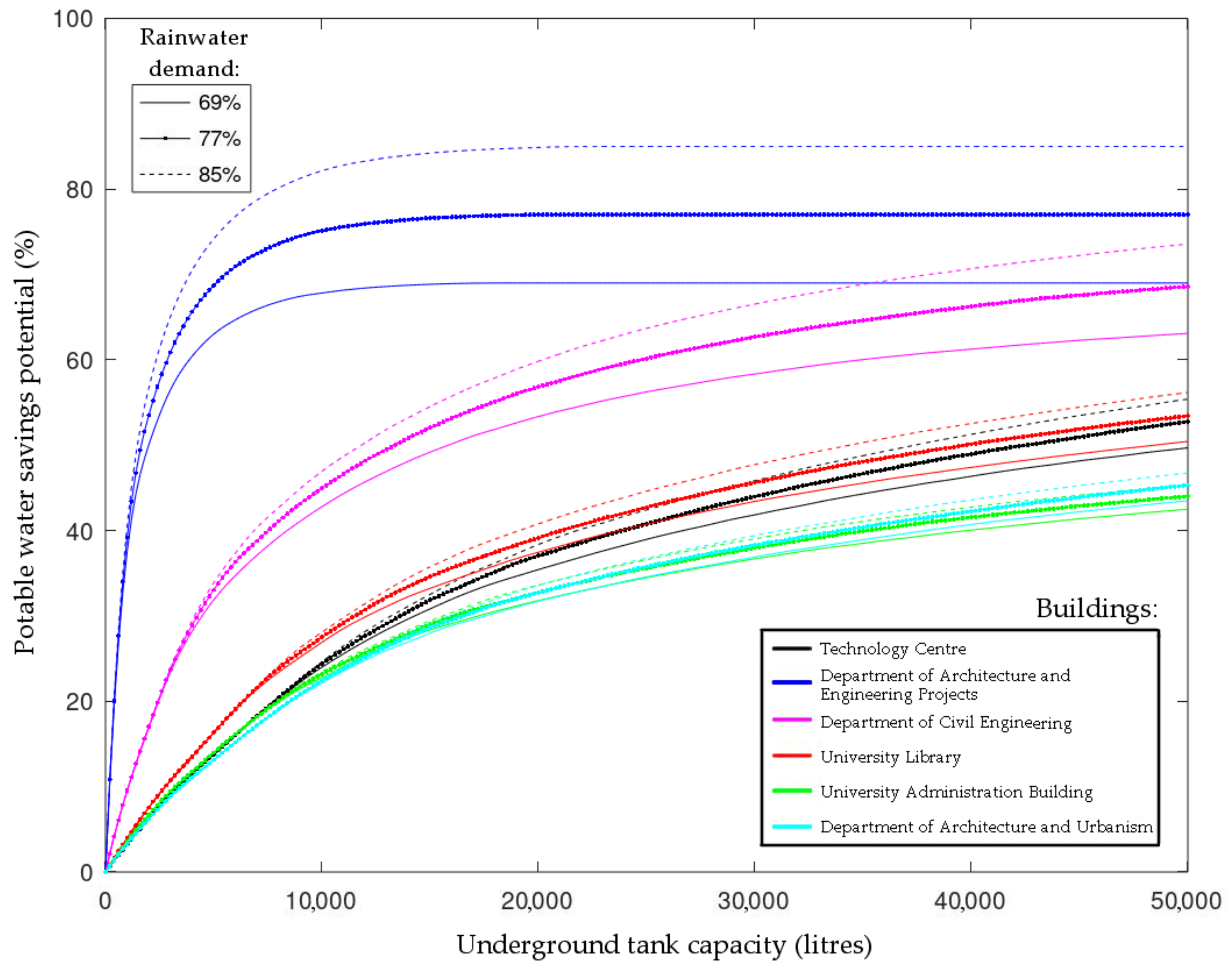

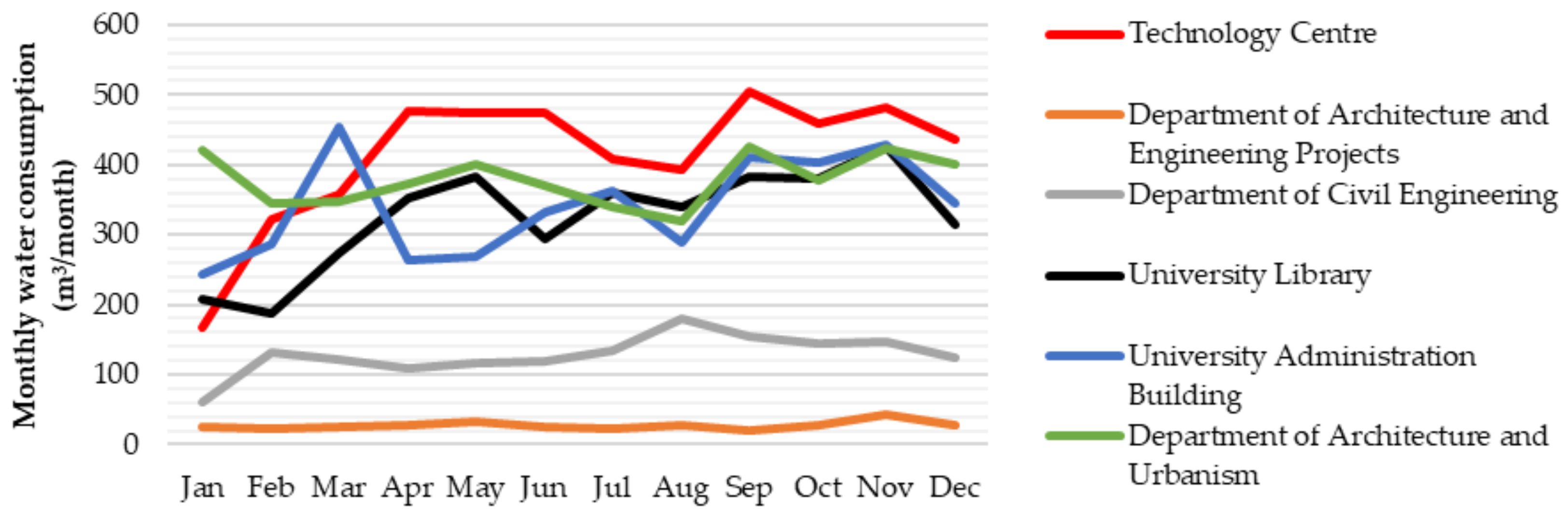

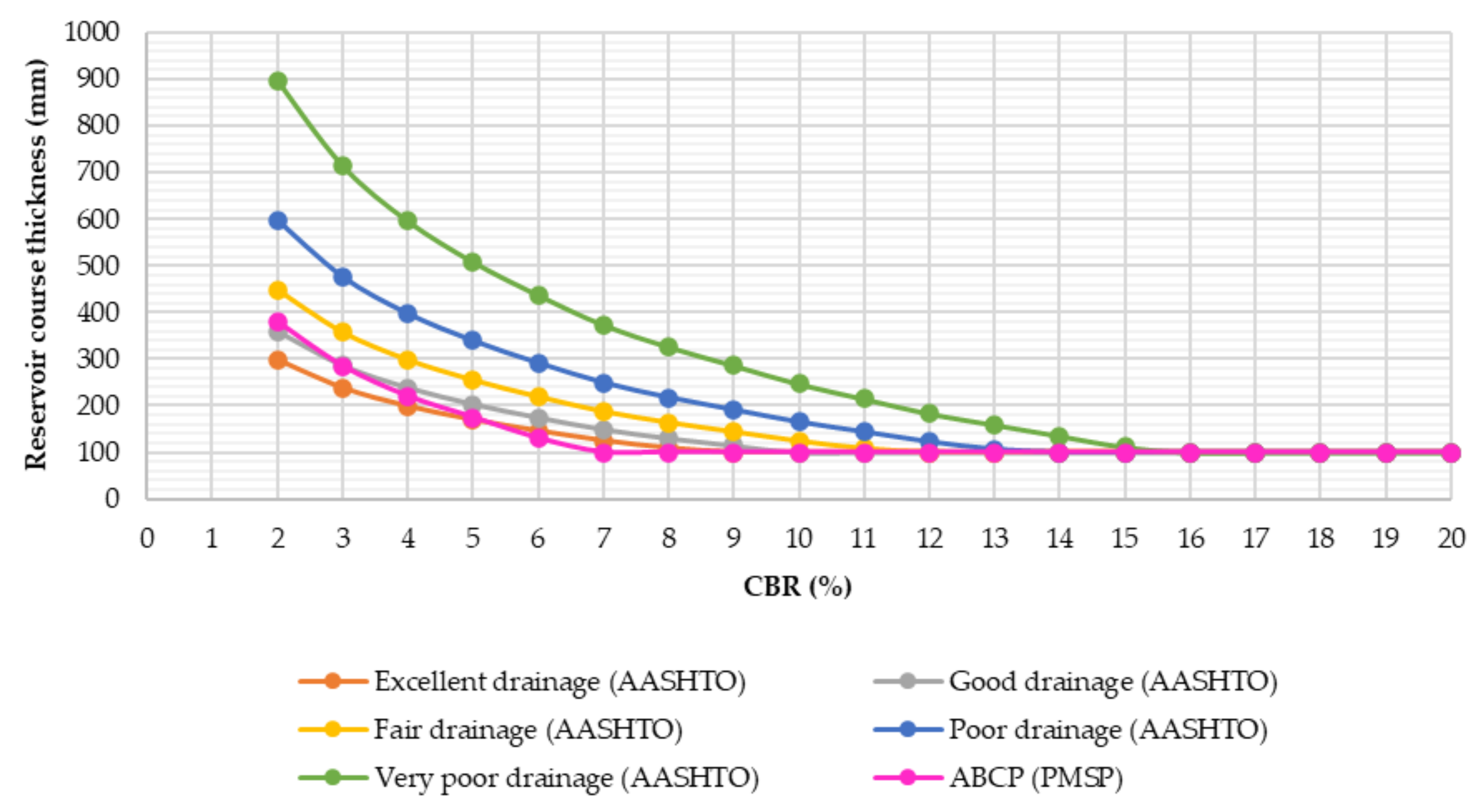

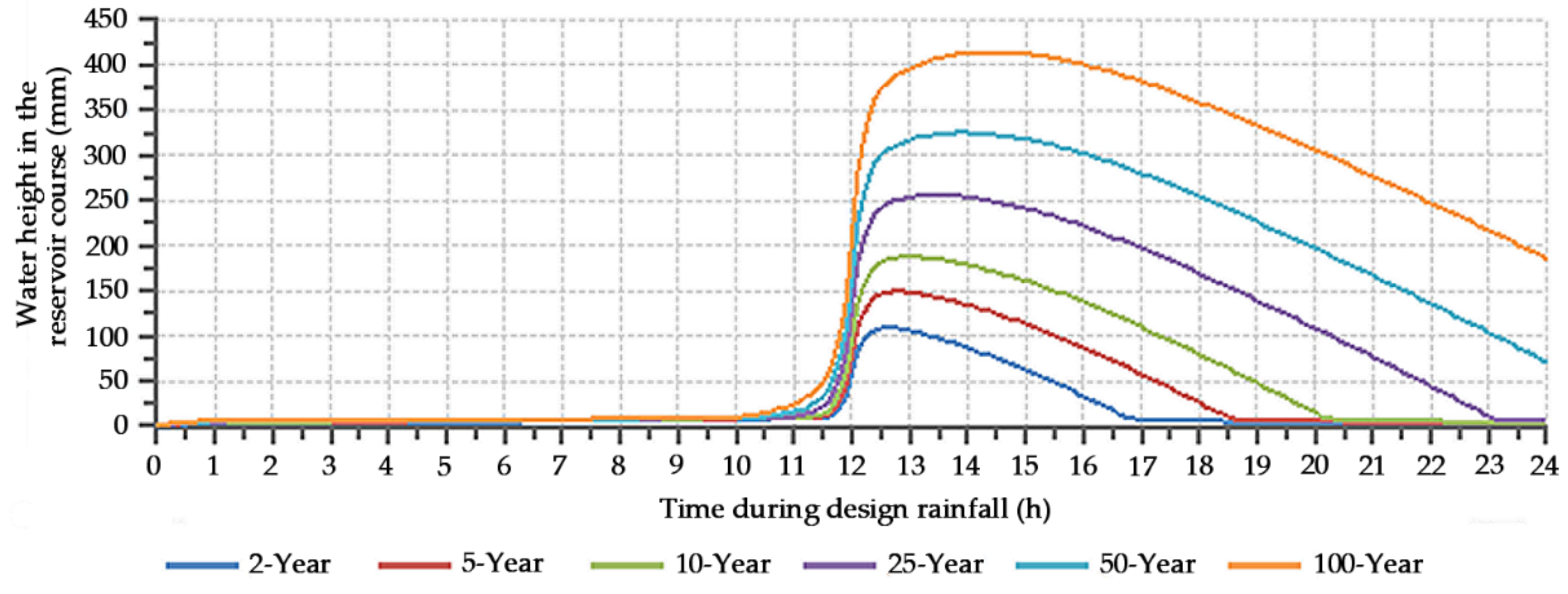

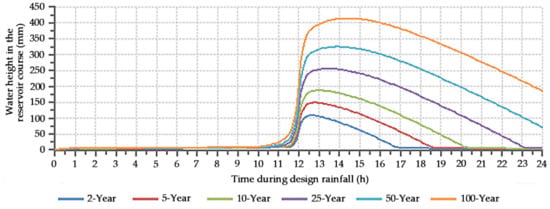

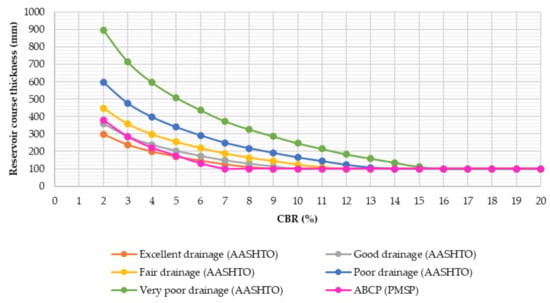

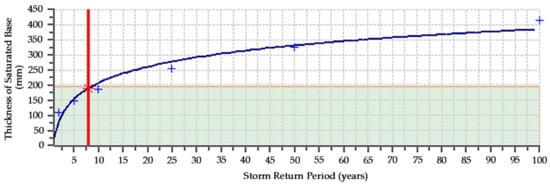

The main objective of this work is to analyse the potential for potable water savings in university buildings by using stormwater collected from permeable pavements. Six buildings located on the campus of the Federal University of Santa Catarina (UFSC) were selected to obtain monthly water consumption patterns and parking lot areas. The same six buildings were then evaluated considering their location in eight different cities in Brazil, with different rainfall patterns. Simulations using the computer programme Netuno were run to obtain the potential for potable water savings in each building and city combined. The structural design of permeable pavements was also assessed using two methods available in the literature, that is, the American Association of State Highway and Transportation Officials (AASHTO) and Brazilian Portland Cement Association (ABCP). The hydrological-hydraulic design of the permeable pavement was also carried out. The designed thicknesses were compared with the thicknesses obtained using the computer programme Permeable Design Pro. The potential for potable water savings between 18.4% and 84.8% was obtained, depending on the city, building and non-potable water demand considered. For the structural design, the thicknesses obtained by using both methods were similar; however, it was observed that the AASHTO method better represents the pavement model. Regarding the hydrological-hydraulic design, the differences obtained show that the simplification performed for the pavement drainage was in favour of safety. In conclusion, the use of permeable pavements in stormwater harvesting systems is promising, aligning the drainage aid, structural capacity and potential for saving potable water. View Full-Text
Keywords: permeable pavements; potable water savings; universities; public buildings; stormwater harvesting; sustainability permeable pavements; potable water savings; universities; public buildings; stormwater harvesting; sustainability
