Characteristics of the Exchange Flow of the Bay of Quinte and Its Sheltered Embayments with Lake Ontario
Abstract
:1. Introduction
2. Materials and Methods
2.1. Two-Layer Model
2.2. Observations
2.3. FVCOM Model Simulations
3. Results
3.1. Two-Layer Observations and Model
3.2. Three-Dimensional Model Results
4. Discussion
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Minns, C.K.; Moore, J.E.; Seifried, K. Nutrient loads and budgets in the Bay of Quinte, Lake Ontario, 1972 to 2001. Aquat. Ecosyst. Health Manag. 2004, 14, 9–20. [Google Scholar] [CrossRef]
- Kim, D.-K.; Kaluskar, S.; Mugalingam, S.; Arhonditsis, G.B. Evaluating the relationships between watershed physiography, land use patterns, and phosphorus loading in the bay of Quinte basin, Ontario, Canada. J. Great Lakes Res. 2016, 42, 972–984. [Google Scholar] [CrossRef]
- Arhonditsis, G.B.; Kim, D.-K.; Shimoda, Y.; Zhang, W.; Watson, S.; Mugalingam, S.; Dittrich, M.; Geater, K.; McClure, C.; Keene, B.; et al. Integration of best management practices in the Bay of Quinte watershed with the phosphorus dynamics in the receiving waterbody: What do the models predict? Aquat. Ecosyst. Health Manag. 2017, 19, 1–18. [Google Scholar] [CrossRef]
- Minns, C.K.; Owen, G.E.; Johnson, M.G. Nutrient loads and budgets in the Bay of Quinte, Lake Ontario, 1965–1981. In Project Quinte: Point-Source Phosphorus Control and Ecosystem Response in the Bay of Quinte, Lake Ontario; Minns, C.K., Hurley, P.A., Nicholls, K.H., Eds.; Department of Fisheries and Oceans: Ottawa, ON, Canada, 1986; Volume 86, pp. 59–76. 270p. [Google Scholar]
- Freeman, N.G.; Prinsenberg, S.J. Exchange flows in the Adolphus Reach/North Channel. In Project Quinte: Point-Source Phosphorus Control and Ecosystem Response in the Bay of Quinte, Lake Ontario; Minns, C.K., Hurley, P.A., Nicholls, K.H., Eds.; Canadian Special Publication of Fisheries and Aquatic Sciences: Ottawa, ON, Canada, 1986; Volume 86, pp. 27–39. 270p. [Google Scholar]
- Kim, D.-K.; Zhang, W.; Rao, Y.R.; Watson, S.; Mugalingam, S.; Labencki, T.; Dittrich, M.; Morley, A.; Arhonditsis, G.B. Improving the representation of internal nutrient recycling with phosphorus mass balance models: A case study in the Bay of Quinte, Ontario, Canada. Ecol. Model. 2013, 256, 53–68. [Google Scholar] [CrossRef]
- Oveisy, A.; Boegman, L.; Rao, Y.R. A model of the three-dimensional hydrodynamics, transport and flushing in the Bay of Quinte. J. Great Lakes Res. 2015, 41, 536–548. [Google Scholar] [CrossRef]
- Minns, C.K.; Moore, J.E.; Doka, S.E.; John, M.A.S. Temporal trends and spatial patterns in the temperature and oxygen regimes in the Bay of Quinte, Lake Ontario, 1972–2008. Aquat. Ecosyst. Health Manag. 2011, 14, 9–20. [Google Scholar] [CrossRef]
- Munawar, M.; Fitzpatrick, M.; Niblock, H.; Kling, H.; Lorimer, J.; Rozon, R. Phytoplankton ecology in the Bay of Quinte, Lake Ontario: Spatial distribution, dynamics and heterogeneity. Aquat. Ecosyst. Health Manag. 2018, 21, 213–226. [Google Scholar] [CrossRef]
- Zhang, W.; Kim, D.-K.; Rao, Y.R.; Watson, S.; Mugalingam, S.; Labencki, T.; Dittrich, M.; Morley, A.; Arhonditsis, G.B. Can simple phosphorus mass balance models guide management decisions? A case study in the Bay of Quinte, Ontario, Canada. Ecol. Model. 2013, 257, 66–79. [Google Scholar] [CrossRef]
- Munawar, M.; Fitzpatrick, M.; Niblock, H.; Rozon, R.; Lorimer, J.; Kling, H. Ecology of algal blooms in the Bay of Quinte: Composition, diversity and dynamics. Aquat. Ecosyst. Health Manag. 2018, 21, 447–457. [Google Scholar] [CrossRef]
- Shore, J.A.; Valipour, R.; Blukcacz-Richards, E.A. Twenty-eight years of hydrodynamic variability in the Bay of Quinte (ice-free periods of 1979–2006). J. Great Lakes Res. 2016, 42, 985–996. [Google Scholar] [CrossRef]
- Shore, J.A. Impact of the monthly variability of the Trent River, Ontario: A case study 2016–2019. Water 2020, 12, 2683. [Google Scholar] [CrossRef]
- Brannigan, L.; Lenn, Y.-D.; Rippeth, T.P.; McDonagh, E.; Chereskin, T.K.; Sprintall, J. Shear at the Base of the Oceanic Mixed Layer Generated by Wind Shear Alignment. J. Phys. Oceanogr. 2013, 43, 1798–1810. [Google Scholar] [CrossRef] [Green Version]
- Shore, J.A.; Snell, P. Mapping the summer 2017 surface water circulation of Picton Bay, ON. Water Qual. Res. J. 2018, 54, 115–126. [Google Scholar] [CrossRef]
- Crawford, A.; Shore, J.; Shan, S. Measurement of tidal currents using an Unmanned Underwater Vehicle. IEEE 2020. under review. [Google Scholar]
- Chen, C.; Huang, H.; Beardsley, R.C.; Liu, H.; Xu, Q.; Cowles, G. A finite volume numerical approach for coastal ocean circulation studies: Comparisons with finite difference models. J. Geophys. Res. Space Phys. 2007, 112, 03018. [Google Scholar] [CrossRef]
- Xue, P.; Hu, S.; Schwab, D.J. An investigation of the thermal response to meteorological forcing in a hydrodynamic model of Lake Superior. J. Geophys. Res. Oceans 2015, 120, 5233–5253. [Google Scholar] [CrossRef]
- Niu, Q.; Xia, M.; Ludsin, S.A.; Chu, P.Y.; Mason, D.M.; Rutherford, E.S. High-turbidity events in Western Lake Erie during ice-free cycles: Contributions of river-loaded vs. resuspended sediments. Limnol. Oceanogr. 2018, 63, 2545–2562. [Google Scholar] [CrossRef] [Green Version]
- Mai, J.; Kornelsen, K.C.; Tolson, B.A.; Fortin, V.; Gasset, N.; Bouhemhem, D.; Schäfer, D.; Leahy, M.; Anctil, F.; Coulibaly, P. The Canadian Surface Prediction Archive (CaSPAr): A Platform to Enhance Environmental Modeling in Canada and Globally. Bull. Am. Meteorol. Soc. 2020, 101, E341–E356. [Google Scholar] [CrossRef]
- Liu, Q.; Anderson, E.J.; Zhang, Y.; Weinke, A.D.; Knapp, K.L.; Biddanda, B.A. Modeling reveals the role of coastal upwelling and hydrologic inputs on biologically distinct water exchanges in a Great Lakes estuary. Estuar. Coast. Shelf Sci. 2018, 209, 41–55. [Google Scholar] [CrossRef]
- Schmidt, W. Über Temperatur and Stabilitätsverhaltnisse von Seen. Geographiska Annaler 1928, 10, 145–177. [Google Scholar] [CrossRef]
- Robertson, D.M.; Imberger, J. Lake Number, a Quantitative Indicator of Mixing Used to Estimate Changes in Dissolved Oxygen. Int. Rev. Hydrobiol. 1994, 79, 159–176. [Google Scholar] [CrossRef]
- Winder, M.; Schindler, D.E. Climate change uncouples trophic interactions in an aquatic ecosystem. Ecology 2004, 85, 2100–2106. [Google Scholar] [CrossRef]
- Read, J.S.; Hamilton, D.P.; Jones, I.D.; Muraoka, K.; Winslow, L.; Kroiss, R.; Wu, C.H.; Gaiser, E. Derivation of lake mixing and stratification indices from high-resolution lake buoy data. Environ. Model. Softw. 2011, 26, 1325–1336. [Google Scholar] [CrossRef]
- Engelhardt, C.; Kirillin, G. Criteria for the onset and breakup of summer lake stratification based on routine temperature measurements. Fundam. Appl. Limnol. 2014, 184, 183–194. [Google Scholar] [CrossRef]
- Saggio, A.; Imberger, J. Mixing and turbulent fluxes in the metalimnion of a stratified lake. Limnol. Oceanogr. 2001, 46, 392–409. [Google Scholar] [CrossRef]
- Rao, Y.R.; Hawley, N.; Charlton, M.N.; Schertzer, W.M. Physical processes and hypoxia in the central basin of Lake Erie. Limnol. Oceanogr. 2008, 53, 2007–2020. [Google Scholar] [CrossRef] [Green Version]
- Breneman, D.; Richards, C.; Lozano, S. Environmental Influences on Benthic Community Structure in a Great Lakes Embay-ment. J. Great Lakes Res. 2000, 26, 287–304. [Google Scholar] [CrossRef]
- Watson, S.B.; Zastepa, A.; Boyer, G.L.; Matthews, E. Algal bloom response and risk management: On-site response tools. Toxicon 2017, 129, 144–152. [Google Scholar] [CrossRef]
Location | h(m) | T (°C) | U10 (m/s) | Observed ud (cm/s) | Model ud (cm/s) | ||
---|---|---|---|---|---|---|---|
Upper | Lower | Upper | Lower | ||||

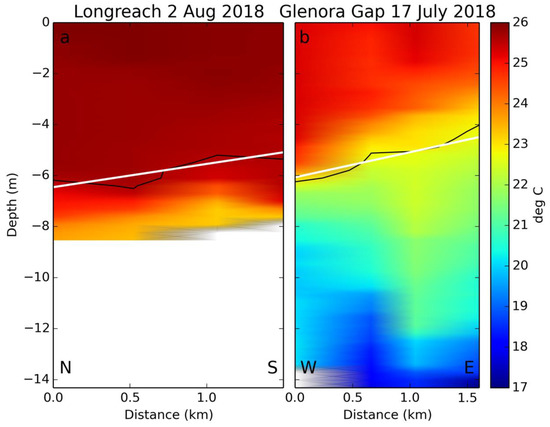

Longreach 2 August 2018 | 6 | 3 | 25.8 | 24.5 | 2.7 | 5.5 ± 4.0 | 4.8 ± 1.5 |
Glenora Gap 17 July 2018 | 6.5 | 8.6 | 24.5 | 20.4 | 3.9 | 18.5 ± 5.5 | 9.7 ± 3.3 |
Napanee River Speeds | 24 May 2018 | 10 June 2018 | 25 July 2018 |
---|---|---|---|
Observations (cm/s) | 8.0 ± 3.0 | 11.2 ± 6.0 | 5.1 ± 2.0 |
Model (cm/s) | 4.5 ± 1.0 | 7.1 ± 1.5 | 5.2 ± 1.2 |
Monthly Middle Bay Fluxes | Surface Outflow (m3/s) | Bottom Inflow (m3/s) |
---|---|---|
April 15–30 | 93 | −5 |
May | 258 | 190 |
June | 236 | 240 |
July | 236 | 249 |
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2021 by the author. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Shore, J.A. Characteristics of the Exchange Flow of the Bay of Quinte and Its Sheltered Embayments with Lake Ontario. Water 2021, 13, 1857. https://doi.org/10.3390/w13131857
Shore JA. Characteristics of the Exchange Flow of the Bay of Quinte and Its Sheltered Embayments with Lake Ontario. Water. 2021; 13(13):1857. https://doi.org/10.3390/w13131857
Chicago/Turabian StyleShore, Jennifer A. 2021. "Characteristics of the Exchange Flow of the Bay of Quinte and Its Sheltered Embayments with Lake Ontario" Water 13, no. 13: 1857. https://doi.org/10.3390/w13131857
