Risks of Perfluoroalkyl and Polyfluoroalkyl Substances (PFAS) for Sustainable Water Recycling via Aquifers

CSIRO Land and Water, Locked Bag 2, Glen Osmond, SA 5064, Australia
CSIRO Land and Water, Private Bag No. 5, Wembley, WA 6913, Australia
School of Engineering and Information Technology, Murdoch University, Murdoch, WA 6150, Australia
School of Biomedical Sciences, University of Western Australia, 35 Stirling Highway, Crawley, WA 6009, Australia
Centre for Environmental Contaminants Research, CSIRO Land and Water, Locked Bag 2007, Kirrawee, NSW 2232, Australia
Author to whom correspondence should be addressed.
Water 2019, 11(8), 1737;
Submission received: 3 July 2019 / Revised: 13 August 2019 / Accepted: 15 August 2019 / Published: 20 August 2019


The prediction of the fate of perfluoroalkyl and polyfluoroalkyl substances (PFAS) in water recycling with urban stormwater and treated wastewater is important since PFAS are widely used, persistent, and have potential impacts on human health and the environment. These alternative water sources have been utilized for water recycling via aquifers or managed aquifer recharge (MAR). However, the fate of these chemicals in MAR schemes and the potential impact in terms of regulation have not been studied. PFAS can potentially be transported long distances in the subsurface during MAR. This article reviews the potential risks to MAR systems using recycled water and urban stormwater. To date, there are insufficient data to determine if PFAS can be degraded by natural processes or retained in the aquifer and become suitable pre-treatment or post-treatment technologies that will need to be employed depending upon the end use of the recovered water. The use of engineered pre-treatment or post-treatment methods needs to be based on a ‘fit for purpose’ principle and carefully integrated with the proposed water end use to ensure that human and environmental health risks are appropriately managed.

1. Introduction

Perfluoroalkyl and polyfluoroalkyl substances (PFAS) are a group of both emerging and persistent organic pollutants that have been used extensively by the industry as well as in consumer products for more than 30 years [1,2,3,4]. Because of their carbon-fluorine chain, PFAS are inert, show resistance to high temperatures, and repel both oil and water [5,6]. They have been produced for both industrial and commercial applications including aqueous fire-fighting foam, lubricants, stain and water-repelling treatments on paper, and textiles including fabric and carpet [7]. Due to their widespread use, they are now widely distributed in the environment [8], and typically at higher concentrations near fire training/fire response sites, industrial sites, landfills, and wastewater treatment plants/biosolids [9].
PFAS have recently received international attention due to their persistence and toxicity and their ubiquitous presence in the environment [7,10]. PFAS such as perfluorooctane sulfonate (PFOS) and perfluorooctanoic acid (PFOA) have been found in fish, birds, mammals [8,11,12,13], and human blood at concentrations of several to tens of milligrams per liter [14]. PFAS in blood serum can disrupt human hormone activity [15] and their developmental toxicity to mammals has been reported [3]. PFOS, its salts, and perfluorooctane sulfonyl fluoride (PFOSF) were listed under the Stockholm Convention on Persistent Organic Pollutants for restriction in 2009 [16]. Although PFAS was not regulated during most of the last 50 to 60 years, various international authorities in recent years have established a number of health-based regulatory values and evaluation criteria [17,18,19]. For example, data reported under the USEPA’s unregulated contaminants monitoring rule program found that approximately six million residents of the United States have drinking water with PFOA or PFOS concentrations, or both, above the USEPA’s lifetime health advisory (HA) of 0.07 µg/L [20]. However, there remain considerable uncertainties in predicting the long-term risks PFAS pose humans [21] and ecosystems, where chronic effect data are lacking for many environments and classes of organisms [10,22,23].
PFAS remain challenging to treat because of the strong carbon-fluorine bonds by conventional water treatment methods. PFAS are not easily degraded by physical or chemical mechanisms once in the environment [24]. With the relatively high solubility, variable adsorption potentials [10,25], and very low or possibly negligible volatility [7], they are also not readily removed by conventional engineered water-treatment technologies [26].
The elevated concentrations of PFAS in the environment potentially impact the water recycling schemes that harvest urban stormwater runoff and or utilize treated wastewater. This is also the case where these alternative water sources may be introduced to groundwater systems via managed aquifer recharge (MAR) as well as aquifer treatment and disposal schemes. The concentrations of PFAS in these sources of aquifer recharge and their subsequent fate in the subsurface have not been considered to date and could potentially impact on urban aquifer infiltration and water recycling schemes.
This study draws on recent scientific knowledge of aquifer processes to assess the potential risks of PFAS to urban aquifer infiltration and water recycling schemes. In particular, it seeks to characterize the sources and concentrations of PFAS in urban waters [1], discuss PFAS fate and processes affecting the potential for aquifers to treat PFAS including the effects of geology, microbiology, and MAR configurations [2], determine potential configurations of hybrid MAR/engineered pre-treatment and post-treatment options [3], and explore the implications of regulation that governs aquifer infiltration schemes [4]. Various types of urban MAR schemes and sources of water for reuse via MAR are introduced, the potential water quality implications of PFAS are discussed, and the opportunities that MAR may provide as well as challenges are outlined.

2. Role of MAR in Urban Water Management

MAR is the purposeful recharge of water to aquifers for reuse and/or environmental benefit [27]. A conceptual example of an Aquifer Storage and Recovery injection scheme and a Soil Aquifer Treatment infiltration MAR scheme is given in Figure 1.
MAR requires the management of both water quantity and quality to ensure protection of public health and the environment while developing a water resource for beneficial use. Enhancing natural rates of groundwater recharge via MAR provides an important potential source of water for urban areas where impervious cover has altered the natural recharge regime.
MAR can be used to store water from various sources, including urban stormwater, treated wastewater, desalinated seawater, rivers, lakes, and rainwater [28]. With appropriate pre-treatment before recharge and sometimes post-treatment on recovery of the water, the water recovered from the aquifer may be used for drinking water supplies, industrial water, irrigation, toilet flushing, and sustaining ecosystems [28]. This study focuses on urban stormwater and treated wastewater as source water for MAR.
While there are many configurations of MAR schemes (e.g., as described by Page and coworkers [28], water is generally recovered via an extraction well, as shown for both infiltration schemes and also direct injection methods (Figure 1). However, this is not always the case. For some configurations of MAR, the recharged water remains in the environment such as where water is recharged for ecosystem support or for saltwater intrusion barriers. This is also typical for aquifer treatment and disposal schemes. It is for these examples where pre-treatment of the recharge water is particularly important for the protection of the environment. Aquifers can also be used to treat and dispose treated wastewater. This can help reduce the concentration of some contaminants before the water reaches surface water bodies such as rivers, lakes, and the sea. Figure 1 has been divvied into seven components of a MAR scheme, where water quality interventions commonly occur. The following sections utilize the seven components of a MAR scheme in Figure 1 to discuss the PFAS-related challenges and gaps for further research.

3. PFAS in the Capture Zone and Urban Source Waters Used for MAR

3.1. PFAS in Urban Stormwater

The primary limitation to stormwater harvesting and reuse in urban areas is the ability to store the water from potentially seasonal runoff events for subsequent use when water is in demand, typically during the dry season. MAR can provide an economical method of storing and treating stormwater in urban areas.
Urban stormwater runoff used as a source water for MAR carries various contaminants from the urban catchment, such as heavy metals, nutrients, turbidity, pathogens, and micropollutants such as herbicides [29]. While stormwater management practices can remove many of these contaminants [15], conventional approaches such as water sensitive urban design and constructed wetlands may not efficiently remove micropollutants including PFAS from stormwater.
PFAS in urban water bodies mainly come from urban stormwater and wastewater treatment plants [30]. However, Zushi and coworkers [31] reported that an urban river received a higher load of PFAS from stormwater runoff than from wastewater treatment plants. Furthermore, different PFAS profiles between wastewater treatment plant effluents and urban stormwater were found in Japan [32]. Urban stormwater was found to contain more long-chain (>8 perfluorinated carbons) and even-chain perfluorocarboxylates than wastewater treatment plant effluents [32,33].
PFAS has been detected in 100% of urban stormwater samples in the US from seven storm events [34]. Monitoring results showed that PFAS in urban stormwater from residential areas mainly came from rainfall. Conversely, non-atmospheric sources at both industrial and commercial areas contributed PFAS in stormwater runoff. Concentrations of PFAS in stormwater runoff differ from event to event with the total concentration of PFAS ranging from 14.3 to 96.0 ng/L [34]. The most abundant PFAS in stormwater runoff were PFOS and PFOA. The concentrations ranged from 42.5 ng/L for PFOS and 30.6 ng/L for PFOA. For the residential areas, the total concentrations of PFAS in runoff were <30 ng/L and, with no individual PFAS concentration, was >20 ng/L. Similarly, urban stormwater samples have been reported to contain 2.6−26 ng/L of PFOS and 2.1−16 ng/L of PFOA, as the predominant perfluorinated compounds [35].
Urban stormwater also carries micropollutants attached to particles [36] including PFAS. High concentrations of PFAS are also found bound to particles in stormwater runoff that could not be explained by the solid-water partitioning or adsorption [34]. PFOS on the particulate matter was suspected to have originated from industrial/commercial products or inherent in the particles/debris (e.g., debris of textiles), entering the waste stream as PFOS-containing particles. It is likely that colloidal materials can transport a significant portion of PFAS in surface and subsurface waters.

3.2. PFAS in Treated Wastewater

The most frequently found PFAS compound in European wastewaters is PFOA [37]. PFOA was found not to be significantly removed by conventional engineered wastewater treatment processes [38] and some studies have reported higher PFOA concentrations in wastewater effluents than influents, presumably because of transformation of its precursor’s compounds [32,39].
A median PFOA concentration of 27 ng/L was reported for a large number of global wastewaters [40]. Similarly, the results of the monitoring of 90 European wastewater treatment plants shows the maximum, mean, and median PFOA concentration to be 15,900, 255, and 12.9 ng/L, respectively [37].
Irrigation using treated wastewater may potentially distribute PFAS in a diffuse manner and their impact on groundwater are not well understood. In water-stressed regions in Australia, the use of treated wastewater (referred to as recycled water) is an established practice and encouraged by regulators that are likely to be necessary into the foreseeable future [41]. Without appropriate processes that remove PFAS, they are likely present in wastewater effluents. Wastewater treatment facilities have been found to be ineffective in removing many PFAS [42,43,44,45]. Eriksson et al. [45] reported that precursor compounds caused an observed increase for PFAS and PFOA in water after wastewater treatment. Increases were reported for perfluorohexanoic acid (83%), perfluorooctanoic acid (28%), perfluorohexane sulfonic acid (37%), and PFOS (58%) had a net mass increase in all wastewater treatment plants. It was concluded that degradation of precursor compounds is a significant contributor to PFAS contamination in the environment. Reverse osmosis has been found to be necessary to provide a high level of PFAS removal [44]. Overall, these studies reveal the wide occurrence of PFAS in treated wastewaters internationally and may contribute to increased accumulation by species within the receiving environment [46] and influence the viability of water recycling via aquifers.

4. Engineered Treatment of PFAS

Engineered treatments can be integrated into the MAR system (Figure 1) as pre-treatment or post-recovery systems. MAR pre-treatment is usually adopted for operational reasons, e.g., to remove turbidity or nutrients and reduce the risk of clogging during the recharge stage (Figure 1) and to protect the receiving groundwater environment (aquifer). A number of engineered pre-treatment technologies have been evaluated for their efficiency to remove and/or destroy PFAS. Some of these elements may potentially be adopted with MAR as either a pre-treatment or post-treatment process (Figure 1). Figure 2 shows various possible technologies for treating PFAS-contaminated water, since more readers are referred to previously published reviews [47,48,49].

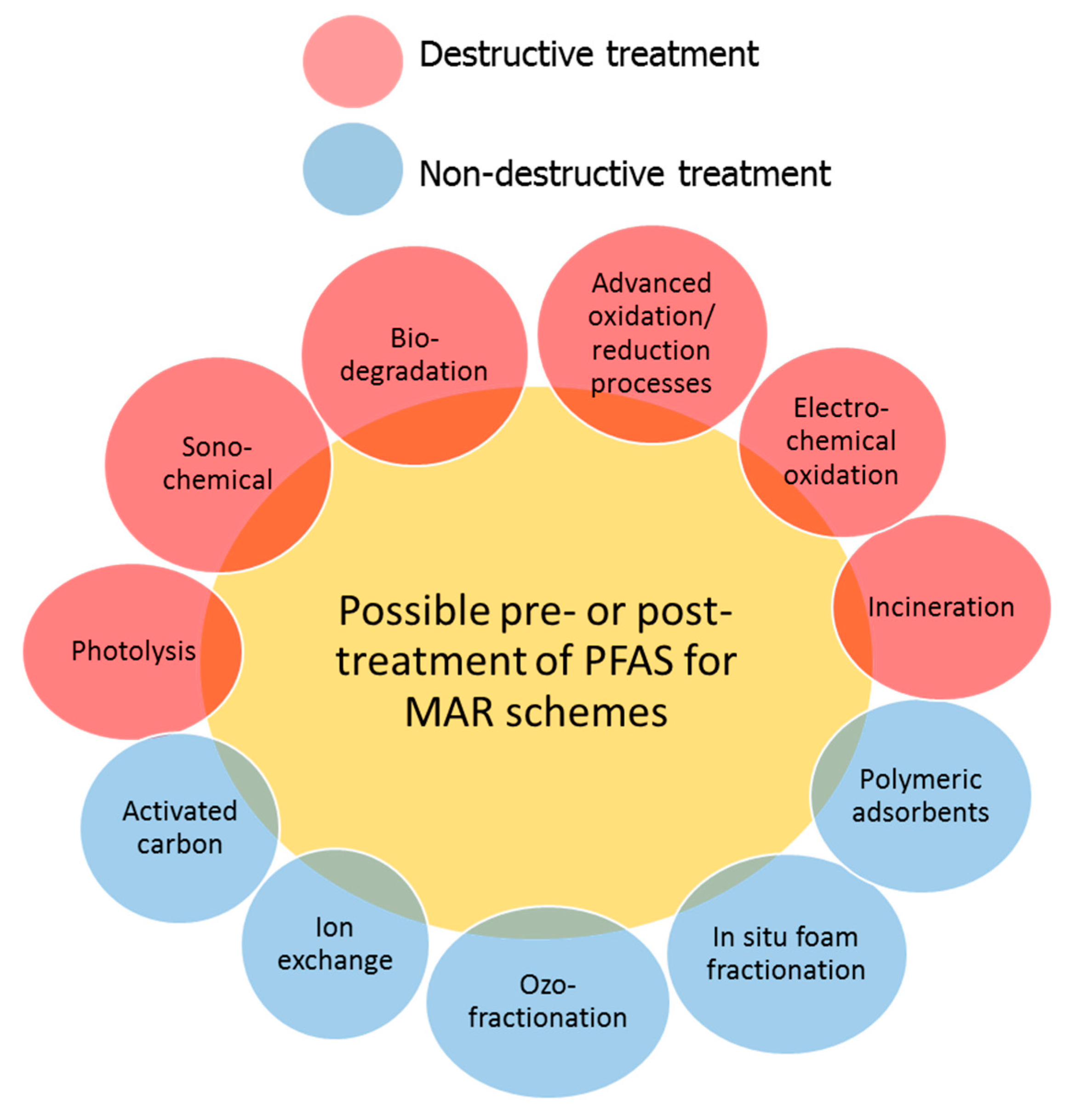

Given the unique chemical nature of PFAS such as thermal stability, surfactant property, and high solubility, many conventional remediation methods, including air stripping, thermal treatment, soil vapor extraction, and hydroxyl-based chemical oxidation are ineffective in treating PFAS [48]. Nevertheless, several established technologies have been considered for treating water contaminated by PFAS, especially PFOA and PFOS [47]. These technologies include sorption-treatment using granular activated carbon (GAC) and/or ion-exchange resins, high-pressure membrane filtration such as nano-filtration and reverse osmosis, chemical or advanced photochemical oxidation processes, and sonochemical decomposition using high frequency sound waves.
GAC and ion-exchange resins have been commonly used for removing PFAS from contaminated groundwater especially for pump-and-treat remediation [50]. Using GAC for PFAS removal has been suggested as a more economical method compared to others, and it is currently the most accepted remediation technology for groundwaters impacted by PFOS and PFOA [48]. However, even though using GAC as a sorbent would enable PFAS removal efficiencies of >90%, the sorption kinetics are typically faster for longer-chained PFAS [51]. Hence, GAC that is optimized for PFOS removal may not be suitable for removing shorter-chained PFAS [52]. There is concern that smaller chain PFAS (four or six carbons) are more vulnerable to break through a GAC medium within shorter time frames than their longer chain counterparts [48]. It has been reported that the pilot-scale GAC-adsorption plant adopted by 3M Cottage Grove Facility in Minnesota, USA required frequent thermal regeneration of the GAC because of this problem [48]. Using GAC for PFAS removal should be considered as an intermediate remedial step, since it should be followed by processes for PFAS destruction and sorbent reuse. Otherwise, stockpiling of spent GAC will become a critical hazardous waste management issue, given the highly persistent nature of PFAS. Storage space is often limited at MAR schemes, and the disposal of PFAS contaminated GAC at landfills may pose secondary pollution risks to the environment surrounding the landfill when leaching to groundwater. Therefore, methods that can efficiently destroy PFAS in both contaminated water and stockpiled GAC are highly desirable.
Others demonstrated that nanofiltration could effectively remove PFOA from a spiked groundwater sample [53]. They tested three different concentrations of PFOA (5, 50, and 100 µg/L) and found that the removal efficiency was generally higher with higher PFOA concentration (increasing from 97% to 99%). With a higher PFAS concentration, reverse osmosis could facilitate 99% removal of PFOS (ranging from 500 to 150,000 µg/L) [54] and a combination of reverse osmosis and nanofiltration could facilitate 99% removal of PFOS and 90% to 99% removal of PFOA (10,000 µg/L) during four days of treatment [55]. However, albeit having high removal efficacies (99%), the method was unable to guarantee a treated effluent with PFAS lower than the interim draft guideline values (e.g., 0.23 ng/L for PFOS, and 19 µg/L for PFOA for Australian aquatic ecosystems: freshwater guideline values). Hence, the use of such a method needs careful consideration. It was also noted that accumulation (fouling) of PFAS on the reverse osmosis and nanofiltration membranes would cause notable flux reduction in the filtration process [55]. Moreover, current nanofiltration systems suffer from a low water recovery (ranging from 75% to 80%) in the presence of high levels of scale-forming inorganic compounds containing calcium, magnesium, and silica (as silicic acid) in groundwater [56,57]. This implies the production of a significant volume of waste stream (brine) that requires further treatment prior to disposal.
Various chemical/advanced photochemical oxidation and sonochemical methods have been evaluated for PFAS destruction (Table 1). Advanced oxidation processes using ozone (O3), O3/UV, O3/H2O2, and H2O2/Fe2+ (Fenton’s reagent) were unsuccessful in degrading PFOA and PFOS at mg/L (ppm) concentrations. Direct UV irradiation at 254 nm did not remove PFOA [47]. Reaction rates were low at relatively low temperatures (e.g., 40 °C), and activation at higher temperature was required to accelerate a reaction (70–90 °C) [48]. A combination of UV (λmax 254 nm) and Fenton’s reagent was reported to efficiently degrade PFOA [58], but the method requires chemical additions and increases the iron content of the water.
Sonochemical treatment appears to be a practical and scalable method to treat PFAS [48]. It promises to be used as a destructive method to destroy PFAS in PFAS-loaded sorbents (e.g., spent GAC). The method is based on the application of acoustic irradiation to the contaminated medium (e.g., treated wastewater or PFAS contaminated spent GAC). The ultrasound waves collapse the bubbles in the aqueous phase (a process known as cavitation), which increases vapor temperatures to incinerator level (average 4727 °C) and pressures (−97,000 kpa) within a very short time (nano second), which causes pyrolysis and combustion of the contaminants at the bubble-water interface [47]. Radicals (e.g., HO) are also generated within the bubble from the cleavage of H2O and O2 to react with or destroy the contaminants. Sonochemical destruction has been successfully demonstrated in a pilot-scale high-power sonochemical treatment unit (4 × 4 kW) for the treatment of the solid matrix (e.g., soil slurries contaminated with a range of persistent organic pollutants, including hexachlorobenzene, chlordane, endosulfan, tetrachloronaphthalene, DDT, lindane, and 2,4,5-trichlorophenoxyacetic acid) [65]. The treatment was highly efficient, with more than 90% of the organic contaminants removed within only a few minutes, which allows a projected treatment of contaminated soil slurry of up to 2.5 tons per day. While the sonochemical technique appears promising for treating PFAS contaminated materials on a large scale, incomplete destruction of PFAS is currently perceived as a drawback. For instance, the degradation rates of PFOS and PFOA in a sonochemical treatment of a landfill groundwater sample (140 minutes of hydraulic retention time at an ultrasonic frequency of 354 kHz, and initial PFOS and PFOA concentrations of 100 µg/L) decreased by 61% and 56%, respectively, due to the matrix effect of other organic constituents present in the groundwater [66]. A recent study also found that polyfluoroalkyl compounds (e.g., 6:2 fluorotelomer sulfonate) were less amenable for sonochemical destruction than perfluoroalkyl analogues (PFOA and PFOS), and the rate of defluorination reduced with a decreasing degree of fluorination [67]. Moreover, the presence of particulate matter, such as GAC, may alter the effectiveness of ultrasound treatment [68]. Given the recent emphasis favoring the combination of different PFAS treatment technologies in treatment trains to maximize overall PFAS destruction efficacies [69]. It seems essential to explore a possible coupling of the sonochemical treatment with alternative methods to maximize the overall PFAS destruction in the contaminated media (both reverse osmosis and nanofiltration reject streams and GAC).

5. Recharge of the Aquifer

Aquifer recharge generally occurs by direct injection into the aquifer (saturated zone) or after infiltration through the unsaturated zone (Figure 1). Recharging of an aquifer with stormwater or treated wastewater requires adherence to local environmental legislation for protecting groundwater systems. PFAS contamination can be considered a significant risk due to its known persistence and potential for bioaccumulation and toxicity [10,13,70]. From a risk management perspective, to demonstrate compliance, MAR operators will need to have an understanding of the PFAS concentrations in the recharge water (Section 3) and, potentially, the nature and location of PFAS sources within the source capture zone. In MAR schemes, risk assessment and management require an understanding of the environmental values of the aquifer that may be impacted by the recharge, as well as both on-site and off-site pathways to environmental receptors. Risk management measures for PFAS may include catchment management to reduce the risk of PFAS contamination in the recharge water and engineered (Section 4) or natural treatment systems (Section 6). This will require undertaking water quality monitoring to determine PFAS concentrations and the effectiveness of management measures implemented and ensuring environmental guideline values are met. Currently, in Australia, the relevant environmental guideline value is dependent on the environmental value of the receiving environment (Table 2) [19].
Health-based and ecological-based guideline values for water (Table 2) provide primary guidance on the suitability of PFAS-contaminated water for reuse. The reuse also must not breach environmental and/or health laws such as those pertaining to the contamination of drinking water, groundwater, stormwater, and soil. These guideline values must be considered along with the potential for water to impact groundwater or aquatic ecosystems. Based on the recent guidelines from Heads of EPAs of Australia and New Zealand [19] reuse of PFAS-contaminated water must not be undertaken until consultation with the relevant regulators has taken place, since reuse activities may require specific approval. Acceptable reuse options could include irrigation of non-edible crops, dust suppression, MAR, and industrial process water. Where reuse involves the discharge of PFAS-contaminated water to land, the risk assessment should not only consider the potential for PFAS transport to off-site sensitive receptors, but also the potential for long-term build-up of the total PFAS mass in the receiving soils, groundwater, and plants. Where water is to be used for managed aquifer recharge and recovery, water quality criteria should be derived with consideration of the receiving aquifer (i.e., protected environmental values, sedimentary/confined aquifer versus fractured rock, potential for future beneficial uses, and long-term transport) [19].
Currently, the proposed 99th percentile species protection concentration (Table 2) may be below the ambient background concentration of PFAS in source waters. In these instances, the 80th percentile of background concentrations for reference sites with low levels of human impact should be adopted. These will be more useful as a default MAR guideline value where this is less than the reliable background concentration. Other environmental regulators use drinking water guideline values (Table 2) as default values for environmental protection. For example, in Australia, human health-based guidance values are derived from published Tolerable Daily Intake (TDI) for chemicals. For drinking water, these TDI values are used to investigate and assess potential human health risks and to set human health-based guidelines based on the relationship: Drinking water guideline value (mg/L) = TDI (mg/kgbw/day) × bw (kg) × P/V (L/day).
In this case, the TDI is an estimate of the daily amount of PFAS that can be ingested over a life time that is considered safe, where bw is bodyweight (assumed average bodyweight of an Australian adult, 70 kg), V is the volume of water consumed (assumed to be 2 L/day for drinking water), and P is the proportion of PFAS derived from water compared to other exposure pathways such as food (P is variable, but the default value is 10%, i.e., P = 0.1)). In Australia, the TDI is 0.02 µg/kgbw/d for PFOS and 0.16 µg/kg bw/d for PFOA (Food Standards Australia New Zealand (FSANZ) [72]. The results yield drinking water guideline values for PFOS (0.07 µg/L) and PFOA (0.56 µg/L) [73]. For recreational waters, values of 0.7 µg/L (PFOS) and 5.6 µg/L (PFOA) have been adopted [73]. The use of the different guideline values for environmental management of PFAS presents some challenges for effective risk management and regulation of PFAS in MAR.

6. Subsurface Processes and PFAS in MAR

Aquifers have well recognized advantages with respect to ongoing natural treatment of the water prior to recovery [74]. Aquifers do not, in general, behave like inert systems, but rather as biogeochemical reactors that change the quality of water recovered from the quality of the water source used for recharge. Understanding these subsurface water quality changes is necessary to evaluate the suitability of the recovered water for its intended use and any requirement for post-treatment prior to recovery.
To date, there have been several studies on the effect of subsurface storage on the degradation and sorption of organic micropollutants in both full-scale MAR systems [74] as well as reviews [75]. Hydrogeochemical characteristics of the MAR system such as redox potential may have a profound effect on the degradation rate of organic micropollutants [75,76]. Generally, the potential for aquifer treatment is most often investigated in laboratory studies either as a batch [77,78] or column studies [79,80]. However, unlike most other micropollutants found in urban stormwater or treated wastewater, PFAS are resistant to biodegradation [81] and photodegradation [82], are water soluble [83], and their partitioning to sediments with a low organic fraction (i.e., low foc) is low [25]. Because of these properties, PFAS can potentially be transported long distances in the subsurface during MAR and affect other receiving environments such as groundwater-dependent ecosystems. PFAS plumes extending for 10′s kms from source areas have been observed in some locations (e.g., Oakey [84]) and Williamstown [85], which indicates that PFAS compounds can be highly mobile in some groundwater aquifers.
The sorption behavior of a range of PFAS was not well explained by the traditionally used single bulk sediment property parameters such as organic carbon content [86]. Hence, multiple regression models are needed to better explain the sorption behavior of a number of PFAS, which highlights that organic carbon, pH, and clay content are properties with an effect on the sorption capacity of soils [86].
Adsorption on ferric oxic minerals, rather than sorption to organic carbon, is also a potentially important mechanism [86]. At higher pH, sorption is generally controlled by the aquifer organic carbon content while, at pH near neutral, sorption is controlled by electrostatic interactions with mineral surfaces [87]. Sorption has also been reported to increase with increasing soluble calcium concentrations, which also suggests electrostatic interactions are involved [88]. Sorption by an electrostatic interaction can be easily desorbed by a change in solution chemistry [89].
On the other hand, previous studies also suggest that PFAS transformations may be feasible in the aquifer. However, this transformation may result in either a reduction or increase in PFAS concentration. For example, that exposure of urban stormwater to oxidation processes resulted in a 69% increase in the concentrations of their precursors, which includes perfluoroalkyl carboxylic acids from unidentified precursor compounds [35]. Similarly, a substantial increase in PFAS concentrations during wastewater treatment plants has been observed [45]. In addition to oxidation processes, microbial activity has been suggested to increase the concentrations of the precursor compounds, perfluoroalkyl carboxylic acids, and perfluoroalkyl carboxylic sulfonic acids [35].
This transformation potential has also been shown for PFOS concentrations in Tokyo groundwater, which were consistently higher than PFOS concentrations measured in wastewater and urban runoff (the two most likely sources of contamination) [33]. A soil column test confirmed the production of PFOS from its precursor compounds [32]. Hence, polyfluorinated substances present in recharge water could potentially be transformed to the perfluoroalkyl acids by natural aquifer processes leading to an increase in the concentration of these compounds via MAR. Furthermore, the PFAS compositions of some products that likely contain structurally unknown precursor compounds [35]. This could present a regulatory issue for current and new MAR schemes especially if there is an apparent increase in PFAS in the recovered water. Additional post-treatment may then be required in addition to any pre-treatment to meet human health requirements for specific end uses.
MAR can be undertaken in a range of hydrogeological and geochemical settings (e.g., Table 3) and, as such, every MAR system could potentially have a varied effect in terms of natural PFAS treatment.

Key Potential Processes in the Natural Attenuation of PFAS in MAR

Due to the temporal and spatial variability in MAR systems, there are a variety of potential parameters that influence the attenuation of PFAS in MAR systems. Generally, dilution will reduce the concentration of PFAS during MAR but is not considered a form of attenuation. The most important attenuation mechanism for MAR treatment of PFAS is adsorption. This mechanism is governed by PFAS physicochemical properties (e.g., Koc, Henry’s law constants, polarity) as well as the MAR systems hydrogeological site-specific conditions (aquifer type, temperature, redox state, and mineralogy) of the MAR system. Table 3 shows some MAR system characteristics.
Microbial degradation may potentially offer an attractive option for PFAS remediation during MAR in the subsurface, since microbial processes generally do not require intensive energy and operate under ambient or mild conditions [69]. In principle, given their relatively high oxidation states, PFAS could be used as electron acceptors for anaerobic microorganisms to meet their energetic requirement [51,102]. However, under natural conditions, biodegradation of PFAS is extremely difficult because of the very stable carbon-fluorine (C-F) bonds [102].
PFAS biodegradation can be evaluated under natural conditions by use of quantitative structure-biodegradability relationships. For example, reported values were between −1.19 and 0 in BIOWIN where a probability >0.5 indicates fast biodegradation and a probability <0.5 indicates slow biodegradation [103]. These indicated that there would be little to no expected biotransformation of PFAS during MAR regardless of the specific microbial community, redox conditions, temperature, and retention times of the scheme [103]. Similarly, PFAS attenuation by volatilization, photolysis, or hydrolysis is also expected to be of minor importance for PFAS during MAR.
However, less information is available on Gibbs-free energy values of fluorinated compounds as compared to chlorinated compounds. The thermodynamic calculations show that, under standard conditions with 100 kPa of hydrogen gas (H2), the reductive defluorination should be exergonic and, hence, feasible (Table 4) [104]. Accordingly, under conditions with elevated H2 partial pressure, microorganisms may be able to obtain energy for growth by reductively de-fluorinating PFAS. However, in natural environments such as the aquifer subsurface, the H2 partial pressure is typically −10,000 times lower, which significantly diminishes the energetics of the reactions.
Given the unlikelihood of biodegradation of PFAS in the aquifer, this leaves adsorption on the aquifer-sediment surface as the most promising attenuation process for PFAS during the MAR storage step. The amount of sorption of PFAS also affects its travel time in the subsurface prior to recovery. Irreversible sorption to minerals and aquifer sediments, potentially followed by mineralization, could permanently remove PFAS from the recharged water. Sorption of organic chemicals has previously been investigated by means of a dimensionless retardation coefficient (R), which involves the ratio of the breakthrough times of the transport of an organic chemical compared to the transport of a non-reactive conservative tracer like bromide. Sorption can occur either by hydrophobic attraction between soil organic matter and non-polar organic chemicals (known as hydrophobic partitioning) or by the attraction to mineral surfaces by electrostatic forces (physical sorption) [105]. The latter is most relevant for MAR schemes involving direct injection into aquifers with low organic carbon content, whereas infiltration schemes may interact with both organic and inorganic surfaces.
The chemical and physical retardation mechanisms are influenced by a wide range of variables, soil water distribution coefficients, or sorption coefficients, which are related directly to the aquifer sediment character. Several studies demonstrated that sorption of ionizable compounds like PFAS to aquifer sediments due to electrostatic interactions is highly influenced by factors like pH, calcium content, mineral surface characteristics such as iron oxides, cation exchange capacity, and the presence of clay minerals [106,107,108]. However, due to the interconnectedness of multiple factors, inconsistencies in retardation for individual organic chemicals are frequently reported. For example, the determined R-values for BPA (1.2) and 17-α -ethinylestradiol (1.1) imply minimal sorption [103]. However, these values differ significantly among R-values for BPA [26] and 17-α -ethinylestradiol [44], respectively, which implies a very significant adsorption.
To date, there have not been many similar studies for PFAS on adsorption in aquifer sediments. If a large variability in R-values is reported, this indicates the need to establish PFAS retardation factors or sorption coefficients for each MAR scheme independently and broad aquifer types may not be suitable to determine a potential for sorption. Aquifer treatment will be dominated by the local hydrogeochemical properties of the specific MAR scheme. Furthermore, since PFAS poses unique physicochemical properties (a hydrophilic head, hydrophobic tail, and strong polarized carbon-fluorine bonds) it may be difficult to predict their distribution in MAR systems using the more commonly described chemical partitioning models [87]. PFAS, which interacts minimally with the aquifer sediments, would also be expected to exhibit shorter retention times in the subsurface and possibly be more difficult to degrade than similar compounds that interact more strongly with the sediments.
Factors affecting electrostatic interaction will be crucial for PFAS sorption to mineral surfaces. A positive surface charge is favorable for electrostatic interaction between the mineral surface and the negative PFAS functional group [89]. The mineral phases in Table 5 are listed in order of decreasing potential for adsorption based on expected positive charge at a neutral pH (pHZPC > 7). Available sorption coefficients for PFAS are reported where available.

7. Recovery of Water from MAR

While there are many configurations of MAR schemes [28], water is generally recovered via an extraction well, as shown for both infiltration schemes and direct injection methods. However, this is not always the case. For some configurations of MAR, the recharged water remains in the environment where water is recharged for the ecosystem support to a groundwater dependent ecosystem or for saltwater intrusion barriers. It is for these examples where pre-treatment of the recharge water is particularly important to meet the required ecosystem protection criteria (Table 2). Water recovered from the MAR scheme is also likely to be a mixture of the native groundwater and recharged water presenting other potential issues for water quality such as the mobilization of metals from aquifer sediments or salinity if the MAR scheme is in a brackish aquifer.

8. Post Treatment of Recovered Water

Differing end uses (e.g., drinking water and recreation) have different published guidelines values associated with them and, hence, different objectives need to be adopted for the post-treatment of the MAR step. Using the same approach as used to derive drinking water guideline values, a maximum permissible PFAS concentration can be calculated for different end uses based on the tolerable daily intake and the degree of daily exposure. Several examples are given in Table 6 for a variety of common third-pipe uses for urban water. The exposure scenarios via the use of groundwater contaminated with PFAS for the irrigation of edible crops, drinking water for livestock, or via the consumption of fish from waters whose influx from groundwater contains measurable concentrations of PFAS. Therefore, these exposure scenarios need a special human health-based assessment and are not included in this paper. The values are to be viewed with caution and are not guidelines. Furthermore, no provision has been made for irrigation of food crops due to the potential for bioaccumulation of PFAS.
It can be seen that all of the derived maximum values for different end-uses based on TDI described in Table 6 are higher than the published guideline values used to manage risks to human health (for drinking water) and the environment. This reflects the different risks based on the much lower potential human exposure for the different end uses. However, the use of these values has the potential to cause confusion in the community. Therefore, clear and timely communication on PFAS, their fate, and impacts will be critical in the management of PFAS in MAR schemes. Post-treatment technologies available are very similar to those described for pre-treatment above. The objectives of the post-treatment technologies adopted would need to be tailored to the required end-use.

9. End Use of Water Recovered from MAR

Water recovered from MAR systems supports a variety of end uses including: ecosystem protection, saltwater intrusion barriers, horticulture, agriculture, industrial, toilet flushing, urban green space irrigation, and drinking water [28]. Some studies have shown that vegetables and grains, which have been grown on agricultural lands that were irrigated with PFAS contaminated water can accumulate these compounds [111,112]. These short-chain compounds had a greater uptake potential by plants than longer chain PFAS and short chain sulfonates [113]. Currently, the behavior of short-chain carboxylic compounds in aquifer and their potential to be accumulated in edible plants via irrigation of contaminated groundwater is not fully understood. Acceptance of the recovered water for the end use will depend on the way in which information is conveyed to the community. It is critical to build trust between MAR operators, regulators, and the larger community for MAR systems to be sustainable and well accepted. Because PFAS is now detected in almost all environments including groundwater [8,114], MAR operations will need to communicate and manage risks associated with PFAS. Like many wastewater treatment plant discharges, PFAS will likely remain present in waters recovered from MAR systems. In the case of wastewater treatment plant discharges to coastal environments, elevated PFAS concentrations occur in fish collected nearer the outfalls and that risk must be communicated. Where the data suggest that PFAS concentrations in MAR-directed waters present a risk to human health or the environment for a given end use, information should be presented on how the community can minimize their exposure to decrease risk. This will require effective collaboration between all stakeholders in the MAR scheme, which will be critical to successful communication and engagement with communities. The environmental and human health regulators should be involved from the outset in planning and delivering communication and engagement activities. Regulators should act as an accessible source of information for the community and ensure that the MAR operators undertake appropriate engagement activities in accordance with the legislation. These steps will help to ensure that communication and engagement about PFAS and MAR is evidence-based, consistent, and accessible to the public.

10. Conclusions

The prediction of the fate of PFAS in urban stormwater and treated wastewater during MAR is important since PFAS are widely used, persistent, and have potential impacts on human health and the environment. PFAS concentrations may increase during MAR as a result of degradation of precursor compounds, so regulation may be problematic. PFAS can also potentially be transported long distances in the subsurface during MAR. To date, there are insufficient data to determine if PFAS can be degraded by natural processes or retained in the aquifer and, therefore, suitable pre-treatment or post-treatment technologies will need to be employed depending upon the end use of the recovered water for achieving economic efficiency and environmental sustainability. Options for PFAS removal through use of engineered systems in conjunction with MAR were discussed. Effective communication between the community and the key stakeholders is crucial to achieve community support for MAR schemes.

Author Contributions

D.P. conceived and designed the study. J.V. contributed to the geochemistry aspects. A.K. contributed to the human health risk assessment aspects. K.Y.C. and A.H.K. contributed to the PFAS pre-treatment and degradation aspects of the paper. S.S. contributed to the marine ecology aspects.


This research received no external funding.


The authors acknowledge CSIRO Land and Water for continued support of Managed Aquifer Recharge research.

Conflicts of Interest

The authors declare no conflict of interest.
