Open AccessArticle

Wavelet Coherency Structure in Open Channel Flow

1
College of Water Resources and Civil Engineering, China Agricultural University, Beijing 100083, China
2
Beijing Engineering Research Center of Safety and Energy Saving Technology for Water Supply Network System, China Agricultural University, Beijing 100083, China
*
Author to whom correspondence should be addressed.
Water 2019, 11(8), 1664; https://doi.org/10.3390/w11081664
Received: 4 July 2019 / Revised: 2 August 2019 / Accepted: 6 August 2019 / Published: 12 August 2019
(This article belongs to the Special Issue Turbulence and Flow–Sediment Interactions in Open-Channel Flows)
  |
PDF [4233 KB, uploaded 12 August 2019]
  |     |

Abstract

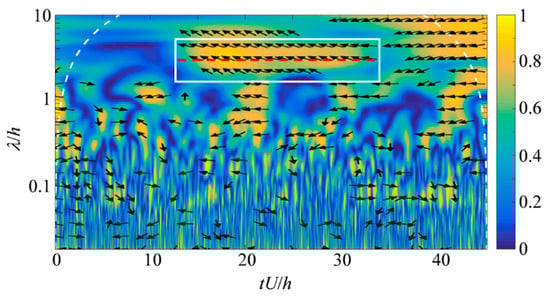

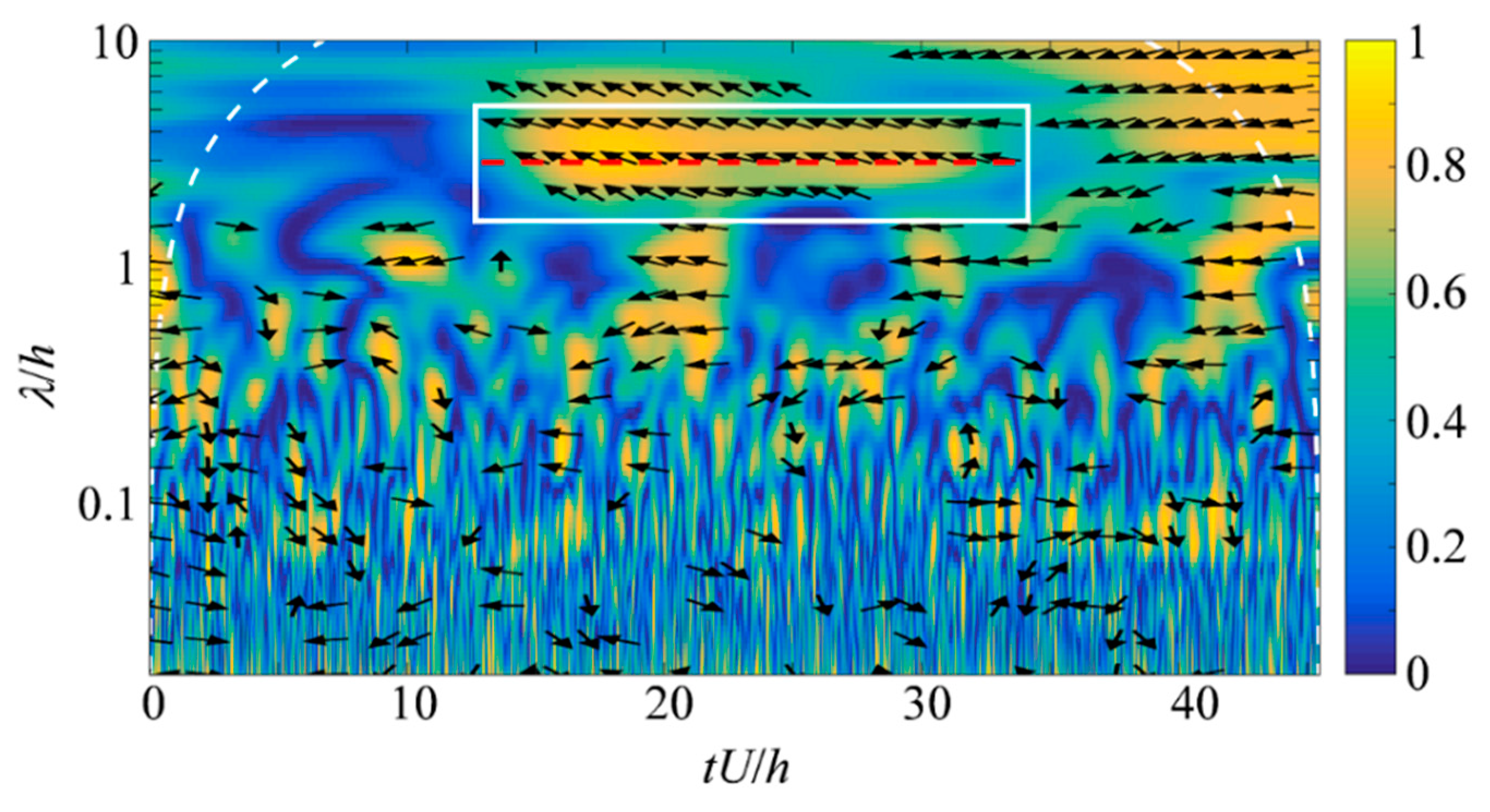

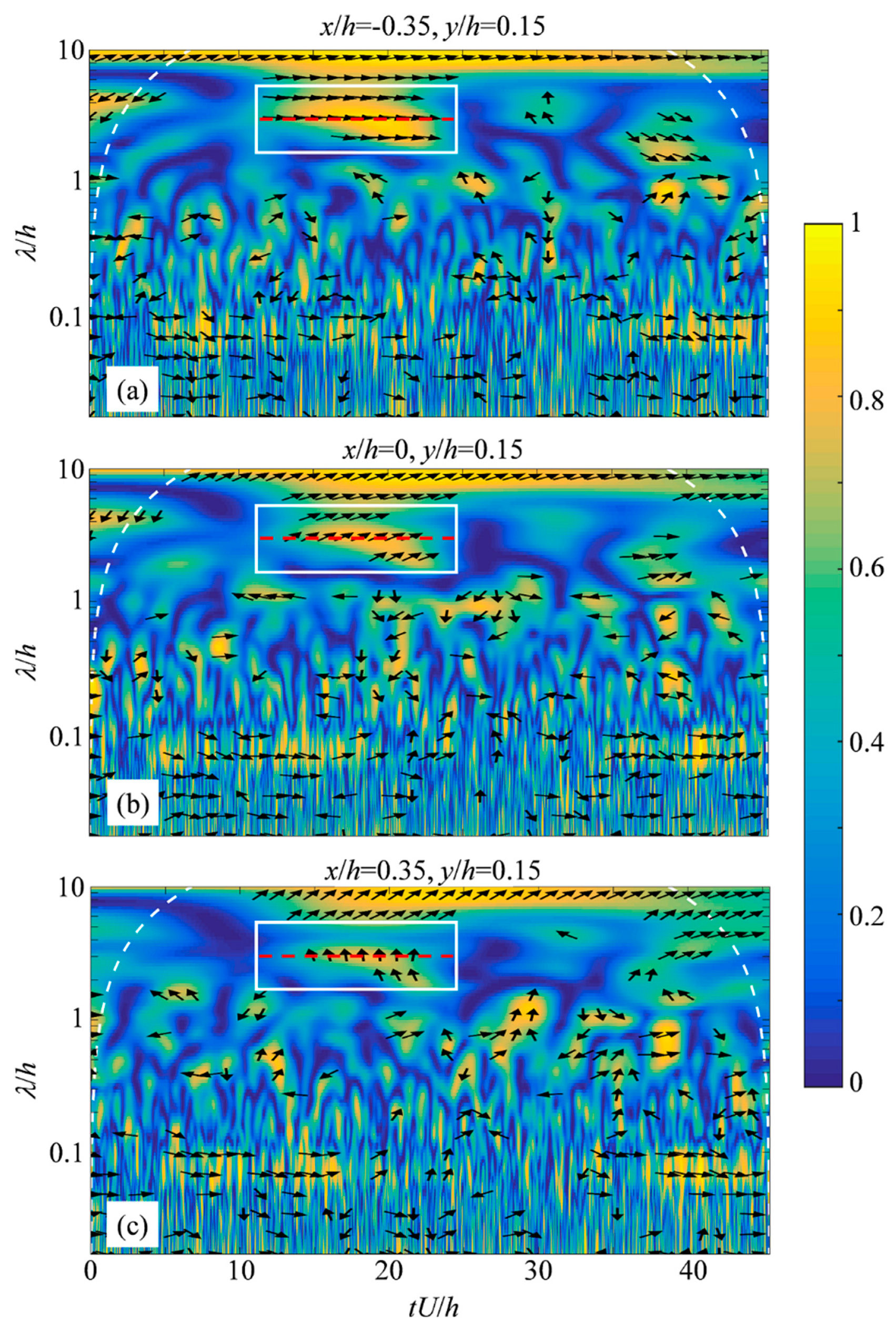

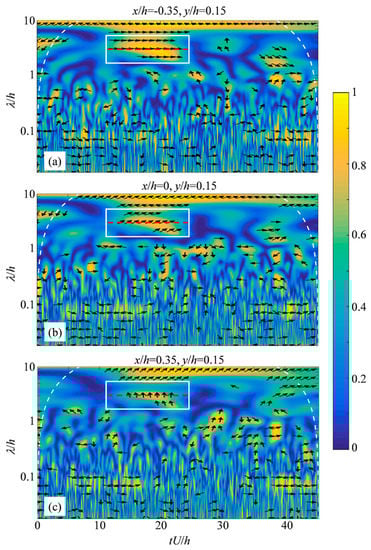

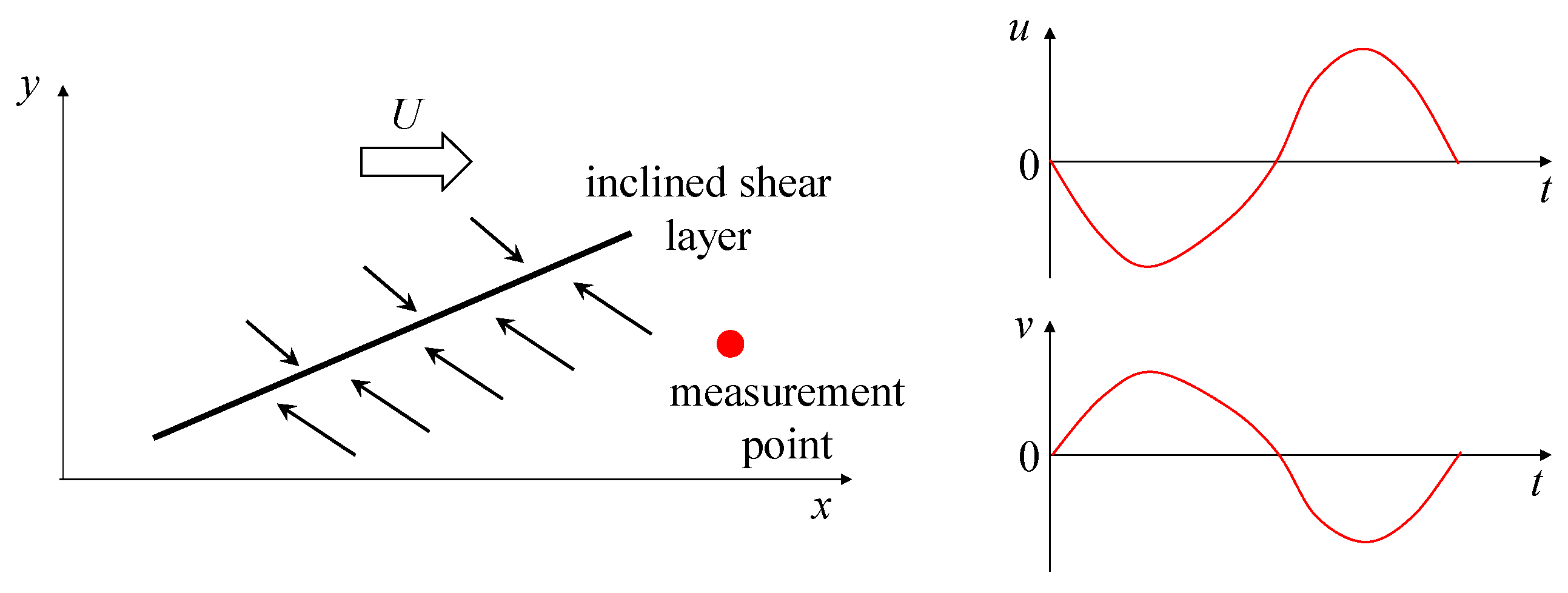

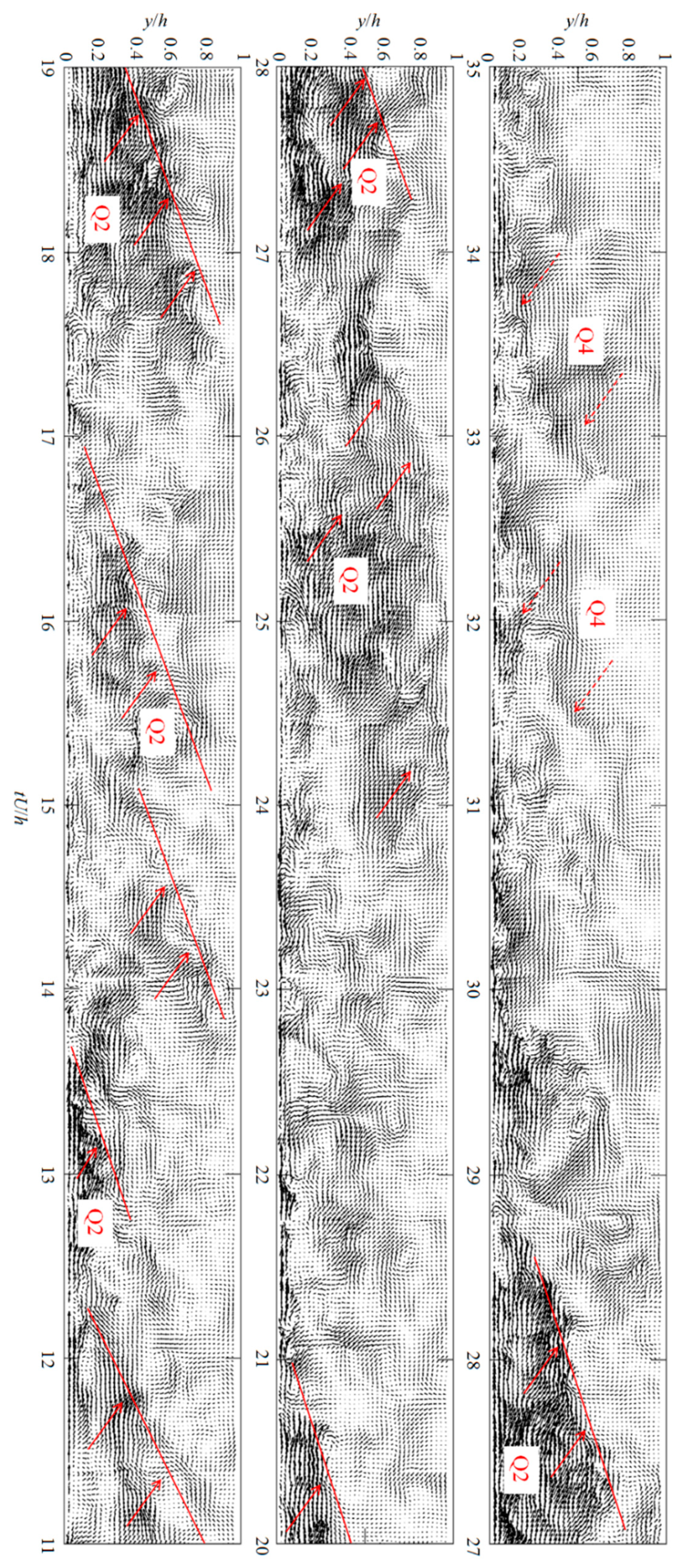

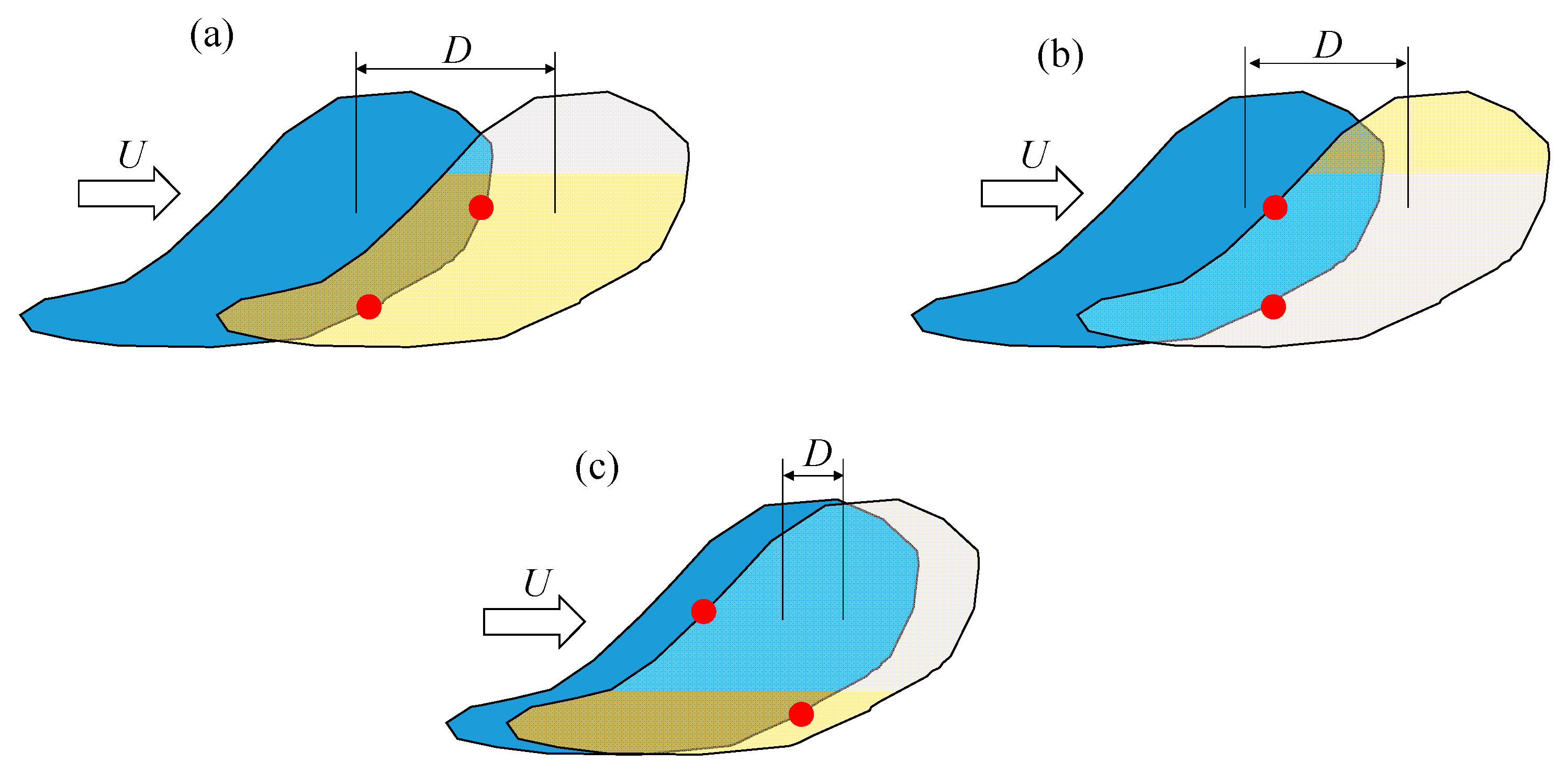

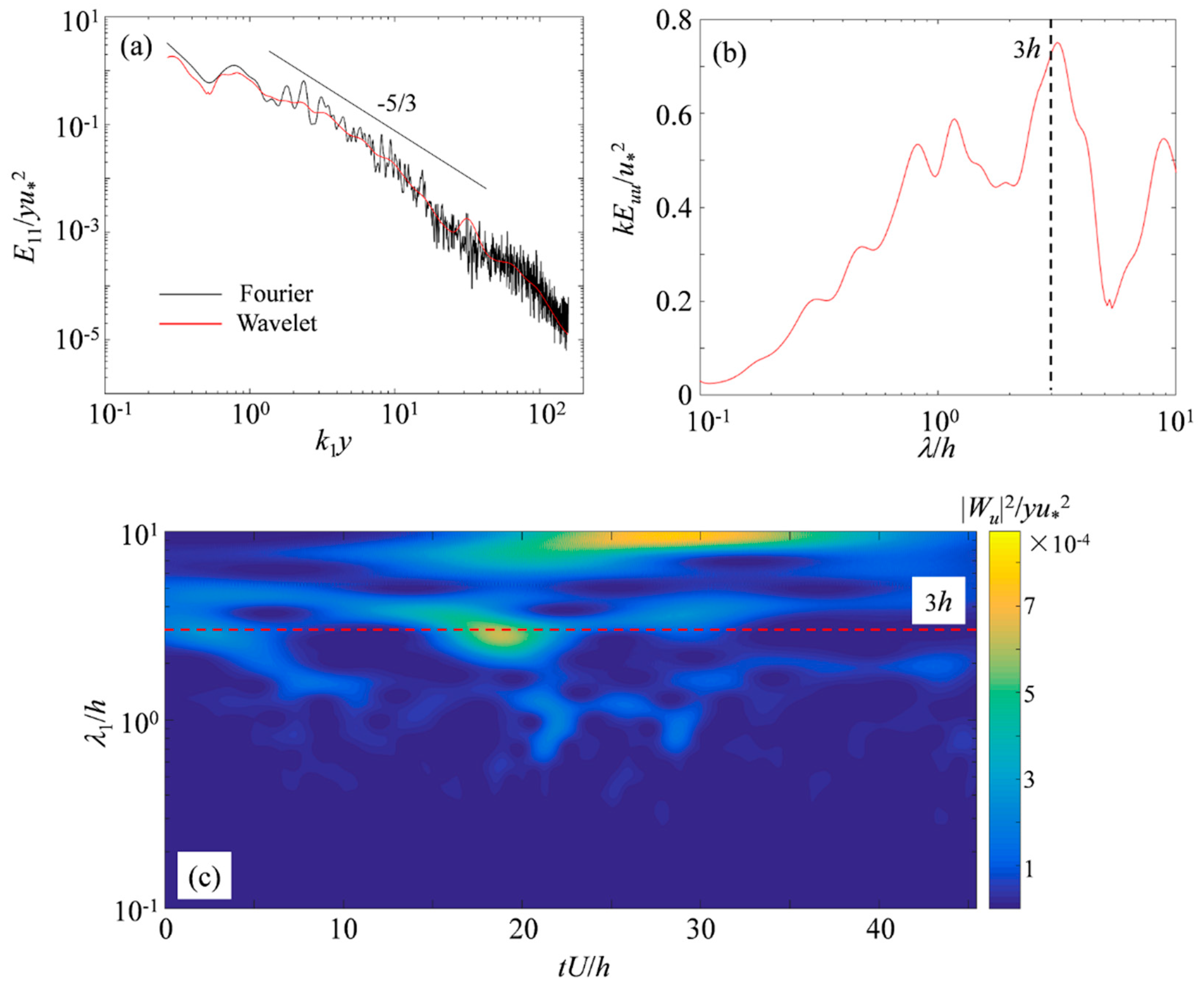

Many studies based on single-point measurement data have demonstrated the impressive ability of wavelet coherency analysis to catch the coherent structures in the wall-bounded flows; however, the question of how the events found by the wavelet coherency analysis relate to the features of the coherent structures remains open. Time series of velocity fields in xy plane of the steady open channel flow was obtained from a time-resolved particle imaging velocimetry system. The local wavelet spectrum found shows that one of the main energetic scales in open channel flows is 3h motions. The wavelet coherent coefficients of u and v series from the same measurement points successfully detected the occurrence and the scale of these 3h motions, and the phase angle indicates their inside velocity structure is organized by the Q2 and Q4 events. The wavelet coherency analysis between different measurement points further reveals the incline feature of the 3h scale motions. All the features of this 3h motion found by the wavelet coherency analysis coincide well with the flow field that is created by the passing of hairpin packets. View Full-Text
Keywords: wavelet coherency; Taylor’s frozen turbulence hypothesis; scale; hairpin vortex packet; open channel flow wavelet coherency; Taylor’s frozen turbulence hypothesis; scale; hairpin vortex packet; open channel flow
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Chen, K.; Zhang, Y.; Zhong, Q. Wavelet Coherency Structure in Open Channel Flow. Water 2019, 11, 1664.
