Water 2019, 11(8), 1630; https://doi.org/10.3390/w11081630

Article
Challenges for Water Security and Sustainable Socio-Economic Development: A Case Study of Industrial, Domestic Water Use and Pollution Management in Shandong, China
1
School of Water Conservancy and Environment, University of Jinan, Jinan 250022, China
2
School of Engineering Science, University of Science and Technology of China, Hefei 230026, China
*
Author to whom correspondence should be addressed.
Received: 3 July 2019 / Accepted: 4 August 2019 / Published: 7 August 2019

Abstract

:
Comprehensive analysis of water use and pollution management plays an important role in regional water security and sustainable socio-economic development. This study applies the environmental Kuznets curve (EKC), Gini index and elasticity coefficient methods to conduct an investigation of industrial and domestic water use and pollution management in Shandong. The results show that industrial water pollution generally displayed a coordinated relationship with socio-economic development, while an uncoordinated relationship occurred between domestic water pollution and socio-economic development. Meanwhile, the Gini index between domestic water use and population in 2017 (0.101) was superior to that of 2003 (0.165), and the Gini index of industrial water use and second industry output in 2017 (0.273) was better than that of 2003 (0.292), indicating that the allocation and equity of domestic and industrial water use in Shandong kept to a good development trend. Additionally, the industrial effect is better than the domestic effect in terms of the control of wastewater emissions and the governance of typical pollutants in wastewater. Accordingly, domestic water pollution has gradually become one of the major sources of water pollution, and the allocation of industrial and domestic water use has room to improve further in Shandong. Conjunctive use of the aforementioned three methods provides an approach to investigate the integrated management of water use and water pollution control from multiple angles.
Keywords:
water pollution; water use; socio-economic development; environmental Kuznets curve; Gini index; elasticity coefficient

1. Introduction

The safety of water resources and the ecological environment in the Asian region is facing severe challenges with the rapid socio-economic development [1,2]. There are two main reasons behind this phenomenon. The first is that a large amount of pollutants has been discharged into rivers and lakes, causing the deterioration of regional water quality [3,4]. The other point is that regional water use had increased with economic development and population growth, which results in water resources waste and huge water supply pressure [5,6]. Shandong province, located in north-central China, has a large population and is one of the regions with serious water shortages in China. The domestic and industrial water use in Shandong has increased rapidly in recent years, but the efficiency of water resources utilization is not high. In addition, water pollution in Shandong is also relatively serious. The eutrophication of rivers and lakes, which is mainly caused by the discharge of industrial and domestic wastewater, is more prominent. At present, the discharge of industrial wastewater in Shandong is ranked third, and the discharge of domestic wastewater is also ranked third in China. However, the number of wastewater treatment facilities in Shandong is ranked 16th in China, far below the ranking of industrial and domestic wastewater emissions. It can be seen that Shandong belongs to a region with serious water pollution in China. Existing research shows that if this trend continues, industrial, domestic water pollution will restrict the water security and sustainable socio-economic development of Shandong in the future. Accordingly, the investigation of industrial, domestic water use and pollution management is becoming increasingly important for promoting water security and sustainable socio-economic development in Shandong.
Over the past few decades, the relationship between environment and economy has concerned relevant researchers, to strengthen pollution emissions control and management [7,8,9]. Some researchers have pointed out that the environmental pollution increased faster than economic growth during the early stages of economic development, and then decreased at higher economic development levels [10,11]. This is the famous environmental Kuznets curve (EKC), with an inverted-U-shaped nexus between indicators. The EKC hypothesis was first applied to examine the nexus between environment pollution and economic development in the United States [12]. Later, many empirical studies about environmental pollution–economic development nexus have been carried out using EKC. Results showed that an inverted-U-shaped relationship has occurred between environment pollution and economic development in most developed countries [13,14,15,16]. Lee et al. [17] revisited a water pollution EKC, they found that the existence of an inverted-U-shaped relationship between biological oxygen demand (BOD) emissions and GDP per capita in Europe and America. Fodha and Zaghdoud [18] found an inverted-U-shaped relationship between SO2 emissions and GDP per capita using time series data.
In China, similar studies have revealed the existence of a relationship between environmental pollution and economic development [19,20]. Gao et al. [21] established the EKC model to study the relationship between industrial wastewater, SO2 emissions and GDP per capita in Jiangsu, China. Peng et al. [22] used EKC to study the trend of environmental indicators such as industrial wastewater and industrial COD emissions in Shanghai, plotted against economic development. Liu et al. [23] analyzed the relationship between industrial chemical oxygen demand (COD), NH3-N, wastewater emissions and per capita GDP in Zaozhuang, Shandong based on the EKC hypothesis. Zhang and Wang [24] used the EKC model to study the relationship between water pollution (industrial and domestic wastewater discharge) and economic development in Shandong.
Overall, most studies using local pollutants as indicators of environmental degradation have found empirical support for the existence of EKC relationships between income and environment [25]. The results of the EKC study are highly dependent on the type of contaminant selected, and EKC might work only for some specific air and water pollutants [26]. Regional pollutants are more suitable for EKC analysis than global pollutants; they are easy to spatially separate and can be controlled at relatively low cost to economic growth [25]. People need better environmental quality, such as clean water and air, when incomes grow. To meet people’s life needs, the government will take some measures, such as strengthening environmental laws and investing clean technologies. Therefore, as incomes increase, local specific pollutant emissions begin to decrease.
The pressures of regional water use and supply will be intensified with rapid socio-economic development [27]. Meanwhile, the inefficient utilization and irrational allocation of water resources may generate a series of adverse effects on the regional water security and sustainable socio-economic development [28]. Accordingly, systematic analysis and quantitative study of the water use and pollution control becomes particularly important for regional sustainable water management.
However, a few researchers who have qualitatively analyzed the link between water use and economic development lacked quantitative research [29,30,31,32]. In economics, the Lorenz curve is used to investigate the degree of inequality in wealth distribution, which is measured quantitatively using the Gini index [33]. This theory has been widely used in various fields. Liu et al. [34] used the Gini coefficient to evaluate the climate of human settlements. Liu et al. [35] applied the Gini coefficient to study the spatial distribution of grain in China. Delbosc et al. [36] used the Lorenz curve to assess the fairness of public transportation. Sadras et al. [37] used the Lorenz curves and Gini coefficients to analyze the magnitude of grain yield variation at the paddock scale. Groves-Kirkby et al. [38] introduced the Lorenz curve and Gini coefficient to investigate and quantify seasonal variability in environmental radon gas concentration. Jacobson et al. [39] pointed out that the Lorenz method, which is widely employed by economists to analyze income distribution, is largely unused in energy analysis, so they used this method to analyze the allocation of energy. Later, using the concept of the Gini coefficient and Lorenz curve, some scholars analyzed the allocation and equity of energy consumption in some developing and developed countries [40,41].
The Lorenz curves and Gini coefficients were also introduced gradually into the research on the water resources utilization and socio-economic development nexus [42,43,44,45]. Gunasekara et al. [46] examined the relationship between water resource abundance and social development using Lorenz curves, and the results implied that differences existed in the effects of different water resource types on socio-economic development. Hanjra et al. [47] investigated linkages and complementarities between agricultural water and socioeconomic development using the Gini index. Meanwhile, similar research has also been carried out in China. Wu et al. [48] applied the Gini coefficient to study the distribution of water resources and secondary industry output, as well as the distribution of water resources and population in Handan, China. Ma et al. [49] mapped the Lorenz curve of water resources and population, as well as water resources and cultivated land resources, and calculated the Gini coefficient to analyze the degree of spatial matching in water resources. Wei et al. [50] used the Lorenz curve and the Gini coefficient to analyze the allocation between water resources and population, as well as water resources and secondary industry output, respectively.
In summary, the Lorenz curve and Gini index are well suited to investigate the allocation and equity between water resources utilization and socio-economic development, which provides a valuable approach to qualitatively and quantitatively study the relationship between the two. They can be applied not just to income but to any quantity that can be cumulated across a population [36]. They can be applied in a range of disciplines, from studies of biodiversity, the allocation of water use and energy consumption to business modeling and even within transport [51].
Overall, existing research has either investigated water pollution control or study water use allocation, but few studies have considered combining these methods to conduct integrated research. This paper tries to draw on the advantages of different methods to investigate water pollution control and water use allocation in Shandong. The coordination between industrial water pollution and socio-economic development, as well as the coordination between domestic water pollution and socio-economic development, was investigated based on the optimal EKC model. The allocation and equity of industrial water use and secondary industry output, as well as domestic water use and urban population in different years, were evaluated qualitatively and quantitatively according to the Lorenz curve and the Gini index. In addition, the control of wastewater emissions and the governance of typical pollutants (NH3-N and COD) in wastewater were analyzed quantitatively, relying on the elasticity coefficient method in the context of the Five-Year Plan for Shandong.
Comprehensive analysis of industrial and domestic water use and pollution management will provide theoretical support for the formulation of relevant water environment policies in the future, and further promote water security and sustainable socio-economic development in Shandong. Meanwhile, we hope this study can provide theoretical reference for some regions with similar water resources problems, to optimize water pollution control policies and measures and increase in environmental investment. Additionally, the conjunctive use of the aforementioned three methods provides an approach to investigate the integrated management of water use and water pollution control from multiple angles.

2. Materials and Methods

2.1. Study Area

Shandong is a coastal province of China and is located on the lower reaches of the Yellow River. Shandong covers an area of about 157,200 km2, with seventeen prefecture-level cities, accounting for 1.6% of the total area of China (Figure 1). The climate in Shandong is a warm temperate monsoon climate and the annual average temperature is 11–14 °C. The average annual precipitation is 106 billion m3, and only 30% forms runoff. The cubic volume of total water resources in Shandong is 30.58 billion m3, of which the river runoff is 19.83 billion m3 and the groundwater is 16.54 billion m3 (repeated calculation amount is 5.58 billion m3). Shandong belongs to the basins of the Yellow River, Huaihe River and Haihe River, and therefore there are many rivers and a dense river network in Shandong. At present, there are more than 5000 rivers with a length greater than 5 km, and 1552 rivers with a length greater than 10 km. The average river network density is 0.24 km/km2.
The resident population of Shandong was 100.472 million (population density of 1452 people/km2) by the end of 2018. The GDP per capita was RMB ¥76,267, and the GDP is RMB ¥7646.97 billion. The output value of the primary industry, secondary industry and tertiary industry was RMB ¥495.05 billion, RMB ¥3364.17 billion and RMB ¥3787.74 billion, respectively. The industrial structure had been continuously optimized and the economic structure had been gradually developed in Shandong. The states of social economy and water resources in Shandong are shown in Table 1.
Low total water resources, low water resources per capita, and uneven water distribution are the main problems of water resources in Shandong Province. The total water resources in Shandong only account for 1.09% of the total water resources in China. The volume of water resources per capita is 334 m3, which only accounts for 14.9% of the national water resources per capita (less than 1/6), and 4.0% of the world water resources per capita (1/25), ranking the third from the bottom of all of the provinces of China [52]. This is far less than the internationally recognized critical value of 100 m3 that is necessary to maintain the economic and social development of a region. Therefore, Shandong is a severe water shortage area with water resources per capita of less than 500 m3. In addition, the annual average reduction of water resources in Shandong is 15.06%, while the total water demand is progressively increasing. So, the tension between water supply and demand is increasingly prominent. The total water resources and water demand in Shandong in the past 10 years are shown in Figure 2a. According to the “Water Resources Comprehensive Planning of Shandong Province”, the water demand in Shandong will reach 32.740 billion m3 in 2030. If the control measures are not implemented, the water shortage will be 6.353 billion m3 by 2030 according to the current water supply capacity.
Additionally, water pollution in Shandong is also relatively serious. The eutrophication of rivers and lakes, which is mainly caused by the discharge of industrial and domestic wastewater, is more prominent. Statistics showed that in 2014 only one zone of the 294 measured water functional zones reached the water quality Grade I according to “surface water environmental quality standards in China”, and the water quality of 163 water functional zones exceeded Grade III (standard for drinking-water quality) (Figure 2b).
At present, the discharge of industrial wastewater in Shandong is ranked third (2.083 billion tons), and the discharge of domestic wastewater is also ranked third (2.281 billion tons) in China. Shandong had invested RMB ¥29 billion in wastewater treatment by the end of 2015, and built 301 municipal sewage treatment plants and 5142 sets of wastewater treatment facilities (sewage treatment capacity of 13.1 million (t/day)). However, the number of wastewater treatment facilities in Shandong is ranked 16th in China, far below the ranking of industrial and domestic wastewater emissions. It can be seen that Shandong is a region with serious water pollution. The growth rate of wastewater treatment facilities lags behind the growth rate of industrial and domestic wastewater emissions. At present, the quantity and treatment capacity of wastewater treatment facilities cannot meet the increasingly serious industrial and domestic water pollution. Therefore, optimizing the development and utilization of water resources and strengthening sewage treatment capacity are urgent needs for achieving water security and sustainable economic development in Shandong [53].

2.2. Construction of Index System

The discharges of industrial, domestic wastewater and COD, as well as NH3-N, were selected as water pollution indicators, and GDP per capita was used as a socio-economic development indicator. The EKC model was established to analyze the coordination between water pollution and socio-economic development. Furthermore, industrial and domestic water use acted as water use indicators, and the secondary industry output and urban population were selected as social and economic indicators to draw the Lorenz curve (domestic water use–urban population; industrial water use–second industry output) and calculate the Gini coefficient, respectively. Finally, the control of wastewater emissions and the governance of typical pollutants (NH3-N and COD) in wastewater were analyzed quantitatively using the elasticity coefficient model under the context of the Five-Year Plan for Shandong. All data listed in this paper were from Shandong Water Resources Bulletin (http://www.shandong.gov.cn/col/col2529/index.html) and Shandong Statistical Yearbook (http://www.stats-sd.gov.cn/col/col6279/index.html).
As shown in Figure 3, the GDP per capita in Shandong kept a rising trend in general. Industrial COD and NH3-N emissions decreased significantly. Industrial wastewater emissions slightly increased, and gradually decreased after 2012. There were slight increases in domestic wastewater, COD and NH3-N emissions, which reached a turning point in 2012, and then a clear upward trend occurred. Industrial and domestic water use showed an increase in 2017, compared to 2003 (Figure 4). The urban population in 2017 was growing comparing with 2003. Meanwhile, the secondary industry output in 2017 had grown to over two times that of 2003.

2.3. Development of EKC Model

The EKC theory was first proposed by Simon Kuznets in 1995, which revealed the coordination between income per capita and environmental quality [54]. In this paper, GDP per capita is taken as an independent variable (X), and industrial, domestic wastewater emissions and typical pollutants in wastewater (COD and NH3-N) are taken as dependent variables (Y), and the time step to construct the time series EKC model was one year. This paper qualitatively researched the relationship between water pollution and socio-economic development in Shandong from 2003 to 2017 by combining regional environmental and economic policies and related factors. The three basic models are as follows:
Linear model:
Y t = β 0 + β 1 X t + ζ t
Quadratic model:
Y t = β 0 + β 1 X t + β 2 X t 2 + ζ t
Cubic model:
Y t = β 0 + β 1 X t + β 2 X t 2 + β 3 X t 3 + ζ t
where Y t is pollutant emissions, X t is GDP per capita. ζ t is the error term, β 0 is the constant, β 1 , β 2 , β 3 represent the coefficients of independent variable.
(i)
Equation (1) reveals an increasing or decreasing linear nexus between indicators.
(ii)
Equation (2) indicates that there is an inverted-U-shaped or U-shaped relationship between indicators. An inverted-U-shaped curve exists between indicators when β 1 > 0 ,   β 2 < 0 . If β 1 < 0 ,   β 2 > 0 , the relationship between indicators is generally described as a U-shaped. The turning point ( X = β 1 / 2 β 2 ) can be achieved by calculating the derivative of Equation (2).
(iii)
Equation (3) shows that an inverted-N-shaped or N-shaped relationship occurs between indicators. The inverted-N-shaped curve exists between indicators when β 1 < 0 ,   β 2 > 0 ,   β 3 < 0 , while β 1 > 0 ,   β 2 < 0 ,   β 3 > 0 represents an N-shaped curve. The turning point can be obtained when one and two turning points exist, according to Equations (4) and (5), respectively.
X = β 2 / 3 β 3
X * = ( β 2 ± β 2 2 3 β 1 β 3 ) / 3 β 3

2.4. The Lorenz Curve and Gini Index

The Lorenz curve was put forward by statistician Lorenz in 1905 to analyze and compare the level of regional wealth fairness, and its curvature degree reflects the degree of inequality in income distribution [55]. As a simple and practical method of analysis, the Lorenz curve has also been studied and applied in the environmental field. Relevant research has shown that industrial water use is closely related to secondary industry output, and domestic water use is closely related to the urban population in Shandong [56,57]. Therefore, to investigate the relationship between water use and socio-economic development, the allocation and equity of domestic water use–urban population, and the industrial water use–secondary industry output in different years were analyzed to in this paper.
The Location Quotient (LQ) is a ratio used to determine the spatial distribution of a phenomenon in the region, and the LQ of water use type in various cities was first calculated.
L Q = A 1 A 2 / A 3 A 4
where LQ is the Location Quotient, A1 is urban population (or secondary industry output) in a specific city. A2 is urban population (or secondary industry output) in province. A3 is domestic water use (or industrial water use) in a specific city. A4 is domestic water use (or industrial water use) in province.
Secondly, the LQs were sorted from low to high, and the cumulative percentage of each indicator was obtained. Then, the cumulative percentage of domestic water use (X1) was used as the abscissa, and the cumulative percentage of urban population (Y1) was taken as the ordinate in a two-dimensional Cartesian coordinate system. Likewise, the cumulative percentage of industrial water use (X2) was served as the abscissa, the cumulative percentage of secondary industry output was regarded as the ordinate (Y2). Finally, the Lorenz curve between water use and socio-economic development in Shandong were drawn based on the aforementioned coordinates (Figure 5).
In economics, the Gini index can realize the purpose of quantifying the Lorenz curve. The value of the Gini index is between 0 and 1, and its evaluation standards are shown in Table 2, according to the regulations of relevant United Nations organizations [58]. The larger the Gini index was, the worse the distribution and equity was; in contrast, the smaller the Gini index was, the better the distribution and equity was. The detailed calculation steps of Gini index were as following:
(i) Calculating the area of the geometric figure.
S B = 0 1 F d x
where F is the function of Lorentz curve (L) and the integral interval is [0,1].
(ii) Calculating the Gini index.
G = S A / ( S A + S B ) = ( S Δ C D E S B ) / ( S A + S B )
where G is the Gini index, S Δ C D E = S A + S B = 0.5 .
(iii) Grading of Gini index.
The Gini index is divided into five subintervals, and each subinterval is set with a group of Gini index grades.

2.5. Elasticity Coefficient Model

In economics, the elasticity coefficient is the ratio of relative change rate between two indicators that are related to each other, which can represent the interdependence between indicators [59]. In this paper, the elasticity coefficient model was applied to analyze the control of wastewater emissions and the governance of COD and NH3-N in wastewater. The specific formulas were as follows:
E W = W e i W e i 1 W e i 1 / W u i W u i 1 W u i 1
where EW is the elasticity coefficient between industrial (or domestic) wastewater emissions and industrial (or domestic) water use. Wei-1 and Wei are industrial (or domestic) wastewater emissions of the (i − 1)th year and the ith year, respectively. Wui−1 and Wui are industrial (or domestic) water use of the (i − 1)th year and the ith year, respectively.
E C = C e i C e i 1 C e i 1 / W e i W e i 1 W e i 1
where EC is the elasticity coefficient between industrial (or domestic) COD emissions and industrial (or domestic) wastewater emissions. Cei-1 and Cei are industrial (or domestic) COD emissions of the (i − 1)th year and the ith year, respectively. Wei−1 and Wei are industrial (or domestic) wastewater emissions of the (i − 1)th year and the ith year, respectively.
E N = N e i N e i 1 N e i 1 / W e i W e i 1 W e i 1
where EN is the elasticity coefficient between industrial (or domestic) NH3-N emissions and industrial (or domestic) wastewater emissions. Nei−1 and Nei are industrial (or domestic) NH3-N emissions of the (i − 1)th year and the ith year, respectively. Wei−1 and Wei are industrial (or domestic) wastewater emissions of the (i − 1)th year and the ith year, respectively.
If | E | > 1 , high elasticity exists between the evaluation objects. If | E | = 1 , equivalent elasticity exists between the two evaluate objects. If | E | < 1 , low elasticity exists between the evaluation objects. | E | = 0 represents perfect inelasticity between them, while | E | represents perfect elasticity between them.

3. Results

3.1. Relationship of Water Pollution and Socio-Economic Development Based on the Optimal EKC Model

The optimal EKC model would be designed using five goodness-of-fit indexes, such as R-squared (R2), adjusted R-squared, F statistics, significance and standard error, to draw the EKC of water pollution. Results showed that the regression models have statistical significance. We compared five goodness-of-fit indexes in turn, and concluded that the linear model between industrial COD emissions and GDP per capita was optimal. The quadratic model was ideal in industrial wastewater and NH3-N, domestic wastewater and NH3-N emissions, with economic development. The cubic model of domestic COD and GDP per capita was optimal (Table 3 and Table 4).
The EKC of industrial wastewater emissions was an inverted U-shape, showing a declining trend since 2012 (Figure 6a). The turning point occurred at GDP per capita of RMB ¥50,256. A monotonically decreasing linear relationship was found between industrial COD emissions and economic development (Figure 6c). The binding curve of the left of the U-shaped curve occurred in the EKC of industrial NH3-N emissions (Figure 6e). These meant that industrial pollutants emissions improved gradually with economic development. Accordingly, the nexus between industrial pollution and economic growth in Shandong has gradually tended to coordinated development.
Overall, on the one hand, the optimization and adjustment of the existing industrial structure has been significant in recent years. A proportion of three economic sectors have changed from the “primary industry > secondary industry > tertiary industry” to the “secondary industry > tertiary industry > primary industry”. On the other hand, the water quality in the catchment must meet the Environmental Quality Standard for surface water, for China to ensure the water quality security of the South-to-North Water Diversion Project (east route). Shandong has carried out centralized rectification for industrial enterprises with high pollution intensity, and proposed stricter standards of wastewater discharge than national standards. The industrial structure adjustment and other social and economic behaviors at this stage have played a key role in the improvement of water quality, meaning that the coordination between industrial pollutant emissions and socio-economic development in Shandong has gradually been realized.
Domestic wastewater emissions showed an increasing tendency from 2003 to 2017 with economic development (Figure 6b). This was especially true in the years since 2012, when its growth rate was up to 73%, mainly due to rapid urbanization and urban population growth. The EKC of domestic wastewater emissions has still not reached its peak point. The domestic COD emissions showed a downtrend before the turning point, and reached the turning point at GDP per capita of RMB ¥52,168 in 2012 (Figure 6d). Hereafter, with economic development, an increase of 25.6% occurred in COD emissions between 2014 and 2017. The domestic NH3-N emissions still increased, and had not yet been achieved a coordination relationship with economic growth (Figure 6f). The main reasons for this include the rapid urbanization, the increase in the urban population base, the discharge of untreated domestic wastewater, and the lack of awareness of environmental protection for residents. These large-scale domestic wastewater emissions have posed a potential threat to water quality security in Shandong.
Comparatively speaking, the relationship between industrial pollutants emissions and economic growth has tended gradually to coordinated development. However, domestic pollutants emissions showed an upward trend with economic growth, and coordinated development had not occurred yet under current conditions. Domestic water pollution has progressively become one of the potential risk sources for water security in Shandong. Domestic wastewater emission will seriously threaten the water security of Shandong and restrict the sustainable development of the social economy in the future. Accordingly, some control and management measures should be carried out, for example, increasing governance for domestic pollutants, investing more funds to build municipal sewage treatment plants, optimizing wastewater treatment equipment and enhancing the utilization of reclaimed water. To achieve coordinated development between the regional water environment and the social economy, the change of growth patterns and socio-economic behaviors, such as institutional design, policy formulation and implementation, are particularly important.

3.2. Allocation and Equity of Water Use Based on the Lorenz Curve and Gini Index

Socio-economic development plays a certain role in regional water resource planning and management, and unreasonable development and utilization of water resources in a region will generate a negative impact on water security and sustainable socio-economic development. This paper plotted the Lorenz curve (Figure 7) based on Table 5, Table 6, Table 7 and Table 8, and the Gini index was then calculated to analyze the allocation and equity of industrial water use and secondary industry output, as well as domestic water use and the urban population in Shandong (Table 9).

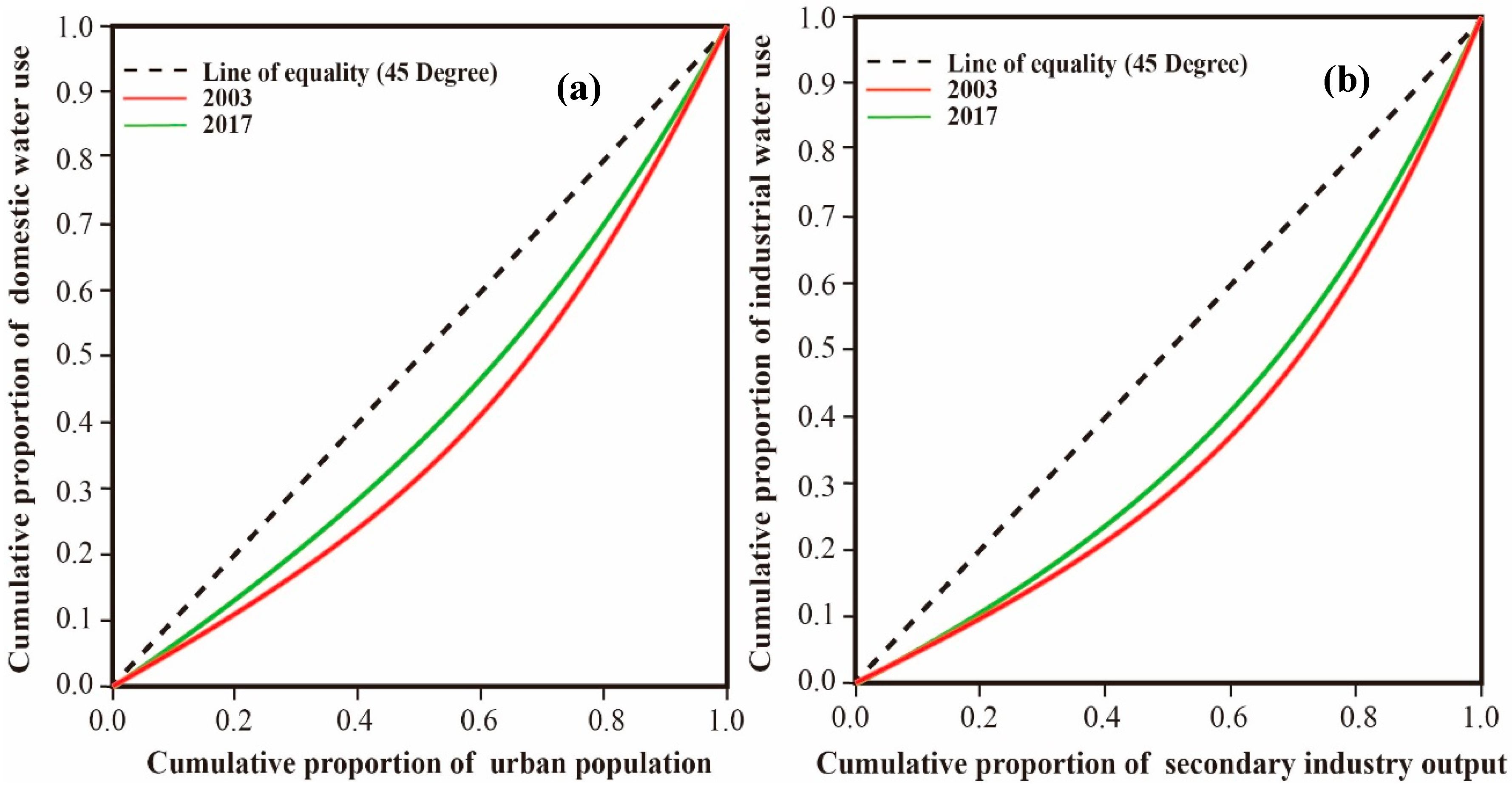

The Gini index of domestic water use–urban population in 2017 (0.101) was less than that of 2003 (0.165), indicating that the allocation between domestic water use and the urban population belonged to the highly average grade (Table 2). The interannual variation of Gini index was −0.064 (Table 9), meaning that the allocation of domestic water use was more equitable in 2017 compared to 2003 (Figure 7a). The amount of domestic water use was roughly in proportion to the size of the urban population in most cities (Table 5 and Table 6). However, the size of the urban population was slightly larger than the amount of domestic water use in Jinan, Rizhao, Weihai, Qingdao, Weifang and Yantai, indicating that the allocation and equity of domestic water use was relatively low in these cities. The main reasons for the above results are: (1) Rizhao, Weihai, Qingdao, Weifang and Yantai are coastal cities, and Jinan is the capital of Shandong and the center of political culture. These cities have relatively developed economies, which attract a large number of people to settle down, resulting in a large urban population; (2) Coastal cities are often threatened by seawater intrusion, and these natural geographical factors may result in the relatively small amount of freshwater resources. Therefore, the allocation and equity of domestic water use and populations in these cities are relatively poor.
Accordingly, optimizing water resources allocation is necessary. Shandong should control the growth rate of the urban population and strengthen residents’ awareness of water saving to ease pressure on the urban water supply. In addition, some water diversion projects should be given appropriate supports, especially the South–North Water Diversion Project (eastern route) that has achieved success in terms of increasing the urban water supply. In 2013, “Longmen Reservoir”, “Zhuangli Reservoir,” and other water conservancy projects were established to alleviate the pressure on the urban water supply. Meanwhile, the measures of seawater desalination should be increased on the existing basis for coastal cities (Rizhao, Weihai, Qingdao, Weifang and Yantai) [60]. Overall, the allocation and equity between domestic water use and the urban population are still relatively poor in some cities of Shandong. To realize rational allocation of domestic water use and urban population in all cities, Shandong should increase the supportability of the water supply and control the urban population growth rate in Jinan, Rizhao, Weihai, Qingdao, Weifang and Yantai.
The Gini index between industrial water use and secondary industry output in 2017 (0.273) was less than that of 2003 (0.292). The interannual variation of the Gini index was −0.019 (Table 9), indicating that relatively better allocation existed between industrial water use and secondary industry output in 2017, compared with 2003 (Figure 7b). Meanwhile, this also implied that a certain proportion of water use can create the corresponding proportion of regional output value. However, irrational allocation still existed in Rizhao, Weihai, Qingdao, Weifang and Yantai. The main reasons are that the economics are relatively good, the production technology of industrial enterprises is advanced, and the utilization rate of reclaimed water is relatively high in these coastal cities. Consequently, it is urgent that we optimize water resources allocation, promote industrial structural upgrades, improve technologies of water recycling and enhance the efficiency of reclaimed water use.
As an area which experiences water shortages, Shandong has devoted itself to optimizing allocation of water use and improving water use efficiency in recent years [61,62]. Overall, the allocation and equity of domestic and industrial water use had improved in 2017, compared to 2003. It can be concluded that a certain amount of water use can achieve a proportional socio-economic benefit in Shandong, meaning that the allocation between them is relatively good. However, irrational allocation of socio-economic development and water resources utilization still exists in some cities. Therefore, regional GDP created by industrial water use in Shandong has room for further improvement. Meanwhile, the irrational allocation of domestic water use will be improved gradually by strengthening water resource planning and management.

3.3. Control of Pollution Emissions Based on the Elasticity Coefficient Model

The control of wastewater emissions and the governance of typical pollutants (NH3-N and COD) in wastewater play an important role in achieving water safety and sustainable socio-economic development. In this paper, the elasticity coefficient method was applied to analyze the dynamic changes in water use and pollution emissions in Shandong. The industrial EW from 2013 to 2017 was less than 1 (standard line), indicating that the growth rate of industrial wastewater emissions was lower than that of industrial water use as a whole (Figure 8). In addition, the industrial EW decreased significantly between 2016 and 2017. This resulted from the combined policy of the Five-Year Plan for national economic and social development in Shandong, which was because the supervision of industrial wastewater emissions was intensified in the beginning of the 13th Five-Year Plan, and the growth rate of industrial wastewater emissions had shown a significant downward trend.
A downward trend occurred in domestic EW in 2017, compared to 2013. However, domestic EW was greater than 1, indicating that the growth rate of domestic wastewater emissions still was greater than the growth rate of domestic water use under the current conditions, and the domestic EW was greater than industrial EW in each year. In general, the growth rate of industrial wastewater emissions had been controlled well. Although the discharge of domestic wastewater had improved as a whole, the growth rate was still higher than the growth rate of water use. So, the control of domestic wastewater emissions needs to be further improved.

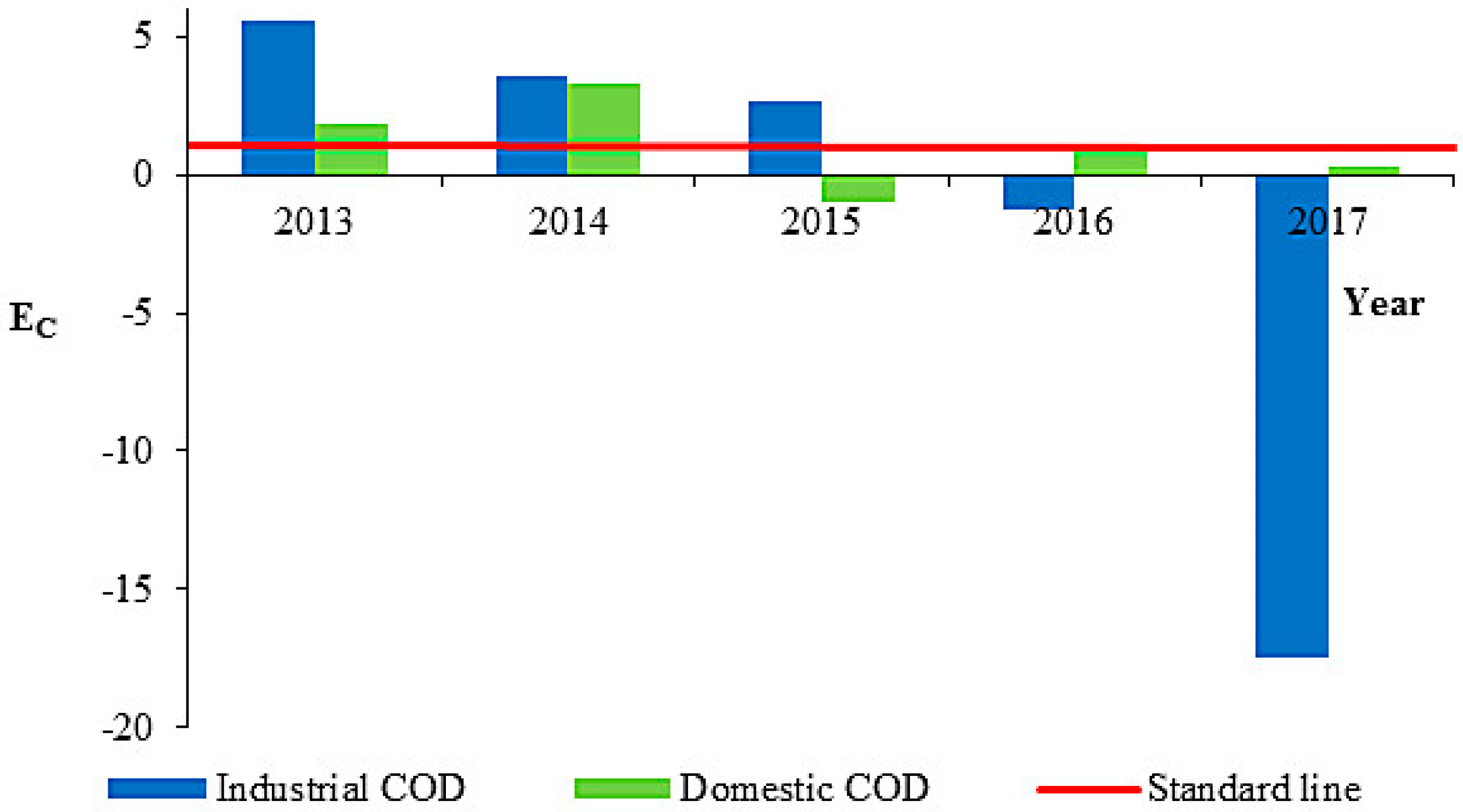

Although the industrial EC were all greater than 1 between 2013 and 2015, a significant downward trend occurred from 2013 to 2017 (Figure 9). This showed that the growth rate of industrial COD emissions decreased significantly. Meanwhile, the negative value in industrial EC at the beginning of the 13th Five-Year Plan (2016 and 2017) indicated that a significant treatment effect occurred in industrial COD. Although the fluctuation trend existed in domestic EC, the elasticity coefficients were all less than 1 between 2015 and 2017, which indicated that a good governance effect occurred in domestic COD over the past three years.

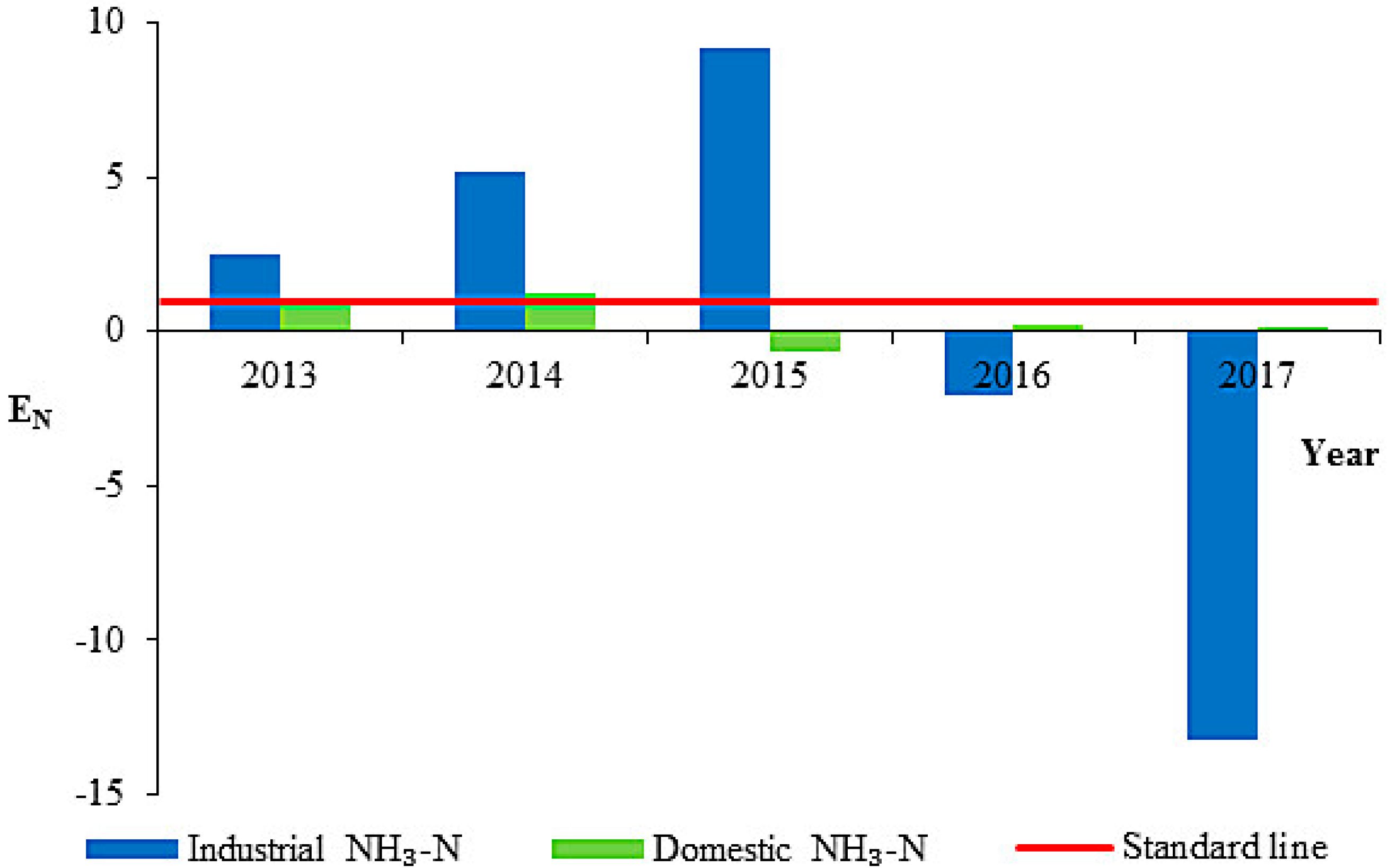

The domestic EN values were all less than 1 between 2013 and 2017 (Figure 10), except for in 2014. The growth rate of domestic NH3-N emissions was less than that of domestic wastewater emissions, indicating that there was a good governance effect. The industrial EN in 2013–2015 were all greater than 1 and showed a growth trend, meaning that the growth rate of industrial NH3-N emissions in wastewater had not been treated well. However, negative growth occurred in industrial NH3-N emissions since 2016. Overall, the governance of domestic NH3-N achieved better results in the past five years, and a significant improvement appeared in the governance of industrial NH3-N at the beginning of the 13th Five-Year Plan.

4. Discussion

To promote water security and sustainable socio-economic development, industrial, domestic water use and pollution management were investigated in this paper. The research results reveal the states of water pollution control and management, and provide theoretical support for formulating relevant environmental policies and implementing social and economic activities in Shandong. Meanwhile, we hope this study can provide a theoretical reference for some regions with similar water resources problems, to optimize water pollution control policies and measures and increase environmental investment. However, some deficiencies still exist in this study. Possible future research deriving from this paper includes the following: (i) Classic EKC models were adopted to draw the two dimensional EKC between water pollution and socio-economic development and analyze the relationship between them in this paper. However, pollution is not only a function of income. Besides income, environmental policies, technological progress, industrialization process, residents’ environmental awareness, and other factors all affect environmental change. The aforementioned factors have not been considered in EKC modeling in this paper. In future research, we will draw on existing research to improve the EKC model, and consider more relevant factors to increase the independent variable in EKC modeling. (ii) Existing research in Shandong has shown that industrial water use is most closely related to secondary industry output, and domestic water use is most closely related to population. Realistically, there are many socio-economic indicators related to water use, these indicators can be investigated and selected in the future by mathematical and statistical methods (principal component analysis and grey relational analysis, etc.). (iii) Existing research shows that industrial and domestic water use and pollution in Shandong have threatened the regional water security and sustainable socio-economic development to a certain extent. In view of the current situation of water use and pollution in Shandong, the research scope of this paper included industrial and domestic water use and pollution, not considering agricultural water. This part will be further researched in the future according to detailed investigation results on agricultural water.

5. Conclusions

To effectively conduct the integrated planning and management of regional water resources and the social economy, in this paper the optimal EKC models were established based on comparison in the five goodness-of-fit indexes to analyze the water pollution–socio-economic development nexus. The Lorenz curve and the Gini index were applied to quantitatively study the allocation and equity of water use and socio-economic development. Additionally, the control of wastewater emissions and the governance of COD and NH3-N in wastewater were investigated based on the elasticity coefficient model in the context of the Five-Year Plan for Shandong. Accordingly, specific suggestions were proposed according to the current situation between water use and pollutant emissions in Shandong. The conjunctive use of the aforementioned three methods can be valuable for investigating industrial and domestic water use and pollution management from multiple angles.
The EKC of industrial water pollution (wastewater, COD, NH3-N emissions) in the period 2003–2017 showed an inverted-U-shaped, a linear decrease and a binding curve on the left side of the U-shaped curve, respectively. Overall, a coordinated relationship between industrial water pollution and socio-economic development has basically been realized in Shandong. The EKC of domestic water pollution (wastewater, COD, NH3-N emissions) from 2003 to 2017 showed an increasing tendency, a U-shaped curve and a binding curve of the right side of U-shaped curve, respectively. Collectively, the coordinated relationship between domestic water pollution and socio-economic development still has not been achieved. Meanwhile, we found that the type of EKC differed across the type of water pollutant. At present, domestic water pollution in Shandong has become more serious, compared to industrial water pollution. On the one hand, Shandong should pay attention to the treatment of domestic pollutants in the future. On the other hand, Shandong should draw on similar research experiences and lessons from other countries or regions to implement some control and management measures, such as increasing governance for domestic pollutants, investing more funds to build municipal sewage treatment plants, and optimizing wastewater treatment equipment.
The comparison of the Gini indexes in 2003 and 2017 indicated that there was relatively good allocation of water use and socio-economic development in Shandong in 2017. However, some coastal cities (Rizhao, Weihai, Qingdao, Weifang and Yanta) still displayed relatively irrational allocation in industrial and domestic water use. Accordingly, in terms of domestic water use, the supportability of water supply can be increased and the urban population growth rate should be controlled in Jinan, Rizhao, Weihai, Qingdao, Weifang and Yantai. In terms of industrial water use, non-coastal cities of Shandong can draw on experiences in industrial development of coastal cities to improve the production technology and the rate of reclaimed water utilization for industrial enterprises.
The condition of pollution emissions control from 2013 to 2017 was analyzed quantitatively using the elasticity coefficient theory. Relatively good control occurred in industrial wastewater emissions. Although the growth rate of domestic wastewater emissions had decreased, it was still greater than the growth rate of domestic water use. The governance of COD and NH3-N in wastewater has achieved relatively good results over the past few years. In general, the management of domestic wastewater emissions control in Shandong needs to be further improved.
In summary, Shandong should draw on relevant experiences and lessons to change growth patterns and socio-economic behaviors, including institutional design, formulation and implementation of environmental policy, and strengthening of public environmental awareness. These play an important role in achieving water security and sustainable development of the social economy in Shandong.

Author Contributions

Y.L. and Z.Z. proposed the research ideas and methods; F.Z. revised the paper.

Funding

This research received no external funding.

Acknowledgments

The authors would like to thank Jialin Liu, Youzhen Shen, Yingju Zhang and Lixia Zheng for their help and support of this work.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sahely Halla, R.; Kennedy Christopher, A. Water Use Model for Quantifying Environmental and Economic Sustainability Indicators. J. Water Resour. Plan. Manag. 2007, 133, 550–559. [Google Scholar] [CrossRef]
  2. Pellicer-Martínez, F.; Martínez-Paz, J.M. The Water Footprint as an indicator of environmental sustainability in water use at the river basin level. Sci. Total Environ. 2016, 571, 561–574. [Google Scholar] [CrossRef] [PubMed]
  3. Wang, B.; Huang, G.H.; Liu, L.; Li, W.; Xie, Y.L. Integrated Planning of Urban Water Resources and Water Pollution Control Management: Case of Urumqi, China. J. Water Resour. Plan. Manag. 2016, 142, 05016001. [Google Scholar] [CrossRef]
  4. Hu, P.; Chen, N.; Li, Y.; Xie, Q. Efficiency Evaluation of Water Consumption in a Chinese Province-Level Region Based on Data Envelopment Analysis. Water. 2018, 10, 793. [Google Scholar] [CrossRef]
  5. Bao, C.; Fang, C. Water Resources Flows Related to Urbanization in China: Challenges and Perspectives for Water Management and Urban Development. Water Resour. Manag. 2012, 26, 531–552. [Google Scholar] [CrossRef]
  6. Wang, X.; Li, R. Is Urban Economic Output Decoupling from Water Use in Developing Countries?—Empirical Analysis of Beijing and Shanghai, China. Water 2019, 11, 1335. [Google Scholar] [CrossRef]
  7. Pellicer-Martínez, F.; Martínez-Paz, J.M. Grey water footprint assessment at the river basin level: Accounting method and case study in the Segura River Basin, Spain. Ecol. Indic. 2016, 60, 1173–1183. [Google Scholar] [CrossRef]
  8. Wang, B.; Liu, L.; Huang, G. Retrospective and prospective analysis of water use and point source pollution from an economic perspective—A case study of Urumqi, China. Environ. Sci. Pollut. Res. 2017, 24, 26016–26028. [Google Scholar] [CrossRef] [PubMed]
  9. Yang, X.; Wang, Y.; Sun, M.; Wang, R.; Zheng, P. Exploring the environmental pressures in urban sectors: An energy-water-carbon nexus perspective. Appl. Energy 2018, 228, 2298–2307. [Google Scholar] [CrossRef]
  10. Fernández-Amador, O.; Francois, J.F.; Oberdabernig, D.A.; Tomberger, P. Carbon Dioxide Emissions and Economic Growth: An Assessment Based on Production and Consumption Emission Inventories. Ecol. Econ. 2017, 135, 269–279. [Google Scholar] [CrossRef]
  11. Sarkodie, S.A.; Strezov, V. A review on Environmental Kuznets Curve hypothesis using bibliometric and meta-analysis. Sci. Total Environ. 2019, 649, 128–145. [Google Scholar] [CrossRef] [PubMed]
  12. Grossman, G.M.; Krueger, A.B. Environmental Impacts of a North American Free Trade Agreement; National Bureau of Economic Research: Cambridge, MA, USA, 1991. [Google Scholar]
  13. Ang, J.B. Economic development, pollutant emissions and energy consumption in Malaysia. J. Policy Model. 2008, 30, 271–278. [Google Scholar] [CrossRef]
  14. He, J.; Richard, P. Environmental Kuznets curve for CO2 in Canada. Ecol. Econ. 2010, 69, 1083–1093. [Google Scholar] [CrossRef]
  15. Tan, F.; Lean, H.H.; Khan, H. Growth and environmental quality in Singapore: Is there any trade-off? Ecol. Indic. 2014, 47, 149–155. [Google Scholar] [CrossRef]
  16. Armeanu, D.; Vintilă, G.; Andrei, J.V.; Ştefan Cristian Gherghina; Drăgoi, M.C.; Teodor, C. Exploring the link between environmental pollution and economic growth in EU-28 countries: Is there an environmental Kuznets curve? PLoS ONE 2018, 13, e0195708. [Google Scholar] [CrossRef] [PubMed]
  17. Lee, C.-C.; Chiu, Y.-B.; Sun, C.-H. The environmental Kuznets curve hypothesis for water pollution: Do regions matter? Energy Policy 2010, 38, 12–23. [Google Scholar] [CrossRef]
  18. Fodha, M.; Zaghdoud, O. Economic growth and pollutant emissions in Tunisia: An empirical analysis of the environmental Kuznets curve. Energy Policy 2010, 38, 1150–1156. [Google Scholar] [CrossRef]
  19. Xu, H.; Yang, L.-Z.; Zhao, G.-M.; Jiao, J.-G.; Yin, S.-X.; Liu, Z.-P. Anthropogenic Impact on Surface Water Quality in Taihu Lake Region, China. Pedosphere 2009, 19, 765–778. [Google Scholar] [CrossRef]
  20. Li, Y.; Li, Y.; Zhou, Y.; Shi, Y.; Zhu, X. Investigation of a coupling model of coordination between urbanization and the environment. J. Environ. Manag. 2012, 98, 127–133. [Google Scholar] [CrossRef]
  21. Gao, Z.; Miao, X.; Zou, C. EKC Characteristics in Jiangsu Province. Rural Eco-Environ. 2004, 20, 41–59. [Google Scholar]
  22. Peng, L.; Tong, X.; Shen, Y. Relationship between Environmental Pollution and Economic Growth in Shanghai of China. China Popul. Resour. Environ. 2008, 18, 186–194. [Google Scholar]
  23. Liu, X.; Wang, W.; Lu, S.; Wang, Y.; Ren, Z. Analysis of the relationship between economic growth and industrial pollution in Zaozhuang, China—based on the hypothesis of the environmental Kuznets curve. Environ. Sci. Pollut. Res. 2016, 23, 16349–16358. [Google Scholar] [CrossRef] [PubMed]
  24. Zhang, Y.; Wang, X. Relationship between Water Pollution and Economic Development of Shandong Province: Regression Analysis Based on Model EKC. Environ. Sanit. Eng. 2017, 25, 44–47. [Google Scholar]
  25. Gill, A.; Viswanathan, K.; Hassan, S. The Environmental Kuznets Curve (EKC) and the environmental problem of the day. Renew. Sustain. Energy Rev. 2018, 81, 1636–1642. [Google Scholar] [CrossRef]
  26. Dasgupta, S.; Laplante, B.; Wang, H.; Wheeler, D. Confronting the environmental Kuznets curve. J. Econ. Perspect. 2002, 16, 147–168. [Google Scholar] [CrossRef]
  27. Alcon, F.; Tapsuwan, S.; Brouwer, R.; de Miguel, M.D. Adoption of irrigation water policies to guarantee water supply: A choice experiment. Environ. Sci. Policy 2014, 44, 226–236. [Google Scholar] [CrossRef]
  28. Gu, A.; Zhang, Y.; Pan, B. Relationship between Industrial Water Use and Economic Growth in China: Insights from an Environmental Kuznets Curve. Water 2017, 9, 556. [Google Scholar] [CrossRef]
  29. Jia, S.; Yang, H.; Zhang, S.; Wang, L.; Xia, J. Industrial Water Use Kuznets Curve: Evidence from Industrialized Countries and Implications for Developing Countries. J. Water Resour. Plan. Manag. 2006, 132, 183–191. [Google Scholar] [CrossRef]
  30. Duarte, R.; Pinilla, V.; Serrano, A. Is there an environmental Kuznets curve for water use? A panel smooth transition regression approach. Econ. Model. 2013, 31, 518–527. [Google Scholar] [CrossRef]
  31. Ahmed, K.; Shahbaz, M.; Qasim, A.; Long, W. The linkages between deforestation, energy and growth for environmental degradation in Pakistan. Ecol. Indic. 2015, 49, 95–103. [Google Scholar] [CrossRef]
  32. Katz, D. Water use and economic growth: Reconsidering the Environmental Kuznets Curve relationship. J. Clean. Prod. 2015, 88, 205–213. [Google Scholar] [CrossRef]
  33. Zhang, Y.; Tong, D.; Liang, X. New Perspective on Regional Inequality: Theory and Evidence from Guangdong, China. J. Urban Plan. Dev. 2018, 144, 04018002. [Google Scholar] [CrossRef]
  34. Liu, X.; Shi, Z.; Tang, J.; Huang, J. Application of Gini Coefficient on Climatic Evaluation of Human Settlement Environment. Trop. Geogr. 2008, 28, 7–20. [Google Scholar]
  35. Liu, J.; Li, L.; Wang, Z. Study on Food Security Index of China. Rev. China Agric. Sci. Technol. 2004, 6, 10–16. [Google Scholar]
  36. Delbosc, A.; Currie, G. Using Lorenz curves to assess public transport equity. J. Transp. Geogr. 2011, 19, 1252–1259. [Google Scholar] [CrossRef]
  37. Sadras, V.; Bongiovanni, R. Use of Lorenz curves and Gini coefficients to assess yield inequality within paddocks. Field Crop Res. 2004, 90, 303–310. [Google Scholar] [CrossRef]
  38. Groves-Kirkby, C.; Denman, A.; Phillips, P. Lorenz curve and Gini coefficient: Novel tools for analyzing seasonal variation of environmental radon gas. J. Environ. Manag. 2009, 90, 2480–2487. [Google Scholar] [CrossRef]
  39. Jacobson, A.; Milman, A.; Kammen, D. Letting the (energy) Gini out of the bottle: Lorenz curves of cumulative electricity consumption and Gini coefficients as metrics of energy distribution and equity. Energy Policy 2005, 33, 1825–1832. [Google Scholar] [CrossRef]
  40. Wu, Q.; Clulow, V.; Maslyuk, S. Energy consumption inequality and human development. In Proceedings of the IEEE 2010 International Conference on Management Science & Engineering 17th Annual Conference, Melbourne, Australia, 24–26 November 2010; pp. 1398–1409. [Google Scholar]
  41. Duan, C.; Chen, B. Analysis of global energy consumption inequality by using Lorenz curve. Energy Procedia 2018, 152, 750–755. [Google Scholar] [CrossRef]
  42. Rock, M.T. Freshwater Use, Freshwater Scarcity, and Socioeconomic Development. J. Environ. Dev. 1998, 7, 278–301. [Google Scholar] [CrossRef]
  43. Cole, M.A. Economic growth and water use. Appl. Econ. Lett. 2004, 11, 1–4. [Google Scholar] [CrossRef]
  44. Wang, X.; Zhang, J.; Shahid, S.; ElMahdi, A.; He, R.; Wang, X.; Ali, M. Gini coefficient to assess equity in domestic water supply in the Yellow River. Mitig. Adapt. Strateg. Glob. Chang. 2012, 17, 65–75. [Google Scholar] [CrossRef]
  45. Bulte, E.H.; Damania, R.; Deacon, R.T. Resource intensity, institutions, and development. World Dev. 2005, 33, 1029–1044. [Google Scholar] [CrossRef]
  46. Gunasekara, N.K.; Kazama, S.; Yamazaki, D.; Oki, T. Water Conflict Risk due to Water Resource Availability and Unequal Distribution. Water Resour. Manag. 2014, 28, 169–184. [Google Scholar] [CrossRef]
  47. Hanjra, M.A.; Ferede, T.; Gutta, D.G. Pathways to breaking the poverty trap in Ethiopia: Investments in agricultural water, education, and markets. Agric. Water Manag. 2009, 96, 1596–1604. [Google Scholar] [CrossRef]
  48. Wu, X.; Wang, Y. Water resources space fair distribution analysis in Handan City based on Gini coefficient. Water Sci. Eng. Technol. 2015, 3, 1–5. [Google Scholar]
  49. Ma, H.; Wu, P. Spatial Matching Analysis of Shanxi Province’s Water Resources Based on Gini Coefficient. Yellow River 2014, 36, 58–61. [Google Scholar]
  50. Wei, S.; Xie, S. A Spatial Matching Analysis of Chongqing’s Water Resources Based on Gini Coefficient and Lorenz Curves. China Rural Water Hydropower 2015, 2, 56–59. [Google Scholar]
  51. Fridstrom, L.; Minken, H.; Vold, A. The income distribution effect of road pricing: A modelling case study. In Proceedings of the Aet European Transport Conference, Cambridge, UK, 10–12 September 2001. [Google Scholar]
  52. Wu, P.; Tan, M. Challenges for sustainable urbanization: A case study of water shortage and water environment changes in Shandong, China. Procedia Environ. Sci. 2012, 13, 919–927. [Google Scholar] [CrossRef]
  53. Wang, M.; Zhao, X.; Gong, Q.; Ji, Z. Measurement of Regional Green Economy Sustainable Development Ability Based on Entropy Weight-Topsis-Coupling Coordination Degree—A Case Study in Shandong Province, China. Sustainability 2019, 11, 280. [Google Scholar] [CrossRef]
  54. Kuznets, S. Simon Kuznets Economic Growth and Income Inequality. Am. Econ. Rev. 1955, 45, 1–28. [Google Scholar]
  55. Gastwirth, J.L. A General Definition of the Lorenz Curve. Econometrica 1971, 39, 1037–1039. [Google Scholar] [CrossRef]
  56. Jin, J.; Cui, Y.; Yang, Q.; Wu, C.; Pan, Z. Dynamic relationship analysis between total water consumption and water utilization structure in Shandong Province based on the VAR model. J. Hydraul. Eng. 2015, 46, 551–557. [Google Scholar]
  57. Jia, C.; Zhang, L.; Xu, Y.; Jin, J.; Wu, C. Analysis on the coordination of water structure and industrial structure in Shandong province based on information entropy. Int. J. Hydroelectr. Energy 2016, 32, 17–19. [Google Scholar]
  58. Dorfman, R. A Formula for the Gini Coefficient. Rev. Econ. Stat. 1979, 61, 146–149. [Google Scholar] [CrossRef]
  59. Wilford, W.T. State tax stability criteria and the revenue-income elasticity coefficient reconsidered. Natl. Tax J. 1965, 18, 304–312. [Google Scholar]
  60. Al-Juaidi Ahmed, E.; Kaluarachchi Jagath, J.; Mousa Attia, I. Hydrologic-Economic Model for Sustainable Water Resources Management in a Coastal Aquifer. J. Hydrol. Eng. 2014, 19, 04014020. [Google Scholar] [CrossRef]
  61. Wang, J.; Mao, D.; Li, J. Analysis on Gini Coefficient of Water Resource Based on Multi-dimension in Hunan Province. J. Wenzhou Univ. (Nat. Sci.) 2017, 38, 30–36. [Google Scholar]
  62. Wang, Y.; Zuo, Q.; Liu, H. Equilibrium Analysis of the Matching Characteristics of Water and Soil Resources in Henan Province. Yellow River 2018, 40, 55–59. [Google Scholar]
Figure 1. Location of Shandong Province and its seventeen prefecture-level cities.
Figure 1. Location of Shandong Province and its seventeen prefecture-level cities.
Water 11 01630 g001
Figure 2. The states of water demand (a) and water quality (b) in Shandong.
Figure 2. The states of water demand (a) and water quality (b) in Shandong.
Water 11 01630 g002

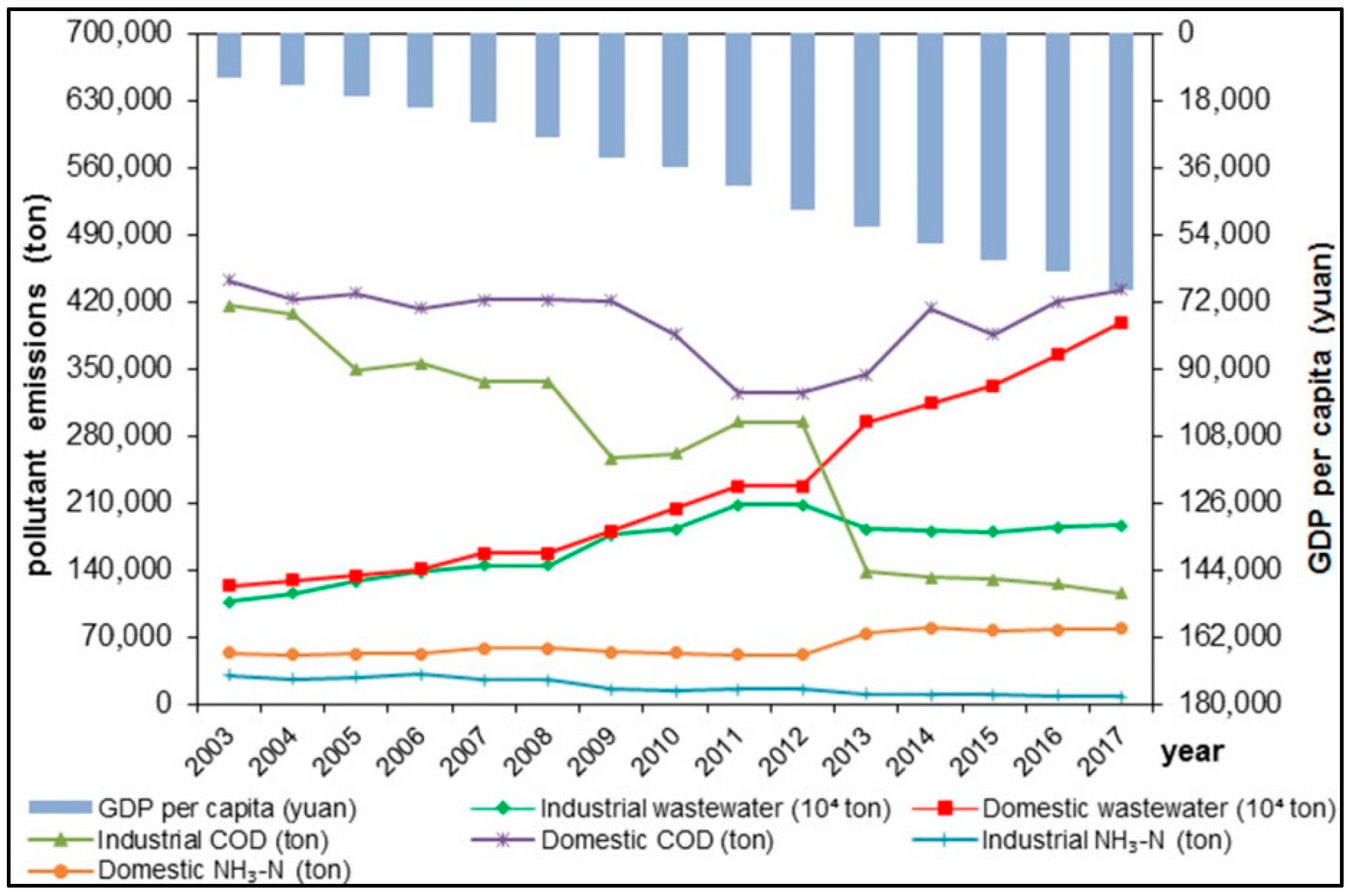

Figure 3. Indicators of water pollution and socio-economic development in Shandong from 2003 to 2017.
Figure 3. Indicators of water pollution and socio-economic development in Shandong from 2003 to 2017.
Water 11 01630 g003
Figure 4. Indicators of water use and socio-economic development in 2003 and 2017.
Figure 4. Indicators of water use and socio-economic development in 2003 and 2017.
Water 11 01630 g004

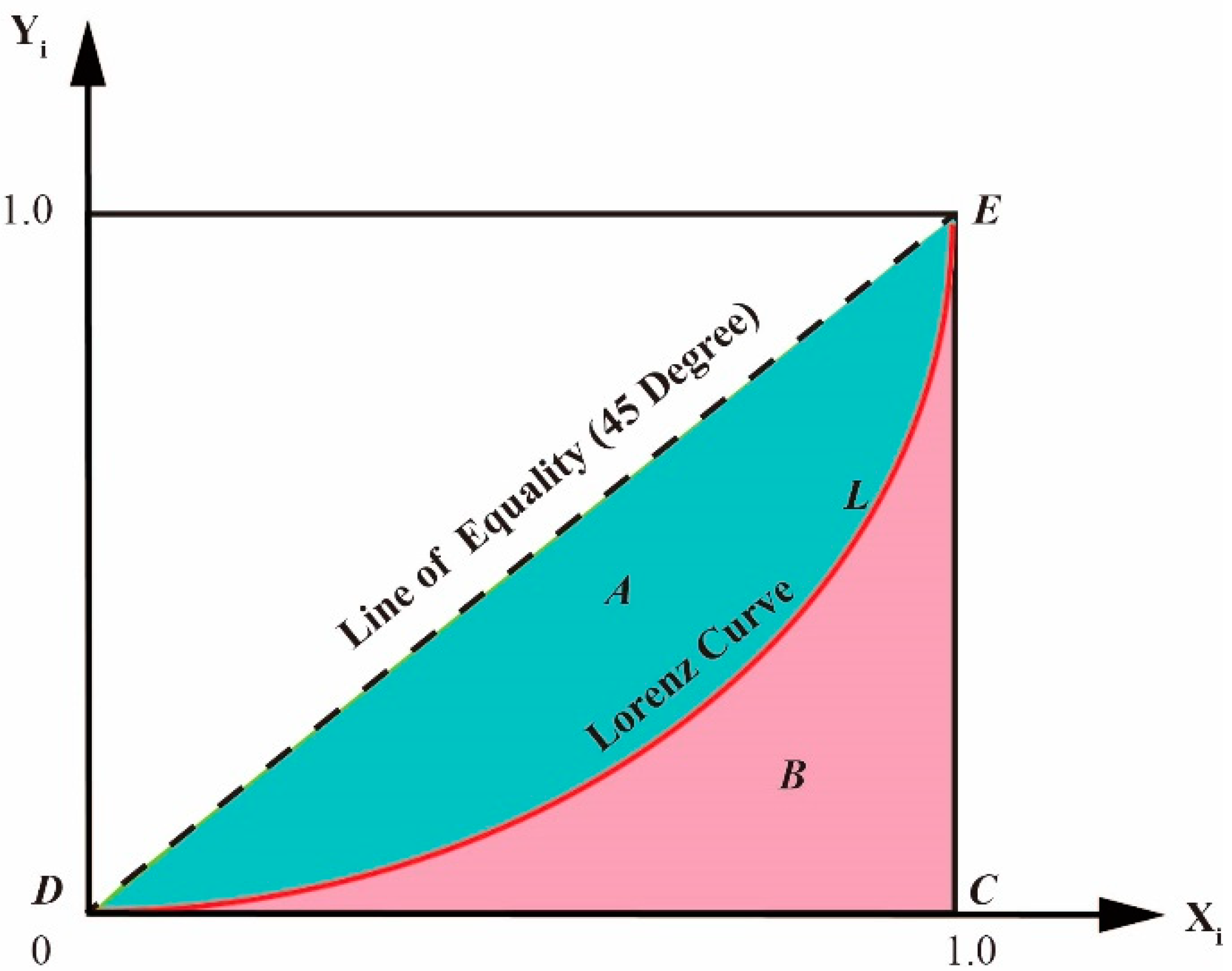

Figure 5. The Lorenz curve.
Figure 5. The Lorenz curve.
Water 11 01630 g005

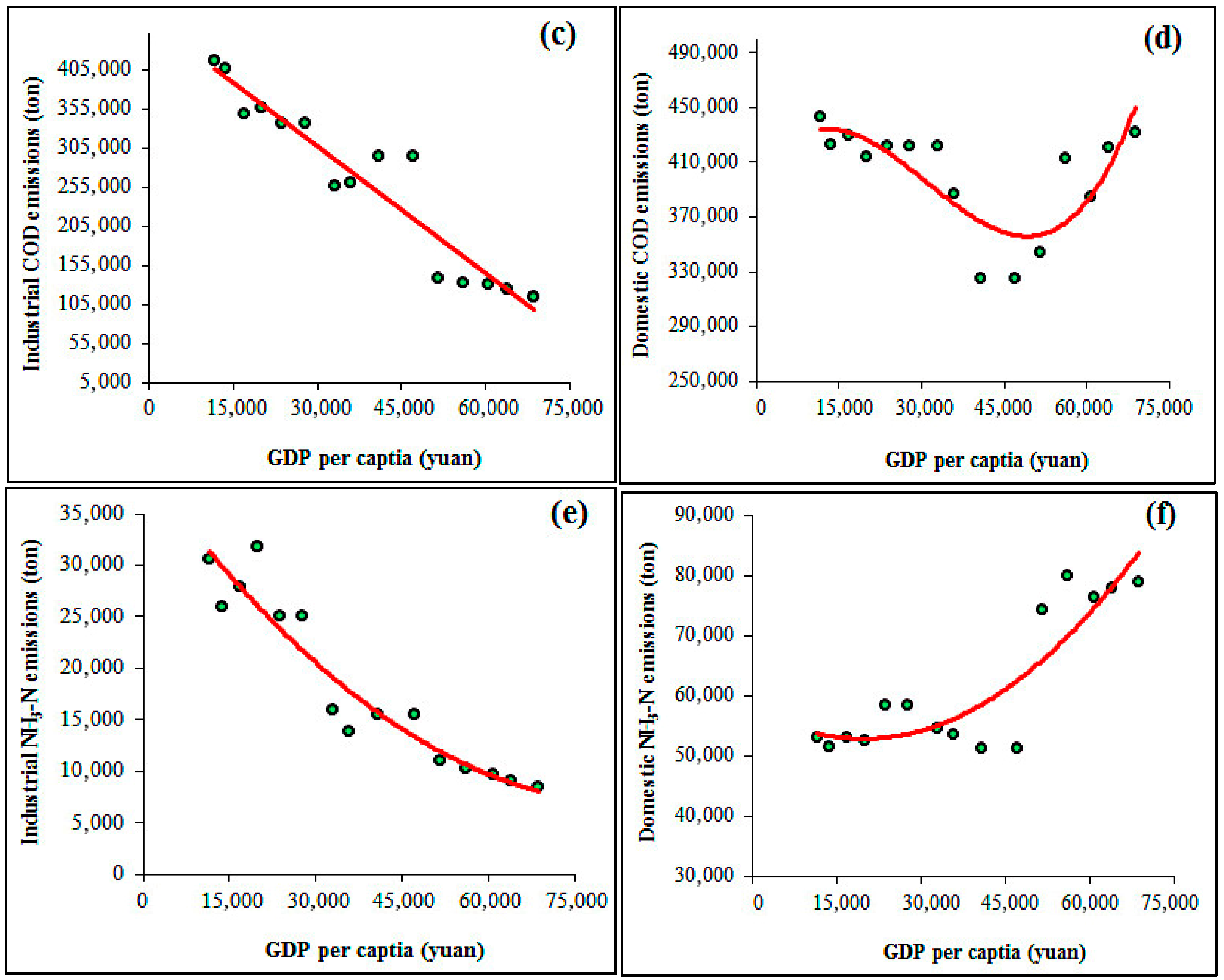

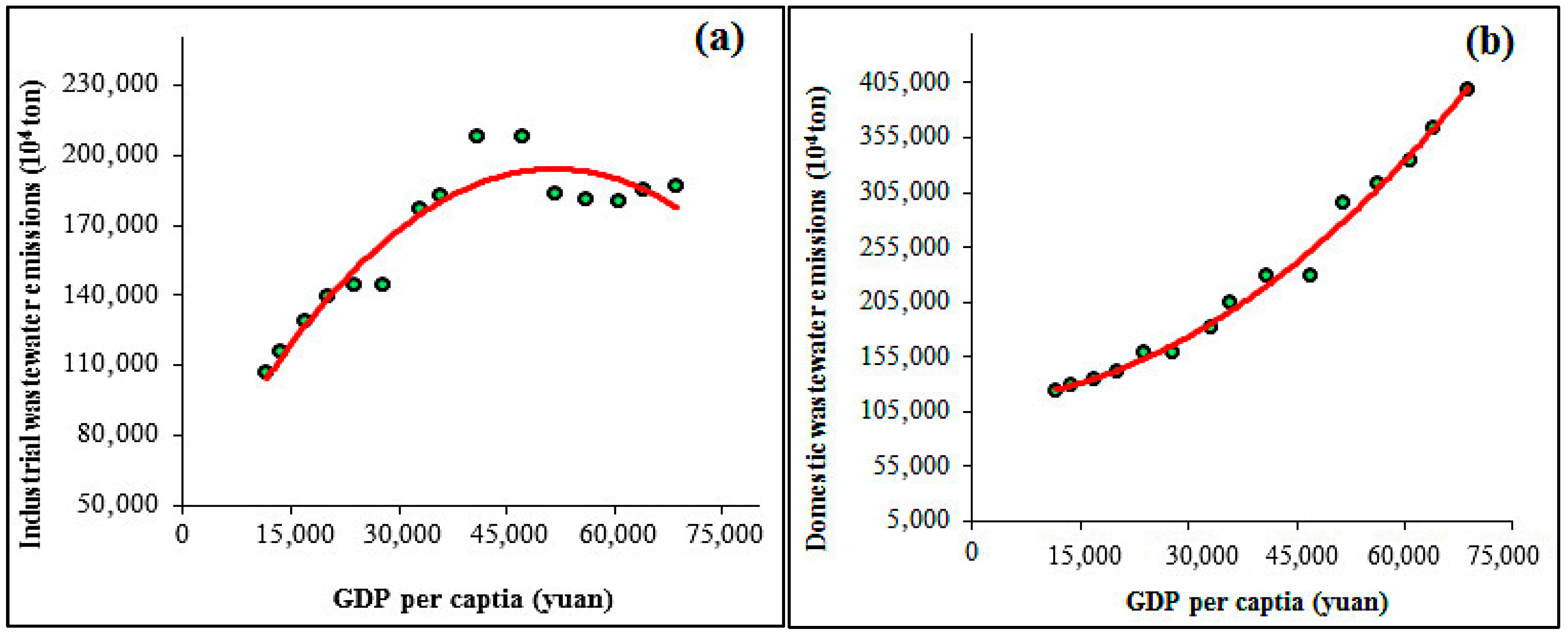

Figure 6. The EKC of industrial pollutant emissions and economic growth (a), of domestic wastewater emissions and economic growth (b), of industrial COD emissions and economic growth (c), of domestic COD emissions and economic growth (d), of industrial NH3-N emissions and economic growth (e), of domestic NH3-N emissions and economic growth (f).
Figure 6. The EKC of industrial pollutant emissions and economic growth (a), of domestic wastewater emissions and economic growth (b), of industrial COD emissions and economic growth (c), of domestic COD emissions and economic growth (d), of industrial NH3-N emissions and economic growth (e), of domestic NH3-N emissions and economic growth (f).
Water 11 01630 g006aWater 11 01630 g006b
Figure 7. Lorenz Curve of domestic water use–urban population (a) and of industrial water use–secondary industry output (b) in Shandong in 2003 and 2017.
Figure 7. Lorenz Curve of domestic water use–urban population (a) and of industrial water use–secondary industry output (b) in Shandong in 2003 and 2017.
Water 11 01630 g007
Figure 8. The elasticity coefficients between industrial (or domestic) wastewater emissions and water use.
Figure 8. The elasticity coefficients between industrial (or domestic) wastewater emissions and water use.
Water 11 01630 g008
Figure 9. The elasticity coefficients between industrial (or domestic) COD emissions and wastewater emissions.
Figure 9. The elasticity coefficients between industrial (or domestic) COD emissions and wastewater emissions.
Water 11 01630 g009
Figure 10. The elasticity coefficients between industrial (or domestic) NH3-N emissions and wastewater emissions.
Figure 10. The elasticity coefficients between industrial (or domestic) NH3-N emissions and wastewater emissions.
Water 11 01630 g010
Table 1. Social economy and hydrometeorology in Shandong.
Table 1. Social economy and hydrometeorology in Shandong.
Society and economy (2018)Population (104)10,047.2
Population density (people/km2)1452
Working population (104)6615.8
Per capita disposable income (RMB)39,549
Per capita consumption expenditure (RMB)24,798
Consumer price index (%)102.5
Hydrometeorology (1956–2018)Rainfall (mm)676.5
Evaporation (mm)450–600
Runoff (108 m3)222.9
River network density (km/km2)0.24
Total river length (km)9929.9
Utilization rate of water resources (%)77.1
Freshwater resources (108 m3)Surface water198.3
Groundwater165.4
Repeated water59.8
Total water resources305.8
External water resources supply (108 m3)Yellow River70
Yangtze River15
Contribution to seawater (108 m3)41.4
Table 2. Grading of Gini index.
Table 2. Grading of Gini index.
Gini Index0–0.20.2–0.30.3–0.40.4–0.50.5–1.0
Evaluation standards Highly averageRelatively averageRelatively reasonableRelatively large disparityGreat disparity
Table 3. Optimal environmental Kuznets curve (EKC) model between industrial pollutants emission and economic growth.
Table 3. Optimal environmental Kuznets curve (EKC) model between industrial pollutants emission and economic growth.
IndexModel TypeR2Adjusted R2F ValueSignificanceStandard ErrorOptimal Model
Industrial wastewaterLinear0.6500.62324.1160.00019,806.600Quadratic
Quadratic0.9000.88353.8200.00011,031.939
Cubic0.9000.87232.8950.00011,521.699
Industrial CODLinear0.9060.899125.4710.00034,402.142Linear
Quadratic0.9060.89157.9660.00035,791.287
Cubic0.9060.88135.4290.00037,379.851
Industrial NH3-NLinear0.8820.87397.3510.0002999.885Quadratic
Quadratic0.9130.89158.0860.0002783.535
Cubic0.9060.88938.5080.0002801.612
Table 4. Optimal EKC model between domestic pollutants emission and economic growth.
Table 4. Optimal EKC model between domestic pollutants emission and economic growth.
IndexModel TypeR2Adjusted R2F Value SignificanceStandard ErrorOptimal Model
Domestic wastewaterLinear0.9610.958316.8730.00019,041.626Quadratic
Quadratic0.9910.989636.2420.0009649.681
Cubic0.9910.988389.6050.00010,008.619
Domestic CODLinear0.1070.0381.5560.00038,074.443Cubic
Quadratic0.5140.4326.3350.00029,246.372
Cubic0.6530.5586.8970.00025,803.918
Domestic NH3-NLinear0.6790.65427.4840.0006969.480Quadratic
Quadratic0.7780.74121.0160.0006032.720
Cubic0.7800.72113.0300.0016265.624
Table 5. Calculation of domestic water use Gini index based urban population of Shandong in 2003.
Table 5. Calculation of domestic water use Gini index based urban population of Shandong in 2003.
RegionProportion of Domestic Water Use (%)Proportion of Urban Population (%)LQCumulative Proportion of Domestic Water Use (%)Cumulative Proportion of Population (%)
Laiwu2.61.40.5422.61.4
Jining11.07.30.65613.68.7
Linyi8.66.00.70122.214.7
Dongying3.02.20.72825.216.8
Zaozhuang4.73.50.75429.920.4
Heze6.45.10.79636.325.5
Taian5.04.50.90941.230.0
Binzhou3.23.00.91244.532.9
Dezhou4.94.50.93149.437.5
Zibo5.55.20.94754.942.7
Liaocheng6.15.90.96261.048.6
Jinan10.712.21.13971.760.8
Rizhao2.32.81.26174.063.6
Weihai2.73.41.26776.767.1
Qingdao10.213.31.29486.980.3
Weifang7.511.31.50194.491.6
Yantai5.68.41.508100.0100.0
Table 6. Calculation of domestic water use Gini index based urban population of Shandong in 2017.
Table 6. Calculation of domestic water use Gini index based urban population of Shandong in 2017.
RegionProportion of Domestic Water Use (%)Proportion of Urban Population (%)LQCumulative Proportion of Domestic Water Use (%)Cumulative Proportion of Population (%)
Dongying3.72.50.6773.72.5
Laiwu2.01.40.6925.73.9
Linyi9.57.40.78216.912.6
Zaozhuang4.63.70.78721.516.3
Taian6.45.70.88528.022.0
Heze7.46.70.91535.328.7
Zibo5.25.00.96738.231.5
Dezhou4.24.10.99949.743.0
Binzhou3.73.71.00753.446.8
Jining7.67.71.01161.154.5
Liaocheng4.74.81.03765.759.3
Jinan11.111.51.03775.269.1
Rizhao2.93.21.09380.374.7
Weifang7.79.21.19988.083.9
Weihai2.63.21.22790.687.1
Qingdao11.514.31.24294.892.4
Yantai5.27.61.477100.0100.0
Table 7. Calculation of industrial water use Gini index based secondary industry output of Shandong in 2003.
Table 7. Calculation of industrial water use Gini index based secondary industry output of Shandong in 2003.
RegionProportion of Industrial Water Use (%)Proportion of Secondary Industry Output (%)LQCumulative Proportion of Industrial Water Use (%)Cumulative Proportion of Secondary Industry Output (%)
Laiwu3.71.40.3733.71.4
Jining9.23.80.41313.05.2
Jinan9.74.00.41522.79.2
Binzhou3.32.00.62226.211.4
Heze5.53.50.63731.714.9
Zaozhuang4.43.40.77336.018.3
Linyi7.25.60.78343.323.9
Liaocheng6.45.40.84049.729.4
Dezhou2.72.60.97759.238.7
Zibo9.19.51.04068.348.1
Taian4.54.71.04072.852.8
Dongying6.18.41.37578.961.2
Rizhao3.55.01.44782.366.0
Qingdao8.312.51.50190.678.5
Weihai2.44.81.96593.083.3
Weifang9.518.81.98695.788.6
Yantai4.311.42.638100.0100.0
Table 8. Calculation of industrial water use Gini index based secondary industry output of Shandong in 2017.
Table 8. Calculation of industrial water use Gini index based secondary industry output of Shandong in 2017.
RegionProportion of Industrial Water Use (%)Proportion of Secondary Industry Output (%)LQCumulative Proportion of Industrial Water Use (%)Cumulative Proportion of Secondary Industry Output (%)
Laiwu3.21.20.3643.21.2
Dongying6.72.80.4187.63.0
Jinan8.53.60.42516.16.6
Zibo8.43.80.45924.510.5
Zaozhuang3.82.50.64928.312.9
Liaocheng7.76.20.81036.019.2
Taian5.74.60.81741.723.8
Heze4.84.60.95246.528.4
Binzhou3.53.30.95355.737.2
Linyi7.47.20.96763.144.3
Jining8.48.20.98471.552.6
Dezhou5.06.31.27376.458.9
Rizhao4.46.41.45583.168.6
Weifang9.213.61.47986.673.7
Qingdao7.111.21.58693.684.9
Weihai2.44.71.91096.189.6
Yantai3.910.42.659100.0100.0
Table 9. Gini index of industrial and domestic water use in Shandong in 2003 and 2017.
Table 9. Gini index of industrial and domestic water use in Shandong in 2003 and 2017.
YearDomestic Water UseEvaluation ResultInterannual VariationIndustrial Water UseEvaluation ResultInterannual Variation
20030.165Highly average−0.0640.292Relatively average−0.019
20170.101Highly average0.273Relatively average

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Back to TopTop
