Water 2019, 11(7), 1441; https://doi.org/10.3390/w11071441

Article
Stable Isotope Ratios in Tap Water of a Riverside City in a Semi-Arid Climate: An Application to Water Source Determination
College of Geography and Environmental Science, Northwest Normal University, Lanzhou 730070, China
*
Author to whom correspondence should be addressed.
Received: 21 May 2019 / Accepted: 11 July 2019 / Published: 12 July 2019

Abstract

:
Stable isotopes (e.g., δ2H and δ18O) in tap water are important tools to understand the local climate or environment background, water sources and the state of regional water supply. Based on 242 tap water samples, 35 precipitation samples and 24 surface water samples gathered in the urban area of Lanzhou, the basic spatiotemporal characteristics of isotopes in tap water, their connection with isotopes in other water bodies and change during the process from raw water to tap water are discussed in detail, combining the information of local tap water supply and water source. It can provide reliable help for understanding the isotope characteristics of local tap water, regional water supply management and determination of tap water source of in a small area. Except for the establishment of a new data set of isotopes in tap water with complete time series and uniform spatial distribution of sampling sites, other results show that: (1) The Local Tap Water Line (LTWL) of Lanzhou is δ2H = (6.03 ± 0.57) δ18O + (−8.63 ± 5.44) (r2 = 0.41, p < 0.01). (2) For seasonal variations, δ2H and δ18O in tap water both are higher in autumn and lower in spring. The diurnal and daily variations of isotopes in tap water are not large. As for spatial variations, the monthly mean values of δ2H and δ18O in tap water at each sampling site show little difference. The isotopes in tap water collected from one single sampling site can be considered as a representative for isotopes in tap water in the area with a single tap water source. (3) Isotopes in tap water show weak connection with precipitation isotopes, but exhibit good connection (consistent seasonal variation, similar numerical range, small numerical difference and high correlation) with isotopes in surface water, which is the direct water source. Isotopes in water change little from raw water to tap water. Isotopic composition of tap water in Lanzhou can be used as a representative of isotopes in surface water.
Keywords:
stable isotope; δ2H and δ18O; tap water; precipitation; surface water; Lanzhou; China

1. Introduction

Stable isotopes in water (e.g., δ2H and δ18O) are significant indicators of hydrological processes and ecological patterns [1,2,3,4,5], and they have been widely used as tracers in climatology, hydrology, ecology and forensic studies [6,7,8], e.g., tracking atmospheric sources [9,10], tracing water source of plants [11,12,13], identifying the origin of forensic samples [14,15,16] and so on [17,18]. Precipitation, surface water and groundwater are three main fresh water bodies. Stable isotopes in them contain abundant environmental information, which are important for climate and hydrology fields [9,10,19,20,21]. Tap water mainly comes from the three main natural water bodies, and meanwhile it is highly influenced by human activities [22]. Therefore, isotopes in tap water can reflect the comprehensive characteristics of regional hydrological processes and human activities [23,24].
In recent years, except for being widely used to understand and monitor the hydrological cycle in the natural environment [25,26,27,28,29], stable isotopes in water have been increasingly used in urban water supply system research [30,31,32,33,34,35,36]; especially isotopes in tap water [24,37,38]. The isotopes of tap water in the United States were analyzed by Bowen et al. [39] and Landwehr et al. [40] successively. The spatial and temporal variations of stable isotopes in tap water were presented in detail, and the applicability of isotopic data to forensic identification of human tissues was evaluated [39,40]. Stable isotopes in tap water, the water supply system and adjustments during a major drought in the San Francisco Bay Area were explored by Tipple et al. [37]. Based on 612 tap water samples, Good et al. [41] analyzed isotopes in tap water and the utilization patterns of water resources in the western United States. West et al. [23] presented the first tap water and ground water isoscapes in South Africa and compared the isotopic characteristics between the two water resources. Jameel et al. [24] revealed the temporal and spatial patterns of isotopes in tap water collected from Salt Lake Valley in northern Utah, USA, and discussed the water source regions and the management of regional water resource. Zhao et al. [38] presented the spatiotemporal variations of δ2H and δ18O in tap water in China and analyzed the relationship between isotopes in tap water and topographic and meteorological factors. Wang et al. [42] analyzed the connection between monthly stable isotopes in tap water and precipitation based on a new nationwide network of tap water isotope data across China, and found that the diagnostic patterns of isotopes in tap water were associated with water resource use. As a whole, studies on isotopes in tap water are of great significance for enriching the understanding of tap water isotopes characteristics, environmental effect elements and water sources [23,24,39]. Stable isotopes (e.g., δ2H and δ18O) in tap water come to be important tools to understand the climate and environment characteristics in local area and water resources, monitor complex hydrological systems impacted by human activities, and reflect the state of regional water supply [24,43,44].
For domestic studies in China, there are only studies on the isotope characteristics of tap water and its relationship with precipitation isotopes in the whole country, based on relatively sparse sampling sites [38,42]. However, research on the detailed characteristics of isotopes and water sources of tap water in some small areas of China is scarce. For Lanzhou, the only provincial capital city that the Yellow River passes through in China, with semi-arid climate in the urban area, planning and maintaining a sustainable drinking water resource show great importance for the continuous development of the city. To isotopes in tap water in the urban area of Lanzhou, the basic spatiotemporal characteristics, connection with isotopes in other water bodies and change during the process from raw water to tap water are not yet clear, at present. It is necessary to establish a data set of isotopes in tap water with a complete time series and uniform spatial distribution of sampling sites, in order to analyze these problems. Studying these problems and combining the information of local tap water supply or water source can provide reliable help for understanding the isotope characteristics of local tap water, regional water supply management and determination of tap water source in a small area. In this study, stable isotopes (δ2H and δ18O) in 242 tap water samples gathered at 7 sampling sites, 35 precipitation samples and 24 surface water samples collected in the urban area of Lanzhou were discussed around these issues.

2. Data and Method

2.1. Sample Acquisition

The samples of tap water, precipitation and surface water were collected in the urban area of Lanzhou, mainly concentrating in the valley area. Water samples were gathered in 50 mL high density polyethylene (HDPE) bottles with parafilm. Cold tap water samples were obtained through running the tap for 10 s before filling into the bottles [45]. Tap water samples were gathered at the 7 sampling sites in Lanzhou, including Xiguan (T-1), Tanjianzi (T-2), Xizhan (T-3), Qiujiawan (T-4), Shijiawan (T-5), Jincheng (T-6) and Sunjiazhuang (T-7). Sampling sites of tap water show a relatively complete geographic coverage in the urban area of Lanzhou. Tap water samples at the site of Qiujiawan (T-4) were collected once a month from August 2014 to February 2018. Tap water samples from the other 6 sampling sites were gathered once a month from March 2016 and February 2018. The daily tap water samples were collected at the site of Qiujiawan (T-4) between 1 March 2018 and 31 March 2018, and the hourly tap water samples were gathered at the same site on 11 March 2018. The total number of tap water samples from the 7 sampling sites is 242. There were 35 precipitation samples collected from 35 precipitation events at the site of Qiujiawan from April 2016 to October 2016. Surface water samples were gathered at the site of Zhongshan Bridge in the Yellow River located in Lanzhou. They were collected monthly between March 2016 and February 2018, and the total number is 24. The spatial distribution and detailed information of sampling sites of tap water, precipitation and surface water are showed in Figure 1 and Table 1.

2.2. Isotope Analysis

All the samples of tap water, precipitation and surface water were analyzed for δ2H and δ18O used the DLT-100 liquid water isotope analyzer (developed by the Los Gatos Research company, San Jose, CA, the United States) at the Stable Isotope Laboratory in College of Geography and Environmental Science, Northwest Normal University. Normally, all the samples were stored in the freezer to prevent the fractionation of isotopes, and they were taken out to thaw at room temperature before analysis. During the test process, every test group includes 3 standard samples and 6 unknown samples. Every sample (including standard sample and unknown sample) is measured for 6 injections. The first and second needles are abandoned in consideration of the memory effect of isotopes, and the test values of the latter 4 needles are calculated as the final result [46,47]. The measurement uncertainties in this study for δ2H and δ18O are ±0.6‰ and ±0.2‰, respectively. The test results are expressed relative to the Vienna Standard Mean Ocean Water (VSMOW).
δ sample = ( R sample R standard ) R standard × 1000
In the formula, Rsample is the ratio of 18O/16O (2H/1H) in the water sample, and Rstandard is the ratio of 18O/16O (2H/1H) in the VSMOW.

2.3. Other Data

The observational precipitation isotope data of long time series used in this paper are from the Global Network of Isotopes in Precipitation [48] (GNIP). The monthly mean values of δ2H and δ18O in precipitation at the site of Lanzhou were selected. They were calculated based on 84 precipitation samples from 1985 to 1999, and the monthly mean values of δ2H and δ18O in February were absent [48]. Deuterium and oxygen-18 in precipitation samples were determined by traditional isotope ratio mass spectrometry or laser absorption spectrometry. The test results were also expressed relative to the VSMOW [49,50]. At one standard deviation, the long-term precision of δ2H and δ18O reported in GNIP were about ±0.8‰ and ±0.1‰, respectively.

3. Result

3.1. Basic Characteristics of Isotopes in Tap Water

3.1.1. Local Tap Water Line

The relationship between δ2H and δ18O in tap water in Lanzhou is presented in Figure 2. The Local Tap Water Line (LTWL) in Lanzhou based on 168 tap water samples is δ2H = (6.03 ± 0.57) δ18O + (−8.63 ± 5.44) (r2 = 0.41, p < 0.01). The Global Meteoric Water Line (GMWL) fitted by Craig [19] is δ2H = 8δ18O + 10. The slope in the equation of tap water is lower than that in GMWL, which may be a reflection of the difference of evaporation intensity in the water source area [51]. Compared with the Chinese Tap Water Line δ2H = 7.72 δ18O + 6.57 [38], the LTWL in Lanzhou presents a lower slope. The reason may be the relatively arid climate, and the evaporation in the water source area is more obvious. Compared with other countries or regions, the slope of the LTWL in Lanzhou is lower than those of Tap Water Lines in the USA (in February: δ2HFebruary = 8.12 δ18OFebruary + 4.94, in August: δ2HAugust = 8.02 δ18OAugust + 8.21) [40] and the San Francisco Bay Area [37] (δ2H = 7.6 δ18O + 2.3). The slopes of the LTWL in South Africa [23] (δ2H = 5.6 δ18O + 0.91) and the Salt Lake Valley of northern Utah, USA [24] (slopes range between 4.9 and 5.3 in 6 spring or autumn sampling sessions) are both lower than that of the LTWL in Lanzhou. Different slope values in Tap Water Lines in different countries or regions may be a result of different water sources and evaporation rates [51].
Moreover, the Local Meteoric Water Line (LMWL) in Lanzhou based on 35 precipitation samples presents as δ2H = (7.08 ± 0.34) δ18O + (5.12 ± 1.90) (r2 = 0.93, p < 0.01) (Figure S2 in Supplementary Materials). The LMWL in Lanzhou based on monthly δ2H and δ18O in precipitation from the Global Network of Isotopes in Precipitation (GNIP) is δ2H = (6.62 ± 0.22) δ18O + (−2.62 ± 2.27) (r2 = 0.99, p < 0.01) (Figure S3 in Supplementary Materials). The slope and intercept are both lower than those in GMWL, which may be as a result of more intense evaporation in Lanzhou. In addition, the Local Surface Water Line (LSWL) in Lanzhou based on 24 surface water samples collected monthly from March 2016 and February 2018 is δ2H = (8.80 ± 1.40) δ18O + (18.34 ± 13.45) (r2 = 0.64, p < 0.01) (Figure S2 in Supplementary Materials).

3.1.2. Temporal Variations of Isotopes in Tap Water

Figure 3 shows the seasonal variations of stable isotope ratios in tap water at each sampling site in Lanzhou from March 2016 to February 2018. Seasonal and annual mean values of stable isotope ratios in tap water at all sampling sites and their standard deviations (SD) in Lanzhou from March 2016 to February 2018 are presented in Table 2. On the whole, there is a relatively small range for δ2H and δ18O in tap water samples in Lanzhou compared to those in samples collected throughout the country [38]. The seasonal mean values of δ2H at each sampling site vary from −70.2 ± 3.0‰ to −64.1 ± 3.8‰, with a difference of 6.1‰ (Figure 3a). Those of δ18O at each sampling site range from −9.9 ± 0.3‰ to −9.3 ± 0.4‰, with a difference of 0.6‰ (Figure 3b). From the aspect of seasonal variations, the δ2H and δ18O in tap water both show higher values in autumn and lower values in spring as a whole (Figure 3). For all the tap water sampling sites, the highest seasonal mean values of δ2H and δ18O both appear in autumn and they are −64.8 ± 0.5‰ and −9.5 ± 0.1‰, respectively (Table 2). And the lowest seasonal mean values of δ2H and δ18O both appear in spring (Table 2). The annual mean values of δ2H and δ18O are −66.7 ± 0.26‰ and −9.6 ± 0.06‰, respectively (Table 2).
The sampling period at the sampling site of Qiujiawan is longer than that of other sites and more temporal features can be analyzed. Figure 4 shows the interannual variations of stable isotope ratios in tap water at the sampling site of Qiujiawan (T-4) in Lanzhou from August 2014 to February 2018. The seasonal values of δ2H in tap water samples collected in 2017 (purple symbols in Figure 4a) are higher than those of δ2H in tap water samples collected in other years. The highest annual mean values of δ2H and δ18O both appear in 2017, and they are −65.9 ± 2.4‰ and −9.7 ± 0.3‰, respectively. The lowest annual mean values of δ2H and δ18O both present in 2015.
Figure 5 exhibits the daily variations of stable isotope ratios in tap water at the sampling site of Qiujiawan (T-4) in Lanzhou from 1 March 2018 31 to March 2018. The ranges of daily values of δ2H and δ18O at Qiujiawan in March 2018 are small, from −73.2‰ to −67.6‰ and from −10.6‰ to −9.2‰, respectively. The standard deviations for daily δ2H and δ18O are 1.6‰ and 0.3‰, respectively. The highest value of δ2H at Qiujiawan appears on 8 March 2018 and the lowest value presents on 31 March 2018 (Figure 5a). The highest and lowest values of δ18O can be seen on 3 March 2018 and 27 March 2018, respectively (Figure 5b).
Figure 6 shows the diurnal variations of stable isotope ratios in tap water at the sampling site of Qiujiawan (T−4) in Lanzhou on 11 March 2018. As a whole, the daily values of stable isotope ratios in tap water at Qiujiawan vary within a small range. The hourly values of δ2H at Qiujiawan vary from −71.0‰ to −67.6‰ (Figure 6a). The highest and lowest values of δ2H appear at 23:30 and 18:30, respectively (Figure 6a). The highest and lowest values of δ18O present at 12:30 and 23:30, and they are −9.8‰ and −10.4‰, respectively (Figure 6b). The differences between the average isotopes (δ2H: −69.5‰, δ18O: −10.0‰) in tap water during the day time (8:00–20:00) and those (δ2H: −68.8‰, δ18O: −10.1‰) at night are small. The standard deviations for hourly δ2H and δ18O are 0.8‰ and 0.2‰, respectively.

3.1.3. Differences of Isotopes in Tap Water at Each Sampling Site

In order to analyze the differences among all the tap water sampling sites, the monthly anomaly values of stable isotope ratios in tap water are presented in Figure 7. In general, the monthly anomaly values of δ2H and δ18O in tap water among the 7 sampling sites are relatively small. Those for δ2H and δ18O mostly concentrate from −1‰ to 1‰ and between −0.2‰ and 0.2‰, respectively. Stable isotopes in tap water exhibit small differences among the 7 sampling sites.

3.2. Comparison of Isotopes in Tap Water with Those in Precipitation and Surface Water

Figure 8 and Figure 9 present the comparison of temporal variations of isotopes in tap water with those in precipitation and surface water, respectively. Table 3 exhibits the seasonal and annual mean values of δ2H and δ18O in precipitation and surface water and their standard deviations (SD). Generally speaking, the temporal changes of δ2H and δ18O in tap water and collected precipitation present inconsistent characteristics (Figure 8a,c). The highest median of δ2H in collected precipitation appears in June and the lowest median presents in April (Figure 8a). Within the same sampling period, the highest median of δ2H in tap water can be found in September and the lowest median can be seen in May (Figure 8a). The highest and lowest medians of δ18O in collected precipitation appear in October and April (Figure 8c). Those of δ18O in tap water can be found in August and June (Figure 8c). The seasonal mean values of δ2H and δ18O in collected precipitation are the highest in autumn and the lowest in spring (Table 3). In addition, the range of isotope values in tap water is smaller than those in collected precipitation in Lanzhou (Figure 8). From April 2016 to October 2016, the values of δ2H in collected precipitation range between −90.5‰ and 34.8‰, and for tap water, the range is from −73.2‰ to−58.3‰ (Figure 8a). As for δ18O, the values in collected precipitation range from −12.5‰ to 4.4‰, and those in tap water are from −10.3‰ to −8.5‰ (Figure 8c).
Figure 8a,c showed the comparison of δ2H and δ18O in tap water with those in collected precipitation gathered within a shorter period of time. To explore whether there are some different conclusions for the precipitation isotope data of longer time series, the monthly mean values of δ2H and δ18O in tap water and GNIP precipitation were compared in Figure 8b,d. They present different seasonal variations (Figure 8b,d). For example, the monthly mean values of δ2H and δ18O in tap water present lower spring and higher autumn values, and GNIP precipitation data show a typical behaviour for the Northern Hemisphere stations, with lower winter and higher summer values (Figure 8b,d). The numerical differences of δ2H and δ18O between tap water and GNIP precipitation are relatively large (Figure 8b,d). The GNIP precipitation isotope data for Lanzhou are from 1985 to 1999, which is about 20 years ago, and the present precipitation isotope data (isotope in collected precipitation) may differ from the older ones due to current global climate change (i.e., global temperature increase). The results show that the relations between the isotopes in tap water and those in the present and older precipitation are both weak.
On the contrary, δ2H and δ18O in surface water and tap water show consistent seasonal variations in general, which exhibit higher values in autumn and lower values in spring (Figure 9). The seasonal mean values of δ2H and δ18O in surface water in autumn are both the highest in the four seasons and they are −64.1 ± 3.0‰ and −9.5 ± 0.2‰, respectively (Table 3). The lowest seasonal mean values of δ2H and δ18O both appear in spring and they are −70.0 ± 0.4‰ and −9.9 ± 0.1‰, respectively (Table 3). The highest and lowest seasonal mean values of δ2H and δ18O in tap water also can be found in autumn and spring, respectively (Table 2). Besides, the range of isotope values in surface water in Lanzhou is similar to those in tap water. The 12 monthly mean values of δ2H between surface water and tap water are similar (Figure 9a). The annual mean values of δ2H in surface water and tap water are −66.5 ± 1.2‰ (Table 3) and −66.7 ± 0.3‰ (Table 2), respectively. Those of δ18O in surface water and tap water are −9.6 ± 0.2‰ (Table 3) and −9.6 ± 0.1‰ (Table 2), respectively.
Figure 10 shows the differences between δ2H and δ18O in tap water and those in collected precipitation and surface water. Obviously, the values of δ2H and δ18O in tap water are much closer to those in surface water rather than to those in collected precipitation. The absolute values of differences for δ2H between tap water and surface water in the four seasons are all < 1‰. Those for δ2H between tap water and collected precipitation in spring, summer and autumn are all > 20‰ (Figure 10a). The absolute values of differences for δ18O between tap water and surface water in each season are all < 0.1‰. Those for δ18O between tap water and collected precipitation in spring, summer and autumn are all > 3‰ (Figure 10b).
Figure 11 exhibits the relationships of δ2H and δ18O in surface water, GNIP precipitation and collected precipitation with those in tap water in Lanzhou. Solid circles and error bars show the arithmetic average and standard deviation, respectively. Generally speaking, stable isotope ratios in tap water show better correlation with those in surface water than with those in GNIP precipitation and collected precipitation. The isotope values in tap water and surface water show good positive correlation (all R values for δ2H > 0.8, all R values for δ18O > 0.5, and p values < 0.01, shown in Figure S3 in Supplementary Materials), while there is no correlation between isotope values in tap water and either GNIP and collected precipitation (all R values < 0.3, and p values > 0.05, shown in Figure S3 in Supplementary Materials).

4. Discussion

4.1. Representation of Isotope Data at a Single Sampling Site

In the analysis of anomaly values (Figure 7), the monthly anomaly values of δ2H and δ18O in tap water at all sampling sites are relatively small. Those for δ2H mainly range from −1‰ to 1‰ and those for δ18O mostly vary between −0.2‰ and 0.2‰. This shows that the isotope data in tap water samples collected from a single sampling site have a good representation for the tap water isotope composition in the region with same water source.

4.2. Determination of Tap Water Source Based on Isotope Data

As shown in the comparison of isotopes among different water bodies (Table 2 and Table 3, Figure 8, Figure 9, Figure 10 and Figure 11, Figure S1), isotopes in tap water and precipitation exhibit large differences at the aspects of seasonal variation, numerical range and numerical value. In contrast, isotopes in tap water and surface water exhibit consistent seasonal variation, similar numerical range, small numerical difference and high correlation. According to the water source information in the Water Resources Bulletin of Gansu Province [52] and investigation data from tap water supplier (Figure 1) in Lanzhou, the main source of tap water is the Yellow River water (surface water). Therefore, tap water isotope composition is a good indicator for the direct water source, and the connection of isotopes between tap water and non-direct source water is weak for small regions (e.g., a city).
In the existing tap water isotope studies [23,42] on large scales, it has been proved that isotopes in tap water mainly supplied by surface water show good correlation with precipitation isotopes [42]. Our conclusion supplements the analysis of tap water source based on the isotopes method at different spatial scales. It provides a basis for the identification of direct tap water source in small, centralized or non-centralized water supply areas.

4.3. Change of Isotopes from Raw Water to Tap Water

In this study, consistent seasonal patterns and similar numerical values of isotopes between tap water and source water (Table 2 and Table 3, Figure 9 and Figure 10) indicate that the production processes of tap water in tap water company have little effect on isotopes in water, and the database of tap water isotope composition in the urban area of Lanzhou can be used as a proxy for isotopes in surface water.

5. Conclusions

The stable isotope composition of tap water is useful for the studies of climate, urban water management, water source, health, ecology and forensic science. A new urban tap water isotope composition dataset with complete time series and uniform spatial distribution of sampling sites was established in this study. The spatiotemporal characteristics of isotopes in tap water, their connection with isotopes in other water bodies and change during the process from raw water to tap water are discussed in detail, combining the information of local tap water supply and water source. Results show that: the Local Tap Water Line (LTWL) of Lanzhou is δ2H = (6.03 ± 0.57) δ18O + (−8.63 ± 5.44) (r2 = 0.41, p < 0.01). About seasonal variations, δ2H and δ18O in tap water both show higher values in autumn and lower values in spring. The diurnal and daily changes of δ2H and δ18O in tap water are relatively small. From the perspective of spatial differences, the monthly mean values of δ2H and δ18O in tap water at each sampling site show little difference. The isotopic composition of tap water from one single sampling site can be considered as a representative for isotopes in tap water in the area with a single tap water source. Isotopes in tap water show weak connection with precipitation isotopes, but exhibit good connection with isotopes in surface water which is direct water source, showing consistent seasonal variation, similar numerical range, small numerical difference and high correlation. Tap water isotope composition is a good indicator for the direct water source. Isotopes in water change little from raw water to tap water. The isotopic composition of tap water in Lanzhou can be used as a proxy for that of surface water.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4441/11/7/1441/s1, Figure S1. Relationship between δ2H and δ18O in collected precipitation and surface water in Lanzhou. 35 precipitation samples were gathered from 35 precipitation events at the site of Qiujiawan from April 2016 and October 2016. 24 surface water samples were monthly collected at the site of Zhongshan Bridge in the Yellow River located in Lanzhou between March 2016 and February 2018. (GMWL: Global Meteoric Water Line, LMWL: Local Meteoric Water Line, LSWL: Local Surface Water Line), Figure S2. Relationship between δ2H and δ18O in precipitation of Lanzhou from the Global Network of Isotopes in Precipitation (GNIP). The monthly mean values of δ2H and δ18O in precipitation at the site of Lanzhou from 1985 to 1999 were used, and the monthly mean values of δ2H and δ18O in February were absent. (GMWL: Global Meteoric Water Line, LMWL: Local Meteoric Water Line). Figure S3. Correlation coefficients of stable isotope ratios in tap water with those in collected precipitation and surface water at all sampling sites. (a) correlation coefficient (R) of δ18O, (b) correlation coefficient (R) of δ2H.

Author Contributions

Sample collection, P.Z., S.Z. and Y.Z.; experimental analysis and writing—original draft preparation, M.D.; writing—review and editing, S.W., F.C. and M.Z.

Funding

This research is supported by the National Natural Science Foundation of China (Nos. 41771035, 41701028), and the Scientific Research Program of Higher Education Institutions of Gansu Province (No. 2018C-02).

Acknowledgments

The authors are very grateful to the partners in the team for their help in sample collection and laboratory analysis.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Killingley, J.S.; Newman, W.A. 18O fractionation in barnacle calcite: A barnacle paleotemperature equation. J. Mar. Res. 1982, 40, 893–902. [Google Scholar]
  2. Gat, J.R. Oxygen and hydrogen isotopes in the hydrologic cycle. Ann. Rev. Earth Planet. Sci. 1996, 24, 225–262. [Google Scholar] [CrossRef]
  3. Roden, J.S.; Lin, G.G.; Ehleringer, J.R. A mechanistic model for interpretation of hydrogen and oxygen isotope ratios in tree-ring cellulose. Geochim. Cosmochim. Acta 2000, 64, 21–35. [Google Scholar] [CrossRef]
  4. Yepez, E.A.; Williams, D.G.; Scott, R.L.; Lin, G. Partitioning overstory and understory evapotranspiration in a semiarid savanna woodland from the isotopic composition of water vapor. Agric. For. Meteorol. 2003, 119, 53–68. [Google Scholar] [CrossRef]
  5. Williams, D.G.; Cable, W.; Hultine, K.; Hoedjes, J.C.B.; Yepez, E.A.; Simonneaux, V.; Er-Raki, S.; Boulet, G.; de Bruin, H.A.R.; Chehbouni, A. Evapotranspiration components determined by stable isotope, sap flow and eddy covariance techniques. Agric. For. Meteorol. 2004, 125, 241–258. [Google Scholar] [CrossRef]
  6. Harvey, F.E.; Sibray, S.S. Delineating ground water recharge from leaking irrigation canals using water chemistry and isotopes. Ground Water 2001, 39, 408–421. [Google Scholar] [CrossRef]
  7. West, J.B.; Bowen, G.J.; Cerling, T.E.; Ehleringer, J.R. Stable isotopes as one of nature’s ecological recorders. Trends Ecol. Evol. 2006, 21, 408–414. [Google Scholar] [CrossRef]
  8. Ehleringer, J.R.; Bowen, G.J.; Chesson, L.A.; West, A.G.; Podlesak, D.W.; Cerling, T.E. Hydrogen and oxygen isotope ratios in human hair are related to geography. Proc. Natl. Acad. Sci. USA 2008, 105, 2788–2793. [Google Scholar] [CrossRef]
  9. Burnett, A.W.; Mullins, H.T.; Patterson, W.P. Relationship between atmospheric circulation and winter precipitation delta O-18 in central New York State. Geophys. Res. Lett. 2004, 31, L22209. [Google Scholar] [CrossRef]
  10. Bowen, G.J.; Kennedy, C.D.; Henne, P.D.; Zhang, T. Footprint of recycled water subsidies downwind of Lake Michigan. Ecosphere 2012, 3, 1–16. [Google Scholar] [CrossRef]
  11. West, A.G.; Hultine, K.R.; Burtch, K.G.; Ehleringer, J.R. Seasonal variations in moisture use in a pinon-juniper woodland. Oecologia 2007, 153, 787–798. [Google Scholar] [CrossRef]
  12. Hawkins, H.; Hettasch, H.; West, A.G.; Cramer, M.D. Hydraulic redistribution by Protea “Sylvia” (Proteaceae) facilitates soil water replenishment and water acquisition by an understorey grass and shrub. Funct. Plant Biol. 2009, 36, 752–760. [Google Scholar] [CrossRef]
  13. Brienen, R.J.W.; Helle, G.; Pons, T.L.; Guyot, J.L.; Gloor, M. Oxygen isotopes in tree rings are a good proxy for Amazon precipitation and El Nino-Southern Oscillation variability. Proc. Natl. Acad. Sci. USA 2012, 109, 16957–16962. [Google Scholar] [CrossRef]
  14. Hobson, K.A.; Atwell, L.; Wassenaar, L.I. Influence of drinking water and diet on the stable-hydrogen isotope ratios of animal tissues. Proc. Natl. Acad. Sci. USA 1999, 96, 8003–8006. [Google Scholar] [CrossRef]
  15. Bowen, G.J.; Wassenaar, L.I.; Hobson, K.A. Global application of stable hydrogen and oxygen isotopes to wildlife forensics. Oecologia 2005, 143, 337–348. [Google Scholar] [CrossRef]
  16. Kelly, S.; Heaton, K.; Hoogewerff, J. Tracing the geographical origin of food: The application of multi-element and multi-isotope analysis. Trends Food Sci. Technol. 2005, 16, 555–567. [Google Scholar] [CrossRef]
  17. Dawson, T.E.; Ehleringer, J.R. Streamside trees that do not use streamwater. Nature 1991, 350, 335–337. [Google Scholar] [CrossRef]
  18. Ehleringer, J.R.; Dawson, T.E. Water uptake by plants: Perspectives from stable isotope composition. Plant Cell Environ. 1992, 15, 1073–1082. [Google Scholar] [CrossRef]
  19. Craig, H. Isotopic variations in meteoric waters. Science 1961, 133, 1702–1703. [Google Scholar] [CrossRef]
  20. Dansgaard, W. Stable isotopes in precipitation. Tellus 1964, 16, 436–468. [Google Scholar] [CrossRef]
  21. Bowen, G.J.; Revenaugh, J. Interpolating the isotopic composition of modern meteoric precipitation. Water Resour. Res. 2003, 39, 1299. [Google Scholar] [CrossRef]
  22. Li, S.; Levin, N.E.; Chesson, L.A. Continental scale variation in 17O-excess of meteoric waters in the United States. Geochim. Cosmochim. Acta 2015, 164, 110–126. [Google Scholar] [CrossRef]
  23. West, A.G.; February, E.C.; Bowen, G.J. Spatial analysis of hydrogen and oxygen stable isotopes (“isoscapes”) inground water and tap water across South Africa. J. Geochem. Explor. 2014, 145, 213–222. [Google Scholar] [CrossRef]
  24. Jameel, Y.; Brewer, S.; Good, S.P.; Tipple, B.J.; Ehleringer, J.R.; Bowen, G.J. Tap water isotope ratios reflect urban water system structure and dynamics across a semi-arid metropolitan area. Water Resour. Res. 2016, 52, 1–20. [Google Scholar] [CrossRef]
  25. Brooks, J.R.; Barnard, H.R.; Coulombe, R.; McDonnell, J.J. Ecohydrologic separation of water between trees and streams in a Mediterranean climate. Nat. Geosci. 2010, 3, 100–104. [Google Scholar] [CrossRef]
  26. Gat, J.R.; Bowser, C.J.; Kendall, C. The contribution of evaporation from the Great Lakes to the continental atmosphere: Estimate based on stable isotope data. Res. Lett. 1994, 21, 557–560. [Google Scholar] [CrossRef]
  27. Gibson, J.J.; Edwards, T.W.D. Regional water balance trends and evaporation-transpiration partitioning from a stable isotope survey of lakes in northern Canada. Glob. Biogeochem. Cycles 2002, 16, 1026. [Google Scholar] [CrossRef]
  28. McGuire, K.J.; McDonnell, J.J.; Weiler, M.; Kendall, C.; McGlynn, B.L.; Welker, J.M.; Seibert, J. The role of topography on catchment–scale water residence time. Water Resour. Res. 2005, 41, W05002. [Google Scholar] [CrossRef]
  29. Worden, J.; Noone, D.; Bowman, K.; Beer, R.; Eldering, A.; Fisher, B.; Gunson, M.; Goldman, A.; Herman, R.; Kulawik, S.S.; et al. Importance of rain evaporation and continental convection in the tropical water cycle. Nature 2007, 445, 528–532. [Google Scholar] [CrossRef]
  30. Bowen, G.J.; Winter, D.A.; Spero, H.J.; Zierenberg, R.A.; Reeder, M.D.; Cerling, T.E.; Ehleringer, J.R. Stable hydrogen and oxygen isotope ratios of bottled waters of the world. Rapid Commun. Mass Spectrom. 2005, 19, 3442–3450. [Google Scholar] [CrossRef]
  31. Brenčič, M.; Vreča, P. Identification of sources and production processes of bottled waters by stable hydrogen and oxygen isotope ratios. Rapid Commun. Mass Spectrom. 2006, 20, 3205–3212. [Google Scholar] [CrossRef] [PubMed]
  32. Bong, Y.S.; Ryu, J.S.; Lee, K.S. Characterizing the origins of bottled water on the South Korean market using chemical and isotopic compositions. Anal. Chim. Acta 2009, 631, 189–195. [Google Scholar] [CrossRef] [PubMed]
  33. Chesson, L.A.; Valenzuela, L.O.; O’Grady, S.P.; Cerling, T.E.; Ehleringer, J.R. Hydrogen and oxygen stable isotope ratios of milk in the United States. J. Agric. Food Chem. 2010, 58, 2358–2363. [Google Scholar] [CrossRef] [PubMed]
  34. Chesson, L.A.; Valenzuela, L.O.; O’Grady, S.P.; Cerling, T.E.; Ehleringer, J.R. Links between purchase location and stable isotope ratios of bottled water, soda, and beer in the United States. J. Agric. Food Chem. 2010, 58, 7311–7316. [Google Scholar] [CrossRef] [PubMed]
  35. Dotsika, E.; Poutoukis, D.; Raco, B.; Psomiadis, D. Stable isotope composition of Hellenic bottled waters. J. Geochem. Explor. 2010, 107, 299–304. [Google Scholar]
  36. Kim, G.E.; Shin, W.J.; Ryu, J.S.; Choi, M.S.; Lee, K.S. Identification of the origin and water type of various Korean bottled waters using strontium isotopes. J. Geochem. Explor. 2013, 132, 1–5. [Google Scholar] [CrossRef]
  37. Tipple, B.J.; Jameel, Y.; Chau, T.H.; Mancuso, C.J.; Bowen, G.J.; Dufour, A.; Chesson, L.A.; Ehleringer, J.R. Stable hydrogen and oxygen isotopes of tap water reveal structure of the San Francisco Bay Area’s water system and adjustments during a major drought. Water Res. 2017, 119, 212–224. [Google Scholar] [CrossRef]
  38. Zhao, S.; Hu, H.; Tian, F.; Tie, Q.; Wang, L.; Liu, Y.; Shi, C. Divergence of stable isotopes in tap water across China. Sci. Rep. 2017, 7, 43653. [Google Scholar] [CrossRef]
  39. Bowen, G.J.; Ehleringer, J.R.; Chesson, L.A.; Stange, E.; Cerling, T.E. Stable isotope ratios of tap water in the contiguous United States. Water Resour. Res. 2007, 43, 399–407. [Google Scholar] [CrossRef]
  40. Landwehr, J.M.; Coplen, T.B.; Stewart, D.W. Spatial, seasonal, and source variability in the stable oxygen and hydrogen isotopic composition of tap waters throughout the USA. Hydrol. Process. 2014, 28, 5382–5422. [Google Scholar] [CrossRef]
  41. Good, S.P.; Kennedy, C.D.; Stalker, J.C.; Chesson, L.A.; Valenzuela, L.O.; Beasley, M.M.; Ehleringer, J.R.; Bowen, G.J. Patterns of local and nonlocal water resource use across the western US determined via stable isotope intercomparisons. Water Resour. Res. 2014, 50, 8034–8049. [Google Scholar] [CrossRef]
  42. Wang, S.; Zhang, M.; Bowen, G.J.; Liu, X.; Du, M.; Chen, F.; Qiu, X.; Wang, L.; Che, Y.; Zhao, G. Water source signatures in the spatial and seasonal isotope variation of Chinese tap waters. Water Resour. Res. 2018, 54, 9131–9143. [Google Scholar] [CrossRef]
  43. Ehleringer, J.R.; Barnette, J.E.; Jameel, Y.; Tipple, B.J.; Bowen, G.J. Urban water–a new frontier in isotope hydrology. Isot. Environ. Health Stud. 2016, 52, 477–486. [Google Scholar] [CrossRef] [PubMed]
  44. Ueda, M.; Bell, L.S. A city-wide investigation of the isotopic distribution and source of tap waters for forensic human geolocation ground-truthing. J. Forens. Sci. 2017, 62, 655–667. [Google Scholar] [CrossRef] [PubMed]
  45. Clark, I.D.; Fritz, P. Environmental Isotopes in Hydrogeology; CRC Press: New York, NY, USA, 2013. [Google Scholar]
  46. Lis, G.; Wassenaar, L.I.; Hendry, M.J. High-precision laser spectroscopy D/H and 18O/16O measurements of microliter natural water samples. Anal. Chem. 2008, 80, 287–293. [Google Scholar] [CrossRef]
  47. Lyon, S.W.; Desilets, S.L.E.; Troch, P.A. A tale of two isotopes: Differences in hydrograph separation for a runoff event when using δD versus δ18O. Hydrol. Process. 2009, 23, 2095–2101. [Google Scholar] [CrossRef]
  48. IAEA/WMO (International Atomic Energy Agency/World Meteorological Organization). Water Isotope System for Data Analysis, Visualization and Electronic Retrieval (WISER). 2017. Available online: https://nucleus.iaea.org/wiser (accessed on 2 June 2018).
  49. Craig, H. Standard for reporting concentration of deuterium and oxygen-18 in natural waters. Science 1961, 113, 1833. [Google Scholar] [CrossRef]
  50. Gonfiantini, R. Standard for stable isotope measurements in natural compounds. Nature (Lond.) 1978, 271, 534–536. [Google Scholar] [CrossRef]
  51. Salati, E.; Dall’ Olio, A.; Matsui, E.; Gat, J.R. Recycling of water in the Amazon basin: An isotopic study. Water Resour. Res. 1979, 15, 1250–1258. [Google Scholar] [CrossRef]
  52. Gansu Provincial Water Conservancy Department. Gansu Water Resources Bulletin in 2015; Gansu Water Resources Bulletin; Gansu Provincial Water Conservancy Department: Lanzhou, China, June 2016.

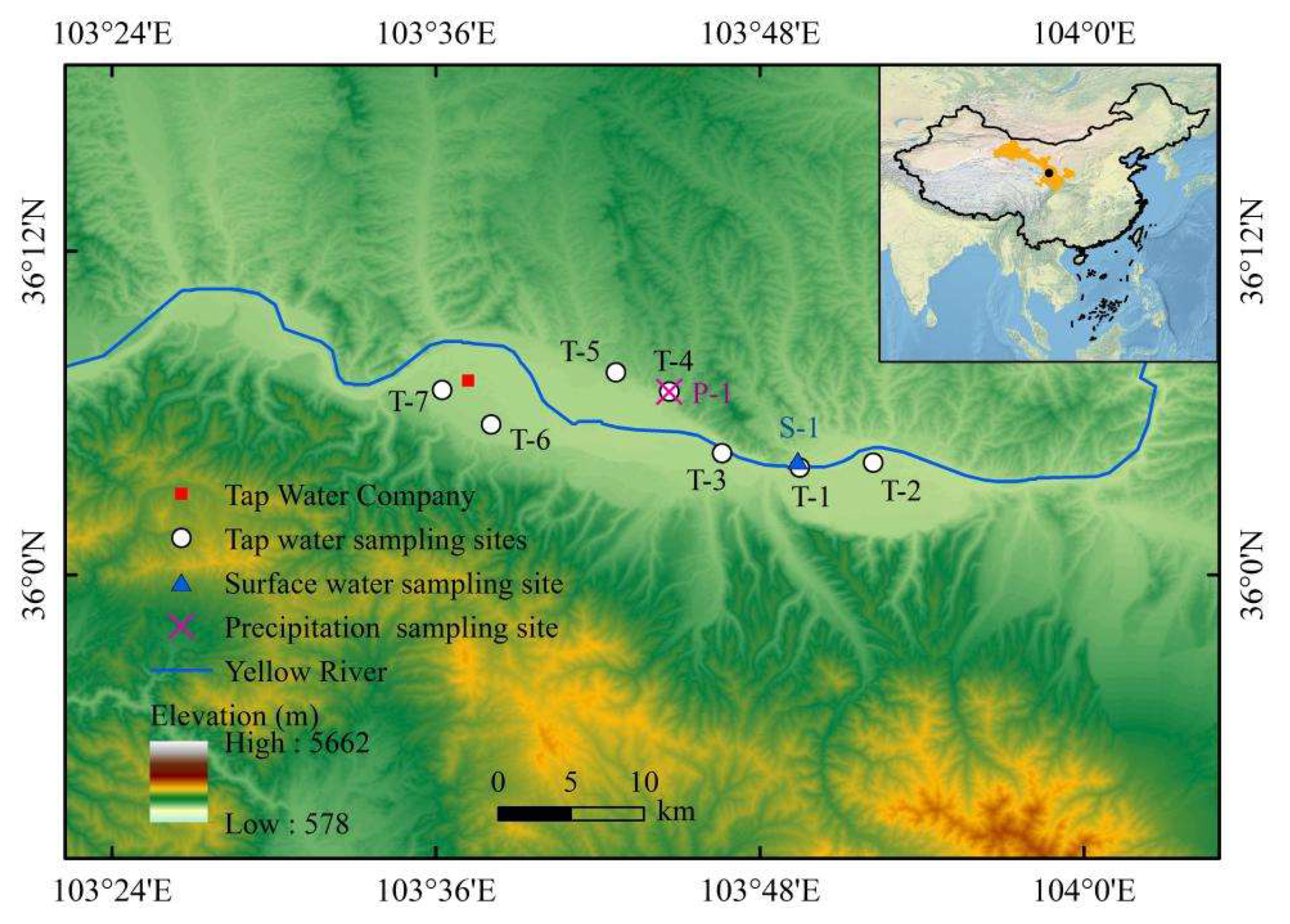

Figure 1. Spatial distribution of sampling sites of tap water, precipitation and surface water in Lanzhou.
Figure 1. Spatial distribution of sampling sites of tap water, precipitation and surface water in Lanzhou.
Water 11 01441 g001

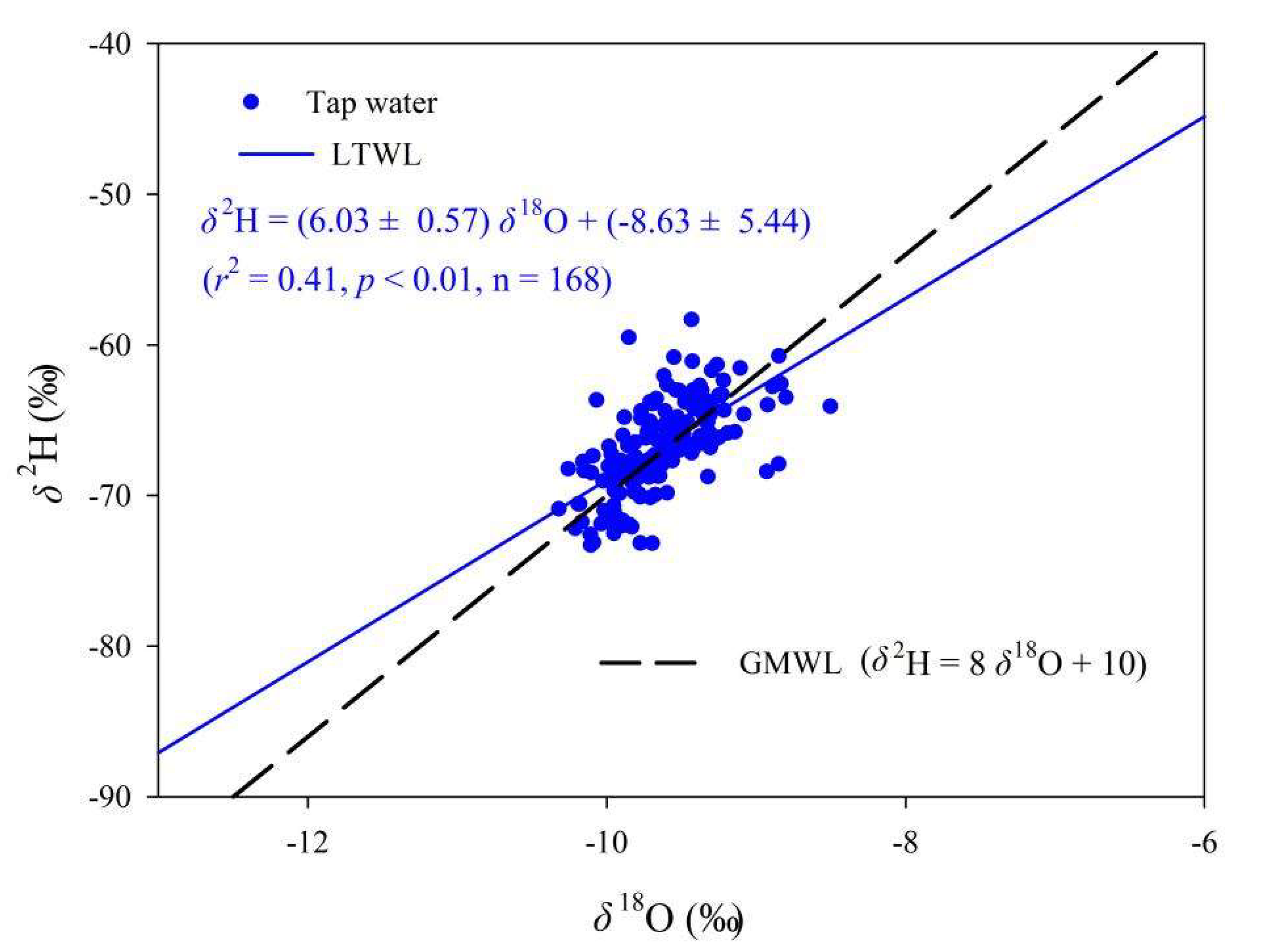

Figure 2. Relationship between δ2H and δ18O in tap water in Lanzhou. There were 168 tap water samples used in this chart, which were collected monthly at the seven sites from March 2016 to February 2018. (GMWL: Global Meteoric Water Line, LTWL: Local Tap Water Line).
Figure 2. Relationship between δ2H and δ18O in tap water in Lanzhou. There were 168 tap water samples used in this chart, which were collected monthly at the seven sites from March 2016 to February 2018. (GMWL: Global Meteoric Water Line, LTWL: Local Tap Water Line).
Water 11 01441 g002

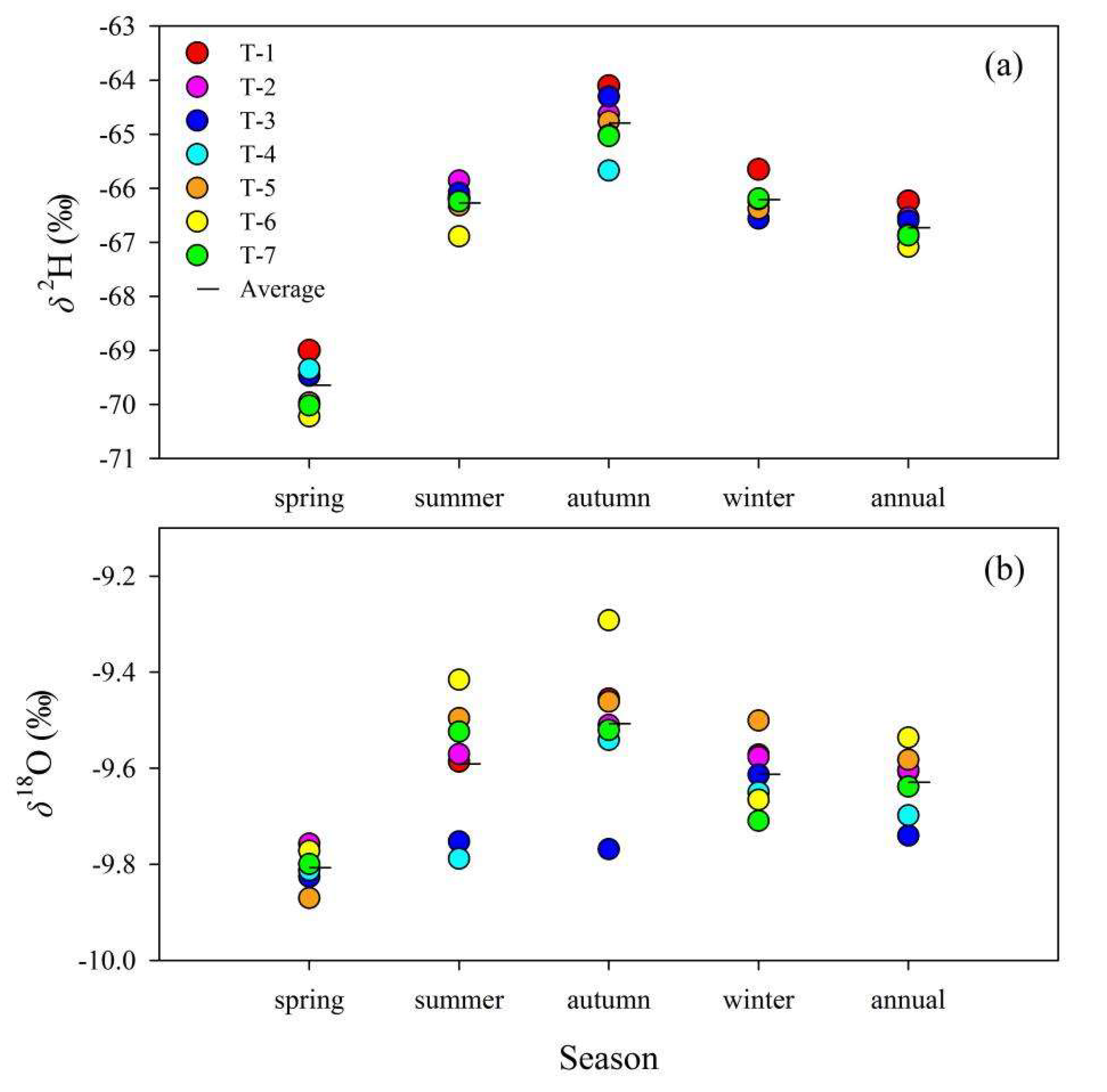

Figure 3. Seasonal variations of δ2H and δ18O in tap water at each sampling site in Lanzhou from March 2016 to February 2018. (a) δ2H, (b) δ18O.
Figure 3. Seasonal variations of δ2H and δ18O in tap water at each sampling site in Lanzhou from March 2016 to February 2018. (a) δ2H, (b) δ18O.
Water 11 01441 g003

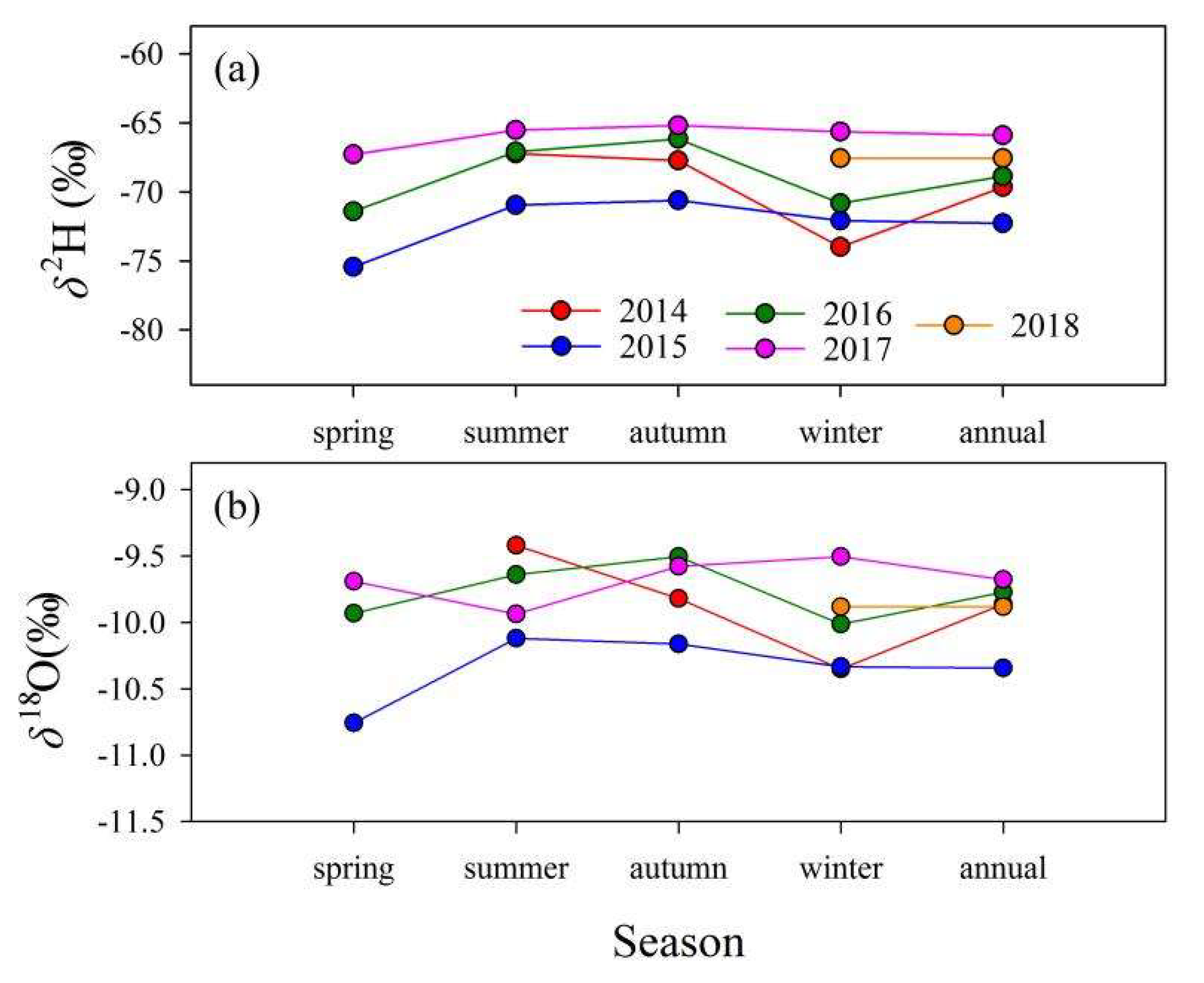

Figure 4. Interannual variations of stable isotope ratios in tap water at the sampling site of Qiujiawan (T-4) in Lanzhou from August 2014 to February 2018. (a) δ2H, (b) δ18O.
Figure 4. Interannual variations of stable isotope ratios in tap water at the sampling site of Qiujiawan (T-4) in Lanzhou from August 2014 to February 2018. (a) δ2H, (b) δ18O.
Water 11 01441 g004

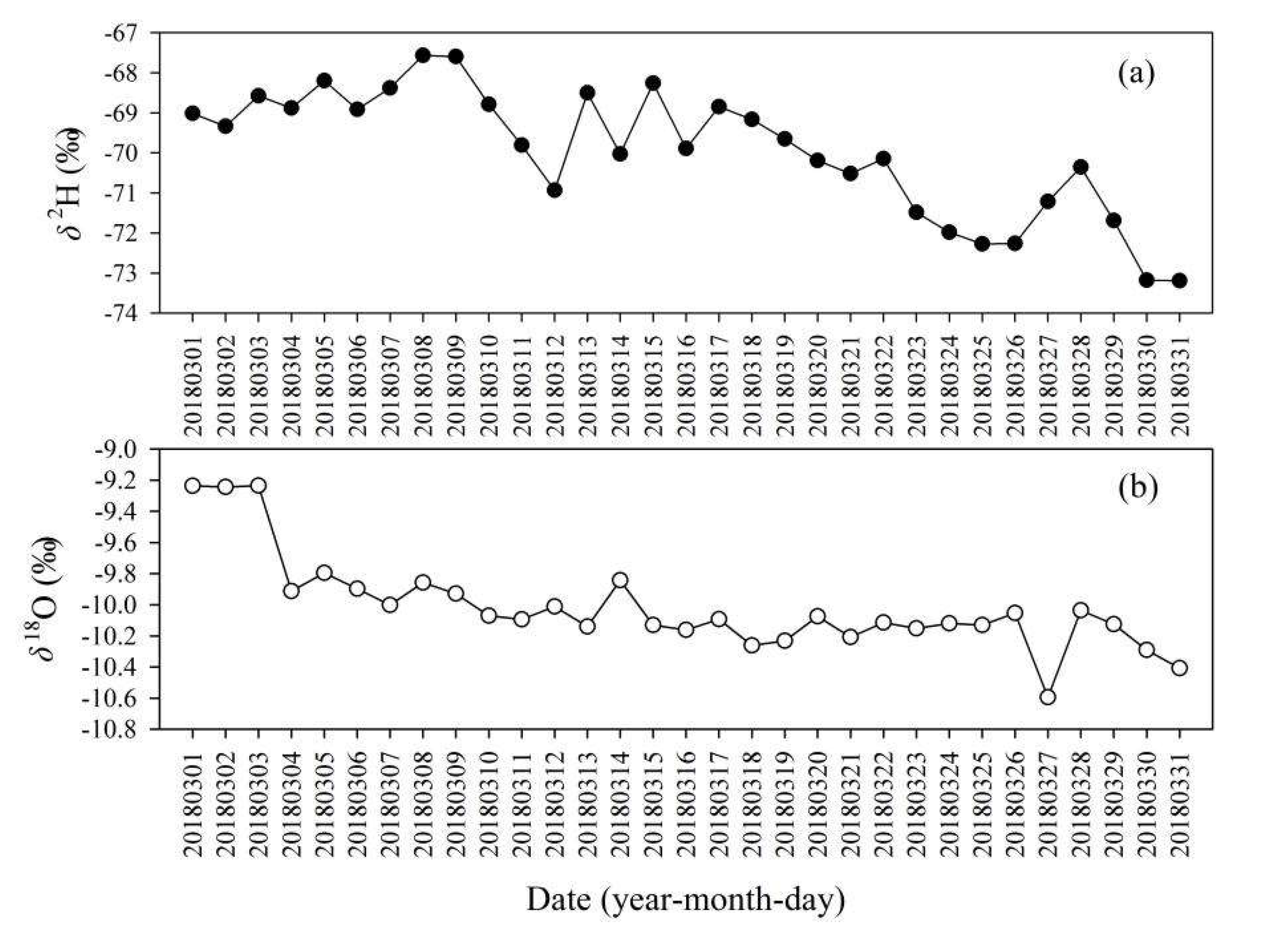

Figure 5. Daily variations of stable isotope ratios in tap water at the sampling site of Qiujiawan (T-4) in Lanzhou from 1 March 2018 to 31 March 2018. (a) δ2H, (b) δ18O.
Figure 5. Daily variations of stable isotope ratios in tap water at the sampling site of Qiujiawan (T-4) in Lanzhou from 1 March 2018 to 31 March 2018. (a) δ2H, (b) δ18O.
Water 11 01441 g005

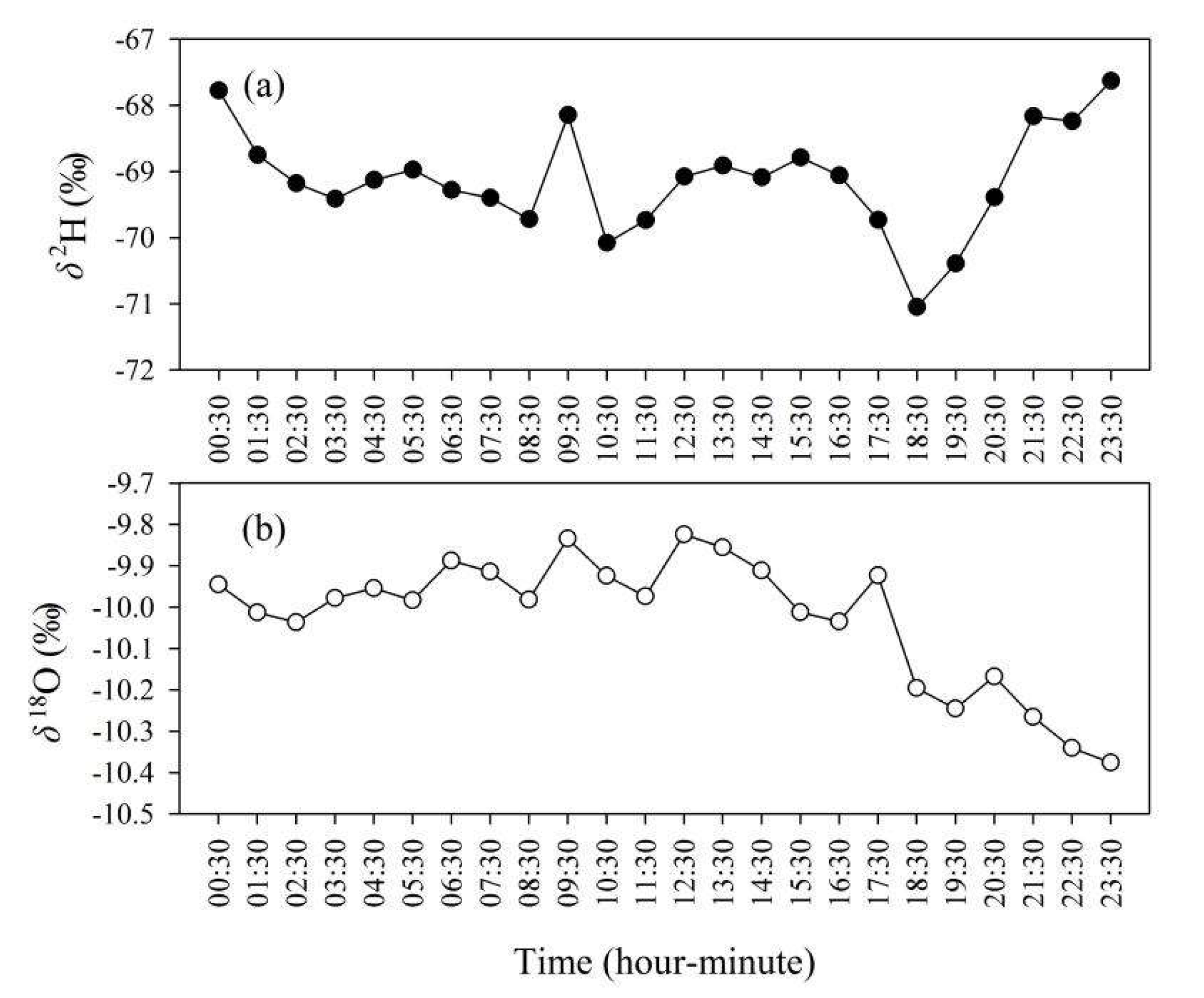

Figure 6. Diurnal variations of stable isotope ratios in tap water at the sampling site of Qiujiawan (T-4) in Lanzhou on March 11, 2018. (a) δ2H, (b) δ18O.
Figure 6. Diurnal variations of stable isotope ratios in tap water at the sampling site of Qiujiawan (T-4) in Lanzhou on March 11, 2018. (a) δ2H, (b) δ18O.
Water 11 01441 g006

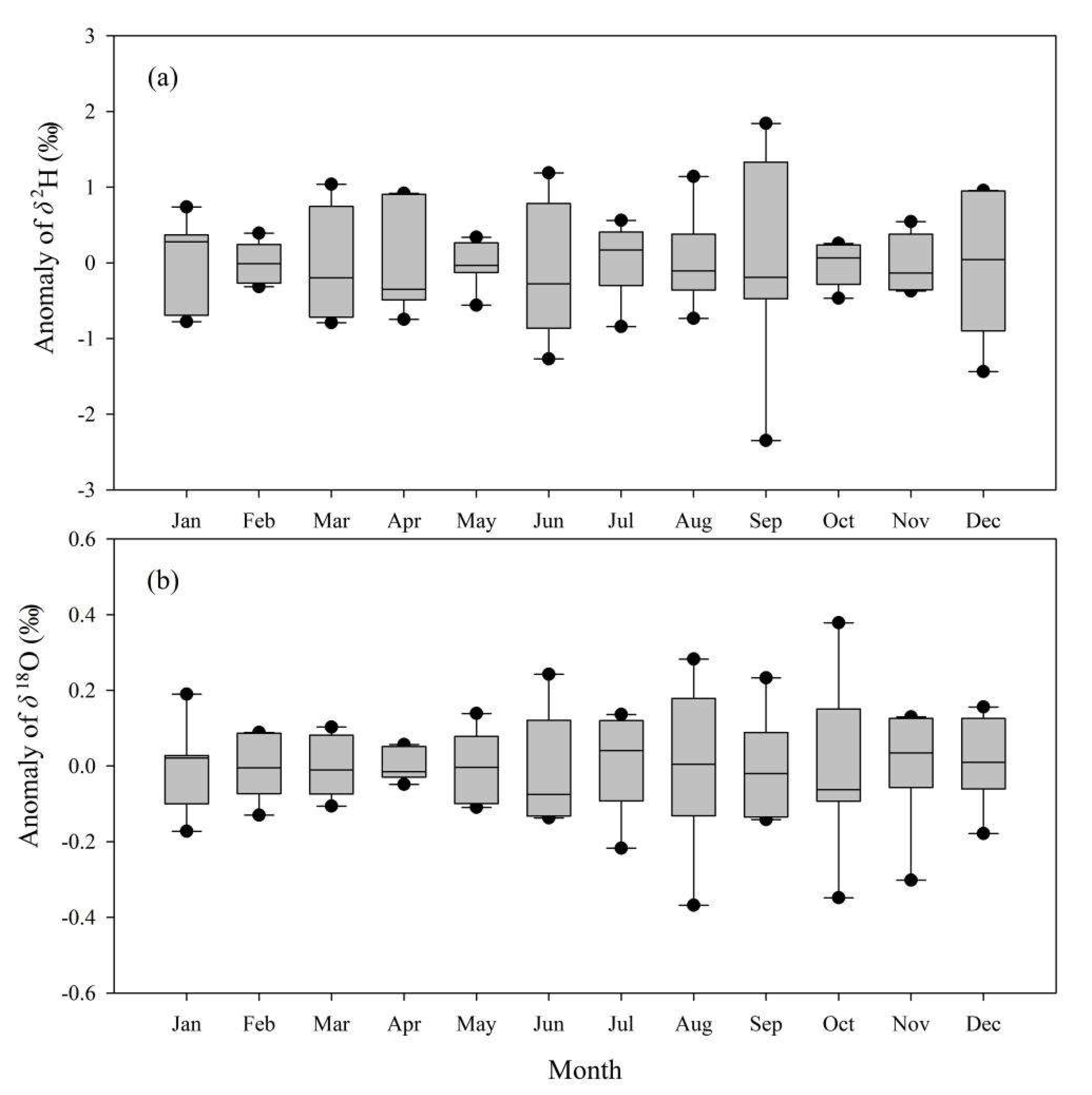

Figure 7. Monthly anomaly values of stable isotope ratios in tap water in Lanzhou. (a) monthly anomaly of δ2H, (b) monthly anomaly of δ18O. The anomaly value of one sampling site means the difference between the monthly value at this sampling site and the mean value at all sampling sites in the same month. The bottom and top of the box indicate the 25th and 75th percentiles, the line in the box marks the 50th percentile (median), whiskers exhibit the 10th and 90th percentiles; points below and above the whiskers show the 5th and 95th percentiles, respectively.
Figure 7. Monthly anomaly values of stable isotope ratios in tap water in Lanzhou. (a) monthly anomaly of δ2H, (b) monthly anomaly of δ18O. The anomaly value of one sampling site means the difference between the monthly value at this sampling site and the mean value at all sampling sites in the same month. The bottom and top of the box indicate the 25th and 75th percentiles, the line in the box marks the 50th percentile (median), whiskers exhibit the 10th and 90th percentiles; points below and above the whiskers show the 5th and 95th percentiles, respectively.
Water 11 01441 g007

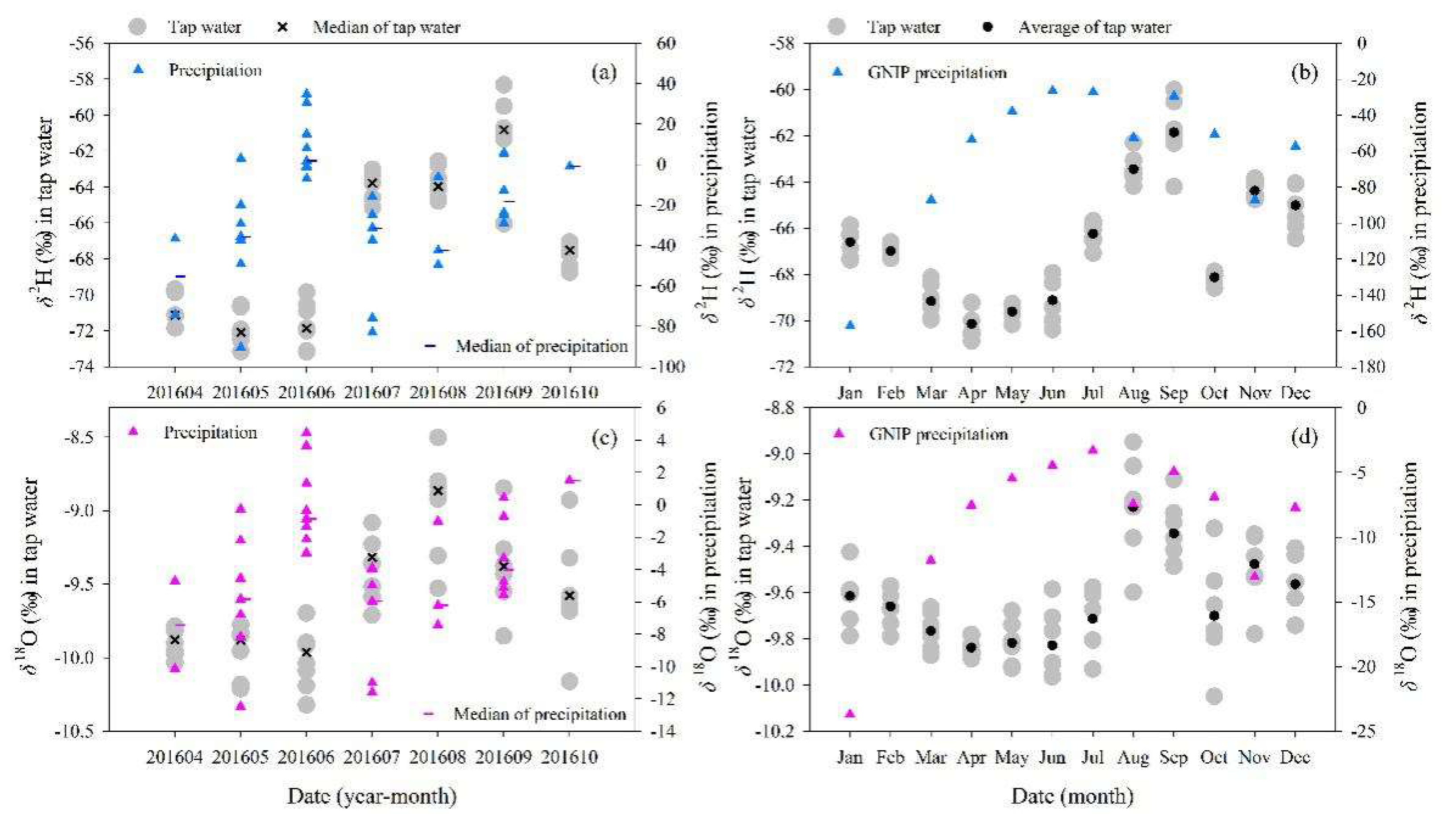

Figure 8. Comparison of temporal variations of δ2H and δ18O in tap water with those in collected precipitation (a,c) and those in precipitation from GNIP [48] (Global Network of Isotopes in Precipitation) (b,d). (a,c) The data of δ2H and δ18O in collected precipitation at the site of Qiujiawan (P-1) are from April 2016 to October 2016. The monthly data of δ2H and δ18O in tap water at 7 sampling sites are from April 2016 to October 2016. (b,d) The monthly mean values of δ2H and δ18O in GNIP precipitation at the site of Lanzhou are from 1985 to 1999 (the monthly mean values of δ2H and δ18O in February are absent). The monthly data of δ2H and δ18O in tap water at 7 sampling sites are between March 2016 and February 2018.
Figure 8. Comparison of temporal variations of δ2H and δ18O in tap water with those in collected precipitation (a,c) and those in precipitation from GNIP [48] (Global Network of Isotopes in Precipitation) (b,d). (a,c) The data of δ2H and δ18O in collected precipitation at the site of Qiujiawan (P-1) are from April 2016 to October 2016. The monthly data of δ2H and δ18O in tap water at 7 sampling sites are from April 2016 to October 2016. (b,d) The monthly mean values of δ2H and δ18O in GNIP precipitation at the site of Lanzhou are from 1985 to 1999 (the monthly mean values of δ2H and δ18O in February are absent). The monthly data of δ2H and δ18O in tap water at 7 sampling sites are between March 2016 and February 2018.
Water 11 01441 g008

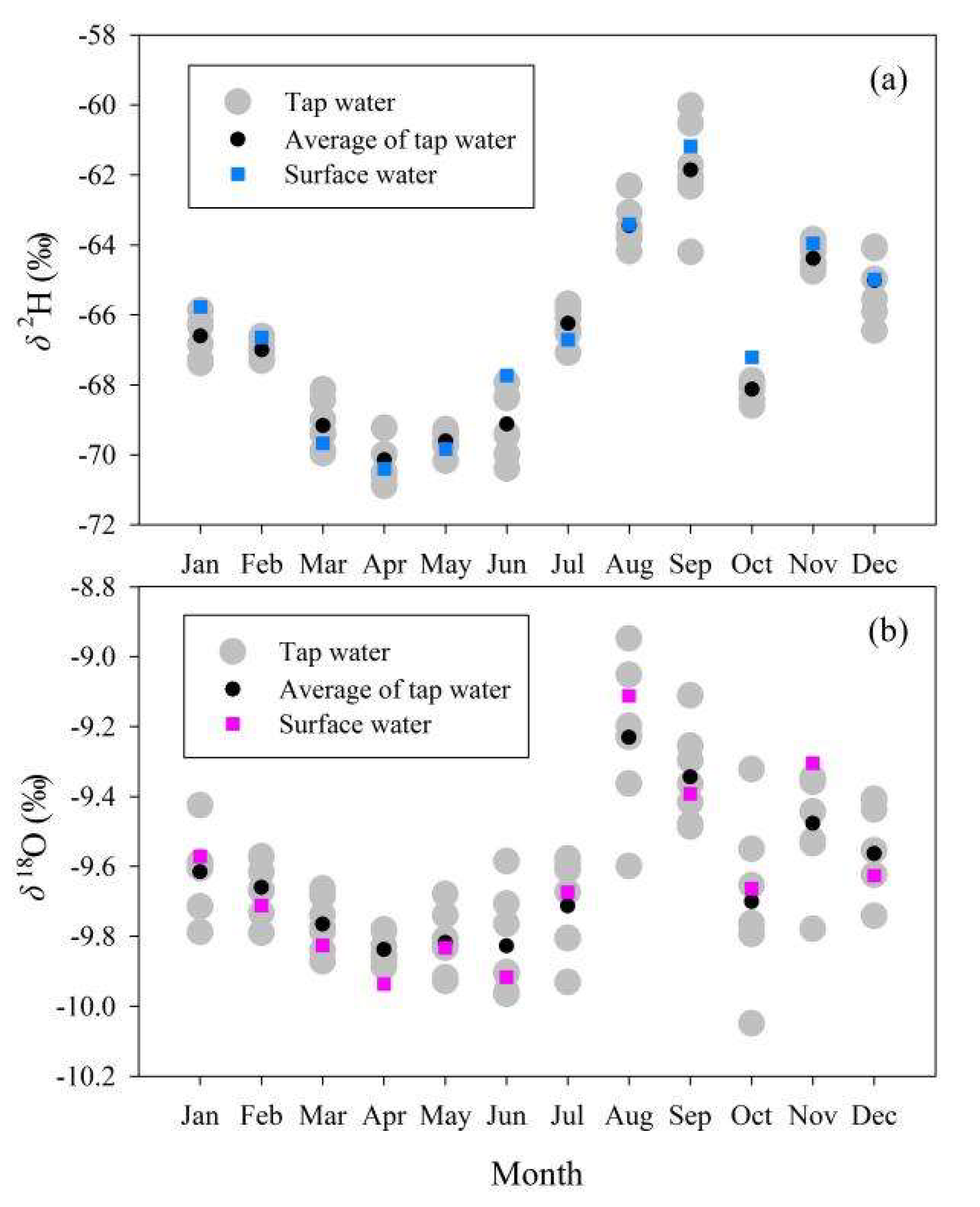

Figure 9. Comparison of temporal variations of δ2H (a) and δ18O (b) in tap water with those in surface water. The monthly data of δ2H and δ18O in tap water at 7 sampling sites and those in surface water at the site of Zhongshan Bridge (S-1) are both between March 2016 and February 2018.
Figure 9. Comparison of temporal variations of δ2H (a) and δ18O (b) in tap water with those in surface water. The monthly data of δ2H and δ18O in tap water at 7 sampling sites and those in surface water at the site of Zhongshan Bridge (S-1) are both between March 2016 and February 2018.
Water 11 01441 g009

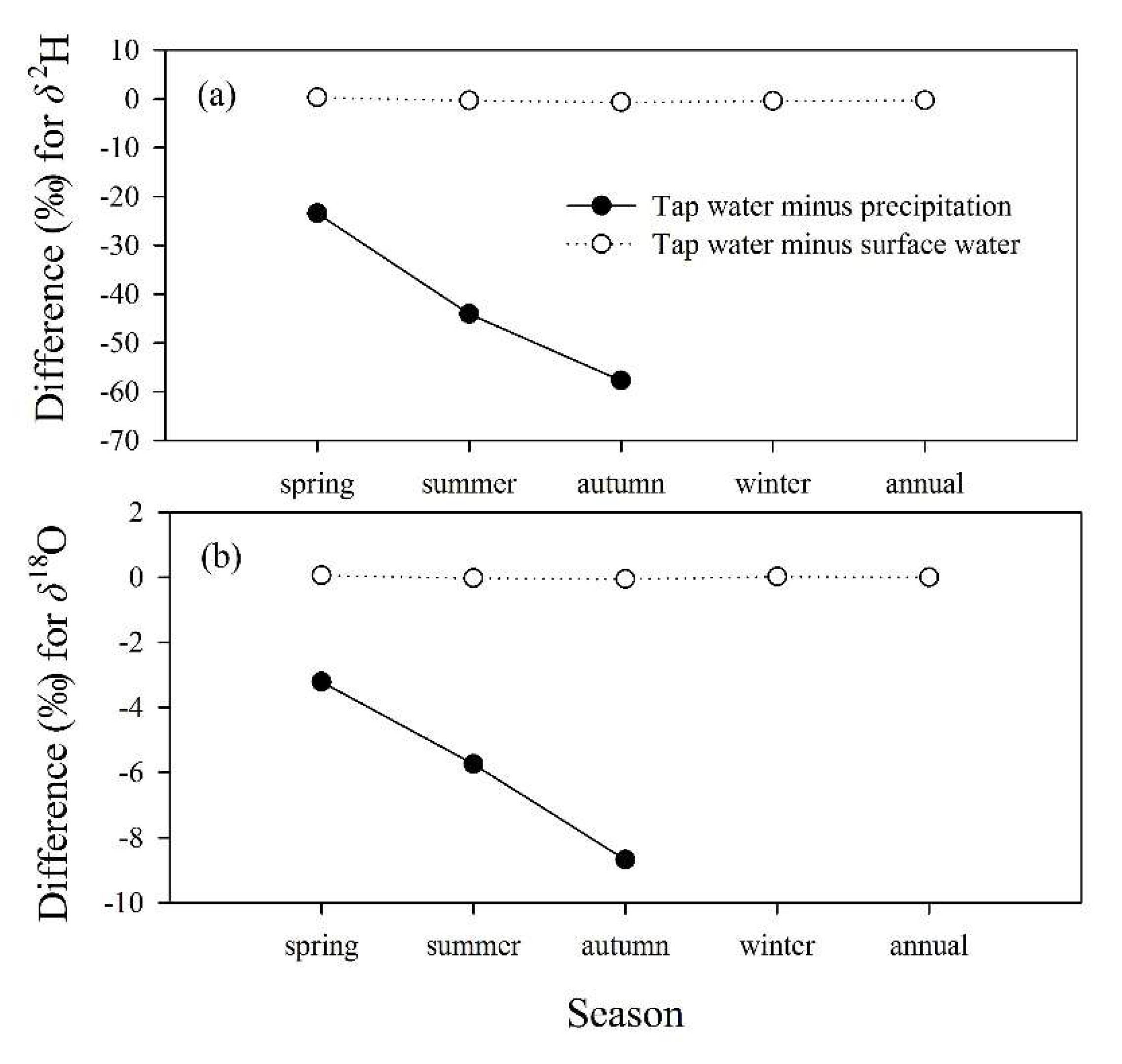

Figure 10. Differences between δ2H (a) and δ18O (b) in tap water and those in collected precipitation and surface water.
Figure 10. Differences between δ2H (a) and δ18O (b) in tap water and those in collected precipitation and surface water.
Water 11 01441 g010

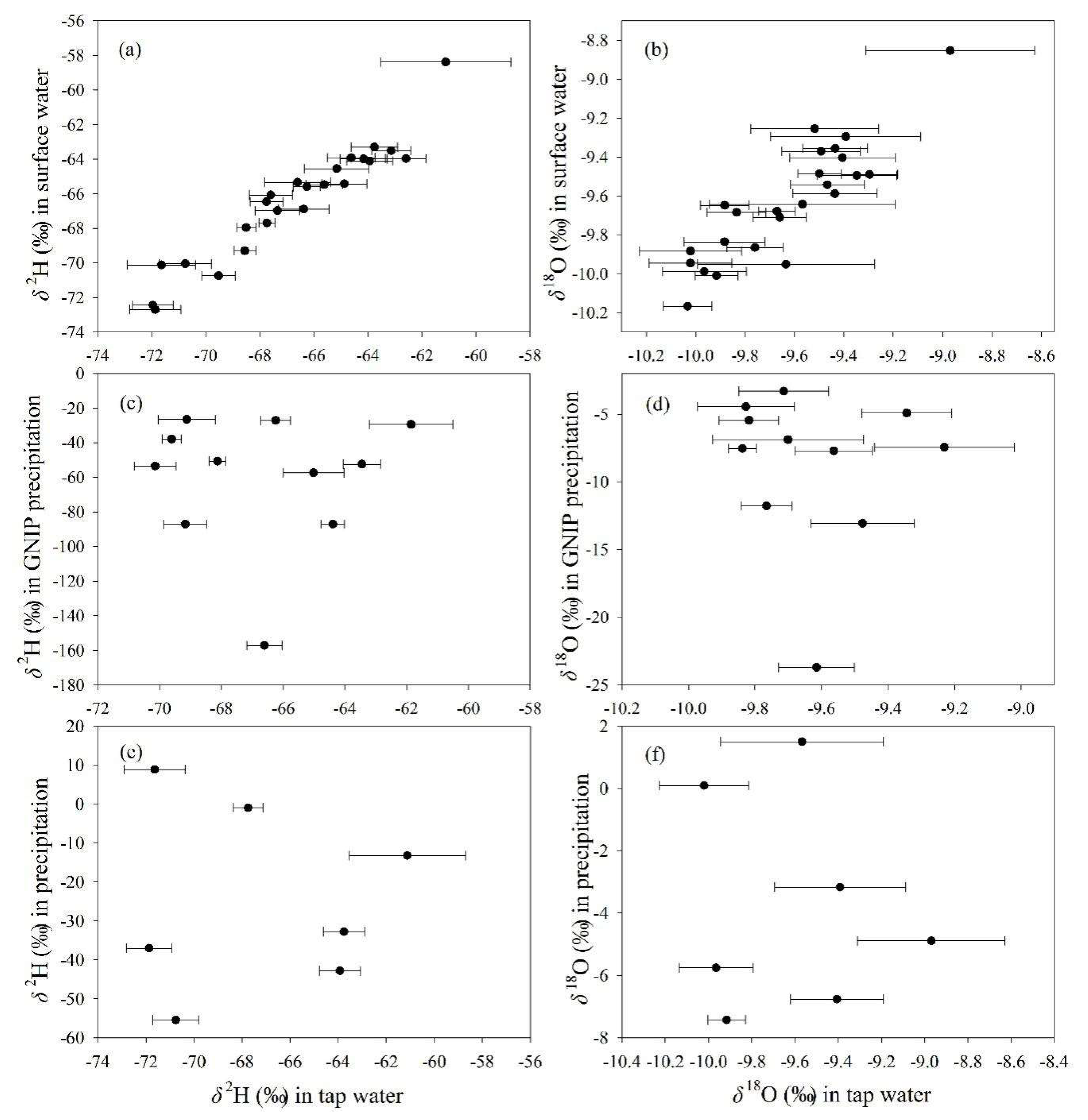

Figure 11. Relationship of δ2H and δ18O in surface water (a,b), GNIP precipitation (c,d) and collected precipitation (e,f) with those in tap water in Lanzhou. Solid circles and error bars show the arithmetic average and standard deviation, respectively. The monthly data of δ2H and δ18O in surface water and tap water at 7 sampling sites from March 2016 to February 2018 were used in (a) and (b). The monthly mean values of δ2H and δ18O in GNIP precipitation at the site of Lanzhou from 1985 to 1999 (the monthly mean values of δ2H and δ18O in February were absent) and those in tap water at 7 sampling sites from March 2016 to February 2018 were used in (c) and (d). The data of δ2H and δ18O in collected precipitation at the site of Qiujiawan and tap water at 7 sampling sites from April 2016 to October 2016 were applied in (e) and (f).
Figure 11. Relationship of δ2H and δ18O in surface water (a,b), GNIP precipitation (c,d) and collected precipitation (e,f) with those in tap water in Lanzhou. Solid circles and error bars show the arithmetic average and standard deviation, respectively. The monthly data of δ2H and δ18O in surface water and tap water at 7 sampling sites from March 2016 to February 2018 were used in (a) and (b). The monthly mean values of δ2H and δ18O in GNIP precipitation at the site of Lanzhou from 1985 to 1999 (the monthly mean values of δ2H and δ18O in February were absent) and those in tap water at 7 sampling sites from March 2016 to February 2018 were used in (c) and (d). The data of δ2H and δ18O in collected precipitation at the site of Qiujiawan and tap water at 7 sampling sites from April 2016 to October 2016 were applied in (e) and (f).
Water 11 01441 g011
Table 1. Information of sample sites of tap water, precipitation and surface water in Lanzhou.
Table 1. Information of sample sites of tap water, precipitation and surface water in Lanzhou.
TypeCodeName of Sampling SitesLongitude (°)Latitude (°)Elevation (m)Sampling PeriodNumber of Samples (n)
Tap water sampling sitesT-1Xiguan103.82536.0661533March 2016–February 201824
T-2Tanjianzi103.87036.0691517March 2016–February 201824
T-3Xizhan103.77736.0751543March 2016–February 201824
T-4Qiujiawan103.74436.1131545August 2014–February 2018
1 March 2018–31 March 2018
11 March 2018, 00:30–23:30
98
T-5Shijiawan103.71136.1251550March 2016–February 201824
T-6Jincheng103.63436.0931586March 2016–February 201824
T-7Sunjiazhuang103.60436.1141542March 2016–February 201824
Precipitation sampling siteP-1Qiujiawan103.74436.1131545April 2016–October 201635
Surface water sampling siteS-1Zhongshan Bridge103.82336.0711551March 2016–February 201824
Table 2. Seasonal and annual mean values of δ2H and δ18O in tap water at all sampling sites and their standard deviations (SD) in Lanzhou from March 2016 to February 2018.
Table 2. Seasonal and annual mean values of δ2H and δ18O in tap water at all sampling sites and their standard deviations (SD) in Lanzhou from March 2016 to February 2018.
Isotope and SDSpringSummerAutumnWinterAnnual
δ2H (‰)−69.6−66.3−64.8−66.2−66.7
SD for δ2H (‰)0.40.30.50.30.3 1
δ18O (‰)−9.8−9.6−9.5−9.6−9.6
SD for δ18O (‰)0.030.10.10.10.1 1
1 Annual standard deviations are calculated based on the 4 seasonal mean isotope values.
Table 3. Seasonal and annual mean values of δ2H and δ18O in precipitation and surface water and their standard deviations (SD) in Lanzhou.
Table 3. Seasonal and annual mean values of δ2H and δ18O in precipitation and surface water and their standard deviations (SD) in Lanzhou.
Type of WaterSeasonal or Annual Mean Valueδ2H (‰)SD for δ2H (‰)δ18O (‰)SD for δ18O (‰)
Precipitationspring−46.213.1−6.61.1
summer−22.227.4−3.93.6
autumn−7.18.7−0.83.3
Surface waterspring−70.00.4−9.90.1
summer−65.92.3−9.60.4
autumn−64.13.0−9.50.2
winter−65.80.8−9.60.1
annual−66.51.2 1−9.60.2 1
1 Annual standard deviations are calculated based on the 4 seasonal mean isotope values.
