Open AccessArticle

Three-Dimensional Geophysical Characterization of Deeply Buried Paleokarst System in the Tahe Oilfield, Tarim Basin, China

1,2,3,4, 1,2,3,4,*, 5, 6, 1,2,3,4, 1,2,3,4 and 1,2,3,4
1
Key Laboratory of Shale Gas and Geoengineering, Institute of Geology and Geophysics, Chinese Academy of Sciences, Beijing 100029, China
2
Frontier Technology and Equipment Development Center for Deep Resources Exploration, Institute of Geology and Geophysics, Chinese Academy of Sciences, Beijing 100029, China
3
Chinese Academy of Sciences University, Beijing 100049, China
4
The Institutes of Earth Science, Chinese Academy of Sciences, Beijing 100029, China
5
School of Geosciences, China University of Petroleum, Qingdao 266580, China
6
College of Information Science and Technology, Beijing University of Chemical Technology, Beijing 100029, China
*
Author to whom correspondence should be addressed.
Water 2019, 11(5), 1045; https://doi.org/10.3390/w11051045
Received: 19 April 2019 / Revised: 13 May 2019 / Accepted: 16 May 2019 / Published: 20 May 2019
(This article belongs to the Special Issue Hydraulic Behavior of Karst Aquifers)
  |
PDF [14049 KB, uploaded 20 May 2019]
  |

Abstract

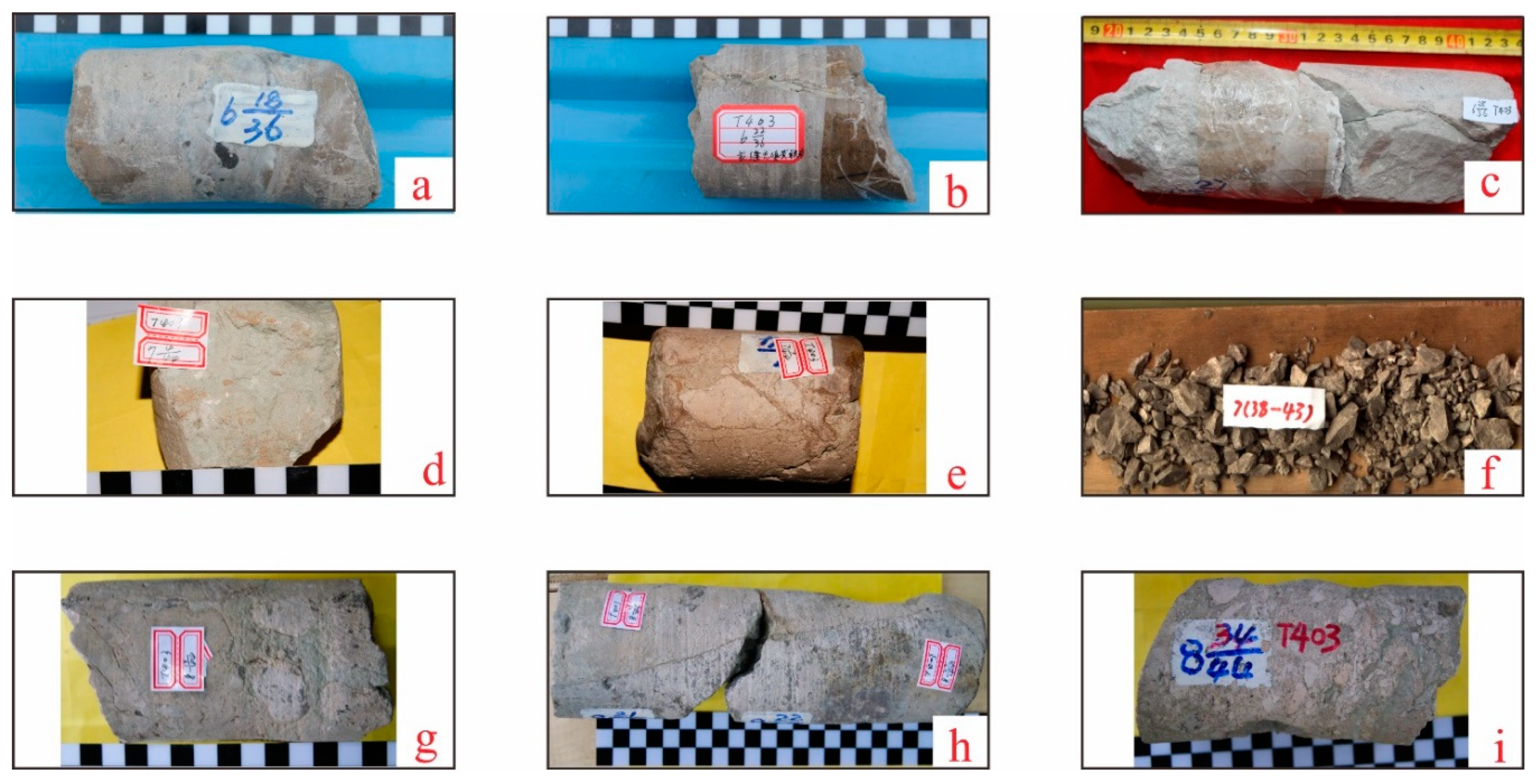

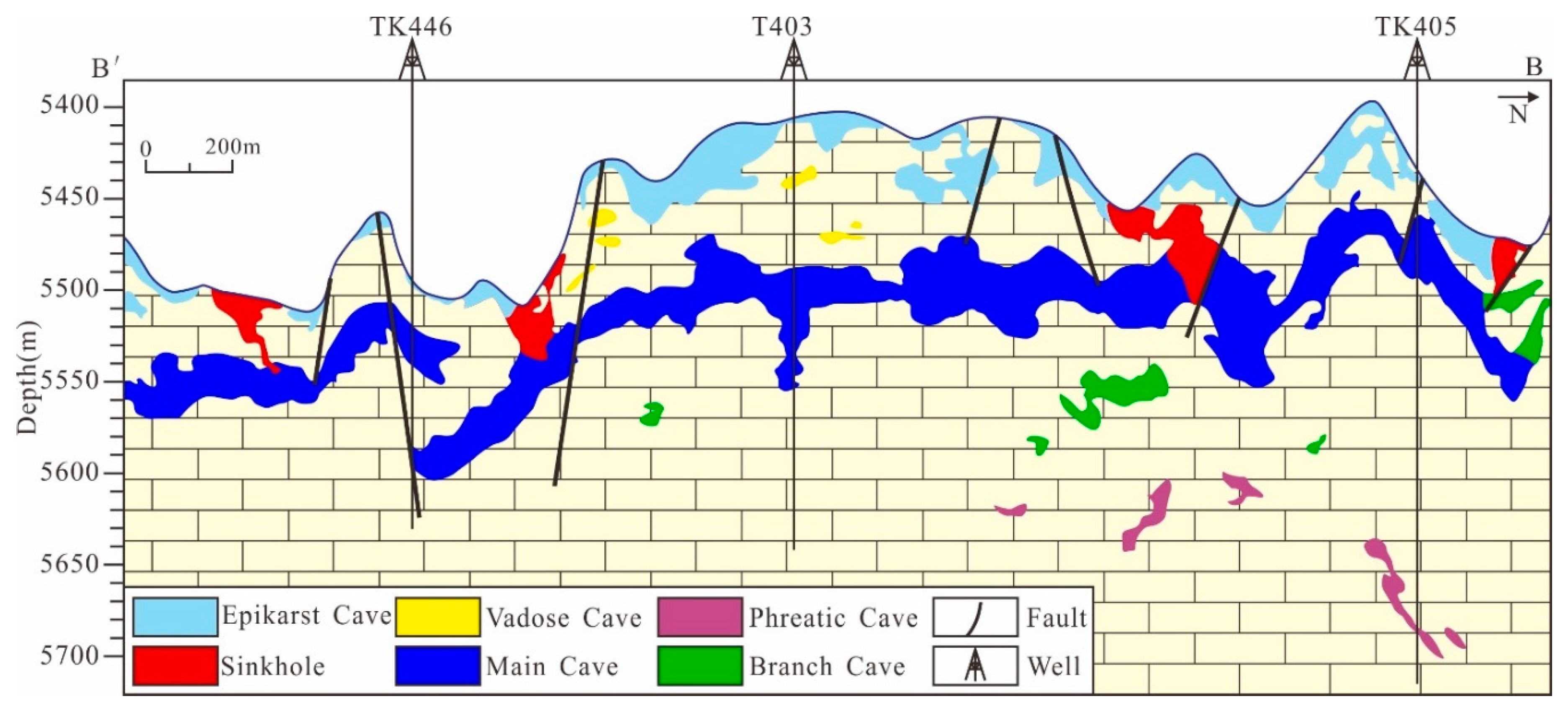

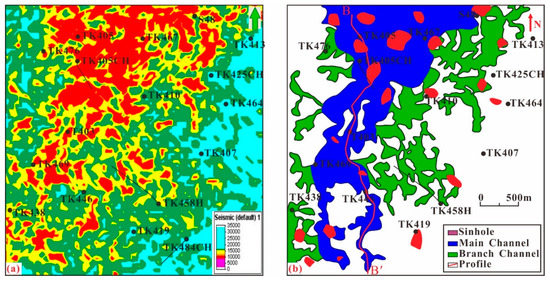

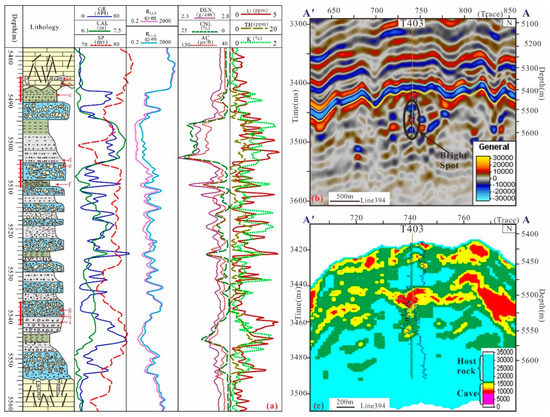

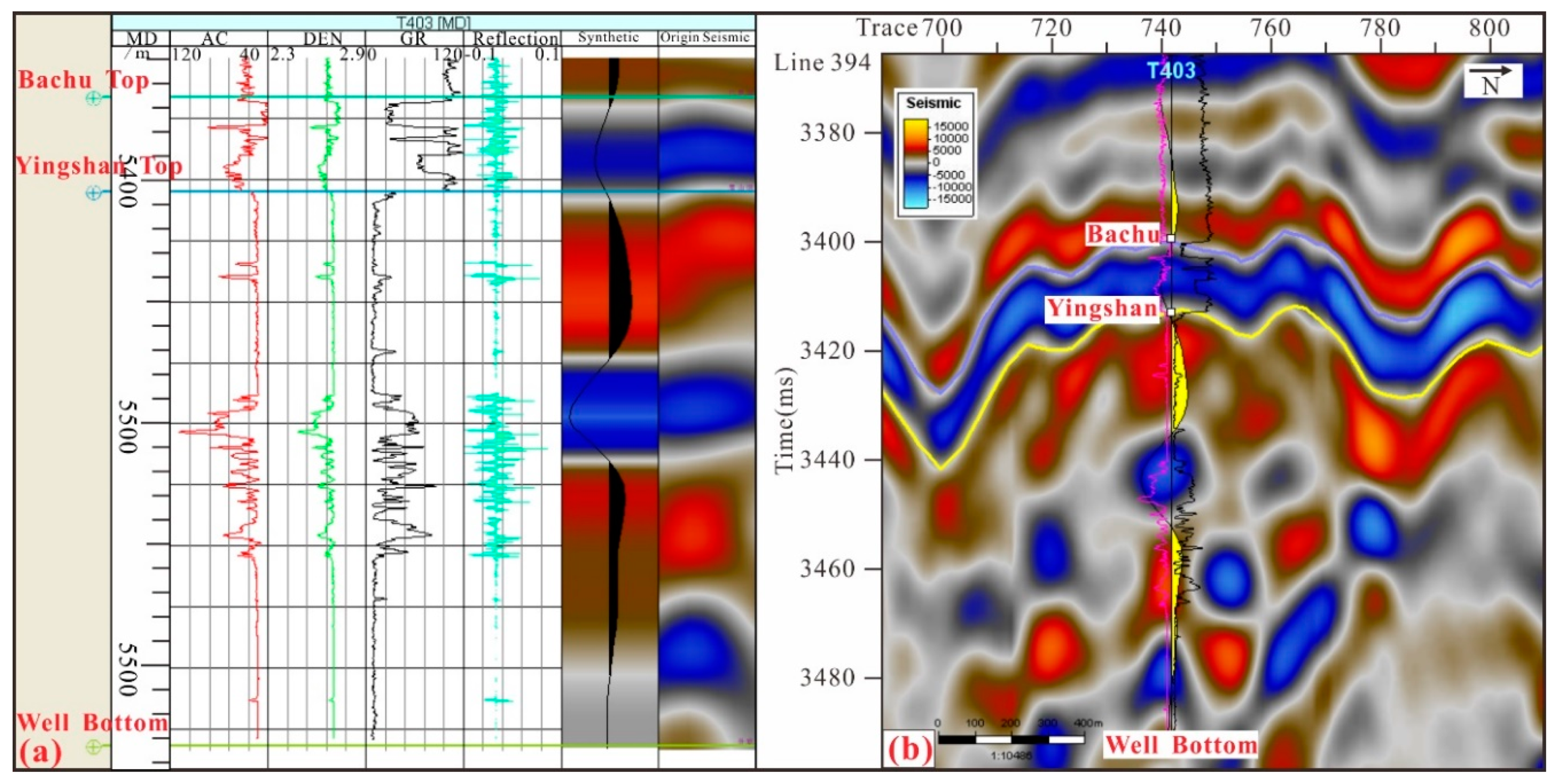

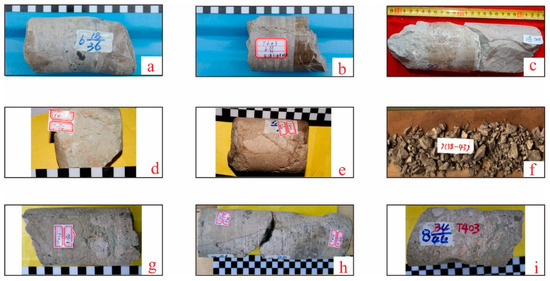

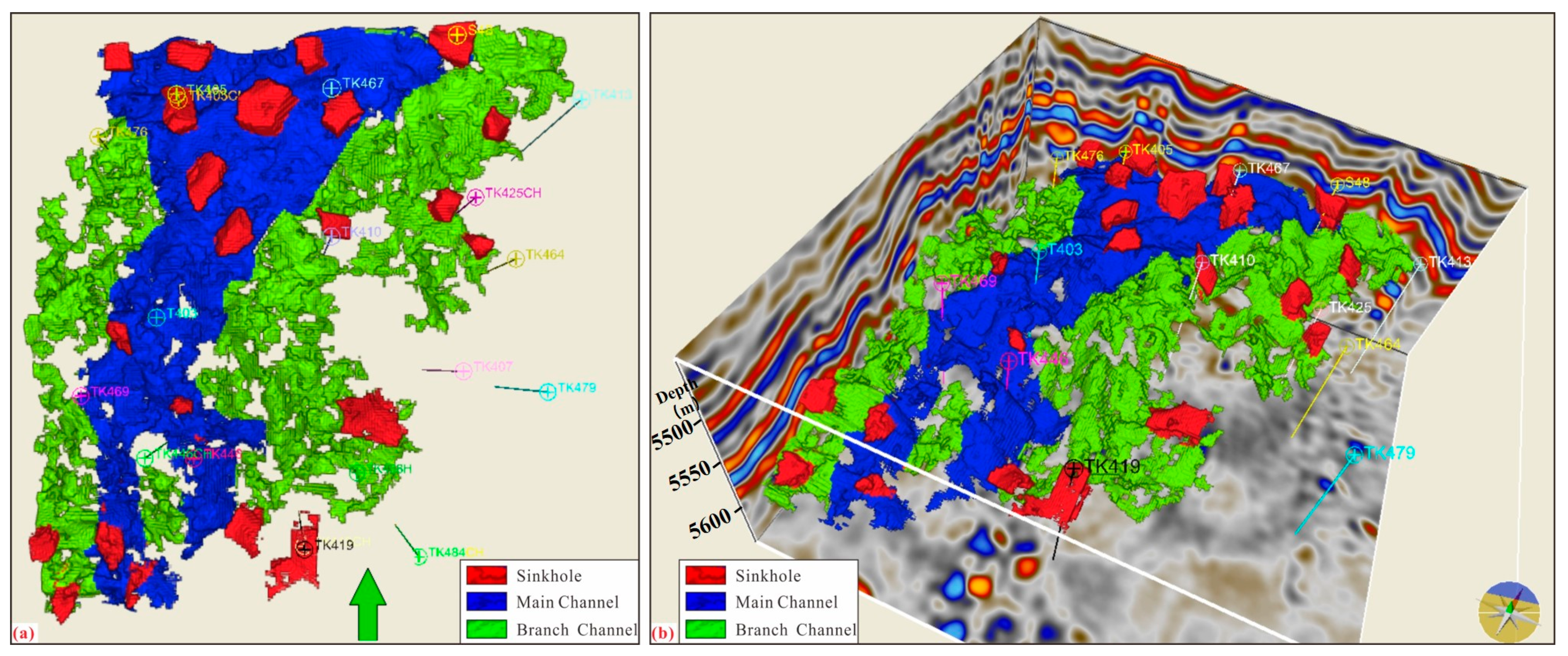

Paleokarst reservoirs are the major type of the Ordovician carbonate reservoirs in the Tahe Oilfield. Due to the strong heterogeneity in distribution, it is a real challenge to detect the spatial distribution of paleokarst reservoirs, especially those deeply buried more than 5500 m in the Tahe area. Based on the abundant core samples, this paper first described the structure of paleocaves drilled by well. Second, after time–depth conversions, the results from drilled wells were tied to three-dimensional (3D) seismic datasets, and then the threshold of host rocks and caves in wave impedance were identified. Third, the seismic-scale mapping and visualization of the paleokarst reservoirs were achieved by tracing the distribution of paleocaves. This approach was applied in the well T403 area, and the structure of the paleokarst, especially the runoff zone, was interpreted. 3D structure and spatial distribution of the paleokarst system was demonstrated by plane, vertical, and 3D models. Additionally, according to the hydrology genetic relationships, the paleocaves in the runoff zone were divided into sinkholes, main channel, and branch channel. The approach of a 3D geophysical characterization of a deeply buried paleokarst system can be applicable to Tahe and other similar paleokarst oilfields, which will guide hydrocarbon exploration in paleokarst reservoirs. View Full-Text
Keywords: paleokarst reservoir; three-dimensional structure; geophysical recognition; Tahe Oilfield; Tarim Basin paleokarst reservoir; three-dimensional structure; geophysical recognition; Tahe Oilfield; Tarim Basin
Figures

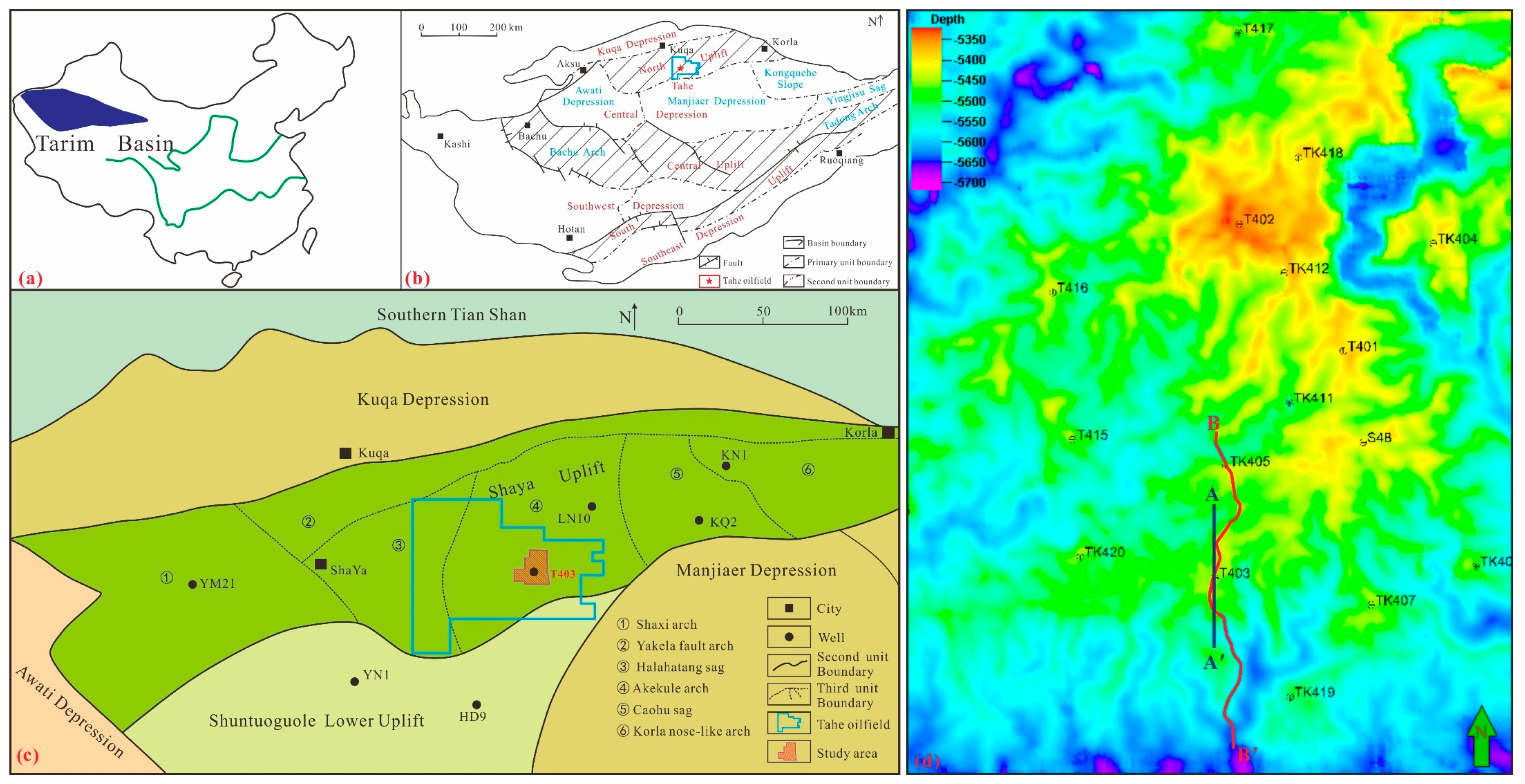

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
