Article

Bryophyte Communities along a Tropical Urban River Respond to Heavy Metal and Arsenic Pollution

1
Departamento de Ciencias Biológicas, Universidad Técnica Particular de Loja, San Cayetano s/n, Loja 1101608, Ecuador
2
Departamento de Química y Ciencias Exactas, Universidad Técnica Particular de Loja, San Cayetano s/n, Loja 1101608, Ecuador
3
Departamento de Biología, Escuela Politécnica Nacional, Av. Ladrón de Guevara E11-253, Quito 17-01-2759, Ecuador
*
Author to whom correspondence should be addressed.
Water 2019, 11(4), 813; https://doi.org/10.3390/w11040813
Received: 1 March 2019 / Revised: 16 April 2019 / Accepted: 16 April 2019 / Published: 18 April 2019

Abstract

:
Aquatic and rheophilous bryophytes can indicate water pollution as they bioaccumulate toxic water elements. We evaluated (1) bioaccumulation of eight heavy metals and arsenic by Marchantia polymorpha L., and (2) changes in bryophyte community structure, as responses to urban pollution in southern Ecuador. To this end, we registered presence/absence and coverage of submerged bryophytes in 120 quadrats across three zones of the Zamora river inside Loja city, and a control zone in a nearby forest. We found that the concentrations of five (Al, Cd, Cu, Fe, and Zn) of the eight chemical elements and arsenic were highest in urban M. polymorpha. Moreover, bryophyte species richness decreased in urban zones. Bryophyte community structure also differed between control and city zones, but no differences were found among city zones. The control zone was composed by a more distinct set of bryophyte species, e.g., an indicator species analysis showed that 16 species had high and significant indicator values for control zone, but only 11 species were indicators of at least one of the three urban zones. We concluded that bryophytes, in general, and M. polymorpha, in particular, can be suitable biomonitors of water quality in tropical urban rivers.

1. Introduction

Communities occurring along urban rivers are increasingly near sources of pollution such as municipal wastewater, domestic garbage, and agricultural and industrial discharges [1,2,3]. Most of these effluents contain toxic substances, like heavy metals and metalloids, which are a considerable threat to the environment [4,5], and human health [6,7,8,9]. As such, looking for a sensitive and effective indicator of water pollution is an important task for scientists and local authorities that can inform decision making and city planning [10].
Bryophytes are well-known bioaccumulators of toxic elements due to its eco-physiology (i.e., rapid absorption and slow desorption of pollutants [10,11,12]), and morphology (bryophytes lack of epidermis that allows them to accumulate toxins present in water [13,14]). Recent studies have shown that some bryophyte species living in contaminated rivers, like the thallose liverwort Marchantia polymorpha L., can be enriched by heavy metals like Cu, Zn, and Cd [12,13]. Moreover, bryophyte community structure can also respond to natural and anthropogenic variability throughout a river’s profile. For instance, it has been shown that bryophyte communities change with turbidity, water temperature, and pH in the Italian Alps and Apennines [15,16]. Water pollution [10] and level of urbanization [15,17,18,19,20] also have an impact in other European bryophyte community structures.
Despite their great importance as bioindicators and bioaccumulators, most bryophyte studies have been carried out in temperate regions of the world [10]. In Ecuador, most bryophyte studies have been taxonomic in scope [21,22,23,24] and few studies has focused on monitoring water contamination using aquatic macroinvertebrate communities [25]. Here, we present the first analysis of the effects of water pollution on bryophyte bioaccumulation of eight heavy metals and one metalloid. We further test if bryophyte community structure, beyond effects on individual species, responds to river pollution. To this end, we measured bryophyte species richness and community composition in the Zamora river, passing through Loja city, a major city in southern Ecuador. We asked the following questions: (1) Is M. polymorpha bioaccumulating toxic elements inside Loja city? (2) How do bryophyte species richness and community structure respond to water pollution? (3) Are there bryophyte species strictly associated either to forest or city areas? Previous research has shown a higher concentration of pollutants in centric zones of cities [10,14,20,26,27,28,29].

2. Materials and Methods

2.1. Study Area

We performed this study in the streams and river banks of the Zamora river, passing through Loja city; which has been eroded by wastewater contamination, garbage, and extraction of stony material [30]. The study area corresponds to urban zones and a forest fragment of Loja city. The approximate area of the city is 10,790 km2. The annual average temperature of Loja is 15 °C, and the annual precipitation is about 900 mm [30]. The study consisted of three study zones (south, center, and north) within city limits and along the river, and a control zone (forest) outside the city. We sampled 3 sites within each zone, for a total of 12 sites (Figure 1).
The control zone (F) includes the upper parts of the river basin, with banks dominated by forest remnants [25]. The south zone (S; 1035.000 m2 of area or recreational parks; 68,919 inhabitants), is characterized by recent urban development and lack of adequate supply of sewage. According to the water quality index Canadian Council Ministers (CCME-WQI) and water quality index (WQI-C), the water is considered to be regularly contaminated or poor in quality. Arsenic, mercury, and lead in the rivers reach values up to 0.326 ppm, 0.022 ppm, and 0.389 ppm, respectively [31]. The center zone (C; 635,000 m2 of area; 54,576 inhabitants) is characterized by a high degree of urbanization and high number of effluents of sewage. According to the CCME-WQI and the WQI-C, the water is considered to be highly contaminated or poor in quality. In this area, levels of arsenic, mercury, and lead can reach values up to 0.043 ppm, 0.175 ppm, and 0.664 ppm, respectively [31]. The north zone (N; 1060.000 m2 of area; 26,527 inhabitants), finally, is an urban area with a high storage of microbiological load due to sewage [30]; nevertheless, the zone still has some recreational parks. According to the CCME-WQI and WQI-C, the water is considered to be highly contaminated or poor in quality. The levels of arsenic, mercury, and lead in this zone can reach values up to 0.022 ppm, 0.043 ppm, and 0.688 ppm, respectively [31].

2.2. Elemental Bioccumulation in Marchantia polymorpha L.

Elemental bioaccumulation was studied in the subcosmopolitic thallose liverwort Marchantia polymorpha L. We chose this species because it has proved elsewhere to be an effective bioaccumulator of heavy metals [12,13,32]. To sample M. polymorpha, we took four samples (0.5–1 g) of the species in the same sites (two separate sites by zone), where bryophytes frequency and cover were sampled at each of the four study zones. They were rinsed with Milli-Q water, then stored in paper bags for oven drying at 60 °C for 3–4 days. Fieldwork was conducted between April and December 2015.
The dried samples were mechanically milled using a stainless-steel grinder for digestion. Subsequently, 0.2 g of dry sample was weighed, then a preparation of aqua regia (HCl and HNO3) was performed in a 3:1 ratio (v/v) [33]. Each sample was digested twice with 30 ml of aqua regia subjected to a heating plate with a temperature of 250 °C. After the samples were allowed to cool, the solutions were filtered through filter paper in a 100 ml distillation flask calibrated with distilled water. The concentrations of eight heavy metals—aluminum (Al), cadmium (Cd), copper (Cu), iron (Fe), magnesium (Mn), mercury (Hg), lead (Pb), and zinc (Zn), and one metalloid, arsenic (As)—in digested solutions were analyzed using a flame atomic absorption spectrophotometer Perkin Elmer AAnalyst 400 (Shelton, CT, USA). The respective wavelength (nm), precision (as the relative standard deviation, %), and limit of detection (µg g−1) of the elements were as follows: Pb 283.31, 1.0 and, 0.05; Cu 324.75, 1.2, and 0.010; Cd 228.80, 1.7, and 0.002, Mg 285.21; Zn 213.86, 2.31, and 0.005; Fe 305.91, 0.01; Al 309.27, 0.1. A witness was taken into account to estimate metal contamination in the digestion process. All elements used here are certified, and were acquired from AccuStandard, Inc. (125 Market Street New Haven, CT 06513, USA), a company accredited to ISO Guide 34, ISO/IEC 17025, and certified to ISO 9001.

2.3. Bryophyte Community Structure

In each of the 12 zones, ten 20 × 30 cm quadrats were selected along the banks of the Zamora river [34]. In each quadrat, we registered presence/absence and coverage of rheophilous (permanently submerged) and aquatic (periodically submerged) bryophytes. The samples were identified using general [35,36] and specific keys [37] and were deposited as vouchers in the herbarium HUTPL at Universidad Técnica Particular de Loja.

2.4. Data Analysis

To determine changes in heavy metal accumulation of M. polymorpha across the different zones, we used one-way analysis of variance (ANOVA) followed by a Tukey post-hoc test. Shapiro Wilk and Bartlett’s test confirmed the model met normality and homogeneity of variance assumptions. However, when data were non-normal, we used Kruskal–Wallis one-way ANOVA on ranks followed by Dunn’s pairwise comparison. Analyses were done in R 3.2.2 [38] using the “dunn.test” package [39].
We calculated species richness as the total number of different bryophytes species occurring in a quadrat. We also calculated sampling completeness with the Chao 2 species richness estimator using the R package ‘vegan’ [40]. The effect of environmental variables (zone, site, slope, and plant cover) on species richness was modeled by fitting generalized linear mixed models (GLMMs) [41] as implemented in the R package ‘nlme’ [42]. The minimal adequate model was selected based on Akaike’s information criterion (AIC). Data were analyzed from a multi-level approach, considering site as a random factor and introducing the environmental variables as fixed factors (zone, plant cover, and slope). To identify significant richness differences between zone, a post hoc Tukey multiple comparison tests as implemented in the R package ‘lsmeans’ [43]. The richness models of bryophytes were fitted with Poisson errors.
To detect for changes in bryophyte community structure among zones we used a permutational multivariate analysis of variance (PERMANOVA) on the species cover matrix [44]. Experimental design included two factors: Zone (four levels, fixed factor), site (three levels, random factor nested within zone), plant cover (fixed factor), and slope (fixed factor), with 10 replicate quadrats for each locality (120 quadrats). We used the Bray–Curtis distance measure and 999 Monte Carlo permutations. We visualized community level composition with a non-metric multidimensional scaling (NMDS) on the species cover matrix. NMDS and PERMANOVA were conducted in vegan.
To determine which bryophyte species was associated with specific zone, we used the indicator species analysis [45] as implemented in the R package ‘labdsv’ [46]. This analysis calculates an indicator value for each species based on the mean cover of each species per zone, which results from multiplying the relative abundance for each species by the frequency for each species in each zone. The indicator value ranges from 0 to 1, or 0 to 100. The significance was tested using a Monte Carlo permutation with 1000 replicates.

3. Results

3.1. Elemental Bioaccumulation by Marchantia Polymorpha

The concentrations of heavy metals (Cd, Cu, Mn, Pb, Zn, Al, and Fe) and the metalloid arsenic in M. polymorpha significantly differed in the four zones (Figure 2). A greater concentration of Al, Cu, Fe, Mn, and Zn in M. polymorpha was measured in the three urbanized zones when compared with the control (Table 1 and Figure 2). No traces of Hg were detected across the sites, thus we removed Hg from further analysis.

3.2. Species Richness

A total of 44 bryophyte species were recorded, including 24 mosses, 18 liverworts, and 2 anthocerotes. The control zone showed the highest richness with 34 species, followed by the south zone (29 spp.), the central zone (24 spp.), and the north zone (21 spp.) (Figure 3). A similar pattern was observed with the Chao 2 richness estimator, confirming a high number of species estimated in the control zone (41 estimated species), followed by the south, center, and north zones (with 33, 26, and 22 estimated species, respectively).
Results of the mixed models showed that the most relevant predictor for the bryophytes richness was the control zone (Table 2).

3.3. Bryophyte Community Structure

PERMANOVA showed that bryophyte communities varied significantly both at the zone (R2 = 0.22; p = 0.001) and at the site (R2 = 0.16; p = 0.001) but not plant cover (R2 = 0.01; p = 0.096) (Table 3). Slope, while significant (p = 0.01), explained only 1% of the variance.
The NMDS plot (Stress = 0.20) showed that species composition of the Control zone (Forests) was significantly different from that of the other three zones (Figure 4).

3.4. Indicator Species Analysis

We determined 16 indicator species of the control zone, 3 indicator species in the south, and 4 indicator species both in the north and central zones (Table 3). Fissidens serratus Müll. Hal and Monoclea gottschei Lindb., were the best indicator of Control zone. Noteroclada confluens (Hook.f. and Taylor) Spruce showed high indicator value for South zone. Campylopus pauper (Hampe) Mitt. and Marchantia polymorpha L. showed high indicator value for Center zone and Fissidens elegans Brid., for the North zone (Table A1).

4. Discussion

We found higher concentrations of four heavy metals (Al, Cu, Fe, and Zn) in M. polymorpha in city zones, which indicated its ability to bioaccumulate toxic elements. Thus, this species can be used as an effective biomonitor of heavy metal pollution [12]. Our study adds M. polymorpha to the list of suitable species for this task. For example, several studies have highlighted the ability of Fontinalis antipyretica to absorb heavy metals (i.e., Al, Cu, Cr, Cd, and Zn) and As in rivers with urban, industrial, and agricultural residual discharges [14,27,47]. Other bryophyte species used for this purpose in temperate regions include: Platyhypnidium riparioides, Fissidens polyphyllus, Brachythecium rivulare, Hygrohypnum ochraceum, Fontinalis antipyretica, F. squamosa, F. dalecarlica, F. duriaei, Thamnobryum alopecurum, and Taxiphyllum barbieri [10,27,28,48,49,50]. Our study, however, comes with a caveat; M. polymorpha is sometimes exposed to air, thus it can bioaccumulate air pollution in addition to water pollution. Future research should evaluate both the average time M. polymorpha remains submerged in a year and M. polymorpha’s abilities to accumulate air contamination.
As expected, bryophyte species richness was highest in the Control (forest) zone. Ceschin et al. [51] have showed that greater bryophyte richness occurs in fast-flowing rivers, clean waters with high oxygenation, and good habitat characteristics for the growth of bryophytes (e.g., temperature, pH, turbidity). However, low bryophyte richness in urban zones of the Loja river might be explained in part by the absence of natural vegetation in the banks of the river, which results in less available habitat for the growth of bryophytes, and in part to the presence in the riverbed of metal walls and wooden covers [52]. For example, Downes et al. [53] found that urban parts of rivers affect negatively bryophyte establishment and distribution.
Bryophyte community structure also changed significantly between control and urban zones, but no differences as one enters to the city zones. These differences were attributed to a greater frequency and coverage of sensitive species restricted to zones of natural forests where less urbanization and water pollution allow them to grow more. Thus, Scarlett and O’Hare [17] and Ceschin et al. [51] pointed that most sensitive bryophyte prefer clear, oxygenated waters with low concentrations of ammonium and phosphates. In our case, bryophytes communities in the control zone were better represented by species such as Symphyogyna brongniartii, Rhodobryum huillense, Plagiochila laetevirens, Monoclea gottschei, Dumortiera hirsuta, Neesioscyphus argillaceus, and Fissidens serratus (Appendix A), which have been previously identified as sensitive to changes in water quality [54,55,56].
Nonetheless, tolerant species were able to grow in waters of the center and north zones of the river, which present high levels of contamination, lack of oxygen, and greater amount of organic waste. For instance, Platyhypnidium aquaticum, M. polymorpha, Rhynchostegium scariosum, Thuidium delicatulum, and Riccia crassifrons are typical of disturbed habitats [51,55,56,57], which agrees with our results (Appendix A). In addition, some studies point that Platyhypnidium aquaticum and Brachythecium rivulare are characteristic species of open environment with poor water conditions caused by urban spills [11,51,58].
The indicator species analysis showed that Clasmatocolea vermicularis, Fissidens serratus, Lophocolea bidentata, Monoclea gottschei, Noteroclada confluens, Symphyogyna brongniartii, Symphyogyna brasiliensis, Plagiochila laetevirens, and Rhodobryum huillense were the best indicators of the control zone, related to uncontaminated water. Accordingly, Lophocolea bidentata, Symphyogyna brongniartii, and Monoclea gottschei occur more abundantly in shady habitats with vegetation of undisturbed forests, due to the fact that they are sensitive to environmental changes [59,60]. Conversely, Fissidens elegans, Riccia crassifrons, and Marchantia polymorpha were the best indicators of more urbanized zones such as in southern, central, and northern areas with greater impact of anthropogenic disturbances. Some authors point out that these species are considered tolerant to pollution, and therefore can be indicative of intense urban activity related with wastewater [19].
Our results revealed significant changes in bryophyte community structure, reduced species richness, and increases in heavy metal concentration in M. polymorpha in the Zamora river as you move inside Loja City. These results are likely a consequence of a greater degree of urbanization and wastewater deposition in the river and its tributaries. We conclude that bryophyte species richness decreases in urban zones; similarly, species composition changes significantly in the control zone with respect to urban zones of the river. These changes likely reflect higher concentration of heavy metals (Al, Cd, Cu, Fe, and Zn) in urban zones, which likely reflect the impact of human settlements and wastewater related water pollution. The complementary use of the diversity and bioaccumulation of heavy metals in bryophytes can provide key information of water pollution of Zamora River of Ecuador, which, in the long term, will allow for the establishment of monitoring zones for adequate management and strategies of mitigation of water pollution. Although our study demonstrates the efficacy of bryophyte in passive biomonitoring, we suggest that future work should evaluate bryophyte as part of active biomonitoring where transplantation of bryophytes allows for the evaluation and monitoring of the magnitude of water pollution due to the known exposure period [10,61].

Author Contributions

Conceptualization, A.B., C.V., and J.C.; methodology, A.B., C.V., and J.C.; formal analysis, A.B., C.V., and J.C.; investigation, A.B., C.V., and J.C.; resources, A.B., C.V., and J.C.; writing—original draft preparation, A.B., C.V., D.A.D., R.M., and J.C.; writing—review and editing, A.B., C.V., D.A.D., R.M., and J.C.; funding acquisition, A.B. and J.C.

Funding

This research was funded by Universidad Técnica Particular de Loja (UTPL PROJECT_CCNN_941) and Secretaría Nacional de Educación Superior, Ciencia, Tecnología e Innovación of Ecuador (SENESCYT).

Acknowledgments

We thank Ministerio del Ambiente del Ecuador by providing access to the study areas. We also thank Robbert Gradstein for comments and suggestions to improve the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table A1. Indicator values (IV) for bryophyte species. Species with indicator value >25 are considered as the best indicators. Species with both high indicator value and a significant p value (p < 0.05) are shown in bold.
Table A1. Indicator values (IV) for bryophyte species. Species with indicator value >25 are considered as the best indicators. Species with both high indicator value and a significant p value (p < 0.05) are shown in bold.
SpeciesZoneIVp
Anthocerophyta
Anthoceros punctatus L.Control3.70.23
Phaeoceros laevis (L.) Prosk.South15.70.11
Marchantiophyta
Clasmatocolea vermicularis (Lehm.) GrolleSouth12.40.01
Dumortiera hirsuta (Sw.) NeesControl33.4<0.01
Lejeunea cerina Lehm. & Lindenb.Control33.3<0.01
Lophocolea bidentata (L.) Dumort.Control48.1<0.01
Lophocolea connata (Sw.) NeesSouth9.70.06
Lophocolea sp.Center19.60.02
Marchantia chenopoda L.North22.10.01
Marchantia polymorpha L.Center31.4<0.01
Monoclea gottschei Lindb.Control69.0<0.01
Neesioscyphus argillaceus (Nees) GrolleControl25.8<0.01
Neesioscyphus sp.South14.60.02
Noteroclada confluens (Hook.f. & Taylor) SpruceSouth28.4<0.01
Plagiochila laetevirens Lindenb.Control40.7<0.01
Riccardia regnellii (Ǻngstr.) G.K.HellControl17.50.01
Riccia crassifrons SpruceNorth23.20.01
Symphyogyna brasiliensis NeesControl40.7<0.01
Symphyogyna brongniartii Mont.Control55.3<0.01
Bryophyta
Brachythecium aff. serrulatum (Hedw.) H. Rob.Control7.00.11
Campylopus sp. 1South2.70.11
Campylopus sp. 2South4.40.65
Campylopus pauper (Hampe) Mitt.Center27.7<0.01
Didymodon tophaceus (Brid.) LisaControl8.30.11
Fissidens elegans Brid.North33.3<0.01
Fissidens serratus Müll. Hal.Control62.6<0.01
Fissidens weirii Mitt.Center13.10.16
Hookeria acutifolia Hook. & Grev.Control7.40.05
Philonotis sp. 1Center3.00.84
Philonotis sp. 2South5.60.28
Philonotis sp. 3Control14.80.03
Philonotis sp. 4Control7.40.04
Plagiomnium medium (Bruch & Schimp.) T. Kop.Control4.70.27
Platyhypnidium aquaticum (A. Jaeger) M. Fleisch.South15.30.21
Pseudocrossidium sp.North23.3<0.01
Rhodobryum beyrichianum (Hornsch.) Müll. Hal.North8.80.23
Rhodobryum huillense (Welw. & Duby) TouwControl27.9<0.01
Rhodobryum procerum (Schimp.) ParisCenter9.50.08
Rhynchostegium riparioides (Hedw.) CardotSouth4.20.34
Rhynchostegium scariosum (Taylor) A. JaegerControl3.30.58
Sematophyllum sp.North12.70.42
Sematophyllum subsimplex (Hedw.) Mitt.North10.00.53
Thuidium delicatulum (Hedw.) Mitt.Control30.4<0.01
Thuidium sp.Control23.2<0.01

References

  1. Postel, S.; Richter, B. Rivers for life: Managing water for people and nature. Potovelo-Zaruma, Ecuador. J. Clean. Prod. 2003, 18, 226–232. [Google Scholar]
  2. Groffman, P.M.; Bain, D.J.; Band, L.E.; Belt, K.T.; Brush, G.S.; Grove, J.M.; Pouyat, R.V.; Yesilonis, I.C.; Zipperer, W.C. Down by the riverside: Urban riparian ecology. Front. Ecol. Environ. 2003, 1, 315–321. [Google Scholar] [CrossRef]
  3. Richardson, D.M.; Holmes, P.M.; Esler, K.J.; Galatowitsch, S.M.; Stromberg, J.C.; Kirkman, S.P.; Pyšek, P.; Hobbs, R.J. Riparian vegetation: Degradation, alien plant invasions, and restoration prospects. Divers. Distrib. 2007, 13, 126–139. [Google Scholar] [CrossRef]
  4. Karadede, H.; Unlu, E. Concentrations of some heavy metals in water, sediment and fish species from the Atatürk Dam Lake (Euphrates), Turkey. Chemosphere 2000, 41, 1371–1376. [Google Scholar] [CrossRef]
  5. Igwe, J.C.; Abia, A.A. Maize Cob and Husk as Adsorbents for removal of Cd, Pb and Zn ions from wastewater. Phys. Sci. 2003, 2, 83–94. [Google Scholar]
  6. Miller, C.V.; Foster, G.D.; Majedi, B.F. Baseflow and stormflow metal fluxes from two small agricultural catchments in the coastal plain of Chesapeake Bay Basin, United States. Appl. Geochem. 2003, 18, 483–501. [Google Scholar] [CrossRef]
  7. Boularbah, A.; Schwartz, C.; Bitton, G.; Aboudrar, W.; Ouhammou, J.L. Heavy metal contamination from mining sites in South Morocco: 2. Assessment of metal accumulation and toxicity in plants. Chemosphere 2006, 63, 811–817. [Google Scholar] [CrossRef]
  8. Schwarzenbach, R.; Egli, T.; Hofstetter, T.; Gunten, U.; Wehrli, B. Global Water Pollution and Human Health. Annu. Rev. Environ. Resour. 2010, 35, 109–136. [Google Scholar] [CrossRef][Green Version]
  9. Ali, H.; Khan, E.; Sajad, M.A. Phytoremediation of heavy metals concepts and applications. Chemosphere 2013, 91, 869–881. [Google Scholar] [CrossRef] [PubMed]
  10. Debén, S.; Aboal, J.; Carballeira, A.; Cesa, M.; Real, C.; Fernandez, J. Inland water quality monitoring with native bryophytes: A methodological review. Ecol. Indic. 2015, 53, 115–124. [Google Scholar] [CrossRef]
  11. Vanderpoorten, A. Aquatic bryophytes for a spatio-temporal monitoring of the water pollution of the rivers Meuse and Sambre (Belgium). Environ. Pollut. 1999, 104, 401–410. [Google Scholar] [CrossRef]
  12. Ares, Á.; Itouga, M.; Kato, Y.; Sakakibara, H. Differential Metal Tolerance and Accumulation Patterns of Cd, Cu, Pb and Zn in the Liverwort Marchantia polymorpha L. Bull. Environ. Contam. Toxicol. 2018, 100, 444–450. [Google Scholar] [CrossRef]
  13. Sharma, S. Marchantia polymorpha L.: A Bioaccumulator. Aerobiologia 2007, 23, 181–187. [Google Scholar] [CrossRef]
  14. Tipping, E.; Vincent, C.D.; Lawlor, A.J.; Lofts, S. Metal accumulation by stream bryophytes, related to chemical speciation. Environ. Pollut. 2008, 156, 936–943. [Google Scholar] [CrossRef]
  15. Ceschin, S.; Bisceglie, S.; Aleffi, M. Contribution to the knowledge of the bryoflora in running waters of Central Italy. Plant Biosyst. 2012, 146, 622–627. [Google Scholar]
  16. Ceschin, S.; Minciardi, M.R.; Spada, C.D.; Abati, S. Bryophytes of Alpine and Apennine mountain streams: Floristic features and ecological notes. Cryptogam. Bryol. 2015, 36, 267–283. [Google Scholar] [CrossRef]
  17. Scarlett, P.; O’Hare, M. Community structure of in-stream bryophytes in English and Weslsh rivers. Hydrobiologia 2006, 553, 143–152. [Google Scholar] [CrossRef]
  18. Nimis, P.L.; Fumangalli, F.; Bizzotto, A.; Codogno, M.; Skert, N. Bryophytes as indicators of trace metals pollution in the River Brenta (NE Italy). Sci. Total Environ. 2002, 286, 233–242. [Google Scholar] [CrossRef]
  19. Gecheva, G.; Pall, K.; Hristeva, Y. Bryophyte communities’ responses to environmental factors in highly seasonal rivers. Bot. Let. 2017, 164, 79–91. [Google Scholar] [CrossRef]
  20. Shevock, J.R.; Ma, W.-Z.; Akiyama, H. Diversity of the rheophytic condition in bryophytes: Field observations from multiple continents. Bryophyt. Divers. Evol. 2017, 39, 75–93. [Google Scholar] [CrossRef]
  21. Benítez, A.; Prieto, M.; Aragón, G. Large trees and dense canopies: Key factors for maintaining high epiphytic diversity on trunk bases (bryophytes and lichens) in tropical montane forests. Forestry 2015, 88, 521–527. [Google Scholar] [CrossRef]
  22. Gradstein, S.R.; Benitez, A. Liverworts New to Ecuador with Description of Plagiochila priceana sp. nov. and Syzygiella burghardtii sp. nov. Cryptogam. Bryol. 2017, 38, 335–349. [Google Scholar] [CrossRef]
  23. Castillo-Monroy, A.P.; Benítez, Á.; Reyes-Bueno, F.; Donoso, D.A.; Cueva, A. Biocrust structure responds to soil variables along a tropical scrubland elevation gradient. J. Arid Environ. 2016, 124, 31–38. [Google Scholar] [CrossRef]
  24. Benitez, A.; Gradstein, S.R. Adiciones a la Flora de Briófitas del Ecuador. Cryptogam. Bryol. 2011, 32, 65–75. [Google Scholar] [CrossRef]
  25. Iñiguez, C.; Leiva, A.; Georg, H.; Hampel, H.; Breuer, L. Deforestation and Benthic Indicators: How Much Vegetation Cover Is Needed to Sustain Healthy Andean Streams? PLoS ONE 2014, 9, 1–8. [Google Scholar]
  26. Lopez, J.; Carballeira, A. Interspecific differences in metal bioaccumulation and plant-water concentration ratios in five aquatic bryophytes. Hydrobiologia 1993, 263, 95–107. [Google Scholar] [CrossRef]
  27. Vuori, K.M.; Helisten, H. The use of aquatic mosses in assessment of metal pollution: Appraisal of type-specific background concentrations and inter-specific differences in metal accumulation. Hydrobiologia 2010, 656, 99–106. [Google Scholar] [CrossRef]
  28. Gecheva, G.; Yurukova, L.; Ganeva, A. Assessment of Pollution with Aquatic Bryophytes in Maritsa River (Bulgaria). Bull. Environ. Contam. Toxicol. 2011, 87, 480–485. [Google Scholar] [CrossRef]
  29. Gecheva, G.; Yurukova, L. Water pollutant monitoring with aquatic bryophytes: A review. Environ. Chem Lett. 2014, 12, 49–61. [Google Scholar] [CrossRef]
  30. Programa de las Naciones Unidas para el Medio Ambiente. Municipalidad de Loja & Naturaleza y Cultura Internacional, PNUMA; Geo-Loja: Loja, Ecuador, 2007. [Google Scholar]
  31. Maldonado, G. Monitoreo de la calidad de agua del Río Malacatos, tramo comprendido desde los Dos Puentes hasta el sector de Sauces Norte; Tesis pregrado, Universidad Técnica Particular de Loja: Loja, Ecuador, 2014. [Google Scholar]
  32. Samecka-Cymerman, A.; Marczonek, A.; Kempers, A.J. Bioindication of heavy metals in soil by liverworts. Arch. Environ. Contam. Toxicol. 1997, 33, 162–171. [Google Scholar] [CrossRef]
  33. Tack, F.; Verloo, M. Metal contents in stinging nettle (Urtica dioica L.) as affected by soil characteristics. Sci. Total Environ. 1996, 192, 31–39. [Google Scholar] [CrossRef]
  34. Mandl, N.A.; Kessler, M.; Robbert Gradstein, S. Effects of environmental heterogeneity on species diversity and composition of terrestrial bryophyte assemblages in tropical montane forests of southern Ecuador. Plant Ecol. Divers. 2009, 2, 313–321. [Google Scholar] [CrossRef]
  35. Gradstein, S.; Churchil, S.; Allen, N. Guide to Bryophytes of Tropical America. N. Y. Bot. Gard. 2001, 88, 5–570. [Google Scholar]
  36. Churchill, S.P.; Linares, E.L. Prodromus Bryologiae Novo-Granatensis. Part 1; Instituto de Ciencias Naturales, Museo de Historia Natural, Universidad Nacional de Colombia: Bogotá, Colombia, 1995. [Google Scholar]
  37. Gradstein, S.R.; Reeb, C. The Genus Riccardia (Aneuraceae) in Colombia and Ecuador. Cryptogam. Bryol. 2018, 39, 515–541. [Google Scholar] [CrossRef]
  38. R Development Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2018. [Google Scholar]
  39. Dinno A dunn.test: Dunn Test of Multiple Comparisons Using Rank Sums Package. R Package Version 1.3-5. 2017. Available online: https://cran.r-project.org/web/packages/dunn.test/ (accessed on 17 January 2019).
  40. Oksanen, J.; Blanchet, F.G.; Friendly, M.; Kindt, R.; Legendre, P.; McGlinn, D.; Minchin, P.R.; O’Hara, R.B.; Simpson, G.L.; Solymos, P.; et al. Vegan: Community Ecology Package. R Package Version 2.5-4. 2019. Available online: https://cran.r-project.org/web/packages/vegan/ (accessed on 17 January 2019).
  41. McCullagh, P. Some statistical properties of a new family of continuous univariate distributions. J. Am. Statist. Assoc. 1989, 84, 125–129. [Google Scholar] [CrossRef]
  42. Pinheiro, J.; Bates, D.; DebRoy, S.; Sarkar, D. nlme: Linear and Nonlinear Mixed Effects Models Package. R Package Version 1.3-5. 2017. Available online: https://cran.r-project.org/web/packages/nlme/ (accessed on 17 January 2019).
  43. Lenth, R.; Lenth, M.R. lsmeans: Least-Squares Means Package. R Package Version 2.30-0. 2018. Available online: https://cran.r-project.org/web/packages/lsmeans/ (accessed on 17 January 2019).
  44. Anderson, M.J.; Gorley, R.; Clarke, K. Permanova for PRIMER: Guide to Software and Statistical Methods; PRIMER-E: Plymouth, UK, 2008. [Google Scholar]
  45. Dufrêne, M.; Legendre, P. Species assemblages and indicator species: The need for a flexible asymmetrical approach. Ecol. Monogr. 1997, 3, 345–366. [Google Scholar] [CrossRef]
  46. Roberts, D.W. labdsv: Ordination and Multivariate Analysis for Ecology Package. R Package Version 2.30-0. 2016. Available online: https://cran.r-project.org/web/packages/labdsv/ (accessed on 17 January 2019).
  47. Davies, T.D. Sulphate toxicity to the aquatic moss, Fontinalis antipyretica. Chemosphere 2007, 66, 444–451. [Google Scholar] [CrossRef]
  48. Martinez, J.; Garcia, A.; Beaucourt, N.; Nuñez, E. Combined seasonal and longitudinal variations of element concentrations in two aquatic mosses (Fontinalis antipyretica and Fontinalis squamosa). Nova Hedwig. 2002, 74, 349–364. [Google Scholar] [CrossRef]
  49. Kováčik, J.; Babula, P.; Hedbavny, J. Comparison of vascular and non-vascular aquatic plant as indicators of cadmium toxicity. Chemosphere 2017, 180, 86–92. [Google Scholar] [CrossRef]
  50. Favas, P.J.; Pratas, J.; Rodrigues, N.; D’Souza, R.; Varun, M.; Paul, M.S. Metal (loid) accumulation in aquatic plants of a mining area: Potential for water quality biomonitoring and biogeochemical prospecting. Chemosphere 2018, 194, 158–170. [Google Scholar] [CrossRef] [PubMed]
  51. Ceschin, S.; Aleffi, S.; Savo, V.; Zuccarello, V. Aquatic bryophytes as ecological indicators of the water quality status in the Tiber River basin (Italy). Ecol. Indic. 2012, 14, 74–81. [Google Scholar] [CrossRef]
  52. Francis, R.; Hoggart, S. Urban river wall habitat and vegetation: Observations from the River Thames through central London. Urban Ecosyst. 2009, 12, 465–485. [Google Scholar] [CrossRef]
  53. Downes, B.; Entwisle, T.; Reicha, P. Effects of flow regulation on disturbance frequencies and in-channel bryophytes and macroalgae in some upland streams. River Res. Appl. 2003, 19, 27–42. [Google Scholar] [CrossRef]
  54. Uribe Meléndez, J.; Aguirre Ceballos, J. Las especies colombianas del género Symphyogyna (hepaticae: Pallaviciniaceae). Caldasia 1995, 17, 82–85. [Google Scholar]
  55. Linares, E.; Churchill, S. Comunidades de briófitos reofílicos en un Caño de montaña, en San Francisco, Cundinamarca, Colombia. Caldasia 1997, 19, 323–329. [Google Scholar]
  56. Lagos, M.; Sáenz, F.; Morales, M. Briófitos Reófilos de tres Quebradas del páramo de Mamapacha, Chinavita (Boyacá-Colombia). Acta Biol. Colomb. 2008, 13, 143–160. [Google Scholar]
  57. Belland, R.J.; Schofield, W.B. The ecology and phytogeography of the bryophytes of Cape Breton, Hyghlands National Park, Canada. Nova Hedwig. 1994, 59, 257–309. [Google Scholar]
  58. Allegrini, M.C. The bryological flora and the chemical-physical characteristics of the water of the high course of the Sangro river (Abruzzo National Park). Riv. Idrobiol. 2000, 39, 9–20. [Google Scholar]
  59. Ruiz, C.A.; Aguirre, J. Las comunidades de briófitos y su relación con la estructura de la vegetación fanerogamica, en el gradiente altitudinal de la Serranía del Perijá (Cesar–Colombia). Bryophyt. Divers. Evol. 2003, 24, 101–113. [Google Scholar]
  60. Vargas, R.; Morales, E. Hepáticas del Parque Natural Municipal “Robledales de Tipacoque”, Boyacá-Colombia. Univ. Sci. 2014, 19, 201–211. [Google Scholar] [CrossRef]
  61. Debén, S.; Aboal, J.R.; Carballeira, A.; Cesa, M.; Fernández, J.A. Monitoring river water quality with transplanted bryophytes: A methodological review. Ecol. Indic. 2017, 81, 461–476. [Google Scholar] [CrossRef]

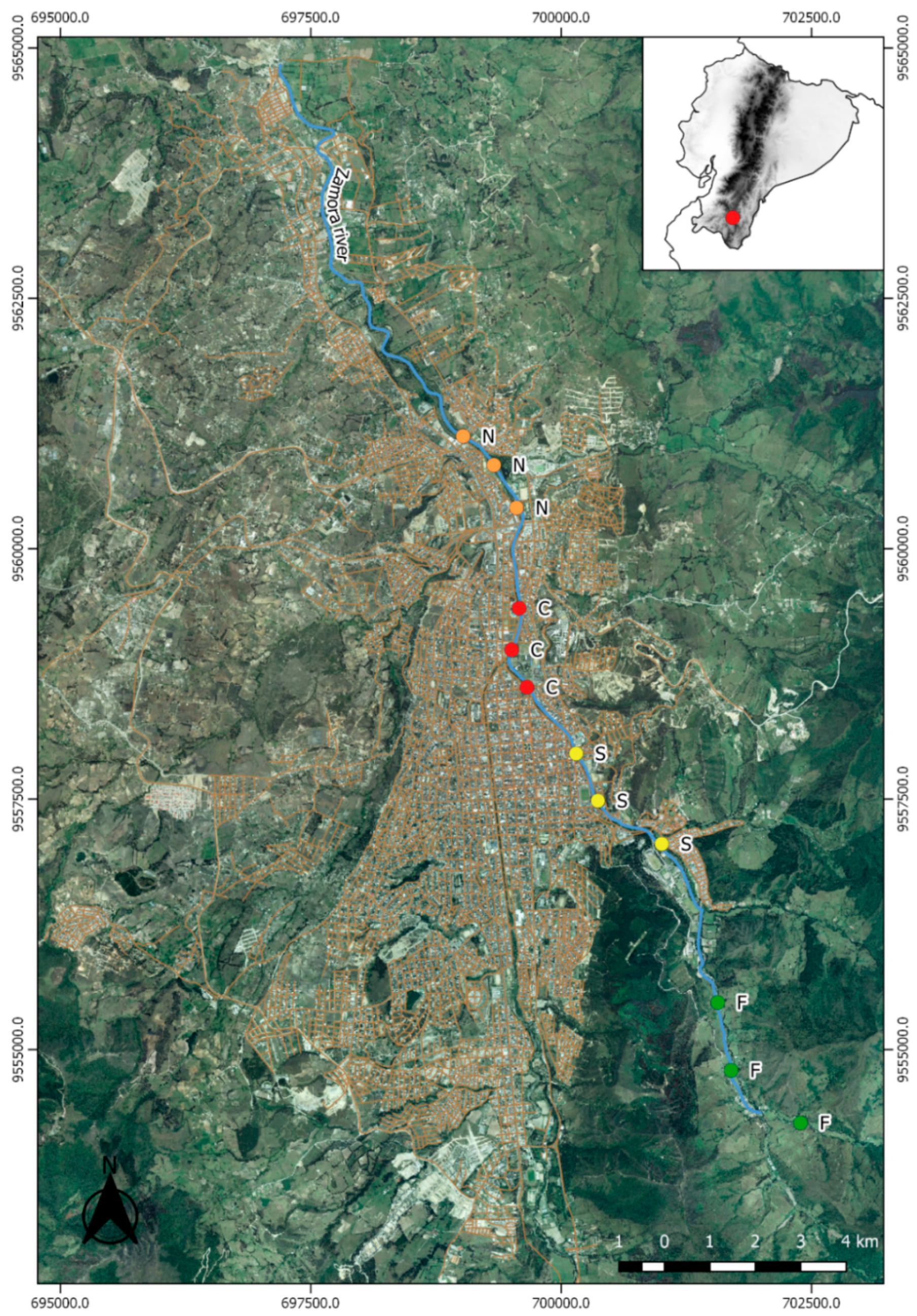

Figure 1. Study area in Loja Province in southern Ecuador showing the location of four study zones. Control zone (F), south zone (S), center zone (C), and north zone (N).
Figure 1. Study area in Loja Province in southern Ecuador showing the location of four study zones. Control zone (F), south zone (S), center zone (C), and north zone (N).
Water 11 00813 g001

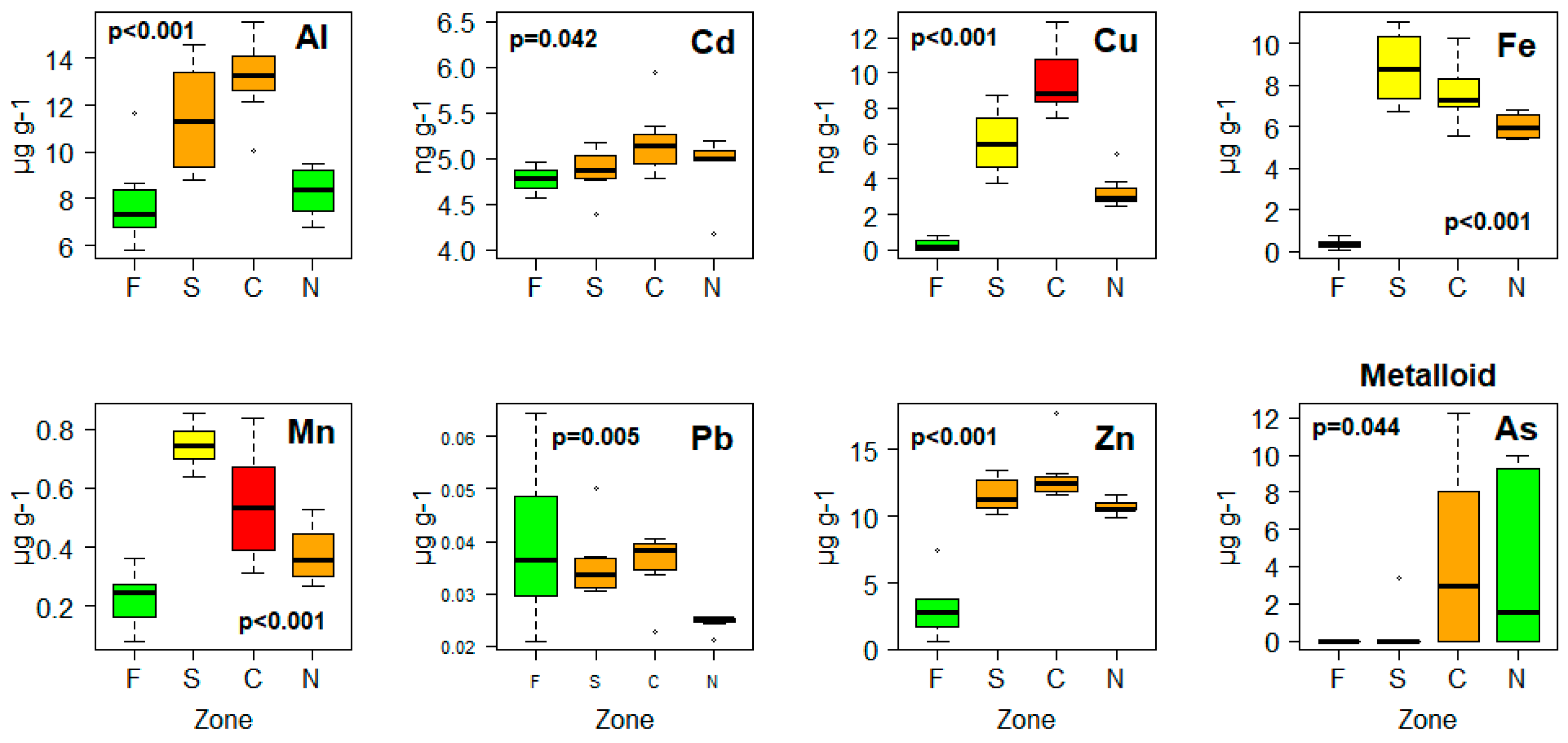

Figure 2. Boxplot of heavy metals and metalloid accumulation in the Marchantia polymorpha collected from different zones in the Zamora River. Al, Cd, Fe, Mn, and Zn: One-way ANOVA followed by a Tukey test. As, Cu, and Pb: Kruskal–Wallis ANOVA followed by a Dunn’s test. Different colors for each zone are considered significant (p < 0.05).
Figure 2. Boxplot of heavy metals and metalloid accumulation in the Marchantia polymorpha collected from different zones in the Zamora River. Al, Cd, Fe, Mn, and Zn: One-way ANOVA followed by a Tukey test. As, Cu, and Pb: Kruskal–Wallis ANOVA followed by a Dunn’s test. Different colors for each zone are considered significant (p < 0.05).
Water 11 00813 g002

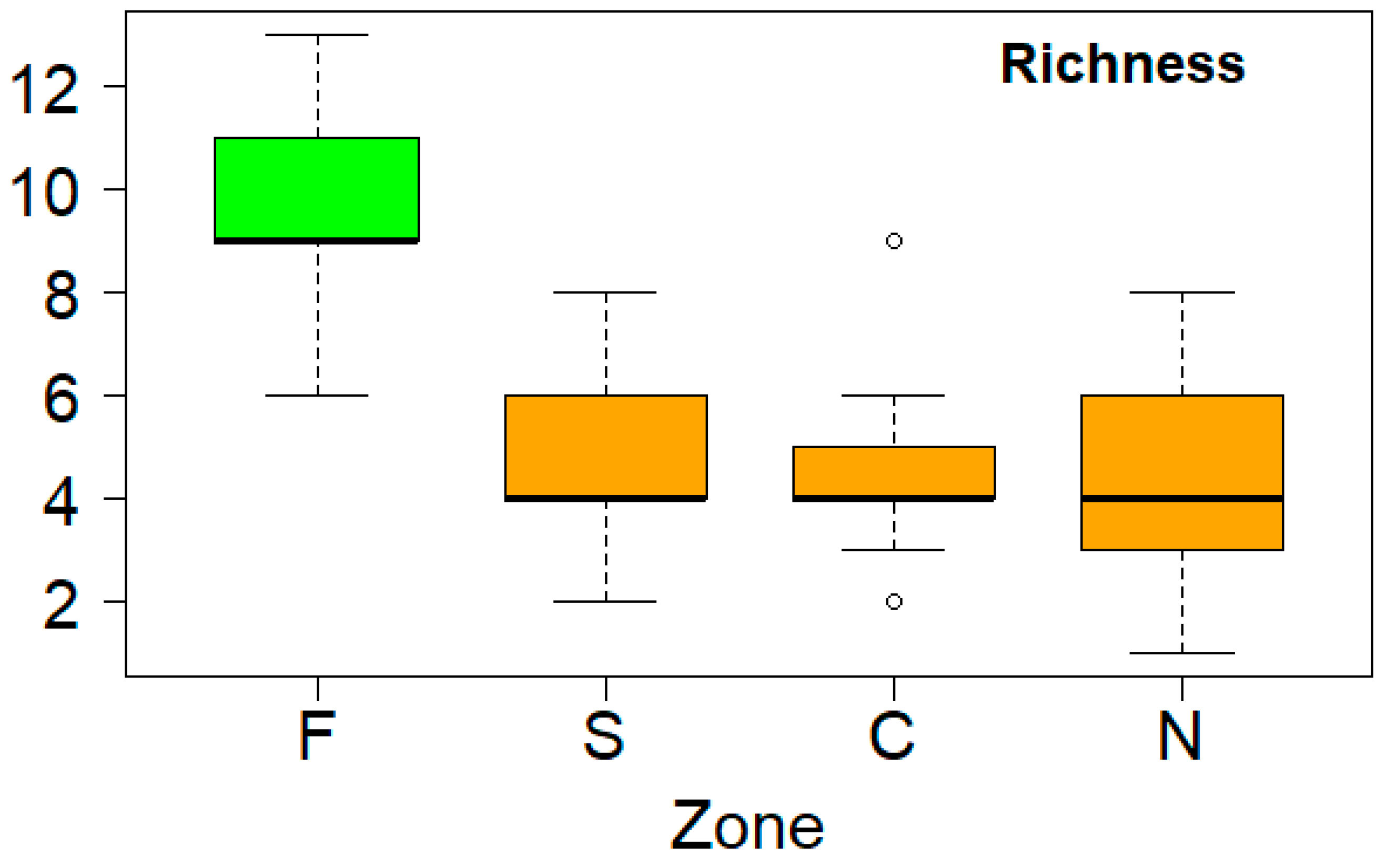

Figure 3. Boxplot of bryophyte species richness at different zones along the Zamora river. Different colors correspond to post hoc Tukey groups (p < 0.05) after a GLMM. Control zone (F); south zone (S); center zone (C); and north zone (N).
Figure 3. Boxplot of bryophyte species richness at different zones along the Zamora river. Different colors correspond to post hoc Tukey groups (p < 0.05) after a GLMM. Control zone (F); south zone (S); center zone (C); and north zone (N).
Water 11 00813 g003

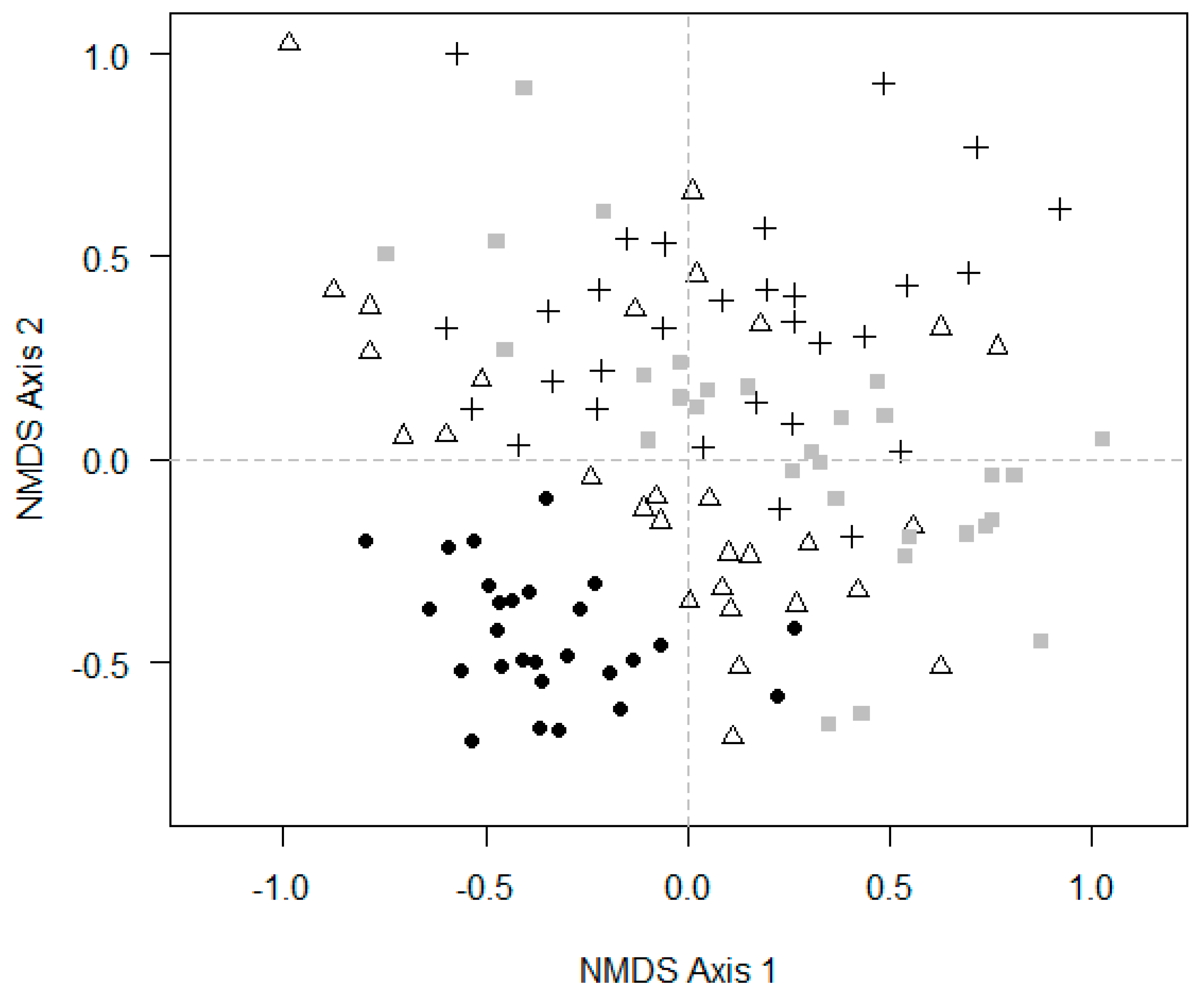

Figure 4. Non-metric multidimensional scaling (NMDS) ordination plot for the samples (quadrats) for Control (●), South (Δ), Center (+), and North ().
Figure 4. Non-metric multidimensional scaling (NMDS) ordination plot for the samples (quadrats) for Control (●), South (Δ), Center (+), and North ().
Water 11 00813 g004
Table 1. Mean concentration (µg g−1) and standard error (SE) of heavy metals and arsenic in Marchantia polymorpha by different zones.
Table 1. Mean concentration (µg g−1) and standard error (SE) of heavy metals and arsenic in Marchantia polymorpha by different zones.
ControlSouthCenterNorth
ElementMeanSEMeanSEMeanSEMeanSE
Heavy MetalsAl7.821.711.432.113.211.58.310.9
Cd0.0100.0100.0100.010
Cu000.0100.01000
Fe0.340.28.841.57.611.36.030.6
Hg00000000
Mn0.230.10.750.10.5400.370.1
Pb0.0400.0400.0400.030
Zn3.08211.641.213.021.910.710.5
MetalloidAs000.421.14.284.73.944.4
Table 2. Results of the generalized linear mixed models (GLMM) on bryophytes richness and environmental variables (zone, site, slope, and plant cover). The random variable site was non-significant.
Table 2. Results of the generalized linear mixed models (GLMM) on bryophytes richness and environmental variables (zone, site, slope, and plant cover). The random variable site was non-significant.
FactorEstimateZ-valuep
Control0.7547.038<0.001
South0.1030.8580.391
Center0.0266.7720.172
North0.050.3910.696
Slope0.0010.8620.389
Plant cover−0.002−0.5690.569
Table 3. Results of PERMANOVA analysis of species composition and environmental variables (zone, site, slope and plant cover). p < 0.05 are considered significant. Df = degrees of freedom; SS = sum of squares; MS = Mean squares; F = statistical; R2 = coefficient of variation.
Table 3. Results of PERMANOVA analysis of species composition and environmental variables (zone, site, slope and plant cover). p < 0.05 are considered significant. Df = degrees of freedom; SS = sum of squares; MS = Mean squares; F = statistical; R2 = coefficient of variation.
SourceDfSSMSFR2 (CV)p
Zone39.163.0512.500.220.001
Site86.780.853.470.160.001
Plant cover10.390.401.610.010.096
Slope10.520.522.140.010.019
Residuals10325.150.24 0.60
Total11642.00 1

Share and Cite

MDPI and ACS Style

Vásquez, C.; Calva, J.; Morocho, R.; Donoso, D.A.; Benítez, Á. Bryophyte Communities along a Tropical Urban River Respond to Heavy Metal and Arsenic Pollution. Water 2019, 11, 813. https://doi.org/10.3390/w11040813

AMA Style

Vásquez C, Calva J, Morocho R, Donoso DA, Benítez Á. Bryophyte Communities along a Tropical Urban River Respond to Heavy Metal and Arsenic Pollution. Water. 2019; 11(4):813. https://doi.org/10.3390/w11040813

Chicago/Turabian Style

Vásquez, Cristina, James Calva, Ramiro Morocho, David A. Donoso, and Ángel Benítez. 2019. "Bryophyte Communities along a Tropical Urban River Respond to Heavy Metal and Arsenic Pollution" Water 11, no. 4: 813. https://doi.org/10.3390/w11040813

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
