Evaluation of Health Risks Due to Heavy Metals in a Rural Population Exposed to Atoyac River Pollution in Puebla, Mexico

Posgrado en Ciencias Ambientales, Instituto de Ciencias, Benemérita Universidad Autónoma de Puebla, Puebla 72570, Mexico
Departamento de Biología y Toxicología de la Reproducción, Instituto de Ciencias, Benemérita Universidad Autónoma de Puebla, Puebla 72570, Mexico
Centro de Investigaciones en Ciencias Microbiológicas, Departamento de Patogenicidad Microbiana, Instituto de Ciencias, Benemérita Universidad Autónoma de Puebla, Puebla 72570, Mexico
Departamento de Investigación en Ciencias Agrícolas, Instituto de Ciencias, Benemérita Universidad Autónoma de Puebla, Puebla 72570, Mexico
Author to whom correspondence should be addressed.
Water 2019, 11(2), 277;
Submission received: 29 November 2018 / Revised: 23 January 2019 / Accepted: 25 January 2019 / Published: 5 February 2019
(This article belongs to the Section Water Quality and Contamination)


The health risks of Emilio Portes Gil’s population, for the exposition to the Atoyac River pollution in the State of Puebla, was evaluated. The objective was to determine the concentration of nine heavy metals by ingesting water from wells and spri ngs. The chronic daily water intake (CDI), hazard quotient (HQ), hazard index (HI), and carcinogenic risk index (CRI) in adults, teenagers, and children were estimated. The results showed that the concentration of Fe, Al, Ni, and Pb in some of the samples exceeded the recommended standards for human consumption and was significantly higher in the dry season. The hazard index (HI), due to the collective intake of metals, was higher in children (>50% compared to adults), due to the consumption of spring water in the dry season. Risk of noncancerous diseases was not detected in the long term, since the indices did not exceed the unit (reference value). The carcinogenic risk from oral exposure to Cr (CRIchildren = 3.2 × 10−4), was greater than the acceptable limit (1 × 10−6) in the water spring, and Cr and Pb were the main metals that contributed to the potential health risk of the inhabitants. The study showed the risks by the intake of polluted water from the sources of supply in the region, and that the risk is higher in the dry season (>100% compared with rainy season).

1. Introduction

The water crisis has an effect on the daily lives of the most disadvantaged or marginalized populations, who suffer from water-related diseases, living in degraded and often dangerous environments [1]. In Mexico, as in other developing countries, there are large inequalities in water supply and sanitation between urban and rural areas [2,3,4,5]; and 35 million Mexicans are in a situation of low availability [4,6]. Lack of access to a potable water system, or deficiency in supply through formal networks, has forced rural populations to look for alternative sources to cover their needs [2,5,7]. The use of groundwater through shallow wells has been a relatively low-cost and simple technology alternative for these populations [1,7], particularly for those located in arid and semi-arid areas of the country (Central and Northern Mexico), and where rivers or other bodies of surface water are polluted [1,4,7]. An example of this is observed in the agricultural communities adjacent to the urban area of the city of Puebla (central Mexico), where the Atoyac River circulates, one of the most polluted in the country. In these towns, there are serious problems related to the supply of drinking water service and the water of the river cannot be used for domestic purposes because of its high degree of pollution, so they have to obtain water from the subsoil [8].
Despite the benefits provided by rural wells in terms of water availability, the wells are vulnerable to contamination, due to the lack of expert advice in the construction, protection, and depth thereof [7,9,10,11]; this is related to the fact that they have been drilled without government authorization or a concession title, and they are not registered in the Public Registry of Water Rights (REPDA, CONAGUA), so there is no control [12]. Knowledge about the diversity of chemical pollutants present in the water of the Atoyac River and its concentration is limited, but it is estimated that it must be high, considering that this river circulates through the fourth largest metropolitan area at national level (Metropolitan Area Puebla-Tlaxcala, ZMPT) and wastewater is discharged from hundreds of industries from different routes and the most populated municipalities, and in none of these cases are there tertiary treatment plants capable of eliminating specific pollutants, such as heavy metals [8,13,14,15,16,17,18,19,20,21]. These chemical elements, like other pollutants, are released as byproducts of both industrial processes and other human activities in the river water, and can be moved to more distant places, contaminating soils and other bodies of water [11,12,13,14].
The pollution of groundwater by heavy metals represents a threat to populations that drink water from these sources, due to the cytotoxic, carcinogenic, and mutagenic effects that many of these metals produce when they enter the human body, because although some are essential for human life, they are required in very low and specific concentrations [22,23,24,25,26,27,28,29]. These populations have a risk of developing diseases, such as central nervous system disorders, cardiovascular disorders, kidney failure, and osteoporosis, among others; in addition to predisposing children to deficient cognitive development and poor organ development [26,30,31]. In severe cases, heavy metals can increase the risk of developing cancer, as a result of the alteration in expression patterns of several genes [25,30,32,33,34,35,36,37]. Several scientific methodologies have been developed to evaluate the risk of cancerous and noncancerous diseases using equations based on the concentration of heavy metals in drinking water, and chronic exposure to them, taking into account the differences between groups of different ages, such as weight averages and the volume of drinking water consumed daily [38]. Thus, the hazard coefficient (HQ), the hazard index (HI), and the cancer risk index (CRI) have been used as a tool based on equations proposed by the United States Environmental Protection Agency (USEPA). 1986) [38,39,40].
Studies about the risk of disease in the Alto Atoyac region (Puebla-Tlaxcala), due to the exposure to heavy metals in groundwater do not exist; however, the risks due to exposure to heavy metals present in the soil of these regions or in the milk of cows fed with grass irrigated with wastewater have been quantified [41]. These studies show how the health of children is at high risk, due to the consumption of arsenic (carcinogenic element) present in the milk of cows, as well as how the men who work in agriculture are at risk of suffering diseases from dermal exposure to heavy metals present in soils [41,42]. There are no studies in the region about the pollution of rural wells and the risk to human health for groundwater intake.
The health is an important part of the quality of life, and for its conservation it is necessary to know which are the factors that can generate alterations, such as heavy metals or other chemical compounds, as well as to estimate the risk according to the degree of exposure to them [38]. The risk is defined by the USEPA [43] as the possibility of causing harmful effects to human health or ecological systems. The methodology used by this environmental protection agency allows characterizing the nature and magnitude of the risks due to chemical pollutants and other factors that may be present in the environment. The use of wastewater for irrigation of crops induces risks to the inhabitants of these agricultural regions, as the pollutants are transferred to the soil, plants, groundwater, etc. [44,45] and the population is exposed to these elements by different routes. The exposure of heavy metals by the consumption of groundwater represents only one of the possible routes of exposure, it is important to consider that these rural populations obtain the water to drink mainly from the wells and springs and not from other sources [8].
The objective of this research was to determine the concentration of nine heavy metals in the wells and spring in the agricultural town of Emilio Portes Gil, affected by the pollution of the Atoyac River (Puebla, Mexico), using atomic absorption spectrophotometry, as well as determining the health risk to adults, adolescents and children of intaking groundwater, through the estimation of the chronic daily intake (CDI), hazard quotient (HQ), the total hazard index (HI)), and the cancer risk index (CRI) for each subgroup of the population, and its corresponding comparison between dry and rainy season.

2. Study Area

The study area, known as Emilio Portes Gil (EPG), belongs to the municipality of Ocoyucan, one of the 217 municipalities of the State of Puebla in Mexico. EPG is an ejidal colony of 522 inhabitants, whose main economic activity is agriculture [43,46] (Figure 1).
It receives water from the Atoyac River through a channel covered in concrete, which has its origin in the Echeverria dam. The water that flows through the canal, before entering EPG, goes through the Portezuelo hydroelectric plant, where after generating electricity, it is incorporated into the main irrigation channel of the town (18°55′ 32.4″, N 098° 20′ 40.4″ O), to finally discharge into the Nexapa River [47]. Most homes (>90%) have tubing water that comes from a spring (1940 m above sea level) through a rudimentary pipe system. They receive the service approximately 3 days per week, which is why 70% of the houses have shallow wells (<20 m). As for the sanitation infrastructure, wastewater is discharged directly into the ravines through small tubes [8].
The agricultural town E. Portes Gil is located on a plain, with dominant Durisol soil, and subhumid temperate climate with summer rains. The temperature ranges between 14–20 °C and precipitation between 800–1000 mm [48].

3. Materials and Methods

3.1. Sampling and Analytical Methods

In 2016, water samples from 15 wells and a spring were randomly collected in EPG. Sampling was carried out in June, August, October (rainy season), and in May and November (dry season). The methodology used for the water analyses was based on standard American Public Health Association—American Water Works Association (APHA–AWWA) methods [49]. In situ, the water temperature, pH, and dissolved oxygen (Winkler method) were measured in triplicate, with a portable meter Orion brand name No. 9107 water proof pH triode, and a dissolved oxygen Test Kit HANNA® HI 3810 (110 test).
Water samples (500 mL) were collected in triplicate for the analysis of 9 heavy metals: Al, Fe, Cu, Pb, Cd, Zn, Co, Ni, and Cr. For the determination of dissolved metals the samples were filtered through a 0.45 micron pore membrane (Wathman), and later they were preserved by adding concentrated nitric acid until obtaining a pH < 2. All the samples were refrigerated at 4 °C and were analyzed within 30 days of the collection.
The concentration of these elements was determined using a double flame atomic absorption spectrophotometer, varian 55B ray and hydride generator (VGA 77), and a coupled digester oven (Mars press), as indicated by NMX-AA-051-SCFI-2001 [50]. The standards of the metal solutions used for the Atomic Absorption were from the Accutrace TM Reference Standard.
A household survey (110 total) was applied to obtain information on water supply and sanitary measures. The Kruskal-Wallis test was applied to the results obtained, using the Statgraphics Centuriun software. The values obtained were compared with the Official Mexican Standards (NOM) CE-CCA-001/89 [51], and NOM-127-SSA1-94-Modification (2000) [52] in order to know the quality of the water that is taken in.

3.2. Evaluation of the Risk of Diseases due to the Consumption of Metals in Groundwater

For the estimation of the health risk, chronic exposure throughout the life of a specific metal was estimated by means of the chronic daily intake (CDI) equation (USEPA method) [38,39]:
CDI (mg/kg/d) = C × DI/BW,
C = Concentration of the metal in the drinking water (mg/L)
DI = Average daily drinking water intake (L/d)
BW = Body weight (kg)
The average weights of each subgroup of the population: Adults, adolescents, and children were obtained from the National Institute of Public Health, as well as the average daily drinking water intake of each subgroup [53,54].

3.2.1. Risk of No Cancer Effect

The hazard quotient (HQ) equation (Equation (1)) was used to estimate the risk of noncancerous diseases, due to the intake of a particular heavy metal in well water and spring water [38,39].
HQMetal = CDI/RfD (dimensionless),
where CDI is the chronic daily intake and RfD is the reference dose of the metal by oral exposure (threshold dose). The values of the RfD (threshold dose in mg/kg/d) were obtained from the U.S. EPA–IRIS (for its acronym in English, integrated risk information system) [55,56]. The HQ was calculated for each of the metals and for the population subgroups.
The establishment of health risk caused by metals was interpreted based on the values of HQ. Values lower than 1 mean that there is no risk, and greater than 1 mean that there is a probability of an adverse effect on health [38,39,41,53].
The potential risk of noncarcinogenic effects from the combined effect (all heavy metals) of chronic exposure via ingestion was calculated using the hazard index (HI), which is the sum of the HQs [38]:
HI (chronic effect) = HQ metal 1 + HQ metal 2 … + HQ metal n.

3.2.2. Risk for Cancer Effect

The risk of cancer associated with oral exposure (ingestion) was calculated using the following equation [38,41,42]:
CRI = CDI × SF (dimensionless),
where CRI is the probability of developing cancer at some point in life as a result of exposure to a potential carcinogen (Pb and Cr in the study), CDI the chronic daily intake, and SF the carcinogenic potency slope factor.
The risk of cancer from the exposure of the group of potentially carcinogenic metals was calculated by adding the RICs of each metal to the subgroup of the population [38,39].
CRItotal = CRImetal 1 + CRImetal 2 + CRImetal n →.
The generally acceptable limit of the individual carcinogenic risk increase is 1 × 10−6, that is, the probability that an individual will develop cancer for every million people. However, for the risk corresponding to more than one substance (mixtures) in polluted sites, exposure levels that result in an increase in cancer between 10−4 and 10−6 are considered acceptable and are generally used as a reference point 1 × 10−5 [38,39]. Age-dependent adjustment factors (ADAF) were applied to the values of the slopes of carcinogenic power (SF) for water, collected in the database of U.S. EPA–IRIS, according to the following criteria:
For children < 2 years old: Value of SF × 10
For children 2–16 years: Value of SF × 3
For adolescents > 16 years old: SF value × 1.

4. Results

4.1. Water Quality in the Population of EPG

In the wells and in the spring, the presence of seven heavy metals of the nine analyzed in the water was detected (Table 1 and Table 2). In both types of water sources, the tendency of the concentration of metals to increase during the dry season was observed. Concentrations higher than 200% were registered in relation to rainfall measurements in well water; which were statistically significant for the case of Fe, Zn, Ni, Pb, and Cu. When comparing the concentrations obtained with the quality standards for human use and consumption, it was observed that the concentrations of Fe, Ni, and Al in the wells exceeded the maximum permissible limits (MPL) based on the Official Mexican Standard (NOM based on its initials in Spanish). The Pb registered slightly higher average values (0.012 mg/L) than the MPL, according to NOM-127-Modified in 2000 (MPL = 0.01 mg/L); in some of the samples, concentrations were estimated up to 0.052 mg/L, that is, five times higher than the MPL. The concentration of the rest of the metals (Zn, Cu, Cr) remained below the MPL. With respect to the spring, the same pattern of increase in the dry season was observed for all the detected metals, which was significant for Cu, Fe, and Zn. The Fe in the spring water registered higher concentrations than the MPL; same for the Pb, particularly in the dry season, according to NOM-127.

4.2. Health Risk Assessment

4.2.1. Risk of Effect No Cancer

The risk of noncancerous diseases due to the chronic ingestion of heavy metals present in spring water and wells is greater for children than for adults (Table 3 and Table 4, Figure 2). This is evidenced by the values of the hazard quotients (HQ), as well as in the hazard indices (HI).
When comparing the health risk associated with the oral exposure of the pool of metals (HI) from the wells and the spring, it was observed that the risk is greater, due to the intake of water from the spring, mainly due to the relatively high value of the quotient of danger for chromium (HQ). However, in none of the cases is the risk considered high, since the HQs were less than 1.
By contrasting the HI (index expressing the risk by the combined effect of metals) between the study seasons, it was observed that this was notably higher in the dry season, both due to the consumption of water from wells and from the spring, detecting a greater difference between the magnitude of the risk between dry and rainy seasons for the subgroup of children compared to the subgroup of adults; this suggests that although the risk is higher in the dry season for the three subgroups evaluated, it is even more acute for children.

4.2.2. Risk for Cancer Effect

Table 5 and Figure 3 show that the risk of carcinogenic diseases is greater due to the prolonged intake of water from the spring, compared to the water in the wells, particularly for children, which is explained by the presence of higher concentrations of lead and chromium in this source of water. These risks are accentuated in the dry season, mainly in the subgroup of children. The CRI (cancer risk index) obtained for the subgroup of children with spring water showed a value that can be considered critical.

5. Discussion

The population of EPG is more susceptible to disease from the intake of spring water than well water, due to the presence of higher concentrations of chromium and lead, as both metals are toxic to human health according to the IARC (International Agency for Cancer Research, 2015) [37]. Many people in the village are exposed to these pollutants, since all homes (522 inhabitants) receive water from this source through the pipeline and use it for drinking, cooking, washing, etc. On the other hand, wells are present in 70% of homes, and only in 41% are they used for drinking [8].
In the analysis, the potential health risk due to prolonged exposure to chromium was evident, with greater values of cancer risk indices (CRI) than the acceptable limit of 1 × 10−6 [38], especially for the groups of children and teenagers during the dry season. Although chromium forms part of the earth’s crust and can be released to the environment by natural sources, its release is mainly due to anthropogenic processes [57,58,59,60]. Chromium is widely used in industries, such as metallurgy, electroplating, paint and pigments, textile production, leather tanning, wood preservation, and paper chemical production, among others [22,58,59,60,61]. These industries are responsible for the high concentration of chromium in the environment, since they release their wastewater to the rivers without proper treatment [22,58].
In the metropolitan area of Puebla-Tlaxcala (MAPT), there are hundreds of industries using different processes, with an important proportion of those using chromium compounds for production or manufacturing processes, such as textiles, metalworking, paints, automotive [8,18,21], etc. These, like the rest of the factories, do not treat their wastewater in the proper way to remove heavy metals and other chemical pollutants [7,8]. Thus, in this river, the waste of the fourth largest metropolitan area of Mexico (ZMPT) is discharged, and at the same time, agricultural populations like EPG, located in the lower areas of the basin, use the polluted water of the river for the irrigation of their crops [8].
The release of chromium into the environment is also related to modern agricultural practices, fertilizers, and irrigation using wastewater [58]. Both activities are carried out intensively in the study area, because, in addition to agrochemicals, it is irrigated exclusively with polluted water from the Atoyac River. This may explain the high concentrations of chromium in the soils of EPG reported in 2016 by Ávila González [62], whose values were three times higher than the permissible limit for agricultural soils, based on the standard that establishes the criteria for which a polluted soil is determined, and other standards (NOM-147SEMARNAT/SSA1-2004) [63]. In the research developed by Castro-González et al. (2017) about the risks of exposure to heavy metals in populations located in the Alto Atoyac basin [42], chromium in soils was reported as the metal responsible for the risk of diseases in men, due to chronic dermal exposure, since every day of the year, their skin (hands, face, feet) are in contact with the soil by the activities of tillage and harvest, among others, which they carry out without protective equipment [42].
The literature mentions that the pollution of soils by the retention of chromium and other heavy metals is due to the use of wastewater and fertilizers and can contaminate groundwater [5,9,11,64,65]. In EPG, this represents a possibility, because polluted water from the Atoyac River flows through dozens of irrigation canals around the village and the wells are shallow (10–20 m) [8] and have been constructed without the advice of experts, so they are more vulnerable to pollution.
The health effects of chromium compounds may vary with the route of exposure. For example, respiratory effects are associated with the inhalation of chromium compounds, but not with oral and dermal exposures, and gastrointestinal effects are mainly associated with oral exposure. In general, the main white organs for the toxic action of chromium are bronchi, gastrointestinal tract, liver, and kidney [5,36,60]. The effects of exposure to any hazardous substance depend on the dose, duration, how they are exposed, personal traits and habits, and the presence or absence of other chemicals [22,41,66].
In addition to the presence of chromium in groundwater, lead was also detected, with concentrations greater than the maximum permissible limit for human consumption in some well samples. Lead, unlike chromium and the other metals analyzed, is not required for the human metabolism, and therefore is dangerous when entering the human body orally, even in low amounts [28,41]. Lead and its alloys are common components of pipes, batteries, cable linings, etc., and the compounds of this metal are used as pigments in paints, in varnishes for ceramics, and in filling materials [22,28,67]. Lead is found naturally in the environment. However, most of the high levels found in the environment originate from human activities. Environmental levels of lead have increased more than a thousand times during the last three centuries as a result of human activity [28].
Lead is found in wastewater from industries that handle lead (mainly the iron and steel industries and those that manufacture lead), runoff water in urban centers, and mineral piles [36,60,61]. People can be exposed to lead by eating food or drinking water containing lead [36,67]. Lead mainly affects the nervous system, both in children and adults [68]. The EPA and the International Agency for Research on Cancer (IARC) have determined that inorganic lead is probably carcinogenic in humans. Children are more vulnerable than adults to lead poisoning, and it affects them in different ways, depending on how much lead a child ingests. A child who ingests large amounts of lead can develop anemia, kidney damage, colic (severe stomach pain), muscle weakness, brain damage, and may eventually die. At even lower exposure levels, lead can affect a child’s physical and mental development [22,25,28,36,68,69,70]. In the case of girls, the situation may be aggravated because they develop physiologically earlier than boys, due to the early release of estradiol, which triggers the growth and maturation of bones, together with a greater accumulation of fatty tissue [41,66]. It is also important to mention that the women of the village spend more time inside their houses and their exposure to spring water in relation to men is greater. For this reason, this situation could explain the higher incidence of kidney and liver diseases in the female group in the town.
An important aspect to consider is that the estimated indices only provide information on the magnitude of the risk associated with oral exposure to heavy metals contained in drinking water.
This implies that although for most heavy metals, HQ < 1 means safe, it must be considered that exposure to heavy metal can also occur, through other exposure routes, such as intake of contaminated plants, since most plants can absorb and bioaccumulate soil pollutants [45,71]. Consequently, human health is directly affected by the consumption of these plants, since there is no effective mechanism of excretion [44]. The study by Latif et al. (2018) [72] shows how vegetables irrigated with wastewater differ in their potential to accumulate metals, and have Cr concentrations above the limit allowed by FAO in spinach, pumpkins, eggplants, etc. In the town of E Portes Gil, several plant species are cultivated for human consumption, such as pumpkins, parsley, coriander, among others, so that the risks to which the inhabitants of this agricultural town are exposed, are probably greater than those estimated. The research carried out by Li (2018a and b) [73,74]; show that human exposure to pesticides occurs through different routes, therefore, it is necessary to analyze the factors of total risk to health, considering the calculated individual factors, such as exposure to soil, drinking water and agricultural foods. Based on these considerations and our results, it is necessary that in the agricultural locality E. Portes Gil, environmental remediation measures be implemented, since the risks to human health could be greater when considering other possible routes of exposure.

6. Conclusions

The results of the research revealed that the chronic consumption of groundwater, particularly that coming from the spring (the main source of supply), represents a risk of developing carcinogenic diseases, particularly in children, due to the presence of metals, such as chromium and lead. A pattern of increase in the concentration of these and other heavy metals in the water of the wells and the spring is detected in the dry season, in which there is a continuous flow of polluted water from the Atoyac River for agricultural use, which suggests pollution of these sources of supply by possible infiltration. It is necessary to improve the control of these groundwater sources in terms of their infrastructure and protection to avoid the possible pollution of the resource, as well as the application of some treatment measures, taking into account that in the locality, only the residual water of the Atoyac river is used for the irrigation of crops and that the population is exposed by different routes.

Author Contributions

A.H.S. conceived the project and designed the experiments; G.P.C. performed the experiments; E.C.R. performed the heavy metal analysis in the water, J.L.M.P. and W.A.G.S. analyzed the data; A.C.M. sample analysis and fieldwork; all authors contributed with reagents, materials, and equipment; G.P.C. and A.H.S. wrote the paper.


Thanks to Consejo Nacional de Ciencia y Tecnología (CONACYT) for the Gabriela Pérez Castresana scholarship (601562), and Vicerectoria de Investigación y Estudios de Posgrado (VIEP) of the Benemérita Universidad Autónoma de Puebla (BUAP) for the support of this research work.

Conflicts of Interest

The authors have no conflict of interest to declare.


  1. UNESCO. Agua Para Todos, Agua Para la Vida; Informe de las Naciones Unidas Sobre el Desarrollo de los Recursos Hídricos en el Mundo, 2003; ISBN 92-303881-5. Available online: (accessed on 29 November 2018).
  2. Gil, A.; Reyes, M.A.; Márquez, M.; Cardona, L.; Benavides, A. Disponibilidad y uso eficiente de agua en zonas rurales. Investig. Y Cienc. 2014, 22, 67–73. [Google Scholar]
  3. DHAyS. Informe Sobre Violaciones a los Derechos Humanos al Agua Potable y al Saneamiento en México. (Informe DHAyS). 2017. Available online: (accessed on 29 November 2018).
  4. SEMARNAT. Plan Nacional de Desarrollo 2013–2018; Programa Nacional Hídrico: Mexico. Available online: (accessed on 29 November 2018).
  5. Edokpayi, J.; Enitan, A.; Mutileni, N.; Odiyo, J. Evaluation of water quality and human risk assessment due to heavy metals in groundwater around Muledane area of Vhembe District, Limpopo Province, South Africa. Chem. Cent. J. 2018, 12, 2. [Google Scholar] [CrossRef]
  6. Breña, F.; Breña, J. Disponibilidad de Agua en el Futuro de México. Ciencia 2007, 64–71. Available online: (accessed on 29 November 2018).
  7. Chávez, M.; Rivera, G.; Romero, T.; Vizcarra, I. El pozo: Usos, seguridad, y tradición en la subcuenca del río San Javier. Estud. Soc. 2013, 21, 261–286. [Google Scholar] [CrossRef]
  8. Pérez, G.; Tamariz, V.; López, L.; Hernández, F.; Castelán, R.; Morán, J.L.; García, W.; Díaz, A.; Handal, A. Atoyac River Pollution in the Metropolitan Area of Puebla, México. Water 2018, 10, 267. [Google Scholar] [CrossRef]
  9. WHO. Protecting Groundwater for Health, Managing the Quality of Drinking-water Sources; TJ International Ltd.: Padstow, UK, 2006; ISBN 13: 9781843390794. [Google Scholar]
  10. Foster, S.; Hirata, R.; Gomes, D.; D’Elia, M.; Paris, M. Protección de la Calidad del agua Subterránea; Banco Mundial: Washington, DC, USA, 2007; ISBN 84-8476-146-0. [Google Scholar]
  11. Thompson, T.; Fawell, J.; Kunikane, S.; Jackson, D.; Appleyard, S.; Callan, P.; Bartram, J.; Kingston, P. Chemical Safety of Drinking-Water: Assessing Priorities for Risk Management Chemical Safety; World Health Organization: Geneva, Switzerland, 2007; ISBN 978-92-4-154676-8. [Google Scholar]
  12. CONAGUA. Reglas de Organización y Operación del Registro Público de Derechos de Agua. DOF. 2002. CONAGUA, México. Available online: (accessed on 29 November 2018).
  13. Rodríguez, L.; Morales, J.A. Contaminación de Atoyac, Daños Ambientales y Tecnologías de Mitigación, 1st ed.; Maporrúa: México, Mexico, 2014; pp. 7–87. ISBN 978-607-28-0329-9. [Google Scholar]
  14. Comisión Nacional de Derechos Humanos; Recomendación No. 10/2017; CNDH: México City, Mexico, 2017.
  15. Instituto Nacional de Estadística y Geografía. Anuario Estadístico y Geográfico de Puebla 2016; INEGI: Aguascalientes, México, 2016; ISBN 978-607-739-987-2.
  16. Rodríguez, L.; Morales, J.; Zavala, P. Evaluación socioeconómica de daños ambientales por contaminación del Río Atoyac en México. Tyca-Retac 2012, 3, 143–151. [Google Scholar]
  17. Montero, R.; Serrano, L.; Araujo, A.; Dávila, V.; Ponce, J.; Camacho, R.; Morales, E.; Méndez, A. Increased cytogenetic damage in a zone intransition from agricultural to industrial use: Comprehensive analysis of the micronucleus test in peripheral blood lymphocytes. Mutagenesis 2006, 21, 335–342. [Google Scholar] [CrossRef]
  18. Instituto Mexicano de Tecnología del Agua (IMTA). Estudio de Clasificación del Río Atoyac, Puebla-Tlaxcala; CONAGUA: México City, Mexico, 2005.
  19. Navarro, I.; Flores, E.; Valladares, R. Evaluación Ambiental y Epidemiológica para Identificar Factores de Riesgo a la Salud por Contaminación del Río Atoyac, México. BVSDE, 2003. Available online: (accessed on 29 November 2018).
  20. Martínez, E.; Rodríguez, P.F.; Shruti, V.C.; Sujitha, S.; Morales, S.; Muñoz, N. Monitoring the seasonal dynamics of physicochemical parameters from Atoyac River basin (Puebla), Central Mexico: Multivariate approach. Environ. Earth Sci. 2017, 76, 1–15. [Google Scholar]
  21. Sandoval, A.M.; Pulido, G.; Monks, S.; Gordillo, A.J.; Villegas, E.C. Evaluación fisicoquímica, microbiológica y toxicológica de la degradación ambiental del Río Atoyac, México. Interciencia 2009, 34, 880–887. [Google Scholar]
  22. Jaishankar, M.; Tseten, T.; Anbalagan, N.; Mathew, B.; Beeregowda, K. Toxicity, mechanism and health effects of some heavy metals. Interdiscip. Toxicol. 2014, 7, 60–72. [Google Scholar] [CrossRef]
  23. Malik, Q.; Khan, M. Effect on Human Health due to Drinking Water Contaminated with Heavy Metals. J. Pollut. Eff. Cont. 2016, 5. [Google Scholar] [CrossRef]
  24. Kakkar, P.; Jaffery, F. Biological markers for metal toxicity. Environ. Toxicol. Pharmacol. 2005, 19, 335–349. [Google Scholar] [CrossRef] [PubMed]
  25. Marcovecchio, J.E.; Botte, S.; Freije, R. Heavy Metals, Major Metals, Trace Elements. In Handbook of Water Analysis, 2nd ed.; Nollet, L.M., Ed.; CRC Press: London, UK, 2007; pp. 275–311. [Google Scholar]
  26. Momodu, M.; Anyakora, C. Heavy Metal Contamination of Ground Water: The Surulere Case Study. Res. J. Environ. Earth Sci. 2010, 2, 39–43. [Google Scholar]
  27. Kanwal, R.; Fiza, F.; Iqra, W.; Muhammad, S.; Hamid, A. Prevalence of exposure of heavy metals and their impact onhealth consequences. J. Cell Biochem. 2018, 119, 157–184. [Google Scholar] [CrossRef]
  28. Londoño-Franco, L.; Londoño-Muñoz, L.; Muñoz-García, F. Los riesgos de los metales pesados en la salud humana y animal. Biotecnología en el Sector Agropecuario y Agroindustrial 2016, 14, 145–153. [Google Scholar] [CrossRef]
  29. Verma, R.; Dwivedi, P. Heavy metal water pollution-A case study. Recent Res. Sci. Technol. 2013, 5, 98–99. [Google Scholar]
  30. Agency for Toxic Substances and Disease Control. División de Toxicología y Medicina Ambiental. Departamento de Salud y Servicios humanos de los EEUU; Servicio de Salud Pública: Washington, DC, USA, 2011; 269p. [CrossRef]
  31. Bhargava, P.; Gupta, N.; Vats, S.; Goel, R. Health Issues and Heavy Metals. Austin J. Environ. Toxicol. 2017, 3, 1018. [Google Scholar]
  32. WHO. Environmental Health Criteria: Copper. International Programme on Chemical Safety; World Health Organization: Geneva, Switzerland, 1998; 104p. [Google Scholar]
  33. Framework for Metals Risk Assessment. EPA 120/R-07/001, March 2007. Office of the Science Advisor Risk Assessment Forum U.S. Environmental Protection Agency: Washington, DC. 20460. Available online: (accessed on 20 November 2018).
  34. USEPA (US Environmental Protection Agency) (2014) USEPA Integrated Risk Information System (IRIS) Online Database. Available online: (accessed on 13 November 2018).
  35. USEPA (US Environmental Protection Agency) (2015) Regulated Drinking Water Contaminants. Online Database. Available online: (accessed on 1 October 2018).
  36. ATSDR (Agency for Toxic Substances and Disease Registry) (2015) Toxicological Profiles, Toxic Substances Portal. Available online: (accessed on 10 November 2018).
  37. IARC (International Agency for Research on Cancer) (2016) IARC Monographs on the Evaluation of Carcinogenic Risks to Humans. Volumes 1–122. Available online: (accessed on 20 November 2018).
  38. Martín, P.; Carroquino, M.; Ordóñez, J.M.; Moya, J. La Evaluación de Riesgos en Salud. Guía Metodológica. Aplicaciones Prácticas de la Metodología de Evaluación de Riesgos en salud por Exposición a Químicos; Serie “De aeribus, aquis et locis”; Sociedad Española de Sanidad Ambiental y Escuela Andaluza de Salud Pública: Madrid, Spain, 2016. [Google Scholar]
  39. USEPA (Environmental Protection Agency of the United State). Guidelines for the Health Risk Assessment of Chemical Mixtures [R]. Washington (DC): US Environmental Protection Agency. ([EPA/630/R-98/002]). 1986. Available online: (accessed on 11 November 2018).
  40. Koki, I.; Bayero, A.; Umar, A.; Yusu, S. Health risk assessment of heavy metals in water, air, soil and fish. Afr. J. Pure Appl. Chem. 2015, 9, 204–210. [Google Scholar] [CrossRef]
  41. Castro, N.P.; Moreno-Rojas, R.; Calderón, F.; Moreno, A.; Juarez, M. Assessment risk to children’s health due to consumption of cow’s milk in polluted areas in Puebla and Tlaxcala, Mexico. Food Addit. Contam. Part B 2017, 10, 200–207. [Google Scholar] [CrossRef]
  42. Castro, N.P.; Calderón, F.; Moreno, R.; Moreno, A.; Tamariz, J.V. Health risks in rural populations due to heavy metals found in agricultural soils irrigated with wastewater in the Alto Balsas sub-basin in Tlaxcala and Puebla, Mexico. Int. J. Environ. Health Res. 2017, 27, 476–486. [Google Scholar] [CrossRef]
  43. USEPA (US Environmental Protection Agency). Risk Assessment. 2017. Available online: (accessed on 2 October 2018).
  44. Ghosh, A.K.; Bhatt, M.; Agrawal, H. Effect of long-term applicationof treated sewage water on heavy metal accumulation in vegetables grownin Northern India. Environ. Monit. Assess. 2012, 184, 1025–1036. [Google Scholar] [CrossRef] [PubMed]
  45. Zhou, H.; Yang, W.T.; Zhou, X.; Liu, L.; Gu, J.; Wang, W.L.; Zou, J.L.; Tian, T.; Peng, P.Q.; Liao, B.H. Accumulation of Heavy Metals in Vegetable Species Planted in Contaminated Soils and the Health Risk Assessment. Int. J. Environ. Res. Public Health 2016, 13, 289. [Google Scholar] [CrossRef] [PubMed]
  46. Sistema Nacional de Información Municipal (SNIM-2010). Available online: (accessed on 10 October 2018).
  47. Martínez, T.; Palerm, J. Antología Sobre Pequeño Riego: Organizaciones Autogestivas; Colegio de Postgraduados y Plaza y Valdés: Cuauhtémoc, México, 2000; pp. 345–407. ISBN 968-856-761-1. [Google Scholar]
  48. Instituto Nacional de Estadística y Geografía. Prontuario de información geográfica municipal de los Estados Unidos Mexicanos. INEGI, México, 2009. Available online: (accessed on 6 October 2018).
  49. American Public Health Association (APHA). Standard Methods: For the Examination of Water and Wastewater, 21st ed.; American Public Health Association/American Water Works Association/Water Environment Federation: Washington, DC, USA, 2005. [Google Scholar]
  50. Diario Oficial de la Federación (DOF). Determinación de Metales Pesados Por Absorción Atómica en Aguas Naturales, Potables, Residuales y Residuales Tratadas. Método de Prueba; NMX-AA-051-SCFI-2001. México. 2001. Available online: (accessed on 19 October 2018).
  51. Diario Oficial de la Federación (DOF). Criterios Ecológicos de Calidad del Agua; CE-CCA-001/89. Ciudad de México, México. 1989. Available online: (accessed on 6 October 2018).
  52. Diario Oficial de la Federación (DOF). Agua Para Uso y Consumo Humano. Límites Permisibles de Calidad y Tratamientos a Que Debe Someterse el Agua Para su Potabilización; MODIFICACION NOM-127-SSA1-94. Ciudad de México, México. 2000. Available online: (accessed on 3 September 2018).
  53. Hernández, L.; Stern, D.; Tolentino, L.; Espinosa, J.; Barquera, S. Consumo de Agua en la Población Infantil y Adolescente; Instituto Nacional de Salud Pública: Cuernavaca, México, 2012. [Google Scholar]
  54. ENSANUT | Encuesta Nacional de Salud y Nutrición 2016. Available online: (accessed on 4 October 2018).
  55. USEPA. Integrated Risk Information System. IRIS Assessments. Available online: (accessed on 6 November 2018).
  56. USEPA. A Review of the Reference Dose and Reference Concentration Processes. Available online: (accessed on 14 October 2018).
  57. Mohanty, M.; Kumar Patra, H. Effect of ionic and chelate assisted hexavalent chromium on mung bean seedlings (Vigna Radiata l. Wilczek. Var k-851) during seedling growth. JSPB 2013, 9, 232–241. [Google Scholar]
  58. Ghani, A. Effect of chromium toxicity on growth, chlorophyll and some mineral nutrients of Brassica juncea L. Egypt. Acad. J. Biol. Sci. 2011, 2, 9–15. [Google Scholar]
  59. Papanikolaou, N.; Hatzidaki, E.; Belivanis, S.; Tzanakakis, G.; Tsatsakis, A. Lead toxicity update. A brief Review. Med Sci. Monit. Int. Med J. Exp. Clin. Res. 2005, 11, RA329–RA336. Available online: (accessed on 6 November 2018).
  60. Kirti Shekhawat, K.; Chatterjee, S.; Joshi, B. Chromium Toxicity and its Health Hazards. Int. J. Adv. Res. 2015, 3, 167–172. [Google Scholar]
  61. Martin, S.; Griswold, W. Human health effects of heavy metals. Environ. Sci. Technol. Briefs Citiz. 2009, 15, 1–6. [Google Scholar]
  62. Ávila, D. Fitoremediación de suelos contaminados por elementos potencialmente tóxicos en la región de Atlixco, Puebla; Instituto de Ciencias, Benemérita Universidad Autónoma de Puebla: México, 2017. [Google Scholar]
  63. NOM-147-SEMARNAT/SSA1-2004. Norma Oficial Mexicana, que establece criterios para determinar las concentraciones de remediación de suelos contaminados por arsénico, bario, berilio, cadmio, cromo hexavalente, mercurio, níquel, plata, plomo, selenio, talio y/o vanadio. Available online: (accessed on 12 November 2018).
  64. Pintilie, S.; Brânză, L.; Beţianu, C.; Pavel, P.; Ungureanu, F.; Gavrilescu, M. Modelling and simulation of heavy metals transport. Environ. Eng. Manag. J. 2007, 2, 153–161. [Google Scholar]
  65. Odiyo, J.; Makungo, R. Fluoride concentrations in groundwater and impact on human health in Siloam Village, Limpopo Province, South Africa. Water SA 2012, 38, 731–736. [Google Scholar] [CrossRef]
  66. Silbergeld, E. Toxicología. In Enciclopedia de Salud y Seguridad en el Trabajo; Ministerio de Trabajo y Asuntos Sociales Subdirección General de Publicaciones: Madrid, Spain, 1988; Cap 33; ISBN 84-8417-047-0. [Google Scholar]
  67. Lanphear, B.; Dietrich, K.; Auinger, P. Cognitive deficits associated with blood lead concentration <10 µg/dL in: U.S. children and adolescents. Public Health Rep. 2012, 4, 521–529. [Google Scholar]
  68. Singh Sankhla, M.; Sharma, K.; Kumar, R. Heavy Metal Causing Neurotoxicity in Human Health. IJIRSET 2017, 6. [Google Scholar] [CrossRef]
  69. Ziegler, E.; Edwards, B.; Jensen, R.; Mahaffey, K.; Fomon, S. Absorption and retention of lead by infants. Pediatr. Res. 1978, 12, 29–34. [Google Scholar] [CrossRef] [PubMed]
  70. Dorea, J.; Donangelo, C. Early (in uterus and infant) exposure to mercury and lead. Clin. Nutr. 2006, 25, 369–376. [Google Scholar] [CrossRef] [PubMed]
  71. Ackova, D.G. Heavy metals and their general toxicity on plants. Plant Sci. Today 2018, 5, 14–18. [Google Scholar] [CrossRef]
  72. Latif, A.; Bilal, M.; Asghar, W.; Azeem, M.; Ahmad, M.I.; Abbas, A.; Admah, M.; Shahzad, T. Heavy Metal Accumulation in Vegetables and Assessment of their Potential Health Risk. J. Environ. Anal. Chem. 2018, 5, 234. [Google Scholar] [CrossRef]
  73. Li, Z. The use of a disability-adjusted life-year (DALY) metric to measure human health damage resulting from pesticide maximum legal exposures. Sci. Total Environ. 2018, 438–456. [Google Scholar] [CrossRef] [PubMed]
  74. Li, Z. A health-based regulatory chain framework to evaluate international pesticide groundwater regulations integrating soil and drinking water standards. Environ. Int. 2018, 1253–1278. [Google Scholar] [CrossRef] [PubMed]

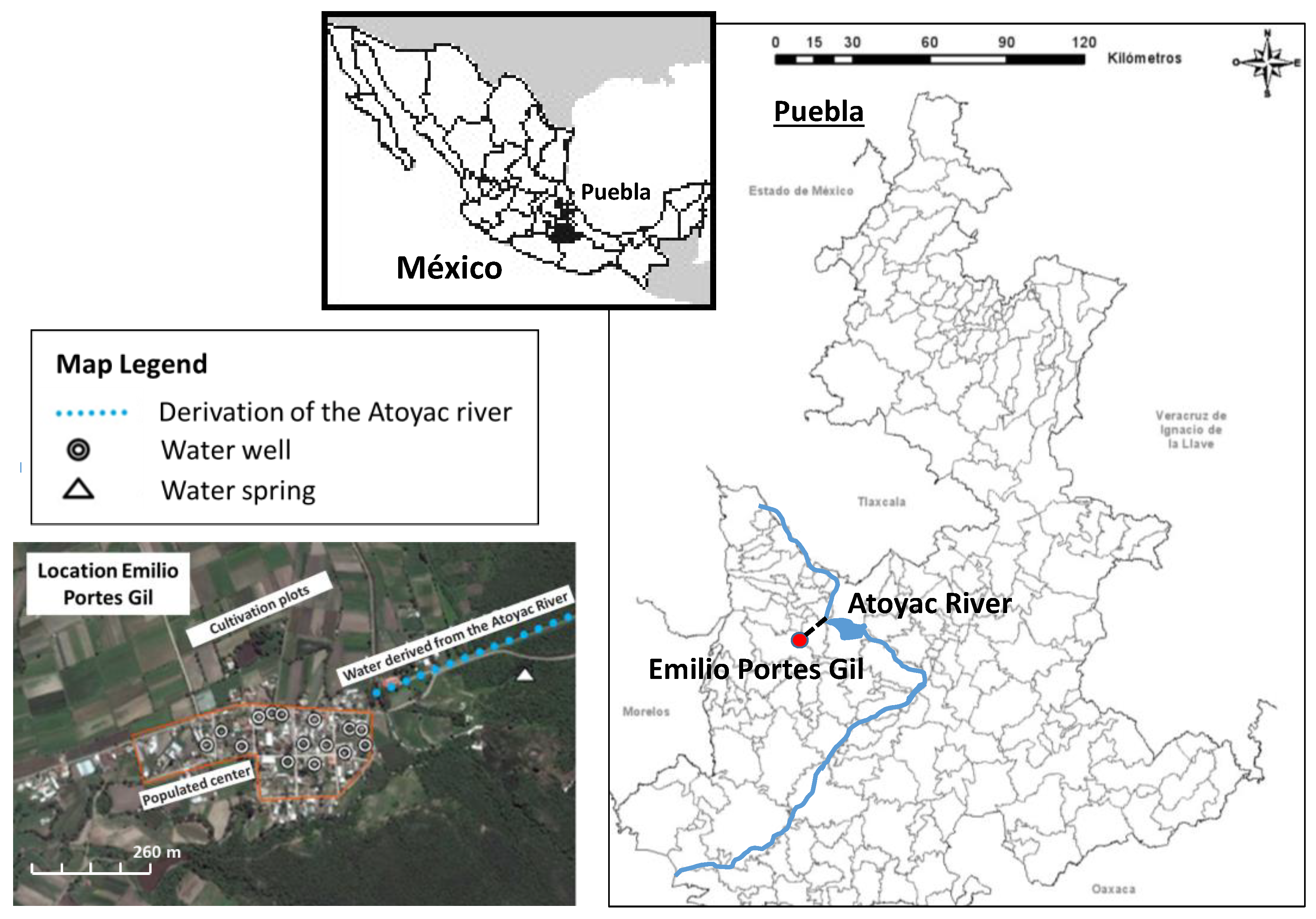

Figure 1. Study area, indicating the groundwater sources sampled in the agricultural town Emilio Portes Gil (Puebla, México).
Figure 1. Study area, indicating the groundwater sources sampled in the agricultural town Emilio Portes Gil (Puebla, México).
Water 11 00277 g001

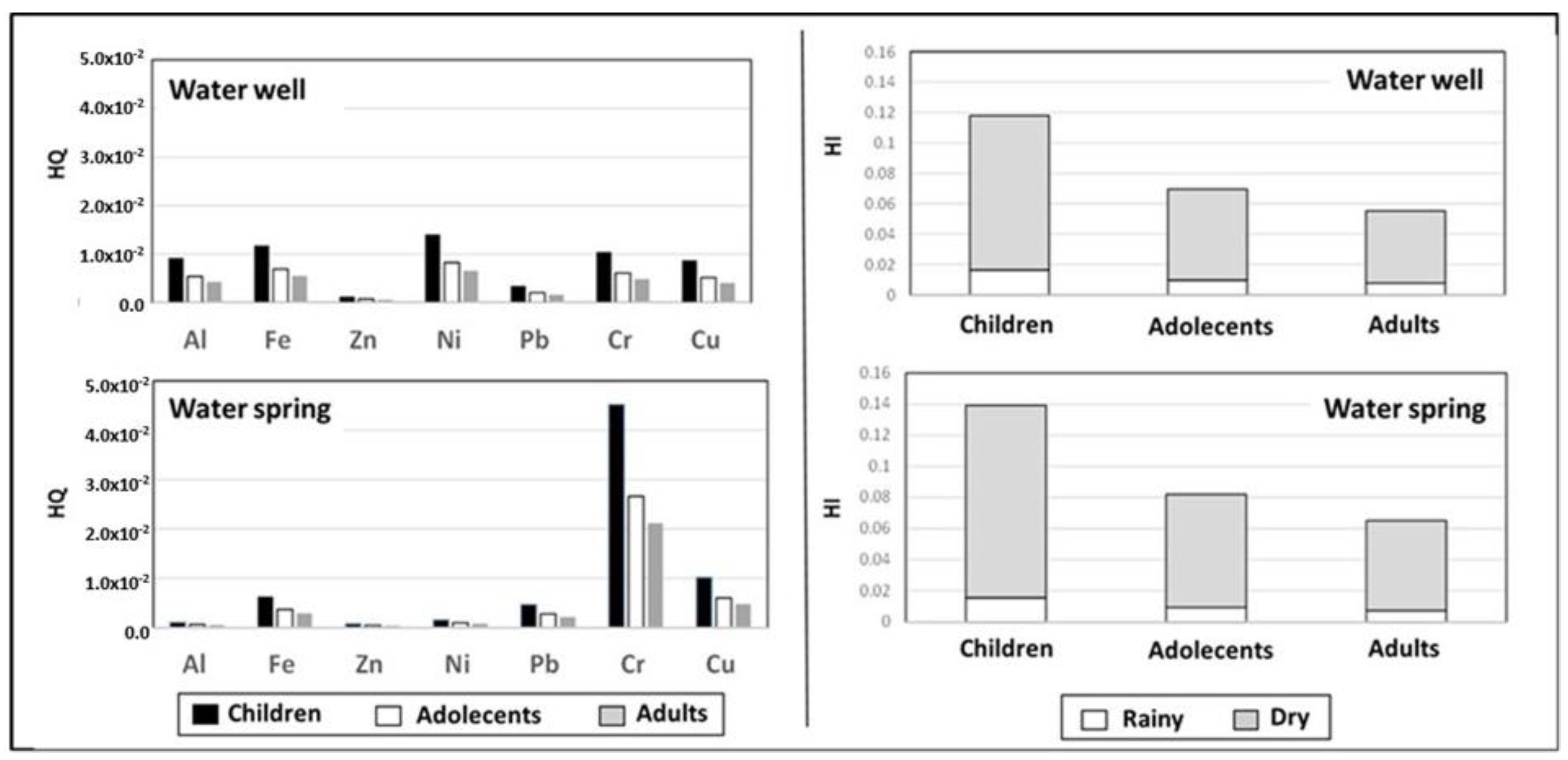

Figure 2. HQ and HI, due to the intake of water from the wells and the spring, considering the different population subgroups (children, teenagers and adults) and seasons (rain and dry).
Figure 2. HQ and HI, due to the intake of water from the wells and the spring, considering the different population subgroups (children, teenagers and adults) and seasons (rain and dry).
Water 11 00277 g002

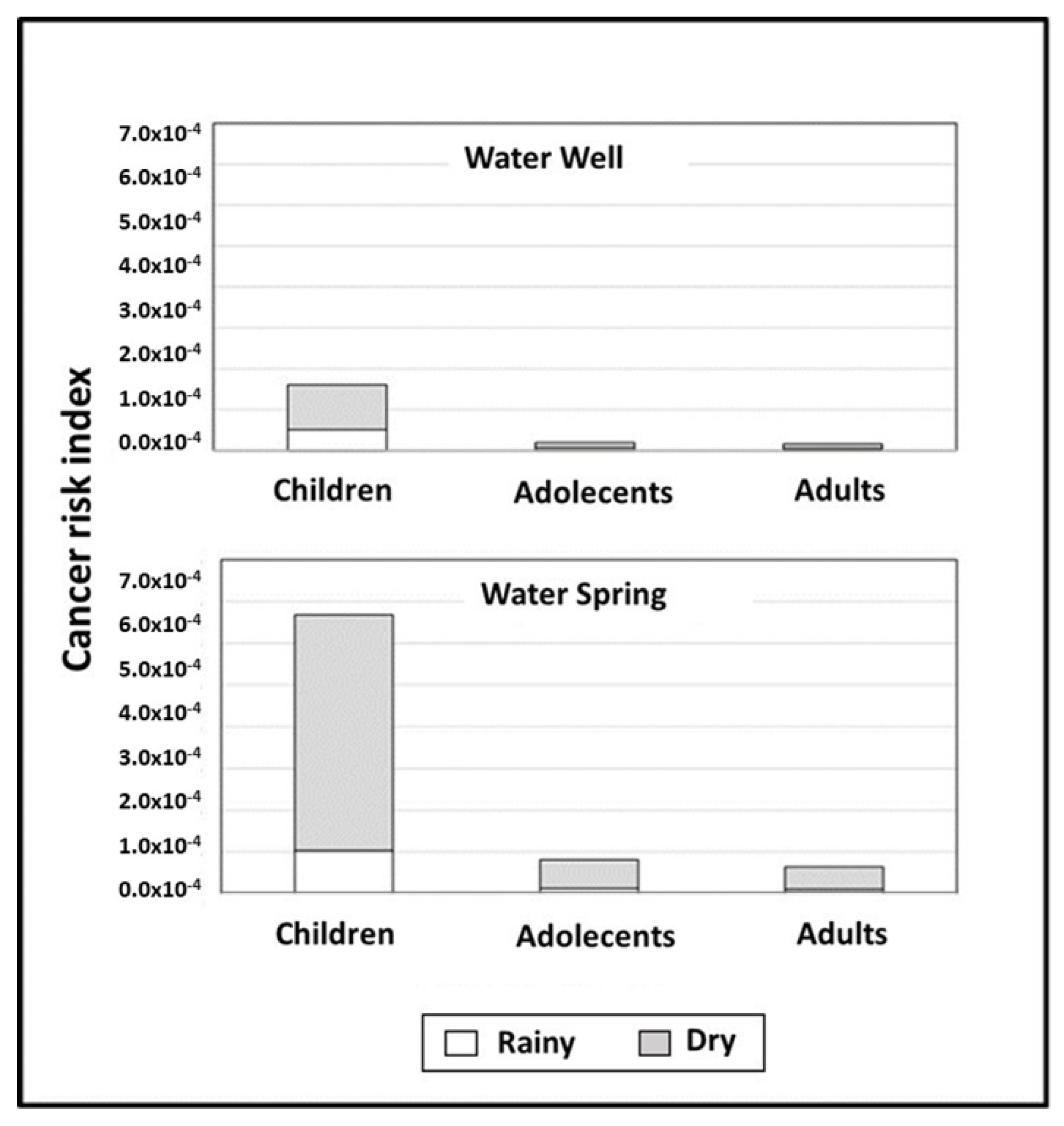

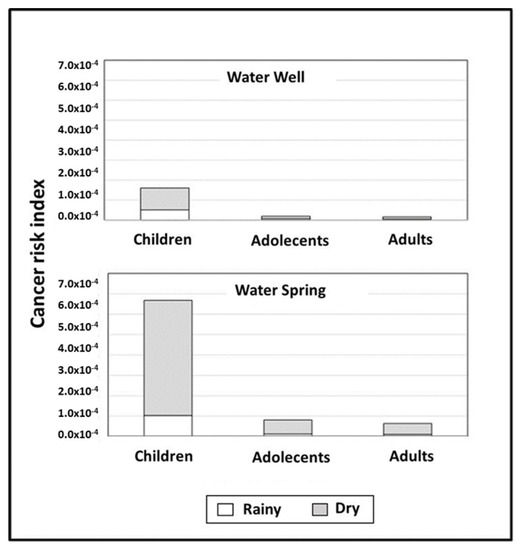

Figure 3. Total cancer risk index due to the intake of spring water metals and wells water, for the subpopulation of children, adolescents and adults of E. Portes Gil.
Figure 3. Total cancer risk index due to the intake of spring water metals and wells water, for the subpopulation of children, adolescents and adults of E. Portes Gil.
Water 11 00277 g003
Table 1. Heavy metals in well water. Descriptive statistics, significance value of the Kruskal-Wallis Test for the comparison between rain and drought, and critical values according to two Mexican standards.
Table 1. Heavy metals in well water. Descriptive statistics, significance value of the Kruskal-Wallis Test for the comparison between rain and drought, and critical values according to two Mexican standards.
Parameters (n = 45)Well MeanSD *Min.Max.Rainy (mean)Dry (mean)p-ValueNOM-127 +CE
T (°C)21.171.2202520.7022.560.001 *--
pH7.380. *6.5–8.55–9
O2 (mg/L)
Al (mg/L)0.0620.0400.000.1560.0160.1080.1500.200.02
Fe (mg/L)0.3940.4240.001.9000.1070.6820.010 *0.30.3
Zn (mg/L)0.0180.0220.000.1110.0040.0330.009 *55
Ni (mg/L)0.0130.0260.000.0890.0030.0240.019 *-0.01
Pb (mg/L)0.0060.0150.000.0560.0000.0120.000 *0.010.05
Cr (mg/L)0.0010.0020.000.0110.0010.0020.7210.050.05
Cu (mg/L)0.0150.0180.000.0890.0010.0300.000 *21
* SD: Standard Deviation. + NOM-127 (Modified in DOF 2000).
Table 2. Heavy metals in the spring water. Descriptive statistics, significance value of the Kruskal-Wallis Test for the comparison between rain and drought, and critical values according to two Mexican standards.
Table 2. Heavy metals in the spring water. Descriptive statistics, significance value of the Kruskal-Wallis Test for the comparison between rain and drought, and critical values according to two Mexican standards.
Parameters (n = 15)Spring MeanSD *Min.Max.Rainy (mean)Dry (mean)p-ValueNOM-127 +CE
T (°C)21.750.866212321.33230.006 *--
O2 (mg/L)1.960.1981.
Al (mg/L)0.0070.0130.000.0440.0000.0140.1020.200.02
Fe (mg/L)0.2090.2080.000.5330.0000.4180.001 *0.30.3
Zn (mg/L)0.0110.0120.000.0330.0000.0220.001 *55
Ni (mg/L)0.0010.0030.000.0110.0000.0030.102-0.01
Pb (mg/L)0.0080.0070.000.0200.0030.0130.1420.010.05
Cr (mg/L)0.0060.0060.000.0330.0020.0110.3630.050.05
Cu (mg/L)0.0180.0180.000.0440.0000.0360.001 *21
* SD: Standard Deviation, + NOM-127 (Modified in DOF 2000).
Table 3. Hazard quotient (HQ) and hazard Index (HI), for the water intake of the wells, in the subpopulation of children, adolescents and adults of E. Portes Gil.
Table 3. Hazard quotient (HQ) and hazard Index (HI), for the water intake of the wells, in the subpopulation of children, adolescents and adults of E. Portes Gil.
Heavy MetalsWell Water (Mean)Well Water Rainy (Mean)Well Water Dry (Mean)
Table 4. HQ and HI, for the water intake of the spring water, in the subpopulation of children, teenagers and adults of E. Portes Gil.
Table 4. HQ and HI, for the water intake of the spring water, in the subpopulation of children, teenagers and adults of E. Portes Gil.
Heavy MetalsSpring Water (Mean)Spring Water Rainy (Mean)Spring Water Dry (Mean)
Table 5. Cancer risk index considering the individual and total effect of the potentially carcinogenic metals present at the spring W and the wells W., for the subpopulation of children, teenagers and adults of E. Portes Gil.
Table 5. Cancer risk index considering the individual and total effect of the potentially carcinogenic metals present at the spring W and the wells W., for the subpopulation of children, teenagers and adults of E. Portes Gil.
Heavy MetalsChildrenTeenagerssAdults
CRISpring WWell WSpring WWell WSpring WWell W
Chrome3.2 × 10−47.5 × 10−53.9 × 10−59.2 × 10−63.1 × 10−57.3 × 10−6
Lead6.8 × 10−65.1 × 10−68.0 × 10−76.0 × 10−77.0 × 10−75.0 × 10−7
∑CRI3.3 × 10−48.0 × 10−54.0 × 10−59.8 × 10−63.2 × 10−57.8 × 10−6

Share and Cite

MDPI and ACS Style

Pérez Castresana, G.; Castañeda Roldán, E.; García Suastegui, W.A.; Morán Perales, J.L.; Cruz Montalvo, A.; Handal Silva, A. Evaluation of Health Risks Due to Heavy Metals in a Rural Population Exposed to Atoyac River Pollution in Puebla, Mexico. Water 2019, 11, 277.

AMA Style

Pérez Castresana G, Castañeda Roldán E, García Suastegui WA, Morán Perales JL, Cruz Montalvo A, Handal Silva A. Evaluation of Health Risks Due to Heavy Metals in a Rural Population Exposed to Atoyac River Pollution in Puebla, Mexico. Water. 2019; 11(2):277.

Chicago/Turabian Style

Pérez Castresana, Gabriela, Elsa Castañeda Roldán, Wendy A. García Suastegui, José L. Morán Perales, Abel Cruz Montalvo, and Anabella Handal Silva. 2019. "Evaluation of Health Risks Due to Heavy Metals in a Rural Population Exposed to Atoyac River Pollution in Puebla, Mexico" Water 11, no. 2: 277.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
