Article

Treatment of Landfill Leachates with Combined Acidification/Coagulation and the Fe0/H2O2 Process

by
Jan Bogacki
*,
Piotr Marcinowski
and
Balkess El-Khozondar
Faculty of Building Services, Hydro and Environmental Engineering, Warsaw University of Technology, Nowowiejska 20, 00-653 Warsaw, Poland
*
Author to whom correspondence should be addressed.
Water 2019, 11(2), 194; https://doi.org/10.3390/w11020194
Received: 21 December 2018 / Revised: 15 January 2019 / Accepted: 21 January 2019 / Published: 23 January 2019
(This article belongs to the Special Issue Advanced Oxidation Technologies in Industrial Wastewater Treatment)
Browse Figures
Versions Notes

Abstract

:
One of the major environmental concerns associated with waste disposal is the large amount of generated landfill leachates (LL), which are considered a type of wastewater with a complex composition. There is an urgent need to find an effective LL treatment method. LL were subjected to pretreatment followed by the Fe0/H2O2 process. Pretreatment efficiency was coagulation at pH 6.0 >> coagulation at pH 9.0 > acidification at pH 3.0. Coagulation at pH 6.0 in an optimal Fe3+ dose of 1000 mg/L decreased total organic carbon (TOC) from the initial concentration of 1061 mg/L to 491 mg/L while acidification to pH 3.0 decreased TOC to 824 mg/L. After acidification, the Fe0/H2O2 process with 8000/9200 mg/L Fe0/H2O2 reagent doses decreased TOC to 499 mg/L after a processing time of 60 min. Performance of the Fe0/H2O2 process after coagulation at pH 6.0 for optimal Fe0/H2O2 8000/5540 mg/L reagent doses decreased TOC to 268 mg/L (75% TOC removal). Treatment of landfill leachates with combined process coagulation and Fe0/H2O2 also increased their susceptibility to biodegradation, expressed as the biochemical oxygen demand/chemical oxygen demand (BOD5/COD) ratio from 0.13 to 0.43, allowing LL to be considered as susceptible to biodegradation. Fe0/H2O2 process kinetics was described. A statistical analysis confirmed the obtained results. The proposed method can be successfully applied for LL treatment.

Graphical Abstract

1. Introduction

Solid waste generation is strongly affected by human activities. As population growth increases rapidly, waste generation also increases in the same way. In the European Union, nearly 1.323 kg of municipal waste is generated per person per day [1]. Due to the insufficient efficiency of waste separation, reuse, and recycling [2], only 29% of the waste is recycled and the remainder is disposed directly in landfills [1]. One of the major environmental concerns associated with waste disposal is the large amount of generated landfill leachates (LL) due to the rainwater filtration through waste. LL can be considered wastewater with a complex composition and many toxic and persistent compounds [3]. Their composition depends on many factors, such as the landfill age, climatic conditions, rainfall intensity, and the presence of toxic/biorefractory wastes in the landfill [4,5,6,7]. Because of the high variability of the flow and type of pollutants in LL, the traditional activated sludge reactors used in typical wastewater treatment plants are not efficient enough [4] for it. The worldwide wastewater discharge regulations and standards have become stricter; hence, there is an urgent need to find an effective LL treatment method. Many researchers are investigating new and effective methods for LL treatment, such as sorption on magnetic particles [2] and other sorbents [8], reactive granular filters [9], the use of metallic iron [4,10,11] and other heterogeneous catalysts [12,13], Fenton (classical and solar) [14,15,16,17], electro-Fenton [18,19], and other electrochemical processes [11,20,21,22,23,24], usage of different oxidants and their combination [25,26], microwaves [10], ultrasounds [27], membrane processes [28], hydrodynamic cavitation [29], microalgae [30], biofiltration [21,31], supercritical water oxidation [32], oscillating biological membrane photoreactors [33], anaerobic digestion [27,34], dynamic membrane bioreactors [35], bio-electro-Fenton [36], upflow sludge bed reactors [37], moving bed biofilm reactors [38], and the sequencing batch reactor [39]. Moreover, a few review articles have summarized the LL treatment methods [40,41,42,43,44,45,46].
Chen et al. [10] applied, among others, the Fe0/H2O2 process for LL treatment. After a process time of 14 min, only 17.9% chemical oxygen demand (COD) was removed for 0.5g Fe0 and 20 mL/L H2O2 reagent doses. One could expect that if the process was extended, the results would be much higher. Small COD removal could be also related to low Fe0 dose and a big H2O2/COD ratio. Ertugay et al. [47] applied the Fe0/H2O2 process for LL treatment for small 50/150 mg/L reagent doses in a wide acidic pH range. The COD efficiency at pH 3.0 was only ~20 %, while at pH 2.0, it reached ~75%. Martins et al. [4], on the contrary, tried high Fe0 doses of up to 125 g/L in the form of iron shavings as well as a low H2O2/COD ratio, and obtained a COD removal of up to 48%. Soubh et al. [13] used a combination of metallic iron, graphene oxide, and persulfate for LL treatment. The impacts of significant parameters on the removal of COD and NH3 were evaluated. The removal efficiencies for the fresh leachate were 80.87% and 72.38%, respectively, and the biochemical oxygen demand/chemical oxygen demand (BOD5/COD) ratio increased from 0.25 to 0.52, respectively.
Advanced oxidation processes (AOP) consist of the efficient production of free radicals (primarily HO•) that effectively oxidize pollutants contained in the wastewater. In the Fe0/H2O2 process, under acidic conditions and as a result of the dissolution processes, the metallic iron becomes a Fe2+ ion source. Fe2+ ions undergo oxidation to Fe3+ in the presence of H2O2, while H2O2 undergoes conversion to HO• and OH−. Reactions 1–5 allow for divalent iron ion production, while reactions 6–7 describe the creation process chemistry of radicals [48].
To our knowledge, most Polish landfills do not conduct any leachate treatment. Only several landfills pretreat leachates, usually with pH adjustment and membrane processes. Mostly, the leachates are transported by slurry tankers to municipal wastewater treatment plants. Often, municipal wastewater treatment plants report that the provision of leachate causes problems for their proper functioning. The aim of this study is to assess the possibility of using the Fe0/H2O2 process to decrease the organic pollutant load and increase the LL BOD5/COD ratio. LL were subjected to pretreatment followed by the Fe0/H2O2 process. For the pretreatment process, alternatively, acidification or coagulation at pH 6.0 or 9.0 was used. Then, the Fe0/H2O2 process was applied. For both pretreatment and treatment processes, different reagent doses were tested.

2. Materials and Methods

2.1. Sample Collection and Experiment Preparation

LL were collected from a Polish landfill. The raw leachate characteristics are presented in Figure 1 and in Table 1. All experiments were conducted within 72 h of the sample collection and were carried out in duplicate. The LL were subjected to pretreatment, followed by the Fe0/H2O2 process. As a pretreatment, three processes were used alternatively: coagulation with iron-based coagulant at pH 6.0 or 9.0 and precipitation after acidification to pH 3.0. After LL collection, samples were refrigerated at 4 °C until analysis. All of the used reagents were of analytical grade.

2.2. Treatment Processes

2.2.1. Pretreatment

The coagulation process was carried out in a 2 L reactor filled with 1 L of sample. The coagulation processes were set under two pH levels—6.0 and 9.0—based on initial experiments (data not shown). The samples were stirred using a magnetic stirrer (Heidolph MR3000, Schwabach, Germany) for 5 min on fast (500 rpm), followed by 10 min on slow (50 rpm) stirring. FeCl3 (POCh, Gliwice, Poland) solution in concentration 50 mg Fe3+/mL was used as the coagulant. Furthermore, 3 M NaOH (Stanlab, Lublin, Poland) and 10% HCl (POCh, Gliwice, Poland) were used for pH adjustment during fast stirring. The samples were left overnight for sludge sedimentation.
A wide range of coagulant doses was used. The first dose was considered the minimal one for which the coagulation effect of the sediment precipitation could be observed. A constant step in the dose increment of the 250 mg/L coagulant was used.
Acidification to pH 3.0 was carried out in a 2 L reactor filled with 1 L of sample. The sample was left overnight for sludge sedimentation. pH 3.0 was selected due to the minimal salinity increase associated with the use of reagents for pH correction. Furthermore, for the Fe0/H2O2 process, it is considered optimal. Because of this, there was no need for pH adjustment between the acidification and Fe0/H2O2 processes.

2.2.2. Fe0/H2O2Process

After pretreatment, the sample was subjected to the Fe0/H2O2 process. The Fe0/H2O2 process was carried out in a 2 L reactor filled with a 1 L sample. Solid Fe0 (Hepure, Hillsborough, NJ, USA) and 30% H2O2 solution (Stanlab, Lublin, Poland) were used. Wastewater samples were stirred (500 rpm) on a magnetic stirrer (Heidolph MR3000, Schwabach, Germany). The pH during the Fe0/H2O2 process was set to 3.0. After specified times, (15, 30, and 60 min), the Fe0/H2O2 process was stopped by increasing the pH to 9.0 using 3 M NaOH. Samples were left overnight to allow hydrogen peroxide decomposition and iron-based sludge sedimentation. Hydrogen peroxide process doses were selected according to LL COD—1:1, 1:2, 1:4, and 1:8 COD/H2O2 mass ratios. The used Fe0 in the experiments was supplied by Hepure as Ferox Target (325 mesh).
For the optimal reagent doses, process enhancement with ultrasound (US) and ultraviolet (UV) radiation was applied. Fe0/H2O2/US and Fe0/H2O2/UV processes were carried out in a 2 L reactor filled with a 1 L sample. The source of ultrasound was SONIC-5 (Polsonic, Warszawa, Poland). The ultrasound’s power was 2 × 320 W at 40 kHz. Medium pressure Fe/Co 400W HPA 400/30 SDC (Philips, Amsterdam, The Netherlands) lamp with 94W UVA power was used as a source of UV radiation.

2.3. Analytical Methods

Total organic carbon (TOC) was determined according to the EN 1484:1999 standard with a TOC-L analyzer (Shimadzu, Kyoto, Japan) with an OCT-L8-port sampler (Shimadzu, Kyoto, Japan). The combustion temperature was set to 680 °C. COD, Total Kjeldahl Nitrogen (TKN), ammonia, and BOD5 concentrations were determined according to the standard methods.

2.4. Statistical Analysis

IBM SPSS 23.0 Statistic software (Armonk, NJ, US) was used to analyze the collaboration between the factors of the experiments. Correlation, linear regression, and optimal scaling tests were used to analyze the factors’ significance.

2.5. Fe0/H2O2 Process Kinetics Calculation

The following equations were used to describe the kinetics of the Fe0/H2O2 process after acidification and coagulation:
(1) pseudo-first-order reaction with respect to the TOC value:
d[TOC]/dt = −k1·[TOC],
(2) pseudo-second-order reaction with respect to the TOC value:
d[TOC]/dt = −k2·[TOC]2,
(3) empirical equation that takes into account other factors that influence TOC changes:
d[TOC]/dt = −a·[TOC]·tm,
where ‘t’ corresponds to time, and ‘a’ and ‘m’ are constants that depend on the initial reagent concentrations.

3. Results

3.1. Raw Landfill Leachate Characteristics

The raw LL parameters are presented in Table 1. Raw LL were characterized by high salinity and content of organic compounds. They had a deep black color and a characteristic smell. The amount of total suspended solids (TSS) was small. TOC and COD values determined in raw and filtered through 0.7 µm glass filter were similar to nonfiltered ones.

3.2. Pretreatment

Three methods were preselected for LL pretreatment: acidification to pH 3.0 and coagulation with FeCl3at different pH values of 6.0 and 9.0. The obtained results from acidification and coagulation at pH 6.0 and 9.0 are presented in Table 2. The evolution and the color decrease of LL during the treatment are shown in Figure 1.

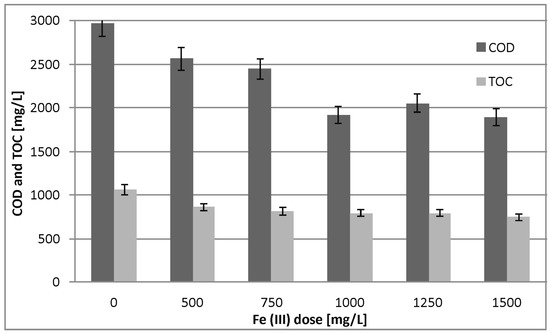

The COD and TOC removal for FeCl3 coagulation at pH 6.0 and 9.0 is shown at Figure 2 and Figure 3, respectively.
The Fe3+ doses applied for coagulation were high, but similar to the ones applied for other types of highly loaded wastewater. In the case of acidification, only a small amount of sludge was produced (c.a. 50 mL/L). We assume that sludge produced in acidification is mostly organic and related to the low dissociation of humic acids in low pH regions. In coagulation, the sludge volume was, as expected, related to the coagulant dose. In the case of coagulation at pH 6.0, for the minimal 500 mg/L coagulant dose, after 30 min of sedimentation, the sludge volume was 200 mL/L, and it increased up to 350 mL/L for the 1500 mg/L dose. In case of pH 9.0, the sludge volume was c.a. 50 mL/L higher for the same coagulant dose. The flocs that formed at pH 6.0 were much bigger than those that formed at pH 9.0.
Pretreatment requires pH adjustment. Acidification to pH 3.0 requires acid usage, while coagulation, as a result of a decrease in pH though coagulant hydrolysis, requires the base to increase pH to 6.0 or 9.0. It has to be taken into account that, of course, salinity is increasing, but when we compare this with the initial salinity, expressed in terms of conductivity (11.08 mS/cm), it is not very important. A much higher degree of salinity is introduced as a result of coagulant usage. Taking into account the FeCl3 structure and molar mass, it could be concluded that 1000 mg Fe3+/L introduces c.a. 2000 mg Cl−/L. Such a chloride content is serious and unsolved in this article.
For both coagulation pHs, a dose of 1000 mg/L Fe3+ could be considered optimal. However, the treatment effect at pH 6.0 was much better in comparison with that at pH 9.0. The TOC and COD removal during the coagulation at pH 6.0 were shown to be dose sensitive, increasing with the dose of coagulant used. A noticeable increase in the effect of treatment was observed until the optimal dose was reached. However, after it was exceeded, a slight deterioration of the effect was observed. Similar observations were shown for the color and turbidity of the sample (data not shown). For the coagulation application at pH 9.0, similar relationships were not observed. Significantly smaller differences in the obtained TOC values as well as in the color and turbidity were observed. In the case of coagulation at pH 9.0, the optimal dose was chosen primarily based on the COD removal and the need for the lowest coagulant usage.
All three pretreatment methods were more effective in BOD5 in comparison with COD or TOC removal. Therefore, as a result of pretreatment, the LL susceptibility to biological treatment decreased, despite the fact that a smaller pollutant load needed to be removed.
The highest but still low efficiency of ammonium compound removal and therefore TKN removal (Table 2) was obtained by using coagulation at pH 9.0. This is understandable due to the higher volatility of ammonia under alkaline conditions. No significant differences between acidification and coagulation at pH 6.0 were observed in nitrogen compound removal, but coagulation provided a slightly better effect.

3.3. Fe0/H2O2 Process

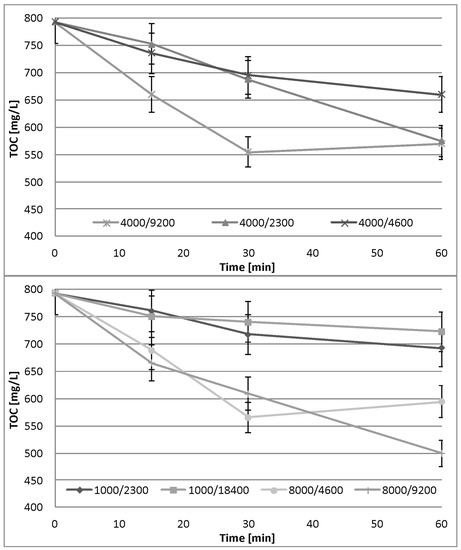

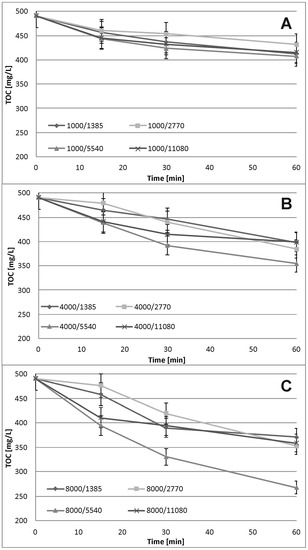

The results of TOC removal during the Fe0/H2O2 process after acidification at pH 3.0 and coagulation at pH 6.0 are shown at Figure 4 and Figure 5, respectively. In both cases, after acidification at pH 3.0 and coagulation at pH 6.0, the Fe0/H2O2 process allowed effective TOC removal.
The efficiency of the Fe0/H2O2 process after acidification increased with the reagent dose. The best efficiency was obtained for an Fe0/H2O2 reagent dose ratio of 8000/9200 mg/L, which removed 294 mg/L to give a final value of 499 mg/L. That achieves a total TOC removal of 53% by the acidification process followed by the Fe0/H2O2 process. The TOC removal over time was almost linear, except for two of the doses—8000/4600 and 4000/9200 mg/L. For them, after 60 min, the treatment effect deteriorated.
Increasing the doses of the reagents during the Fe0/H2O2 process after coagulation at pH 6.0 increases the effectiveness of the process. All in all, increasing the dose of H2O2 to 18,400 mg/L caused deterioration in the treatment effect in comparison with the lower dose. Further increasing the iron dose resulted in the necessity of increasing the agitator power to prevent solid iron sedimentation. These observations were confirmed during the experimental process after coagulation at pH 6.0. In this process, TOC removal was also linear over time. The efficiency of the process also increased with the iron dose. However, in Fe0/H2O2, it can be seen that increasing the Fe0 dose from 4 to 8 g led to only a slight increase in the treatment efficiency, especially for a COD/H2O2 ratio other than 1:4. For all iron doses, a COD/H2O2 ratio of 1:4 provided the best treatment effects. Because of this, 8000/5540 mg/L Fe0/H2O2 reagent doses could be considered optimal, providing a TOC decrease to 268 mg/L after 60 min. That allows a total TOC removal of 75% after the coagulation processes at pH 6.0 followed by the Fe0/H2O2 process. Based on the results, it can be expected that extending the treatment time would increase the efficiency of the treatment process.
As a result of the Fe0/H2O2 process, not only TOC was removed. After coagulation followed by the Fe0/H2O2 process at optimal reagent doses of 8000/5540 mg/L, COD and BOD5 reached 755 and 327 mg/L, respectively. The BOD5/COD ratio—a factor that determines biodegradability—increased to 0.433, allowing LL to be considered biodegradable. Also, humic and other compounds with complex structures, as a result of the radical oxidation process, were oxidized to simpler compounds that could more easily undergo processes of biodegradation.
TNK removal was not effective. After the optimal reagent dose was applied, TKN decreased to 987 mg/L (28.8 % removal). However, leachates, even after the initial treatment, must be subjected to biological treatment.

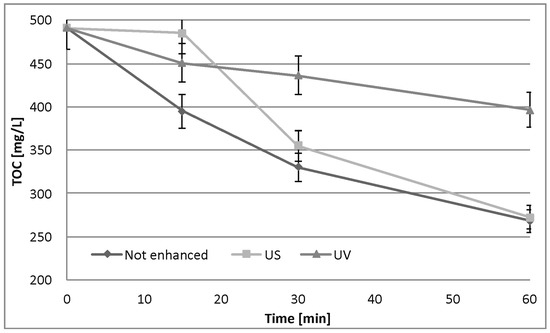

An attempt was made to increase the efficiency of the Fe0/H2O2 process by supporting it with ultrasound and UV radiation. The results of the enhanced processes are shown at Figure 6. It was observed that both of the enhancements provided process efficiency deterioration.

3.4. Statistical Analysis

A statistical analysis was done for the Fe0/H2O2 process. The correlation results between the factors (Table S1) are summarized in Table 3.
The linear regression results are summarized in Table 4. Based on the linear regression coefficients, the TOC concentration can be expressed as (4) and (5) for Fe0/H2O2 process after acidification at pH 3.0 and after coagulation at pH 6.0, respectively.
Y(TOC) = 827.545 − 2.798 × Time − 12.028 × Iron mass,
Y(TOC) = 511.879 − 1.810 × Time − 2.122 × Mass ratio − 5.386× Iron mass
In order to find the importance for each factor on TOC concentration, the optimal scaling test was applied. The importance percentages for each parameter after acidification were 51.5%, 43.8%, and 4.7% for time, iron mass, and the mass ratio, respectively (Table S2). These percentages also confirm that the mass ratio could be excluded from the model. The time, iron mass and mass ratio importance percentages after coagulation were 62.5%, 22.5%, and 14.9%, respectively (Table S3). It can be recognized that the importance arrangement is similar to that of the acidification one.
The description and model developed describes this unique sample only. The statistical model allows some important parameters to be predicted, for example, which parameters are important and sensitive for wastewater parameter changes and which are not. What is surprising, in the case of this leachate sample, is that not all parameters that should be important from a chemical or, in another words, “technological” point of view, are important from a statistical point of view.

3.5. Fe0/H2O2 Process Kinetics

Usually Fe0/H2O2 process kinetics is described as first-order or second-order [49,50]. This approach was not successful in the case of pretreated landfill leachates. Application of the first- and second-order reaction equations resulted in low correlation coefficients (data not shown). Much better correlation coefficients were obtained using the empirical model (10), as shown in Table 5 and Table 6.
The rate of the Fe0/H2O2 process is much more difficult to describe, as metallic iron dissolution, chemical oxidation, coprecipitation and coagulation affect the overall treatment efficiency. Each of these processes is at least partially independent of the others, and they are sometimes contradictory. This sometimes results in a decrease in the effectiveness of the process over time and deterioration of the correlation parameters. This can clearly be seen for high reagent doses in the process after acidification (Table 5 and Figure 6).

4. Discussion

4.1. Raw Landfill Leachate Characteristics

The analyzed samples have similar characteristics to others collected from Polish landfills [17,49,51,52].

4.2. Pretreatment

The acidification efficiency is strongly pH-dependent. Based on the literature review, it was determined that the highest was at pH 2.0 and this decreased with an increasing pH [49]. As a result of acidification, the dissociation of humic acids is reversed, decreasing their solubility. As a result, they are removed from the leachate in the form of a precipitate [17].
Acidification to pH 3.0 was chosen as a compromise between the efficiency of the process, the necessity of using a large amount of acid, and the convenience of further treatment processes (no need for pH adjustment). It was observed that during sedimentation, the sediment particles enlarged. The advantage of this pretreatment method is simplicity; there is no need to use expensive reagents and complicated processes. It occurs exactly at this pH which is optimal for the Fe0/H2O2 process. The disadvantage of the process is the sludge formation and considerable time consumption—24 h is required for sedimentation.
The mechanism of FeCl3 coagulation varies depending on the pH of the process. It is assumed that at pH 6.0, the neutralization of colloid charge prevails, while at pH 9.0, an important mechanism is adsorption on the created hydroxide surface.
It could be also concluded that the effect of using acidification is comparable to coagulation at pH 9.0. Comparing all the three pretreatment methods, it could be concluded that coagulation at pH 6.0 was the best method, in terms of organic compounds removal.
The coagulation process is more complicated than acidification; it requires more reagents. On the other hand, the sedimentation time for coagulation is much shorter than in the case of acidification.
Based on pretreatment results, two processes were chosen to be used before the Fe0/H2O2 processes. Coagulation at pH 6.0 was chosen, because of the best treatment effects in terms of organics removal. Also, acidification was chosen, because of its simplicity and the lack of need for further pH adjustment. Coagulation at pH 9.0 was eliminated because of two reasons. The first one was the complication with the pH adjustment: from 7.65 to 9.0, then finally to 3.0. That caused acid/base reagent consumption and an additional salinity increase. The second one was the similar treatment effect to acidification at pH 3.0. The results obtained are in good agreement with the available literature [9,39,52].

4.3. Fe0/H2O2 Process

As a result of hydrogen peroxide decomposition, oxygen bubbles broke up the created flocks, hindering sedimentation. Part of the flocks were disintegrated and permanently suspended in the solution. A similar effect but on a smaller scale was observed in all experiments using large doses of hydrogen peroxide. In the LL, after the process, there was a large excess of unreacted hydrogen peroxide (not determined in the experiment). However, decreasing the dose to reduce the hydrogen peroxide excess resulted in deterioration in the treatment effectiveness.
Due to the high BOD5/COD ratio, it can be assumed that effective removal of organic and nitrogen compounds will be possible [34,37,38]. Also, other studies suggest that advanced oxidation usage increases biodegradability [14,17]. Coagulation with FeCl3 at pH 6.0, coupled with the Fe0/H2O2 process, proved to have similar efficiency to other processes tested in the available literature, including electrochemical [11,20,36] and advanced oxidation [15,16,17,19,21,25] treatments.
Although it is generally agreed, that a highly saline matrix generates a radical scavenging effect, it also has been proven that the Fe0/H2O2 process is effective for such a matrix. This has been assessed not only for LL, but also for flue gas desulfurization [48], pharmaceutic [53] wastewater, and hydraulic fracturing flow back fluid [54].
For the Fe0/H2O2 process supported with ultrasound and UV radiation, the obtained results contrast with those of Chen et al. [10], who proved that microwave or heat application enhances the efficiency of the Fe0/H2O2 process. Heating and microwaves accelerate the thermal motion of molecules and, as a consequence, the Fenton reaction rate increases to some extent. When UV and US were applied, an increase in temperature was not observed. The obtained results also contrast with process improvement concepts—UV and US should strengthen the mechanisms of radical generation [55]. In the case of UV usage, the treatment result increased with the iron dose, but it was weaker without UV radiation. This could be may be associated with the formation of stable complexes that bind iron ions under the influence of light. A similar effect was observed in the case of US application. As it was impossible to magnetically stir the US samples, mechanical stirring with the same stirring speed was applied. Changing the stirring method from magnetic into a mechanic one could result in a decrease in process efficiency because of the paramagnetic properties of oxygen. Under the magnetic stirrer, the magnetic field increased the treatment efficiency [56,57]. It was also proved that radical generation is higher in oxic conditions [50], with a bigger amount of dissolved oxygen [58], or with more intensive stirring [53]. The presented reasons for decreasing the efficiency of the conducted process are only hypotheses, not confirmed speculations, and require further confirmation. Based on the obtained results, it could be concluded that process enhancements with UV and US are not recommended, as they do not provide treatment efficiency, and only cause increased complications and costs of the process.

4.4. Statistical Analysis

TOC is strongly correlated to the time and iron mass. The mass ratio–TOC correlation is very weak. Moreover, it is noticeable that the correlation between the independent factors is not significant. The interaction between the independent factor will not affect the TOC regression. Because of this, it was confirmed that there is no need for application of a more complex model than linear regression.
It can be seen (Table 4) that the R2 values for the two models are high, and the models are well fitted to the data. In the Fe0/H2O2 process after acidification at pH 3.0, the mass ratio significance was 0.855, which higher than 5%. So, it was excluded from the model.
It can be concluded that the most important factor for the Fe0/H2O2 process is time. This can also be confirmed from the high negative correlation between the time and the TOC concentration, even though it can be seen from Equations (4) and (5) that the highest removal can be due to an increase in iron mass. This is due to the unit step difference between the time and iron mass. The time was duplicated while the iron mass amount was four time more for each step.

4.5. Possibility of Practical Application of The Process and Cost Consideration

The Fenton process and its modifications have been known for a very long time, but they have mainly been tested on the laboratory scale and sometimes in pilot studies. There are very few installations operating on an industrial scale, especially when compared to installations using conventional technologies such as coagulation or activated sludge. To our knowledge, in Poland, there are only a few Fenton process installations at the full technical scale, and they are very young, not older than 10 years. The studied processes are not conventional for wastewater treatment. Typical analyzed coasts are related to electricity and reagent consumption [59]. It is described in scientific articles, not as a practical implementation. As is well known, costs change according to plant size, type of reagents, energy demand, etc. For each country, the legal regulations are different, as are labor or investment costs. Because of this, it is hard to predict the total treatment costs.
Another challenge that need to be solved is the transfer from the laboratory scale into the industrial one, which most likely decreases the process effectiveness. As a coagulation reactor, leachate storage tanks could be used. The tanks for sedimentation, the Fe0/H2O2 process, and final sedimentation also need to be built. Usually, landfills have enough space and the possibility for their construction.
Some costs will be generated by the reagents, but the reagents used for coagulation and pH adjustment are cheap and readily available. In the case of metallic iron, it does not have to be used in the form of chemically pure metal. Metallurgical waste or steel shots could be used to decrease costs. After the Fe0/H2O2 process, residual solid catalyst could be reused. The material can be separated from treated LL in two ways: electromagnetically or through sedimentation.
Now, AOPs are more expensive than conventional treatment. Because of their high predicted installation costs in Poland for current legal regulations regarding labor and investment costs, unfortunately, we can see no chance for this research to have practical implementation.

5. Conclusions

The use of a combined treatment process including coagulation with an iron-based coagulant or acidification followed by the Fe0/H2O2 process was shown to be an effective landfill leachate treatment. Coagulation is more effective than acidification, allowing larger pollutant load removal and decreasing the reagent doses used in the Fe0/H2O2 process. Pretreatment efficiency: coagulation at pH 6.0 >> coagulation at pH 9.0 > acidification at pH 3.0. The Fe0/H2O2 process was more effective after coagulation at pH 6.0 than with the one after acidification at pH 3.0. It was observed that increasing the reagent doses increased treatment efficiency. However, further increasing the doses of reagents is economically unjustified. Under optimal conditions, after coagulation with FeCl3 at an Fe3+ dose of 1000 mg/L, the Fe0/H2O2 process with Fe0/H2O2 reagent doses of 8000/5540 mg/L decreased TOC from 1061 to 268 mg/L (75% TOC removal) after a process time of 60 min. Furthermore, its susceptibility to biodegradation, expressed as the BOD5/COD ratio, increased. Under optimal conditions, this parameter reached 0.43, from an initial value of 0.13, allowing leachates to be considered to be susceptible to biodegradation. As a result of the oxidation step during the Fe0/H2O2 process, persistent compounds were transformed to more vulnerable ones. The kinetics of the Fe0/H2O2 process is complicated. A simple approach assuming first- or second-order kinetics was not effective. The Fe0/H2O2 process kinetics was successfully described with the empirical equation d[TOC]/dt = −a·[TOC]·tm, where ‘t’ corresponds to time and ‘a’ and ‘m’ are constants that depend on the initial reagent concentrations.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4441/11/2/194/s1, Table S1. The factors of the different performed experiments, Table S2. Correlations and Tolerance after acidification, Dependent Variable: TOC, Table S3. Correlations and Tolerance for coagulation, Dependent Variable: TOC.

Author Contributions

Author contributions are as follows. Conceptualization and Methodology: J.B. and P.M.; Laboratory Work: All Authors; Writing and Original Draft Preparation: All Authors. Statistical Analysis: B.E.-K.

Funding

This research received no external funding.

Acknowledgments

The authors thank Hepure for providing ZVI Ferox Target samples as research material.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Eurostat. Municipal Waste Statistics. Available online: https://ec.europa.eu/eurostat/statistics-explained/index.php/Municipal_waste_statistics (accessed on 15 December 2018).
  2. Augusto, P.A.; Castelo-Grande, T.; Merchan, L.; Estevez, A.M.; Quintero, X.; Barbosa, D. Landfill Leachate Treatment by Sorption in Magnetic Particles: Preliminary Study. Sci. Total Environ. 2019, 648, 636–668. [Google Scholar] [CrossRef] [PubMed]
  3. Qi, C.; Huang, J.; Wang, B.; Deng, S.; Wang, Y.; Yu, G. Contaminants of Emerging Concern in Landfill Leachate in China: A Review. Emerg. Contam. 2018. [Google Scholar] [CrossRef]
  4. Martins, R.C.; Lopes, D.V.; Quina, M.J.; Quinta-Ferreira, R.M. Treatment Improvement of Urban Landfill Leachates by Fenton-like Process Using ZVI. Chem. Eng. J. 2012, 192, 219–225. [Google Scholar] [CrossRef]
  5. Bhatt, A.H.; Karanjekar, R.V.; Altouqi, S.; Sattler, M.L.; Hossain, M.D.S.; Chen, V.P. Estimating Landfill Leachate BOD and COD Based on Rainfall, Ambient Temperature, and Waste Composition: Exploration of a MARS Statistical Approach. Environ. Technol. Innov. 2017, 8, 1–16. [Google Scholar] [CrossRef]
  6. Moody, C.M.; Townsend, T.G. A Comparison of Landfill Leachates Based on Waste Composition. Waste Manag. 2017, 63, 267–274. [Google Scholar] [CrossRef] [PubMed]
  7. Zhao, R.; Gupta, A.; Novak, J.T.; Goldsmith, C.D. Evolution of Nitrogen Species in Landfill Leachates under Various Stabilization States. Waste Manag. 2017, 69, 225–231. [Google Scholar] [CrossRef] [PubMed]
  8. Mohammad-pajooh, E.; Turcios, A.E.; Cuff, G.; Weichgrebe, D.; Rosenwinkel, K.H.; Vedenyapina, M.D.; Sharifullina, L.R. Removal of Inert COD and Trace Metals from Stabilized Landfill Leachate by Granular Activated Carbon (GAC) Adsorption. J. Environ. Manag. 2018, 228, 189–196. [Google Scholar] [CrossRef]
  9. Bilardi, S.; Calabrò, P.S.; Rosa, G.; Moraci, N. Selective Removal of Heavy Metals from Landfill Leachate by Reactive Granular Filters. Sci. Total Environ. 2018, 644, 335–341. [Google Scholar] [CrossRef]
  10. Chen, W.; Zhang, A.; Gu, Z.; Li, Q. Enhanced Degradation of Refractory Organics in Concentrated Landfill Leachate by Fe0/H2O2coupled with Microwave Irradiation. Chem. Eng. J. 2018, 354, 680–691. [Google Scholar] [CrossRef]
  11. Wang, Z.; Li, J.; Tan, W.; Wu, X.; Lin, H.; Zhang, H. Removal of COD from Landfill Leachate by Advanced Fenton Process Combined with Electrolysis. Sep. Purif. Technol. 2018, 208, 3–11. [Google Scholar] [CrossRef]
  12. Guo, R.; Meng, Q.; Zhang, H.; Zhang, X.; Li, B.; Cheng, Q.; Cheng, X. Construction of Fe2O3/Co3O4/Exfoliated Graphite Composite and Its High Efficient Treatment of Landfill Leachate by Activation of Potassium Persulfate. Chem. Eng. J. 2019, 355, 952–962. [Google Scholar] [CrossRef]
  13. Soubh, A.M.; Baghdadi, M.; Abdoli, M.A.; Aminzadeh, B. Zero-Valent Iron Nanofibers (ZVINFs) Immobilized on the Surface of Reduced Ultra-Large Graphene Oxide (RULGO) as a Persulfate Activator for Treatment of Landfill Leachate. J. Environ. Chem. Eng. 2018, 6, 6568–6579. [Google Scholar] [CrossRef]
  14. Da Costa, F.M.; Daflon, S.D.A.; Bila, D.M.; da Fonseca, F.V.; Campos, J.C. Evaluation of the Biodegradability and Toxicity of Landfill Leachates after Pretreatment Using Advanced Oxidative Processes. Waste Manag. 2018, 76, 606–613. [Google Scholar] [CrossRef] [PubMed]
  15. Nakhate, P.H.; Patil, H.G.; Marathe, K.V. Intensification of Landfill Leachate Treatment by Advanced Fenton Process Using Classical and Statistical Approach. Chem. Eng. Process. Process Intensif. 2018, 133, 148–159. [Google Scholar] [CrossRef]
  16. Silveira, J.E.; Zazo, J.A.; Pliego, G.; Casas, J.A. Landfill Leachate Treatment by Sequential Combination of Activated Persulfate and Fenton Oxidation. Waste Manag. 2018, 81, 220–225. [Google Scholar] [CrossRef] [PubMed]
  17. Naumczyk, J.; Prokurat, I.; Marcinowski, P. Landfill Leachates Treatment by H2O2/UV, O3/H2O2, Modified Fenton, and Modified Photo-Fenton Methods. Int. J. Photoenergy 2012, 2012. [Google Scholar] [CrossRef]
  18. Baiju, A.; Gandhimathi, R.; Ramesh, S.T.; Nidheesh, P.V. Combined Heterogeneous Electro-Fenton and Biological Process for the Treatment of Stabilized Landfill Leachate. J. Environ. Manag. 2018, 210, 328–337. [Google Scholar] [CrossRef]
  19. Sruthi, T.; Gandhimathi, R.; Ramesh, S.T.; Nidheesh, P.V. Stabilized Landfill Leachate Treatment Using Heterogeneous Fenton and Electro-Fenton Processes. Chemosphere 2018, 210, 38–43. [Google Scholar] [CrossRef]
  20. Cui, Y.H.; Xue, W.J.; Yang, S.Q.; Tu, J.L.; Guo, X.L.; Liu, Z.Q. Electrochemical/Peroxydisulfate/Fe3+ treatment of Landfill Leachate Nanofiltration Concentrate after Ultrafiltration. Chem. Eng. J. 2018, 353, 208–217. [Google Scholar] [CrossRef]
  21. Dia, O.; Drogui, P.; Buelna, G.; Dubé, R. Hybrid Process, Electrocoagulation-Biofiltration for Landfill Leachate Treatment. Waste Manag. 2018, 75, 391–399. [Google Scholar] [CrossRef]
  22. Huda, N.; Raman, A.A.A.; Bello, M.M.; Ramesh, S. Electrocoagulation Treatment of Raw Landfill Leachate Using Iron-Based Electrodes: Effects of Process Parameters and Optimization. J. Environ. Manag. 2017, 204, 75–81. [Google Scholar] [CrossRef] [PubMed]
  23. Klauck, C.R.; Giacobbo, A.; Altenhofen, C.G.; Silva, L.B.; Meneguzzi, A.; Bernardes, A.M.; Rodrigues, M.A.S. Toxicity Elimination of Landfill Leachate by Hybrid Processing of Advanced Oxidation Process and Adsorption. Environ. Technol. Innov. 2017, 8, 246–255. [Google Scholar] [CrossRef]
  24. Zhang, W.; Li, X.; Yang, Q.; Wang, D.; Wu, Y.; Zhu, X.; Wei, J.; Liu, Y.; Hou, L.; Chen, C. Pretreatment of Landfill Leachate in Near-Neutral PH Condition by Persulfate Activated Fe-C Micro-Electrolysis System. Chemosphere 2019, 216, 749–756. [Google Scholar] [CrossRef] [PubMed]
  25. Poblete, R.; Oller, I.; Maldonado, M.I.; Cortes, E. Improved Landfill Leachate Quality Using Ozone, UV Solar Radiation, Hydrogen Peroxide, Persulfate and Adsorption Processes. J. Environ. Manag. 2019, 232, 45–51. [Google Scholar] [CrossRef] [PubMed]
  26. Xu, Q.; Siracusa, G.; Di Gregorio, S.; Yuan, Q. COD Removal from Biologically Stabilized Landfill Leachate Using Advanced Oxidation Processes (AOPs). Process Saf. Environ. Prot. 2018, 120, 278–285. [Google Scholar] [CrossRef]
  27. Nazimudheen, G.; Roy, K.; Sivasankar, T.; Moholkar, V.S. Mechanistic Investigations in Ultrasonic Pretreatment and Anaerobic Digestion of Landfill Leachates. J. Environ. Chem. Eng. 2018, 6, 1690–1701. [Google Scholar] [CrossRef]
  28. Saleem, M.; Spagni, A.; Alibardi, L.; Bertucco, A.; Lavagnolo, M.C. Assessment of Dynamic Membrane Filtration for Biological Treatment of Old Landfill Leachate. J. Environ. Manag. 2018, 213, 27–35. [Google Scholar] [CrossRef]
  29. Montusiewicz, A.; Bis, M.; Pasieczna-Patkowska, S.; Majerek, D. Mature Landfill Leachate Utilization Using a Cost-Effective Hybrid Method. Waste Manag. 2018, 76, 652–662. [Google Scholar] [CrossRef]
  30. Chang, H.; Quan, X.; Zhong, N.; Zhang, Z.; Lu, C.; Li, G.; Cheng, Z.; Yang, L. High-Efficiency Nutrients Reclamation from Landfill Leachate by Microalgae Chlorella Vulgaris in Membrane Photobioreactor for Bio-Lipid Production. Bioresour. Technol. 2018, 266, 374–381. [Google Scholar] [CrossRef]
  31. Guan, Y.; Zhou, J.; Fu, X.; Zhao, Y.; Luo, A.; Xu, J.; Fu, J.; Zhao, D. Effects of Long-Lasting Nitrogen and Organic Shock Loadings on an Engineered Biofilter Treating Matured Landfill Leachate. J. Hazard. Mater. 2018, 360, 536–543. [Google Scholar] [CrossRef]
  32. Scandelai, A.P.J.; Cardozo Filho, L.; Martins, D.C.C.; Freitas, T.K.F.D.S.; Garcia, J.C.; Tavares, C.R.G. Combined Processes of Ozonation and Supercritical Water Oxidation for Landfill Leachate Degradation. Waste Manag. 2018, 77, 466–476. [Google Scholar] [CrossRef] [PubMed]
  33. Fan, Z.; Qin, L.; Zheng, W.; Meng, Q.; Shen, C.; Zhang, G. Oscillating Membrane Photoreactor Combined with Salt-Tolerated Chlorella Pyrenoidosa for Landfill Leachates Treatment. Bioresour. Technol. 2018, 269, 134–142. [Google Scholar] [CrossRef] [PubMed]
  34. Peng, W.; Pivato, A.; Lavagnolo, M.C.; Raga, R. Digestate Application in Landfill Bioreactors to Remove Nitrogen of Old Landfill Leachate. Waste Manag. 2018, 74, 335–346. [Google Scholar] [CrossRef] [PubMed]
  35. Saleem, M.; Lavagnolo, M.C.; Campanaro, S.; Squartini, A. Dynamic Membrane Bioreactor (DMBR) for the Treatment of Landfill Leachate; Bioreactor’s Performance and Metagenomic Insights into Microbial Community Evolution. Environ. Pollut. 2018, 243, 326–335. [Google Scholar] [CrossRef]
  36. Wang, D.; Hou, H.; Hu, J.; Xu, J.; Huang, L.; Hu, S.; Liang, S.; Xiao, K.; Liu, B.; Yang, J. A Bio-Electro-Fenton System with a Facile Anti-Biofouling Air Cathode for Efficient Degradation of Landfill Leachate. Chemosphere 2019, 215, 173–181. [Google Scholar] [CrossRef] [PubMed]
  37. Wu, L.; Li, Z.; Zhao, C.; Liang, D.; Peng, Y. A Novel Partial-Denitrification Strategy for Post-Anammox to Effectively Remove Nitrogen from Landfill Leachate. Sci. Total Environ. 2018, 633, 745–751. [Google Scholar] [CrossRef] [PubMed]
  38. Xiong, J.; Zheng, Z.; Yang, X.; He, J.; Luo, X.; Gao, B. Mature Landfill Leachate Treatment by the MBBR Inoculated with Biocarriers from a Municipal Wastewater Treatment Plant. Process Saf. Environ. Prot. 2018, 119, 304–310. [Google Scholar] [CrossRef]
  39. Yong, Z.J.; Bashir, M.J.K.; Ng, C.A.; Sethupathi, S.; Lim, J.W. A Sequential Treatment of Intermediate Tropical Landfill Leachate Using a Sequencing Batch Reactor (SBR) and Coagulation. J. Environ. Manag. 2018, 205, 244–252. [Google Scholar] [CrossRef]
  40. Costa, A.M.; Alfaia, R.G.D.S.M.; Campos, J.C. Landfill Leachate Treatment in Brazil—An Overview. J. Environ. Manag. 2019, 232, 110–116. [Google Scholar] [CrossRef]
  41. Fernandes, A.; Pacheco, M.J.; Ciríaco, L.; Lopes, A. Review on the Electrochemical Processes for the Treatment of Sanitary Landfill Leachates: Present and Future. Appl. Catal. B Environ. 2015, 176–177, 183–200. [Google Scholar] [CrossRef]
  42. Ghosh, P.; Thakur, I.S.; Kaushik, A. Bioassays for Toxicological Risk Assessment of Landfill Leachate: A Review. Ecotoxicol. Environ. Saf. 2017, 141, 259–270. [Google Scholar] [CrossRef] [PubMed]
  43. Mandal, P.; Dubey, B.K.; Gupta, A.K. Review on Landfill Leachate Treatment by Electrochemical Oxidation: Drawbacks, Challenges and Future Scope. Waste Manag. 2017, 69, 250–273. [Google Scholar] [CrossRef] [PubMed]
  44. Tripathy, B.K.; Kumar, M. Suitability of Microwave and Microwave-Coupled Systems for Landfill Leachate Treatment: An Overview. J. Environ. Chem. Eng. 2017, 5, 6165–6178. [Google Scholar] [CrossRef]
  45. Vodyanitskii, Y.N. Biochemical Processes in Soil and Groundwater Contaminated by Leachates from Municipal Landfills (Mini Review). Ann. Agrar. Sci. 2016, 14, 249–256. [Google Scholar] [CrossRef]
  46. Peng, Y. Perspectives on Technology for Landfill Leachate Treatment. Arab. J. Chem. 2017, 10, S2567–S2574. [Google Scholar] [CrossRef]
  47. Ertugay, N.; Kocakaplan, N.; Malkoç, E. Investigation of PH Effect by Fenton-like Oxidation with ZVI in Treatment of the Landfill Leachate. Int. J. Min.Reclam. Environ. 2017, 31, 404–411. [Google Scholar] [CrossRef]
  48. Bogacki, J.; Marcinowski, P.; Majewski, M.; Zawadzki, J.; Sivakumar, S. Alternative Approach to Current EU BAT Recommendation for Coal-Fired Power Plant Flue Gas Desulfurization Wastewater Treatment. Processes 2018, 6, 229. [Google Scholar] [CrossRef]
  49. Krzysztoszek, A.; Naumczyk, J. Landfill Leachate Treatment by Fenton, Photo-Fenton Processes and Their Modification. J. Adv. Oxid. Technol. 2012, 15, 53–63. [Google Scholar] [CrossRef]
  50. Harada, T.; Yatagai, T.; Kawase, Y. Hydroxyl Radical Generation Linked with Iron Dissolution and Dissolved Oxygen Consumption in Zero-Valent Iron Wastewater Treatment Process. Chem. Eng. J. 2016, 303, 611–620. [Google Scholar] [CrossRef]
  51. Dmochowski, D.; Dmochowska, A. Analiza Chromatograficzna Związków Chemicznych w Odciekach ze Składowiska Odpadów Komunalnych Poddawanych Elektroutlenianiu. Rocz. Ochr. Sr. 2015, 17, 1196–1206. [Google Scholar]
  52. Dmochowska, A.; Dmochowski, D. Zawartośćsubstancjinieorganicznychorazzanieczyszczeńorganicznych w odciekach ze składowiska odpadów komunalnych w Łubnej. Pol. Przegląd Med. Psychol. Lotniczej 2011, 17, 371–380. [Google Scholar]
  53. Segura, Y.; Martínez, F.; Melero, J.A.; Fierro, J.L.G. Zero Valent Iron (ZVI) Mediated Fenton Degradation of Industrial Wastewater: Treatment Performance and Characterization of Final Composites. Chem. Eng. J. 2015, 269, 298–305. [Google Scholar] [CrossRef]
  54. Marcinowski, P.; Zapałowska, E.; Maksymiec, J.; Naumczyk, J.; Bogacki, J. Hydraulic Fracturing Flow-Back Fluid Treatment by ZVI/H2O2 Process. Des. Water Treat. 2018, 129, 177–184. [Google Scholar] [CrossRef]
  55. Bagal, M.V.; Gogate, P.R. Wastewater Treatment Using Hybrid Treatment Schemes Based on Cavitation and Fenton Chemistry: A Review. Ultrason. Sonochem. 2014, 21, 1–14. [Google Scholar] [CrossRef] [PubMed]
  56. Bogacki, J.; Marcinowski, P.; Zapałowska, E.; Maksymiec, J.; Naumczyk, J. Cosmetic Wastewater Treatment by the ZVI/H2O2 process. Environ. Technol. 2017, 38, 2589–2600. [Google Scholar] [CrossRef] [PubMed]
  57. Du, J.; Guo, W.; Che, D.; Ren, N. Weak Magnetic Field for Enhanced Oxidation of Sulfamethoxazole by Fe0/H2O2 and Fe0/Persulfate: Performance, Mechanisms, and Degradation Pathways. Chem. Eng. J. 2018, 351, 532–539. [Google Scholar] [CrossRef]
  58. Fujioka, N.; Suzuki, M.; Kurosu, S.; Kawase, Y. Linkage of Iron Elution and Dissolved Oxygen Consumption with Removal of Organic Pollutants by Nanoscale Zero-Valent Iron: Effects of PH on Iron Dissolution and Formation of Iron Oxide/Hydroxide Layer. Chemosphere 2016, 144, 1738–1746. [Google Scholar] [CrossRef]
  59. Abass, O.K.; Zhuo, M.; Zhang, K. Concomitant Degradation of Complex Organics and Metals Recovery from Fracking Wastewater: Roles of Nano Zerovalent Iron Initiated Oxidation and Adsorption. Chem. Eng. J. 2017, 328, 159–171. [Google Scholar] [CrossRef]
Water 11 00194 g001 550

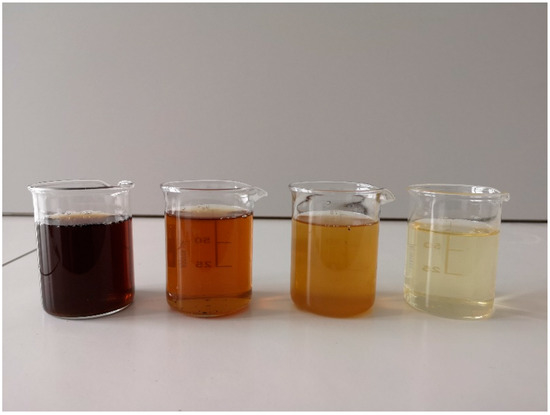

Figure 1. Color evolution of landfill leachates during treatment. From the left: (1) raw leachates; (2) acidified to pH 3.0 after sludge removal; (3) after coagulation with 1000 Fe3+ mg/L at pH 6.0 and sludge removal; and (4) after the Fe0/H2O2 process and sludge removal.
Figure 1. Color evolution of landfill leachates during treatment. From the left: (1) raw leachates; (2) acidified to pH 3.0 after sludge removal; (3) after coagulation with 1000 Fe3+ mg/L at pH 6.0 and sludge removal; and (4) after the Fe0/H2O2 process and sludge removal.
Water 11 00194 g001
Water 11 00194 g002 550

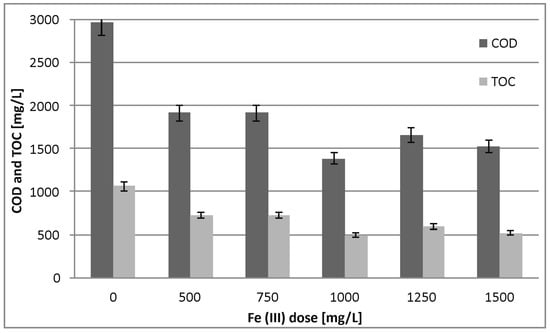

Figure 2. Total organic carbon (TOC) and chemical oxygen demand (COD) removal during coagulation with FeCl3 in pH 6.0 for different coagulant doses.
Figure 2. Total organic carbon (TOC) and chemical oxygen demand (COD) removal during coagulation with FeCl3 in pH 6.0 for different coagulant doses.
Water 11 00194 g002
Water 11 00194 g003 550
Figure 3. TOC and COD removal during coagulation with FeCl3 in pH 9.0 for different coagulant doses.
Figure 3. TOC and COD removal during coagulation with FeCl3 in pH 9.0 for different coagulant doses.
Water 11 00194 g003
Water 11 00194 g004 550
Figure 4. TOC removal during the Fe0/H2O2 process after acidification pretreatment for selected Fe0/H2O2 [mg/L] reagent doses.
Figure 4. TOC removal during the Fe0/H2O2 process after acidification pretreatment for selected Fe0/H2O2 [mg/L] reagent doses.
Water 11 00194 g004
Water 11 00194 g005 550
Figure 5. TOC removal during the Fe0/H2O2 process after coagulation at pH 6.0 as pretreatment for selected Fe0/H2O2 [mg/L] reagent doses.
Figure 5. TOC removal during the Fe0/H2O2 process after coagulation at pH 6.0 as pretreatment for selected Fe0/H2O2 [mg/L] reagent doses.
Water 11 00194 g005
Water 11 00194 g006 550
Figure 6. TOC removal during the enhanced Fe0/H2O2 process after coagulation at pH 6.0 as pretreatment for 8000/5540 mg/L Fe0/H2O2 reagent doses.
Figure 6. TOC removal during the enhanced Fe0/H2O2 process after coagulation at pH 6.0 as pretreatment for 8000/5540 mg/L Fe0/H2O2 reagent doses.
Water 11 00194 g006
Table
Table 1. Raw landfill leachates parameters.
Table 1. Raw landfill leachates parameters.
ParameterUnitValue
pH-7.65
ConductivitymS/cm11.08
TOCmg/L1061
TOCDISmg/L1022
CODmg/L2967
CODDISmg/L2928
BOD5mg/L400
BOD5/TOC-0.377
BOD5/COD-0.135
TKNmg/L1410
Ammoniamg/L1337
TSSmg/L81
Color-Black
Table
Table 2. Landfill leachates pretreatment results.
Table 2. Landfill leachates pretreatment results.
ParameterUnitAcidificationCoagulation at pH 6.0Coagulation at pH 9.0
ValueRemovalValueRemovalValueRemoval
CODmg/L/%228922.9138553.3191535.5
TOCmg/L/%82422.349153.779325.3
BOD5mg/L/%23641.013566.322244.5
BOD5/TOC-0.286-0.275-0.280-
BOD5/COD-0.103-0.097-0.116-
Ammoniamg/L/%12913.412337.8103122.9
TKNmg/L/%13017.7126310.4106224.7
Table
Table 3. Correlation factors for the Fe0/H2O2 process.
Table 3. Correlation factors for the Fe0/H2O2 process.
ParametersAfter Acidification at pH 3.0After Coagulation at pH 6.0
TOCTimeMass RatioIron MassTOCTimeMass RatioIron Mass
Pearson CorrelationTOC1.000−0.7930.060−0.3881.000−0.797−0.113−0.306
Time−0.7901.0000.001−0.009−0.7971.0000.0000.000
Mass ratio0.0600.0011.000−0.200−0.1130.0001.0000.000
Iron mass−0.388−0.009−0.2001.000−0.3060.0000.0001.000
Significance (1-tailed)TOC-0.0000.3850.025-0.0000.2230.017
Time0.000-0.4980.4830.000-0.5000.500
Mass ratio0.3850.498-0.1640.2230.500-0.500
Iron mass0.0250.4830.164-0.0170.5000.500-
Table
Table 4. Regression coefficients for the Fe0/H2O2 process. Dependent variable: TOC.
Table 4. Regression coefficients for the Fe0/H2O2 process. Dependent variable: TOC.
ModelUnstd. Coef.Std. Coef.tSig.RR2
FactorsStd. ErrorBeta
After acidificationConstant827.54517.066-48.4920.000.8860.784
Time−2.7980.340−0.796−8.2200.00
Iron mass−12.0282.948−0.395−4.0800.00
After coagulationConstant511.8799.960-51.3920.000.8610.741
Tıme−1.8100.174−0.797−10.3910.00
Mass ratio−2.1221.442−0.113−1.4720.148
Iron mass−5.3861.348−0.306−3.9950.00
Table
Table 5. Parameters of the empirical kinetic equation for Fe0/H2O2 process after acidification at pH 3.0.
Table 5. Parameters of the empirical kinetic equation for Fe0/H2O2 process after acidification at pH 3.0.
Dose [mg/L]amnKR2
1000/23000.009605−0.3130.6870.0139820.977
1000/184000.009581−0.7200.2800.0342180.952
4000/23000.0101830.0031.0030.0101530.995
4000/46000.016787−0.4960.5040.0333070.999
4000/92000.039705−0.6470.3530.1124780.764
8000/46000.034112−0.5640.4360.0782380.712
8000/92000.037883−0.4760.5240.0722950.951
Table
Table 6. Parameters of the empirical kinetic equation for Fe0/H2O2 process after coagulation with FeCl3 at pH 6.0.
Table 6. Parameters of the empirical kinetic equation for Fe0/H2O2 process after coagulation with FeCl3 at pH 6.0.
Dose [mg/L]amnKR2
1000/13850.016031−0.5230.4770.0336080.993
1000/27700.012431−0.6360.3640.0341500.862
1000/55400.019875−0.6540.3460.0574411.000
1000/110800.017661−0.7040.2960.0596660.978
4000/13850.011541−0.2730.7270.0158750.951
4000/27700.0041560.2801.2800.0032470.998
4000/55400.025883−0.4020.5980.0432830.997
4000/110800.022269−0.6290.3710.0600250.991
8000/13850.016244−0.1780.8220.0197620.930
8000/27700.0047180.3631.3630.0034620.991
8000/55400.049371−0.4330.5670.0870740.998
8000/110800.032128−0.6970.3030.1060340.924

Share and Cite

MDPI and ACS Style

Bogacki, J.; Marcinowski, P.; El-Khozondar, B. Treatment of Landfill Leachates with Combined Acidification/Coagulation and the Fe0/H2O2 Process. Water 2019, 11, 194. https://doi.org/10.3390/w11020194

AMA Style

Bogacki J, Marcinowski P, El-Khozondar B. Treatment of Landfill Leachates with Combined Acidification/Coagulation and the Fe0/H2O2 Process. Water. 2019; 11(2):194. https://doi.org/10.3390/w11020194

Chicago/Turabian Style

Bogacki, Jan, Piotr Marcinowski, and Balkess El-Khozondar. 2019. "Treatment of Landfill Leachates with Combined Acidification/Coagulation and the Fe0/H2O2 Process" Water 11, no. 2: 194. https://doi.org/10.3390/w11020194

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
