# Feasibility of Multi-Year Forecast for the Colorado River Water Supply: Time Series Modeling

^{1}

^{2}

^{3}

^{4}

^{5}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Data and Methodology

#### 2.2. Univariate Time Series Models

#### 2.2.1. ARMA (1, 1)

#### 2.2.2. Sparse AR (19)

#### 2.3. ARMA Models with Exogenous Variables

#### 2.3.1. SARX (19, 1, 0)

#### 2.3.2. ARMAX (19, 1, 2, 0)

#### 2.4. Cross-Validation

#### 2.5. Benchmark Modeling Using the 10-Year Moving-Average Data

- Ten-Year Moving-Average Univariate Model AR (19)The best univariate model chosen for the 10-year moving-average WS is an AR (19) model; this is consistent with the raw-data model in Section 2.2. The fitted model is$$\begin{array}{c}{\tilde{X}}_{t}=-0.1992{\tilde{X}}_{t-1}-0.0514{\tilde{X}}_{t-2}+0.1731{\tilde{X}}_{t-3}+0.0887{\tilde{X}}_{t-4}-0.0282{\tilde{X}}_{t-5}+\hfill \\ 0.0334{\tilde{X}}_{t-6}-0.1966{\tilde{X}}_{t-7}+0.1174{\tilde{X}}_{t-8}-0.0532{\tilde{X}}_{t-9}-0.5161{\tilde{X}}_{t-10}+\hfill \\ 0.1626{\tilde{X}}_{t-11}-0.1017{\tilde{X}}_{t-12}+0.3447{\tilde{X}}_{t-13}+0.0144{\tilde{X}}_{t-14}+0.115{\tilde{X}}_{t-15}-\hfill \\ 0.1354{\tilde{X}}_{t-16}-0.281{\tilde{X}}_{t-17}-0.0375{\tilde{X}}_{t-18}-0.2447{\tilde{X}}_{t-19}+{Z}_{t},\hfill \end{array}$$
- Ten-Year Moving-Average ARMAX (13, 10, 7, 0)One of the ARMAX models chosen had an ARMA (13, 10) base, and it includes 7 GSL elevation lags. The model equation is$$\begin{array}{c}{\tilde{X}}_{t}=-0.0493{\tilde{S}}_{t}+1.772{\tilde{S}}_{t-1}-2.4889{\tilde{S}}_{t-2}+1.1278{\tilde{S}}_{t-3}-0.6349{\tilde{S}}_{t-4}-0.4446{\tilde{S}}_{t-5}\hfill \\ \phantom{\rule{8em}{0ex}}+1.4953{\tilde{S}}_{t-6}-0.7594{\tilde{S}}_{t-7}+0.184{\tilde{X}}_{t-3}+0.2239{\tilde{X}}_{t-13}\hfill \\ \phantom{\rule{8em}{0ex}}-0.6748{Z}_{t-10}+{Z}_{t}\hfill \end{array}$$
- Ten-Year Moving-Average ARMAX (19, 10, 7, 0)The other competitive ARMAX model for the ten-year moving-average WS also included 7 GSL lags and had an ARMA (19, 10) base. The equation is estimated as$$\begin{array}{c}{\tilde{X}}_{t}=-0.0493{\tilde{S}}_{t}+1.7720{\tilde{S}}_{t-1}-2.4889{\tilde{S}}_{t-2}+1.1278{\tilde{S}}_{t-3}-0.6349{\tilde{S}}_{t-4}\hfill \\ \phantom{\rule{8em}{0ex}}-0.4446{\tilde{S}}_{t-5}+1.4953{\tilde{S}}_{t-6}-0.7594{\tilde{S}}_{t-7}+0.1837{\tilde{X}}_{t-3}\hfill \\ \phantom{\rule{8em}{0ex}}+0.2223{\tilde{X}}_{t-13}+0.0153{\tilde{X}}_{t-18}-0.1264{\tilde{X}}_{t-19}-0.6690{Z}_{t-10}+{Z}_{t}\hfill \end{array}$$

## 3. Prediction Results

## 4. Discussion

## 5. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Colorado River Research Group. It’s Hard to Fill a Bathtub when the Drain is Wide Open: The Case of Lake PowellRep; CRRG: Boulder, CO, USA, 2018. [Google Scholar]
- Barnett, T.P.; Pierce, D.W. When will Lake Mead go dry? Water Resour. Res.
**2008**, 44, W03201. [Google Scholar] [CrossRef] - McCabe, G.J.; Wolock, D.M. Warming may create substantial water supply shortages in the Colorado River basin. Geophys. Res. Lett.
**2007**, 34. [Google Scholar] [CrossRef] - Udall, B.; Overpeck, J. The twenty-first century Colorado River hot drought and implications for the future. Water Resour. Res.
**2017**, 53, 2404–2418. [Google Scholar] [CrossRef] - BOR. Colorado River Basin Water Supply and Demand Study; BOR: Washington, DC, USA, 2012; p. 34. [Google Scholar]
- Gangopadhyay, S.; McCabe, G.J. Predicting regime shifts in flow of the Colorado River. Geophys. Res. Lett.
**2010**, 37. [Google Scholar] [CrossRef] - Wang, S.-Y.; Gillies, R.R.; Chung, O.-Y.; Shen, C. Cross-Basin Decadal Climate Regime Connecting the Colorado River with the Great Salt Lake. J. Hydrometeorol.
**2018**, 19, 659–665. [Google Scholar] [CrossRef] - Lall, U.; Mann, M.E. The Great Salt Lake: A barometer of low-frequency climatic variability. Water Resour. Res.
**1995**, 31, 2503–2515. [Google Scholar] [CrossRef] - Wang, S.-Y.; Gillies, R.R.; Jin, J.; Hipps, L.E. Coherence between the Great Salt Lake Level and the Pacific Quasi-Decadal Oscillation. J. Clim.
**2010**, 23, 2161–2177. [Google Scholar] [CrossRef] - Gillies, R.R.; Chung, O.Y.; Wang, S.Y.S.; DeRose, R.J.; Sun, Y. Added value from 576 years of tree-ring records in the prediction of the Great Salt Lake level. J. Hydrol.
**2015**, 529, 962–968. [Google Scholar] [CrossRef] - Gillies, R.R.; Chung, O.Y.; Wang, S.Y.S.; DeRose, R.J.; Sun, Y. Incorporation of Pacific SSTs in a time series model towards a longer-term forecast for the Great Salt Lake elevation. J. Hydrometeorol.
**2011**, 12, 474–480. [Google Scholar] [CrossRef] - Neri, A.; Villarini, G.; Salvi, K.A.; Slater, L.J.; Napolitano, F. On the decadal predictability of the frequency of flood events across the US Midwest. Int. J. Climatol.
**2019**, 39, 1796–1804. [Google Scholar] [CrossRef] - Wang, S.Y.; Hakala, K.; Gillies, R.R.; Capehart, W.J. The Pacific quasi-decadal oscillation (QDO): An important precursor toward anticipating major flood events in the Missouri River Basin? Geophys. Res. Lett.
**2014**, 41, 991–997. [Google Scholar] [CrossRef] - Brockwell, P.; Davis, R.A. Introduction to Time Series and Forecasting, 2nd ed.; Springer: Berlin, Germany, 2002. [Google Scholar]
- Brockwell, P.; Davis, R.A. Time Series: Theory and Methods, 2nd ed.; Springer: Berlin, Germany, 1991. [Google Scholar]
- Cryer, J.D.; Chan, K.S. Time Series Analysis with Applications in R, 2nd ed.; Springer: Berlin, Germany, 2008. [Google Scholar]
- Akaike, H. Fitting autoregressive models for prediction. Ann. Inst. Stat. Math.
**1969**, 21, 243–247. [Google Scholar] [CrossRef] - Sang, H.; Sun, Y. Simultaneous sparse model selection and coefficient estimation for heavy-tailed autoregressive processes. Statistics
**2015**, 49, 187–208. [Google Scholar] [CrossRef] - Murphy, A.H. Skill scores based on the mean squared error and their relationships to the correlation coefficient. Mon. Weather Rev.
**1988**, 116, 2417–2424. [Google Scholar] [CrossRef] - Wang, S.-Y.; Gillies, R.R.; Reichler, T. Multi-decadal drought cycles in the Great Basin recorded by the Great Salt Lake: Modulation from a transition-phase teleconnection. J. Clim.
**2012**, 25, 1711–1721. [Google Scholar] [CrossRef] - O’Connor, R. Colorado River Basin Story Map Highlights Importance of Managing Water below the Ground. Available online: http://blogs.edf.org/growingreturns/2019/10/24/colorado-river-basin-story-map-highlights-importance-of-managing-water-below-the-ground/ (accessed on 24 October 2019).
- Fang, K.; Shen, C. Full-flow-regime storage-streamflow correlation patterns provide insights into hydrologic functioning over the continental US. Water Resour. Res.
**2017**, 53, 7499–8314. [Google Scholar] [CrossRef] - Pagano, T.C.; Garen, D.C.; Perkins, T.R.; Pasteris, P.A. Daily Updating of Operational Statistical Seasonal Water Supply Forecasts for the Western US. JAWRA J. Am. Water Resour. Assoc.
**2009**, 45, 767–778. [Google Scholar] [CrossRef] - Dai, A. The influence of the Inter-decadal Pacific Oscillation on US precipitation during 1923–2010. Clim. Dyn.
**2012**, 41, 633–646. [Google Scholar] [CrossRef] - Smith, K.; Strong, C.; Wang, S.-Y. Connectivity between historical Great Basin precipitation and Pacific Ocean variability: A CMIP5 model evaluation. J. Clim.
**2015**, 28, 6096–6112. [Google Scholar] [CrossRef] - Wang, S.-Y.; Gillies, R.R.; Jin, J.; Hipps, L.E. Recent rainfall cycle in the Intermountain Region as a quadrature amplitude modulation from the Pacific decadal oscillation. Geophys. Res. Lett.
**2009**, 36, L02705. [Google Scholar] [CrossRef] - Switanek, M.B.; Troch, P.A. Decadal prediction of Colorado River streamflow anomalies using ocean-atmosphere teleconnections. Geophys. Res. Lett.
**2011**, 38. [Google Scholar] [CrossRef] - Lehner, F.; Wood, A.W.; Llewellyn, D.; Blatchford, D.B.; Goodbody, A.G.; Pappenberger, F. Mitigating the impacts of climate nonstationarity on seasonal streamflow predictability in the US southwest. Geophys. Res. Lett.
**2017**, 44, 12–208. [Google Scholar] [CrossRef] - Bedford, D. The Great Salt Lake America’s Aral Sea? Environ. Sci. Policy Sustain. Dev.
**2009**, 51, 8–21. [Google Scholar] [CrossRef] - Mohammed, I.N.; Tarboton, D.G. An examination of the sensitivity of the Great Salt Lake to changes in inputs. Water Resour. Res.
**2012**, 48. [Google Scholar] [CrossRef] - Hakala, K. Climate Forcings on Groundwater Variations in Utah and the Great Basin. Master’s Thesis, Utah State University, Logan, UT, USA, 2014. [Google Scholar]
- Masbruch, M.D.; Rumsey, C.A.; Gangopadhyay, S.; Susong, D.D.; Pruitt, T. Analyses of infrequent (quasi-decadal) large groundwater recharge events in the northern Great Basin: Their importance for groundwater availability, use, and management. Water Resour. Res.
**2016**, 52, 7819–7836. [Google Scholar] [CrossRef] - Ayers, J.; Ficklin, D.L.; Stewart, I.T.; Strunk, M. Comparison of CMIP3 and CMIP5 projected hydrologic conditions over the Upper Colorado River Basin. Int. J. Climatol.
**2016**, 36, 3807–3818. [Google Scholar] [CrossRef] [Green Version]

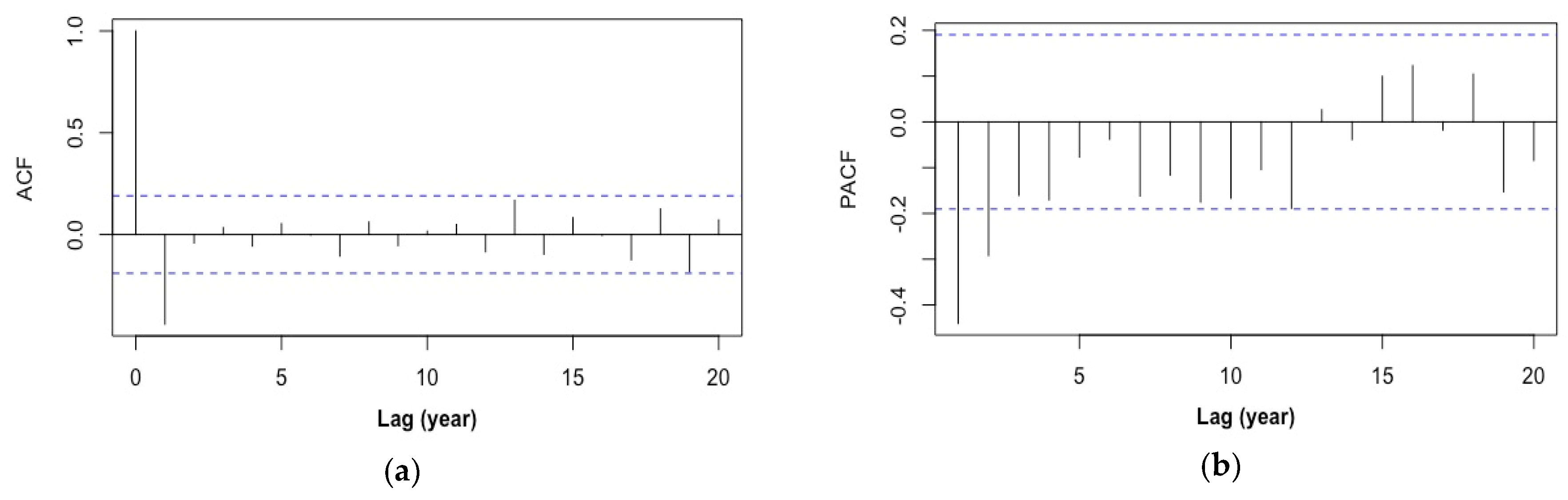

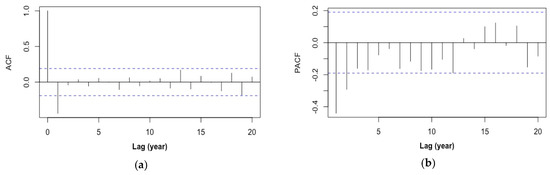

**Figure 2.**(

**a**) The autocorrelation function (ACF) and (

**b**) partial autocorrelation function (PACF) of the first-order difference of the Colorado River WS time series. The two blue dashed lines on each plot denote the corresponding 95% confidence interval.

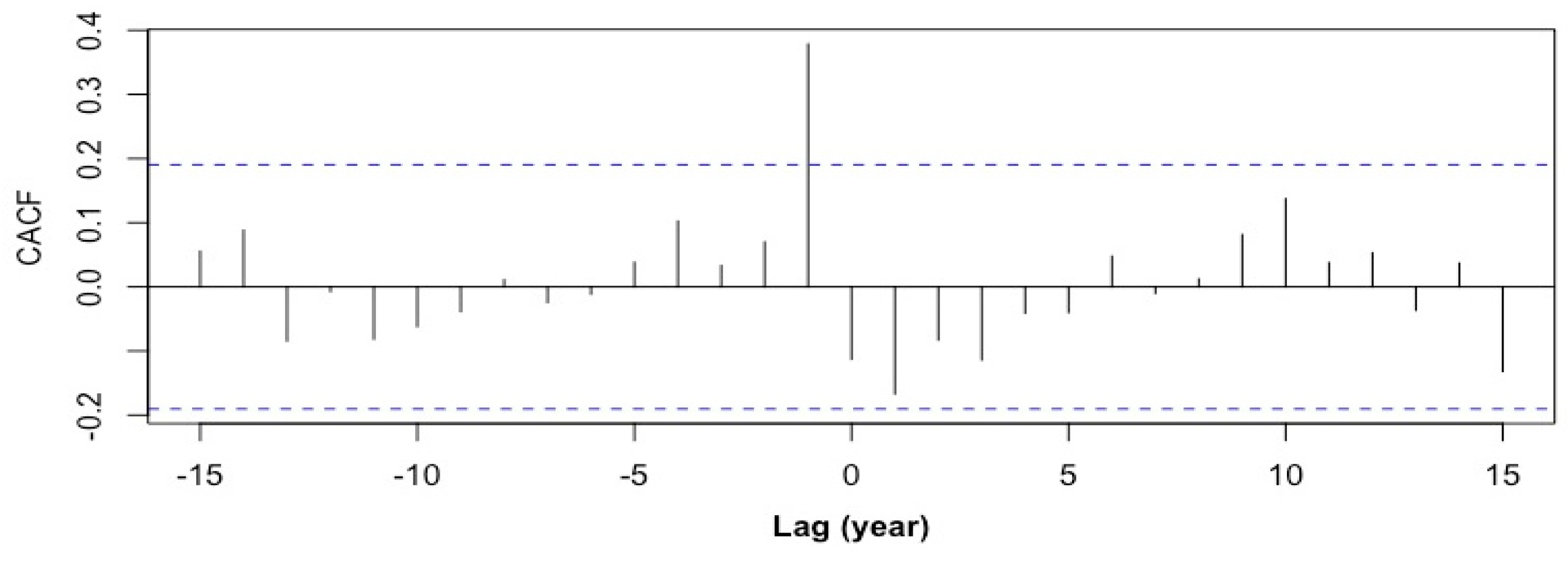

**Figure 3.**The cross-autocorrelation function (CACF) of the differenced Colorado River and Great Salt Lake (GSL) series. Note the significant cross-autocorrelation at lag −1. The two blue dashed lines denote the 95% confidence interval.

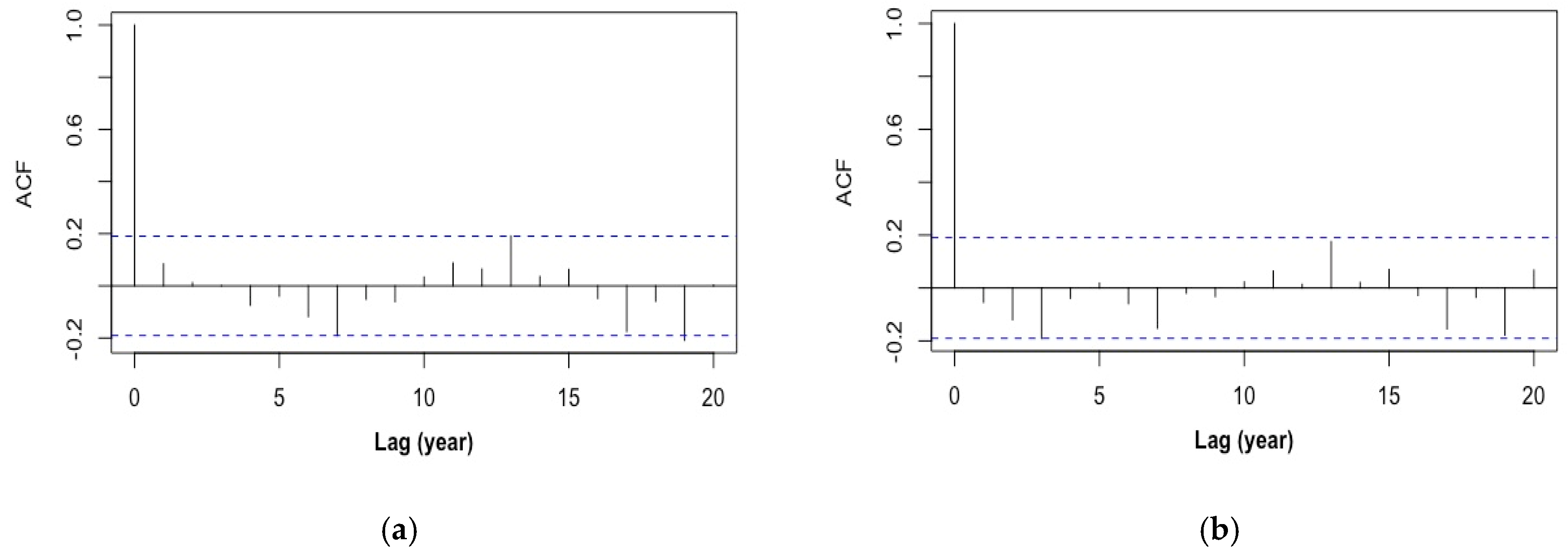

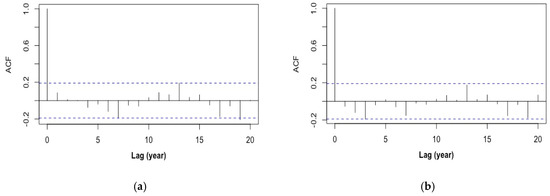

**Figure 4.**Autocorrelation function (ACF) plots of model residuals for (

**a**) MA (1) and (

**b**) AR (2). Blue dashed lines denote the 95% confidence intervals.

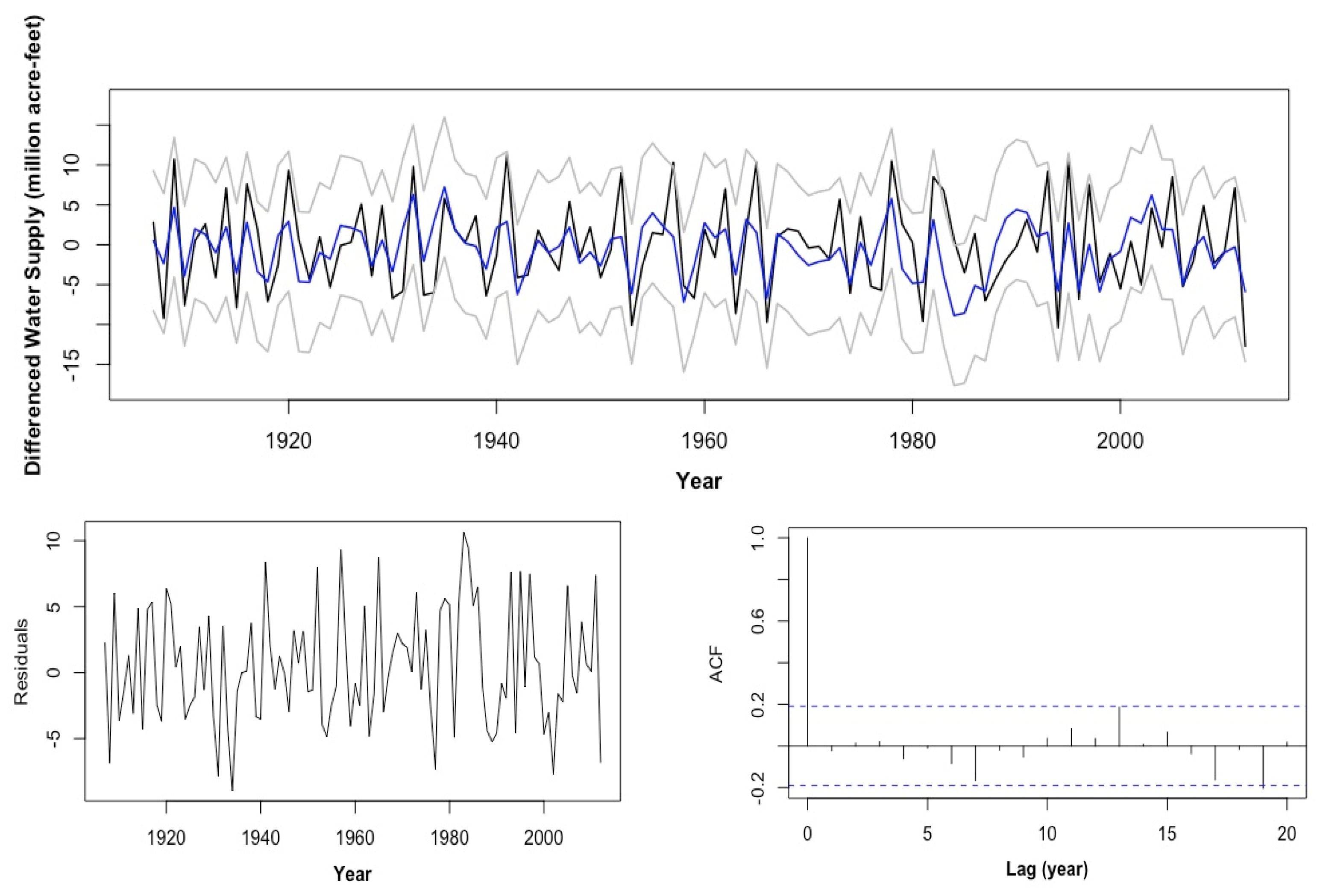

**Figure 5.**Diagnosis plots of the ARMA (1,1) model: (

**top**) overlaid plot of the observed annual water supply anomaly ${X}_{t}$ (black), model fitted value (blue) and its 95% confidence interval (grey); (

**left**) residual plot; (

**right**) ACF of the residual.

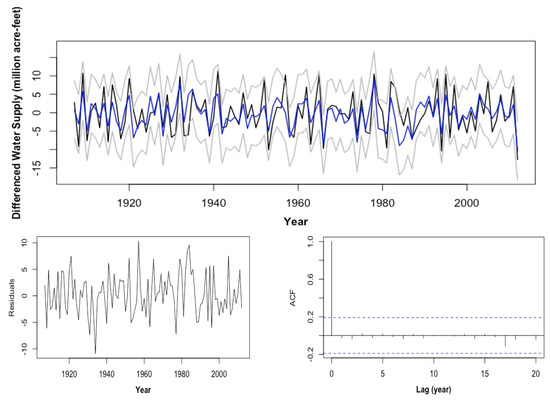

**Figure 6.**Diagnosis plots of the SAR (19) model: (

**top**) overlaid plot of the observed annual water supply anomaly ${X}_{t}$ (black), model fitted value (blue) and its 95% confidence interval (grey); (

**left**) residual plot; (

**right**) ACF of the residual.

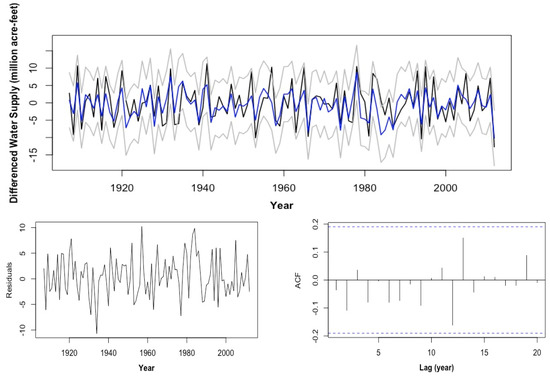

**Figure 7.**Diagnosis plots of the SARX (19,1,0) model: (

**top**) overlaid plot of the observed annual water supply anomaly ${X}_{t}$ (black), model fitted value (blue) and its 95% confidence interval (grey); (

**left**) residual plot; (

**right**) ACF of the residual.

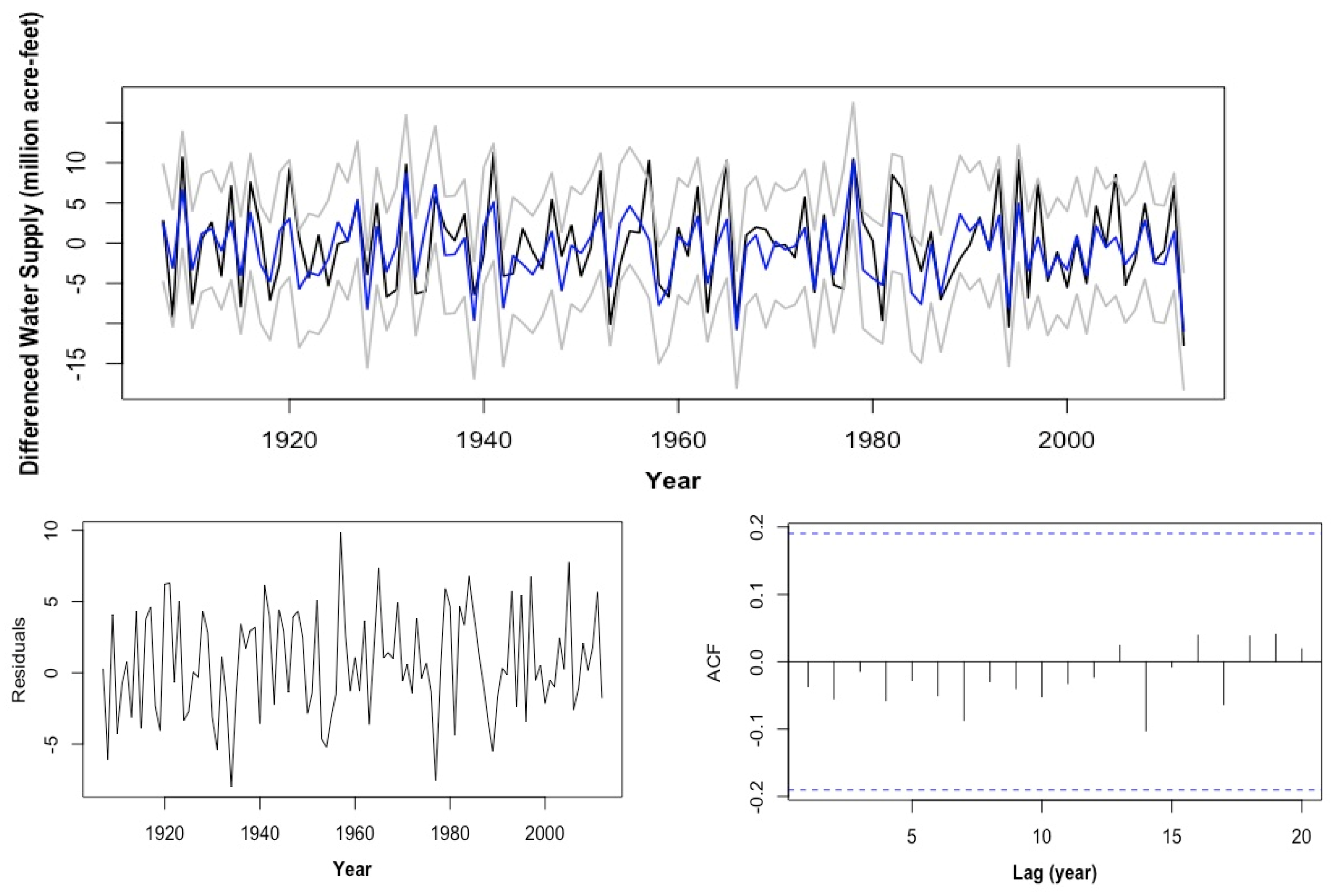

**Figure 8.**Diagnosis plots of the ARMAX (19,1,2,0) model: (

**top**) overlaid plot of the observed annual water supply anomaly ${X}_{t}$ (black), model fitted value (blue) and its 95% confidence interval (grey); (

**left**) residual plot; (

**right**) ACF of the residual.

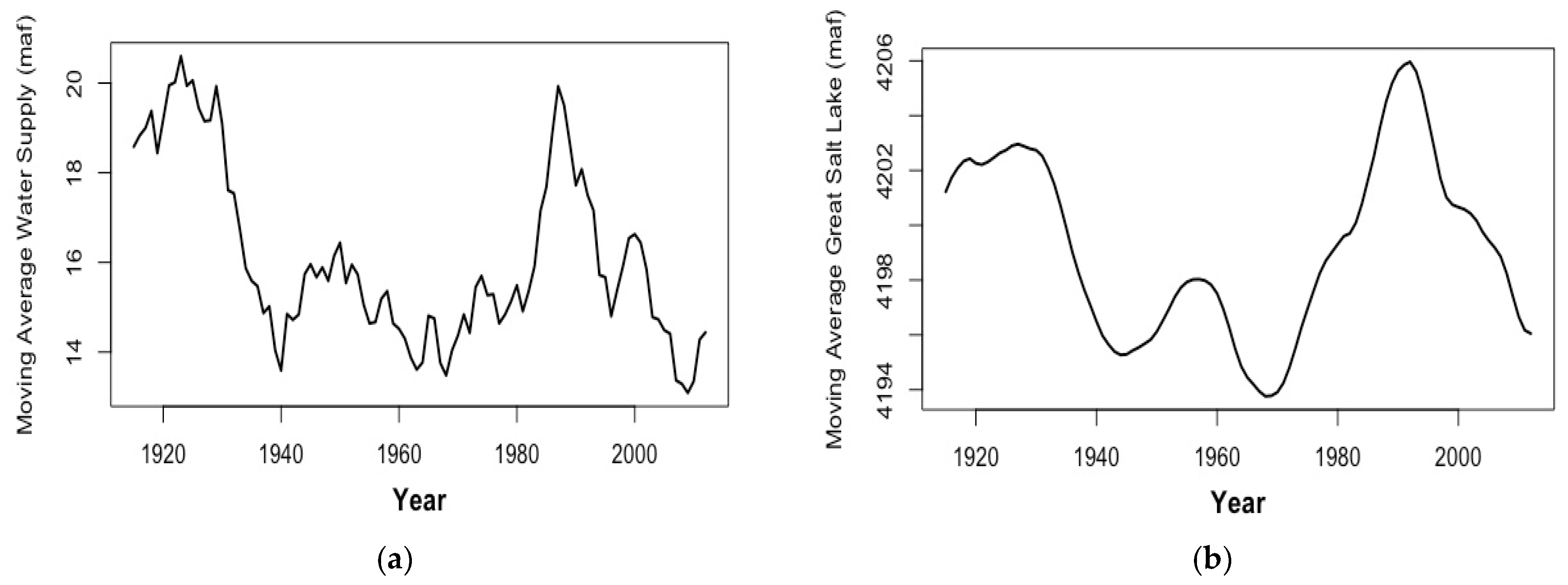

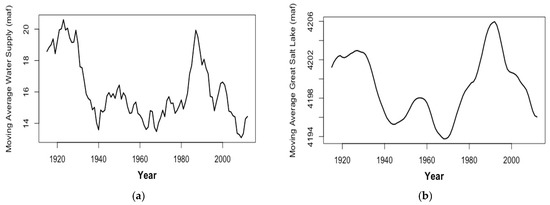

**Figure 9.**Plot of the 10-year moving-average water supply in million acre feet (maf) of the Colorado River (

**a**) and plot of the ten-year moving average of Great Salt Lake water level (

**b**).

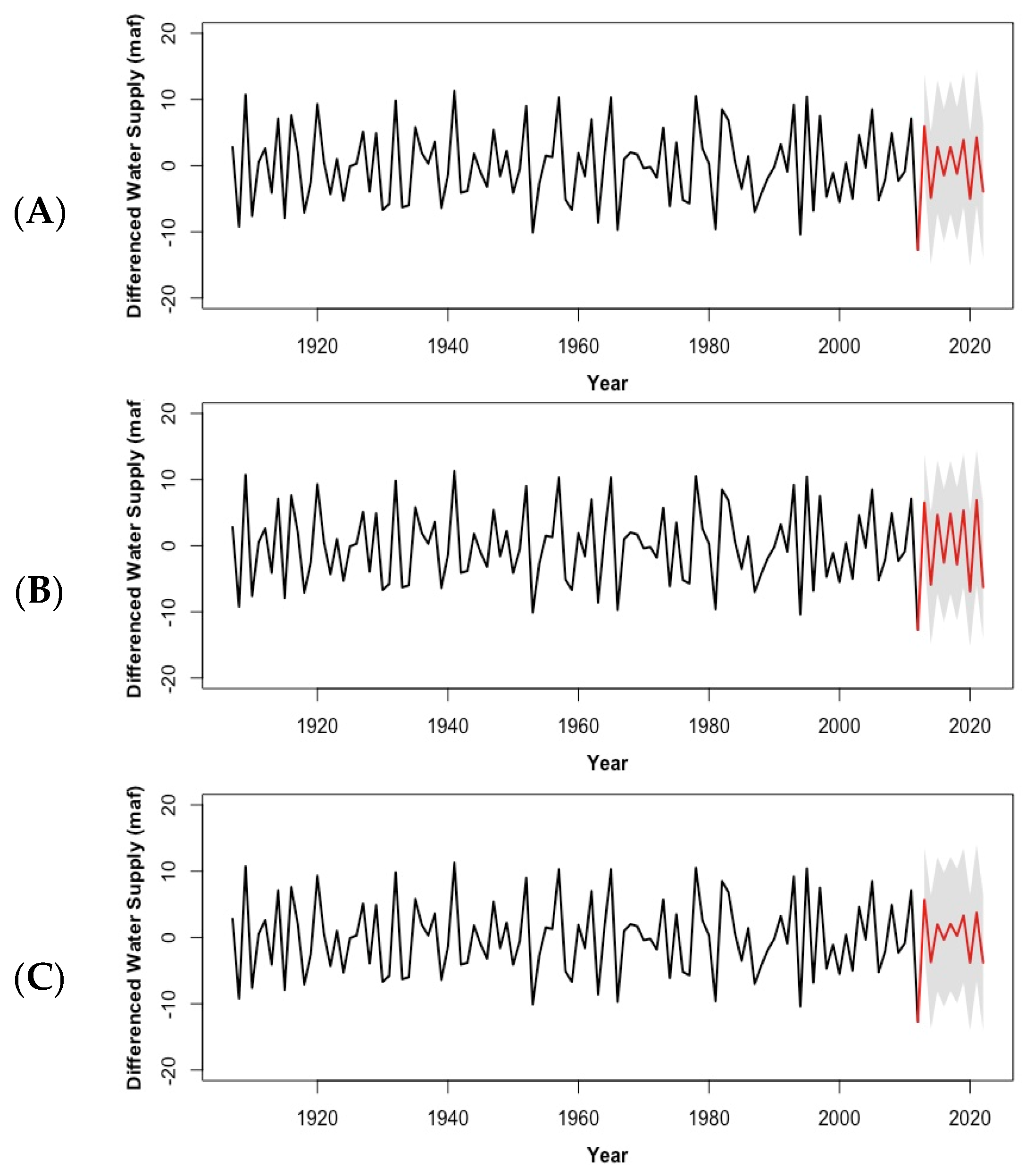

**Figure 10.**Plot of the observed values (black) with the predictions (red) ten years out for (

**A**) SAR (19) model, (

**B**) SARX (19, 1, 0) model, and (

**C**) ARMAX (19, 1, 2, 0) model in million acre feet (maf). The gray shaded area denotes the 95% predicting confidence interval.

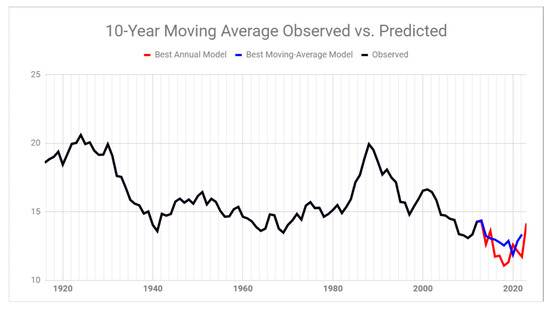

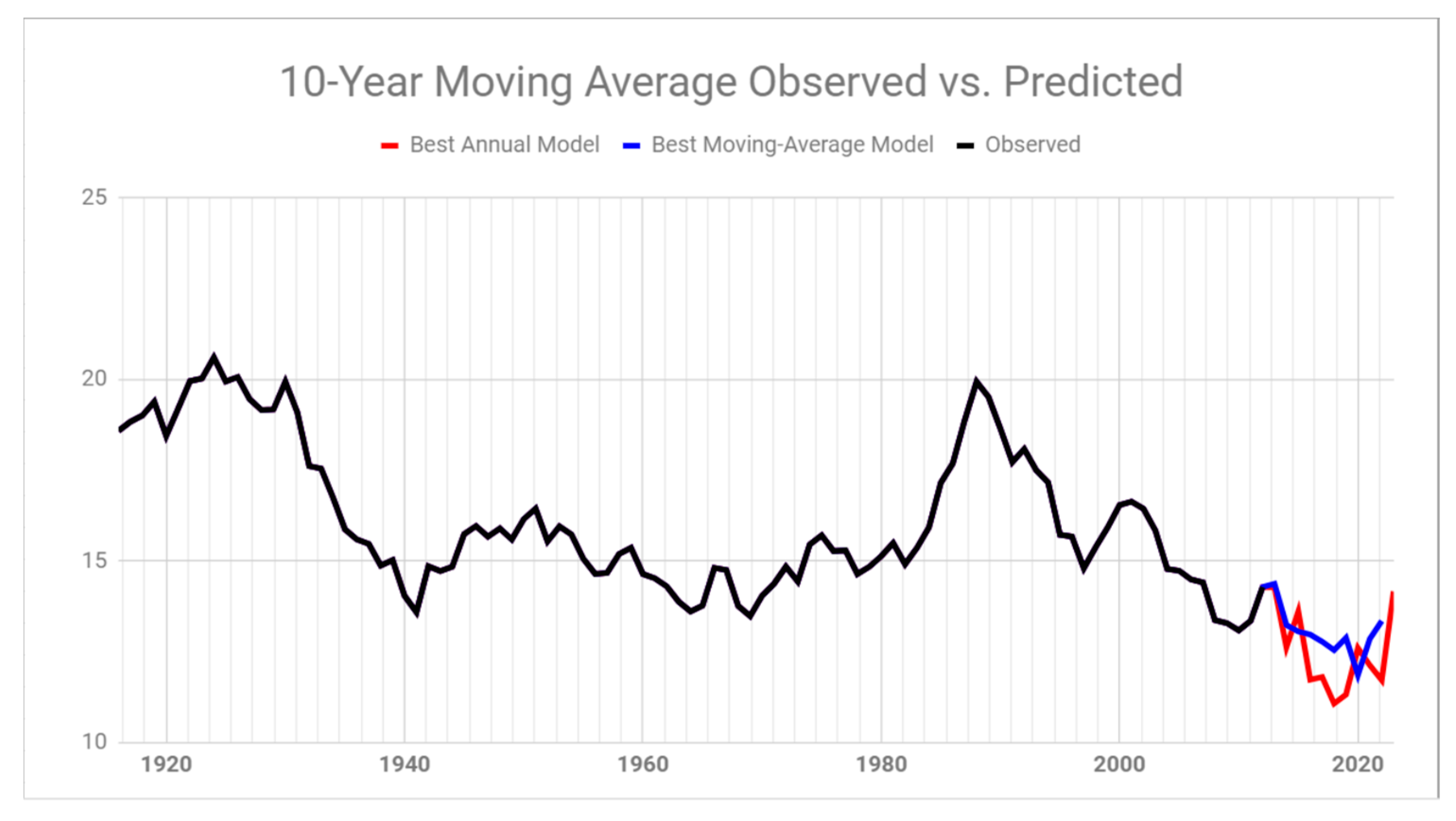

**Figure 11.**The observed values for the 10-year moving average (black) shown with the predictions (red) 10 years out for the best annual model and the predictions (blue) 10 years out for the best moving-average model.

**Table 1.**Cross-validation results for the four models developed for the annual Colorado River Water Supply data. Root mean squared error (RMSE) is shown on top while the skill score (SS) is shown on the bottom. The columns represent the ten forecasting horizons (h = 1, 2, … 10). Highlighted values are the best statistic for each forecasting horizon.

RMSE | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |

ARMA | 5.0708 | 6.9829 | 6.9649 | 6.9612 | 6.945 | 6.9467 | 6.9728 | 6.9438 | 6.9472 | 6.9208 |

SAR | 2.8673 | 4.4851 | 4.5344 | 4.319 | 4.1826 | 4.1037 | 4.318 | 5.1207 | 5.2668 | 5.2246 |

SARX | 3.1274 | 4.3809 | 4.6646 | 4.157 | 3.7697 | 3.7116 | 4.1295 | 5.0421 | 5.1573 | 5.1757 |

ARMAX | 2.877 | 4.3947 | 4.9787 | 5.1741 | 4.0544 | 3.9955 | 3.7328 | 4.4858 | 4.9159 | 6.2473 |

SS | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |

ARMA | 0.4719 | −0.0107 | −0.0080 | 0.0029 | 0 | 0 | 0 | 0 | 0 | 0 |

SAR | 0.8311 | 0.583 | 0.5727 | 0.6162 | 0.6373 | 0.651 | 0.6165 | 0.4562 | 0.4252 | 0.4301 |

SARX | 0.7991 | 0.6022 | 0.5479 | 0.6444 | 0.7054 | 0.7145 | 0.6493 | 0.4727 | 0.4489 | 0.4407 |

ARMAX | 0.83 | 0.5997 | 0.4849 | 0.4491 | 0.6592 | 0.6692 | 0.7134 | 0.5827 | 0.4993 | 0.1852 |

**Table 2.**Cross-validation results for the three models developed for the 10-year moving average data. Root mean squared error is shown on top while the skill score is shown on the bottom. The columns represent the ten forecasting horizons (h = 1, 2, … 10). Highlighted values are the best statistic for each forecasting horizon.

RMSE | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |

AR(19) | 0.5522 | 0.5374 | 0.547 | 0.4876 | 0.5062 | 0.4872 | 0.4805 | 0.4951 | 0.5087 | 0.4506 |

ARMAX1 | 0.4152 | 0.4123 | 0.4079 | 0.4268 | 0.4297 | 0.4266 | 0.4316 | 0.4369 | 0.4315 | 0.4312 |

ARMAX2 | 0.4153 | 0.419 | 0.4125 | 0.4197 | 0.4208 | 0.4181 | 0.4185 | 0.4231 | 0.4243 | 0.4265 |

SS | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |

AR(19) | 0.0181 | 0.0802 | 0.0541 | 0.2458 | 0.1811 | 0.235 | 0.2537 | 0.2091 | 0.1605 | 0.3391 |

ARMAX1 | 0.445 | 0.4585 | 0.4739 | 0.4221 | 0.4099 | 0.4135 | 0.3977 | 0.3841 | 0.3959 | 0.3949 |

ARMAX2 | 0.4448 | 0.4409 | 0.4621 | 0.4413 | 0.434 | 0.4367 | 0.4337 | 0.4223 | 0.416 | 0.4081 |
