Mine roof water inrush has been identified as one of the most critical threats to mining safety and production in China. With characteristics such as burstiness, instantaneity and destructiveness, water inrush can trigger various degrees of catastrophe, ranging from submerging the working face, to mine flooding and casualties. These accidents have resulted in tremendous losses to workforce safety and state economy [1
]. Currently, mine water inrush is affected by a range of factors, including hydraulic pressure, water yield of the aquifer, effective thickness, thickness of resistance rock strata, as well as geological structure (fault and collapse columns) [3
]. As a major protective layer below the aquifer, aquiclude plays an important role in controlling roof water inrush, due to its waterproof function. Generally, coal extraction can result in overburden strata deformation, breakage and collapse, accompanied by mining-induced fractures, developing upwards. After being penetrated by fractures, aquiclude may lose its waterproof efficacy, because its natural stability has deteriorated [9
]. Water can flow from the aquifer into working areas along with widespread fractures, which then results in mine roof water inrush. Therefore, using a case study, this paper assesses the roof water inrush risks of each working area, through analyzing the variation of aquiclude stability during underground mining. This is of great significance for water disaster prevention and control in coal mines.
There has been a large amount of research on mining-induced water inrush. To date, these works mainly focus on the mechanisms of water inrush, vulnerability assessment, water inrush prediction and control methods, etc. [10
]. For instance, Donnelly and Islam et al. found that fault reactivation caused by stress redistribution from mining can cause groundwater inrushes, because of the combined action of seepage and stress [14
]. Zhang et al. and Yin et al. suggested that the main inducers of water inrush were mining-induced water-flowing fractures and hydraulic fractures caused by water pressure in the aquifer [16
]. Moreover, water inrush was mostly related to fault structure. Based on mathematical methods, like geographic information system (GIS) and the analytic hierarchy process (AHP), Wu et al. evaluated the water inrush vulnerability of the overlying aquifer [18
]. For areas at risk of water inrush, blockage by grouting in working face, and dewatering the aquifer ahead of working face, could be used to lower the risk of water inrush. In addition, Wang and Park and Klose suggested that mining activities could cause a significant increase in groundwater inrushes into mines from aquifers, through natural or mining-related fractured zones [19
]. Yin et al. and Zhou et al. found that mine water inrush was related to fault activation, caused by mining. Mining activities made the fault hydraulically conductive and connected to the aquifer [21
]. Zhang and Yang obtained the qualitative and quantitative indicators of the roof water inrush prediction model in shallow seam mining by using a combined method of analytic hierarchy process (AHP) and grey relational analysis (GRA) [23
]. Hu et al. obtained a critical roof water inrush criterion, based on the principle of minimum potential energy and Mohr–Coulomb yield criterion, in which the linear increase in water pressure and the supporting force of fractured rock mass were considered [24
Situ measurements and theoretical analyses have been carried out to study the characteristics of aquiclude destabilization and failure. Based on the results of field monitoring, Adhikary and Guo found that coal extraction could change the pore pressure, permeability, and water inflow of overlying strata, and then affect the waterproof performance of rock mass [25
]. Booht et al. and Zhang et al. revealed that the aquiclude could remain steady to some extent, so that the declined water level in the inner aquifer could be regained, based on a sequence of field measurements [26
]. However, this was based on the assumption that the aquiclude had not been devasted by underground exploitation. Adams and Younger and Majdi et al. suggested that the water-flowing fractured zone will form in the overburden, along with the mining activities. When the fractured zone reaches, or goes through, the overlying aquiclude, the water contained in the aquifer will most likely flow into the mined-out area. Based on a mathematical approach, an empirical formula of mining thickness and the maximum height of the water-flowing fractured zone, was proposed [29
Previous research in the area of mine water inrush mainly focuses on the inrush mechanism, risk assessment and prediction, prevention and control methods, as well as the generic mechanism of aquiclude destabilization and failure. An index and/or threshold value, in order to assess the stability of the aquiclude when water inrush occurs in coal mines, is important when predicting roof water inrush, and there has not been an effective value proposed in the literature. Therefore, on the basis of roof water inrush events in Cuimu coal mine in Shanxi, China, numerical simulation and analysis are conducted in this paper, using the Universal Distinct Element Code (UDEC), to assess the characteristics of aquiclude deformation and failure. Through comprehensive parametric analysis, the connection between aquiclude stability and roof water inrush is identified, followed by a proposal for roof water inrush control measures. The outcomes of this paper can offer insight into, and guidelines for, roof water inrush assessment and controls.
2. Index of Aquiclude Stability
Based on the geological conditions of Cuimu coal mine and the event of roof water inrush, the mechanisms of roof water inrush in the working face are analyzed in this section. Numerical simulation, to investigate the evolution law of aquiclude stability affected by underground mining, is conducted using UDEC. On this basis, the evaluation index and threshold value are confirmed. Both of these aspects are of great importance when assessing the stability of aquiclude influenced by mining, relating to mine roof water inrush.
2.1. Geological Conditions of Cuimu Coal Mine

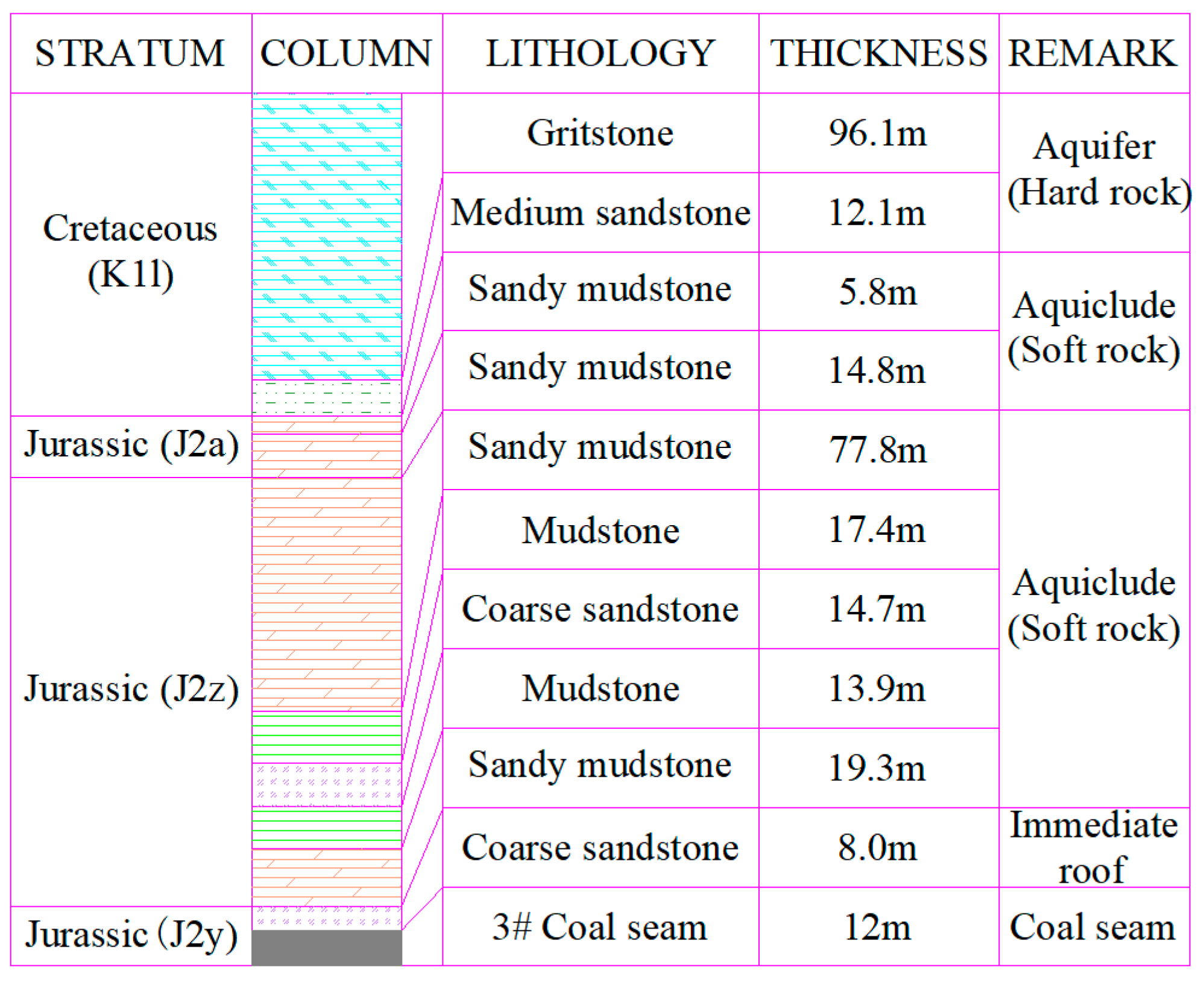

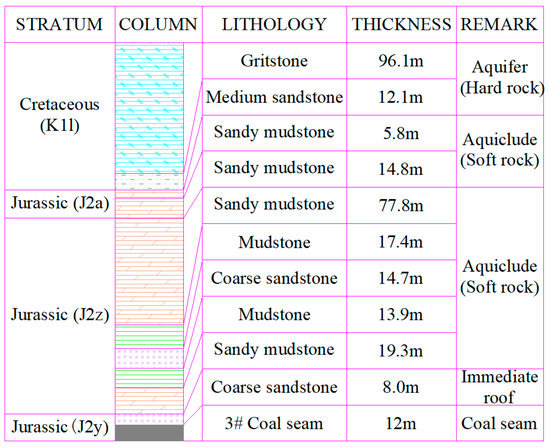

The 3# coal seam situated in the Jurassic stratum is primarily extracted with a depth of 576.9–600.0 m at Cuimu coal mine. With a dip angle of 3 to 6 degrees, 3# coal seam is divided into two longwall panel series, as 21 and 22. The working face 21301 in panel group 21 is retreated first. Full-mechanized caving method is utilized to extract the coal seam, with an average seam thickness of 16 m in 21301, and 12 m in 21302. Overburden strata of 3# coal mine are composed of mudstone and sandstone. The mudstone formation (mudstone and sandy mudstone) serves as the key aquiclude. The rock mass in the mudstone formation is weak, but has a stable performance in water-resisting. In the Cretaceous stratum, there is a key aquifer with high strength and abundant water, which is mainly composed of coarse sandstone and medium sandstone. The uniaxial compressive strength of coarse sandstone and medium sandstone in the aquifer is 17.2–26.2 MPa, with an average of 21.7 MPa, while the uniaxial compressive strength of mudstone aquiclude is only 7.4 MPa. In addition, the unit inflow and permeability coefficient of aquifer from the Cretaceous stratum are 0.2 L/(s∙m) and 0.1425 m/d, respectively. The average parting distance between the roof of the two working faces and the key aquifer is around 170 m. Geologic stratigraphic information of the two panels is shown in Figure 1
2.2. Case Study on Roof Water Inrush in Working Face

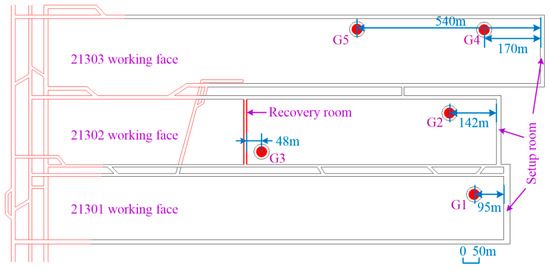

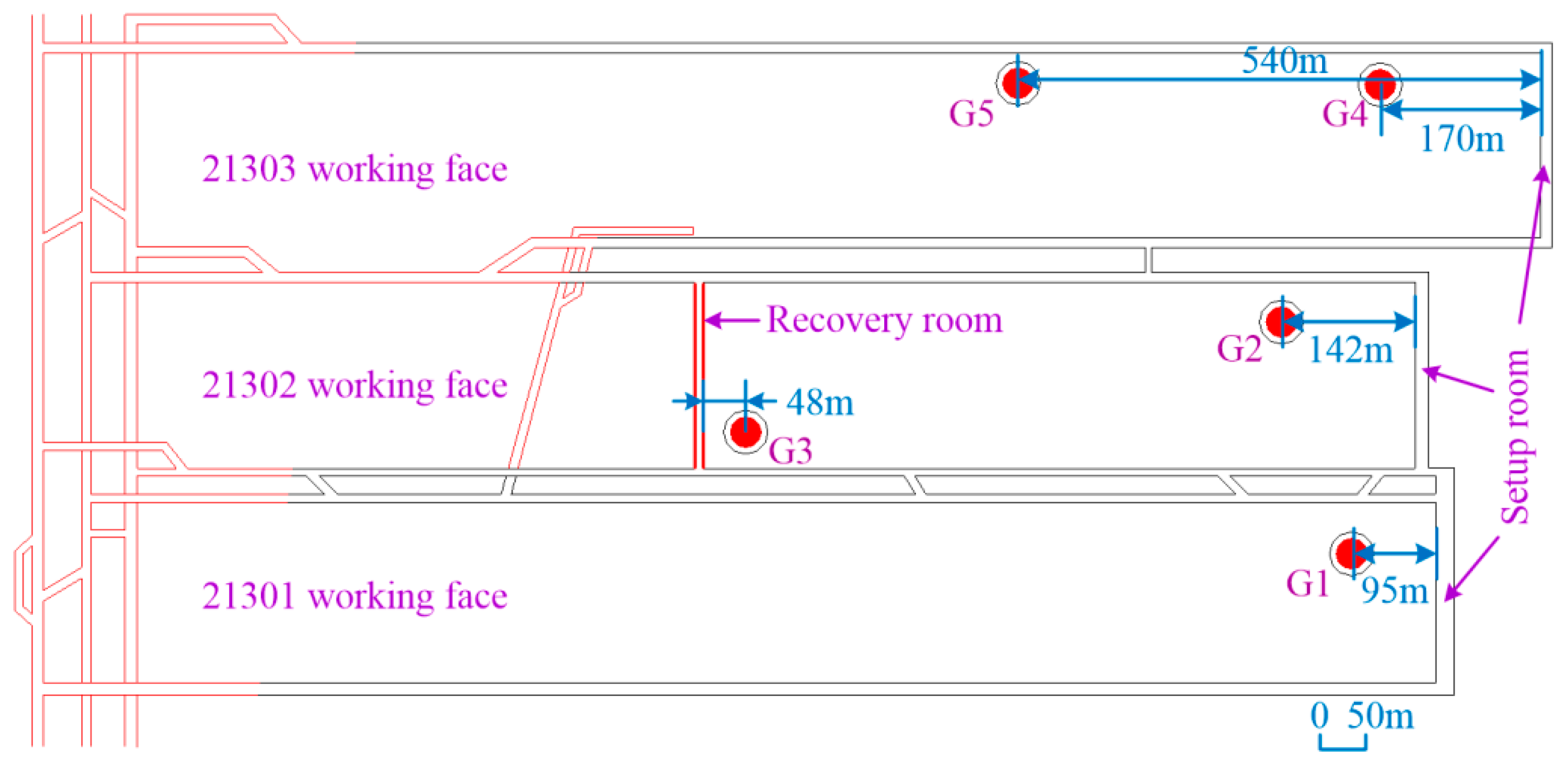

To monitor the variation of water levels in the key aquifer, as well as the development height of the water flowing fractured zone in overburden strata, five prospect boreholes from G1 to G5 are set up in three working faces. The ultimate position of the G1 and G3 is at the bottom of K11. Their depths are 351.2 m and 302.8 m, respectively. Detailed locations of each borehole are shown in Figure 2
Since coal seam extraction, there have been 12 and four roof water inrush events, occurring in panels 21301 and 21302, respectively. Instantaneous maximum water inflow greater than 60 m3

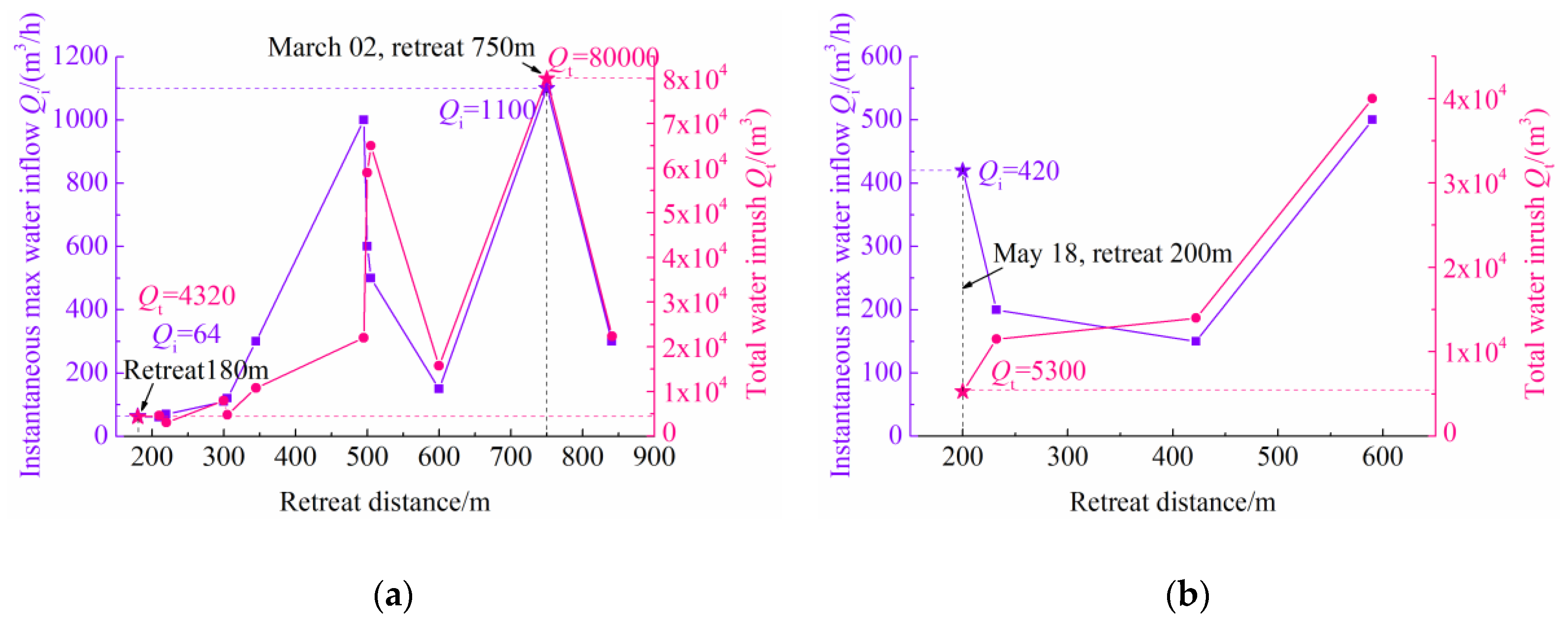

/h was recorded, as shown in Figure 3

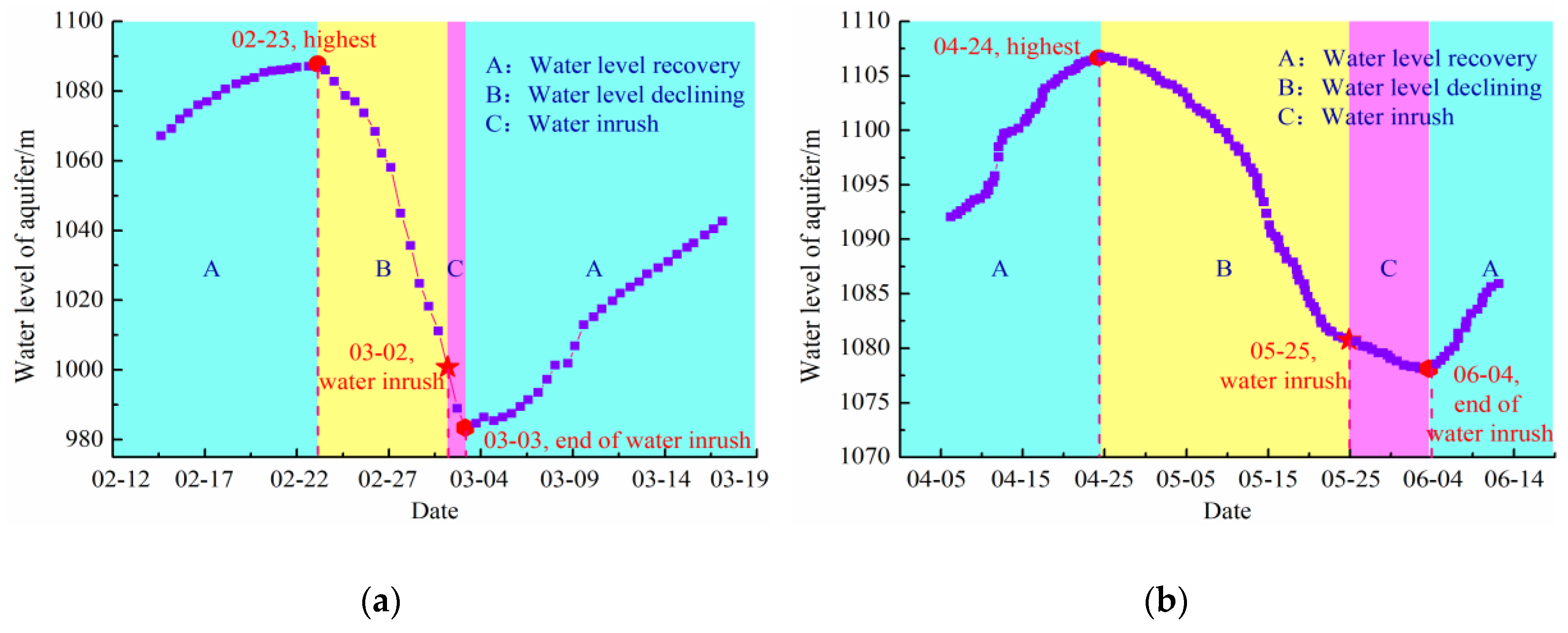

. According to the monitoring results from G1 and G3 boreholes, roof water inrush occurred when the retreat distance was 750 m for 21301, and 200 m for 21302. Variations of water level in G1 and G3 boreholes are plotted before and after roof water inrush, in Figure 4
a shows that a roof water inrush accident occurred at 21301, when the retreat distance reached 750 m, on 2 March. The instantaneous maximum water inflow Qi reached 1100 m3
/h, compared to the total water inflow Qt, with a rate of 80,000 m3
. According to Figure 4
a, the water level of the aquifer had declined by 104 m, one week before roof water inrush. Figure 3
b indicates that a water inrush event occurred in 21302, when the retreat distance reached 200 m on 18 May. Similarly, Figure 4
b shows a continuous decline in the water level of aquifer before roof water inrush. These phenomena indicate that roof water inrush is preceded by a decline in water level.
The case study of Cuimu roof water inrush indicates that there might be a large-scale space between the aquifer and the lower aquiclude prior to the roof water inrush occurrences, which can reserve great masses of water, causing the water level of the aquifer to gradually decline. At this moment, the aquiclude still has a certain waterproof capacity, as mining-induced fractures have not passed through the aquiclude. As the longwall retreat continues, fractures keep developing, extending upwards towards the aquiclude. Ultimately, along with widespread fractures in the aquiclude, upper water could be discharged from the aquifer and flow into lower panel areas, triggering mine roof water inrush. Generally, roof water inrush occurs after a decline in water level in the aquifer.
2.3. Analysis of Inrush Mechanism and Threshold Determination
UDEC numerical modelling was conducted to study the characteristics of the void, relating to water storage between the aquifer and the aquiclude before roof water inrush, its location, and the specific mechanism of roof water inrush in this condition.
2.3.1. Mechanisms of Roof Water Inrush

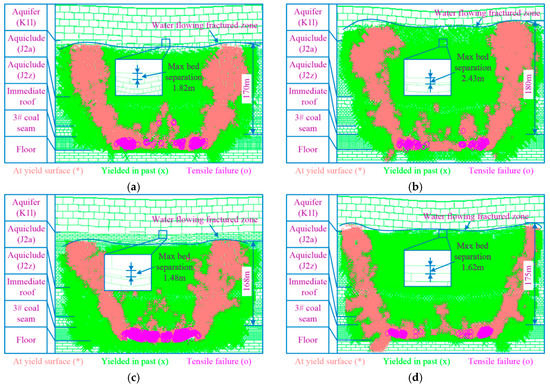

The distribution of the plastic zone, and characteristics of overburden strata movement, with 21301 and 21302 working faces at different retreat distances, are shown in Figure 5
According to Figure 5
a,b, when the 21301 working face retreated 160 m, the fractured zone nearly reached the top of the aquiclude, and kept at a distance of 2 m from the bottom of the aquifer. Two formations are divided by a bed separation, with a height of 1.82 m. When the 21301 working face retreated 180 m, the water flowing fractured zone extended to the aquifer for the first time and overtopped the bottom of the aquifer, at a distance of 8 m. During this period, bed separation increased to 2.43 m in height. During actual mining operation, the water level of the aquifer declined without water inrush, when the 21301 working face retreated 160 m. The first roof water inrush occurred following a retreat of 180 m. The modeling results are in accordance with actual cases.
As shown in Figure 5
c,d, when the retreat distance is 180 m, the water flowing fractured zone is situated in the aquiclude and keeps a distance of 4 m from the bottom of the aquifer. The maximum height of bed separation between the aquiclude and aquifer is 1.48 m. As the working face moves 20 m forwards, water flowing fractures interact with the aquifer and overtop the bottom of the aquifer by 3 m. Bed separation has a sequential growth of 1.62 m. Similarly to the 21301 panel, the results of numerical modelling of the 21302 working face accord with actual roof water inrush cases.
Therefore, it is the bed separation between the aquifer and aquiclude that provides a large-scale space to store water, so the phenomenon associated with water level decline in aquifer can be observed in advance. During this period, aquiclude still has a good waterproof capacity, because the water flowing fractures have not contacted the aquifer, so roof water inrush cannot occur. Further coal extraction makes the area of bed separation increasingly large, so it can contain more water derived from the upper aquifer. Then, this part of the water flows into the underground working face and results in roof water inrush, once mining-induced fractures occur throughout the entire aquiclude. The above analyses indicate that the water from the aquifer can be temporarily accumulated and stored in the space generated by bed separation between the aquifer and aquiclude, and then flow into the deeper working face. This may be the reason there is a time lag for roof water inrush, which occurs after a water level decline in the aquifer.
2.3.2. Stability Index of Aquiclude
Results of numerical modelling indicate that aquiclude, affected by underground coal mining, tends to bend and fail, because it is mainly composed of soft rocks. According to the work done by Zhang et al. [9
], V-type fractures in aquiclude may form and extend to the top of the aquiclude, under the influence of horizontal tension. The waterproof capacity of the aquiclude will be diminished once it has passed through the V-type fractures. At the same time, by comparing vertical displacement, horizontal displacement, curvature and horizontal strain, it was found that the horizontal strain could intuitively reflect the opening and closing of water flowing fractures, and inrush channels of aquiclude [31
]. Therefore, horizontal strain was selected as a key index for assessing aquiclude stability.
2.3.3. Threshold Value of Roof Water Inrush

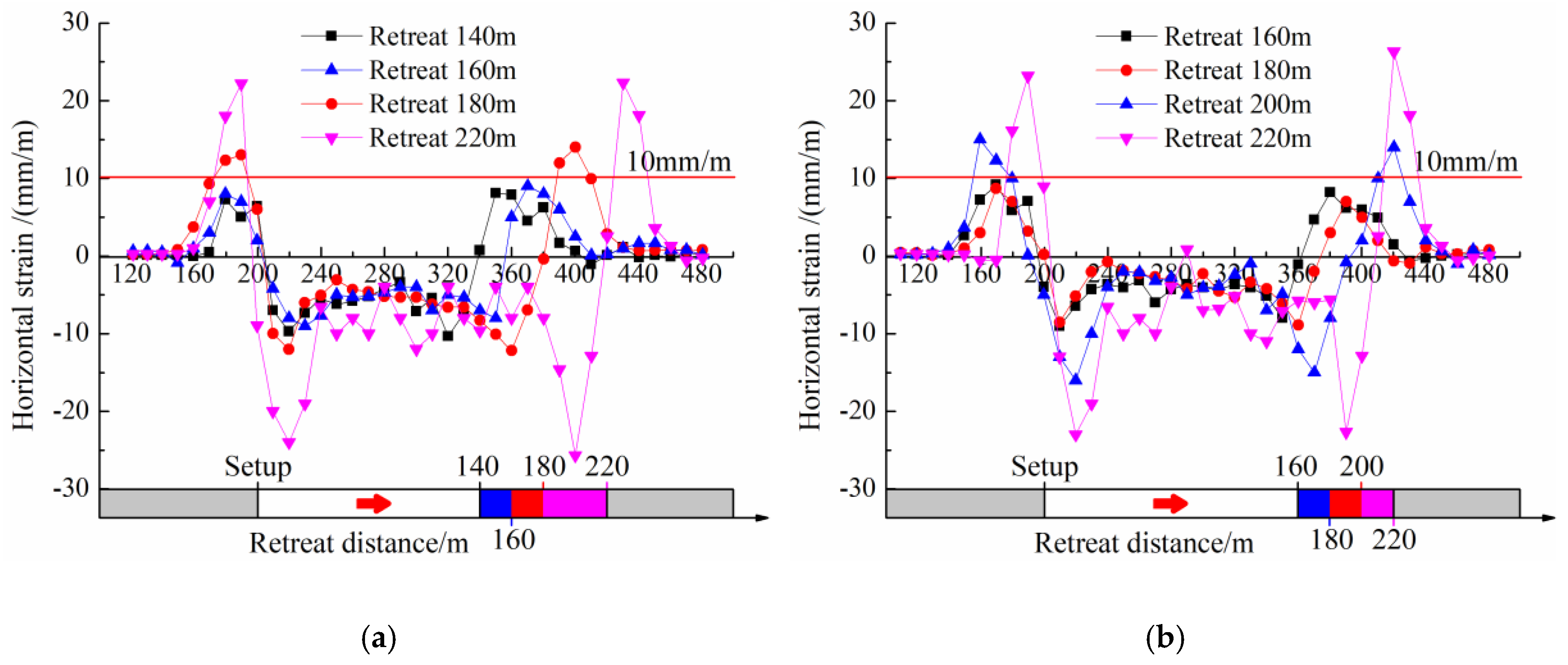

As the numerical models in UDEC agree with actual roof water inrush cases, the threshold value of mine roof water inrush is determined using the modelling results. On that basis, a horizontal measuring line is set up in the center of J2a aquiclude to investigate the characteristics of aquiclude deformation during mining. The center position is close to the neutral layer of J2a aquiclude, which is neither pulled nor pressed during the bending process. For both working faces, detailed horizontal strains of aquiclude, with coal extraction taking place, can be shown in Figure 6
a shows the horizontal strain caused by tension peaks at 9.2 mm/m, when the 21301 working face retreated 160 m. At that time, according to the field monitoring analysis, as shown in Figure 3
a and Figure 4
a, roof water inrush has not occurred, although there is a decline in the water level of the aquifer. Roof water inrush occurs as the working face continuously retreats 180 m, with a maximum horizontal strain of 13 mm/m. Comparison of the situation before and after roof water inrush indicates that the horizontal strain of the aquiclude should be greater than 9.2mm/m when roof water inrush happens to the 21301 working face.
The same analysis procedure as above is utilized to investigate the situation of 21302 working face. Combining Figure 6
b with Figure 5
c,d, the horizontal strain of the aquiclude reaches maximum value at the rate of 8.7 mm/m, when 21302 working face has retreated 180 m. Although the water level of the aquiclude declines, inrush phenomenon has not appeared, because there is still distance between the water flowing fractured zone and upper aquiclude. Another roof water inrush occurs in 21302 panel at a 200 m retreat distance, and the maximum horizontal strain of the aquiclude is 15 mm/m. Similarly, simulation consequence indicates that the horizontal strain of the aquiclude should be greater than 8.7 mm/m when roof water inrush happens in 21302 working face.

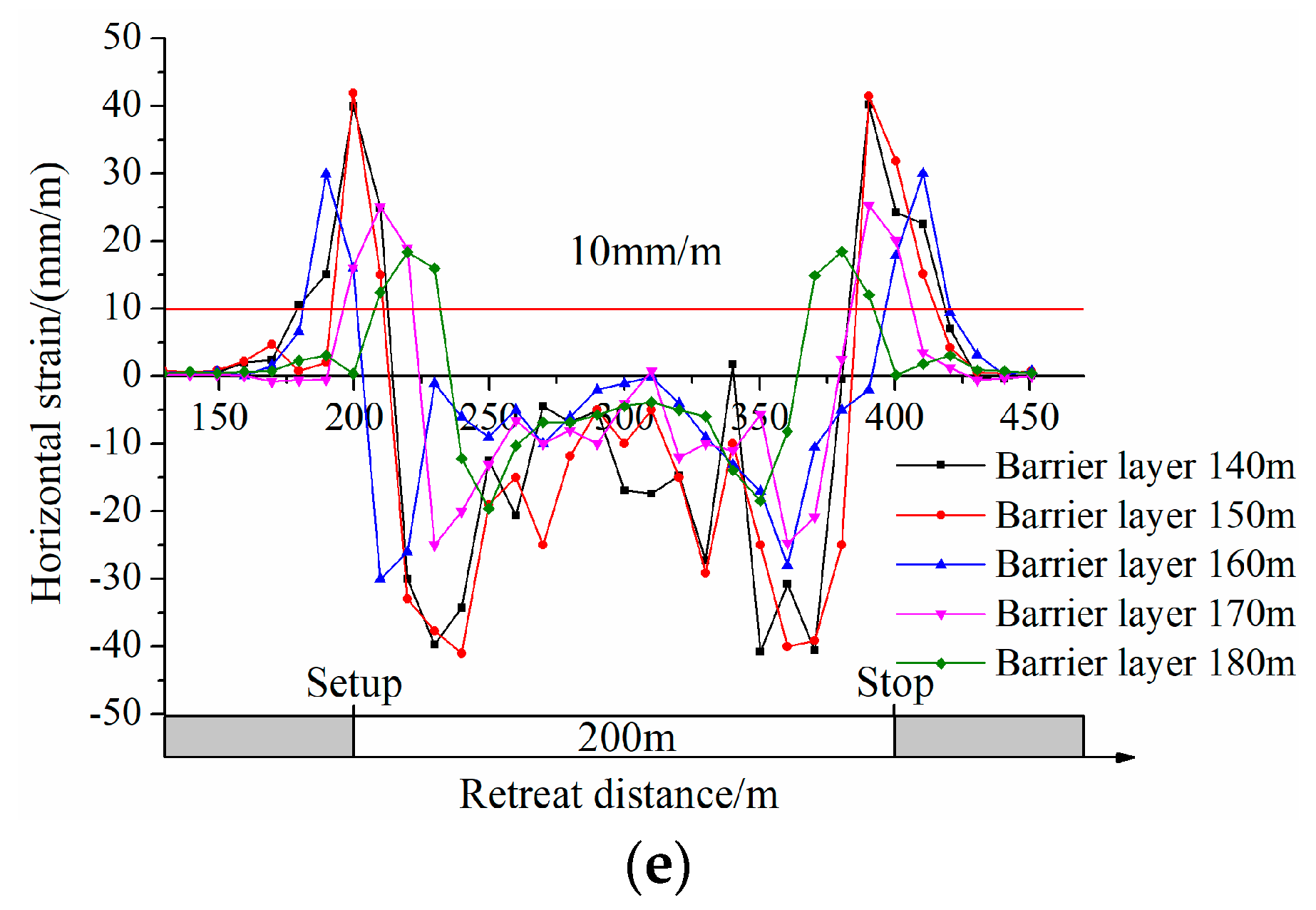

Therefore, based on the above analysis of simulation results and field roof water inrush cases, horizontal strain with a rate of 10mm/m can be regarded as the threshold value of aquiclude destabilization for roof water inrush.
Based on the cases of mine roof water inrush in Cuimu coal mine, this paper investigates the mechanism of mine water inrush, through analyzing the water level variation of the aquifer, as well as overlying strata movement around roof water inrush. It was found that bed separation can form between the upper aquifer and the aquiclude, and then expand to large-scale water storage space, affected by underground coal extraction. At this point, roof water inrush has not occurred, as the aquiclude has not been penetrated by mining-induced fractures. This might be the reason there is a water level decline in the aquifer, without roof water inrush. As the longwall retreat goes on, the aquiclude loses its efficacy in resisting water, after fractures penetrate the aquiclude. The amount of water originally accumulated and stored in bed separation can flow into the lower working face, to trigger mine roof water inrush. Therefore, roof water inrush in Cuimu coal mine occurs later than the water level decline in the aquifer.
Considering the relationship between water level variation, characteristics of aquiclude deformation and mine roof water inrush, tension-induced horizontal strains of aquiclude are identified as the index to evaluate the stability of aquiclude and mine roof water inrush affected by underground coal extraction. The threshold value of roof water inrush in Cuimu coal mine is a maximum horizontal strain bigger than 10 mm/m. For different coal mines, different geological conditions—such as the depth of coal seam, the characteristics of strata, the thickness of the aquiclude, and the thickness of the barrier layer—the threshold value of the maximum horizontal strain of aquiclude, to predict mine roof water inrush, may be different.

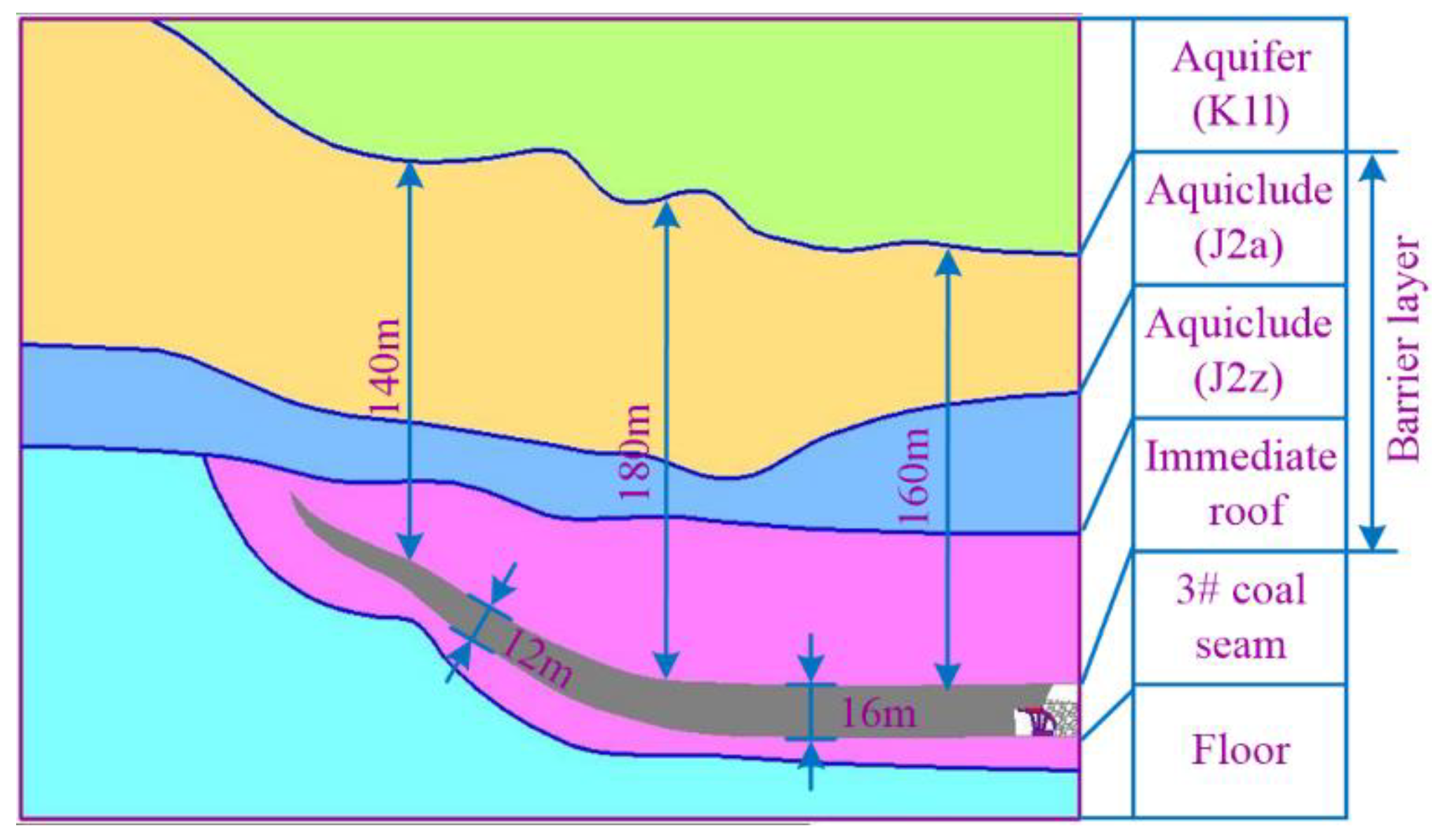

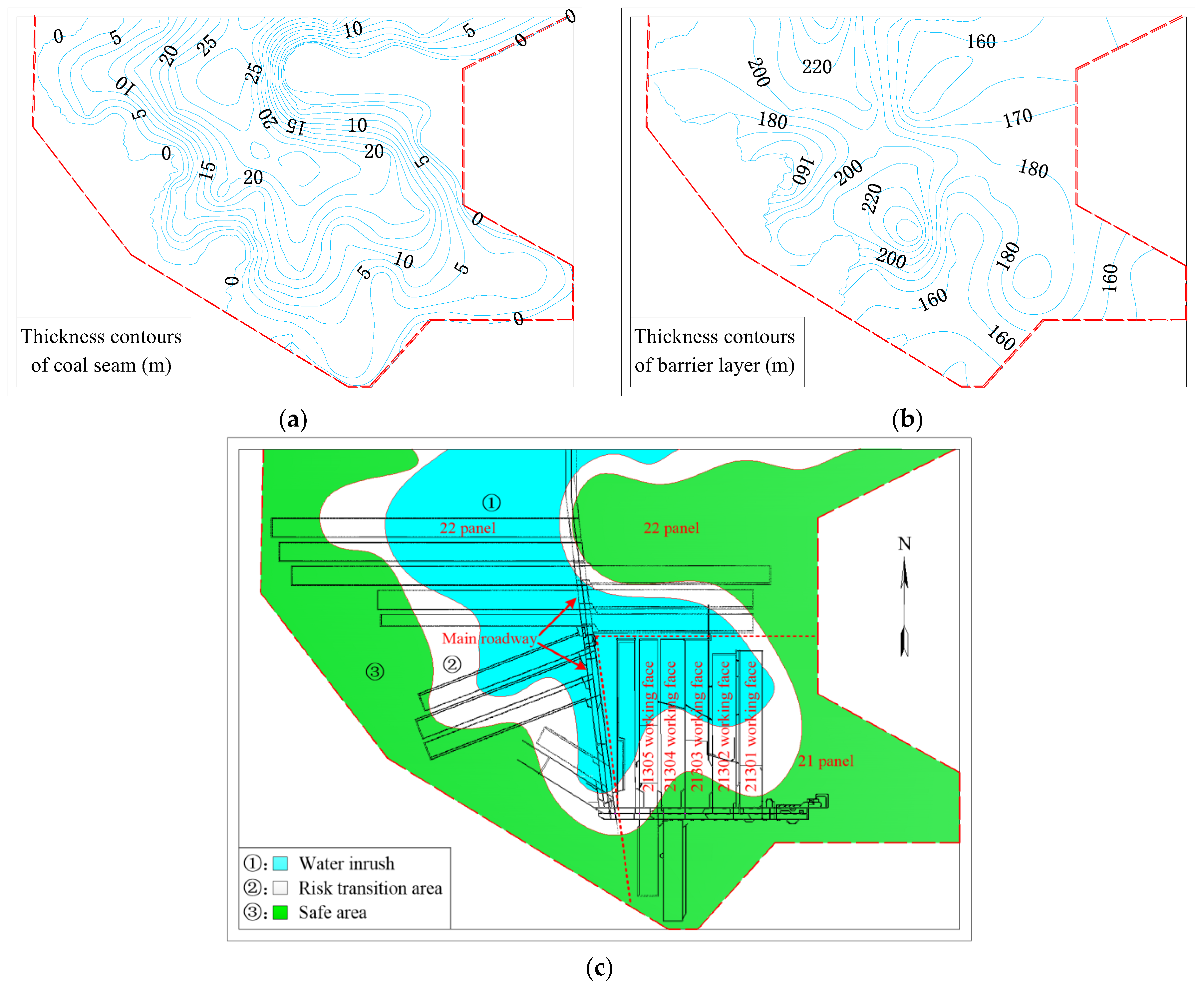

After the determination of the roof water inrush mechanism and threshold value, risk classification was conducted, to divide the whole underground area into three zones, including water inrush area, transition area and safe area. This was based on the assessment of the critical mining height at different thicknesses of barrier layer, and different heights of extraction.

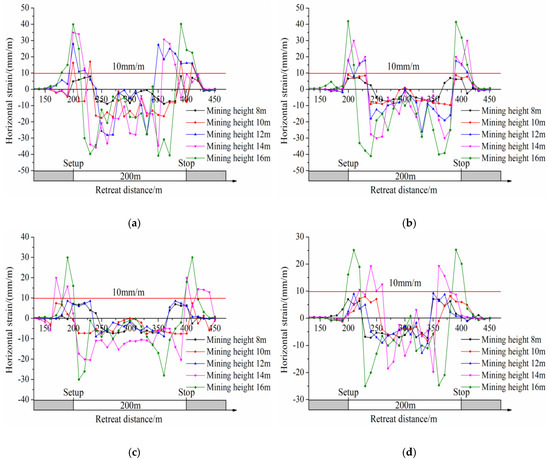

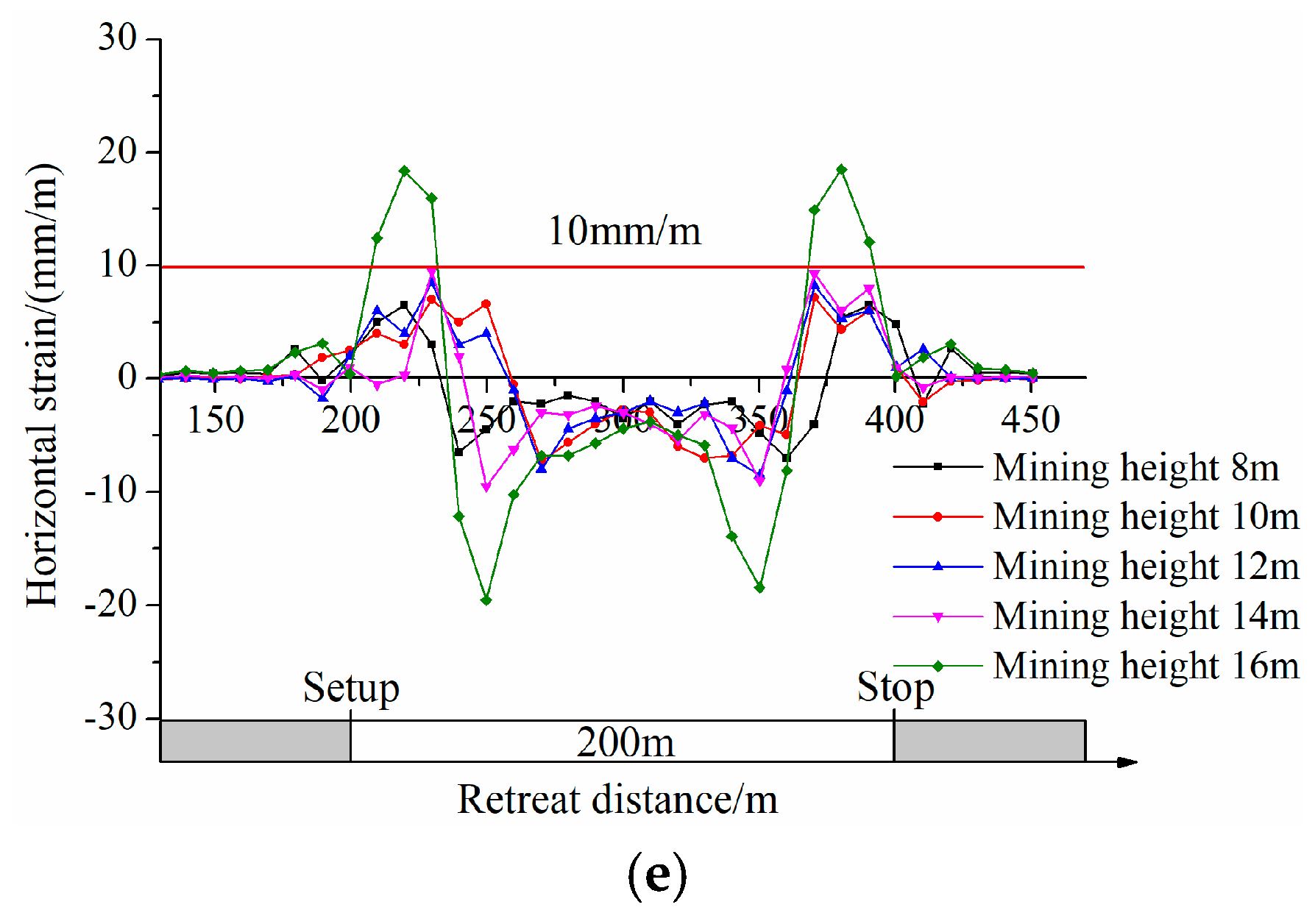

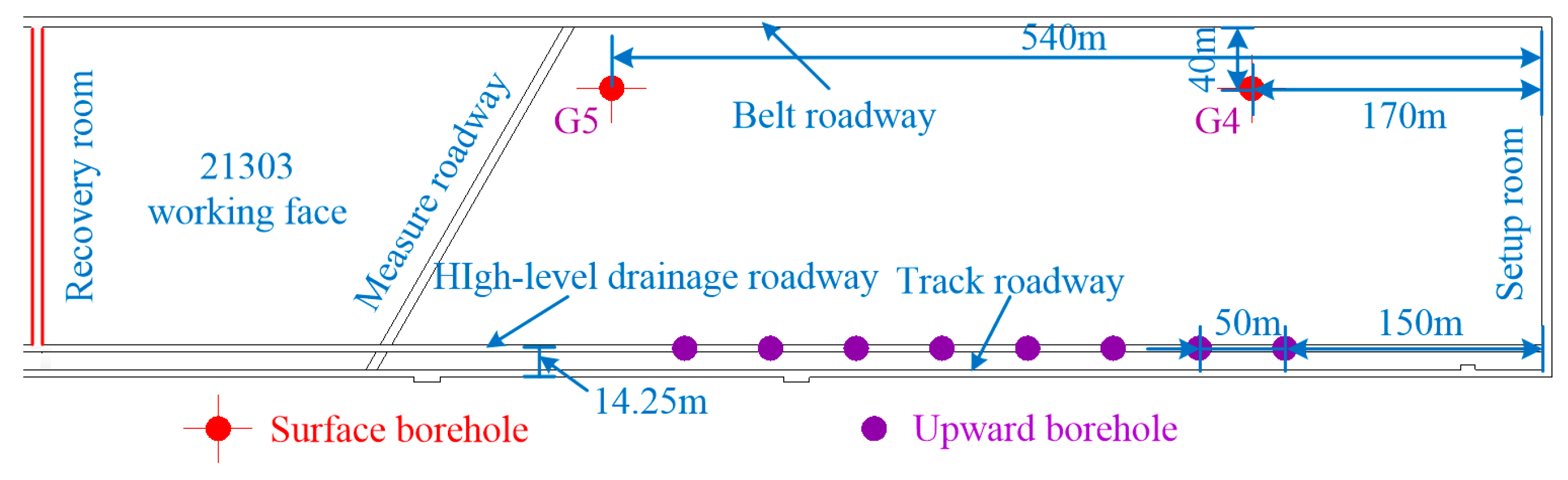

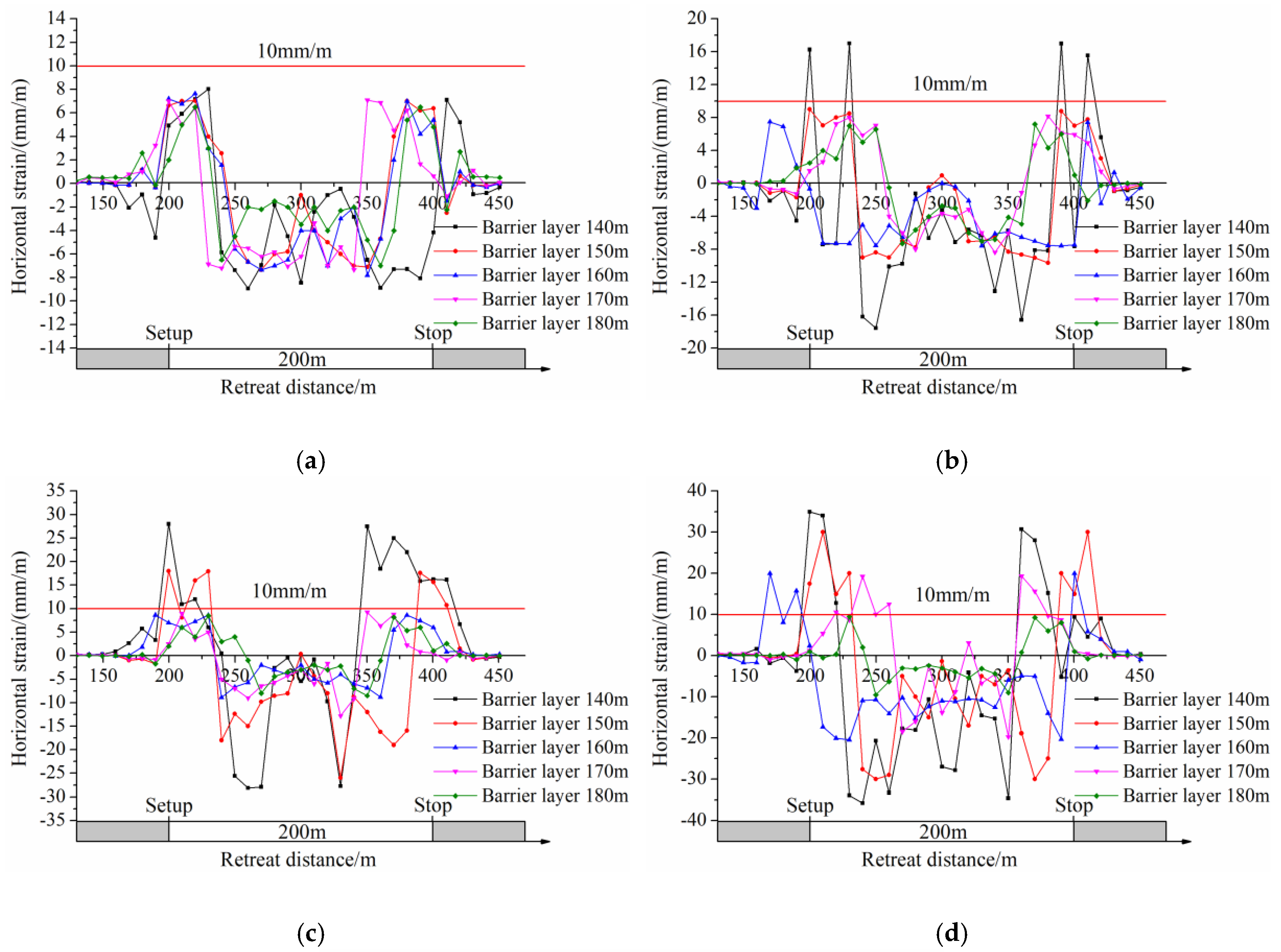

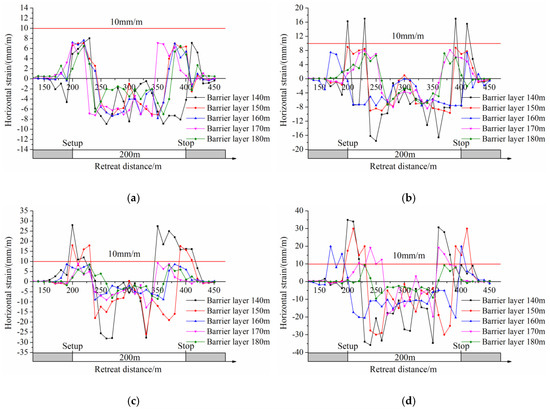

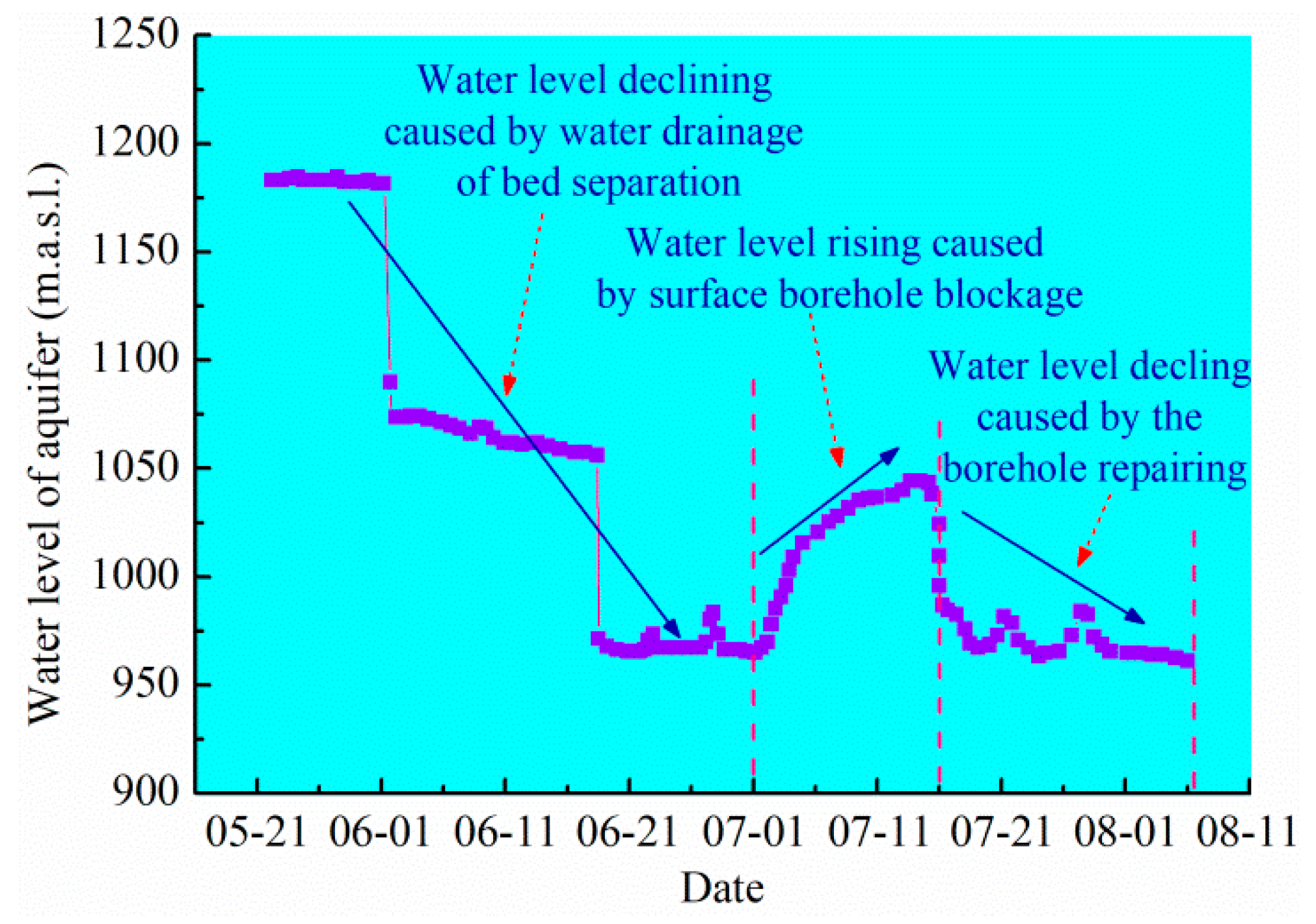

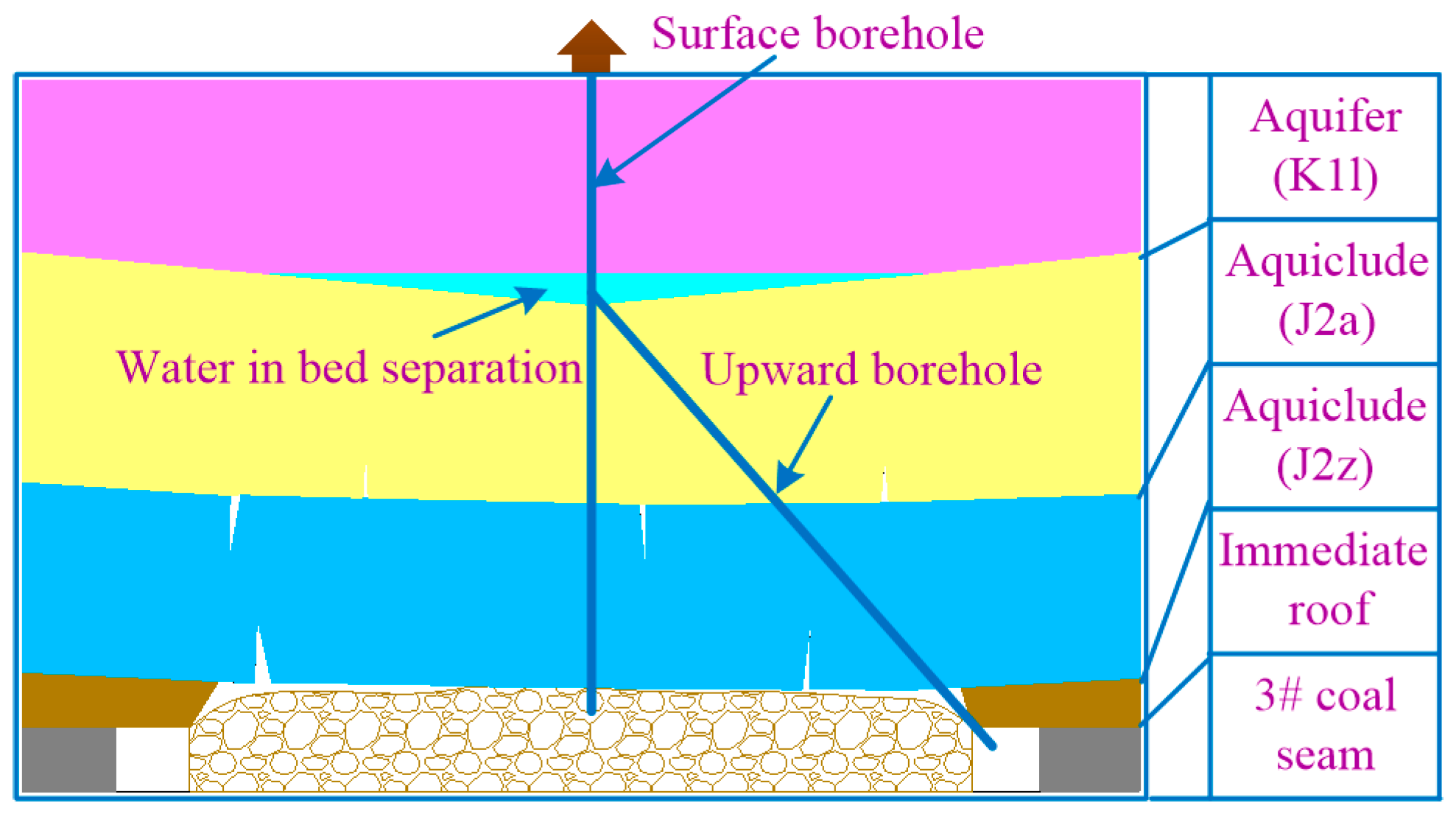

For roof water inrush management, surface vertical boreholes and underground oblique boreholes are combined, to drain the water accumulated and stored in the bed separation space before coal extraction. Field validation was conducted to verify that this method can effectively reduce the risks of roof water inrush for underground work.
