The Impact of Multiple Typhoons on Severe Floods in the Mid-Latitude Region (Hokkaido)
2.1. Target Site
2.2. Integrated Flood Analysis System
2.3. Data Inputs
2.4. Simulation Preparations
2.5. Indicators for Model Validation

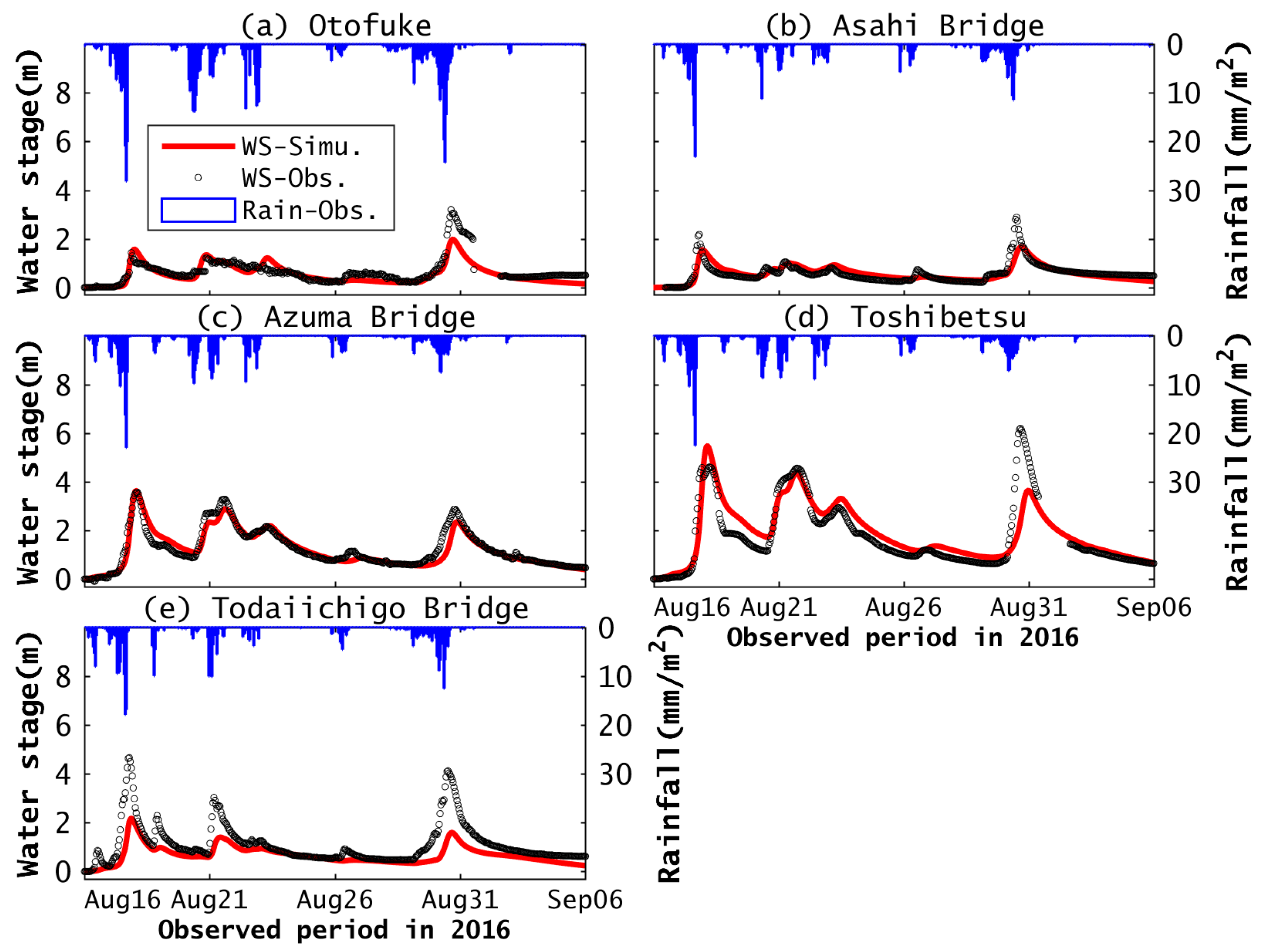

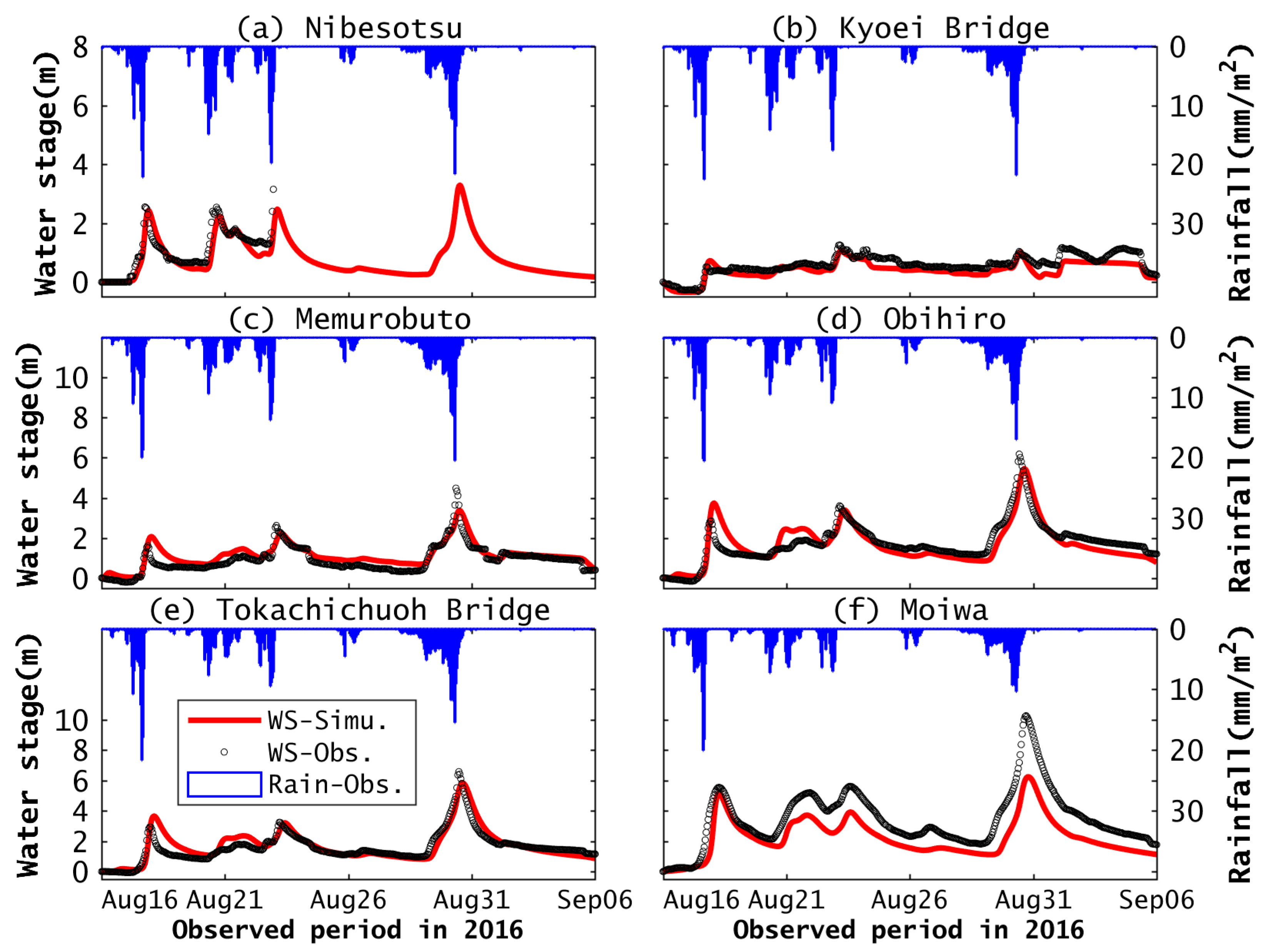

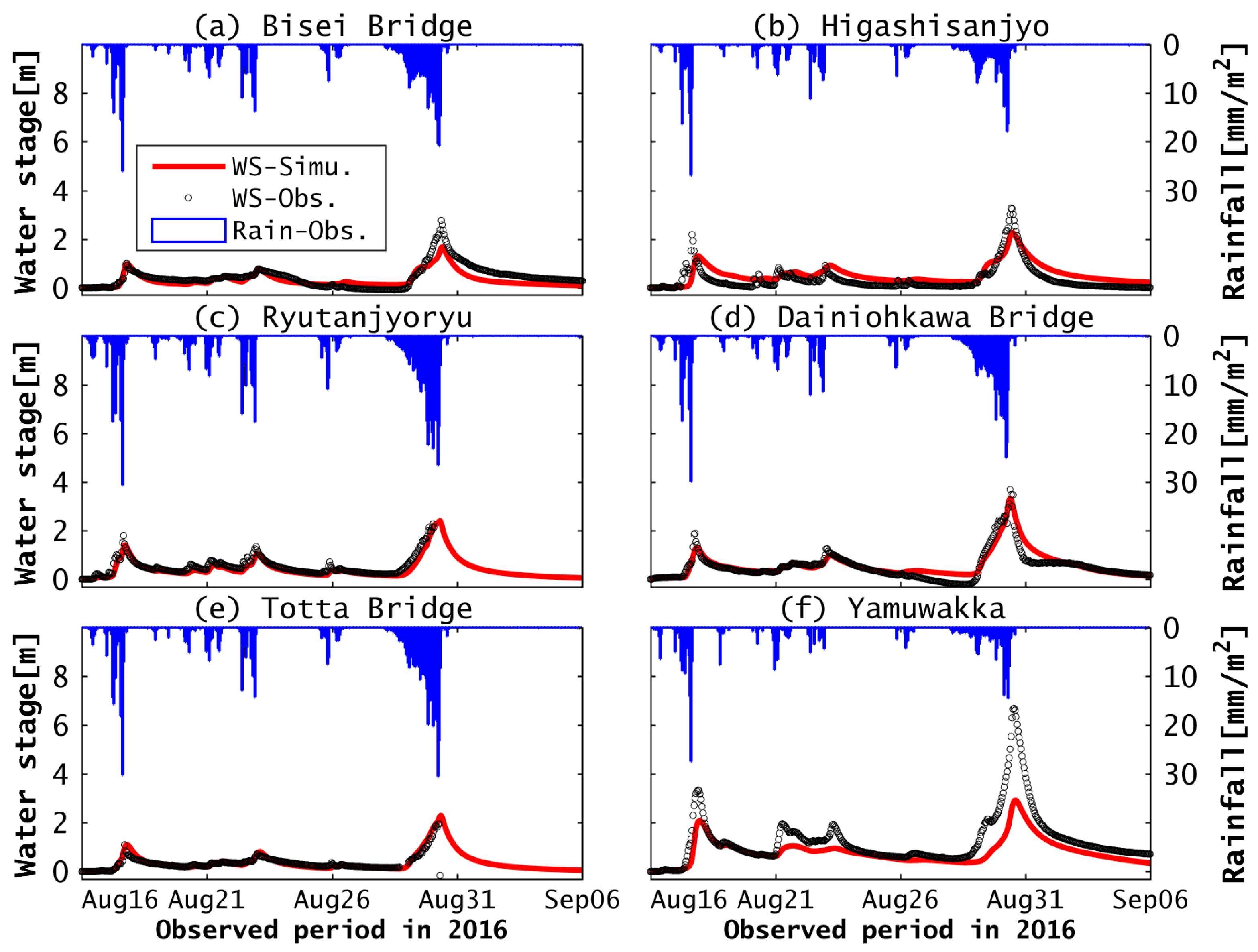

3.1. Hydrological Model Validation
3.2. Effect of the Preceding Multiple Typhoons
3.3. Future Flood Situation under Global Warning

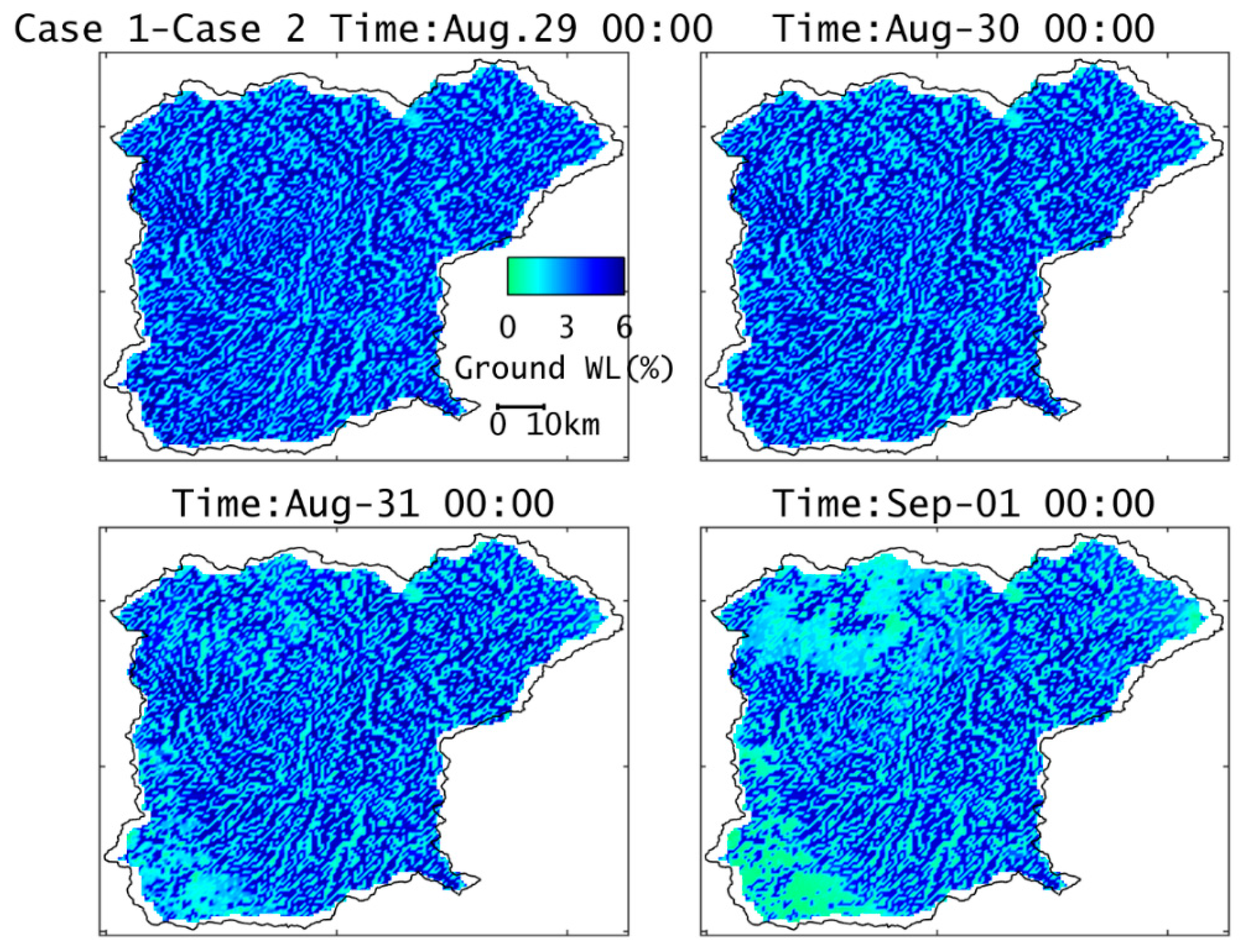

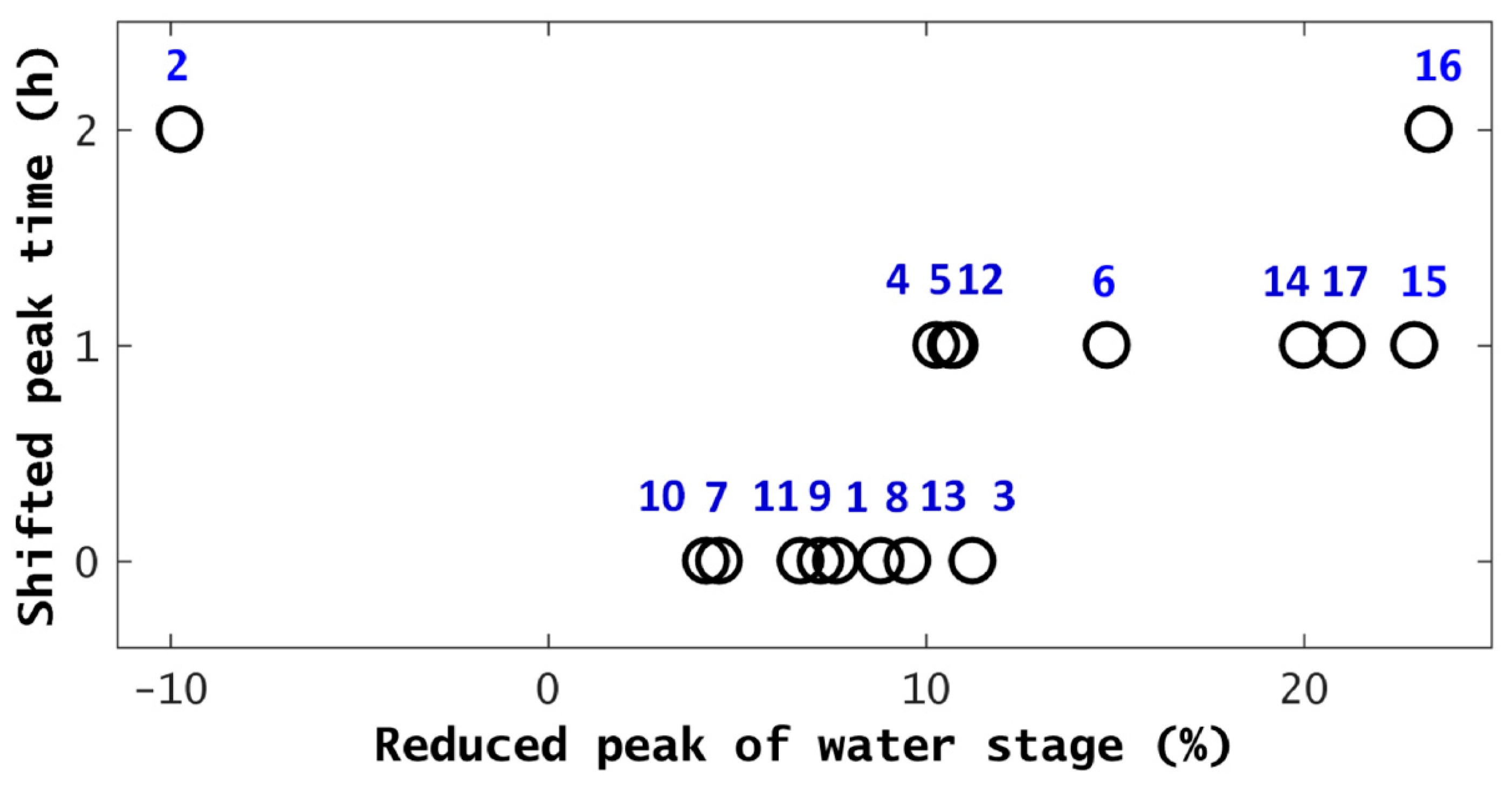

- The water stage peaks for most gage stations during Period II were reduced by 4–24% when the impact of the preceding typhoons was not considered (Case 2) because the water capacity of the soil was not full over the watershed before the fourth typhoon.

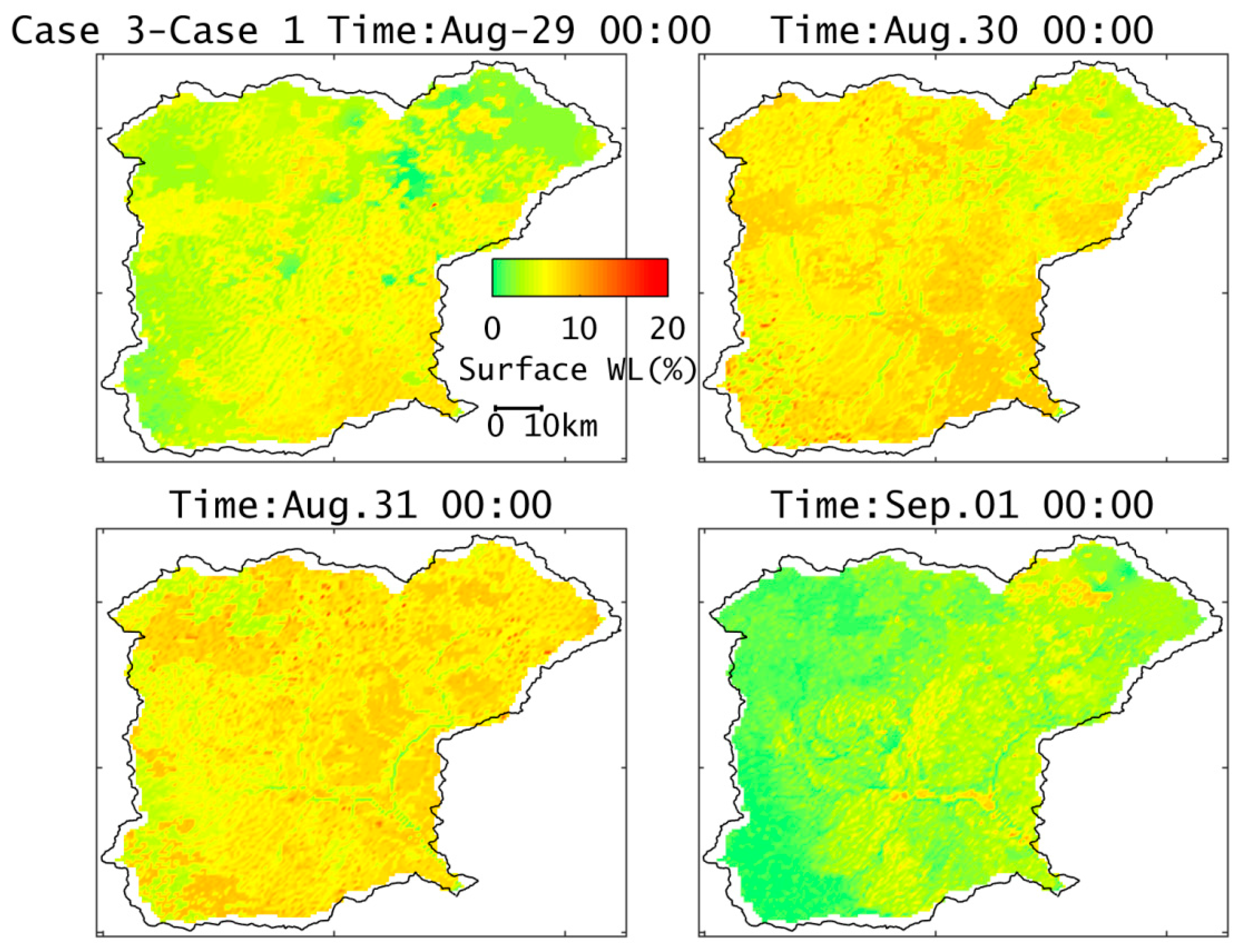

- Most future peaks (Case 3) were 13–22% higher than those in Case 1 under the effect of a 10% higher precipitation because the maximum difference between the water capacities of the soil in Case 1 and Case 3 was 10–20%.
- The peaks and peak times at Gage 2 in Case 2 and Case 3 were significantly different from those of the other stations. These results suggest that adaptive flood control corresponding to the inflow in Tokachi Dam as well as the dam capacity were important factors that reduced flood risk.
Conflicts of Interest

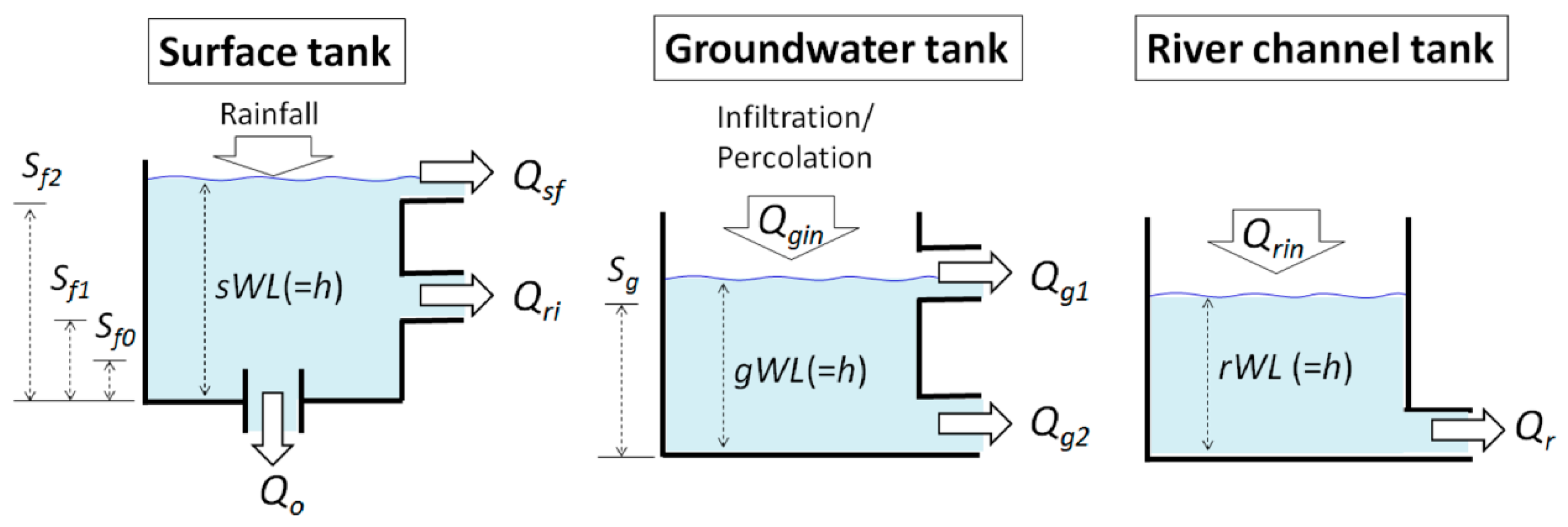

|Surface Tank||Groundwater Tank||River Tank|
|Infiltration capacity (, m/s)||1 × 10−8–5 × 10−6||‒||‒|
|Maximum height (, m)||0.001–0.1||‒||‒|
|Height where intermediate outflow appears (, m)||0.0005–0.01||‒||‒|
|Height where infiltration appears (, m)||0.0001–0.005||‒||‒|
|Surface roughness coefficient (, s/m1/3)||0.1–2.0||‒||‒|
|Coefficient of intermediate outflow ()||0.5–0.9||‒||‒|
|Coefficient of slow intermediate outflow (, 1/(ms)1/2)||‒||0.011||‒|
|Coefficient of base outflow (, 1/s)||‒||3.5 × 10−8||‒|
|Height where slow intermediate outflow appears (, m)||‒||2.0||‒|
|Manning roughness coefficient of river (, s/m1/3)||‒||‒||0.035|
- Japan Meteorological Agency (JMA)—The Regional Specialized Meteorological Center (RSMC) Tokyo—Typhoon Center. Available online: http://www.jma.go.jp/jma/jma-eng/jma-center/rsmc-hp-pub-eg/RSMC_HP.htm (accessed on 1 April 2018).
- Myeong, S.; Hong, H.J. Developing flood vulnerability map for North Korea. In Proceedings of the American Society for Photogrammetry and Remote Sensing Annual Conference, Baltimore, MD, USA, 26–28 March 2009; pp. 9–13. [Google Scholar]
- Takano, K.T.; Nakagawa, K.; Aiba, M.; Oguro, M.; Morimoto, J.; Furukawa, Y.; Mishima, Y.; Ogawa, K.; Ito, R.; Takemi, T. Projection of impacts of climate change on windthrows and evaluation of potential adaptation measures in forest management: A case study from empirical modelling of windthrows in Hokkaido, Japan, by Typhoon Songda (2004). Hydrol. Res. Lett. 2016, 10, 132–138. [Google Scholar] [CrossRef][Green Version]
- Kanada, S.; Tsuboki, K.; Aiki, H.; Tsujino, S.; Takayabu, I. Future enhancement of heavy rainfall events associated with a typhoon in the midlatitude regions. SOLA 2017, 13, 246–251. [Google Scholar] [CrossRef]
- Intergovernmental Panel on Climate Change (IPCC). Managing the Risks of Extreme Events and Disasters to Advance Climate Change Adaptation; A Special Report of Working Groups I and II of the IPCC; Field, C.B., Barros, V., Stocker, T.F., Qin, D., Dokken, D.J., Ebi, K.L., Mastrandrea, M.D., Mach, K.J., Plattner, G.-K., Allen, S.K., et al., Eds.; Cambridge University Press: Cambridge, UK; New York, NY, USA, 2012. [Google Scholar]
- Intergovernmental Panel on Climate Change (IPCC). Contribution of Working Group II to the Fourth Assessment Report of the IPCC; Parry, M.L., Canziani, O.F., Palutikof, J.P., van der Linden, P.J., Hanson, C.E., Eds.; Cambridge University Press: Cambridge, UK; New York, NY, USA, 2007. [Google Scholar]
- Hoshino, G.; Yamada, T.J. Impact Assessment of Climate Change on Precipitation over a Watershed in Hokkaido, Proceedings of the 2017 Annual Conference of the Japan Society of Hydrology and Water Resources Forum. Title Was Translated by N. Kimura. Available online: https://doi.org/10.11520/jshwr.30.0_12 (accessed on 1 April 2018). (In Japanese).
- Japan Society of Civil Engineers (JSCE). Onsite Field Investigation Team, Site-Investigation Report for the Hokkaido Heavy Rain Disasters in August 2016; Title was translated by N. Kimura; JSCE Report; JSCE: Tokyo, Japan, 2017. (In Japanese) [Google Scholar]
- Ministry of Land, Infrastructure, Transport, and Tourism in Japan (MLIT Japan). Hydrology and Water Quality Database. Available online: http://www1.river.go.jp/ (accessed on 1 April 2018).
- MLIT Japan. Future Countermeasures for Flood Controls with the Consideration of the Hokkaido Heavy-Rain Disaster in August 2016—Supplementary Material. Title Was Translated by N. Kimura. Available online: https://www.hkd.mlit.go.jp/ky/kn/kawa_kei/ud49g7000000f0l0-att/splaat000000hdsv.pdf (accessed on 1 April 2018). (In Japanese)
- Osanai, N.; Kasai, M.; Hayashi, S.I.; Katsura, S.Y.; Furuichi, T.; Igura, M.; Kosaka, M.; Fujinami, T.; Mizugaki, S.; Abe, T.; et al. Sediment discharge in the Tokachi region, Hokkaido, caused by Typhoon No. 10 (Lionrock), 2016. Jpn. Soc. Eros. Control Eng. 2017, 69, 80–91. (In Japanese) [Google Scholar]
- Nakatsugawa, M. Survey on factors of geotechnical disaster in Hidaka region due to Typhoon No. 10 in 2016. Mem. Muroran Inst. Technol. 2018, 67, 3–8. (In Japanese) [Google Scholar]
- Hokkaido Regional Development Bureau in MLIT Japan. Obihiro Office Website. Available online: https://www.hkd.mlit.go.jp/ob/obihiro_kasen/index.html (accessed on 1 April 2018).
- Intergovernmental Panel on Climate Change (IPCC). Climate Change 2013: The Physical Science Basis. Contribution of Working Group I to the Fifth Assessment Report of the IPCC; Stocker, T.F., Qin, D., Plattner, G.-K., Tignor, M., Allen, S.K., Boschung, J., Nauels, A., Xia, Y., Bex, V., Midgley, P.M., Eds.; Cambridge University Press: Cambridge, UK; New York, NY, USA, 2013. [Google Scholar]
- Fukami, K.; Sugiura, Y.; Magome, J.; Kawakami, T. Integrated flood analysis system (IFAS Ver. 1.2)—User’s manual. Jpn. PWRI-tech. Note 2009, 4148, 223. [Google Scholar]
- International Centre for Water Hazard and Risk Management (ICHARM). IFAS Flood Forecasting System Using Global Satellite Rainfall. Available online: http://www.icharm.pwri.go.jp/research/ifas/ (accessed on 1 April 2018).
- Aziz, A.; Tanaka, S. Regional parameterization and applicability of Integrated Flood Analysis System (IFAS) for flood forecasting of upper-middle Indus River. Pak. J. Meteorol. 2011, 8, 21–38. [Google Scholar]
- Liu, T.; Tsuda, M.; Iwami, Y. A study on flood forecasting in the upper Indus basin considering snow and glacier meltwater. J. Disaster Res. 2017, 12, 793–805. [Google Scholar] [CrossRef]
- Yoshino, F.; Yoshitani, J.; Sugiura, M. A Conceptual Distributed Model for Large-Scale Mountainous Basins. In Hydrology of Mountainous Regions, I—Hydrological Measurements; The Water Cycle; Lang, H., Musy, A., Eds.; IAHS Publisher: Lausanne, Switzerland, 1990; pp. 685–692. [Google Scholar]
- HydroSHEDS. Available online: www.hydrosheds.org (accessed on 1 April 2018).
- Global Land Cover Characterization (GLCC). Available online: https://lta.cr.usgs.gov/GLCC (accessed on 1 April 2018).
- JMA. Past Meteorological Data. Available online: http://www.data.jma.go.jp/gmd/risk/obsdl/index.php (accessed on 1 April 2018).
- Kimura, N.; Chiang, S.; Wei, H.P.; Su, Y.F.; Chu, J.L.; Cheng, C.T.; Liou, J.J.; Chen, Y.M.; Lin, L.Y. Hydrological flood simulation to Tsengwen reservoir watershed under global climate change with 20 km mesh Meteorological Research Institute atmospheric general circulation model (MRI-AGCM). Terr. Atmos. Ocean. Sci. 2014, 25, 449–461. [Google Scholar] [CrossRef]
- Nash, J.E.; Sutcliffe, J.V. River flow forecasting through conceptual models part I—A discussion of principles. J. Hydrol. 1970, 10, 282–290. [Google Scholar] [CrossRef]
- JMA. Global Warming Forecast Report; Title Was Translated by N. Kimura; JMA: Tokyo, Japan, 2013; Volume 8. (In Japanese)
- JMA Sapporo Branch. Climate Change in Hokkaido—120-Year Observations and Forecasts, 2nd ed.; Title Was Translated by N. Kimura; JMA Sapporo branch: Sapporo, Japan, 2017. (In Japanese)
- Database for Policy Decision-Making for Future Climate Change (d4PDF). Available online: http://www.miroc-gcm.jp/~pub/d4PDF/index_en.html (accessed on 1 April 2018).
- JMA. Global Warming Forecast Report; Title Was Translated by N. Kimura; JMA: Tokyo, Japan, 2017; Volume 9. (In Japanese)
- Asia Pacific Adaptation Network. Risk Management in Dam Operation: A Approaches to Improve Flood Control Capabilities of Existing Dams. Available online: http://www.asiapacificadapt.net/adaptation-technologies/database/risk-management-dam-operation-aapproaches-improve-flood-control (accessed on 1 April 2018).
- Mitsuishi, S.; Ozeki, T.; Sumi, T. Applicability of a New Flood Control Method Utilizing Rainfall Prediction by WRF. J. Jpn. Soc. Hydrol. Water Resour. 2011, 24, 110–120. (In Japanese) [Google Scholar] [CrossRef][Green Version]
|Asian Typhoon Name||Date and Time of Landing/Approach (August 2016) 1||Minimum Central Pressure (hPa) 1||Maximum Wind Speed (m/s) 1||Accumulated Precipitation (mm) 2|
|Chanthu||17, 17:00||980||30||197 (48 h)|
|Kompasu||21, 23:00||1002||18||183 (48 h)|
|Mindulle||23, 06:00||992||25||103 (24 h)|
|Lionrock||30, 17:00||965||35||352 (72 h)|
|Dam Name||Location||Catchment Area (km2)||Capacity (million m3)||Length (m)||Height (m)||Surface Area (km2)|
|Tokachi||43.240° N, 142.939° E||592.0||112.0||443.0||84.3||4.2|
|Satsunai River||42.588° N, 142.923° E||117.7||54.0||300.0||114.0||1.7|
|Number||Station Name||Location||Rp||NS||MAE (m)||rMAE * (%)||Remarks|
|1||Nishibetsu||43.323° N, 142.943° E|
|0.74||0.78||0.27||8.6||Gage stopped after 23 August, 9:00.|
|2||Kyohei Bridge||43.068° N, 142.926° E|
|3||Memurobuto||42.931° N, 143.047° E|
|4||Obihiro||42.934° N, 143.203° E|
|0.77||0.74||0.47||7.4||Near Obihiro City|
|5||Tokachichuoh Bridge||42.927° N, 143.291° E|
|6||Moiwa||42.808° N, 143.512° E|
|7||Bisei Bridge||42.923° N, 143.066° E|
|8||Higashisanjyo||42.933° N, 143.209° E|
|9||Rrutanjyoryu||42.611° N, 142.870° E|
|0.75||0.83||0.13||5.6||Gage stopped after 30 August, 20:00.|
|10||Dainiohkawa Bridge||42.798° N, 143.157° E|
|11||Totta Bridge||42.699° N, 143.058° E|
|0.73||0.73||0.17||8.0||Gage stopped after 31 August, 2:00.|
|12||Yamuwakka||42.910° N, 143.356° E|
|13||Otofuke||43.008° N, 143.200° E|
|14||Asahi Bridge||42.947° N, 143.270° E|
|15||Azuma Bridge||43.094° N, 143.516° E|
|16||Toshibetsu||42.931° N, 143.443° E|
|17||Todaiichigo Bridge||42.920° N, 143.476° E|
