# Street-Level Ventilation in Hypothetical Urban Areas

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

## 2. Methodology

#### 2.1. Wind Tunnel Infrastructure

#### 2.2. Idealized Urban Surfaces

#### 2.3. Hot-Wire Anemometry

## 3. Results and Discussion

#### 3.1. Thickness of TBL and ISL

#### 3.2. Friction Velocity

#### 3.3. Wind Speed Profiles

#### 3.4. Turbulence Profiles

#### 3.5. Street-Level Ventilation Estimate

#### 3.6. Quadrant Analysis

#### 3.7. Frequency Spectrum

## 4. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Deweerdt, S. The urban downshift. Nature
**2016**, 531, S52–S53. [Google Scholar] [CrossRef] [PubMed] - Wigginton, N.S.; Fahrenkamp-Uppenbrink, J.; Wible, B.; Malakoff, D. Cities are the future. Science
**2016**, 352, 904–905. [Google Scholar] [CrossRef] [PubMed] - Parrish, D.D.; Zhu, T. Clean air for megacities. Science
**2009**, 326, 674–675. [Google Scholar] [CrossRef] [PubMed] - Fernando, H.J.S. Fluid dynamics of urban atmospheres in complex terrain. Annu. Rev. Fluid Mech.
**2010**, 42, 365–389. [Google Scholar] [CrossRef] - Claus, J.; Krogstad, P.A.; Castro, I.P. Some measurements of surface drag in urban-type boundary layers at various wind angles. Bound. Layer Meteorol.
**2012**, 145, 407–422. [Google Scholar] [CrossRef] - Ricci, A.; Burlando, M.; Freda, A.; Repetto, M.P. Wind tunnel measurements of the urban boundary layer development over a historical district in Italy. Build. Environ.
**2017**, 111, 192–206. [Google Scholar] [CrossRef] - Tse, K.T.; Hitchcock, P.A.; Kwok, K.C.S.; Thepmongkorn, S.; Chan, C.M. Economic perspectives of aerodynamic treatments of square tall buildings. J. Wind Eng. Ind. Aerodyn.
**2009**, 97, 455–467. [Google Scholar] [CrossRef] - Aly, A.M. Atmospheric boundary-layer simulation for the built environment: Past, present and future. Build. Environ.
**2014**, 75, 206–221. [Google Scholar] [CrossRef] - Stabile, L.; Arpino, F.; Buonanno, G.; Russi, A.; Frattolillo, A. A simplified benchmark of ultrafine particle dispersion in idealized urban street canyons: A wind tunnel study. Build. Environ.
**2015**, 93, 186–198. [Google Scholar] [CrossRef] - Panagiotou, I.; Neophytou, M.K.A.; Hamlyn, D.; Britter, R.E. City breathability as quantified by the exchange velocity and its spatial variation in real inhomogeneous urban geometries: An example from central London urban area. Sci. Total Environ.
**2013**, 442, 466–477. [Google Scholar] [CrossRef] [PubMed] - Hang, J.; Wang, Q.; Chen, X.; Sandberg, M.; Zhu, W.; Buccolieri, R.; Di Sabatino, S. City breathability in medium density urban-like geometries evaluated through the pollutant transport rate and the net escape velocity. Build. Environ.
**2015**, 94, 166–182. [Google Scholar] [CrossRef] - Blocken, B.; Stathopoulos, T.; van Beeck, J.P.A.J. Pedestrian-level wind conditions around buildings: Review of wind-tunnel and CFD techniques and their accuracy for wind comfort assessment. Build. Environ.
**2016**, 100, 50–81. [Google Scholar] [CrossRef] - Kubota, T.; Miura, M.; Tominaga, Y.; Mochida, A. Wind tunnel tests on the relationship between building density and pedestrian-level wind velocity: Development of guidelines for realizing acceptable wind environment in residential neighborhoods. Build. Environ.
**2008**, 43, 1699–1708. [Google Scholar] [CrossRef] - Jiménez, J. Turbulent flows over rough walls. Annu. Rev. Fluid Mech.
**2004**, 36, 173–196. [Google Scholar] [CrossRef] - Kamruzzaman, M.; Djenidi, L.; Antonia, R.A.; Talluru, K.M. Drag of a turbulent boundary layer with transverse 2D circular rods on the wall. Exp. Fluids
**2015**, 56, 121–129. [Google Scholar] [CrossRef] - Hagishima, A.; Tanimoto, J.; Nagayama, K.; Meno, S. Aerodynamic parameters of regular arrays of rectangular blocks with various geometries. Bound. Layer Meteorol.
**2009**, 132, 315–337. [Google Scholar] [CrossRef] - Karimpour, A.; Kaye, N.B.; Baratian-Ghorghi, Z. Modeling the neutrally stable atmospheric boundary layer for laboratory scale studies of the built environment. Build. Environ.
**2012**, 49, 203–211. [Google Scholar] [CrossRef] - Krogstad, P.-Å.; Antonia, R.A. Surface roughness effects in turbulent boundary layers. Exp. Fluids
**1999**, 27, 450–460. [Google Scholar] [CrossRef] - Antonia, R.A.; Krogstad, P.-Å. Turbulence structure in boundary layers over different types of surface roughness. Fluid Dyn. Res.
**2001**, 28, 139–157. [Google Scholar] [CrossRef] - Mirzaei, P.A.; Haghighat, F. Pollution removal effectiveness of the pedestrian ventilation system. J. Wind Eng. Ind. Aerodyn.
**2011**, 99, 46–58. [Google Scholar] [CrossRef] - Mirzaei, P.A.; Haghighat, F. A procedure to quantify the impact of mitigation techniques on the urban ventilation. Build. Environ.
**2012**, 47, 410–420. [Google Scholar] [CrossRef] - Kanda, I.; Yamao, Y. Velocity adjustment and passive scalar diffusion in and above an urban canopy in response to various approach flows. Bound. Layer Meteorol.
**2011**, 141, 415–441. [Google Scholar] [CrossRef] - Carpentieri, M.; Hayden, P.; Robins, A.G. Wind tunnel measurements of pollutant turbulent fluxes in urban intersections. Atmos. Enviorn.
**2012**, 46, 669–674. [Google Scholar] [CrossRef] - Chung, J.; Hagishima, A.; Ikegaya, N.; Tanimoto, J. Wind-tunnel study of scalar transfer phenomena for surfaces of block arrays and smooth walls with dry patches. Bound. Layer Meteorol.
**2015**, 157, 219–236. [Google Scholar] [CrossRef] - Raupach, M.R.; Hughes, D.E.; Cleugh, H.A. Momentum absorption in rough-wall boundary layers with sparse roughness elements in random and clustered distributions. Bound. Layer Meteorol.
**2006**, 120, 201–218. [Google Scholar] [CrossRef] - Tachie, M.F.; Bergstrom, D.J.; Balachandar, R. Roughness effects in low-Re
_{θ}open-channel turbulent boundary layers. Exp. Fluids**2003**, 35, 338–346. [Google Scholar] [CrossRef] - Pascheke, F.; Barlow, J.F.; Robins, A.G. Wind-tunnel modelling of dispersion from a scalar area source in urban-like roughness. Bound. Layer Meteorol.
**2008**, 126, 103–124. [Google Scholar] [CrossRef] - Ikegaya, N.; Hagishima, A.; Tanimoto, J.; Tanaka, Y.; Narita, K.-I.; Zaki, S.A. Geometric dependence of the scalar transfer efficiency over rough surfaces. Bound. Layer Meteorol.
**2012**, 143, 357–377. [Google Scholar] [CrossRef] - Barlow, J.F.; Harman, I.N.; Belcher, S.E. Scalar fluxes from urban street canyons. Part I: Laboratory simulation. Bound. Layer Meteorol.
**2004**, 113, 369–385. [Google Scholar] [CrossRef] - Salizzoni, P.; Soulhac, L.; Mejean, P. Street canyon ventilation and atmospheric turbulence. Atmos. Environ.
**2009**, 43, 5056–5067. [Google Scholar] [CrossRef] - Takimoto, H.; Sato, A.; Barlow, J.F.; Ryo, M.; Inagaki, A.; Onomura, S.; Kanda, M. Particle image velocimetry measurements of turbulent flow within outdoor and indoor urban scale models and flushing motions in urban canopy layers. Bound. Layer Meteorol.
**2011**, 140, 295–314. [Google Scholar] [CrossRef] - Perret, L.; Savory, E. Large-scale structures over a single street canyon immersed in an urban-type boundary layer. Bound. Layer Meteorol.
**2013**, 148, 111–131. [Google Scholar] [CrossRef] - Djenidi, L.; Antonia, R.A.; Anselmet, F. LDA measurements in a turbulent boundary layer over a d-type rough wall. Exp. Fluids
**1994**, 16, 323–329. [Google Scholar] [CrossRef] - Schultz, M.P.; Flack, K.A. Outer layer similarity in fully rough turbulent boundary layers. Exp. Fluids
**2005**, 38, 328–340. [Google Scholar] [CrossRef] - Smits, A.J.; McKeon, B.J.; Marusic, I. High-Reynolds number wall turbulence. Annu. Rev. Fluid Mech.
**2011**, 43, 353–375. [Google Scholar] [CrossRef] - Squire, D.T.; Morrill-Winter, C.; Hutchins, N.; Schultz, M.P.; Klewicki, J.C.; Marusic, I. Comparison of turbulent boundary layers over smooth and rough surfaces up to high Reynolds numbers. J. Fluid Mech.
**2016**, 795, 210–240. [Google Scholar] [CrossRef] - Volino, R.J.; Schultz, M.P.; Flack, K.A. Turbulence structure in rough- and smooth-wall boundary layers. J. Fluid Mech.
**2007**, 592, 263–293. [Google Scholar] [CrossRef] - Flack, K.A.; Schultz, M.P. Roughness effects on wall-bounded turbulent flows. Phys. Fluids
**2014**, 101305. [Google Scholar] [CrossRef] - De Ridder, K. Bulk transfer relations for the roughness sublayer. Bound. Layer Meteorol.
**2010**, 134, 257–267. [Google Scholar] [CrossRef] - Kastner-Kelin, P.; Rotach, M.W. Mean flow and turbulence characteristics in an urban roughness sublayer. Bound. Layer Meteorol.
**2004**, 111, 55–84. [Google Scholar] [CrossRef] - Smeets, C.J.P.P.; van den Broeke, M.R. The parameterisation of scalar transfer over rough ice. Bound. Layer Meteorol.
**2008**, 128, 339–355. [Google Scholar] [CrossRef] - Castro, I.P.; Cheng, H.; Reynolds, R. Turbulence over urban-type roughness: Deductions from wind-tunnel measurements. Bound. Layer Meteorol.
**2006**, 118, 109–131. [Google Scholar] [CrossRef] - Mihailovic, D.T.; Rao, S.T.; Hogrefe, C.; Clark, R.D. An approach for the aggregation of aerodynamic surface parameters in calculating the turbulent fluxes over heterogeneous surfaces in atmospheric models. Environ. Fluid Mech.
**2002**, 2, 339–355. [Google Scholar] [CrossRef] - Britter, R.E.; Hanna, S.R. Flow and dispersion in urban areas. Annu. Rev. Fluid Mech.
**2003**, 35, 469–496. [Google Scholar] [CrossRef] - Oke, T.R. Street design and urban canopy layer climate. Energy Bldg.
**1988**, 11, 103–113. [Google Scholar] [CrossRef] - Perry, A.E.; Schofield, W.H.; Joubert, P.N. Rough wall turbulent boundary layers. J. Fluid Mech.
**1969**, 37, 383–413. [Google Scholar] [CrossRef] - Baetke, F.; Werner, H.; Wengle, H. Numerical simulation of turbulent flow over surface-mounted obstacles with sharp edges and corners. J. Fluid Mech.
**1990**, 35, 129–147. [Google Scholar] [CrossRef] - Bruun, H.H. Interpretation of a hot wire signal using a universal calibration law. J. Sci. Instrum.
**1971**, 4, 225–231. [Google Scholar] [CrossRef] - Aydin, E.M.; Leutheusser, H.J. Plane-Couette flow between smooth and rough walls. Exp. Fluids
**1991**, 11, 302–312. [Google Scholar] [CrossRef] - Snyder, W.H.; Castro, I.P. The critical Reynolds number for rough-wall boundary layers. J. Wind Eng. Ind. Aerodyn.
**2002**, 90, 41–54. [Google Scholar] [CrossRef] - Garratt, J.R. The Atmospheric Boundary Layer; Cambridge University Press: Cambridge, UK, 1994; p. 316. [Google Scholar]
- Cheng, H.; Castro, I.P. Near wall flow over urban-like roughness. Bound. Layer Meteorol.
**2002**, 104, 229–259. [Google Scholar] [CrossRef] - Ho, Y.-K. Wind-Tunnel Study of Turbulent Boundary Layer over Idealised Urban Roughness with Application to Urban Ventilation Problem. Ph.D. Thesis, The University of Hong Kong, Hong Kong, China, 2017; 237p. [Google Scholar]
- Takimoto, H.; Inagaki, A.; Kanda, M.; Sato, A.; Michioka, T. Length-scale similarity of turbulent organized structures over surfaces with different roughness types. Bound. Layer Meteorol.
**2013**, 147, 217–236. [Google Scholar] [CrossRef] - Wu, Z.; Liu, C.-H. Time scale analysis of chemically reactive pollutants over urban roughness in the atmospheric boundary layer. Int. J. Environ. Pollut.
**2017**. accepted. [Google Scholar] - Burattini, P.; Leonardi, S.; Orlandi, P.; Antonia, R.A. Comparison between experiment and direct numerical simulations in a channel flow with roughness on one wall. J. Fluid Mech.
**2008**, 600, 403–426. [Google Scholar] [CrossRef] - Rafailidis, S. Influence on building area density and roof shape on the wind characteristics above a town. Bound. Layer Meteorol.
**1997**, 85, 255–271. [Google Scholar] [CrossRef] - Keirsbulck, L.; Labraga, L.; Mazouz, A.; Tournier, C. Influence of surface roughness on anisotropy in a turbulent boundary layer flow. Exp. Fluids
**2002**, 33, 497–499. [Google Scholar] [CrossRef] - Nourmohammadi, K.; Hopke, P.K.; Stukel, J.J. Turbulent air flow over rough surfaces II. Turbulent flow parameters. J. Fluids Eng.
**1985**, 107, 55–60. [Google Scholar] [CrossRef] - Panofsky, H.A. The atmospheric boundary layer below 150 meters. Annu. Rev. Fluid Mech.
**1974**, 107, 147–177. [Google Scholar] [CrossRef] - Volino, R.J.; Schultz, M.P.; Flack, K.A. Turbulence structure in a boundary layer with two-dimensional roughness. J. Fluid Mech.
**2009**, 635, 75–101. [Google Scholar] [CrossRef] - Volino, R.J.; Schultz, M.P.; Flack, K.A. Turbulence structure in boundary layers over periodic two- and three-dimensional roughness. J. Fluid Mech.
**2011**, 676, 172–190. [Google Scholar] [CrossRef] - Smalley, R.J.; Leonardi, S.; Antonia, R.A.; Djenidi, L.; Orlandi, P. Reynolds stress anisotropy of turbulent rough wall layers. Exp. Fluids
**2002**, 33, 31–37. [Google Scholar] [CrossRef] - Reynolds, R.T.; Castro, I.P. Measurements in an urban-type boundary layer. Exp. Fluids
**2008**, 45, 141–156. [Google Scholar] [CrossRef] - Ho, Y.-K.; Liu, C.-H. A wind tunnel study of flows over idealised urban surfaces with roughness sublayer corrections. Theor. Appl. Climatol.
**2016**, 1–16. [Google Scholar] [CrossRef] - Liu, C.-H.; Leung, D.Y.C.; Barth, M.C. On the prediction of air and pollutant exchange rates in street canyons of different aspect ratios using large-eddy simulation. Atmos. Environ.
**2005**, 39, 1567–1574. [Google Scholar] [CrossRef] - Ho, Y.-K.; Liu, C.-H.; Wong, M.S. Preliminary study of the parameterisation of street-level ventilation in idealised two-dimensional simulations. Build. Environ.
**2015**, 89, 345–355. [Google Scholar] [CrossRef] - Liu, C.H.; Ng, C.T.; Wong, C.C.C. A theory of ventilation estimate over hypothetical urban areas. J. Hazard. Mater.
**2015**, 296, 9–16. [Google Scholar] [CrossRef] [PubMed] - Wallace, J.M. Quadrant analysis in turbulence research: History and evolution. Annu. Rev. Fluid Mech.
**2016**, 48, 131–158. [Google Scholar] [CrossRef] - Immer, M.; Allegrini, J.; Carmeliet, J. Time-resolved and time-averaged stereo-PIV measurements of a unit-ratio cavity. Exp. Fluids
**2016**, 57, 101–118. [Google Scholar] [CrossRef] - Hong, J.; Katz, J.; Schultz, M.P. Near-wall turbulence statistics and flow structures over three-dimensional roughness in a turbulent channel flow. J. Fluid Mech.
**2011**, 667, 1–37. [Google Scholar] [CrossRef]

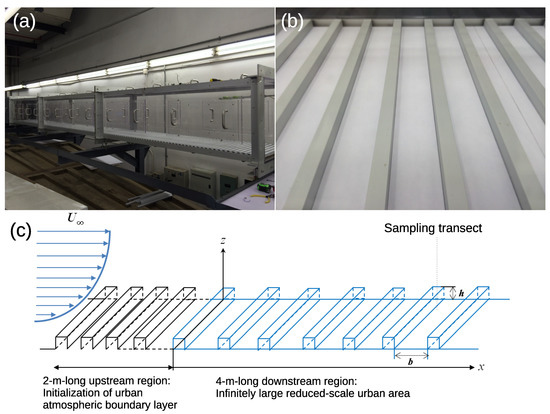

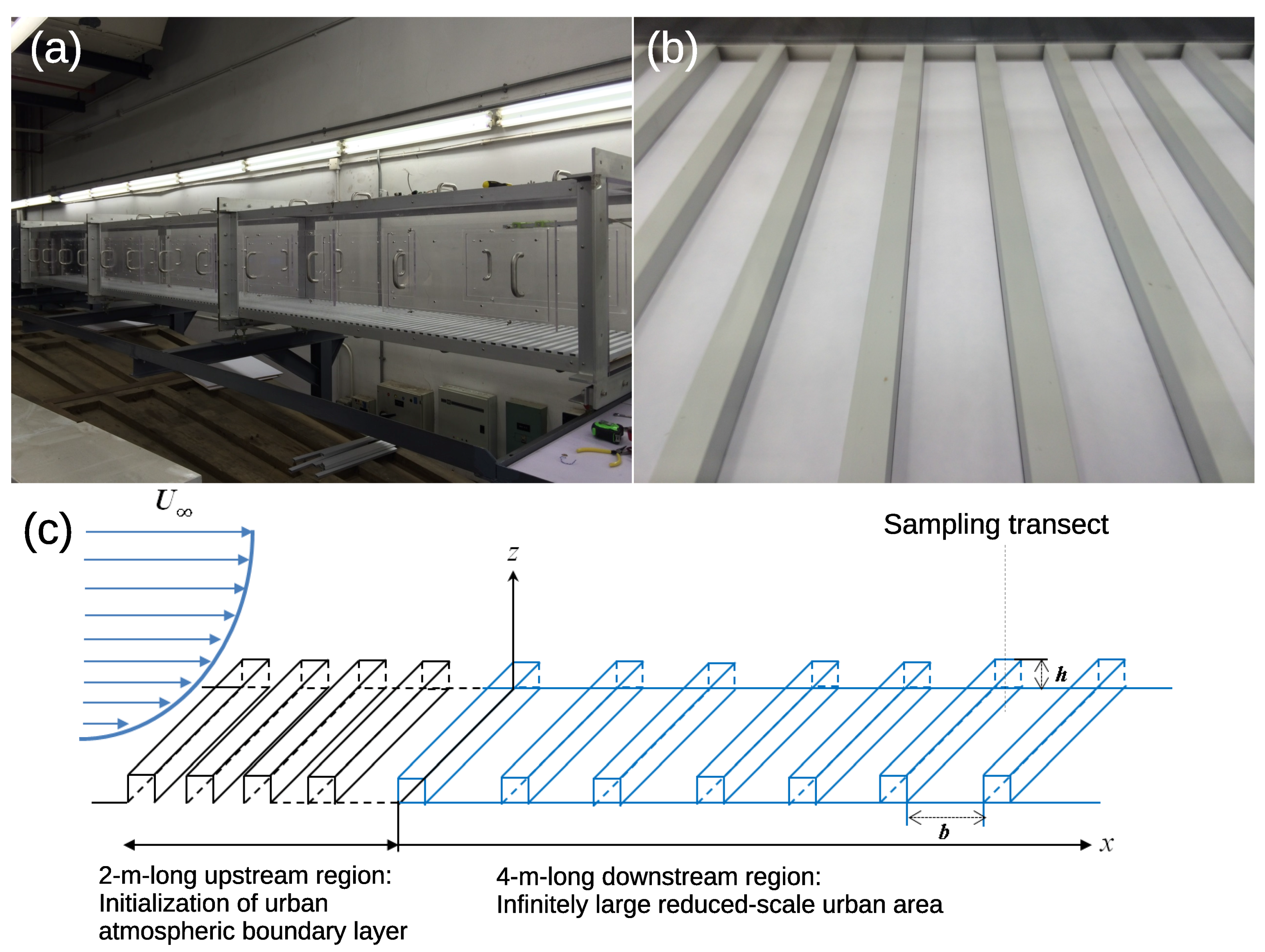

**Figure 1.**Apparatus used in the experiments. (

**a**) Wind tunnel infrastructure in the Department of Mechanical Engineering, University of Hong Kong; (

**b**) rough surfaces in the form of ribs in cross flows; and (

**c**) schematic of the flow configuration.

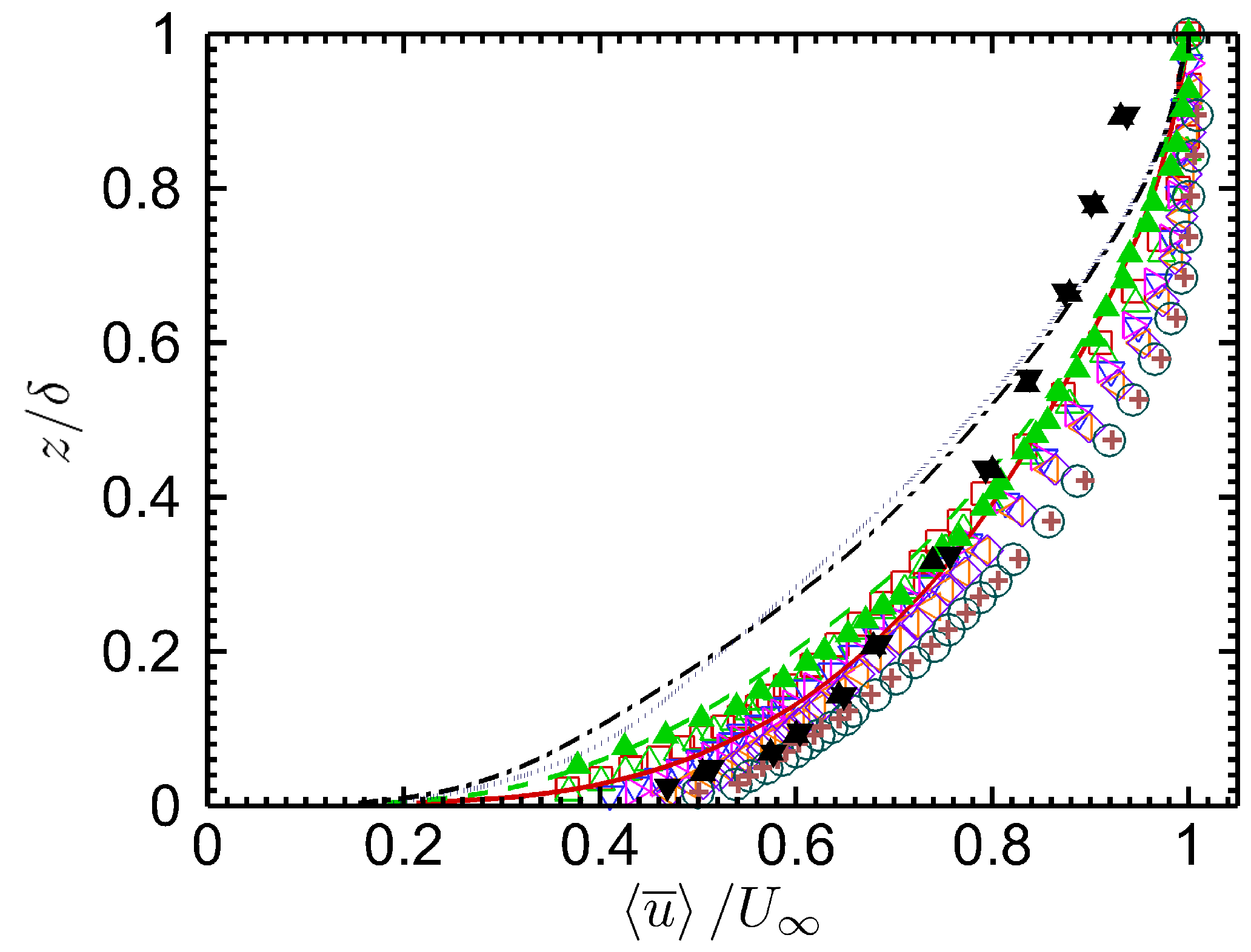

**Figure 2.**Dimensionless profiles of mean wind speed $\u2329\overline{u}\u232a/{U}_{\infty}$ in wall-normal direction $z/\delta $ over ribs of aspect ratio $\mathrm{AR}$ = 1:2 (□), 1:3 (Δ), 1:4 (∇), 1:5 (⊳), 1:6 (⊲), 1:8 (⋄), 1:10 (∘) and 1:12 (+) measured in the current wind tunnel experiments. Also shown are the LES results [55] for $\mathrm{AR}$ = 1:2 (——), 1:3 (------), 1:5 (-·-·-·-·-·-) and 1:10 (⋯⋯) together with the measurements available in literature for $\mathrm{AR}$ = 1:3 (▴) [56] and $\mathrm{AR}$ = 1:1 (▴ and ▾) [57].

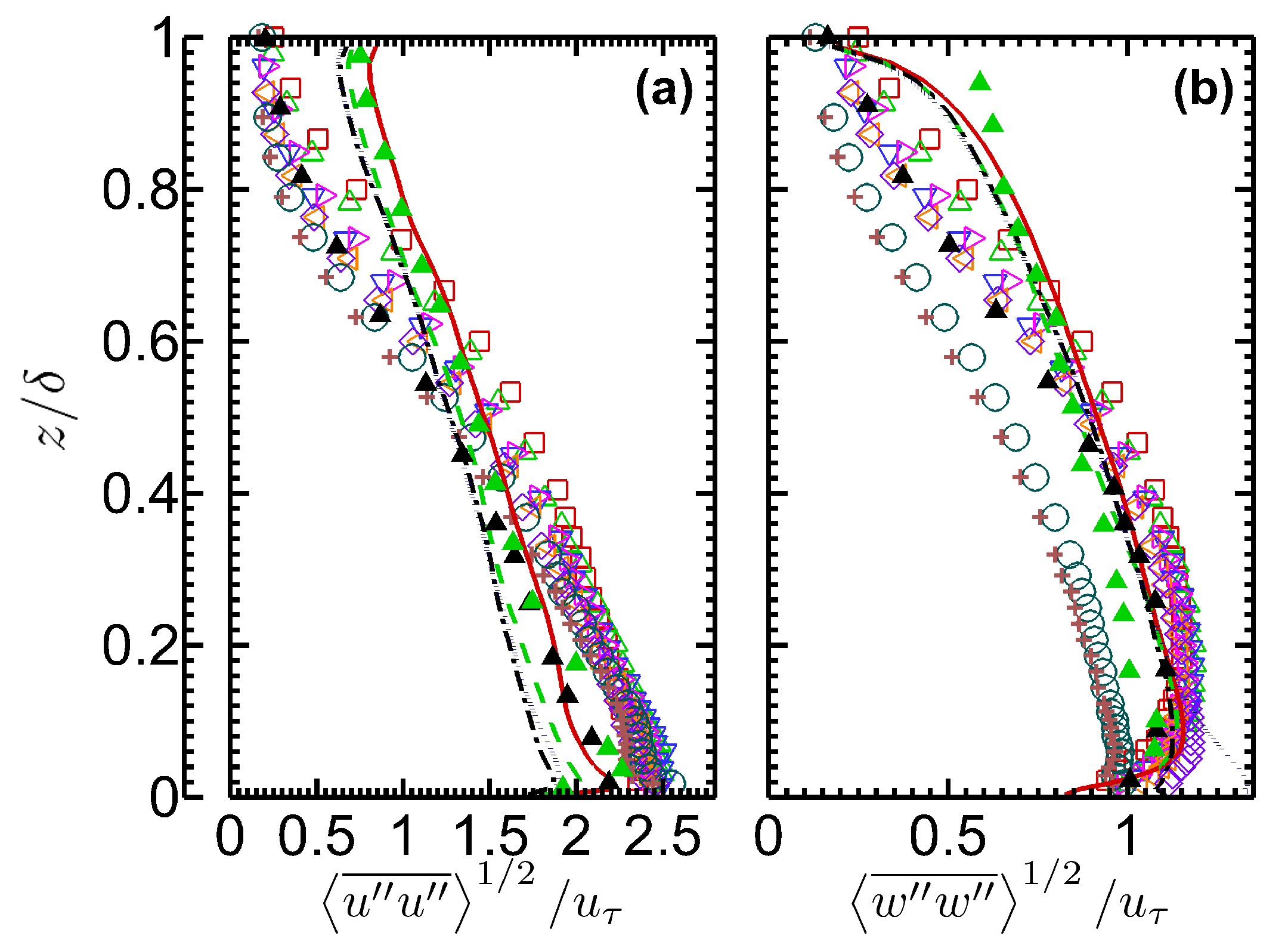

**Figure 3.**Dimensionless profiles of (

**a**) streamwise ${\u2329\overline{{u}^{\u2033}{u}^{\u2033}}\u232a}^{1/2}/{u}_{\tau}$ and (

**b**) vertical ${\u2329\overline{{w}^{\u2033}{w}^{\u2033}}\u232a}^{1/2}/{u}_{\tau}$ fluctuating velocities in wall-normal direction $z/\delta $ over ribs of aspect ratio $\mathrm{AR}$ = 1:2 (□), 1:3 (Δ), 1:4 (∇), 1:5 (⊳), 1:6 (⊲), 1:8 (⋄), 1:10 (∘) and 1:12 (+) measured in the current wind tunnel experiments. Also shown are the LES results [55] for $\mathrm{AR}$ = 1:2 (——), 1:3 (------), 1:5 (-·-·-·-·-·-) and 1:10 (⋯⋯) together with the measurements available in literature for $\mathrm{AR}$ = 1:3 (▴) [56] and $\mathrm{AR}$ = 1:1 (▴) [57].

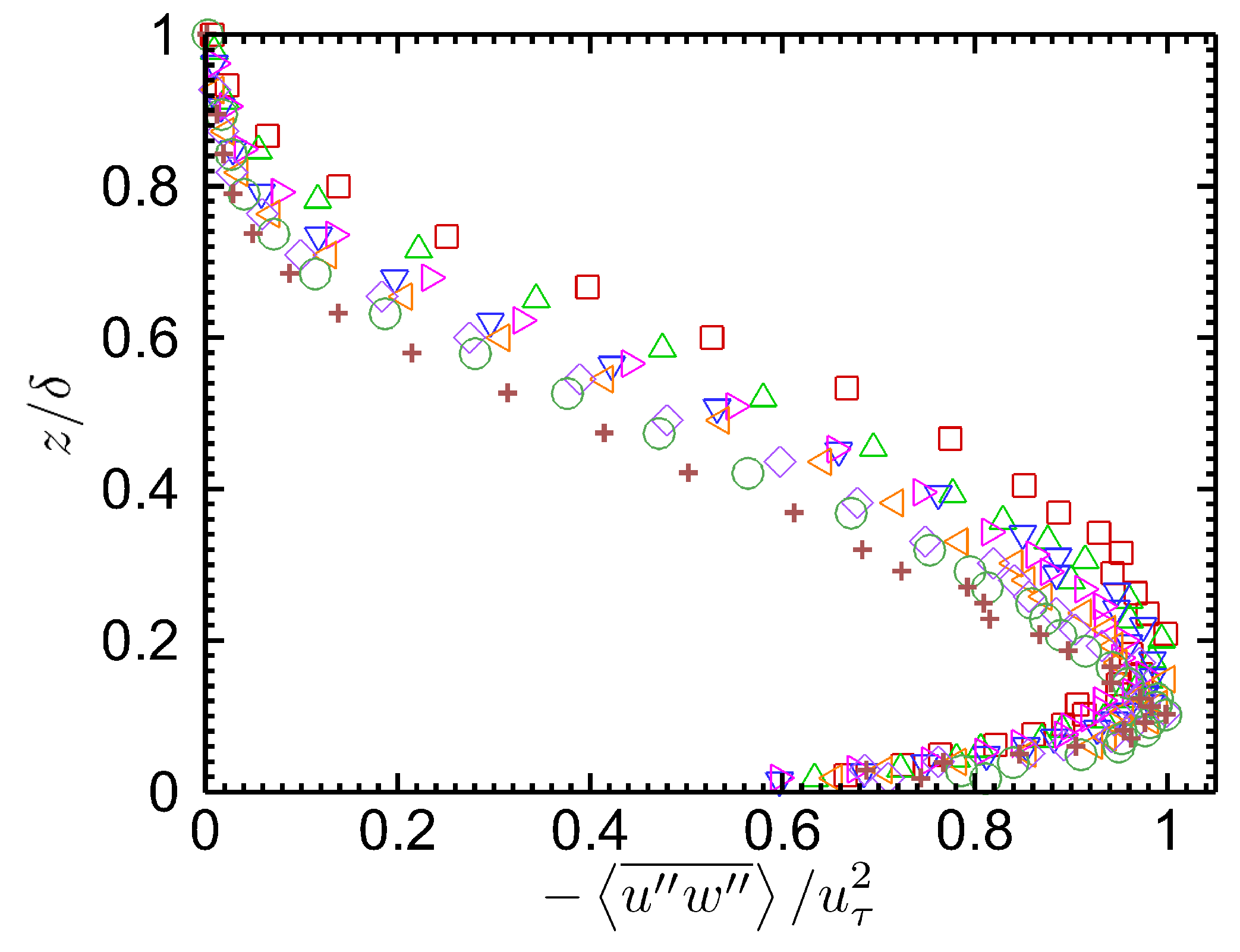

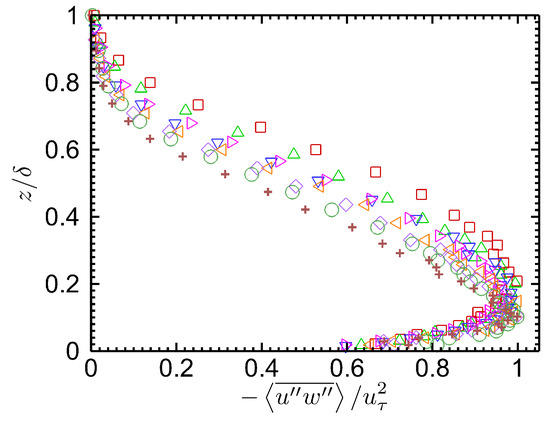

**Figure 4.**Dimensionless profiles of momentum flux $\u2329\overline{{u}^{\u2033}{w}^{\u2033}}\u232a/{u}_{\tau}^{2}$ in wall-normal direction $z/\delta $ over ribs of aspect ratio $\mathrm{AR}$ = 1:2 (□), 1:3 (Δ), 1:4 (∇), 1:5 (⊳), 1:6 (⊲), 1:8 (⋄), 1:10 (∘) and 1:12 (+) measured in the current wind tunnel experiments.

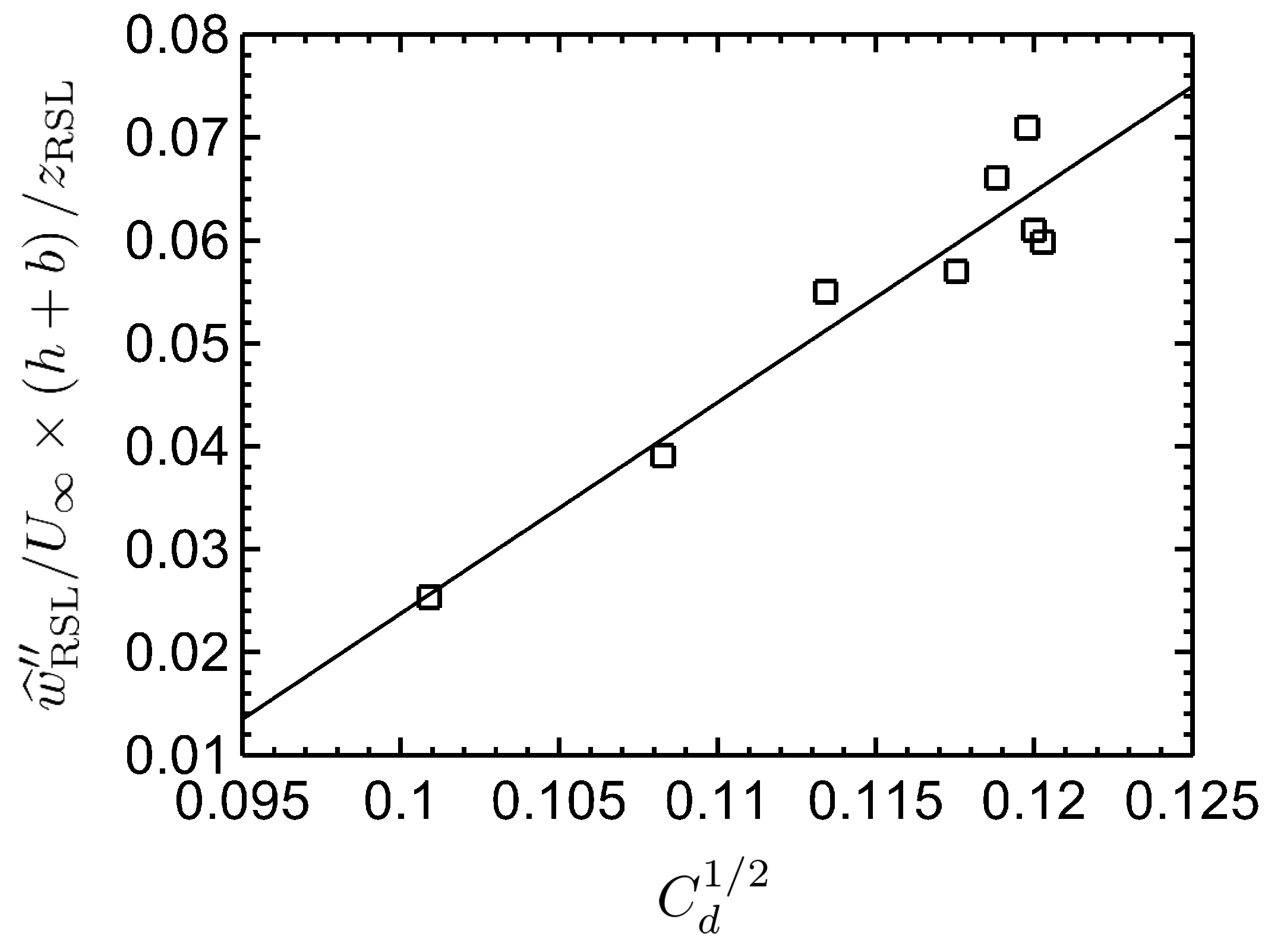

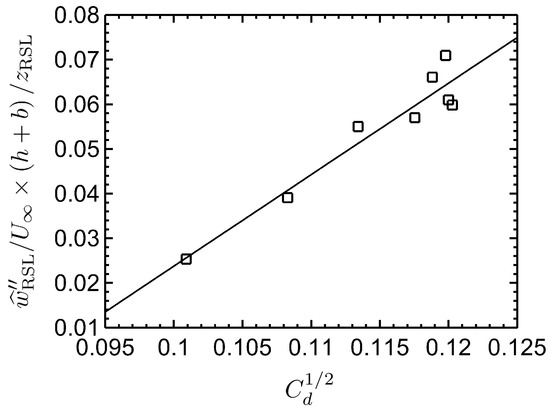

**Figure 5.**Vertical fluctuating velocity scale in the roughness sublayer (RSL) ${\widehat{w}}_{\mathrm{RSL}}^{\u2033}$ plotted against the square root of drag coefficient ${C}_{d}^{1/2}$. Also shown is the linear regression y = $2.0477x-0.181$ whose correlation coefficient is ${R}^{2}$ = $0.9193$.

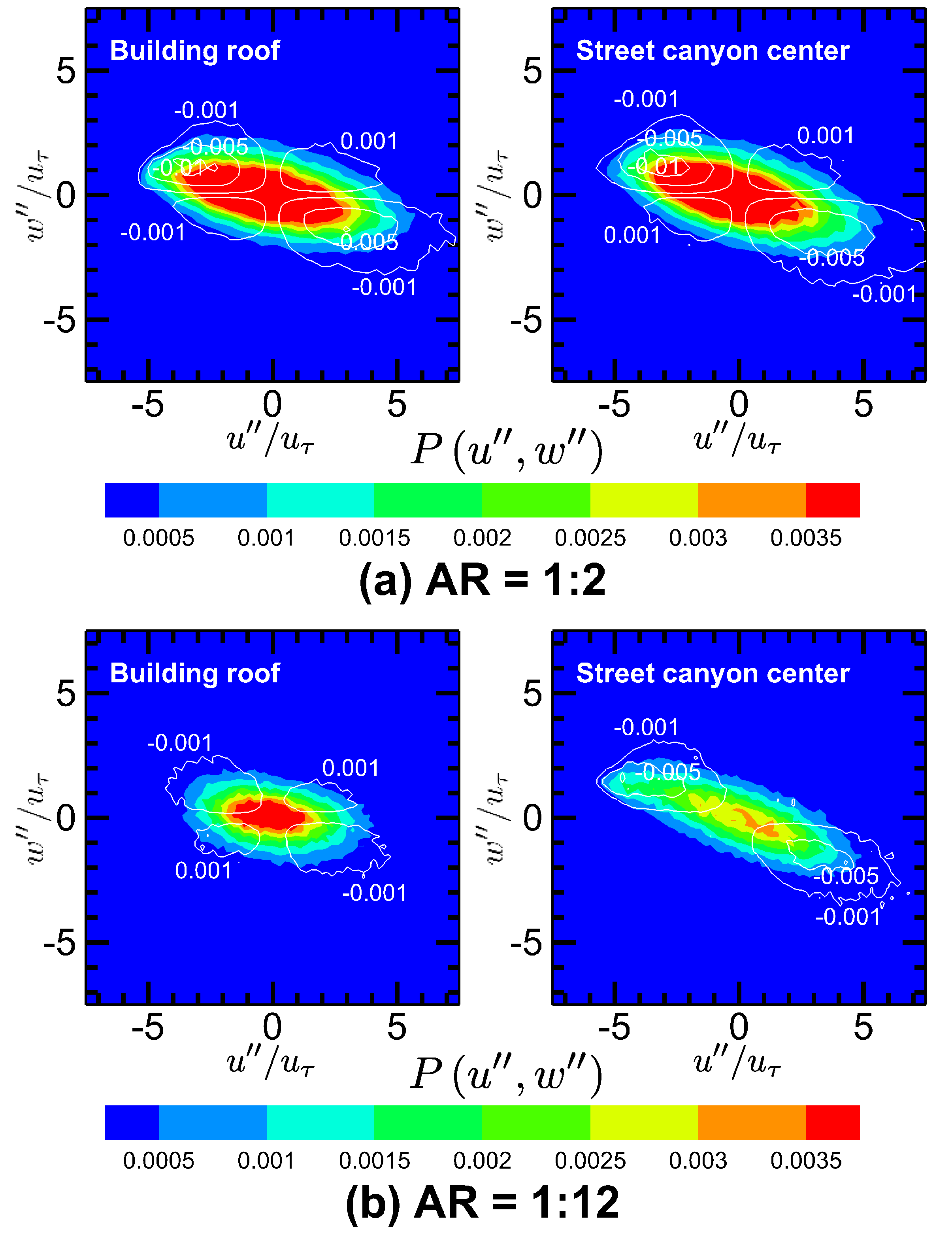

**Figure 6.**Shaded contours of joint probability density function (JPDF) $P\left({u}^{\u2033},{w}^{\u2033}\right)$ and contours of covariance integrand ${u}^{\u2033}{w}^{\u2033}P\left({u}^{\u2033},{w}^{\u2033}\right)$ at roof level $z/h$ = $0.26$ over street canyons of hypothetical urban areas of AR = (

**a**) 1:2 and (

**b**) 1:12.

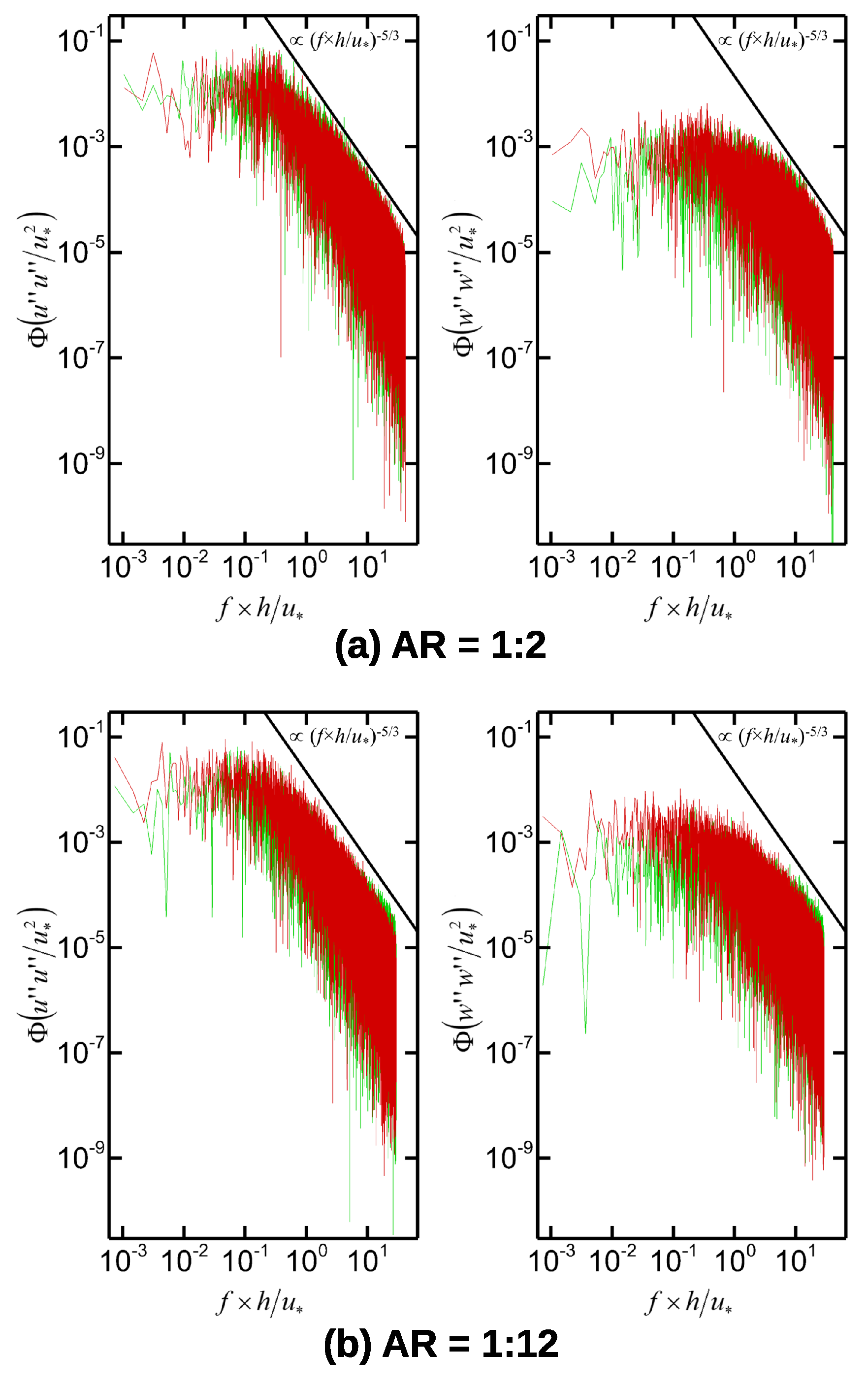

**Figure 7.**Frequency spectra of dimensionless streamwise $\mathsf{\Phi}\left({u}^{\u2033}{u}^{\u2033}/{u}_{\tau}^{2}\right)$ and vertical $\mathsf{\Phi}\left({w}^{\u2033}{w}^{\u2033}/{u}_{\tau}^{2}\right)$ turbulence intensities at roof level $z/h$ = $0.26$ over building roof (red) and street canyon center (green) over street canyons of hypothetical urban areas of AR = (

**a**) 1:2 and (

**b**) 1:12.

**Table 1.**Configuration of the idealized urban surfaces and the flows in the wind tunnel experiments.

Types of Idealized Urban Surface | |||||||||
---|---|---|---|---|---|---|---|---|---|

A | B | C | D | E | F | G | H | ||

Rib [mm] | Size h | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 19 |

Separation b | 38 | 57 | 76 | 95 | 114 | 152 | 190 | 228 | |

Size of a repeating unit l (= h + b) [mm] | 57 | 76 | 95 | 114 | 133 | 171 | 209 | 247 | |

Aspect ratio $AR$ (= $h:b$) | 1:2 | 1:3 | 1:4 | 1:5 | 1:6 | 1:8 | 1:10 | 1:12 | |

Boundary layer thickness | $\delta $ [mm] | 244 | 248 | 283 | 284 | 294 | 294 | 304 | 304 |

$\delta /h$ | $12.84$ | $13.05$ | $14.89$ | $14.95$ | $15.47$ | $15.47$ | $16.00$ | $16.00$ | |

Sampling location | ${x}_{\mathrm{sample}}$ [mm] | 3705 | 3686 | 3609 | 3648 | 3590 | 3562 | 3571 | 3619 |

${x}_{\mathrm{sample}}/h$ | 195 | 194 | 190 | 192 | 189 | 187 | 188 | 190 | |

${x}_{\mathrm{sample}}/\delta $ | $15.18$ | $14.86$ | $12.75$ | $12.85$ | $12.21$ | $12.12$ | $11.75$ | $11.90$ | |

Number of profiles in a repeating unit | 7 | 7 | 7 | 7 | 7 | 9 | 9 | 9 | |

Velocity [m s${}^{-1}$] | Free-stream ${U}_{\infty}$ | $8.0$ | $8.4$ | $8.5$ | $8.5$ | $8.5$ | $8.4$ | $9.1$ | $9.0$ |

Mean ${U}_{\mathrm{mean}}$ | $6.6$ | $6.9$ | $7.3$ | $7.3$ | $7.4$ | $7.4$ | $8.2$ | $8.2$ | |

Friction velocity | ${u}_{\tau}$ [m s${}^{-1}$] | $0.453$ | $0.516$ | $0.556$ | $0.592$ | $0.598$ | $0.598$ | $0.645$ | $0.671$ |

${u}_{\tau}/{U}_{\infty}$ | $0.057$ | $0.062$ | $0.066$ | $0.069$ | $0.070$ | $0.071$ | $0.071$ | $0.074$ | |

${u}_{\tau}/{U}_{\mathrm{mean}}$ | $0.069$ | $0.075$ | $0.077$ | $0.081$ | $0.081$ | $0.081$ | $0.079$ | $0.082$ | |

Drag coefficient f (= $2{u}_{\tau}^{2}/{U}_{\mathrm{mean}}^{2}$) [$\times {10}^{-3}$] | $9.550$ | $1.112$ | $1.176$ | $1.316$ | $1.297$ | $1.319$ | $1.252$ | $1.336$ | |

Reynolds number | ${\mathrm{Re}}_{\delta}$ (= ${U}_{\infty}\delta /\nu $) | 195,168 | 207,495 | 239,729 | 242,190 | 250,614 | 247,520 | 276,800 | 278,400 |

${\mathrm{Re}}_{\infty}$ (= ${U}_{\infty}h/\nu $) | 15,200 | 15,900 | 16,100 | 16,200 | 16,200 | 16,000 | 17,300 | 17,400 | |

${\mathrm{Re}}_{\mathrm{mean}}$ (= ${U}_{\mathrm{mean}}h/\nu $) | 12,500 | 13,100 | 13,800 | 13,900 | 14,100 | 14,000 | 15,500 | 15,600 | |

${\mathrm{Re}}_{\tau}$ (= ${u}_{\tau}h/\nu $) | 864 | 983 | 1060 | 1127 | 1138 | 1138 | 1229 | 1277 |

Quadrants | Events | ${\mathit{u}}^{\u2033}$ | ${\mathit{w}}^{\u2033}$ |
---|---|---|---|

1 | Outward interaction | + | + |

2 | Ejection | − | + |

3 | Inward interaction | − | − |

4 | Sweep | + | − |
