An Adiabatic-Expansion-Induced Perturbation Study on Gas–Aerosol Partitioning in Ambient Air–Dimethylamine and Trimethylamine (1)

Abstract

Eulerian observations of chemical species at fixed positions in a flow field are known to violate conservation laws, while observations tracking moving air parcels are practically unfeasible. Eulerian observations often cause positive correlations between the reactants and products in the atmosphere, which are frequently misinterpreted as evidence of the related chemical conversion. This dilemma has motivated innovative trials. The perturbation technique, widely used in mathematical and physical studies, offers a potential solution. Combining Eulerian observations with perturbation techniques may compensate for this weakness, making this approach particularly valuable for studying the gas–aerosol partitioning of semi-volatile particulate species in ambient air. As an example, we examined this combination through an adiabatic-expansion-induced perturbation study of the gas–aerosol partitioning of dimethylamine (DMA) and trimethylamine (TMA) in ambient air. Eulerian observations of chemical species in size-segregated atmospheric particles ranging from 10 μm to 0.056 μm, coupled with downstream adiabatic-expansion-induced perturbation observations, were performed in coastal and marine atmospheres using a commercial sampler (Nano-MOUDI-II, MSP, Shoreview, MN, USA), followed by an offline chemical analysis. The results revealed that particulate DMA generally tended to evaporate in ambient air during the observational periods, while enhanced adiabatic-expansion-induced perturbations occasionally led to the co-formation of DMAHNO₃ and NH₄NO₃. However, gaseous TMA apparently underwent gas–particle condensation to reach equilibrium in ambient air, with adiabatic-expansion-induced perturbation resulting in the formation of non-ionized TMA particulates. The thermodynamic analysis further supported that the observed particulate TMA was primarily determined by the equilibrium of gaseous TMA with non-ionized particulate TMA rather than ionic TMAH⁺.

1. Introduction

A significant challenge in atmospheric chemistry is obtaining stoichiometric evidence of a net increase in a target product alongside a net decrease in its reactants from continuous, time-integrated ambient observations at fixed positions in a flow field, known as Eulerian observations. These observations, which are the most common in atmospheric chemistry, aim to observe chemical species and related chemical conversion processes [1]. Unlike controlled laboratory experiments, the effect of confounding factors in ambient observations, such as poor dispersion conditions, frequently leads to a positive correlation between reactants and products [2,3,4,5]. The lack of negatively correlated stoichiometric evidence makes previous observational reports on atmospheric chemical conversion processes highly speculative. While ambient observations for chemical species within moving air parcels could theoretically establish the expected negative stoichiometric relationship between reactants and products, such measurements are practically unfeasible. Perturbation techniques, widely used to solve complex problems in mathematics and physics [6], may offer a viable alternative for addressing this issue in atmospheric chemistry and warrant further exploration.

The application of perturbation techniques in atmospheric chemistry observations is not unprecedented. For example, supersaturation perturbation has been widely employed to measure the number concentrations of cloud condensation nuclei (CCN) and the activation of aerosol into CCN [7,8,9,10,11,12,13,14]. Moreover, Guo et al. [15] reported using a perturbation technique to investigate the enhanced formation of new particles by removing the pre-existing particles from ambient air. When applying the perturbation concept to investigate gas–aerosol partitioning and the related formation of particulate species, two critical steps are involved: (1) measuring and removing atmospheric particles from air parcels and (2) perturbing the target gaseous species in the remaining air streams using rapid adiabatic expansion or similar techniques. A commercial sampler, Nano Micro-Orifice Uniform-Deposit Impactor, second-generation (Nano-MOUDI-II), allows for routine observations of size-segregated atmospheric particles from 10 μm to 0.056 μm with a 40 kPa pressure drop during sampling, along with adiabatic-expansion-induced perturbation measurements of the chemical species in the downstream air with an additional 50 kPa pressure drop [16,17]. These combined observations can provide valuable insights into the gas–aerosol partitioning and formation pathways of semi-volatile particulate species, such as NH₄NO₃, amines, and organic nitrates in ambient air, although this application has yet to gain widespread recognition in the research community.

This study explores the gas–aerosol partitioning of trimethylamine (TMA) and dimethylamine (DMA) in various coastal and marine atmospheres using Nano-MOUDI-II sampling, offering an entirely novel perspective by combining conventional observations with adiabatic-expansion-induced perturbation measurements. These two organic alkalis were selected because of the absence of secondary sources for them and their important roles in atmospheric chemistry, such as promoting the new particle formation and initial growth; forming low-volatile compounds through reactions triggered by OH and NO₃ free radicals; replacing ammonium to release ammonia gas (NH_3gas), or vice versa; participating in reactions with dicarbonyl aldehydes to generate brown carbon in particulate phases, etc. [18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34]. Recent studies further suggest that gaseous dimethylamine (DMA_gas) is the key alkaline species for H₂SO₄ nucleation in polluted urban atmospheres, even at low concentration levels [35,36]. As semi-volatile organic alkalis, their gas–aerosol equilibrium may occur across gas, organic particle, and aqueous (or solid) phases [16,30,37,38,39]. The complexity of their gas–aerosol partitioning in these phases is considerably greater compared to that for inorganic alkali and remains poorly understood because of the lack of observational techniques. In a companion paper, we attempt to use the combination to explore the repeated phenomenon of NH₄NO₃ formation at unexpectedly high concentrations in the downstream airflow due to the adiabatic-expansion-induced perturbation, potentially superimposed with the micro-droplet chemistry of ammonia formation during Nano-MOUDI-II sampling in certain instances.

2. The Experimental Design

2.1. The Sampling and Chemical Analysis

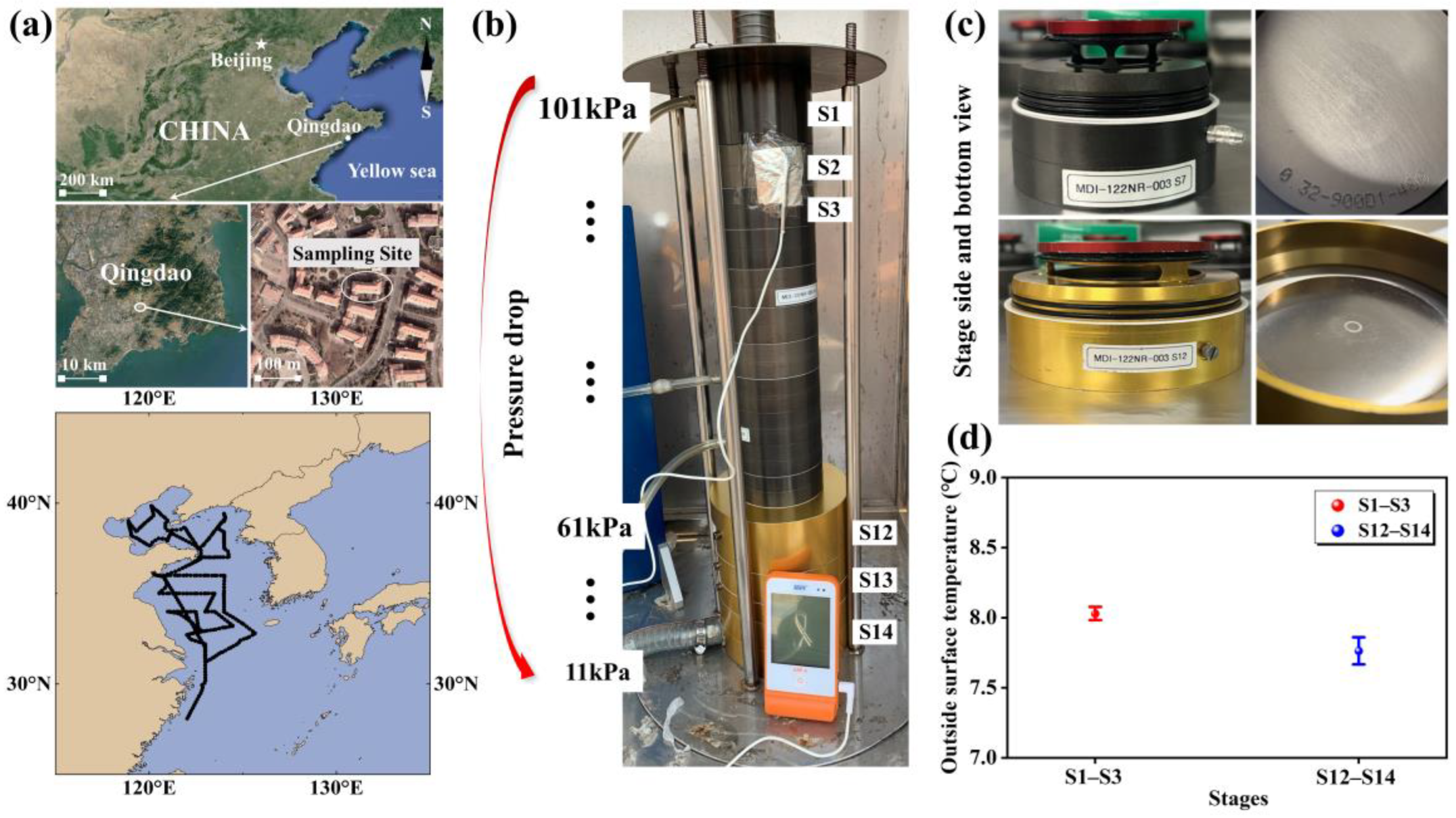

This study analyzed data collected in coastal and marine atmospheres during seven field campaigns, defined as Campaigns 1–7. Campaigns 1–3 were conducted at a semi-urban coastal site in Qingdao, China, from 20 May to 3 June 2013, from 6 November to 5 December 2013, and from 17 November to 31 December 2015, respectively (Figure 1). The Nano-MOUDI-II was deployed on a grassland area within the campus during Campaigns 1–3, with its inlet ~1.5 m above the ground. Detailed information about the sampling site can be found in Li et al. [40]. Campaign 4 was conducted at a different semi-urban coastal site in Qingdao (36.34° N, 120.67° E) from 3 to 10 December 2022, with separate daytime and nighttime sampling on certain days. The sampling site was in a high-tech zone, approximately 1 km from the sea. The Nano-MOUDI-II was placed on the fifth floor of an academic building. An Ambient Ion Monitor−Ion Chromatograph (AIM−IC, URG-9000D, Thermo Fisher, CA, USA) was used for simultaneous observations during Campaigns 3–4. Detailed information about the AIM-IC measurements is provided thereafter. Three cruise campaigns, i.e., Campaigns 5–7, were performed over the Yellow Sea (YS) and the Bohai Sea (BS) from 2 to 19 November 2012, 6 to 24 November 2013, and 29 June to 20 July 2016, respectively. Campaigns 2 and 6 were designed for a comparative study between marine and coastal atmospheres, referred to as “comparative campaigns” later in this study. Two additional campaigns, discussed in a companion paper, were excluded from this analysis, as the perturbation effects were limited to NH₄⁺ and NO₃⁻, rather than aminium ions. The YS and BS are generally eutrophic, except in the central oceanic zones of the YS during summer when seawater stratification occurs. These seas are situated downwind of northern China, a region with significant emissions of air pollutants, especially during the heating season [16,17,20,41,42].

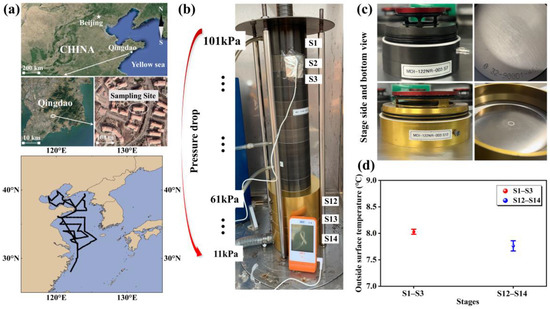

A 14-stage Nano-MOUDI-II (Model 122) was used to collect atmospheric particles in various campaigns. In Campaigns 1 and 3, it was positioned in a green space of campus (the inlet was ~1.5 m above ground level), while in Campaign 4, it was placed on the roof of a five-story building. For Campaigns 5–7, the sampler was deployed on the upper deck of the Dong Fang Hong II (~8 m above sea level). The instrument operated at a flow rate of 29–30 L min⁻¹ during 2012–2015, with 50% cutoff points for the particle aerodynamic diameters of 18, 10, 5.6, 3.2, 1.8, 1.0, 0.56, 0.32, 0.18, 0.10, 0.056, 0.032, 0.018, and 0.010 μm (Figure 1). Teflon filters (47 mm, PALL Life Sciences) were used to collected particles larger than 0.056 μm during all campaigns. Zefluor™ PTFE filters (90 mm, PALL Life Sciences, Portsmouth, UK) were used to collect particles smaller than 0.056 μm, except during Campaign 4, where Fluoropore^® PTFE filters (90 mm, Millipore Corp., Billerica, MA, USA) were used. To reduce backpressure, the sampler was deliberately designed to enlarge the size of the last three-stage impactors (Figure 1b). The enlarged design physically caused adiabatic expansion of the air stream jetted through the thousands of micro-orifice nozzles on the impactors, causing a temperature drop of ~0.4 °C on the outer surfaces of the last three stages relative to those of the top stages (Figure 1b–d). The actual temperature decrease in the jetting air stream was likely larger but could not be measured in this study. In Campaign 2, a 14-stage Nano-MOUDI-II (Model 125) was placed in the same green space of campus, operating at a flow rate of 10 L min⁻¹. In Campaign 4, the MOUDI operated at a reduced flow rate of 15.5 L min⁻¹ because of corrosion on the inside surface of the nozzles after 10 years of use. A similar phenomenon was observed for an eleven-stage MOUDI in Hong Kong, where the flow rate stabilized to 18 L min⁻¹ after 7 years of use in a coastal atmosphere (based on the author’s personal experience). The decrease in the MOUDI’s operating flow rate likely continued to some extent from 2016 to 2021, although we did not measure the flow rates during those periods, as the two vacuum pressure gauges on the MOUDI functioning properly. Moreover, 2–4 sets of positive field blank samples were collected during each campaign, with each set obtained by conducting three-minute sampling (Figure S1).

The chemical analysis methods are described in detail in Yu et al. [17], Xie et al. [16], and Hu et al. [42]. Briefly, an ion chromatography system (Dionex 3000, Dionex, Sunnyvale, CA, USA) equipped with a CS17 column (Dionex, 250 mm × 4 mm) and an AS11 column (Dionex, 250 mm × 4 mm) was used to determine aminium ions and anions, respectively. A CS12A column (Dionex, 250 mm × 4 mm) was employed for the analysis of NH₄⁺ and metal ions. Moreover, an AIM−IC was housed in an air-conditioned laboratory on the third floor of a campus research building during Campaign 3. The sampling probe extended out of the window, approximately 5 m above ground level, to access ambient air. In Campaign 4, the AIM-IC was placed in an air-conditioned room side by side with the Nano-MOUDI-II. Detailed operating procedures for the AIM-IC are available in our previous studies [20,41,43]. The AIM-IC, installed with a PM_2.5 cyclone and a CS17A column, provided semi-continuous concentrations of chemically reactive gases (e.g., NH₃, SO₂, HNO₃, etc.) and water-soluble ions in PM_2.5 with an hourly time resolution [43]. The concentrations of ammonia/amines, along with their particulate partners, measured using the AIM-IC were compared with those obtained from offline denuder sampling in our previous study [44]. The systematic errors in the ammonia/ammonium observations were found to be negligible. However, the amine/aminium concentrations were susceptible to interference from indoor air and were influenced by their high chemical reactivity. In addition, the E-AIM model was used to calculate the gas–aerosol partitioning of semi-volatile species [20,37,38,45] (http://www.aim.env.uea.ac.uk/aim/aim.php; last access: 17 December 2024). Meteorological data including ambient temperature (T) and relative humidity (RH) were obtained from a nearby meteorological station <5 km away from the sampling site during Campaigns 1–4 and from an onboard automatic weather station during Campaigns 5–7.

2.2. The Hypothesis for the Perturbation Scenarios

Similar to the process in which updrafts of air masses induce supersaturation and form cloud droplets in the troposphere [46], adiabatic expansion during Nano-MOUDI-II sampling reduces the T and increases the RH of the air stream jetted from the micro-orifice nozzles in the last three stages (Figure 1). This temperature drop and humidity increase further lower the theoretical saturation pressures of semi-volatile species and the equilibrium constants for the reactions involving reactive gases, such as HNO₃ + NH₃ and HNO₃ + DMA, etc., in the jetted air stream. In some cases, this can lead to vapor supersaturation and/or the product of reactive gases (e.g., HNO₃ and DMA) exceeding the theoretical values. Such conditions may result in artifact formation of corresponding particulates, which are then collected on the Nano-MOUDI-II filters.

Four potential scenarios may occur, as outlined below: (1) Scenario 1: The reduced theoretical saturation pressures and equilibrium constants remain higher than the corresponding values in the jetted air stream, preventing artifact formation of particulates. (2) Scenario 2: The theoretical saturation pressures (or the equilibrium constants) drop below the actual values in the jetted air stream, causing artifact formation of related particulates on the filter to some extent. (3) Scenario 3: A combination of Scenario 1 and 2 occurs across stages. For instance, Scenario 1 may occur on stage 11 (or 12) while Scenario 2 occurs on stage 12 (or 13) in Nano-MOUDI-II sampling because of the increased line speed of the jetted air stream as the diameters of the micro-orifice nozzles decrease. (4) Scenario 4: Building on the above scenarios, Scenario 2 may occur on stage 11 (or 12) in Nano-MOUDI-II sampling, while either Scenario 1 or 2 may occur on subsequent stages, depending on the differences between the reduced theoretical saturation pressures (and equilibrium constants) and their actual values in the jetted air stream. These scenarios are collectively referred to as “perturbation” because they only occur during sampling rather than in ambient air.

3. Results and Discussion

3.1. Molar Concentration Size Distributions of Particulate Ions and Inter-Comparison Between Nano-MOUDI and AIM-IC Measurements in the Coastal Atmosphere—Campaign 4

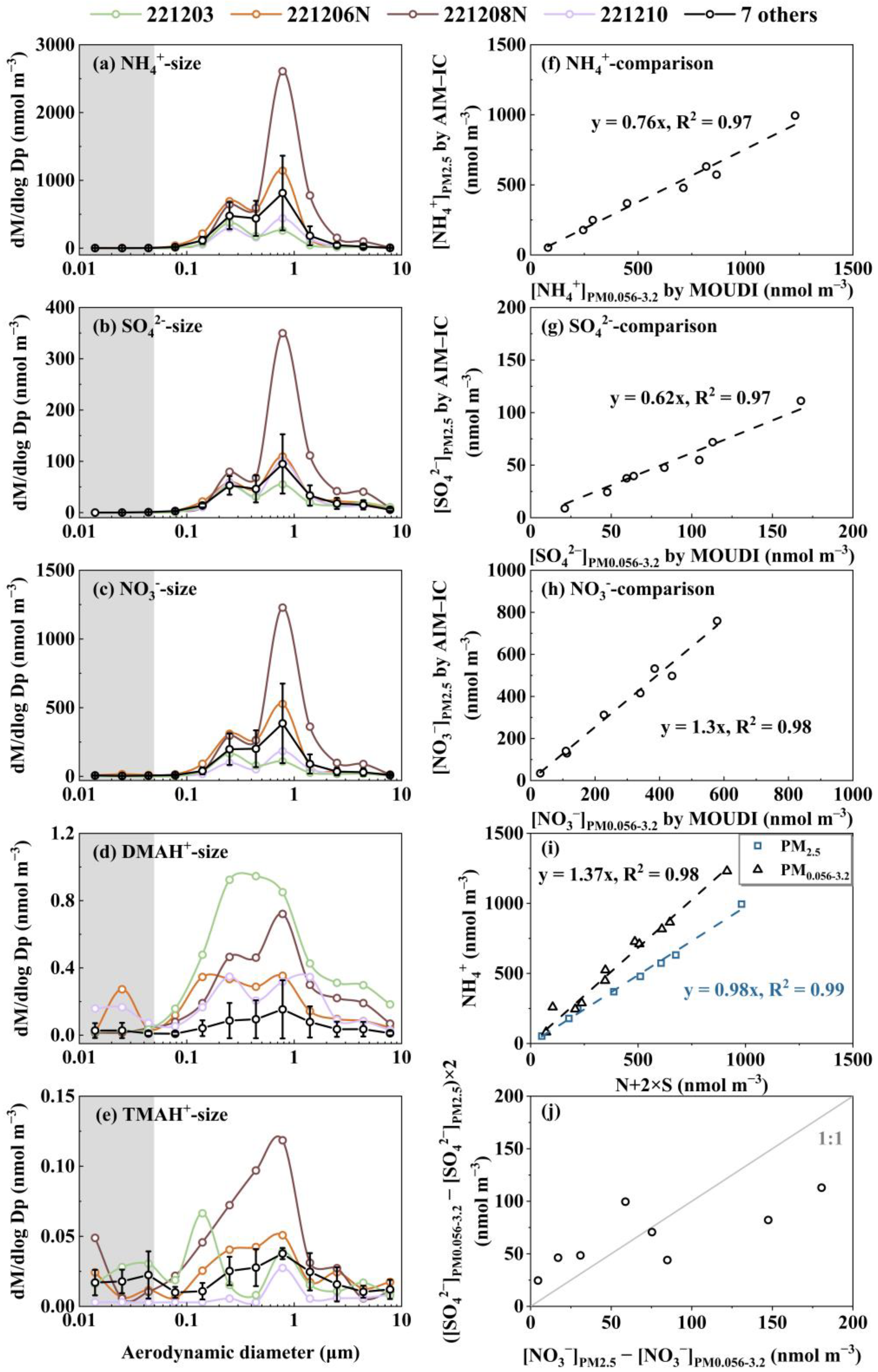

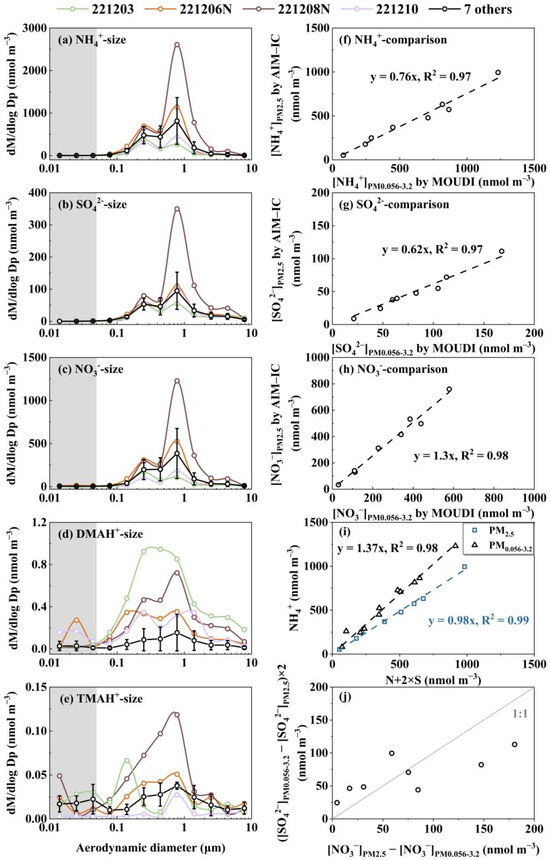

The Nano-MOUDI-II and the AIM-IC were placed side by side for simultaneous measurements during Campaign 4, allowing for a quantitative evaluation of the Nano-MOUDI-II’s sampling performance and confirmation of the perturbation effect. The results from this campaign are thereby presented first. Figure 2 shows the molar concentration size distributions of NH₄⁺, SO₄²⁻, NO₃⁻, DMAH⁺, and TMAH⁺ in the atmospheric particles, the correlations between specific particulate ions, and an inter-comparison of the particulate NH₄⁺, SO₄²⁻, and NO₃⁻ concentrations measured using the two methods during Campaign 4. Here, the molar concentration size distributions of particulate NH₄⁺, SO₄²⁻, and NO₃⁻ are analyzed prior to those of particulate DMAH⁺ and TMAH⁺ because knowledge on the modal size distribution patterns of inorganic ions is well established in the research community [1]. The analysis results are then used to explain the unexpected increase in the concentrations of particulate DMAH⁺ and TMAH⁺ collected on the last three stages, corresponding to size bins of 0.010–0.018 μm, 0.018–0.032 μm, and 0.032–0.056 μm, during Nano-MOUDI-II sampling. Specifically, the results address why this increase is considered a perturbation effect in sampling rather than a genuine increase in ambient air.

The modal patterns of the NH₄⁺, SO₄²⁻, and NO₃⁻ size distributions were reasonably consistent across the 11 samples and can be summarized as follows: (1) A tri-modal size distribution: The size distribution exhibited three distinct modes: a droplet mode with a molar median aerodynamic diameter (MMAD) of ~0.7 μm, a condensation mode with an MMAD of ~0.2 μm, and a coarse mode (1–10 μm) with substantially lower concentrations, the MMAD of which was ~5 μm (Figure 2a–c). These three modes are frequently reported in various atmospheres [1,42,47,48,49], with their formation mechanisms well documented by [50]. (2) Concentration trends by mode: The droplet mode dominated at higher ionic concentration levels, whereas the condensation mode became more pronounced—and occasionally dominant—at lower ionic concentration levels. (3) Negligible concentrations in the sub-0.056 μm size range: The concentrations of these three particulate inorganic ions below 0.056 μm (highlighted in gray in Figure 2a–c) were negligible in comparison with those in larger size ranges, which was consistent with Nano-MOUDI-II observations from Taiwan [51]. Such negligible concentrations are expected, as surface concentrations of Aitken- and nucleation-mode particles are consistently reported to be substantially lower than those of accumulation-mode particles in various atmospheres [9,52,53]. Note that the average molar concentration size distributions for the particulate ions in 7 of the 11 samples are presented in Figure 2a–e to reduce the overlap. However, the size distributions for specific dates—3 and 10 December, as well as the nighttime samples on 6 and 8 December 2022—are shown individually for comparison. Additional details on the size distributions for each sample are provided in Figure S2a–e.

When comparing [NH₄⁺]_PM0.056-3.2 (the sum of the particulate NH₄⁺ concentrations ranging from 0.056 μm to 3.2 μm collected using the Nano-MOUDI-II) with [NH₄⁺]_PM2.5 (the corresponding values in PM_2.5 measured using the AIM-IC), a strong correlation was observed with the correlation coefficient (r) of 0.99 (p < 0.01), yielding a regression equation of [NH₄⁺]_PM2.5 = [NH₄⁺]_PM0.056-3.2 × 0.76, with a determination coefficient (R²) of 0.97, by forcing the intercept to be zero (Figure 2f). The slope suggested an overall 24% positive sampling artifact for particulate NH₄⁺ in the Nano-MOUDI-II measurements. The R² value, close to unity, further indicated a constant artifact percentage during Campaign 4, regardless of whether the samples were collected during the day or the night. Similarly, strong correlations were observed for the concentrations of SO₄²⁻ and NO₃⁻ measured between the two methods: [SO₄²⁻]_PM2.5 = [SO₄²⁻]_PM0.056-3.2 × 0.62, R² = 0.97 (r = 0.99, p < 0.01) (Figure 2g) and [NO₃⁻]_PM2.5 = [NO₃⁻]_PM0.056-3.2 × 1.3, R² = 0.98 (r = 0.99, p < 0.01) (Figure 2h). The different slopes revealed an overall 38% positive sampling artifact for SO₄²⁻ concurrently with an overall 30% negative sampling artifact for NO₃⁻, respectively, in the Nano-MOUDI-II measurements. Again, the near-unity R² values suggested that the positive and negative artifact percentages were almost constant during Campaign 4. These opposite artifacts could be explained by the artifact reactions forming sulfuric acid, which simultaneously released HNO₃ from the collected particles into the gas phase during sampling [54]. When the values of ([SO₄²⁻]_PM0.056-3.2-[SO₄²⁻]_PM2.5) ×2 were plotted against those for ([NO₃⁻]_PM2.5-[NO₃⁻]_PM0.056-3.2 ), the data aligned along a 1:1 line, providing stoichiometrical evidence for the occurrence of the artifact reactions (Figure 2j). However, a fraction of the formed sulfuric acid may have been neutralized by NH₃, leading to cases where ([SO₄²⁻]_PM0.056-3.2-[SO₄²⁻]_PM2.5)*2 exceeded ([NO₃⁻]_PM2.5-[NO₃⁻]_PM0.056-3.2). Like sulfuric acid, a fraction of organic acids might also have formed, partially replacing particulate NO₃⁻. This hypothesis was supported by the ratio of [NH₄⁺]/([NO₃⁻] + [SO₄²⁻]×2), which was approximated as 1.37 in PM_0.056-3.2 but close to unity (0.98) in PM_2.5 (Figure 2i). The [NH₄⁺] cannot be explained by ([NO₃⁻] + [SO₄²⁻]) in PM_0.056-3.2 could have been neutralized by organic acids [55]. The artifact-related formation of SO₄²⁻ and NH₄⁺ and the release of HNO₃ from particulate nitrate on the last three stages of the Nano-MOUDI were too weak to confirm due to their negligible concentrations therein. However, the artifact-related formation of NH₄⁺ and NO₃⁻ on one or more of the last three stages was evident in Campaigns 3, 5, and 6, as presented later. Similar results were also observed in other cruise campaigns performed in April–May and August–September 2015, as reported by Yu et al. [17].

The complexity of the size distribution patterns of particulate DMAH⁺ and TMAH⁺ increased to some extent compared to those of NH₄⁺, SO₄²⁻, and NO₃⁻ during Campaign 4. Although particulate DMAH⁺ generally exhibited tri-modal size distributions in size ranges above 0.056 μm (Figure 2d and Figure S2d), the droplet and condensation modes were often of a comparable magnitude (Figure S2d). In some samples, the condensation MMAD of DMAH⁺ showed a slight shift toward smaller sizes relative to those for the corresponding inorganic ions. Moreover, no significant correlations were observed between the DMAH⁺ concentrations and those of the three inorganic ions. Notably, the highest particulate DMAH⁺ concentrations within each size bin (0.056–10 μm) were recorded on 3 December 2022, a day when the concentrations of the three inorganic ions ranked among the third lowest in the 11-sample dataset. The particulate DMAH⁺ concentrations in the three size bins below 0.056 μm were negligible in 9 of the 11 samples in comparison with the values in the larger size bins, consistent with the observations for the three inorganic ions. However, this pattern was not observed in the nighttime sample collected on 6 December 2022 or the sample from 10 December 2022. On 10 December, slightly elevated concentrations of DMAH⁺ were detected in the 0.010–0.018 μm and 0.018–0.032 μm size ranges compared to those in the 0.032–0.056 μm and 0.056–0.10 μm ranges. These elevated concentrations, referred to as E-DMA_below0.056, were also observed in the 0.018–0.032 μm size range relative to those in the 0.032–0.056 μm and 0.056–0.10 μm ranges in the nighttime sample on 6 December, leading to a ratio of [DMAH⁺]_{PM0.018-0.032} to [DMAH⁺]_PM0.10-0.32 in condensation mode as high as 0.38, in contrast to the ratios of 0.005 for [NH₄⁺] and <0.005 for [SO₄²⁻]. Theoretically, the Kelvin effect would produce a larger ratio for low-volatile species than for semi-volatile species in smaller nucleation- and Aitken-mode atmospheric particles relative to condensation-mode atmospheric particles [56]. The absence of a corresponding identical proportional increase in [SO₄²⁻] and [NH₄⁺] in size ranges below 0.056 μm suggested that E-DMA_below0.056 should be considered a unique phenomenon. This behavior is likely attributable to an adiabatic-expansion-induced perturbation effect during sampling rather than an ambient atmospheric process. This conclusion is further supported by the positive artifacts associated with SO₄²⁻ and NH₄⁺ and the negative artifacts associated with DMAH⁺ and TMAH⁺ during Nano-MOUDI-II sampling, as discussed in Section 3.1 and Section 3.2.

The molar concentration size distributions of TMAH⁺ in the atmospheric particles collected were even more complex than those for DMAH⁺ (Figure 2d,e). Although TMAH⁺ also exhibited tri-modal size distributions in size ranges exceeding 0.056 μm, its modal patterns were inconsistent with those of DMAH⁺ or the three inorganic ions. For example, on 3 December, the condensation MMAD of particulate TMAH⁺ shifted to 0.15 μm, in comparison with 0.25 μm for other ions. This implied a more intricate formation mechanism for TMAH⁺ relative to that for DMAH⁺ and NH₄⁺ [16]. In size ranges below 0.056 μm, slightly elevated concentrations of TMAH⁺ were frequently observed in most samples, referred to as E-TMA_below0.056. Similar to DMAH⁺, the presence of E-TMA_below0.056 is unlikely to have occurred in ambient air. Unfortunately, during the first week of Campaign 4, the aging analytical column installed on the AIM-IC failed to detect DMAH⁺ and TMAH⁺ due to incompatibility with the applied eluent concentrations. After reducing the concentrations of the eluents, DMAH⁺ and TMAH⁺ became detectable by the AIM-IC. However, no further Nano-MOUDI sampling was conducted thereafter.

3.2. Molar Concentration Size Distributions of Particulate Ions and Comparison Between the Nano-MOUDI-II and AIM-IC Measurements in the Coastal Atmosphere—Campaign 3

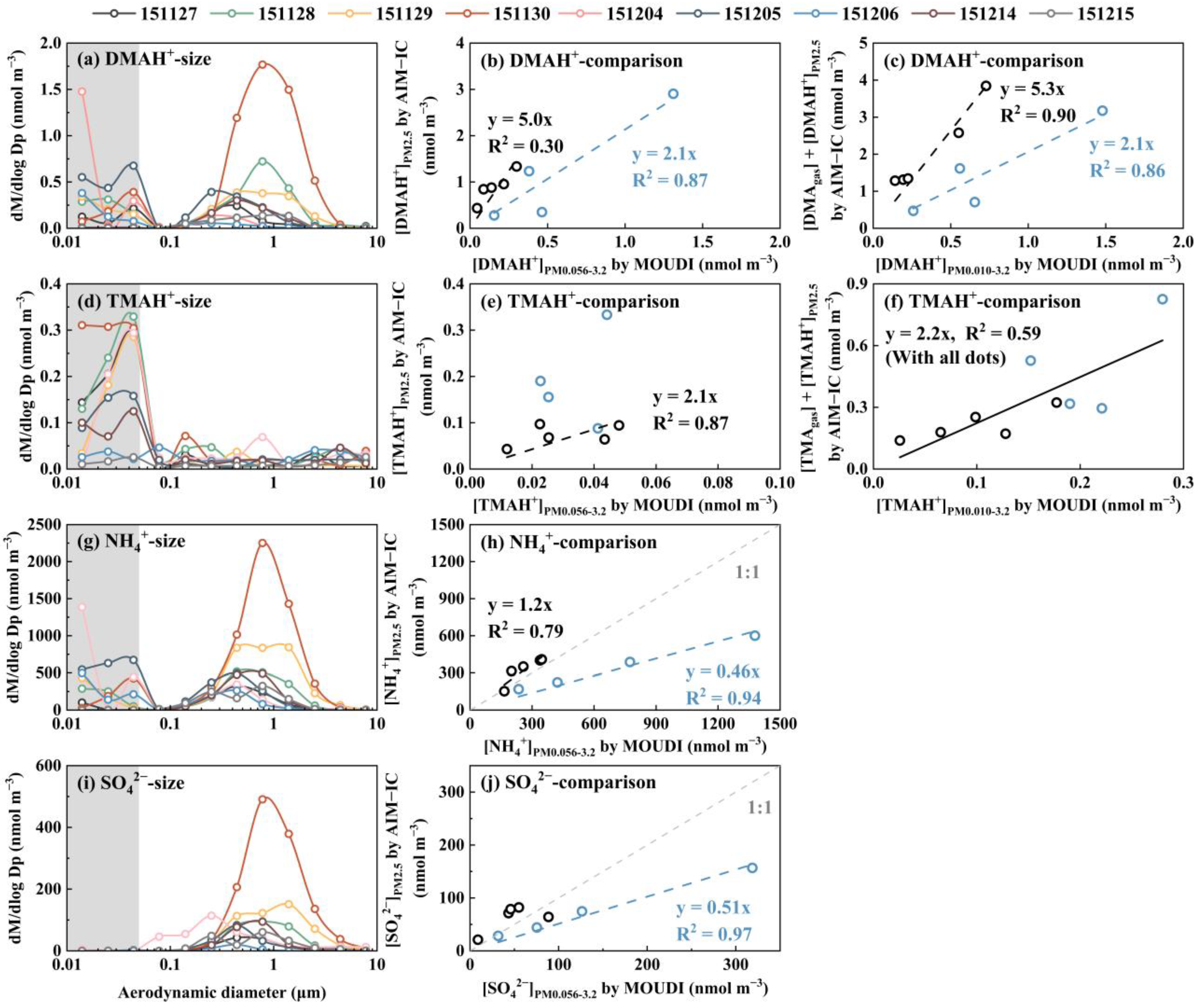

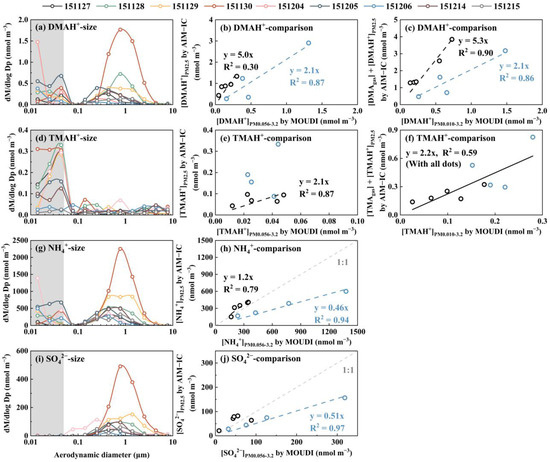

The molar concentration size distributions of DMAH⁺, TMAH⁺, NH₄⁺, SO₄²⁻, and NO₃⁻ in the atmospheric particles during Campaign 3, as shown in Figure 3 and Figure S3, highly varied compared to the reasonably consistent tri-modal patterns observed across samples in Campaign 4. Among the particulate ions, SO₄²⁻ exhibited the simplest modal patterns, summarized as follows: (1) A bi-modal size distribution: Particulate SO₄²⁻ typically exhibited a droplet mode with an MMAD value of approximately 0.7 μm or 1.5 μm and a condensation mode with an MMAD of ~0.2 μm. The two distinct MMAD values of the droplet-mode have conventionally been attributed to aerosol-cloud and fog processing, respectively [50]. (2) On 4 December 2015, an Aitken mode of SO₄²⁻ was observed concurrently with the condensation mode at lower concentration levels; however, the Aitken mode of SO₄²⁻ was absent from other samples. (3) Negligible concentrations in the sub-0.056 μm size ranges: Consistent with the observations from Campaign 4, the particulate SO₄²⁻ concentrations in size ranges below 0.056 μm were negligible in comparison with those in larger size ranges.

The modal patterns of particulate NH₄⁺ and NO₃⁻ above 0.056 μm were generally consistent with those of SO₄²⁻ within the same samples, except on 4 December 2015. Strong correlations were observed between [NH₄⁺]_PM0.056-3.2 and [SO₄²⁻]_PM0.056-3.2 and between [NH₄⁺]_PM0.056-3.2 and [NO₃⁻]_PM0.056-3.2 (r = 0.96, p < 0.01), which implied that 1) the concentrations of these inorganic ions were likely co-determined by meteorological factors and/or 2) they originated from the same primary and/or secondary sources, despite their gaseous precursors (e.g. SO₂, NO_x and NH₃) typically having different major contributors [5,57]. However, elevated concentrations of particulate NH₄⁺ and NO₃⁻ were generally obtained in size ranges below 0.056 μm, referred to as E-NH₄⁺_below0.056 and E-NO₃⁻_below0.056, respectively, in most of the samples, except on 14 and 15 December 2015 (Figure 3 and Figure S3). A similar phenomenon, E-NO₃⁻_below0.056, but not for other particulate ions, was reported by Chang et al. [58] (see their Figure 4) during a case study of aerosol episodes in southern Taiwan using an identical Nano-MOUDI-II, although they did not explain its occurrence. Assuming particles in the 0.010–0.018 μm size range are spherical with a density of 1.7 g cm⁻³, the observed maximum increase in the molar concentrations of particulate NH₄⁺ and NO₃⁻ at 0.010–0.018 μm on 4 December 2015 would have required particle number concentrations exceeding 10⁸ particles cm⁻³ in ambient air. However, atmospheric particle number concentrations greater than 5.6 nm were reported at a magnitude of 10⁴ particles cm⁻³ at the site [59,60]. A particle number concentration > 10⁸ particles cm⁻³ is unattainable in typical ambient conditions, even in highly concentrated on-road vehicle plumes inside a long tunnel [9,53]. This increase will be further investigated in a companion paper.

The modal patterns of particulate DMAH⁺ above 0.056 μm showed consistency with NH₄⁺ and NO₃⁻ in some samples but differed in others, potentially because of the competition between NH₃ and DMA in neutralizing particulate acids to different extents [20]. However, E-DMA_below0.056 consistently co-occurred with E-NH₄⁺_below0.056 and E-NO₃⁻_below0.056, e.g., the regression equation with the intercept forced to zero was [DMAH⁺] = 0.001 × [NH₄⁺], R² = 0.92 (r = 0.96, p < 0.01) (Figure 4a). However, the R² value was 0.89 (r = 0.95, p < 0.01) with a slope of 0.0008 for that in the size range of 0.056–3.2 μm (Figure 4c). The results allowed us to infer that in the air upstream of the last three stages, the amount of acids might be sufficient to favor the formation of DMAHNO₃ under more favorable conditions, such as a reduced T and an increased RH, leading to an approximately 25% increase in the [DMAH⁺]/[NH₄⁺] ratios relative to larger particles. Note that particulate DMAH⁺ had largely been removed from the air stream prior to arrival at the last stages. The modal patterns of particulate TMAH⁺ above 0.056 μm were irregular because of its substantially lower concentrations. E-TMA_below0.056 was generally observed, peaking mostly in the 0.032–0.056 μm size range. Unlike E-DMA_below0.056, E-TMA_below0.056 did not show a significant correlation with the corresponding E-NH₄⁺_below0.056 with p > 0.05 (Figure 4b). The same was true for those for atmospheric particles sized 0.056–3.2 μm (Figure 4d).

When comparing the ion concentrations in PM_0.056-3.2 collected using the Nano-MOUDI-II at ground level with the AIM-IC-based values in PM_2.5 collected at a level of 7 meters above the ground during Campaign 3, complex results were obtained. Specifically, (1) the concentrations of SO₄²⁻ and NH₄⁺ measured using the Nano-MOUDI-II in the first four samples (collected on 27–30 November 2015) showed a high correlation with those measured by the AIM-IC, with [NH₄⁺]_PM2.5 = 0.46 × [NH₄⁺]_PM0.056-3.2, R² = 0.94 (r = 1.00, p < 0.01), and [SO₄²⁻]_PM2.5 = 0.51 × [SO₄²⁻]_PM0.056-3.2, R² = 0.97 (r = 1.00, p < 0.01). The Nano-MOUDI’s values were approximately double the corresponding AIM-IC values (Figure 3h,j). (2) The remaining values generally aligned along a 1:1 line. Based on the results, we supposed that positive artifacts of 100% for SO₄²⁻ and NH₄⁺ occurred in the 0.056–3.2 μm size range in the Nano-MOUDI-II samples from 27–30 November. Thus, the observed values were thereby halved to represent the “real” concentrations. When these adjusted values were combined with other unmodified data, the re-plotted results (Figure S3c,d) yielded [NH₄⁺]_PM2.5 = 1.03 × [NH₄⁺]_PM0.056-3.2, R² = 0.75 (r = 0.94, p < 0.01), and [SO₄²⁻]_PM2.5 = 1.06 × [SO₄²⁻]_PM0.056-3.2, R² = 0.72 (r = 0.92, p < 0.01). The two slopes were surprisingly close to unity, allowing us to confirm the presence of positive artifacts for both SO₄²⁻ and NH₄⁺ in the first four Nano-MOUDI-II samples. The results for NO₃⁻ were more complex and will be discussed in a companion paper.

In contrast to SO₄²⁻ and NH₄⁺, negative artifacts were confirmed for DMAH⁺ and TMAH⁺ during the Nano-MOUDI-II sampling (Figure 3b,c,e,f). For example, the regression equations were [DMAH⁺]_PM2.5 = 2.1 × [DMAH⁺]_PM0.056-3.2, R² = 0.87 (r = 0.93, p > 0.05) for the first four samples, and [DMAH⁺]_PM2.5 = 5.0 × [DMAH⁺]_PM0.056-3.2, R² = 0.30 (r = 0.93, p < 0.05) for the remaining samples. When ([DMAH⁺]_PM2.5 + [DMA_gas]) was plotted against [DMAH⁺]_PM0.010-3.2, the regression equations were almost the same, except for a large increase in R² to 0.90 (r = 0.98, p < 0.01) for samples excluding the first four days. In addition, Figure 3e,f show over 100% negative artifacts for particulate TMAH⁺ in the Nano-MOUDI-II sampling. Considering the pressure drop from larger to smaller size bins in the Nano-MOUDI-II sampling alone (Figure 1), even greater negative artifacts for the particulate DMAH⁺ and TMAH⁺ collected would be expected on the last three stages. Again, the Kelvin effect always results in smaller ratios of DMAH⁺ or TMAH⁺ to SO₄²⁻ in nucleation-mode and Aitken-mode particles than those in accumulation-mode particles in ambient air. The presence of E-DMA_below0.056 and E-TMA_below0.056 and the absence of the correlation between them challenged the conventional theory on sampling artifacts; an adiabatic-expansion-induced perturbation formation for ionized DMA and non-ionized TMA is proposed to explain the unique phenomenon in Section 3.5.

3.3. The Molar Concentration Size Distributions of DMAH⁺ and TMAH⁺ During Comparative Campaigns

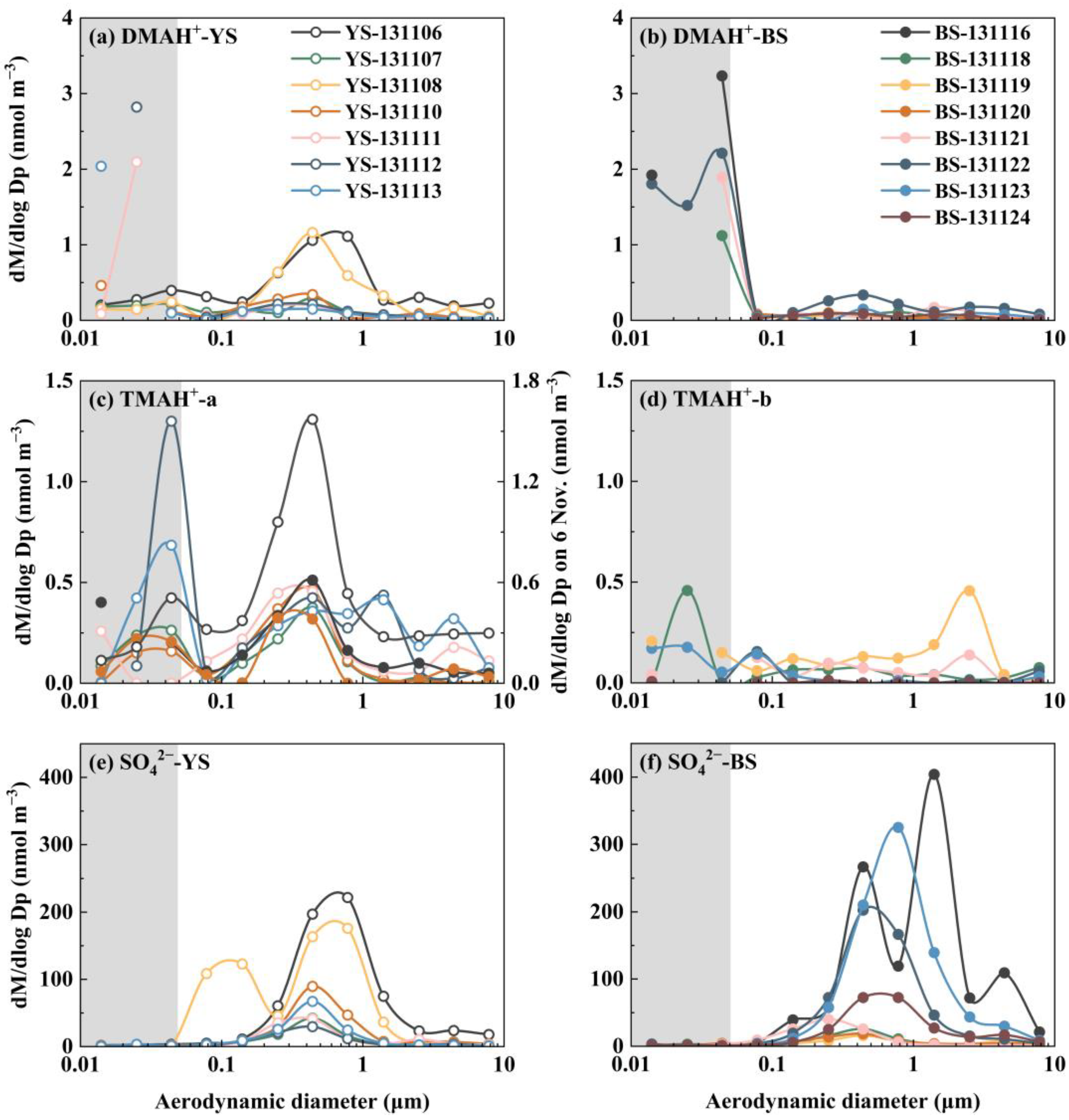

The comparative campaigns were performed in November 2013, including a cruise campaign over the Yellow Sea and the Bohai Sea and a coastal campaign at a site in Qingdao, China. Frequent occurrences of E-DMA_below0.056, along with elevated levels of E-NH₄⁺_below0.056 and E-NO₃⁻_below0.056, were observed in the marine atmosphere, whereas this phenomenon was absent in the coastal atmosphere (Figure 5, Figure 6, and Figure S4). E-TMA_below0.056 was observed on some days in both the marine and coastal atmospheres, although not always on the same day (Figure 5 and Figure 6). This study primarily focuses on a comparative analysis of E-DMA_below0.056 and E-TMA_below0.056, while extreme cases of E-NH₄⁺_below0.056 and E-NO₃⁻_below0.056 are discussed in a companion paper. Note that the missing data for DMAH⁺ and TMAH⁺ in certain size bins below 0.056 μm in Figure 5a–d resulted from their ion chromatography signals being overshadowed by those of NH₄⁺.

In the first and third samples collected in the marine atmosphere on 6 and 8 November 2013, when the vessel cruised over the Yellow Sea, the values of E-DMA_below0.056 accounted for only ~1/4 of the corresponding droplet-mode concentrations. In the second sample collected on 7 November 2013, E-DMA_below0.056 exceeded the droplet-mode concentrations because of a significant decrease in the droplet-mode values. For other instances of E-DMA_below0.056, the concentrations were substantially larger than those of the corresponding droplet-mode concentrations, regardless of whether they were from the marine atmosphere over the Yellow Sea or the Bohai Sea. Based solely on the campaign data, E-DMA_below0.056 appeared to coincide with a reduction in the droplet-mode concentrations. However, in theory, E-DMA_below0.056 should be determined by the concentrations of DMA and acidic vapors in the air upstream of the corresponding stage, as well as the T and RH therein, rather than by the aerosols collected in upstream stages. Notably, there was no detectable E-DMA_below0.056 in the coastal atmosphere, except for a slight increase in the 0.032–0.056 μm size range on 6 November 2013. The increase should not be classified as the E-DMA_below0.056 discussed earlier, as it was accompanied by a proportional increase in [SO₄²⁻].

E-TMA_below0.056 was primarily observed in the presence of detectable droplet-mode concentrations of TMAH⁺ in the marine atmosphere (Figure 5c,d). However, there was no correlation between the E-TMA_below0.056 values and those in the droplet mode. For example, the highest concentration of TMAH⁺ occurred in the 0.032–0.056 μm size range on 12 November 2013, which was nearly twice as high as that in the corresponding size bin on 6 November, while the opposite trend was observed for the droplet-mode concentrations of TMAH⁺. In cases where the detectable droplet mode of TMAH⁺ was absent because of low concentrations, E-TMA_below0.056 was also generally absent, thus preventing further analysis. Again, a significant negative correlation was found between E-TMA_below0.056 and E-NH₄⁺_below0.056 (p < 0.05, Figure 7b). In contrast, a significant positive correlation was observed between E-DMA_below0.056 and E-NH₄⁺_below0.056 (r = 0.81, p < 0.01, Figure 7a).

When analyzing the molar concentration size distributions of particulate TMAH⁺ in the coastal atmosphere during the comparative campaigns, E-TMA_below0.056 was detected in only 5 of the 21 coastal atmospheric samples—on 6, 17, and 19 November and 1 and 2 December 2013. Notably, the largest values of E-TMA_below0.056 were observed in different size bins, i.e., 0.032–0.056 μm on 6 November, 0.018–0.032 μm on 17 and 19 November, and 0.010–0.018 μm on 1 and 2 December. A significant negative correlation was found between the E-TMA_below0.056 values and the corresponding accumulation-mode concentrations (p < 0.05). For example, the highest accumulation-mode concentration of TMAH⁺ occurred on 6 November and was approximately an order of magnitude higher than that on 1 December. Yet E-TMA_below0.056 on 1 December was three times greater than on 6 November. Again, the absence of a proportional increase in SO₄²⁻, NH₄⁺, and NO₃⁻ indicated that E-TMA_below0.056 was unlikely to result from the generation of ionized TMA salts.

3.4. The Repeatable Occurrence of E-DMA_below0.056 and E-TMA_below0.056 in Marine and Coastal Atmospheres

The occurrence of E-DMA_below0.056 and E-TMA_below0.056 was highly repeatable; however, the occurrence frequency and size distribution patterns below 0.056 μm were highly variable. In general, the occurrence frequencies for E-TMA_below0.056 were much higher than those for E-DMA_below0.056. The presence of E-DMA_below0.056 was mostly associated with that of E-NH₄⁺_below0.056 and E-NO₃⁻_below0.056. For example, E-TMA_below0.056 was consistently observed with the largest values at 0.032–0.056 μm in the absence of the corresponding E-DMA_below0.056 and E-NH₄⁺_below0.056 in the marine atmosphere during Campaign 7 (Figure 8). However, a strong correlation was found between [DMAH⁺]_PM0.056-3.2 and [TMAH⁺]_PM0.056-3.2 (r = 0.98, p < 0.01), with an overall ratio of [TMAH⁺]_PM0.056-3.2/[DMAH⁺]_PM0.056-3.2 around 0.29. In addition, there was no significant correlation between [TMAH⁺]_PM0.056-3.2 and [TMAH⁺]_{PM0.010-0.056} (p > 0.05). Based on the aforementioned results and their consistent size distribution patterns, particulate DMAH⁺ and TMAH⁺ in size ranges above 0.056 μm were likely derived from similar processes or sources, while E-TMA_below0.056 may have arisen from different mechanisms. In addition, the concentrations of particulate DMAH⁺ and TMAH⁺ in the size ranges above 0.056 μm showed no significant correlation with the corresponding particulate NH₄⁺ values, implying that they might compete with NH₃ to neutralize the acids or be derived from different sources of ammonium salts.

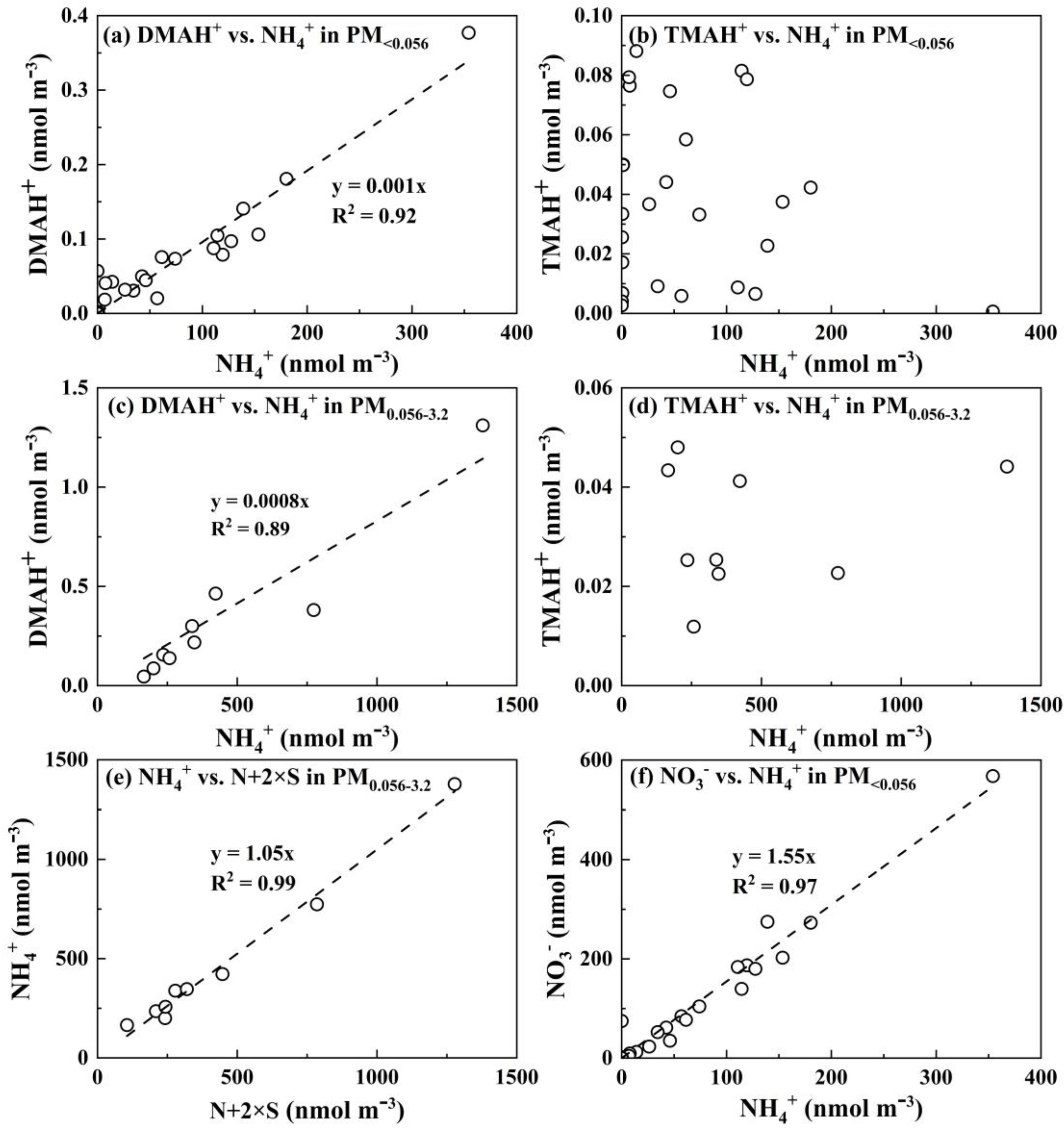

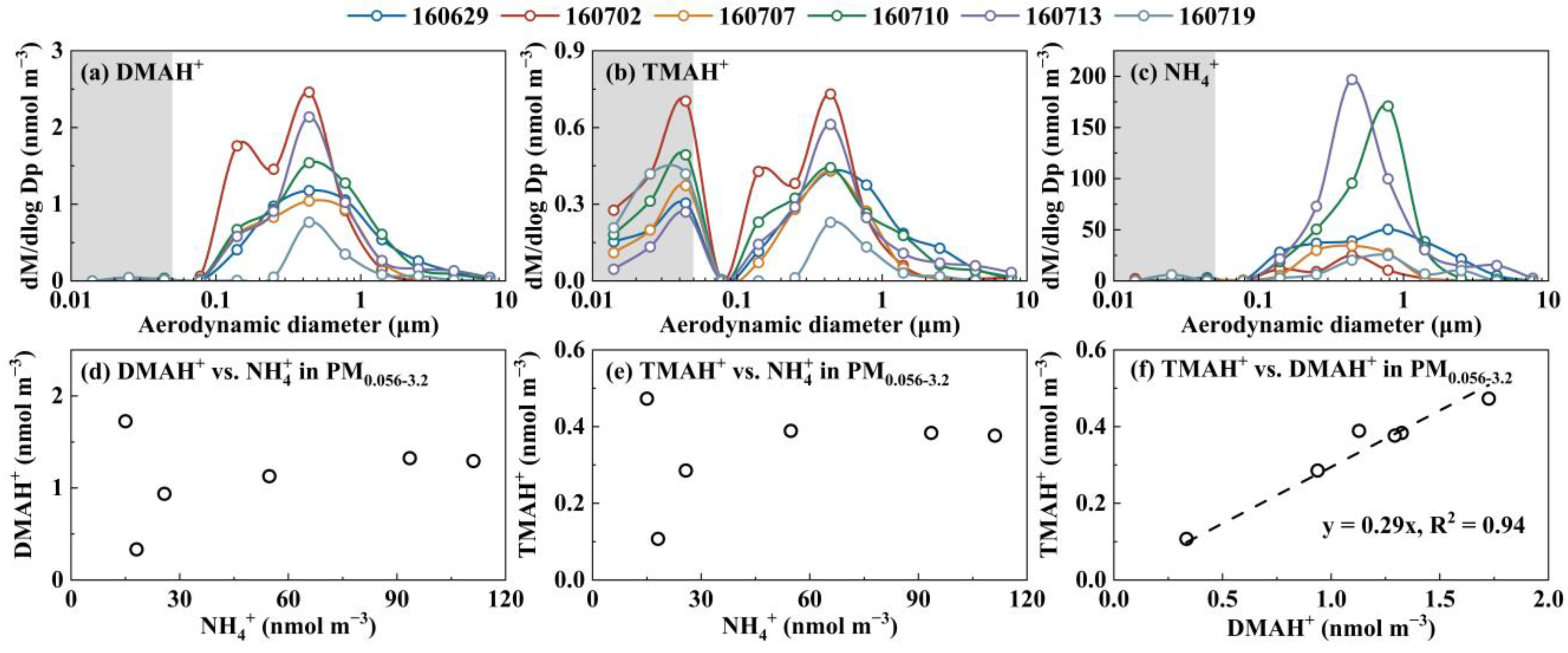

During the first half of Campaign 5, a slight E-TMA_below0.056 was observed (Figure S5b). However, fluctuations in the particulate DMAH⁺ below 0.056 μm could not be definitively distinguished from noise. On 6 November 2012, an extreme E-NH₄⁺_below0.056 was detected without corresponding increases in DMAH⁺ or SO₄²⁻ below 0.056 μm (Figure S5a,d), which contradicted the findings from Campaigns 3 and 6. In the second half of Campaign 5, an extreme E-NH₄⁺_below0.056 occurred on 12, 15, and 18 November 2012, but E-DMA_below0.056 was only detected on 18 November 2012 (Figure S6a,c). In the other samples from this period, the concentrations of DMAH⁺ were too low to be distinguished from noise. Nevertheless, E-TMA_below0.056 was observed in five of seven samples, with no significant correlation between E-TMA_below0.056 and E-NH₄⁺_below0.056.

In Campaign 1, no E-DMA_below0.056 was observed (Figure S7). The observed E-TMA_below0.056 values were too low to be considered distinct from noise. In this campaign, the values of [DMAH⁺]_PM0.056-3.2 and [TMAH⁺]_PM0.056-3.2 were substantively lower than those observed in other campaigns (Table S1). The lack of significant increases in E-DMA_below0.056 and E-TMA_below0.056 may be attributed to low concentrations of DMA and TMA gases, although they were not measured.

3.5. Analysis of the Cause of the More Frequent Observation of E-TMA_below0.056 than E-DMA_below0.056

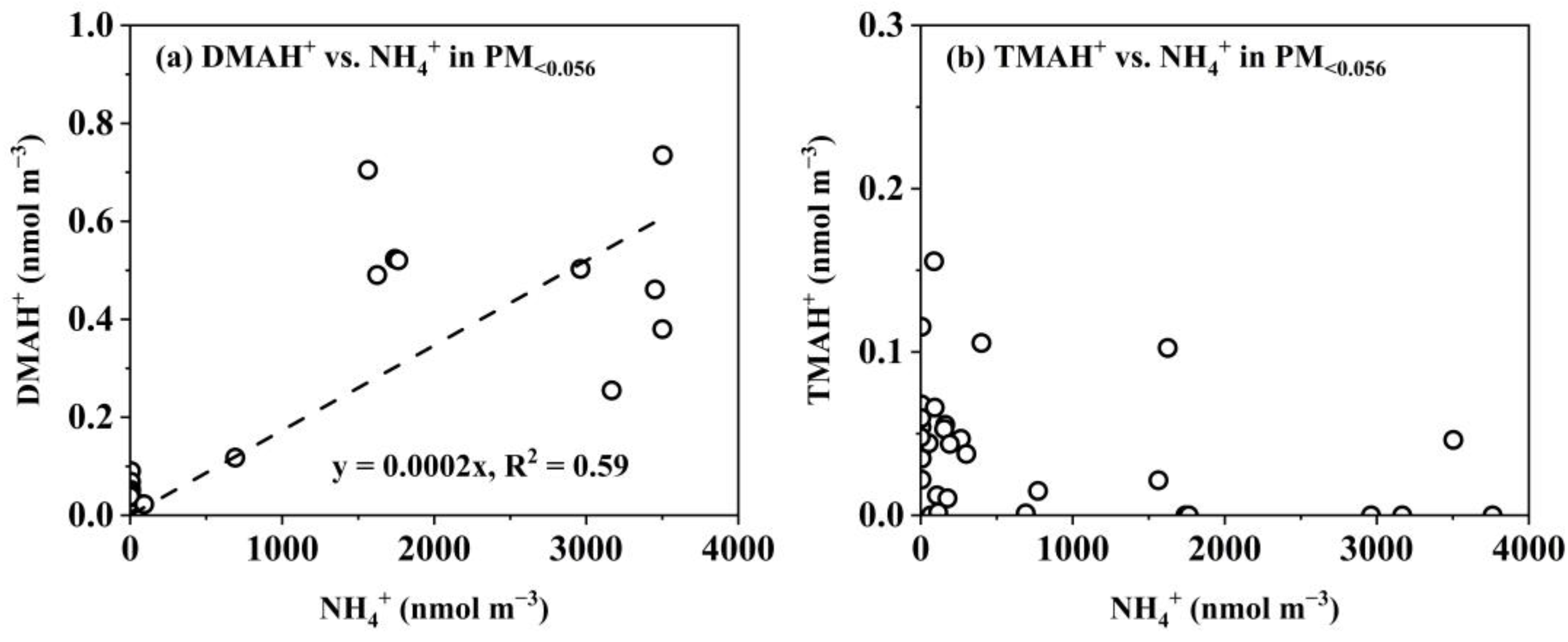

To investigate why E-TMA_below0.056 was observed more frequently than E-DMA_below0.056 in various campaigns, the mechanisms behind the occurrence of E-TMA_below0.056 and E-DMA_below0.056 were examined. In Campaigns 3, it was evident that E-TMA_below0.056 showed no significant correlation with the corresponding E-NH₄⁺_below0.056. However, a strong correlation was observed between E-DMA_below0.056 and both E-NH₄⁺_below0.056 and E-NO₃⁻_below0.056 (Figure 4). This suggested that E-TMA_below0.056 did not result from a neutralization reaction to form TMAHNO₃. In Campaigns 6, E-TMA_below0.056 even showed a significant negative correlation with the corresponding E-NH₄⁺_below0.056 (Figure 6). These findings, supported by the observations in Campaigns 2, 4, 6, and 7, further corroborate the analysis.

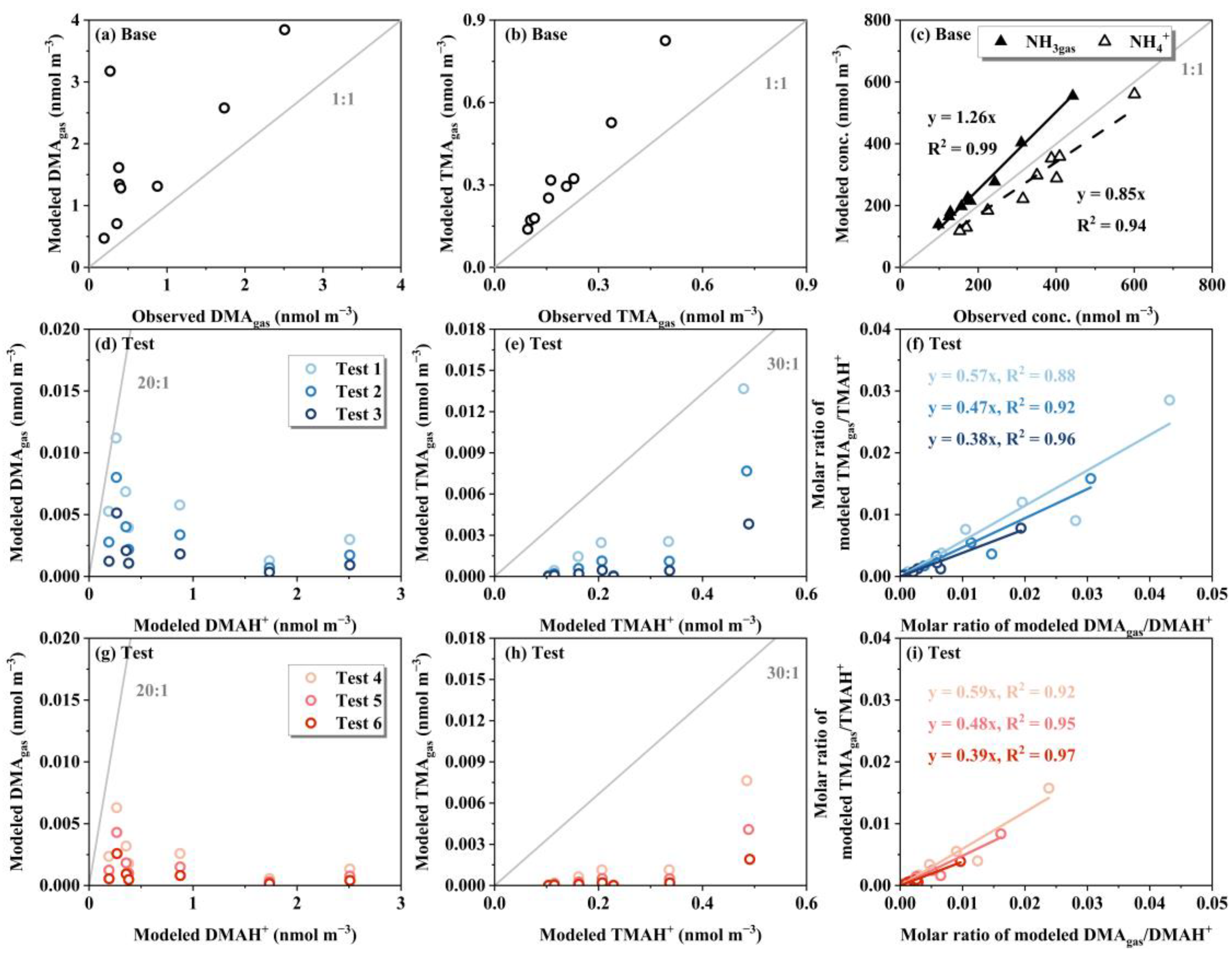

To further justify the analysis, additional thermodynamic equilibrium simulations were conducted using the data from Campaign 3, as presented in Table S2. For the base test, the ionic concentrations measured using the AIM-IC during Campaign 3, including the gaseous components DMA_gas, TMA_gas, HNO_3gas, and NH_3gas, as well as their partners and SO₄²⁻ in PM_2.5, were used as the inputs for E-AIM modeling. The average values of T (T_base) and RH (RH_base) during each sampling period were used as the inputs for E-AIM modeling. For Tests 1–3, the concentrations of DMA_gas and TMA_gas measured using the AIM-IC in Campaign 3, as well as NH₄⁺_below0.056 and NO₃⁻_below0.056 obtained from the Nano-MOUDI-II sampling, were used as the input for E-AIM modeling. For Test 1, we assumed that the adiabatic-expansion-induced perturbation yielded reasonable results in gas–particle partitioning, i.e., a fixed T_test1 as T_base, and RH_test1 increased to different extents (Table S2) to produce a liquid phase in the E-AIM modeling. Note that the concentrations of NH₄⁺ and NO₃⁻ in PM_0.010-0.056 were too low (<2 nmol m⁻³) in the samples collected on 14 and 15 December to support the gas–particle partitioning, which were excluded from Tests 1–6. Based on Test 1, we assumed that the adiabatic-expansion-induced perturbation caused a 2, 4 K decrease in the temperature of the jetted air streams as their line speeds increased. Consequently, the inputs for ambient T and RH were adjusted to (T_test1 − 2) and (RH_test1 + 0.05) for Test 2 and (T_test1 − 4) and (RH_test1 + 0.10) for Test 3. The corresponding increase in RH was estimated from the opposite diurnal variations in the ambient T and RH observed in Campaign 3. For Tests 4–6, we assumed that not all of the gaseous NH₃ and HNO₃ in the jetted air streams was converted into NH₄NO₃ in the last stages of the Nano-MOUDI-II. Assuming that 50% gaseous NH₃ and HNO₃ remained in the jetted air streams, the inputs for NH₄⁺ and NO₃⁻⁺ were adjusted to 1.5×NH₄⁺_below0.056 and 1.5×NO₃⁻_below0.056. Other inputs were kept the same as those in Tests 1–3, respectively.

The modeled concentrations of DMA_gas and TMA_gas were higher than the corresponding observational values, closely approximating the sum of ([DMAH⁺]_PM2.5+[DMA]_gas) and ([TMAH⁺]_PM2.5+[TMA]_gas), respectively, in the base case (Figure 9a,b), where the modeled NH_3gas and NH₄⁺_PM2.5 deviated by +13% and −15%, respectively. The base case results for NH_3gas and NH₄⁺_PM2.5 indicated that gas–aerosol equilibrium was achieved to some extent. Thus, the observed DMAH⁺ and TMAH⁺ in PM_2.5 were unlikely to co-exist with ammonium salts internally, as the model predicted that they were predominantly in the gas phase. The result for TMA was consistent with the lack of correlations of TMAH⁺_0.056-3.2 with NH₄⁺_0.056-3.2, as mentioned earlier, but the result for DMA was yet to be explained. However, the results from Test 1–6 indicated that the modeled DMA and TMA overwhelmingly existed in the particle phase. Moreover, the modeled ratios of [TMA_gas]/[TMAH⁺] were proportional to the ratios of [DMA_gas]/[DMAH⁺] in Test 1–6, which was inconsistent with the absence of a correlation between E-TMA_below0.056 and E-DMA_below0.056 in Campaign 3. This suggested that E-TMA_below0.056 should exist as non-ionic TMA rather than TMAH⁺ during sampling. Non-ionic TMA should be more thermodynamically stable than TMAHNO₃; however, the exact chemical form remains unclear.

Overall, TMA_gas likely required a low energy barrier to be converted into chemicals that were more thermodynamically stable than TMAHNO₃, allowing them to be collected in the last three stages of the Nano-MOUDI-II sampling due to rapid adiabatic expansion. However, DMA_gas required the product of [DMA_gas] × [HNO_3gas] in the jetted air stream to exceed the theoretical threshold necessary for the formation of DMAHNO₃. The latter condition was difficult to satisfy in many cases, at least in our campaigns.

3.6. A Statistical Comparison of E-TMA_below0.056 and E-DMA_below0.056 Among Different Campaigns

To betterunderstand the large variations in E-DMA_below0.056 and E-TMA_below0.056 across the different campaigns, two parameters were introduced, i.e., the ratios of E-DMA_below0.056 to DMAH⁺_PM0.056-3.2 and E-TMA_below0.056 to TMAH⁺_PM0.056-3.2. These two parameters, which reflected the perturbation results, were artificially classified into five levels (

Table 1. The frequency of different perturbation formation levels of E-DMA_below0.056 and E-TMA_below0.056 in each campaign.

Species	Campaigns		Levels
			Level-0	Level-1	Level-2	Level-3	Level-4
DMAH+	Campaign 1		12/13 *	1/13	-	-	-
	Campaign 2		20/22	1/22	-	1/22	-
	Campaign 3		3/9	-	3/9	1/9	2/9
	Campaign 4		9/11	2/11	-	-	-
	Campaign 5	Phase 1 #	6/7	-	1/7	-	-
		Phase 2	-	1/7	5/7	1/7	-
	Campaign 6	Phase 1 &	-	2/7	2/7	-	3/7
		Phase 2	4/8	1/8	-	-	3/8
	Campaign 7		6/6	-	-	-	-
	Total		60/90	8/90	11/90	3/90	8/90
TMAH+	Campaign 1		4/13	5/13	3/13	1/13	-
	Campaign 2		11/22	4/22	1/22	2/22	4/22
	Campaign 3		-	-	2/9	1/9	6/9
	Campaign 4		2/11	2/11	7/11	-	-
	Campaign 5	Phase 1	-	4/7	3/7	-	-
		Phase 2	3/7	-	1/7	3/7	-
	Campaign 6	Phase 1	1/7	3/7	3/7	-	-
		Phase 2	2/8	1/8	3/8	2/8	-
	Campaign 7		-	1/6	4/6	-	1/6
	Total		23/90	20/90	27/90	9/90	11/90

* represents 12 samples in the total of 13 samples; ^# represents 7 samples collected on 2, 3, 5, 6, 7, 8, and 9 November 2021 over the Yellow Sea; ^& represents 7 samples collected on 6, 7, 8, 10, 11, 12, and 13 November 2013 over the Yellow Sea.

): Level-0 represents a negligible perturbation, where E-DMA_below0.056 and E-TMA_below0.056 are less than 15% of the corresponding DMAH⁺_PM0.056-3.2 and E-TMAH⁺_PM0.056-3.2; Level-1 represents a detectable but unconfirmed perturbation, with a ratio between 15% and 30%; Level-2 corresponds to a confirmed moderate perturbation, with a ratio between 30% and 100%; Level-3 represents a confirmed strong perturbation, with a ratio between 100% and 200%; and Level-4 represents a confirmed extremely strong perturbation, where the ratio exceeds 200%.

Based on the perturbation levels for E-DMA_below0.056 listed in Table 1, the perturbation formation was negligible in two-thirds of the cases across all seven campaigns. This suggests that the gas–particle partitioning of DMA deviated from thermodynamic equilibrium, favoring evaporation into ambient air in most cases. The perturbation was not strong enough to change the equilibrium status. A similar conclusion applies to particulate NH₄⁺ and NO₃⁻ in the absence of E-NH₄⁺_below0.056 and E-NO₃⁻_below0.056. The high consistency in the size distribution of DMAH⁺, NH₄⁺, and NO₃⁻, along with the strong correlation between DMAH⁺ and NH₄⁺ in size bins < 0.056 μm, indicates the perturbation co-formation of DMAHNO₃ and NH₄NO₃. In some cases, strong perturbation effects (Level-3 or Level-4) were observed for NH₄⁺. However, the lack of confirmable perturbation formation for DMAH⁺ implies that gaseous DMA failed to compete with NH₃ to react with HNO₃ in these cases. For these cases, the gas–particle partitioning of DMA was similar to that in those where E-DMA_below0.056 was absent. In cases where Level-3 or Level-4 perturbations were observed for both E-NH₄⁺_below0.056 and E-DMA_below0.056, no conclusion can be drawn about the gas–particle partitioning of DMA in the ambient air due to the potential artifact formation of the HNO₃ and NH₃ gases during sampling, as discussed in a companion paper.

Based on the perturbation observations for E-TMA_below0.056 listed in Table 1, the perturbation levels varied from Level-1 to Level-4 in three-fourths of the cases across the different campaigns. Despite the lack of simultaneous perturbation effects for DMAH⁺ in some sampling periods, the good correlation and the similar mode distribution patterns of TMAH⁺ and DMAH⁺ in PM_0.056-1.0 indicate that the perturbation resulted in non-ionized TMA rather than TMAH⁺. In addition, the strongest perturbation of TMA typically occurred in the 0.032–0.056 μm size bin, although it was occasionally observed in smaller size bins, suggesting that effective perturbation begins in the 0.032–0.056 μm size bin and intensifies with decreasing size.

When combining the data from all seven campaigns, it can be argued that E-DMA_below0.056 and E-TMA_below0.056 had a higher probability of being obtained (1) in marine atmospheres compared to coastal atmospheres, (2) in colder-ambient-temperature coastal atmospheres, and using air streams with higher line speeds in the last three stages in Nano-MOUDI-II sampling. However, the mechanisms behind these observations are not yet fully explained in this study.

4. Conclusions and Future Studies

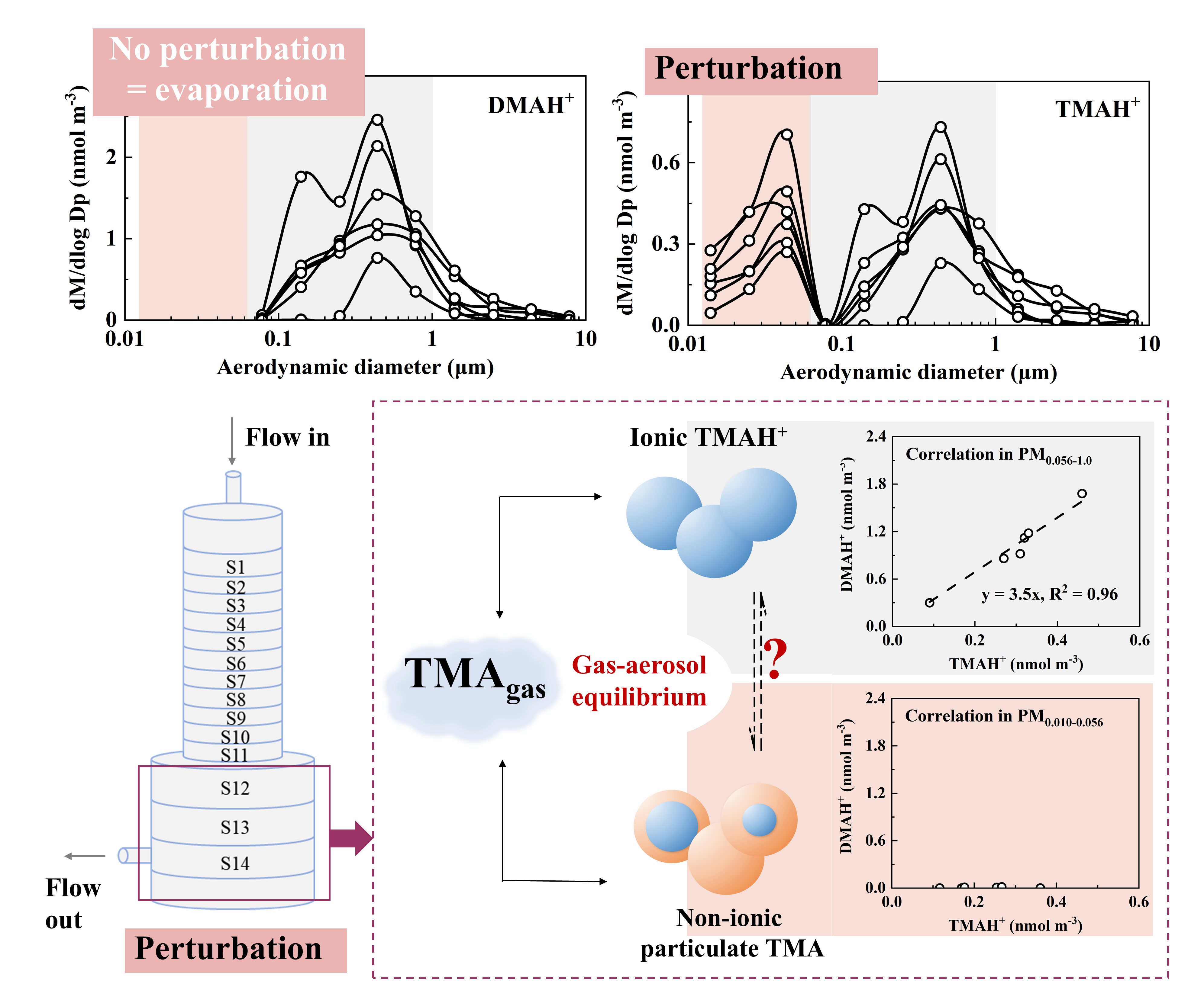

This study presents a unique phenomenon observed during Nano-MOUDI-II sampling in coastal and marine atmospheres, specifically the adiabatic-expansion-induced perturbation formation of particulate DMA and TMA on the last three stages. A comprehensive analysis was conducted to rule out the possibility of physically generating more DMA and TMA particulates in a size range below 0.056 μm than the larger size range (0.056–3.2 μm) in the ambient air. However, this unique phenomenon was highly valuable for studying gas–aerosol partitioning. The absence of E-DMA_below0.056 and E-NH₄⁺_below0.056 indicated that they tended to evaporate from the particle phase to the gas phase in ambient air, with the reverse generally being true, except in cases where the additional formation of HNO₃ and NH₃ occurred during sampling.

The analysis further found that the particulate TMA observed in the coastal and marine atmospheres existed predominantly in its non-ionized form, which has mistakenly been treated as ionic TMA particulates in the current 3-D modeling in the literature. In the coastal atmosphere, the particulate DMA observed was generally non-ionized as well, though it could form in the presence of sufficient HNO₃ vapor. However, this study alone cannot conclusively determine the chemical form of the DMA particulates observed in the marine atmosphere.

This study also raises concerns about data on the chemical composition of atmospheric nanometer-size particles reported in the literature, especially when adiabatic expansion occurs in the analytic system. The signals reported might be perturbation artifacts rather than actual signals, as presented in this study.

Future studies need to focus on quantifying the theoretical perturbation coefficients, such as the temperature and air pressure drops, increased relative humidity, the degree of supersaturation, etc., in different-size bins under various ambient conditions and at different MOUDI sampling flow rates (which affect the line speeds of the air streams through the nozzles). This will require significant time and resources, but collaboration across research groups could expedite this process. This is precisely why the authors are reporting these findings to the research community. Moreover, the design of temperature control on the last three stages should also be considered for further perturbation applications.
