Article

Lidar Complex for Control of the Ozonosphere over Tomsk, Russia

by
Alexey A. Nevzorov
1,*,
Alexey V. Nevzorov
2,
Olga Kharchenko
2 and
Yaroslav O. Romanovskii
1
1
Laboratory for Remote Sensing of the Environment, V.E. Zuev Institute of Atmospheric Optics SB RAS, 634055 Tomsk, Russia
2
Center of Laser Atmosphere Sensing, V.E. Zuev Institute of Atmospheric Optics SB RAS, 634055 Tomsk, Russia
*
Author to whom correspondence should be addressed.
Atmosphere 2024, 15(6), 622; https://doi.org/10.3390/atmos15060622
Submission received: 9 April 2024 / Revised: 9 May 2024 / Accepted: 16 May 2024 / Published: 22 May 2024
(This article belongs to the Section Atmospheric Techniques, Instruments, and Modeling)

Abstract

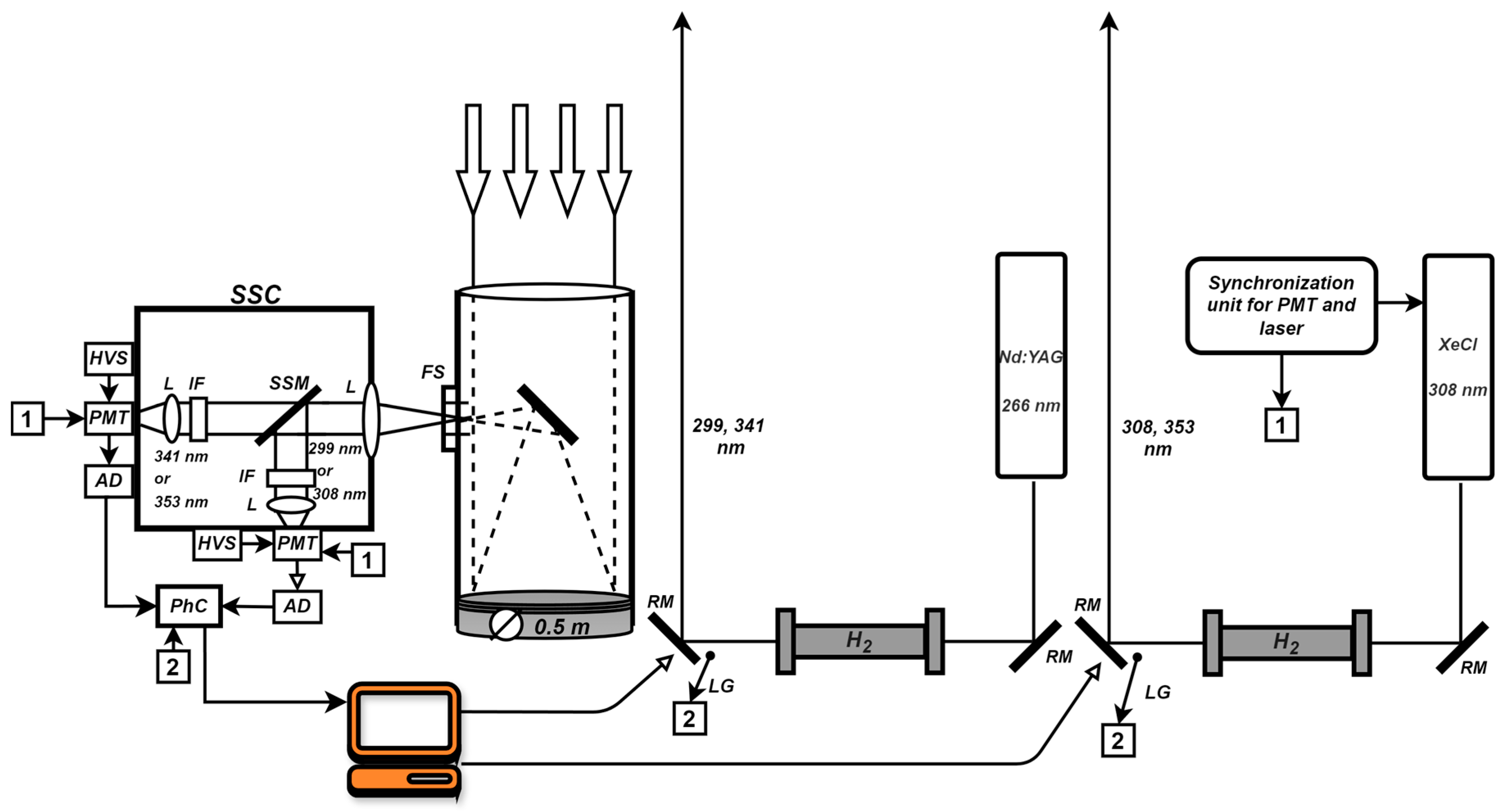

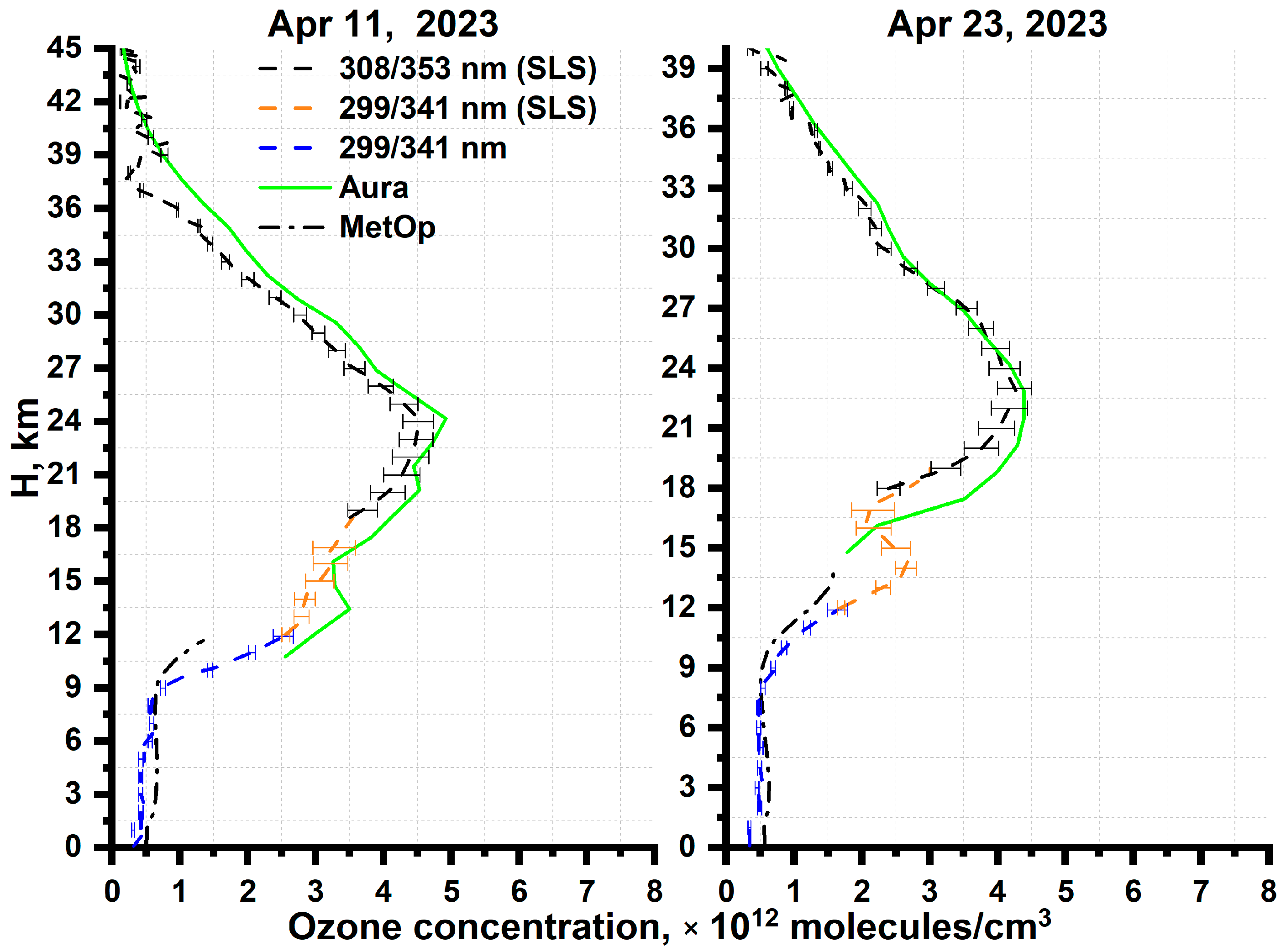

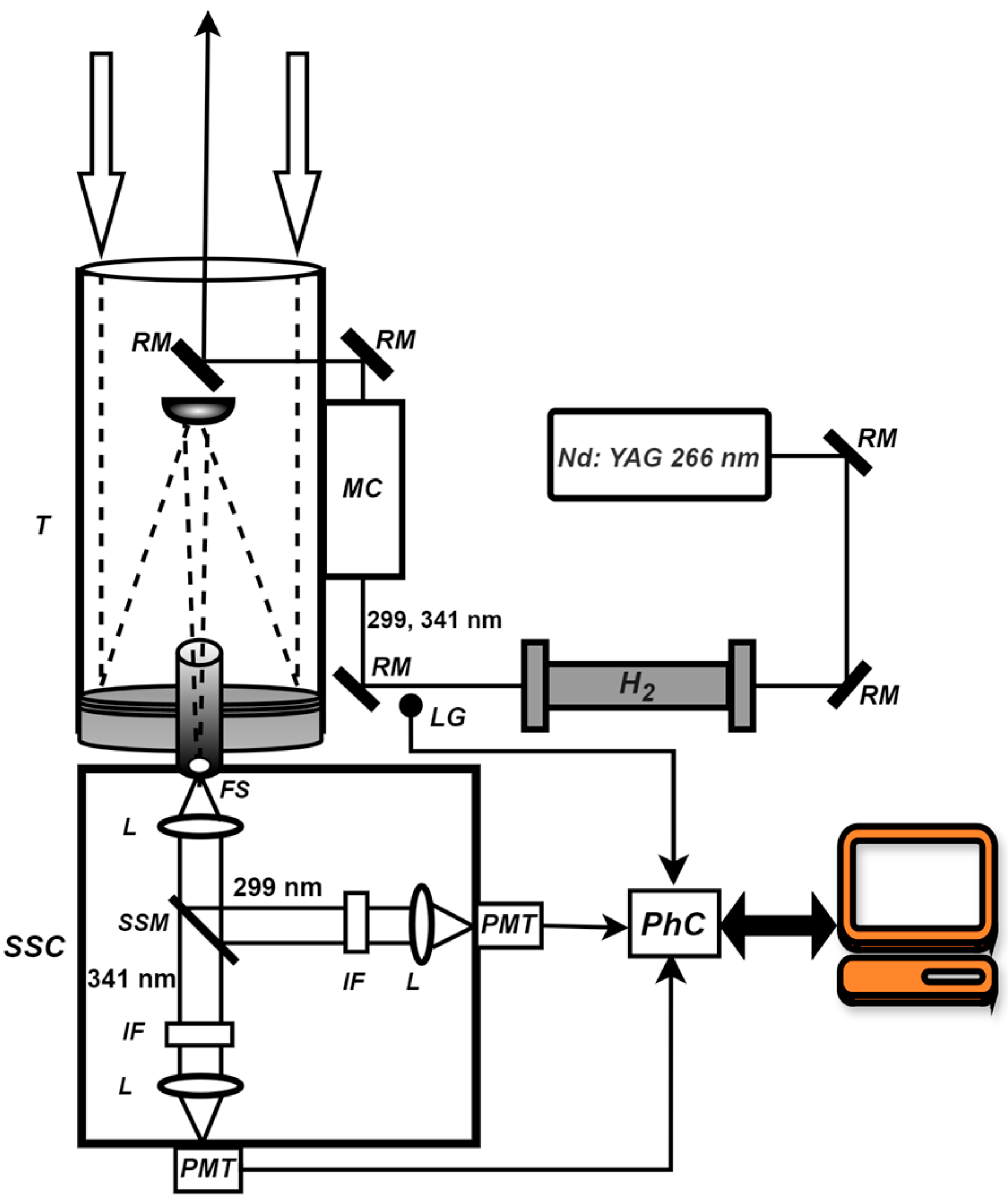

We present a union of three measurement systems on the basis of the Siberian lidar station and mobile ozone lidar. The lidars are designed for studying the ozonosphere using the method of differential absorption and scattering, as well as for studying aerosol fields using elastic single scattering. The systems are constructed on the basis of Nd:YAG lasers (SOLAR) and an Nd:YAG laser (LOTIS TII), a XeCl laser (Lambda Physik) and receiving telescopes assembled using the Kassegrain system with a diameter 0.35 m and the Newtonian 0.5 m system. Lidars operate in photon-counting mode and record lidar signals with a spatial resolution from 1.5 m to 160 m at sensing wavelengths of 299/341 nm in the altitude range of ~0.1–12 km and ~5–20, and at 308/353 nm in the altitude range of ~15–45 km. The union of these three measurement systems was used to carry out field experiments of atmospheric lidar sensing in Tomsk and to present the results of retrieving the vertical profile of the ozone concentration. In this study, coverage of the entire ozonosphere by the lidars was carried out for the first time in Russia.
Keywords: atmosphere; lidar sensing; lidars; ozone atmosphere; lidar sensing; lidars; ozone

Share and Cite

MDPI and ACS Style

Nevzorov, A.A.; Nevzorov, A.V.; Kharchenko, O.; Romanovskii, Y.O. Lidar Complex for Control of the Ozonosphere over Tomsk, Russia. Atmosphere 2024, 15, 622. https://doi.org/10.3390/atmos15060622

AMA Style

Nevzorov AA, Nevzorov AV, Kharchenko O, Romanovskii YO. Lidar Complex for Control of the Ozonosphere over Tomsk, Russia. Atmosphere. 2024; 15(6):622. https://doi.org/10.3390/atmos15060622

Chicago/Turabian Style

Nevzorov, Alexey A., Alexey V. Nevzorov, Olga Kharchenko, and Yaroslav O. Romanovskii. 2024. "Lidar Complex for Control of the Ozonosphere over Tomsk, Russia" Atmosphere 15, no. 6: 622. https://doi.org/10.3390/atmos15060622
