Enhancing Solar Radiation Forecasting in Diverse Moroccan Climate Zones: A Comparative Study of Machine Learning Models with Sugeno Integral Aggregation

Abstract

Hourly solar radiation (SR) forecasting is a vital stage in the efficient deployment of solar energy management systems. Single and hybrid machine learning (ML) models have been predominantly applied for precise hourly SR predictions based on the pattern recognition of historical heterogeneous weather data. However, the integration of ML models has not been fully investigated in terms of overcoming irregularities in weather data that may degrade the forecasting accuracy. This study investigated a strategy that highlights interactions that may exist between aggregated prediction values. In the first investigation stage, a comparative analysis was conducted utilizing three different ML models including support vector machine (SVM) regression, long short-term memory (LSTM), and multilayer artificial neural networks (MLANN) to provide insights into their relative strengths and weaknesses for SR forecasting. The comparison showed the proposed LSTM model had the greatest contribution to the overall prediction of six different SR profiles from numerous sites in Morocco. To validate the stability of the proposed LSTM, Taylor diagrams, violin plots, and Kruskal–Wallis (KW) tests were also utilized to determine the robustness of the model’s performance. Secondly, the analysis found coupling the models outputs with aggregation techniques can significantly improve the forecasting accuracy. Accordingly, a novel aggerated model that integrates the forecasting outputs of LSTM, SVM, MLANN with Sugeno λ-measure and Sugeno integral named (SLSM) was proposed. The proposed SLSM provides spatially and temporary interactions of information that are characterized by uncertainty, emphasizing the importance of the aggregation function in mitigating irregularities associated with SR data and achieving an hourly time scale forecasting accuracy with improvement of 11.7 W/m².

1. Introduction

Solar radiation (SR), often noted because the energy emitted by the sun and reaching the Earth’s surface, plays an important role in various natural Earth processes, as noted by [1,2]. This type of energy finds applications in fields like hydrology, climate science, irrigation planning, and also the development of crop growth models, as demonstrated by the works of [3,4,5,6]. Moreover, radiation stands as a sustainable energy source, presenting a viable alternative to fossil fuels, as highlighted by [7,8,9,10].

Nonetheless, obtaining direct measurements of (SR) remains a challenge on a world scale, as acknowledged by [11,12,13]. Consequently, to handle this limitation, scientists have endeavored to predict radiation using various modeling approaches. Among these models, we will categorize them into three main types:

Empirical Relationships: These models are supported established empirical equations and relationships. Examples include the works of [14,15,16,17,18,19]. Artificial Intelligence (ANN)-Based Models: These models utilize ANN and machine learning (ML) techniques to estimate radiation. Examples include the research of [20,21,22,23,24]. Satellite-Based Models: These models depend upon satellite data and remote sensing technology to derive radiation estimates. They include the works of [25,26,27,28,29]. These diverse approaches offer various methods for estimating radiation, catering to different data availability, and modeling preferences.

Each of the models mentioned above has its own strengths and weaknesses. Therefore, when selecting a model for a study associated with radiation, several key factors acquire play, as noted by [2]. These factors include the desired level of accuracy, the desired spatial distribution of information, and therefore the availability of meteorological data. For instance, when considering satellite-based models, like the one discussed by [26], the continual data they supply, both in terms of spatial coverage and temporal resolution, can give researchers a highly accurate and spatially distributed view of radiation across an outsized geographical region at any given point in time. This could be particularly valuable in studies where comprehensive coverage and up-to-date information are essential. There is a big body of research on the ML approach for radiation forecasting. Notably, a considerable portion of those studies emerged after 2018. These recent investigations demonstrate a growing interest in several key areas:

Climate Change: Many of those studies have a pronounced target global climate change. This reflects the broader recognition of the importance of accurate radiation forecasting in understanding and mitigating the results of global climate change.

Deep Learning (DL): Researchers are increasingly exploring the potential of DL techniques for SR forecasting. Their architectures have shown promise in capturing complex patterns in radiation data.

New Machine Learning Models: Beyond traditional ML algorithms, like support vector machine (SVM) and extreme learning machine (ELM), newer and more advanced ML models are gaining attention. These models may offer improved accuracy and performance in SR forecasting.

Renewable Energy Development: The connection between radiation forecasting and also the development of renewable energy generation may be a significant area of interest. Accurate predictions of radiation are crucial for optimizing the efficiency of solar energy systems.

Several researchers have delved into modeling and forecasting radiation using various mathematical equations and ML approaches. Kumar et al. (2015) conducted a study comparing the performance of regression models with ANN models for SR prediction [30]. This research likely aimed to assess the effectiveness of ML techniques during this context [31]. This team employed a wavelet transform approach together with various ML techniques, including ANN, ELM, and radial basis function (RBF) networks, yet as their hybrid variations. This means an investigation into the potential benefits of mixing wavelet analysis with ML for SR modeling. Şahin (2013) involved a comparison between ANN-based methods and statistical methodologies to estimate radiation from satellite images [32]. This research could explore the benefits of using ANN in remote sensing applications. Polo et al. (2014) investigated the sensitivity of satellite-based approaches to calculate radiation concerning different aerosol input parameters and model choices [33]. This research likely aimed to grasp how varying factors affect the accuracy of satellite-derived radiation estimates. These studies collectively represent the varied approaches and methods employed by researchers to reinforce our understanding of radiation and its prediction using both traditional mathematical techniques and modern machine learning methods. In an investigation conducted by [34], various models for solar radiation (SR) estimation and forecasting were explored. Their research revealed that, among the models they assessed, the one modified by Gueymard from the Collares-Pereira and Rabl model demonstrated the very best level of accuracy in forecasting average hourly radiation. This means that, for his or her study, this specific model adaptation proved to be the foremost precise for predicting radiation under these specific circumstances. Belmahdi et al. (2023) provide five approaches for forecasting daily global solar radiation (GSR) in two Moroccan cities [35], Tetouan and Tangier; autoregressive integrated moving average (ARI-MA), autoregressive moving average (ARMA), feed forward back propagation neural networks (FFBP), hybrid ARIMA-FFBP, and hybrid ARMA-FFBP were selected to forecast the daily global radiation with different combinations of meteorological parameters, and the hybrid models improved accuracy and reduced errors in forecasting. The hybrid k-means and nonlinear autoregressive neural network models provide better hourly global solar radiation forecasting results than either method alone [36]. Machine learning techniques slightly improve hourly solar forecasting performance compared to linear autoregressive and scaled persistence models, with more pronounced improvements in unstable sky conditions [37].

Based on the literature available in the Web of Sciences database, more than 1000 research papers in the field of SR prediction with ML approaches were identified. These studies were analyzed bibliometrically using VOSviewer software (version1.6.20) [38,39]. Figure 1 shows the connection between keywords.

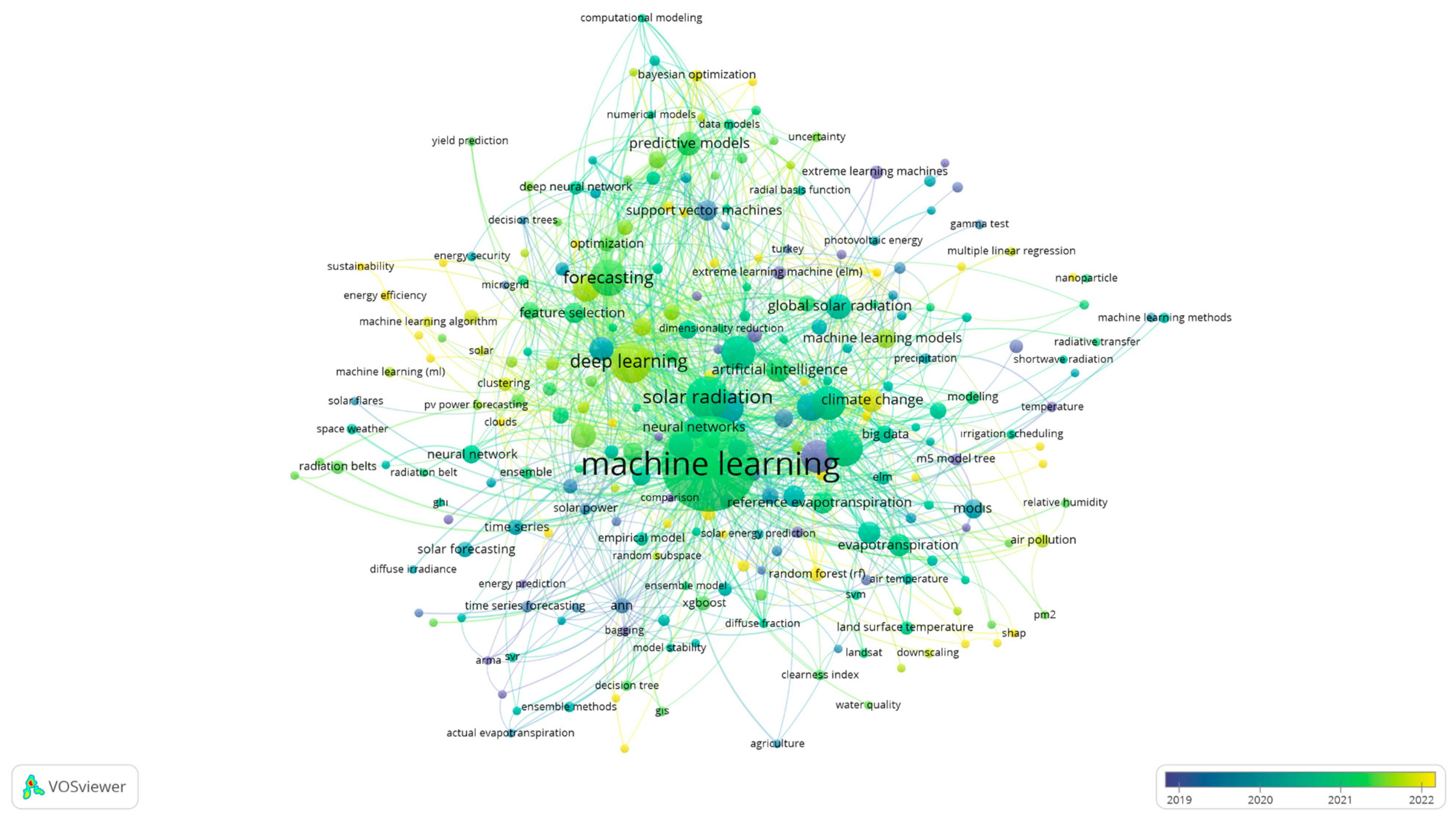

Figure 1 shows the intense use of ML approaches in SR predictions, solar energy, solar irradiation, renewable energy studies, and in recent years, especially that DL and remote sensing are among the topics researched by the authors.

SR is extensively researched worldwide, especially in sun-rich areas just like the Mediterranean and also the Mideast [40,41]. Unfortunately, many locations lack access to reliable observed radiation data because of the high costs related to acquiring, installing, and maintaining measurement devices. Challenges associated with calibrating radiation detection equipment further contribute to the present data gap [31]. Consequently, researchers commonly resort to numerous methods for estimating SR, including location-based, temperature-based, remote sensing-based, day and month-number-based, cloudiness-based, sunshine-based models, and hybrid models [42,43,44]. However, the complex relationships between independent and dependent variables often limit the accuracy of those models, especially in humid regions where inclemency significantly affects radiation [42].

The aim of this study is to investigate SR forecasting using long short-term memory, support vector machine regression, and multilayer artificial neural networks approaches. For SR estimation and to propose a novel aggerated model that integrates the forecasting outputs of LSTM, SVM, and MLANN with Sugeno λ-measure and Sugeno integral named (SLSM), 10 hydro-meteorological parameters and various reflectance values obtained by remote sensing techniques from 6 stations located in Morocco (Tantan, Fes, Agadir, Marrakech, Ouarzazate, and Tangier) were used as the main contributions to the present research, which are:

(1)

Combining information from remote sensing parameters and hydro-meteorological data to improve hourly SR forecast accuracy using input data from hourly timesteps.

(2)

Capturing a wider variety of environmental variables and incorporating spatial components into the study by using the reflectance data from remote sensing.

(3)

Long short-term memory (LSTM), support vector machine (SVM) regression, and multilayer artificial neural networks (MLANN) are being investigated as ML approaches to perform a comprehensive comparison of SR prediction models and provide valuable insights into their relative strengths and weaknesses.

(4)

Using various weather dataset profiles, and comparing different ML techniques to assess the stability of the offered approaches.

(5)

Evaluating the efficacy of the proposed methodologies under various geographical and meteorological variables to validate the generalizability and reliability of SR prediction.

(6)

Conducting statistical analysis using the Kruskal–Wallis test to see whether the forecasts and observations data points have the same underlying distributions.

(7)

Improving the forecasting accuracy by applying fuzzy measure of that combines the accurate prediction information of the three models.

2. Materials and Methods

2.1. Data Profiles

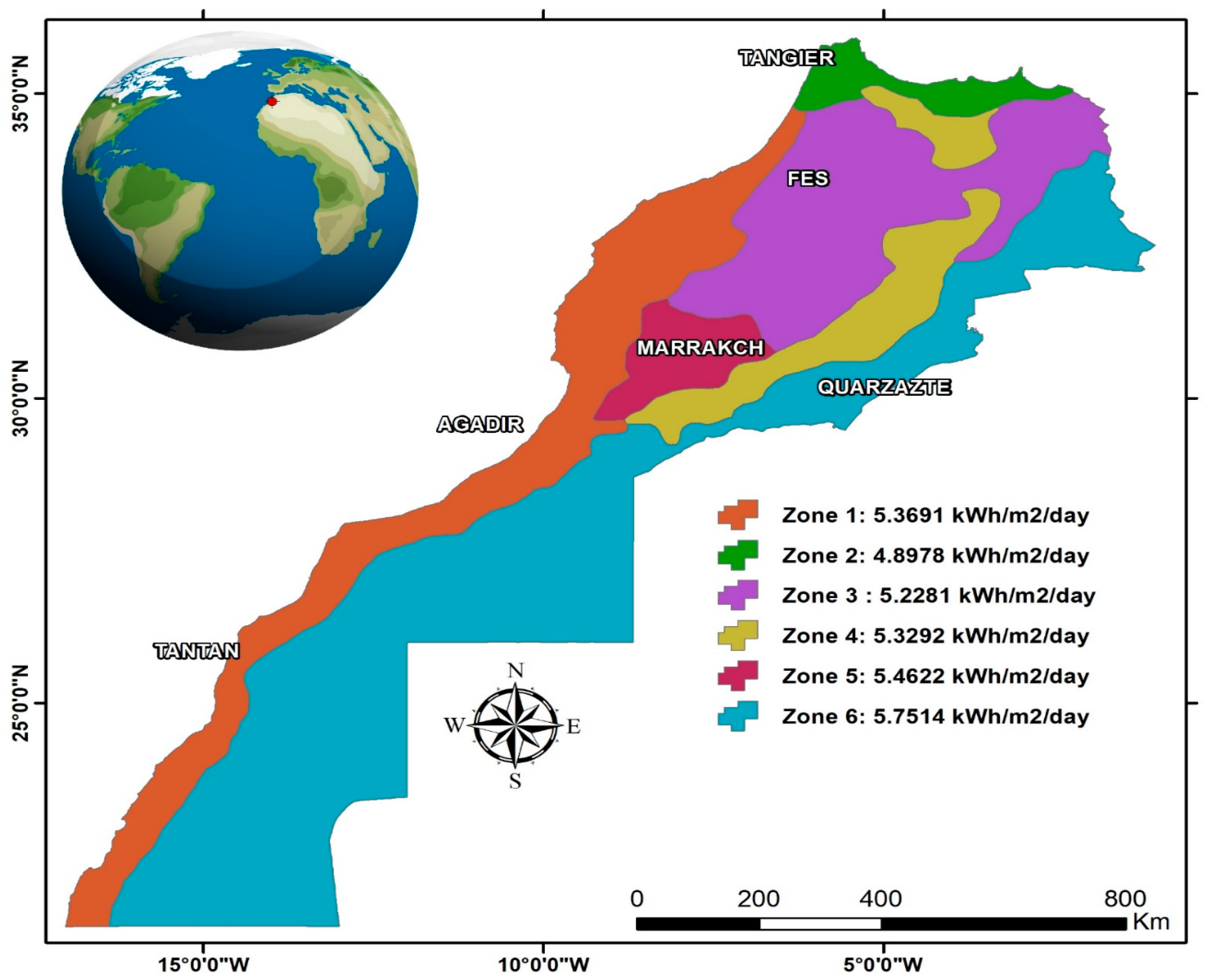

The sites are located in Morocco, North Africa, namely: Tantan, Fes, Agadir, Marrakech, Ouarzazate, and Tangier, as shown in Figure 2 and

Table 1. A table showing study area: Latitude, longitude, altitude, climate region, or climate type.

Station	WMO Code	Latitude (°N)	Longitude (°W)	Altitude (m)	Köppen Climate Type
Marrakech	60230	31.617	−8.033	466	Mid-latitude steppe and desert climate (Bsh)
Fes	60141	33.933	−4.983	579	Mediterranean climate (Csa)
Agadir	60252	30.383	−9.567	23	Mid-latitude steppe and desert climate (Bsh)
Tangier	60100	35.733	−5.803	21	Mediterranean climate (Csa)
Ouarzazate	60262	30.933	−6.910	1140	Tropical and subtropical desert climate (Bwh)
Tantan	60285	28.437	−11.103	45	Tropical and subtropical desert climate (Bwh)

. The country encompasses a population of 37 million people and an expanse of 710,850 square kilometers. Northern and southern Morocco have very different climates. Both rainfall and temperature are greatly impacted by the Atlantic, Mediterranean Sea, and desert. The period from October to May sees the most rainfall. Southern and south-eastern dry and semi-arid regions have high temperatures. Average monthly temperatures range from 9.4 °C (December, January) to 26 °C (July, August). The wettest months are from October to April, and therefore the driest are from June to August [17]. Recently, the National Centre of Meteorology and the Moroccan Agency for Energy Efficiency (AMEE) worked together to form a replacement climatic zoning map for Morocco [45,46]. All the new climate zones in Morocco share the similar sun irradiation, height, and other key climatic characteristics. A key city is the indicator for every zone (Figure 2).

As can be seen, Table 1 distributes these sites from Morocco’s south to its north. Each site corresponds to a distinct climate zone, with variables such as latitude, longitude, altitude, and climate type.

2.2. Data Collection

The data employed in this study are sourced from SOLCAST, a poster enterprise [47,48,49] renowned for its solar irradiance estimation methods, leverages satellite technology to determine solar irradiance by effectively discerning cloud coverage. The combination of satellite data, clear sky models, and reanalysis data allows for a more accurate estimation of solar energy reaching the Earth’s surface, considering the impact of clouds [50]. Temporal granularity varies, encompassing basic hourly averages, as well as more finely grained options like 5-min, 10-min, 15-min, and 30-min intervals. For those requiring even more precise data, 1-min intervals may be obtained upon request. These datasets have been accessible since January 2007, with a seven-day delay, and may be accessed through the SOLCAST website. SOLCAST extends its data coverage globally, except for oceanic and polar regions. The spatial resolution of their data stands at a powerful 1 to 2 km [47,48,49].

The National Aeronautics and Space Administration (NASA) has been providing data at 0.5° spatial resolution worldwide since 1981 to support the renewable energy and agriculture sectors, and recently launched the Projection of Worldwide Energy Resources (POWER) project to produce long-term climate variables [51]. The user-friendly data access interface is the main focus of NASA POWER, and every dataset is available at four temporal levels: hourly, daily, monthly, and climatologically [52] Numerous studies are conducted to validate the performance of NASA POWER data in various locations around the world; i.e., Jordan [53], Iran [54], Africa [55], Brazil [56], Iraq [57], and Malaysia [58]. In northern Peninsular Malaysia, Bandira et al. (2022) reported that NASA POWER performed statistically satisfactorily for radiation and maximum and minimum temperatures, but less successfully for precipitation, wind speed, and mixing ratio [59]. Additionally, Rodrigues and Braga (2021) demonstrated that NASA POWER data are in good agreement with observed data, with a coefficient of determination (R²) more than 0.82 for radiation data [60]. However, only a few studies have evaluated NASA POWER within the tropics like in Morocco.

2.3. Morocco’s Solar Energy Potential

According to the Moroccan Agency for Solar Energy (MASEN), Morocco is known for its abundant solar energy, with an average of 5.3 kilowatt-hours per square meter of solar radiation annually. Sunshine durations vary across the country, ranging from approximately 2700 h per year in the northern regions to approximately 3500 h per year in the south [61]. Morocco has recently unveiled an ambitious plan for the development of integrated solar projects in combination with combined cycle units (Integrated Solar Energy Generation Project, Kingdom of Morocco. Available online at (www.one.org.ma, accessed on 14 October 2023) [62]. This initiative is expected to result in significant benefits, including the annual savings of 1 million tons of oil equivalent (Toe) and the reduction of 3.7 million tons of carbon dioxide (CO₂) emissions. The primary objectives were to establish 2000 megawatts (MW) of solar capacity across five specific sites (Ouarzazate—500 MW, Ain Beni Mathar—400 MW, Foum Al Ouad—500 MW, Boujdour—100 MW, and Sebkhat Tah—500 MW) by the year 2020 [63] provides a brief overview of these sites, including their location, grid connection, water availability, and approximate coordinates. These projects were planned to utilize two main solar technologies, concentrated solar power (CSP) and photovoltaic (PV).

2.4. ALLSKY_SFC_SW_DWN

A parameter called ALLSKY_SFC_SW_DWN represents the entire amount of shortwave radiation that reaches the layer in all sky circumstances, including overcast and clear skies [64]. To comprehend the Earth’s energy balance, temperature, and other environmental processes, it measures the quantity of additional energy that enters the shortwave spectrum and reaches the planet’s surface. This metric is used in environmental research, climate modeling, and prediction. It is typically measured or calculated in measures such as watts per unit of measurement (W/m²) [65]. Because it offers vital information about the solar energy that reaches the surface under different sky conditions, the entire shortwave radiation received at the surface under all sky situations is incredibly essential. These data are essential for a fair number of applications, including environmental management, renewable energy planning, forecasting, and climate modeling [66,67].

3. Forecasting Models

The requirements of the specific application, the level of precision needed, and the resources available all influence the approach and instrument selection. To obtain extensive and precise data on shortwave radiation, a variety of techniques, such as satellite data collection and ground-based observations, are frequently utilized.

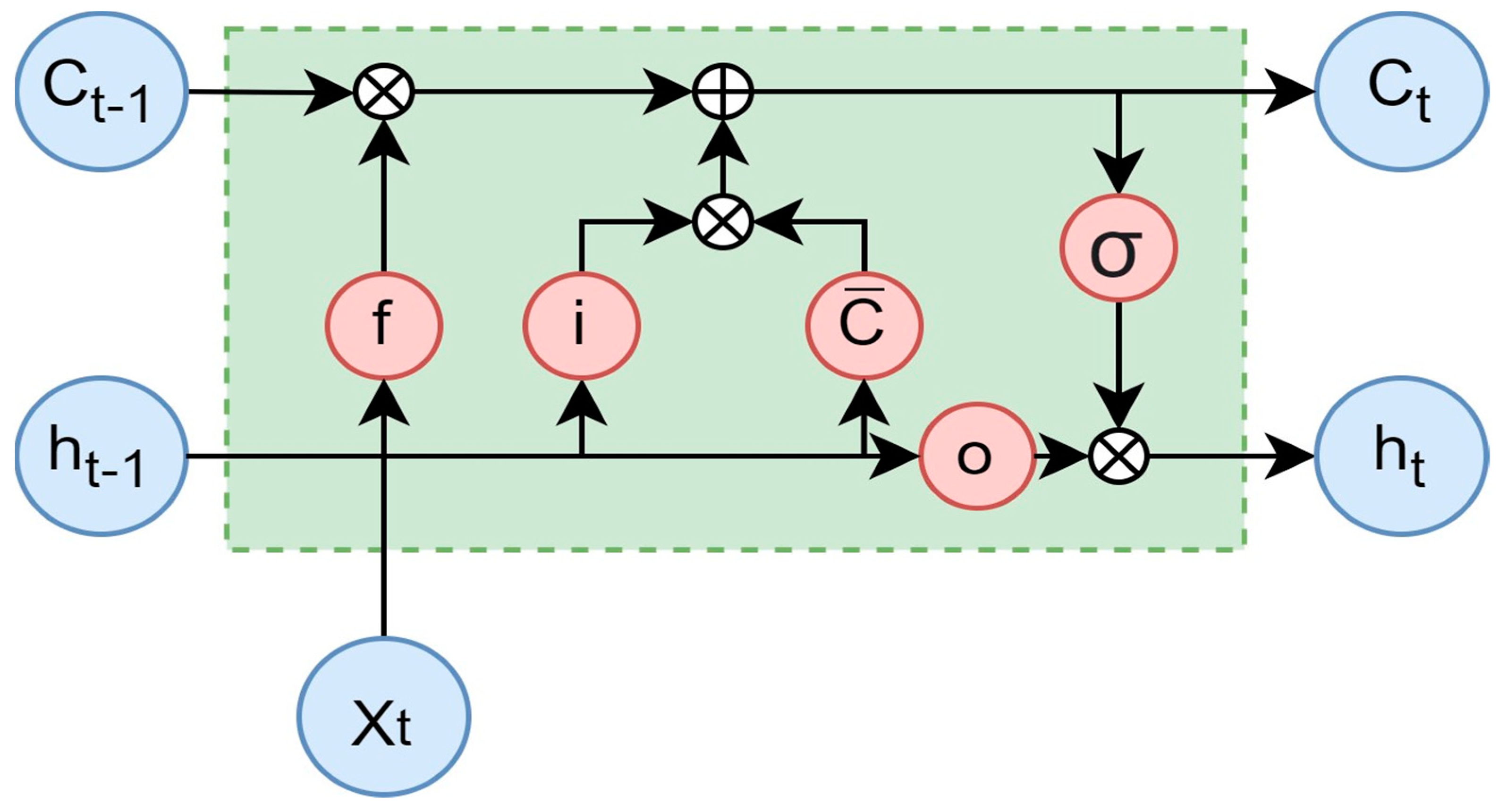

3.1. Long Short-Term Memory (LSTM)

Artificial neural networks that can learn from sequential input and forecast the future using historical data are known as recurrent neural networks (RNNs) [68]. However, when trained with back-propagation, RNNs suffer from vanishing or exploding gradients and forget long-term dependencies [69]. To solve this issue, the LSTM model—a variation on the RNN—was presented. Its hidden layers contain unique units known as memory cells, which have the ability to store and retrieve data for extended periods of time [70,71]. The architecture of the LSTM is displayed in Figure 3 [72]. The LSTM equations are as follows:

$$i_t=\sigma (W_i{x}_i+U_i{h}_{t-1}+b_i)$$

(1)

$$f_t=\sigma (W_f{x}_t+U_f{h}_{t-1}+b_f)$$

(2)

$$o_t=\sigma (W_o{x}_t+U_o{h}_{t-1}+b_0)$$

(3)

$${\stackrel{\sim }{C}}_t=\mathit{tanh}(W_c{x}_t+U_c{h}_{t-1}+b_c)$$

(4)

$$C_t=f_t\otimes C_{t-1}+i_{t-1}\otimes {\stackrel{\sim }{C}}_t$$

(5)

$$h_t=o_t\otimes \mathit{tanh}(C_{t-1})$$

(6)

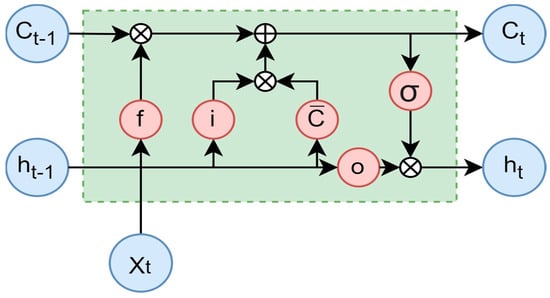

Three gates serve as the foundation for the LSTM equations: the input gate (i_t), the forget gate (f_t), and the output gate (o_t). The amount of information that enters, exits, and stays inside the memory cell is managed by these gates. The weights (W_i, W_f, W_o) and biases (b_i, b_f, b_o) that link the gates to the input (x_t) and the preceding hidden state (h_t−1) are their parameters. Both the current state (C_t) and the prior state (C_t−1) of the memory cell exist. The current state and the output gate determine the cell’s output (h_t).

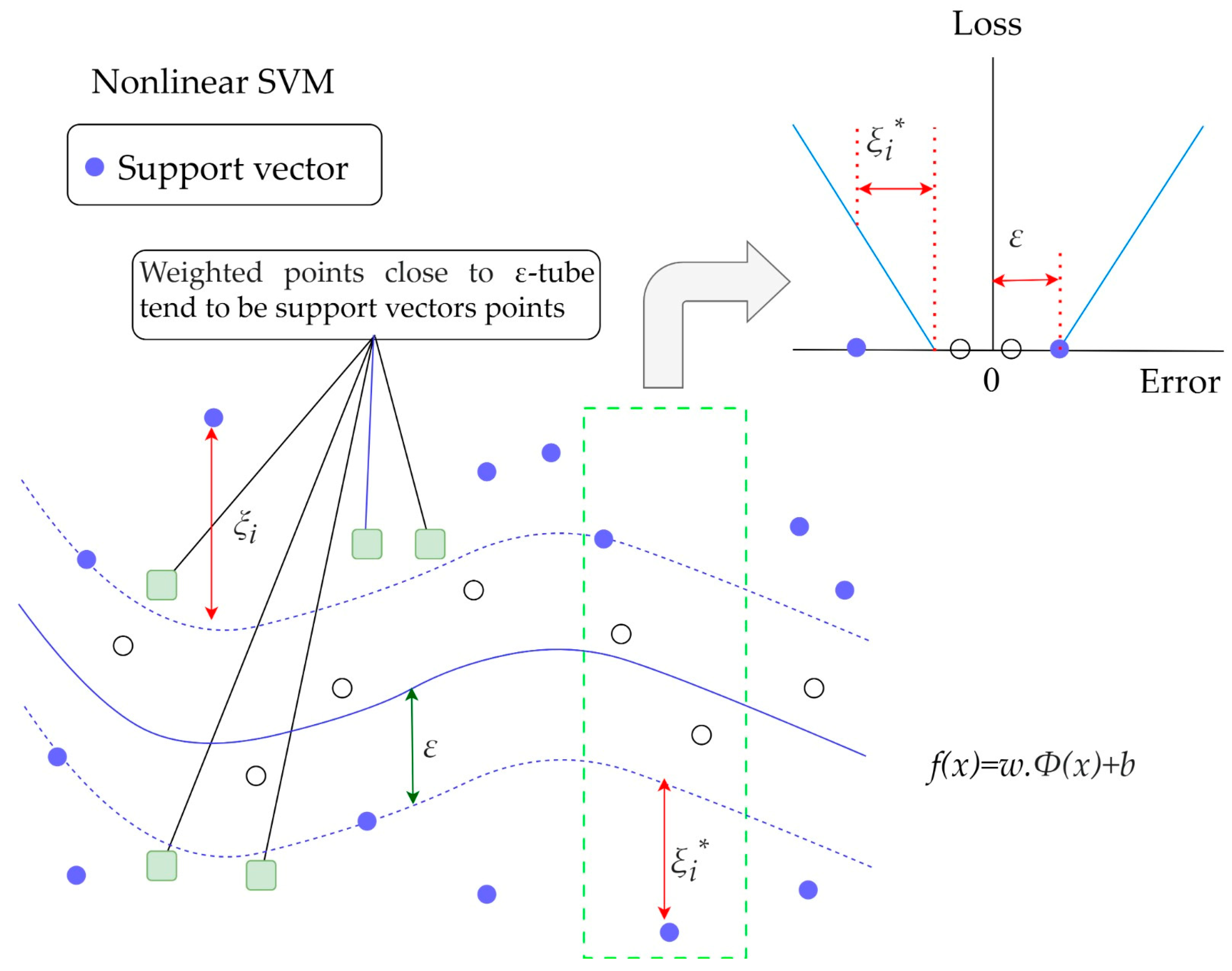

3.2. Support Vector Machine (SVM)

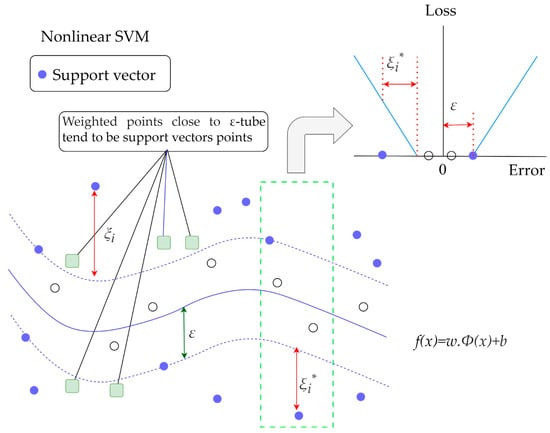

Developed by Vapnik, the SVM is a class of machine learning techniques that can handle both classification and regression tasks [73]. Regression using SVMs is referred to in the literature as support vector regression (SVR) [74,75]. Finding a function that can roughly represent the relationship between the input x and the output y(x) is the aim of SVR. Figure 4 shows the SVR architecture.

In this study, the input vectors (x) are the historical SR values, while the output values (y) are the forecast values. The input–output data set for SVR is represented by (x,y), where x is the input vector and y is the output value. The function that SVR tries to estimate has the following form:

$$y\left(x\right)=w·\varphi \left(x\right)+b$$

(7)

where ϕ is a nonlinear function, w is the weight vector and b is the deviation.

3.3. Multilayer Artificial Neural Networks (MLANN)

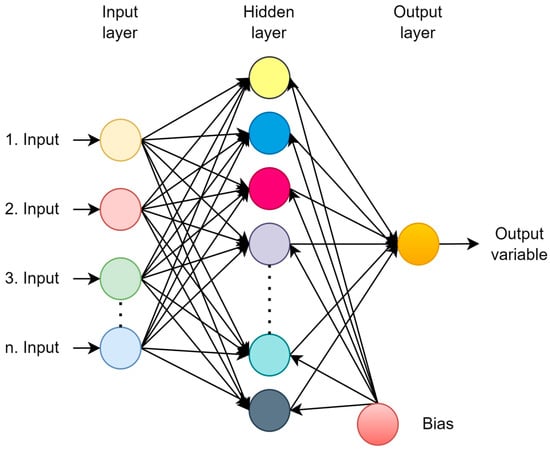

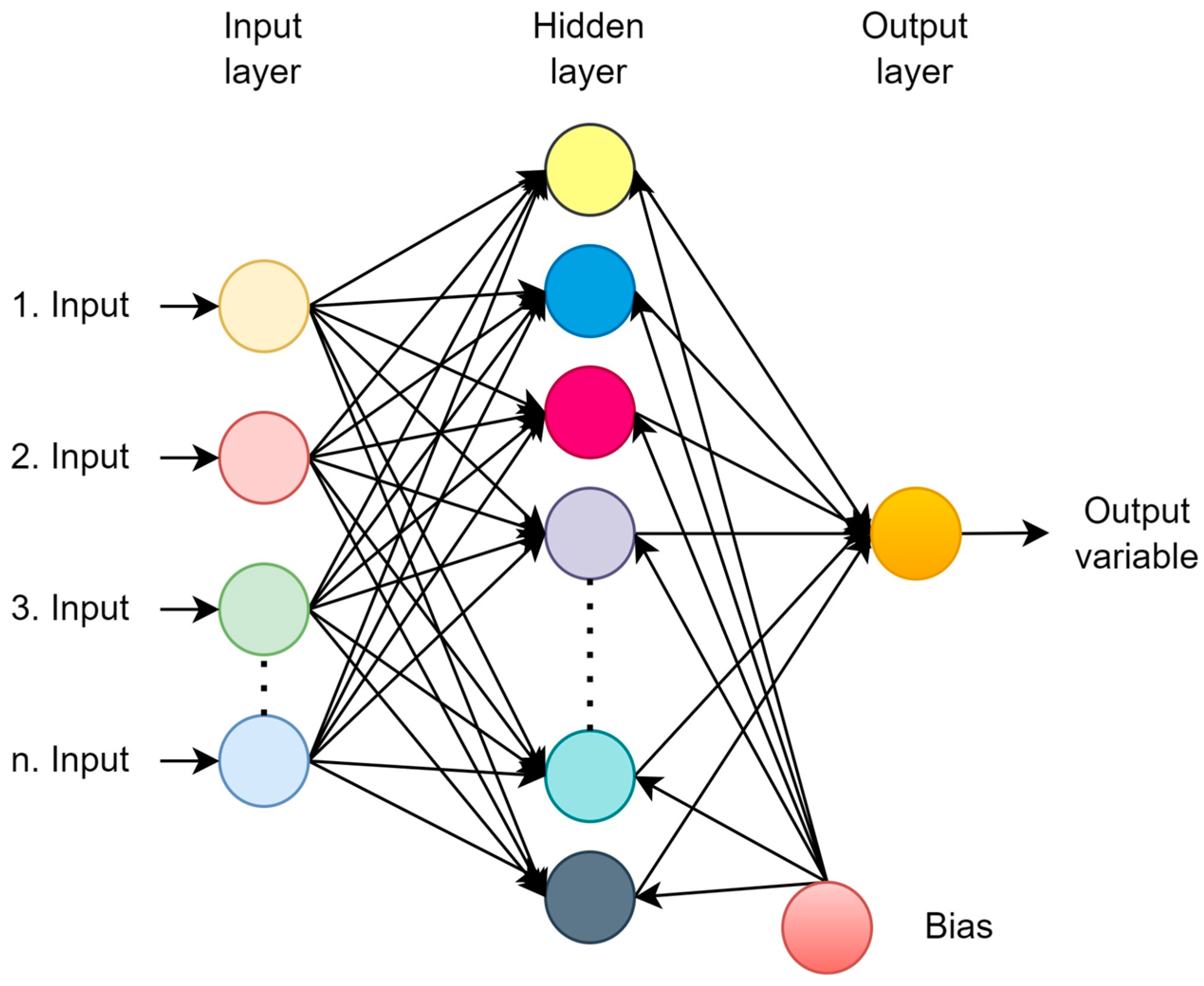

In hydraulic and hydrological engineering, artificial neural network modeling is a comparatively well-known and often utilized technique. It is essentially a “black box” technique that uses a particular collection of nonlinear basis functions to connect input and output data. Because artificial neural networks (ANNs) are nonlinear statistical techniques, they can be applied to solve issues that are not amenable to standard statistical and mathematical techniques [76,77,78]. Figure 5 displays the structure of the MLANN model.

3.4. Aggregation Model Based on Sugeno λ-Measure and Sugeno Integral (SLSM)

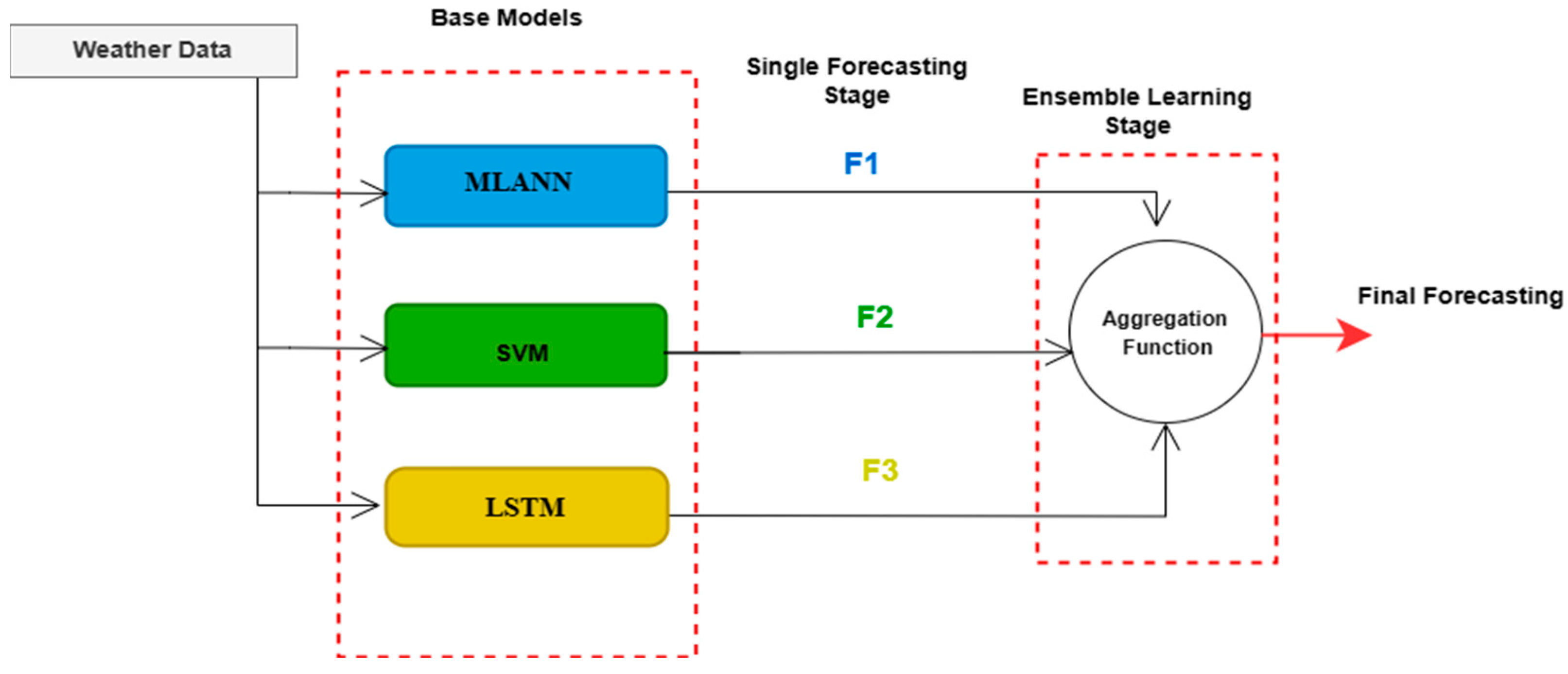

Combining multiple forecasting models through aggregation can mitigate the variability in forecasting errors and improve the overall forecasting accuracy. In this context, Sugeno integral is implemented to amalgamate the different sources of information while reducing the level of uncertainty in the decision-making stage. The proposed Sugeno integral is applied to fuse the outputs of individual modes within a ML model designed for irradiance prediction. To achieve this, the Sugeno integral will be used as an aggregation operator to combine the output of each model as shown in Figure 6. This will enable the interaction between the forecasting outputs aggregated via a fuzzy measure. This aggregation function can identify the highest level of agreement within the different forecasting outcomes, making the most of the strengths of each individual model.

Sugeno λ-Measure

In this work, Sugeno λ-measure applies to measure the worth of each model accuracy.

X represents the proposed individual predictive model, so let $X=\left\{x_1,\dots ,x_n\right\}$ where n = 3. The fuzzy measure is represented by the function $\mu :2^x\to [0,1]$ for each $x_n$ and the possible combination of subsets of the universe of discourse $X$. The properties of the aforementioned fuzzy measure are stated in as following [79]: $\mu \left(\varphi \right)=0$, and $\mu \left(X\right)=1$ represents the measures of an empty set and a combination of the all sets $A,B\in 2^X if A\subset B \subset X, then \mu \left(A\right)\le \mu \left(B\right)$ represents monotonicity property.

$$if A,B\subseteq X with A\cap B=\varphi , then \mu (A\cup B)=\mu \left(A\right)+\mu \left(B\right)+\lambda \mu \left(A\right)\mu \left(B\right)$$

(8)

represents the possible subsets and the combined subsets.

$$Given \mu \left(X\right)=1, then \lambda +1=\prod _{i=1}^n(1+\lambda \mu (\left\{x_i\right\})$$

(9)

represents the values of fuzzy measures where $\lambda >-1$.

The process of obtaining the fuzzy measure starts with calculating $\lambda$ Equestion (9) by arbitrarily selecting fuzzy densities that associated with each subset/model. This can be followed by calculating the combined subsets fuzzy measures Equation (8).

The Sugeno integral covers the ideas of weighted minimum and maximum, allowing for the evaluation of the importance of each model via the utilization of fuzzy measures. The fuzzy integral involves determining the highest level of similarity between the target and the predicted values.

f(x) is a function in the universe of discourse $X$, and the Sugeno integral (S) of f:X → [0, 1] with respect to the fuzzy measure $\mu \left(X\right)$ is represented by:

$$\int fd\mu =\underset{i=1,N}{maxmin}(f(x_{s(i)}),\mu (A_{s(i)})$$

(10)

where $A_{s\left(i\right)}$ is reorder the model accuracy. The information will be permuted where the high model accuracy has the most significant influence on the final model, gradually moving to less impact with the lowest model accuracy.

4. Metrics for Performance Evaluation of Models

This section explains the statistical metrics that were used to evaluate the models’ performance for SR prediction. The coefficient of determination (R²), root mean square error (RMSE), and mean absolute error (MAE) are the metrics [80]. These measures show how well the models fit the observed data, as well as how accurate and reliable their forecasts are. High R² values near to 1, as well as low RMSE and MAE values, indicate high model performance. The metrics’ formulas are as follows:

$$\mathrm{R}\mathrm{M}\mathrm{S}\mathrm{E}=\frac{1}{n}\sum _{i=1}^n\sqrt{{\left({SR}_{predicted }-{SR}_{measured}\right)}^2}$$

(11)

$$\mathrm{M}\mathrm{A}\mathrm{E}=\frac{1}{n}\sum _{i=1}^n\left|{SR}_{predicted}-{SR}_{measured}\right|$$

(12)

$${\mathrm{R}}^2=\frac{{{\sum }_{i=1}^n{{(SR}_{i measured}-\underset{\_}{{SR}_{i measured}})}^2 {·(SR}_{i predicted }-\underset{\_}{{SR}_{predicted }})}^2}{{\sum }_{i=1}^n{\left({SR}_{i measured}-\underset{\_}{{SR}_{i measured}}\right)}^2·{\sum }_{i=1}^n{\left({SR}_{i predicted }-\underset{\_}{{SR}_{predicted }}\right)}^2}$$

(13)

The following symbols are used in the formulas for the statistical metrics: SR_measured is the observed SR values from the data; SR_predicted is the predicted SR values from the models; $\underset{\_}{{SR}_{measured}}$ is the mean of the observed SR values; n is the number of data points. To compare the models, this study also used a Taylor diagram and Violin plot [81]. These plots show the correlation, bias, and standard deviation of the models relative to the observations.

5. Modeling Development Procedure

5.1. Model Implementation

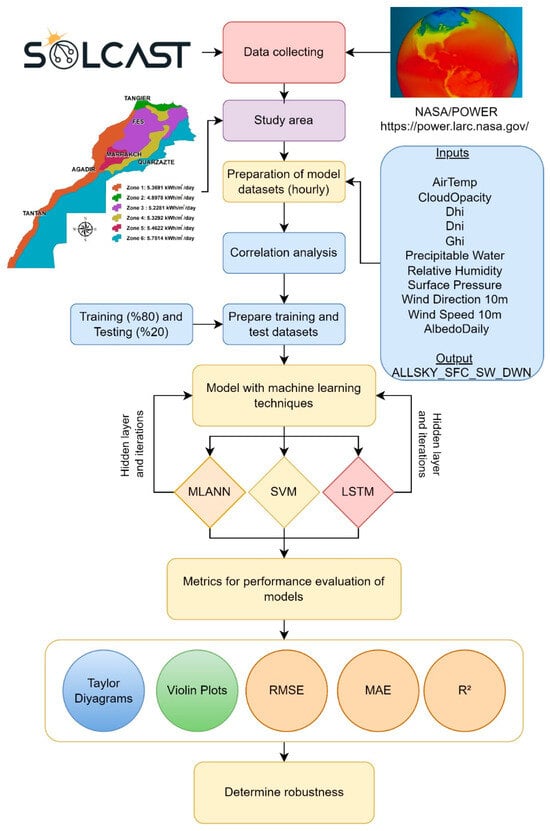

The proposed methodology follows these steps: (i) data collection; analysis and preprocessing of data, (ii) training network of neural networks. The latter involves the selection of architecture, training functions, training algorithms, and network hyperparameters, (iii) testing the trained network; and using the trained neural network for simulation and prediction [82]. In this study, three different models, LSTM, MLANN, and SVM, were used for SR forecasting. The proposed forecasting models were developed using MATLAB (R2021a), Statistics and Machine Learning Toolbox, and Deep Learning Toolbox. The models were run using a laptop computer with a 12th Generation Intel (R) Core (TM), i7-12700H, 2.30 GHz, 64 GB RAM, and a 6 GB graphics card. The data were collected from various meteorological parameters, including air temperature, cloud opacity, direct horizontal irradiance (DHI), direct normal irradiance (DNI), global horizontal irradiance (GHI), precipitable water, relative humidity, surface pressure, wind direction at 10 m, wind speed at 10 m, and daily albedo. The data for these parameters were provided hourly between 2013 and 2020 from NASA POWER and SOLCAST [49,52]. The dataset was divided into a training set comprising 80% of the data (57,253 data) and a test set with 20% of the data (14,313 data). Statistical information about the data is given in

Table 2. Statistical information of data, W/m².

Stations	Data	Min	Mean	Max	Std	CS	Ck
Agadir	Training	0.00	241.2	1038.1	314.7	0.95	−0.57
	Testing	0.00	229.9	1040.9	305.7	0.99	−0.49
Fes	Training	0.00	225.6	1044.4	302.9	1.07	−0.25
	Testing	0.00	211.8	1046.4	290.2	1.12	−0.11
Marrakech	Training	0.00	242.5	1053.2	318.8	0.98	−0.48
	Testing	0.00	228.6	1042.6	306.9	1.04	−0.35
Ouarzazate	Training	0.00	252.4	1065.2	328.9	0.94	−0.62
	Testing	0.00	232.9	1059.0	311.4	1.01	−0.44
Tangier	Training	0.00	210.5	1018.5	285.2	1.12	−0.06
	Testing	0.00	199.29	1012.1	275.5	1.17	0.09
Tantan	Training	0.00	205.3	1025.1	276.8	1.07	−0.25
	Testing	0.00	194.7	1003.7	267.0	1.11	−0.12

. The ultimate goal is to predict a critical parameter, ALLSKY_SFC_SW_DWN (all-sky surface shortwave downward irradiance), which plays a crucial role in solar energy system performance and planning.

5.2. Model Architecture

SR is estimated using input data from hourly timesteps and the prediction results are compared with the actual hourly data. The hyper parameters of the LSTM model are; ‘GradientThreshold’: 1, ‘InitialLearnRate’: 0.05, ‘Learn Rate Schedule’: ‘piecewise’, ‘Learn Rate Drop Period’: 125 and ‘Learn Rate Drop Factor’: 0.2. The proposed LSTM is implemented by MATLAB-written scripts, and trained using adaptive moment estimation (Adam) with 300 epochs and a maximum of 10 hidden layers are designed. The proposed SVM is designed by using Lagrangian multipliers and polynomial kernel function to find the optimal decision boundary. The polynomial Kernel function transforms the input data into a higher-dimensional spaces a way to enhance the forecasting decision capabilities and handle the high variability of the irradiance. The proposed MLANN is designed by adaptive learning rates to enhance the learning task during the training phase. Log-sigmoid transfer function and the Levenberg–Marquardt training algorithm were used in training the model. This is because this technique is more powerful than traditional gradient descent techniques [78]. Additionally, the data were normalized between 0.2 and 0.8, inspired by [83]. Single ML model flowchart diagram of the study is shown in Figure 7.

6. Results and Discussion

The performance of the three proposed models was evaluated by statistical indictors which are listed in this section. The RMSE and MAE values along with R² are utilized for evaluating the designed models that belong to irradiance and meteorological data for different locations in Morocco. The results indicate that the LSTM model has good forecasting performance where errors measuring between predicted and actual values are generally small as shown in

Table 3. Model results of the training and testing phase W/m².

Models	Stations	Training			Testing
		RMSE	MAE	R2	RMSE	MAE	R2
LSTM	Agadir	25.39	13.97	0.99	39.12	23.48	0.98
	Fes	36.47	19.87	0.98	41.32	21.19	0.98
	Marrakech	29.19	17.33	0.99	30.45	16.30	0.99
	Ouarzazate	28.95	15.59	0.99	37.75	20.15	0.98
	Tangier	30.25	16.88	0.98	49.96	25.18	0.97
	Tantan	41.09	22.00	0.97	47.72	25.63	0.96
	Mean	31.89	17.61	0.98	41.05	21.99	0.98
SVM	Agadir	57.04	38.58	0.96	105.01	76.27	0.89
	Fes	41.92	24.06	0.98	49.38	27.12	0.97
	Marrakech	56.23	38.16	0.96	81.82	55.87	0.94
	Ouarzazate	33.20	20.04	0.98	48.77	29.36	0.97
	Tangier	32.36	19.24	0.98	53.53	31.45	0.96
	Tantan	70.10	44.35	0.93	94.20	70.93	0.88
	Mean	48.47	30.74	0.97	72.12	48.50	0.93
MLANN	Agadir	75.85	47.23	0.94	81.64	50.94	0.92
	Fes	49.56	27.20	0.97	62.99	36.86	0.95
	Marrakech	81.12	55.33	0.93	89.92	61.25	0.92
	Ouarzazate	35.85	16.42	0.98	40.25	19.93	0.98
	Tangier	50.86	32.43	0.96	75.55	52.39	0.93
	Tantan	80.64	49.09	0.91	101.21	62.26	0.85
	Mean	62.31	37.95	0.95	75.26	47.27	0.93

. For instance, LSTM model achieves RMSE values ranges between 25.38 W/m² and 41.09 W/m² for the data of the six sites. However, the proposed SVM and MLANN yield higher forecasting error with RMSE value ranges between 57.04 W/m² to 70.10 W/m², and 75.85 W/m² to 80.64 W/m², respectively, with the data of the same sites. Further, the mean values of LSTM model for the six sites were calculated and compared to those in the other two forecasting models. The comparison shows the LSTM’s superiority in predicting hourly irradiances. Comparing LSTM model to conventional ANN (i.e., MLANN) and ML techniques (i.e., SVM) in the solar irradiance forecasting showed the capability of LSTM model to learn from nonlinearity patterns in high variability irradiance data by capturing a long range of temporal sequence dependencies. Further, as shown in Table 3 and the scatter plots in Figure 8, Figure 9 and Figure 10, which are the results under all training and testing phases, the proposed LSTM model outperformed the SVM and MLANN, performing better generalization capability and less overfitting behavior, and accurately predicting irradiance data showing strong correlations between the predicted and actual data points.

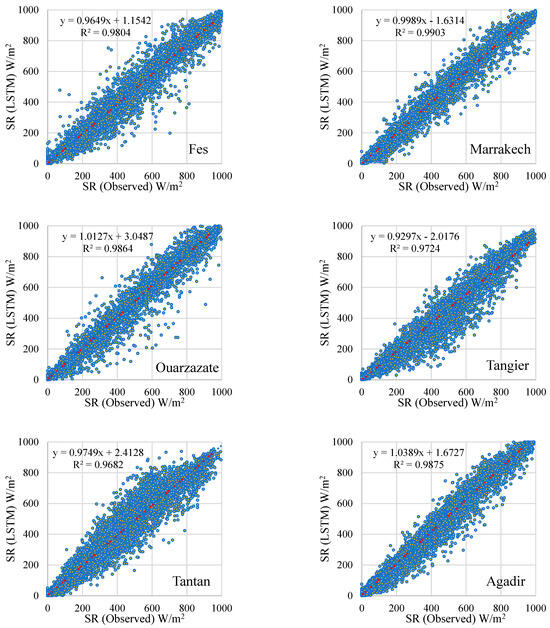

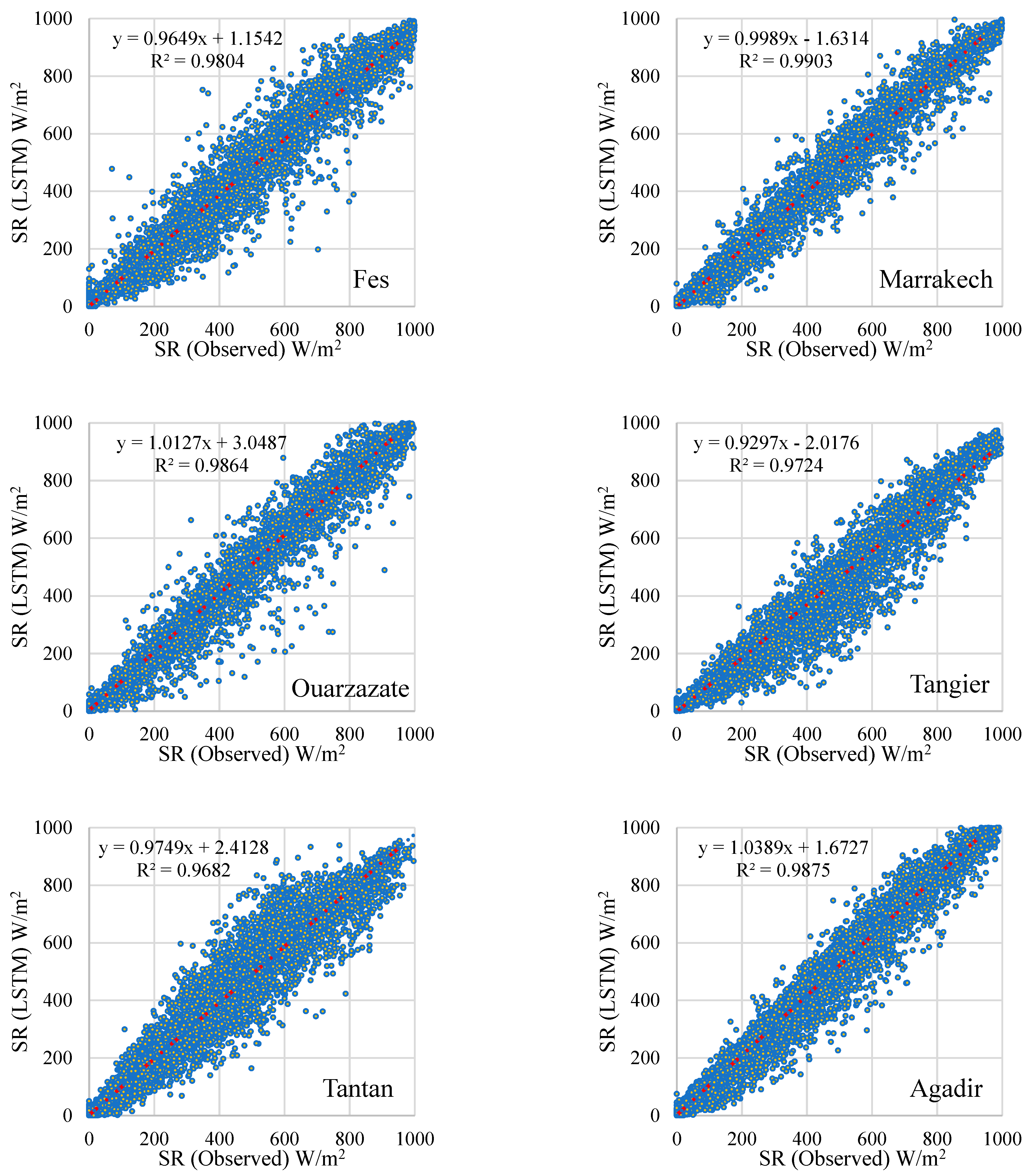

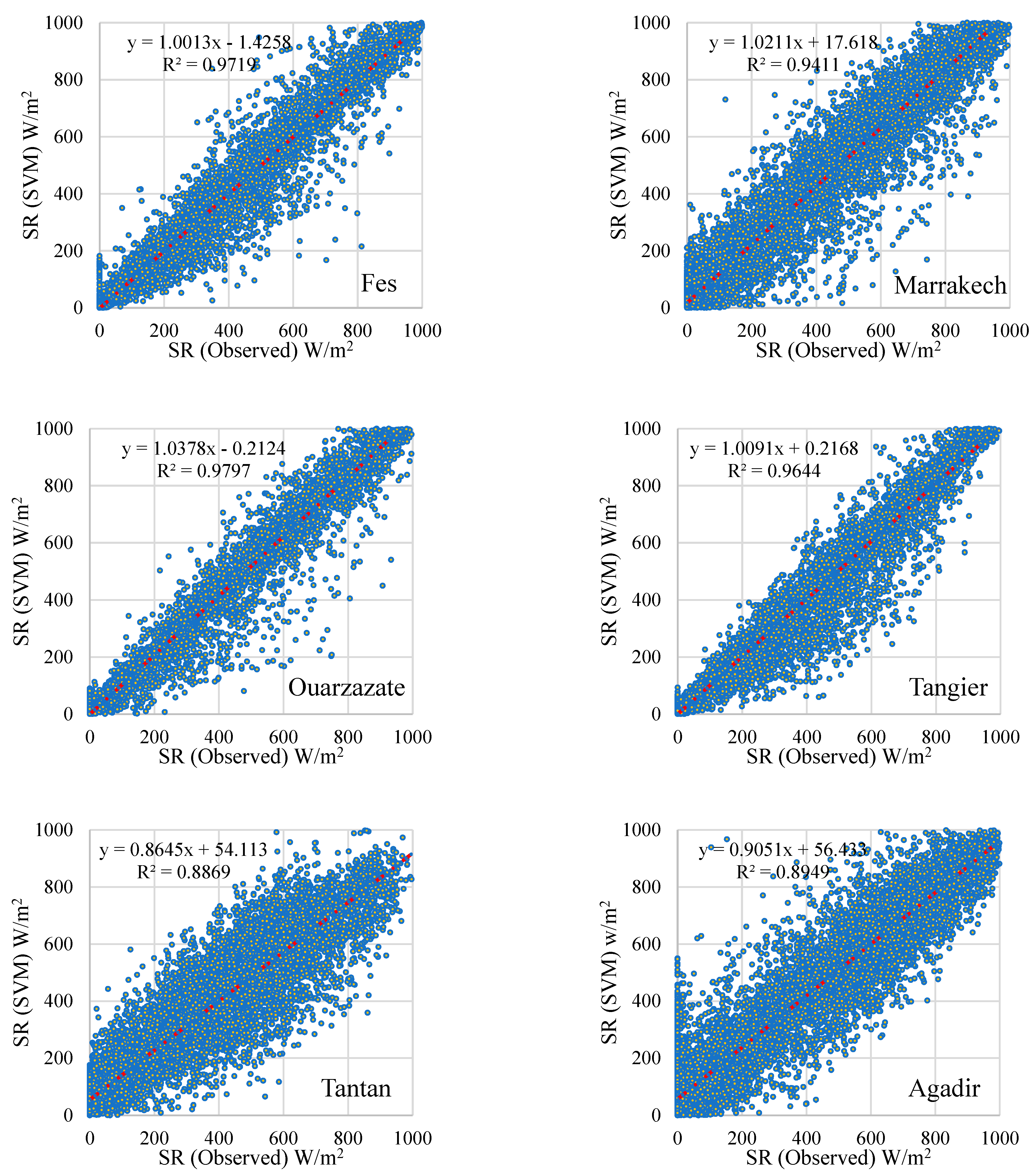

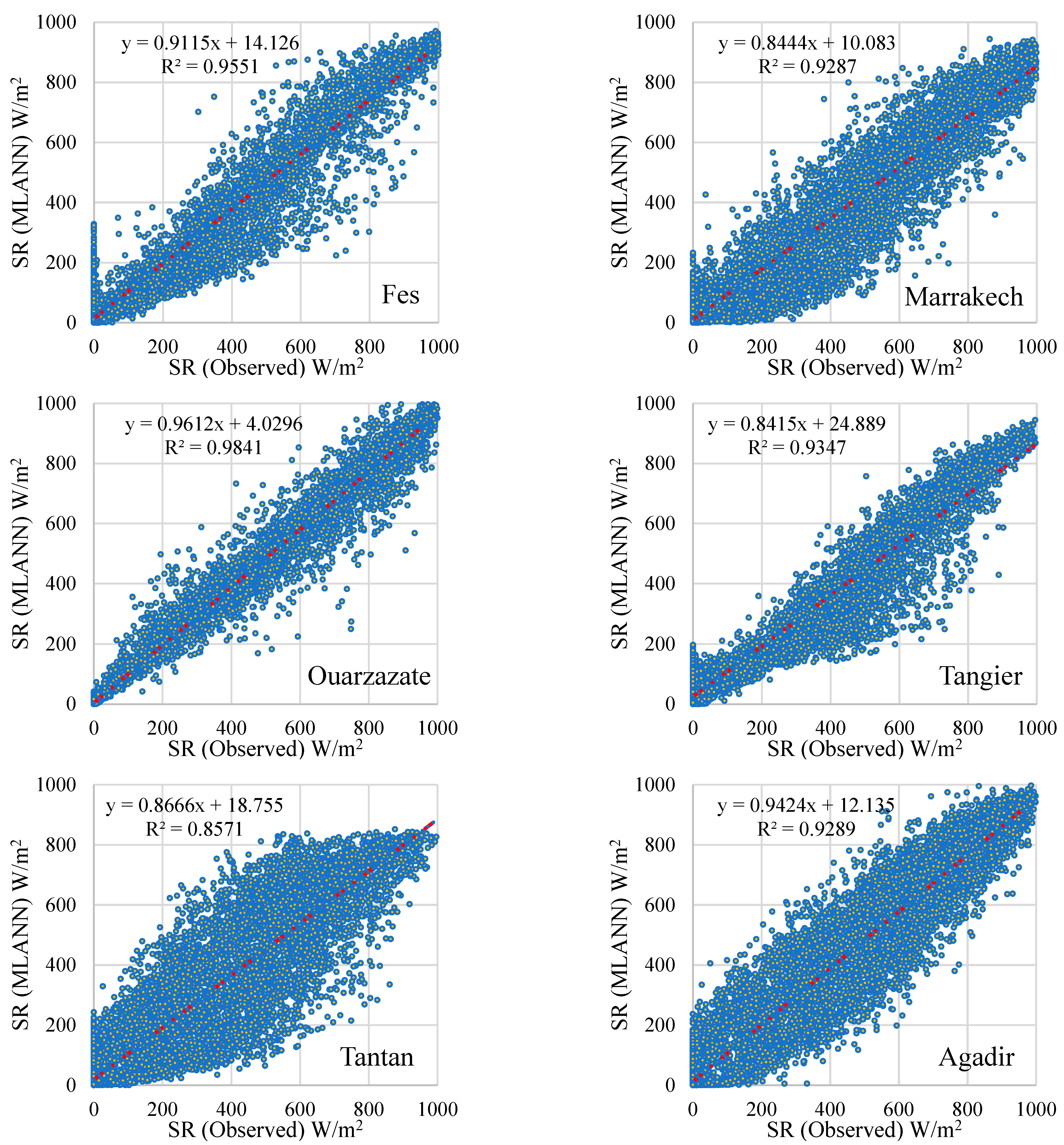

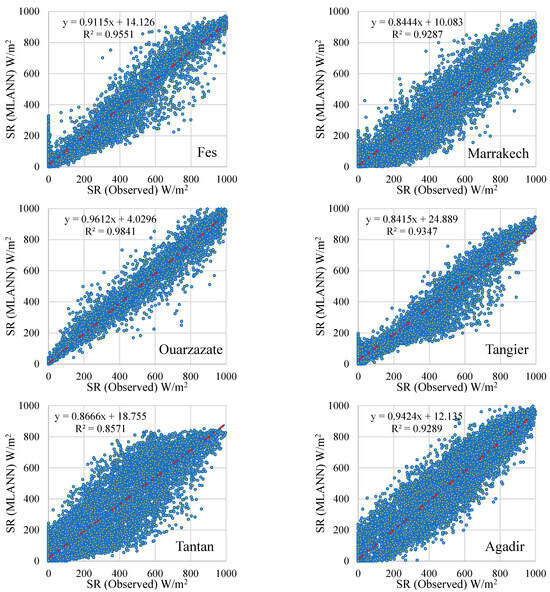

The findings regarding the performance evaluation of the models are included in Table 3 for all stations. The models used in the study are an example of the advancement of artificial intelligence techniques. The first ANN models were replaced by machine learning methods such as SVM, followed by deep learning methods such as LSTM architectures. When the results obtained are examined; considering the average values, the highest R² values are in the LSTM model, followed by SVM and ANN. Similarly, RMSE and MAE values are compatible with this ranking. The scatter plots of the models are shown in Figure 8, Figure 9 and Figure 10.

As a way of validation, advanced statistical analyses were considered to the proposed LSTM by applying the violin plot, Taylor diagram, and Kruskal–Wallis (KW) test for predictive accuracy. As can be seen in the violin plot in Figure 11, the correspondence distribution of predicted data with actual data were examined. The comparison of predicted and actual data distributions showed that effectiveness of the proposed LSTM to mimic the peaks, valleys, and tails of the density curve of the actual data. The proposed LSTM model is also validated by the Taylor diagram in Figure 11 that represented the correlation between the predicted and actual data. Figure 11 showed a way of graphically summarizing how closely the patterns of the proposed LSTM predicted data (the blue cross sign) match the actual data (the red circle sign) with correlation confections of 98% to 99% for the six sites.

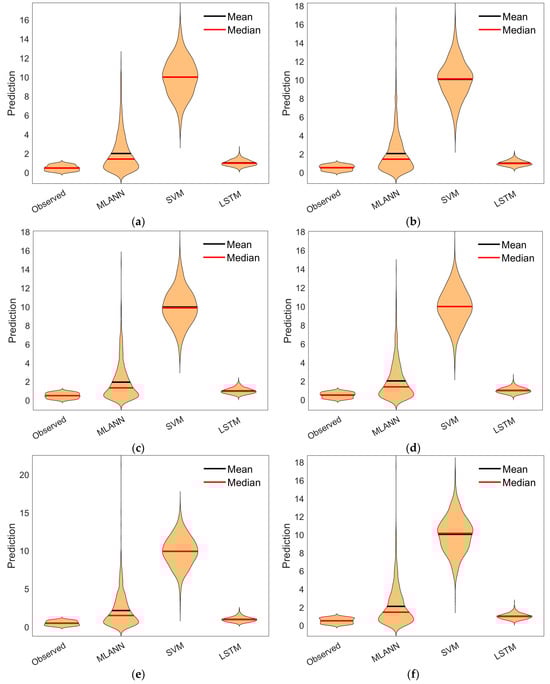

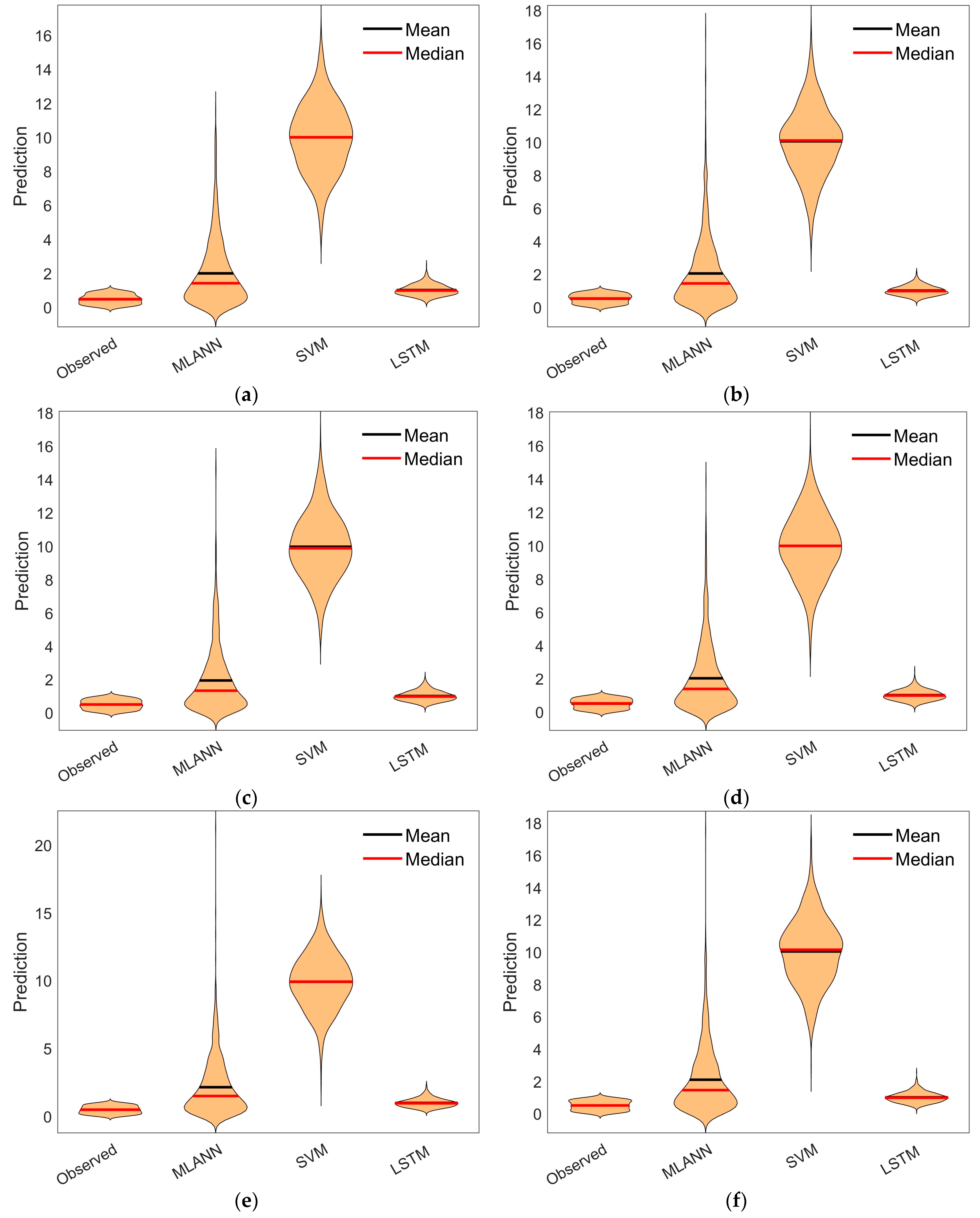

Violin diagrams are essentially based on the formal description of statistical quantities. In the study, normalization was made to see the change between shapes. From this perspective, the best fit to the observed data is observed in the LSTM model at all stations, while the average and median values are larger than the data observed in the SVM model. According to the correlation and RMSD relationship between the observation and models, the results were also examined using the Taylor diagram (Figure 12).

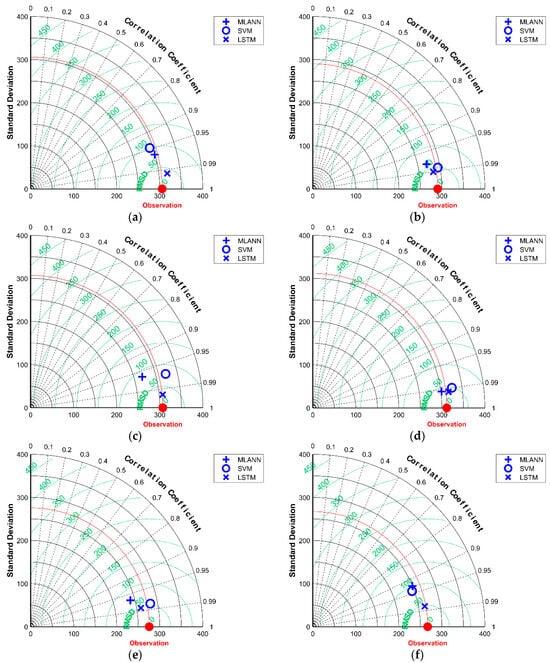

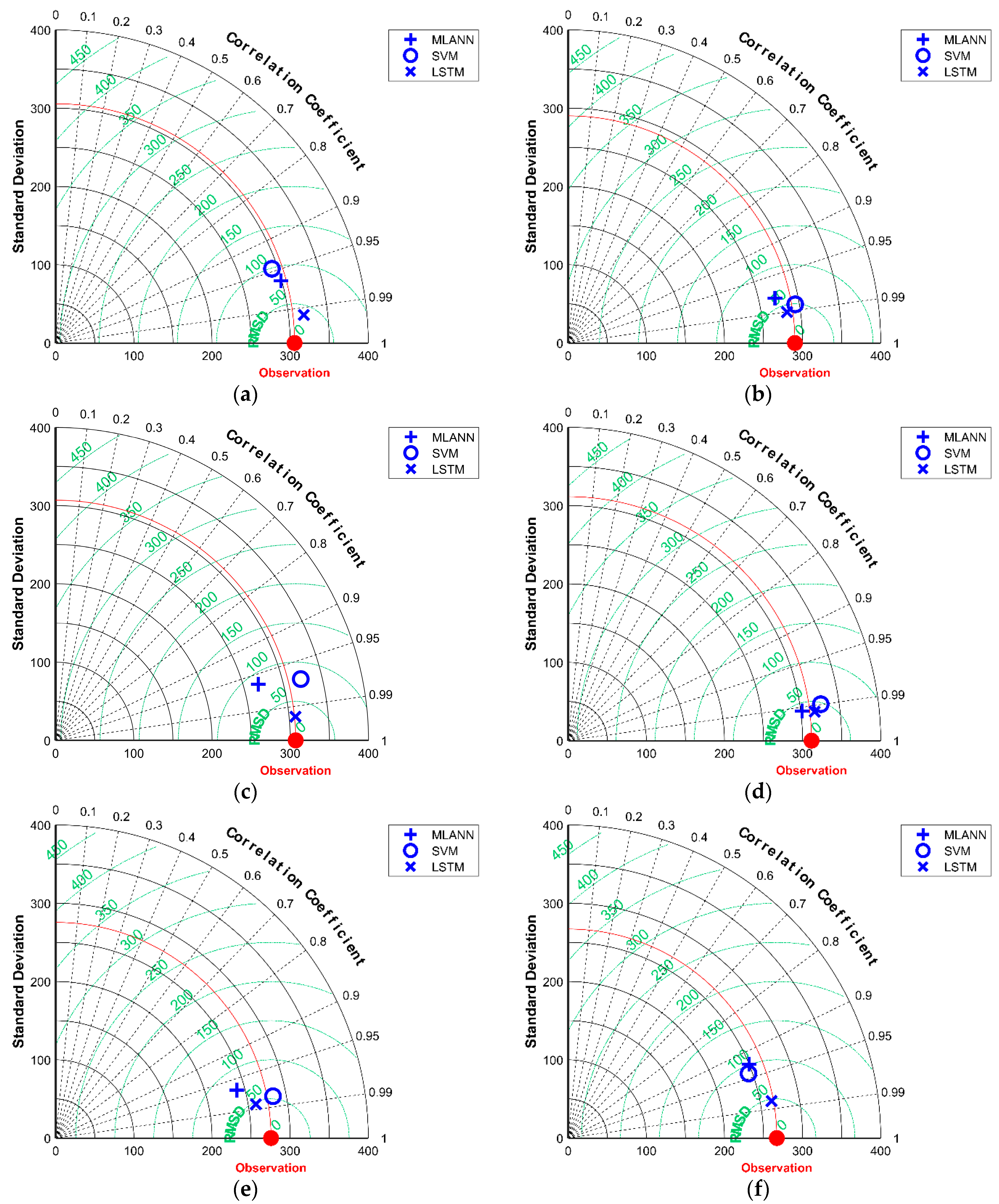

In Figure 12, Taylor diagrams are positioned at a point on the standard deviation axes according to correlation and RMSD values, and comparisons are made by taking into account the proximity of this point to the observed data. The graphs show that the models give very close results at the Fes, Ouarzazate, and Tangier stations, but LSTM is more successful than SVM and MLANN in terms of closeness to the data observed at other stations.

To further validate the model, the proposed LSTM was examined by statistical indicators to receive a proper evaluation of the model’s performance. The Kruskal–Wallis (KW) test is a nonparametric test that was employed to compare the distributions of the predicted and actual data, the work hypothesis was formulated as follows [84].

H₀: the two distributions are different; H₁: the two distributions are identical.

The statistic value is calculated as follows:

$$H=\frac{12}{N(N+1)}\sum _{i=1}^C \frac{R_i^2}{n_i}-3(N+1)$$

(14)

where C: the sample number, $n_i$: the observation number in ith sample, $R_i$: the ranks sum in ith sample, and $N$: observations number.

As shown in

Table 4. KW test results for LSTM model.

Site	Sample Sizes%	H-Statistic	p-Value
Agadir	20	2.86	0.03
	50	4.01	0.02
	70	7.29	0.01
Fes	20	3.94	0.04
	50	5.20	0.01
	70	8.63	0.01
Marrakech	20	3.42	0.04
	50	4.79	0.02
	70	8.03	0.01
Ouarzazate	20	3.02	0.03
	50	4.63	0.02
	70	7.80	0.01
Tangier	20	3.70	0.04
	50	4.97	0.02
	70	8.20	0.01
Tantan	20	4.29	0.04
	50	5.69	0.03
	70	9.05	0.02

, The KW test was performed at 95% confidence interval where the p-values indicate that H₀ is significantly rejected, and distribution of the predicted and actual models is identical. Likewise, the p-values of the KW test indicate that we reject H₀ and accept the alternative hypothesis for the six sites while showing the generalization capability of the proposed LSTM model.

The implementation of the proposed aggregation-based model (SLSM) developed with the fuzzy Sugeno integral-built MATLAB function. The obtained RMSE measures of the proposed SLSM are shown in

Table 5. The RMSE results for the SLSM model W/m².

Site	SLSM
Agadir	16.09
Fes	22.01
Marrakech	19.82
Ouarzazate	19.11
Tangier	21.29
Tantan	22.67
Mean	20.16

for the six different solar irradiance profiles. The RMSE values range between 16.09 W/m² and 22.67 W/m² for forecasting the highly fluctuating irradiance. Comparing the performance of the proposed SLSM with the proposed individual models for all sites, the proposed SLSM performed the best of all the models (e.g., LSTM, SVM, MLANN), achieving a high accuracy with an average RMSE of 20.16 W/m².

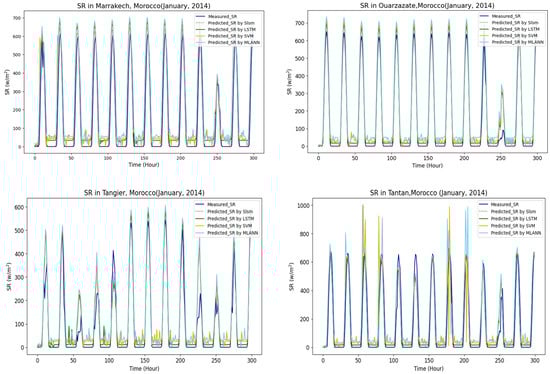

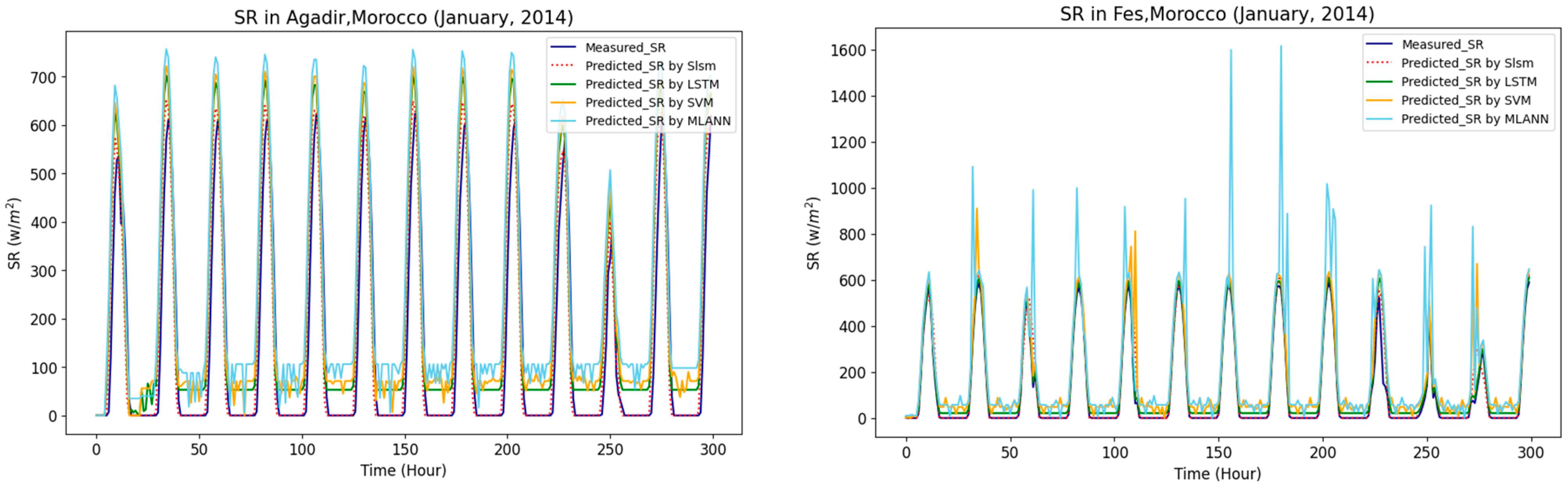

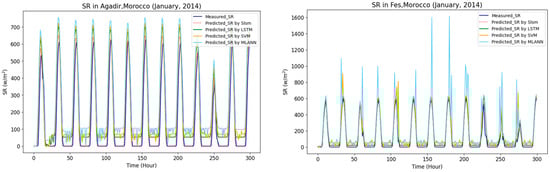

To visualize the performance of the four proposed prediction models, Figure 13 shows the comparison of the predicted SR obtained by the proposed models with the real measurements of SR for the six sites for January 2014. The results show that the SLSM performance is significantly stable and superior for the different SR profiles. Most of the night-time irradiance measurements were zero or ideally close to zero; however, errors may occur, which are associated with the noise or failure in the sensor readings. Dealing with errors caused by noise or sensor failures in night-time irradiance measurements requires careful analysis and appropriate techniques.

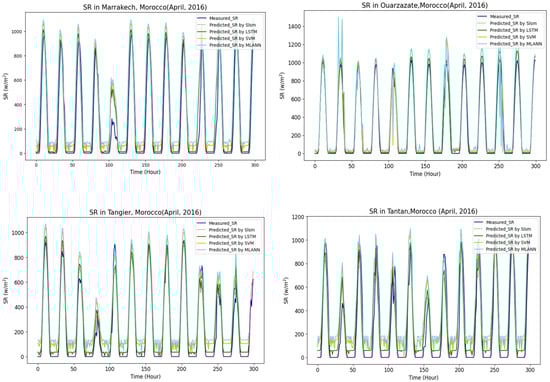

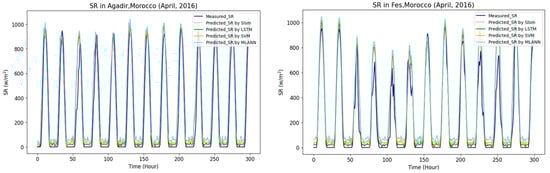

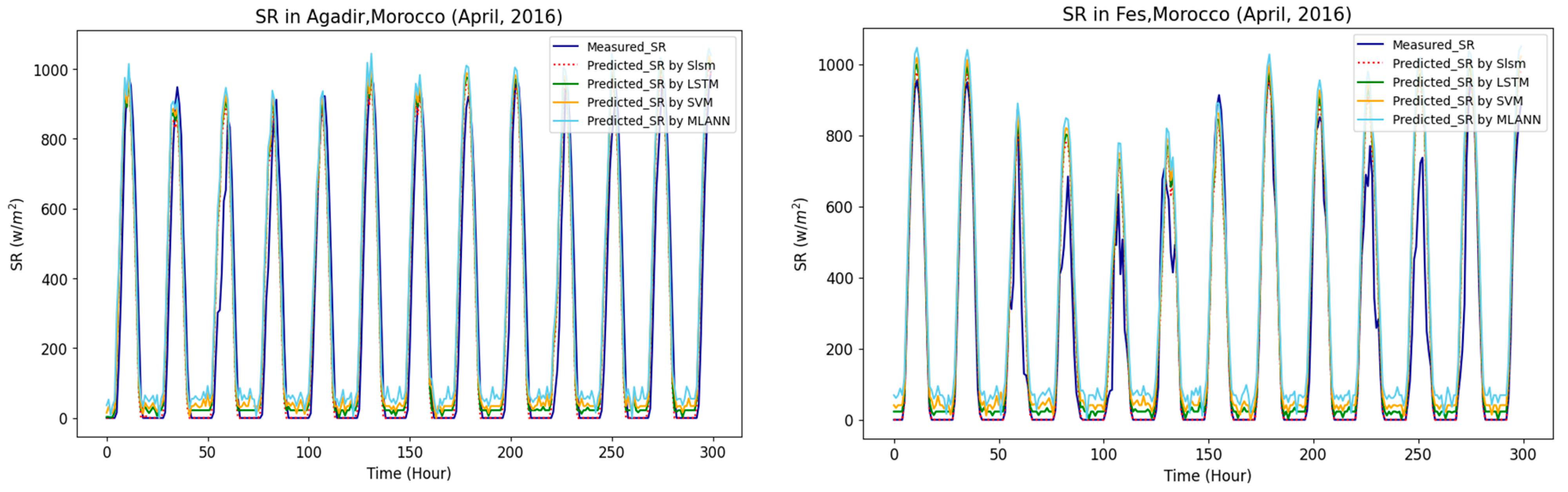

Additionally, the proposed model was further tested with data covering different months. The predicted hourly SR for the month of April 2016 is shown in Figure 14. The months of January and April can convey data and climate information for different seasons and cities in Morocco. The results showed that the proposed SLSM is superior compared to the other models. It also displayed good generalization and satiability capabilities when interaction with different data. This indicates that, in addition to aggerating data, SLSM also had a comprehension capture of the patterning within different data and lower prediction errors when faced with data from a variety of seasons. The proposed SLSM demonstrated an effective strategy for reliable forecasting by capturing the high variability and seasonality patterns in the irradiance dataset. The SLSM model’s superior performance is likely due to the idea of combining multiple forecasting models and aggregating the interaction between the predicted values of these individual models. This is also clearly shown when the model was validated by data across various seasons and exhibited lower prediction errors.

7. Conclusions

In this study, the SR estimation was carried out using LSTM, SVM, and MLANN approaches. For SR estimation, 10 hydro-meteorological parameters and various reflectance values obtained by remote sensing techniques from six stations in Morocco (Tantan, Fes, Agadir, Marrakesh, Ouarzazate, and Tangier) were used, and the main findings of the current research are as follows:

• The results were evaluated using the Taylor diagrams, violin plots, and the error criteria of RMSE, MAE, and R², and it was determined that the method that best predicted the observed values was LSTM (mean, RMSE: 41.05, MAE: 21.99, R²: 0.98). SVM and ANN come after LSTM. While the advantage of the LSTM model is that it makes predictions with less error due to its integration with the learn-and-forget structure and optimization techniques. It is also more complex than other methods due to its structure consisting of hyper parameters.
• The robustness of the model’s performance was also assessed using Kruskal–Wallis (KW) tests, which were used to confirm the stability of the suggested LSTM. The KW test confirmed at 95% confidence level that the distribution of the predicted and actual models were the same.
• The investigation discovered that predicting accuracy can be greatly increased by connecting the model outputs with aggregation techniques. The hybrid model was used by integrating the prediction outputs of LSTM, SVM, and MLANN with the Sugeno λ-measure and the Sugeno integral named (SLSM). SLSM improved prediction accuracy with an improvement of 11.7 w/m² in reducing irregularities associated with SR data.
• Finally, these results proved that the LSTM model is applicable, valid, and an alternative for SR prediction in Morocco, which has tropical and subtropical desert climate zones.

The six main limitations of this study can be listed as follows: (i) use of data obtained for six stations to represent Morocco, (ii) use of daily data from 2013 to 2020, (iii) use of correlation analysis in input selection, (iv) use of three different machine learning methods, (v) use of visual comparison criteria (Violin, Taylor) as well as performance metrics, and (vi) that KW testing was used to compare the distributions of predicted and actual data.
