Wildfires Impact Assessment on PM Levels Using Generalized Additive Mixed Models

Abstract

Wildfires are relevant sources of PM emissions and can have an important impact on air pollution and human health. In this study, we examine the impact of wildfire PM emissions on the Piemonte (Italy) air quality regional monitoring network using a Generalized Additive Mixed Model. The model is implemented with daily PM₁₀ and PM_2.5 concentrations sampled for 8 consecutive years at each monitoring site as the response variable. Meteorological data retrieved from the ERA5 dataset and the observed burned area data stored in the Carabinieri Forest Service national database are used in the model as explanatory variables. Spline functions for predictive variables and smooths for multiple meteorological variables’ interactions improved the model performance and reduced uncertainty levels. The model estimates are in good agreement with the observed PM data: adjusted R² range was 0.63–0.80. GAMMs showed rather satisfactory results in order to capture the wildfires contribution: some severe PM pollution episodes in the study area due to wildfire air emissions caused peak daily levels up to 87.3 µg/m³ at the Vercelli PM₁₀ site (IT1533A) and up to 67.7 µg/m³ at the Settimo Torinese PM_2.5 site (IT1130A).

1. Introduction

According to the first part of the Sixth Assessment Report, Climate Change 2021: The Physical Science Basis [1], frequency, intensity and severity of wildfires will increase in many regions of the world due to climatic trends.

Indeed, global increases in average temperature; a rise in heatwave frequency, intensity, and/or extent; and drought periods lasting longer and extending over greater areas of time and space have all been related to the harshness of wildfires [2,3,4,5,6,7,8,9,10].

The Advance Report on Forest Fires in Europe, Middle East and North Africa 2021 [11] reported that in 2021, Turkey was the country with the most burnt area, followed by Italy, which was the country with the greatest number of fires.

Emissions from wildfires have a significant influence on atmospheric composition due to the large amounts of compounds emitted into the atmosphere during combustion, including carbon dioxide (CO₂), carbon monoxide (CO), methane (CH₄), nitrogen oxides (NOx), ammonia (NH₃), particulate matter PM₁₀ and PM_2.5, non-methane hydrocarbon (NMHC), polycyclic aromatic hydrocarbons (PAHs), and other chemical species as well as volatile organic compounds (VOCs) [12,13,14,15,16,17,18,19,20]. Moreover, many wildland-fire-related compounds act as secondary organic aerosol (SOA) precursors, thereby contributing to its formation [21,22,23].

Wildland fire emissions can impact air quality locally, regionally [24,25,26], and over distances of several thousand kilometers [27,28,29].

Epidemiological studies aimed to assess the relationships between particle exposure (mainly PM₁₀ and PM_2.5) and health outcomes have been extensively carried out over the last two decades. PM exposure has been widely recognized to have an effect on cardiopulmonary diseases, lung cancer, and premature mortality [30,31,32,33,34,35,36,37,38,39].

Several studies were aimed at improving the wildfires air quality impact assessment as well as deepening our understanding of the relationship between wildfire emissions and human health effects [40,41,42]. Notably, a study on short-term effects of particulate matter PM₁₀ on mortality during forest fires in Southern Europe [43] found that smoke was associated with increased cardiovascular mortality in urban residents, and PM₁₀ on smoky days had a larger effect on cardiovascular and respiratory mortality than on other days.

In [44], evidence of an association of the exposure to long-range transported PM_2.5 from vegetation fires over hundreds to thousands of kilometers, with the increase in cardiovascular mortality and, to a lesser extent, with the hospital admissions due to respiratory causes was provided.

Furthermore, fine particulate emissions from wildfires were associated with increased mortality rates on fire days with poor air quality [45,46], and with increased risks for specific groups of people, including the elderly [47], those with pre-existing respiratory conditions, and children [48,49].

The fires’ related atmospheric emissions have been found to also affect the ecosystems, particularly plant productivity downwind of fires through enhanced ozone [50] and aerosol concentrations [51].

Each year, 350 million hectares of vegetation are reported to be affected by fires around the world, half of them in sub-Saharan Africa [52].

Methods commonly used to quantify wildfire effects on the spatio-temporal variability of air pollutant concentrations, and therefore on human health and ecosystems, include: air pollution monitoring networks [45,53,54], land use regression modeling (LUR) [55,56,57,58,59,60], remote-sensing- or aerosol optical depth (AOD)-based models [61,62,63,64], estimates from satellite observations [61,65,66,67,68], low-cost sensor measurements [69,70], and chemical transport models (CTM) [66,71,72,73,74]. As each model has strengths and weaknesses, no single model should be considered as the most accurate to quantify human exposure to wildfire smoke [75]. Many regional fire studies with CTM have been undertaken to assess the impact of fire emissions on air pollution in populated areas of the world, such as in Europe [66,71,76]. In [77], the MM5/CHIMERE air quality modelling system predicted that Portugal’s future forest fire emissions will increase PM₁₀ concentrations, especially where the burned area projections were higher, in detail + 20 μg/m³ along the Northern coastal region and + 32 μg/m³ over the center of the country.

Based on the available studies, the fires’ size appears as a key variable: small fires do not seem to affect mortality rate significantly, whereas medium and large fires (with burned areas > 1000 ha) showed a significant impact on human health, which increased with the extent of the fire [78,79].

At the local level, air quality can show strong spatio-temporal variation during wildfires depending on concurrent meteorology and synoptic circulation [80,81,82,83,84]. To study the relationship between fires and air pollutant levels at a seasonal timescale, distinguishing the contribution of local meteorological factors to relative concentrations, empirical models have also been used. In [85], using a multiple linear regression analysis, the seasonal variability of PM₁₀ and PM_2.5 due to fires was estimated to be 45% ± 7% and 39% ± 8%, respectively. In [86], the spatiotemporal variations in PM_2.5 concentrations, in relation to the wildfires (Black Summer, Australia) and the corresponding influential meteorological factors, were evaluated using a generalized additive model (GAM); surface temperature and relative humidity were found to be consistent and statistically significant predictors of elevated PM_2.5 levels. Both variables have been identified as predictable precursors of severe wildfires in other studies [87,88]. Based on previous studies [89,90], McClure et al. [91] used GAM residual values to determine anomalous sources of O₃ that cannot be predicted by meteorological or transport variables. Recently, to estimate PM_2.5 concentrations, machine learning (ML) methods including random forests [92,93,94,95], feed-forward neural network [96,97,98] and ensemble learning [99,100,101,102] have been increasingly used, leading to improved models’ performances (CV or test R² generally > 0.8).

Although these existing methods, including LUR, generalized additive models and mixed models, achieved competent performance, they have limitations in flexibility and learning capacity, compared with modern deep learning (DL) methods. DL methods exploit multiple layers of artificial neural networks, obtaining a flexibility that ensures a strong learning capacity to model non-linear associations and interactions among variables, compared with many traditional ML algorithms, including GAM, support vector machine and Gaussian process [103].

Our main goal was to develop a reliable and relatively easy-to-implement method for the quantitative assessment of the wildfires’ contribution to PM₁₀ and PM_2.5 daily concentrations while controlling meteorology over time in the air quality time series and apply it to a real-world case study in the Piedmont region. This technique is known in scientific literature as meteorological normalization [104,105].

This tool, since it is based on data routinely available at local or regional levels, could be used for the reanalysis of wildfires’ impacts on air quality as well as to monitor the wildfires atmospheric impacts prevention policies effectiveness.

In this regard, we developed a modeling framework, based on Generalized Additive Mixed Models (GAMMs), allowing to assess the wildfires’ contribution’s statistical significance and to classify the contribution based on the wildfire’s strength, while dealing with the complexity due to multiple contemporary fires in large areas.

Moreover, we aimed to assess the model predictions comparing them with the finding obtained from particulate matter samples’ chemical characterizations.

Based on our best knowledge, only one study has dealt with the evaluation of the wildfires’ contribution to PM₁₀ and PM_2.5 levels using GAMMs [106], although applied to prescribed fires. Therefore, we believe that our study could contribute to further extend the current knowledge of this topic.

2. Materials and Methods

The study started from a large wildfire, occurring in October 2017 in Val di Susa (Piedmont, Italy), which offered an appropriate availability of information, such as: air quality data from regional monitoring networks, fire information from the Carabinieri Force database, and meteorological data from ERA5.

2.1. Study Area

The study area covers the Piedmont administrative region in Italy, located between approximately 6°35′ and 9°11′ E longitude and between 44°0′ N and 46°23′ N latitude with an area of 25,387 km².

It is a region particularly rich in woods and the total forest surface is equal to 976.953 ha, representing 38.5% of the Piedmont area [107]. The forested area has almost doubled since 1950 as a result of the spontaneous colonization of abandoned agricultural lands and of artificial reforestation. In this context, forest fires have always been a serious problem and are still today one of the main causes of forest degradation [108].

2.2. Air Quality Data

All validated PM₁₀ and PM_2.5 data measured from 2013 to 2020 in the air quality stations of the regional monitoring network and used in this work (5 and 4 time series respectively,

Table 1. Piedmont air quality monitoring stations information.

Station Code	Province	Station Name	Longitude (Decimal Degrees)	Latitude (Decimal Degrees)	Altitude (m)
IT1788A	Torino	Ivrea—Liberazione	7.87804	45.4512	240
IT0470A	Torino	Torino—Rebaudengo	7.69534	45.10407	23
IT1130A	Torino	Settimo T.—Vivaldi	7.77818	45.1432	202
IT1878A	Vercelli	Vercelli—CONI	8.40236	45.31891	131
IT1533A	Vercelli	Vercelli—Gastaldi	8.41514	45.32842	130
IT1532A	Vercelli	Borgosesia—Tonella	8.28353	45.71317	344
IT1509A	Novara	Cerano—Bagno	8.786132	45.40973	124
IT1524A	Cuneo	Alba—Tanaro	8.03328	44.70371	164
IT1903A	Asti	Asti—Baussano	8.19756	44.89422	119

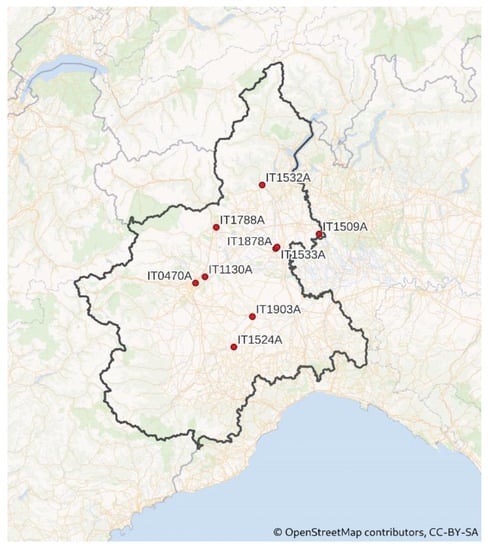

and Figure 1) were collected and elaborated (https://eeadmz1-cws-wp-air02.azurewebsites.net/index.php/users-corner/download-e1a-from-2013/, accessed on 23 January 2023).

Daily average values were obtained starting from the series with at least 75% of valid hourly data (18 hourly data out of 24) according to the aggregation rules laid down in the Air quality Directive 2008/50/CE (Annexes VII and XI) and IPR Decision 2011/850/CE. The same data coverage was applied for the calculation of the monthly average values to verify that the minimum annual data required, in this work, were at least two valid months per season; all validate monthly series were considered only for 2020. Over the 2013–2020 observation period, five years was the minimum criteria for checking validity dataset. Observations with negative or zero values have conventionally been replaced with a value equal to 0.2 µg/m³. No outlier-filtering procedures were applied to the validated data series.

2.3. Meteorological Data

Meteorological variables play very important roles in formation, dispersion, and transport of atmospheric pollutants and strongly influence wildfire activity.

Time series for Planet Boundary Layer height (PBL) were provided from ERA5 (https://cds.climate.copernicus.eu/cdsapp#!/dataset/reanalysis-era5-single-levels?tab=overview, accessed on 23 January 2023), which returns a gridded (0.25 × 0.25 decimal degrees) hourly atmospheric reanalysis product [109]; all other meteorological surface-level variables were gathered from ERA5-Land (https://cds.climate.copernicus.eu/cdsapp#!/dataset/reanalysis-era5-land?tab=overview, accessed on 23 January 2023), which runs at enhanced resolution (0.1 × 0.1 decimal degrees). Meteorological model outputs from Copernicus climate databases were converted in the geographic coordinate system used in this work (WGS 84/UTM zone 32N), each maintaining its own spatial resolution; time series data of the centroid of the grid, nearest to each air quality station, were extracted and attributed to the air quality station. To evaluate long-term trends in terms of climate variables, the hourly data were pooled and daily mean values were computed for each year from 2013 to 2020.

Further, to capture the possible effect of the meteorological conditions of the previous day on PM levels, values recorded the previous day (at lag −1) for variables tp, wspeed, pblmax, and pblmin (ptp, pwspeed, ppblmax and ppblmin) were added.

Meteorological parameters calculated for the GAMM implementation are presented in

Table 2. Meteorological variables used for the GAMM implementation.

Name	Temporal Predictors	Unit
t2m	Mean temperature at 2 m height from ground level	°C
tmin2m	Minimum temperature at 2 m height from ground level	°C
tmax2m	Maximum temperature at 2 m height from ground level	°C
rh	Relative humidity	%
tp	Total precipitation	mm
ptp	Total precipitation of the previous day	mm
u10m	Horizontal component of wind speed at 10 m height (E)	m/s
v10m	Vertical component of wind speed at 10 m height (N)	m/s
wspeed	Wind speed intensity at 10 m height	m/s
pwspeed	Wind speed intensity at 10 m height of the previous day	m/s
wdir	Wind direction	Degrees clockwise from North
sp	Ground level pressure	hPa
nirradiance	Solar radiation intensity	W/mq
pbl00	Planetary boundary layer height at 00:00	km
pbl12	Planetary boundary layer height at 12:00	km
pblmin	Minimum planetary boundary layer height	km
ppblmin	Minimum planetary boundary layer height of the previous day	km
pblmax	Maximum planetary boundary layer height	km
ppblmax	Maximum planetary boundary layer height of the previous day	km

.

2.4. Carabinieri Force Database on Forest and Non-Forest Wildfires

From 2008 onward, the Carabinieri Force has annually collected data related to any fire events affecting forests, other wooded land, grassland, and cropland land-use categories, within the framework of forest fires prevention and monitoring. The dataset includes both georeferenced information (shape files, WGS 84/UTM zone 32N) and an additional database for 15 administrative Italian regions (the 5 autonomous regions are not included). In the database, each event (row) is characterized by a set of parameters related to location (e.g., administrative region, municipality, and coordinates), site characteristics (e.g., elevation, slope, total area), vegetation (e.g., land use, land cover, forest typology), fire’s information (e.g., scorch height, type (crown, surface or ground fire), etc.), meteorological data (e.g., wind characteristics), and data on the fire extinguishing process (e.g., number of firefighters, vehicles and water used). The forest typologies are classified according to the National Forestry Inventory [110] nomenclature.

The Carabinieri Force database is currently the basis for monitoring of greenhouse gas (GHG) and air pollutant emissions in Italy [111] under the United Nation Framework Convention on Climate Change (UNFCCC) and the Convention on Long Range Transboundary Air Pollutant (CLRTAP) [112].

The information on areas affected by fires, as well as the starting and ending time of the fire event, has been extracted from the above-described database.

3. Methodology

Generalized additive models (GAMs) were implemented to assess how PM concentrations varied in relation to predictor variables.

The GAMs are useful for identifying complex non-linear relationships in the data and do not require a priori knowledge of the shape of the response curves [113,114]. GAM is a sum of smoothed functions of the predictor variables commonly defined as polynomials based on intervals, known as splines [114,115].

In general, the structure of a GAM according to Wood [114] could be estimated by Equation (1):

$$\mathrm{g}\left({\mathsf{\mu }}_{\mathrm{i}}\right)={\mathrm{A}}_{\mathrm{i}}\mathsf{\theta }+\sum {\mathrm{f}}_{\mathrm{j}}\left({\mathrm{x}}_{\mathrm{ji}}\right)$$

(1)

where

$${\mathrm{y}}_{\mathrm{i}}\sim \mathrm{EF}\left({\mathsf{\mu }}_{\mathrm{i}},\mathsf{\phi }\right)$$

${\mathrm{y}}_{\mathrm{i}}$ is a response variable, $\mathrm{EF}\left({\mathsf{\mu }}_{\mathrm{i}},\mathsf{\phi }\right)$ denotes an exponential family distribution with mean ${\mathsf{\mu }}_{\mathrm{i}}$ and scale parameter, $\mathsf{\phi }$. A_i is a row of the model matrix for any strictly parametric model components,$\mathsf{\theta }$ is the corresponding parameter vector, and the f_j are smooth functions of the covariates, x_j.

GAMs showed excellent results to quantitatively differentiate the effects of some predictor variables as meteorology and air emissions on the concentrations of gaseous and fine particulate concentrations [105,116,117]. Latest studies [118,119,120,121], following the unexpected events during the pandemic, used GAMs by meteorology adjustment to identify the impacts of COVID-19 lockdown restrictions on air quality.

In order to evaluate the effect of fires activity on the PM concentration levels monitored in the air quality stations in the Piedmont region, GAMs were developed.

A logarithmic transformation of the PM daily concentrations was applied to follow a Gaussian distribution [105] that was effective in producing residual distributions closed to normal (as shown by a quantile–quantile plot) as assumed by Zuur et al., [122]. The model equations were described in accordance with Hua et al. [121] and Wood [114].

Smooth covariates functions, including temporal trends, climatic factors, and fire activity index, were introduced into the model with the aim to optimize the PM estimates and try to minimize the observation error [114].

Covariates include temporal explanatory terms as inter-annual (Julian day, jd) and daily variations (Day of the year, doy) with the aim to take into account seasonal cycles.

A thin plate spline was set to reflect the inter-annual variation with a number of nodes equal to the number of the years of the data series. Similarly, daily terms were described using a cubic cyclic spline smoothing function with the aim to capture the residual effects of seasonality, with the number of nodes equal to the number of months of each year. This setting allows containment of the “wiggliness” of the spline, which does not overly oscillate in response to local variation.

The non-linear influences of meteorological factors were investigated. A stepwise (forward and backward) approach to determine the model with the optimal set of covariates based on the lowest Akaike Information Criterion (AIC) was followed in accordance with Barmpadimos et al. [116]. Model choice via the AIC avoids overfitting by penalizing the number of parameters, thus obtaining a more robust final model. To limit the phenomena of collinearity, a maximum limit on the Pearson correlation index of 0.7 has been imposed. The “mgcv” package in R [113] was used to fit GAMs for a model selection process.

Interactions terms, with different smoothers assumed for each covariate, were added in the model in order to consider the relative effects of the climatic variables that strongly influence wildfire activity. To characterize the impacts of vertical and horizontal diffusion on air quality, the models were forced to include the U-wind (u10m) and V-wind (v10m) interaction variables [123]. Further, an interaction of three potential predictors was selected to assess the combined related effect within meteorological terms with the aim to get a better fit of the model.

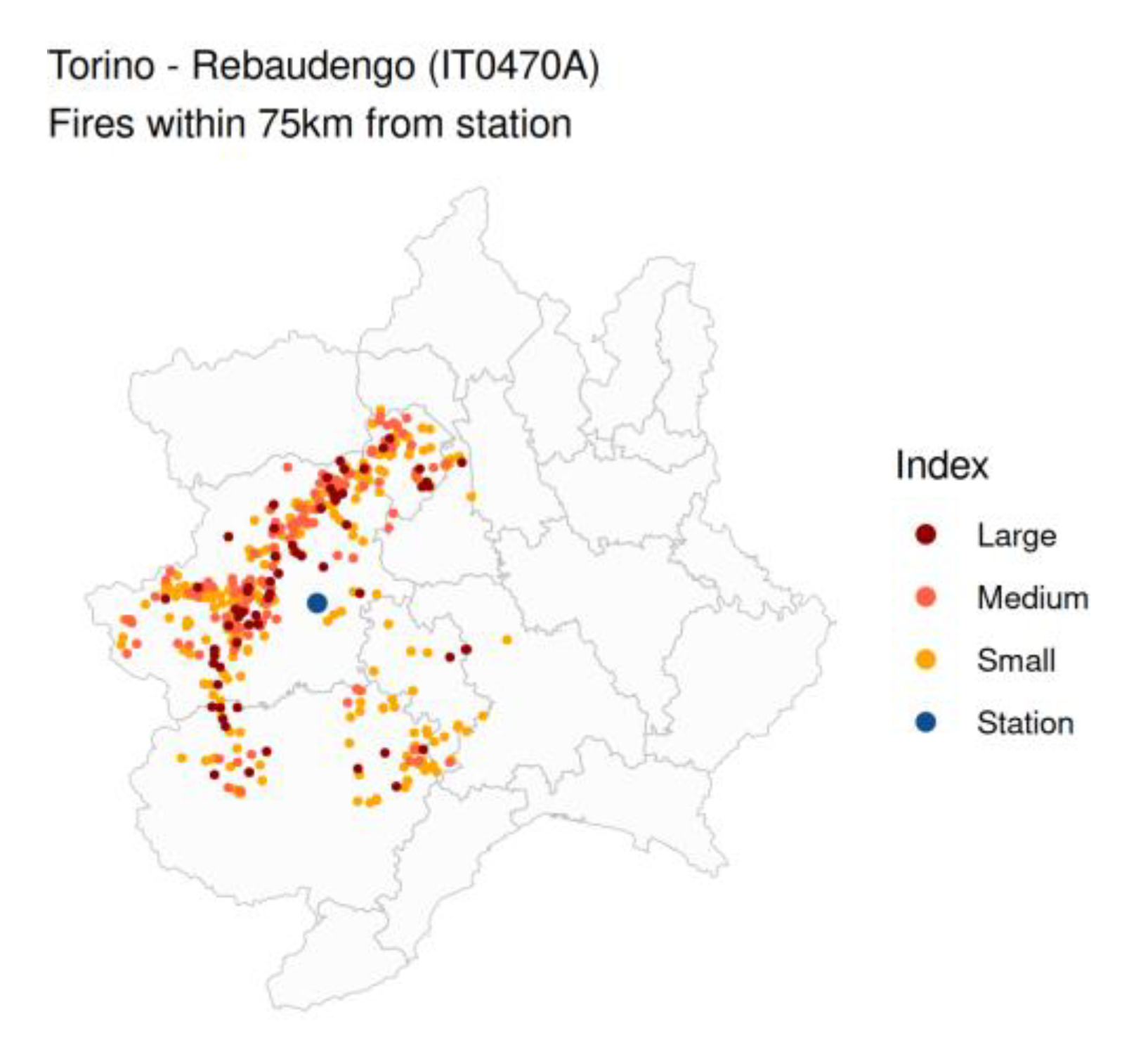

The forest fire contribution was represented in the model by a daily index (cat_inc) calculated as the ratio of the burned area to the square of the distance between the air quality monitoring station and the centroid of the polygon surrounding the area covered by the fire. Only fires with a maximum distance of 75 km were considered [124]. In the case of multiple fires involving the same monitoring station, the total index was calculated by adding the daily indices of concurrent events. For fires that lasted more than one day, the index of the single fire was considered constant for all the days of the event. For each model, the index was divided into three classes on the basis of the percentiles of its statistical distribution. The first class, called small (S), contains observations with index values less than or equal to the 75th percentile. The second, named medium (M), contains those greater than the 75th percentile and less than or equal to the 95th percentile. Finally, the last class (index value > 95th percentile) was classified as large (L).

The significance of the spline terms was assessed, and the analysis of the residuals was tested. In order to verify the independence of the residuals that was a key assumption of the model [122], an auto-regressive temporal term was added. The model equation becomes equivalent to a generalized additive mixed model (GAMM) with a lag-1 temporal autoregressive component for the residuals [114].

The final equation used for the GAMMs was:

$$\begin{gathered} \mathrm{Log} \left({\mathrm{PM}}_{\mathrm{i}}\right)=\mathrm{S}\left({\mathrm{jd}}_{\mathrm{i}}\right)+\mathrm{S}\left({\mathrm{doy}}_{\mathrm{i}}\right)+\mathrm{S}\left(\mathrm{u}10{\mathrm{m}}_{\mathrm{i}},\mathrm{v}10{\mathrm{m}}_{\mathrm{i}}\right)+\mathrm{S}\left({\mathrm{vm}}_{1\mathrm{j}},{\mathrm{vm}}_{2\mathrm{j}},{ \mathrm{vm}}_{3\mathrm{j}}\right)+{\displaystyle \sum }_{\mathrm{j}}^{\mathrm{n}}\mathrm{S}\left({\mathrm{vm}}_{\mathrm{ij}}\right)+\sum \mathrm{S}\left(\mathrm{cat}\_{\mathrm{inc}}_{\mathrm{ih}}\right) \\ +\mathsf{\beta }+{\mathrm{e}}_{\mathrm{i}} \end{gathered}$$

(2)

where

• $\mathrm{i}=\mathrm{i}\mathrm{th} \mathrm{daily} \mathrm{observation}$
• $\mathrm{j}=\mathrm{j}\mathrm{th} \mathrm{variable}$
• $\mathrm{h}=\mathrm{h}\mathrm{th} \mathrm{class} \left(\mathrm{S}, \mathrm{M}, \mathrm{L}\right)$
• ${\mathrm{PM}}_{\mathrm{i}}=\mathrm{PM} \mathrm{concentration}$ [µg/m³]
• $\mathrm{S}( )=$ smooth functions of continuous covariates
• jd = julian day
• doy = day of year (from 1 to 365)
• $\mathrm{u}10{\mathrm{m}}_{\mathrm{i}}, \mathrm{v}10{\mathrm{m}}_{\mathrm{i}}=$ E-W and N-S component of wind speed at 10 m height
• ${\mathrm{vm}}_{\mathrm{ij}}= \mathrm{meteorological} \mathrm{variable}$
• $\mathrm{cat}\_{\mathrm{inc}}_{ \mathrm{ij}}=\mathrm{wildfire} \mathrm{index} ($ broken down into three classes S, M, L)
• $\mathsf{\beta }=\mathrm{intercept}$
• ${\mathrm{e}}_{\mathrm{i}}={ \mathsf{\phi }\mathrm{e}}_{\mathrm{i}-1}+{\in }_{\mathrm{i}}$
• ${\in }_{\mathrm{i}}=\mathrm{N}\left(0,{\mathsf{\sigma }}^2 \right) \mathrm{random} \mathrm{error}$

The wildfires’ contribution to the PM levels, as difference in concentrations relative to the baseline level, was calculated in accordance with Hua et al. [121]:

$$\Delta \mathrm{C}=\left({\mathrm{e}}^{\mathrm{term}}-1\right){*\mathrm{e}}^{\mathsf{\beta }}$$

(3)

where

• $\Delta \mathrm{C}=$ contribution to total PM level [µg/m³]
• $\mathrm{term}=$ values of the predictor at the supplied covariate values.

Model performance was tested. A cross-validation method [125] was used for accuracy assessment; a training dataset was randomly sampled using 80% of the data (regularly seasonally distributed) and predictions were compared with observations of the remaining 20% (test dataset). We derived the coefficient of determination (R²) and Root Mean Squared Error (RMSE) to quantify the goodness of fit of the models. Other evaluation statistics, such as Factor of 2, Fractional bias, and Normalized Mean Square Error, were calculated for each model to assess the agreement with fitted values [126]. For uncertainty analysis, the cross validation was repeated 100 times.

As a further verification of modelling performance, a comparison between the wildfire contribution to PM levels estimated by model “IT0470A” and that derived from PM chemical speciation analysis on samples collected at Torino—Rebaudengo monitoring station, was performed. The focus was the Val di Susa wildfire in the October 2017 in the days from 24 through 26 for which PM chemical speciation data were available [127].

4. Results and Discussion

4.1. Models Performance

All the models have shown (

Table 3. (a) PM₁₀ model performance statistics. (b) PM_2.5 model performance statistics.

(a)
Station Code	RMSEtrain (RMSEtest) (µg/m3)	R2 train (R2 test)	FAC2	FB	NMSE
IT0470A	11.43 (11.82)	0.80 (0.75)	0.96	0.002	0.08
IT1509A	12.68 (12.11)	0.63 (0.59)	0.90	0.010	0.14
IT1524A	10.62 (11.27)	0.63 (0.60)	0.92	0.001	0.13
IT1533A	11.74 (11.28)	0.66 (0.61)	0.97	0.006	0.01
IT1903A	11.80 (11.98)	0.70 (0.69)	0.96	0.001	0.09
	-	Acceptability Threshold: >0.5	Accept. Thresh.: >0.8	Accept. Thresh.: <0.5	Accept. Thresh.: <0.5
(b)
Station Code	RMSEtrain (RMSEtest) (µg/m3)	R2 train (R2 test)	FAC2	FB	NMSE
IT1130A	9.17 (8.59)	0.83 (0.85)	0.95	0.028	0.07
IT1532A	6.65 (7.68)	0.67 (0.55)	0.88	0.015	0.19
IT1788A	9.47 (9.63)	0.71 (0.68)	0.88	0.003	0.16
IT1878A	9.33 (9.32)	0.70 (0.69)	0.91	0.004	0.15
	-	Acceptability Threshold: >0.5	Accept. Thresh.: >0.8	Accept. Thresh.: <0.5	Accept. Thresh.: <0.5

) satisfactory goodness of fit statistics with respect to performance indicators employed. Adjusted R² range (0.63–0.80), if not better, was comparable with similar GAMMs [106] and other statistical models [128]. Low FAC2 values showed a small willingness to under/overpredict even though all the models exhibited a certain inability to reproduce high hotspot PM levels near the upper bound of the last quartile (Figure 2 and Figures S1b–S8b). This phenomenon, mostly related to the unpredictability of local air emission sources, caused a modest amount of heteroskedasticity. Systematic distortion was almost absent (low FB value) and a quite moderate overdispersion was showcased with the NMSE, ranging from 0.08 to 0.19. The PM₁₀ model, related to the IT1509A air quality monitoring station, was overall the worst of the lot, while the IT1532A was the poorest of all PM_2.5 models. Both RMSE and adjusted R² indices for the training dataset (RMSE_train, R² _train) were close to those related to the testing dataset (RMSE_test, R² _test).

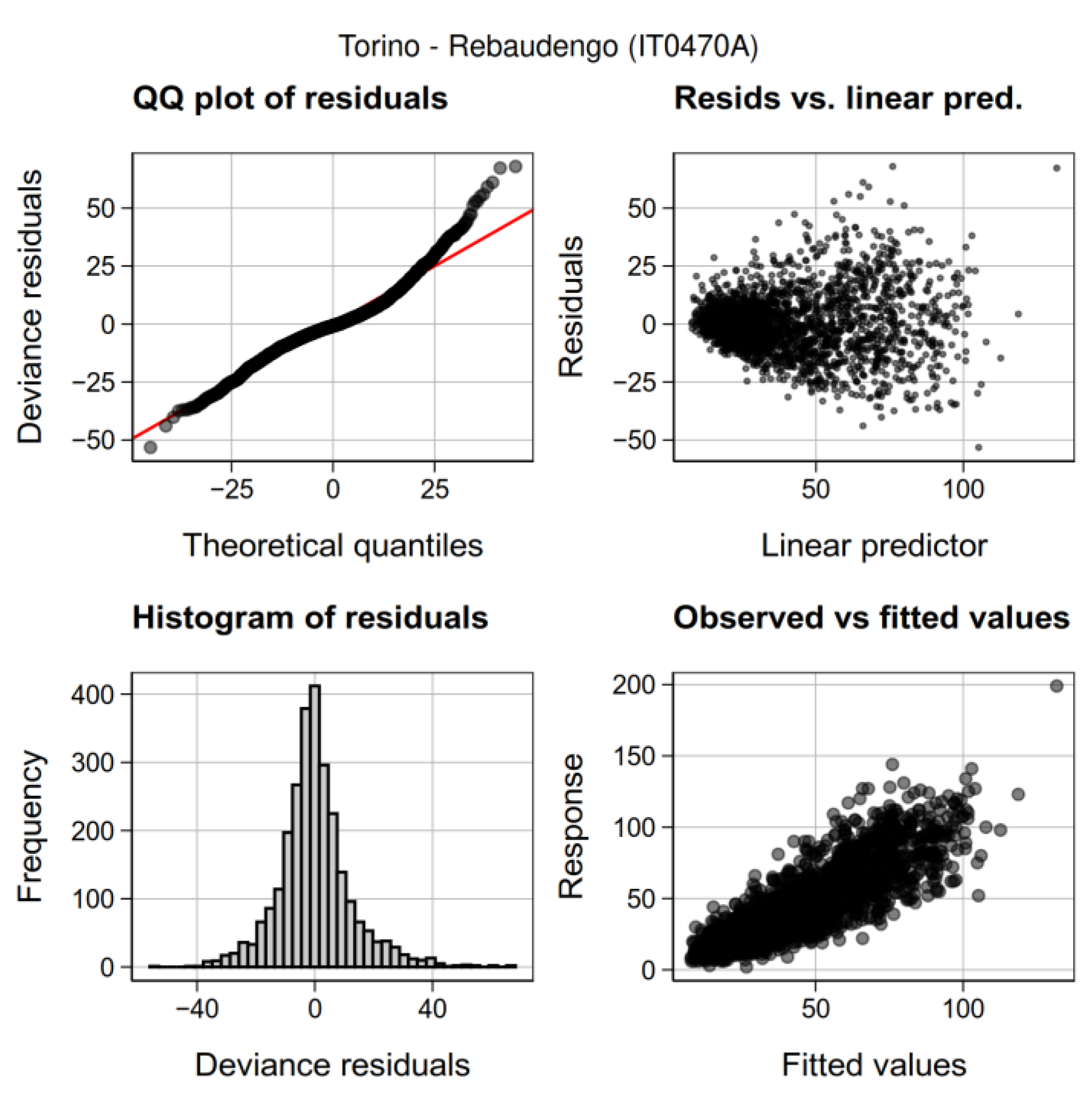

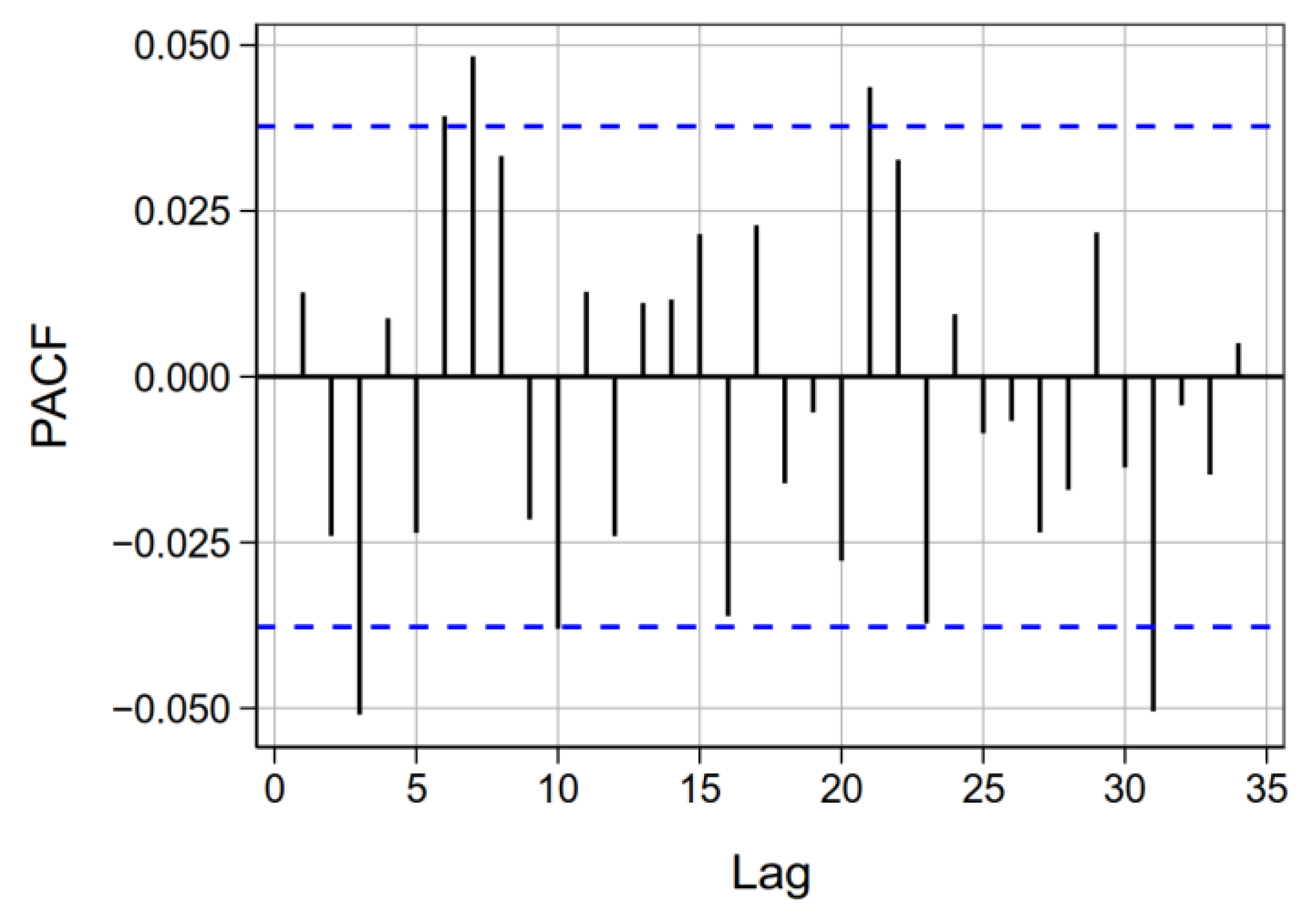

Basic assumptions of the statistical model for each station (errors uncorrelated, normally distributed, zero mean, constant variance) were tested and verified (Figure 2). Residual analysis for IT0470A Torino—Rebaudengo station was reported in Figure 2 (results for the other stations were presented in Figures S1b–S8b). We have placed special emphasis on this station because it was significantly affected by the PM emissions of the Val di Susa wildfire during October 2017. Moreover, the PM chemical speciation data available for this event (24–26 October 2017) allowed us to compare the PM₁₀ wildfire contribution from model with that derived from PM chemical speciation analysis. The temporal autocorrelation in the residuals was removed by means of a first order autoregressive model. In the Figure 3 and Figures S1c–S8c, the trend of the partial autocorrelation function (PACF) seemed to be suggesting the goodness of the lag-1 (previous day) autocorrelation hypothesis.

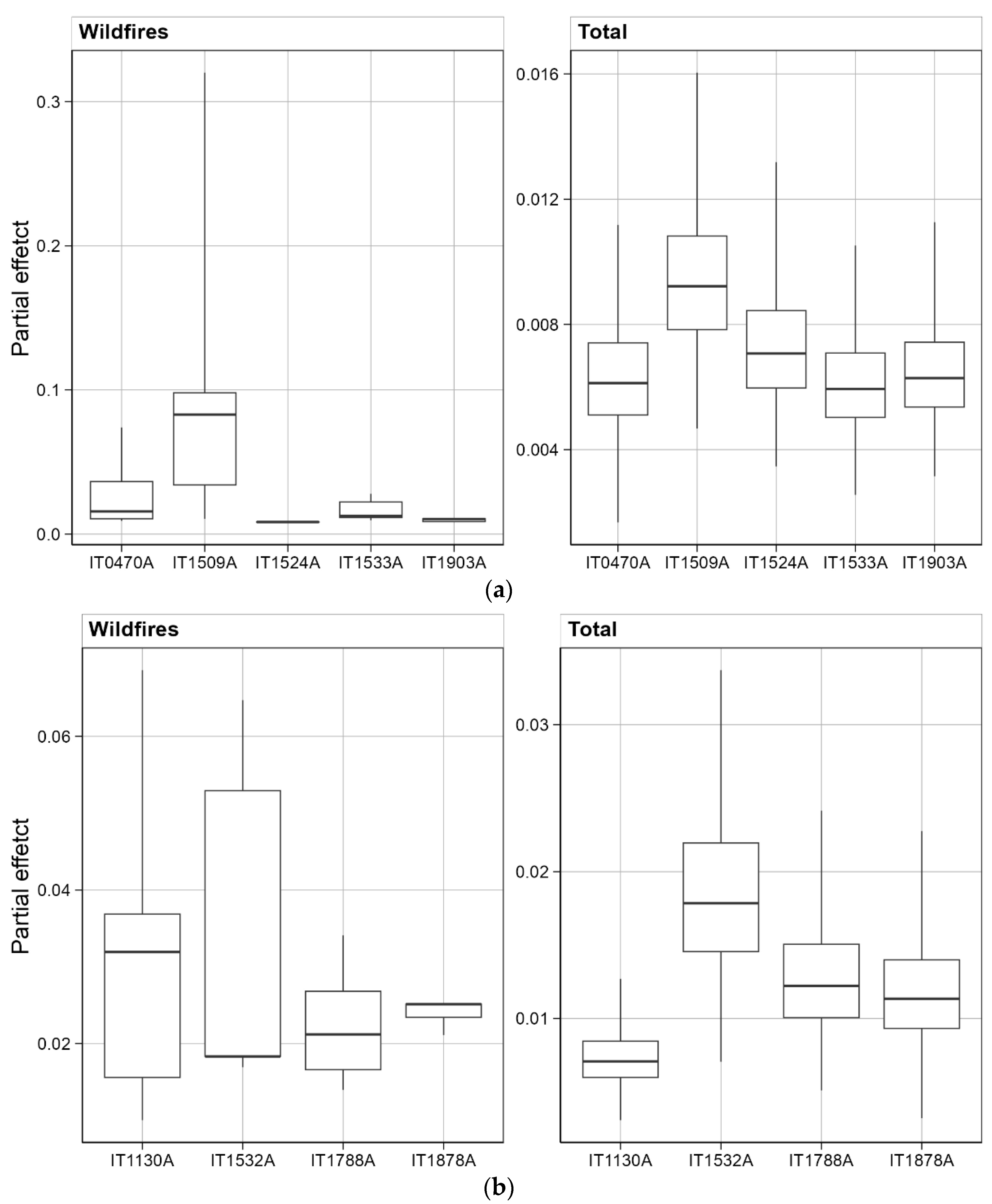

Uncertainty analysis for all models was assessed by means of the 100-fold sampling process previously outlined. Consequently, the relative uncertainty (95% confidence interval) for each PM model was estimated for the daily observations. The box plot graphs reported in the Figure 4 pointed out a median relative uncertainty value in the range of 0.6–1.8%, with slightly higher values for PM_2.5 models.

4.2. Widfires Contribution and Covariates Analysis

In

Table 4. Model formula for each station.

Station Code	Pollutant	Model Formula *	Wildfire Index
IT0470A	PM10	log(value) ~ s(x)fix + s(ptp) + s(tp) + s(pblmax) + s(tmax2m) + s(index, by =(cat_inc = “L”)) + s(nirradiance, rh, sp)	L
IT1509A	PM10	log(value) ~ s(x)fix + s(ptp) + s(rh) + s(tmax2m) + s(pblmin) + s(index, by = (cat_inc = “M”)) + s(index, by = (cat_inc = “L”)) + s(nirradiance, tmax2m, sp)	M—L
IT1524A	PM10	log(value) ~ s(x)fix + s(ptp) + s(pblmax) +s(tp) + s(sp) + s(index, by = (cat_inc = “L”)) + s(nirradiance, rh, tmax2m)	L
IT1533A	PM10	log(value) ~ s(x)fix + s(ptp) + s(sp) +s(t2m) +s(tmin2m) + s(index, by = (cat_inc = “M”)) + s(index, by = (cat_inc = “L”)) + s(nirradiance, rh, sp)	M—L
IT1903A	PM10	log(value) ~ s(x)fix + s(ptp) + s(pblmax) + s(rh) + s(t2m) + s(index, by = (cat_inc = “L”)) + s(sp, tmax2m, tp)	L
IT1130A	PM2.5	log(value) ~ s(x)fix + s(ptp) + s(pblmax) +s(tp) + s(t2m) + s(nirradiance) + s(pblmin) + s(wspeed_max) + s(index, by = (cat_inc = “M”)) + s(index, by = (cat_inc = “L”)) + s(rh, sp, tmax2m)	M—L
IT1532A	PM2.5	log(value) ~ s(x)fix + s(ptp) +s(t2m) + s(sp) + s(index, by = (cat_inc = “L”)) + s(nirradiance, rh, tmax2m)	L
IT1788A	PM2.5	log(value) ~ s(x)fix + s(pblmax) + s(ptp) + s(t2m) +s(sp) + s(tp) + s(index, by = (cat_inc = “L”)) + s(nirradiance, rh, tmax2m)	L
IT1878A	PM2.5	log(value) ~ s(x)fix + s(ptp) + s(tmax2m) + s(sp) + s(pblmax) + s(tp) + s(u10m) + s(wspeed_max) + s(index, by = (cat_inc = “L”)) + s(nirradiance, rh, tmax2m)	L

* value = PM daily concentration; s()= spline function; s(x)_fix = s(jd) + s(u10m, v10m) + s(doy); cat_inc = wildfire index class.

are reported the statistically significant explanatory variables, entered into PM₁₀/PM_2.5 GAMMs.

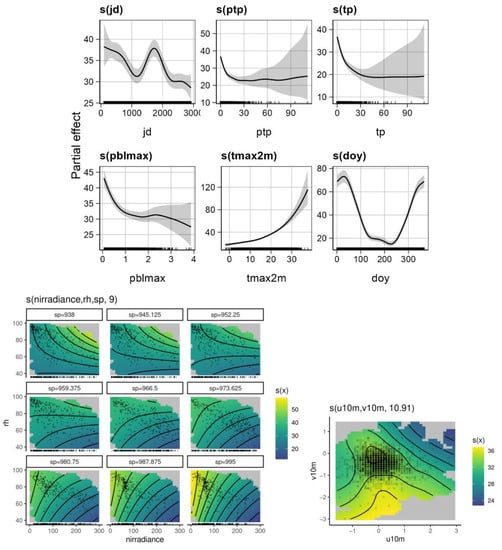

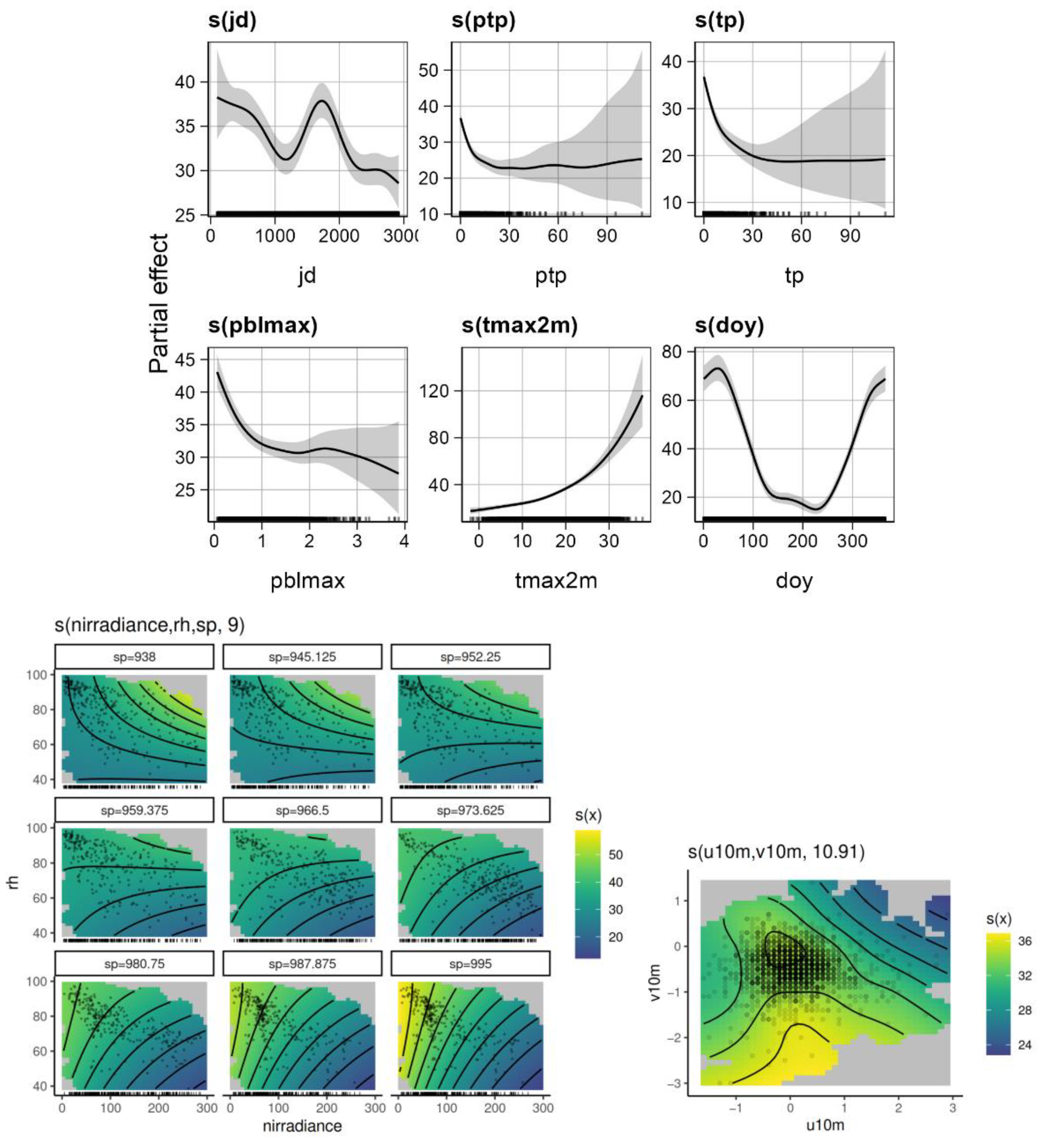

The most important meteorological covariate, in terms of frequency and contribution, was ptp, probably due to the atmospheric washing out phenomenon that can affect the day-after PM levels (Figure 5 and Figures S1d–S8d and

Table 5. Summary of qualitative partial effect on PM levels (derived from Figure 5 and Figures S1d–S8d) and number of occurrences of the explanatory variables.

Explanatory Variable	PM10 (n.ocurrences/n.models)	PM2.5 (n.ocurrences/n.models)	Partial Effect PM10 *	Partial Effect PM2.5 *
ptp	5/5	4/4	− −	− −
tp	1/5	3/4	− −	−
tmax2m	2/5	1/4	+ +	+ +
tmin2m	1/5	0/4	− −	0
t2m	1/5	2/4	+ +	+ −
pblmax	3/5	2/4	− −	-
pblmin	1/5	1/4	− −	− −
rh	2/5	0/4	+ +	0
sp	2/5	3/4	+	+
nirradiance	0/5	1/5	0	− −
wspeed_max	0/5	2/4	0	−

* Qualitative partial effect: (++) = strong increase of PM; (+) = increase of PM; (+ −) = effect not clear; (−) = decrease of PM; (− −) = strong decrease of PM; (0) = null.

). The ptp partial effect on PM concentrations was strongly decreasing in the first part of the x-axis, with a typical value of rainfall height about 15 mm for PM₁₀ (about 10 mm for PM_2.5); after that, the curve generally fattened out. Additionally, pblmax has shown a remarkable effect on reducing PM levels up to a depth of approximately 1000 m. On the contrary, tmax2m exhibited a significantly increasing contribution to PM concentrations (Figure 5, Table 5).

Focusing on IT0470A—Torino Rebaudengo station, a negative (about -1 µg/m³ year) average interannual trend term (jd) was found for the majority of the PM₁₀ and PM_2.5 models. This outcome was consistent with other studies in the same geographical area [129]. The term related to doy took the shape of a typical seasonal effect for Po Valley, with the highest PM levels in the winter (Figure 5).

The wildfire contribution to PM levels was represented by the index term, which was split into three quantitative classes (large, medium, and small) as reported in Section 3. An example for IT0470A—Torino Rebaudengo station was presented in Figure 6 (Figures S1a–S8a for the other stations). The large class proved to be statistically significant for all models; the small one, on the contrary, never entered into the GAMMs. The medium class was significant in three models only.

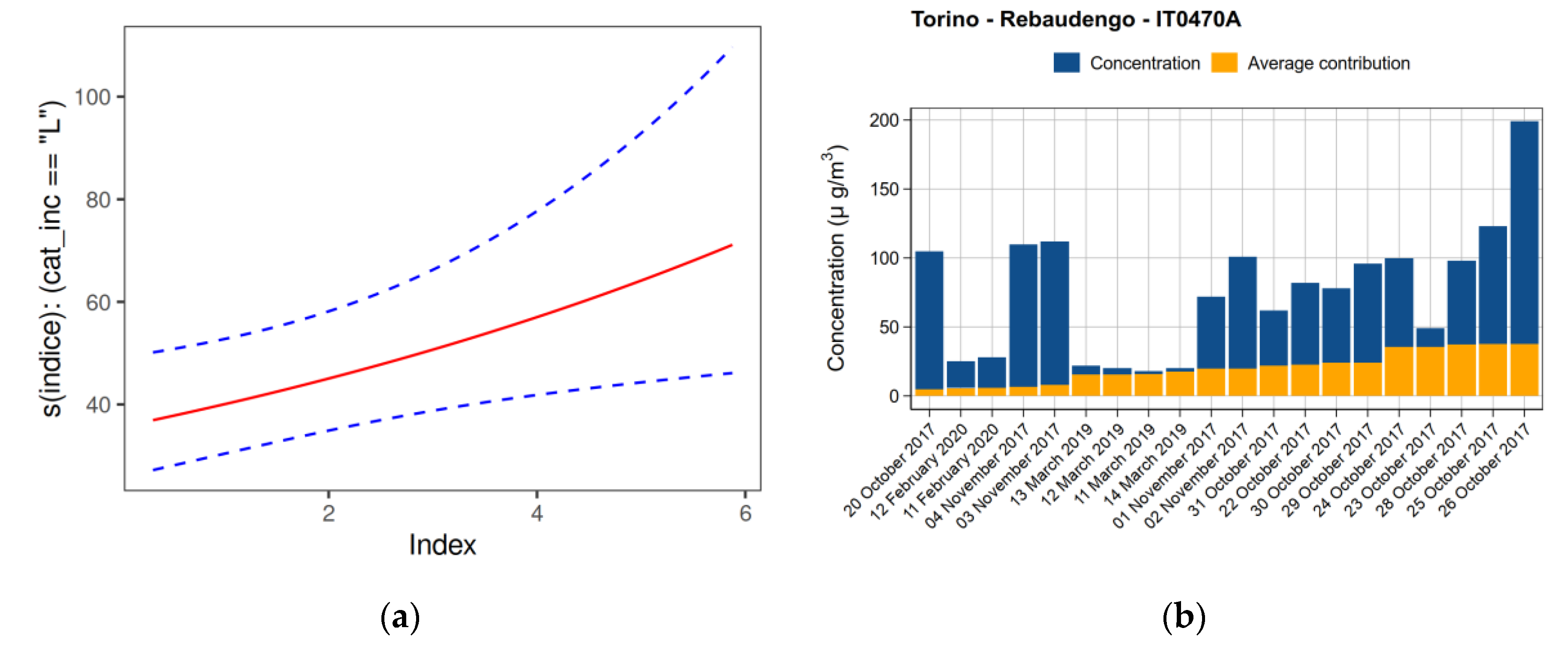

Wildfires characterized by high index showed a very strong increasing contribution on PM levels measured by the air quality monitoring network (Figure 7a and Figures S1g–S8g); the maximum contribution estimated by modelling, about 87.3 µg/m³, was reached at Vercelli PM₁₀ site (IT1533A). Overall, our analysis proved that wildfires with high index affected almost all monitoring sites with PM levels in the range of a few dozen of µg/m³ for several days per year (Figure 7b and Figures S1h–S8h). Instead, the medium level index affected PM levels only to a lesser degree.

The comparison, during the large Val di Susa event in October 2017, between the wildfire daily contribution estimated by model “IT0470A” and that derived from PM chemical speciation analysis on samples collected at Torino—Rebaudengo monitoring station (our estimation of primary and secondary PM on data reported in ARPA Piemonte report [127]), showed a good consistency (

Table 6. Val di Susa wildfire event in IT0470A station: comparison between estimated wildfire PM₁₀ contribution from model and wildfire contribution from speciation, in relation to PM₁₀ measured concentrations.

Date	Observed Value (µg/m3)	Wildfire Contribution from Speciation (µg/m3) min–max	Wildfire Contribution from Model (µg/m3)
24 October 2017	100	28.0–36.0	35.3
25 October 2017	123	34.4–44.3	37.8
26 October 2017	199	55.7–71.6	37.8

), with two of three estimated values falling well inside the range of uncertainty of the measurements.

5. Conclusions

Our objective was the evaluation of the contribution of wildfires to PM₁₀ and PM_2.5 levels, monitored by the air quality network in the Italian region of Piedmont, using a GAMM. This model allowed the exclusion of the confounding effect of local meteorological factors, the introduction the temporal autoregressive component for the residuals, and finally, the evaluation of the forest fire contribution by a specific daily index, thus contributing to further extend the current knowledge of this topic. To the best of our knowledge, the GAMM approach followed in this study is one of the few in scientific literature used for this aim.

The implemented model showed performance comparable to other similar GAMMs [106], GAMs [86], and more complex models [126]. The study demonstrated that large to medium wildfires (that we characterized by an index value) had proven to substantially affect PM concentrations in accordance with results found by other scientific works regarding the effect of size of the fires on impact on human health [78,79]. These types of wildfires, in the Piedmont region, have proven to be capable of causing extreme air pollution episodes characterized by very high PM levels and, sometimes, by extended duration, up to several days. Some severe PM pollution episodes in the study area due to wildfire air emissions caused peak daily levels up to 87.3 µg/m³ at the Vercelli PM₁₀ site (IT1533A) and up to 67.7 µg/m³ at the Settimo Torinese PM_2.5 site (IT1130A) similarly to the outcomes from Lazaridis et al., 2008 [29].

The GAMM developed here, if properly implemented at the national level, could be an effective tool for evaluating the wildfire impact on air quality. Therefore, it could set up a solid base to assess the long-term health effects of PM exposure and estimate the benefits of wildfire prevention policies, especially in this era of climate change where frequency, intensity, and severity of wildfires will increase due to climate trends [1,2,3,4,5,6,7,8,9,10].
