Comparative Study of Zn Loading on Advanced Functional Zeolite NaY from Bagasse Ash and Rice Husk Ash for Sustainable CO2 Adsorption with ANOVA and Factorial Design

by
Patchaya Tobarameekul
1,
Supawon Sangsuradet
1 and
Patcharin Worathanakul
1,2,*
1
Department of Chemical Engineering, Faculty of Engineering, King Mongkut’s University of Technology North Bangkok, 1518 Pracharat 1 Road, Wongsawang, Bangsue, Bangkok 10800, Thailand
2
Center of Eco-Materials and Cleaner Technology (CECT), Science and Technology Research Institute, King Mongkut’s University of Technology North Bangkok, 1518 Pracharat 1 Road, Wongsawang, Bangsue, Bangkok 10800, Thailand
*
Author to whom correspondence should be addressed.
Atmosphere 2022, 13(2), 314; https://doi.org/10.3390/atmos13020314
Submission received: 31 December 2021 / Revised: 4 February 2022 / Accepted: 11 February 2022 / Published: 13 February 2022
(This article belongs to the Special Issue Advanced Functional Materials for Air Quality Management)
Browse Figures
Versions Notes

Abstract

:
The objectives of the research were to develop synthesis and estimation of each factor on carbon dioxide adsorption of advanced functional zeolite NaY material derived from bagasse ash and rice husk ash with different crystallization temperatures and weight percentages of zinc by the ion exchange method. The adsorbents were tested in a packed bed reactor at different temperatures and flow rates of carbon dioxide. The Minitab program was used to estimate the effects of each factor on carbon dioxide adsorption properties. The results showed that extracted silicon dioxide from bagasse ash and rice husk ash could be successfully used as raw material for zeolite NaY synthesis with a crystallization temperature of 298.15 K. The zeolite NaY crystalline structure was well-preserved after ion exchange. The highest capacity of carbon dioxide adsorption was at 10.33 mmol/g with zeolite 5B298-373-1. The results of the Minitab program showed that the carbon dioxide adsorption decreased with increasing crystallization temperature and carbon dioxide flow rate parameters. However, the increased weight percentage of zinc loading on zeolite NaY resulted in better carbon dioxide adsorption. The factors of the types of adsorbents and adsorption temperature showed interaction with each other.

1. Introduction

Biomass resources are waste from the food industry, crop by-products, and agricultural wastes such as rapeseed, water caltrop shell, lotus stalk, hazelnut shell, sawdust, bagasse ash, and rice husk ash [1,2,3,4,5]. Thailand is the world’s second-largest exporter of sugar and rice [6,7]. Thailand produces approximately 14.58 million tons of sugar per year and 20.72 million tons of rice per year [8]. The steps involved in sugar mill processing are as follows: juice extraction, purification, crystallization, centrifugation, and drying [9,10]. The residue bagasse 26% of sugarcane is a by-product after juice extraction. Bagasse is a biomass fuel that is used in boilers to create steam for turbine generators. The burning process is transformed into thermal energy for power generation in sugar industries. After burning, bagasse ash is a residue that contains about 0.62% by weight of sugarcane [11,12,13]. In addition, after paddy rice is milled and rice husk is an essential by-product of the rice milling process [14,15]. Rice husks are classified as biomass fuel. Rice husk is also used as a fuel in boilers for biomass power plants. Rice husk ash is a classified solid waste that accounts for about 20% of the weight of rice husk. Rice husk ash is lightweight, which holds a direct impact on the environment and human respiratory problems [7,16,17,18]. Consequently, decreasing the amount of bagasse ash and rice husk ash is still a concern that needs to be addressed properly.
The large amounts of bagasse ash and rice husk ash are rich in silica. Therefore, various studies have been conducted to add value of these materials [19,20]. However, one of the solutions described above is silica extraction from bagasse ash and rice husk ash for producing a low-cost silica source [21,22]. Previous research has used bagasse ash and rice husk ash for catalyst synthesis, such as mesoporous silica and zeolite [15,17,23]. There is the potential to reduce waste disposal and pollution issues [24,25].
Nevertheless, air pollution is also emitted from industries and power plants that burn fossil fuels such as coal, oil and natural gas [26,27]. This emitted air pollution is known as a greenhouse gas, which includes carbon dioxide (CO2), methane (CH4), nitrous oxide (N2O), chlorofluorocarbons (CFCs), hydrofluorocarbons (HFCs), perfluorocarbons (PFCs) and sulfur hexafluoride (SF6). Among all of them, CO2 is the major contributor to global warming and continually rising global temperatures [28,29,30]. By the year 2100, CO2 concentrations in the atmosphere will have steadily climbed from pre-industrial levels of 280 ppm to 570 ppm [31,32,33,34,35,36,37,38]. To help reduce global warming, CO2 adsorption in the post-combustion stage is essential. Adsorbents directly impact the performance of the adsorption method [39]. Various types of adsorbents are used for CO2 adsorption, such as mesoporous silica materials, activated carbon, metal-organic framework, MCM-41 and zeolites [33,40,41,42,43,44,45,46,47].
Zeolite is one of the excellent adsorbents for CO2 adsorption. Research for zeolite synthesis is becoming increasingly popular. Because zeolite is a crystalline porous material, it possesses a high surface area and molecular pore structure, and is thermally and mechanically stable [36,48,49,50]. The zeolite NaY from the faujasite family is the focus of this research because it exhibits a solid acidity, a three-dimensional pore structure and a highly molecular sieve. The channel of zeolite NaY is formed by the 12-member oxygen rings with a pore size diameter of 7.4 Å. Moreover, it can be synthesized at a low Si/Al ratio (0.75–3.8) compared to other zeolites. As a result, zeolite NaY can be modified to improve the efficiency of adsorption using the ion exchange method, allowing it to be able to absorb high amounts of CO2 [51].
In general, a biomass power plant released flue gases containing dust, water, SOx, NOx, CO and CO2. After the pretreatment process, the flue gases are mainly composed of CO2. However, a temperature above 573.15 K is emitted from the power plant, depending on the design and process operation [52,53]. Nevertheless, CO2 adsorption at high temperatures required high energy consumption, resulting in an expensive method. Consequently, it is necessary to develop zeolites for CO2 adsorption at high temperatures in order to improve the efficiency of zeolites and to reduce the cost of CO2 adsorption. The development of zeolites is influenced by the synthesis conditions and their cations contained [54].
Modification of the surface, such as chemical vapor deposition and impregnation methods, as well as ion exchange by the solid-state and aqueous solution, can improve the structural properties of zeolites and reduce the poor properties [51,55]. According to the research of Worathanakul and Rakpasert [50,55], Cu (II) and Ni (II) were successfully incorporated into zeolite Y using the ion exchange and impregnation method. The zeolite Y structure is unaffected by Cu (II) and Ni (II) loading in both techniques. Metal oxides such as Fe, Ni, Cu and Zn are widely utilized in combination with various zeolite types. It could help to improve acidity as well as hydrophobic-hydrophilic properties [46]. In addition, Esquivel and his colleagues [56] showed the CO2 adsorption of Zn (II) loading on zeolite beta. Smykowski and his colleagures [57] studied the adsorption of CO2 on DOH zeolite with varying the metal type from Cu, Zn, Ni, Pd. They proposed that the Zn cation interacts more strongly with CO2 molecules than other cations, resulting in greater CO2 adsorption. This is due to Zn that modifies the surface charge characteristics of zeolites by creating Lewis acidic sites and redox features. In the literature on adsorbent modification, there is no mention of Zn-exchanged zeolite NaY for CO2 adsorption. Furthermore, Zn is an especially suitable option because Zn possesses a higher combustion temperature than 723.15 K. Therefore, the zeolite support is combined with Zn to achieve better CO2 adsorption efficiency at high temperatures [25].
Therefore, factors for synthesis and conditions for CO2 adsorption are important for this study. Minitab is a computer program that is designed to perform the processing of statistics with regression, multivariate analysis, factor analysis, principal components, qualitative data, time series and some nonparametric analysis [58,59,60,61,62,63,64]. The Minitab software was used to analyze the experimental data in order to measure the effects of various factors. The design determined effects on a response as well as how the effect of one factor varied with the level of the other factors [65,66]. Moreover, this method allows for identifying the extent of the influence of factors, while reducing the number of tests required for elucidation. Statistical analysis was performed to acquire the data that resulted in the factors examined [63].
The objectives of this research were to develop an advanced functionally zeolite NaY material synthesized from bagasse ash and rice husk ash for CO2 adsorption to get better air quality management. NaY zeolites from bagasse ash and rice husk ash were used with a Si/Al ratio of 0.75 with different crystallization temperatures and weight percentages (wt.%) of Zn using the ion exchange method. Zeolite NaY after ion exchange was used as an adsorbent in a packed bed reactor at different temperatures and flow rates for CO2 adsorption. Finally, the Minitab program was used to estimate the effects of modified functionally adsorbents, adsorption temperature and CO2 flow rate. Furthermore, the goal of this research was to develop and apply knowledge in industrial for CO2 adsorbent materials as well as to reduce air pollution.

2. Materials and Methods

The synthesis and analysis of zeolite NaY from rice husk ash and bagasse ash for CO2 adsorption included five important steps: silica preparation, zeolite NaY synthesis, ion exchange, CO2 adsorption, and statistical analysis.

2.1. Materials

The material used for silica preparation and zeolite NaY synthesis was followed by rice husk ash with 70.19 wt.% SiO2 (U-Thong Biomass Co., Ltd., Suphanburi, Thailand) and bagasse ash with 70.81 wt.% SiO2 (Khonburi Sugar Public Co, Ltd., Nakhon Ratchasima, Thailand). Other materials used were sodium hydroxide (99 wt.% NaOH, Merck, Darmstadt, Germany), hydrochloric acid (37 wt.% HCl, Merck, Darmstadt, Germany), sodium aluminate (NaAlO2, 50–56 wt.% Al2O3, 40–45 wt.% Na2O and 0.05 wt.% Fe2O3, Sigma Aldrich, Singapore), distilled water and deionized water (DI). As a metal loading, zinc nitrate (99.5 wt.% Zn (NO3)2•6H2O, Merck, Darmstadt, Germany) was used. Carbon dioxide (CO2 99.80%: HP Grade, Linde, Bangkok, Thailand) was used in a continuous flow system with a packed bed for CO2 adsorption.

2.2. Silica Extraction Derived from Bagasse Ash and Rice Husk Ash

The bagasse ash was initially dried at 378.15 K for 12 h. Ten grams of bagasse ash was then mixed with NaOH solution (2 molar) and stirred at 343.15 K for 1 h to extract silica. After that, the obtained solutions were filtered. The filtrates were titrated with HCl solution to adjust pH to 7 and then the solution started to form a gel. The solution was left at 298.15 K until the silica solidified. The solidified silica-rich was cleaned with DI water and filtered to separate the silica-rich solid residue. The silica solid was then dried overnight to obtain silica in the form of sodium silicate (Na2SiO3) for zeolite NaY synthesis. The above methods were repeated with rice husk ash as a silica source.

2.3. Zeolite NaY Synthesis

The zeolite NaY was synthesized according to a previously reported procedure with different crystallization temperatures and times [55]. The zeolite NaY was prepared with a Si/Al ratio of 0.75 and consisted of four steps, including seed gel, feedstock gel, overall gel and crystallization, along with Rakpasert (2012) [67]. She has reported that the zeolite NaY formed at temperatures higher than 343.15 K and 1 h exhibited better crystallinity, while crystallization at temperatures lower than 343.15 K and 1 h revealed a low degree of crystallinity, resulting in poorly crystallized samples. It still needs to reduce the time and temperature of the synthesis as short as possible while maintaining at high quality. Therefore, heat crystallization at 298.15, 323.15 and 343.15 K was chosen to obtain a synthesis with lower energy consumption and higher efficiency. The seed gel step was initially prepared by mixing with NaOH and distilled water. The solution was then divided into two bottles and the NaAlO2 and Na2SiO3 from bagasse ash were added while stirring and heating for 2 h. The second step is feedstock gel, in which the NaAlO2 and Na2SiO3 solutions were produced in the same way under different volumes. The third step is the overall gel that the seed gel solution was slowly mixed into the feedstock gel solution under stirring until homogenous. The solution was left overnight at 298.15 K to form a gel. The final step is crystallization, in which the gel was heated with three different crystallization temperatures for 1 h. After that, the samples were cleaned with distilled water until pH 9 and filtered. The residue was then dried overnight to obtain zeolite NaY. The above methods were repeated with Na2SiO3 from rice husk ash for zeolite NaY synthesis. The zeolite NaY synthesized from different raw materials and crystallization temperatures was denoted as zeolite SC. S is the type of silica source (B = bagasse ash and R = rice husk ash); C is the crystallization temperature (298, 323 and 343).

2.4. Zn Loading to Zeolite NaY

Previous studies examined aspects of adsorbent modification; there is no mention of Zn exchanged zeolite NaY for CO2 adsorption. However, Worathanakul and Saisuwansiri [68] studied and compared the CO2 adsorption of Cu and Fe loading on zeolite Y, varying the wt.%. 5 wt.% Cu and 1 wt.% Fe loading on zeolite Y. The results showed a high CO2 conversion of 67.06 and 61.14%, respectively. Therefore, Zn loading on zeolite NaY at 1, 3 and 5 wt.% was selected to develop a novel approach with desirable adsorption capacity properties. Ion exchange of the zeolite was then performed in different wt.% with 1, 3 and 5 wt.% of Zn loadings. One gram of the obtained zeolite NaY was added to a solution of 1 wt.% of zinc nitrate and stirred overnight at 298.15 K. The solutions were cleaned with DI water and filtered. After that, the residue was then dried overnight at 393.15 K. The sample was calcined at 873.15 K for 5 h in the air to obtain the modified zeolite NaY powder. The above methods were repeated with 3 and 5 wt.% of Zn for modified zeolite NaY powder. The adsorbent samples were denoted as zeolite XSC. Where X represents the wt.% of Zn in the total weight of the sample.

2.5. CO2 Adsorption Test

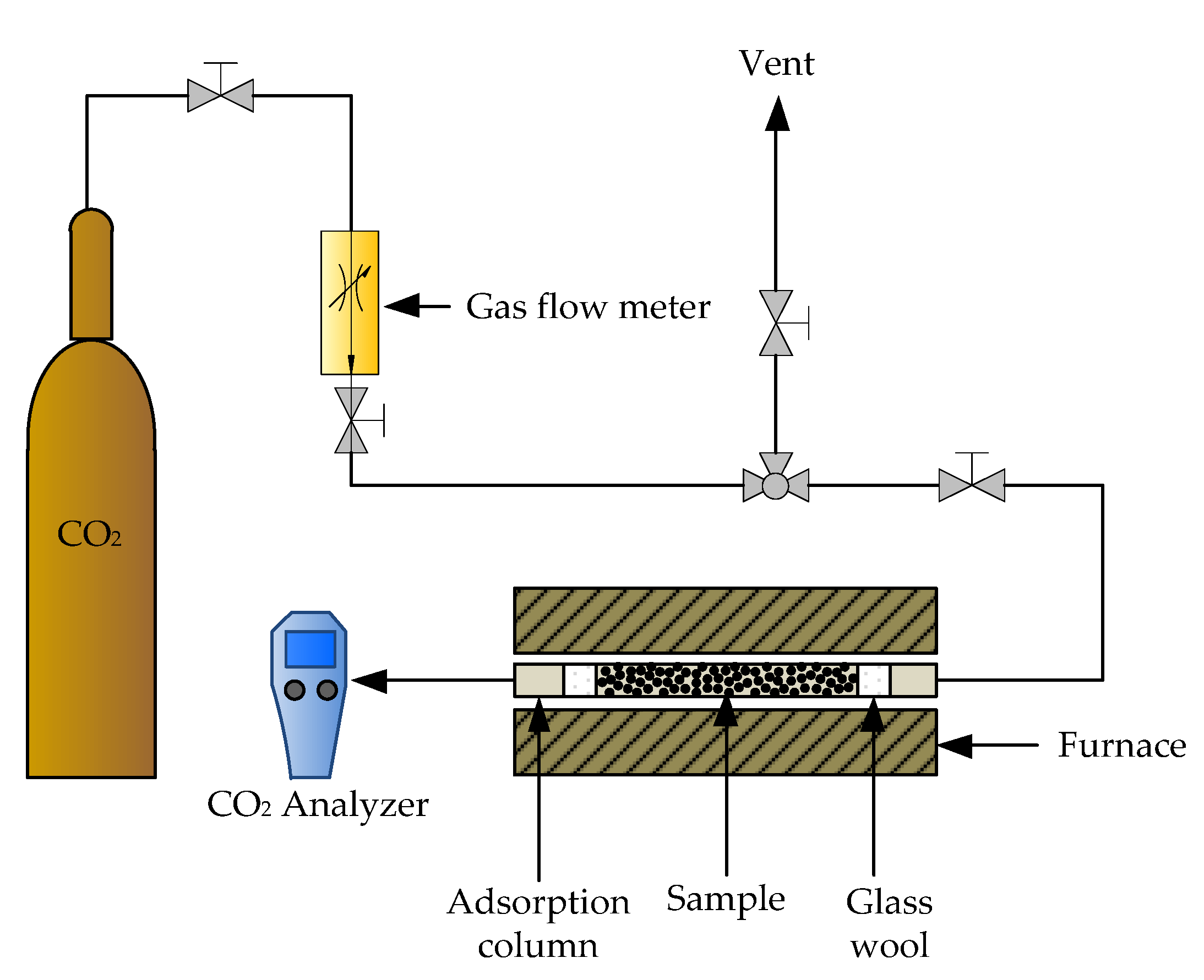

In general, a biomass power plant releases flue gases containing dust, water, SOx, NOx, N2, CO and CO2. In the present study, dust, water, acidic gases and volatile organic compounds were assumed to be removed during the pretreatment process (i.e., electrostatic precipitation, dehumidification, desulfurization and de-NOx). Because various components could be found in effluent gases, multi-component adsorption is experimentally too complicated. After the pretreatment process, the flue gases are mainly composed of CO2. Since the adsorption of pure CO2 on applied adsorbents is essential for well-designed adsorption processes, which can be achieved by studying a packed bed experimentally [69,70,71]. An adsorption column with a diameter of 0.7752 cm and a length of 4 cm was packed with 0.3 g of zeolites NaY synthesized from bagasse ash and rice husk ash, including modified zeolite NaY samples, before being placed in the tube furnace. The adsorption column was heated in a furnace connected to a CO2 analyzer (Handheld CO2 m GM 70, Helsinki, Finland).
In addition, Hedin and his colleagues [72] collected the CO2 adsorption on various zeolite types; most of the results reported in the literature were obtained at temperatures between 273 and 298 K, whereas the flue gases are mainly emitted at a temperature above 573.15 K from the power plant. Therefore, adsorption experiments with pure CO2 were performed at various temperatures (373.15, 573.15 and 873.15 K) and flow rates (1, 3 and 5 L/h). All samples were carried out at 1 atm with an adsorption time of 30 min. The adsorbent samples were denoted as zeolite XSC-T-F. T represents the adsorption temperature, while F is the CO2 flow rate of CO2 adsorption in the pack bed reactor. Figure 1 shows the schematic diagram of the CO2 adsorption test. The CO2 adsorption capacity and breakthrough curve were defined in Equations (1) and (2).
q e = ( C 0 − C W ) × V × 1 M W × t
Breakthrough   curve   = C C 0
where qe is the equilibrium adsorption capacity. C0 and C are the concentrations of CO2 at initial and after adsorption, respectively. The total flow rate is denoted by the abbreviation V. The molecular weight of the adsorbate is MW. The weight of the adsorbent and the time are represented by W and t, respectively.

2.6. Characterization of Zeolite NaY

The chemical composition of bagasse ash and rice husk ash was evaluated by X-ray fluorescence spectroscopy (XRF; Bruker AXS, Karlsruhe, Germany). The result of this analysis was expressed as a percentage by the weight of oxides. The morphology and size of the obtained zeolites NaY, including modified zeolite, were determined via field emission scanning electron microscopy (FESEM; JSM-7001F, JEOL, Tokyo, Japan). The samples were coated with a thin layer of gold using a sputter coater (Edwards La-boratories, Milpitas, CA, USA) to improve their conductivity before the measurement. The elemental analysis of zeolite was carried out using energy dispersive X-ray spectroscopy (EDS; INCA PentaFETx3, Oxford Instruments Plc; Abington, UK). The crystallinity of zeolites NaY synthesized from bagasse ash and rice husk ash, including modified zeolite NaY was analyzed by XRD patterns using X-ray diffraction (XRD; Bruker AXS, Karlsruhe, Germany). The surface areas and porosity of the samples were examined by Brunauer–Emmett–Teller (BET) analysis (Autosorb 1C, Quantachrome, FL, USA) by nitrogen adsorption–desorption within the pores of the sample.

2.7. Statistical Analysis of the CO2 Adsorption

The variation of variables under different conditions and their effects on the response variable have been considered according to available statistical tests in variance analysis. In this work, there are five variables, including the adsorbent, crystallization temperature of zeolite synthesis, wt.% of Zn loaded onto zeolite NaY, adsorption temperature and CO2 flow rate. The considered factor of the adsorbent is the synthesis of zeolite NaY from different raw materials (bagasse ash and rice husk ash). The test ranges were varied as follows: 3 levels of crystallization temperatures at 298.15, 323.15 and 343.15 K, 3 levels of Zn loadings at 1, 3 and 5 wt.%, 3 levels of adsorption temperatures at 373.15, 573.15 and 873.15 K, and 3 levels of CO2 flow rates of 1, 3 and 5 L/h. In this step, the data is entered into the Minitab software version 17 to conduct the variance analysis. The effect of all 5 variables on the CO2 adsorption was investigated following the ANOVA and factorial design of experiments. Analysis of variance was employed to find out the significance of the main effect and interaction of factors involved, while the significance of the factors was determined by the probability values (p-values) of the models.

3. Results

3.1. Extracted Silica from Bagasse Ash and Rice Husk Ash

The chemical composition before silica extraction from bagasse ash showed that it contained 70.81, 17.40, 4.64, 4.34, and 2.81 wt.% of silicon dioxide (SiO2), aluminum oxide (Al2O3), phosphorus pentoxide (P2O5), iron oxide (Fe2O3) and others, respectively. After silica extraction from bagasse ash was composed of 94.91, 2.81, 1.26 and 1.02 wt.% of SiO2, Al2O3, P2O5 and Fe2O3, respectively. Moreover, XRF results showed that the rice husk ash was composed of 70.19, 23.40, 1.81, 1.67 and 2.93 wt.% of SiO2, Al2O3, potassium oxide (K2O), sodium oxide (Na2O) and others, respectively. The extracted sample from rice husk ash consisted of 97.73, 2.24 and 0.03 wt.% of SiO2, Al2O3 and Fe2O3, respectively. The amount of extracted silica from bagasse ash and rice husk ash was increased and it could be utilized to synthesize zeolite.

3.2. Synthesis of Zeolite NaY from Bagasse Ash and Rice Husk Ash

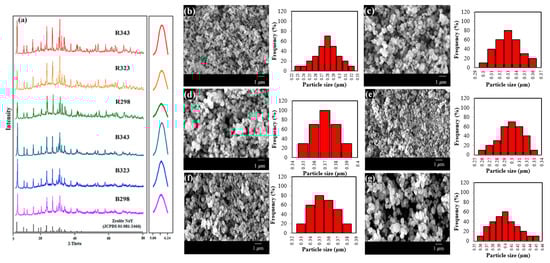

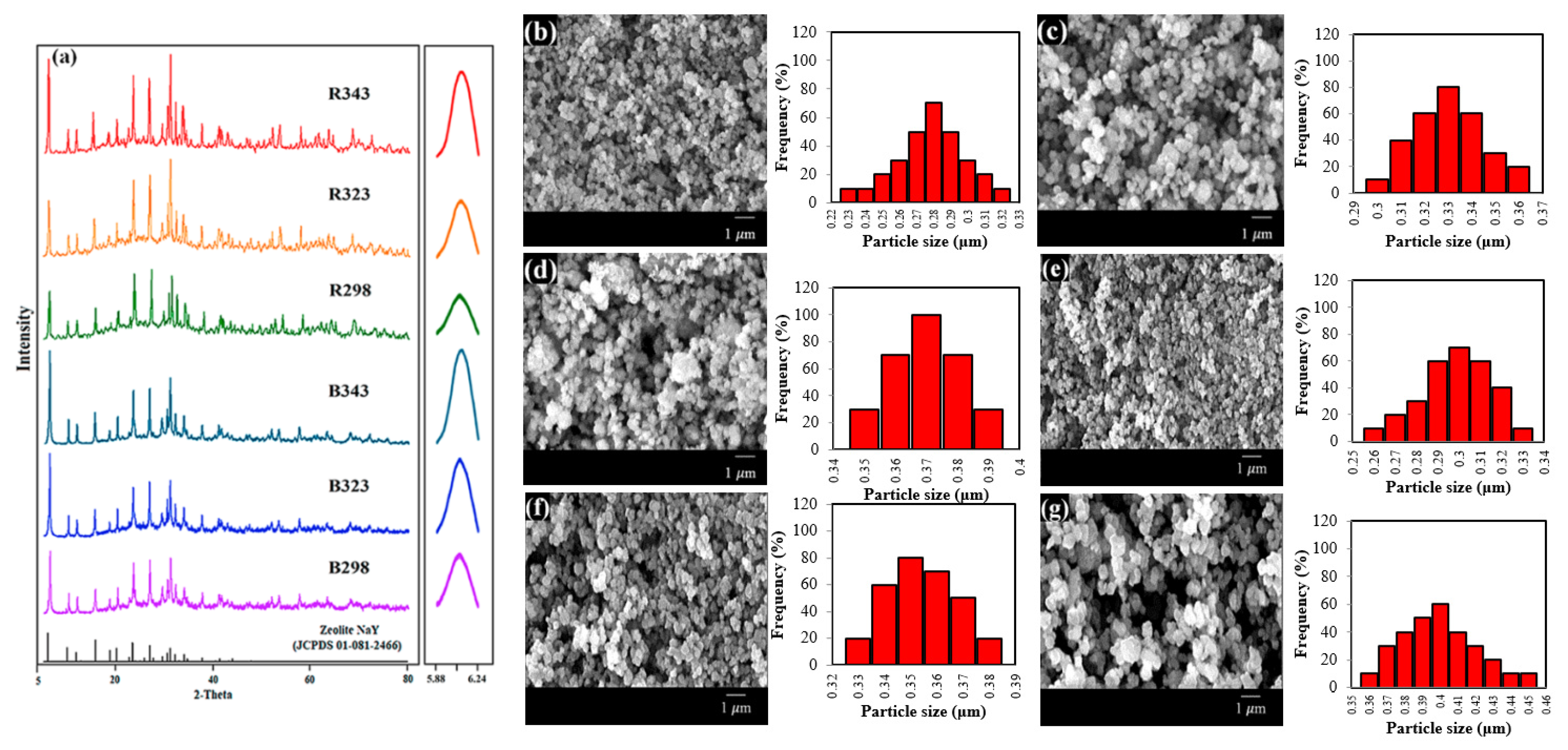

The crystallinity of pure zeolite NaY was confirmed using XRD patterns. Figure 2a shows the effect of crystallization temperatures on zeolite NaY derived from bagasse ash (B298, B323 and B343) and rice husk ash (R298, R323 and R343). The main peaks of all samples could be observed according to the standard peak of zeolite NaY (JCPDS 01-081-2466). The completion of the formation of the pure zeolite NaY phase was clearly demonstrated. The particles in all samples appeared to have spherical shapes and uniform distribution, as shown in SEM images from Figure 2b–g. The particle size distribution of zeolites B298, B323, B343, R298, R323 and R343 was approximately 0.28 ± 0.06, 0.33 ± 0.02, 0.37 ± 0.01, 0.30 ± 0.04, 0.35 ± 0.02 and 0.40 ± 0.05 μm in diameter, respectively. It was concluded that zeolite NaY was synthesized at a temperature of 298.15 K from bagasse ash and rice husk ash and crystallized to obtain a small crystal size. Consequently, the optimal crystallization temperature was 298.15 K with the highest BET surface area, micropore volume and total pore volume of both B298 and R298 zeolites.

3.3. Zeolite NaY Improvements

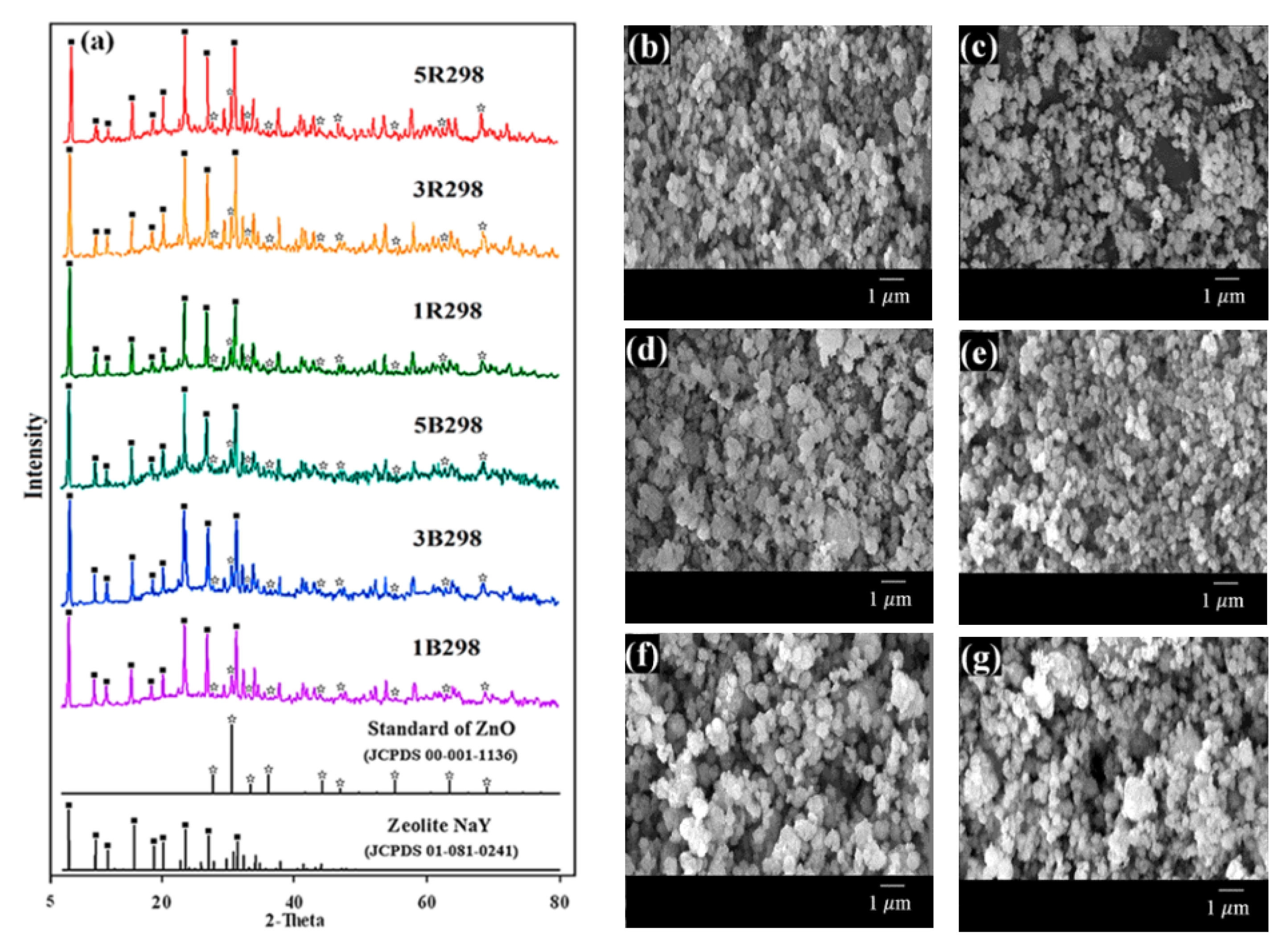

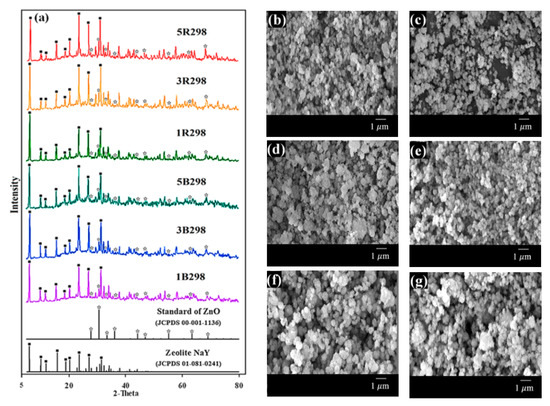

Figure 3a shows the XRD patterns of zeolites B298 and R298 that have improved properties with Zn loadings of 1 wt.% (1B298 and 1R298), 3 wt.% (3B298 and 3R298) and 5 wt.% (5B298 and 5R298). The XRD patterns for all modified zeolite NaY were similar to the standard peak of pure zeolite NaY; some diffraction peaks also matched the standard peak of ZnO (JCPDS 00-001-1136). SEM images of zeolites are shown in Figure 3b–g. The morphology of all samples was also characterized by spherical shaped crystals and uniform distribution. The crystal sizes of all the zeolites synthesized from bagasse ash and rice husk ash after being modified with Zn were approximately 0.25 ± 0.05 and 0.28 ± 0.07 μm in diameter, respectively.
The elemental composition of the zeolites B298 and R298 after Zn loading was presented in Table 1 by EDS analysis. The elements O, Na, Al, Si and Zn were found in the zeolites B298 and R298 after Zn loading. The presence of Zn was confirmed by the fact that Zn2+ is ion-exchanged with Na+ of the zeolites B298 and R298. It was clear that with an increase in the wt.% of Zn loading, the results of EDS showed the Zn at a high wt.%. It was observed that approximately 0.99–5.15 wt.% Zn was successfully ion-exchanged in zeolites B298 and R298.

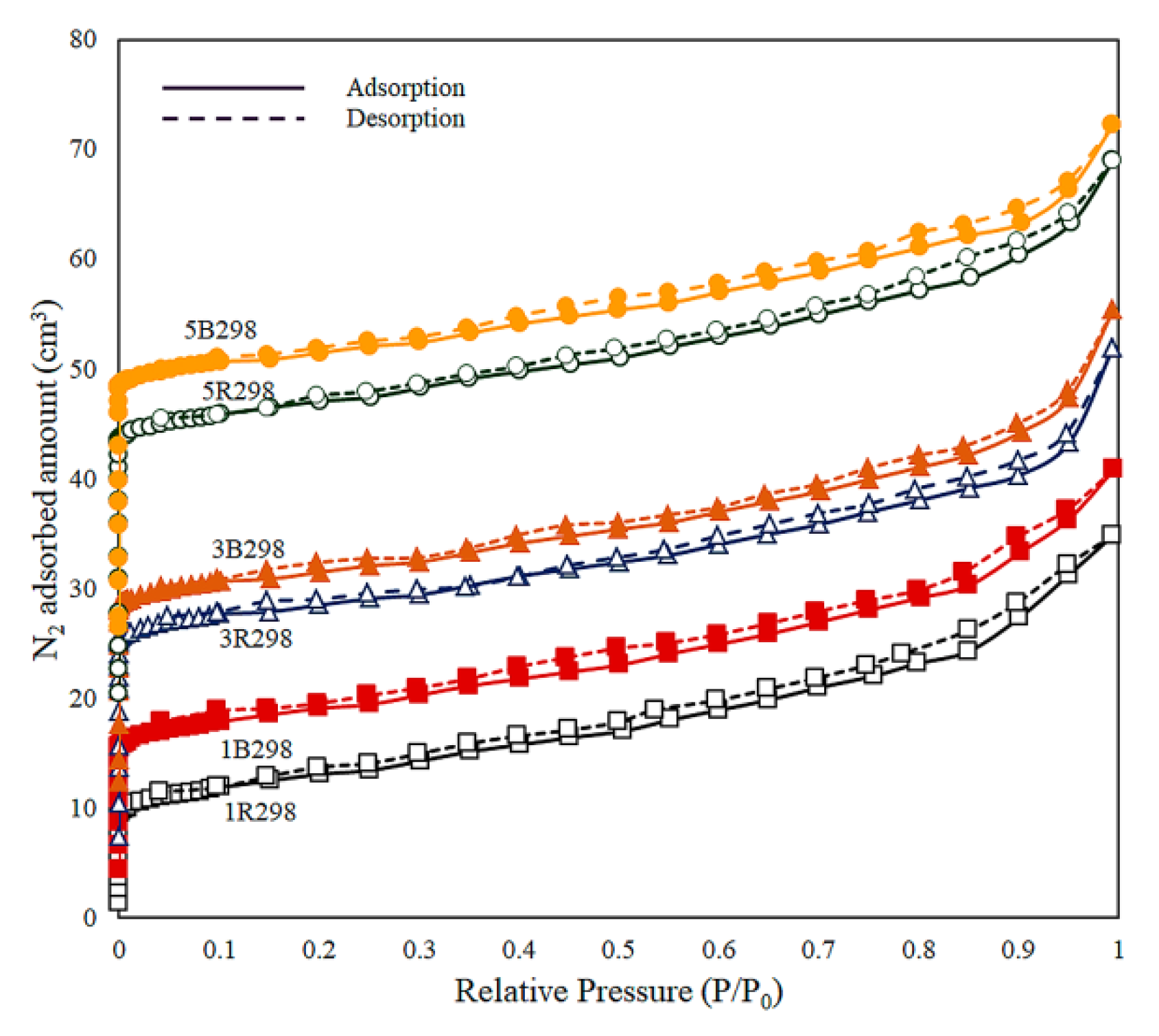

The N2 adsorption-desorption isotherms at 77 K for zeolite NaY synthesized from bagasse ash and rice husk ash with different wt.% of Zn loadings were shown in Figure 4. All the isotherms of the synthesized materials exhibited a Type I isotherm according to the IUPAC classification, which is characteristic of a microporous material and monolayer adsorption. The hysteresis loop was not found for these materials. Microporous material was adsorbed by the high volume of nitrogen at a low relative pressure around 0.02, followed by a moderate gradient in uptake until saturation pressure. This value agreed with a recent report by Salehi and Anbia [73].
Moreover, the crystals corresponded to the results of the BET analysis, as shown in Table 2. It could be seen that the BET surface area, micropore volume and total pore volume of zeolites 1B298 and 1R298 were smaller than the zeolites 3B298, 3R298, 5B298 and 5R298. The result also showed that zeolites 5R298 and 5R298 had the highest BET surface area, micropore volume and total pore volume.

3.4. CO2 Adsorption Test

3.4.1. Effect of Crystallization Temperatures on the CO2 Adsorption

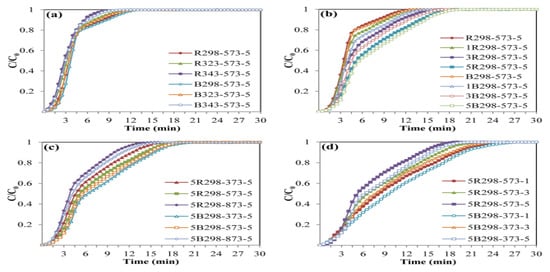

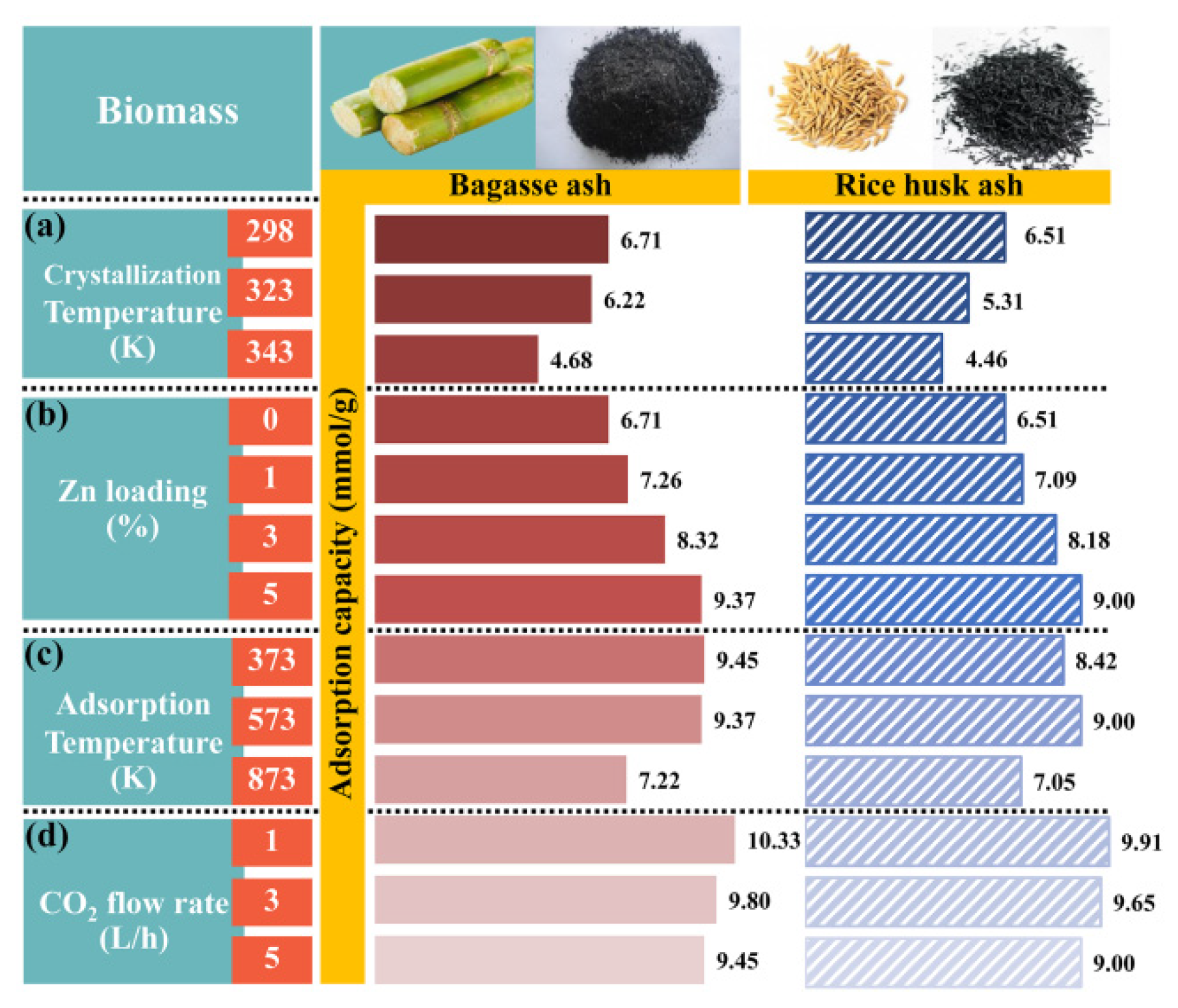

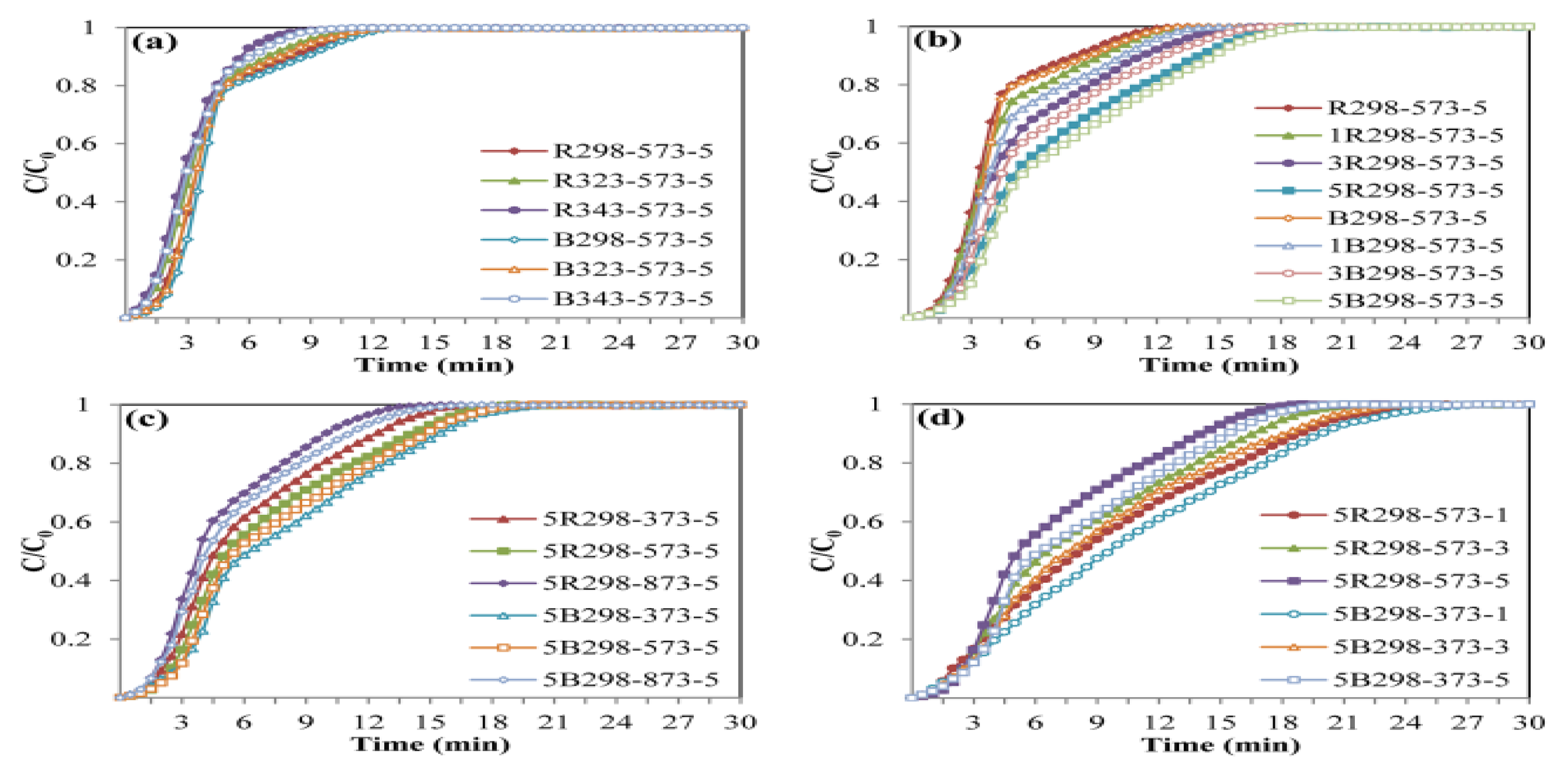

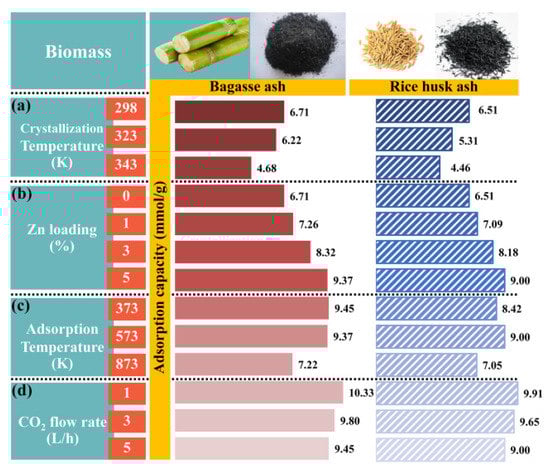

The effects of raw materials and crystallization temperature in zeolite NaY synthesis on CO2 adsorption were studied at a constant adsorption temperature of 573.15 K with a CO2 flow rate of 5 L/h, as shown in Figure 5a. The zeolites B298-573-5 and R298-573-5 had the highest CO2 adsorption capacities of 6.71 and 6.51 mmol/g, respectively. In addition, the breakthrough curves of CO2 adsorption were presented in Figure 6a. It can be seen that the shape of the breakthrough curves of all samples initially increased rapidly, while the breakthrough curves of zeolites B298-573-5 and R298-573-5 showed a slower breakthrough speed than the other samples before becoming steady. This meant that zeolites B298-573-5 and R298-573-5 exhibited higher CO2 adsorption capacities and a longer breakthrough time than the others. Therefore, the zeolites B298 and R298 were interested in testing the effect of Zn loading on CO2 adsorption.

3.4.2. Effect of Zn Loading on the CO2 Adsorption

The effect of Zn loading on the CO2 adsorption test was performed with different wt.% of Zn loadings (1, 3 and 5 wt.%) on zeolites B298 and R298 by fixing the adsorption temperature at 573.15 K and a CO2 flow rate of 5 L/h, as shown in Figure 5b. At high wt.% Zn loading, the highest CO2 adsorption capacity of 9.37 and 8.99 mmol/g was found on zeolites 5B298-573-5 and 5R298-573-5, respectively. Furthermore, the breakthrough curves of CO2 adsorption are displayed in Figure 6b. It was found that the shape of the breakthrough curves of the zeolites 5B298-573-5 and 5R298-573-5 were not considerably altered at first. After the initial breakthrough, the breakthrough curves of zeolites 5B298-573-5 and 5R298-573-5 exhibited a slow breakthrough speed and then gradually became constant. For other samples, the breakthrough curve rapidly ascended and presented saturation trends. It showed a quick breakthrough speed, which could be due to the fastest diffusivity and the minimum equilibrium adsorption. It was found that the adsorption of zeolite NaY modified with Zn was higher than pure zeolite NaY. Therefore, the zeolites 5B298 and 5R298 were potential candidates to be studied under different operating conditions, including adsorption temperature and CO2 flow rate.

3.4.3. Effect of Adsorption Temperature on the CO2 Adsorption

Figure 5c shows the effect of adsorption temperature on the CO2 adsorption test, including 373.15, 573.15 and 873.15 K on zeolites 5B298 and 5R298 by fixing the CO2 flow rate of 5 L/h. The CO2 adsorption capacity of zeolite 5B298-373-5 was found to be the highest at 9.45 mmol/g, shown in Figure 6c. The breakthrough curve of zeolite 5B298-373-5 and 5R298-373-5 at low temperatures exhibited a higher CO2 adsorption capacity and a longer breakthrough time than the others. Therefore, the adsorption temperatures of 373.15 and 573.15 K were chosen to test the effect of CO2 flow rate on the CO2 adsorption of zeolites 5B298 and 5R298, respectively.

3.4.4. Effect of CO2 Flow Rate on the CO2 Adsorption

Figure 5d shows the effect of CO2 flow rate on the CO2 adsorption test with different CO2 flow rates (1, 3 and 5 L/h) on zeolites 5B298 and 5R298 by fixing the adsorption temperatures at 373.15 and 573.15 K, respectively. At CO2 flow rates of 1 L/h, the zeolites 5B298-373-1 and 5R298-573-1 exhibited the highest CO2 adsorption capacities of 10.33 mmol/g and 9.91 mmol/g, respectively. Additionally, the breakthrough curves of CO2 adsorption were presented and showed that the shape of the breakthrough curves of the zeolites 5B298-373-5 and 5R298-573-5 increased rapidly before becoming stable, as shown in Figure 6d. At a low flow rate, zeolites 5B298-373-1 and 5R298-573-1 exhibited the slowest breakthrough speed and then gradually stabilized, with the best CO2 adsorbent among all tested materials of bagasse ash and rice husk ash, respectively.

3.5. Statistical Analysis of the CO2 Adsorption

Minitab software version 17 was applied with ANOVA and factorial design of the experiment to determine model fitting, main effects and interactions between the dependent variables (responses) and independent variables (factors). The response variable was CO2 adsorption, while the factors were the raw material, the crystallization temperature, wt.% of Zn loading, adsorption temperature and CO2 flow rate.

3.5.1. Effects of Raw Material and Crystallization Temperature on the CO2 Adsorption

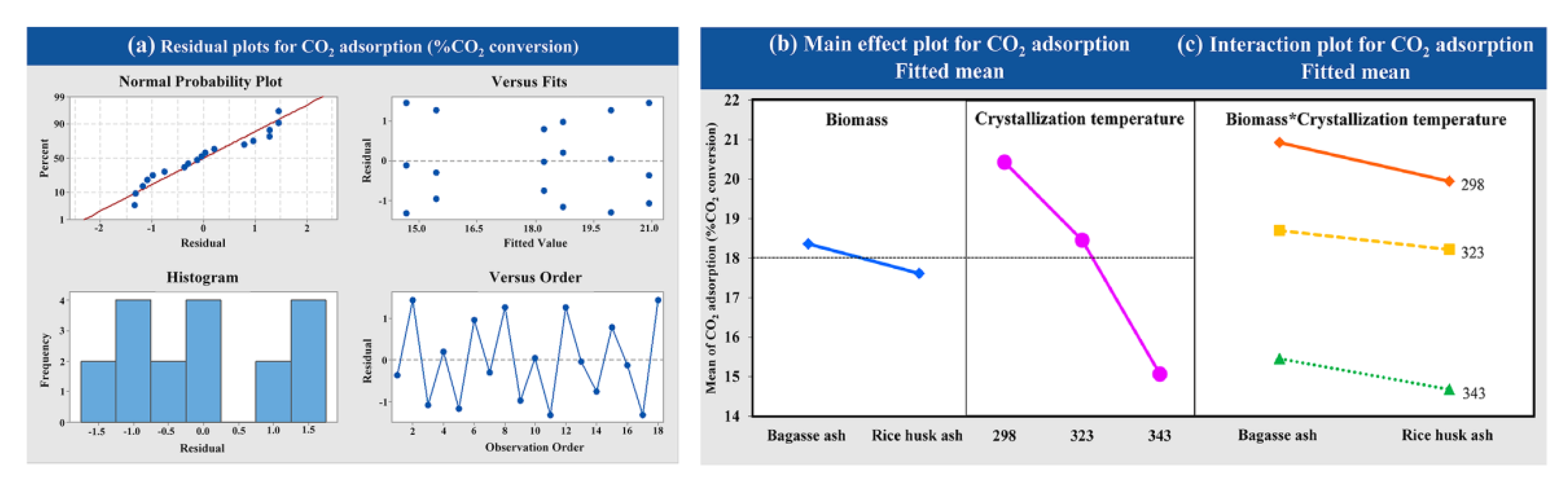

The statistical significance was evaluated using a factorial design with different raw materials (bagasse ash and rice husk ash) and crystallization temperatures of zeolite synthesis (298.15, 323.15 and 343.15 K) on CO2 adsorption occurring with a constant adsorption temperature at 573.15 K with a CO2 flow rate of 5 L/h. As observed from Figure 7a, the variance analysis of data from experiments was normally distributed and independent, as evidenced by the fact that the points were close to a straight line. Figure 7b shows the main effects plot for each of the factors studied against the response variables. At the high crystallization temperature of zeolite synthesis, the CO2 adsorption decreased. On the other hand, at low crystallization temperatures, CO2 adsorption increased. The interaction plots are presented in Figure 7c. There was no interaction between the factors of raw material and crystallization temperature of zeolite synthesis on CO2 adsorption because of the perfect parallel lines in these plots.

3.5.2. Effects of Raw Material and Zn Loading on the CO2 Adsorption

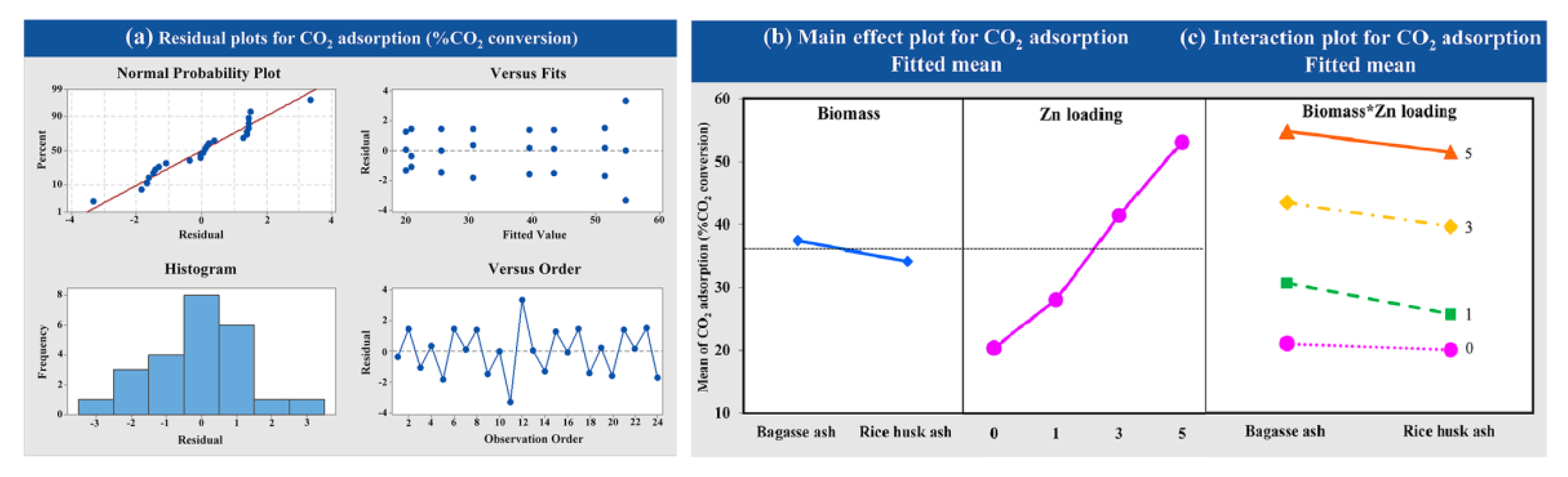

The effects of Zn loading on zeolite NaY (1, 3 and 5 wt.%) and raw material of zeolite synthesis (bagasse ash and rice husk ash) on CO2 adsorption were studied using a factorial design of experiments. In order to examine the statistical significance of factor effects on the response variable, the adsorption temperature of 573.15 K with a CO2 flow rate of 5 L/h was employed. The data analysis obtained from the experiment was normally distributed and independent, as shown in Figure 8a. At high wt.% of Zn loading on zeolite NaY, the CO2 adsorption increased for both raw materials, as shown in Figure 8b. Figure 8c exhibited that there was no interaction between the factors of Zn loading on zeolite NaY and raw material for zeolite synthesis on CO2 adsorption.

3.5.3. Effects of Raw Material and of Adsorption Temperature on the CO2 Adsorption

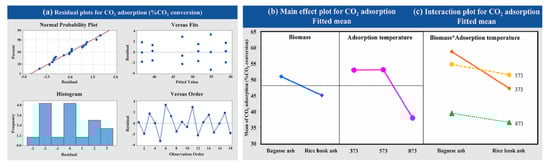

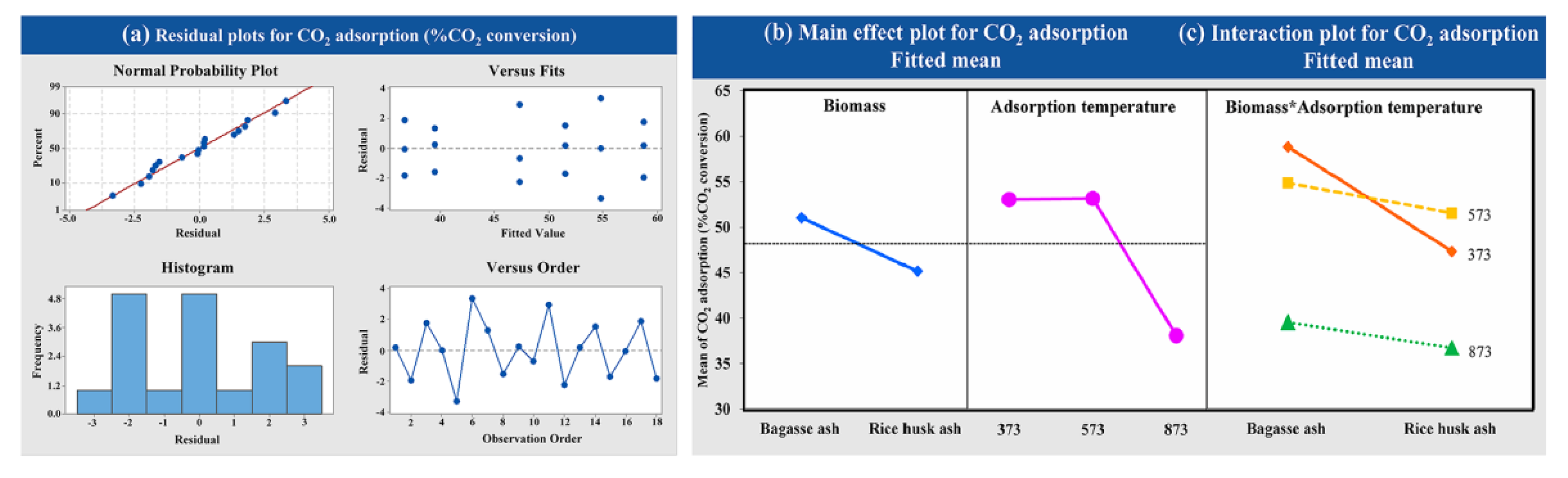

The factorial design was used to determine the statistical significance of CO2 adsorption with different raw materials (bagasse ash and rice husk ash) and adsorption temperatures (373.15, 573.15 and 873.15 K) on CO2 adsorption at a constant CO2 flow rate of 5 L/h. Figure 9a exhibited that the data obtained were normally distributed and independent from variance analysis. CO2 adsorption decreased at high adsorption temperatures, as illustrated in Figure 9b. Two factors of raw material and adsorption temperature interacted with each other as shown in Figure 9c. Analysis of interactions between the factors showed that the response was dependent on the level of the factor. The highest CO2 adsorption was found at 373.15 K and 573.15 K of adsorption temperature using adsorbents synthesized from bagasse ash and rice husk ash, respectively. The statistical results were according to the laboratory.

3.5.4. Effects of Raw Material and CO2 Flow Rate on the CO2 Adsorption

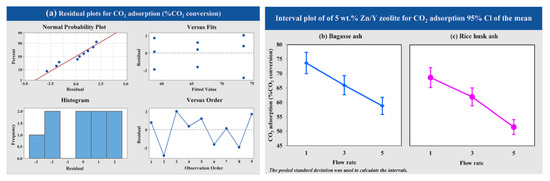

The effects of CO2 flow rate (1, 3 and 5 L/h) of 5 wt.% Zn/Y zeolites synthesized from bagasse ash and rice husk ash on the CO2 adsorption were used for variance analysis following a single factor (one-way ANOVA). Figure 10a shows that the variance analysis of data obtained from experiments was normally distributed and independent. The interval plot for each level of the CO2 flow rate on the CO2 adsorption of 5 wt.% Zn/Y zeolite synthesized from bagasse ash and rice husk ash, as shown in Figure 10b,c. At a low CO2 flow rate, the CO2 adsorption increased. Lower CO2 flow rate resulted in better CO2 adsorption performances of 5 wt.% Zn/Y zeolite synthesized from both raw materials.

4. Discussion

4.1. Silica Extraction from Bagasse Ash and Rice Husk Ash

XRF data revealed that the silica after extraction from bagasse ash and rice husk ash contained high silica content with a small amount of impurity. Bagasse ash and rice husk ash could be employed as an alternate silica source for zeolite NaY synthesis.

4.2. Synthesis of NaY Zeolite from Bagasse Ash and Rice Husk Ash

XRD patterns indicated that the crystallization rate was increased with increasing crystallization temperature, as evidenced by an increased degree of zeolite crystallinity with high peaks. Besides, it was indicated that as the crystallization temperature increased, the width of the peaks reduced, leading to enhanced crystal size. The SEM images of the synthesized zeolites NaY showed crystal sizes corresponding to the research of Rakpasert (2012) [67]. The temperature of zeolite synthesis is an important factor in the crystallization rate and the resulting zeolite structure. At high crystallization temperatures of zeolite synthesis, it results in a high degree of zeolite crystallinity, which leads to large crystals being obtained. On the other hand, higher crystallization temperatures cause the aluminosilicate species to form dense arrangements, which preclude the creation of a porous structure [74]. The crystal sizes in this study correspond to the research of Koroglu and his colleagues [74]. They discovered that zeolite Y formed small crystals under a crystallization temperature of 4 and 25 °C. Consequently, the optimal crystallization temperature was 298.15 K because synthesis at 4 °C requires energy for temperature control. In addition, the crystal size of zeolite NaY synthesized from bagasse ash was higher than that of rice husk ash, which corresponds to increased BET surface area, micropore volume and total pore volume in BET analysis.

4.3. Zn Loading to Zeolite NaY

The crystalline structure of zeolite NaY synthesized from bagasse ash and rice husk ash was well-preserved after the incorporation of Zn into the zeolite NaY, according to XRD patterns for all samples. The decreased crystallinity depends on the increase of the percentage of Zn loading to zeolite NaY. The SEM images of modified zeolite NaY from bagasse ash and rice husk ash from this research were consistent with Ca-exchanged FAU and LTA-type zeolite from bagasse ash. They have reported that the particle size and shape were found to be unchanged after ion exchange [73]. Moreover, the crystals corresponded to the results of the BET analysis. The BET surface area, micropore volume and total pore volume were increased with an increase in Zn loading. Due to surface modification of the zeolite could enhance the alkalinity and cations incorporated into the zeolite structure [75,76]. The degree of ion exchange is determined by the metal ion size and charge [77]. The results of BET surface area, micropore volume and total pore volume of Zn loading on zeolites also showed higher than pure zeolites. This is because Zn modifies the surface charge properties of zeolites by producing Lewis acidic sites and redox features, according to Esquivel and his colleagues [56].

4.4. CO2 Adsorption Test

4.4.1. Effect of Crystallization Temperature

The CO2 adsorption capacity of zeolites NaY from bagasse ash and rice husk ash was increased with a decrease in the temperature of crystallization. The CO2 adsorption capacity was increased when using bagasse ash for zeolite NaY synthesis because of its great physical properties. Furthermore, the variance analysis showed that factors of crystallization temperature significantly affected CO2 adsorption, because the p-value was less than 0.05. This indicated that the increased crystallization temperature negatively affected the CO2 adsorption. The interaction plots also indicated no interaction between factors of raw material and crystallization temperature of zeolite synthesis, the p-value of which was more than 0.05 (p = 0.937).

4.4.2. Effect of Zn Loading

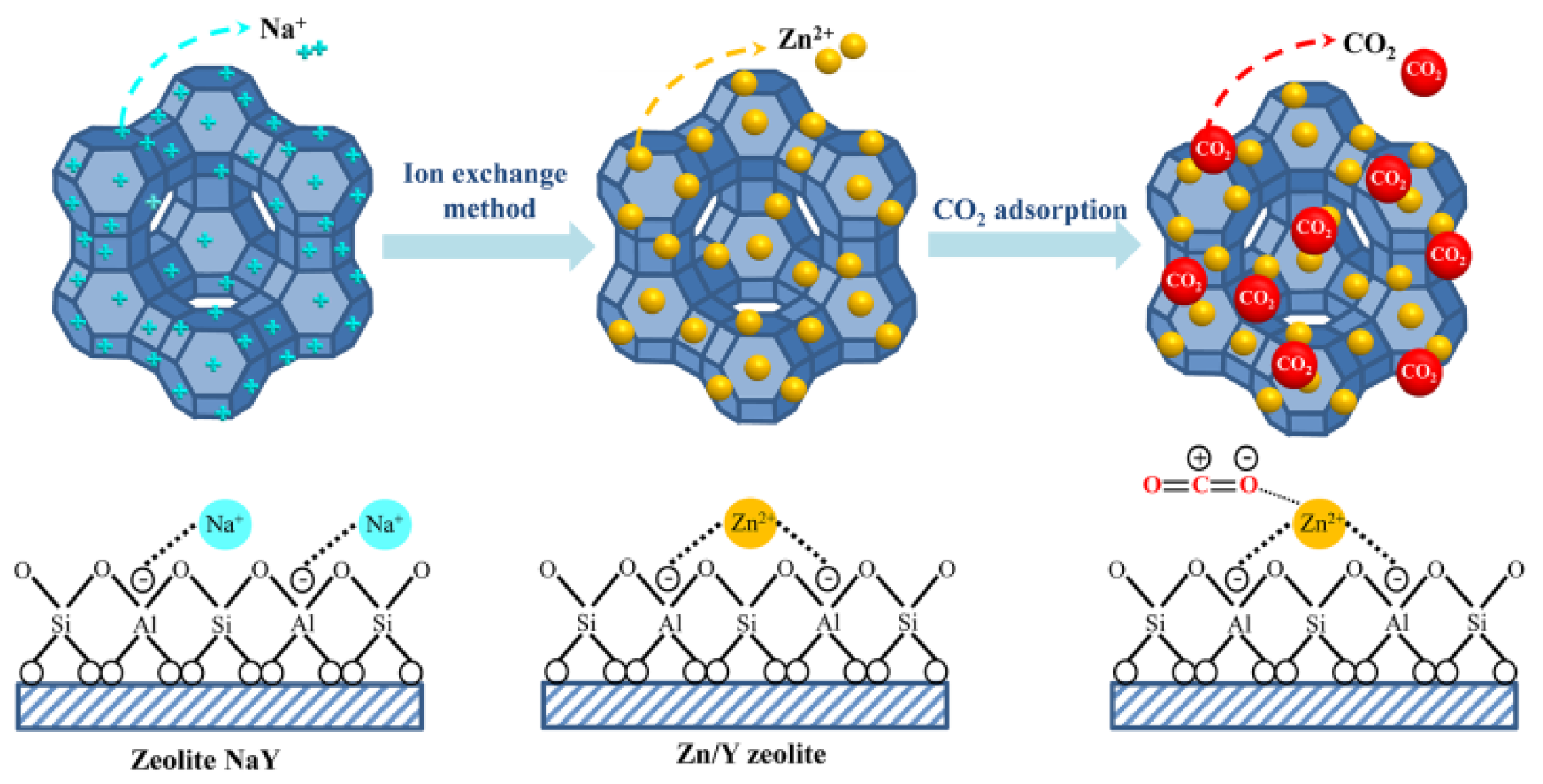

The zeolite NaY modified with Zn exhibited a beneficial higher CO2 adsorption capacity than pure zeolite, which corresponded to the BET analysis. The result also showed that the CO2 adsorption capacity was increased with increasing the amount of Zn loading from 1 to 5 wt.% according to their physical properties. The increased surface area and total pore volume of zeolite NaY resulted in an increase in the number of adsorption sites for CO2 adsorption, which corresponded to the research of Zhang et al. (2018) [78]. Figure 11 showed a possible mechanism for CO2 adsorption on Zn/Y zeolite. The zeolite structure was composed of Na+ cations that are easily interchangeable with others to compensate for negative charge excess [54]. Two monovalent cations of Na+ must be replaced by a single divalent cation of Zn2+ to modify the surface charge characteristics of zeolite, resulting in a high surface area and an electric field gradient within the pores and frameworks. When Zn/Y zeolite is used to adsorb CO2, the Zn cation exhibits a stronger interaction with the CO2 molecule, which leads to stronger CO2 adsorption [57]. Due to the high surface area of the Zn/Y zeolite, there were more active sites on the zeolite [70]. The results agreed with the previous statistical analysis section. Based on the obtained results of the variance analysis, it was observed that the p-value was less than 0.05. The results of this analysis confirmed that Zn loading was statistically significant. The interaction plots showed that there was no interaction between the factors of Zn loading on zeolite NaY and raw material for zeolite synthesis on CO2 adsorption (p = 0.311, which was more than 0.05).

4.4.3. Effect of Adsorption Temperature

The results indicated that at high adsorption temperatures, the CO2 adsorption capacity decreased. Low adsorption temperatures resulted in physical adsorption rather than chemical adsorption. The surface area of the adsorbent, thus, holds an important role in the adsorption process at low temperatures when the adsorption temperature is increased [23,52,79]. The amount of CO2 molecules adsorbed decreased at temperatures higher than 873.15 K, which corresponds to the research of Hedin and his colleagues [72]; its high number of adsorption sites and thermal conductivities corresponded to the research of Nyankson and his colleagues [23,52,77,79] Moreover, the variance analysis revealed that the adsorption temperature was significant on CO2 adsorption because the p-value was less than 0.05 (p-value = 0.000, which α = 0.05). It was demonstrated that 873.15 K negatively affected the CO2 adsorption. The interaction plots of two factors (raw material and adsorption temperature) showed interaction with each other because the p-value was less than 0.05 (p = 0.009, which α = 0.05). This analysis confirmed that the raw material and the adsorption temperature had interacted with each other, and they affected the CO2 adsorption of zeolite NaY.

4.4.4. Effect of CO2 Flow Rate

The CO2 adsorption with a CO2 flow rate of 1 L/h was more than 0.25 times of 5 L/h. At a low CO2 flow rate, the CO2 adsorption was maintained over operating time. While the CO2 flow rate was increased, the outflow CO2 concentration increased, and total adsorption operating time was greatly reduced, according to the research from Cho et al. (2015) [80]. The residence time of the CO2 flow rate at 1 L/h was longer than at 5 L/h. According to the research of Worathanakul and her colleagues [81], it could take more time to bind to CO2 molecules, leading to enhanced CO2 uptake. Analysis of variance results confirmed that the factors of CO2 flow rate were statistically significant, with a p-value of the CO2 flow rate factor less than 0.05. It was indicated that the increased CO2 flow rate negatively affected CO2 adsorption.

5. Conclusions

The zeolite NaY was successfully developed from bagasse ash and rice husk ash under the optimal crystallization temperature of 298.15 K. The formation of spherical-like crystals of zeolite NaY was confirmed by SEM images. The crystal size of the zeolite NaY decreased with the decrease in crystallization temperature, which would result in better CO2 adsorption performance. The crystal size and shape of the zeolite NaY did not change after being modified with Zn loading. The amount of Zn loading from modified NaY zeolite was higher in the BET surface area, micropore volume and total pore volume than pure zeolites. While a high wt.% of Zn loading on zeolite NaY resulted in good performance of CO2 adsorption. The CO2 adsorption capacity was also increased with the decrease in CO2 flow rate and adsorption temperature. The highest CO2 adsorption capacity was obtained at an adsorption temperature of 373.15 K and a CO2 flow rate of 1 L/h on zeolite 5B298-373-1. In addition, the data on CO2 adsorption capacities were analyzed in Minitab using a one-way ANOVA and a factorial design. In the CO2 adsorption test, the types of adsorbents and adsorption temperature interaction were affected in CO2 adsorption. Furthermore, the capacity of our advanced functionally synthesized zeolite NaY was higher than others and took a short time to crystallize the zeolite NaY at a low temperature. These characteristics suggested that bagasse ash and rice husk ash are eco-friendly and could be employed to decrease industrial pollution. They are also low-cost precursors and value-added materials as sustainable CO2 adsorbent materials.

Author Contributions

Writing—original draft preparation, P.T.; Minitab software analysis, S.S.; writing—review and editing, P.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Thailand Research Fund (TRF), grant number PHD59I0018 and U-Thong biomass Company Limited.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

This study did not report any data.

Acknowledgments

We would like to thank the Graduate College at King Mongkut’s University of Technology North Bangkok for supporting this research. We also to thank Khonburi Sugar Public Co., Ltd., Thailand for supporting materials used for experiments.

Conflicts of Interest

The authors declare no conflict of interest.
