Drought Assessment in São Francisco River Basin, Brazil: Characterization through SPI and Associated Anomalous Climate Patterns

by
Aline A. Freitas
1,
Anita Drumond
2,*,
Vanessa S. B. Carvalho
1,
Michelle S. Reboita
1,
Benedito C. Silva
1 and
Cintia B. Uvo
3,4
1
Instituto de Recursos Naturais, Universidade Federal de Itajubá, Itajubá 37500-903, Brazil
2
Instituto de Astronomia, Geofísica e Ciências Atmosféricas, Universidade de São Paulo, São Paulo 05508-090, Brazil
3
Finnish Environment Institute, Latokartanonkaari 11, 00790 Helsinki, Finland
4
Division of Water Resources Engineering, Lund University, P.O. Box 118, 22100 Lund, Sweden
*
Author to whom correspondence should be addressed.
Atmosphere 2022, 13(1), 41; https://doi.org/10.3390/atmos13010041
Submission received: 16 November 2021 / Revised: 22 December 2021 / Accepted: 23 December 2021 / Published: 28 December 2021
(This article belongs to the Special Issue Feature Papers in Atmosphere Science)
Browse Figures
Versions Notes

Abstract

:
The São Francisco River Basin (SFRB) is one of the main watersheds in Brazil, standing out for generating energy and consumption, among other ecosystem services. Hence, it is important to identify hydrological drought events and the anomalous climate patterns associated with dry conditions. The Standard Precipitation Index (SPI) for 12 months was used to identify hydrological drought episodes over SFRB 1979 and 2020. For these episodes, the severity, duration, intensity, and peak were obtained, and SPI-1 was applied for the longest and most severe episode to identify months with wet and dry conditions within the rainy season (Nov–Mar). Anomalous atmospheric and oceanic patterns associated with this episode were also analyzed. The results revealed the longest and most severe hydrological drought episode over the basin occurred between 2012 and 2020. The episode over the Upper portion of the basin lasted 103 months. The results showed a deficit of monthly precipitation up to 250 mm in the southeast and northeast regions of the country during the anomalous dry months identified through SPI-1. The dry conditions observed during the rainy season of this episode were associated with an anomalous high-pressure system acting close to the coast of Southeast Brazil, hindering the formation of precipitating systems.

1. Introduction

Droughts are a complex problem and can have different meanings and effects for different sectors, such as agriculture, water management, and hydroelectric systems [1,2]. Generally speaking, droughts are defined for water deficits when compared to normal conditions and can be classified as meteorological, agricultural, hydrological, and socioeconomic, according to the impact associated [2,3]. Lack of precipitation over time and/or space is the initial stage of all types of droughts and can be defined as a meteorological drought. Agricultural drought is the evolution of a meteorological drought when the lack of soil moisture begins to affect the agricultural demands of a region. When the dry period causes a decrease in soil moisture levels, river flows, groundwater recharge, and in the amount of water present in the hydrological cycle, it becomes a hydrological drought. Finally, the last stage is the socioeconomic drought, which occurs when insufficient water supply promotes a demand that exceeds the supply for an economic good [4].
As the impacts and causes of droughts are varied, different indices and indicators can be used to monitor different stages of the hydrological cycle and to help identify the beginning, location, severity, and the end of such conditions [5]. Some indices consider precipitation or a combination with other variables [6]. In Brazil, according to WMO and GWP [5], the National Meteorological and Hydrological Services (NMHSs) listed the five main indices applied in the country as: the Standardized Precipitation Index (SPI) [7], Palmer Drought Severity Index [8], Standardized Evapotranspiration Index [9], Crop Moisture Index [10], deciles and quintiles [11], and crop-specific drought indices [12].
Although there are different methods to study hydrological droughts, each with its own advantages and limitations, in Brazil, many studies have used the SPI on a 12-month scale [13,14,15,16]. The SPI is an index developed by McKee et al. [17] that is based on the accumulated precipitation deficit for a given period. One of its main advantages is that it can be calculated for different time scales, which can be related to impacts of the drought in different components of the hydrological cycle [1]. On a 12-month scale, according to McKee et al. [17], this index can be related to hydrological droughts, since the deficit of precipitation on this scale impacts water resources. The SPI’s main limitation is that this index is not able to account for the temperature component, which is important in evapotranspiration processes, since only precipitation is considered in its calculation [1]. Thus, to study droughts associated with deficit precipitation, the SPI is a good methodology.
Extending from the latitudes 7°00′ S to 21°00′ S, i.e., from the southeastern region of Brazil (SEB) to the northeastern region of Brazil (NEB), the São Francisco (SF) River is known as the river of national integration, and one of its most important functions is to transport water to the semiarid region of Brazil [18,19]. Due to its extension, it is subdivided into four regions: Upper, Middle, Middle, and Lower SF [18,19], with more than half of the SF River Basin (SFRB) in the NEB [20]; however, 70% of the outflow of the entire SF River comes from the SEB [21]. The NEB has documented droughts since the 16th century with significant social and economic impacts [14,15,22,23]. Paredes-Trejo et al. [24] applied several drought indices based on remote sensing (SMOS-Based Soil Water Deficit Index, Self-Calibrating Palmer Drought Severity Index, Water Storage Deficit Index, and GRACE-Based Groundwater Drought Index) and in soil (Standardized Precipitation Evapotranspiration Index and Standardized Streamflow Index) to analyze the impacts of different drought types on the SFRB. The authors revealed, between 1980 and 2015, a drying trend in the mid- and southern regions of the SFRB. In the SEB, dry periods have been extensively reported since the late 1990s [25,26], and according to Geirinhas et al. [27], the states of Minas Gerais, São Paulo, and Rio de Janeiro recorded statistically significant increases in the number of episodes of summer droughts and heat waves between 1980 and 2018.
To assess the drought events in Brazil from 2011 to 2019, Cunha et al. [14] used the Integrated Drought Index (IDI). This index combines a meteorological index (SPI) with a remote sensing-based index (Vegetation Health Index—VHI). According to the authors, drought events were identified between 2011 and 2019 throughout the country, and the SEB was the Brazilian region with the most intense drought event between the periods 2011 and 2019 [14]. In 2014/2015, a period in which the region faced a severe water crisis, coffee and sugarcane plantations were affected, with estimated losses for the agricultural sector of about US$ 5 billion in 2014 [28]. The water supply systems were also heavily impacted; in January of 2015, the storage level of the Cantareira system, the main one in the Metropolitan Area of São Paulo where more than 20 million live, reached 5% of its entire capacity [29,30]. The NEB presented, between 2011 and 2017, the most extreme drought experienced by the region in decades. This drought resulted in the declaration of a state of emergency in 997 municipalities and had a considerable impact on the agricultural sector, with losses that could reach US$ 6 billion, affecting the economy of hundreds of cities and towns [31,32].
According to Marengo et al. [33], in the semiarid region of the SFRB, some effects of droughts are associated with the increase of hunger and poverty. The 1262 municipalities in the semiarid region are mostly located in nine states of NEB and in the state of Minas Gerais (SEB), covering an area of 1,128,697 km2 [34]. Due to climatic factors and human activities, this region has been undergoing desertification processes [35,36,37,38]. In Brazil, desertification processes have begun to be identified in semiarid regions since the 1970s, and the areas affected by this process are areas where extreme drought events occur [39]. Tomasella et al. [37] used 17 years (2000–2016) of images from the Normalized Difference Vegetation Index (NDVI) to monitor areas of bare soil located in the equatorial zone (1–21° S/32–49° W) and found an intensification in the degradation of the semiarid region in recent years, which was enhanced by the droughts registered in the region since 2011 [40], through interviews carried out with residents of the semiarid region during the research project “PI-SSA”—Projeto Integrativo de Segurança Socioambiental, which highlighted the damage to crops as one of the main impacts caused by drought in recent years when 7 or 8 years without harvesting were reported.
Variations in atmospheric circulation patterns in the NEB and SEB may directly affect the availability of water in the SFRB [25,41]. Usually, droughts in the NEB are mainly associated with (a) the occurrence of the warm phase of the El Niño Southern Oscillation (ENSO) phenomenon, resulting from an anomalous warming of the surface of the Tropical Pacific sea, which causes changes in the Walker zonal circulation cell, negatively impacting precipitation in the NEB [42,43,44,45] and (b) part of the rainfall variability is explained by warming in the North Tropical Atlantic Ocean, which results in an anomalous position further north of the Intertropical Convergence Zone (ITCZ) compared to its climatological position [45,46,47,48,49,50,51]. The SEB is located in the transition region of the tropical and extratropical atmospheric regimes and presents complex drought mechanisms, which affect weather patterns and, consequently, the rainfall [52]. The severe drought of 2014/2015, for instance, was associated with an anomalous convective activity in the region of Australia that triggered the action of an anomalous high atmospheric pressure system over the warmer South Atlantic Ocean. This pattern led to the frontal systems having more oceanic trajectories and disfavored the formation of South Atlantic Convergence Zone (SACZ) events, which, together with local convection, is the main system causing rain in the SEB [25,26,53,54].
Drought episodes have been associated with the natural climate variability and the effects of climate change. Studies such as those by Marengo [55], PBMC [56] and Reboita et al. [57] have indicated the NEB as the most vulnerable to increases in extreme dry events in the country, with a possible reduction up to 40% in the precipitation rates [58]. In this region, meteorological, agricultural, and hydrological droughts could become longer, more intense, and frequent [59]; in addition, Marengo et al. [32] and Reboita et al. [57] showed that drought episodes will likely continue to occur and intensify in the future, according to climate projections. Increases in the temperature are predicted over SEB, reaching up to 5 °C in the state of Minas Gerais; increases are also expected in extreme events of heat and precipitation, associated with longer dry spells [60,61,62]. According to Silveira et al. [63], the projections of the CMIP5 models also point to a trend of increase of the air temperature along the SFRB for the period from 2011 to 2100, estimated at +2 °C considering the RCP 4.5 scenario and above +4 °C using the RCP 8.5 scenario. For the next decades, climate projections also show an increase in the water deficit, a reduction of the flow in the basin, and, as consequence, a reduction of almost 60% in the annual average of energy generated by hydro power plants in the SFRB. These projections suggest that the region would become more susceptible to drier conditions [33,64,65,66].
While there are several studies that identify the droughts over the region of the São Francisco River Basin (SFRB), concentrating on evaluating extreme drought events in terms of occurrence, persistence, spatial extent, severity and impacts, e.g., Paredes-Trejo et al. [24], few discuss the drivers of the droughts. Therefore, making use of the SPI, this study aims to: (a) identify hydrological drought events in each one of the four subregions of the SFRB from 1979 to 2020 through a SPI–12 time series and (b) analyze the anomalous atmospheric and oceanic patterns associated with the anomalous dry rainy season months (identified via SPI-1) registered during the hydrological drought, with the longest and most severe drought identified in (a), taking into account the events identified for all the regions.

2. Materials and Methods

2.1. Study Area

The SFRB is one of the main Brazilian watersheds. This basin runs for 2863 km; crosses six Brazilian states [20]; and it is subdivided into four regions: Upper, Middle, Sub-Middle, and Lower SF (Figure 1) [67]. The SFRB stands out (a) for its power generation potential with important hydro power plants such as Três Marias, Sobradinho, Paulo Afonso, Itaparica, and Xingó and (b) for the water supply for the population and its activities, among other ecosystem services such as: navigability, fishing activities, agriculture, and basic sanitation [68].

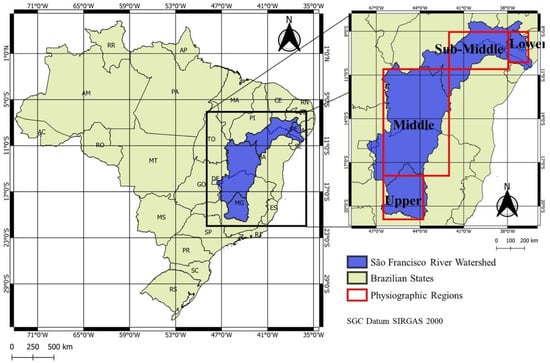

The SFRB (Figure 1, left) covers an area of approximately 638,466 km2, comprises about 7.5% of the entire Brazilian territory, and has a population of over 14 million inhabitants [18,69]. Most of the population (7,075,587 people) is located in the Upper SF [69]. Along its physiographic regions, fragments of different biomes are found, such as: Cerrado in the Upper and Middle SF; Caatinga in the Middle, Sub-Middle, and Lower SF region; and the Atlantic Forest in the Upper region and in the coastal areas of the Lower SF [19,70].
Due to its territorial extension, different climate patterns are found in its subregions. According to the Köppen climate classification, the Upper SF has a predominance of Aw climate (warm and humid tropical, with dry winters); in the Middle SF, Aw and BShw (semiarid) prevail; the BShw climate predominates in the Sub-Middle region; and the As climate (warm and humid tropical, with rainy winters) in the Lower SF [71]. The precipitation patterns in the basin show a decrease from the headwater, which is located in the SEB (Upper SF) towards the mouth of the river located on the coast of the NEB (Lower SF) [72]. The main systems responsible for the precipitation in the SFRB are the SACZ [73,74,75] in the Upper and Middle SF and the ITCZ [76] in the Sub-Middle and Lower SF.

2.2. Data

Different datasets were used in the study. Precipitation data between 1979 and 2020 from the Gauge-Based Analysis of Global Daily Precipitation (CPC) generated by the National Oceanic and Atmospheric Administration/Climate Prediction Center (NOAA/CPC) were used. CPC has a spatial resolution of 0.5° and is constructed based on surface observations of approximately 30,000 stations distributed across the globe, which are interpolated to create a higher-quality unified set [77,78]. Therefore, the direct comparison of CPC interpolated data and rain gauge stations shows similar results [79]. For each SF sub-basin, Upper SF (20°75′ S/17°75′ S–46°50′ W/43°75′ W), Middle SF (17°75′ S/10°50′ S–46°50′ W/42°00′ W), Sub-Middle SF (10°50′ S/8°00′ S–42°00′ W/38°00′ W), and Lower SF (10°00′ S/8°00′ S–38°00′ W/36°75′ W; red boxes indicated in Figure 1 right), a monthly precipitation time series based on the areal average was constructed.
ERA5 Reanalysis [80] data for geopotential heights and zonal and meridional components of the wind at 850- and 250-hPa levels, sea surface temperature (SST), and mean sea level pressure (MSLP) were also analyzed. The data are provided by the European Center for Medium-Range Weather Forecasts (ECMWF) and have a spatial resolution of 0.25° (https://climate.copernicus.eu/climate-reanalysis, accessed on 30 April 2021). The 850- and 250-hPa levels were selected, as they best represent the South American low and high levels atmospheric circulation patterns, respectively [81]. At the 850-hPa level, the low-level jets of South America are represented without the influence of topography, while, at the 250-hPa level are the high-level jets and the Bolivian High-Pressure System [82].
The Tropical Southern Atlantic Index (TSA) [83] and the Oceanic Niño Index (ONI), both available on the National Oceanic and Atmospheric Administration (NOAA—https://psl.noaa.gov/data/climateindices/list/#Nina34, accessed on 11 August 2021), were used to indicate the anomalous conditions of the sea surface temperature in the Tropical South Atlantic and Central-East Pacific Oceans. The South Atlantic Subtropical Anticyclone Index (Índice do Anticiclone Subtropical do Atlântico Sul—IASAS) [84] was also included to control the MSLP over the SEB and Southern Brazil as a response of the South Atlantic Subtropical Anticyclone (SASA) influence. This index is obtained through the difference of MSLP over the SEB and Southern Brazil [84] and is available on the website of the Universidade Federal de Itajubá (UNIFEI—https://meteorologia.unifei.edu.br/teleconexoes/, accessed on 11 August 2021). When the IASAS is positive (negative), the MSLP is higher (lower) over the SEB and lower (higher) over the southern region. Then, the positive index phase indicates that the rainfall is concentrated over Southern Brazil, since the low-level jet east of the Andes flows in the direction of the lower pressure, contributing to the moisture convergence.

2.3. Identification of Dry Periods

The SPI is an index developed by McKee et al. [17] that uses only precipitation data to identify wet and dry periods. This index measures the precipitation anomalies in a given location by comparisons with the total rainfall accumulated rates for the reference period. The index can be calculated for different time scales of accumulation. The 1-month scale (SPI-1) can reflect short-term conditions and can be used for the analysis of meteorological droughts [1]. The 12-month scale (SPI-12), in addition to long-term precipitation patterns, can also be associated with anomalies of river flows and reservoir levels [1], and it was chosen to assess hydrological droughts in the SF, following Santos et al. [85]. By calculating the SPI, the time series is adjusted to a gamma function, and, after this process, it is transformed into a variable with normal distribution; therefore, the average of the SPI is always zero, and its variance has a unit value [86]. For its calculation, it is recommended to have no missing data, as described by Silva et al. [7], McKee et al. [17] and Guttman [87]. SPI-1 and SPI-12 were applied to identify the dry periods in the SF subregions between 1979 and 2020. The monthly rainfall series used in the SPI (SPI-1 and SPI-12) calculations had no missing data.
SPI positive values indicate rainy periods, while negative values characterize rainfall deficits. The onset of a drought episode can be identified when the SPI changes from a positive to a negative value, and it ends when the index returns to a positive value; however, to define the event as dry, the SPI must reach a value less than or equal to −1 [17]. Works such as Gozzo et al. [52], Stojanovic et al. [88] and Drumond et al. [89] also applied a similar methodology to assess the onset of events in order to include the mild dry conditions that lead to the establishment of a drought in the analysis. In addition to the criteria to define a drought, McKee et al. [17] created a system to classify the SPI values, as shown in Table 1. Hence, after the identification of SPI-12 drought episodes, the parameters of severity (absolute sum of all SPI-12 values during the event), duration (number of months between the first and last month of the event), intensity (ratio between severity and duration), and peak (highest absolute SPI-12 value registered during the event) were calculated according to McKee et al. [17].
For this analysis, the longest and most severe hydrological drought was identified through SPI-12. Afterwards, SPI-1 was used to select months during the rainy season that prevailed over the SFRB (from November to March), presenting anomalous dry conditions (SPI-1 is less than −1) within this event. In addition, SPI-1 was also applied to identify months with near-normal conditions (SPI-1 between −0.99 and 0.99) from November to March (Nov–Mar) during the period 1979–2020 (Figure 2).

2.4. Anomalous Atmospheric and Oceanic Patterns

Monthly composite maps were plotted using ERA5 to investigate the atmospheric and oceanic patterns associated with the meteorological dry conditions (identified via SPI-1) observed during the rainy season of the longest and most severe hydrological drought in the SFRB (identified by the SPI-12 analysis). The composite maps were computed by subtracting the average of the drier months identified through SPI-1 within the hydrological drought episode selected from the average of the near-normal months within the studied period (1979–2020). Both months (dry and normal) were identified with SPI-1.

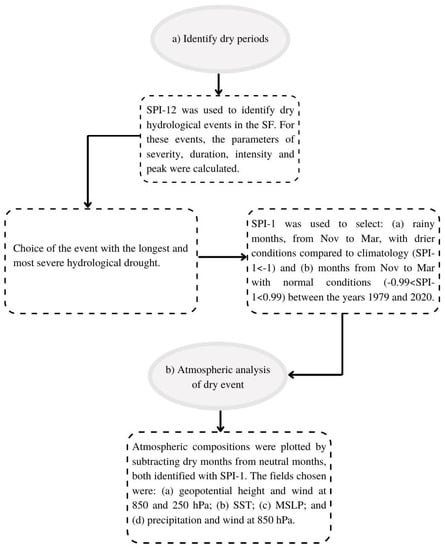

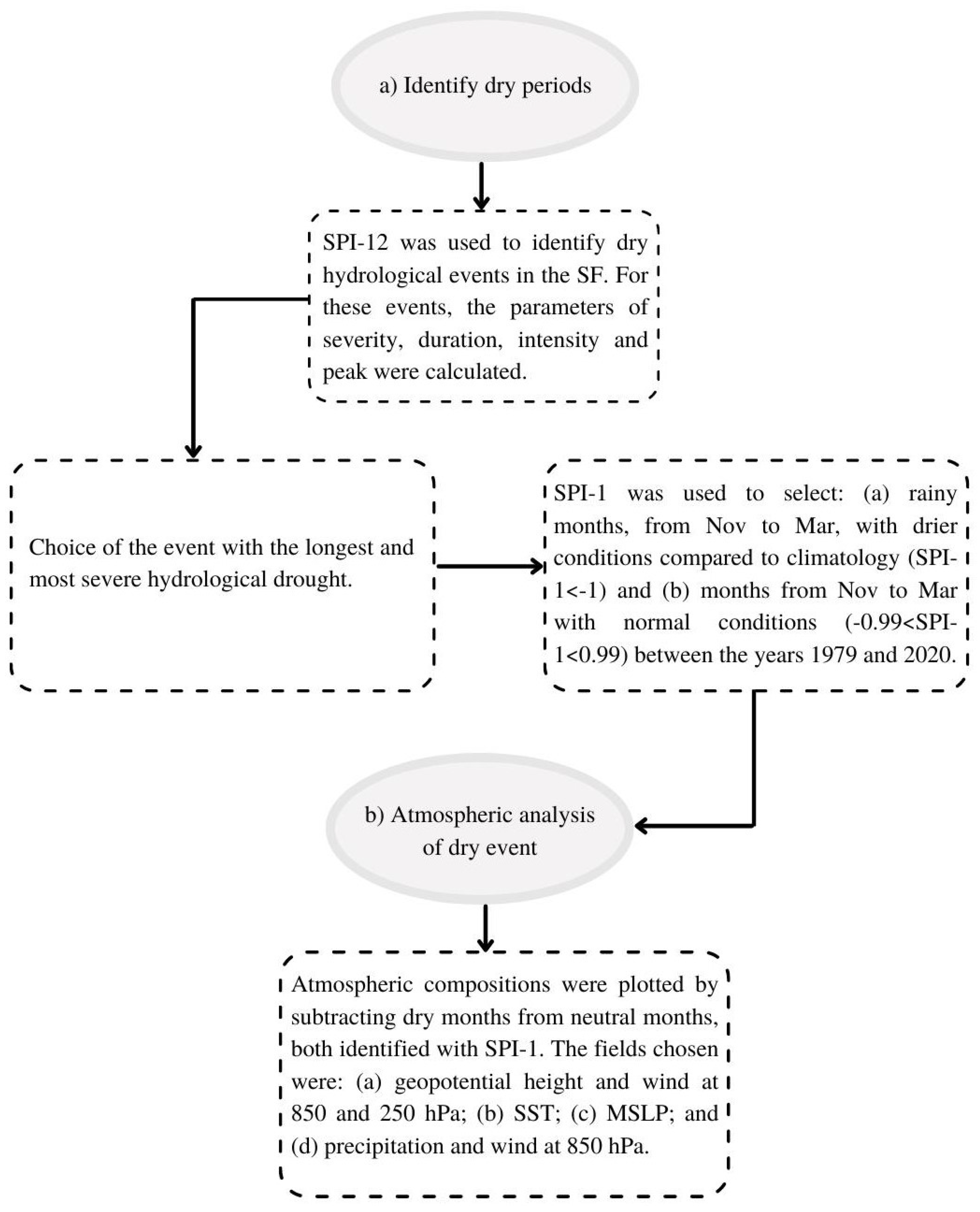

Figure 2 summarizes the methodology applied in this work through a flow chart.

3. Results and Discussion

3.1. Climatology of Precipitation in the SFRB

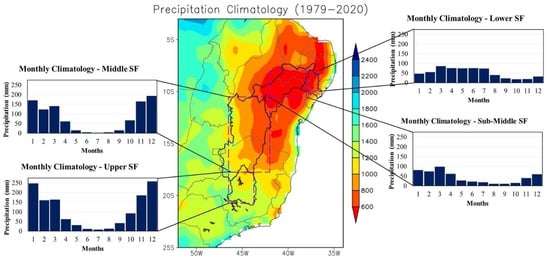

The annual and monthly rainfall climatology in the SFRB, considering the period from 1979 to 2020, were calculated in order to identify the wet season in the subregions. The results are shown in Figure 3.
The rainfall regime in the basin presents temporal and spatial variability, agreeing with the results of Cruz et al. [90]. The highest annual accumulated rainfall is concentrated in the Upper and Middle SF regions, with 1200–1400 mm per year. In the Upper and Middle SF, the wettest months are November, December, January, February, and March, while the precipitation is the minimum during June, July, and August.
The total annual precipitation rates for the Sub-Middle and Lower SF are smaller, with values between 600 and 1000 mm per year. Differing from the other regions, the rainy season in the Lower SF is concentrated between the months of March, April, May, June, and July. In turn, the dry season occurs during the months of September, October, and November.
The rainfall annual cycle in the Upper and Middle SF regions follows the South American Monsoon precipitation regime, with wet summers and dry winters [82]. On the other hand, the precipitation cycle in the Sub-Middle and Lower SF is slightly different, mainly in the Lower SF, which is strongly influenced by the ITCZ that migrates to its southernmost position in the austral autumn months—wet season [82].

3.2. Identification of the Dry Periods

SPI-12 was used to assess the hydrological drought episodes between 1979 and 2020 in the four subregions (Table 2). Analyzing the parameters of severity and duration, the drought that affected the Upper SF in the last decade (2012–2020) was the most severe and the longest (in total, it lasted 103 months) among all the episodes identified in the four subregions. In addition, this episode peaked at 3.08 in January 2015 (Table 2), which refers to precipitation deficit conditions accumulated from February 2014 to January 2015 falling into the extreme drought category (as presented in Table 1). The major impacts of this extremely dry year were described in the literature and discussed in Section 1. Although not the objective of the present work, it would be interesting in further studies to investigate the anomalous climate patterns during the year that preceded this peak of −3.08 as an attempt to understand the extreme climate conditions involved.
Since the 2012–2020 drought in the Upper SF was the most severe and the longest among all the episodes identified for all subregions, this was the episode chosen for the analysis of the atmospheric and oceanic patterns. It is important to highlight that the period 2012–2020 also encompasses the SPI-12 drought episodes configured in the other subregions of the SFRB, indicating the predominance of dry conditions at the basin scale during these years. For instance, the Upper SF and Middle SF had very similar drought event distributions, with the Middle SF presenting only three months of accumulated humid conditions. The Sub-Middle SF was also affected by the SPI-12 drought during 2012–2018, presenting only three months of accumulated wet conditions. The period of 2012–2020 was also predominantly dry in the Lower SF.
Moreover, the largest part of the basin’s population lives in this subregion [69], and 70% of the flow of the entire SF river comes from this region and from part of the Middle SF [21]. Therefore, the lack of rainfall in the region can compromise the amount of water available along the basin. The results obtained through the SPI-12 analysis are in accordance with the ones obtained via different methodologies for the NEB [14,15,22,23]. Droughts were also detected in the SEB during the middle 2010s [25,26,53,54].
The months during the wet season (Nov–Mar) presenting: (a) dry conditions during the selected drought event (2012–2020) and (b) near-normal conditions within the entire period 1979–2020 were identified through the Upper SF SPI-1 time series, and the results are shown in Table 3. Within the drought event studied, the year 2014 was the only one with extremely dry conditions during three out of four months of the wet season (Dec–Feb), indicating the exceptionality of this year as pointed out by the SPI-12 peak in January 2015. Considering the entire study period, December was the month with the highest number of years with extreme drought conditions. In March, dry conditions were identified only twice, and both of them reached the category moderate. November was the only month of the rainy season that did not present dry conditions in any year of the selected event. Further details of the SPI-1 and SPI-12 time series are found in Figures S1 and S2 of the Supplementary Material.
Table 4 shows that the months with meteorological dry conditions in the Upper SF during the 2012–2020 event (Table 3) also encompassed the dry months identified for the other subregions, mainly during the months of Dec–Feb (austral summer). Following the same criteria applied in Table 3 for the Upper SF, the months of dry conditions between Nov and Mar for each subregion have been identified through their respective SPI-1 time series and are presented in Table 4, in which is considered the different drought events of each region within the period 2012–2020 (Table 2). This result justifies the representativeness of the results based on the 2012–2020 Upper SF analysis as the basin domain, in addition to its socioeconomic and hydrological issues already discussed. Even though the Lower SF has a distinct rainfall regime, the dry months of the austral summer coincide with the dry months of the Upper SF. The similarity in the dry periods is even higher between the Middle SF and Upper SF, which have a similar rainy season. Major differences were found during March, a rainy–dry transition month. While it is the dismissal of the rainy season in the Upper SF and Mid SF, the peak of precipitation in the Sub-Middle and the Lower SF normally occurs in March.

3.3. Anomalous Atmospheric and Oceanic Patterns

After the identification of the dry and normal months through SPI-1 for the Upper SF (shown in the Table 3), atmospheric field composite maps were made in order to verify the anomalous atmospheric and oceanic patterns associated with dry conditions. These composite maps were plotted by subtracting the average of variables in the dry months, within the hydrological drought event, from the average of the variables in the normal months for the entire period. As the month of November did not present any year with a dry condition within the analyzed event, the composite maps were made considering only the dry months from December to March.

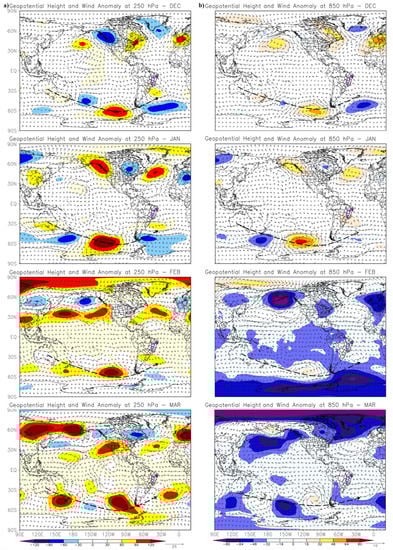

The geopotential height composite map and wind at 850 and 250 hPa shows a wave propagation pattern from the vicinity of Australia through Southern South America to the SEB region of Brazil (Figure 4a,b) through all months (Dec–Mar). In the SEB, this pattern reaches positive values of geopotential height and anticyclonic atmospheric circulation, which characterizes a region with a high atmospheric pressure system. This circulation pattern, shown in Figure 4, is similar to the anomalous patterns found for the drought associated with the Brazilian energy crisis in 2001 [91] and the water crisis in the SEB in 2014 [54].

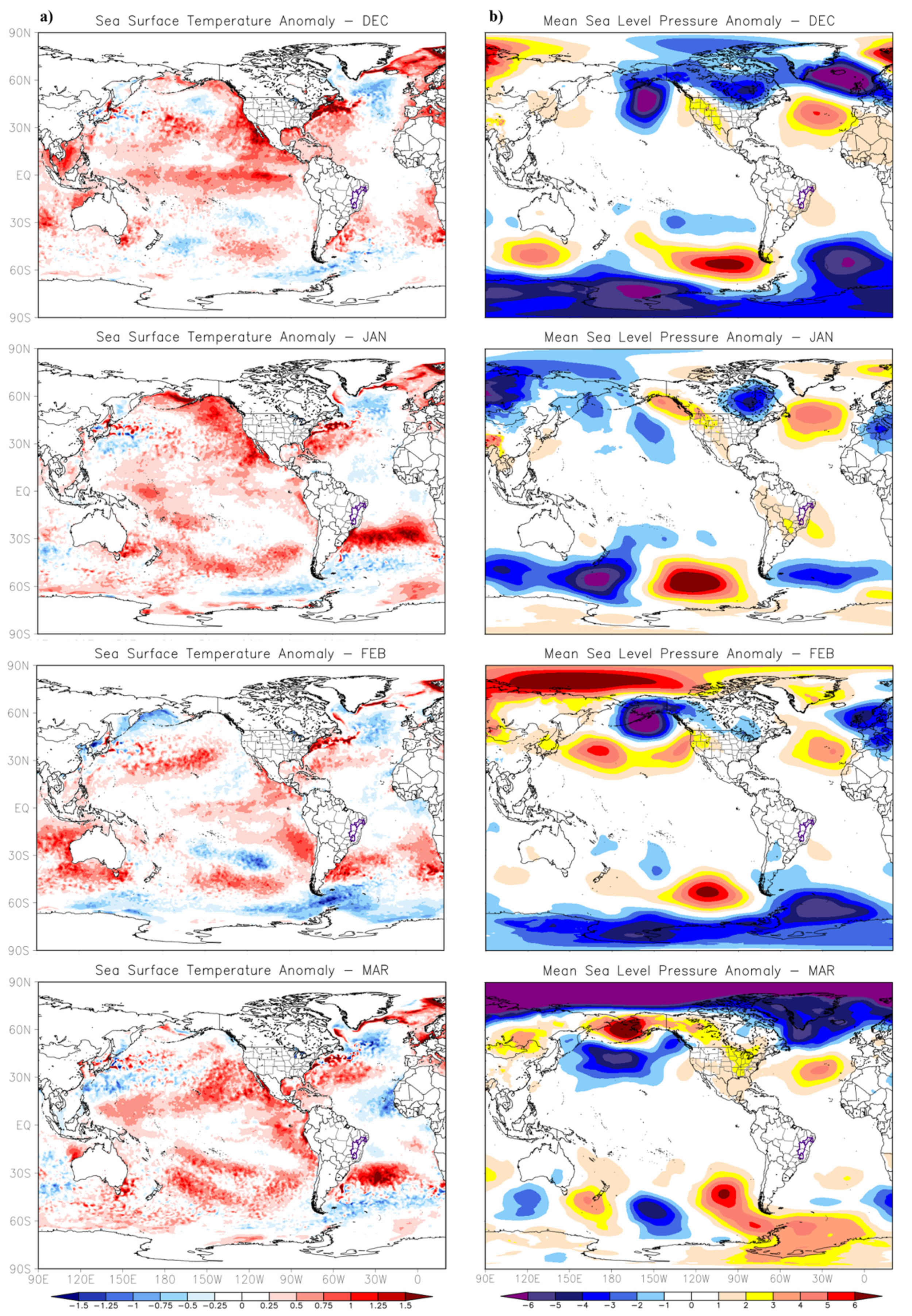

The Tropical Atlantic Ocean shows conditions closer to the climatological features, while the Tropical Pacific Ocean does not indicate El Niño and La Niña conditions, which can be confirmed by the indices shown in Table 4. In the South Atlantic Ocean, patterns similar to those shown in Figure 4 are also found through the MSLP composite map (Figure 5b). Between 30° S and 60° S latitudes, there is a predominance of positive SST anomalies (Figure 5a) and a high atmospheric pressure system. In the presence of high-pressure anomalies, solar energy can more efficiently warm the ocean surface. Therefore, there is a combination of processes: an anomalous wave propagation pattern favors the predominance of anticyclonic anomalies close to the Brazilian coast, which, in turn, hinder the formation of precipitation systems, so that the sky becomes less cloudy and there is a more effective warming of the SST [53,54].

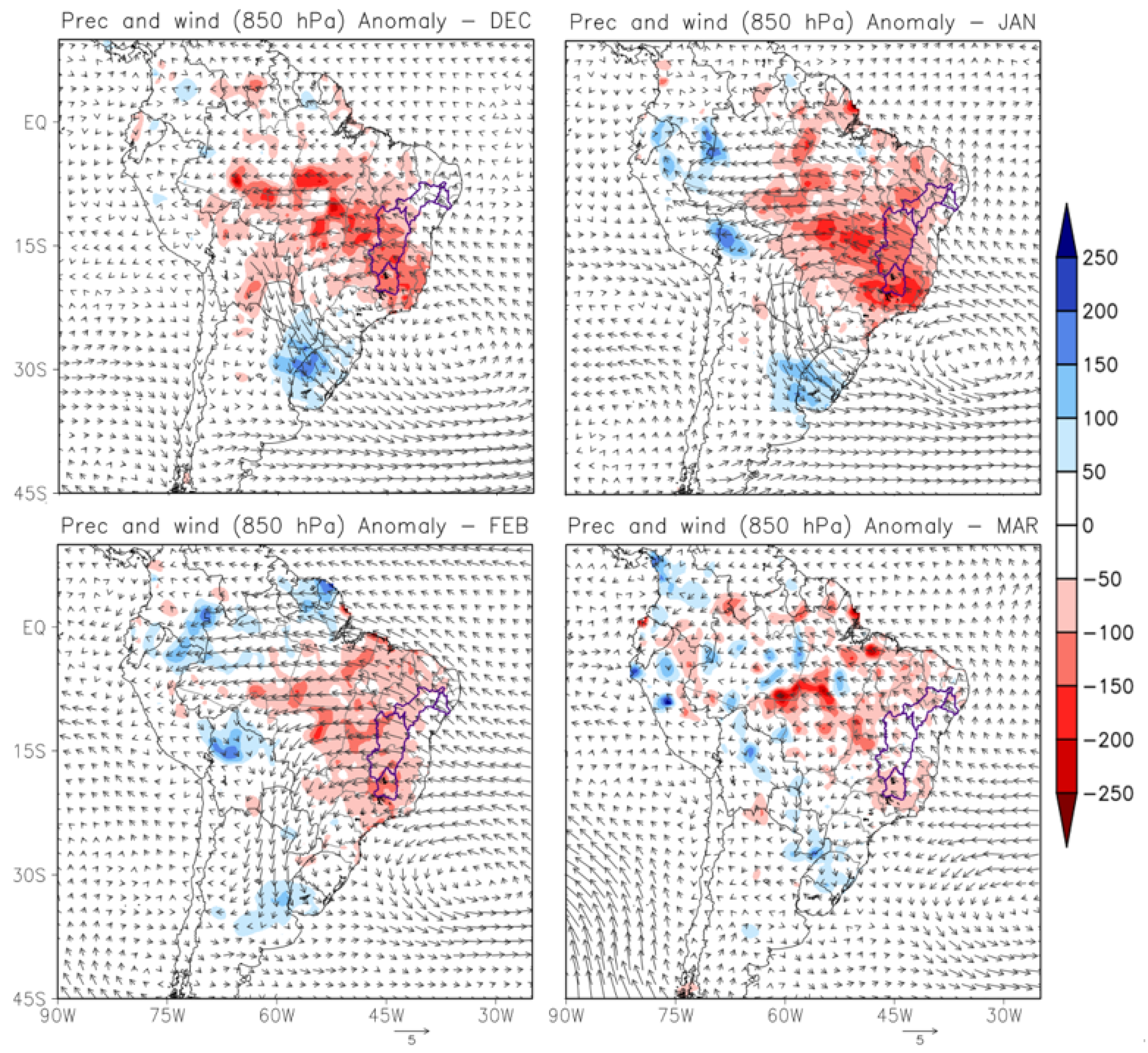

The composite map of precipitation anomaly for each month from Dec to Mar within the period 2012–2020 shows a deficit of precipitation in several regions of the country (Figure 6). The SEB and NEB regions were the most affected, with rainfall deficits reaching 250 mm in Jan. The SEB faced a serious water crisis between 2014 and 2016, as studied by Coelho et al. [25], Finke et al. [26] and Marengo et al. [53]. Regarding the low-level wind anomaly, there was an anomalous anticyclonic circulation on or near the south and SEB coast. In March, when this system was further away from the coast, the dry conditions were milder. Confirming the result already found through the SPI-12 analysis, the precipitation anomaly composite map shows the Upper SF region as the most affected by the deficit of precipitation. The largest negative rainfall anomalies are associated with the presence of a positive MSLP anomaly near the coast of SEB Brazil (Figure 5b). This anomalous high pressure seemed to enhance the flow of the low-level jet east of the Andes towards Southeastern South America (Figure 6), then favored shaping a precipitation dipole between the south and SEB. In this dipole, the lack of rain in the region of the SACZ is associated with above-average precipitation in the southern region of the country or vice-versa [41,45,92,93]. These anomalous precipitation and low-level circulation patterns were also similar to the ones registered in the energy crisis in 2001 [91].
In general, the anomalous atmospheric patterns shown in this study were similar to those that occurred in the water crisis in the SEB in 2014 [54], indicating that the dry conditions observed during the 2012–2020 episode over the Upper-SF investigated here have also affected other regions in the country [89,94]. The predominance of the wave pattern with positive pressure anomaly over the SEB may inhibit cloud formation, which can consequently warm the SST, as noted by the positive anomalies of the SST in the South Atlantic (Figure 5a). The presence of the positive pressure anomaly over the SEB inhibits the transport of moisture from the interior of the continent to the SEB region. On the other hand, the southern region tends to show positive precipitation anomalies.
The higher values of atmospheric pressure in the SEB can also be identified by the IASAS index, which is a measure of the difference in the MSLP between the SEB and south regions of Brazil. Therefore, between Dec and Mar from 2012 to 2020, there was a positive IASAS, indicating higher MSLP over the SEB region. The Pearson correlation coefficient was calculated between the IASAS, TSA, and ONI indices with the SPI-1 time series to verify the linear relationship between the SASA, the Southern Tropical Atlantic, and ENSO with the monthly precipitation variability in Upper SF during 1979–2020. To test the significance of this result, the bilateral t-test was applied considering 40 degrees of freedom (subtracting 2 years from the 42 years of the study period) at a significance level of 0.01. The negative correlation between the IASAS and Upper-SF SPI-1 (Table 5) also supports these results from a climatological perspective. Hence, dry conditions in the Upper SF during the summer months are associated with a positive MSLP anomaly in the SEB and negative in Southern Brazil. It was not the focus of this study, but for further studies, the dynamics of rainfall distribution in the other subregions may be analyzed through the correlation of the SPI-1 time series with the indices, considering the different rainy periods.

4. Conclusions

The drivers of droughts in the SFRB region are discussed little, although there are several studies that have identified periods of drought in the basin region. Thus, the present study used the SPI to identify the hydrological drought periods in the SFRB and, for the longest and most severe hydrological drought, analyzed the atmospheric and oceanic patterns that were associated with dry conditions in the rainy season. The SPI-12 analysis showed that all subregions of the SFRB experienced long and extreme hydrological drought episodes in the 2010s. According to the methodology applied, the Upper SF region stands out with the longest (103 months; 2012–2020) and the most severe drought when compared with all the droughts identified for the four subregions between 1979 and 2020.
The analysis of the atmospheric and oceanic composite maps anomalies, obtained through the differences between the anomalous dry and normal conditions months (identified by SPI-1 of the Upper SF) during the rainy season, showed that the rainfall deficit, which affected several regions of the country between 2012 and 2020, was associated with an anomalous wave propagation pattern of Australia origin. This pattern favored the predominance of an anticyclonic system near the coast of the SEB, which probably acted by inhibiting the formation of rain clouds, resulting in an increase in the SST in the region. This condition leads to a decrease of the precipitation rates in the SEB region and causes a positive rainfall anomaly in the south region of the country. The IASAS index, which controls the SASA, presents positive values in almost all the anomalous dry months considered in the composite maps analysis, agreeing with the pressure anomaly composite maps. Climatologically, the negative linear correlation between the IASAS and Upper SF SPI-1 time series indicates that the occurrence of an anomalous high atmospheric pressure system near the SEB coast of Brazil inhibits precipitation in the Upper SF region. Although not the scope of this study, further investigation of the potential forcing that triggers the wave propagated in the vicinity of Australia is necessary, as well as a more in-depth study on the IASAS and the Southern Atlantic variability. Previous studies showed the importance of the South Atlantic Ocean as a moisture source for Eastern South America [89,94,95,96].

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/atmos13010041/s1: Figure S1: SPI-1 time series for the four SF regions for the period Jan 1979–Dec 2020. Figure S2: SPI-12 time series for the four SF regions for the period Jan 1980–Dec 2020.

Author Contributions

Conceptualization, A.A.F., A.D., V.S.B.C. and M.S.R.; methodology, A.A.F.; analysis, A.A.F., A.D., V.S.B.C. and M.S.R.; writing—original draft preparation, A.A.F., A.D., V.S.B.C. and M.S.R.; and writing—review and editing, A.A.F., A.D., V.S.B.C., M.S.R., B.C.S. and C.B.U. All authors have read and agreed to the published version of the manuscript.

Funding

This work is part of the project GlobalHydroPressure (EU Water JPI). A.A.F. and V.S.B.C. acknowledge the support received by the Minas Gerais Research Funding Foundation—FAPEMIG (ID-11831). V.S.B.C., M.S.R. and B.C.S. also acknowledge FAPEMIG (APQ 04377-18). A.D. acknowledges the support from the Brazilian National Council for Scientific and Technological Development (CNPq) (100186/2021-1). C.B.U. acknowledge the support received from the Swedish Research Council FORMAS, Grant No. 2018-02379).

Data Availability Statement

All dataset used in this study are available by meteorological centers.

Acknowledgments

The authors would like to thank the Coordination for the Improvement of Higher Education Personnel (CAPES), the Minas Gerais Research Funding Foundation (FAPEMIG), and the Brazilian National Council for Scientific and Technological Development (CNPq). We would like to thank ECMWF and CPC for providing the data. The authors would like to thank the editor and the anonymous reviewers.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of the data; in the writing of the manuscript; or in the decision to publish the results.
