Metal(Loids) Bioaccessibility in Road Dust from the Surrounding Villages of an Active Mine

Abstract

Human activities, in general, cause a significant impact on the environment and human health. The present study aims to characterize the road dust of villages located near an active mine and to assess metal(loids) bioaccessible fractions. From the collected road dust samples (<250 µm fraction), the pseudo total, gastric (G) and gastrointestinal (GI) phase (UBM assay) concentrations, mineralogical composition, enrichment factor (EF), and risk for humans were determined. The obtained results revealed that arsenic represents the highest risk to humans, with mean pseudototal values higher than the maximum reference value range. The enrichment factor pointed to As as having significant to very high enrichment in all of the villages. In addition, Cd presented the maximum EF values in all of the villages, and was thus classified as having a very high enrichment. Particles enriched in As, Ca, Fe, Cu, Al, and Ti were identified by SEM-EDS in weathered agglomerates, and were linked to mine wastes and long-distance transport through both wind and/or traffic. The arsenic bioaccessibility fraction (%BAF) presented low values in the studied samples, possibly because of the low complex solubility of Fe with adsorbed As, limiting the release of arsenic and reducing its bioaccessibility. The concentrations of bioaccessible Cd for the G and GI phases were within the reference range, while for Cu, they were above and for Pb they were lower than the reference value range. The results show that the pseudototal fraction risk is overestimated when compared with BAF%; nevertheless, the total G and GI risks were above the carcinogenic target risk (1 × 10⁻⁶) in most of the samples. The carcinogenic risk of the bioaccessible contaminants showed that As represented the higher risk for developing cancer over a lifetime, with ingestion being the main risk route.

1. Introduction

Mining and mineral processing are known for their impact on the environment through the pollution of air, water, and soil. Large amounts of rejected materials are deposited in tailings and dams, generating dust particles enriched in potentially toxic elements (PTEs) that might disturb human health by entering the body. Road dust is considered to be a good indicator of metal(loids) contamination from diverse sources, such as industrial activities and traffic [1,2]. Metal(loids) contamination in road dust, e.g., As, Cd, Cu, Cr, Pb, and Hg, is difficult to remove, even after several years [3]. In mining areas, dust particles are dispersed (e.g., winds and traffic) and PTEs are usually adsorbed; therefore, there is the potential for these dust particles to be deposited and for contaminated soils and plants to be ingested, inhaled, and/or adhere to the skin of humans [4]. Particles less than 250 µm adhere to hands, and thus may be ingested through hand to mouth behavior [5].

Several studies have taken into consideration the road dust total (or pseudo total) metal(loids) for health risk assessment (e.g., [6]), where oral bioaccessibility is defined as the PTE concentration. PTEs are released from their matrix in to the gastrointestinal tract, becoming potentially available for absorption [7,8], and are variable for each contaminant and location. Thus, the PTE pseudo total fraction will lead to the overestimation of the health risk assessment. Several in vitro assays have been proposed to estimate the bioaccessible fraction of pollutants, such as simplified bioaccessibility extraction tests (SBET), a conservative method that can only simulate the stomach scenario. Presently, the solubility bioaccessibility research consortium method (SBRC), physiologically-based extraction test (PBET), in vitro gastrointestinal method (IVG), and unified bioaccessibility method (UBM) are the most used in vitro gastrointestinal digestion methods because of their recognized results [9]. This study aims to characterize the road dust of four villages located in the surroundings of the Panasqueira mine, and to assess As, Cd, Co, Cr, Cu, Fe, and Pb bioaccessible fractions using both gastric and gastrointestinal phases through the UBM in vitro method for road dust impacted mostly by mining activities.

2. Materials and Methods

Study area, geology, and mining activities: Panasqueira mine (central Portugal), is considered the biggest W–Sn deposit in Western Europe. The history of this mine goes back to the end of the 19th century. Tungsten is widely used in metal-alloys, being well-known as a steel-hardener. The tungsten demand, and thus its price, rises inevitably during major armed conflicts. During the two World Wars and the Corean War, tungsten (W) extraction at the Panasqueira mine was at its highest. Detailed descriptions of the study area and geology are presented in Ávila et al. [10] and Candeias et al. [11]. Briefly, the deposit contains significant amounts of wolframite ((Fe,Mn)WO₄); cassiterite (SnO₂); and, as a minor accessory, chalcopyrite (CuFeS₂). Arsenopyrite (FeAsS) is an abundant rejected mineral, resulting in high As concentrations being deposited in tailing and dams.

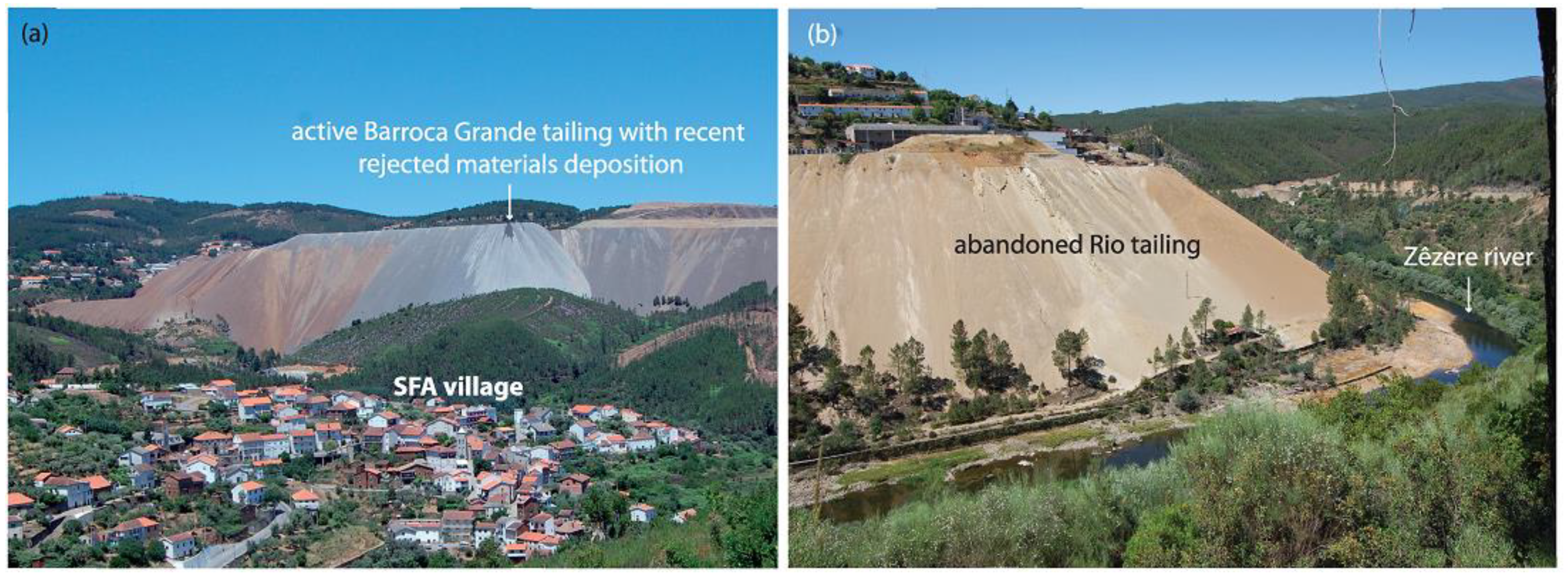

The presence of huge tailings and other debris testifies to the long history of exploitation and ore treatment operations in the Panasqueira mine (Figure 1). The piles (Rio tailing >1.2 Mm³; Barroca Grande tailing >7.0 Mm³) and the open-air impoundments (Rio mud dam >0.7 Mm³; Barroca Grande with two mud dams >1.2 Mm³) are exposed, and have been altered by chemical, mineralogical, physical, and geotechnical conditions. On the top of the Rio tailing, an arsenopyrite stockpile (~9400 m³) was deposited and remained exposed until June 2006, when it was capped with geotextiles and layers of clay. Detailed descriptions of the mining activity history and ore treatment process are presented in Ávila et al. [10,12] and Candeias et al. [11].

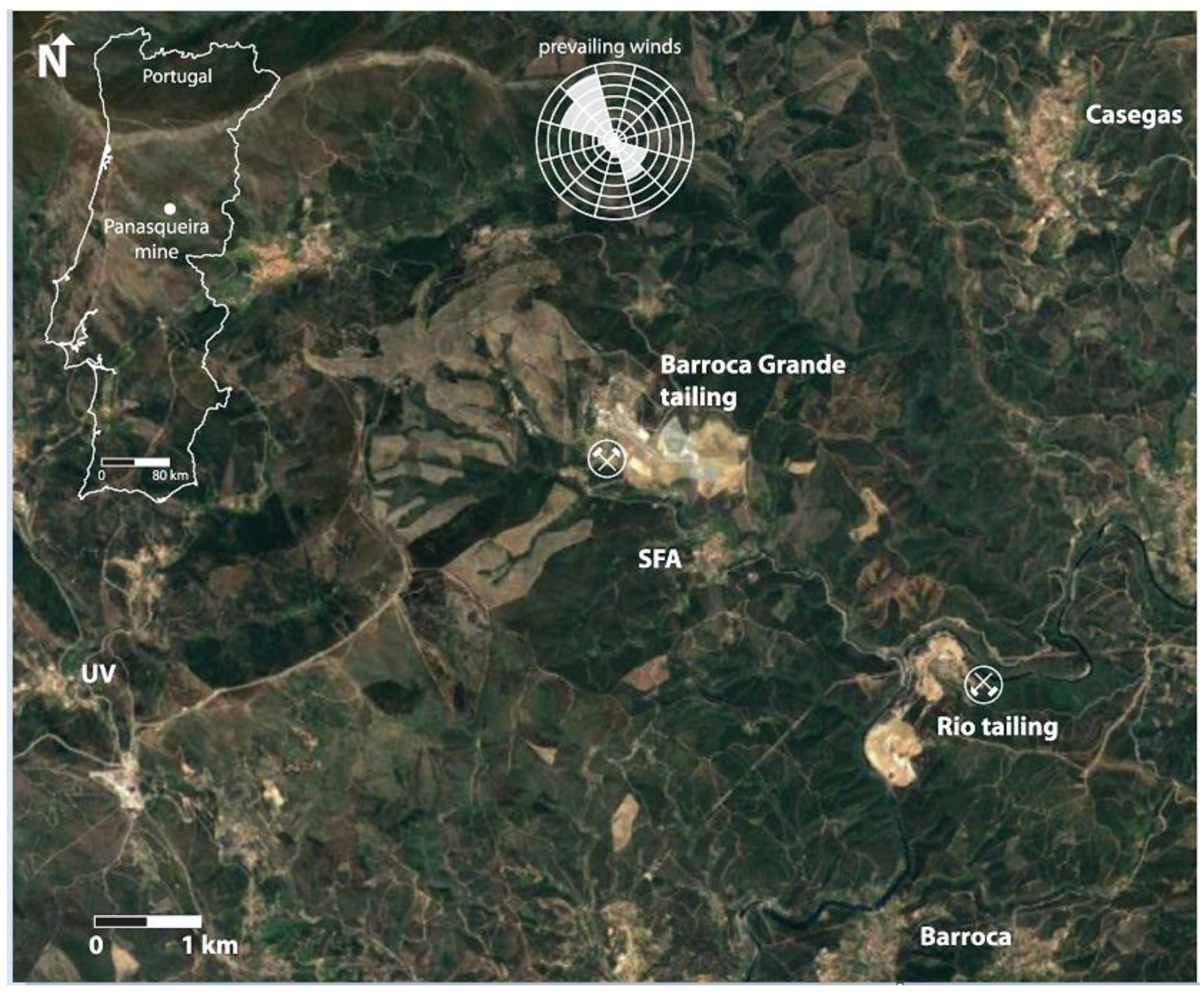

Sample collection and preparation: The study locations selected for the collection of road dust samples were as follows: the (a) S. Francisco de Assis (SFA; n = 13) and Barroca (B; n = 7) villages, both located within the mining operations area (Figure 2), initially considered to be directly impacted by the mine, and the (b) Casegas (C; NE of the mine; n = 11) and Unhais-o-Velho (UV; SW of the mine; n = 6) villages, located on areas considered initially not to be impacted by the mine and out of the prevailing influence of wind (main direction NW-SE) [13]. The number of samples collected was considered to be representative of the population density of each small village. Each sample was collected with new and clean plastic brooms and shovels on representative roads of each village. The samples were stored in individual polyethylene bags (research grade) for further treatment and analyses. In the laboratory, samples were dried (≤40 °C) until a constant weight was attained, and were then disaggregated and wet sieved (250 µm). This fraction was selected for potentially toxic elements (PTEs) assessment once a rational upper bond of the size range of ingested particles was considered to be achieved [14].

Pseudo total chemical analysis: Samples with a <250 µm fraction were milled to assess the pseudo total concentration using multi-elemental analysis. A 0.5 g split was leached in hot (95 °C) aqua regia (HCl–HNO₃–H₂O) for 1 h. After dilution to 10 mL with demineralized water, the solutions were analyzed by inductively coupled plasma mass spectrometry (ICP-MS) for As, Cd, Co, Cr, Cu, Fe, and Pb (ACME labs, Canada). The detection limits were as follows: As = 0.01 mg kg⁻¹; Cd, Co, Cu, and Pb = 0.1 mg kg⁻¹; Cr = 1 mg kg⁻¹; and Fe = 100 mg kg⁻¹.

In vitro oral bioaccessibility: The oral bioaccessibility of As, Cd, Co, Cr, Cu, Fe, and Pb was assessed using the widely employed and validated in vitro extraction method, the unified bioaccessible assay (UBM) [15]. The UBM assay was applied in the <250 µm granulometric road dust fraction. The UBM test simulated the mouth, stomach (G), and gastrointestinal (GI) compartment chemical processes by means of synthetic digestive solutions, and has been fully described in Wragg et al. [16]. The G and GI extractions were analyzed by ICP-MS for the same elements as the pseudo total analyses. The percentage of the bioaccessible contaminant (%BAF) concentration was calculated as follows:

$$\%\mathrm{BAF}=\frac{\mathrm{concentration}\mathrm{of}\mathrm{bioaccessible}\mathrm{element}\left({\mathrm{mg}\mathrm{kg}}^{-1}\right)}{\mathrm{concentration}\mathrm{of}\mathrm{total}\mathrm{element}\mathrm{in}\mathrm{sample}\left({\mathrm{mg}\mathrm{kg}}^{-1}\right)}\times 100$$

X-ray diffraction (XRD): The <250 µm fraction of the eight samples that were selected based on the pseudo total concentration (see Results and discussion section) were submitted to XRD in order to identify the mineralogical constituents. The mineralogical composition (including efflorescence) was determined using a Philips X’Pert MPD machine equipped with CuKa radiation, graphite monochromator, automatic divergence slit, and 0.5–receiving slit. A step size of 0.05° 2q, a scan setting of 2–70° 2q, and a 10 s counting time were chosen.

Scanning Electron Microscopy with energy dispersive spectroscopy (SEM-EDS): The <250 µm fraction of each sample was individually placed on an aluminum holder and coated with carbon (C) using an Emitech K950X carbon evaporator, after this it was analyzed with a HITACHI SU-70 high resolution SEM equipped with a Bruker energy dispersive spectroscopy (EDS) detector in order to identify the chemical elemental composition of the particles separately. The size and shape of each speck was also taken into consideration. The inorganic identification of insoluble particles was performed using a mix of protocols that allowed for semi-quantifing the mineralogy of each particle [17].

Granulometry: The <250 µm fractions were sieved to obtain <106 µm fractions. The particle size distribution of the road dust was determined using the X-ray sedimentation technique with a Sedigraph III Plus grain size analyzer from Micromeritics. This technique determined the relative mass distribution of the sample through particle size, and is based on two physical principles: sedimentation theory (Stokes’ law) and the absorption of X-radiation (Beer–Lambert law).

The accuracy and analytical precision of the methods were determined using analyses of the reference materials and duplicate samples in each analytical set. The results were within the 95% confidence limits of the recommended values given for certified material. The relative standard deviation was between 5% and 10%.

Enrichment factor (EF): applied to evaluate the degree of PTE pollution and to assess possible natural or anthropogenic sources:

$$\mathrm{EF}=\frac{{\left({\mathrm{C}}_{\mathrm{i}}/\mathrm{Fe}\right)}_{\mathrm{sample}}}{{\left({\mathrm{C}}_{\mathrm{i}}/\mathrm{Fe}\right)}_{\mathrm{crust}}}$$

where C_i is the PTE pseudo total concentration in the sample and in the crust. The crustal Fe mean concentration was selected as a reference metal by assuming that the contribution of its anthropogenic sources could be considered negligible [18]. The EF results were classified as follows: (a) EF < 2, none to minimal enrichment; (b) 2 ≤ EF < 5, moderate enrichment; (c) 5 ≤ EF < 20, significant enrichment; (d) 20 ≤ EF < 40, very high enrichment; and (e) EF ≥ 40, extremely high enrichment [19].

Non-carcinogenic and carcinogenic risks assessment: Human health risk assessment calculations were based on the assumption that residents, both children and adults, are directly exposed to dust through three main pathways, namely, (a) ingestion, (b) inhalation, and (c) dermal absorption of dust particles. Although particles <10 µm (PM10) are more relevant in the inhalation process, coarser sizes are likely decomposed in the gastrointestinal track. The carcinogenic and non-carcinogenic side effects for each element were computed individually, considering the reference toxicity levels for each variable, as extensively described in RAIS [20]. For each element and route (i.e., pathway), the non-cancer toxic risk was estimated by computing the hazard quotient (HQ) for systemic toxicity (i.e., non-carcinogenic risk). If HQ > 1, this indicates that non-carcinogenic effects might occur once the exposure concentration exceeds the reference dose (RfD). Systemic toxicity is not expressed as a probability but as an evaluation, by comparing an exposure level over a period of time to a RfD derived for a similar exposure period. The cumulative non-carcinogenic hazard index (HI) corresponds to the sum of HQ for each pathway or variable. Similarly, HI > 1 indicates that non-carcinogenic effects might occur. The carcinogenic risk, or the probability of an individual developing any type of cancer over a lifetime as a result of exposure to a potential carcinogen, was estimated using the sum of the total cancer risk for the three exposure routes. A risk >1 × 10⁻⁶ was classified as a carcinogenic target risk, and >1 × 10⁻⁴ was considered unacceptable [20]. In this study, As, Cd, Co, Cu, and Fe were considered to be chronic sources of non-carcinogenic risk, and As, Cd, Co, and Pb were considered to pose a carcinogenic risk.

3. Results and Discussion

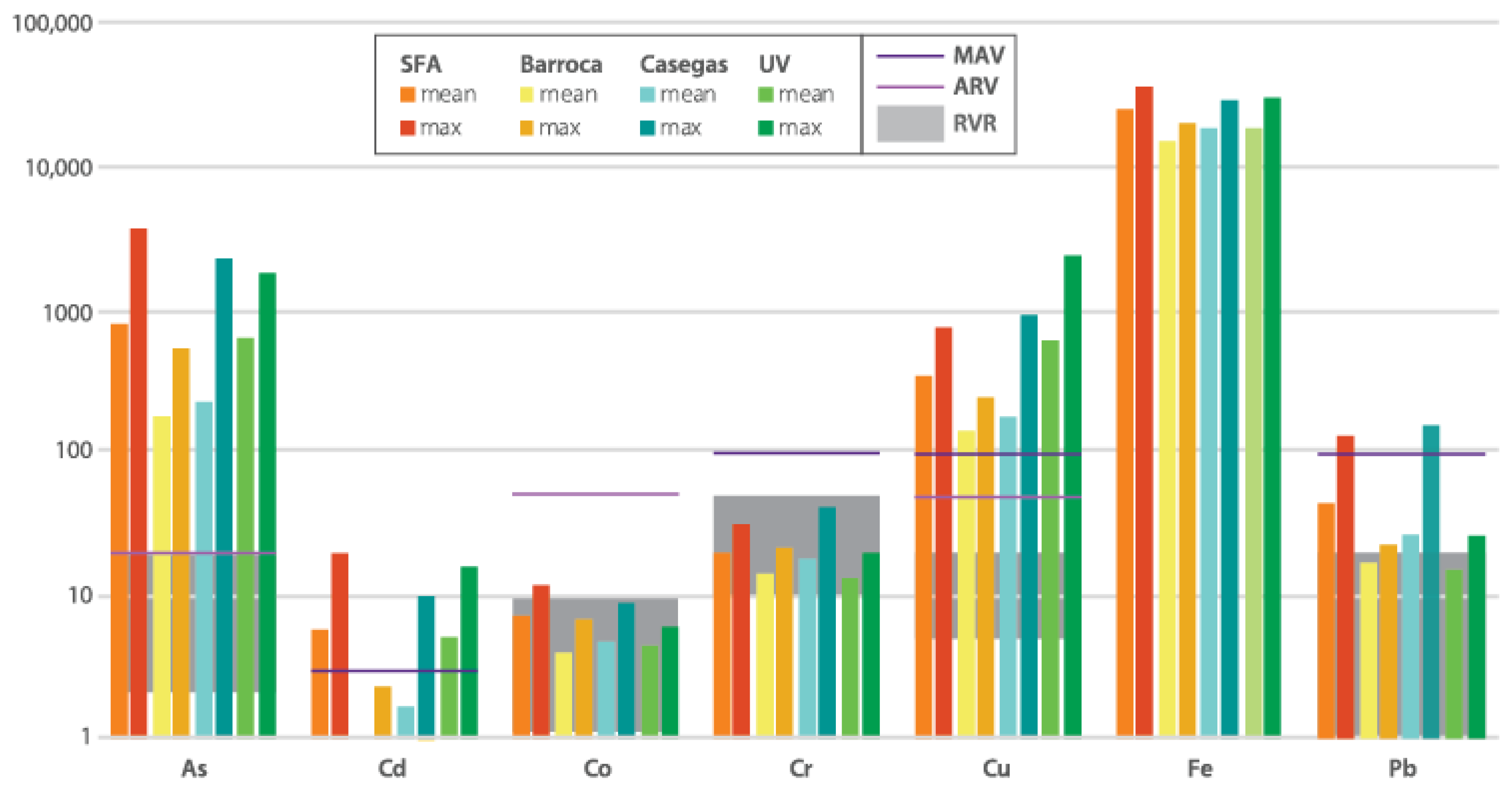

The road dust pseudo total As, Cd, Co, Cr, Cu, Fe, and Pb concentrations are presented in Figure 3. These elements were selected because of their potential toxicity to humans and the high concentrations found, when compared to guidelines. The road dust pseudo total concentrations ranged from 16 to 3530 mg kg⁻¹ (As), 0.2 to 19.8 mg kg⁻¹ (Cd), 2.5 to 11.8 mg kg⁻¹ (Co), 7.1 to 45 mg kg⁻¹ (Cr), 12.6 to 2379 mg kg⁻¹ (Cu), 8600 to 35,700 mg kg⁻¹ (Fe), and 5.0 to 152.7 mg kg⁻¹ (Pb). The same elements’ mean pseudo total concentrations were 404 mg kg⁻¹ (As), 2.9 mg kg⁻¹ (Cd), 5.2 mg kg⁻¹ (Co), 16.9 mg kg⁻¹ (Cr), 259 mg kg⁻¹ (Cu), 19,472 mg kg⁻¹ (Fe), and 28.6 mg kg⁻¹ (Pb). An ANOVA analysis showed that there were significant differences (p < 0.05) between the As, Co, Cu, Fe, and Pb samples’ concentrations in the four locations. The highest concentrations were found in the SFA village.

Considering the pseudo total results, As represents the highest risk to humans, with mean values 40.5 (SFA), 8.7 (Barroca), 20.6 (Casegas), and 30.7 (UV) times over the maximum reference value range (RVR_As = 2 to 20 mg kg⁻¹) and the acceptable risk value (ARV_As = 20 mg kg⁻¹) [21]. In fact, the As mean and maximum values in the Casegas and UV villages were considered to not be impacted by the mining activities, and were higher than in Barroca village, located near the Rio abandoned tailing. A similar tendency occurred with the Cd, Co, Cu, Fe, and Pb pseudo total concentrations.

An enrichment factor (EF) was applied in order to determine the PTEs road dust pollution. The results (

Table 1. Enrichment factor maximum (max), minimum (min), and mean values for the samples collected from the four villages studied (in mg kg⁻¹).

EF		As	Cd	Co	Cr	Cu	Fe	Pb
SFA	max	699	77	1.4	0.5	40	11	24
	min	29	3.4	0.8	0.2	4.9	3.5	1.4
	mean	194	23	1.0	0.4	18	5.3	4.7
Barroca	max	189	19	1.2	0.6	21	7.5	3.2
	min	21	2.0	0.7	0.3	4.4	4.6	1.9
	mean	80	7.5	1.0	0.4	12	5.7	2.4
Casegas	max	572	68	1.3	0.8	74	9.3	19
	min	5	0.5	0.6	0.2	1.4	3.7	1.2
	mean	75	10	0.9	0.4	14	5.4	3.0
UV	max	494	63	1.2	0.7	119	15	3.5
	min	15	1.7	0.6	0.2	8.7	5.2	0.9
	mean	202	23	0.9	0.4	34	7.6	1.7

) were particularly high for As, with a maximum value in SFA very much above the EF classification for an extremely high enrichment of 40. In addition, the As mean value in both impacted villages was above the very high enrichment classification, suggesting an As anthropogenic source in these dusts. Casegas and UV had minimum values of 5 and 15, respectively, suggesting significant enrichment. The variables Co and Cr both had EFs below the minimal enrichment grade, revealing a geogenic source. The SFA village had the higher As, Cd, and Pb maximum values, reflecting the impact of the Barroca Grande tailing located next to the village (Figure 1). Considering these results, eight representative samples (higher As EF) were selected to conduct further analyses, consisting of two samples from each of the four villages.

Previous studies have identified diverse minerals on the tailings’ and dams’ rejected materials from the Panasqueira hydrothermal Sn–W deposit, e.g., quartz (SiO₂), arsenopyrite (AsFeS), chalcopyrite (CuFeS₂), sphalerite ((Zn,Fe)S), pyrrhotite (Fe₍₁₋ₓ₎S), siderite (Fe²⁺CO3), chlorite group minerals, and muscovite (KAl₃Si₃O₁₀(OH)₂) [22]. The XRD analysis of the <250 µm fraction samples identified quartz and clay minerals as more abundant, as well as scorodite (Fe³⁺AsO₄·2H₂O), yukonite (Ca₃Fe³⁺(AsO⁴)₂(OH)₃·5H₂O) and/or arseniosiderite (Ca₂Fe³⁺₃(AsO₄)₃O₂·3H₂O), hematite (Fe₂O₃), clinochlore ferroan ((Mg, Fe²⁺)₅Al(Si₃Al)O₁₀(OH)₈), and adularia (KAlSi₃O₈). The mineralized dust materials were weathered, and Panasqueira occurring minerals, such as arsenopyrite, sphalerite, and chalcopyrite, were mostly present as altered remains. Most of the As and metals were bound to secondary minerals such as Fe(hydr)oxides, scorodite, arseniosiderite, and/or yukonite. Secondary Co, Cu, and Pb mineral phases were not found in the dust, possibly as a result of poorly crystalline and/or amorphous mineral phases that could not be identified through XRD analysis.

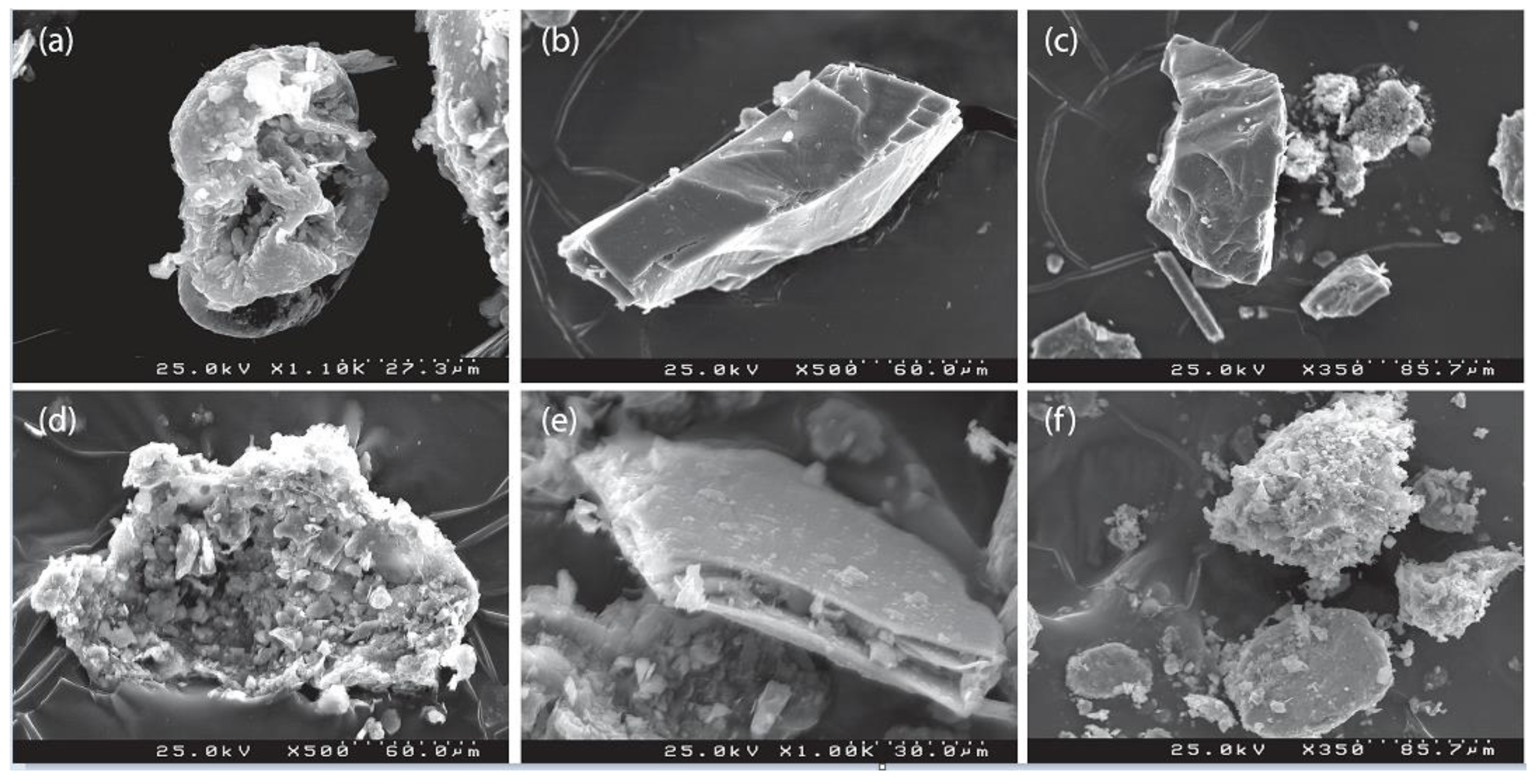

The observation and pseudo chemical analysis by SEM-EDS (Figure 4) identified particles with a similar composition in all of the studied locations. The S. Francisco de Assis samples revealed weathered agglomerates rich in As, Ca, Fe, Cu, Al, Ti, and sharp quartz particles, suggesting a possible source from the mining waste deposited on the Barroca Grande tailing located in front of the village (Figure 1a). Other particles with a mixed composition of Si, Fe, Al, Pb, K, and Ti were also found. In Barroca village, located near the abandoned Rio tailing, particles were also possibly linked to the rejected mine materials (enriched in Fe, Al, Cu, Si, and As). As expected from the pseudo total chemical analysis results, samples from Casegas and Unhais-o-Velho also revealed particles enriched in Si, Al, Fe, Ti, Cu, and As, possibly linked to the long-distance transport of mine waste, both by wind or traffic. These rejected materials are transported to be used in roads and construction. The similar natural geological characteristics of the four studied locations is also a possible source.

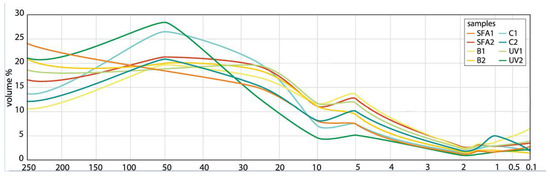

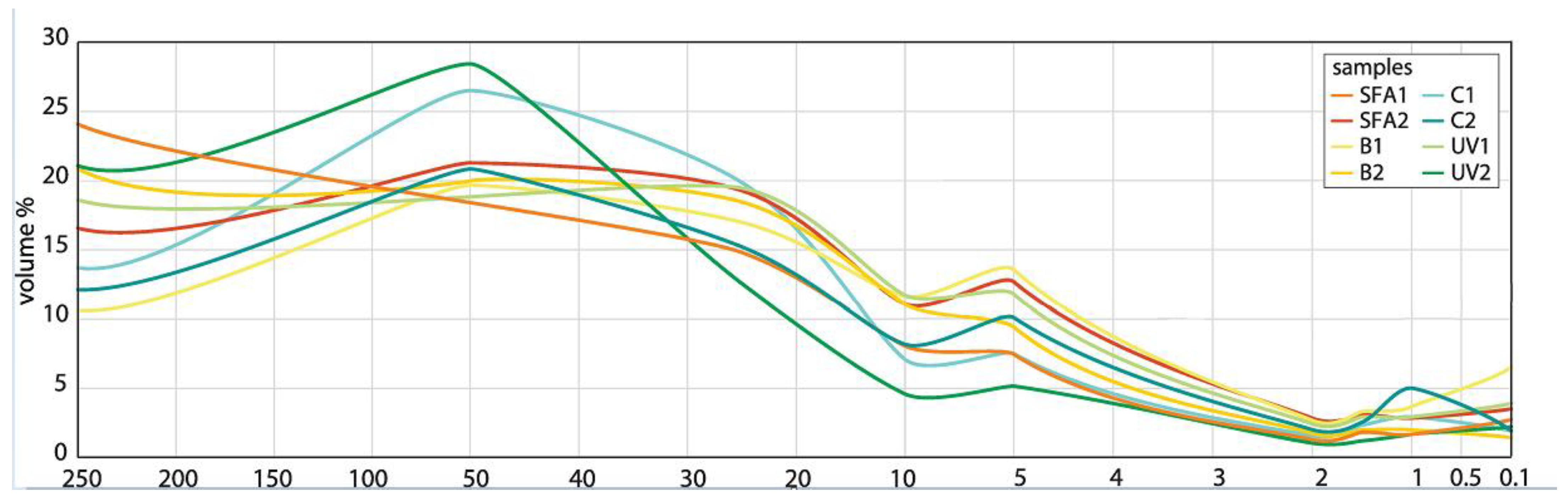

Qin et al. [23], among others, established a link between the increase of gastric and gastrointestinal bioaccessible extracted concentrations and the decrease in the particle grain size. Particles between 250 and 50 µm ranged 43.8 to 72.0%, between 50 and 10 µm ranged 17.1 to 31.2% (Figure 5), and between 2 and 10 µm ranged 6.1 to 16.1%, and the clay fraction was the least representative fraction (4.8 and 13.2%). Several studies showed that <2 µm is the most important fraction for a higher bioaccessible concentration of As and metals [24].

To assess As, Cd, Co, Cr, Cu, Fe, and Pb gastric (G) and gastrointestinal (GI) bioaccessible fractions, the UBM assay was applied to the selected samples. Previous studies (e.g., Pelfrêne and Douay [25]) suggest that As and metals are more soluble in the G fluid, because of more acidic conditions (pH~1.2) when compared with the GI phase, with a lower solubility under higher pH conditions (pH 5.8–6.8). Although the G phase has a slightly higher phase bioaccessible fraction (%BAF) when compared with GI %BAF, a t-student test did not reveal significant differences between the two phases (p > 0.05). It is difficult to understand contaminant bioaccessibility in mine-impacted dusts once dissolution under gastric phases conditions is also influenced by mineralogy and particle size factors. Ore processing methodologies and environmental conditions will also impact particle behavior, e.g., through the formation of secondary minerals and morphology [26].

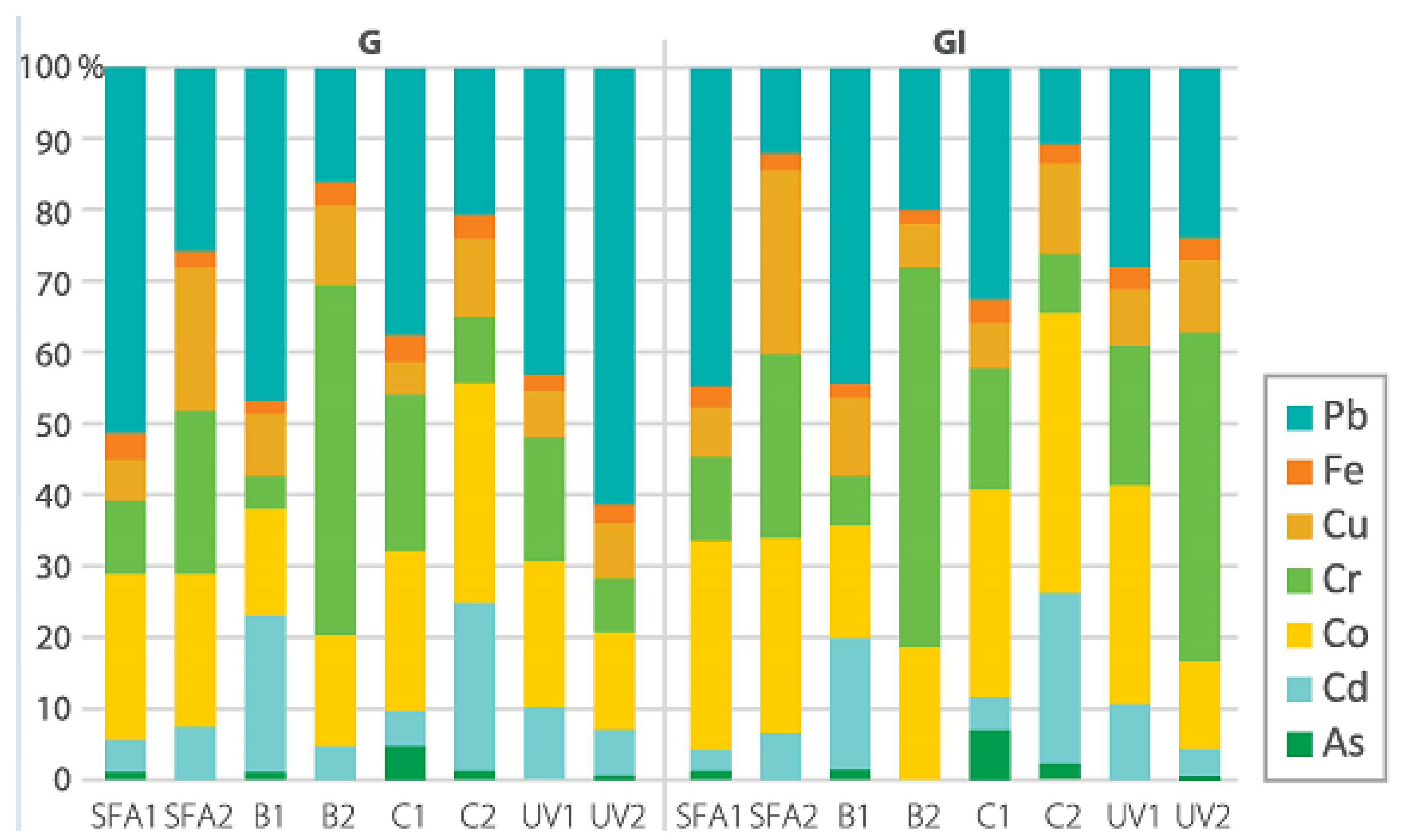

The As G phase bioaccessible fraction (%BAF_AsG) ranged 0.13 to 5.27% and GI (%BAF_AsGI) ranged 0.10 to 5.64%, with lower values found in S. Francisco de Assis (Figure 6). In fact, Student’s t test revealed that there were significant differences (p = 0.027) between %BAF_As in locations considered to be impacted by the mine (with lower mean concentrations) and in villages considered as not impacted, for both the G and GI phases. Similar low %BAF_As were reported in other mine impacted areas, e.g., 0.13% in Nova Scotia, Canada [27], and 0.6% in Tavistock, England [28]. Arsenic bound to Fe might be mobilized because of the dissolution of iron compounds. A low solubility of Fe complexes could limit the release of As, reducing its bioaccessibility. Previous mineralogical studies in S. Francisco de Assis and Barroca villages [11] established a link between the tailing rejected materials and the collected dust samples, e.g., quartz (SiO₂), arsenopyrite (FeAsS), chalcopyrite (CuFeS₂), and sphalerite (ZnS). Additionally, the tailing sulfides exposed to atmospheric conditions induced the occurrence of secondary minerals, such as scorodite (FeAsO₄.2H₂O) and natrojarosite (KFe³⁺₃(SO₄)₂(OH)₆). Different arsenic minerals showed different propensities for dissolution in low gastric and gastrointestinal pH conditions [27]. Antônio et al. [29] suggested that locations with the presence of a high percentage of As secondary minerals tend to have lower As %BAF. The arsenopyrite and scorodite minerals present in the dust samples and their low solubility were consistent with the low As bioaccessible fractions, with similar percentages in the G phase and GI phases (p > 0.5). Maximum %BAF_As values were found in the G and GI phases of sample C1, collected in a village considered not impacted by the mining activities. Previous studies found that the As bioaccessible concentration decreased with the increasing particle size, being particularly evident in the 0.3- to 5-μm fraction [29]. The influence of texture and grain size on As bioaccessibility may explain C1 behavior, a sample with a high percentage of finer grains, a fraction composed by particles with high surface areas, a factor promoting higher bioaccessibility.

From a biological point of view, Ollson et al. [30] suggested that an association with Cd ions might interfere with the human gastric system, leading to a reduction of As absorption. Nevertheless, Cd is considered a toxic metal and is nondegradable in nature, with extensive applications in different industries such as battery recycling and mining. Disorders in human health, such as bone disease, renal damages, and several forms of cancer are linked to Cd exposure [31]. In this study, %BAF_CdG ranged 0.52 to 37.35% and %BAF_CdGI ranged 0.07 to 21.96%, showing a higher tendency to be solubilized in the gastric phase, with the maximum percentages in both phases of the B1 sample. Higher %BAF values could be attributed to the presence of montmorillonite ((Na,Ca)_0.33(Al,Mg)₂(Si₄O₁₀)(OH)₂·nH₂O), and the clay mineral has the possibility of increasing Cd solubility once it promotes Cd dissolution [32]. Concentrations of Cd bioaccessible G and GI phases are within the reference values range (0.1–1.0 mg kg⁻¹), with the highest concentration found in sample UV1_G (1.0 mg kg⁻¹).

The transition element Co has complex functions in the human body, being bound to vitamin B12, with a recommended daily intake of 0.1 g/day in an adult’s diet. Nevertheless, exposure to higher Co concentrations can cause health outcomes, such as genotoxicity and cancer [33]. The Co G fraction %BAF_CoG ranged 2.79 to 26.14% and the GI fraction %BAF_CoGI ranged 2.58 to 22.73%, with a maximum bioavailable fraction in samples B1 (G) and UV1 (GI). Cobalt is adsorbed onto secondary Fe(III) (oxyhydr)oxides, characteristic of mining-affected environments such as Panasqueira. Chromium has been listed as a priority pollutant, with Cr³⁺ considered essential for a regular operation of human vascular and metabolic systems, while Cr⁶⁺ is its most dangerous form and is able to induce human health outcomes, e.g., genotoxic, carcinogenic, and mutagenic effects [34]. However, plants or animals do not bioaccumulate Cr, with its impact being dependent on its bioaccessible fraction. In this study, Cr revealed a %BAF_CrG ranging 1.20 to 47.80% and %BAF_CrGI 1.01 to 77.78%, with maximum bioavailable fractions in samples B2_G (5 mg kg⁻¹) and UV2 (7 mg kg⁻¹), and both concentrations below the 10 mg kg⁻¹ being defined as the lower limit of the RVR [21]. Overall, the bioaccessible results revealed a diversity in Cr solubility, with minimum extracted G and GI concentrations in sample SFA1 (0.3 mg kg⁻¹).

The geology is a common important factor for the presence of high Cu concentrations. The Panasqueira deposit includes Cu rich minerals, such as chalcopyrite, which lead to high concentrations of Cu in old rejected materials deposited in tailings and dams as a result of less effective separation techniques used in the past [11]. In locations away from the exploration area, in the Casegas and UV villages, the Cu pseudo total concentration was higher than in SAF and Barroca. The Cu %BAF_CuG ranged 0.60 to 14.76% and %BAF_CuGI ranged 0.61 to 19.78%. Sample SFA2_GI had bioaccessible concentrations of G = 60 mg kg⁻¹ and GI = 47 mg kg⁻¹, above RVR (5–20 mg kg⁻¹) in both extracted phases and ARV (50 mg kg⁻¹) in the G phase. The lowest extracted concentrations were found in sample SFA1 (G = 4.4 mg kg⁻¹; GI = 4.5 mg kg⁻¹). Previous studies revealed a higher Cu bioaccessibility with a lower clay content, such as for the SFA1 sample, and the clay fraction could cause a significant retention of metals [32]. Except for SFA1 and B2 samples, the bioaccessible extracted concentrations were above the RVR.

Lead is a common environmental pollutant, with its exposure via ingestion and inhalation being a public health hazard, especially in children due to Pb poisoning via hand-to-mouth exposure. Chronic exposure to Pb might induce, e.g., autism, brain and kidney damage, and psychosis [35]. The bioaccessible fraction of Pb revealed a %BAF_PbG ranging 5.97 to 84.95% and %BAF_PbGI 3.95 to 53.45%. In both phases, the bioaccessible extracted concentrations were lower than RVR (1–20 mg kg⁻¹), with minimum values in sample SFA1 (G 3.0 mg kg⁻¹; GI 2.0 mg kg⁻¹). According to Ávila et al. [10], the Barroca Grande tailing and dams had higher concentrations of As, Cd, Cu, and Pb in the coarser rejected materials, which might explain the variable Pb pseudo total concentrations in the <250 µm fraction subject to UBM assay, with lower %BAF for SFA1 and C2. Pb bioaccessibility is controlled by physical properties, higher amount of adsorption on clay minerals, organic matter and/or oxides, and is nevertheless difficult to predict. Furthermore, the bioaccessibility of an element depends on its chemical speciation [24,36].

Human Health Risk Assessment

There are several studies suggesting that road dust contaminated with PTEs can directly impact human health via oral ingestion, inhalation, and dermal contact. Most of health risk assessment studies are based on pseudo total concentrations. Nevertheless, not all PTE concentrationd present in road dust are available to absorption, and the use of total contents would overestimate the risk compared with the use of bioaccessible contents [37].

Table 2. Arsenic carcinogenic risk on pseudo total (PT), gastric (G) and gastrointestinal (GI) phases, taking in consideration the ingestion + inhalation + dermal exposure routes (G_Total, GI_Total and PT_Total) and only ingestion route (G_Ing, GI_Ing, PT_Ing). In orange, values above the carcinogenic target risk (>1 × 10⁻⁶) and in red considered as inadmissible (>1 × 10⁻⁴).

ID	GIng	GTotal	GIIng	GITotal	PTIng	PTTotal
SFA1	1.34 × 10−6	1.62 × 10−6	1.19 × 10−6	1.44 × 10−6	8.83 × 10−4	1.07 × 10−3
SFA2	7.18 × 10−7	8.71 × 10−7	5.45 × 10−7	6.61 × 10−7	5.61 × 10−4	6.80 × 10−4
B1	2.72 × 10−6	3.30 × 10−6	2.48 × 10−6	3.00 × 10−6	1.29 × 10−4	1.56 × 10−4
B2	2.23 × 10−7	2.70 × 10−7	2.23 × 10−7	2.70 × 10−7	7.08 × 10−5	8.59 × 10−5
C1	8.42 × 10−6	1.02 × 10−5	8.92 × 10−6	1.08 × 10−5	1.60 × 10−4	1.94 × 10−4
C2	4.95 × 10−6	6.01 × 10−6	5.20 × 10−6	6.31 × 10−6	5.67 × 10−4	6.87 × 10−4
UV1	1.66 × 10−6	2.01 × 10−6	1.88 × 10−6	2.28 × 10−6	4.40 × 10−4	5.34 × 10−4
UV2	2.38 × 10−6	2.88 × 10−6	2.48 × 10−6	3.00 × 10−6	2.29 × 10−4	2.78 × 10−4

presents the pseudo total (PT) and bioaccessible G and GI fraction risk assessment results for arsenic. The results show that the risk represented by the PT fraction is overestimated compared with BAF. Nevertheless, the total G and GI risk is above the carcinogenic target risk (1.00 × 10⁻⁶) in all of the samples, except for SFA2 and B2. Additionally, the carcinogenic risk of the BAF exposed that As represents a higher risk of developing cancer over a lifetime, with the other variables being considered negligible, and with Pb representing a maximum of 3.0% of the total risk for both the G and GI phases. In addition, the ingestion route represents a higher risk. Except for samples SFA1 and SFA2, in other samples, the dermal exposure route represents ≤12.0% and inhalation ≤0.2% for the sum of the three exposure paths.

Toxicity of inorganic arsenic (As_i) varies with its valence state and with its physical and chemical properties. Soluble As_i is absorbed through the GI tract, and is primarily distributed to the liver, kidney, aorta, and skin. Nevertheless, As_i can be excreted by the human body, mainly in urine, at rates as high as 80%. The acute lethal dose to humans is estimated to be ~0.6 mg/kg/day. Common identified symptoms of chronic As poisoning in humans are, e.g., weakness, general debility and lassitude, loss of appetite, energy, hair and weight, and mental disorders. Several studies have shown that As increases the risk of lung, skin, bladder, liver, kidney, and prostate cancer [38].

The systemic toxicity (i.e., non-carcinogenic hazard) of the <250 µm fraction bioaccessible fraction was below the target value of 1 in all of the samples in opposition to the pseudo total concentration, where As presented HI = 8.5 in sample SFA1. Nevertheless, these dusts bioaccessible fractions do not represent a probability of non-carcinogenic effects to occur in both children and adults through ingestion, inhalation, or dermal contact.

4. Conclusions

The mining and beneficiation process at the Panasqueira mine produces mine waste considered responsible for the high levels of metal(loids) noticeable on the road dusts collected in four villages located on the surroundings of the mine. The pseudo total contents identified in the analyzed dust samples reflect the influence of the waste deposit materials (e.g., scorodite, yukonite, and arseniosiderite) due to long-distance transport and dispersion of mine wastes, both by wind or traffic. These dust samples’ As pseudo total concentration exceed 40.5 (SFA), 8.7 (Barroca), 20.6 (Casegas), and 30.7 (UV) times the maximum reference value range (RVR_As = 2 to 20 mg kg⁻¹) and the acceptable risk value (ARV_As = 20 mg kg⁻¹). Enrichment factor calculations confirm this statement, in particular for As, with a maximum value in SFA greatly above the EF classification for extremely high enrichment of 40. In addition, the SEM-EDS analysis identified particles that reveal weathered agglomerates rich in As, Ca, Fe, Cu, Al, and Ti.

Gastric (G) and gastrointestinal (GI) phase bioaccessible fractions for As, Cd, Co, Cr, Cu, Fe, and Pb, determined by the UBM assay, reveal, as a main conclusion, that bioaccessibility extraction can vary depending on the phase extraction and sample location. The comparison between the two phases shows that the G phase has higher median concentrations than the GI phase, except for As in the areas considered not impacted by the mining activities. When compared the the pseudo total (PT) and bioaccessible G and GI fractions, the risk assessment for arsenic results indicates that the risk represented by the pseudo total fraction is overestimated. Nevertheless, the total G and GI risk is above the carcinogenic target risk (1.00 × 10⁻⁶) in most of the samples. The carcinogenic risk of the BAF reveals that As represents the highest risk of developing cancer over a lifetime and the ingestion route is the one that represents the highest risk.

Regarding the link between the increase of gastric and gastrointestinal bioaccessible extracted concentrations and the decrease of particles grain size, further tests with other particle sizes will be performed in order to assess the bioaccessible fraction in different granulometric classes in order to understand what represents a higher risk to humans.
