Author Contributions
Conceptualization, J.A.K. and W.S.J.; methodology, J.A.K.; validation, M.L., B.C. and J.A.K.; formal analysis, M.L., W.M. and B.C.; investigation, M.L. and W.M., B.C., P.L. and C.B.; resources, M.L., W.M., BC, P.L., C.B. and J.A.K.; data curation, M.L. and J.A.K.; writing—original draft preparation, M.L.; writing—review and editing, M.L., C.B., J.A.K. and W.S.J.; visualization, M.L.; supervision, J.A.K.; project administration, J.A.K. and W.S.J.; funding acquisition, J.A.K. and W.S.J. All authors have read and agreed to the published version of the manuscript.
Figure 1.

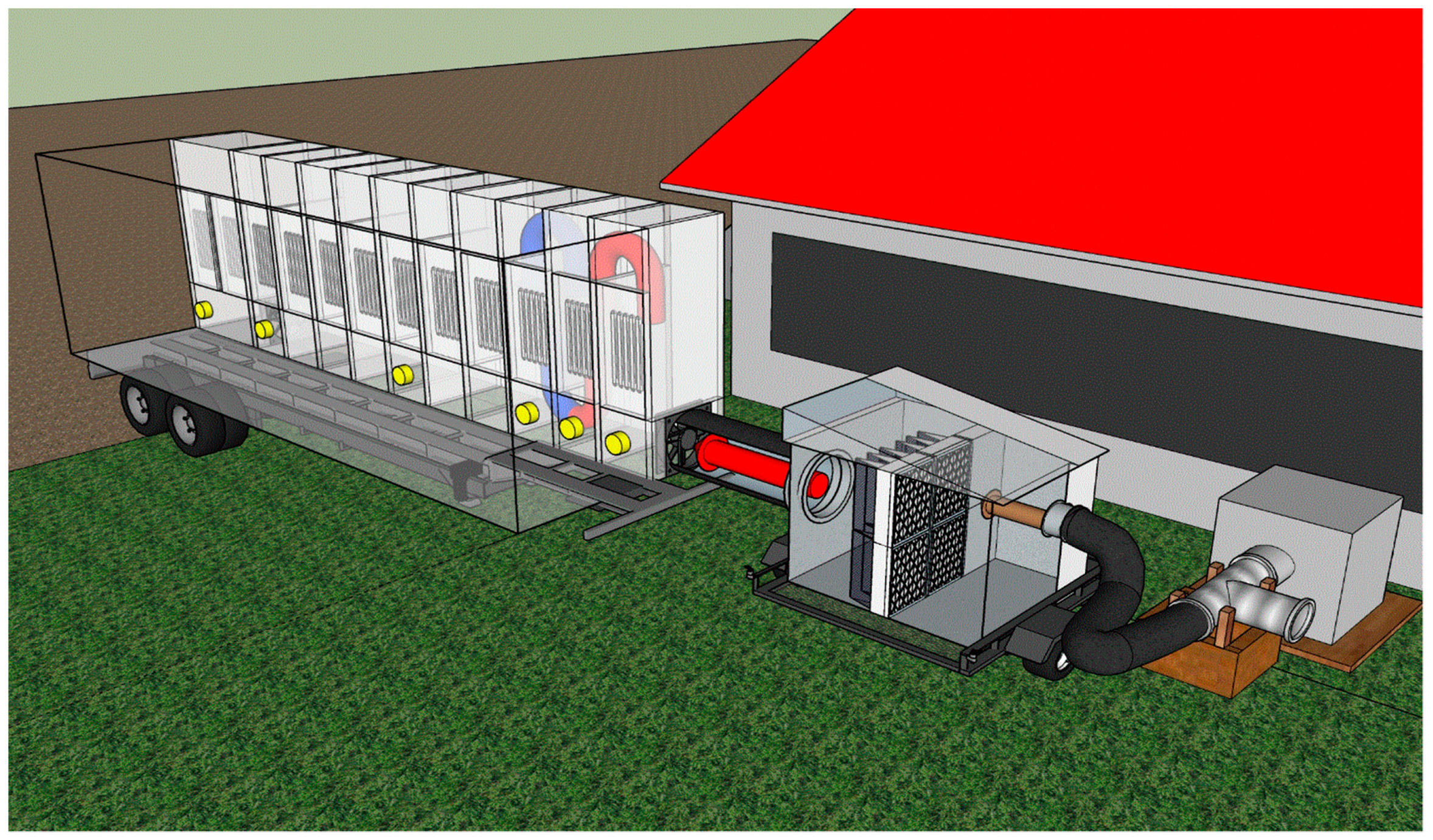

Schematic of a flow-through UV mobile laboratory with filtration unit connected to the continuous fan exhausting gas from stored manure headspace in the pit under barn’s slatted floor. The UV mobile lab consists of a series of connected chambers, each equipped with UV lamps (shown as panels of 5 in each chamber) and sprayed-on photocatalyst on surfaces (coated on all sides of the chamber except for the side installed UV). The lab treated up to 0.78 m3·s−1 of air. Excess airflow from the fan is discharged to the atmosphere. Cone-tipped ‘pipes’ signify free airflow inflow and outflow. Brown: exhaust air from swine barn; red: inlet air with reduced particle matter load; blue: UV-treated air. Yellow: gas sampling ports.
Figure 1.
Schematic of a flow-through UV mobile laboratory with filtration unit connected to the continuous fan exhausting gas from stored manure headspace in the pit under barn’s slatted floor. The UV mobile lab consists of a series of connected chambers, each equipped with UV lamps (shown as panels of 5 in each chamber) and sprayed-on photocatalyst on surfaces (coated on all sides of the chamber except for the side installed UV). The lab treated up to 0.78 m3·s−1 of air. Excess airflow from the fan is discharged to the atmosphere. Cone-tipped ‘pipes’ signify free airflow inflow and outflow. Brown: exhaust air from swine barn; red: inlet air with reduced particle matter load; blue: UV-treated air. Yellow: gas sampling ports.
Figure 2.

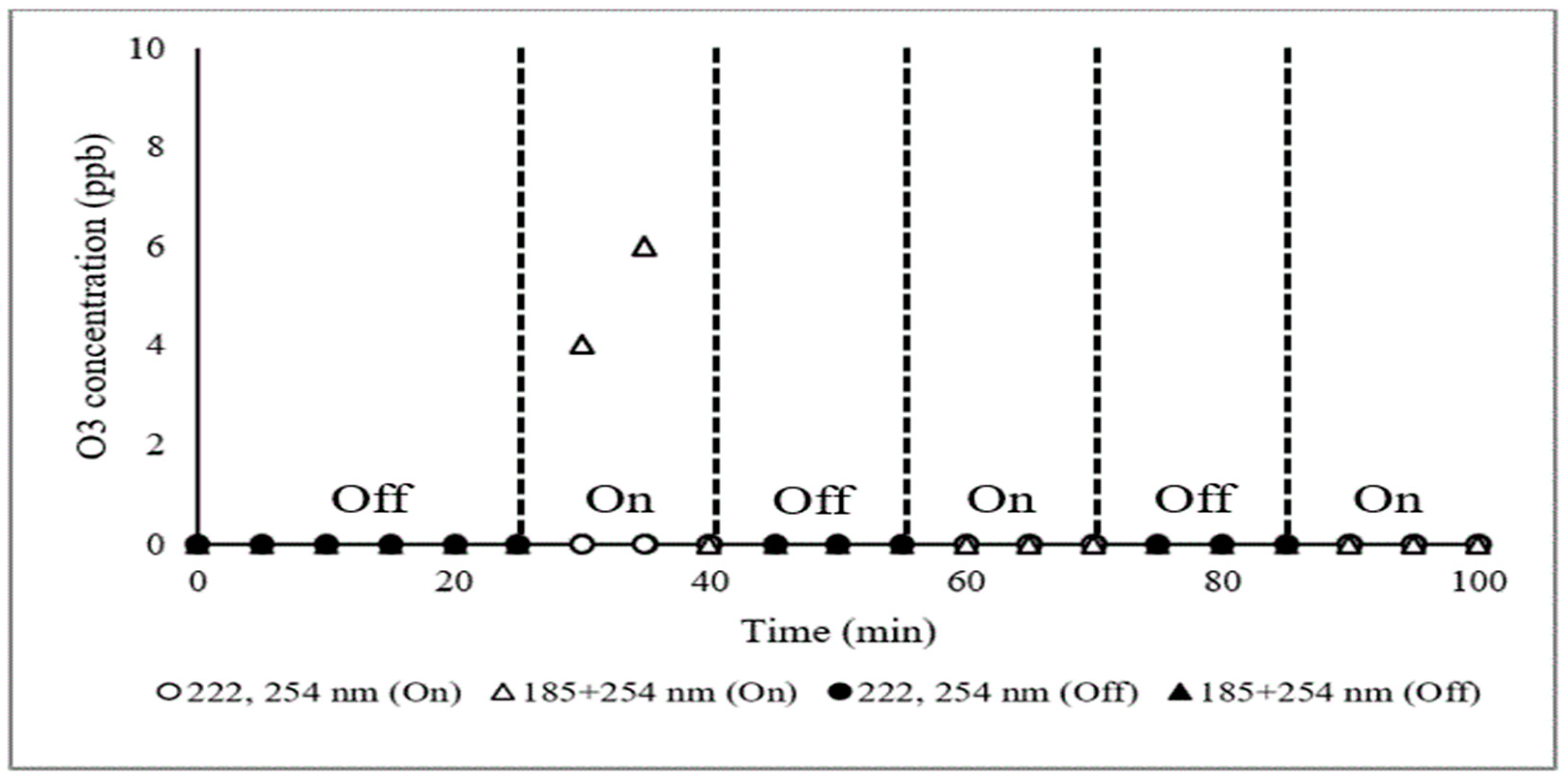

Mitigation of O3 concentration with different UV wavelengths irradiating gaseous emissions inside #2 chamber. Air flow = 0.28 m3·s−1, inlet air temperature (influent of chamber #2) = 28 °C, inlet air RH = 67%, outlet air temp. (inffluent of chamber #3) = 31 °C, outlet air RH = 61%.
Figure 2.
Mitigation of O3 concentration with different UV wavelengths irradiating gaseous emissions inside #2 chamber. Air flow = 0.28 m3·s−1, inlet air temperature (influent of chamber #2) = 28 °C, inlet air RH = 67%, outlet air temp. (inffluent of chamber #3) = 31 °C, outlet air RH = 61%.
Figure 3.

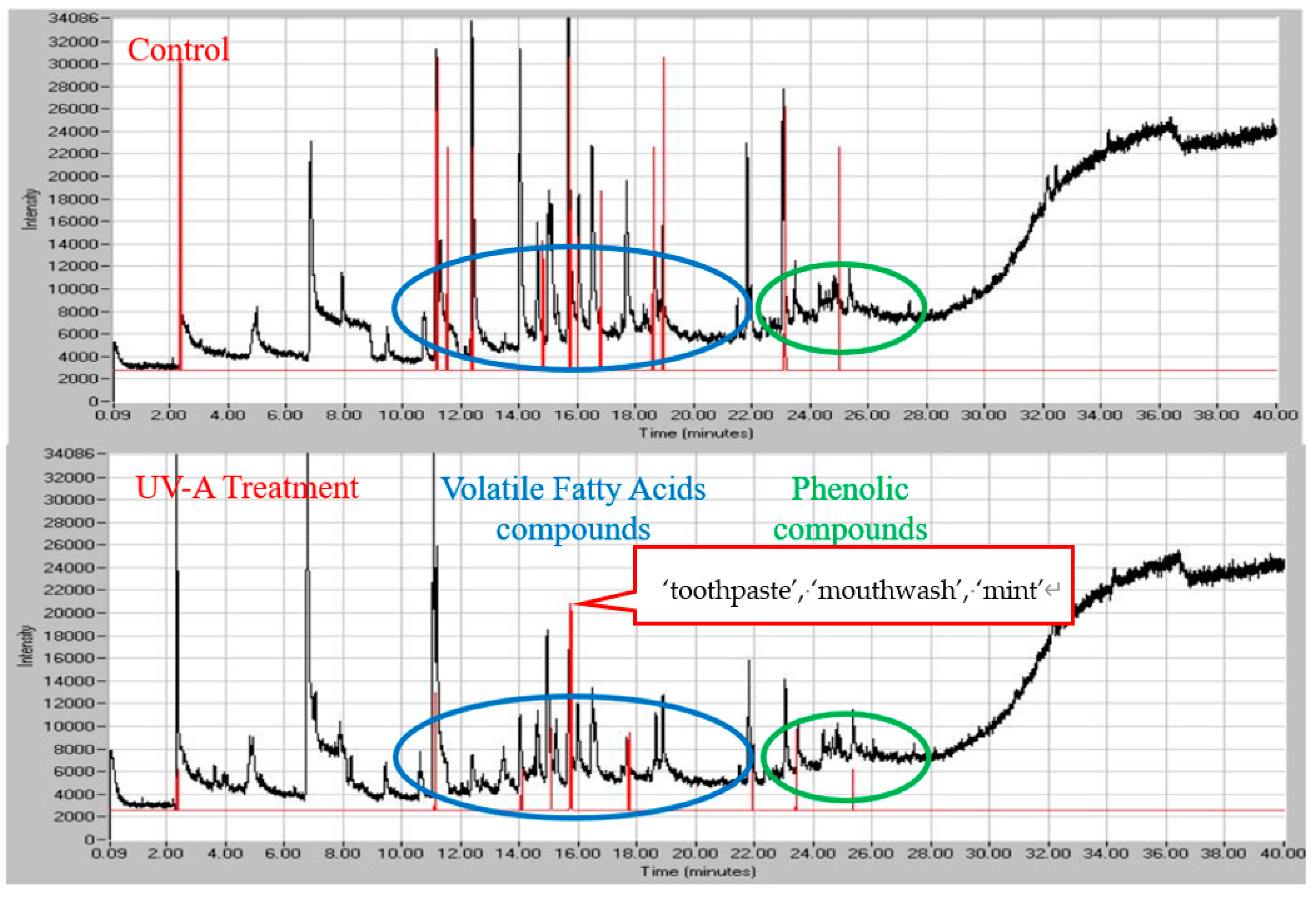

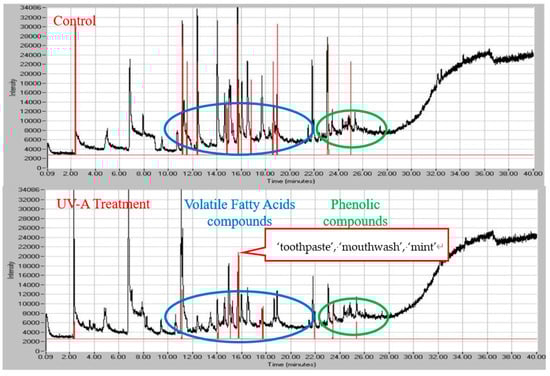

An overlay of the chromatogram (black line) and aromagram (red line). The height of aromagram peaks represents measured odor intensity (percent relative scale). The TIC signal is collected simultaneously, enables linking odors to specific chemicals in the mixture. Several unpleasant (out of 31 total) odors with medium-to-strong intensity were recorded during analysis with GC-MS-O. The ‘toothpaste’, ‘mouthwash’, ‘mint’ scents are emerging in UV-A treated air.
Figure 3.
An overlay of the chromatogram (black line) and aromagram (red line). The height of aromagram peaks represents measured odor intensity (percent relative scale). The TIC signal is collected simultaneously, enables linking odors to specific chemicals in the mixture. Several unpleasant (out of 31 total) odors with medium-to-strong intensity were recorded during analysis with GC-MS-O. The ‘toothpaste’, ‘mouthwash’, ‘mint’ scents are emerging in UV-A treated air.
Table 1.
Mitigation of odor with UV-A photocatalysis treatment. Control temperature = 28.5 ± 2.3 °C, control RH = 69.8 ± 9.5%, treatment temperature: 31.5 ± 1.2 °C, treatment RH = 66.0 ± 4.3%, values in the table are mean ± S.D. Bold signifies statistical significance.
Table 1.
Mitigation of odor with UV-A photocatalysis treatment. Control temperature = 28.5 ± 2.3 °C, control RH = 69.8 ± 9.5%, treatment temperature: 31.5 ± 1.2 °C, treatment RH = 66.0 ± 4.3%, values in the table are mean ± S.D. Bold signifies statistical significance.
UV Dose (mJ·cm−2) | Light Intensity (mW·cm−2) | Treatment Time (s) | Control (OUE∙m−3) | Treatment (OUE∙m−3) | % Reduction (p-Value) |
---|
UV Dose Control with Light Intensity and Treatment Time |
---|
1.9 | 0.04 and 0.41 | 15.8 and 3.2 | 448 ± 75 | 457 ± 54 | −2.0 (0.91) |
2.9 | 0.04 and 0.41 | 23.8 and 4.8 | 424 ± 41 | 379 ± 25 | 10.5 (0.32) |
2.9 | 0.04 and 0.14 | 43.3 and 8.7 | 377 ± 13 | 401 ± 76 | −6.2 (0.93) |
4.0 | 0.04 and 0.26 | 43.3 and 8.7 | 359 ± 60 | 218 ± 28 | 39.3 (0.03) |
5.3 | 0.04 and 0.41 | 43.3 and 8.7 | 412 ± 47 | 251 ± 4.6 | 39.6 (0.04) |
Table 2.
Mitigation of odorous VOCs with UV-A photocatalysis treatment. Control temperature = 28.5 ± 2.3 °C, control RH = 69.8 ± 9.5%, treatment temperature: 31.5 ± 1.2 °C, treatment RH = 66.0 ± 4.3%. Bold signifies statistical significance.
Table 2.
Mitigation of odorous VOCs with UV-A photocatalysis treatment. Control temperature = 28.5 ± 2.3 °C, control RH = 69.8 ± 9.5%, treatment temperature: 31.5 ± 1.2 °C, treatment RH = 66.0 ± 4.3%. Bold signifies statistical significance.
Type of VOCs | Percent Reduction (p-Value) |
---|
UV-A Dose, mJ·cm−2 (Light Intensity, mW·cm−2) |
---|
1.9 (0.04 & 0.41) | 2.9 (0.04 & 0.41) | 2.9 (0.04 & 0.14) | 4.0 (0.04 & 0.26) | 5.3 (0.04 & 0.41) |
---|
DMDS | −6.5 (0.74) | 16.9 (0.03) | 22.2 (0.02) | 37.0 (0.14) | 62.0 (0.02) |
DEDS | 2.1 (0.79) | 22.7 (0.19) | Not detected | Not detected | 26.0 (0.38) |
Acetic acid | −23.7 (0.21) | −2.1 (0.87) | −77.9 (0.11) | −65.1 (0.08) | −29.0 (0.28) |
Propanoic acid | 18.5 (0.53) | 1.7 (0.91) | −43.3 (0.75) | 8.6 (0.92) | −33.3 (0.59) |
Isobutyric acid | 30.3 (0.23) | 48.9 (0.07) | 45.2 (0.08) | 53.9 (0.01) | 44.2 (0.02) |
Butanoic acid | 12.6 (0.71) | 48.2 (0.02) | 40.2 (0.07) | 39.8 (0.08) | 32.1 (0.01) |
Isovaleric acid | 20.1 (0.43) | 23.0 (0.51) | 42.9 (0.05) | 35.4 (0.10) | −10.0 (0.71) |
Valeric acid | 1.6 (0.97) | 42.8 (0.13) | −27.7 (0.81) | 12.7 (0.85) | 22.1 (0.63) |
Hexanoic acid | −20.5 (0.50) | −11.8 (0.05) | Not detected | Not detected | −28.3 (0.37) |
Phenol | −13.3 (0.67) | 0.5 (0.98) | −93.5 (0.15) | −85.6 (0.19) | −17.5 (0.10) |
p-Cresol | 44.0 (0.12) | 32.4 (0.02) | 34.6 (0.11) | 53.4 (0.04) | 39.9 (0.04) |
Indole | 29.4 (0.19) | 9.4 (0.37) | 25.4 (0.47) | 37.9 (0.03) | 66.0 (0.02) |
Skatole | 40.3 (0.15) | 13.2 (0.69) | 37.9 (0.03) | 22.4 (0.01) | 49.0 (0.04) |
Table 3.
Mitigation of N2O with UV-A photocatalysis treatment. Control temperature = 28.5 ± 2.3 °C, control RH = 69.8 ± 9.5%, treatment temperature: 31.5 ± 1.2 °C, treatment RH = 66.0 ± 4.3%, Values in the table are mean ± S.D. Bold signifies statistical significance.
Table 3.
Mitigation of N2O with UV-A photocatalysis treatment. Control temperature = 28.5 ± 2.3 °C, control RH = 69.8 ± 9.5%, treatment temperature: 31.5 ± 1.2 °C, treatment RH = 66.0 ± 4.3%, Values in the table are mean ± S.D. Bold signifies statistical significance.
UV Dose (mJ·cm−2) | Light Intensity (mW·cm−2) | Treatment Time (s) | Control (ppm) | Treatment (ppm) | % Reduction (p-Value) |
---|
UV Dose Control with Light Intensity and Treatment Time |
---|
1.9 | 0.04 and 0.41 | 15.8 and 3.2 | 0.30 ± 0.00 | 0.28 ± 0.01 | 4.4 (0.05) |
2.9 | 0.04 and 0.41 | 23.8 and 4.8 | 0.31 ± 0.01 | 0.28 ± 0.01 | 9.4 (0.01) |
2.9 | 0.04 and 0.14 | 43.3 and 8.7 | 0.32 ± 0.01 | 0.30 ± 0.00 | 9.1 (0.02) |
4.0 | 0.04 and 0.26 | 43.3 and 8.7 | 0.32 ± 0.01 | 0.28 ± 0.00 | 13.3 (<0.01) |
5.3 | 0.04 and 0.41 | 43.3 and 8.7 | 0.31 ± 0.00 | 0.27 ± 0.00 | 11.8 (0.01) |
Table 4.
Mitigation of CO2 with UV-A photocatalysis treatment. Control temperature = 28.5 ± 2.3 °C, control RH = 69.8 ± 9.5%, treatment temperature: 31.5 ± 1.2 °C, treatment RH = 66.0 ± 4.3%, Values in the table are mean ± S.D. Bold signifies statistical significance.
Table 4.
Mitigation of CO2 with UV-A photocatalysis treatment. Control temperature = 28.5 ± 2.3 °C, control RH = 69.8 ± 9.5%, treatment temperature: 31.5 ± 1.2 °C, treatment RH = 66.0 ± 4.3%, Values in the table are mean ± S.D. Bold signifies statistical significance.
UV Dose (mJ·cm−2) | Light Intensity (mW·cm−2) | Treatment Time (s) | Control (ppm) | Treatment (ppm) | % Reduction (p-Value) |
---|
UV Dose Control with UV Light Intensity and Treatment Time |
---|
1.9 | 0.04 and 0.41 | 15.8 and 3.2 | 896 ± 81 | 1016 ± 108 | −13.5 (0.33) |
2.9 | 0.04 and 0.41 | 23.8 and 4.8 | 737 ± 12 | 892 ± 18 | −21.2 (0.01) |
2.9 | 0.04 and 0.14 | 43.3 and 8.7 | 1032 ± 21 | 1380 ± 104 | −33.7 (0.03) |
4.0 | 0.04 and 0.26 | 43.3 and 8.7 | 1032 ± 21 | 1251 ± 40 | −21.2 (0.02) |
5.3 | 0.04 and 0.41 | 43.3 and 8.7 | 1201 ± 296 | 1534 ± 105 | −27.8 (0.16) |
Table 5.
Mitigation of H2S with UV-A photocatalysis treatment. Control temperature = 28.5 ± 2.3 °C, control RH = 69.8 ± 9.5%, treatment temperature: 31.5 ± 1.2 °C, treatment RH = 66.0 ± 4.3%, Values in the table are mean ± S.D. Bold signifies statistical significance.
Table 5.
Mitigation of H2S with UV-A photocatalysis treatment. Control temperature = 28.5 ± 2.3 °C, control RH = 69.8 ± 9.5%, treatment temperature: 31.5 ± 1.2 °C, treatment RH = 66.0 ± 4.3%, Values in the table are mean ± S.D. Bold signifies statistical significance.
UV Dose (mJ·cm−2) | Light Intensity (mW·cm−2) | Treatment Time (s) | Control (ppm) | Treatment (ppm) | % Reduction (p-Value) |
---|
UV Dose Control with UV Light Intensity and Treatment Time |
---|
1.9 | 0.04 and 0.41 | 15.8 and 3.2 | 0.8 ± 0.0 | 0.9 ± 0.0 | −4.0 (0.07) |
2.9 | 0.04 and 0.41 | 23.8 and 4.8 | 0.8 ± 0.0 | 0.8 ± 0.1 | 4.1 (0.13) |
2.9 | 0.04 and 0.14 | 43.3 and 8.7 | 2.0 ± 0.4 | 1.9 ± 0.2 | 4.9 (0.35) |
4.0 | 0.04 and 0.26 | 43.3 and 8.7 | 1.8 ± 0.6 | 1.7 ± 0.5 | 9.0 (0.05) |
5.3 | 0.04 and 0.41 | 43.3 and 8.7 | 0.6 ± 0.1 | 0.4 ± 0.0 | 26.2 (0.01) |
Table 6.
Mitigation of PM with UV-A photocatalysis treatment. Control temperature = 28.5 ± 2.3 °C, control RH = 69.8 ± 9.5%, treatment temperature: 31.5 ± 1.2 °C, treatment RH = 66.0 ± 4.3%. Values in the table are mean ± S.D.
Table 6.
Mitigation of PM with UV-A photocatalysis treatment. Control temperature = 28.5 ± 2.3 °C, control RH = 69.8 ± 9.5%, treatment temperature: 31.5 ± 1.2 °C, treatment RH = 66.0 ± 4.3%. Values in the table are mean ± S.D.
Size of PM | Control (mg∙m−3) | Treatment (mg∙m−3) | % Reduction (p-Value) |
---|
Total PM | 0.22 ± 0.16 | 0.20 ± 0.09 | 9.1 (0.89) |
PM 1 | 0.10 ± 0.13 | 0.12 ± 0.06 | −20.0 (0.68) |
PM 2.5 | 0.09 ± 0.11 | 0.06 ± 0.04 | 33.3 (0.48) |
PM 4–PM 10 | 0.08 ± 0.08 | 0.06 ± 0.04 | 25.0 (0.81) |
PM 10 | 0.11 ± 0.07 | 0.05 ± 0.04 | 54.5 (0.39) |
Table 7.
Mitigation of N2O with different UV wavelengths irradiating gaseous emissions inside #2 chamber. Airflow = 0.28 m3·s−1, inlet air temperature (influent of chamber #2) = 28 °C, inlet air RH = 67%, outlet air temperature (influent of chamber #3) = 31 °C, outlet air RH = 61%. Values in the table are mean ± S.D. Bold signifies statistical significance.
Table 7.
Mitigation of N2O with different UV wavelengths irradiating gaseous emissions inside #2 chamber. Airflow = 0.28 m3·s−1, inlet air temperature (influent of chamber #2) = 28 °C, inlet air RH = 67%, outlet air temperature (influent of chamber #3) = 31 °C, outlet air RH = 61%. Values in the table are mean ± S.D. Bold signifies statistical significance.
UV Wavelengths (nm) | UV Dose (µJ·cm−2) | Light Intensity (µW·cm−2) | Control (ppm) | Treatment (ppm) | % Reduction (p-Value) |
---|
185 + 254 | 0.03 | 0.01 | 0.232 ± 0.004 | 0.221 ± 0.002 | 5.1 (0.02) |
222 | 2.55 | 0.59 | 0.221 ± 0.006 | 0.209 ± 0.005 | 5.4 (0.20) |
254 | 1.60 | 0.37 | 0.205 ± 0.005 | 0.201 ± 0.002 | 1.7 (0.26) |
367 | 1775 | 410 | 0.200 ± 0.009 | 0.188 ± 0.007 | 5.8 (0.20) |
Table 8.
Performance of the MERV8 and MERV15 filtration. Values in the table are mean ± S.D. Bold signifies statistical significance. The effluent was used for UV treatment in experiments described in
Section 3.1 and
Section 3.2.
Table 8.
Performance of the MERV8 and MERV15 filtration. Values in the table are mean ± S.D. Bold signifies statistical significance. The effluent was used for UV treatment in experiments described in
Section 3.1 and
Section 3.2.
Filtration | PM 1 | PM 2.5 | PM 4–10 | PM 10 | Total PM |
---|
Concentration (mg∙m−3) | % Reduction (p-Value) |
---|
Unfiltered swine barn exhaust | 0.10 ± 0.13 | 0.09 ± 0.11 | 0.08 ± 0.08 | 0.11 ± 0.07 | 0.22 ± 0.16 | - |
MERV 8 | 0.05 ± 0.02 | 0.03 ± 0.01 | 0.02 ± 0.01 | 0.02 ± 0.01 | 0.06 ± 0.03 | 77.1 (0.05) |
MERV 8 and 15 | 0.003 ± 0.001 | 0.003 ± 0.000 | 0.003 ± 0.000 | 0.003 ± 0.000 | 0.004 ± 0.001 | 98.3 (0.01) |
Table 9.
Performance of UV-A photocatalysis in mitigating N2O concentrations under different PM conditions. UV-A dose: 5.3 mJ∙cm−2, airflow = 0.28 m3·s−1. Values in the table are mean ± S.D. Bold signifies statistical significance.
Table 9.
Performance of UV-A photocatalysis in mitigating N2O concentrations under different PM conditions. UV-A dose: 5.3 mJ∙cm−2, airflow = 0.28 m3·s−1. Values in the table are mean ± S.D. Bold signifies statistical significance.
Total PM (mg∙m−3) | PM Filtration Status | UV Dose (mJ·cm−2) | Control (ppb) | UV Treatment (ppb) | % Reduction (p-Value) |
---|
0.22 | Unfiltered swine barn exhaust | 5.3 | 0.273 ± 0.008 | 0.244 ± 0.007 | 10.6 (0.02) |
0.06 | MERV 8 | 5.3 | 0.267 ± 0.002 | 0.244 ± 0.002 | 8.5 (0.01) |
0.004 | MERV 8 and 15 | 5.3 | 0.311 ± 0.004 | 0.282 ± 0.006 | 9.3 (0.01) |
Table 10.
Performance of UV-A photocatalysis in mitigating odor under different PM conditions. UV-A dose: 5.3 mJ∙cm−2, airflow = 0.28 m3·s−1. Values in the table are mean ± S.D. Bold signifies statistical significance.
Table 10.
Performance of UV-A photocatalysis in mitigating odor under different PM conditions. UV-A dose: 5.3 mJ∙cm−2, airflow = 0.28 m3·s−1. Values in the table are mean ± S.D. Bold signifies statistical significance.
Total PM (mg∙m−3) | PM Filtration Status | UV Dose (mJ·cm−2) | Control (OUE∙m−3) | UV Treatment (OUE∙m−3) | % Reduction (p-Value) |
---|
0.22 | Unfiltered swine barn exhaust | 5.3 | 685 ± 52 | 623 ± 83 | 8.5 (0.44) |
0.06 | MERV 8 | 5.3 | 923 ± 77.1 | 737 ± 73.4 | 20.2 (0.19) |
0.004 | MERV 8 and 15 | 5.3 | 412 ± 47 | 251 ± 4.58 | 39.0 (0.04) |
Table 11.
Performance of UV-A photocatalysis in mitigating odorous VOCs under different PM conditions. UV-A dose: 5.3 mJ∙cm−2, airflow = 0.28 m3·s−1. Bold signifies statistical significance.
Table 11.
Performance of UV-A photocatalysis in mitigating odorous VOCs under different PM conditions. UV-A dose: 5.3 mJ∙cm−2, airflow = 0.28 m3·s−1. Bold signifies statistical significance.
| Percent Reduction (p-Value) |
---|
UV-A Dose (Total PM, mg·m−3) |
---|
5.3 (0.22) | 5.3 (0.06) | 5.3 (0.004) |
---|
PM filtration status | Unfiltered swine barn exhaust | MERV 8 | MERV 8 and 15 |
DMDS | −17.2 (0.85) | −5.8 (0.73) | 31.6 (0.15) |
DEDS | Not detected | Not detected | Not detected |
Acetic acid | −2.7 (0.95) | −37.3 (0.38) | 3.8 (0.96) |
Propanoic acid | −30.4 (0.73) | −38.0 (0.44) | 16.2 (0.65) |
Isobutyric acid | 1.0 (0.98) | 26.9 (0.04) | 23.6 (0.04) |
Butanoic acid | −5.8 (0.62) | 28.1 (0.42) | 17.6 (0.35) |
Isovaleric acid | −52.1 (0.31) | −10.8 (0.85) | 45.0 (0.33) |
Valeric acid | 22.0 (0.43) | 7.4 (0.84) | 44.5 (0.44) |
Hexanoic acid | Not detected | Not detected | Not detected |
Phenol | 13.6 (0.23) | −63.2 (0.09) | −14.5 (0.41) |
p-Cresol | −11.2 (0.72) | −6.3 (0.88) | 36.5 (0.04) |
Indole | −10.3 (0.34) | −20.9 (0.78) | 44.5 (0.04) |
Skatole | −12.7 (0.21) | 23.8 (0.02) | 12.4 (0.12) |
Table 12.
Performance of UV-A photocatalysis in mitigating H2S concentrations under different PM conditions. UV-A dose: 5.3 mJ∙cm−2, airflow = 0.28 m3·s−1. Values in the table are mean ± S.D. Bold signifies statistical significance.
Table 12.
Performance of UV-A photocatalysis in mitigating H2S concentrations under different PM conditions. UV-A dose: 5.3 mJ∙cm−2, airflow = 0.28 m3·s−1. Values in the table are mean ± S.D. Bold signifies statistical significance.
Total PM (mg∙m−3) | PM Filtration Status | UV Dose (mJ·cm−2) | Control (ppm) | Treatment (ppm) | % Reduction (p-Value) |
---|
0.22 | Unfiltered swine barn exhaust | 5.3 | 0.64 ± 0.03 | 0.65 ± 0.02 | −0.5 (0.78) |
0.06 | MERV 8 | 5.3 | 0.36 ± 0.04 | 0.34 ± 0.02 | 5.21 (0.27) |
0.004 | MERV 8 and 15 | 5.3 | 0.52 ± 0.13 | 0.31 ± 0.06 | 40.2 (<0.01) |
Table 13.
Performance of UV-A photocatalysis in mitigating O3 concentrations under different PM conditions. UV-A dose: 5.3 mJ∙cm−2, airflow = 0.28 m3·s−1. Values in the table are mean ± S.D. Bold signifies statistical significance.
Table 13.
Performance of UV-A photocatalysis in mitigating O3 concentrations under different PM conditions. UV-A dose: 5.3 mJ∙cm−2, airflow = 0.28 m3·s−1. Values in the table are mean ± S.D. Bold signifies statistical significance.
Total PM (mg∙m−3) | PM Filtration Status | UV Dose (mJ·cm−2) | Control (ppb) | Treatment (ppb) | % Reduction (p-Value) |
---|
0.22 | Unfiltered swine barn exhaust | 5.3 | Not detected | Not detected | - |
0.06 | MERV 8 | 5.3 | Not detected | Not detected | - |
0.004 | MERV 8 and 15 | 5.3 | 5.3 ± 1.9 | 0.0 ± 0.0 | 100 (<0.01) |
Table 14.
Results of simultaneous chemical and smell sensory characterization of selected VOCs emitted from swine manure and treated with UV-A. Panelist responses are the ‘odor character (i.e., ‘what it smells like’) and the (hedonic tone) (on an ‘unpleasant-neutral-pleasant’ scale).
Table 14.
Results of simultaneous chemical and smell sensory characterization of selected VOCs emitted from swine manure and treated with UV-A. Panelist responses are the ‘odor character (i.e., ‘what it smells like’) and the (hedonic tone) (on an ‘unpleasant-neutral-pleasant’ scale).
RT | Compound | Control | UV-A Treatment | % R |
---|
Abundance | Panelist 1 | Panelist 2 | Panelist 3 | Abundance | Panelist 1 | Panelist 2 | Panelist 3 |
---|
15.6 | Benzoic acid (1-Octanol) | 1120 × 103 | Alcoholic (Unpleasant) | | Acid (Unpleasant) | 1750 × 103 | Toothpaste Mouthwash (Pleasant) | | Mint (Neutral) | −55.6 |
Table 15.
Summary of the percent reduction of target gases investigated in the previous study with UV-A photocatalysis. Bold signifies statistical significance.
Table 15.
Summary of the percent reduction of target gases investigated in the previous study with UV-A photocatalysis. Bold signifies statistical significance.
Ref. | Experimental Conditions | Catalyst (Dose) | UV Wavelength | UV Dose (Intensity) | Target Gas (Percent Reduction) |
---|
[20] | Swine farm (farrowing rooms) T: 24 °C (18.9–27.3): RH: 54% | TiO2 (7 mg·cm−2) | 315–400 nm | Not reported | NH3 (30.5) |
CH4 (10.8) |
CO2 (15.3) |
[21] | Swine farm (weaning units) T: 26 °C (24.2–29.9); RH: 56% (52–90%) | TiO2 (7 mg·cm−2) | 315–400 nm | Not reported | CH4 (27.4) |
PM 10 (17.0) |
[7] | Lab-scale (simulated livestock farm); T: 24 °C; RH: 50% | TiO2 (0.7 μg·cm−2) | 365 nm | Not reported (0.46 mW·cm−2) | NH3 (35) |
[8] | Lab-scale (simulated livestock farm), T: 20 ± 1 °C, RH: 50% | TiO2 (1.5 m2·g−1) | 315–400 nm | 0.6–1.3 mJ·cm−2 (2.3–5.3 mW·cm−2) | H2S (4.2–14) |
MT (80–87) |
DMS (92–95) |
DMDS (83–91) |
Butan-1-ol (93–95) |
AA (81–89) |
PA (97–98) |
BA (98–99) |
VA (98–99) |
[6] | Lab-scale (simulated livestock farm); T: 40 ℃; R: 40% | TiO2 (10 μg·cm−2) | 365 nm | 12 mJ·cm−2 (0.06 mW·cm−2) | DMDS (40) |
DEDS (81) |
DMTS (76) |
BA (87) |
Guaiacol (100) |
p-Cresol (94) |
[1] | Lab-scale (simulated poultry farm); T: 25 ± 3 ℃; RH: 12% | TiO2 (10 μg·cm−2) | 365 nm | 0.97 J·cm−2 (4.85 mW·cm−2) | NH3 (19) |
N2O (10) |
CO2 (3.8) |
O3 (48) |
[16] | Pilot-scale (swine finishing rooms); T: 22–26 ℃; RH: 36–80% | TiO2 (10 μg·cm−2) | 365 nm | < 1.88 mJ·cm−2 (< 0.04 mW·cm−2) | N2O (8.7) |
CO2 (-3.1) |
Odor (16) |
p-Cresol (22) |
[2] | Pilot-scale (poultry farm); T: 28 ± 3 ℃; RH: 56% | TiO2 (10 μg·cm−2) | 365 nm | 0.82 J·cm−2 (4.85 mW·cm−2) | NH3 (8.7) |
N2O (13) |
O3 (100) |
Odor (18) |
DEDS (47) |
BA (62) |
p-Cresol (49) |
Skatole (35) |
[18] | Pilot-scale (simulate swine farm); T: 11 ± 3 ℃; RH: 34 ± 6% | TiO2 (10 μg·cm−2) | 367 nm | 2.5–5.8 mJ·cm−2 (0.41 mW·cm−2) | NH3 (1–11) |
Butan-1-ol (19–41) |
[19] | Pilot-scale (simulate swine farm); T.: 19 ± 2 ℃; RH: 45 ± 4% | TiO2 (10 μg·cm−2) | 367 nm | 2.5–5.8 mJ·cm−2 (0.41 mW·cm−2) | NH3 (1.3–6.1) |
N2O (9.0–14) |
O3 (100-100) |
AA (-4.0–51) |
BA (45–48) |
PA (51–67) |
p-Cresol (41–59) |
Indole (22–20) |
Odor (32–63) |
This study | Swine farm (finishing rooms); T: 29 ± 2 ℃; RH: 66 ± 4% | TiO2 (10 μg·cm−2) | 367 nm | 2.9–5.3 mJ·cm−2 (0.41 mW·cm−2) | H2S (4.9–40) |
N2O (9.4–12) |
DMDS (22–63) |
IA (49–44) |
BA (48–32) |
p-Cresol (32–40) |
Indole (25–66) |
Skatole (38–49) |
Odor (11–40) |
O3 (N/A-100) |
Table 16.
Summary of the estimated cost of electric energy needed to mitigate targeted gases with UV-A photocatalysis using the mobile lab.
Table 16.
Summary of the estimated cost of electric energy needed to mitigate targeted gases with UV-A photocatalysis using the mobile lab.
Ref. | Targeted Gas | UV Dose (mJ∙cm−2) | Targeted Gas Emission (E, mg∙min−1, Odor = OUE∙min−1) | Cost (USD·kg−1 for NH3 and H2S; USD·g−1 for Butan-1-ol, N2O and O3) |
---|
Control | UV Treatment |
---|
[18] | NH3 | 3.9 | 746 | 676 | 53.4 |
NH3 | 5.8 | 763 | 676 | 62.5 |
Butan-1-ol | 2.5 | 31.5 | 25.3 | 442 |
3.9 | 30.9 | 20.3 | 352 |
5.8 | 32.9 | 19.4 | 403 |
[19] | NH3 | 5.8 | 64.2 | 60.2 | 1300 |
N2O | 3.9 | 8.14 | 7.79 | 10.6 |
N2O | 5.8 | 8.06 | 6.92 | 4.72 |
O3 | 1.3 | 0.01 | 0.00 | 18.9 |
O3 | 5.8 | 0.01 | 0.00 | 60.0 |
Odor | 3.9 | 9210 | 3910 | - |
5.8 | 9200 | 3430 | - |
This study | H2S | 5.3 | 8.55 | 3.58 | 1090 |
N2O | 3.9 | 9.30 | 8.43 | 3.43 |
N2O | 5.3 | 9.31 | 8.21 | 4.93 |
O3 | 5.3 | 0.16 | 0.00 | 33.7 |
Odor | 4.0 | 5480 | 3320 | - |
5.3 | 6290 | 3830 | - |
