Article

Air Quality in Southeast Brazil during COVID-19 Lockdown: A Combined Satellite and Ground-Based Data Analysis

by
Rayssa Brandao
and
Hosein Foroutan
*
Department of Civil and Environmental Engineering, Virginia Polytechnic Institute and State University, Blacksburg, VA 24061, USA
*
Author to whom correspondence should be addressed.
Atmosphere 2021, 12(5), 583; https://doi.org/10.3390/atmos12050583
Submission received: 4 April 2021 / Revised: 27 April 2021 / Accepted: 27 April 2021 / Published: 1 May 2021
(This article belongs to the Special Issue Coronavirus Pandemic Shutdown Effects on Urban Air Quality)
Browse Figures
Versions Notes

Abstract

:
With the current COVID-19 pandemic being spread all over the world, lockdown measures are being implemented, making air pollution levels go down in several countries. In this context, the air quality changes in the highly populated and trafficked Brazilian states of São Paulo (SP) and Rio de Janeiro (RJ) were addressed using a combination of satellite and ground-based daily data analysis. We explored nitrogen dioxide (NO 2 ) and fine particulate matter (PM 2.5 ) daily levels for the month of May from 2015–2020. Daily measurements of NO 2 column concentrations from the Ozone Monitoring Instrument (OMI) aboard NASA’s Aura satellite were analyzed and decreases of 42% and 49.6% were found for SP and RJ, respectively, during the year 2020 compared to the 2015–2019 average. Besides NO 2 column retrievals, ground-based data measured by the Brazilian States Environmental Institutions were analyzed and correlated with satellite retrievals. Correlation coefficients between year-to-year changes in satellite column and ground-based concentrations were 77% and 53% in SP and RJ, respectively. Ground-based data showed 13.3% and 18.8% decrease in NO 2 levels for SP and RJ, respectively, in 2020 compared to 2019. In SP, no significant change in PM 2.5 was observed in 2020 compared to 2019. To further isolate the effect of emissions reduction due to the lockdown, meteorological data and number of wildfire hotspots were analyzed. NO 2 concentrations showed negative and positive correlations with wind speed and temperature, respectively. PM 2.5 concentration distributions suggested an influence by the wildfires in the southeast region of the country. Synergistic analyses of satellite retrievals, surface level concentrations, and weather data provide a more complete picture of changes to pollutant levels.

1. Introduction

The new coronavirus (COVID-19) disease was declared as a global pandemic by the World Health Organization on 11 March 2020 [1]. Since then, several countries that had not yet adopted social isolation measures have been promulgating lockdown decrees to avoid the spread of the virus. In Brazil, small towns to bigger cities and entire states have implemented lockdown regulations in varying periods and social-economic activities, depending on local virus propagation, infrastructure and regional characteristics [2]. The southeastern states of Sao Paulo (SP) and Rio de Janeiro (RJ) were the first ones to implement lockdown measures in local areas due to their high numbers of COVID-19 cases. Considering that they are highly populated and industrialized regions, and hold the largest economic clusters in the nation, any imposed changes on their regular activities greatly affects the country’s GDP (gross domestic product). Therefore, no lockdown rule was introduced for industries [3]. Public and private transportations, on the other hand, were considerably reduced (e.g., a limitation of travel based on the plate number).
A number of previous studies have investigated the impact of lockdown measures on the level of air pollution in several regions of the world, including Spain [4,5], India [6,7], East Asia [8,9,10], the United States [11,12], Morocco [13], Thailand [14], Iran [15], and Italy [16]. A typical observation, common to these studies, is that the COVID-19 lockdown across the countries of the world resulted in reductions of PM 2.5 , PM 10 , NO 2 , CO, and volatile organic compounds (VOCs), a slight decrease or no change in SO 2 , and an increase in O 3 (see, e.g., [17] for a review). In Brazil, Nakada and Urban [18] highlighted the air quality impacts of a partial lockdown in SP during 24 March to 20 April 2020. They found more than 50% lower concentrations of traffic-related pollutants (CO, NO x ) during this timeframe compared to a five-year mean value based on data from four near-road ground-based stations. A series of studies [3,19,20] was conducted in RJ during partial lockdown (2 March to 16 April 2020) that showed significant reductions in CO and NO 2 , a slight reduction of PM 10 , and an increased level of Ozone.
Although there is no shortage of studies relating the COVID-19 lockdown and level of air pollution, those that have based their analysis on collective information from satellite retrievals and ground-based pollutant measurements are rather rare, especially applied to Brazil. For example, the analysis of NO 2 levels in all the above-mentioned studies in Brazil were based on a limited number of ground-based measurements. The short chemical life-time of NO 2 , however, provides a potential for surface emission observations to be well correlated with tropospheric NO 2 vertical column densities (VCDs), which are concentrations measured by satellite and converted from a slant plane to a perpendicular position in relation to the Earth’s surface [21]. In fact, previous studies have shown the temporal correlation potential between NO 2 ground and satellite column concentrations [22,23,24,25]. Therefore, NO 2 VCDs may be used as a proxy of surface data especially when ground-based stations are sparse, as in some regions of Brazil. Although used in studies focusing on other regions of the world (see Table 1 for a summary), no previous studies have used NO 2 VCDs to quantify air pollution change due to COVID-19 in Brazil.
In addition, conclusions of several studies investigating the relations between COVID-19 lockdown and regional air quality have been limited due to not investigating meteorological fields and/or natural emissions that might influence pollutant concentration variations [12,17,19,29].
In this paper, we investigated pollutant concentration changes before and during COVID-19 lockdown in two Brazilian states of SP and RJ using a combined analysis of satellite and surface data. In addition, the effect of meteorological variables and natural wildfire emissions on the findings was evaluated.
We focused on nitrogen dioxide (NO 2 ) and fine particulate matter (PM 2.5 ) as the two major pollutants emitted by motor vehicles [31]. It is estimated that road traffic accounts for 82% of the NO x in the metropolitan region of SP [32]. Additionally, de Fatima Andrade et al. [33] found that vehicle emissions contribute to at least 40% of the PM 2.5 mass in six metropolitan cities including Sao Paulo and Rio de Janeiro. Short-term NO 2 exposure can increase the risk of total, cardiovascular, and respiratory death, while there is evidence of a long-term effect of NO 2 on mortality [34,35]. A range of health issues can happen if particulate matters are inhaled [36]. Fine particulate matters (PM 2.5 ) are especially of interest as they may penetrate deep into the respiratory tract. Islam et al. [37] investigated diesel-exhaust particulate transport and deposition in the upper airways and found differences in deposition associated with particle size.
By evaluating NO 2 data from satellite and ground-based monitoring systems, we aim to highlight the importance of a synergistic analysis of both datasets, especially in a location that lacks ground measurements to provide accurate NO 2 trends. Since the COVID-19 pandemic has begun in Brazil, no previous scientific literature has adopted satellite data for air quality evaluations, and in fact quantitative analyses of satellite retrievals (as opposed to the common usage of composite satellite imagery) are rather rare in studies focusing on other regions of the world. Furthermore, meteorological measurements are not always included in air pollution analysis. For instance, in Brazilian studies mentioned above [3,19,20], no actual weather data were provided besides dispersion information on air quality results during the pandemic. By studying the cross-correlation between meteorological and air quality variables, this study aims to provide a broader and more quantitative understanding of the regional air quality effects due to COVID-19 lockdown. Finally, it is important to explore relationships between NO 2 and PM 2.5 concentrations with natural emissions trends.

2. Materials and Methods

2.1. The Study Area and Time Frame

The areas of interest adopted for the present study were the Brazilian states of SP and RJ, with their hydrographic regions shown in Figure 1. We focused on two metropolitan areas, namely Alto Tiete in SP and Baia de Guanabara in RJ (Figure 1C,E), where air pollution due to transportation is expected to be high.
Monthly-averaged NO 2 and PM 2.5 concentrations during May 2020 were compared to those of May 2015–2029. This timespan was selected after carefully reviewing the timeframe of local lockdown decrees. Earlier studies in southeast Brazil [3,18,19,20] have focused on early months of partial lockdown (March and April). However, recently, Noda et al. [38] used a social isolation index and noticed two distinct time-periods of lockdown in SP: before and after 1 May 2020. The first period was associated with greater reductions in the emissions, while the second period was characterized by greater fluctuations in pollutant concentrations. Emphasizing that the pollutant levels were not similar throughout the lockdown, Noda et al. [38] called for more studies focusing on the second interval.

2.2. Satellite Retrievals of Tropospheric NO 2

The Ozone Monitoring Instrument (OMI)—a nadir-viewing near-UV/Visible spectrometer (264–504 nm spectrum) aboard NASA’s Aura satellite—was adopted for NO 2 VCD retrievals in this study. OMI was launched on 15 July 2004 and provides daily measurements of key air quality components including NO 2 over the whole globe. It orbits the Earth in accordance with Aura’s polar Sun-synchronous pattern. Its field of view (FOV) is approximately 13 km × 24 km near nadir and its local equator crossing time (LECT) is 13:45 ± 0:15. For our study area in Brazil, the overpassing time was approximated to be 30 min after LECT, or 14:15 ± 0:15, in accordance with the OMNO 2 product description [39]. We used cloud-screened tropospheric column Level-3 daily global gridded (spatial resolution of 0.25 ∘ × 0.25 ∘ ) OMI NO 2 V3 (OMNO 2 d) [40]. By choosing tropospheric instead of total column, stratospheric values are removed, which is expected to result in a better correlation between column and surface concentrations. The OMNO 2 d daily values were then averaged for the May months of 2015–2019 as well as for May 2020. Additionally, NO 2 mean column values were calculated for grid cells covering SP and RJ to be used for quantitative comparisons and correlation analyses with ground-based data.

2.3. Ground Measurements

The NO 2 surface-level concentrations were obtained from the State’s Environmental Agencies Air Quality Information Systems, CETESB (Companhia Ambiental do Estado de São Paulo) in SP and INEA (Instituto Estadual do Ambiente) in RJ [41,42]. The NO 2 measurement technique is consistent between the two datasets both using a chemiluminescence method. The PM 2.5 ground measurements were only available from the CETESB Agency in SP. The temporal resolution of NO 2 and PM 2.5 data was hourly and daily, respectively.
The ground stations of interest were located within the metropolitan areas in each state (see Figure 1C,E). All SP stations are within the Water Resources Management Unit n° 6 (WRMU 6) which encompasses the Alto Tiete hydrographic region, and all RJ stations are within the West Side of the Baia de Guanabara Hydrographic Region. Stations of interest were chosen objectively and according to a defined set of criteria. Six stations in SP and four stations in RJ were selected. All of these stations recorded NO 2 mass concentrations higher than 60 g/m 3 at least once for each year. The stations in SP had PM 2.5 measurements available for at least 15 days of the month. All stations in SP and RJ were situated strategically close to busy highways. Therefore, it can be assumed that NO 2 emissions were due to vehicles. The only exception was the RJ station Campos Eliseos, which is located close to a petrochemical pole that is a potential NO 2 emitter. Table 2 summarizes the selected stations in each state.
Additionally, daily ground weather data (temperature, humidity, wind speed) was collected for the main airports in the cities of SP and RJ.

2.4. Data Processing and Analysis

Figure 2 shows a schematic of the workflow to process and analyze data in this study. To obtain local NO 2 mean columns and averaged ground NO 2 and PM 2.5 concentrations, different approaches were adopted. For NO 2 satellite data, the overall daily values within the geographic coordinates were averaged for the May months of each year (2015–2020). Then, the averaged data frame was retrieved for each state with its limits defined using shapefiles for each local hydrographic region. In addition, the arithmetic mean of ground-level concentrations were averaged using the hourly maximum value of NO 2 for each day, and PM 2.5 daily values, respectively, for each chosen ground station. Finally, the averaged values for all SP and RJ stations were calculated.
The Pearson correlation coefficient ( r s ) was considered for this study. This choice was made based on its wide use and efficacy in measuring linear relations between satellite and ground-based data, as well as previous studies investigating air quality during the COVID-19 lockdown [30,43,44,45]. Accounting for sample covariance and standard deviation, r s values give information about magnitudes and directions of correlation. Its range goes from −1 to 1, resulting from the following equation:
r s = ∑ i ( x i − x ¯ ) ( y i − y ¯ ) ∑ i ( x i − x ¯ ) 2 ∑ i ( y i − y ¯ ) 2 ,
where, x i = yearly May OMNO2 mean satellite columns; x ¯ = average of yearly May OMNO2 mean satellite columns; y i = yearly May ground NO 2 mean for all local stations from 14:00–15:00; and y ¯ = Average of yearly May ground NO 2 means from 14:00–15:00. Note that OMI’s overpassing time in Brazil is around 14:30 local time.
To add on the weather data analysis and check on relationships amongst weather variables and ground NO 2 and PM 2.5 concentrations, pairwise correlation using the same Pearson coefficient was performed for the SP region.

2.5. Data Limitations

Retrieval errors are present when the OMNO 2 d product is conceived [39]. These include a fitting error in the slant column, estimated to be 0.3 − 1 × 10 15 no. molecules/cm 2 for all data product levels. In addition, there are missing values in the daily dataset, but since the data was averaged for the whole month of each year, the gaps do not represent a significant error within the product datasets. Ground data limitations include gaps in daily and hourly concentrations. If gaps were present in 15 days or more in a month, the corresponding station would be discarded from the analysis. In addition, some hours did not have data available, but if there were data available for at least half of a day, the station would be included in the daily averaging.

3. Results and Discussion

Figure 3 shows the satellite-retrieved NO 2 column values for SP and RJ. It is seen that the metropolitan area of the city of São Paulo represents the most polluted region in SP, while in RJ, areas surrounding the Guanabara Bay show the highest NO 2 value. The NO 2 column values showed a clear visual distinction in molecule density between the two periods of May 2020 and May 2015–2019. For both Brazilian states, NO 2 column concentrations considerably decreased during May 2020 when compared to the average value from the previous five years. The averaged NO 2 VCDs in SP were 9.10 × 10 15 and 5.28 × 10 15 molecules/cm 2 in 2015–2019 and 2020, respectively, showing a decrease of 42% (3.82 × 10 15 molecules/cm 2 or 63.45 mol/km 2 ) when a time span before COVID-19 is compared to the partial lockdown period. For RJ, averaged NO 2 VCDs showed values of 5.28 × 10 15 and 2.66 × 10 15 molecules/cm 2 for 2015–2019 and 2020, respectively, suggesting a decrease of 49.6% (2.62 × 10 15 molecules/cm 2 or 43.52 mol/km 2 ). In SP, the range of NO 2 column density values within the hydrographic region was 4.75 × 10 15 molecules/cm 2 (78.83 mol/km 2 ) during both timeframes (May 2020 and May 2015–2019). This range for RJ was 5.28 × 10 15 molecules/cm 2 (87.7 mol/km 2 ) during 2015–2019, and 1.75 × 10 15 molecules/cm 2 (29 mol/km 2 ) for 2020. These observations suggest that the partial lockdown had a more pronounced impact on the reduction of NO 2 in RJ when compared to SP.
The May-month-average ground-based observations for each year were transcribed into a boxplot for the six SP and four RJ ground stations and are shown in Figure 4 and Figure 5 for NO 2 and PM 2.5 , respectively. The cross in each box represents the average value for the month of May based on daily data from all stations, and the data within the boxes are within the 25% and 75% percentiles.
In SP, there was a slight variation in the NO 2 mean concentration throughout the years, with the highest relative difference observed between 2016 and 2017 (5.76 ppb or 15%) and the second highest between 2019 and 2020 (5.44 ppb or 13.3%). The former disparity was attributed to an unusual favorability in air pollutant dispersion during the winter months (May–September) of 2016 over the state of SP, as described in the CETEB’s 2016 Annual Air Quality Report [46]. The latter difference might be attributed to reduction in traffic due to the local COVID-related lockdown decree. A decrease of 18.8% (6.01 ppb) was observed in NO 2 mean concentrations between years 2019 and 2020 in RJ as shown in Figure 4B. A student’s t-Test was performed between the data in years 2020 and 2019 and a difference within monthly means was found to be statistically significant for both states assuming a 90% confidence interval with p-values of 0.099 and 0.077 for SP and RJ, respectively. Data normality was tested for each yearly dataset before the statistical test was conducted.
The ground-level PM 2.5 mass concentrations were investigated for SP only because, for RJ, there were no consistent data for all stations throughout the years passing the criteria described in Section 2. As shown in Figure 5, there was not a remarkable drop in PM 2.5 concentrations between 2019 and 2020 (only 0.2 μg/m 3 or 0.01%). Similar to the NO 2 trend, however, the PM 2.5 mean concentrations showed a clear decrease in 2016—in fact, 2016 represents the lowest May-month-average across the six years.
To further investigate multi-year trends in satellite data, the mean values of NO 2 VCDs were retrieved for the grid cells covering the selected ground stations, and the results are illustrated in Figure 6. By averaging the 2015–2019 NO 2 values above and comparing the result to the 2020 mean, we found a relative decrease of ∼42% (or 151 mol/km 2 ). A Pearson correlation between year-to-year changes in satellite column NO 2 and surface data from six SP stations collected between 14:00 and 15:00 (associated with OMI’s local overpassing time) was calculated and a value of 0.77 was obtained. For RJ, the 2020 mean value was 2.21 × 10 15 no. molecules/cm 2 (∼36.71 mol/km 2 ), and constitutes a decrease of 48.1% from the 2015–2019 mean. A Pearson correlation coefficient of 0.53 was found between year-to-year trends of RJ stations and the corresponding satellite column values.
Wind speed and temperature data measured at the Congonhas and Galeao airports for SP and RJ, respectively, were also studied. To assess the role of atmospheric dispersion in pollutant concentrations, we adopted the criteria suggested by the CETESB in objectively defining favorable/unfavorable conditions for dispersion. Unfavorable conditions for air pollutant dispersion were considered [41] as (1) no rainfall, and (2) wind speed less than 1 m/s. All daily rainfall data for SP and RJ averaged for the May months of 2015–2020 showed less than one inch of rainfall, so the effect of rain was considered to be negligible. Daily wind speeds averaged during the month of May were higher than 1 m/s for all years in both SP and RJ with no significant difference seen between years (see Figure 7). Therefore, no considerable unfavorable conditions for pollutant dispersion were detected for May 2015–2020 with a potential to impact concentration levels observed in this study. Temperature variations, however, showed a noticeable decrease in May 2020 in both SP and RJ compared to May 2015–2019. For both states, this decrease was ∼3 ∘ C when compared to 2019, and it was 1.3 ∘ C and 1.4 ∘ C in SP and RJ, respectively, when compared to the average of 2015–2019. It should be noted that the standard deviation of temperature variations over 2015–2020 was 1.16 ∘ C and 1.07 ∘ C for SP and RJ, respectively. Further analysis to understand implications of this lower temperature in 2020 on pollutant levels should be conducted in future studies.
We further analyzed cross-correlations amongst various variables in SP throughout May 2015–2020, with results summarized in Table 3. We observed a high negative correlation (−0.76) between wind speed and NO 2 . On the contrary, the temperature showed a positive correlation with NO 2 and a negative relationship with wind speed. This result reflects the influence of wind speed and temperature on the dispersion, and the retention of downwind NO 2 concentrations. Several studies have shown this relationship by using a noise barrier as an inducer and high-resolution modeling [47,48,49]. Atmospheric stability is also mentioned on these studies, as it is directly related to environmental air temperature, humidity and pressure, and can have an influence on atmospheric pollutant concentrations. As shown in Table 3, PM 2.5 showed a small positive correlation with NO 2 which could be associated with secondary PM, originated in NO x chemical reactions. There is also a relatively high negative correlation of PM 2.5 with ambient humidity, and small positive correlations with temperature and wind speed. The latter could be increasing PM 2.5 by long-range transport from fire hotspots. This is evident by the correlation between PM 2.5 and number of fire hotspots (0.59), in addition to PM 2.5 and wind speed.
In addition to meteorological parameters, the number of fire hotspots reported by the National Institute for Space Research (Instituto Nacional de Pesquisas Espaciais) [50] were also investigated for southeast Brazil, including both states of SP and RJ. The emissions from wildfires are known to contribute to particulate matter and NO x levels [51], hence it is important to assess whether there is a potential interference of fire burnings in our yearly data of PM 2.5 and NO 2 .
As shown in Figure 8, a clear increase (46%) in number of fires during May 2020 was observed in comparison to the same month in 2019. Compared to the average counts for 2015–2019, this increase in 2020 was 35%. These results indicate that ground PM 2.5 and NO 2 levels in May 2020 would potentially be higher than in previous years if only wildfires were considered to impact pollutants’ concentrations. This seems to be more pronounced for PM 2.5 , as we did not see any significant decrease in 2020 values during the COVID-19 lockdown period. Furthermore, the distribution of PM 2.5 values shown in Figure 5 seems to follow the same yearly pattern of the fire counts in the southeast region, suggesting that the long-range transport of pollutants emitted from fires within southeastern states could have impacted PM 2.5 values in SP. The relatively high positive correlation between PM 2.5 and number of hotspots (Table 3), as well as the dominant northwesterly wind direction (i.e., from the fire hotspots towards the Sao Paulo metropolitan area) measured at the Congonhas Airport station during May 2020 further supports this argument.

4. Conclusions

Qualitative and quantitative differences in NO 2 and PM 2.5 concentrations were investigated for timeframes before and during the COVID-19 lockdown determined by the Brazilian government. To analyze if there were any significant differences in NO 2 and PM 2.5 concentrations in 2020 during lockdown compared to previous years, satellite and ground-based measurements were synergistically analyzed. After finding a clear visual difference in gridded NO 2 column densities for the month of May in 2015–2019 and 2020 within the hydrographic regions of interest (where the selected ground stations were located), a quantitative analysis was executed. From OMI satellite retrievals, we found a decrease of 42% in 2020 compared to the 2015–2019 period in SP’s Alto Tiete. An even higher decline of 49.6% was found in RJ’s Baia de Guanabara for the same time interval.
Aside from satellite NO 2 columns, ground concentrations also presented differences within years. However, the difference seemed to be smaller than that for satellite retrievals. In May 2020, NO 2 levels were 13.3% lower (p-value = 0.099 with a 90% confidence interval) than for the same month in 2019 for SP, while in RJ this drop was equal to 18.8% (p-value = 0.077 with a 90% confidence interval) in 2020. PM 2.5 mass concentrations, however, did not show a significant contrast between 2020 and the previous years. The correlation coefficients between year-to-year trends of satellite column NO 2 and ground-based measurements for multiple selected stations were ∼0.77 for SP and ∼0.53 for RJ.
To examine if there was any weather interference on the statistical comparison performed on this study, the dispersion conditions and mean air temperature for selected stations were studied for SP and RJ. Both SP and RJ stations showed mostly favorable dispersion days for all days during the month of May in all years, so this factor was not considered to be affecting the NO 2 decrease found for 2020. In addition, a high negative correlation between wind speed and NO 2 (−0.76) further supports this statement. Nevertheless, the average temperature during May 2020 was lower than that for the same period during 2015–2019, while we observed a positive correlation between temperature and NO 2 /PM 2.5 . Together, these suggest that temperature might have a role in reducing concentrations observed during May 2020 in southeast Brazil, warranting additional studies. Finally, natural emissions by wildfire were examined using the number of hotspots within the southeast region, and it was concluded that PM 2.5 concentrations were potentially affected by those fires.
The results of this work can serve as a reference for local air quality compliance, in particular at locations that lack ground monitoring stations. Moreover, the combined results with meteorology observations can give a more precise overlook of NO 2 and PM 2.5 scenarios during the COVID-19 lockdown, also serving as a base of analysis for future extreme air pollution events. Suggestions for future work include extending these analyses to other pollutants, as well as other Brazilian regions. This is important because ground-based stations are temporally and spatially sparse in Brazil.

Author Contributions

Conceptualization, R.B. and H.F.; methodology, R.B. and H.F.; software, R.B.; validation, R.B.; formal analysis, R.B.; investigation, R.B.; writing—original draft preparation, R.B.; writing—review and editing, H.F.; visualization, R.B.; supervision, H.F.; project administration, H.F. Both authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All the data used in this study can be obtained from references given in the text.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Cucinotta, D.; Vanelli, M. WHO declares COVID-19 a pandemic. Acta Bio Med. Atenei Parm. 2020, 91, 157. [Google Scholar]
  2. Croda, J.; Oliveira, W.K.D.; Frutuoso, R.L.; Mandetta, L.H.; Baia-da Silva, D.C.; Brito-Sousa, J.D.; Monteiro, W.M.; Lacerda, M.V.G. COVID-19 in Brazil: Advantages of a socialized unified health system and preparation to contain cases. Rev. Soc. Bras. Med. Trop. 2020, 53. [Google Scholar] [CrossRef] [PubMed]
  3. Siciliano, B.; Dantas, G.; da Silva, C.M.; Arbilla, G. Increased ozone levels during the COVID-19 lockdown: Analysis for the city of Rio de Janeiro, Brazil. Sci. Total Environ. 2020, 737, 139765. [Google Scholar] [CrossRef]
  4. Tobías, A.; Carnerero, C.; Reche, C.; Massagué, J.; Via, M.; Minguillón, M.C.; Alastuey, A.; Querol, X. Changes in air quality during the lockdown in Barcelona (Spain) one month into the SARS-CoV-2 epidemic. Sci. Total Environ. 2020, 726, 138540. [Google Scholar] [CrossRef] [PubMed]
  5. Baldasano, J.M. COVID-19 lockdown effects on air quality by NO2 in the cities of Barcelona and Madrid (Spain). Sci. Total Environ. 2020, 741, 140353. [Google Scholar] [CrossRef]
  6. Mahato, S.; Pal, S.; Ghosh, K.G. Effect of lockdown amid COVID-19 pandemic on air quality of the megacity Delhi, India. Sci. Total Environ. 2020, 730, 139086. [Google Scholar] [CrossRef]
  7. Kumar, S. Effect of meteorological parameters on spread of COVID-19 in India and air quality during lockdown. Sci. Total Environ. 2020, 745, 141021. [Google Scholar] [CrossRef] [PubMed]
  8. Feng, S.; Jiang, F.; Wang, H.; Wang, H.; Ju, W.; Shen, Y.; Zheng, Y.; Wu, Z.; Ding, A. NOx emission changes over China during the COVID-19 epidemic inferred from surface NO2 observations. Geophys. Res. Lett. 2020, 47, e2020GL090080. [Google Scholar] [CrossRef]
  9. Ghahremanloo, M.; Lops, Y.; Choi, Y.; Mousavinezhad, S. Impact of the COVID-19 outbreak on air pollution levels in East Asia. Sci. Total Environ. 2021, 754, 142226. [Google Scholar] [CrossRef]
  10. Yuan, Q.; Qi, B.; Hu, D.; Wang, J.; Zhang, J.; Yang, H.; Zhang, S.; Liu, L.; Xu, L.; Li, W. Spatiotemporal variations and reduction of air pollutants during the COVID-19 pandemic in a megacity of Yangtze River Delta in China. Sci. Total Environ. 2021, 751, 141820. [Google Scholar] [CrossRef]
  11. Berman, J.D.; Ebisu, K. Changes in US air pollution during the COVID-19 pandemic. Sci. Total Environ. 2020, 739, 139864. [Google Scholar] [CrossRef]
  12. Liu, Q.; Harris, J.T.; Chiu, L.S.; Sun, D.; Houser, P.R.; Yu, M.; Duffy, D.Q.; Little, M.M.; Yang, C. Spatiotemporal impacts of COVID-19 on air pollution in California, USA. Sci. Total Environ. 2021, 750, 141592. [Google Scholar] [CrossRef] [PubMed]
  13. Otmani, A.; Benchrif, A.; Tahri, M.; Bounakhla, M.; Chakir, E.M.; El Bouch, M.; Krombi, M. Impact of Covid-19 lockdown on PM10, SO2 and NO2 concentrations in Salé City (Morocco). Sci. Total Environ. 2020, 735, 139541. [Google Scholar] [CrossRef] [PubMed]
  14. Stratoulias, D.; Nuthammachot, N. Air quality development during the COVID-19 pandemic over a medium-sized urban area in Thailand. Sci. Total Environ. 2020, 746, 141320. [Google Scholar] [CrossRef]
  15. Broomandi, P.; Karaca, F.; Nikfal, A.; Jahanbakhshi, A.; Tamjidi, M.; Kim, J.R. Impact of COVID-19 event on the air quality in Iran. Aerosol Air Qual. Res. 2020, 20, 1793–1804. [Google Scholar] [CrossRef]
  16. Cameletti, M. The Effect of Corona Virus Lockdown on Air Pollution: Evidence from the City of Brescia in Lombardia Region (Italy). Atmos. Environ. 2020, 239, 117794. [Google Scholar] [CrossRef]
  17. Srivastava, A. COVID-19 and air pollution and meteorology-an intricate relationship: A review. Chemosphere 2020, 128297. [Google Scholar] [CrossRef]
  18. Nakada, L.Y.K.; Urban, R.C. COVID-19 pandemic: Impacts on the air quality during the partial lockdown in São Paulo state, Brazil. Sci. Total Environ. 2020, 730, 139087. [Google Scholar] [CrossRef] [PubMed]
  19. Dantas, G.; Siciliano, B.; França, B.B.; da Silva, C.M.; Arbilla, G. The impact of COVID-19 partial lockdown on the air quality of the city of Rio de Janeiro, Brazil. Sci. Total Environ. 2020, 729, 139085. [Google Scholar] [CrossRef] [PubMed]
  20. Siciliano, B.; Carvalho, G.; da Silva, C.M.; Arbilla, G. The impact of COVID-19 partial lockdown on primary pollutant concentrations in the atmosphere of Rio de Janeiro and São Paulo megacities (Brazil). Bull. Environ. Contam. Toxicol. 2020, 105, 2–8. [Google Scholar] [CrossRef]
  21. Duncan, B.N.; Prados, A.I.; Lamsal, L.N.; Liu, Y.; Streets, D.G.; Gupta, P.; Hilsenrath, E.; Kahn, R.A.; Nielsen, J.E.; Beyersdorf, A.J.; et al. Satellite data of atmospheric pollution for US air quality applications: Examples of applications, summary of data end-user resources, answers to FAQs, and common mistakes to avoid. Atmos. Environ. 2014, 94, 647–662. [Google Scholar] [CrossRef] [Green Version]
  22. Bechle, M.J.; Millet, D.B.; Marshall, J.D. Remote sensing of exposure to NO2: Satellite versus ground-based measurement in a large urban area. Atmos. Environ. 2013, 69, 345–353. [Google Scholar] [CrossRef]
  23. Oner, E.; Kaynak, B. Evaluation of NOx emissions for Turkey using satellite and ground-based observations. Atmos. Pollut. Res. 2016, 7, 419–430. [Google Scholar] [CrossRef]
  24. Petritoli, A.; Bonasoni, P.; Giovanelli, G.; Ravegnani, F.; Kostadinov, I.; Bortoli, D.; Weiss, A.; Schaub, D.; Richter, A.; Fortezza, F. First comparison between ground-based and satellite-borne measurements of tropospheric nitrogen dioxide in the Po basin. J. Geophys. Res. Atmos. 2004, 109. [Google Scholar] [CrossRef] [Green Version]
  25. Rivera, C.; Stremme, W.; Grutter, M. Nitrogen dioxide DOAS measurements from ground and space: Comparison of zenith scattered sunlight ground-based measurements and OMI data in Central Mexico. Atmósfera 2013, 26, 401–414. [Google Scholar] [CrossRef] [Green Version]
  26. Lal, P.; Kumar, A.; Kumar, S.; Kumari, S.; Saikia, P.; Dayanandan, A.; Adhikari, D.; Khan, M. The dark cloud with a silver lining: Assessing the impact of the SARS COVID-19 pandemic on the global environment. Sci. Total Environ. 2020, 732, 139297. [Google Scholar] [CrossRef]
  27. Liu, Z.; Ciais, P.; Deng, Z.; Lei, R.; Davis, S.J.; Feng, S.; Zheng, B.; Cui, D.; Dou, X.; Zhu, B.; et al. Near-real-time monitoring of global CO2 emissions reveals the effects of the COVID-19 pandemic. Nat. Commun. 2020, 11, 1–12. [Google Scholar] [CrossRef]
  28. Venter, Z.; Aunan, K.; Chowdhury, S.; Lelieveld, J. COVID-19 lockdowns cause global air pollution declines with implications for public health risk. medRxiv 2020. [Google Scholar] [CrossRef] [Green Version]
  29. Kanniah, K.D.; Zaman, N.A.F.K.; Kaskaoutis, D.G.; Latif, M.T. COVID-19’s impact on the atmospheric environment in the Southeast Asia region. Sci. Total Environ. 2020, 736, 139658. [Google Scholar] [CrossRef]
  30. Vîrghileanu, M.; Săvulescu, I.; Mihai, B.A.; Nistor, C.; Dobre, R. Nitrogen Dioxide (NO2) Pollution Monitoring with Sentinel-5P Satellite Imagery over Europe during the Coronavirus Pandemic Outbreak. Remote Sens. 2020, 12, 3575. [Google Scholar] [CrossRef]
  31. Marinello, S.; Lolli, F.; Gamberini, R. Roadway tunnels: A critical review of air pollutant concentrations and vehicular emissions. Transp. Res. Part D Transp. Environ. 2020, 86, 102478. [Google Scholar] [CrossRef]
  32. CETESB. Relatorio de Emissões Veiculares no Estado de São Paulo 2011. 2012. Available online: https://cetesb.sp.gov.br/veicular/wp-content/uploads/sites/6/2013/12/relatorio-emissoes-veiculares-2011.pdf (accessed on 3 March 2020).
  33. de Fatima Andrade, M.; de Miranda, R.M.; Fornaro, A.; Kerr, A.; Oyama, B.; de Andre, P.A.; Saldiva, P. Vehicle emissions and PM 2.5 mass concentrations in six Brazilian cities. Air Qual. Atmos. Health 2012, 5, 79–88. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Meng, X.; Liu, C.; Chen, R.; Sera, F.; Vicedo-Cabrera, A.M.; Milojevic, A.; Guo, Y.; Tong, S.; Coelho, M.d.S.Z.S.; Saldiva, P.H.N.; et al. Short term associations of ambient nitrogen dioxide with daily total, cardiovascular, and respiratory mortality: Multilocation analysis in 398 cities. BMJ 2021, 372. [Google Scholar] [CrossRef]
  35. Faustini, A.; Rapp, R.; Forastiere, F. Nitrogen dioxide and mortality: Review and meta-analysis of long-term studies. Eur. Respir. J. 2014, 44, 744–753. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Xing, Y.F.; Xu, Y.H.; Shi, M.H.; Lian, Y.X. The impact of PM2.5 on the human respiratory system. J. Thorac. Dis. 2016, 8, E69. [Google Scholar] [PubMed]
  37. Islam, M.S.; Saha, S.C.; Gemci, T.; Yang, I.A.; Sauret, E.; Ristovski, Z.; Gu, Y. euler-Lagrange prediction of Diesel-exhaust polydisperse particle transport and Deposition in Lung: Anatomy and turbulence Effects. Sci. Rep. 2019, 9, 1–16. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Noda, L.; Nóbrega, A.B.E.; da Silva Júnior, J.B.; Schmidlin, F.; Labaki, L. COVID-19: Has social isolation reduced the emission of pollutants in the megacity of São Paulo-Brazil? Environ. Dev. Sustain. 2021, 1–19. [Google Scholar] [CrossRef]
  39. Krotkov, N.A.; Lamsal, L.N.; Celarier, E.A.; Swartz, W.H.; Marchenko, S.V.; Bucsela, E.J.; Chan, K.L.; Wenig, M.; Zara, M. The version 3 OMI NO2 standard product. Atmos. Meas. Tech. 2017, 10, 3133–3149. [Google Scholar] [CrossRef] [Green Version]
  40. Krotkov, N.; Lamsal, L.; Marchenko, S.; Celarier, E.; Bucsela, E.; Swartz, W.; Joiner, J.; The OMI Core Team. OMI/Aura NO2 Cloud-Screened Total and Tropospheric Column L3 Global Gridded 0.25 Degree × 0.25 Degree V3, NASA Goddard Space Flight Center, Goddard Earth Sciences Data and Information Services Center (GES DISC). 2019. Available online: https://disc.gsfc.nasa.gov/datasets/OMNO2d_003/summary (accessed on 3 March 2020).
  41. São Paulo State Environmental Agency—CETESB. QUALAR: Air Quality Information System. 2020. Available online: https://qualar.cetesb.sp.gov.br/qualar/home.do (accessed on 3 March 2020).
  42. Rio de Janeiro State Institute of the Environment—INEA. QUALIAR: Air Quality and Meteorology Information System. 2020. Available online: http://200.20.53.25/qualiar/home/index (accessed on 3 March 2020).
  43. Doğan, B.; Jebli, M.B.; Shahzad, K.; Farooq, T.H.; Shahzad, U. Investigating the effects of meteorological parameters on COVID-19: Case study of New Jersey, United States. Environ. Res. 2020, 191, 110148. [Google Scholar] [CrossRef]
  44. Hoelzemann, J.J.; Longo, K.M.; Fonseca, R.M.; Do RosáRio, N.M.; Elbern, H.; Freitas, S.R.; Pires, C. Regional representativity of AERONET observation sites during the biomass burning season in South America determined by correlation studies with MODIS Aerosol Optical Depth. J. Geophys. Res. Atmos. 2009, 114. [Google Scholar] [CrossRef]
  45. Zoran, M.A.; Savastru, R.S.; Savastru, D.M.; Tautan, M.N. Assessing the relationship between ground levels of ozone (O3) and nitrogen dioxide (NO2) with coronavirus (COVID-19) in Milan, Italy. Sci. Total Environ. 2020, 740, 140005. [Google Scholar] [CrossRef] [PubMed]
  46. CETESB. Qualidade do Ar no Estado de São Paulo 2018. Disponível em CETESB, São Paulo. 2019. Available online: https://cetesb.sp.gov.br/ar/wp-content/uploads/sites/28/2019/07/Relat%C3%B3rio-de-Qualidade-do-Ar-2018.pdf (accessed on 3 March 2020).
  47. Baldauf, R.W.; Isakov, V.; Deshmukh, P.; Venkatram, A.; Yang, B.; Zhang, K.M. Influence of solid noise barriers on near-road and on-road air quality. Atmos. Environ. 2016, 129, 265–276. [Google Scholar] [CrossRef] [Green Version]
  48. Reiminger, N.; Jurado, X.; Vazquez, J.; Wemmert, C.; Blond, N.; Dufresne, M.; Wertel, J. Effects of wind speed and atmospheric stability on the air pollution reduction rate induced by noise barriers. J. Wind Eng. Ind. Aerodyn. 2020, 200, 104160. [Google Scholar] [CrossRef]
  49. Brechler, J.; Fuka, V. Impact of noise barriers on air-pollution dispersion. Nat. Sci. 2014, 2014. [Google Scholar] [CrossRef] [Green Version]
  50. Instituto Nacional de Pesquisas Espaciais—INPE. Burning and Fire Monitoring Portal. 2020. Available online: http://www.inpe.br/queimadas (accessed on 1 December 2020).
  51. Cereceda-Balic, F.; Toledo, M.; Vidal, V.; Guerrero, F.; Diaz-Robles, L.A.; Petit-Breuilh, X.; Lapuerta, M. Emission factors for PM2.5, CO, CO2, NOx, SO2 and particle size distributions from the combustion of wood species using a new controlled combustion chamber 3CE. Sci. Total Environ. 2017, 584, 901–910. [Google Scholar] [CrossRef] [PubMed]
Atmosphere 12 00583 g001 550

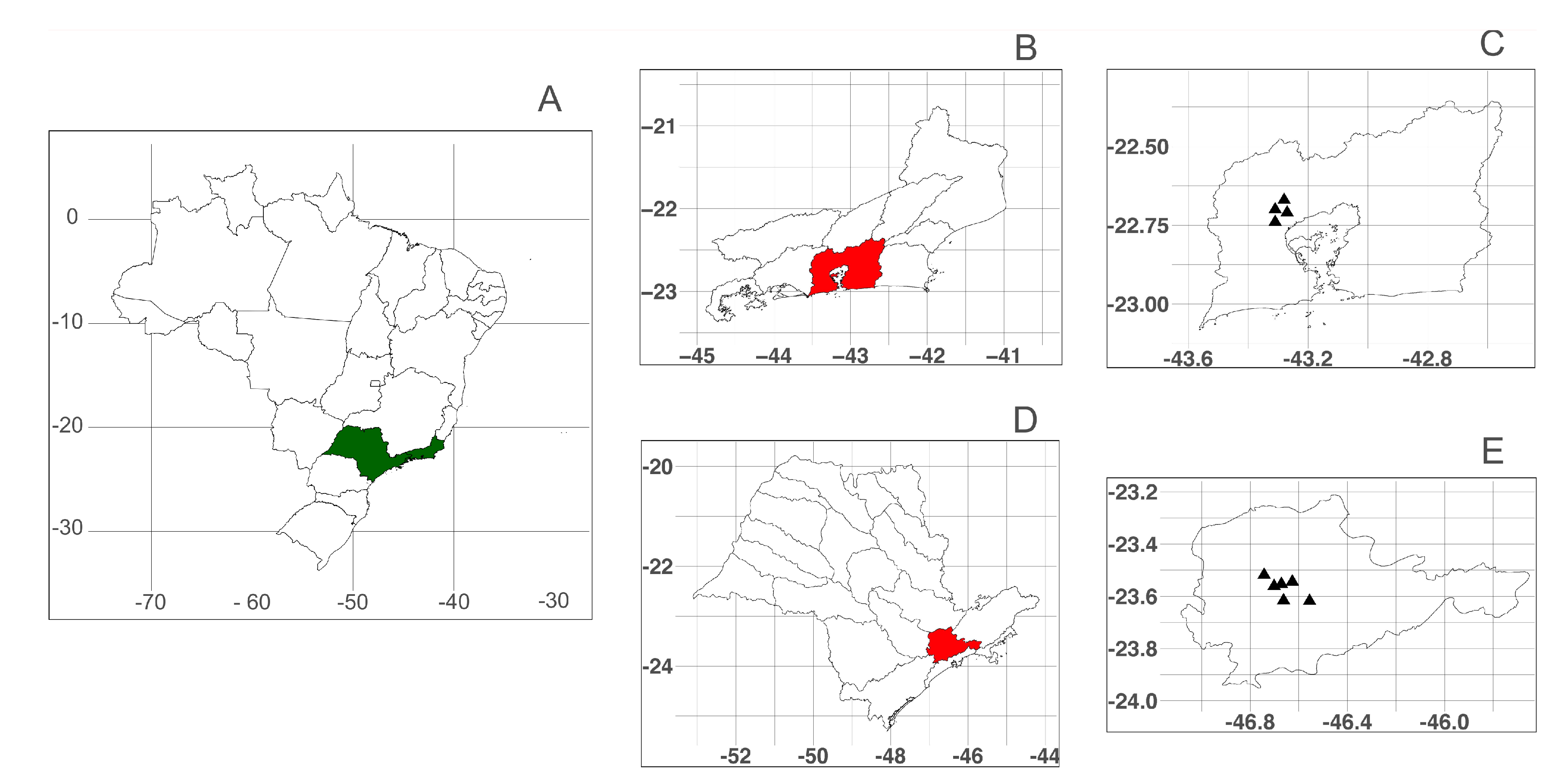

Figure 1. The map of Brazil (A) highlighting the states of Rio de Janeiro (B) and São Paulo (D). Four ground stations in RJ’s Baia de Guanabara hydrographic region (C) and six ground stations in SP’s Alto Tiete hydrographic region (E) were selected for analysis in this study.
Figure 1. The map of Brazil (A) highlighting the states of Rio de Janeiro (B) and São Paulo (D). Four ground stations in RJ’s Baia de Guanabara hydrographic region (C) and six ground stations in SP’s Alto Tiete hydrographic region (E) were selected for analysis in this study.
Atmosphere 12 00583 g001
Atmosphere 12 00583 g002 550

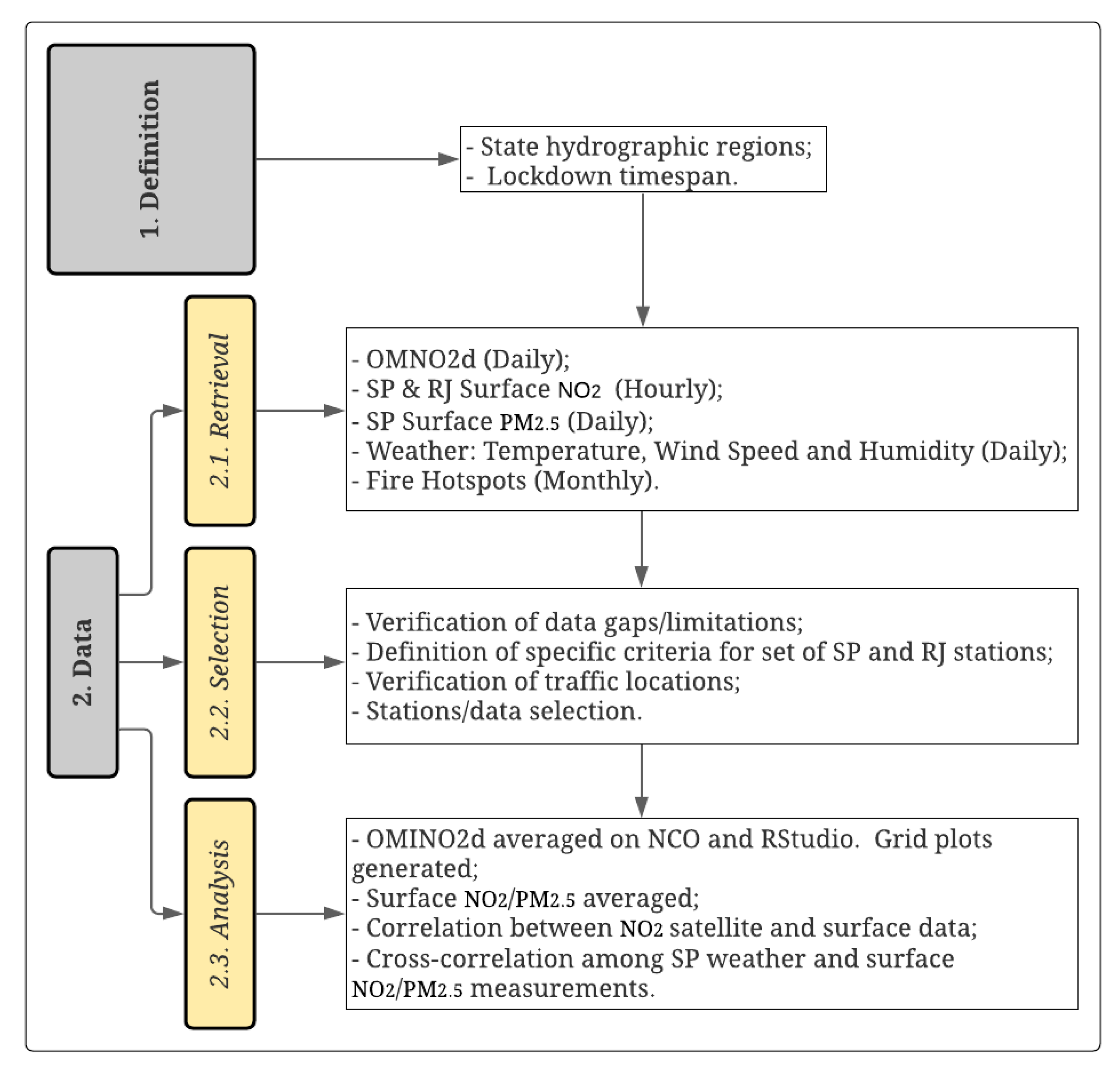

Figure 2. The workflow diagram for data analysis in this study.
Figure 2. The workflow diagram for data analysis in this study.
Atmosphere 12 00583 g002
Atmosphere 12 00583 g003 550

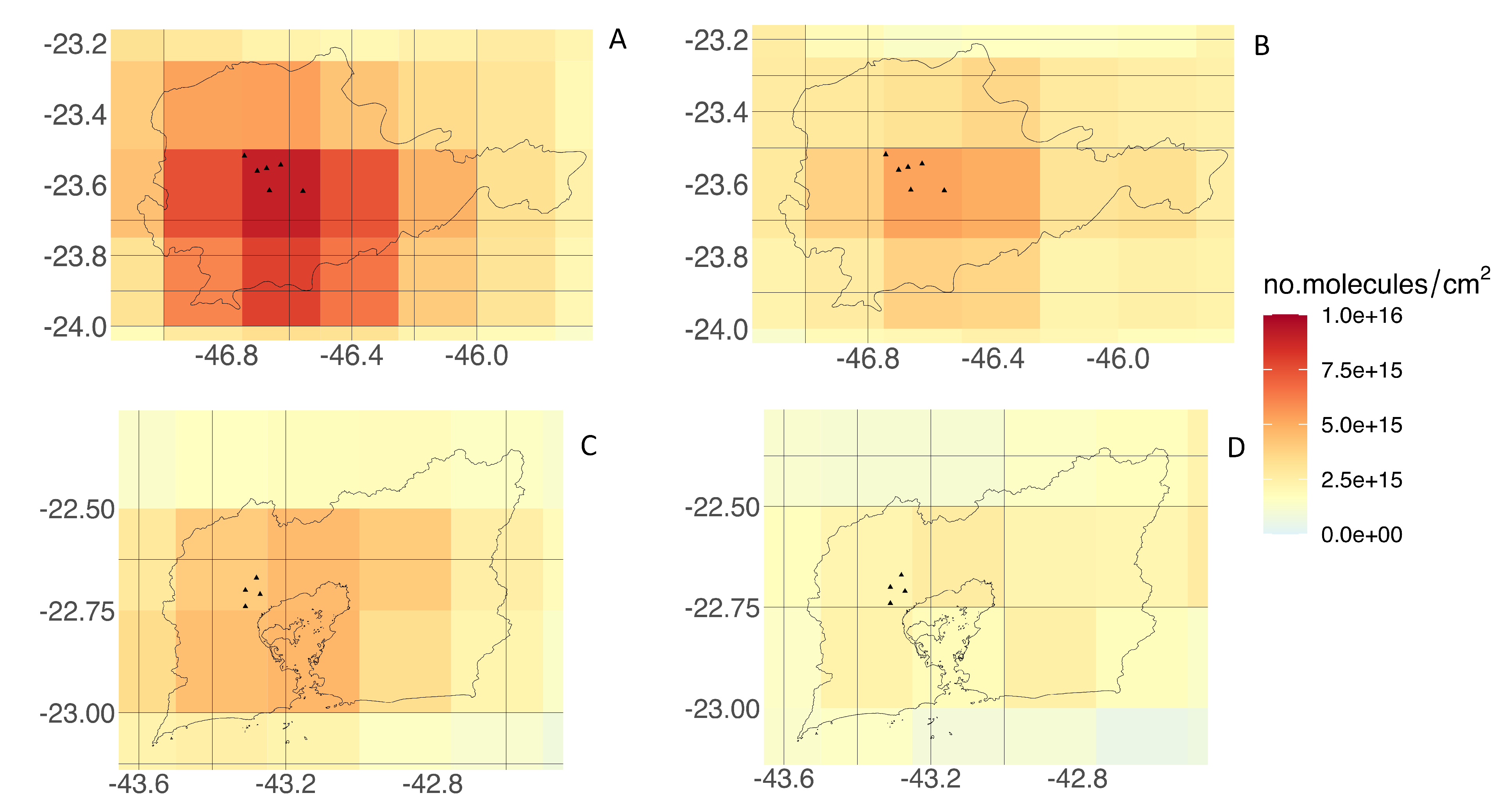

Figure 3. The NO 2 column values during the May months of 2015–2019 in SP (A) and RJ (C), and during May 2020 in SP (B) and RJ (D).
Figure 3. The NO 2 column values during the May months of 2015–2019 in SP (A) and RJ (C), and during May 2020 in SP (B) and RJ (D).
Atmosphere 12 00583 g003
Atmosphere 12 00583 g004 550

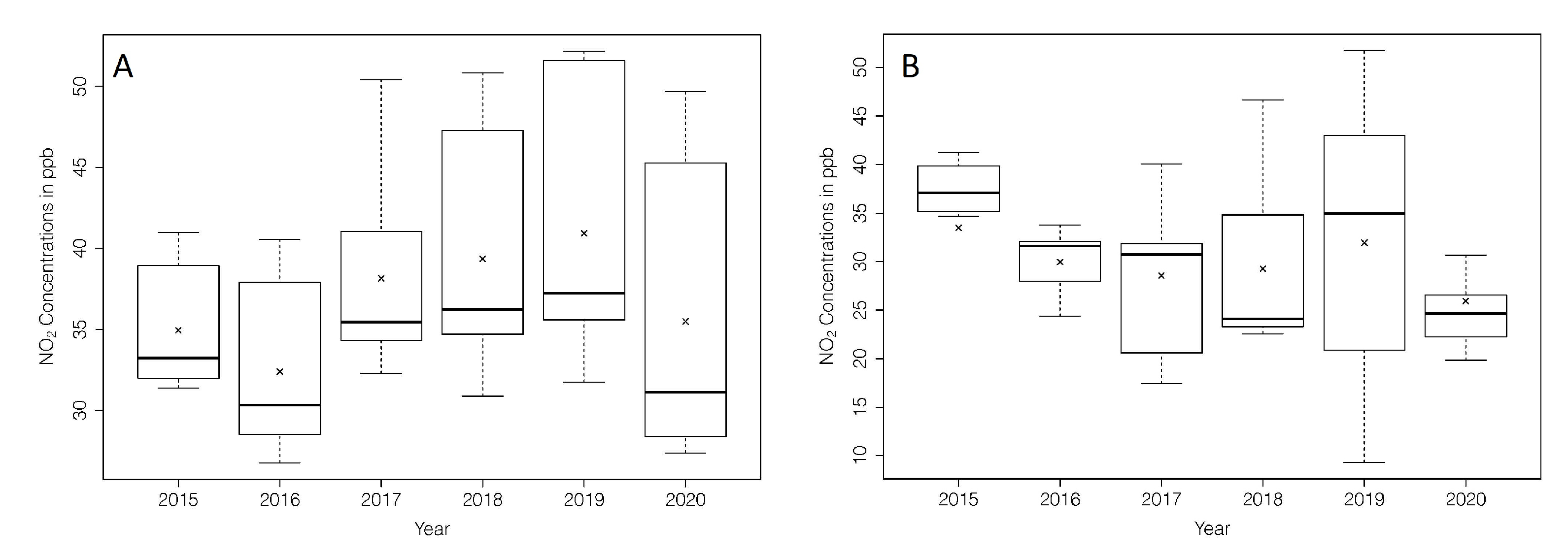

Figure 4. The NO 2 daily ground-level concentrations during May 2015–2020 measured by the selected SP (A) and RJ (B) stations.
Figure 4. The NO 2 daily ground-level concentrations during May 2015–2020 measured by the selected SP (A) and RJ (B) stations.
Atmosphere 12 00583 g004
Atmosphere 12 00583 g005 550

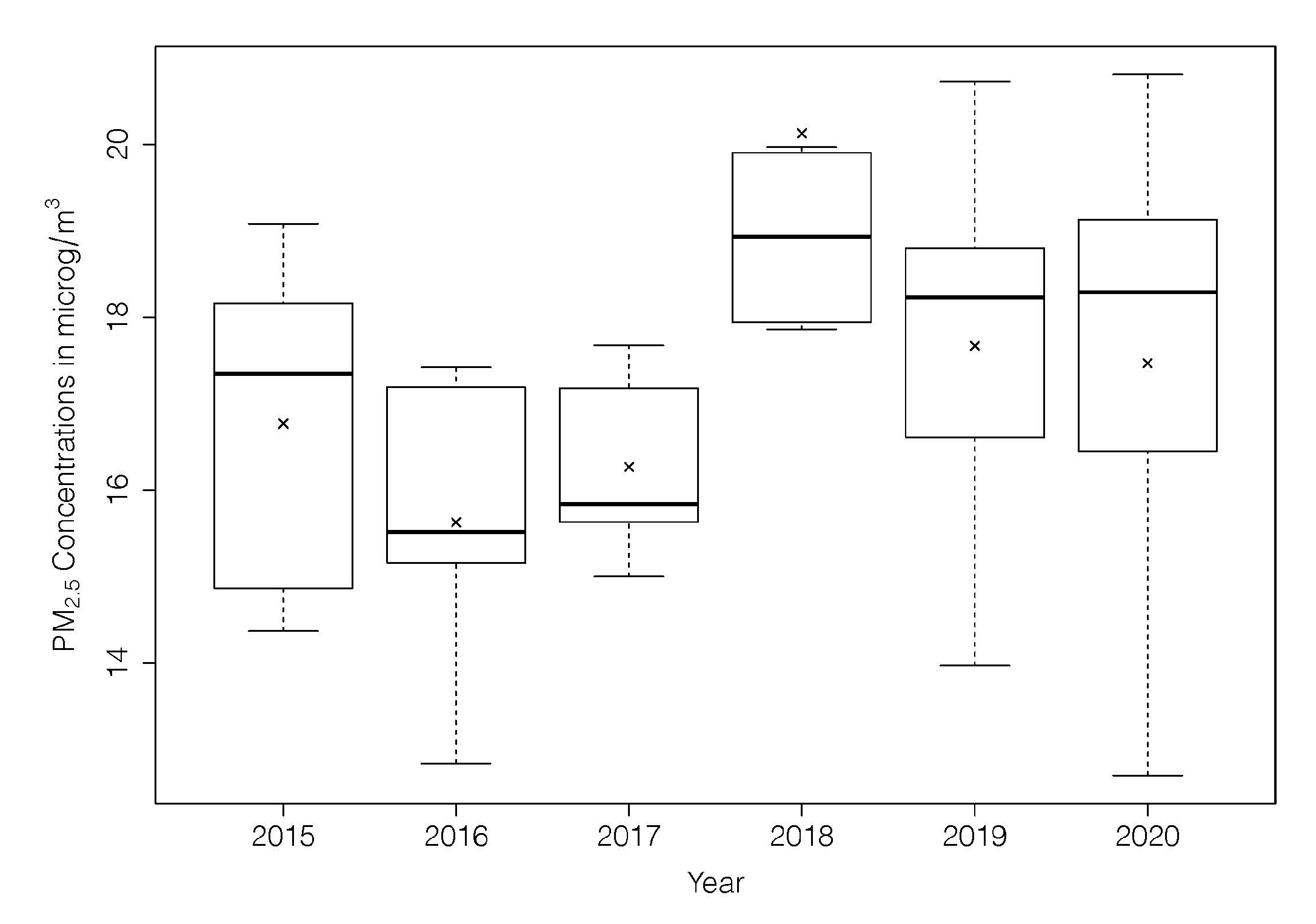

Figure 5. The PM 2.5 daily ground-level concentrations during May 2015–2020 measured by the selected SP stations.
Figure 5. The PM 2.5 daily ground-level concentrations during May 2015–2020 measured by the selected SP stations.
Atmosphere 12 00583 g005
Atmosphere 12 00583 g006 550

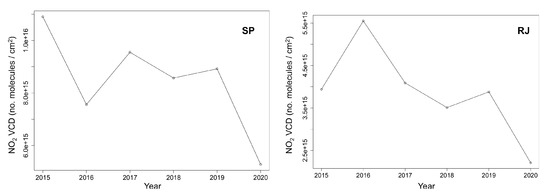

Figure 6. Yearly time-series of mean NO 2 VCDs for the satellite grid cells covering the selected SP and RJ ground stations.
Figure 6. Yearly time-series of mean NO 2 VCDs for the satellite grid cells covering the selected SP and RJ ground stations.
Atmosphere 12 00583 g006
Atmosphere 12 00583 g007 550

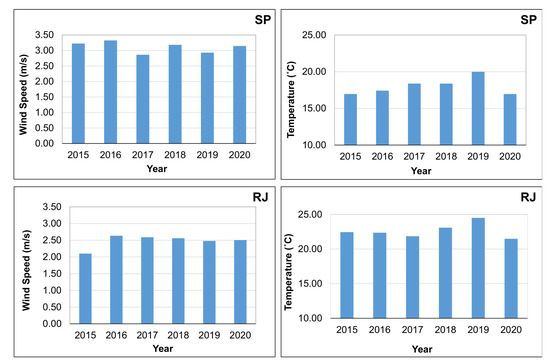

Figure 7. Daily wind speed and temperature values averaged during the month of May for 2015–2020 in SP (Congonhas airport) and RJ (Galeao airport).
Figure 7. Daily wind speed and temperature values averaged during the month of May for 2015–2020 in SP (Congonhas airport) and RJ (Galeao airport).
Atmosphere 12 00583 g007
Atmosphere 12 00583 g008 550

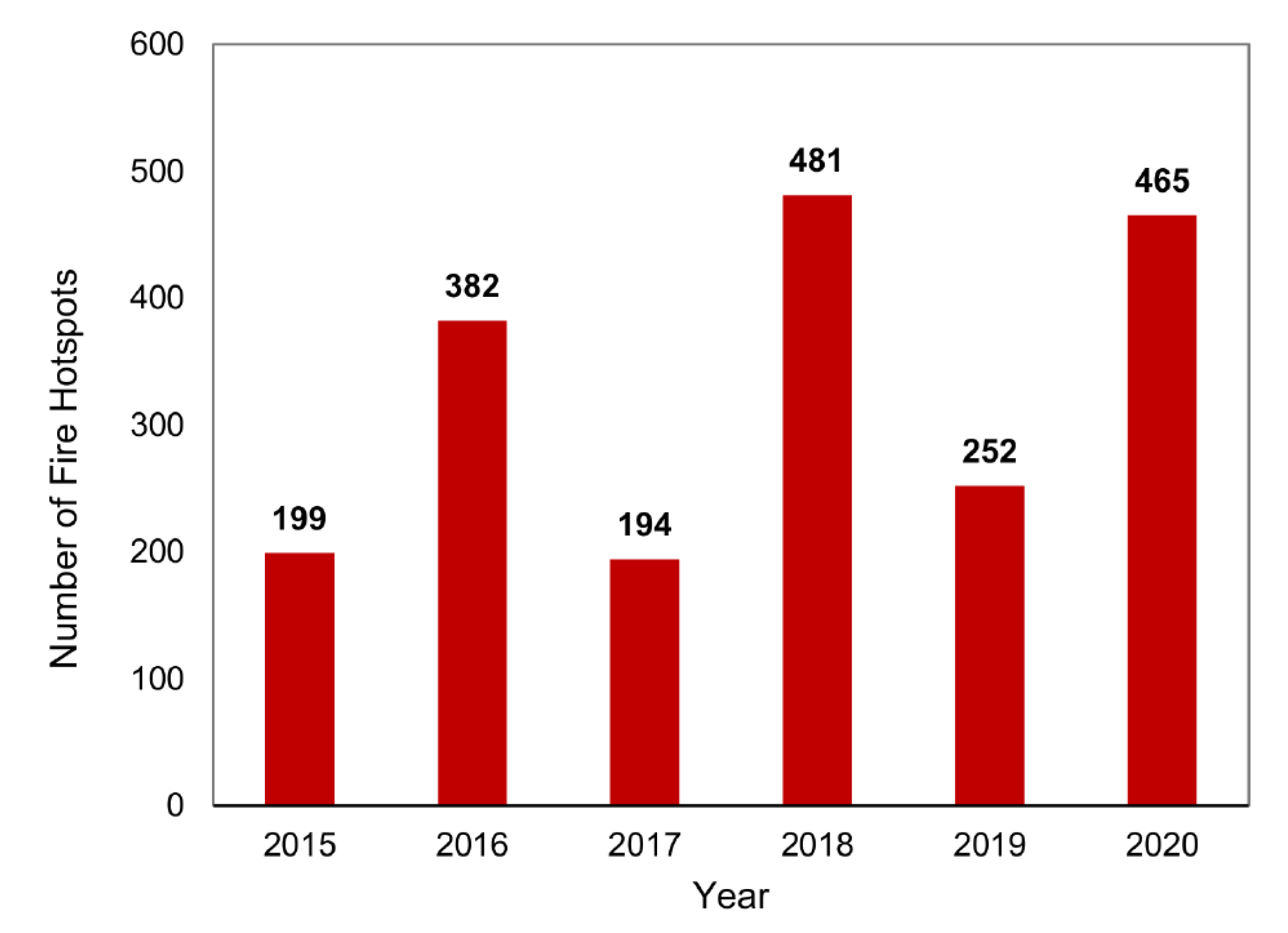

Figure 8. Number of fire hotspots in southeast Brazil during May of 2015–2020.
Figure 8. Number of fire hotspots in southeast Brazil during May of 2015–2020.
Atmosphere 12 00583 g008
Table
Table 1. Summary of recent studies using satellite data to investigate air pollution changes during the COVID-19 lockdown.
Table 1. Summary of recent studies using satellite data to investigate air pollution changes during the COVID-19 lockdown.
Study AreaReferenceDescription
Global[26]TROPOMI NO 2 and CO, and MODIS AOD reductions were assessed during Feb/Mar 2020. Findings include a substantial reduction of NO 2 , low reduction in CO, and a low-to-moderate reduction in AOD in major hotspots of COVID-19 outbreaks.
Global[27]TROPOMI and OMI NO 2 are evaluated during Jan-April 2020 compared to the same lockdown timeframe in 2019. The most significant drop was found in Chinese cities, with a cumulative −40% in 2020 compared to 2019. Decreases in western Europe and United States are also significant (−20% to −38%).
Multiple (34 countries)[28]TROPOMI NO 2 and O 3 , as well as MAIAC AOD measurements, were evaluated during Feb/Mar 2020 compared to the same months in 2019. NO 2 decreases of 10.7% were found in remote areas, while the highest reductions (20%) were found in Europe and China. AOD increased slightly (+13.2%) overall, although local declines were evident in some parts of China.
Southeast Asia[29]AOD from the Himawari satellite and OMI NO 2 were observed during the local lockdown period, in addition to ground NO 2 , SO 2 , PM 10 , PM 2.5 , CO measurements. Larger tropospheric NO 2 reductions of 27–34 % were found over urban areas.
East Asia[9]TROPOMI NO 2 , HCHO, SO 2 and CO concentrations, in addition to Himawari AOD were analyzed from imagery. NO 2 experienced the greatest reduction, with decreases of 54%, 83%, 33%, and 19% in BTH, Wuhan, Seoul, and Tokyo on February 2020 compared to the same month in 2019. Wuhan showed the greatest pollutant reduction overall, with 83%, 11%, 71%, and 4% decreases in NO 2 , HCHO, SO 2 , and CO, respectively.
Europe[30]Tropospheric NO 2 columns from TROPOMI are compared over the European region between similar periods of 2019 and 2020, according to lockdown timeframes. A decrease of up to 85% in 2020 in some of the big cities was observed. Cross-correlation were performed between the NO 2 column and ground values, and a R 2 ranging between 0.5 and 0.75 was found in different locations. The Industrial Production Index and air traffic volumes are included, confirming the reason behind the study findings.
Thailand[14]Assessment of lockdown on the air quality of a medium-sized urban area. TROPOMI NO 2 and ground NO 2 , SO 2 , PM 10 , PM 2.5 , CO and O 3 were studied. Tropospheric NO 2 is in agreement with ground observations.
California, USA[12]Ground and tropospheric OMI NO 2 is evaluated during the 2020 lockdown weeks compared to previous 2015–2019 historical data. Spatial patterns of OMI NO 2 showed a decreasing trend over powerplant locations and an increasing trend over residential areas near national highways.
Table
Table 2. The selected ground stations in SP and RJ.
Table 2. The selected ground stations in SP and RJ.
SP
StationLocation (Lat, Lon)Description
D Pedro II Park(−23.5440, −46.6270)Cut by five viaducts and state avenues. D Pedro II Bus Terminal (the busiest in the city), D Pedro II Metro Station and State School of Sao Paulo are within the park area.
Congonhas(−23.6160, −46.6630)Close to Congonhas Airport. Located about six meters from two boulevards, one with heavy traffic including heavy and light duty vehicles.
Sao Caetano do Sul(−23.6180, −46.5560)Located within a residential and industrial region. Two busy boulevards (heavy and light duty vehicles) are nearby.
Cerqueira Cesar(−23.5530, −46.6720)Located within a public school and about seven meters from a heavily trafficked boulevard (heavy and light duty vehicles).
Pinheiros(−23.5610, −46.7020)Very close to highly trafficked Marginal Pinheiro highway. Heavy and light duty vehicles.
Marginal Tiete(−23.5180, −46.7430)Located close to main express highway of the city of Sao Paulo. Very busy.
RJ
StationLocation (Lat, Lon)Description
Campos Eliseos(−22.7065, −43.2703)Petrochemical pole and heavy diesel vehicle traffic nearby. Located within a small state school.
Jardim Primavera(−22.6746, −43.2851)Very urbanized and also close to heavy diesel vehicle traffic. Located within the Federal Highway Police area.
Pilar(−22.7058, −43.3118)Close to municipal school and BR−101, a federal busy highway, connecting the entire Eastern Brazil, hence being highly trafficked.
Sao Bento(−22.7398, −43.3133)Positioned within Municipal Environmental Secretariat, and also close to BR−101.
Table
Table 3. Cross-correlation amongst various variables in SP (the number of fires are for the entire southeast Brazil).
Table 3. Cross-correlation amongst various variables in SP (the number of fires are for the entire southeast Brazil).
TemperatureHumidityWind SpeedNO 2 PM 2.5 Fire Hotspots
Temperature1.000.26−0.680.630.13−0.24
Humidity0.261.00−0.21−0.39−0.67−0.68
Wind Speed−0.68−0.211.00−0.760.240.51
NO 2 0.63−0.39−0.761.000.380.10
PM 2.5 0.13−0.670.240.381.000.59
Fire Hotspots−0.24−0.680.510.100.591.00
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Brandao, R.; Foroutan, H. Air Quality in Southeast Brazil during COVID-19 Lockdown: A Combined Satellite and Ground-Based Data Analysis. Atmosphere 2021, 12, 583. https://doi.org/10.3390/atmos12050583

AMA Style

Brandao R, Foroutan H. Air Quality in Southeast Brazil during COVID-19 Lockdown: A Combined Satellite and Ground-Based Data Analysis. Atmosphere. 2021; 12(5):583. https://doi.org/10.3390/atmos12050583

Chicago/Turabian Style

Brandao, Rayssa, and Hosein Foroutan. 2021. "Air Quality in Southeast Brazil during COVID-19 Lockdown: A Combined Satellite and Ground-Based Data Analysis" Atmosphere 12, no. 5: 583. https://doi.org/10.3390/atmos12050583

APA Style

Brandao, R., & Foroutan, H. (2021). Air Quality in Southeast Brazil during COVID-19 Lockdown: A Combined Satellite and Ground-Based Data Analysis. Atmosphere, 12(5), 583. https://doi.org/10.3390/atmos12050583

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
