Impact of SARS-CoV-2 on Ambient Air Quality in Northwest China (NWC)

by
Shah Zaib
1,
Jianjiang Lu
1,*,
Muhammad Zeeshaan Shahid
2,
Sunny Ahmar
3 and
Imran Shahid
4
1
Key Laboratory of Environmental Monitoring and Pollution Control of Xinjiang Bingtuan, School of Chemistry and Chemical Engineering, Shihezi University, Shihezi 832003, China
2
Ministry of Public Health, Al Rumaila, Doha P.O. Box 42, Qatar
3
Institute of Biological Sciences, University of Talca, 1 Poniente 1141, Talca 3460000, Chile
4
Environmental Science Center, Qatar University, Doha P.O. Box 2713, Qatar
*
Author to whom correspondence should be addressed.
Atmosphere 2021, 12(4), 518; https://doi.org/10.3390/atmos12040518
Submission received: 19 March 2021 / Revised: 14 April 2021 / Accepted: 16 April 2021 / Published: 19 April 2021
(This article belongs to the Section Air Quality)
Browse Figures
Review Reports Versions Notes

Abstract

:
SARS-CoV-2 was discovered in Wuhan (Hubei) in late 2019 and covered the globe by March 2020. To prevent the spread of the SARS-CoV-2 outbreak, China imposed a countrywide lockdown that significantly improved the air quality. To investigate the collective effect of SARS-CoV-2 on air quality, we analyzed the ambient air quality in five provinces of northwest China (NWC): Shaanxi (SN), Xinjiang (XJ), Gansu (GS), Ningxia (NX) and Qinghai (QH), from January 2019 to December 2020. For this purpose, fine particulate matter (PM2.5), coarse particulate matter (PM10), sulfur dioxide (SO2), nitrogen dioxide (NO2), carbon monoxide (CO), and ozone (O3) were obtained from the China National Environmental Monitoring Center (CNEMC). In 2020, PM2.5, PM10, SO2, NO2, CO, and O3 improved by 2.72%, 5.31%, 7.93%, 8.40%, 8.47%, and 2.15%, respectively, as compared with 2019. The PM2.5 failed to comply in SN and XJ; PM10 failed to comply in SN, XJ, and NX with CAAQS Grade II standards (35 µg/m3, 70 µg/m3, annual mean). In a seasonal variation, all the pollutants experienced significant spatial and temporal distribution, e.g., highest in winter and lowest in summer, except O3. Moreover, the average air quality index (AQI) improved by 4.70%, with the highest improvement in SN followed by QH, GS, XJ, and NX. AQI improved in all seasons; significant improvement occurred in winter (December to February) and spring (March to May) when lockdowns, industrial closure etc. were at their peak. The proportion of air quality Class I improved by 32.14%, and the number of days with PM2.5, SO2, and NO2 as primary pollutants decreased while they increased for PM10, CO, and O3 in 2020. This study indicates a significant association between air quality improvement and the prevalence of SARS-CoV-2 in 2020.

1. Introduction

In recent years, unprecedented industrial activity, urbanization, and motorization have jeopardized the air quality in northwest China (NWC) [1,2,3,4]. Multiple studies observed higher pollution levels in NWC due to increased industry, coal consumption, biomass burning, civil heating, power generation, urbanization, and natural sources [5,6,7,8,9,10,11,12,13]. Deteriorated air quality has attracted the attention of the scientific community because of its detrimental health effects [14,15,16,17,18,19]. Fine particulate matter (PM2.5) is a major pollutant, ranked as the primary leading risk factor for disease in China, with more than 1.1 million premature deaths due to stroke, ischemic heart disease (IHD), chronic obstructive pulmonary disease (COPD), lung cancer, and lower respiratory infections [20,21,22].
The SARS-CoV-2 also known as “COVID-19” was first discovered in December 2019 in Wuhan, a city in the Hubei province of China [23,24,25]. This deadly virus covered the globe within two months, and the World Health Organization (WHO) declared a pandemic on 11 March 2020 (WHO 2020). The common symptoms of COVID-19 include fever, dry cough, tiredness, and shortness of breath. In contrast, severe symptoms include a runny nose, sore throat, chills, muscle aches, headache, diarrhea, nausea, chest pain, breathing difficulties, and organ failure [26,27]. So far, COVID-19 has infected more than 133.10 million people and killed 2.90 million people worldwide (https://ourworldindata.org/covid-cases/, accessed on 14 April 2021).
To slow down the spread of the COVID-19 outbreak, China imposed a nationwide lockdown, e.g., travel restrictions, industrial closure etc., on 23 January 2020, starting from Wuhan (Hubei) [28]. Later on, the lockdown spread all over mainland China with a significant spatial and temporal variation. Multiple studies observed a reduction in anthropogenic emission and an improvement in the air quality index (AQI) due to epidemic prevention and control measures (lockdowns, travel restrictions, industrial closure etc.) throughout the globe [29,30,31,32,33]. Reference [34] observed that the average concentration of nitrogen dioxide (NO2), PM2.5, and coarse particulate matter (PM10) decreased by 27.0%, 10.5%, and 21.4%, respectively, during lockdown (January to April) in China. Similarly, [35] observed short-term pollution reduction due to industrial closure, movement restrictions, and traffic stagnation in China. To further strengthen the claim that lockdowns improved air quality, [36] concluded that the AQI improved by 19.84 points in locked down cities and by 6.34 points in cities without formal lockdown. Reference [30] concluded that in Anhui province (Anqing, Hieifi, and Shuzou) the average concentrations of PM2.5, PM10, sulfur dioxide (SO2), carbon monoxide (CO), and NO2 decreased by 46.5%, 48.9%, 52.5%, 36.2%, and 52.8%, respectively, during the lockdown. Similarly, Hubei province (Wuhan, Jingmen, and Enshi) experienced 30.1%, 40.5%, 61.4%, 33.4%, and 27.9% reduction in PM2.5, PM10, NO2, SO2, and CO, respectively, during lockdown months (January 2020 to March 2020) [27]. Another study in Wuhan observed that the AQI, PM2.5, and NO2 decreased by 47.5%, 36.9%, and 53.3%, respectively, during lockdown [37]. Just like other areas, Shanghai also experienced a 9%, 77%, 31.3%, 60.4%, and 3% decrease in PM2.5, PM10, SO2, NO2, and CO, respectively, during lockdown months [38].
During the lockdown period (January 2020 to March 2020), most of the studies focused on air quality assessment in central China and nearby areas while ignoring rapidly developing areas of NWC [27,30,34,35,36,37,38]. However, very few studies assessed the air quality in northwest China (the industrial and manufacturing hub of China) to evaluate the influence of the COVID-19 outbreak and associated lockdowns on air quality. A study conducted by He et al. [31] observed that the AQI (SO2, PM2.5, PM10, NO2, and CO) improved by 7.8% (6.76%, 5.93%, 13.66%, 24.67%, and 4.58%) in Lanzhou (Gansu province) during the lockdown. Similarly, [39] observed that PM1 decreased by 50% during the Lanzhou lockdown period (January to March). Depending on the spread of the viral outbreak, lockdowns, travel restrictions, etc. were extended and re-imposed in some areas, e.g., Kashgar city (October 2020). No study has extensively analyzed the influence of the viral outbreak and lockdowns on air quality in northwest China.
In this study, we assessed the spatial and temporal variation of air pollution in 53 cities of NWC. We examined six criteria pollutants (PM2.5, PM10, SO2, NO2, CO, and O3), the air quality index (AQI), the proportion of AQI classes, and major pollutants etc. for a period of two years (January 2019 to December 2020) to illustrate the impact of SARS-CoV-2 and associated lockdowns on the spatial and temporal distribution of air pollution in NWC. We believe this is the first study focusing on the long-term impact of the COVID-19 outbreak on air quality in 53 cities of NWC and is of considerable significance to environmental protection and human health.

2. Materials and Methods

2.1. Site Selection

Northwest China (NWC) is a mixture of agricultural land, deserts, mountains, industrial complexes, significant mineral reserves, and degraded air quality. We analyzed the ambient air quality in 53 cities locatecd in five provinces (Shaanxi (SN), Xinjiang (XJ), Gansu (GS), Ningxia (NX), and Qinghai (QH)) of NWC from January 2019 to December 2020 to understand the spatial temporal variation across NWC better. SN includes 10 cities (Ankang, Baoji, Hanzhong, Shanglou, Tongcuan, Weinan, Xian, Xianyang, Yanna, Yulin), and XJ includes 16 cities (Aksu, Altay, Bortala, Crete, Changji, Hami, Hotan, Ili, Karamay, Korla, Kashgar, Shihezi, Tacheng, Turpan, Urumqi, Wujiaqu). Similarly, GS includes 14 cities (Dingxi, Gannn, Jiayuguan, Jinchang, Jiuquan, Lanzhou, Linxia, Longnan, Pinglian, Qingyang, Silver city, Tianshui, Wuwei, Zhangye), and NX includes five cities (Guyuan, Shizuishan, Yinchuan, Wuzhong, Zhongwei). QH includes eight cities (Guolou, Haibei, Haidong, Hainan, Haixi, Huangnan, Xinning, Yushu). A location map of the cities under observation is shown in Figure 1.

2.2. Data Collection

The hourly concentration of six criteria pollutants (PM2.5, PM10, SO2, NO2, CO, and O3) in NWC was obtained from the China National Environmental Monitoring Center (CNEMC) for a period of two years (2019–2020). The online data-sharing platform had installed hundreds of ambient air monitoring stations, covering both urban and rural areas in 337 cities of China, and published information according to the Technical Guideline on Environmental Monitoring Quality Management (HJ 630-2011).

2.3. Air Quality Index (AQI)

The air quality index (AQI) is a color-coded scale that simplifies different pollutants’ concentrations into a single numerical value to reflect overall air quality, health effects, sensitive groups, and required precautionary measures. The AQI includes 24-h average measurements of NO2, SO2, CO, PM2.5, PM10, and 8-h average concentrations of O3 [12,13,40]. When the AQI is higher than 50, the highest Individual air quality index (IAQI) is considered a primary pollutant for that given day [13,30,41,42,43]. The individual air quality index (IAQI) for six criteria pollutants is determined by using Equation (1), and the overall AQI is calculated based on the highest IAQI by using Equation (2) according to the instruction given in the technical regulation on ambient air quality index (on trial) (HJ-633-2012).
IAQIP = Ihigh – Ilow/Chigh – Clow * (CP – Clow) + Ilow
  • IAQIP = Individual sub air quality index of the pollutant p
  • CP = concentration of the pollutant p
  • Chigh = concentration breakpoint that is ≥ Cp
  • Clow = concentration breakpoint that is ≤ Cp
  • Ihigh = index breakpoint corresponding to Chigh
  • Ilow = index breakpoint corresponding to Clow
AQI = max (I1, I2, …, In)
AQI has the following six categories: Class I; 0–50 (green), good; Class II: 51–100 (yellow), moderate; Class III: 101–150 (orange), unhealthy for sensitive groups; Class IV: 151–200 (red), unhealthy; Class V: 201–300 (purple), very unhealthy; Class VI: 300–500 (maroon), hazardous.

2.4. Quality Assurance and Quality Control (QA&AR)

Quality assurance and control procedures for ambient air quality data were strictly by Chinese Ambient Air Quality Standards (CAAQS) (GB 3095 2012). The daily average value was calculated when we had valid data for more than 16 h of that day (except for O3, minimum 6-h values for 8-h O3 value). The monthly average was calculated when we had 27 daily mean values; an annual value was calculated when we had 324 daily mean values. Besides this, manual inspection was carried out to remove abnormal values e.g., PM2.5 values higher than PM10 values.

2.5. Kriging (Ordinary/Universal)

Kriging is a geospatial interpolation technique that defines the unknown values depending on the available known values and considers both the distance and the degree of variation between known data points when estimating values in unknown areas. We used kriging (ordinary) to evaluate the spatial distribution of criteria pollutants (PM2.5, PM10, SO2, NO2, CO, O3), AQI, etc., in NWC, and then applied reclassification to obtain the desired map format.

2.6. Statistical Analysis

In this study, we used the Statistical Package for Social Sciences (SPSS) for Windows (IBM SPSS Statistics, Version 25) to evaluate Pearson’s correlation coefficient for criteria pollutants on an annual and seasonal basis. Pearson’s correlation is a correlation coefficient commonly used in linear regression and used to measure the strength of relationships between the six air pollutants. The effect of a certain variable was considered statistically significant for P (0.01 and 0.05) (two tailed). Annual mean values of data were used for the analysis of six criteria pollutants between 2019 to 2020: mean absolute deviation (MAD), mean square error (MSE), root mean square error (RMSE), mean absolute percentage error (MAPE), and mean percentage error (MPE), and were calculated by Excel 2016.

3. Results

3.1. Annual and Seasonal Changes in Criteria Pollutants

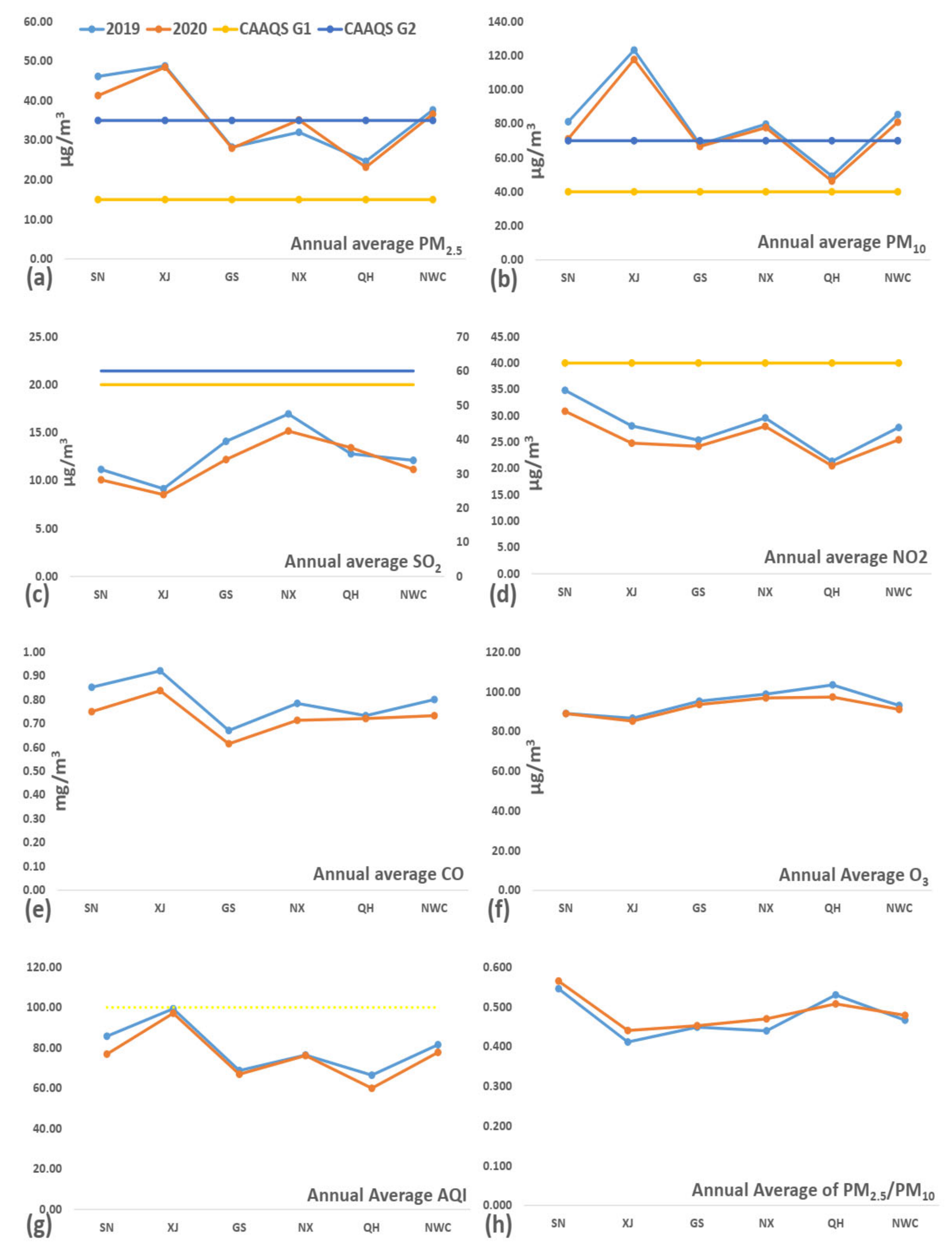

During the study period (2019–2020), the annual average concentration of PM2.5, PM10, SO2, NO2, CO, and O3 (Table S1) improved by 2.72%, 5.31%, 7.93%, 8.40%, 8.47%, and 2.15%, respectively, in NWC (Figure 2). The annual average concentration of PM2.5 exceeded CAAQS Grade II standards (35 µg/m3, annual mean) in SN (24.91%), XJ (38.94%), and NWC (6.1%) (Figure 2a). Similarly, the annual average concentration of PM10 exceeded CAAQS Grade II standards (70 µg/m3, annual mean) in SN (8.71%), XJ (72.13%), NX (12.45%), and NWC (18.74%) (Figure 2b). While SO2 and NO2 complied with CAAQS Grade II standards (20 µg/m3 and 40 µg/m3, annual mean) in NWC (Figure 2c,d). CO and O3 do not have annual standards under CAAQS; both the CO and O3 decreased in SN, XJ, GS, NX, QH, and NWC during 2020. The highest concentration of PM2.5, PM10, SO2, NO2, CO, and O3 occurred in XJ, XJ, NX, SN, XJ, and QH, respectively. Figure 3 explains the spatial distribution of criteria pollutants in 53 cities of NWC during 2019 and 2020, obtained by kriging (ordinary) interpolation technique. The obtained results from spatial interpolation (kriging) were quite similar to the actual values. In 2020, 34 (64.15%), 39 (73.58%), 38 (71.7%), 47 (88.68%), 44 (83.01%), and 38 (71.7%) cities of NWC experienced a reduction in PM2.5, PM10, SO2, NO2, CO, and O3, respectively (Figure 3).

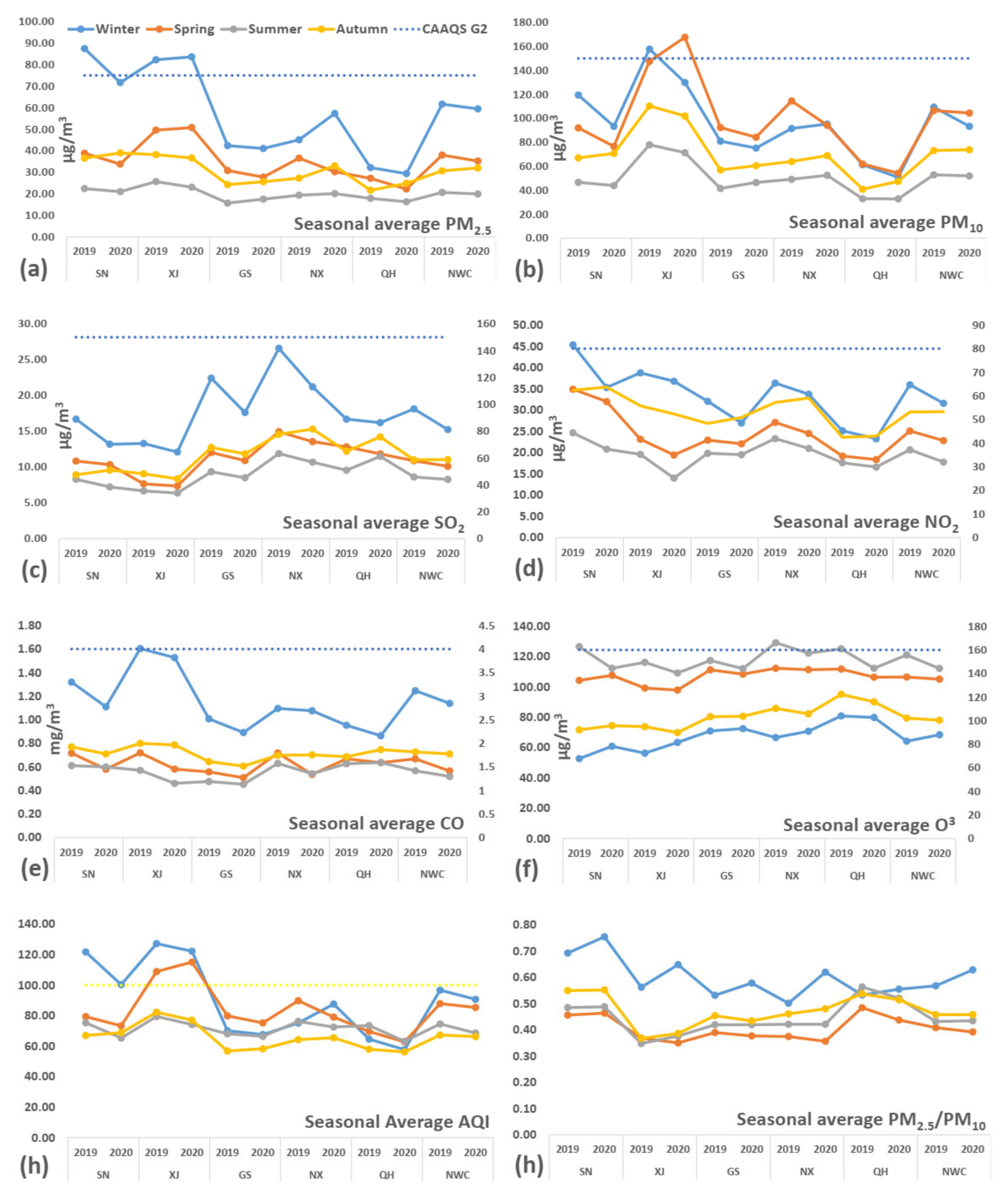

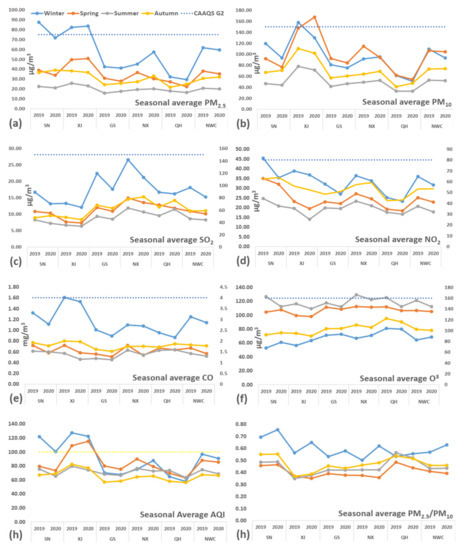

PM2.5, SO2, NO2, and CO observed the highest value in winter and lowest in summer in a seasonal variation. The concentration of PM10 was highest in spring, while O3 was highest in summer and lowest in winter. The average concentration of PM2.5, PM10, SO2, NO2, and CO decreased in winter, spring, and summer 2020. In autumn 2020, PM2.5, PM10, SO2, and NO2 increased while CO decreased. O3 decreased in spring, summer, and autumn while it increased in winter 2020 as compared with 2019 (Figure 4). PM2.5 exceeded the daily limits of CAAQS Grade II (75 µg/m3) during winter in SN (2019), and XJ (2019, 2020) (Figure 4a), while PM10 exceeded the daily limits of CAAQS Grade II (150 µg/m3) during spring in XJ (2019, 2020) (Figure 4b). Gaseous pollutants (SO2, NO2, CO, and O3) complied with daily limits of CAAQS Grade II (150 µg/m3, 80 µg/m3, 4 mg/m3, and 160 µg/m3) in SN, XJ, GS, NX, QH, and NWC (Figure 4c–f).

3.2. PM2.5/PM10 Ratio

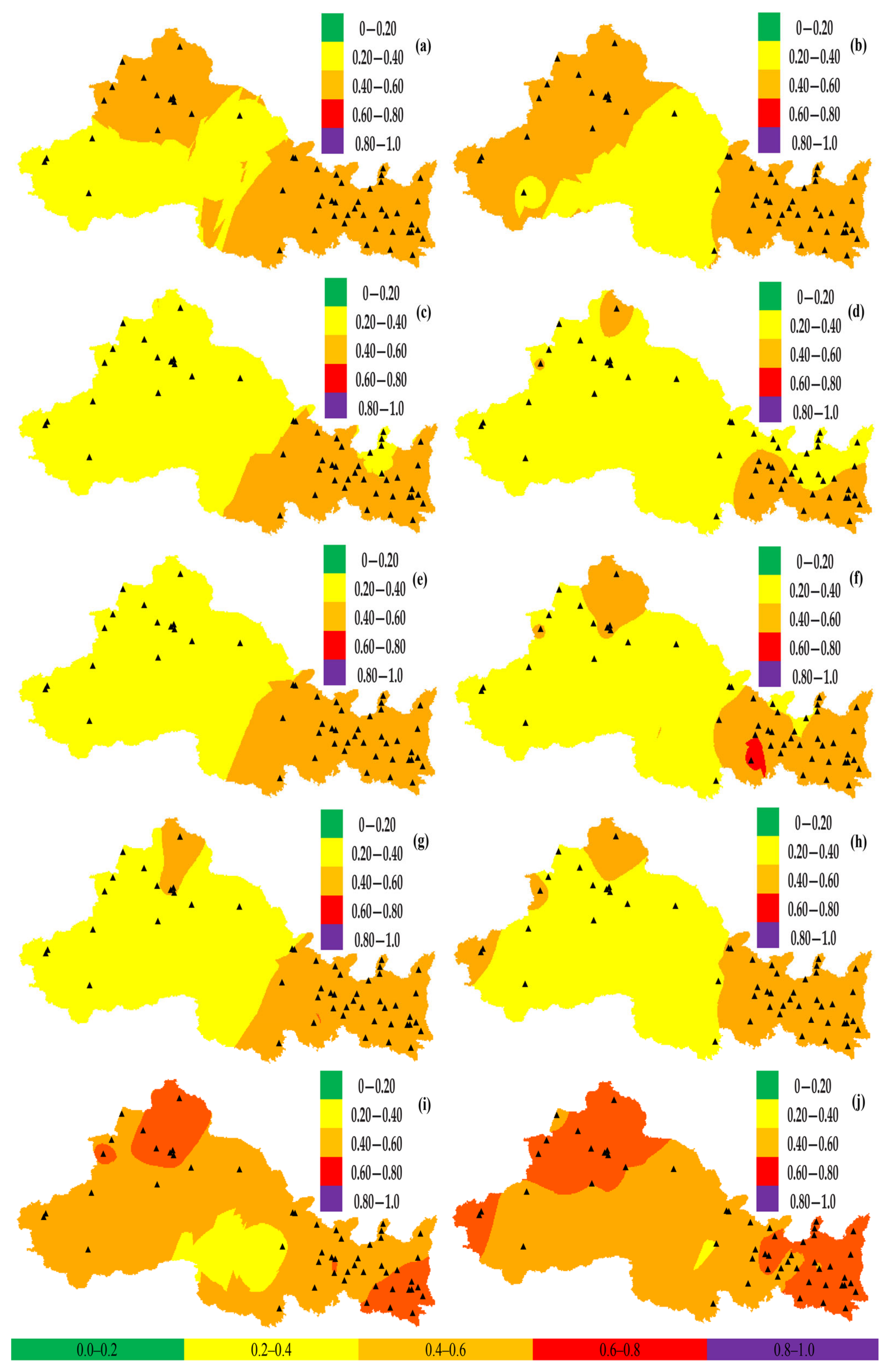

During the study period (2019–2020), the average PM2.5/PM10 ratio in NWC ranged from 0.325 ± 0.135 to 0.640 ± 0.190 with an average of 0.472 ± 0.100, highest PM2.5/PM10 ratio occurring in SN followed by QH, NX, GS, and XJ, and experiencing an average change of 2.56% in NWC in 2020 as compared with 2019 (Figure 2h). In a seasonal variation, the highest PM2.5/PM10 ratio occurred in winter followed by autumn, summer, and spring, respectively, and increased by 10.68% in winter in NWC during 2020 (Figure 4h). In 2020, 62.26% of cities observed an increase in the PM2.5/PM10 ratio. Similarly, spring, summer, autumn and winter experienced an improvement in 33.96%, 52.83%, 54.72%, and 90.57% cities of NWC, respectively, in 2020 against 2019 (Figure 5).

3.3. Air Quality Index (AQI)

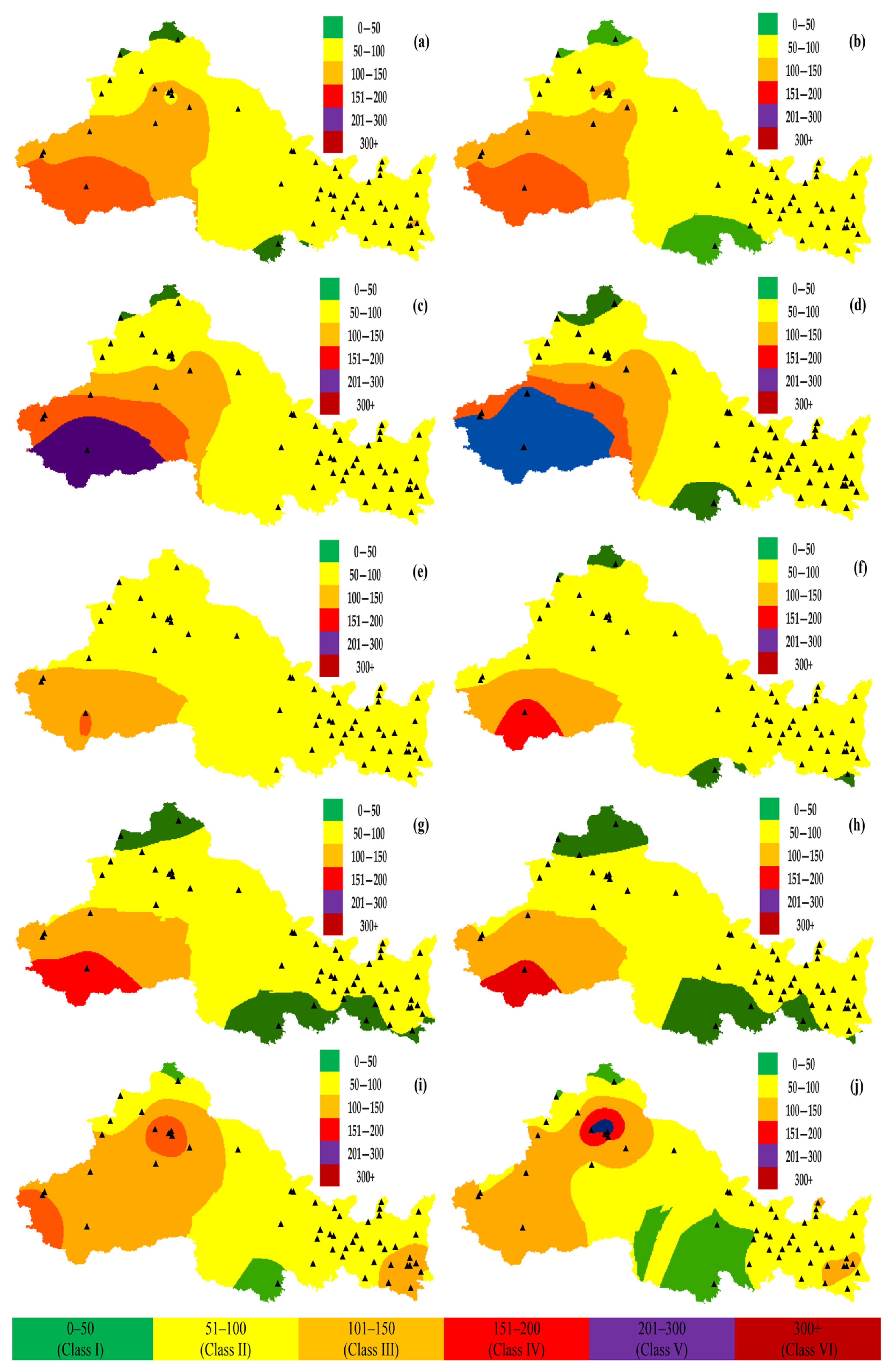

During the study period (2019–2020), the average AQI in NWC ranged from 43.34 ± 10.15 to 194 ± 210.26 with an average of 79.65 ± 19.90, and the highest AQI occurred in XJ followed by SN, GS, NX, and QH. The AQI improved by 4.67% (10.26%, 2.25%, 2.73%, 0.31%, 9.74%) in NWC (SN, XJ, GS, NX, QH) during 2020 as compared with 2019 (Figure 2g). In a seasonal variation, the highest AQI occurred in winter followed by spring, summer, and autumn, respectively, and improved by 6.69%, 2.91%, 8.57%, and 1.59%, respectively, in NWC during 2020 (Figure 4g). Seasonal variation was not consistent throughout NWC e.g., SN and XJ experienced the highest AQI in winter, GS and NX in spring. At the same time, QH observed the highest AQI in summer. Figure 6 illustrates the annual and seasonal spatial distribution of the AQI in NWC. In 2020, 77.36% cities experienced an improvement in the AQI. Similarly, spring, summer, autumn and winter experienced an improvement of 83.02%, 13.21%, 52.83%, and 62.26% in the cities of NWC, respectively, in 2020 against 2019. Significant improvement in the AQI occurred in winter (December to February) and spring (March to April) when the viral outbreak, lockdown, and movement restrictions were at their peak.

3.4. Proportion of Six AQI Classes

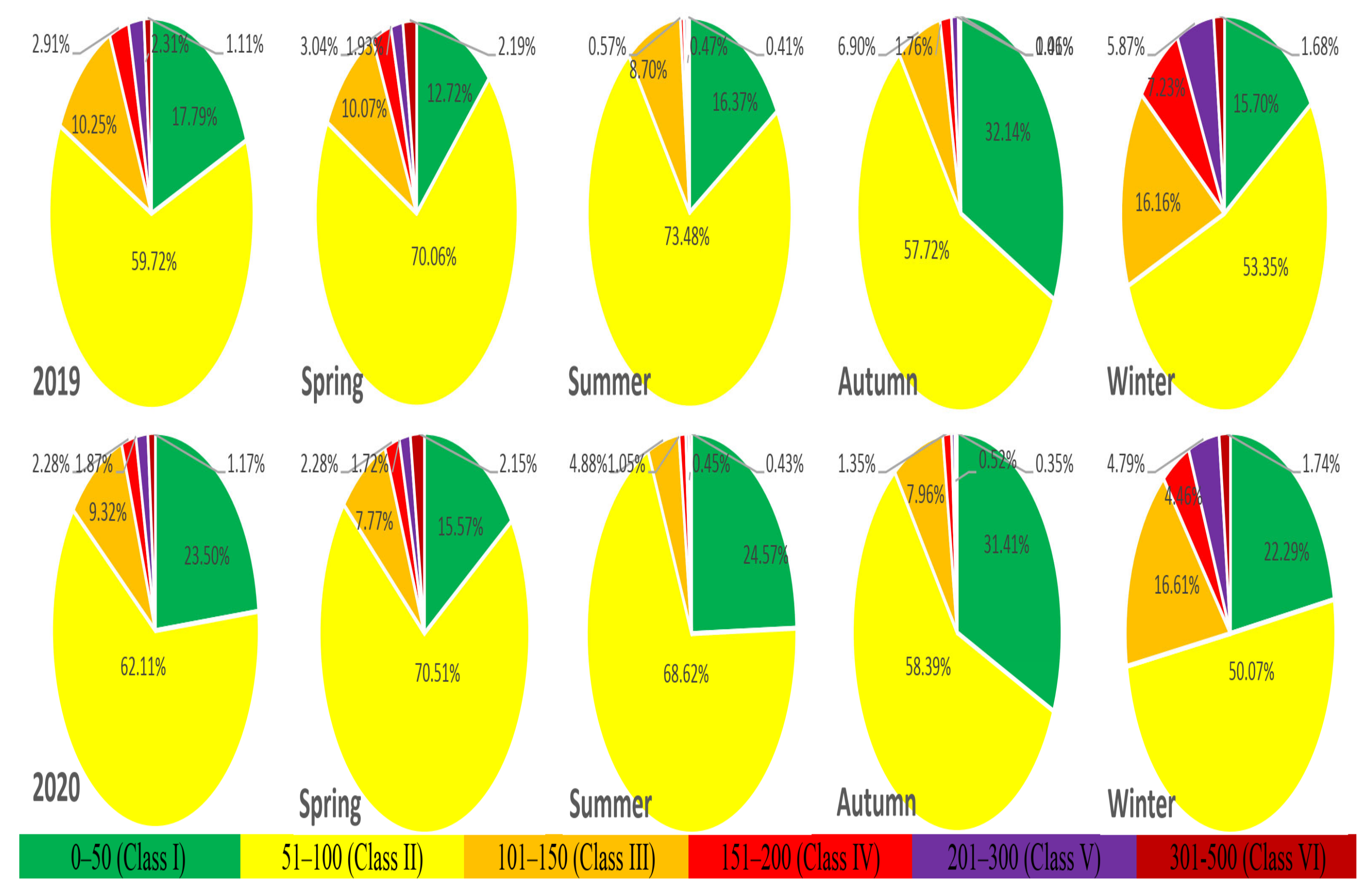

Figure 7 explains the annual and seasonal (spring, summer, autumn, and winter) proportion of different AQI classes in NWC during 2019 and 2020. In 2020, the proportion of AQI “Class I”, and “Class II” improved by 32.14%, and 4%, respectively, while they decreased by 9.13%, 21.35%, and 18.41% for “Class III”, “Class IV”, and “Class V”, respectively, in NWC. In the seasonal variation, the proportion of Class I increased by 22.42%, 50.13%, and 41.95% in spring, summer, and winter, respectively, in NWC during 2020. In the case of monthly variation, the combined proportion of Class I & II was higher in summer (June, July, August), indicating better air quality compared with other seasons (Figure S1).

3.5. The Major Pollutants

During the study period, O3 was a major pollutant accounting for 28.06% days followed by PM2.5 (23.41%), PM10 (21.79%), NO2 (2.28%), SO2 (0.21%), and CO (0.04%). In 2020, the number of days with PM2.5, SO2, and NO2 as major pollutants decreased by 46.02%, 51.79%, and 34.77%, respectively, while they increased by 119.45%, 300%, and 3.10% for PM2.5, CO, and NO2, respectively (Figure S2).
In the case of seasonal variation, PM10 was a major pollutant in spring (43.57%) and autumn (39.32%), PM2.5 was a major pollutant in winter (46.98%), and O3 was a major pollutant (67.31%) in summer. The number of days with PM2.5 as a major pollutant decreased by 37.5% in spring, while they increased by 33.33%, 47.15%, and 17.65% in summer, autumn, and winter 2020, respectively. Similarly, the number of days with PM10 as major pollutant increased by 0.61%, 21.33%, and 8.75% in spring, summer, and autumn 2020, respectively, while they decreased by 32.31% in winter 2020 as compared with 2019. The number of days with SO2, NO2 and O3 as major pollutant decreased in all seasons while increasing slightly for O3 in spring 2020 compared with 2019. The number of days with O3 as a major pollutant was higher in the hotter months (April–September), and PM2.5 was higher in colder months (November–February). PM10 experienced a “U” shaped curve with higher concentrations in winter, spring, and autumn, and lower concentrations in summer (Figure S2).

3.6. Pollution Days

Any day with one or more pollutants exceeding CAAQS (Grade II) standards is considered as a non-attainment/pollution day. Figure S3 explains the number of pollution days in NWC (SN, XJ, GS, NX, and QH) during 2019 and 2020. In 2020, the number of pollution days in NWC (SN, XJ, GS, NX, and QH) was reduced by 13.59% (22.33%, 13.96%, 13.12%, 27.48%, and 20.53%) as compared with 2019. Similarly, the number of pollution days decreased by 15.41%, 26.79%, 9.66%, and 11.55% in spring, summer, autumn, and winter 2020, respectively, as compared with 2019 (Figure S3).

3.7. Statistical Analysis

PM2.5 was strongly correlated with PM10, CO, SO2, and NO2, indicating emissions from fossil fuel combustion, power plants, vehicular exhaust, industrial emissions, dust storms etc. O3 was negatively correlated with other pollutants in northwest China. The seasonal variation in the correlation between different pollutants was evident. Throughout the study period, all the pollutants were positively correlated with each other except O3. A weak positive correlation occurred between O3 and other pollutants in summer (Table S2).

4. Discussion

Based on the results above, we concluded that the pollution level improved significantly in NWC during the COVID-19 outbreak (2020) due to strict epidemic prevention and control measures. In 2020, PM2.5 improved significantly in SN and QH, while it improved slightly in GS and XJ due to strict epidemic prevention measures e.g., industrial closure, traffic stagnation, etc. that significantly helped in pollution reduction [27,29,30]. Even after the epidemic prevention measures, NX experienced an increase in pollution, GS and XJ experienced minor improvements that indicate the influence of increased coal consumption, civil heating, industrial activity, etc. [6,13,19,27,44,45,46,47,48]. PM2.5 mainly originates from industrial activities, coal consumption, power generation, biomass burning, automobile exhausts, construction activities, road dust, etc. [7,8,10,19,45,49,50,51]. In 2020, 64.15% of cities in NWC experienced an improvement in PM2.5 with the highest number of cities in SN (90%) followed by QH (87.5%), GS (57.15%), XJ (53.25%), and NX (20%), respectively, because the lockdown period was not consistent throughout NWC, and experienced significant spatial and temporal variation. With PM10, all regions e.g., SN, QH, XJ, NX, and GS experienced pollution reduction due to strict epidemic prevention measures [27,29,30]. PM10 mainly originates from natural sources e.g., sand storms, haze events, etc. as well as from anthropogenic sources e.g., developmental activities, industrial emissions, traffic emissions, road dust etc. [11,13,19] that were largely reduced during lockdowns, and helped significantly in pollution reduction [27,30,35,38]. XJ’s southern region experienced the highest PM10 pollution level due to increased emissions from natural sources, e.g., Taklimakan deserts [52,53,54,55]. About 73.58% of cities in NWC experienced a decrease in PM10 with the highest number of cities in QH (90%), followed by XJ (75%), GS (42.85%), and NX (20%) in 2020. Multiple studies experienced particulate reduction during the COVID-19 outbreak, e.g., [27] observed that PM2.5 and PM10 reduced by 30.1% and 40.5% in Hubei province [27], 46.5% and 48.9% in Anhui province [30], and 5.93% and 13.66% in 44 cities of north China [31].
In the case of gaseous pollutants, SO2, NO2, CO, and O3 decreased in all provinces and decreased in 71.7%, 88.68%, 83.02%, and 71.7% in cities of NWC, respectively, during the COVID-19 year of 2020. Industrial emissions, coal burning, fossil fuel burning, power generation, traffic exhausts, etc., are major sources of SO2, NO2, and CO [45,56,57,58,59,60]. Due to epidemic prevention and control measures, industrial buildings were closed, energy demand was decreased, traffic was stagnant due to “stay at home”, “self-quarantine”, and “social distancing” policies that significantly reduced pollution in northwest China during 2020. Multiple studies e.g., [27] observed that SO2 decreased by 33.4% in Hubei, 52.5% in Anhui [30], 6.76% in north China [31], 30% in Wuhan (origin of the viral outbreak) [29], 20 to 30% reduction in China, Spain, France, Italy and northwestern parts of the USA. Similarly, NO2 and CO decreased by 61.4% and 27.9% in Hubei province [27], 52.8%, 36.2% in Anhui province [30], 24.67%, and 4.58% in north China [31]. Similarly, [38] observed that NO2 and CO decreased by 30% in east China, and 20% in Wuhan, respectively, during the lockdown. O3 is a secondary pollutant formed due to a photochemical reaction between VOCs and NOx [27,30,61]. In contrast to other areas [4,27,30,37,62], the average concentration of O3 decreased by 2.15% in NWC, mainly because of a reduction in O3 precursors during lockdown period.
Generally, PM2.5, PM10 (except XJ in 2020, GS (2019, 2020), NX (2019), QH (2020)), SO2, NO2, and CO observed the same seasonal variation, e.g., highest in winter and lowest in summer. Higher pollution in winter is associated with increased coal combustion, civil heating, power generation, fossil fuel burning, industrial activity, vehicular exhausts, and stagnant meteorology [13,44,46,51,63]. The exception was that, the concentration of PM10 was higher in XJ during spring 2020 than in 2019, which indicates the ongoing influence of natural sources, e.g., sand storms, deserts, mineral dust, etc. [52,53,54,55]. In contrast to other pollutants, the concentration of O3 was higher in summer than winter [13,46,51,64] due to lower NOx levels in winter, as NOx levels decrease the O3 depletion and enhance the accumulation of O3, as well as higher temperatures favor ozone production [23,27,30,36,37,65,66,67,68,69,70]. Lockdown caused minor changes in seasonal variation instead of major changes because the lockdown pattern was not regular and largely varied spatially and temporally.
PM2.5/PM10 reflect air quality, pollution sources and origin e.g., a higher PM2.5/PM10 ratio indicates an increased proportion of PM2.5 mainly emitted from anthropogenic activities [52,53,55]. In 2020, the PM2.5/PM10 ratio increased by 2.56%, and 60.38% of cities experienced an increase in the PM2.5/PM10 ratio in NWC. This increase is associated with a minor reduction in PM2.5 as compared with PM10 in 2020. As the share of PM2.5 increases, the PM2.5/PM10 ratio also increases [13]. In general, the PM2.5/PM10 ratio was higher in winter (low temperature), compared to summer (high temperature) due to increased PM2.5 emissions from coal combustion, civil heating, biomass burning, industrial emissions, and stable atmospheric conditions helped with stagnation and accumulation of pollution [13,71,72,73]. In 2020, the PM2.5/PM10 ratio decreased in spring and summer, while it increased in autumn and winter due to an increase in PM2.5 and minor reduction of PM2.5 compared with PM10.
In 2020, the AQI improved by 4.70% (10.26%, 2.25%, 2.73%, 0.31%, and 9.74%) in NWC (SN, XJ, GS, NX, and QH), and 77.36% (41/53) of cities in NWC experienced AQI improvement. This improvement is associated with a reduction in criteria pollutants during lockdown [27,28,29,30,31,32,33,34,35,36,37,38,39]. The AQI improvement throughout NWC was not uniform because of irregular lockdown periods, air quality deteriorated in some areas, and improved in some areas. In general, smaller cities (<1 million) experienced greater improvement with some exceptions e.g., Shizuishan (0.73 million) and Linxia (0.25 million) experienced deterioration by 3.23% and 12.79%, respectively. Similarly, some big cities (>5 million), e.g., Xian, Weinan, Xianyang, experienced AQI improvement of more than 12%. In seasonal variations, the highest AQI occurred in winter because the concentration of criteria pollutants was higher in winter due to increased anthropogenic emissions in winter and stable atmospheric conditions [11,19,71,72,73,74]. In 2020, the AQI improved in all seasons, e.g., spring (83.02%), summer (13.21%), autumn (52.83%), and winter (62.26%) compared with 2019. In NWC, the combined proportion of AQI “Class I”, and “Class II” improved by 10.46% in 2020 compared with 2019, which indicates improvement in air quality [13,71]. In 2020, the highest combined proportion of AQI “Class I”, and “Class II” occurred in summer followed by autumn, spring and winter, increased in all seasons except autumn as compared with 2019. The combined proportion of AQI “Class I” and “Class II” improved in all provinces except in winter for NX and autumn for SN, GS, NX, and QH in 2020 compared with 2019. Similar studies, e.g., [27] observed that Class I, and Class II increased significantly, while the proportion of Class III, Class IV, Class V, and Class VI decreased in Hubei and Anhui province during lockdown [30].
In 2020, the number of days with PM10 and O3 as major pollutants increased, while the number of days with PM2.5, SO2, and NO2 as major pollutants decreased in NWC concerning 2019. Due to limited anthropogenic activity e.g., industrial closures, traffic stagnation, movement restrictions etc., the concentration of PM2.5, SO2, and NO2 decreased significantly [23,27,30,31,36,38]. PM2.5 was a major pollutant in winter, indicating anthropogenic emissions, e.g., civil heating, industrial emissions, etc. [13,47,48,71]. PM10 was a major pollutant in spring and autumn, while O3 was a major pollutant in summer as higher temperatures favor ozone accumulation [35,64,65,66,67,68,69]. In the southern part of XJ (Kashgar), the number of days with PM10 as a major pollutant was higher due to emissions from natural sources, e.g., Taklimakan desert, sand storms [52,53,54,55,75]. Any day with one or more pollutants exceeding CAAQS (Grade II) standards is considered as a non-attainment/pollution day [27,30]. During 2020, the number of pollution days decreased by 13.59% in NWC, which indicates improved air quality associated with a reduction in anthropogenic activities. Similarly, the number of pollution days decreased by 15.41%, 26.79%, 9.66%, and 11.55% in spring, summer, autumn, and winter, respectively, which indicates that the ambient air quality was improved significantly in 2020. A strong correlation between all the criteria pollutants indicates mutual emission sources. PM2.5, mainly originates from anthropogenic activity e.g., fossil fuels, developmental activity, industrial activity, etc. [7,8,11,15]. Such activities also contribute to SO, NO2, CO and PM10. Multiple studies have concluded that coal burning is a major source of PM2.5 [8,76] and a major source of SO2; vehicular emissions are a major source of PM2.5 [49,77,78] and release NO2 and CO as well. Similarly, road dust mainly consists of PM10, which contributes a significant share to PM2.5 [10,18,49,77,79].
In short, ongoing rapid economic development, industrialization, urbanization, motorization, natural events, and adverse meteorology have deteriorated ambient air quality in NWC [2,9,16,18,80,81,82,83]. The SARS-CoV-2 proved to be a blessing in disguise as the associated lockdowns put in place to prevent the spread of the viral outbreak resulted in a significant reduction in PM2.5, PM10, SO2, NO2, CO, O3, AQI, and the number of pollution days in NWC decreased during 2020 compared to 2019.

5. Conclusions

This study collected hourly monitoring data of ambient air pollutants from 53 cities located in five provinces of northwest China (NWC) from January 2019 to December 2020 to show the collective effect SARS-CoV-2 had on ambient air quality in 2020 as compared with 2019. The results showed that the average concentrations of PM2.5, PM10, SO2, NO2, CO, and O3 improved by 2.72%, 5.31%, 7.93%, 8.40%, 8.47%, and 2.15% in NWC, respectively, during 2020. The annual average concentration of PM2.5 failed to comply in SN, XJ, and NW; PM10 failed to comply in SN, XJ, NX, and NW, while SO2 and NO2 complied with CAAQS Grade II standards (35 µg/m3, 70 µg/m3, 60 µg/m3 and 40 µg/m3, annual mean) in SN, XJ, GS, NX, QH, and NWC. All the pollutants experienced their highest pollution level in winter except ozone, with varying degrees of spatial distribution. The AQI improved by 4.67% (higher in cities with low population, with some exceptions) in NWC and experienced the highest improvement in SN followed by QH, GS, XJ, and NX. The AQI improved in all seasons with the highest increase in summer, followed by winter, spring and autumn. Significant improvements in the AQI occurred in winter (December to February) and spring (March to April) when lockdowns, industrial closures etc. were at their peak. In NWC, O3 was a major pollutant followed by PM2.5, PM10, NO2, SO2, and, CO with different spatial and temporal variations, e.g., PM2.5 in winter, PM10 in autumn and spring, and O3 in summer. A strong correlation occurred between all pollutants except O3. This paper comprehensively discussed the impact of SARS-CoV-2, and associated lockdowns on air pollution in NWC and calls for future detailed assessment focusing on health risk assessment and the impact of meteorology, etc.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/atmos12040518/s1, Figure S1: Monthly variation in proportion of the air quality index (AQI) classes e.g., Class I (0–50, good, green), Class II (51–100, moderate, yellow), Class III (101–150, unhealthy for sensitive group, orange), Class IV (151–200, unhealthy for all, red), Class V (201–300, very unhealthy, purple), and Class VI (300+, hazardous, maroon) in northwest China (NWC) during 2019 and 2020; Figure S2: Annual, seasonal (a) and monthly (b) proportion of various major pollutants in northwest China (NWC) during 2019 and 2020. Descriptions are as follows: green (PM2.5), yellow (PM10), gray (SO2), orange (NO2), blue (CO), and light green (O3). The abbreviations are as follows: PM2.5 (fine particulate matter), PM10 (coarse particulate matter), SO2. (Sulfur dioxide), NO2 (nitrogen dioxide), CO (carbon monoxide), and O3 (ozone); Figure S3: Annual and seasonal proportion of pollution days in northwest China (NWC) during 2019 and 2020. Descriptions are as follows: blue bar (spring), orange bar (summer), gray bar (autumn), yellow bar (winter), and blue line (annual mean). Table S1: Annual average concentration of Pm2.5, PM10, SO2, NO2, CO, O3, and PM2.5/PM10 in northwest China (NWC) during 2019 and 2020. Table S2: Annual and seasonal correlation between different pollutants in 2019 and 2020.

Author Contributions

Conceptualization, S.Z.; data curation, S.Z.; investigation and data validation, J.L., M.Z.S. and I.S.; methodology, S.Z.; software, S.Z.; writing—original draft preparation, S.Z.; review and editing, J.L., M.Z.S., S.A., S.Z., I.S; supervision, J.L.; funding acquisition, J.L. All authors have read and agreed to the published version of the manuscript.

Funding

The National Natural Science Foundation of China (No. 21667026) and the Social Science Foundation of Xinjiang Production and Construction Corps (No. 18YB13) funded this work.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available upon request from the corresponding author.

Acknowledgments

I would like to acknowledge Jianjiang Lu, research scholar Anam Arshad, and Babar Amin from Shihezi University, China for helping and guiding throughout the preparation of this paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhao, S.; Yin, D.; Yu, Y.; Kang, S.; Qin, D.; Dong, L. PM2.5 and O3 pollution during 2015–2019 over 367 Chinese cities: Spatiotemporal variations, meteorological and topographical impacts. Environ. Pollut. 2020, 264, 114694. [Google Scholar] [CrossRef]
  2. Yang, J.; Ji, Z.; Kang, S.; Zhang, Q.; Chen, X.; Lee, S.Y. Spatiotemporal variations of air pollutants in western China and their relationship to meteorological factors and emission sources. Environ. Pollut. 2019, 254, 112952. [Google Scholar] [CrossRef]
  3. Maji, K.J. Substantial changes in PM2.5 pollution and corresponding premature deaths across China during 2015–2019: A model prospective. Sci. Total Environ. 2020, 729, 138838. [Google Scholar] [CrossRef] [PubMed]
  4. Li, R.; Wang, Z.; Cui, L.; Fu, H.; Zhang, L.; Kong, L.; Chen, J. Air pollution characteristics in China during 2015–2016: Spatiotemporal variations and key meteorological factors. Sci. Total Environ. 2019, 648, 902–915. [Google Scholar] [CrossRef] [PubMed]
  5. Chen, J.; Lu, J.; Ning, J.; Yan, Y.; Li, S.; Zhou, L. Characteristics and sources analysis of PM 2.5 in a major industrial city of northern Xinjiang, China. SN Appl. Sci. 2020, 2, 1–9. [Google Scholar] [CrossRef] [Green Version]
  6. Da Limu, Y.L.M.; LiFu, D.L.N.T.; Miti, A.B.; Wang, X.; Ding, X. Autumn and wintertime polycyclic aromatic hydrocarbons in PM2.5 and PM2.5–10 from Urumqi, China. Aerosol Air Qual. Res. 2013, 13, 407–414. [Google Scholar]
  7. Feng, J.; Yu, H.; Mi, K.; Su, X.; Li, Y.; Li, Q.; Sun, J. One-year study of PM2.5 in Xinxiang city, North China: Seasonal characteristics, climate impact and source. Ecotoxicol. Environ. Saf. 2018, 154, 75–83. [Google Scholar] [CrossRef]
  8. Ma, X.; Xiao, Z.; He, L.; Shi, Z.; Cao, Y.; Tian, Z.; Liu, J. Chemical Composition and Source Apportionment of PM2.5 in Urban Areas of Xiangtan, Central South China. Int. J. Environ. Res. Public Health 2019, 16, 539. [Google Scholar] [CrossRef] [Green Version]
  9. Shao, Z.; Jia, X.; Zhong, X.; Wang, D.; Wei, J.; Wang, Y.; Chen, L. Detection, extinguishing, and monitoring of a coal fire in Xinjiang, China. Environ. Sci. Pollut. Res. 2018, 25, 26603–26616. [Google Scholar] [CrossRef] [PubMed]
  10. Tao, J.; Gao, J.; Zhang, L.; Zhang, R.; Che, H.; Zhang, Z.; Hsu, S.C. PM 2.5 pollution in a megacity of southwest China: Source apportionment and implication. Atmos. Chem. Phys. 2014, 14, 8679–8699. [Google Scholar] [CrossRef] [Green Version]
  11. Turap, Y.; Rekefu, S.; Wang, G.; Talifu, D.; Gao, B.; Aierken, T.; Nuerla, A. Chemical Characteristics and Source Apportionment of PM2.5 during winter in the Southern Part of Urumqi, China. Aerosol Air Qual. Res. 2019, 19, 1325–1337. [Google Scholar] [CrossRef] [Green Version]
  12. Thach, T.Q.; Tsang, H.; Cao, P.; Ho, L.M. A novel method to construct an air quality index based on air pollution profiles. Int. J. Hyg. Environ. Health 2018, 221, 17–26. [Google Scholar] [CrossRef] [PubMed]
  13. Yin, Z.; Cui, K.; Chen, S.; Zhao, Y.; Chao, H.R.; Chang-Chien, G.P. Characterization of the air quality index for Urumqi and Turfan cities, China. Aerosol Air Qual. Res. 2019, 19, 282–306. [Google Scholar] [CrossRef] [Green Version]
  14. Fan, H.; Zhao, C.; Yang, Y. A comprehensive analysis of the spatio-temporal variation of urban air pollution in China during 2014–2018. Atmos. Environ. 2020, 220, 117066. [Google Scholar] [CrossRef]
  15. Liu, B.; Wu, J.; Zhang, J.; Wang, L.; Yang, J.; Liang, D.; Zhang, Q. Characterization and source apportionment of PM2.5 based on error estimation from EPA PMF 5.0 model at a medium city in China. Environ. Pollut. 2017, 222, 10–22. [Google Scholar] [CrossRef] [PubMed]
  16. Luo, H.; Guan, Q.; Lin, J.; Wang, Q.; Yang, L.; Tan, Z.; Wang, N. Air pollution characteristics and human health risks in key cities of northwest China. J. Environ. Manage. 2020, 269, 110791. [Google Scholar] [CrossRef]
  17. Landrigan, P.J.; Fuller, R.; Acosta, N.J.; Adeyi, O.; Arnold, R.; Baldé, A.B.; Chiles, T. The Lancet Commission on pollution and health. Lancet 2018, 391, 462–512. [Google Scholar] [CrossRef] [Green Version]
  18. Qiu, Y.; Yang, T.; Seyler, B.C.; Wang, X.; Wang, Y.; Jiang, M.; Li, F. Ambient air pollution and male fecundity: A retrospective analysis of longitudinal data from a Chinese human sperm bank (2013–2018). Environ. Res. 2020, 186, 109528. [Google Scholar] [CrossRef]
  19. Turap, Y.; Talifu, D.; Wang, X.; Abulizi, A.; Maihemuti, M.; Tursun, Y.; Rekefu, S. Temporal distribution and source apportionment of PM2.5 chemical composition in Xinjiang, NW-China. Atmos. Res. 2019, 218, 257–268. [Google Scholar] [CrossRef]
  20. Cohen, A.J.; Brauer, M.; Burnett, R.; Anderson, H.R.; Frostad, J.; Estep, K.; Feigin, V. Estimates and 25-year trends of the global burden of disease attributable to ambient air pollution: An analysis of data from the Global Burden of Diseases Study 2015. Lancet 2017, 389, 1907–1918. [Google Scholar] [CrossRef] [Green Version]
  21. Zhu, G.; Hu, W.; Liu, Y.; Cao, J.; Ma, Z.; Deng, Y.; Wang, H. Health burdens of ambient PM2.5 pollution across Chinese cities during 2006–2015. J. Environ. Manag. 2019, 24, 250–256. [Google Scholar] [CrossRef]
  22. Wang, Q.; Wang, J.; Zhou, J.; Ban, J.; Li, T. Estimation of PM2.5 associated disease burden in China in 2020 and 2030 using population and air quality scenarios: A modelling study. Lancet Planet Health 2019, 3, 71–80. [Google Scholar] [CrossRef] [Green Version]
  23. Mahato, S.; Pal, S.; Ghosh, K.G. Effect of lockdown amid COVID-19 pandemic on air quality of the megacity Delhi, India. Sci. Total Environ. 2020, 730, 139086. [Google Scholar] [CrossRef] [PubMed]
  24. Hadei, M.; Hopke, P.K.; Jonidi, A.; Shahsavani, A. A letter about the airborne transmission of SARS-CoV-2 based on the current evidence. Aerosol Air Qual. Res. 2020, 20, 911–914. [Google Scholar] [CrossRef] [Green Version]
  25. Zhu, N.; Zhang, D.; Wang, W.; Li, X.; Yang, B.; Song, J.; Niu, P. A novel coronavirus from patients with pneumonia in China, 2019. N. Engl. J. Med. 2020, 382, 727–733. [Google Scholar] [CrossRef] [PubMed]
  26. Wu, Y.C.; Chen, C.S.; Chan, Y.J. The outbreak of COVID-19: An overview. J. Chin. Med. Assoc. 2020, 83, 217. [Google Scholar] [CrossRef]
  27. Xu, K.; Cui, K.; Young, L.H.; Hsieh, Y.K.; Wang, Y.F.; Zhang, J.; Wan, S. Impact of the COVID-19 Event on Air Quality in Central China. Aerosol Air Qual. Res. 2020, 20, 915–929. [Google Scholar] [CrossRef] [Green Version]
  28. Wang, X.; Zhang, R. How Did Air Pollution Change during the COVID-19 Outbreak in China? Bull. Am. Meteorol. Soc. 2020, 101, E1645–E1652. [Google Scholar] [CrossRef]
  29. Muhammad, S.; Long, X.; Salman, M. COVID-19 pandemic and environmental pollution: A blessing in disguise? Sci Total Environ. 2020, 728, 138820. [Google Scholar] [CrossRef]
  30. Xu, K.; Cui, K.; Young, L.H.; Wang, Y.F.; Hsieh, Y.K.; Wan, S.; Zhang, J. Air Quality Index, Indicatory Air Pollutants and Impact of COVID-19 Event on the Air Quality near Central China. Aerosol Air Qual. Res. 2020, 20, 1204–1221. [Google Scholar] [CrossRef] [Green Version]
  31. Bao, R.; Zhang, A. Does lockdown reduce air pollution? Evidence from 44 cities in northern China. Sci. Total Environ. 2020, 731, 139052. [Google Scholar] [CrossRef] [PubMed]
  32. Kumar, P.; Hama, S.; Omidvarborna, H.; Sharma, A.; Sahani, J.; Abhijith, K.V.; Tiwari, A. Temporary reduction in fine particulate matter due to ‘anthropogenic emissions switch-off’ during COVID-19 lockdown in Indian cities. Sustain. Cities Soc. 2020, 62, 102382. [Google Scholar] [CrossRef] [PubMed]
  33. Otmani, A.; Benchrif, A.; Tahri, M.; Bounakhla, M.; El Bouch, M.; Krombi, M.H. Impact of Covid-19 lockdown on PM10, SO2 and NO2 concentrations in Salé City (Morocco). Sci. Total Environ. 2020, 735, 139541. [Google Scholar] [CrossRef] [PubMed]
  34. Silver, B.; He, X.; Arnold, S.R.; Spracklen, D.V. The impact of COVID-19 control measures on air quality in China. Environ. Res. Lett. 2020, 15, 084021. [Google Scholar] [CrossRef]
  35. Filonchyk, M.; Hurynovich, V.; Yan, H.; Gusev, A.; Shpilevskaya, N. Impact Assessment of COVID-19 on Variations of SO2, NO2, CO and AOD over East China. Aerosol Air Qual. Res. 2020, 20, 1530–1540. [Google Scholar] [CrossRef]
  36. He, G.; Pan, Y.; Tanaka, T. The short-term impacts of COVID-19 lockdown on urban air pollution in China. Nat. Sustain. 2020, 3, 1005–1011. [Google Scholar] [CrossRef]
  37. Lian, X.; Huang, J.; Huang, R.; Liu, C.; Wang, L.; Zhang, T. Impact of city lockdown on the air quality of COVID-19-hit of Wuhan city. Sci Total Environ. 2020, 742, 140556. [Google Scholar] [CrossRef]
  38. Filonchyk, M.; Peterson, M. Air quality changes in Shanghai, China, and the surrounding urban agglomeration during the COVID-19 lockdown. J. Geovis Spat Anal. 2020, 4, 1–7. [Google Scholar] [CrossRef]
  39. Xu, J.; Ge, X.; Zhang, X.; Zhao, W.; Zhang, R.; Zhang, Y. COVID-19 impact on the concentration and composition of submicron particulate matter in a typical city of Northwest China. Geophys. Res. Lett. 2020, 47, e2020GL089035. [Google Scholar] [CrossRef]
  40. Wang, W.; Cui, K.; Zhao, R.; Hsieh, L.T.; Lee, W.J. Characterization of the air quality index for Wuhu and Bengbu cities, China. Aerosol Air Qual. Res. 2018, 18, 1198–1220. [Google Scholar] [CrossRef] [Green Version]
  41. Cheng, W.L.; Chen, Y.S.; Zhang, J.; Lyons, T.J.; Pai, J.L.; Chang, S.H. Comparison of the revised air quality index with the PSI and AQI indices. Sci. Total Environ. 2007, 382, 191–198. [Google Scholar] [CrossRef]
  42. She, Q.N.; Peng, X.; Xu, Q.; Long, L.B.; Wei, N.; Liu, M.; Jia, W.X. Air quality and its response to satellite-derived urban form in the Yangtze River Delta, China. Int. J. Environ. Res. Public Health 2017, 75, 297–306. [Google Scholar] [CrossRef]
  43. Shen, F.; Zhang, L.; Jiang, L.; Tang, M.; Gai, X.; Chen, M.; Ge, X. Temporal variations of six ambient criteria air pollutants from 2015 to 2018, their spatial distributions, health risks and relationships with socioeconomic factors during 2018 in China. Environ. Int. 2020, 137, 105556. [Google Scholar] [CrossRef]
  44. Chen, J.; Lu, J.; Ning, J.; Yan, Y.; Li, S.; Zhou, L. Pollution characteristics, sources, and risk assessment of heavy metals and per fluorinated compounds in PM2.5 in the major industrial city of northern Xinjiang, China. Air Qual. Atmos. Health 2019, 12, 909–918. [Google Scholar] [CrossRef]
  45. Ding, Y.; Lu, J.; Liu, Z.; Li, W.; Chen, J. Volatile organic compounds in Shihezi, China, during the heating season: Pollution characteristics, source apportionment, and health risk assessment. Environ. Sci. Pollut. Res. 2020, 27, 16439–16450. [Google Scholar] [CrossRef]
  46. Wang, Y.; Ying, Q.; Hu, J.; Zhang, H. Spatial and temporal variations of six criteria air pollutants in 31 provincial capital cities in China during 2013–2014. Environ. Int. 2014, 73, 413–422. [Google Scholar] [CrossRef]
  47. Zhang, Q.; Streets, D.G.; Carmichael, G.R.; He, K.B.; Huo, H.; Kannari, A.; Chen, D. Asian emissions in 2006 for the NASA INTEX-B mission. Atmos. Chem. Phys. 2009, 9, 5131–5153. [Google Scholar] [CrossRef] [Green Version]
  48. Zhao, Y.; Nielsen, C.P.; Lei, Y.; McElroy, M.B.; Hao, J. Quantifying the uncertainties of a bottom-up emission inventory of anthropogenic atmospheric pollutants in China. Atmos. Chem. Phys. 2011, 10, 29075–29111. [Google Scholar] [CrossRef] [Green Version]
  49. Alam, K.; Mukhtar, A.; Shahid, I.; Blaschke, T.; Majid, H.; Rahman, S.; Rahman, N. Source Apportionment and Characterization of Particulate Matter (PM10) in Urban Environment of Lahore. Aerosol Air Qual. Res. 2014, 14, 1851–1861. [Google Scholar] [CrossRef]
  50. Chatterjee, A.; Sarkar, C.; Adak, A.; Mukherjee, U.; Ghosh, S.K.; Raha, S. Ambient air quality during Diwali festival over Kolkata–a mega-city in India. Aerosol Air Qual. Res. 2013, 13, 1133–1144. [Google Scholar] [CrossRef]
  51. Liu, T.; Zhuang, G.; Huang, K.; Lin, J.; Wang, Q.; Deng, C.; Fu, J.S. A Typical Formation Mechanism of Heavy Haze-Fog Induced by Coal Combustion in an Inland City in North-Western China. Aerosol Air Qual. Res. 2017, 17, 98–107. [Google Scholar] [CrossRef] [Green Version]
  52. Pey, J.; Querol, X.; Alastuey, A.; Forastiere, F.; Stafoggia, M. African dust outbreaks over the Mediterranean Basin during 2001–2011: PM10 concentrations, phenomenology and trends, and its relation with synoptic and mesoscale meteorology. Atmos. Chem. Phys. 2013, 13, 1395–1410. [Google Scholar] [CrossRef] [Green Version]
  53. Wang, S.; Zhang, M.; Minguillón, M.C.; Zhang, X.; Feng, F.; Qiu, X. PM10 concentration in urban atmosphere around the eastern Tien Shan, Central Asia during 2007–2013. Environ. Sci. Pollut Res. 2015, 22, 6864–6876. [Google Scholar] [CrossRef]
  54. Wang, Y.; Zhang, J.; Bai, Z.; Yang, W.; Zhang, H.; Mao, J.; Chen, L. Background concentrations of PMs in Xinjiang, West China: An estimation based on meteorological filter method and Eckhardt algorithm. Atmos. Res. 2019, 215, 141–148. [Google Scholar] [CrossRef]
  55. Wang, W.; Samat, A.; Abuduwaili, J.; Ge, Y. Spatio-Temporal Variations of Satellite-Based PM2.5 Concentrations and Its Determinants in Xinjiang, Northwest of China. Int. J. Environ. Res. Public Health 2020, 17, 2157. [Google Scholar] [CrossRef] [Green Version]
  56. Ashraf, A.; Butt, A.; Khalid, I.; Alam, R.U.; Ahmad, S.R. Smog analysis and its effect on reported ocular surface diseases: A case study of 2016 smog event of Lahore. Atmos. Environ. 2019, 198, 257–264. [Google Scholar] [CrossRef]
  57. Bourdrel, T.; Bind, M.A.; Béjot, Y.; Morel, O.; Argacha, J.F. Cardiovascular effects of air pollution. Arch. Cardiovasc. Dis. 2017, 110, 634–642. [Google Scholar] [CrossRef]
  58. Guo, H.; Wang, T.; Simpson, I.J.; Blake, D.R.; Yu, X.M.; Kwok, Y.H.; Li, Y.S. Source contributions to ambient VOCs and CO at a rural site in eastern China. Atmos. Environ. 2004, 38, 4551–4560. [Google Scholar] [CrossRef] [Green Version]
  59. Kat, S.; Shiobara, Y.; Uchiyama, K.; Miura, K.; Okochi, H.; Kobayashi, H.; Hatakeyama, S. Atmospheric CO, O3, and SO2 measurements at the summit of Mt. Fuji during the summer of 2013. Aerosol Air Qual. Res. 2016, 16, 2368–2377. [Google Scholar] [CrossRef] [Green Version]
  60. Wang, Y.; Jia, C.; Tao, J.; Zhang, L.; Liang, X.; Ma, J.; Zhang, K. Chemical characterization and source apportionment of PM2.5 in a semi-arid and petrochemical-industrialized city, Northwest China. Sci. Total Environ. 2016, 573, 1031–1040. [Google Scholar] [CrossRef]
  61. Zhang, H.; Ying, Q. Contributions of local and regional sources of NOx to ozone concentrations in Southeast Texas. Atmos. Environ. 2011, 45, 2877–2887. [Google Scholar] [CrossRef]
  62. Huang, X.; Ding, A.; Gao, J.; Zheng, B.; Zhou, D.; Qi, X.; Chi, X. Enhanced secondary pollution offset reduction of primary emissions during COVID-19 lockdown in China. Natl. Sci. Rev. 2021, 8. [Google Scholar] [CrossRef]
  63. Du, W.; Zhang, Y.; Chen, Y.; Xu, L.; Chen, J.; Deng, J.; Xiao, H. Chemical characterization and source apportionment of PM2.5 during spring and winter in the Yangtze River Delta, China. Aerosol Air Qual. Res. 2017, 17, 2165–2180. [Google Scholar] [CrossRef]
  64. Chai, F.; Gao, J.; Chen, Z.; Wang, S.; Zhang, Y.; Zhang, J.; Ren, C. Spatial and temporal variation of particulate matter and gaseous pollutants in 26 cities in China. J. Environ. Sci. 2014, 26, 75–82. [Google Scholar] [CrossRef]
  65. Chameides, W.L.; Fehsenfeld, F.; Rodgers, M.O.; Cardelino, C.; Martinez, J.; Parrish, D.; Wang, T. Ozone precursor relationships in the ambient atmosphere. J. Geophys. Res. Atmos. 1992, 97, 6037–6055. [Google Scholar] [CrossRef]
  66. Biswas, M.S.; Ghude, S.D.; Gurnale, D.; Prabhakaran, T.; Mahajan, A.S. Simultaneous Observations of Nitrogen Dioxide, Formaldehyde and Ozone in the Indo- Gangetic Plain. Aerosol Air Qual. Res. 2019, 19, 1749–1764. [Google Scholar] [CrossRef]
  67. Ghauri, B.; Lodhi, A.; Mansha, M. Development of baseline (air quality) data in Pakistan. Environ. Monit. Assess. 2007, 127, 237–252. [Google Scholar] [CrossRef]
  68. Rasheed, A.; Aneja, V.P.; Aiyyer, A.; Rafique, U. Measurements and analysis of air quality in Islamabad, Pakistan. Earth Future. 2014, 2, 303–314. [Google Scholar] [CrossRef]
  69. Sharma, A.; Sharma, S.K.; Mandal, T.K. Influence of ozone precursors and particulate matter on the variation of surface ozone at an urban site of Delhi, India. Sustain. Environ. Res. 2016, 26, 76–83. [Google Scholar] [CrossRef] [Green Version]
  70. Zhao, R.; Cui, K.P.; Wang, W.W.; Wang, L.C.; Yan, P. Atmospheric PM2.5 and total PCDD/FsWHO2005-TEQ level: A case of Handan and Kaifeng cities, China. Aerosol Air Qual. Res. 2018, 18, 994–1007. [Google Scholar] [CrossRef] [Green Version]
  71. Xu, G.; Jiao, L.; Zhang, B.; Zhao, S.; Yuan, M.; Gu, Y.; Tang, X. Spatial and temporal variability of the PM2. 5/PM10 ratio in Wuhan, Central China. Aerosol Air Qual. Res. 2016, 17, 741–751. [Google Scholar] [CrossRef] [Green Version]
  72. Huang, W.; Long, E.; Wang, J.; Huang, R.; Ma, L. Characterizing spatial distribution and temporal variation of PM10 and PM2.5 mass concentrations in an urban area of southwest China. Atmos. Pollut. Res. 2015, 6, 842–848. [Google Scholar] [CrossRef]
  73. Zhao, D.; Chen, H.; Yu, E.; Luo, T. PM2.5/PM10 Ratios in Eight Economic Regions and Their Relationship with Meteorology in China. Adv. Meteorol. 2019, 2019, 1–15. [Google Scholar] [CrossRef] [Green Version]
  74. Zhao, X.; Zhou, W.; Han, L.; Locke, D. Spatiotemporal variation in PM2.5 concentrations and their relationship with socioeconomic factors in China’s major cities. Environ. Int. 2019, 133, 105145. [Google Scholar] [CrossRef]
  75. Sugimoto, N.; Shimizu, A.; Matsui, I.; Nishikawa, M. A method for estimating the fraction of mineral dust in particulate matter using PM2.5-to- PM10 ratios. Particuology 2016, 28, 114–120. [Google Scholar] [CrossRef]
  76. Zhao, Z.; Lv, S.; Zhang, Y.; Zhao, Q.; Shen, L.; Xu, S.; Jin, C. Characteristics and source apportionment of PM 2.5 in Jiaxing, China. Environ. Sci. Pollut. Res. 2019, 26, 7497–7511. [Google Scholar] [CrossRef] [PubMed]
  77. Yao, L.; Yang, L.; Yuan, Q.; Yan, C.; Dong, C.; Meng, C.; Wang, W. Sources apportionment of PM2.5 in a background site in the North China Plain. Sci. Total Environ. 2016, 541, 590–598. [Google Scholar] [CrossRef] [PubMed]
  78. Lodhi, A.; Ghauri, B.; Khan, M.R.; Rahman, S.; Shafique, S. Particulate matter (PM2.5) concentration and source apportionment in Lahore. J. Braz. Chem. Soc. 2009, 20, 1811–1820. [Google Scholar] [CrossRef]
  79. Yu, L.; Wang, G.; Zhang, R.; Zhang, L.; Song, Y.; Wu, B.; Chu, J. Characterization and source apportionment of PM2.5 in an urban environment in Beijing. Aerosol Air Qual. Res. 2013, 13, 574–583. [Google Scholar] [CrossRef] [Green Version]
  80. Pu, H.; Luo, K.; Wang, P.; Wang, S.; Kang, S. Spatial variation of air quality index and urban driving factors linkages: Evidence from Chinese cities. Environ. Sci. Pollut. Res. 2017, 24, 4457–4468. [Google Scholar] [CrossRef]
  81. Ye, W.F.; Ma, Z.Y.; Ha, X.Z. Spatial-temporal patterns of PM2.5 concentrations for 338 Chinese cities. Sci. Total Environ. 2018, 631, 524–533. [Google Scholar] [CrossRef] [PubMed]
  82. Soleimani, M.; Amini, N.; Sadeghian, B.; Wang, D.; Fang, L. Heavy metals and their source identification in particulate matter (PM2. 5) in Isfahan City, Iran. J. Environ. Sci. 2018, 72, 166–175. [Google Scholar] [CrossRef] [PubMed]
  83. Wang, M.; Zheng, S.; Nie, Y.; Weng, J.; Cheng, N.; Hu, X.; Bai, Y. Association between short-term exposure to air pollution and dyslipidemias among type 2 diabetic patients in northwest China: A population-based study. Intl. J. Environ. Res. Public Health 2018, 15, 631. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Atmosphere 12 00518 g001 550

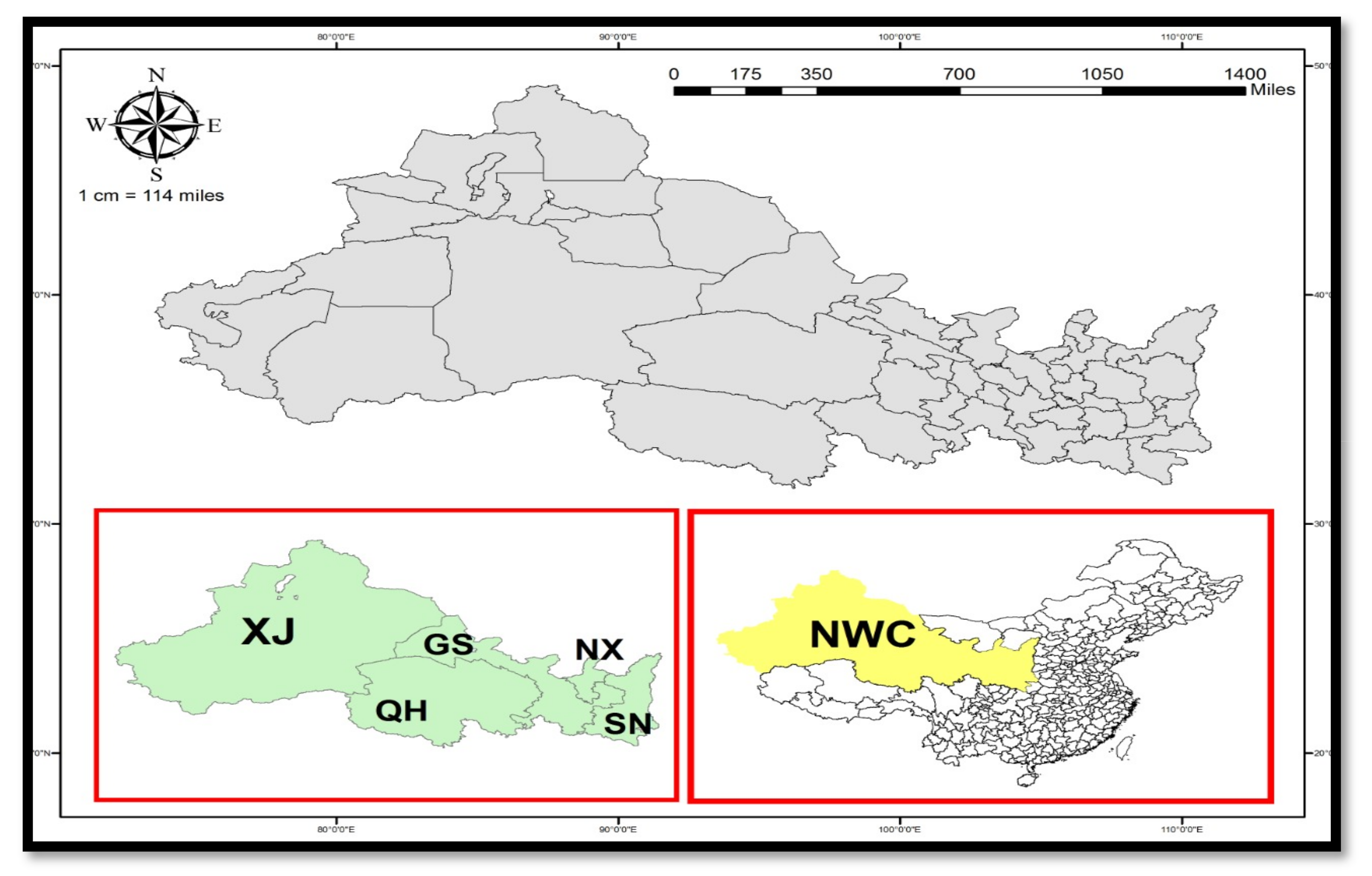

Figure 1. Location map of five provinces (Shaanxi (SN), Xinjiang (XJ), Gansu (GS), Ningxia (NX), Qinghai (QH)) in Northwest China (NWC).
Figure 1. Location map of five provinces (Shaanxi (SN), Xinjiang (XJ), Gansu (GS), Ningxia (NX), Qinghai (QH)) in Northwest China (NWC).
Atmosphere 12 00518 g001
Atmosphere 12 00518 g002 550
Figure 2. Influence of SARS-CoV-2 on the annual variation of six criteria pollutants: PM2.5 (a), PM10 (b), SO2 (c), NO2 (d), CO (e), and O3 (f)), AQI (g), and PM2.5/PM10 (h) in five provinces (Shaanxi (SN), Xinjiang (XJ), Gansu (GS), Ningxia (NX), and Qinghai (QH)) of northwest China (NWC) during 2019–2020. Descriptions are as follows: blue line (2019), orange line (2020), yellow line (CAAQS Grade I), blue line (CAAQS Grade II), and yellow dotted line (AQI threshold). The abbreviations are as follows: PM2.5 (fine particulate matter), PM10 (coarse particulate matter), SO2. (Sulfur dioxide), NO2 (nitrogen dioxide), CO (carbon monoxide), O3 (ozone), CAAAQS (Chinese Ambient Air Quality Standards).
Figure 2. Influence of SARS-CoV-2 on the annual variation of six criteria pollutants: PM2.5 (a), PM10 (b), SO2 (c), NO2 (d), CO (e), and O3 (f)), AQI (g), and PM2.5/PM10 (h) in five provinces (Shaanxi (SN), Xinjiang (XJ), Gansu (GS), Ningxia (NX), and Qinghai (QH)) of northwest China (NWC) during 2019–2020. Descriptions are as follows: blue line (2019), orange line (2020), yellow line (CAAQS Grade I), blue line (CAAQS Grade II), and yellow dotted line (AQI threshold). The abbreviations are as follows: PM2.5 (fine particulate matter), PM10 (coarse particulate matter), SO2. (Sulfur dioxide), NO2 (nitrogen dioxide), CO (carbon monoxide), O3 (ozone), CAAAQS (Chinese Ambient Air Quality Standards).
Atmosphere 12 00518 g002
Atmosphere 12 00518 g003 550
Figure 3. Spatial distribution of PM2.5 (a,b), PM10 (c,d), SO2 (e,f), NO2 (g,h), CO (i,j), and O3 (k,i) in northwest China (NWC) during 2019 and 2020. Colors represent the different pollution levels e.g., green (good), yellow (moderate), orange (unhealthy for the sensitive group), red (unhealthy for all), purple (very unhealthy), and maroon (hazardous). The abbreviations are as follows: PM2.5 (fine particulate matter), PM10 (coarse particulate matter), SO2. (Sulfur dioxide), NO2 (nitrogen dioxide), CO (carbon monoxide), and O3 (ozone).
Figure 3. Spatial distribution of PM2.5 (a,b), PM10 (c,d), SO2 (e,f), NO2 (g,h), CO (i,j), and O3 (k,i) in northwest China (NWC) during 2019 and 2020. Colors represent the different pollution levels e.g., green (good), yellow (moderate), orange (unhealthy for the sensitive group), red (unhealthy for all), purple (very unhealthy), and maroon (hazardous). The abbreviations are as follows: PM2.5 (fine particulate matter), PM10 (coarse particulate matter), SO2. (Sulfur dioxide), NO2 (nitrogen dioxide), CO (carbon monoxide), and O3 (ozone).
Atmosphere 12 00518 g003
Atmosphere 12 00518 g004 550
Figure 4. Influence of SARS-CoV-2 on seasonal variation of six pollutants: PM2.5 (a), PM10 (b), SO2 (c), NO2 (d), CO (e), O3 (f); AQI (g), and PM2.5/PM10 ratio (h) in five provinces (Shaanxi (SN), Xinjiang (XJ), Gansu (GS), Ningxia (NX), and Qinghai (QH)) of northwest China (NWC) during 2019–2020. Descriptions are as follows: blue line (winter), orange line (spring), gray line (summer), yellow line (autumn), blue dotted line (CAAQS Grade II), and yellow dotted line (AQI threshold). The abbreviations are as follows: PM2.5 (fine particulate matter), PM10 (coarse particulate matter), SO2. (Sulfur dioxide), NO2 (nitrogen dioxide), CO (carbon monoxide), O3 (ozone), PM2.5/PM10 (ratio of PM2.5 with PM10), and AQI (air quality index).
Figure 4. Influence of SARS-CoV-2 on seasonal variation of six pollutants: PM2.5 (a), PM10 (b), SO2 (c), NO2 (d), CO (e), O3 (f); AQI (g), and PM2.5/PM10 ratio (h) in five provinces (Shaanxi (SN), Xinjiang (XJ), Gansu (GS), Ningxia (NX), and Qinghai (QH)) of northwest China (NWC) during 2019–2020. Descriptions are as follows: blue line (winter), orange line (spring), gray line (summer), yellow line (autumn), blue dotted line (CAAQS Grade II), and yellow dotted line (AQI threshold). The abbreviations are as follows: PM2.5 (fine particulate matter), PM10 (coarse particulate matter), SO2. (Sulfur dioxide), NO2 (nitrogen dioxide), CO (carbon monoxide), O3 (ozone), PM2.5/PM10 (ratio of PM2.5 with PM10), and AQI (air quality index).
Atmosphere 12 00518 g004
Atmosphere 12 00518 g005 550
Figure 5. Annual (a,b) and seasonal (spring (c,d), summer (e,f), autumn (g,h), winter (i,j)) variation of PM2.5/PM10 ratio in northwest China (NWC) during 2019 and 2020. Colors represent the different pollution levels e.g., green (good), yellow (moderate), orange (unhealthy for the sensitive group), red (unhealthy for all), and purple (very unhealthy).
Figure 5. Annual (a,b) and seasonal (spring (c,d), summer (e,f), autumn (g,h), winter (i,j)) variation of PM2.5/PM10 ratio in northwest China (NWC) during 2019 and 2020. Colors represent the different pollution levels e.g., green (good), yellow (moderate), orange (unhealthy for the sensitive group), red (unhealthy for all), and purple (very unhealthy).
Atmosphere 12 00518 g005
Atmosphere 12 00518 g006 550
Figure 6. Annual (a,b) and seasonal (spring (c,d), summer (e,f), autumn (g,h), winter (i,j)) variation of AQI in northwest China (NWC) during 2019 and 2020. Colors represent the different classes of air quality index e.g., green (0–50, good, Class I), yellow (51–100, moderate, Class II), orange (101–150, unhealthy for the sensitive group, Class III), red (151–200, unhealthy for all, Class IV), purple (201–300, very unhealthy, Class V), and maroon (300+, hazardous, Class VI).
Figure 6. Annual (a,b) and seasonal (spring (c,d), summer (e,f), autumn (g,h), winter (i,j)) variation of AQI in northwest China (NWC) during 2019 and 2020. Colors represent the different classes of air quality index e.g., green (0–50, good, Class I), yellow (51–100, moderate, Class II), orange (101–150, unhealthy for the sensitive group, Class III), red (151–200, unhealthy for all, Class IV), purple (201–300, very unhealthy, Class V), and maroon (300+, hazardous, Class VI).
Atmosphere 12 00518 g006
Atmosphere 12 00518 g007 550
Figure 7. Annual and seasonal (spring, summer, autumn, winter) proportion of different air quality index (AQI) classes e.g., Class I (0—50, good, green), Class II (51—100, moderate, yellow), Class III (101—150, unhealthy for the sensitive group, orange), Class IV (151—200, unhealthy for all, red), Class V (201—300, very unhealthy, purple), and Class VI (300+, hazardous, maroon) in northwest China (NWC) during 2019 and 2020.
Figure 7. Annual and seasonal (spring, summer, autumn, winter) proportion of different air quality index (AQI) classes e.g., Class I (0—50, good, green), Class II (51—100, moderate, yellow), Class III (101—150, unhealthy for the sensitive group, orange), Class IV (151—200, unhealthy for all, red), Class V (201—300, very unhealthy, purple), and Class VI (300+, hazardous, maroon) in northwest China (NWC) during 2019 and 2020.
Atmosphere 12 00518 g007
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Zaib, S.; Lu, J.; Shahid, M.Z.; Ahmar, S.; Shahid, I. Impact of SARS-CoV-2 on Ambient Air Quality in Northwest China (NWC). Atmosphere 2021, 12, 518. https://doi.org/10.3390/atmos12040518

AMA Style

Zaib S, Lu J, Shahid MZ, Ahmar S, Shahid I. Impact of SARS-CoV-2 on Ambient Air Quality in Northwest China (NWC). Atmosphere. 2021; 12(4):518. https://doi.org/10.3390/atmos12040518

Chicago/Turabian Style

Zaib, Shah, Jianjiang Lu, Muhammad Zeeshaan Shahid, Sunny Ahmar, and Imran Shahid. 2021. "Impact of SARS-CoV-2 on Ambient Air Quality in Northwest China (NWC)" Atmosphere 12, no. 4: 518. https://doi.org/10.3390/atmos12040518

APA Style

Zaib, S., Lu, J., Shahid, M. Z., Ahmar, S., & Shahid, I. (2021). Impact of SARS-CoV-2 on Ambient Air Quality in Northwest China (NWC). Atmosphere, 12(4), 518. https://doi.org/10.3390/atmos12040518

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
