A Chemical Transport Model Emulator for the Interactive Evaluation of Mercury Emission Reduction Scenarios

Abstract

Implementation of the Minamata Convention on Mercury requires all parties to “control, and where feasible, reduce” mercury (Hg) emissions from a convention-specified set of sources. However, the convention does not specify the extent of the measures to be adopted, which may only be analysed by decision-makers using modelled scenarios. Currently, the numerical models available to study the Hg atmospheric cycle require significant expertise and high-end hardware, with results which are generally available on a time frame of days to weeks. In this work we present HERMES, a statistical emulator built on the output of a global Chemical Transport Model (CTM) for Hg (ECHMERIT), to simulate changes in anthropogenic Hg (Hg_anthr) deposition fluxes in a source-receptor framework, due to perturbations to Hg_anthr emissions and the associated statistical significance of the changes. The HERMES emulator enables stakeholders to evaluate the implementation of different Hg_anthr emission scenarios in an interactive and real-time manner, simulating the application of the different Best Available Technologies. HERMES provides the scientific soundness of a full CTM numerical framework in an interactive and user-friendly spreadsheet, without the necessity for specific training or formation and is a first step towards a more comprehensive, and integrated, decision support system to aid decision-makers in the implementation of the Minamata Convention.

1. Introduction

Mercury (Hg) is a global pollutant since it impacts regions and ecosystems which are far from emission sources, due to its long range atmospheric transport [1]. The Minamata Convention on Mercury (MCM) (http://www.mercuryconvention.org/) was established to reduce mercury contamination resulting from anthropogenic activities. However, no specifications were set within the convention regarding policy and technical aspects, specific emission limits, reduction targets, or the specific control technologies to be applied [2,3].

Thus, each of the countries involved will apply their own measures unilaterally. However, it is clear that Hg pollution is a global concern, and a number of studies indicate that a coordinated set of actions is required for Hg emission control to be effective, due to the large uncertainties regarding the processes that determine the global atmospheric cycle of Hg, and thus in establishing Source-Receptor (SR) relationships [4,5,6].

Selin [3], following the metric-based approach used in the context of the Montreal Protocol, to reduce halogens in the stratosphere [7], developed a metric that could be useful for policies focusing on the reduction of Hg pollution under the MCM.

The metric, however, as recognised by the authors, suffers from limitations since it was designed to capture the anthropogenic Hg, (hereafter Hg_anthr), contribution to global deposition, and therefore does not support any strategic policies focusing on reducing Hg_anthr deposition in a particular nation or region. It was also not designed to account directly for the emission speciation of Hg_anthr, which influences the fraction of Hg_anthr that deposits locally and/or regionally. This is a major limitation within the scope of current emission reduction strategies. Indeed, each of the Best Available Technologies (BATs) and Best Environmental Practices (BEPs) to be considered for reducing Hg_anthr emissions will result in a change of emission speciation [8], and therefore on the ratio of local to nonlocal Hg_anthr deposition. Furthermore, it does not provide information concerning the statistical significance of the outcome of any given reduction approach, which is necessary when facing the significant degree of uncertainty in modelling the processes related to Hg cycle in the different ecosystem compartments [4,5,9,10,11,12].

It is worth noting that the only available tools capable of tracking the fate of Hg_anthr from emission source to deposition receptor are Chemical Transport Models (CTMs) developed specifically to study the atmospheric cycle of Hg. Unfortunately, these complex numerical models require suitable expertise, specific training, and dedicated hardware to run. Even if packaged to be as user-friendly as possible, each run could require from hours to days for its entire workflow (design, initialisation, run, and results collection, analysis, and visualisation) to be completed, making them far from interactive, and unlikely to be used directly by policy-makers. Furthermore, a significant number of runs are required to provide statistically robust results. Clearly a simpler approach, directly accessible to policy-makers is required, to aid understanding and assessment of the Hg cycle and the implications of the policy options available. HERMES is an emulator built on an appropriate set of outputs obtained from the state-of-the-art Hg-CTM ECHMERIT [13,14].

Emulators are often used to simulate complex phenomena like climate change, (see, for example, Holden et al. [15], Castruccio et al. [16]) that permit the investigation of the forcing of arbitrary CO₂ concentrations on climate variables of interest at a computational cost that is many orders of magnitude lower than that required by a conventional climate model. Recent studies have applied the same basic principle to predict the response of O₃ and PM_2.5 concentrations to precursor emissions [17,18]. Other studies offer different statistical approaches used to increase the information from a limited set of model runs to investigate the uncertainty within processes simulated by conventional CTMs (see for example Beddows et al. [19]). However, none of these have been applied to the analysis of Hg pollution.

The output from HERMES allows the evaluation of the short-term (nominally one-year) effects on Hg_anthr deposition fluxes due to Hg_anthr emission perturbation. To cover a wide range of scenarios, in this work perturbations cover both emission reduction percentage and speciation, simulating the effect and the benefits of the BATs available to policy-makers for reducing Hg_anthr emissions, within a source-receptor framework [4].

With HERMES, a nonexpert user can perturb the Hg_anthr emissions in up to 15 source regions worldwide and can observe, in real-time, the effects on 21 receptor regions, and in particular with an indication of the statistical significance of the perturbation effects, relative to coefficient intervals of deposition as calculated in the current situation [4]. This aspect is of particular importance since it is necessary for researchers moving forward to increase transparency in order to inform policy makers of the limitations and uncertainties of the models used [20].

This approach overcomes the major issues identified in the prior state-of-the-art, allowing the evaluation of a number of emission reduction policy scenarios at the level of a specified region/country, as demonstrated in the following sections.

2. Materials and Methods

The basic idea behind the development of a CTM emulator is to run a number of anthropogenic emission control scenarios (the “Scenario experiments” below) and to analyse the response of the system in order to find a predictable pattern [17,18]. If such a pattern exists, it can be used to simulate the response of the system for all other possible emission scenarios, thus saving time and computational costs, within errors which magnitudes clearly depend on the goodness of fitting model used to approximate the response function.

2.1. Simulation of the Hg_anthr Atmospheric Cycle

The simulation of the atmospheric cycle of Hg_anthr was performed using the global Hg-CTM model ECHMERIT [13,14].

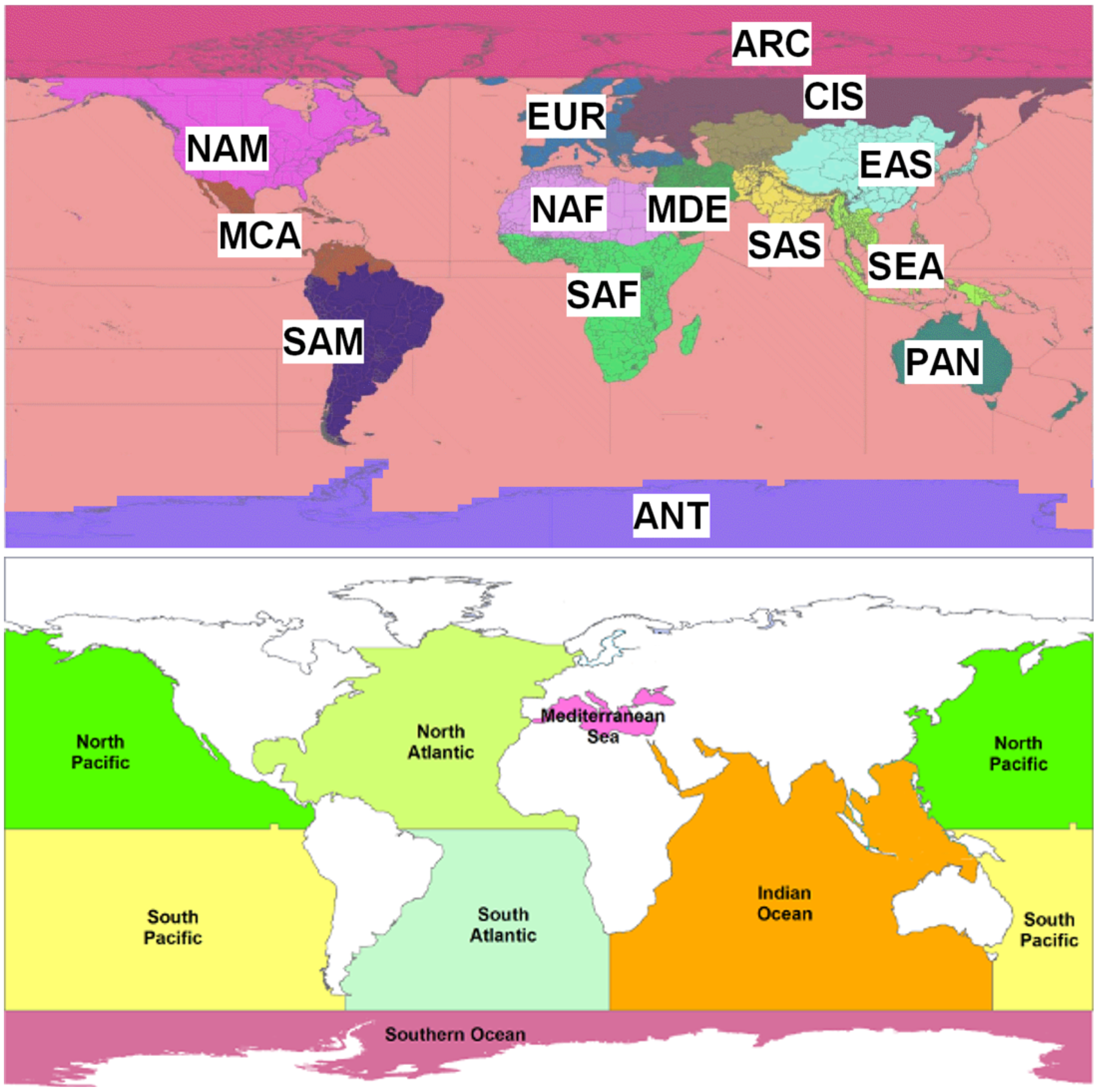

Two sets of experiments were conducted, where Hg_anthr emissions were tagged according to their source region, as reported in the HTAPv2 experiment (http://www.htap.org/) (see Figure 1), to allow the source apportionment of the subsequent Hg_anthr deposition. The Hg_anthr emissions were included in the model from three different anthropogenic inventories, referred to here as AMAP [21], EDGAR [22], and STREETS [23,24].

Firstly, the emission fields were mapped to the HTAPv2 mask at their original resolution using the large fraction area method, they were then interpolated onto the ECHMERIT T42 horizontal grid (roughly 2.8° by 2.8° at the equator) using the mass conserving remapping method; both methods are available in the Climate Data Operators (CDO) [25] package. Finally, the emissions were distributed vertically (up to 10 hPa), at run time, using the relevant prescribed height distribution, mapping them to Standardized Nomenclature for Air Pollutants (SNAP) and using the distribution in Simpson et al. [26] or evenly injecting them within the Planetary Boundary Layer (PBL) (see De Simone et al. [10] for details).

A spin-up period of 4 years was employed for both sets of runs, and the results from the fifth year, namely 2010, were then considered for the analysis.

A BASE run is shared by both sets of experiments and includes an Hg oxidation mechanism driven by O₃/OH fields, imported from the Mozart model [27], and Hg_anthr emissions from AMAP/UNEP [21].

The first set of experiments, the “Characterising experiments”, aims only to define and characterise the Hg_anthr atmospheric cycle to provide robust constraints of confidence intervals of the contributions to deposition in each receptor region. To this aim, a number of parameters, model assumptions, and inventories were varied, covering a reasonable range of uncertainties known to influence the Hg atmospheric cycle. All these runs, although leading to changes in Hg surface concentration and deposition fields, were demonstrated to be statistically indistinguishable between each other when compared with the available field measurements, as described in [10].

A number of runs were conducted employing different Hg_anthr emission height distributions (APBL), as well as different Hg_anthr speciation ratios, only as ${Hg}_{\mathrm{(g)}}^0$ (NSP0), or emitted at a ratio ${Hg}_{\mathrm{(g)}}^0$:Hg^II_(g/p) 50/50 (NSP50).

Years with different meteorological characteristics were also simulated to evaluate the effects of changing atmospheric transport conditions, (BASE-2005 and BASE-1998). They were selected according to opposite values of major climatic indices which result in different circulation and precipitation patterns [28,29].

Due to uncertainties of the atmospheric Hg oxidation pathway [30,31,32], a run was performed considering an oxidation mechanism based on Bromine (BRTO) (from p-Tomcat [33,34]).

Finally, two runs including, respectively, EDGAR and STREETS inventories were run to explicitly account for the uncertainties regarding Hg_anthr emissions.

A summary of the runs performed within the scope of the Characterising experiments is reported in

Table 1. “Characterising experiments” that computed the Hg_anthr deposition in each receptor region.

Run	Inventory	Ref. Year	Meteor. Year	Speciation	Vertical Profile	Oxidation
BASE	AMAP-2010	2010	2010	Native	Native	O3+OH
BASE-2005	AMAP-2010	2010	2005	Native	Native	O3+OH
BASE-1998	AMAP-2010	2010	1998	Native	Native	O3+OH
APBL	AMAP-2010	2010	2010	Native	Uniform PBL	O3+OH
NSP0	AMAP-2010	2010	2010	as ${Hg}_{\mathrm{(g)}}^0$	Native	O3+OH
NSP50	AMAP-2010	2010	2010	${Hg}_{\mathrm{(g)}}^0$:HgII(g) = 50:50	Native	O3+OH
BRTO	AMAP-2010	2010	2010	Native	Native	Bromine
STREETS	STREETS	2010	2010	Native	Uniform PBL	O3+OH
EDGAR	EDGAR	2010	2010	Native	Native-SNAP	O3+OH

below.

A bootstrap analysis [35] was then used to evaluate the average Hg_anthr deposition in each receptor region due to each source region and to determine the relative confidence intervals, following the procedure described in De Simone et al. [4].

The second set of experiments, defined as “Scenario experiments”, represents the core of the present study. The runs belonging to this set were performed using only the AMAP/UNEP [21] emission inventory, since for the scope of this study we want to simulate the response of Hg_anthr deposition to Hg_anthr emission perturbations using this inventory.

To simplify the emission control simulations, we assumed a decrease of the number of Hg_anthr species emitted. Gaseous elemental mercury (${Hg}_{\mathrm{(g)}}^0$) and reactive mercury (Hg^R) were taken into account. The latter as a lumped species representing oxidised mercury (${Hg}_{\mathrm{(g)}}^2$) and particle bounded mercury Hg_(p), both considered to be emitted with a constant ratio as in AMAP/UNEP [21]. Reduction changes were simulated (BaseR20 to BaseR80), as were different ratios of ${Hg}_{\mathrm{(g)}}^0$:Hg^R (BaseS00 to BaseS100), leaving all other model parameters and assumptions equal to those in the BASE run. The runs of Scenario experiments, listed in

Table 2. List of Scenario experiments conducted with a common emission database (AMAP [21]) and reducing the emissions (BaseR20 to BaseR80) as well as changing the speciation ratio (BaseS00 to BaseS100).

Run	Emissions	HgR:Hg0	Reduction
BASE	AMAP	Original	None
BaseR20	AMAP	Original	20%
BaseR40	AMAP	Original	40%
BaseR60	AMAP	Original	60%
BaseR80	AMAP	Original	80%
BaseS00	AMAP	0:100	None
BaseS20	AMAP	20:80	None
BaseS40	AMAP	40:60	None
BaseS60	AMAP	60:40	None
BaseS80	AMAP	80:60	None
BaseS100	AMAP	100:0	None

, were used to build the HERMES emulator, as described in the following Section 2.2.

2.2. Building the HERMES Emulator

The scope of this study is to provide a CTM emulator, HERMES, to calculate new Hg_anthr deposition fluxes for each receptor related to Hg_anthr emission perturbation(s) in one or more source regions. The characteristics of the Hg_anthr emission amount and speciation ratio, can be controlled, thus simulating the adoption of available abatement techniques. The HERMES emulator output is a new Hg_anthr deposition value for each receptor. To achieve this, the deposition fields resulting from the Scenario experiment ECHMERIT runs were fitted using the best model available.

Since Hg in the CTM model is due only to the anthropogenic emissions (i.e., Hg_anthr species are neither created nor destroyed within the model), the deposition in the model domain cells resulting from Hg_anthr emission reduction (runs BaseR20 to BaseR80) is directly proportional to the reduction (adjusted $R^2$ ∼ 1). Therefore, the Hg_anthr deposition in the receptor region r due to the emission reduction in the source region s, namely $DE{P}_{r,s}^{Red}$, is calculated by HERMES as follows

$$DE{P}_{r,s}^{Red}=(100-INPU{T}_s^{Red})\ast DE{P}_{r,s}^{BASE}$$

(1)

where $INPU{T}_s^{Red}$ is the Hg_anthr emission reduction in the source region s as a percentage (0–100%), and $DE{P}_{r,s}^{BASE}$ is the Hg_anthr deposition, in the receptor region r due to the source region s, in the unperturbed scenario (BASE run).

A linear model is also sufficient (adjusted $R^2$ ∼ 1) to describe the Hg_anthr deposition resulting from emission speciation perturbation runs(BaseS00 to BaseS100) and Hg_anthr deposition in the receptor region r due to the emission speciation perturbation in the source region s, $DE{P}_{r,s}^{Spec}$, is,

$$DE{P}_{r,s}^{Spec}=A_{s,r}^{Spec}+INPU{T}_s^{Spec}\ast B_{s,r}^{Spec}$$

(2)

where $INPU{T}_s^{Spec}$ represents the ratio between ${Hg}_{\mathrm{(g)}}^0$ (0 = 100%) and Hg^R (1 = 100%); $A_{s,r}^{Spec}$ and $B_{s,r}^{Spec}$ are the coefficients of the linear equation and represent the deposition of Hg_anthr in the receptor region r due to the emission in source region s in the case where Hg_anthr is totally gaseous and the rate at which the deposition changes as the contribution of reactive mercury increases.

From relation (1) between $DE{P}_{r,s}^{Red}$ and $INPU{T}_s^{Red}$, the following polynomial can be derived relating the deposition $DE{P}_{r,s}^{HERMES}$, in the receptor region r due to the change of Hg_anthr in both terms of emission reduction ($INPU{T}_s^{Rec}$), and speciation ($INPU{T}_s^{Spec}$) in the source region s:

$$DE{P}_{r,s}^{HERMES}=A_{s,r}^{Spec}\ast (100-INPU{T}_s^{Red})+INPU{T}_s^{Spec}\ast B_{s,r}^{Spec}\ast (100-INPU{T}_s^{Red})$$

(3)

with all variables as defined above.

Equation (3) represents the core of the of HERMES emulator, and for ease of use it is implemented in a spreadsheet file available in the Supporting Information.

The new deposition value, $DE{P}_{r,s}$, is finally compared to the relative bounds at 95% confidence interval (CI) at either tail (see

Table 3. Reference (BASE), and upper and lower bound (95% level) for the mean of the Hg_anthr total deposition (Mg/year) for each receptor region originating from all source regions.

Region	Lower Bound	Reference	Upper Bound
North America	66.87	78.41	87.96
Australia	12.86	16.08	18.97
South East Asia	117.68	146.08	182.35
Europe	30.60	37.11	43.21
Indonesia	21.21	25.15	28.39
Arctic	32.46	35.95	38.85
Central America	20.12	23.44	26.31
Middle East Asia	15.42	17.65	19.35
North Equatorial Africa	33.61	41.56	59.13
Central Asia	69.35	79.56	89.37
South Equatorial Africa	74.47	89.35	101.95
South America	55.27	65.89	74.82
South Asia	34.50	45.87	57.75
Antarctic	2.60	4.34	7.26
Ocean Basins	Lower Bound	Reference	Upper Bound
North Atlantic	143.15	159.07	168.66
South Atlantic	90.73	109.85	125.38
North Pacific	392.65	440.93	471.62
South Pacific	230.59	278.56	316.00
Indian	163.22	197.70	223.76
Mediterranean	7.87	9.05	10.33
South Ocean	8.35	11.17	15.25

), with indications if it falls outside the bounds, as further described below.

By the way the experiments were designed, the HERMES emulator calculates the $DE{P}_{r,s}^{HERMES}$, in the receptor region r due to the perturbation(s) of Hg_anthr emission in the source region s, nominally after one year following the emission perturbation(s).

Moreover, since we included for this analysis only the Hg emissions from anthropogenic activities, Equations (1) and (2) represent processes that are perfectly linear, as demonstrated by a number of tests regarding the goodness of fit (adjusted $R^2$ ∼ 1, residuals plots and significance of model regression test based on ANOVA at $\alpha$ = 0.01). The equations fit perfectly the response of the Hg_anthr deposition to control scenarios of Hg_anthr emissions, in terms of reduction and speciation, respectively, and therefore, they must not be regarded as simple linearisation of the response function.

Since the core Equation (3) is a simple combination of Equations (1) and (2), it means that HERMES can simulate the output of any ECHMERIT runs actually without errors. Indeed, the only differences are negligible, in the order of Kgs, and are just due to the numerical or computational errors in CTM sampling and/or fitting algorithm.

3. Results

The outcomes of the Characteristic experiments are summarised in Table 3. It shows, for each of the receptor regions, the reference Hg_anthr deposition (Mg/year) due to all of the source regions, as calculated by the BASE run (${\sum }_{s}DE{P}_r^{BASE}$). Moreover, it reports the upper and lower bound of the confidence interval (at a 95% level) of the mean of the Hg_anthr total deposition (Mg/year), due to all the source regions, as estimated by bootstrap.

3.1. HERMES Case Studies

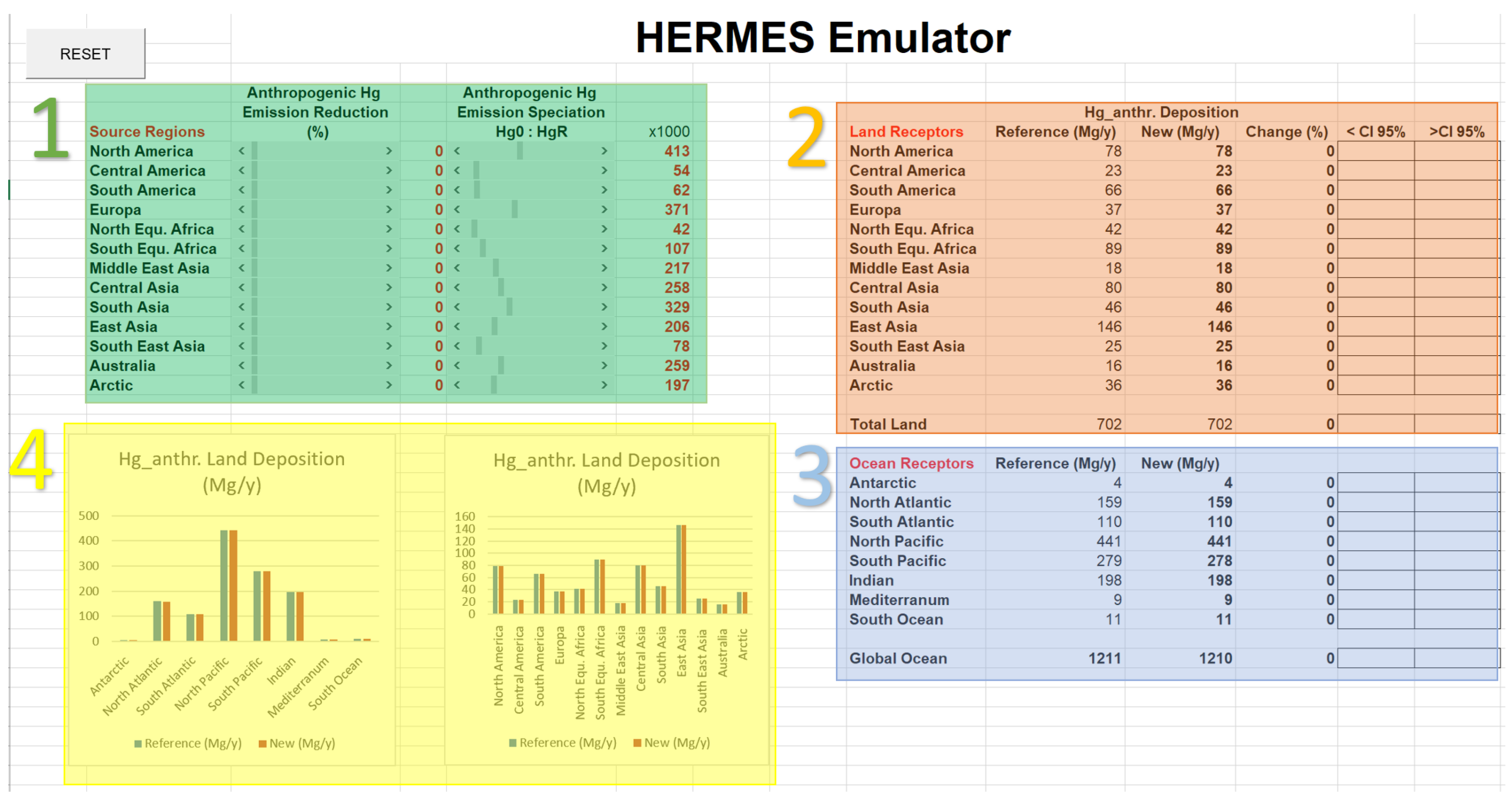

Figure 2 illustrates the implementation of HERMES emulator in a spreadsheet and reported in SI.

The upper-left Section (1 in green) shows the input window in which each source region is provided with two sets of sliding bars to change Hg_antrh emission for each of the source regions. The first slider can reduce the emissions as a percentage, whereas the second allows the selection of the ratio between elemental and reactive Hg_antrh.

The right section of the figure illustrates the output list of receptors, for both terrestrial (2 in orange) and oceanic ( 3 in light blue) receptors, each one provided with its reference value, the newly calculated value, and the percentage change of the Hg_antrh deposition. As explained before, the output is considered nominally one year following Hg_anthr emission perturbation. Two columns are also reported that are normally blank. The cells eventually become green (or red) if the deposition decrease (or increase) is statistically significant (at a 95% level of confidence).

A summary reports total deposition over terrestrial and oceanic receptors.

The lower-left Section (4 in yellow) reports in a graphical form the results for terrestrial and oceanic regions. Perturbed deposition fluxes (red bars) are compared against the reference deposition (blue bars) for each receptor.

A reset button returns emission changes to zero (BASE case).

3.2. Hg Emission Reduction

To show the potential of HERMES to support decision-makers, a number of case studies are reported hereafter. The first portfolio of cases is related to Hg_anthr emission reduction.

3.2.1. Emissions—20% in all Source Regions

If we reduce by 20% the Hg_anthr emission in all source regions (Figure 3) we see a 20% reduction of deposition in each receptor. In all receptors the change in deposition is effective (green cells) except for the South Asia, Southern Oceans, and Antarctic, where the uncertainty in the deposition is so high that a 20% in reduction is not of statistical significance [4].

3.2.2. Emissions—50% in Key Regions: Europe, East Asia, and North America

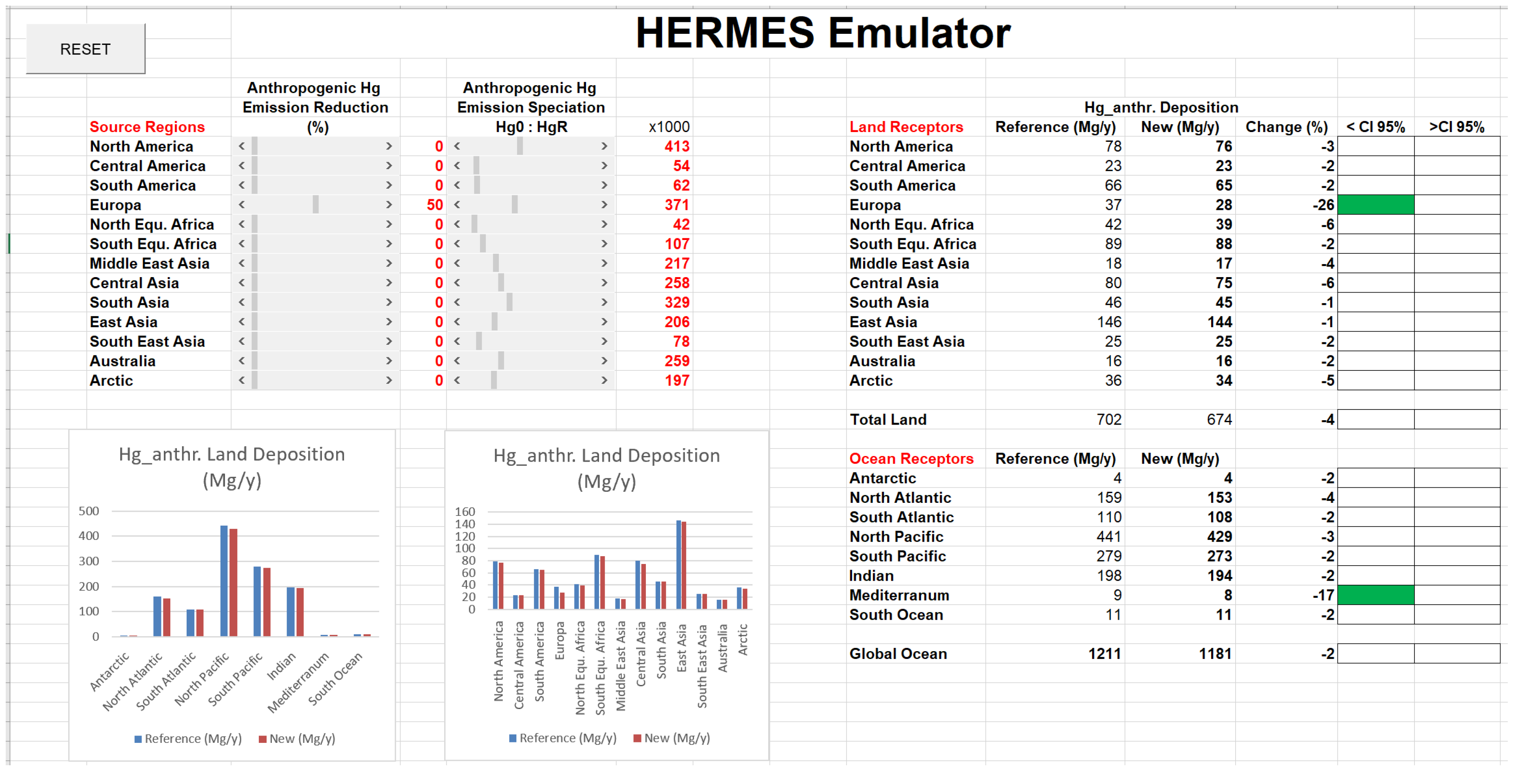

In the next example cases we test the effects of reducing by 50% the Hg_anthr emissions in some key source regions to help decision-makers evaluate the extent of eventual measures applied to single countries. When applied to Europe, Figure 4, this measure results in a significant decrease over Europe itself (−26%) and the nearby Mediterranean sea (−17%), whereas the effects over other receptors, although measurable, are not significant.

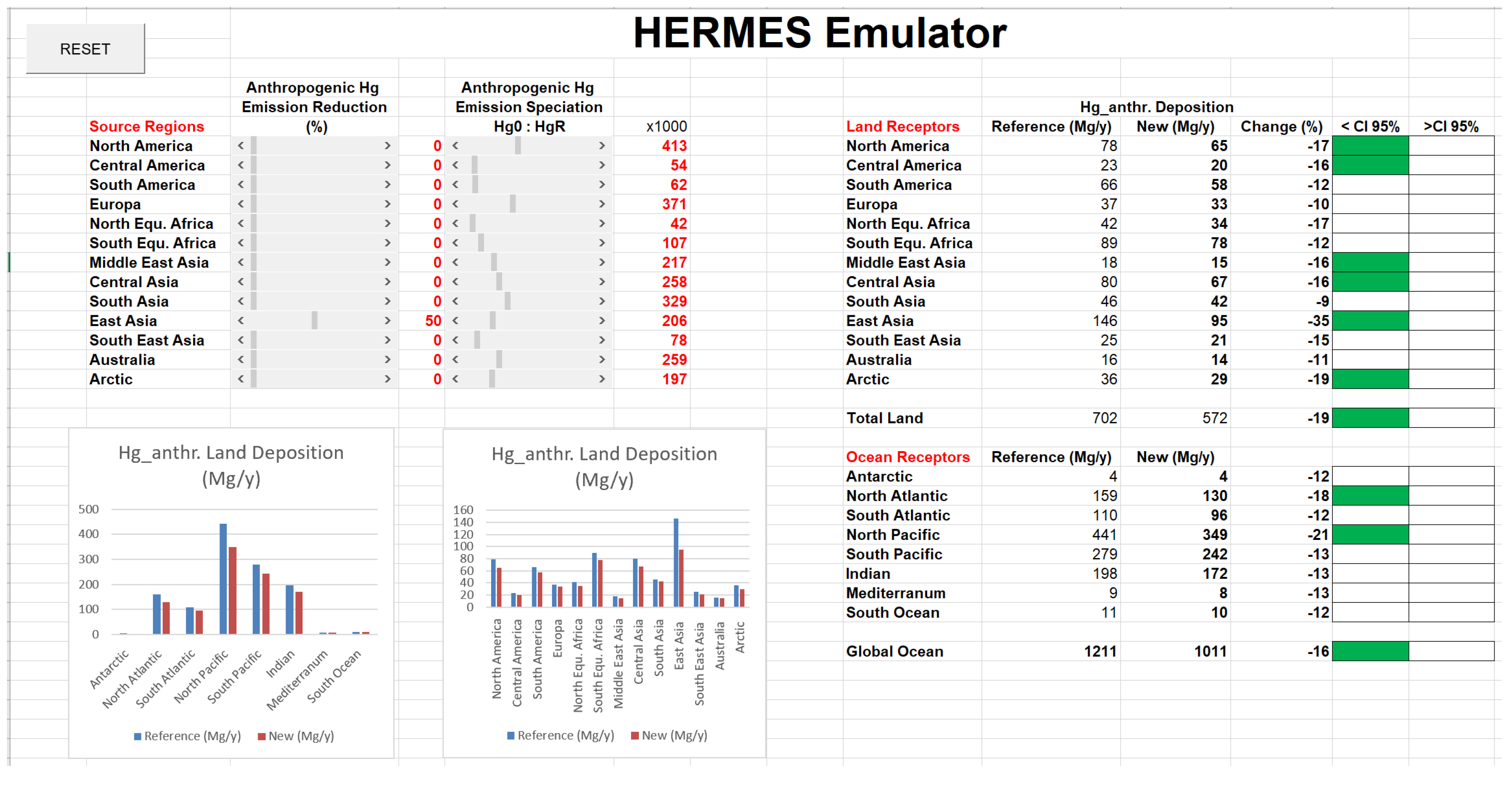

If we reduce by 50% the Hg_anthr emissions in East Asia (Figure 5), there is an evident and significant reduction in a number of regions resulting in an annual deposition decrease over oceans (16%) and land (18%). Due to the long-range transboundary transport of Hg_anthr, the reduction can impact the Americas, the Arctic, and the whole of Asia as well as the Atlantic Ocean. Reduction of deposition over regions ranges from 35% for East Asia to about 16% of Central America, the Middle East, and Central Asia. This measure has a great impact over the oceans of the Norther Hemisphere with a decrease of Hg_anthr deposition of 18% for the North Atlantic and 21% for the North Pacific.

Over other receptors, despite the decrease ranging from 9% for South Asia to 17% for North. Eq. Africa, it is not significant.

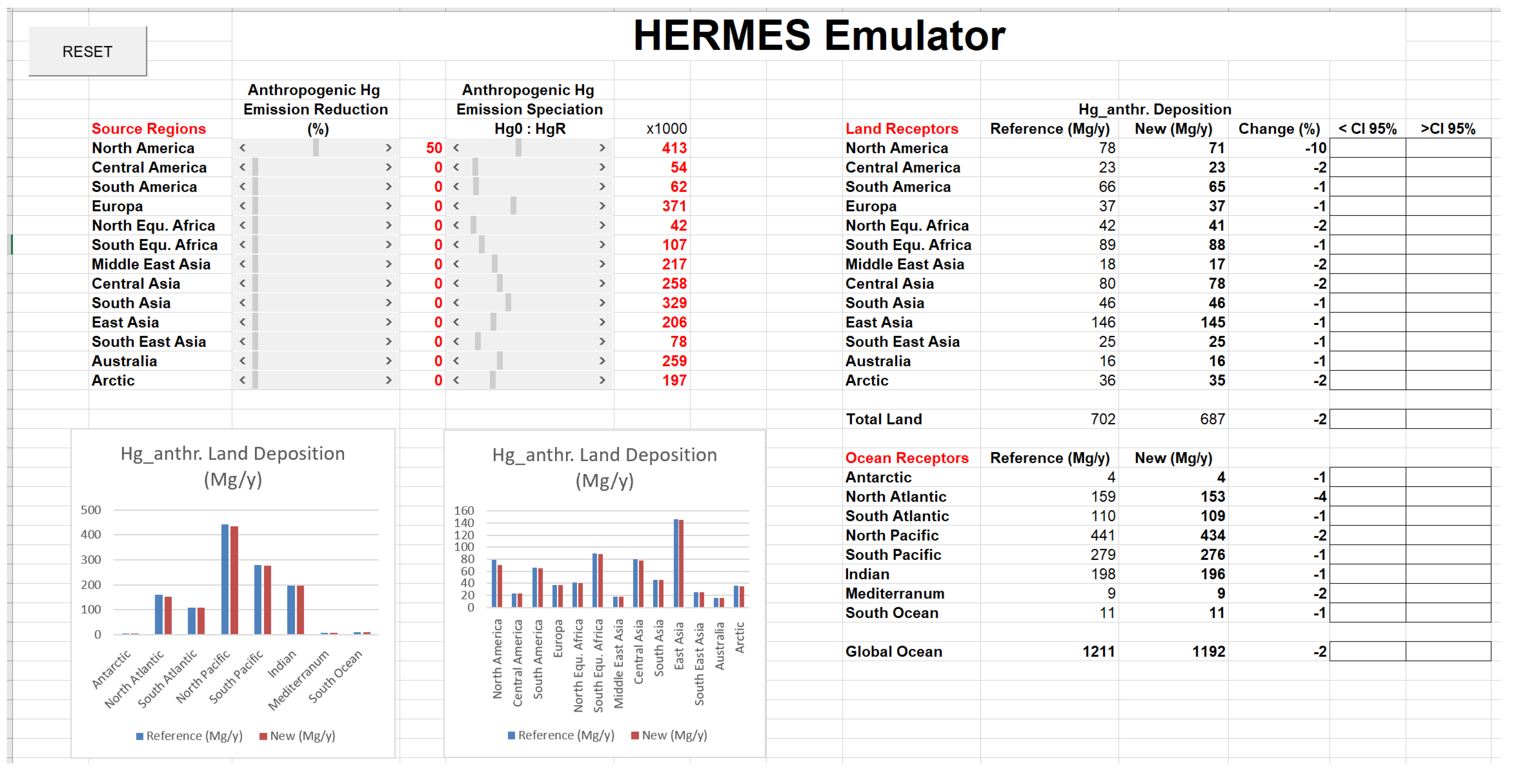

It is of interest how the reduction of Hg_anthr emissions by 50% in North America (Figure 6) has no significant effects in any of the receptor regions.

3.3. Hg Speciation Perturbation

Changes in Hg_anthr emission abatement strategies were tested by modifying the ${Hg}_{\mathrm{(g)}}^0$:Hg^R ratio. Perturbation of this ratio does not affect the amount of Hg_anthr deposition on a global scale but only impacts its distribution, which may be of policy interest on a regional scale. For this case, we tested two contrasting scenarios: ${Hg}_{\mathrm{(g)}}^0$ = 0 and Hg^R = 100; and ${Hg}_{\mathrm{(g)}}^0$ = 100 and Hg^R = 0.

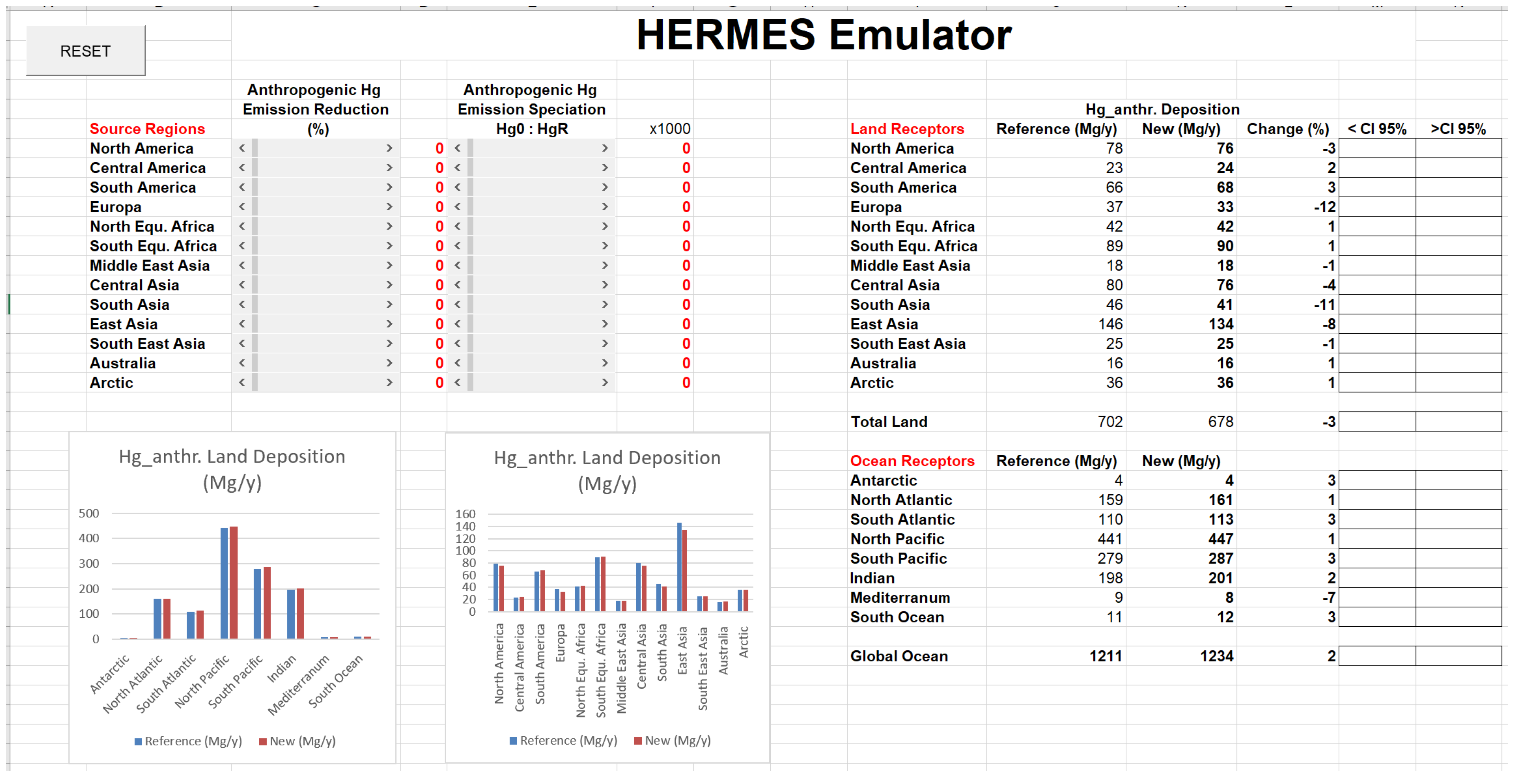

In the first scenario there is a greater fraction of Hg_anthr reaching the global pool (Figure 7), thereby tending to reduce deposition to the regions that are sources and increasing deposition over ocean basins. However, no single change is statistically significant for any of the receptors. In the second scenario, emissions have a shorter atmospheric residence time, resulting in deposition occurring closer to the emission sources (Figure 8). The distribution of Hg_anthr deposition among the receptors changes markedly also in this case. It increases over land and decreases over oceans, with the exception of the Mediterranean Sea where the deposition increases by 11%. However, only deposition changes over Europe and South East Asia are statistically significant, with an increase of 19% and 30%, respectively.

4. Discussion and Further Development

In this paper we illustrated the HERMES emulator based on the ECHMERIT Hg-CTM [9,10,11] aimed to investigate the fate of Hg_anthr emissions over land and oceans. HERMES captures the essence of the complexity of the Hg cycle enabling the end-user to obtain interactive and real time results. It provides the full capability of a scientifically robust and validated model, which usually requires advanced scientific formation and technical skills to be used and high-end computing infrastructure to run. We demonstrate how the spreadsheet interface makes the manipulation of Hg_anthr emissions in each source region user-friendly, providing a tool for policy-makers that can be used to assess short-term effects (nominally one year) of the Hg_anthr emission perturbation (both reduction and speciation), in real-time and without any specific training or formation.

The linear relationships found for the response of Hg_anthr deposition to emissions control scenarios (Equations (1) and (2)) are due to the simplification of the inclusion of only Hg_anthr in the model. The inclusion of other natural and legacy Hg emissions in the model is likely to introduce some nonlinearity. Indeed, because of the complexity of the Earth System, and the time scales involved, legacy Hg re-emissions or exchange of chemical compounds between environmental compartments are not captured by HERMES. However, the Hg_anthr deposition reduction to a specific ecosystem is an important first step in the reduction of the Hg burden in that particular ecosystem. In the future developments, a more complete CTM emulator could be built, including all Hg emission sources, depending on the computational trade-off between the number of emission control scenarios required and the goodness of the fit of the response function. In addition or alternatively, the proposed approach could be integrated with existing tools for the evaluation of long-term abatement strategies, by customising it to a source-receptor version of any biogeochemical cycle model, a number of which have been publicly released (see, for example [36]).

At this development stage, the reduction percentage and the speciation ratio provided for the Hg_anthr emissions in each source region affects all the emission sectors in that region. It is possible to overcome this simplification by explicitly considering different industrial sectors within each source region. This functionality will require multiple new model runs, but the computational effort would support decision-makers in implementing more precise reduction strategies for each emission sector in a given region. As a forward integration step, these strategies could be associated with their economic and social costs, in such a way the best solution, in terms of both environmental and economic costs, could be assessed.

The confidence intervals provided for Hg_anthr deposition over receptor regions are calculated starting from the ensemble of runs defined as, “Characterising experiments”, as in previous work [4]. Although these runs consider a reasonable range of possible sources of uncertainty, they were designed to assess one source at a time and therefore they do not consider all the plausible combinations of uncertainties. This is due to the computational effort that would be required. Moreover, it should be noted that confidence intervals are calculated based on the current anthropogenic emissions, and therefore the statistical significance of the newly calculated deposition fields are related to the present situation. A more robust statistical comparison between new and present Hg deposition figures would require the calculation of confidence intervals for each of the runs belonging to “Scenario experiments”, (i.e., the combination of runs belonging to the Characterising experiment and the Scenario experiment), and their relative comparison, which would require at least one order of magnitude more CTM runs. Although shortcomings exist, we believe that the comparison of the Hg_anthr deposition simulated by HERMES for a given scenario with the Hg_anthr deposition confidence intervals calculated considering the present situation is a reasonable starting point to try to establish an operational calculation of the statistical significance associated with any given policy measures to be adopted.

However, these shortcomings will be addressed in the future versions of HERMES, which are currently under development, that could be distributed on the Web, to further engage the user experience and to provide mechanically readable services in order to improve different user scenarios and interoperability between systems. The web portal of the next version of HERMES could be composed of several widgets with interactive graphs and data tables to provide improved data visualisation. In this way, HERMES would be able to reach multiple users and used more effectively, utilising the same tool, the web, to which stakeholders are accustomed.

5. Conclusions

In this study we presented HERMES, a statistical emulator built on the output of a Chemical Transport Model (CTM) for Hg (ECHMERIT), to simulate changes in Hg_anthr deposition fluxes due to perturbations to Hg_anthr emissions. The perturbations encompass both speciation and reduction, simulating thus the implementation of different Best Available Technologies. Hg_anthr deposition fluxes are calculated in a source-receptor framework, enabling the evaluation of the impact any specific Hg_anthr emission reduction scenario both regionally and globally, and provide the statistical significance of the deposition flux changes, as compared with the current situation. HERMES provides the scientific soundness of a full CTM numerical framework in an interactive and user-friendly spreadsheet and does not require specific training or formation for use. HERMES is the core pillar of a more comprehensive, and integrated, decision support system to aid decision-makers in the evaluation of Hg_anthr emission reduction policies taken under the Minamata Convention.
