Article

High-Resolution Temperature Variability Reconstructed from Black Pine Tree Ring Densities in Southern Spain

by
Jan Esper
1,*,
Claudia Hartl
1,
Ernesto Tejedor
2,
Martin de Luis
3,
Björn Günther
4 and
Ulf Büntgen
5,6,7,8
1
Department of Geography, Johannes Gutenberg University, 55099 Mainz, Germany
2
Department of Atmospheric and Environmental Sciences, University at Albany, Albany, NY 12222, USA
3
Department of Geography and Spatial Planning, University of Zaragoza, 50009 Zaragoza, Spain
4
Institute of Forest Utilization and Forest Technology, Technische Universität Dresden, 01735 Tharandt, Germany
5
Department of Geography, University of Cambridge, Cambridge CB2 3EN, UK
6
Swiss Federal Research Institute (WSL), 8903 Birmensdorf, Switzerland
7
Global Change Research Centre (CzechGlobe), 60300 Brno, Czech Republic
8
Department of Geography, Masaryk University, 61300 Brno, Czech Republic
*
Author to whom correspondence should be addressed.
Atmosphere 2020, 11(7), 748; https://doi.org/10.3390/atmos11070748
Submission received: 7 June 2020 / Revised: 9 July 2020 / Accepted: 13 July 2020 / Published: 15 July 2020
(This article belongs to the Special Issue Past Climate Reconstructed from Tree Rings)
Browse Figures
Versions Notes

Abstract

:
The presence of an ancient, high-elevation pine forest in the Natural Park of Sierras de Cazorla in southern Spain, including some trees reaching >700 years, stimulated efforts to develop high-resolution temperature reconstructions in an otherwise drought-dominated region. Here, we present a reconstruction of spring and fall temperature variability derived from black pine tree ring maximum densities reaching back to 1350 Coefficient of Efficiency (CE). The reconstruction is accompanied by large uncertainties resulting from low interseries correlations among the single trees and a limited number of reliable instrumental stations in the study region. The reconstructed temperature history reveals warm conditions during the early 16th and 19th centuries that were of similar magnitude to the warm temperatures recorded since the late 20th century. A sharp transition from cold conditions in the late 18th century (t1781–1810 = −1.15 °C ± 0.64 °C) to warm conditions in the early 19th century (t1818–1847 = −0.06 °C ± 0.49 °C) is centered around the 1815 Tambora eruption (t1816 = −2.1 °C ± 0.55 °C). The new reconstruction from southern Spain correlates significantly with high-resolution temperature histories from the Pyrenees located ~600 km north of the Cazorla Natural Park, an association that is temporally stable over the past 650 years (r1350–2005 > 0.3, p < 0.0001) and particularly strong in the high-frequency domain (rHF > 0.4). Yet, only a few of the reconstructed cold extremes (1453, 1601, 1816) coincide with large volcanic eruptions, suggesting that the severe cooling events in southern Spain are controlled by internal dynamics rather than external (volcanic) forcing.

1. Introduction

The climate of the Iberian Peninsula is characterized by a sustained warming trend of >1.0 °C since the late 20th century [1]. In southern Spain, this trend is accompanied by a precipitation decline of ~50 mm since the 1960s [2], though these hydroclimatic changes are spatially and seasonally more variable, compared to temperature. The tendency towards an overall warmer and drier climate is dynamically associated with a strengthening of the Azores High that has been projected to become even more dominating throughout the 21st century [3]. Climate models also indicate increased frequencies of extreme events, including persistent heatwaves but also severe flooding and drought, to occur over the next 30–80 years in the western Mediterranean [4,5,6].
Placing these current and forthcoming dynamics into a longer-term context is challenging, as only a few high-resolution reconstructions have been developed providing information on natural climate variability and extremes on the Iberian Peninsula [7,8,9]. Documentary evidence on rogations [10,11,12] and flood events [13,14,15] as well as larger tree-ring width (TRW) networks [16,17] have been used to produce skillful reconstructions of hydroclimate variability over the past several hundred years. Reconstructions of high-resolution temperature variability are less common and restricted to the Pyrenees and Iberian Range in northern Spain, where networks of Pinus uncinata and Pinus sylvestris sites have been established to estimate pre-instrumental temperature trends and extremes based on measurements of tree-ring maximum densities (MXD) [18], TRW, and stable isotopes [7,19,20,21,22,23].
In southern Spain, the Cazorla Natural Park (CNP, Cazorla, Segura y las Villas Natural Park) ~150 km east of Murcia in the community of Andalusia, is the only location that has proven suitable for the development of a longer-term temperature reconstruction (Figure 1). The CNP is the second largest protected area in Europe and hosts some of the oldest trees in Spain, including several Pinus nigra reaching ages >700 years [24,25,26]. TRW data from these trees have been used to develop a formal reconstruction of late summer and fall temperature variability back to 1195 Coefficient of Efficiency (CE) [27]. Further south, the next resource providing annually resolved climate estimates over the past several hundred years, are the giant Cedrus atlantica from the Middle and High Atlas in Morocco reaching ages >1000 years [28]. TRW, MXD, and stable isotope data from these trees all contain hydroclimate signals [29,30], however, so that longer-term, high-resolution temperature estimates from the south-western Mediterranean solely rely on data from the ancient Pinus nigra forests in the CNP.
Here, we present a combined MXD data set from 51 high-elevation CNP black pines reaching back to 1196 CE. We detail the age trend inherent to these data and develop several detrended chronologies integrating differently old tree rings, so called age-band chronologies. The chronologies are calibrated against instrumental temperature data with particular emphasis on the effects of representative climate stations (or lack thereof) on MXD signal estimation and reconstruction uncertainty. We finally present a formal temperature reconstruction derived from Pinus nigra MXD data and compare this record with existing records from CNP TRW and Pyrenees MXD data.

2. Materials and Methods

2.1. Tree-Ring Data and Detrending

Whereas most of the CNP is dominated by relatively young trees, there are a few high-elevation sites towards the southern end of the park covered by an ancient Pinus nigra forest including several individuals reaching ages >700 and even >800 years (Table 1). These sites have been subject to the development of large tree-ring datasets, including several hundred TRW series [25], though only a few MXD series have been produced so far [26]. Here, we combine the MXD series sampled in 2007, produced in the tree-ring laboratory in Tharandt (Germany), with a larger compilation of the new MXD series sampled in 2015, produced in the laboratory in Mainz (Germany). The density profiles of these two campaigns have been developed using the same Walesch radiodensitometric setup [31,32,33], and the site MXD chronologies share high fractions of common variance over the past 450 years (r1557–2006 = 0.80), justifying the amalgamation of MXD data into one pool of 88 series from 51 trees (see Supplementary Table S1 and Figures S1–S3).
The combined MXD dataset covers the period from 1196–2014 CE and includes 18 series exceeding ages of 600 years (Figure 2a). The data contain an age trend composed of a notable ~0.2 g/cm3 increase over the first 90 years of cambial age, followed by a persistent, though much shallower, negative trend over the subsequent 500 years (−0.12 g/cm3 from 100–500 years). This Hugershoff-shape [34] age trend is characteristic for conifer MXD data [35,36] and represents noise from the perspective of a climate reconstruction. This noise is here removed by applying Regional Curve Standardization (RCS) to preserve high-to-low frequency variance in detrended index chronologies [37,38]. However, successful RCS-detrending typically requires the application to combined datasets integrating series from living and dead trees, so that younger and older tree-rings are spread throughout time, rather than being concentrated at the beginning (young rings) and end (old rings) of a chronology [39]. To produce such chronology variants, characterized by flat instead of monotonically increasing mean age curves, we removed all rings older than 300 (200) years from the MXD data and calculated 1–300 (1–200) year age-band chronologies, here labeled ABC300 and ABC200 [40]. The differentiation by cambial age is illustrated in Figure 2, showing the replication and regional curves (RCs) of all MXD data in gray, and the 1–200 and 201–300 sections in blue and black, respectively. Figure 3 illustrates the effects of data truncation on the temporal distribution of MXD data throughout the past 800 years and demonstrates that any chronology derived from the 1–200 year age band data is weakly replicated in the late 16th century, for instance (see the circle in Figure 3c).
The ALL, 1–300 and 1–200 year datasets were RCS-detrended by calculating ratios between the single MXD series and the smoothed mean of the age-aligned data, the so-called regional curves (RCs, shown in Figure 2b). The resulting index values were averaged using the arithmetic mean, and uncertainties estimated by calculating 95% bootstrap confidence limits derived from re-sampling and averaging the detrended MXD data with replacement 1000 times [37]. Mean tree age and segment length curves, as well as running inter-series correlations (Rbar) [41] and the Expressed Population Signal (EPS) [42] were calculated for each of the chronology, ALL, ABC300, and ABC200, to illustrate temporal changes in the structure and coherency of the underlying data over the past 700 years.

2.2. Climate Data, Calibration and Transfer

The ALL, ABC300 and ABC200 chronologies were calibrated against gridded monthly temperatures (CRU TS4.03) using the KNMI Explorer [43] to assess the seasonality and spatial extent of MXD climate signals. Station temperature records from five locations in the vicinity of the proxy site were used to evaluate the temporal robustness of climate signals as well as the fidelity of the observational data to represent the conditions at the high elevation CNP tree site. The station records are located in distances between 10 km (Cazorla) and 165 km (Murcia) from the MXD site, cover varying periods between 1905–2014 CE, and contain changing numbers of missing values ranging from 3% in Murcia to 24% in Jaen (Table 2). Four of the station records (Jaen, Ciudad Real, Albacete, Murcia) are used in the gridded temperature products (CRU TS4.03), whereas the station closest to the tree site (Cazorla) is not included in the international climate databases [1,44,45].
The MXD chronologies were compared with the instrumental temperatures using the Pearson correlation coefficient calculated over a longer 1905–2014 period as well as over a shorter, but observationally better replicated, 1961–2014 period. Thirty-year running correlations were applied to emphasize temporal changes in signal strength throughout the 20th and early 21st centuries. In addition, we assessed the covariance of monthly and seasonal temperatures among the station records and evaluated the effects of deviating cold periods and extreme years on proxy data calibration.
The ABC300 chronology was finally transferred into estimates February–May and September–October (FMAM&SO) temperatures by scaling the MXD mean and variance against the mean of the five station records over the 1905–2014 period. The skill of the reconstruction was estimated considering the Reduction of Error (RE) and Coefficient of Efficiency (CE) statistics calculated over an early 1905–59 (55 years) and late 1960–2014 (55 years) calibration/verification period, after regressing the ABC300 chronology against the instrumental data [46]. The Durbin–Watson statistic (DW) was calculated to evaluate autocorrelation in the residuals between the instrumental temperatures and regressed MXD chronology [47]. Temporally changing uncertainties of the reconstruction were estimated using the 95% bootstrap confidence limits of the ABC300 chronology, after smoothing these estimates using a 30-year low-pass filter, to emphasize long-term confidence changes over the 1350–2014 reconstruction period. The coldest and warmest reconstructed 30-year periods, before and after 1700 CE, as well as the ten coldest and ten warmest years since the mid-14th century were highlighted for further discussion.
The FMAM&SO temperature reconstruction was compared with annually resolved temperature histories from a MXD network in the Pyrenees, located ~600 km north of the CNP [19], as well as a previous-year September–October temperature reconstruction derived from TRW data of the CNP black pines [27]. These comparisons were conducted using the original as well as high-pass filtered versions of the reconstructions to evaluate covariance in the high-to-low frequency domains. Particular attention is paid to the reconstructed cold extremes, their coherency between southern (CNP) and northern Spain (Pyrenees), and the potential underlying forcing that exist as a result of large volcanic eruptions since 1350 CE [48,49,50,51,52].

3. Results and Discussion

3.1. Cazorla MXD Chronologies and Effects of Data Truncation

The RCS-detrended chronologies (ALL, ABC300, ABC200) share high fractions of high-to-low frequency variance, but also include substantial trend differences, e.g., since the mid-20th century, during the mid-19th century, and the mid-16th century (Figure 4a, Supplementary Figure S4). The original and 30-year low-pass filtered chronologies correlate at rOrig = 0.89 and rLF = 0.81 since 1300 CE, respectively, indicating that the truncation of tree-rings older than 300 and 200 years had a stronger effect on the low frequency variance. Over the most recent ~70 years, the smoothed ABC200 chronology deviates substantially from the two other chronologies, including highest values in 2014. The ALL chronology, instead, shows a decline since the 1980s, whereas the ABC300 chronology remains in-between, i.e., shows high values in the 1980s but also a (minor) increase during the most recent years. Similar inter-chronology deviations are seen in the early and mid-19th century including high ABC200 and low ALL values, and the mid and late 16th century including low ABC200 and high ALL values.
The effects of data truncation are obvious in the chronology replication and mean age curves showing increasing inter-chronology differences towards present (Figure 4b,c). The sharp negative deviation of the ABC200 chronology in the mid-16th century occurs during a period of minimum replication (n1551–1560 ≤ 8 MXD series), indicating that this low frequency departure is potentially less reliable, compared to the better-replicated chronologies (nABC300 ≤ 17 and nALL ≤ 22 series). On the other hand, the truncation of rings older than 200 years in the ABC200 chronology, produced an almost horizontal mean age curve, revealing that the age-structure of this dataset is most suitable for the application of RCS detrending [38,39,53].
The ABC300 chronology is also derived from a relatively even-aged dataset characterized by an age range of only 103 years between the 1360s and 1540s (age1351–60 = 61 years, age1541–50 = 164 years). In comparison, the monotonically increasing mean age curve of the ALL chronology, from 60 to 331 years (see Supplementary Figure S4b for the segment length curves) biases the RCS detrending and produces an artificial shift towards the long-term mean, due to the dominance of old tree-rings from recent calendar years in the biologically old sections of the RC (the gray curve in Figure 2b; details in [38,54,55]). Mitigating this bias motivated the development of age-band detrending, a technique that was successfully applied to a large data set of Northern Hemisphere MXD sites [40].
The removal of data older than 300 and 200 years produced chronologies that are likely more reliable over the most recent centuries, during which the ALL chronology is characterized by a monotonic age increase. During earlier chronology periods, particularly before 1650 CE in ABC200, the data truncation likely weakened the age-band chronologies, as the already reduced replication of the ALL chronology is further lowered by removing old rings. Before 1500 CE, however, these effects become negligible, as the ALL chronology is composed of only a few young rings, i.e., no additional rings were removed in the ABC300 and ABC200 chronologies.

3.2. MXD Climate Signals and Uncertainties

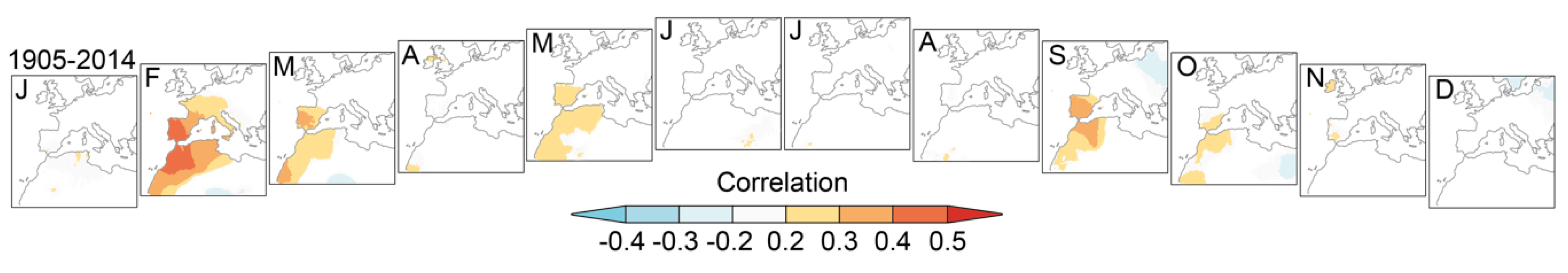

The seasonality of MXD temperature signals is bimodal, including significant fields in February–March, May, and September–October surrounding the CNP (Figure 5). February and September temperatures are most influential, particularly when focusing on the shorter, and observationally better replicated 1961–2014 period, during which correlations near the CNP tree site exceed r = 0.5 (Supplementary Figure S5). The bimodal nature of the signal, comprising a lack of forcing during the warm June–August summer months, is similar to the climate sensitivity reported from high-elevation Pinus uncinate MXD data in the Spanish Pyrenees [19]. The underlying physiological mechanisms are likely related to the insensitivity of cell wall formation to summer warmth, when temperatures do not fall below thresholds relevant to carbohydrate production and mobilization in high elevation black pines (see [19] for a detailed discussion).
The bimodal response characteristic for CNP (and Pyrenees) MXD data is unique if compared with other long MXD chronologies from cold environments in the Mediterranean, central and northern Europe, which are all unimodal, i.e., show a maxima during summer months [39,56,57,58]. For instance, the millennium-length MXD chronologies from Greece [59], the Swiss Alps [60], and Fennoscandia [35,37,61] correlate best with July–September, June–September and June–August temperatures, respectively. The CNP MXD data, at the southern end of such a European transect, thereby reinforces a fading importance of the conditions during the warmest summer months, a tendency already demonstrated in the Pinus uncinata MXD data from the Spanish Pyrenees [19].
Besides the shift in seasonality towards bimodal, the correlations are also lower compared to the MXD counterparts from the Pyrenees (r = 0.72) and Greece (r = 0.73), but also the Alps (r = 0.69) and northern Europe (r = 0.77). The CNP black pine correlations against varying seasonal targets, including FMAM&SO, hardly exceed r = 0.4 over the 1905–2014 period (Figure 6). The values increase over the shorter 1961–2014 period, though only the trials against the shorter February plus September (F&S), February–March plus September (FM&S), and February–March plus September–October (FM&SO) seasons benefit from constraining the calibration period to the most recent, and instrumentally best-replicated, decades (the blue, orange and gray bars in Figure 6a). On the other hand, the longer FMAM&S and FMAM&SO seasons correlate better, if both the instrumental and proxy data were filtered to emphasize high frequency variability in the timeseries.
Beyond these seasonal and frequency-dependent changes, the different chronologies—ALL, ABC300 and ABC200—all produce similar results, i.e., the calibration differences are statistically insignificant (not shown). Likely more important are the temporal changes in signal strength, as revealed by the running window correlations, demonstrating substantially higher proxy-target covariances since the 1980s for the shorter F&S, FM&S, and FM&SO seasons (the blue, orange and gray curves in Figure 6c). On the contrary, the longer FMAM&S and FMAM&SO seasons correlate better during the early period of overlap with instrumental data, whereas the shorter season correlations decline before the 1960s. Such early-calibration-period decreases are fairly common [62] and are typically related to increased observational temperature uncertainties due to changes in instrumentation, data gaps, station relocations, etc. [44,63,64,65,66,67,68,69,70,71]. The recent, post-1980 correlation decline, seen in the longer seasonal means (FMAM&S and FMAM&SO), is more relevant, however, and deserves further attention before producing a formal temperature reconstruction based on the CNP MXD data.

3.3. Outlier Effects on Proxy Calibration

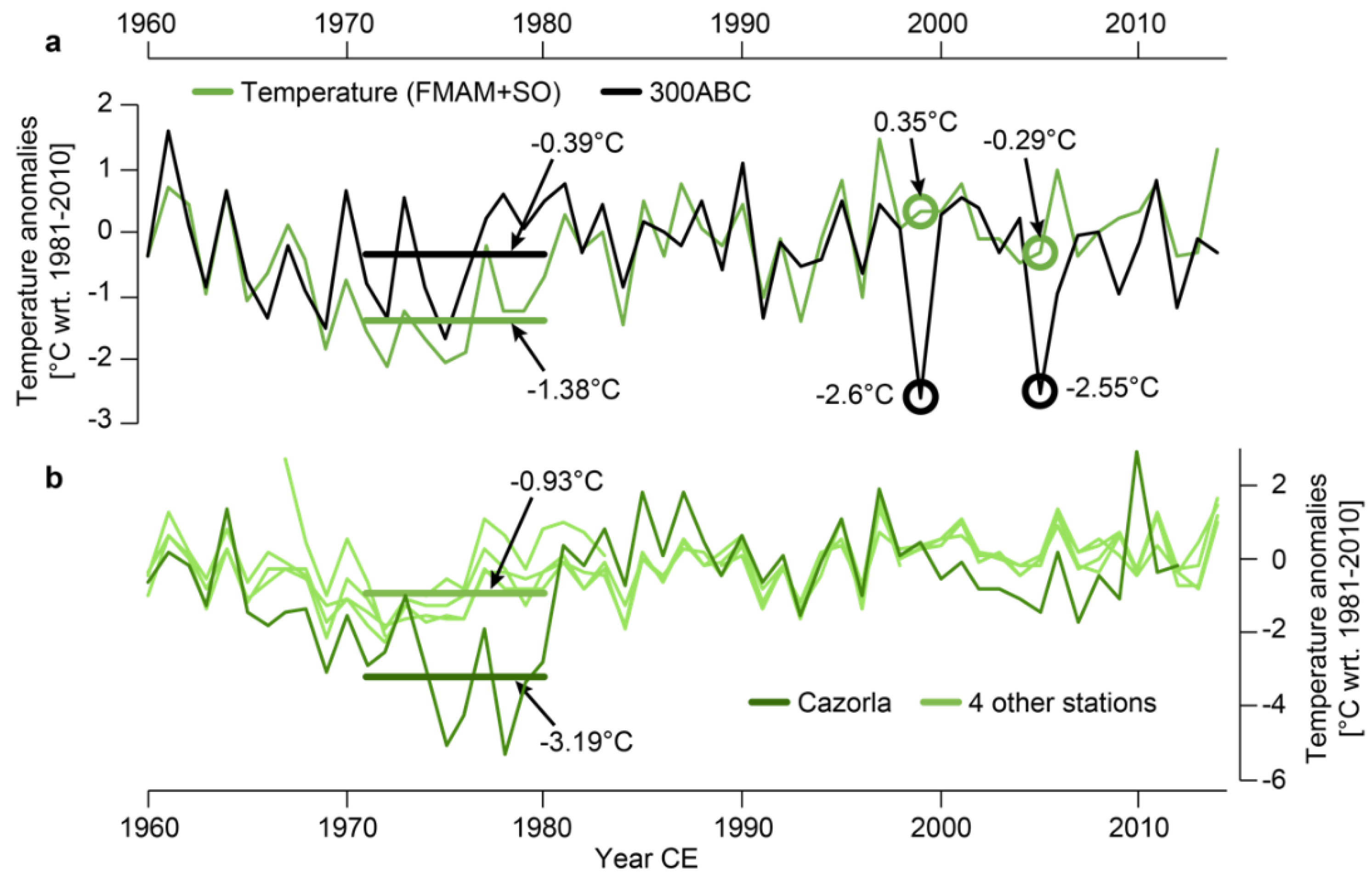

Considering the transferred ABC300 chronology, the fit with post-1960 FMAM&SO temperatures is characterized by (i) an offset during the 1970s and early 1980s, and (ii) two negative extremes in 1999 (−2.60 °C) and 2005 (−2.55 °C) that are not reflected in the observational data (Figure 7). During the 1970s, the average reconstructed temperature is ~1 °C warmer than the average instrumental temperature (see the horizontal bars in Figure 7a), marking a substantial decadal scale proxy-target difference and questioning the reliability reconstructed temperatures at this frequency. However, this offset is substantiated by markedly cooler temperatures recorded at the Cazorla temperature station (dark green in Figure 7b, t1971–80 = −3.19 °C), compared to the other stations records from Jaen, Ciudad Real, Albacete, and Murcia (t1971–80 = −0.93 °C). Of the five records compared here, Cazorla is the only station not included in the Global Historical Climatological Network (GHCN) [72], which could serve as an argument to exclude these data from calibration trials. On the other hand, Cazorla is the closest, and is therefore likely the most representative station for the calibration of high-elevation CNP MXD data (Table 2), which again supports its use. An assessment of the underlying reasons of the deviating 1970s temperatures, be it changes in the station’s environment and instrumentation or (real) spatial variability, would require studying the station history and metadata, and monitoring current temperatures at historical sites [66,67], which is beyond the scope of this paper. From a tree-ring perspective, the 1970s proxy-target difference reported here adds uncertainty to any reconstructed lower frequency deviation derived from the CNP MXD data.

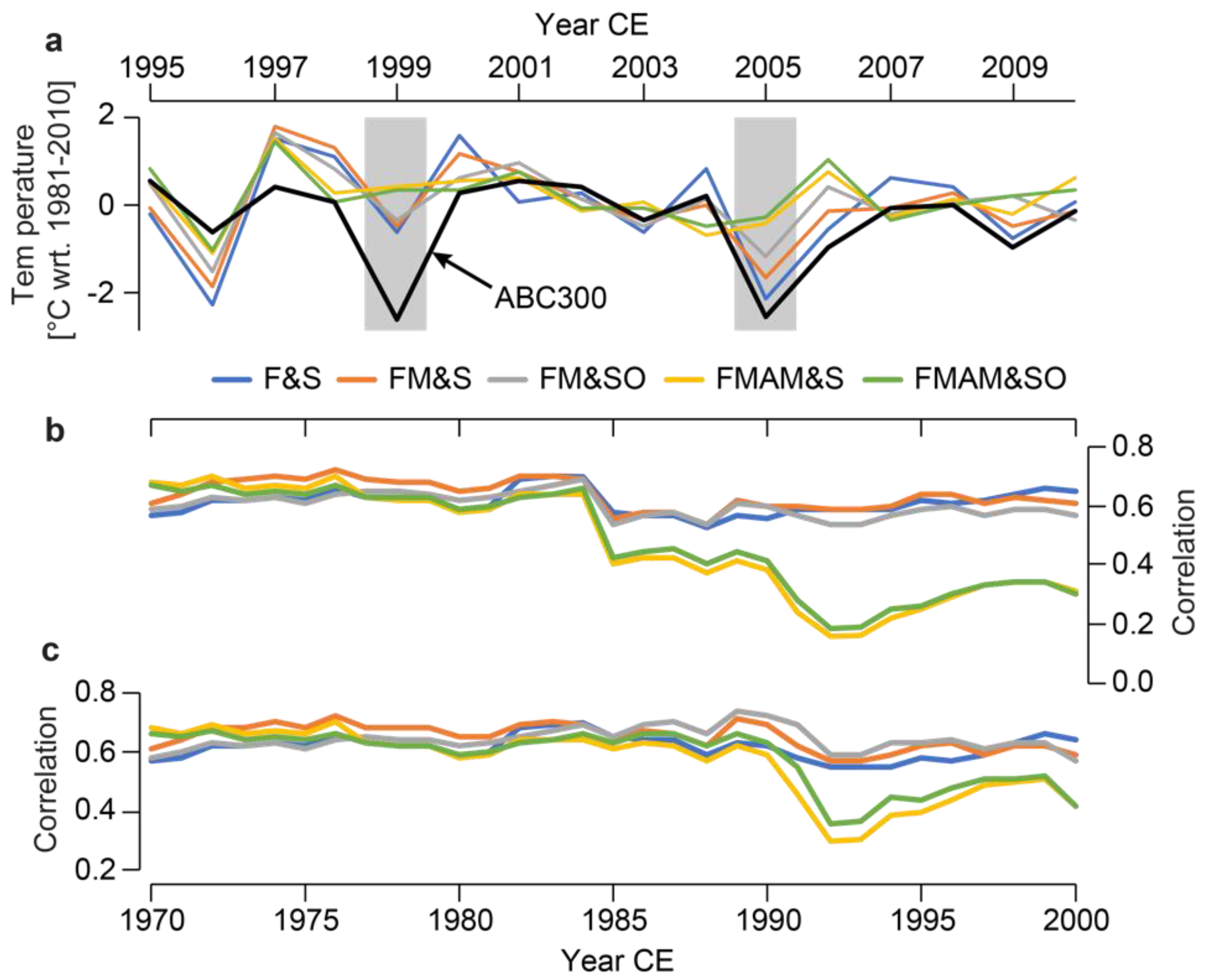

The two extremely negative deviations in 1999 and 2005 in the transferred ABC300 chronology are reflected in the shorter season (F&S, FM&S, FM&SO) temperature data, but disappear when including April and May in the seasonal means (the yellow and green curves in Figure 8a). The absent cooling in the longer seasons (FMAM&S, FMAM&SO) impacts the running correlations, and the removal of the 1999 and 2005 data from these calculations mitigates the correlation gap after 1990 and entirely closes it between 1985 and 1990 (Figure 8b,c). We do not propose that such data removal should be considered for the calibration and transfer of the CNP proxy data, but intend to emphasize the causes of the post 1980 correlation decline when considering the longer season FMAM&S and FMAM&SO temperature data for calibration. The temporal variability of proxy-target correlations, composed of (i) a pre-1960 decline in the shorter season means and (ii) a post-1980 decline in the longer season means, translates into large uncertainties when transferring the CNP MXD data into temperature estimates. In addition, it is not feasible to statistically validate the seasonality of such a reconstruction based on the calibration against heterogeneous instrumental temperatures. However, since the overall highest correlations were recorded using the ABC300 chronology and FMAM&SO season over the long 1905–2014 calibration period (Figure 6), and since the other chronologies either do not meet RCS-detrending requirements (ALL) or suffer from low sample replications (ABC200; Figure 4), we opt for this combination (ABC300 and FMAM&SO) when producing a formal reconstruction.

3.4. Temperature Reconstruction and Benchmarking

Given the overall weak interseries correlation among the MXD data, and the caveats of signal estimation against heterogenous regional climate data, one could argue that a proxy transfer into temperature estimates and publication of a formal reconstruction is not fully warranted. On the other hand, the CNP is perhaps the only location in southern Spain providing annually resolved estimates of temperature variability over the past several centuries. It therefore appeared reasonable to scale the dimensionless MXD index values against instrumental data [73] and produce a reconstruction of FMAM&SO temperature variability reaching back to 1350 CE, though we remind users of this reconstruction to consider the limitations und uncertainties detailed in the previous section. The ABC300 chronology correlates at r = 0.49 over the long 1905–2014 calibration period against mean FMAM&SO temperatures of five instrumental stations. Positive RE and CE values ranging from 0.18–0.39 and 0.15–0.29, respectively, indicate that the reconstruction has some statistical skill. This conclusion is supported by a high Durbin–Watson value of 1.4, indicating that the proxy-target residuals contain no substantial drift throughout the calibration period.

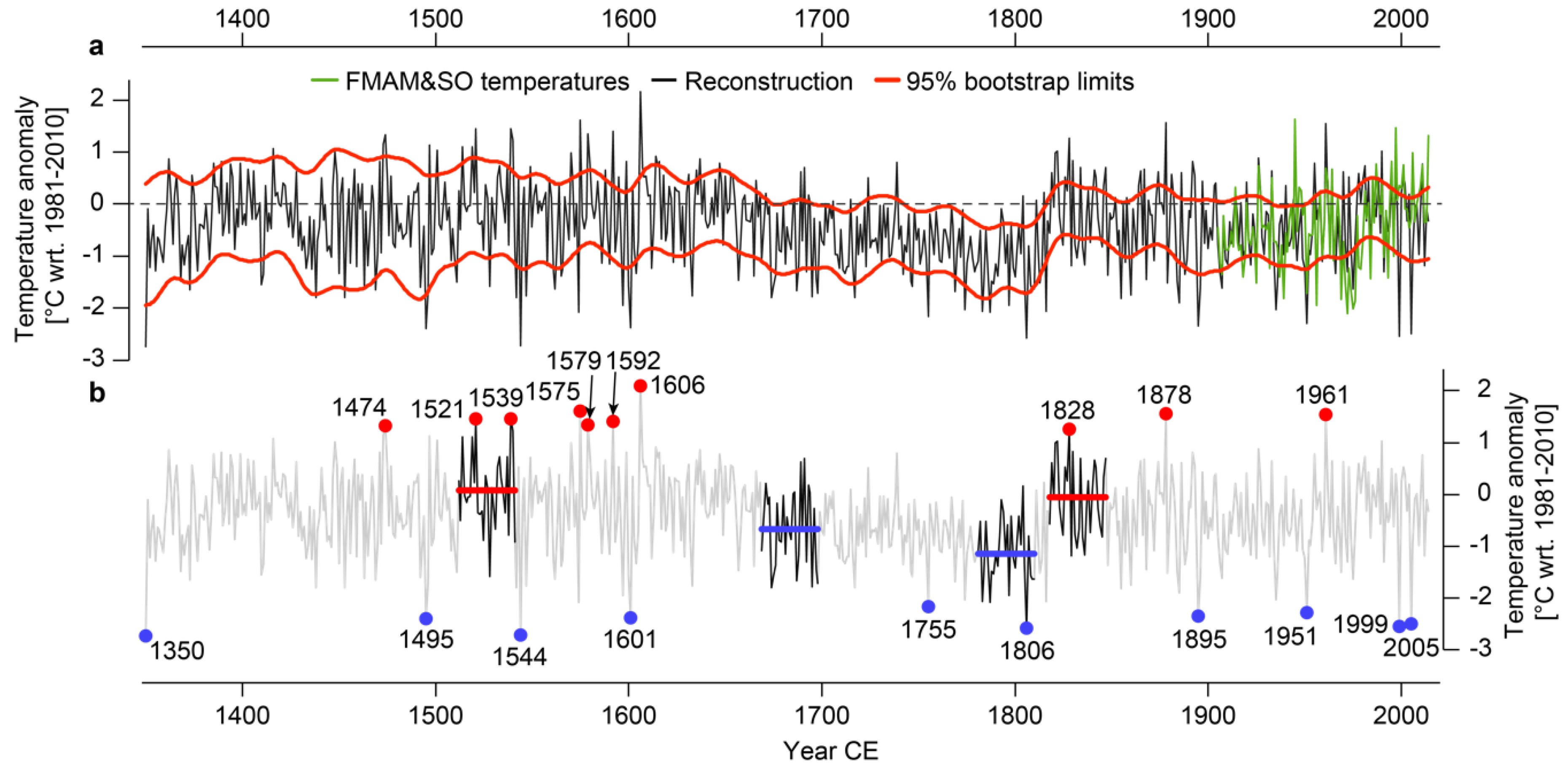

The FMAM&SO temperature reconstruction reveals warm conditions during the early 19th, early 17th, and 16th centuries that were of similar magnitude than warmth recorded since the second half of the 20th century (Figure 9). The 95% bootstrap confidence limits demonstrate that none of these periods is significantly warmer than any other period, however, and it also remains unclear whether the reconstruction presented here captures the full spectrum of low frequency variance. The latter is concluded because the original CNP MXD data is composed of samples from only living trees, and we here “just” truncated the biologically older rings >300 years to produce a dataset characterized by relatively flat mean age and segment length curves (Figure 4, Supplementary Figure S4) to meet requirements for RCS detrending [38]. The data truncation reduced the replication of the ABC300 chronology particularly after 1600 CE, but also the early chronology periods before 1584 CE are replicated by fewer than 20 MXD series. These values are overall not impressive if compared with the worldwide best-replicated MXD-based reconstruction from the Spanish Pyrenees integrating >100 MXD series throughout the 16th century [19].
The most striking, and statistically significant feature is the ~1 °C change from exceptionally cold late-18th-century conditions (t1781–1810 = −1.15 °C ± 0.64 °C) to record levels of warmth in the early 19th century (t1781–1810 = −1.15 °C ± 0.64 °C). This rapid temperature increase is centered around the Tambora eruption in 1815 that is marked by cold FMAM&SO temperatures in the 1816 “year without a summer” [74] (t1816 = −2.1 °C ± 0.55 °C, the 14th coldest year since 1350 CE). Whether this change from colder to warmer conditions is related to external climate forcings could perhaps be evaluated by comparison with climate model simulations [75]. The rapid transition from low-to-high temperatures throughout the Dalton Solar Minimum from 1790–1830 [76] suggests, however, that this lower frequency temperature change is not related to solar forcing. Before this period, and particularly before 1600 CE, the bootstrap confidence limits (red curves in Figure 9) markedly increase, demonstrating that the FMAM&SO temperature estimates are less reliable back in time (Supplementary Figure S7).
As with the early 19th century temperature shift, the annual cold extremes reconstructed over the past 650 years (blue dots in Figure 9) appear to be only partly related to external climate forcings, as only two large volcanic eruptions in 1600 (Huaynaputina in Peru) and 1452 (unknown) [77], recorded in bipolar ice core records [51], coincide with substantial cooling in subsequent years: t1601 = −2.4 °C ± 0.74 °C is seventh coldest year and t1453 = −1.8 °C ± 1.32 °C is the tenth coldest year since 1350 CE (ranks after high-pass filtering the data). Interestingly, the cold extremes are fairly evenly distributed throughout the past 650 years, whereas several of the warm extremes are clustered between the late 15th and early 16th centuries. This concentration of warm events is linked to an increase in interseries correlation (Rbar, Supplementary Figure S7a) enhancing the high-frequency variability of the mean chronologies during this period. We did not remove this variance surplus using adjustment techniques [78], as it appeared unrelated to structural changes in the underlying data. This variance could reflect a period during which the climate was potentially more variable. The underlying forcing for this high-variance period in the CNP reconstruction remains unknown, however.

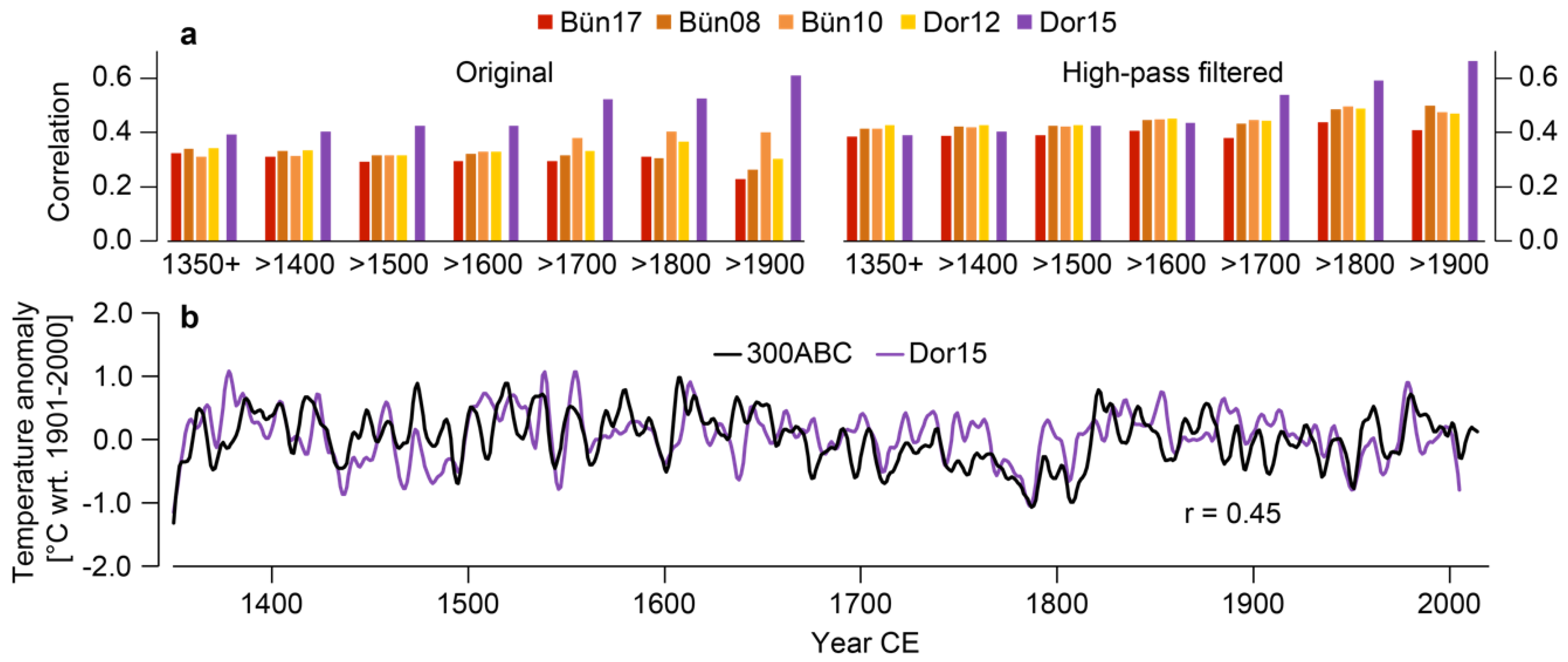

Comparison of the CNP MXD record with warm season temperature reconstructions from a MXD network in the Spanish Pyrenees [7,16,19,20] and a previous-year September–October temperature reconstruction from CNP TRW data [27] reveals substantial covariances over the past 650 years (Figure 10). The correlations against the Pyrenees data, from sites located ~600 km north of the CNP, are all significant (p < 0.01) and increase when removing lower frequency variance from the timeseries using 10-year spline filters (the right panel in Figure 10a). The values are statistically indistinguishable among the four Pyrenees records and slightly increase from a minimum of r = 0.41 calculated over the full 1350–2005 period of overlap to a maximum of r = 0.46 calculated of the most recent period since 1901. Similarly, the correlations with the (reversed) CNP TRW-based reconstruction also increase towards present, though the change is much larger reaching from r1350–2005 = 0.39 to r1901–2005 = 0.66. Whereas the covariance between the CNP and Pyrenees MXD records declines when low-pass filtering the data (not shown), the CNP MXD and TRW records also correlate significantly at r1350–2005 = 0.45 after smoothing the timeseries (Figure 10b). Note, however, that the TRW-based reconstruction was reversed and shifted by one year in these comparisons, as the correlations were otherwise close to zero (r < 0.1).
Whereas the high covariance of the CNP FMAM&SO temperature reconstruction with the highly replicated MXD network from the Pyrenees is reconfirming that the reconstruction presented here contains useful climatic information (albeit the large uncertainty limits), the lacking coherence with the original TRW-based reconstruction from CNP Pinus nigra requires further explanation. After reversing the TRW-based reconstruction, we effectively demonstrate that MXD and TRW data from the same CNP pine forest correlate substantially. The correlation increases towards the present, likely affected by the replication changes of the underlying TRW and MXD data. This temporal change in co-variance is much smaller, however, when comparing the MXD-based reconstructions from the CNP and Pyrenees, suggesting a stronger temporal weakening of the signal in TRW. The lacking correlation between the MXD-based and original (non-reversed and shifted) TRW-based CNP reconstructions is in line with expectations based on the correlation of instrumental previous-year late summer temperatures (targeted by the TRW reconstruction) and current-year FMAM&SO temperatures (targeted by the MXD reconstruction), which are also insignificant. Disentangling this complicated association between previous-year and current-year climate signals recorded in CNP TRW and MXD data appears challenging, and we are currently in the process of developing a large earlywood/latewood width dataset from hundreds of the CNP black pines to address this conundrum.

4. Conclusions

Ancient black pine trees from the Cazorla Natural Park (CNP) in southern Spain were used to develop one of the worldwide southernmost MXD-based temperature reconstructions produced so far. The underlying measurement series of this reconstruction were truncated at a biological age >300 years to support the application of a detrending method (RCS) capable of preserving low-frequency variability in the resulting index chronology. The reconstruction derived from this chronology is accompanied by large uncertainties arising from (i) relatively feeble calibration statistics (e.g., 25% explained FMAM&SO temperature variance), and (ii) a decline in sampled replication from >35 series in the 20th century to <18 series before 1500 CE. Additional assessments of the instrumental station records in the study region showed, however, that the calibration statistics were not only controlled by uncertainties inherent to the tree-ring proxy, but that the long distances of reliable instrumental data and inhomogeneities among these timeseries additionally affect the reconstruction skill estimates.
The final FMAM&SO temperature reconstruction shows relatively limited centennial scale variability, such as a prolonged Little Ice Age and transition into warmer 20th-century conditions, as reported from sites in central and northern Europe [35,59,60]. Instead, the most striking feature is a rapid warming trend from the late 18th to the early 19th century, subsequent to a gradual cooling trend throughout much of the 17th and 18th centuries. The influence of external (solar and volcanic) climate forcings appears to be of minor importance, as the high-to-low frequency variance of the new reconstruction does not cohere particularly well with prominent solar minima and large volcanic eruptions over the past 650 years. The MXD-based temperature reconstruction from the CNP represents a new benchmark for high-resolution, pre-instrumental climate variability in the southwestern Mediterranean region, though users of this record are reminded of the large uncertainties, particularly before 1600 CE.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4433/11/7/748/s1, Table S1: MXD site chronology statistics; Figure S1: High-resolution wood density profile; Figure S2: Spline detrended MXD site chronologies; Figure S3: MXD site regional curves; Figure S4: Cazorla MXD chronologies; Figure S5: Monthly correlation patterns; Figure S6: Lower frequency proxy-target coherence; Figure S7: Running interseries correlations, Expressed Population Signals, and correlation pairs.

Author Contributions

J.E., E.T., M.d.L., and U.B. designed the study. J.E., C.H., E.T., M.d.L., and B.G. conducted field and laboratory. Data were analyzed and interpreted by J.E., C.H., E.T., and U.B., and all authors wrote the paper. All authors have read and agreed to the published version of the manuscript.

Funding

Supported by the German Science Foundation grants ”Inst 247/665-1 FUGG”, “ES 161/9-1”, and “HA 8084/1-1”, the Spanish Ministry of Economy, Industry and Competitiveness grant “CGL2015-69985”, and the United States NSF grants “PIRE, OISE-1743738” and “P2C2, AGS-1702439”.

Acknowledgments

We thank Edurne Martinez del Castillo, Manuel Dienst, Markus Kochbeck, Oliver Konter, Jenny Linden, Luis Alberto Longares, Klemen Novak, Sebastian Olszanski, Miguel Angel Saz, and Jessica Wolf for field and laboratory support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Rohde, R.; Muller, R.; Jacobsen, R.; Perlmutter, S.; Rosenfeld, A.; Wurtele, J.; Curry, J.; Wickham, C.; Mosher, S. Berkeley earth temperature averaging process. Geoinform. Geostat. Overv. 2013, 1, 1–13. [Google Scholar] [CrossRef]
  2. Ruiz Sinoga, J.D.; Garcia Marin, R.; Martinez Murillo, J.F.; Gabarron Galeote, M.A. Precipitation dynamics in southern Spain: Trends and cycles. Int. J. Climatol. 2011, 31, 2281–2289. [Google Scholar] [CrossRef]
  3. Li, W.; Li, L.; Ting, M.; Liu, Y. Intensification of Northern Hemisphere subtropical highs in a warming climate. Nat. Geosci. 2012, 5, 830–834. [Google Scholar] [CrossRef]
  4. Gao, X.; Giorgi, F. Increased aridity in the Mediterranean region under greenhouse gas forcing estimated from high resolution simulations with a regional climate model. Glob. Planet. Chang. 2008, 62, 195–209. [Google Scholar] [CrossRef]
  5. Hertig, E.; Jacobeit, J. Downscaling future climate change: Temperature scenarios for the Mediterranean area. Glob. Planet. Chang. 2008, 63, 127–131. [Google Scholar] [CrossRef]
  6. Sánchez, E.; Gallardo, C.; Gaertner, M.A.; Arribas, A.; Castro, M. Future climate extreme events in the Mediterranean simulated by a regional climate model: A first approach. Glob. Planet. Chang. 2004, 44, 163–180. [Google Scholar] [CrossRef]
  7. Büntgen, U.; Frank, D.; Grudd, H.; Esper, J. Long-term summer temperature variations in the Pyrenees. Clim. Dyn. 2008, 31, 615–631. [Google Scholar] [CrossRef] [Green Version]
  8. Esper, J.; Großjean, J.; Camarero, J.J.; García-Cervigón, A.I.; Olano, J.M.; González-Rouco, J.F.; Domínquez-Castro, F.; Büntgen, U. Atlantic and Mediterranean synoptic drivers of central Spanish juniper growth. Theor. Appl. Climatol. 2015, 121, 571–579. [Google Scholar] [CrossRef]
  9. Galván, J.D.; Camarero, J.J.; Gutiérrez, E. Seeing the trees for the forest: Drivers of individual growth responses to climate in Pinus uncinata mountain forests. J. Ecol. 2014, 102, 1244–1257. [Google Scholar] [CrossRef]
  10. Barriendos, M. Climatic variations in the Iberian Peninsula during the late Maunder Minimum (AD 1675–1715): An analysis of data from rogation ceremonies. Holocene 1997, 7, 105–111. [Google Scholar] [CrossRef]
  11. Barriendos, M.; Rodrigo, F.S. Study of historical flood events on Spanish rivers using documentary data Study of historical flood events on Spanish rivers using documentary data. Hydrol. Sci. J. 2006, 51, 765–783. [Google Scholar] [CrossRef] [Green Version]
  12. Tejedor, E.; De Luis, M.; Barriendos, M.; Cuadrat, J.M.; Luterbacher, J.; Saz, M.Á. Rogation ceremonies: A key to understanding past drought variability in northeastern Spain since 1650. Clim. Past. 2019, 15, 1647–1664. [Google Scholar] [CrossRef] [Green Version]
  13. Benito, G.; Díez-Herrero, A.; De Villalta, M.F. Magnitude and frequency of flooding in the Tagus basin (Central Spain) over the last millennium. Clim. Chang. 2003, 58, 171–192. [Google Scholar] [CrossRef]
  14. Rodrigo, F.S.; Barriendos, M. Reconstruction of seasonal and annual rainfall variability in the Iberian peninsula (16th–20th centuries) from documentary data. Glob. Plan. Chang. 2008, 63, 243–257. [Google Scholar] [CrossRef]
  15. Barriendos, M.; Guirado, S.G.; Gonzalez, D.P.; Tuset, J.; Morales, A.P.; Alberola, A.; Costa, J.; Balasch, J.C.; Castelltort, X.; Bueso, J.M.; et al. Climatic and social factors behind the Spanish Mediterranean flood event chronologies from documentary sources (14th–20th centuries). Glob. Planet. Chang. 2019, 182, 102997. [Google Scholar] [CrossRef]
  16. Büntgen, U.; Frank, D.; Trouet, V.; Esper, J. Diverse climate sensitivity of Mediterranean tree-ring width and density. Trees 2010, 24, 261–273. [Google Scholar] [CrossRef] [Green Version]
  17. Tejedor, E.; de Luis, M.; Cuadrat, J.M.; Esper, J.; Saz, M.Á. Tree-ring-based drought reconstruction in the Iberian Range (east of Spain) since 1694. Int. J. Biometeor. 2016, 60, 361–372. [Google Scholar] [CrossRef] [Green Version]
  18. Esper, J.; Schneider, L.; Smerdon, J.; Schöne, B.; Büntgen, U. Signals and memory in tree-ring width and density data. Dendrochronologia 2015, 35, 62–70. [Google Scholar] [CrossRef] [Green Version]
  19. Büntgen, U.; Krusic, P.J.; Verstege, A.; Sangüesa-Barreda, G.; Wagner, S.; Camarero, J.J.; Ljungqvist, F.C.; Zorita, E.; Oppenheimer, C.; Konter, O.; et al. New tree-ring evidence from the Pyrenees reveals Western Mediterranean climate variability since medieval times. J. Clim. 2017, 30, 5295–5318. [Google Scholar] [CrossRef]
  20. Dorado-Liñán, I.; Büntgen, U.; González-Rouco, J.F.; Zorita, E.; Montavez, J.P.; Gómez-Navarro, J.J.; Brunet, M.; Heinrich, I.; Helle, G.; Gutiérrez, E. Estimating 750 years of temperature variations and uncertainties in the Pyrenees by tree-ring reconstructions and climate simulations. Clim. Past 2012, 8, 919–933. [Google Scholar] [CrossRef] [Green Version]
  21. Esper, J.; Konter, O.; Krusic, P.J.; Saurer, M.; Holzkämper, S.; Büntgen, U. Long-term summer temperature variations in the Pyrenees from detrended stable carbon isotopes. Geochronometria 2015, 42, 53–59. [Google Scholar] [CrossRef] [Green Version]
  22. Sangüesa-Barreda, G.; Camarero, J.J.; Esper, J.; Galvan, J.D.; Büntgen, U. A millennium-long perspective on high-elevation pine recruitment in the Spanish central Pyrenees. Can. J. For. Res. 2018, 48, 1108–1113. [Google Scholar] [CrossRef]
  23. Tejedor, E.; Saz, M.A.; Esper, J.; Cuadrat, J.M.; de Luis, M. Summer drought reconstruction in northeastern Spain inferred from a tree ring latewood network since 1734. Geophys. Res. Lett. 2017, 44, 8492–8500. [Google Scholar] [CrossRef] [Green Version]
  24. Linares, J.C.; Tíscar, P.A. Climate change impacts and vulnerability of the southern populations of Pinus nigra subsp. salzmannii. Tree Physiol. 2010, 30, 795–806. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Domínguez-Delmás, M.; Alejano-Monge, R.; Wazny, T.; González, I.G. Radial growth variations of black pine along an elevation gradient in the Cazorla Mountains (South of Spain) and their relevance for historical and environmental studies. Eur. J. For. Res. 2013, 132, 635–652. [Google Scholar] [CrossRef]
  26. Dorado Liñán, I.; Gutiérrez, E.; Andreu-Hayles, L.; Heinrich, I.; Helle, G. Potential to explain climate from tree rings in the south of the Iberian Peninsula. Clim. Res. 2012, 55, 119–134. [Google Scholar] [CrossRef] [Green Version]
  27. Dorado Liñán, I.; Zorita, E.; González-Rouco, J.F.; Heinrich, I.; Campello, F.; Muntán, E.; Andreu-Hayles, L.; Gutiérrez, E. Eight-hundred years of summer temperature variations in the southeast of the Iberian Peninsula reconstructed from tree rings. Clim. Dyn. 2015, 44, 75–93. [Google Scholar] [CrossRef]
  28. Glueck, M.F.; Stockton, C.W. Reconstruction of the North Atlantic Oscillation, 1429–1983. Int. J. Climatol. 2001, 21, 1453–1465. [Google Scholar] [CrossRef]
  29. Esper, J.; Büntgen, U.; Frank, D.C.; Nievergelt, D.; Treydte, K.; Verstege, A. Multiple tree-ring parameters from Atlas cedar (Morocco) and their climatic signal. Trace 2006, 4, 46–55. [Google Scholar]
  30. Esper, J.; Frank, D.C.; Büntgen, U.; Verstege, A.; Luterbacher, J.; Xoplaki, E. Long-term drought severity variations in Morocco. Geophys. Res. Lett. 2007, 34, L17702. [Google Scholar] [CrossRef] [Green Version]
  31. Björklund, J.; Von Arx, G.; Nievergelt, D.; Wilson, R.; Bulcke, J.V.D.; Günther, B.; Loader, N.J.; Rydval, M.; Fonti, P.; Scharnweber, T.; et al. Scientific merits and analytical challenges of tree-ring densitometry. Rev. Geophys. 2019, 57, 1224–1264. [Google Scholar] [CrossRef] [Green Version]
  32. Eschbach, W.; Nogler, P.; Schär, E.; Schweingruber, F.H. Technical advances in the radiodensitometrical determination of wood density. Dendrochronologia 1995, 13, 155–168. [Google Scholar]
  33. Schweingruber, F.H.; Fritts, H.C.; Bräker, O.U.; Drew, L.G.; Schär, E. The X-ray technique as applied to dendroclimatology. Tree-Ring Bull. 1978, 38, 61–91. [Google Scholar]
  34. Fang, K.; Gou, X.; Peters, K.; Li, J.; Zhang, F. Removing biological trends from tree-ring series: Testing modified Hugershoff curves. Tree-Ring Res. 2010, 66, 51–59. [Google Scholar] [CrossRef] [Green Version]
  35. Esper, J.; Frank, D.C.; Timonen, M.; Zorita, E.; Wilson, R.; Luterbacher, J.; Holzkämper, S.; Fischer, N.; Wagner, S.; Nievergelt, D.; et al. Orbital forcing of tree-ring data. Nat. Clim. Chang. 2012, 2, 862–866. [Google Scholar] [CrossRef]
  36. Esper, J.; Düthorn, E.; Krusic, P.; Timonen, M.; Büntgen, U. Northern European summer temperature variations over the Common Era from integrated tree-ring density records. J. Quat. Sci. 2014, 29, 487–494. [Google Scholar] [CrossRef]
  37. Briffa, K.R.; Jones, P.D.; Bartholin, T.S.; Eckstein, D.; Schweingruber, F.H.; Karlén, W.; Zetterberg, P.; Eronen, M. Fennoscandian summers from AD 500: Temperature changes on short and long timescales. Clim. Dyn. 1992, 7, 111–119. [Google Scholar] [CrossRef]
  38. Esper, J.; Cook, E.R.; Krusic, P.J.; Peters, K.; Schweingruber, F.H. Tests of the RCS method for preserving low-frequency variability in long tree-ring chronologies. Tree-Ring Res. 2003, 59, 81–98. [Google Scholar]
  39. Esper, J.; Krusic, P.J.; Ljungqvist, F.C.; Luterbacher, J.; Carrer, M.; Cook, E.; Davi, N.K.; Hartl, C.; Kirdyanov, A.; Konter, O.; et al. Ranking of tree-ring based temperature reconstructions of the past millennium. Quat. Sci. Rev. 2016, 145, 134–151. [Google Scholar] [CrossRef] [Green Version]
  40. Briffa, K.R.; Osborn, T.J.; Schweingruber, F.H.; Harris, I.C.; Jones, P.D.; Shiyatov, S.G.; Vaganov, E.A. Low-frequency temperature variations from a northern tree ring density network. J. Geophys. Res. Atmos. 2001, 106, 2929–2941. [Google Scholar] [CrossRef]
  41. Cook, E.R.; Kairiukstis, L.A. Methods of Dendrochronology. Applications in the Environmental Science, 1st ed.; Kluwer: Dordrecht, The Netherlands, 1990. [Google Scholar]
  42. Wigley, T.M.L.; Briffa, K.R.; Jones, P.D. On the average of correlated time series, with applications in dendroclimatology and hydrometeorology. J. Clim. Appl. Meteorol. 1984, 23, 201–213. [Google Scholar] [CrossRef]
  43. Trouet, V.; Van Oldenborgh, G.J. KNMI Climate Explorer: A web-based research tool for high-resolution paleoclimatology. Tree-Ring Res. 2013, 69, 3–13. [Google Scholar] [CrossRef] [Green Version]
  44. Hansen, J.; Ruedy, R.; Sato, M.; Lo, K. Global surface temperature change. Rev. Geophys. 2010, 48, 4. [Google Scholar] [CrossRef] [Green Version]
  45. Harris, I.; Jones, P.D.; Osborn, T.J.; Lister, D.H. Updated high-resolution grids of monthly climatic observations–the CRU TS3.10 dataset. Int. J. Climatol. 2014, 34, 623–642. [Google Scholar] [CrossRef] [Green Version]
  46. Cook, E.R.; Briffa, K.R.; Jones, P.D. Spatial regression methods in dendroclimatology: A review and comparison of two techniques. Int. J. Climatol. 1994, 14, 379–402. [Google Scholar] [CrossRef]
  47. Durbin, J.; Watson, G.S. Testing for serial correlation in least squares regression. II. Biometrika 1951, 38, 159–178. [Google Scholar] [CrossRef]
  48. Anchukaitis, K.J.; Breitenmoser, P.; Briffa, K.R.; Buchwal, A.; Büntgen, U.; Cook, E.R.; D’Arrigo, R.D.; Esper, J.; Evans, M.N.; Frank, D.; et al. Tree rings and volcanic cooling. Nat. Geosci. 2012, 5, 836–837. [Google Scholar] [CrossRef] [Green Version]
  49. Esper, J.; Büntgen, U.; Luterbacher, J.; Krusic, P. Testing the hypothesis of post-volcanic missing rings in temperature sensitive dendrochronological data. Dendrochronologia 2013, 31, 216–222. [Google Scholar] [CrossRef]
  50. Esper, J.; Schneider, L.; Krusic, P.J.; Luterbacher, J.; Büntgen, U.; Timonen, M.; Sirocko, F.; Zorita, E. European summer temperature response to annually dated volcanic eruptions over the past nine centuries. Bull. Volcanol. 2013, 75, 736. [Google Scholar] [CrossRef] [Green Version]
  51. Sigl, M.; Winstrup, M.; Mcconnell, J.R.; Welten, K.C.; Plunkett, G.; Ludlow, F.; Büntgen, U.; Caffee, M.W.; Chellman, N.; Dahl-Jensen, D.; et al. Timing and climate forcing of volcanic eruptions for the past 2500 years. Nature 2015, 523, 543–549. [Google Scholar] [CrossRef] [Green Version]
  52. Toohey, M.; Sigl, M. Volcanic stratospheric sulfur injections and aerosol optical depth from 500 BCE to 1900 CE. Earth Syst. Sci. Data 2017, 9, 809–831. [Google Scholar] [CrossRef] [Green Version]
  53. Ljungqvist, F.C.; Piermattei, A.; Seim, A.; Krusic, P.J.; Büntgen, U.; He, M.; Kirdyanov, V.A.; Luterbacher, J.; Schneider, L.; Seftigen, K.; et al. Ranking of tree-ring based hydroclimate reconstructions of the past millennium. Quat. Sci. Rev. 2020, 230, 106074. [Google Scholar] [CrossRef]
  54. Esper, J.; Krusic, P.; Peters, K.; Frank, D. Exploration of long-term growth changes using the tree-ring detrending program Spotty. Dendrochronologia 2009, 27, 75–82. [Google Scholar] [CrossRef]
  55. Melvin, T.M.; Briffa, K.R. A “signal-free” approach to dendroclimatic standardisation. Dendrochronologia 2008, 26, 71–86. [Google Scholar] [CrossRef]
  56. Büntgen, U.; Raible, C.C.; Frank, D.; Helama, S.; Cunningham, L.; Hofer, D.; Nievergelt, D.; Verstege, A.; Timonen, M.; Stenseth, N.C.; et al. Causes and consequences of past and projected Scandinavian summer temperatures, 500–2100 AD. PLoS ONE 2011, 6, 9. [Google Scholar] [CrossRef] [Green Version]
  57. Briffa, K.R.; Schweingruber, F.H.; Jones, P.D.; Osborn, T.J.; Shiyatov, S.G.; Vaganov, E.A. Reduced sensitivity of recent tree-growth to temperature at high northern latitudes. Nature 1998, 391, 678–682. [Google Scholar] [CrossRef]
  58. Frank, D.; Esper, J. Characterization and climate response patterns of a high-elevation, multi-species tree-ring network in the European Alps. Dendrochronologia 2005, 22, 107–121. [Google Scholar] [CrossRef]
  59. Esper, J.; Klippel, L.; Krusic, P.J.; Konter, O.; Raible, C.; Xoplaki, E.; Luterbacher, J.; Büntgen, U. Eastern Mediterranean summer temperatures since 730 CE from Mt. Smolikas tree-ring densities. Clim. Dyn. 2020, 54, 1367–1382. [Google Scholar] [CrossRef]
  60. Büntgen, U.; Frank, D.C.; Nievergelt, D.; Esper, J. Summer temperature variations in the European Alps, A.D. 755–2004. J. Clim. 2006, 19, 5606–5623. [Google Scholar]
  61. Schweingruber, F.H.; Bartholin, T.; Schär, E.; Briffa, K.R. Radiodensitometric-dendroclimatological conifer chronologies from Lapland (Scandinavia) and the Alps (Switzerland). Boreas 1988, 17, 559–566. [Google Scholar] [CrossRef]
  62. Schneider, L.; Esper, J.; Timonen, M.; Büntgen, U. Detection and evaluation of an early divergence problem in Northern Fennoscandian tree-ring data. Oikos 2013, 123, 559–566. [Google Scholar] [CrossRef]
  63. Böhm, R.; Auer, I.; Brunetti, M.; Maugeri, M.; Nanni, T.; Schöner, W. Regional temperature variability in the European Alps: 1760–1998 from homogenized instrumental time series. Int. J. Climatol. 2001, 21, 1779–1801. [Google Scholar] [CrossRef]
  64. Böhm, R.; Jones, P.D.; Hiebl, J.; Frank, D.; Brunetti, M.; Maugeri, M. The early instrumental warm-bias: A solution for long central European temperature series 1760–2007. Clim. Chang. 2010, 101, 41–67. [Google Scholar] [CrossRef]
  65. Dienst, M.; Lindén, J.; Engström, E.; Esper, J. Removing the relocation bias from the 155-year Haparanda temperature record in Northern Europe. Int. J. Climatol. 2017, 37, 4015–4026. [Google Scholar] [CrossRef]
  66. Dienst, M.; Linden, J.; Esper, J. Determination of the urban heat island intensity in villages and its connection to land cover in three European climate zones. Clim. Res. 2018, 76, 1–15. [Google Scholar] [CrossRef]
  67. Dienst, M.; Lindén, J.; Saladié, O.; Esper, J. Detection and elimination of UHI effects in long temperature records from villages – A case study from Tivissa, Spain. Urban Clim. 2019, 27, 372–383. [Google Scholar] [CrossRef]
  68. Hansen, J.; Ruedy, R.; Sato, M.; Imhoff, M.; Lawrence, W.; Easterling, D.; Peterson, T.; Karl, T. A closer look at United States and global surface temperature change. J. Geophys. Res. Atmos. 2001, 106, 23947–23963. [Google Scholar] [CrossRef] [Green Version]
  69. Sr., R.A.P.; Davey, C.A.; Niyogi, D.; Fall, S.; Steinweg-Woods, J.; Hubbard, K.; Lin, X.; Cai, M.; Lim, Y.-K.; Li, H.; et al. Unresolved issues with the assessment of multidecadal global land surface temperature trends. J. Geophys. Res. Atmos. 2007, 112, D24. [Google Scholar]
  70. Rizwan, A.M.; Dennis, L.Y.C.; Liu, C. A review on the generation, determination and mitigation of Urban Heat Island. J. Environ. Sci. 2008, 20, 120–128. [Google Scholar] [CrossRef]
  71. Smith, T.M.; Reynolds, R.W.; Peterson, T.C.; Lawrimore, J. Improvements to NOAA’s historical merged land–ocean surface temperature analysis (1880–2006). J. Clim. 2008, 21, 2283–2296. [Google Scholar] [CrossRef]
  72. Menne, M.J.; Durre, I.; Vose, R.S.; Gleason, B.E.; Houston, T.G. An overview of the global historical climatology network-daily database. J. Atmos. Ocean Technol. 2012, 29, 897–910. [Google Scholar] [CrossRef]
  73. Esper, J.; Frank, D.C.; Wilson, R.J.S.; Briffa, K.R. Effect of scaling and regression on reconstructed temperature amplitude for the past millennium. Geophys. Res. Lett. 2005, 32, 7. [Google Scholar] [CrossRef] [Green Version]
  74. Luterbacher, J.; Pfister, C. The year without a summer. Nat. Geosci. 2015, 8, 246–248. [Google Scholar] [CrossRef]
  75. Hartl-Meier, C.; Büntgen, U.; Smerdon, J.E.; Zorita, E.; Krusic, P.J.; Ljungqvist, F.C.; Schneider, L.; Esper, J. Temperature covariance in tree-ring reconstructions and climate model simulations over the past millennium. Geophys. Res. Lett. 2017, 44, 9458–9469. [Google Scholar] [CrossRef] [Green Version]
  76. Usoskin, I.G.; Mursula, K.; Kovaltsov, G.A. Lost sunspot cycle in the beginning of Dalton minimum: New evidence and consequences. Geophys. Res. Lett. 2002, 29, 36-1–36-4. [Google Scholar] [CrossRef] [Green Version]
  77. Esper, J.; Büntgen, U.; Hartl-Meier, C.; Oppenheimer, C.; Schneider, L. Northern Hemisphere temperature anomalies during the 1450s period of ambiguous volcanic forcing. Bull. Volcanol. 2017, 79, 41. [Google Scholar] [CrossRef]
  78. Frank, D.; Esper, J.; Cook, E.R. Adjustment for proxy number and coherence in a large-scale temperature reconstruction. Geophys. Res. Lett. 2007, 34, 16. [Google Scholar] [CrossRef] [Green Version]
Atmosphere 11 00748 g001 550

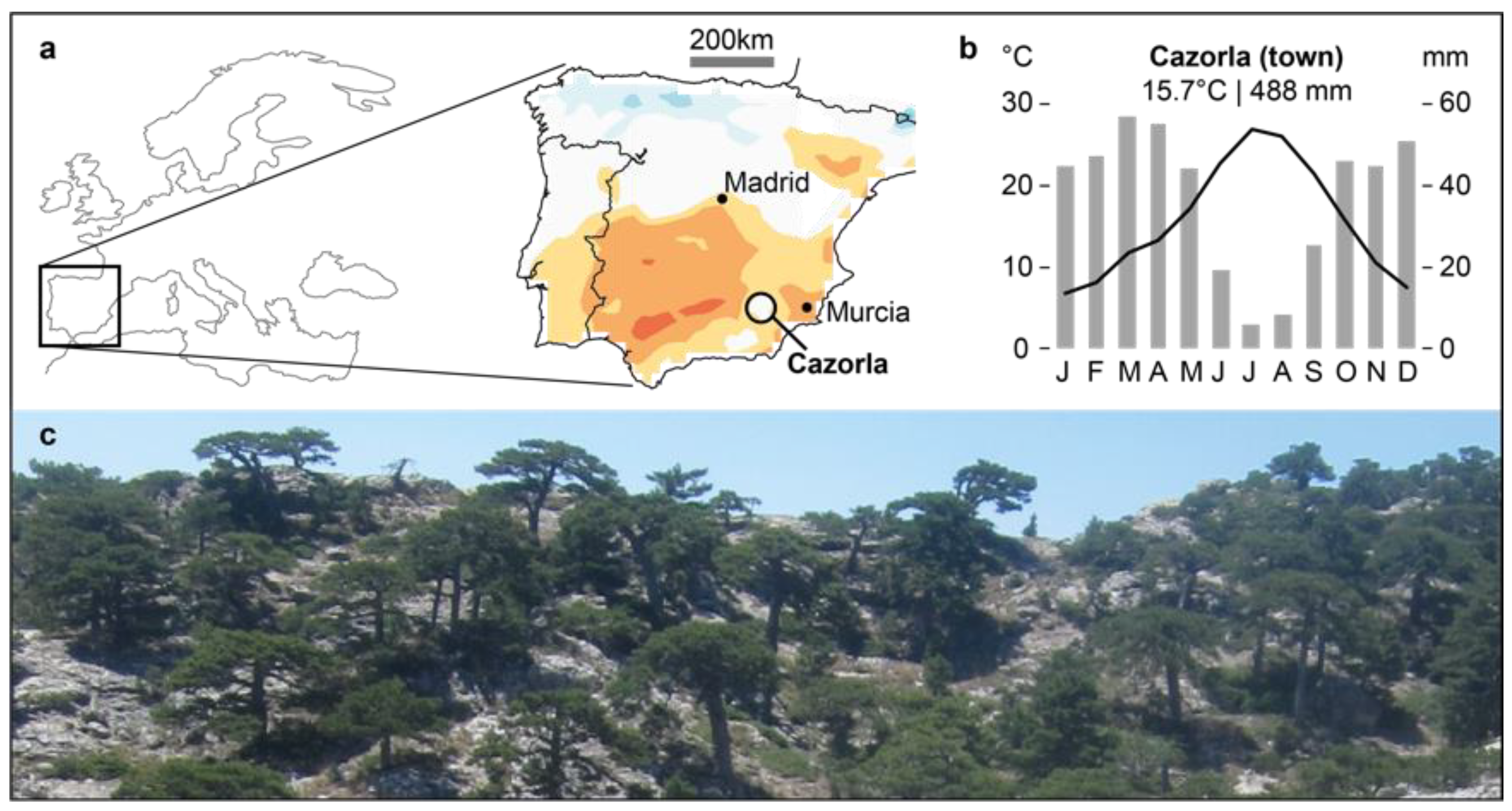

Figure 1. Study site and climate. (a) Location of the Cazorla Natural Park (CNP) in southern Spain. Colors indicate mean summer temperatures exceeding 24 °C in yellow, 26 °C in orange, and 28 °C in red. (b) Climate diagram of the station located in the town of Cazorla ~10 km northeast but 1000 m below the black pine sampling site. (c) Photograph of the tree site in the CNP.
Figure 1. Study site and climate. (a) Location of the Cazorla Natural Park (CNP) in southern Spain. Colors indicate mean summer temperatures exceeding 24 °C in yellow, 26 °C in orange, and 28 °C in red. (b) Climate diagram of the station located in the town of Cazorla ~10 km northeast but 1000 m below the black pine sampling site. (c) Photograph of the tree site in the CNP.
Atmosphere 11 00748 g001
Atmosphere 11 00748 g002 550

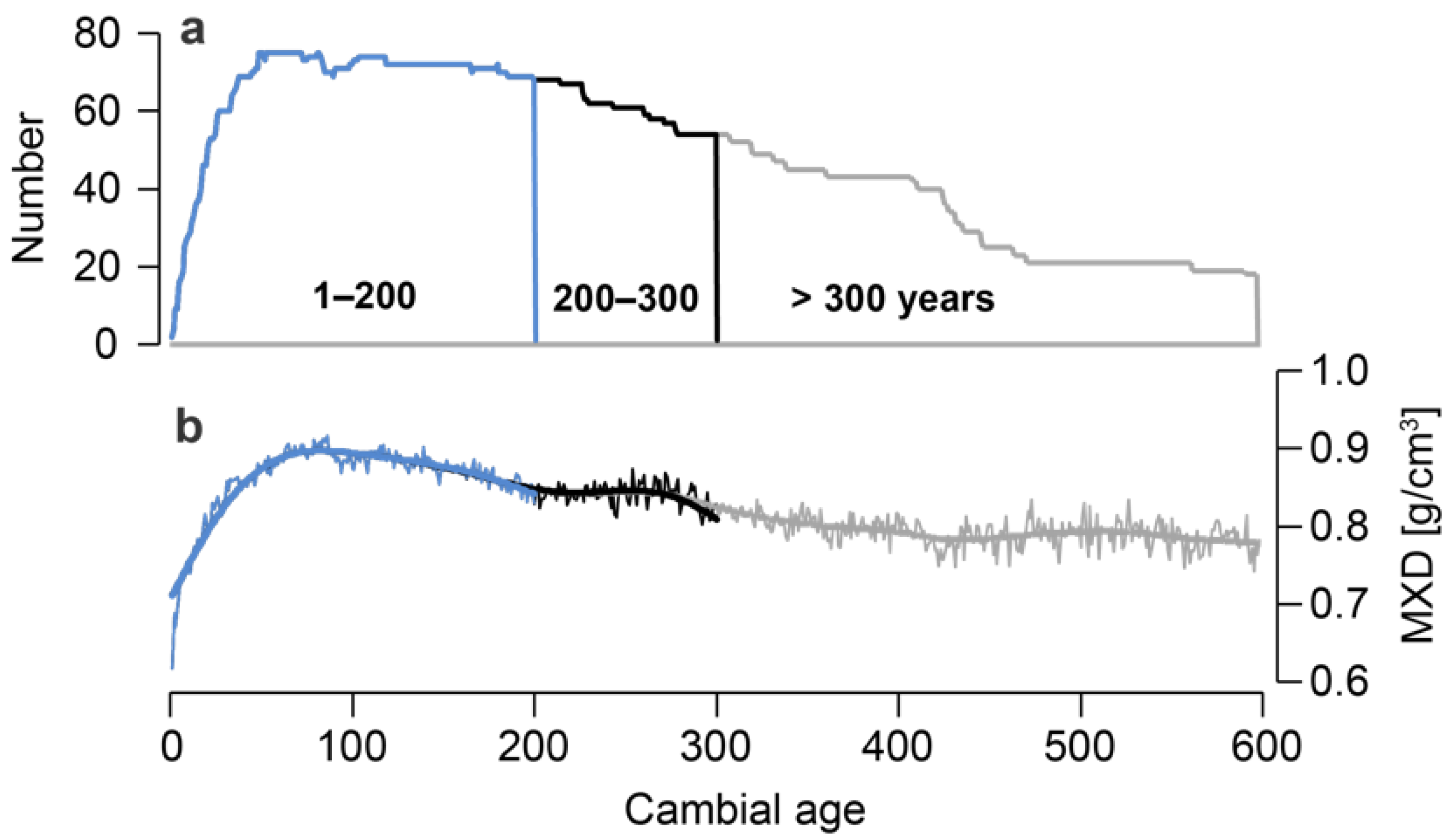

Figure 2. Replication and regional curves (RCs) of the combined Cazorla MXD data. (a) The number of MXD series after aligning the data by cambial age. Rings younger than 200 years highlighted in blue, from 200 to 300 years in black, and older than 300 years in gray. (b) The RCs of the three age bands. Thick curves are 100-year low pass filters.
Figure 2. Replication and regional curves (RCs) of the combined Cazorla MXD data. (a) The number of MXD series after aligning the data by cambial age. Rings younger than 200 years highlighted in blue, from 200 to 300 years in black, and older than 300 years in gray. (b) The RCs of the three age bands. Thick curves are 100-year low pass filters.
Atmosphere 11 00748 g002
Atmosphere 11 00748 g003 550

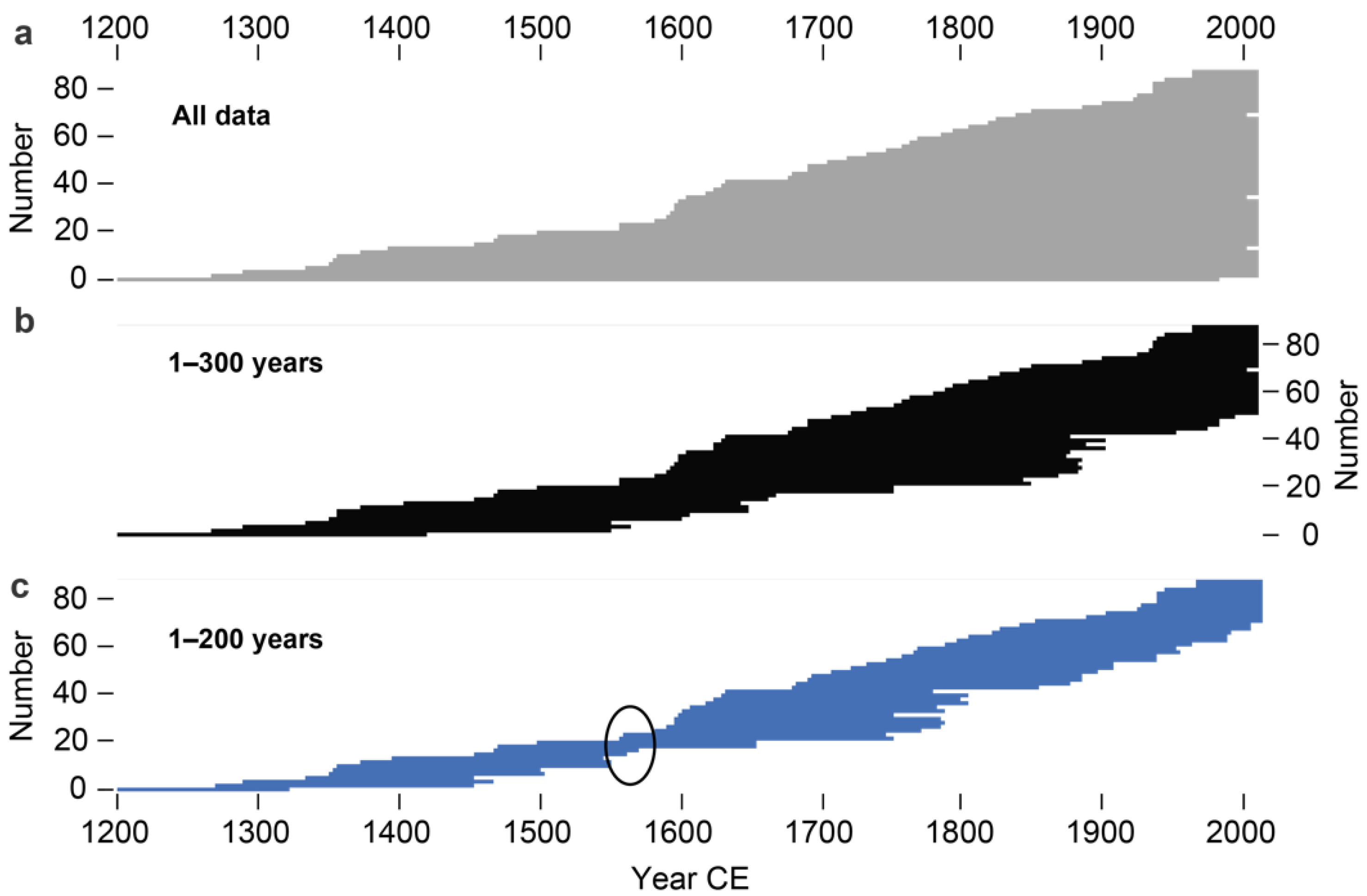

Figure 3. Replication of the full and age-band MXD datasets. (a) Bar plot of all MXD measurement series from the Cazorla Natural Park. Each horizontal bar represents one series. Bar plots (b,c) are the same as in (a) but for the 1–300 (black) and 1–200 age band chronologies (blue), respectively.
Figure 3. Replication of the full and age-band MXD datasets. (a) Bar plot of all MXD measurement series from the Cazorla Natural Park. Each horizontal bar represents one series. Bar plots (b,c) are the same as in (a) but for the 1–300 (black) and 1–200 age band chronologies (blue), respectively.
Atmosphere 11 00748 g003
Atmosphere 11 00748 g004 550

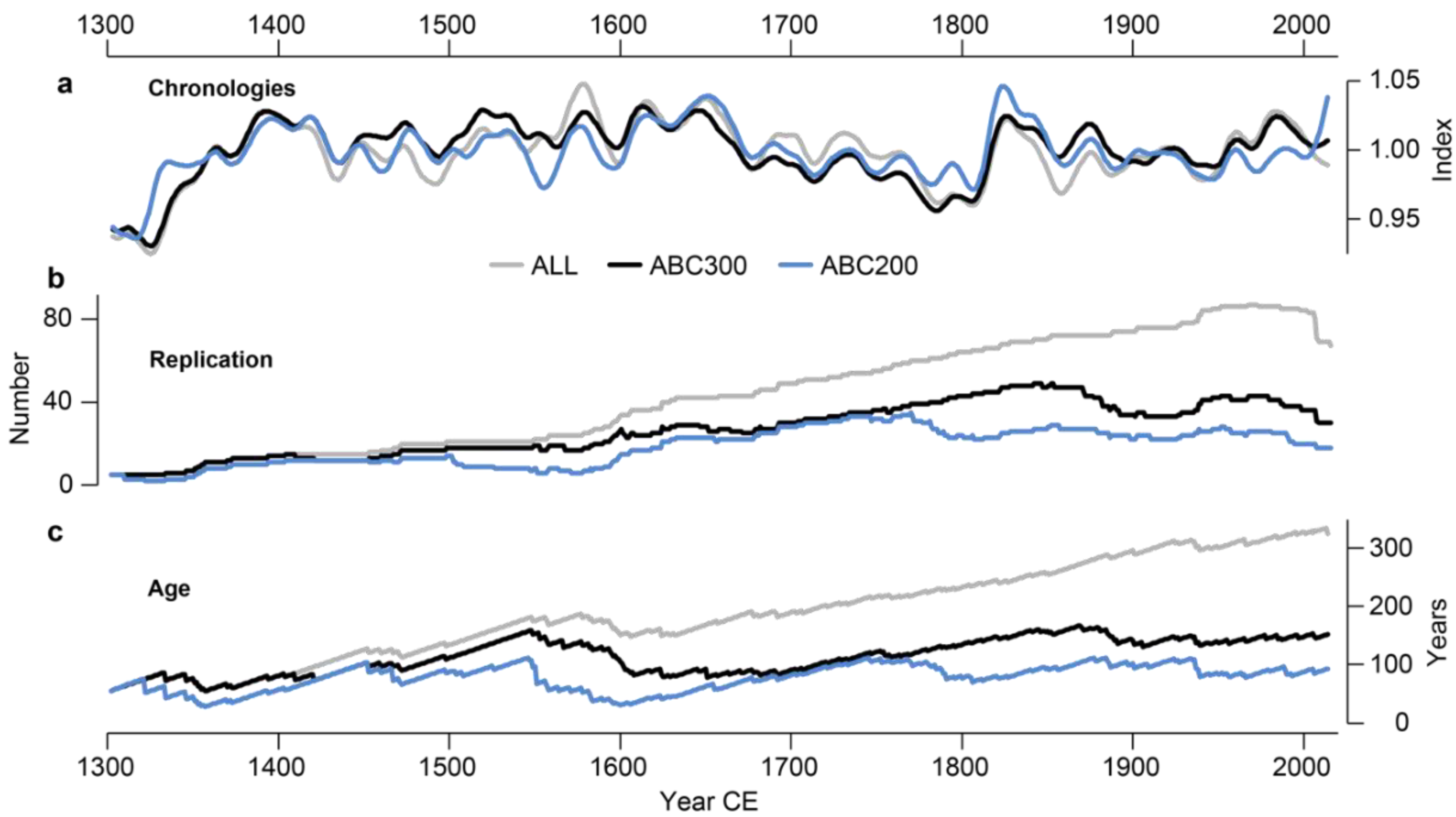

Figure 4. Cazorla MXD chronologies and characteristics. (a) Thirty-year smoothed Regional Curve Standardization (RCS) chronologies of the full MXD data (gray), the 1–300 age band data (black), and the 1–200 age band data (blue), shown together with their replication (b) and mean age curves (c). See Supplementary Figure S4 for the original (non-smoothed) chronologies and mean segment length curves.
Figure 4. Cazorla MXD chronologies and characteristics. (a) Thirty-year smoothed Regional Curve Standardization (RCS) chronologies of the full MXD data (gray), the 1–300 age band data (black), and the 1–200 age band data (blue), shown together with their replication (b) and mean age curves (c). See Supplementary Figure S4 for the original (non-smoothed) chronologies and mean segment length curves.
Atmosphere 11 00748 g004
Atmosphere 11 00748 g005 550
Figure 5. Correlation fields. Maps showing the spatial correlation patterns of the ABC300 chronology against gridded monthly temperatures (CRU TS4.03) from 1905–2014. Colored areas are significant at p < 0.1.
Figure 5. Correlation fields. Maps showing the spatial correlation patterns of the ABC300 chronology against gridded monthly temperatures (CRU TS4.03) from 1905–2014. Colored areas are significant at p < 0.1.
Atmosphere 11 00748 g005
Atmosphere 11 00748 g006 550
Figure 6. Temperature signal estimation. (a) Correlations of the ALL, ABC300 and ABC200 chronologies against seasonal temperatures (F&S, FM&S, FM&SO, FMAM&S, FMAM&SO) over the 1905–2014 period (left panel), 1961–2014 period (middle panel), and 1905–2014 period after high-pass filtering the data (right panel). (b) The ABC300 chronology in black shown together with five seasonal temperature records. The MXD chronology was scaled to the mean and variance of the FMAM&SO temperatures from 1905–2014. (c) Thirty-year running correlations between the seasonal temperatures and the ABC300 chronology from 1905–2014.
Figure 6. Temperature signal estimation. (a) Correlations of the ALL, ABC300 and ABC200 chronologies against seasonal temperatures (F&S, FM&S, FM&SO, FMAM&S, FMAM&SO) over the 1905–2014 period (left panel), 1961–2014 period (middle panel), and 1905–2014 period after high-pass filtering the data (right panel). (b) The ABC300 chronology in black shown together with five seasonal temperature records. The MXD chronology was scaled to the mean and variance of the FMAM&SO temperatures from 1905–2014. (c) Thirty-year running correlations between the seasonal temperatures and the ABC300 chronology from 1905–2014.
Atmosphere 11 00748 g006
Atmosphere 11 00748 g007 550
Figure 7. Post-1960 recorded and estimated temperatures. (a) Mean February–May and September–October (FMAM&SO) temperatures from five instrumental stations in Albacete, Cazorla, Ciudad Real, Jaen, and Murcia (green curve). The black curve is the ABC300 chronology scaled to the temperature timeseries from 1905–2014. Horizontal bars indicate the mean temperatures from 1971–80. Circles indicate the temperatures in the (proxy) extreme years 1999 and 2005. (b) The FMAM&SO temperature records form Cazorla (dark green) and the four other stations (light green) since 1960. Note the gaps in the station records, e.g., before 1968 in Jaen. Horizontal bars as in (a).
Figure 7. Post-1960 recorded and estimated temperatures. (a) Mean February–May and September–October (FMAM&SO) temperatures from five instrumental stations in Albacete, Cazorla, Ciudad Real, Jaen, and Murcia (green curve). The black curve is the ABC300 chronology scaled to the temperature timeseries from 1905–2014. Horizontal bars indicate the mean temperatures from 1971–80. Circles indicate the temperatures in the (proxy) extreme years 1999 and 2005. (b) The FMAM&SO temperature records form Cazorla (dark green) and the four other stations (light green) since 1960. Note the gaps in the station records, e.g., before 1968 in Jaen. Horizontal bars as in (a).
Atmosphere 11 00748 g007
Atmosphere 11 00748 g008 550
Figure 8. Effects of non-coherent extremes. (a) The scaled ABC300 chronology (black curve) shown together with the seasonal temperature means of five regional stations (colored curves). (b) Thirty-year running correlations between the ABC300 chronology and seasonal temperatures. (c) Same as in (b), but without the 1999 and 2005 instrumental and proxy data.
Figure 8. Effects of non-coherent extremes. (a) The scaled ABC300 chronology (black curve) shown together with the seasonal temperature means of five regional stations (colored curves). (b) Thirty-year running correlations between the ABC300 chronology and seasonal temperatures. (c) Same as in (b), but without the 1999 and 2005 instrumental and proxy data.
Atmosphere 11 00748 g008
Atmosphere 11 00748 g009 550
Figure 9. Cazorla temperature reconstruction and extremes back to 1350 Coefficient of Efficiency (CE). (a) The ABC300 MXD chronology (black) scaled over the 1905–2014 period against regional FMAM&SO temperatures (green) shown together with the 30-year smoothed 95% bootstrap confidence limits (red). (b) The same reconstruction with the 10 coldest and warmest years highlighted in blue and red, and the coldest and warmest 30-year periods before and after 1700 CE (blue and red horizontal lines).
Figure 9. Cazorla temperature reconstruction and extremes back to 1350 Coefficient of Efficiency (CE). (a) The ABC300 MXD chronology (black) scaled over the 1905–2014 period against regional FMAM&SO temperatures (green) shown together with the 30-year smoothed 95% bootstrap confidence limits (red). (b) The same reconstruction with the 10 coldest and warmest years highlighted in blue and red, and the coldest and warmest 30-year periods before and after 1700 CE (blue and red horizontal lines).
Atmosphere 11 00748 g009
Atmosphere 11 00748 g010 550
Figure 10. Comparison with existing reconstructions. (a) Pearson correlations of the ABC300 temperature reconstruction with warm season temperature reconstructions from the Pyrenees (Bün08, Bün10, Bün17, Dor12) and a previous-year late summer temperature reconstruction from CNP tree-ring width (TRW) data (Dor15). The Dor15 record has been reversed and shifted by one year (see Methods). The left panel shows the results for the original reconstructions, right panel after 10-year high-pass filtering the timeseries. (b) The 10-year smoothed ABC300 reconstruction plotted together with the (reversed) Dor15 reconstruction since 1350 CE.
Figure 10. Comparison with existing reconstructions. (a) Pearson correlations of the ABC300 temperature reconstruction with warm season temperature reconstructions from the Pyrenees (Bün08, Bün10, Bün17, Dor12) and a previous-year late summer temperature reconstruction from CNP tree-ring width (TRW) data (Dor15). The Dor15 record has been reversed and shifted by one year (see Methods). The left panel shows the results for the original reconstructions, right panel after 10-year high-pass filtering the timeseries. (b) The 10-year smoothed ABC300 reconstruction plotted together with the (reversed) Dor15 reconstruction since 1350 CE.
Atmosphere 11 00748 g010
Table
Table 1. Cazorla Natural Park maximum densities (MXD) data and chronology characteristics. The last line indicates the age range over which MXD age trends (second last line) were calculated.
Table 1. Cazorla Natural Park maximum densities (MXD) data and chronology characteristics. The last line indicates the age range over which MXD age trends (second last line) were calculated.
CNP MXD Data
37°48’ N, 2°57’ W
1800–2000 m a.s.l.
1196–2014 CE
88 radii from 51 trees
Chronology variants
ALLABC300ABC200
Mean series length355 years221 years152 years
Average MXD0.84 g/cm30.85 g/cm30.86 g/cm3
Interseries correlation0.180.160.14
Age trend per 100 years−0.033 g/cm3−0.031 g/cm3−0.046 g/cm3
Age range (years)101–400101–300101–200
Table
Table 2. Temperature stations in the surroundings of the CNP. Last two columns show the average correlations with all other stations, and with the ABC300 chronology using February–May and September–October (FMAM&SO) temperature means.
Table 2. Temperature stations in the surroundings of the CNP. Last two columns show the average correlations with all other stations, and with the ABC300 chronology using February–May and September–October (FMAM&SO) temperature means.
InhabitantsDistance to Tree SitePeriodMissing ValuesCorrelation
horizontalvertical with stationswith ABC300
Cazorla700010 km1100 m1911–201239 (3%)0.490.32
Jaen*113,00075 km1350 m1922–2014263 (24%)0.570.44
Ciudad Real75,000145 km1270 m1905–201455 (4%)0.660.46
Albacete*173,000150 km1210 m1905–2014108 (8%)0.710.43
Murcia*453,000165 km1830 m1905–201433 (3%)0.660.40
* Combined record of two stations within one city.

Share and Cite

MDPI and ACS Style

Esper, J.; Hartl, C.; Tejedor, E.; de Luis, M.; Günther, B.; Büntgen, U. High-Resolution Temperature Variability Reconstructed from Black Pine Tree Ring Densities in Southern Spain. Atmosphere 2020, 11, 748. https://doi.org/10.3390/atmos11070748

AMA Style

Esper J, Hartl C, Tejedor E, de Luis M, Günther B, Büntgen U. High-Resolution Temperature Variability Reconstructed from Black Pine Tree Ring Densities in Southern Spain. Atmosphere. 2020; 11(7):748. https://doi.org/10.3390/atmos11070748

Chicago/Turabian Style

Esper, Jan, Claudia Hartl, Ernesto Tejedor, Martin de Luis, Björn Günther, and Ulf Büntgen. 2020. "High-Resolution Temperature Variability Reconstructed from Black Pine Tree Ring Densities in Southern Spain" Atmosphere 11, no. 7: 748. https://doi.org/10.3390/atmos11070748

APA Style

Esper, J., Hartl, C., Tejedor, E., de Luis, M., Günther, B., & Büntgen, U. (2020). High-Resolution Temperature Variability Reconstructed from Black Pine Tree Ring Densities in Southern Spain. Atmosphere, 11(7), 748. https://doi.org/10.3390/atmos11070748

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
