# Scale-Dependent Turbulent Dynamics and Phase-Space Behavior of the Stable Atmospheric Boundary Layer

^{1}

^{2}

^{3}

^{4}

^{5}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. The CASES-99 Data-Set

## 3. Empirical Mode Decomposition of SBL Turbulent Fluctuations

## 4. Phase-Space Reconstruction and Time Delay of Local SBL Fluctuations

## 5. Local Correlation Dimension for Turbulent SBL

## 6. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Stull, R.B. An Introduction to Boundary Layer Meteorology, 1st ed.; Kluwer Academic Publishers: Dordrecht, The Netherlands, 1988. [Google Scholar]
- Garratt, J.R. The Atmospheric Boundary Layer; Cambridge Atmospheric and Space Science Series; Cambridge University Press: Cambridge, UK, 1992. [Google Scholar]
- Rorai, C.; Mininni, P.D.; Pouquet, A. Turbulence comes in bursts in stably stratified flows. Phys. Rev. E
**2014**, 89, 043002. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Feraco, F.; Marino, R.; Pumir, A.; Primavera, L.; Mininni, P.D.; Pouquet, A.; Rosenberg, D. Vertical drafts and mixing in stratified turbulence: Sharp transition with Froude number. EPL
**2018**, 123, 44002. [Google Scholar] [CrossRef] [Green Version] - Marino, R.; Rosenberg, D.; Herbert, C.; Pouquet, A. Interplay of waves and eddies in rotating stratified turbulence and the link with kinetic-potential energy partition. EPL
**2015**, 112, 49001. [Google Scholar] [CrossRef] [Green Version] - Smedman, A.S.; Tjernström, M.; Högström, U. Analysis of the turbulence structure of a marine low-level jet. Boundary-Layer Meteorol.
**1993**, 66, 105–126. [Google Scholar] [CrossRef] - Mahrt, L. Stably Stratified Atmospheric Boundary Layers. Annu. Rev. Fluid Mech.
**2014**, 46, 23–45. [Google Scholar] [CrossRef] [Green Version] - Wyngaard, J.C. Atmospheric Turbulence. Annu. Rev. Fluid Mech.
**1992**, 24, 205. [Google Scholar] [CrossRef] - Amati, G.; Benzi, R.; Succi, S. Extended self-similarity in boundary layer turbulence. Phys. Rev. E
**1997**, 55, 6985–6988. [Google Scholar] [CrossRef] - Van de Wiel, B.J.H.; Ronda, R.J.; Moene, A.F.; De Bruin, H.A.R.; Holtslag, A.A.M. Intermittent Turbulence and Oscillations in the Stable Boundary Layer over Land. Part I: A Bulk Model. J. Atmos. Sci.
**2002**, 59, 942–958. [Google Scholar] [CrossRef] - Wei, W.; Zhang, H.S.; Schmitt, F.G.; Huang, Y.X.; Cai, X.H.; Song, Y.; Huang, X.; Zhang, H. Investigation of Turbulence Behaviour in the Stable Boundary Layer Using Arbitrary-Order Hilbert Spectra. Bound.-Layer Meteorol.
**2017**, 163. [Google Scholar] [CrossRef] - Kiliyanpilakkil, V.P.; Basu, S. Extended self-similarity of atmospheric boundary layer wind fields in mesoscale regime: Is it real? EPL (Europhys. Lett.)
**2015**, 112, 64003. [Google Scholar] [CrossRef] [Green Version] - Kiliyanpilakkil, V.P.; Basu, S.; Ruiz-Columbié, A.; Araya, G.; Castillo, L.; Hirth, B.; Burgett, W. Buoyancy effects on the scaling characteristics of atmospheric boundary-layer wind fields in the mesoscale range. Phys. Rev. E
**2015**, 92, 033005. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Carbone, F.; Telloni, D.; Bruno, A.G.; Hedgecock, I.M.; De Simone, F.; Sprovieri, F.; Sorriso-Valvo, L.; Pirrone, N. Scaling Properties of Atmospheric Wind Speed in Mesoscale Range. Atmosphere
**2019**, 10, 611. [Google Scholar] [CrossRef] [Green Version] - Mahrt, L. Weak-wind mesoscale meandering in the nocturnal boundary layer. Environ. Fluid Mech.
**2007**, 7, 331–347. [Google Scholar] [CrossRef] - Alexander, B.; Branko, G. Atmospheric Boundary Layers: Nature, Theory and Applications to Environmental Modelling and Security, 1st ed.; Springer: New York, NY, USA, 2007. [Google Scholar]
- Mortarini, L.; Cava, D.; Giostra, U.; Costa, F.D.; Degrazia, G.; Anfossi, D.; Acevedo, O. Horizontal Meandering as a Distinctive Feature of the Stable Boundary Layer. J. Atmos. Sci.
**2019**, 76, 3029–3046. [Google Scholar] [CrossRef] - Rotta, J. Statistische Theorie nichthomogener Turbulenz. Zeitschrift für Physik
**1951**, 129, 547–572. [Google Scholar] [CrossRef] - Biferale, L.; Procaccia, I. Anisotropy in turbulent flows and in turbulent transport. Phys. Rep.
**2005**, 414, 43–164. [Google Scholar] [CrossRef] [Green Version] - Mazzitelli, I.; Lanotte, A.S. Active and passive scalar intermittent statistics in turbulent atmospheric convection. Phys. D Nonlinear Phenom.
**2012**, 241, 251–259. [Google Scholar] [CrossRef] - Perot, B.; Chartrand, C. Modeling return to isotropy using kinetic equations. Phys. Fluids
**2005**, 17, 035101. [Google Scholar] [CrossRef] [Green Version] - Antonelli, M.; Lanotte, A.; Mazzino, A. Anisotropies and Universality of Buoyancy-Dominated Turbulent Fluctuations: A Large-Eddy Simulation Study. J. Atmos. Sci.
**2007**, 64, 2642–2656. [Google Scholar] [CrossRef] [Green Version] - Frisch, U. (Ed.) Turbulence: The Legacy of A. N. Kolmogorov; Cambridge Univ. Press: Cambridge, UK, 1995. [Google Scholar]
- Tomas, B.; Mogens, H.J.; Giovanni, P.; Vulpiani, A. Dynamical Systems Approach to Turbulence; Cambridge Nonlinear Science Series; Cambridge University Press: Cambridge, UK, 2005. [Google Scholar]
- Narita, Y. Four-dimensional energy spectrum for space–time structure of plasma turbulence. Nonlinear Process. Geophys.
**2014**, 21, 41–47. [Google Scholar] [CrossRef] [Green Version] - Carbone, F.; Sorriso-Valvo, L. Experimental analysis of intermittency in electrohydrodynamic instability. Eur. Phys. J. E
**2014**, 37, 61. [Google Scholar] [CrossRef] [PubMed] - Politano, H.; Pouquet, A. von Kármán–Howarth equation for magnetohydrodynamics and its consequences on third-order longitudinal structure and correlation functions. Phys. Rev. E
**1998**, 57, R21–R24. [Google Scholar] [CrossRef] - Santhanam, M.; Kantz, H. Long-range correlations and rare events in boundary layer wind fields. Phys. A Stat. Mech. Its Appl.
**2005**, 345, 713–721. [Google Scholar] [CrossRef] - Carbone, F.; Sorriso-Valvo, L.; Versace, C.; Strangi, G.; Bartolino, R. Anisotropy of Spatiotemporal Decorrelation in Electrohydrodynamic Turbulence. Phys. Rev. Lett.
**2011**, 106, 114502. [Google Scholar] [CrossRef] [PubMed] - Servidio, S.; Carbone, V.; Dmitruk, P.; Matthaeus, W.H. Time decorrelation in isotropic magnetohydrodynamic turbulence. EPL (Europhys. Lett.)
**2011**, 96, 55003. [Google Scholar] [CrossRef] - Meneveau, C.; Sreenivasan, K.R. The multifractal nature of turbulent energy dissipation. J. Fluid Mech.
**1991**, 224, 429–484. [Google Scholar] [CrossRef] - Schmitt, F.G. A causal multifractal stochastic equation and its statistical properties. Eur. Phys. J. B Condens. Matter Complex Syst.
**2003**, 34, 85–98. [Google Scholar] [CrossRef] - Carbone, F.; Yoshida, H.; Suzuki, S.; Fujii, A.; Strangi, G.; Versace, C.; Ozaki, M. Clustering of elastic energy due to electrohydrodynamics instabilities in nematic liquid crystals. EPL (Europhys. Lett.)
**2010**, 89, 46004. [Google Scholar] [CrossRef] - Tuck, A.F. From molecules to meteorology via turbulent scale invariance. Q. J. R. Meteorol. Soc.
**2010**, 136, 1125–1144. [Google Scholar] [CrossRef] - Sorriso-Valvo, L.; Carbone, F.; Leonardis, E.; Chen, C.H.; Šafránková, J.; Němeček, Z. Multifractal analysis of high resolution solar wind proton density measurements. Adv. Space Res.
**2017**, 59, 1642–1651. [Google Scholar] [CrossRef] [Green Version] - Liu, L.; Hu, F.; Huang, S. A Multifractal Random-Walk Description of Atmospheric Turbulence: Small-Scale Multiscaling, Long-Tail Distribution, and Intermittency. Bound.-Layer Meteorol.
**2019**, 172, 351–370. [Google Scholar] [CrossRef] [Green Version] - Grassberger, P.; Procaccia, I. Characterization of Strange Attractors. Phys. Rev. Lett.
**1983**, 50, 346–349. [Google Scholar] [CrossRef] - UCAR/NCAR. E.O.L. CASES-99. 2015. Available online: https://doi.org/10.5065/D6QV3JTK (accessed on 10 April 2020).
- Poulos, G.S.; Blumen, W.; Fritts, D.C.; Lundquist, J.K.; Sun, J.; Burns, S.P.; Nappo, C.; Banta, R.; Newsom, R.; Cuxart, J.; et al. CASES-99: A Comprehensive Investigation of the Stable Nocturnal Boundary Layer. Bull. Am. Meteorol. Soc.
**2002**, 83, 555–582. [Google Scholar] [CrossRef] - Van de Wiel, B.J.H.; Moene, A.F.; Ronda, R.J.; De Bruin, H.A.R.; Holtslag, A.A.M. Intermittent Turbulence and Oscillations in the Stable Boundary Layer over Land. Part II: A System Dynamics Approach. J. Atmos. Sci.
**2002**, 59, 2567–2581. [Google Scholar] [CrossRef] [Green Version] - Van de Wiel, B.J.H.; Moene, A.F.; Hartogensis, O.K.; De Bruin, H.A.R.; Holtslag, A.A.M. Intermittent Turbulence in the Stable Boundary Layer over Land. Part III: A Classification for Observations during CASES-99. J. Atmos. Sci.
**2003**, 60, 2509–2522. [Google Scholar] [CrossRef] - Huang, N.E.; Shen, Z.; Long, S.R.; Wu, M.C.; Shih, H.H.; Zheng, Q.; Yen, N.C.; Tung, C.C.; Liu, H.H. The empirical mode decomposition and the Hilbert spectrum for nonlinear and non-stationary time series analysis. Proc. R. Soc. Lond. A Math. Eng. Sci.
**1998**, 454, 903–995. [Google Scholar] [CrossRef] - Rilling, G.; Flandrin, P.; Goncalves, P. On empirical mode decomposition and its algorithms. In Proceedings of the IEEE-EURASIP Workshop on Nonlinear Signal and Image Processing, Trieste, Italy, 8–11 June 2003. [Google Scholar]
- Wu, Z.; Huang, N.E. A study of the characteristics of white noise using the empirical mode decomposition method. Proc. R. Soc. Lond. A Math. Eng. Sci.
**2004**, 460, 1597–1611. [Google Scholar] [CrossRef] - Flandrin, P.; Rilling, G.; Goncalves, P. Empirical mode decomposition as a filter bank. IEEE Signal Process. Lett.
**2004**, 11, 112–114. [Google Scholar] [CrossRef] [Green Version] - Flandrin, P.; Goncalves, P. Empirical mode decomposition as data-driven wavelet-like expansions. Int. J. Wavelets Multiresolut. Inf. Process.
**2004**, 1, 477–496. [Google Scholar] [CrossRef] - Huang, N.E.; Shen, S.S.P. (Eds.) The Hilbert-Huang Transform and Its Applications; World Scientific: Singapore, 2005. [Google Scholar]
- Huang, Y.X.; Schmitt, F.G.; Lu, Z.M.; Liu, Y.L. An amplitude-frequency study of turbulent scaling intermittency using Empirical Mode Decomposition and Hilbert Spectral Analysis. EPL (Europhys. Lett.)
**2008**, 84, 40010. [Google Scholar] [CrossRef] [Green Version] - Carbone, F.; Gencarelli, C.N.; Hedgecock, I.M. Lagrangian statistics of mesoscale turbulence in a natural environment: The Agulhas return current. Phys. Rev. E
**2016**, 94, 063101. [Google Scholar] [CrossRef] [PubMed] - Carbone, F.; Sorriso-Valvo, L.; Alberti, T.; Lepreti, F.; Chen, C.H.K.; Němeček, Z.; Šafránková, J. Arbitrary-order Hilbert Spectral Analysis and Intermittency in Solar Wind Density Fluctuations. Astrophys. J.
**2018**, 859, 27. [Google Scholar] [CrossRef] - Kolmogorov, A.N. The local structure of turbulence in incompressible viscous fluid for very large Reynolds numbers. C. R. Acad. Sci. URSS
**1941**, 36, 301. [Google Scholar] - Takens, F. Detecting strange attractors in turbulence. In Dynamical Systems and Turbulence, Warwick 1980; Rand, D., Young, L.S., Eds.; Springer: Berlin/Heidelberg, Germany, 1981; pp. 366–381. [Google Scholar]
- Kantz, H.; Schreiber, T. Nonlinear Time Series Analysis, 2nd ed.; Cambridge University Press: Cambridge, UK, 2003. [Google Scholar]
- Sauer, T.; Yorke, J.A.; Casdagli, M. Embedology. J. Stat. Phys.
**1991**, 65, 579–616. [Google Scholar] [CrossRef] - Kennel, M.B.; Brown, R.; Abarbanel, H.D.I. Determining embedding dimension for phase-space reconstruction using a geometrical construction. Phys. Rev. A
**1992**, 45, 3403–3411. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Fraser, A.M.; Swinney, H.L. Independent coordinates for strange attractors from mutual information. Phys. Rev. A
**1986**, 33, 1134–1140. [Google Scholar] [CrossRef] [PubMed] - Vlachos, I.; Kugiumtzis, D. State Space Reconstruction from Multiple Time Series. In Topics on Chaotic Systems—Selected Papers from CHAOS 2008 International Conference, Chania, Crete, Greece, 3–6 June 2008; Skiadas, C.H., Dimotikalis, I., Skiadas, C., Eds.; World Scientific: Singapore, 2009; pp. 378–387. [Google Scholar] [CrossRef]
- Fredkin, D.R.; Rice, J.A. Method of false nearest neighbors: A cautionary note. Phys. Rev. E
**1995**, 51, 2950–2954. [Google Scholar] [CrossRef] - Wallot, S.; Mønster, D. Calculation of Average Mutual Information (AMI) and False-Nearest Neighbors (FNN) for the Estimation of Embedding Parameters of Multidimensional Time Series in Matlab. Front. Psychol.
**2018**, 9, 1679. [Google Scholar] [CrossRef] [Green Version] - Consolini, G.; Alberti, T.; De Michelis, P. On the Forecast Horizon of Magnetospheric Dynamics: A Scale-to-Scale Approach. J. Geophys. Res. (Space Phys.)
**2018**, 123, 9065–9077. [Google Scholar] [CrossRef] - Alberti, T.; Consolini, G.; Carbone, V.; Yordanova, E.; Marcucci, M.F.; De Michelis, P. Multifractal and Chaotic Properties of Solar Wind at MHD and Kinetic Domains: An Empirical Mode Decomposition Approach. Entropy
**2019**, 21, 320. [Google Scholar] [CrossRef] [Green Version]

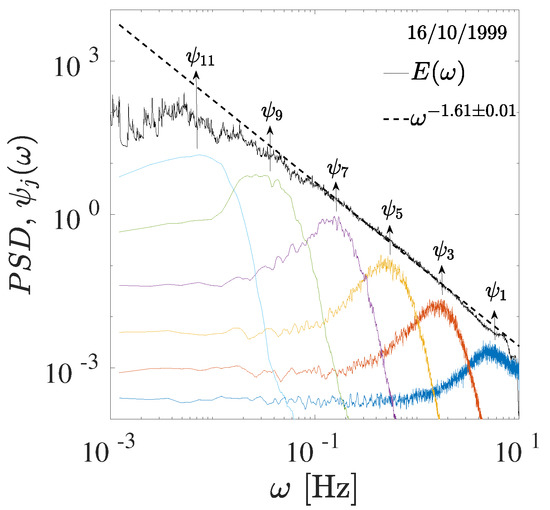

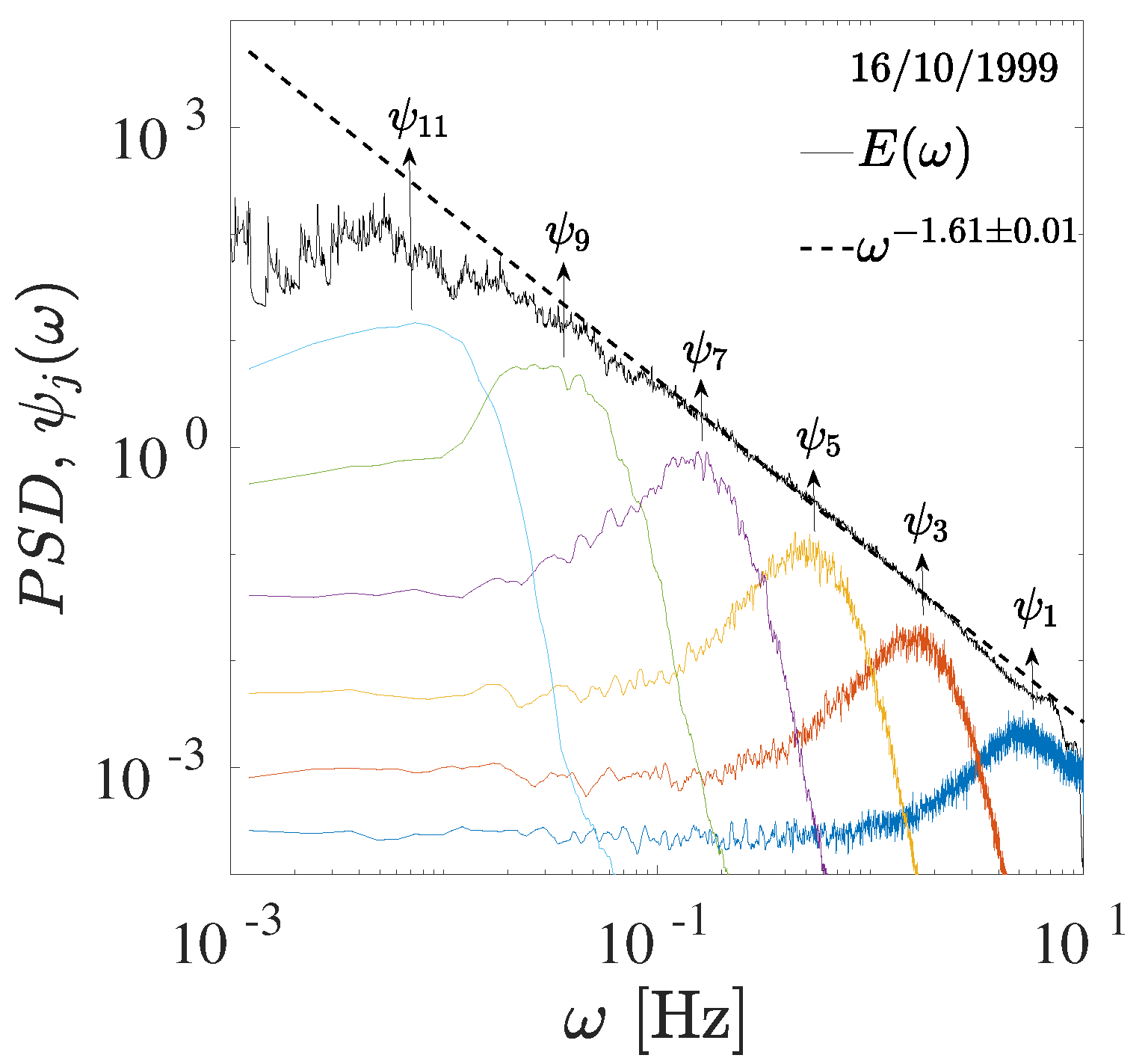

**Figure 1.**Comparison of Fourier power spectral density $E\left(\omega \right)$ (black line) for sample $16/10/1999$ (from 00:00:00 to 02:00:00) with the Fourier power spectra of different intrinsic mode functions (IMFs) ${\psi}_{j}\left(\omega \right)$ (odd only for figure clarity), as a function of frequency $\omega $ (the curves have been shifted for clarity). The band-like structure of each IMF shows the dyadic nature of the decomposition. The dashed black line indicates the teoretical Kolmogorov spectrum ${\omega}^{-5/3}$ [23,51].

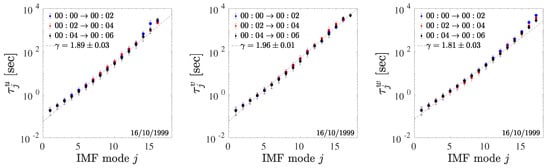

**Figure 2.**Average IMF period of each IMF as a function of the mode j, for each component u, v and w, calculated for the sample dated $16/10/1999$. Error bars show $95\%$ confidence bounds obtained from the inverse instantaneous frequency of the j-th IMF ${\omega}_{i,j}\left(t\right)$. The dashed lines represent the relation ${\tau}_{j}=\alpha \times {\gamma}^{j}$ [44,45,48], with $\gamma =1.89\pm 0.03$, $\gamma =1.96\pm 0.01$ and $\gamma =1.81\pm 0.03$ respectively. The value of $\gamma $ close to 2 indicates the quasi-dyadic filter bank property of the EMD algorithm for these series.

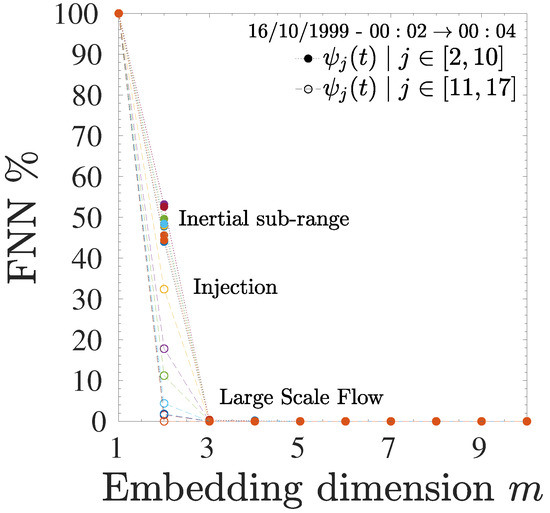

**Figure 3.**FNN percentage as a function of the embedding dimension m, estimated for the ${\psi}_{j}\left(t\right)$ for one sub-interval of sample $16/10/1999$. All curves relative to IMFs with timescale ${\tau}_{j}$ enclosed in the inertial sub-range drop to 0 at $m=3$. IMFs describing the large scale flow tends to a value $m=2$. The last two IMFs are 0 for $m=1$.

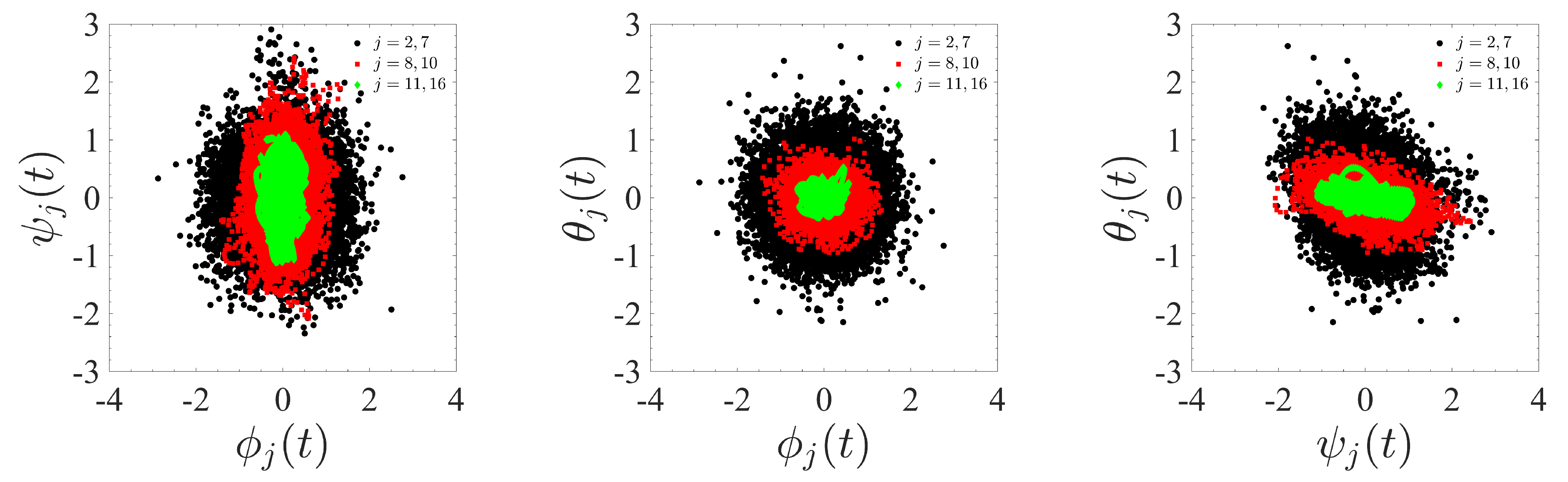

**Figure 4.**The phase-space dynamics in the different scaling regimes. Markers of different colors (green, red, black) represent different ranges of scales (large scale, inertial range, dissipative scales, respectively). The three panels are three two-dimensional projections of the three-dimensional phase space.

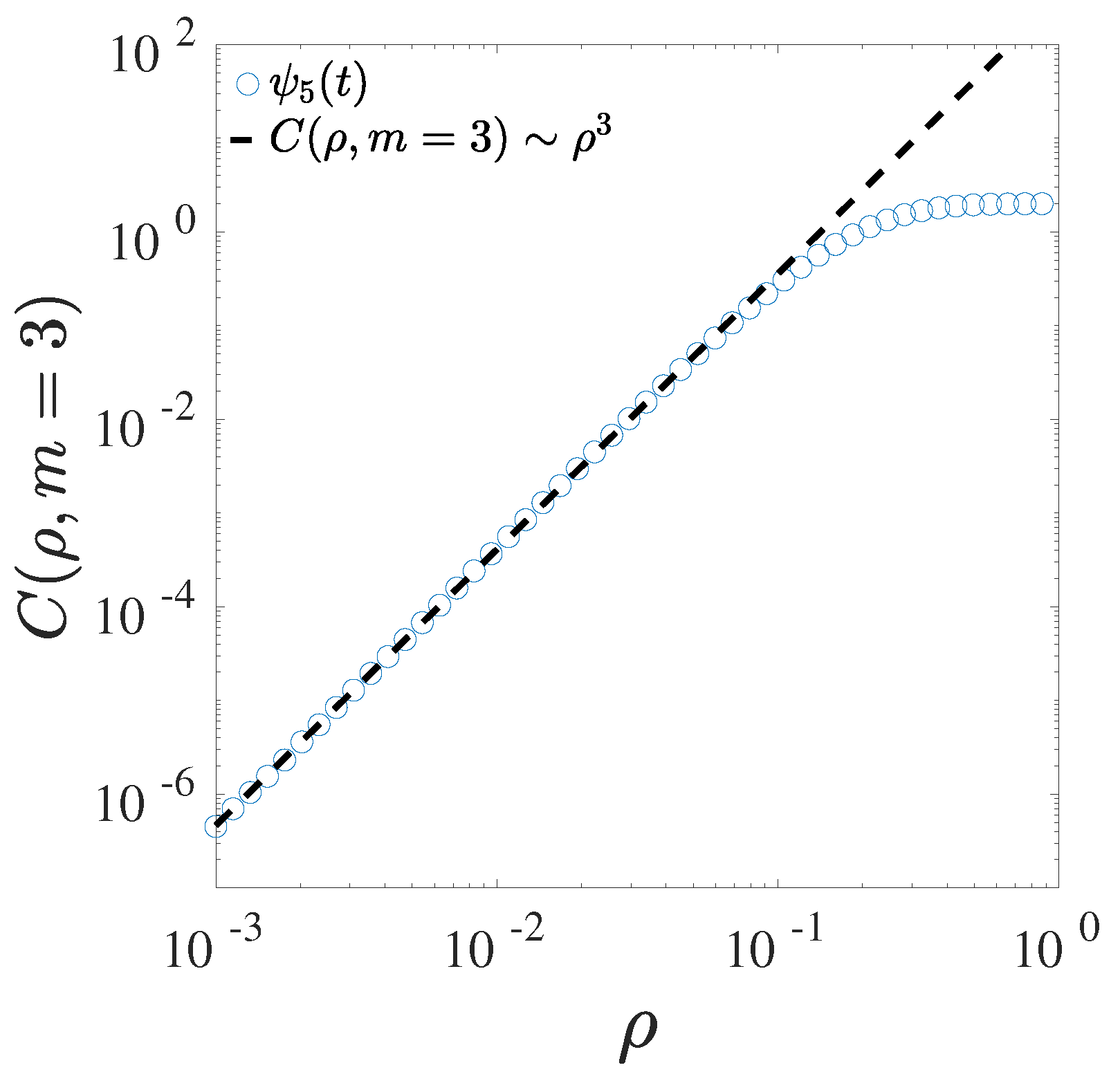

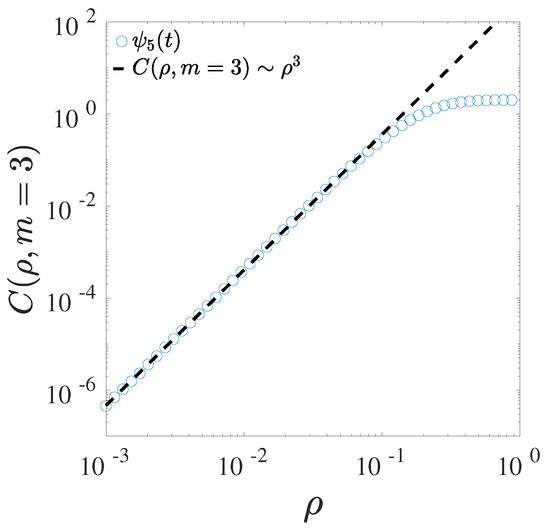

**Figure 5.**Correlation integral for embedding dimension $m=3$, for the IMF ${\psi}_{5}\left(t\right)$ extracted from the sub-sample dated $15/10/99$$02:00\to 04:00$.

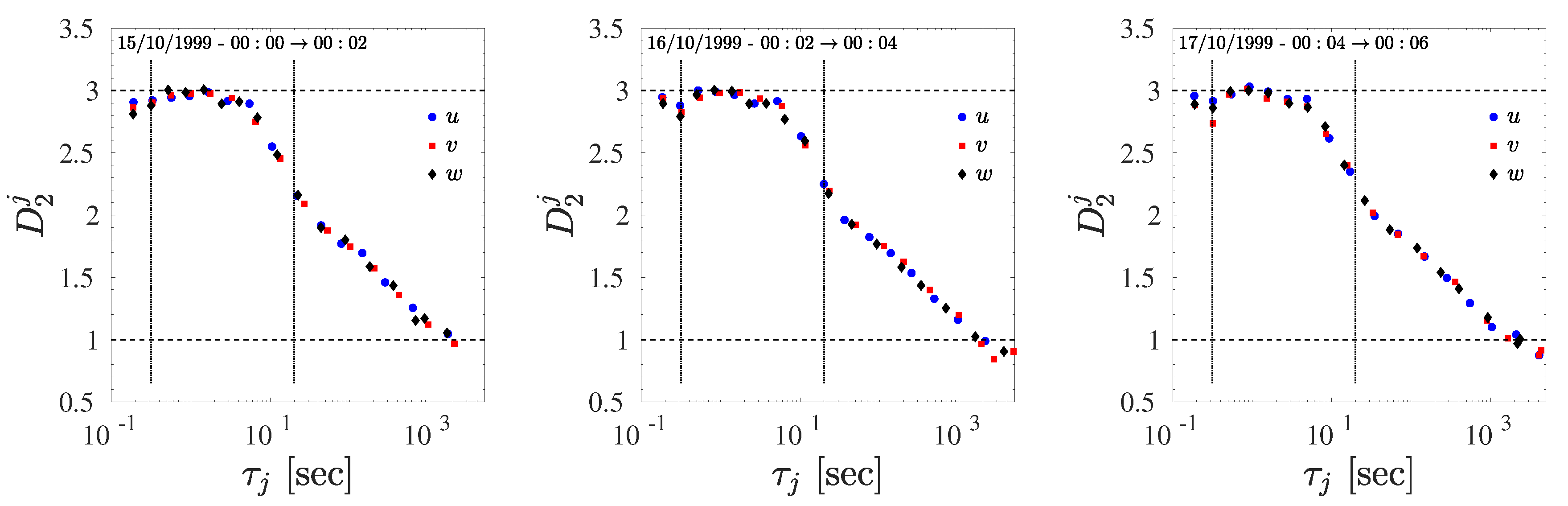

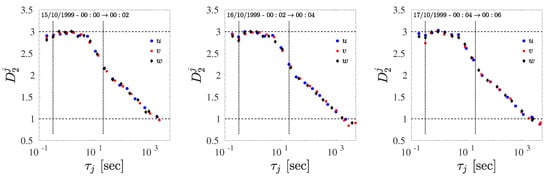

**Figure 6.**Evolution of the local correlation dimension ${D}_{2}^{j}$ as a function of the IMF characteristic timescale ${\tau}_{j}$ for all component u, v, and w of the velocity field $U$ for sub-samples: $15/10/1999$—$00:00\to 02:00$, $16/10/1999$—$02:00\to 04:00$, and $17/10/1999$—$04:00\to 06:00$, respectively. A clear transition from a lower dimensional $d=1$ to an higher dimensional $d=3$ phase space is observed. Vertical dashed lines represent the range of scales relative to the power-law in the PSD reported in Figure 1.

**Table 1.**Time delay ℓ and embedding dimension m for different possible choices of data dimension d and components for the IMF with $j=5$, ${X}_{5}\equiv \left(\right)open="["\; close="]">{\varphi}_{5}\left(t\right),{\psi}_{5}\left(t\right),{\theta}_{5}\left(t\right)$, obtained from the SBL sub-sample dated $15/10/99$$02:00\to 04:00$.

SBL $\mathit{j}=5$ | d | $\mathit{\ell}\Delta \mathit{t}$[s] | m | $\mathit{dm}$ |
---|---|---|---|---|

${\varphi}_{5}$ | 1 | 0.35 | 3 | 3 |

${\psi}_{5}$ | 1 | 0.40 | 3 | 3 |

${\theta}_{5}$ | 1 | 0.35 | 3 | 3 |

${\varphi}_{5},{\psi}_{5}$ | 2 | 0.38 | 2 | 4 |

${\varphi}_{5},{\theta}_{5}$ | 2 | 0.35 | 2 | 4 |

${\psi}_{5},{\theta}_{5}$ | 2 | 0.38 | 2 | 4 |

${\varphi}_{5},{\psi}_{5},{\theta}_{5}$ | 3 | 0.37 | 1 | 3 |
