Analysis of Volatile Organic Compounds during the OCTAVE Campaign: Sources and Distributions of Formaldehyde on Reunion Island

Abstract

The Oxygenated Compounds in the Tropical Atmosphere: Variability and Exchanges (OCTAVE) campaign aimed to improve the assessment of the budget and role of oxygenated volatile organic compounds (OVOCs) in tropical regions, and especially over oceans, relying on an integrated approach combining in situ measurements, satellite retrievals, and modeling. As part of OCTAVE, volatile organic compounds (VOCs) were measured using a comprehensive suite of instruments on Reunion Island (21.07° S, 55.38° E) from 7 March to 2 May 2018. VOCs were measured at a receptor site at the Maïdo observatory during the entire campaign and at two source sites: Le Port from 19 to 24 April 2018 (source of anthropogenic emissions) and Bélouve from 25 April to 2 May 2018 (source of biogenic emissions) within a mobile lab. The Maïdo observatory is a remote background site located at an altitude of 2200 m, whereas Bélouve is located in a tropical forest to the east of Maïdo and Le Port is an urban area located northwest of Maïdo. The major objective of this study was to understand the sources and distributions of atmospheric formaldehyde (HCHO) in the Maïdo observatory on Reunion Island. To address this objective, two different approaches were used to quantify and determine the main drivers of HCHO at Maïdo. First, a chemical-kinetics-based (CKB) calculation method was used to determine the sources and sinks (biogenic, anthropogenic/primary, or secondary) of HCHO at the Maïdo site. The CKB method shows that 9% of the formaldehyde formed from biogenic emissions and 89% of HCHO had an unknown source; that is, the sources cannot be explicitly described by this method. Next, a positive matrix factorization (PMF) model was applied to characterize the VOC source contributions at Maïdo. The PMF analysis including VOCs measured at the Maïdo observatory shows that the most robust solution was obtained with five factors: secondary biogenic accounting for 17%, primary anthropogenic/solvents (24%), primary biogenic (14%), primary anthropogenic/combustion (22%), and background (23%). The main contributions to formaldehyde sources as described by the PMF model are secondary biogenic (oxidation of biogenic VOCs with 37%) and background (32%). Some assumptions were necessary concerning the high percentage of unknown HCHO sources of the CKB calculation method such as the biogenic emission factor resulting in large discrepancies between the two methods.

1. Introduction

Volatile organic compounds (VOCs) are key components of the atmosphere: they are precursors of secondary organic aerosol (SOA) and lead to the photochemical formation of air pollutants such as tropospheric ozone [1,2,3,4,5]. These compounds can be emitted by anthropogenic (mobile sources, industry, solvents) and biogenic (tree leaves, plant growth) sources. Several studies quantified the respective roles of biogenic [6,7] and anthropogenic [8,9,10,11,12] emissions of VOCs. Biogenic emissions are directly dependent on meteorological conditions, such as high temperatures and solar radiation, which increase VOC production and emission by vegetation [13].

Oxygenated Compounds in the Tropical Atmosphere: Variability and Exchanges (OCTAVE) is an international French–Belgian program with the aim of improving assessment of the budget and role of oxygenated volatile organic compounds (OVOCs) in tropical regions, and especially over oceans, relying on an integrated approach combining in situ measurements, satellite retrievals, and modeling. One of the specific objectives of the project is to study and describe the repartitioning and sources of VOCs and particularly OVOCs at the Maïdo site on Reunion Island in the Indian Ocean. An intensive field campaign was conducted from 7 March to 2 May 2018 to improve our understanding of the sources and sinks of OVOCs in this environment. In this context, measurements of formaldehyde and other VOCs (OVOCs such as acetaldehyde, acetone, methanol; non-methane hydrocarbons (NMCHs) such as benzene, toluene, ethylbenzene, xylenes (BTEX), isoprene, and monoterpenes; and volatile organic sulfur such as dimethyl sulfide/DMS) were recorded. Formaldehyde is a carcinogenic substance [14] and a long exposure to and inhalation of formaldehyde cause skin and respiratory tract irritations [15]. It plays a major role in the oxidative capacity of the atmosphere with a strong production of hydroxyl radicals [16]. This compound can result from primary or secondary formation by anthropogenic (combustion, solvents) or biogenic sources, of which one-third results from primary emissions and two-thirds from secondary formation [17]. The secondary formation of HCHO results principally from VOCs (as isoprene, methacrolein (MACR) or methyl vinyl ketone (MVK)) oxidation by atmospheric oxidants such as the OH radical. The most prominent reaction is isoprene oxidation due to its importance in the atmosphere. Isoprene is the most emitted biogenic non-methane VOC on the global scale [18], being the main precursor of HCHO in the lower troposphere [18,19,20]

Our goal in this study was to better estimate sources and sinks of VOCs compounds, especially HCHO. We combined a chemical-kinetics-based approach with a multivariate statistical approach to determine the sources and sinks of HCHO at the Maïdo observatory on Reunion Island (21.1° S, 55.4° E, 2200 m above sea level (a.s.l.)) [21]. In the chemical-kinetics-based approach, HCHO sources and sinks were calculated, solving the chemical kinetics equations according to different hypotheses. The second approach involved a positive matrix factorization (PMF). PMF is a tool developed by the U.S. Environmental Protection Agency [22], allowing the characterization of VOC sources and quantifying their contribution to samples. Multiple studies have applied the PMF technique to study primary or secondary sources of VOCs [23], the difference between rural (biogenic) and urban (anthropogenic) sites [24,25,26], or chemical and dynamical influence on the sources [27].

The remainder of this paper is structured as follows: Section 2 describes the materials and methods, including meteorological conditions and sampling sites (Section 2.1), instrumentation (Section 2.2), methodology of the chemical kinetic-based calculation method (Section 2.3), and PMF approach (Section 2.4). The results are presented and discussed in Section 3 with regards to dynamic context obtained by determining the origins of different air masses with meteorological measurements during the campaign. In Section 3.1, measurements of VOCs at the Maïdo observatory and Bélouve are presented. Then, the results of the chemical-kinetics-based and PMF approaches are discussed in Section 3.2 and Section 3.3 respectively.

2. Material and Methods

2.1. Meteorological Conditions and Sampling Sites

The main reactive gases, including VOC, nitrogen oxides (NO_x = NO + NO₂), ozone (O₃), and sulfur dioxide (SO₂), were measured at the Maïdo observatory on Reunion Island. The observatory is located above a tamarind tree forest and close to scrubland. Measurements were recorded in an urban site at Le Port (20.9° S, 55.3° E, 7 m a.s.l.) and at the Bélouve lodges (called hereafter Bélouve, 21.06° S, 55.5° E, 1498 m a.s.l.) to study the influence of anthropogenic and biogenic VOC emissions. Le Port is an industrial (e.g., sugar factory) area located in the northwest of the island along the coast. In contrast, Bélouve is located in a primary tropical forest located 16 km east of the Maïdo observatory. Figure 1 presents the location of each measurement site and the main features of local low-level winds. The climate is tropical with wet and hot summers with a cyclonic season from November to March and, depending on the altitude, mild to cool winters from May to September. VOCs, NO_x, O₃, and SO₂ concentrations were measured at the end of the cyclonic season, and the temperatures observed during the campaign varied between 12 and 16 °C at the Maïdo observatory, 23 and 29 °C at Le Port, and 4 to 12 °C at Bélouve. Three cyclones occurred during the campaign: Dumazile from 1 March to 6 March, Eliakim from 13 March to 20 March, and Fakir from 20 April to 24 April. Volcanic eruptions occurred 3 April during few hours and from 27 April to 1 June.

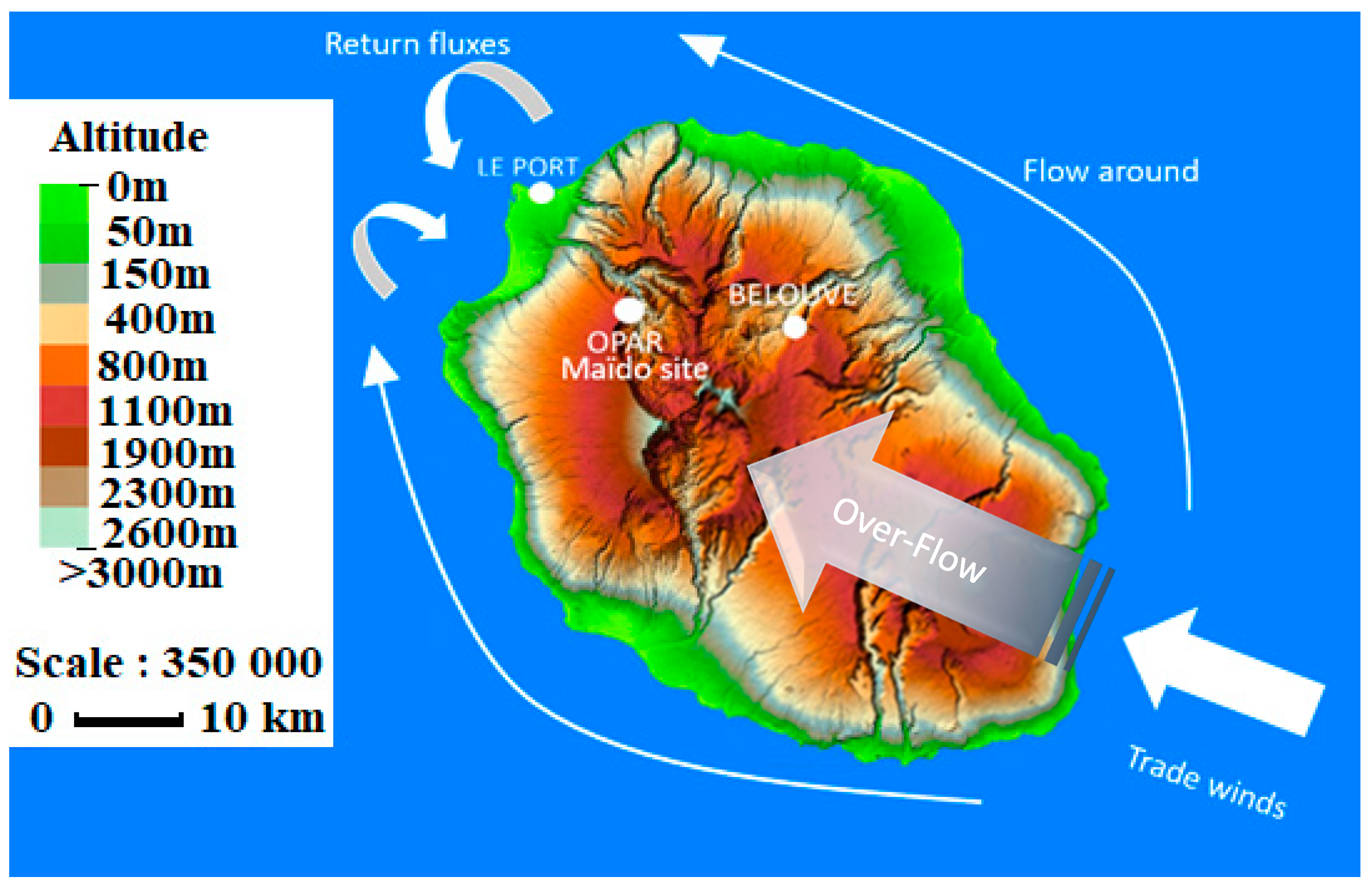

On the synoptic scale, under the influence of trade winds, air masses are mainly advected toward the northwest over the mountains of Reunion Island, known as the over-flow phenomenon [28,29,30]. The observatory is also influenced by local air circulation patterns with thermodynamic processes linked to upslope and downslope winds such as the catabatic–anabatic slope winds and sea–land breeze. The Maïdo observatory is located in the convergence of these two distinct regimes, and during the daytime, the trade winds are broken into two flows forming a return flow in the northwest of the island. Then, the surface is heated by solar radiation, resulting in upward air masses advecting to the Maïdo observatory. These air masses are mostly within the marine boundary layer (MBL), which contains biogenically- or anthropogenically-emitted compounds [28]. In contrast, during the night, the observatory is mostly in the free troposphere, the surface cools, and air masses move downward [28,29,30,31].

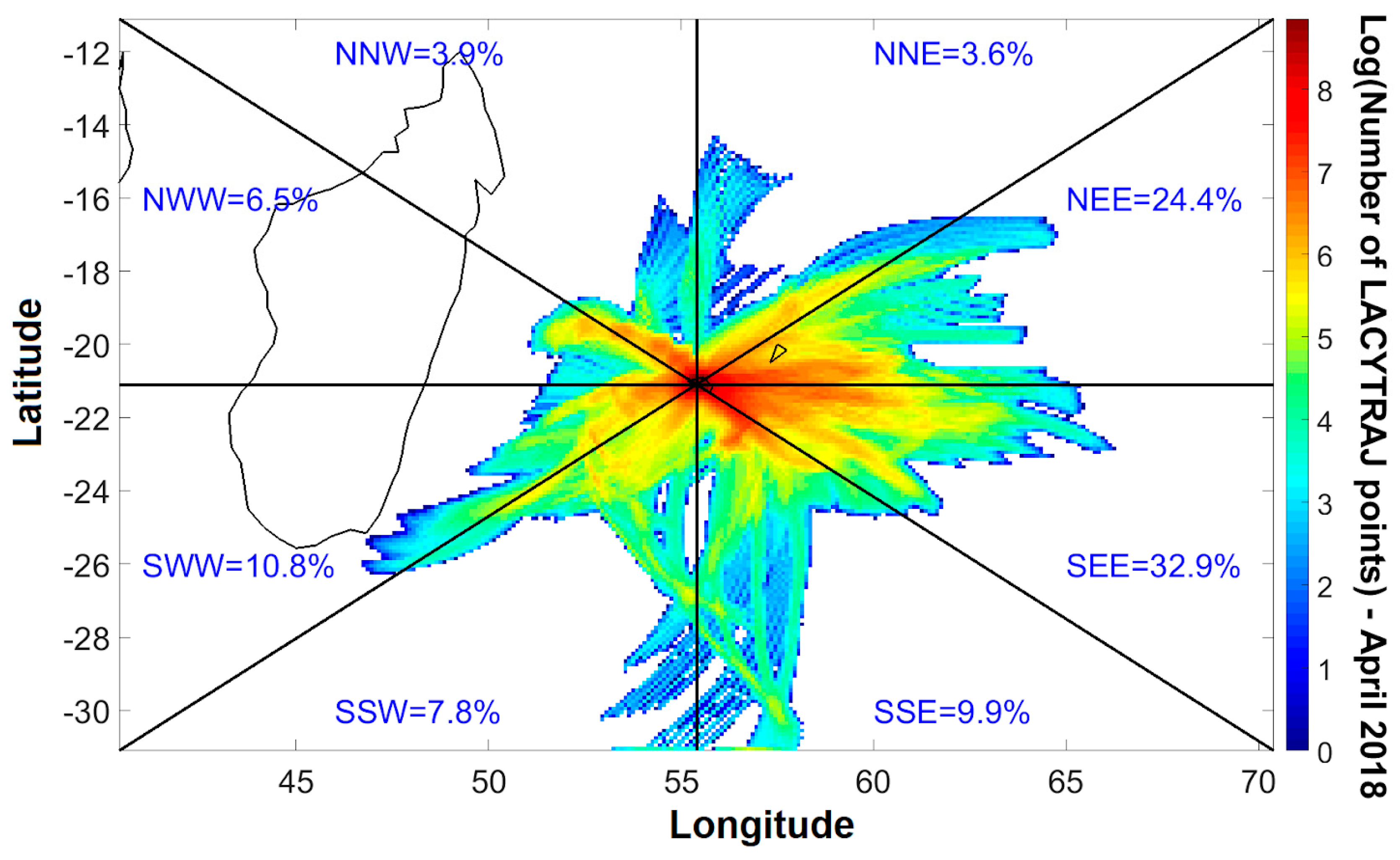

Figure 2 presents the spatial distribution of back-trajectories points during the measurement campaign period. They were calculated with LACYTRAJ [32], a three-dimensional Lagrangian code based on ECMWF 1 × 1 degree ERA interim reanalysis winds. Although ERA interim data spatial resolution at mesoscale circulation for the complex Reunion Island terrain is not resolved by LACYTRAJ, the trajectories can be used to identify the origins of air masses from the atmospheric transport at the synoptic scale. The wind direction is divided in 8 sections. We calculated 36 h back-trajectories every 6 h throughout the month of April starting from the Maïdo observatory (2200 m a.s.l.). Each wind proportion value was calculated considering the number of trajectory points in the corresponding section relative to the total amount of trajectory points. Figure 2 presents the dominant air masses origins during April 2018. The results confirm that the dominant large-scale air masses are easterly (NEE = 24.4% and SEE = 32.9%) under the influence of trade winds.

2.2. Instrumentation

OVOCs were measured using online proton transfer reaction-mass spectrometry (PTR-MS). Formaldehyde (HCHO) was measured via chemical fluorometric detection with an Aerolaser instrument (AL 4021 model; Garmisch-Partenkirchen, Germany) (Section 2.2.2). Estimation of uncertainties of the different instruments is provided in the supplementary section and the characteristics of the instruments are summarized in

Table 1. Online instrumentation during Oxygenated Compounds in the Tropical Atmosphere: Variability and Exchanges (OCTAVE) campaign. BIRA: Royal Belgian Institute for Space Aeronomy, LSCE: Laboratoire des sciences du Climat et de l’Environnement, LACY: Laboratoire de l’Atmosphère et des CYclones, LaMP: Laboratoire de Météorologie Physique, ATMO: Atmo-Réunion.

Measurements	Site	Recorded Dates (DD/MM/YY)	Institution	Instrument	Limit of Detection (ppb)	Absolute Uncertainty
VOCs	Maïdo	16/03/18–25/05/18 06/04/18–16/04/18	BIRA LSCE	PTR-quad-MS PTR-quad-MS	0.011–0.145 0.018–0.532	0.004–0.84 ppb 0.006–0.09 ppb
	Bélouve	25/04/18–02/05/18	LSCE	PTR-quad-MS	0.018–0.532	0.009–0.08 ppb
	Le Port	20/04/18 (1 day)	LSCE	PTR-quad-MS	0.018–0.532	0.006–0.34 ppb
NOX	Maïdo Bélouve Le Port	08/03/18–10/05/18 25/04/18–02/05/18 16/04/18–24/04/18	LACY ATMO ATMO	API Teledyne T200 UP Teledyne T200 Teledyne T200	5 × 10−2 0.4 0.4	0.5% 0.5% 0.5%
O3	Maïdo Bélouve Le Port	08/03/18–10/05/18 25/04/18–02/05/18 16/04/18–24/04/18	LACY ATMO ATMO	TEI 49i Teledyne T400 Teledyne T400	0.5 0.6 0.6	1 ppb 0.5% 0.5%
HCHO (Aerolaser)	Maïdo Bélouve Le Port	12/03/18–19/04/18 26/04/18–02/05/18 23/04/18–24/04/18	LaMP LaMP LaMP	Aerolaser Aerolaser Aerolaser	0.15 0.15 0.15	10.3% 10.3% 10.3%
Meteorological parameters (temperature (T), relative humidity (RH), pressure (P), wind speed (WS), wind direction (WD))	Maïdo Bélouve Le Port	01/03/18–02/05/18 25/04/18–02/05/18 16/04/18–24/04/18	BIRA ATMO ATMO	HUMICAP 180, Pt100 temperature, Vaisala PTB100	NA NA NA	(RH ± 2%, T ± 0.2 °C, P ± 0.5 hPa, WS ± 0.17 m/s, WD ± 2.8°)

.

2.2.1. PTR-MS

PTR-MS is a widely used online technique for VOC detection with a high sensitivity (10–100 pptv detection limit) and a fast response time (~100 × 10⁻³ s) [33]. It relies upon chemical ionization of VOCs in ambient air by proton transfer from reactant H₃O⁺ source ions, which are produced in large amounts in a hollow cathode discharge ion source and subsequently injected in an ambient air flow which is pumped through a drift tube reactor. The reaction is H₃O⁺ + R ⟶ RH⁺ + H₂O.

Reactant and product ions are sampled downstream of the reactor and detected by a quadrupole mass spectrometer. VOC identification relies on m/z ratios of the protonated VOCs, and quantification relies either upon calibration of the compound specific product ion signals using a VOC standard or upon H₃O⁺/VOC reaction kinetics and ion residence time in the reactor. More details can be found in Blake et al. [34].

VOCs were measured by two proton-transfer-reaction quadrupole mass spectrometers (PTR-Quad-MS; Ionicon Analytik GmbH, Innsbruck, Austria) belonging to the Royal Belgian Institute for Space Aeronomy (BIRA-IASB) and to the Laboratoire des Sciences du Climat et de l’Environnement (LSCE). The BIRA PTR-MS was installed at the Maïdo observatory in 2017 to generate a 2-year dataset of atmospheric measurements of OVOCs. The LSCE PTR-MS measurements were recorded during the campaign at the three different locations. First, BIRA and LSCE PTR-MS were compared at the Maïdo observatory (during 6–16 April 2018) to validate the measurements. The coefficient of determination (R²) was higher than 0.90 with y = 0.91x + 0.43 during the calibration with Ionicon and Apel-Riemer mixture (ApelRiemer Environmental Inc., USA) with m/z 33, 42, 45, 59, 69, 73, 79, 93, and 107; with x = BIRA calibration coefficients and y = LSCE calibration coefficients. Afterward, the LSCE PTR-MS was moved to Le Port (19–24 April 2018) and Bélouve (25 April–2 May 2018) in a mobile laboratory.

In the autumn of 2017 (about 6 months before the OCTAVE campaign), the LSCE PTR-MS was deployed in the first international PTR-MS intercomparison campaign at Cabauw, the Netherlands. This instrument showed good comparison with the other deployed PTR-MS (mostly Proton Transfer “Time-of-Flight” Mass Spectrometer, PTR-TOF-MS, Ionicon, Innsbruck, Austria), its sensitivity was in the range of the other instruments until m/z 150 and a low variability to humidity. More details about the results of this intercomparison are provided by Holzinger et al. [35].

The VOC mixing ratios presented in this work used for PMF analysis were recorded at the Maïdo site with the BIRA PTR-MS. Many VOCs were sampled continuously for both instruments: methanol (m/z 33), acetonitrile (m/z 42), acetaldehyde (m/z 45), acetone (m/z 59), dimethyl sulfide (DMS) (m/z 63), isoprene (m/z 69), methyl vinyl ketone (MVK) + methacrolein (MACR) + isoprene hydroxy hydro peroxides (ISOPOOHs) (m/z 71), methyl ethyl ketone () (m/z 73), benzene (m/z 79), toluene (m/z 93), xylenes (m/z 107), and monoterpenes (m/z 137 and 81) [36,37] with a dwell time of 10 s per mass. BIRA PTR-MS background measurements were recorded every 4 h and lasted for about 25 min by sampling zero air, which was generated by a Parker HPZA-3500 catalytic converter (Parker Hannifin Corporation, Haverhill, USA). We measured the blanks after sending 1 L of air through the catalytic converter and this air was subsampled from the main sampling line. Negative values indicate that a compound must have been generated in the catalytic converter or in the tubing of the zero-air set-up that gives rise to ion species in the PTR-MS (e.g., m/z 93 and 107). Negative concentrations occur when free tropospheric air masses are sampled. Concentrations below zero were not considered in the calculation. The instrument for the VOCs of interest was calibrated by dynamically diluting a small flow of a calibration gas standard (Apel-Riemer Environmental, Inc., Boulder, CO, USA) in zero air. Calibrations were conducted every 3 days and the dependence of the calibration coefficients on sample humidity was determined about every two months.

Concerning the LSCE PTR-MS, the ambient air at Le Port and Bélouve was sampled through a heated and thermally insulated Teflon line, and a particle filter was set in front of the inlet to avoid aerosols and other particles above 2 µm to enter the instrument. One-hour blank measurements were recorded with an 8 h repetition rate. Then, for concentration calculations, these measures were subtracted from the atmospheric signal. A calibration was performed at the beginning, in the middle, and at the end of the campaign using a gas calibration unit (GCU) from Ionicon Analytik (Innsbruck, Austria)that contained a known and calibrated VOC mixture. As the calibrations produced similar results (within 94%), a mean calibration coefficient was applied to the whole campaign.

Both instruments were operated at a drift tube pressure and temperature of 2.2 mbar and 333 K, respectively, and a drift voltage of 600 V. This voltage results in an E/N ratio of 130 Townsend (1 Td = 10⁻¹⁷ V cm²), where E is the electrical field strength and N is the buffer gas number density.

2.2.2. Additional Measurements

The Aerolaser GmbH (AL 4021 model; Garmisch-Partenkirchen, Germany) instrument determines HCHO concentrations based on the Hantzsch reaction [38] and fluorescence detection [39]. Two solutions were prepared: a stripping solution and a Hantzsch (or reagent) solution. The stripping solution was composed of 3 mL sulfuric acid (H₂SO₄) in 1 L of water. Air was sampled through a 6 mm internal diameter Teflon tube and gaseous HCHO was transferred into the stripping liquid solution. We prepared 1 L of reagent solution with 77 g of ammonium acetate, 2.5 mL of acetic acid at 100%, and 2 mL of acetylacetate. This solution converted the formaldehyde into 3,5-diacetyl-1,4-dihydrolutidine (DDL). This molecule fluoresces at 510 nm after excitation at 400 nm and the fluorescence intensity was detected by a photomultiplier. A calibration was performed at the beginning of the campaign within a 30 µg/L HCHO solution. Blank measurements were performed every 2 days with distilled water.

The instrument recorded measurements at Maïdo from 12 to 19 March 2018. Afterward, it was moved to Le Port from 20 to 24 April 2018 and to Bélouve from 25 April to 2 May 2018 within the mobile laboratory.

Other trace gases and meteorological parameters were also measured at different sites. O₃ was measured at the Maïdo observatory and Bélouve and Le Port using a UV photometric analyzer (TEI49i, Thermo Fisher Scientific, Waltham, MA USA or Teledyne T400, Teledyne API, San Diego, CA, USA).

NO and NO₂ were measured along with ozone chemiluminescence analyzer using blue light converter (BLC) technology to convert NO₂ into NO at a specific wavelength [40].

Wind speed and direction were measured using a Vaisala HMP45 sensor (Vaisala, Helsinki, Finland). The meteorological parameters (temperature, relative humidity, pressure, and wind speed and direction) were recorded by an automatic weather system.

Each instrument is specified in Table 1.

2.3. CKB Calculation to Estimate Primary and Secondary Sources of Formaldehyde at Maido Receptor Site

In several studies, chemical kinetics equations have been solved to deduce the photochemical age of air masses; Yuan et al. [23] and Parrish et al. [41] used this method to determine concentrations of nonmethane hydrocarbons (NMHCs) and VOCs. Fried et al. also estimated HCHO sources by solving photochemical equations [42].

In the present study, we used chemical kinetics equations to determine the sources of formaldehyde and to recalculate concentrations considering biogenic and anthropogenic components of emissions. Formaldehyde concentrations at the Maïdo observatory were assumed to result from both primary and secondary anthropogenic and biogenic emissions, and were described by the following expression:

$$\begin{gathered} {\left[HCHO\right]}_{measured}={\left[HCHO\right]}_{primary anthropogenic} + {\left[HCHO\right]}_{primary biogenic} + \\ {\left[HCHO\right]}_{secondary biogenic} + {\left[HCHO\right]}_{secondary anthropogenic}. \end{gathered}$$

(1)

Primary terms were deduced from anthropogenic and biogenic direct emissions ([HCHO] _{primary anthropogenic} and [HCHO] _{primary biogenic,} respectively). Secondary terms ([HCHO] _{secondary anthropogenic} and [HCHO] _{secondary biogenic}) consider the concentrations of key species (e.g., isoprene, toluene, and monoterpenes) and the corresponding yield formation rates.

This section is organized into 3 steps. First, the calculation of primary and anthropogenic and biogenic sources of HCHO is described. The VOC concentrations used for the calculations were from the BIRA PTR-MS data, except for formaldehyde for which Aerolaser (AL 4021 model; Garmisch-Partenkirchen, Germany) data were used. The second step details the secondary and anthropogenic and biogenic sources of HCHO. The equations used for these two calculations included the atmospheric transport time t, which is determined in the third step. This section presents the main equations of the CKB approach. A more exhaustive version containing all calculations is provided in Appendix B.

2.3.1. Estimation of the Primary Anthropogenic and Biogenic Contributions to HCHO

Primary Anthropogenic Contribution

[HCHO] _{primary anthropogenic}, the primary anthropogenic contribution to HCHO, was estimated using toluene as an anthropogenic tracer. Toluene is one of the most abundant compounds emitted by traffic. Biogenic sources of toluene exist, with a toluene to α-pinene flux ratio of 10³ for pine trees [43]. By solving the differential equations describing the loss of toluene and HCHO by reaction with OH along the air mass trajectory between the urban site at Le Port and the Maïdo observatory, the following formula was obtained for [HCHO] _{primary anthropogenic} (see Appendix B for its derivation) and was mentioned before in Possanzini et al. [44]:

$${\left[HCHO\right]}_{primary anthropogenic}=\mathsf{\rho } \times {\left[toluene\right]}_t {\times }_{ }{e}^{\left(\left(k_1-k_2\right)\left[OH\right]-J_{HCHO }\right)t}$$

(2)

where ${\left[toluene\right]}_t$ is the concentration of toluene, and negative values were not considered for the calculation; ρ is the formaldehyde to toluene concentration ratio at the urban site, 4.5 ± 0.8 in this study, and this value is close from the one in Equation (5) measured by Zhang et al. in Beijing [45]; t is the air mass transport time in seconds (cf. Section 2.3.3); k₁ = 5.96 × 10⁻¹² cm³ molecules⁻¹ s⁻¹ and k₂ = 9.77 × 10⁻¹² cm³ molecules⁻¹ s⁻¹ are the reaction rate constants of toluene and formaldehyde with the OH radical, respectively [46]; J_HCHO is the photolysis rate of formaldehyde deduced by the tropospheric and ultraviolet visible radiation (TUV) model published on the National Center for Atmospheric Research (NCAR) website (Appendix B); and [OH] is the OH concentration deduced (cf. the Appendix B) by:

$$\left[OH\right]\times t= \frac{ln\left(\frac{\left[toluene\right]}{3\times \left[benzene\right]}\right)}{\left(k_{benzene}-k_1\right)}.$$

(3)

where k₁ = 5.96 × 10⁻¹² cm³ molecules⁻¹ s⁻¹ and k_benzene = 1.23 × 10⁻¹² cm³ molecules⁻¹ s⁻¹, and t is the calculated transport time.

This method was replicated from Yuan et al. who used the (m + p)-xylene to benzene ratio [23]. The two components (benzene and toluene) were chosen for the large difference between k_benzene and k_toluene. The photochemical kinetics allows [OH] × t to be estimated from the toluene to benzene ratio [47].

Primary Biogenic Contribution

[HCHO] _{primary biogenic}, the primary biogenic contribution to HCHO, was estimated using terpenes as the biogenic tracer [5]. [HCHO] _{primary biogenic} considers the reaction of monoterpenes with the OH radical and O₃:

$${\left[HCHO\right]}_{primary biogenic}=\psi \times {\left[terpenes\right]}_t \times e^{\left(\left(k_{OH}-k_2\right)\left[OH\right]+k_{O3}\left[O3\right]-j_{HCHO}\right)t }$$

(4)

where Ψ is the ratio of biogenic formaldehyde to monoterpenes concentrations at the forest site. For Eucalypt grandis and Eucalypt camaldulensis, minor species present on Reunion island, the ratio ranges between 0.02 and 0.2 in Australia [48]. This ratio has not been measured during the campaign, so a value of 0.129, from the mean of values of these two species as obtained for Quercus ilex [49] in Mediterranean Basin, was used instead. [OH] is the concentration of OH radicals in molecules cm⁻³:

$$\left[OH\right]=\frac{2\times J_{HCHO }\times \left[HCHO\right]+2 \times J_{O3}\times \frac{k_{\beta }}{k_{\alpha }}\times \frac{\left[O_3\right]\times \left[H_{2}O\right]}{M_{air}}}{k_{NO2}\times \left[N{O}_2\right]}$$

(5)

where [HCHO], [NO₂], and [O₃] are the concentrations of each species in molecule cm⁻³; k_α is the rate constant of excited oxygen (=O(1D)) with a N₂ or O₂ molecule (cm³ molecules⁻¹ s⁻¹); k_β is the rate constant of O(1D) with H₂O (cm³ molecules⁻¹ s⁻¹); k_NO2 is the rate constant of NO₂ with the OH radical; J_O3 and J_HCHO are photolysis rate coefficients estimated by the TUV model on the NCAR website; M_air is the number of molecules of O₂ and N₂ per cm³ of air; k_OH is the OH reaction rate constant with terpenes; k_O3 is the O₃ reaction rate constant with terpenes (cm³ molecules⁻¹ s⁻¹).

2.3.2. Estimation of the Secondary Anthropogenic and Biogenic Contributions to HCHO

Secondary Anthropogenic Contribution

[HCHO]_{secondary anthropogenic} cannot be directly quantified using this approach due to its various anthropogenic precursors. For this reason, [HCHO]_{secondary anthropogenic} was deduced from Equation (1) by subtracting all the estimated sources of measured formaldehyde.

$$\begin{array}{ll}{\left[HCHO\right]}_{secondary anthropogenic}& =Unknown\\ & ={\left[HCHO\right]}_{ measured }-{\left[HCHO\right]}_{ primary anthropogenic}\\ & -{\left[HCHO\right]}_{primary biogenic}- {\left[HCHO\right]}_{ secondary biogenic}\end{array}$$

(6)

This term also includes HCHO from unknown sources (e.g., marine emissions).

Secondary Biogenic Contributions

[HCHO]_{biogenic secondary} was estimated from the oxidation of its major biogenic precursors: isoprene and monoterpenes. The term is expressed as (cf. Appendix B):

$$\left[HCHO\right]{ }_{biogenic secondary} = {\left[HCHO\right]}_{isoprene} + \left[HCHO\right]{ }_{monoterpenes }.$$

(7)

[HCHO] _isoprene is calculated as:

$${\left[HCHO\right]}_{isoprene}= \frac{{\mathsf{Ɣ}}_{HCHO}}{{\mathsf{Ɣ}}_{MVK}+{\mathsf{Ɣ}}_{MACR}}\times \left[MVK+MACR\right]=1.14 \times \left[MVK+MACR\right]$$

(8)

where $\frac{\gamma \left(HCHO\right)}{\gamma \left(MVK\right) + \gamma \left(MACR\right)}= \frac{0.629}{\left(0.23 + 0.32\right)}=1.14$; γ(HCHO), γ(MVK), and γ(MACR) are the yields of HCHO, MVK and MACR deduced from the reaction of isoprene with the OH radical, respectively; and.\ [MACR + MVK] is the concentration measured by the PTR-MS (m/z 71).

The equation for [HCHO]_monoterpenes is:

$${\left[HCHO\right]}_{monoterpenes}=\frac{\left(X \times k_{OH}\left[OH\right]+Y \times k_{O3}\left[O_3\right]\right)\times {\left[monoterpenes\right]}_t}{\left(\left(k_2-k_{OH}\right)\left[OH\right]-k_{O3}\left[O_3\right]\right)}\times \left(1-e^{\left(\left(k_{OH}-k_2\right)\left[OH\right] + k_{O3}\left[O_3\right]\right)t}\right)$$

(9)

where k_O3 and k_OH in (cm³ molecules⁻¹ s⁻¹) are the rate constants for the reactions of monoterpenes with O₃ and OH, respectively (Appendix B); X and Y are the calculated percentages of formation of HCHO from the reaction of monoterpenes with OH and O₃, respectively; and t is the transport time defined in the next section.

2.3.3. Transport Time Estimation

The aim of this calculation was to consider the depletion of formaldehyde during atmospheric transport. The transformation of HCHO depends on its origins (biogenic or anthropogenic). Consequently, two methods were used to estimate this transport time: one for anthropogenic emissions and one for biogenic emissions.

Anthropogenic Transport Time

The urban sites (Le Port and cities around) are 15 km away from the observatory in a straight line. The anthropogenic transport time in seconds was estimated based on the distance between the source and the measurement point and the wind speed. The anthropogenic transport time is the ratio between the distance and the wind speed at the Maïdo observatory: $t=\frac{d\left(=15 km\right)}{v}=8.7\times {10}^3$, on average.

Biogenic Transport Time

The biogenic transport time was estimated from the reaction of OH with isoprene and its oxidation products:

$$\frac{\left[MVK\right]+\left[MACR\right]}{\left[isoprene\right]}=\frac{0,32 \times k_{iso}}{\left(k_{mvk}-k_{iso}\right)}\times \left(1-e^{\left(k_{iso}-k_{mvk}\right)\left[OH\right]t}\right)+\frac{0,23 \times k_{iso}}{\left(k_{macr}-k_{iso}\right)}\times \left(1-e^{\left(k_{iso}-k_{macr}\right)\left[OH\right]t}\right)$$

(10)

The transport time t (s) was deduced from the theoretical Equation (10); k_iso, k_MACR, and k_MVK are the rate constants for the reactions of isoprene, MACR, and MVK with the OH radical (cm³ molecules⁻¹ s⁻¹), respectively.

Appendix B provides an elaborate description of the method.

2.4. Parameters of the Positive Matrix Factorization

A second approach to determine the formaldehyde sources is proposed and was compared to the CKB calculation described in Section 2.3. This second approach was based on the PMF mathematical tool used to compensate for the limitation of the first approach. The PMF permits the estimation of the number of VOC source factors and their respective contribution to the total VOC. To this end, the PMF decomposes a matrix into two matrices: the matrix of the factor contribution and the matrix of the factor profile. The number of factors corresponds to the potential sources of VOCs and is attributed by the operator after careful examination of the factor profiles along with the mathematical outputs of the model simulations. Three parameters were studied (Appendix C): the maximal value of residuals mean (IM), the maximal value of residuals standard deviation (IS), and the goodness-of-fit parameter (Q).

More information on the PMF method and its applications to atmospheric issues was provided in Paatero and Tapper [50].

The PMF 5.0 software package (US Environmental Protection Agency, Washington, D.C., USA) was applied on the BIRA PTR-MS data. We used 15 compounds for the study: formaldehyde, methanol, isoprene, acetonitrile, dimethyl sulfide (DMS), acetone, acetic acid, acetaldehyde, methacrolein/methyl vinyl ketone (MACR + MVK), monoterpenes (m/z 81 and m/z 137), methyl ethyl ketone (MEK), benzene, toluene and xylenes. We selected 6–18 April 2018 for the analysis given the lack of cyclones and volcanic eruptions during this period.

Two input files were necessary: one for the measured concentration of the species and one for the estimated concentration uncertainty. The uncertainty (σ) corresponding to concentrations lower than the limit of detection (LOD) was equal to ⅚ × DL and the concentration was set to LOD/2. For concentrations above the LOD, σ is unchanged. If the concentration is missing, σ becomes the average concentration multiplied by 4 [51].

Then, the data were clustered into 3 categories: bad, weak, and strong based on the signal to noise ratio (SNR): ${\left(\frac{S}{N}\right)}_i= \sqrt{\raisebox{1ex}{${{\displaystyle \sum }}_{j=1}^n\left(x_{ij}-s_{ij}\right)2$}\!\left/ \!\raisebox{-1ex}{${{\displaystyle \sum }}_{j=1}^n{s}_{ij}^2$}\right.}$), where x is the concentrations and s is the uncertainties of the species j for i observations. If the SNR is less than 0.2, the species was excluded and flagged as “bad”; if the ratio was between 0.2 and 2.0, the species was flagged as “weak” and the uncertainty was multiplied by 4; and for SNR > 2.0, the species was flagged as “strong” and the uncertainty was not changed. The SNR represents the quality of the data reported in

Table 2. Summary of data quality: percentage of values below the limit of detection (LOD), percentage of missing values, signal to noise ratio (SNR), and status attributed at the volatile organic compounds (VOCs) for the positive matrix factorization (PMF) analysis. The red values show the importance of the percentage of values below the LOD and missing values.

Compounds	% Value < LOD	% Missing Values	SNR	Status
HCHO	18%	5%	1.3	Weak
Methanol	6%	6%	4.7	Strong
Acetaldehyde	23%	6%	3	Strong
Acetonitrile	0%	0%	10	Strong
Acetone	0%	6%	9.1	Strong
acetic acid	2%	6%	7	Strong
Dimethyl Sulfide (DMS)	84%	0%	0.4	Weak
Isoprene	47%	0%	4.4	Strong
Methacrolein + Methyl Vinyl Ketone (MACR + MVK)	45%	0%	4.2	Strong
Methyl Ethyl Ketone (MEK)	15%	0%	4.6	Strong
Benzene	69%	0%	1.2	Weak
Monoterpenes (m/z 81)	64%	0%	1.2	Weak
Toluene	81%	0%	0.5	Weak
Xylenes	72%	0%	0.7	Weak
Monoterpenes (m/z 137)	73%	0%	0.7	Weak

. Table 2 provides important parameters for PMF analysis to establish the status of compounds and to deduce the different sources. Six compounds were assigned a weak status: HCHO, DMS, benzene, toluene, xylenes, and monoterpenes. These values of these components were often below the detection limit (more than 50% in red in Table 2). The other VOCs (methanol, acetaldehyde, acetonitrile, acetone, acetic acid, and isoprene, and MACR + MVK and MEK) were flagged as strong. Monoterpenes concentrations derived from PTR-MS ion signals at m/z 81 and from m/z 137 ion signals were both considered due the difference in SNR (1.2 and 0.7, respectively) and lower percentage of missing values for m/z 81 (64%).

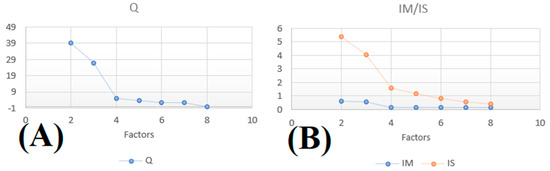

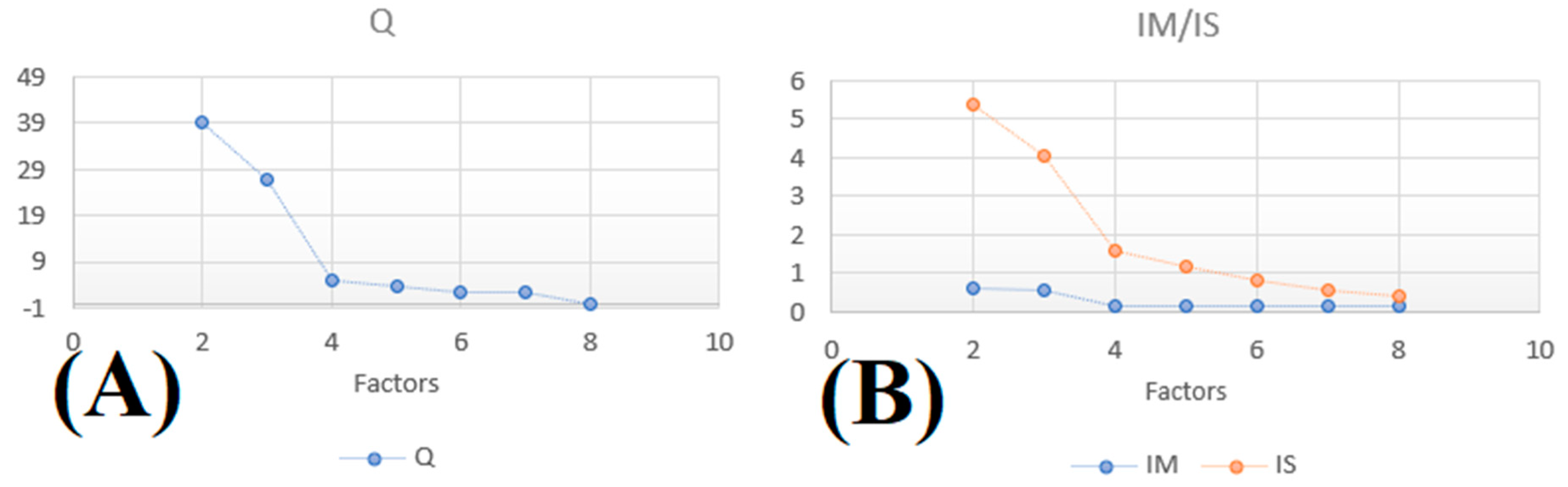

First, several runs were performed with factors ranging from 2 to 8. The IM, IS, and Q are calculated for each factor to deduce the optimal factor. The value for each factor is presented in Appendix C. Then, the optimal number of factors was determined by the largest value of the slope of the curve. In the present case, the shift is provided for k = 4. The k − 1 and k + 1 solutions are also considered. We verified these parameters (correlation between each factor must be small) and carefully examined the atmospheric meaning of the determined source profiles and the optimization of the solution. The Fpeak is a rotational tool that accurately determines the number of optimal factors. Q was calculated for different Fpeak values: −1, −0.5, 0, 0.5 and 1. The best solution is found when Q is minimized [22]. Fpeak here was equal to 0 (Appendix C).

PMF output uncertainties were estimated using three models: base model displacement error estimation (DISP), base model bootstrap error estimation (BS), and the DISP + BS model. These methods were described by Norris et al. [22] and Paatero et al. [52]. DISP was applied resulting in no swaps occurring during the calculation. The 5-factors solution was stable and sufficiently robust. No results were obtained with the BS and DISP + BS models. Standard deviations for the PMF were less than 1% so they were not relevant in our measures.

3. Results

3.1. Diurnal Variation in VOC Species

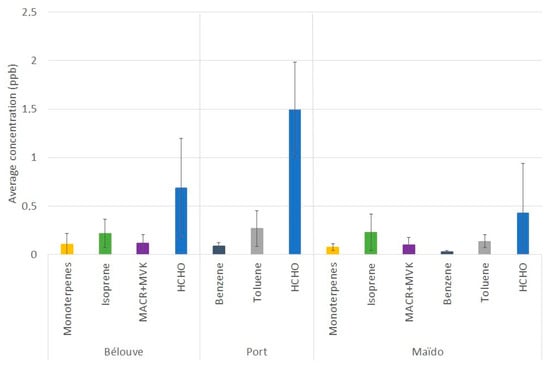

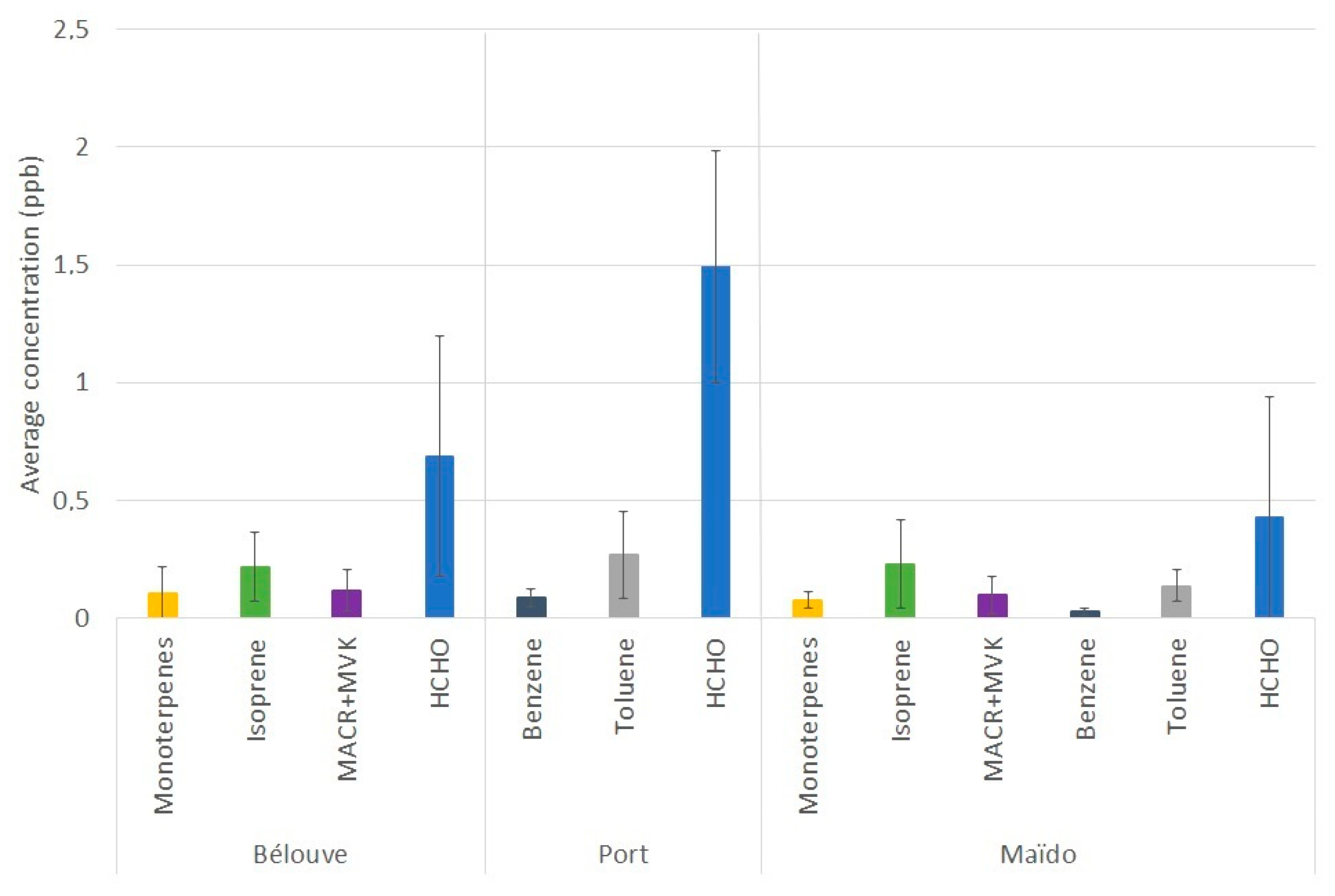

The average concentration of the main biogenic and anthropogenic VOCs is reported for the three sites in Figure 3. A slight reduction in VOCs concentrations was observed for the Maïdo site, except for isoprene, which is emitted close to the Maïdo observatory by neighboring tamarind forests [29]. The concentrations between the Maïdo observatory and Bélouve were comparable.

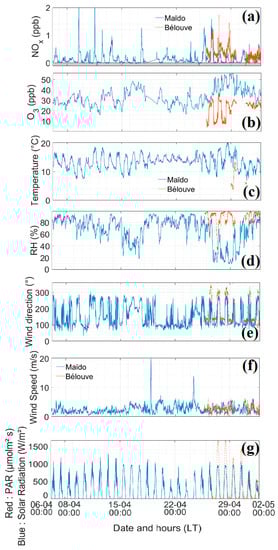

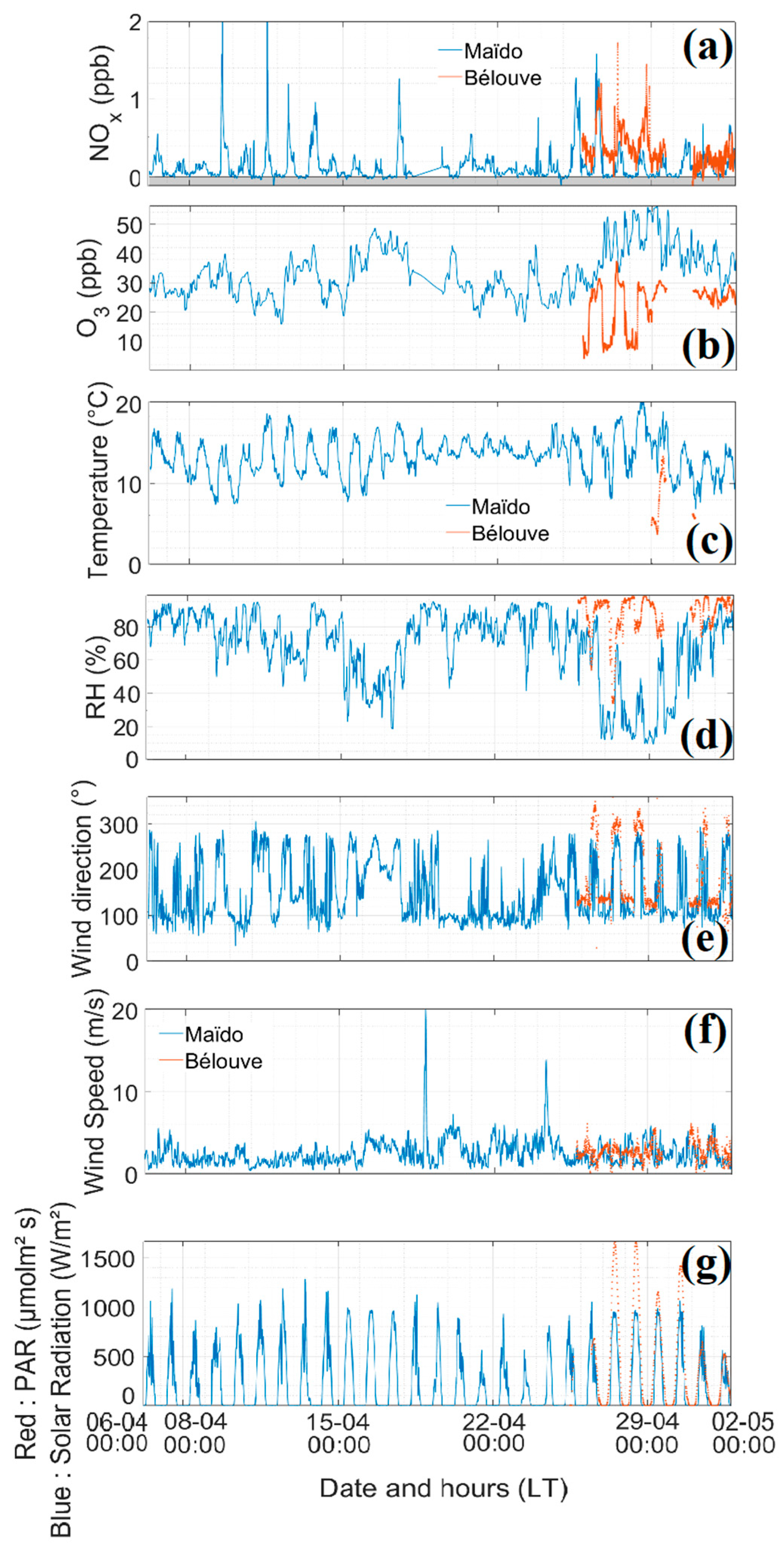

The time series plots of all parameters measured at Maïdo and Bélouve from 6 April to 2 May 2018 are presented in the Figure 4 and Figure 5. Figure 6A,B depict the diurnal variation at Maïdo and Bélouve from 25 April to 2 May 2018. No diurnal cycle was found for Le Port as few data were obtained resulting from a power failure that occurred during cyclone Fakir.

At 05:00 UT, the wind direction changes (westerly, Figure 4 and Figure 6A) and upslope wind bring air masses from the boundary mixing layer with higher NO_x values toward Maïdo. At 14:00 UT, the wind direction changes again and the level of boundary mixing layer decreases, so that the Maïdo observatory is then located in free troposphere.

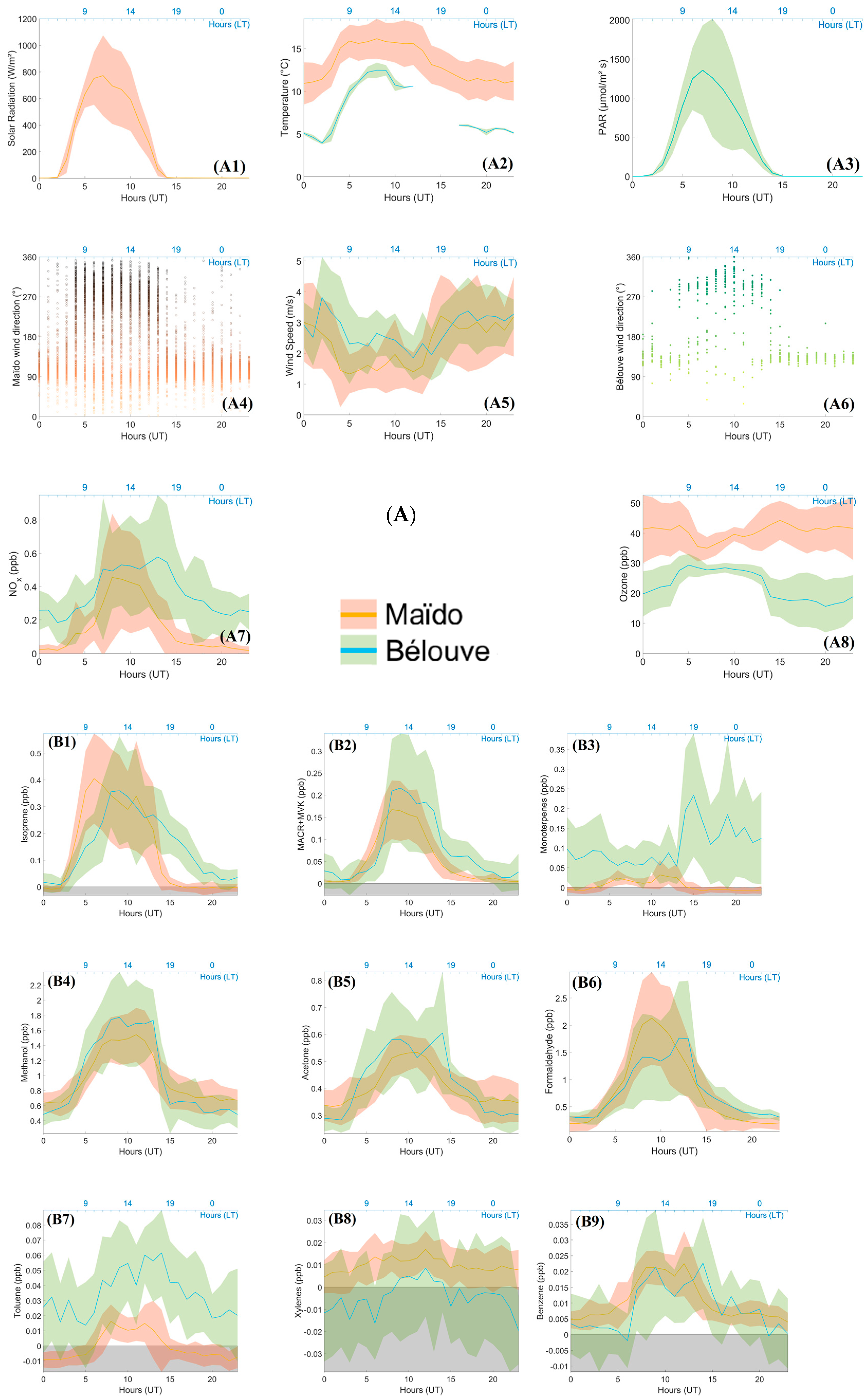

The diurnal variations in O₃, NO_x, and relevant meteorological parameters at Bélouve and Maïdo are presented in Figure 6A. Similar diurnal variations in NO_x and meteorological parameters were previously measured during the 2015 Forests-gAses-aeRosols-Clouds Exploratory (FARCE) campaign, which was also conducted at the Maïdo observatory and along the Maïdo mountain slopes [29]. At Maïdo during the night, O₃ concentrations remain almost constant due to the chemical conditions (no photolysis and low NO_x conditions) and stable dynamical conditions. The nighttime O₃ and NO_x concentrations represent the free tropospheric background of the subtropical southern hemisphere. This results in an O₃ decrease in agreement with the Leighton cycle [53]. O₃ is formed by photolysis of NO₂ to form NO, and NO₂ is formed by the reaction of O₃ with NO. O₃ concentration increases during the day resulting from oxidation of VOCs in the presence of NO [54]. At 14:00 UT, wind direction changes again. The Maïdo observatory is then located in the free troposphere under the influence of easterly winds. Ozone increases and reaches the background concentration while VOCs and NO_x decrease.

At Bélouve, O₃ concentrations during the night were lower than at Maïdo due to the lower altitude of the site [28], higher concentrations of NO, ozonolysis of terpenes, and surface deposition [55]. At 04:00 UT, O₃ increases due to the influence of the boundary mixing layer and the beginning of photochemical production processes. As a result, almost similar concentrations of O₃ at Bélouve and Maïdo were recorded in the morning.

The impact of the Fakir cyclone was observed on measurements from 19 April to 24 April 2018. Temperature and solar radiation decreased, high relative humidity was observed, and the dominant wind was easterly. Two peaks in the wind speed occurred before and at the end of the cyclone (Figure 4). Figure 5 presents the time series of VOCs. Isoprene, MACR + MVK, acetone, and MEK concentrations decreased during the cyclone period. No impact on concentrations was recorded during the volcanic eruptions (27 April to 1 June 2018).

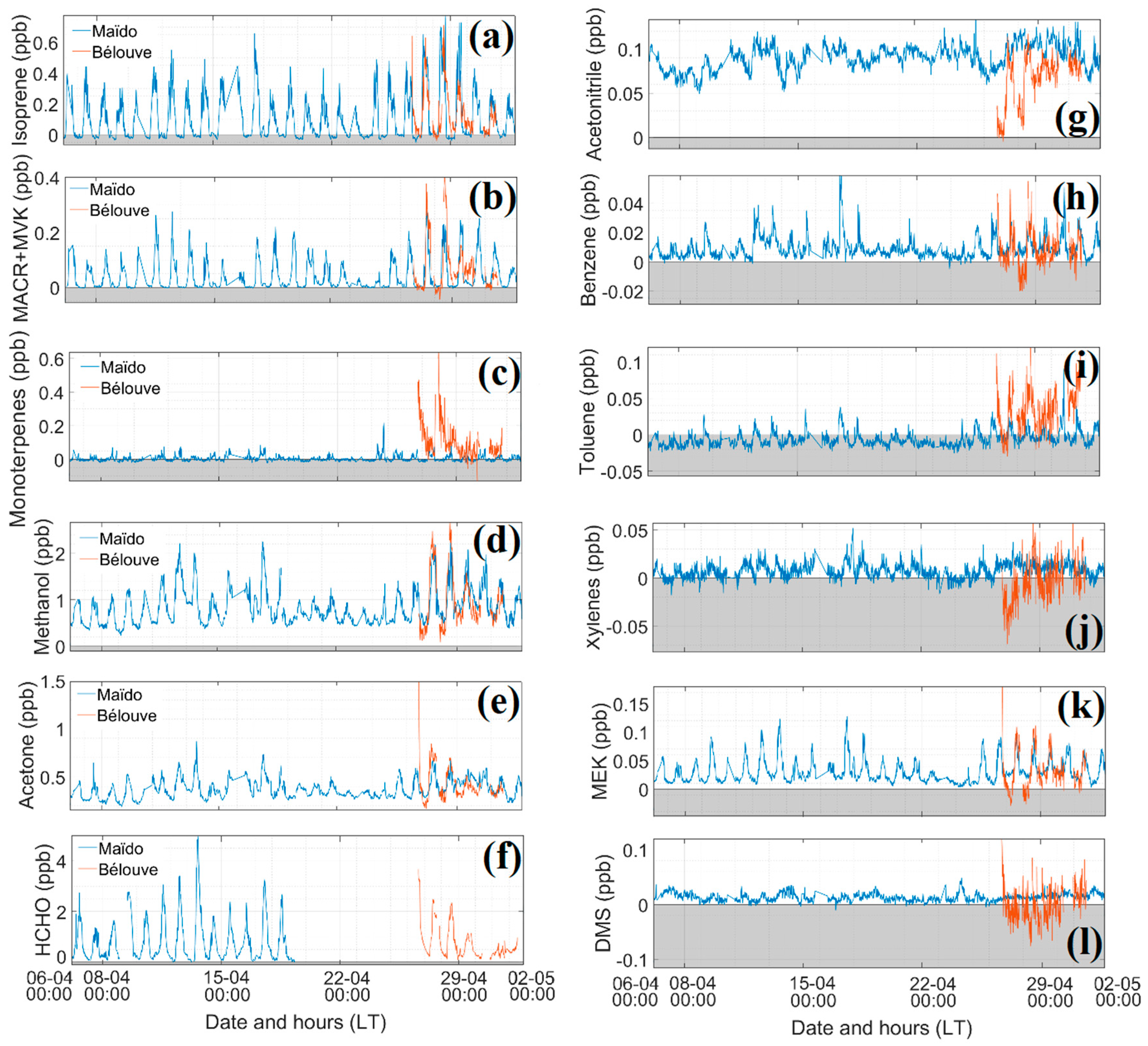

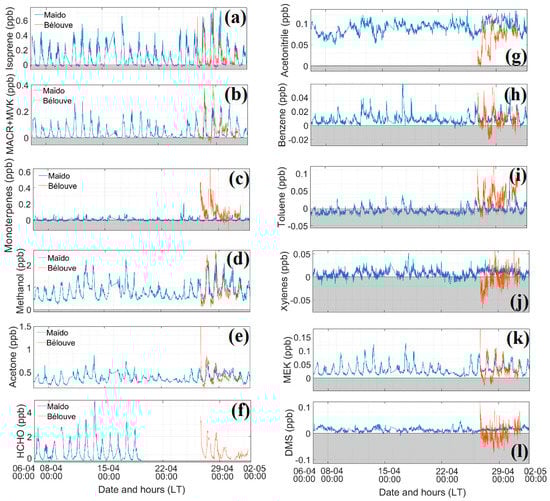

In Figure 5, from 6 April to 2 May 2018, almost all the compounds present diurnal variation and cycle, besides DMS. Negative concentrations (e.g., toluene) occurred when the background measurement was overestimated, as explained in Section 2.2.1. At Maïdo, similar patterns were found, with well-defined diurnal variation for isoprene, MACR + MCK, MEK, methanol, acetone and formaldehyde. The concentrations of these compounds reached a minimum of 0.1 ppb with maximum concentrations of 0.75 ppb for isoprene, 0.27 ppb for MACR + MVK, 0.13 ppb for MEK, 2.3 ppb for methanol, 0.85 ppb for acetone, and 4.3 ppb for formaldehyde. The concentrations remained low for toluene, xylenes, benzene, terpenes, DMS, and acetonitrile with maximum concentrations of 0.03, 0.05, 0.05, 0.07, 0.04, and 0.13 ppb, respectively. The variability of these compounds is further explained below focusing on the daily diurnal variations at Bélouve and Maïdo.

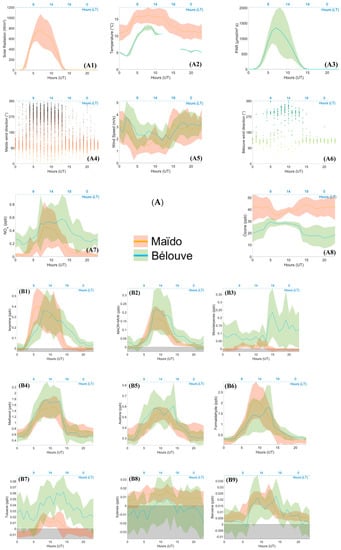

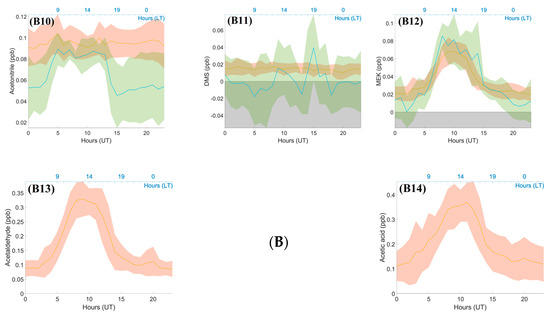

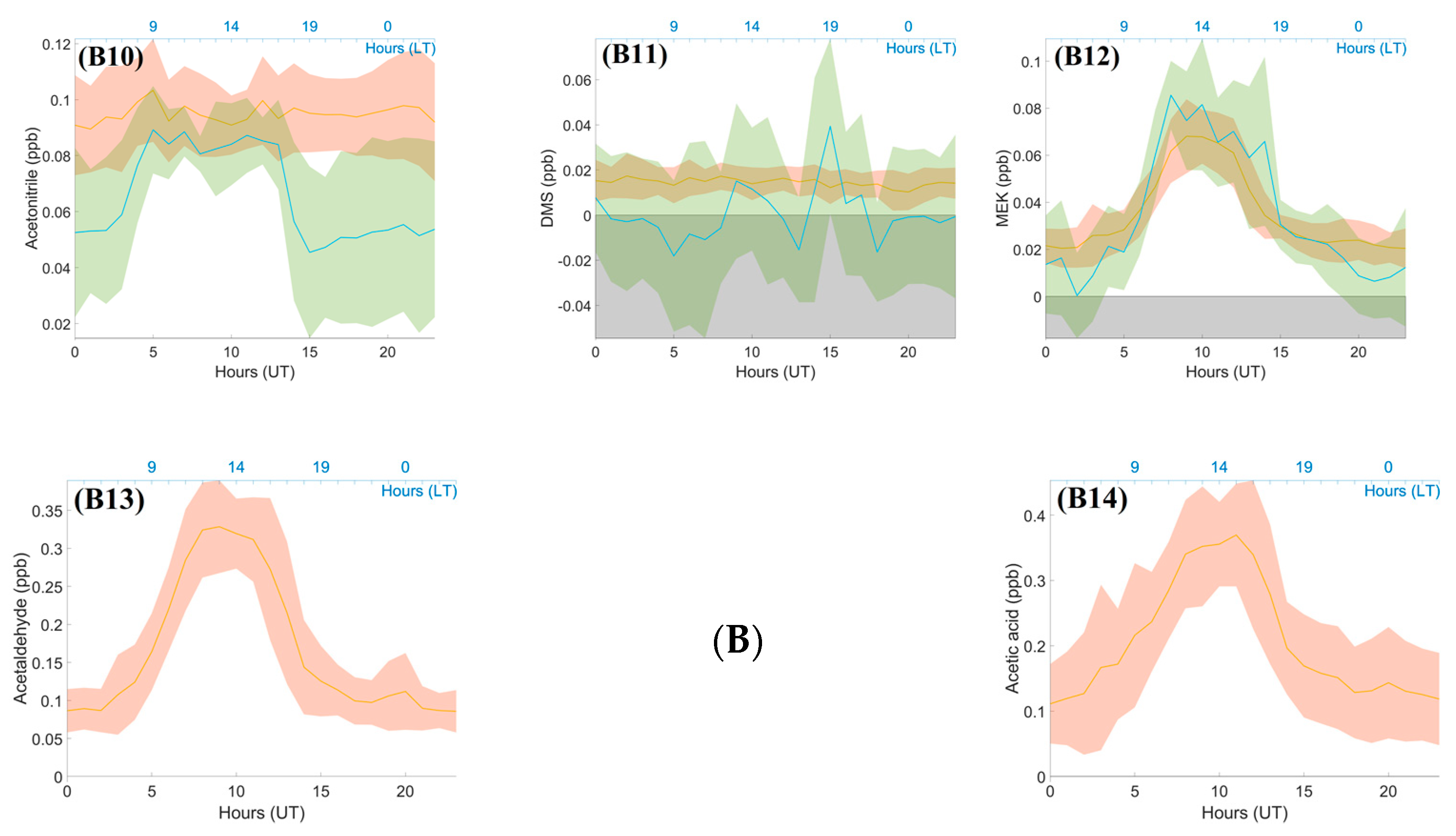

The diurnal variation plots (Figure 6B) can be differentiated into three categories: diurnal variation with one maximum concentration during the day, diurnal variation with two or more concentration peaks, and no diurnal variation. We found no diurnal variation for DMS and acetonitrile. DMS is emitted by phytoplankton over the ocean [56] and its lifetime in the tropical boundary layer is less than one day [57]. The concentrations after transport are low (average = 11.8 ppt). Acetonitrile is usually a marker of biomass burning [58] with a longer lifetime (1.4 years) [59]. This compound was not influenced by the variations in the boundary layer during the period chosen (25 April to 2 May). Figure 5 shows that the variation in acetonitrile concentration remained low (average = 0.1 ppb).

A large percentage of isoprene is oxidized to form secondary products [60]. Isoprene exhibits a strong diurnal variation where its concentration is the highest during the day (06:00–18:00 UT, 0.4 ± 0.16 ppb) and decreases at 10:00 UT, when the MACR and MVK concentrations are at their maximum (0.17 ± 0.07 ppb). At both sites, isoprene levels were linked to the solar radiation and temperature, which is consistent with previous studies [61], displaying similar diurnal variation between 02:00 and 15:00 UT. This concentration is in agreement with the simulated concentrations by Meso-NH during the FARCE campaign [29]. Several other compounds showed the same diurnal patterns: methanol, MEK, acetone, acetic acid, and acetaldehyde, which are emitted by vegetation and anthropogenic activities. The maximum concentrations of these compounds were 1.54 ± 0.36, 0.068 ± 0.015, 0.53 ± 0.05, 0.35 ± 0.07, and 0.325 ± 0.05 ppb, respectively. The same diurnal pattern was obtained for different compounds with different lifetimes and photochemical reaction rates. For instance, the lifetime is about 10 days for acetic acid, where k_OH = 7.4 × 10⁻¹³ cm³ molecule⁻¹ s⁻¹, and 8.8 h for acetaldehyde, where k_OH = 1.5 × 10⁻¹¹ cm³ molecule⁻¹ s⁻¹) [62]. Acetone concentrations decline more slowly at the end of the day due to acetone’s lower rate constant and longer lifetime (61 days, k_OH = 1.8 × 10⁻¹³ cm³ molecule⁻¹ s⁻¹ [62]) compared with the other studied compounds.

The variability in the typical anthropogenic VOCs (xylenes, toluene and benzene, with maximum concentrations of 0.017 ± 0.009, 0.016 ± 0.007, and 0.021 ± 0.005 ppb, respectively) exhibited similar patterns. These components are emitted by human activities such as traffic. They show a diurnal variation, but with two peaks, one in the morning and one in the afternoon, which is similar to the diurnal pattern of NO_x (0.45 ± 0.38 ppb on average at 08:00 and 13:00 UT). The concentrations were low (a few ppt during the day), e.g., the concentration of benzene was less than 0.03 ppb on average.

The monoterpenes measured at the Maïdo observatory revealed two peaks (07:00 and 14:00 UT). This was not the case for Bélouve measurements; the concentration began to increase at 13:00 UT through the end of the day and the night, when the sink terms were the lowest. As the concentration of monoterpenes was low, the biogenic toluene emission was probably insignificant compared to anthropogenic emissions [43]. The maximal concentration was observed at 15:00. The reactions with OH and O₃ occurring during the day, coupled with mixing and dilution, resulted in a decrease in the concentration of monoterpenes. At Maïdo, the monoterpenes concentrations are very low compared to those at Bélouve because the Bélouve measurements were recorded in a tropical forest that includes plant species with high terpenes emissions, leading to higher concentrations of these compounds.

Methanol and formaldehyde had the highest concentrations of VOCs measured at the Maïdo observatory, with maximum values of 1.54 ± 0.36 and 1.76 ± 0.26 ppb during the day, respectively. These two compounds can be released by both vegetation and anthropogenic activities. The range of formaldehyde concentrations measured at Maïdo was close to those observed at Bélouve and Le Port (1.74 ± 0.14 and 1.49 ± 0.24 ppbv on average, respectively). In March and April 2015, similar concentrations were measured at the Maïdo observatory (1.74 ppb) with maxima between 08:00 and 10:00 UT, reaching up to ~4 ppb [29]. Several studies have reported the diurnal variations of concentrations of formaldehyde at tropical [7,29], background [63], or marine [64] sites. De Blas et al. [65] estimated an average HCHO of 1.42 ppbv at rural sites and observed diurnal cycles with maximum concentrations of up to 4 ppb. HCHO levels between 0.5 and 3 ppb were observed in the Amazonian forest [7] and between 1.0 and 13.7 ppbv in urban areas [66].

The maximum concentrations of isoprene, MACR + MVK, and formaldehyde at Bélouve approached to those of Maïdo, but with an offset of a few hours in the peak level. This offset could be due to the circulation pattern on the island, differences in chemical reactions during the transport of air masses at the Maïdo observatory and Bélouve, or local depletion and formation. Further investigation is needed to establish the reason for this offset. Photosynthetically active radiation (PAR) measured at Bélouve had the same pattern as the solar radiation (Figure 4 and Figure 6A) measured at the Maïdo observatory. The temperatures were very different between the two sites: the maximum values were 16 ± 2 °C at Maïdo and 13 °C ± 1 °C at Bélouve and ~20 °C measured in 2015 [29]. Temperature affects the source of isoprene in the atmosphere; emissions of isoprene are low under cold conditions [67]. The maximum PAR at Bélouve was 1400 µmol s⁻¹m⁻² and displayed a pronounced diurnal variation as already observed by Duflot et al. [29].

The patterns for acetone and methanol concentrations were the same. Higher concentrations were measured at Bélouve than at Maïdo during the day. The strong vegetation emissions explain this difference.

Considering the atmospheric dynamics and circulation patterns on the island, the identification of sources and sinks of these components is necessary to better understand the repartitioning of the VOCs and more particularly HCHO at the Maïdo observatory.

3.2. Estimation of Formaldehyde Sources with CKB Method

The concentration of formaldehyde measured at the Maïdo observatory and calculated concentrations for the known part ($\left[HCHO\right]{ }_{biogenic}^{primary}$, ${\left[HCHO\right]}_{biogenic}^{secondary}$, ${\left[HCHO\right]}_{anthropogenic}^{primary}$) are presented in Figure 7. We calculated these values for 7 April to 19 April. Negative concentrations were not considered in the calculation.

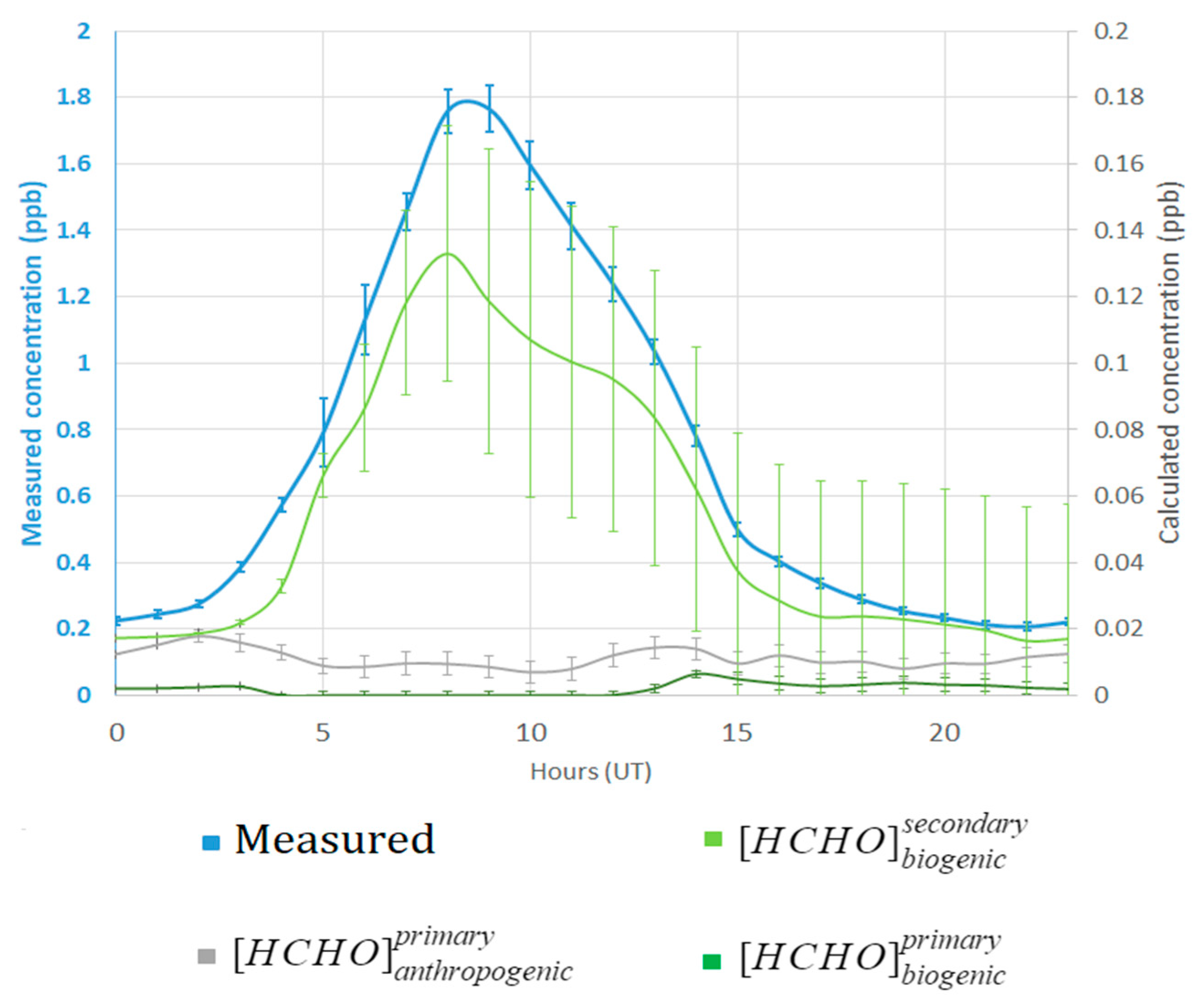

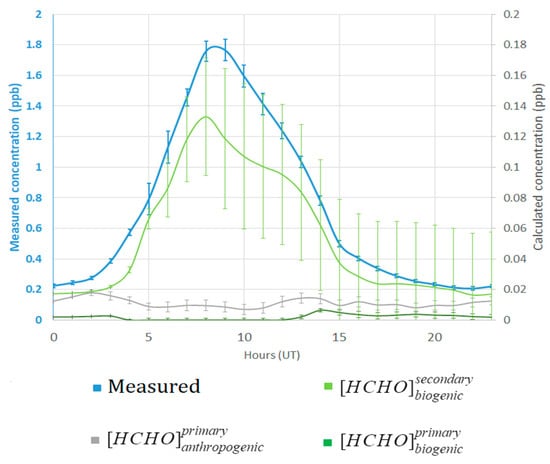

We observe a strong diurnal variation with a maximum mixing ratio of 1.76 ± 0.26 ppb at 8:00 UT (Figure 7, blue line). The calculated concentrations were lower than the measured concentrations. Of all potentially contributing terms, ${\left[HCHO\right]}_{biogenic}^{secondary}$ contributed the most, but still only 0.126 ± 0.04 ppb, and showed the same diurnal evolution as the measured formaldehyde concentrations. For ${\left[HCHO\right]}_{anthropogenic}^{primary}$, we found two little peaks: one at 02:00 and the other at approximately at 14:00 UT. Due to the low wind speed conditions (3.3 m s⁻¹ on average during the night, Figure 6A), residues of HCHO may remain in the free troposphere at the end of the day and overnight. ${\left[HCHO\right]}_{biogenic}^{primary}$ contributed little to the measured formaldehyde during the day. During the night, the concentration increased due to the consideration of terpenes in the calculations. Terpenes are mostly oxidized during daytime and less during the night, so the concentration increases at night.

Only ~9% corresponded to biogenic emissions and 3% to primary anthropogenic emissions. The calculated contributions accounted for 89% of the measured values. The large value of the unknown concentration can be explained by the lack of consideration of secondary anthropogenic formation, marine emissions, and long-range transport in this method. The term Ψ was not estimated in this study. The primary biogenic emission term was not calculated with the value of Ψ measured at Maïdo observatory for tamarind emissions, so the biogenic part may be under- or overestimated. Sensitivity tests were performed. When increasing Ψ by a factor 10, ${\left[HCHO\right]}_{biogenic}^{primary}$ increased by 6% of the calculation and the unknown part reduces to 83%.

This first approach is based on some relatively simple kinetics hypotheses. Note that atmospheric dynamics were not considered here, and many reactions are missing (e.g., for secondary anthropogenic formation). A high percentage of formaldehyde (89%) cannot be explained using this method. However, this indicates that the secondary biogenic term contributes more than the primary anthropogenic and biogenic term and has the same pattern as the measured formaldehyde.

PMF analysis was then performed to compare and complement the determination of the sources of formaldehyde.

3.3. Positive Matrix Factorization Analysis

3.3.1. VOCs Specifications in PMF

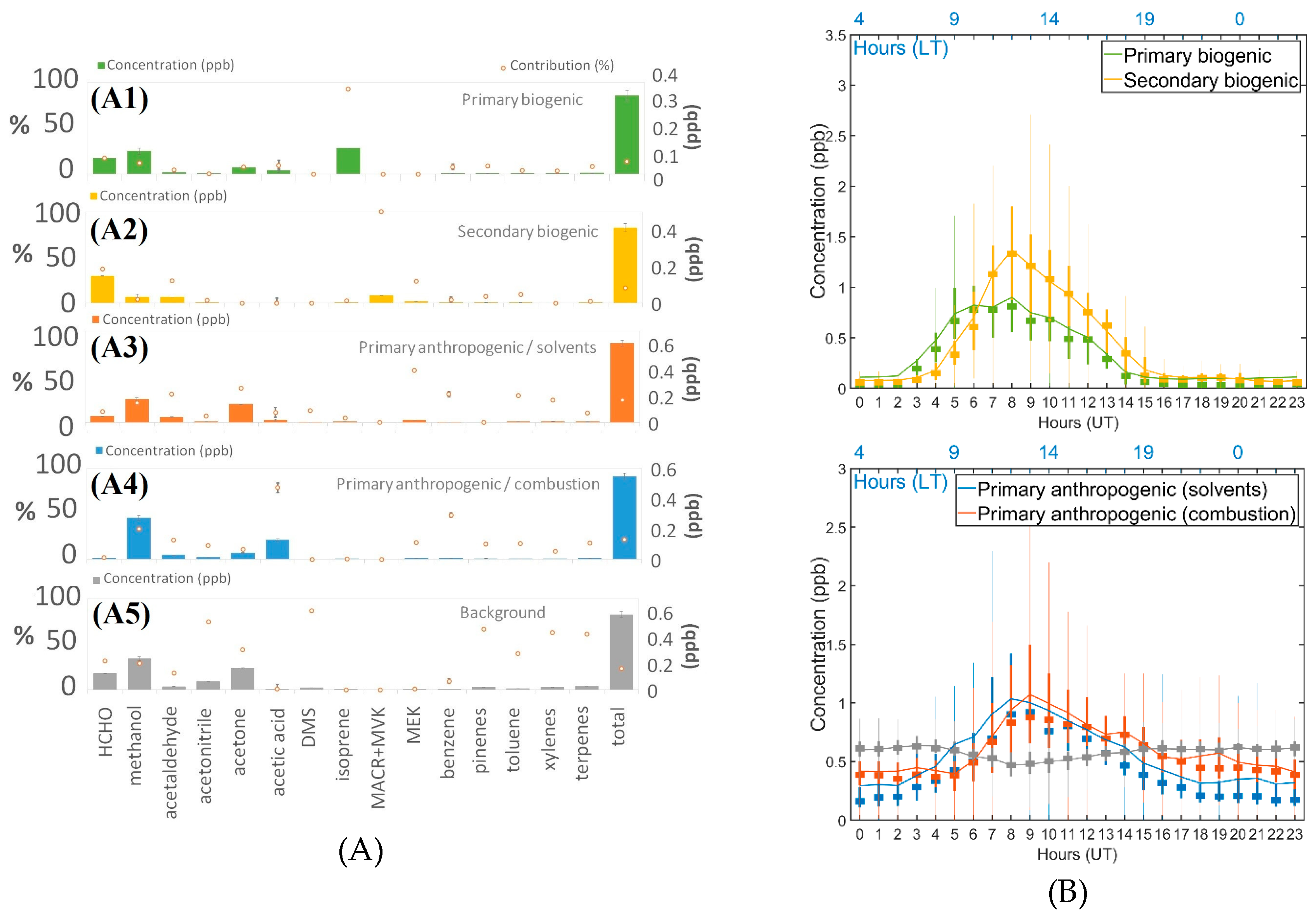

As explained in Section 2.4, five factors were identified by the PMF. The contribution of each factor and their diurnal average concentrations calculated by PMF software (US Environmental Protection Agency, Washington, D.C., USA) are outlined in Figure 8. As with the CKB method, the PMF analysis was applied to 7 April to 18 April.

Table 3. Determination coefficients (R²) between gases and meteorological parameters and factors. Red, strong correlation; black, weak correlation; bold, highest correlation for one parameter; n, number of data used for the correlation.

Factors Other Parameters	F1 Primary Biogenic (n = 18,919)	F2 Secondary Biogenic (n = 18,919)	F3 Primary Anthropogenic/Solvents (n = 18,919)	F4 Primary Anthropogenic/Combustion (n = 18,919)	F5 Background (n = 18,919)
CO (n = 17,659)	0.27	0.23	0.35	0.52	0.18
NOx (n = 18,785)	0.34	0.63	0.50	0.37	0.38
NO2 (n = 18,812)	0.27	0.58	0.52	0.34	0.38
O3 (n = 17,294)	0.12	0.04	0.13	0.15	0.04
Wind speed (n = 18,638)	0.12	0.09	0.38	0.34	0.01
Wind direction (n = 18,638)	0.41	0.26	0.07	0.15	0.38
90 < WD < 180 (n = 7956)	0.13	0.04	0.14	0.39	0.19
200 < WD < 315 (n = 6311)	0.14	0.32	0.12	0.04	0.09
Solar radiation (n = 18,638)	0.71	0.62	0.24	0.45	0.28
Temperature (n = 18,919)	0.63	0.64	0.35	0.51	0.14

summarizes the correlation of each factor with other parameters: gas concentrations (CO, NO_x, NO₂, O₃) and meteorological variables (wind speed, wind direction). Wind direction (WD) was divided into two parts: the trade winds (90° < WD < 180°) and the westerly winds (200° < WD < 315°).

In the first step, we identified the components of each factor that contribute most to the factor. Then, correlations between the factors and the other parameters were studied. Finally, the contributions of these factors/sources were considered for formaldehyde.

3.3.2. Primary Biogenic Factor

This factor strongly contributed to the biogenic components. Here, isoprene was the main contributor (92.7%, Figure 8), probably due to local emission of isoprene around the observatory because no strong correlation with NO_x was observed (R² = 0.34) if we considered that NO_x concentrations were mixed within the mixing layer and represented the boundary layer height. This factor profile includes methanol, acetone, acetaldehyde, and acetic acid, which are known to have biogenic sources [5,51]. This factor is strongly correlated with solar radiation and temperature [68,69], with R² values of 0.71 and 0.63, respectively. The concentration showed a diurnal cycle that increased from 02:00 UT to reach the maximum concentration at 07:00 UT. The concentration decreased with solar radiation and reached the lowest value at 14:00 UT. This factor is named a primary biogenic factor. The contribution of this factor to the sum of data was 13.8%.

3.3.3. Secondary Biogenic Factor

This factor was characterized by a 100% contribution of MACR/MVK with a concentration of 0.04 ppb (Figure 8). Methacrolein and methyl vinyl ketone are two products of isoprene oxidation [60]. Formaldehyde is also an oxidation product of isoprene and contributed 37.3% (0.15 ppb) to this factor. Two other VOCs were included in this factor: acetaldehyde [70] and methyl ethyl ketone (MEK) [71], which contributed 24.5% and 23.8%, respectively. The term “secondary biogenic” was assigned to this factor. These components present important diurnal variations that follow the rise of the boundary layer at 04:00 UT and have their maximum concentrations at 08:00 UT with variation in OH concentrations with solar radiation. Table 3 shows that NO_x is well correlated with this factor (R² = 0.63). This factor is not affected by trade winds (R² = 0.04). The air masses were brought by the west of the Maïdo observatory (R² = 0.32) where a tamarind forest is present. Therefore, influence from local emissions of precursors can be included in this factor, evidenced by the strong correlation with solar radiation (R² = 0.62).

The sum of all compounds was calculated and considered in the PMF analysis. The contribution of this factor was 16.6% during the selected period to the sum of the data.

3.3.4. Primary Anthropogenic/Solvents Factor

The major contributors to this factor were methyl ethyl ketone (MEK) and acetone (57.1% and 37.2%, respectively). These components are known as solvents emitted by industries or paint [70,71]. Acetaldehyde, toluene, and xylenes contributed 31.3%, 29.5%, and 24.7% to this factor, respectively. These components are also emitted by fuel combustion [72]. The term “primary anthropogenic/solvent” was used to include the specific type of anthropogenic emissions. They are sourced from the mixed boundary layer. The concentration increased from 05:00 UT onward for three hours after sunrise. No correlation with solar radiation was found. The most correlated parameter was NO_x (was² = 0.50) due to the common origin of the anthropogenic plume. This factor is well linked with anthropogenic emissions and more particularly with solvents (due to the major contribution of species mentioned before). This factor was the main contributor (24.5%) of the sum of the data.

3.3.5. Primary Anthropogenic/Combustion

This factor is representative of the primary anthropogenic emissions but with a different chemical profile than the preceding factor. Acetic acid and benzene are the components that contributed the most (78.6% and 48.4%, respectively) to this factor. The factor was named “primary anthropogenic/combustion” due to the presence of components that are emitted by combustion: acetic acid [73], benzene (48.4%), methanol (33.2%), acetaldehyde (21.0%), acetonitrile (15.2%) [59,74]. This factor was linked with CO concentration with a strong correlation of 0.52. We hypothesized that combustion from local pollution due to biomass burning, like barbecues and fuel combustion (traffic), produced these emissions.

This factor varied diurnally with a maximum concentration at 08:00 UT of 1 ppb. A slight increase during the night appeared at 21:00 UT. During this period, OVOCs are not oxidized due to lower rate of photochemical reactions and atmospheric dynamics so the concentration rises. This factor contributed 21.9% to the sum of data.

For both primary anthropogenic factors, the main contributors have a long lifetime; consequently, these two factors are differentiated by chemical species that contribute the most in this factor.

3.3.6. Background

The highest contributors to this factor were DMS and acetonitrile with 86.9% and 74.6%, respectively. The DMS data were flagged as weak and its levels were close to the detection limit. Caution is necessary with such data to not to assign the same importance as strong data. So, other compounds were considered in this study: toluene (39.9%), xylenes (62.9%), acetone (44.2%), methanol (29.2%), formaldehyde (32.1%), and monoterpenes quantified using m/z 81 (66.6%) and m/z 137 (62.9%) ion signals. No discrepancies were found between m/z 81 and 137. They contributed to the same factor despite the slight difference in the SNR and the percentage of lower values. Some of these compounds have a long atmospheric lifetime, e.g., t_toluene = 1.4 days [54]. However, the background factor showed a slight decrease in concentration during the day, with a minimum at 08:00 UT (0.5 ppb), and high concentrations during the night (0.6 ppb). This dip can be explained by monoterpenes being highly oxidized during the day [75] and their atmospheric residence time is short (nearly one hour). So, this factor reflected the lifetime of certain species that accumulate in the atmosphere and indicated atmospheric background levels (average concentration about ~0.5 ppb). It also considered the local monoterpene emissions (monoterpenes contributed 62.9% to this factor). This factor was named “background” and contributed 23.3% to the sum of data.

No significant correlation was observed with the other parameters.

3.3.7. HCHO Sources by the PMF

Each factor is a potential source of formaldehyde. We deduced that 17% of formaldehyde is formed from primary biogenic emissions, 37.3% from secondary biogenic formation, 11.6% from primary anthropogenic/solvent sources, 1.9% from primary anthropogenic/combustion, and 32.1% from background. At the local scale, the tamarind forest close to the Maïdo observatory emits a large number of biogenic components that are oxidized. These oxidation processes are the main formation path of formaldehyde. However, formaldehyde is present in the background and contributed in the same order of magnitude as the secondary biogenic factor. The background factor represents of long-range transport in the free troposphere, added with local monoterpenes emissions and marine boundary layer sources. Secondary anthropogenic formation was not considered here and could maybe be included in this factor. The formaldehyde contribution to background measurements can correspond to the “unknown” emissions in the kinetics-based calculations.

The PMF considered the relationship between all measured VOCs and atmospheric dynamics through the correlations with the meteorological parameters (wind direction). It is constrained by the nature of the data provided. So, this method overcomes the deficiency the kinetic-based calculation method and w applicable to the datasets collected during the field campaign.

4. Discussion and Conclusions

In this study, we present OVOCs measurements at the Maïdo observatory, Le Port, and Bélouve sites (Reunion Island) during the OCTAVE campaign from March to May 2018. The concentrations of OVOCs presented similar diurnal variation at the Maïdo and Bélouve sites, correlated with the solar radiation and temperature. The range of formaldehyde concentrations measured at the Maïdo observatory (1.76 ± 0.26 ppb) was the same as at Bélouve and Le Port (0.74 ± 0.14 and 1.49 ± 0.24 ppbv on average, respectively). The discrepancies can be explained by different meteorological conditions (temperature or solar radiation fluctuations) and type of emissions (biogenic or anthropogenic).

We focused on sources and sinks of formaldehyde (HCHO) determined from two independent methods: the chemical-kinetics-based (CKB) calculation and positive matrix factorization (PMF) analysis.

The first method suggested four formaldehyde sources: primary biogenic (emissions of HCHO directly in the atmosphere by biogenic sources), primary anthropogenic (emissions of HCHO directly in the atmosphere from anthropogenic emissions), secondary biogenic (formed by the atmospheric oxidation of biogenic VOCs), and secondary anthropogenic (formed by the atmospheric oxidation of anthropogenic VOCs) sources, the latter being integrated in the unknown term. The calculations indicated that 89% of formaldehyde is emitted from unknown sources (Figure 7). The unknown term includes many compounds resulting from the oxidation of anthropogenic VOCs and other possible sources of HCHO, such as marine emissions in low concentrations. Calculations for the primary biogenic term were only conducted with monoterpenes, isoprene, and MACR + MVK; the oxidation reactions of many other biogenic components [46] were not considered. The factor Ψ (ratio of formaldehyde to monoterpenes fluxes) produced many uncertainties, implying under- or overestimation of primary biogenic concentrations, even if the primary biogenic emissions are expected to remain low. The correct value of this factor was not determined during the campaign, so we used a literature value, which ranged between 0.02 and 0.2.

Atmospheric dynamics were not considered; we focused on only the known part: primary biogenic/anthropogenic and secondary biogenic sources. We inferred 8% (corresponding to 1% of the total part) for primary biogenic, 67% (corresponding to 8% of the total part) for secondary biogenic and 25% (corresponding to 3% of the total part) for primary anthropogenic sources (Figure 9). The known part is dominated by secondary biogenic formation. Formaldehyde is preferentially formed by oxidation of biogenic VOCs.

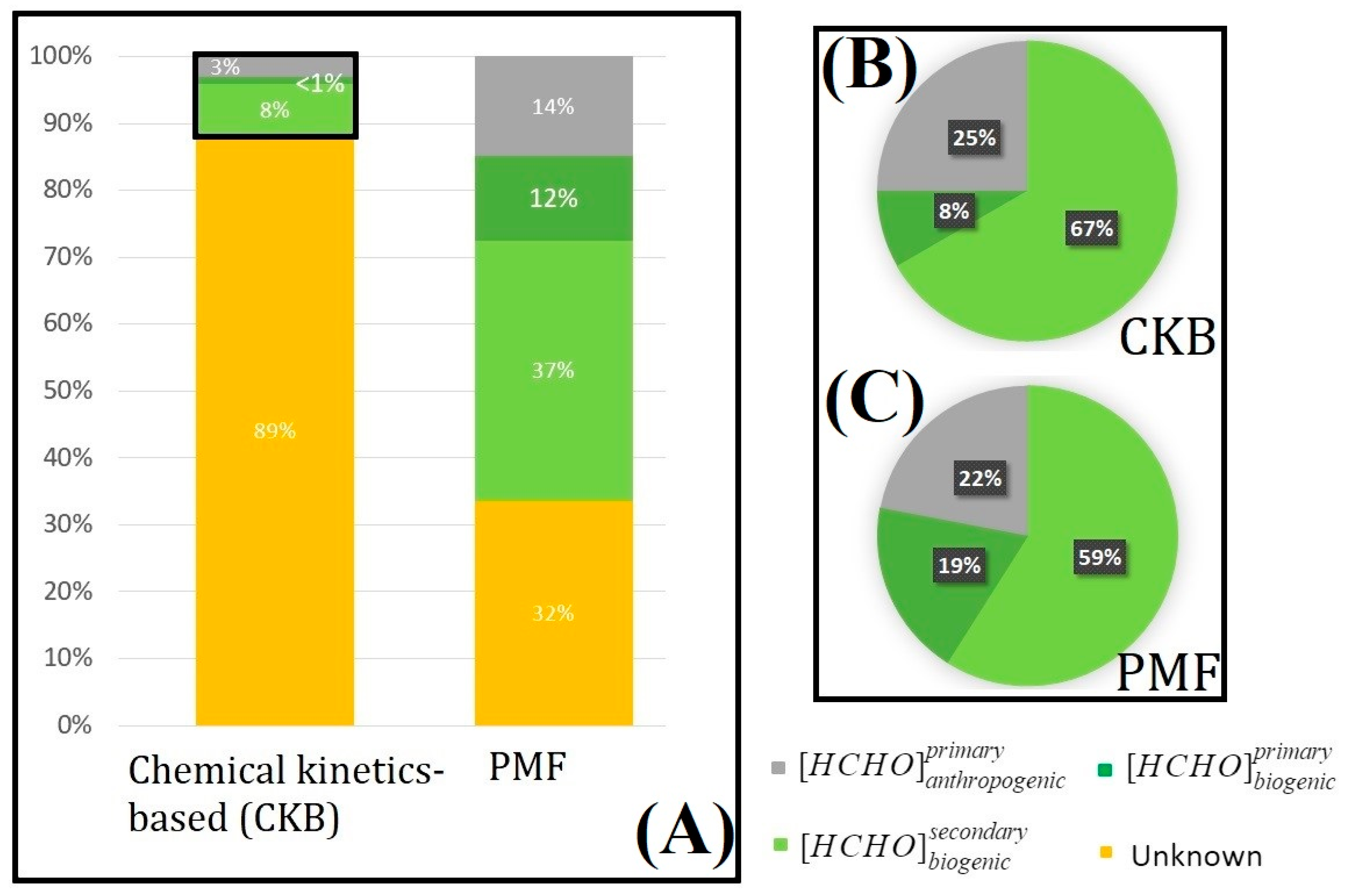

PMF was used to complement and verify these results. Five factors were found to quantify the different contributions to the total VOC concentrations: primary biogenic (13.8%), providing a major contribution of isoprene; secondary biogenic (16.6%), which represent the emissions due to the oxidation of biogenic VOCs; primary anthropogenic/solvents (24.5%), with a high contribution of solvent (acetone and MEK); primary anthropogenic/combustion (21.9%), which produces a high level of combustion components (acetic acid and benzene); and background (23.3%) factors, which includes no important contributing species and presents no diurnal variation. We then focused on formaldehyde: 37.3% of formaldehyde is formed by secondary biogenic formation. Via oxidation of VOCs such as isoprene, 11.6% from primary anthropogenic/solvent sources, HCHO is emitted in the atmosphere like a solvent, 17% from primary biogenic sources (directly by the leaves of plants), 1.9% from primary anthropogenic/combustion sources. HCHO is formed by biomass burning and anthropogenic combustion and 32.1% was associated with the background factor. The background factor considers long-range emissions, marine components, and maybe secondary anthropogenic formation such as the “unknown” emissions calculated by the CKB calculation method. Formaldehyde emissions are well explained by the PMF, which is constrained by the nature of the components in the analysis. For both methods, regarding the known part, the largest source of formaldehyde is the oxidation of VOCs, and particularly the secondary biogenic part (67% with CKB method and 59% for PMF).

To conclude, the PMF analysis and CKB calculation can be used complementarily to provide information on formaldehyde sources. The CKB method is based on chemical equations and PMF is a mathematical solver that distributes compounds according to different factors without considering chemistry).

In the future, a more precise determination of the factor Ψ could be considered to more accurately quantify the isoprene emissions of Reunion forest and more particularly by the tamarind species, which is the major tree species around the Maïdo observatory.

This work can be further completed using a more complex and complete chemical model. The Cloud Explicit Physico-chemical Scheme (CLEPS) model could be used to obtain VOCs data to simulate (with kinetic chemical reactions as used in the calculation method) the chemistry with a box model [76]. This method considers more kinetic chemical reactions and reduces uncertainties. This model will be completed by the development of a future version of LACYTRAJ initialized with high-resolution wind fields (for example, Weather Research Forecasting (WRF) or Meso-NH models). It could provide a more precise estimation of the fluxes and transport processes of gaseous constituents in mountainous environments.

Finally, the BIO-MAIDO campaign in March and April 2019 will provide new VOC measurements from different locations on Reunion Island with online and offline instruments. The aim of this campaign is to study the cloud formation in air masses during transport from the mountain base to the Maïdo site, providing new measurements of formaldehyde under the same conditions as during the OCTAVE campaign. This campaign will permit a better understanding of cloud formation and the multiphase chemistry in the clouds.
