Circulation Specific Precipitation Patterns over Svalbard and Projected Future Changes

Abstract

Precipitation on Svalbard can generally be linked to the atmospheric circulation in the Northern Atlantic. Using an automated circulation type classification, we show that weather type statistics are well represented in the Max Planck Institute Earth System Model at base resolution (MPI-ESM-LR). For a future climate projection following the Representative Concentration Pathway scenario RCP8.5, we find only small changes in the statistics. However, convection permitting simulations with the regional climate model from the Consortium for Small-scale Modeling in climate mode (COSMO-CLM) covering Svalbard at 2.5 km demonstrate an increase in precipitation for all seasons. About 74% of the increase are coming from changes under cyclonic weather situations. The precipitation changes are strongly related to differences in atmospheric conditions, while the contribution from the frequencies of weather types is small. Observations on Svalbard suggest that the general weather situation favouring heavy precipitation events is a strong south-southwesterly flow with advection of water vapour from warmer areas. This is reproduced by the COSMO-CLM simulations. In the future projections, the maximum daily precipitation amounts are further increasing. At the same time, weather types with less moisture advection towards Svalbard are becoming more important.

1. Introduction

During recent decades, an increase in the frequency and intensity of heavy precipitation events on Svalbard has been reported [1]. These events frequently result in landslides, avalanches and flooding [2,3]. Even in midwinter, with a mean temperature well below −10 °C at the western coast of Svalbard, large precipitation amounts can fall as rain on warmer days [4], often driven by the advection of high amounts of water vapour from southern moisture sources over the Atlantic. The moisture is transported towards the northern end of the North Atlantic cyclonic track where the archipelago is located, and are linked to “atmospheric river”-like features in the precipitable water anomaly field [5].

For Svalbard, an increase in mean precipitation [6] as well as in daily precipitation extremes [1,7] is projected towards the end of the century. Consistently, studies on future climate projections for the Arctic [8,9] have demonstrated a much faster increase in precipitation than in the global mean. While [9] attributes this mainly to an increased moisture transport from lower latitudes, ref. [10] states that the increase is primarily due to an intensification of the local surface evaporation and more precipitation can also be expected without changes in moisture advection. With our work we aim to analyse the connection between large-scale atmospheric conditions and local-scale precipitation on Svalbard. Several studies (e.g., [11,12,13]) have shown how changes in large-scale atmospheric conditions have already contributed to a warmer climate in the North Atlantic region of the Arctic. To extend this to precipitation and future projections, our analysis includes the present and a possible future climate following the Representative Concentration Pathway scenario RCP8.5 [14].

Quality controlled meteorological station data from Svalbard are available for several decades, the majority reconstructed back to 1948 [15]. Hence, there is a broad assessment of changes and trends (e.g., [15,16,17]). However, as the stations are mostly located at the western coast, the climate and its changes in other parts of the archipelago are still not well known [1]. Recent studies have though attempted to fill this knowledge gap using satellite and reanalysis data [1,18].

The results from studies on observational data provide the foundation for our understanding of the physical processes involved. The intention of our current study is to confirm these findings in a modelling framework, and extend the analysis to the whole of Svalbard and to possible future climate conditions. In particular, the aim of our study is to answer the following questions:

• How well are typical weather types around Svalbard represented in the modelling framework for the current climate?
• What is the contribution from the different weather types to precipitation and its spatial distribution on Svalbard?
• What may the atmospheric conditions and the frequencies of specific weather types look like in a future climate?
• Which part of projected precipitation changes can be attributed to changes in frequencies of weather types and which part to changes in large-scale conditions?

To answer these questions, our analysis includes local precipitation data from a regional climate model (RCM). However, the existing RCM data basis for Svalbard is limited compared to other European and Norwegian regions, both in terms of model resolution (50 km versus 12 km) and number of simulations. Furthermore, there is a strong influence of local topography on heavy rainfall events documented for Svalbard (e.g., [5]). Thus, the ability of an RCM to simulate these events depends on an accurate representation of the orography [19], which is not the case at 50 km. As shown in a study by [20] for a strong precipitation event over steep terrain in southern Norway, running an RCM at a kilometer scale yields much better results than running it at larger scales when compared to observational data. High-resolution RCM modelling is further supported by [21], showing that resolving convection in RCMs (i.e., using a grid resolution of about 4 km or less) can provide a clear added-value for model precipitation. This spatial resolution constraint limits our analysis to the use of precipitation data from simulations at kilometer scale.

This article is structured as follows. Section 2 describes the data and methods used for the weather type classification and the associated precipitation patterns. The results of the analysis are presented in Section 3 and discussed in Section 4. Finally, Section 5 provides brief conclusions of our findings.

2. Data and Methods

2.1. High-Resolution Climate Model and Simulations

To provide high-resolution precipitation fields for Svalbard, convection permitting climate simulations at 0.022° (approx. 2.5 km) have been carried out using the COSMO (Consortium for Small-scale Modeling) model in climate mode (COSMO-CLM, see [22]). COSMO-CLM is a non-hydrostatic model based on the COSMO numerical weather prediction model (www.cosmo-model.org). It is the community model of the German regional climate research. More details on the COSMO-CLM model can be found on www.clm-community.eu.

The Svalbard simulation configuration for COSMO-CLM follows the setup used for simulations carried out within the EURO-CORDEX initiative [23,24]. This includes a Kessler-type [25] microphysics scheme with ice-phase processes for cloud water, rain and snow, and a radiation scheme following [26]. In the high-resolution simulation, no convection parametrisation is applied, avoiding one of the main reasons for biases and uncertainties in climate models [21]. The model setup consists of 40 atmospheric layers reaching up to 23 km (approx. 40 hPa) and 9 soil layers down to 11.5 m. To account for spin-up, the model has been initialised half a year before the actual simulation periods.

ERA-Interim reanalysis [27] has been used as the driving model for a simulation covering the time period 2004–2017. For the current and future climate projections following the RCP8.5 scenario, the global coupled Max Planck Institute Earth System Model at base resolution (MPI-ESM-LR) model [28] has been downscaled covering the time periods 1971–2000 and 2071–2100. The spatial resolution of the ERA-Interim and MPI-ESM-LR data is 0.7° and 1.875°, respectively. Thus, an intermediate resolution model step at 0.22° has been used in both cases, to prevent a too large resolution jump from the global forcing data to the high-resolution COSMO-CLM simulation at 0.022°. The model orographies and domains for both model steps are shown in Figure 1.

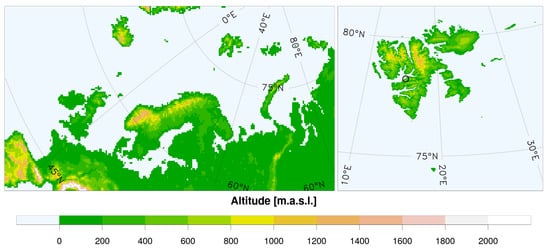

The intermediate resolution domain has a size of 248 × 123 grid points. It was selected to cover the main moisture intrusion area for Svalbard, but also the Norwegian mainland, Svalbard itself and the main parts of the “Norwegian Arctic”. Although the target area is located in the upper area of the domain, there are at least 19 grid points in-between. The high resolution domain covers 354 × 264 grid points with at least 44 grid points between the west coast and the boundary, and 35 grid points between the north coast and the boundary, taking the recommendations in [29] into account. For both domains, we did not see any inflow or outflow effects except some accumulation of precipitation in the outermost 10–12 boundary lines (not shown) which do not affect our results.

An evaluation of the downscaling approach for Svalbard is given in [30], showing that the model is able to reproduce the observed climate. Although COSMO-CLM shows too high precipitation values in mountainous areas close to the coast and an underestimation of temperatures over land, the biases are generally small. Furthermore, ref. [30] has shown that wind statistics for Svalbard Airport derived from the COSMO-CLM model agree well with station data.

2.2. Classification of Atmospheric Circulation

For the classification of atmospheric circulation we are following the objective method originally proposed in [31] for the British Isles. As shown in [32], the method is able to reproduce the subjective Lamb weather types [33] in an acceptable manner. A comprehensive description of the method is given in [34]. The direction and strength of the mean flow and the vorticity are calculated based on the variability of pressure in 16 selected grid points. This is followed by a set of rules that define the weather types. The exact equations and the rules, as well as the adjustment needed for an application in other areas than the British Isles, can be found in [34].

Our classification setup distinguishes between 19 different Jenkinson-Collison Types (JCT), consisting of 16 types denoting the dominant wind direction in 45° steps, together with the prevailing rotation (cyclonic or anticyclonic) and three types associated with pure cyclonic, pure anticyclonic or light indeterminate flows, respectively. The classification area we use covers 3.75 to 21° E and 69 to 83.25° N. The area and the resulting grid points are shown in Figure 2. The centre of the area is located south-west of Svalbard in order to have the main focus on the south-western parts of the main island where most settlements are located. However, sensitivity tests for the location and size of the area have shown a relative stable distribution of weather types. The specific area has been selected as it reproduces the statistics from the atmospheric circulation calendar developed by [35] best.

A FORTRAN routine to derive the JCT classification is available within a suite of more than 30 classification algorithms through the cost733class package [36]. The routine also includes an adjustments according to the latitude of the classification area and the grid-point spacing.

As input to the classification algorithm we used sea level pressure data at 12 UTC for each day. For the reference classification, the data is coming from ERA-Interim reanalyses in the time period 1979–2008. For the climate simulations, the data is taken from the MPI-ESM-LR model in the time periods 1971–2000 and 2071–2100, respectively. Additionally, integrated water vapour fields from the MPI-ESM-LR driven intermediate resolution COSMO-CLM runs have been used to derive the amount of precipitable water in the atmosphere for the analysis of a couple of heavy precipitation events.

2.3. Contribution from Frequencies and Large-Scale Conditions

Based on the weather type classification, total precipitation differences can be decomposed into two parts. The part resulting from differences in the frequencies of weather types can be calculated using

$$\Delta P{r}_f=\sum _{i=1}^n\Delta f_i·P{r}_i^{ref},$$

(1)

where $\Delta f_i$ is the difference in the frequency of weather type i, and $P{r}_i^{ref}$ is the precipitation in the reference data (i.e., the ERA-Interim or current climate MPI-ESM-LR simulation, respectively) for weather type i. The second part, coming from the differences in large-scale conditions, can be calculated by

$$\Delta P{r}_c=\sum _{i=1}^n{f}_i^{ref}·\Delta P{r}_i,$$

(2)

where $f_i^{ref}$ is the reference frequency for weather type i, and $\Delta P{r}_i$ is the precipitation difference for weather type i.

2.4. Test for Statistical Significance

All tests for statistical significant differences in this study have been carried out using a two-sample Kolmogorov–Smirnov test [37] with a significance level $\alpha =0.05$.

3. Results

3.1. Simulation of the Current Climate

To assess the performance of the MPI-ESM-LR model in the current climate, we analyse the large-scale sea level pressure biases in the model and the monthly frequencies of the different weather types. The COSMO-CLM precipitation fields associated with the different weather types are then analysed with respect to the differences in the driving models, answering the question which parts can be attributed to the differences in weather type frequencies and large-scale conditions, respectively.

3.1.1. Large-Scale Sea Level Pressure

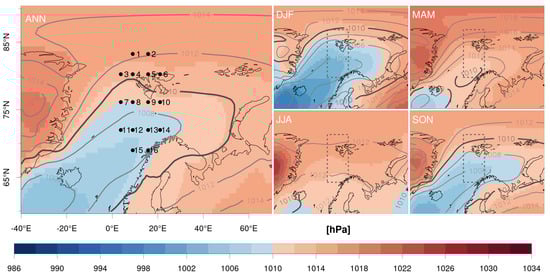

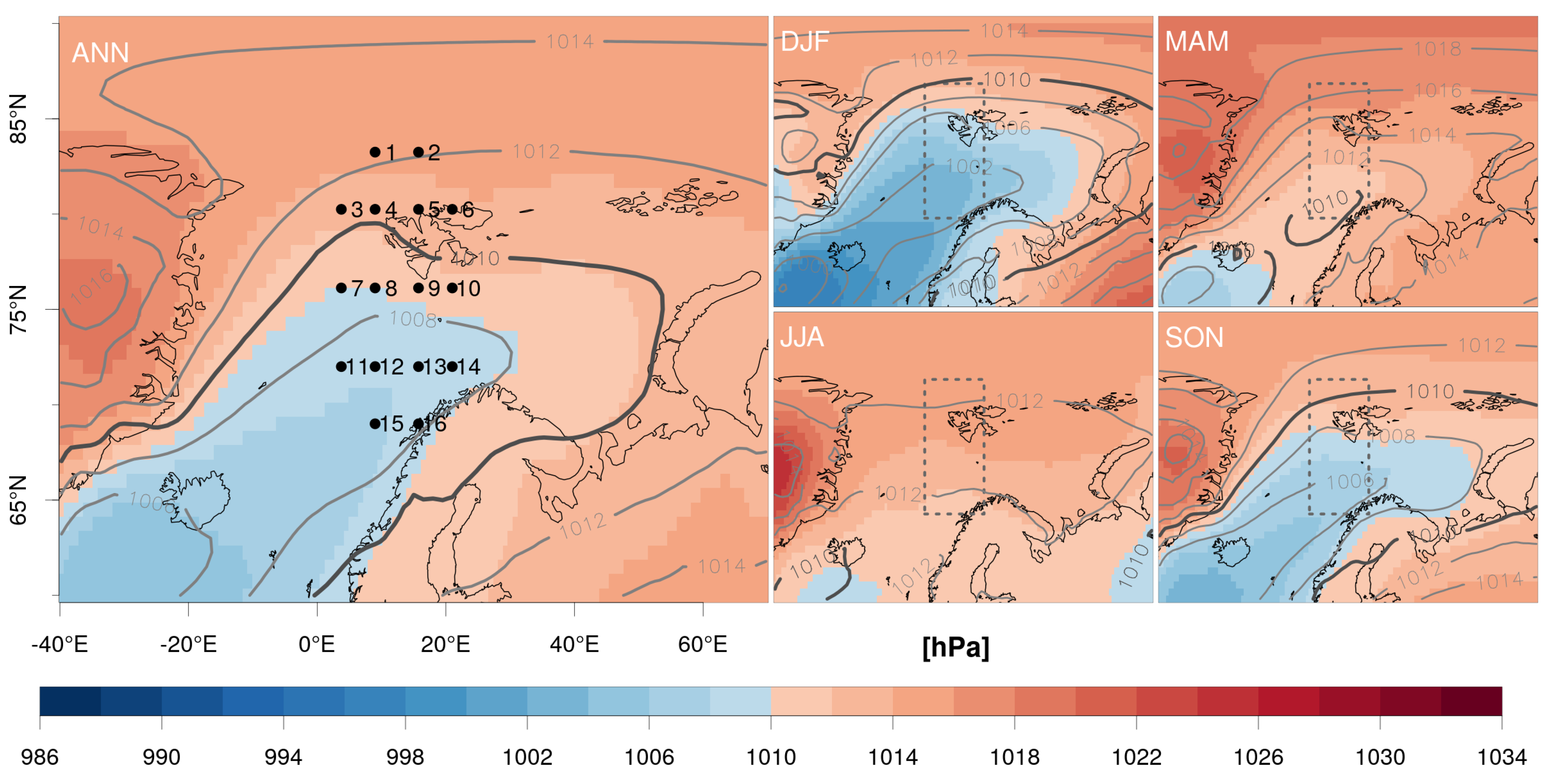

Figure 2 shows the annual and seasonal mean sea level pressure (SLP) from the ERA-Interim reanalysis and MPI-ESM-LR model for the region -40 to 70 °E and 60 to 90 °N. According to [35], the area shown provides “a good illustration of circulation patterns in the surroundings of Spitsbergen”. Please note that in the regular latitude/longitude plots we are using, objects in the area close to the top edge are actually smaller than they appear. However, we believe the projection is best suited to illustrate geographical flow directions which are a key point of our analysis.

As can be seen in Figure 2, the ERA-Interim data for winter (DJF) show a deep trough starting at the Icelandic Low, covering the Norwegian Sea and reaching into the Barents Sea. Svalbard is located at the northern edge of that trough, resulting in easterly air advection. For summer (JJA), the SLP shows small horizontal gradients. Both during spring (MAM) and JJA, the SLP fields are highly influenced by the Greenland High [35]. The autumn (SON) SLP pattern resembles the one from winter but with a smaller pressure range. In the MPI-ESM-LR model, the mean patterns are similar to ERA-Interim, and there are only small biases. Maps of the annual and seasonal mean biases are shown in the supplementary materials. The largest biases occur in DJF, where the MPI-ESM-LR model shows a high-pressure bias of about 4 hPa over the Kara sea west of Novaya Zemlya. This is a typical problem in CMIP5 models [38] that is related to a too large ice cover in this area [30] and low-pressure systems not penetrating far enough into the Barents Sea.

3.1.2. Weather Type Classification

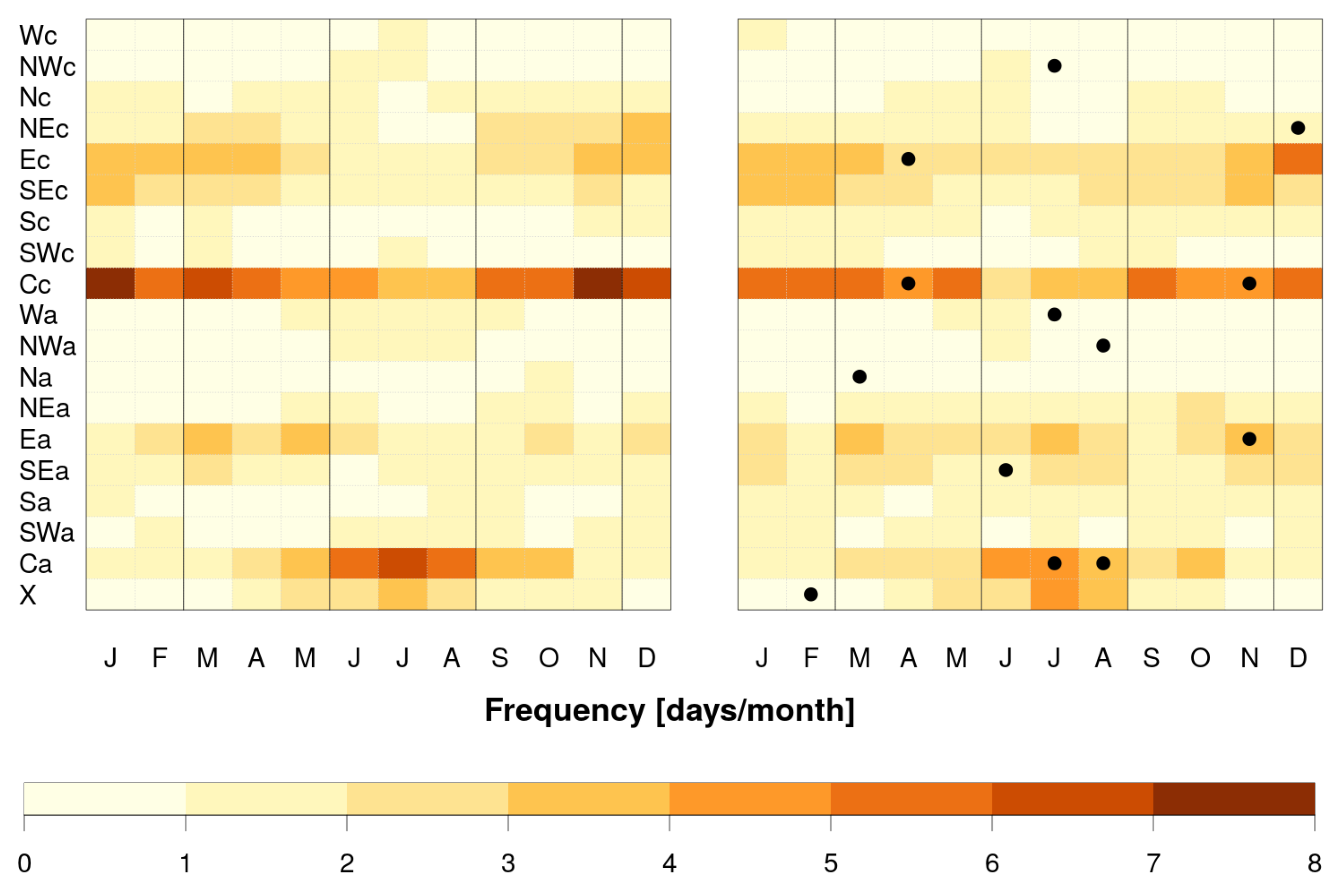

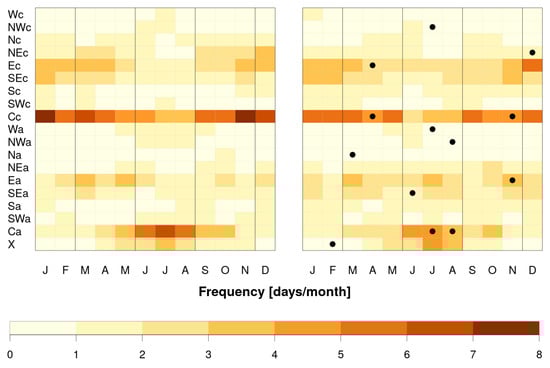

Monthly frequencies for the different weather types from ERA-Interim (Figure 3, left) show that overall, a pure cyclonic situation (Cc) south-west of Svalbard is the most frequently detected type. After that, northerly to south-easterly flows are dominating. In autumn, spring and winter, the weather types NEc, Ec and SEc are most frequent (after Cc) and cyclonic types are more frequent than anticyclonic ones. For summer, a pure anticyclonic situation (Ca) is most frequent. Summer also shows the lowest cyclonic activity, especially for easterly advection (NEc to SEc), and the highest frequencies of anticyclonic situations and the undefined weather type. In agreement with [39], the winter season shows the most intense cyclonic activity.

In the MPI-ESM-LR simulation, the overall most frequent weather type is again a pure cyclonic situation (Figure 3, right). Compared to ERA-Interim, the different weather types are more equally distributed and there are overall more anticyclonic situations in the MPI-ESM-LR simulation. However, there are only a few statistically significant differences, mostly apparent in summer.

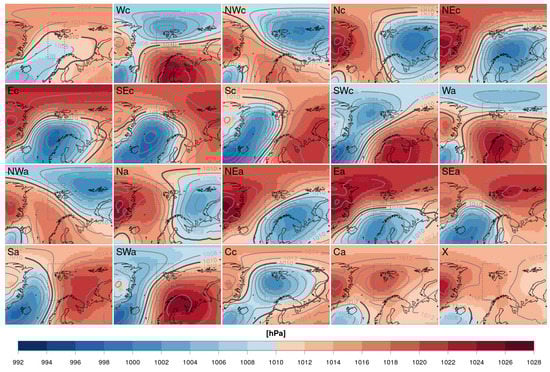

The typical mean sea level pressure patterns shown in Figure 4 are similar to the ones described in [12], showing that our automated classification setup performs in a reasonable way. This is true both for the MPI-ESM-LR and the ERA-Interim data. The differences in the patterns from the two data sets are in the magnitude of 1–3 hPa. As already seen for the mean pressure fields (Figure 2), the low pressure fields in MPI-ESM-LR are covering a smaller area than in ERA-Interim. Figure 4 also demonstrates that the isobars in the MPI-ESM-LR model are generally more north-south oriented, especially in SWa, SWc and Wc. For Sc, the low-pressure field between Greenland, Svalbard and Norway is closer to the coast of Greenland in the MPI-ESM-LR model than in the ERA-Interim reanalysis and does not extend as far to the north. Seasonal mean sea level pressure fields from MPI-ESM-LR and ERA-Interim look similar to the annual patterns with the strongest gradients and largest pressure ranges in winter and smoothed patterns in summer (not shown).

3.1.3. Local Precipitation

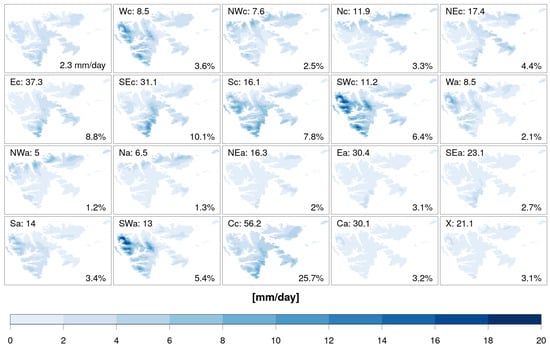

Figure 5 shows the mean precipitation (over land) from the MPI-ESM-LR driven COSMO-CLM for the current climate. The annual mean precipitation is 2.3 mm/day. The largest amounts are falling at the south-eastern and western coast but the precipitation gradients are small in the annual mean. For the different weather types, the precipitation patterns are clearly oriented towards the advection of air with highest values on the windward side of the mountain ranges. The most contributing weather types are Cc (26%), SEc (10%), Ec (9%) and Sc (8%). The lowest contributors are NWa (1.2%), Na (1.3%) and NEa (2%). The Ea and SEa situations occur on about 20–30 days a year but precipitation is limited to the south-eastern tip of Svalbard, thus their total contribution is also low. Also, a pure anticyclonic situation (Ca) over Svalbard is detected at about 30 days per year, but the contribution to the total precipitation is only 3.2%, indicating a generally dry weather situation. Under NEc conditions, some precipitation is falling at the eastern coast, especially in the northern parts. However, as with the other northerly advection cases, precipitation values are low. For Ec, happening on about 37 days a year, precipitation is falling mostly in the southern part of the eastern coast. With respect to the prevailing atmospheric rotation, anticyclonic situations are drier than the corresponding cyclonic situations for all types. Please note that the weather types associated with strong water vapour advection from warmer areas (SWc and SWa) deliver only 5–6% of the total annual precipitation, but show the highest values for the western coast among all weather types.

Seasonal decompositions of the precipitation means are shown in the supporting material. The patterns look similar for all seasons with some variations in the amplitude and spatial gradients. Generally, the highest contributions to the overall precipitation are coming from autumn and winter precipitation, followed by spring and summer.

3.1.4. Influence of the Driving Model

An evaluation in [30] has shown that the biases in the MPI-ESM-LR driven COSMO-CLM simulation for the current climate are similar to the ERA-Interim driven evaluation runs. Figure 6 shows that on average 4.4% more precipitation is simulated in the MPI-ESM-LR driven simulation. More precipitation is falling in the southern part and less in the north. This pattern is similar for all seasons with the largest differences in DJF (Figure 6). During JJA and SON, there is less precipitation generated in the MPI-ESM-LR driven simulation, mostly due to lower precipitation values in the north. However, especially for JJA, large parts of the differences are not statistically significant.

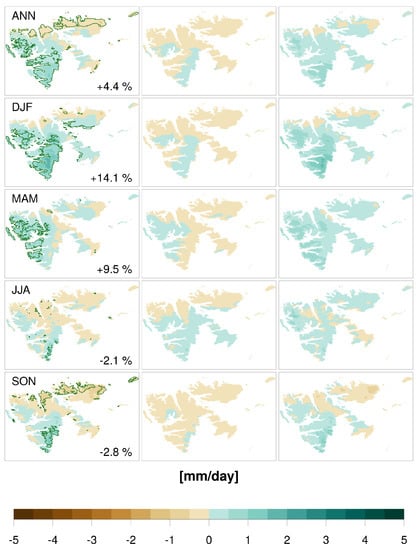

Using formulas (1) and (2) (cf. Section 2.3) we can decompose the precipitation differences into the parts coming from differences in the frequencies of the weather types and from differences in the large-scale conditions. As shown in Figure 6, the precipitation differences are mostly due to differences in the large-scale conditions. Assuming the mean large-scale conditions for each weather type in the two models were equal, the resulting precipitation differences would be further reduced (shown in the middle row of Figure 6). In other words, the contribution from the frequency mismatches is small. However, especially for the northern area of Svalbard and in JJA, the frequency differences are partly compensating the differences caused by the large-scale conditions.

3.2. Future Climate Projections

For the future climate projections, we are analysing the changes in the large-scale sea level pressure and how they affect the COSMO-CLM precipitation. A special focus is directed to the heaviest daily precipitation events.

3.2.1. Large-Scale Sea Level Pressure

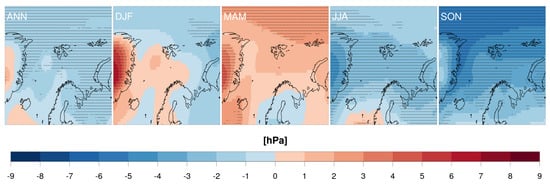

Figure 7 shows that the mean annual sea level pressure decreases with about 0–2 hPa in the future projections. Seasonally, the strongest signal can be seen in autumn which also shows the most statistically significant changes. In winter, low pressure systems are projected to enter deeper into the Kara sea. However, these changes are not statistically significant due to a strong annual variability. Spring is the only season with a projected increase in sea level pressure, but the changes are only statistically significant over Greenland and the high Arctic.

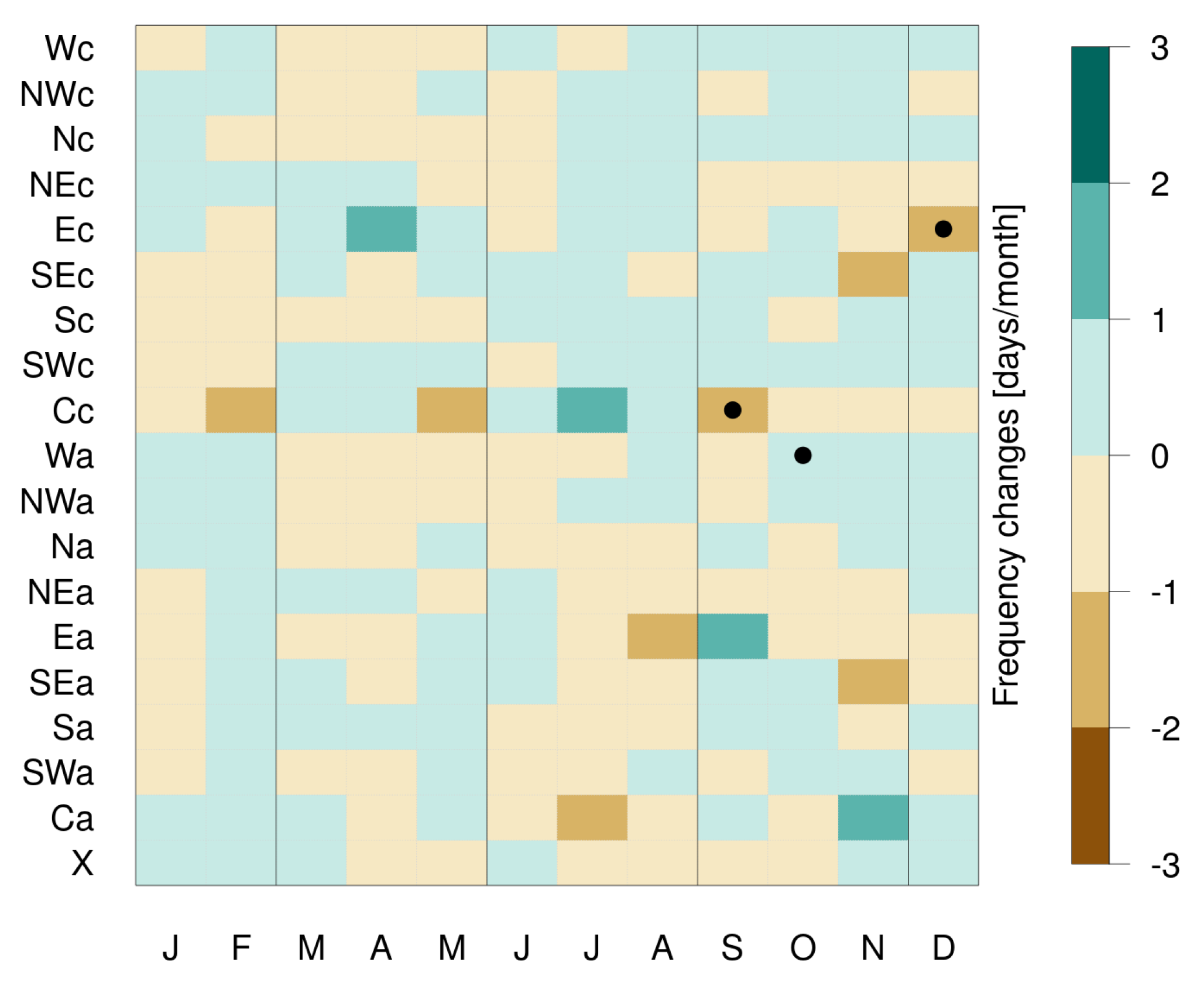

Changes in the monthly frequencies of weather types in the future MPI-ESM-LR RCP8.5 projections relative to the historical simulations are presented in Figure 8. The changes in the frequencies are small. Although there is a tendency to more pure cyclonic and less anticyclonic situations in summer (and vice versa for the other seasons), there are only three statistically significant changes: −1.9 pure cyclonic situations (Cc) in September, −1.8 Ec types in December and +0.3 Wa types in October.

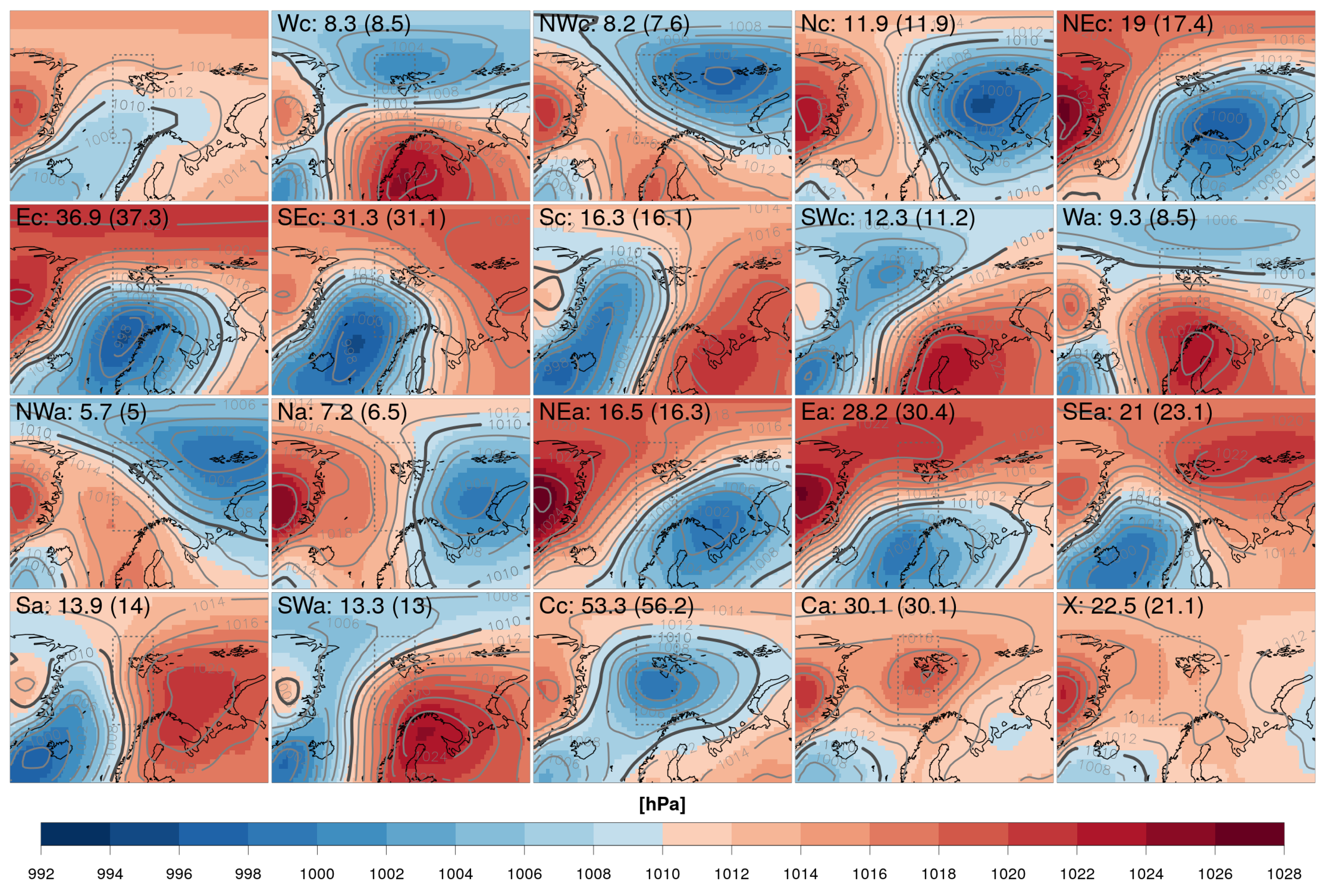

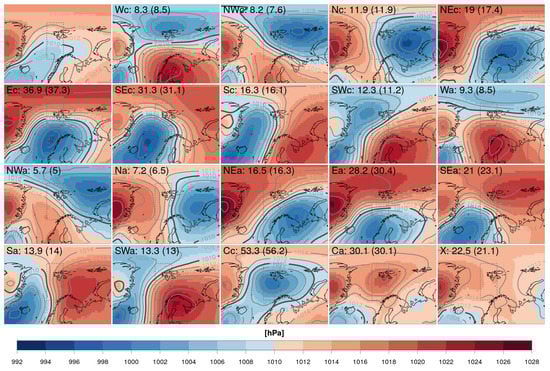

The changes of sea level pressure for the single weather types (Figure 9) confirm that the low pressure systems are entering deeper into the Kara sea, as already seen in the mean patterns (Figure 7). Furthermore, the pressure pattern for SWc is becoming less north-south oriented. However, the changes in the single patterns and the associated frequencies are small. Please note that on an annual scale, none of the weather type frequency changes are statistically significant (not shown).

3.2.2. Local Precipitation

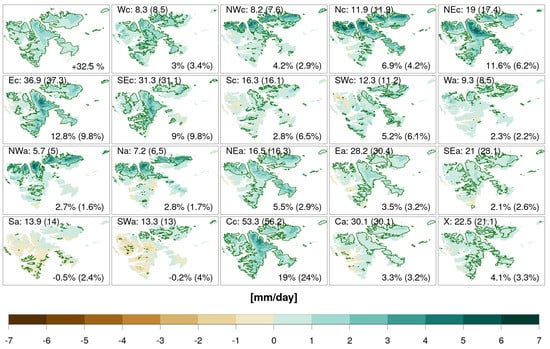

Figure 10 demonstrates the mean precipitation changes for the single weather types in the climate projections. As can be seen, the total amount is increasing by 32.5%. There is an overall precipitation increase in all weather types except SWa and Sa. Generally, the precipitation changes are highest and statistically significant in the north-eastern part. In the south-western part, the changes are smallest with a mostly non-significant decrease in precipitation projected for the weather types SWa and Sa.

Figures of the changes for the single weather types for all seasons are shown in the supplementary materials. Generally, there is an increase for most weather types, but precipitation changes for the single seasons and types vary. Local variations are especially apparent in winter for Nc and summer for SWc, shown in Figure 11. For winter Nc conditions, a strong, statistically significant, precipitation increase can be seen at the northern coast of Svalbard. There is also a decrease in precipitation projected in the central region around Svalbard Airport but only a few points show statistically significant changes. During summer SWc conditions, the model projects a decrease of precipitation on the windward side of the mountains with statistically significant changes mostly in the Northern part. Considering seasonal frequencies of weather types, there are only three cases of statistically significant changes (see supplementary materials): Na in winter, NWa in spring and Ca in summer.

Weather type frequencies in the current and future climate, as well as their contribution to the changes and the future mean precipitation are included in Figure 10. The largest contribution to the changes are coming from the four cyclonic weather types Cc (19%), Ec (13%), NEc (12%) and SEc (9%). In total, all cyclonic weather types contribute to about 74% of the changes, while the anticyclonic types are summing up to 22% of the changes. Although Sc is contributing 6.5% to the projected precipitation in the future, its contribution to the change is only 2.8%. This can be explained by an even higher contribution of 7.8% in the current climate (Figure 5). In contrast, the contribution from NEc to the total precipitation is increasing from 4.4% to 6.2%. As the highest contribution (from Cc) is decreasing and the lowest contribution (from NWa) is increasing, the contribution to the total precipitation from the different weather types becomes more even.

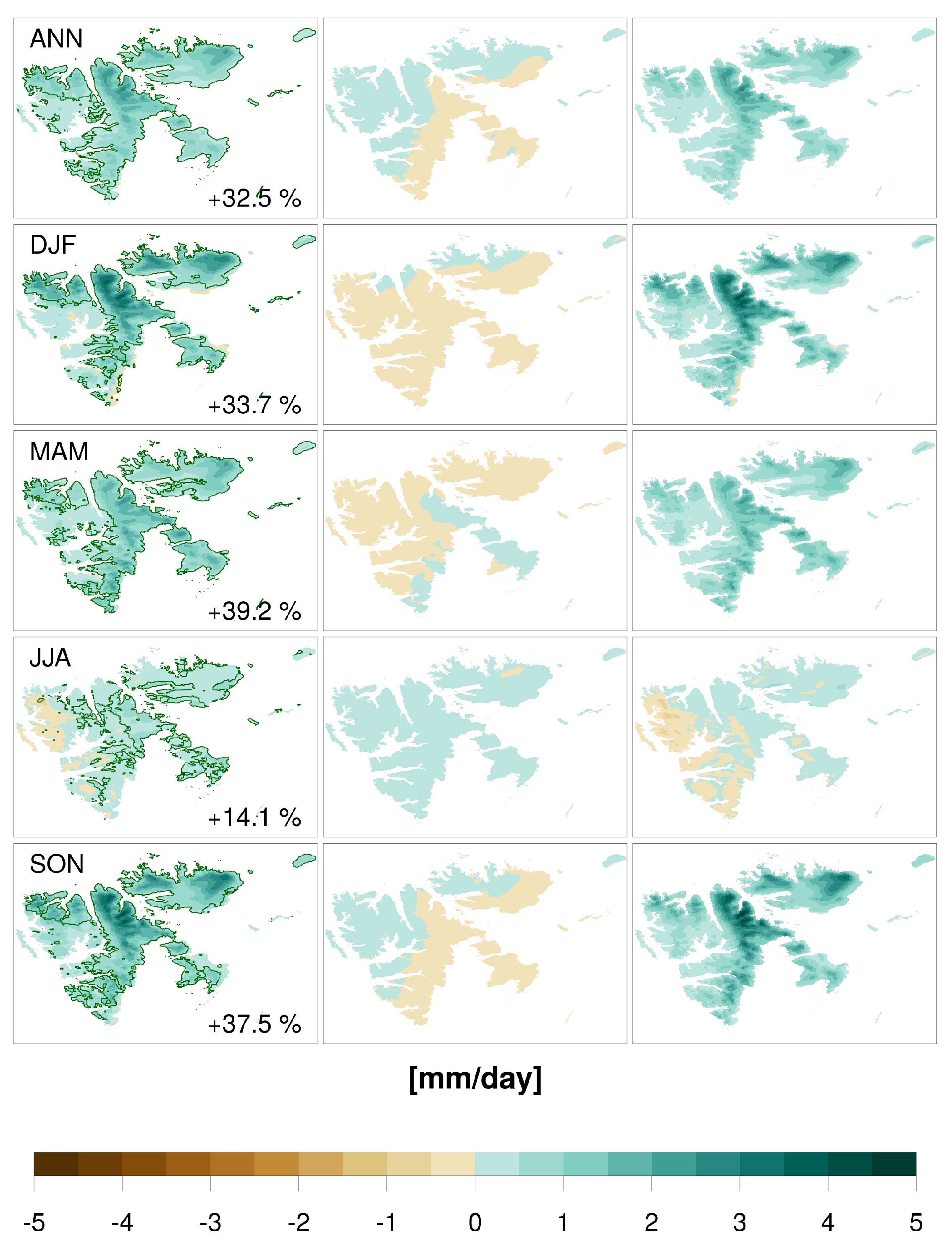

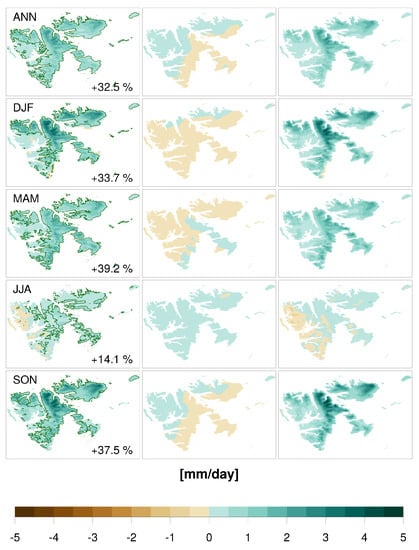

On a seasonal scale, the largest overall increase can be seen in spring, followed by autumn, winter and summer (Figure 12). Locally, the largest increases are projected for the northern and northeastern parts in winter. Most of the projected changes are statistically significant with the exception of summer and an area in the middle of the western parts of Svalbard. The decomposition of the changes shows that they are almost completely due to changes in the large-scale conditions. Summer is the exception, when changes due to frequencies are dominating. For the other seasons, frequency changes alone would result in a general precipitation decrease. However, this is compensated by the effects of the pronounced changes in large-scale conditions.

3.2.3. Severe Weather Events

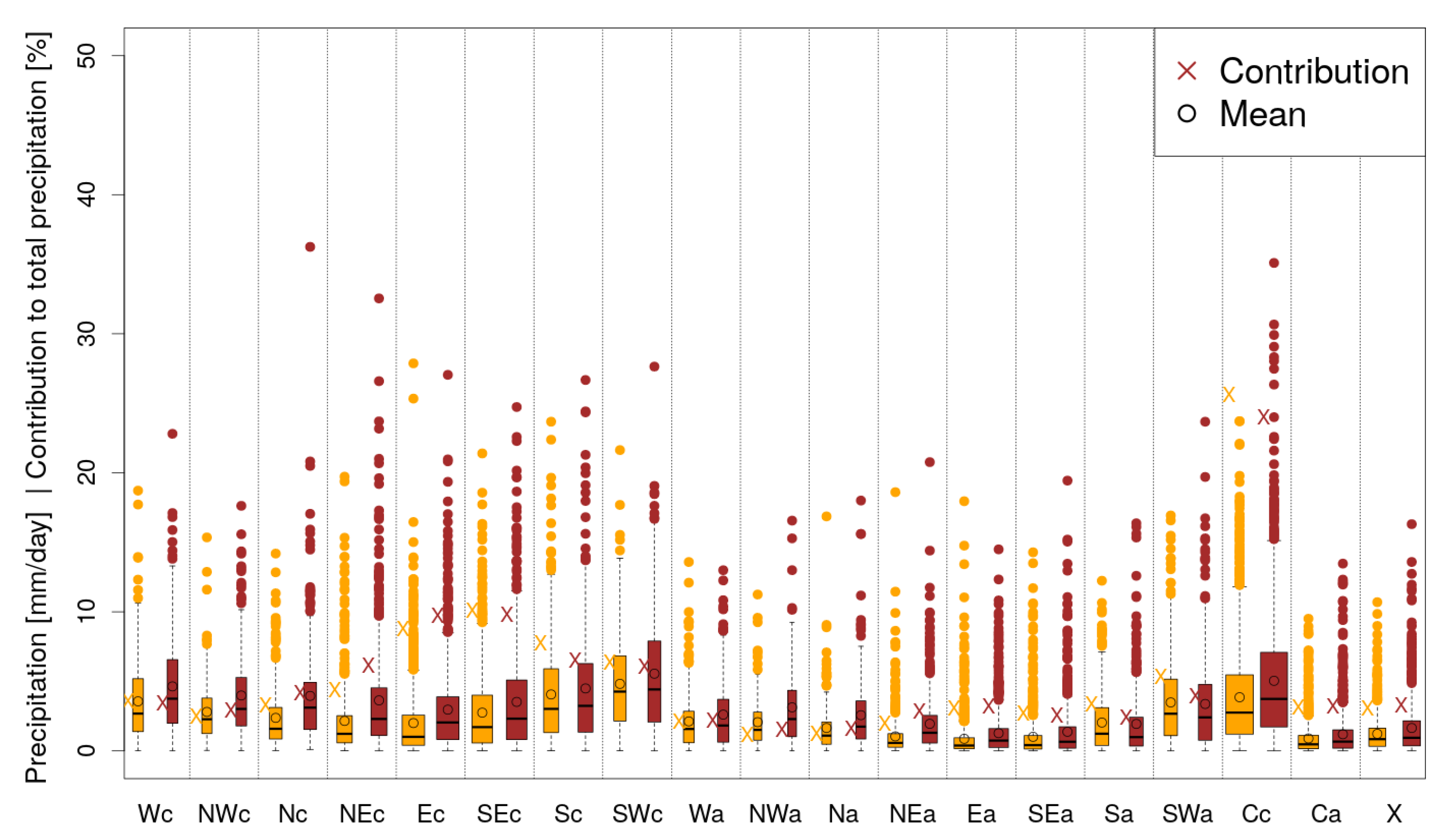

Figure 13 shows how the daily precipitation for the different weather types is changing in the future projections. For all weather types, except Sa and SWa, the mean daily precipitation averaged over Svalbard is increasing. For northerly and easterly flows, there is an increase of the contribution to the total precipitation, while there is a decrease for southerly flows and Cc. The highest precipitation values are projected to increase for all weather types except Ea, Ec and Wa, with the largest increases for the northern advection types Nc and NEc.

The highest values in the future projection are simulated under NEc, Cc and Nc conditions (Figure 13). Simultaneously, the highest daily precipitation values under situations with air advection from the south are increasing. For the western coast of Svalbard, where most settlements are located, these conditions are often resulting in high precipitation amounts [4].

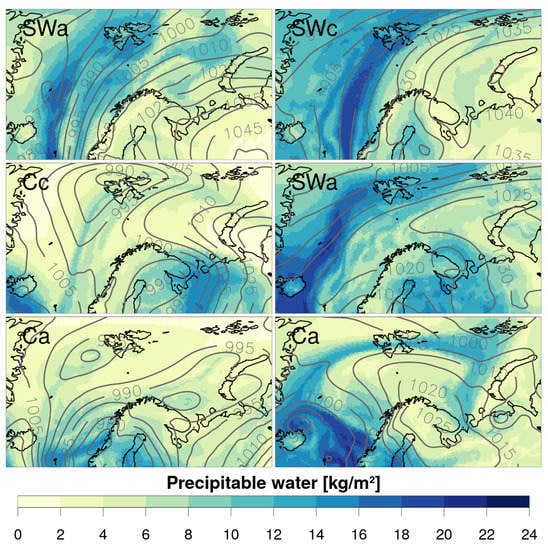

However, heavy precipitation at the west coast can also occur under other large-scale conditions. As an illustration, Figure 14 shows sea level pressure and integrated water vapour (precipitable water) in the atmosphere for the three highest precipitation amounts simulated at the approximate location of Svalbard Airport in the COSMO-CLM simulations. The results show that the heavy precipitation events are not dependant on a specific weather type. In all cases, there is advection of moist air towards the west coast of Svalbard. For the third event in the current climate simulation however, the advection of water vapour is caused by a local low pressure system west of Svalbard embedded in a larger high-pressure system (i.e., a Ca situation) over Svalbard. For the future cases, a pronounced increase in precipitable water can be seen. This is also apparent in the ten highest precipitation amounts simulated (shown in the supplementary materials) indicating a possible reason for the projected precipitation increases.

4. Discussion

For this study, the global climate model MPI-ESM-LR has been downscaled with COSMO-CLM to 2.5 km covering Svalbard for the time periods 1971–2000 and 2071–2100 following the RCP8.5 scenario. A Jenkinson-Collison Types (JCT, [31]) classification has been performed, grouping atmospheric circulation into 19 different weather types. The results of our analysis show a good agreement between ERA-Interim and MPI-ESM-LR for weather type frequencies and mean sea level pressure patterns.

For Svalbard, a calendar of atmospheric circulation types has been developed by [35] based on a method similar to the Lamb method [33]. The calendar provides a subjective weather type classification (“Niedźwiedź classification”) and is available at http://www.kk.wnoz.us.edu.pl/nauka/kalendarz-typow-cyrkulacji. In addition to the 19 JCT classes used here, the Niedźwiedź classification includes a type for anticyclonic ridges and one for cyclonic troughs. Although an exact match of the weather types from our analysis and the Niedźwiedź calendar cannot be expected, nor is it crucial to our analysis, a comparison of the JCT statistics based on ERA-Interim data (Figure 3) and the Niedźwiedź calendar (see e.g., [12]) shows that the JCT method is able to reproduce the Niedźwiedź classification in a reasonable way but slightly favours the detection of pure cyclonic and anticyclonic situations.

The typical weather types for Svalbard [12] show varying spatial distributions of precipitation. These patterns can generally be related to the conditions of the advected air. For Na, a high-pressure system over eastern Greenland brings cold and dry air to Svalbard from the Arctic centre, resulting in low precipitation values. For NEa, the situation is similar, but with a more tilted and southerly low-pressure system, thus more dry air advection from the eastern Arctic area. In the Ea situation, air masses are coming from the Siberian Arctic, resulting in generally dry conditions. However, for the south-eastern tip of Svalbard, these situations can also bring some precipitation. The contribution to the total precipitation from the frequently detected pure anticyclonic situation (Ca) over Svalbard is also low, showing that the high-pressure situation results in very dry conditions generally. Notably, as our analysis of the maximum daily precipitation events has shown, the Ca situation can nevertheless result in heavy precipitation at the location of Svalbard Airport. This shows that there can be a large variability within a single large-scale weather type due to local features. Thus, while the average large-scale patterns and the associated precipitation fields provide a good overview of the overall statistics, variations must be taken into account when looking at local and heavy precipitation events. Under NEc conditions, low-pressure systems moving across Norway and reaching into the Barents Sea are bringing some precipitation to the eastern coast. For Ec, occurring at about 37 days a year, the low-pressure systems do not reach as deeply into the Barents Sea as for NEc, resulting in precipitation falling mostly at the eastern coast of the southern tip. Although the differences between cyclonic and anticyclonic mean weather patterns for a specific direction (e.g. NEc and NEa) can be small, anticyclonic situations, usually associated with stable atmospheric conditions, are drier than the corresponding cyclonic ones.

For the future climate, the MPI-ESM-LR projections show only small changes in the frequencies and spatial patterns of weather types. However, for precipitation there is a significant increase projected in the COSMO-CLM simulations with an increase for most weather types. The four weather types with the highest contribution to the projected precipitation changes are Cc, Ec, NEc and SEc. None of these are typically associated with moisture transport from lower latitudes, supporting the findings by [10] that locally enhanced surface evaporation plays a major role in the increase of Arctic precipitation.

Specifically large precipitation changes are projected for the north-eastern parts during winter. In this area, [18] have shown an ongoing warming and considered it likely that the area may become largely ice-free in future winter conditions. This will result in a shifting of the now cold and continental climate to a more maritime one, similar to the current climate in areas in the west. An effect of this change will be an increased amount of precipitable water induced by evaporation over the ice-free sea [40], which is reflected in the higher precipitation amounts in the northeast in our simulations. Furthermore, [41] shows a positive correlation of sea-surface temperatures and water vapor for the Nordic Seas and Kara Sea. Together with projected sea-surface temperatures warming in the area [1], this will result in increased precipitable water and a possible contribution to the projected precipitation changes.

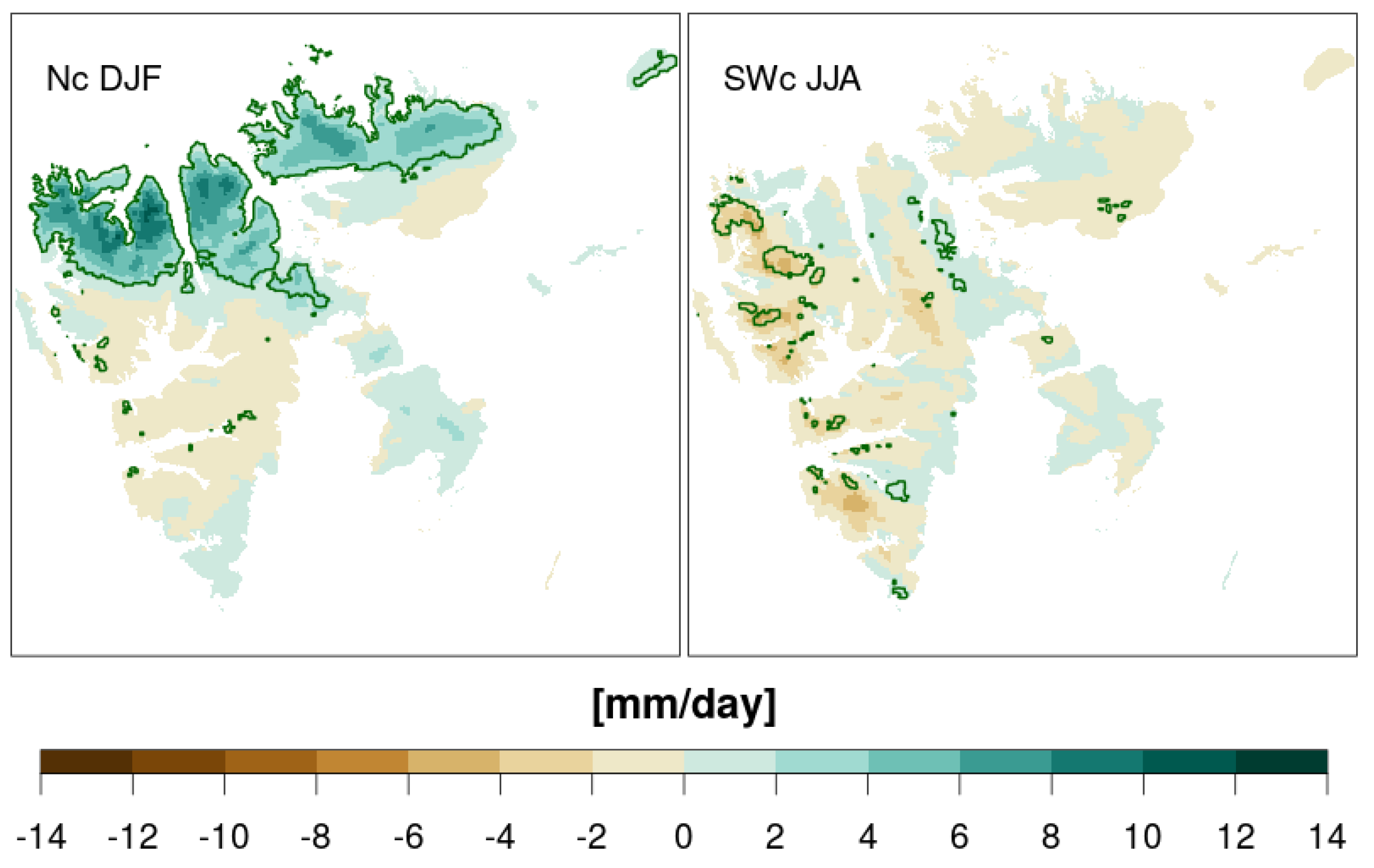

A rather unexpected exception of the general precipitation increase are SWc conditions in summer. Here, COSMO-CLM projects a decrease of precipitation on the western coast of Svalbard, i.e., the side of the mountains oriented towards moisture advection. However, as pointed out by [42], the link between increased Arctic precipitation and pole-ward moisture transport has not been constant or straight forward in recent years. Although an enhanced moisture transport has been documented, and can in general be assumed as a consequence of climate change [42], they did not find more moisture provided for precipitation to the Arctic in summer, comparing the years after 2003 to those before. Since our model results support these findings, it would be interesting to further investigate which processes are weakening the link, but we leave this to future research.

The circulation patterns and frequencies derived from ERA-Interim and MPI-ESM-LR are very similar, but COSMO-CLM produces some pronounced local precipitation variations for the two driving models. Nevertheless, on average, the differences in the resulting precipitation fields are small, pointing out that the MPI-ESM-LR model provides adequate boundary conditions for the downscaling approach used in our study. To include more model uncertainty aspects, a multi-model or multi-scenario ensemble of RCM simulations would have been the ideal set-up, but simulations at kilometer scale are currently limited to smaller numbers due to their high computational expense. However, comparing the COSMO-CLM simulations used in this study with the Arctic-CORDEX regional climate model ensemble and empirical-statistically downscaled global models, [1] demonstrates that the COSMO-CLM model shows relatively small changes but is not a clear outlier. For the RCP8.5 emission scenario (used in this study), the Arctic-CORDEX ensemble projects an increase in annual precipitation for Svalbard of about 27–106% with a median of 63% from 1971–2000 to 2071–2100. COSMO-CLM projects a corresponding increase of 34%. For RCP4.5, the Arctic-CORDEX RCMs project a lower, but still increasing precipitation amount of 22–53% with a median of 43% [1].

We also analysed the frequencies of weather types in the CanESM2, NorESM1-M and EC-Earth global models, which have been used as driving models within the Arctic-CORDEX framework [43]. The figures are shown in the Supplementary Materials. Similar to MPI-ESM-LR, the three other models show a good representation of the ERA-Interim-based frequencies, and only a few significant changes projected towards the end of the 21st century. This supports our findings that the frequencies of weather types have only a small impact on the overall precipitation on Svalbard and further suggests that the strong future warming in the area shown by [1] is unlikely to be due to changes in weather type frequencies, but due to changes in the atmospheric conditions. To a certain extent, the good representation and small changes of weather type frequencies may be an artefact of the global models being tuned towards observed characteristics, but, as [12] have shown, also recent warming on Svalbard can only be weakly associated with changes in weather type frequencies.

5. Conclusions

To adequately simulate local precipitation on Svalbard, a realistic representation of the large-scale conditions in the Northern Atlantic is crucial. Based on an automated classification, our study reveals a good representation of weather types in the global MPI-ESM-LR model. There are only a few statistically significant differences in the frequencies of occurrences compared to ERA-Interim reanalyses, mostly apparent in summer. Biases in the mean sea level pressure patterns for the 19 different weather types are small. Precipitation simulated by COSMO-CLM with boundary conditions from MPI-ESM-LR and from ERA-Interim is similar. Overall we conclude that the MPI-ESM-LR model provides realistic current climate boundary conditions for dynamical downscaling experiments in the Svalbard area.

Comparing the past and future periods, we find only small changes in frequencies and mean sea level pressure patterns of the weather types. At the same time, there is a pronounced increase in precipitation on Svalbard, ranging from 14% in summer to 39% in spring. This indicates that neither changes in weather type frequencies nor in sea level pressure can explain the changes in precipitation.

The decomposition method we used allows us to provide the contributions from changes in frequencies and in atmospheric conditions of the different weather types in a quantitative matter. In summary, the decomposition shows that precipitation changes are mostly due to changes in the atmospheric conditions, while the contributions from changes in frequencies are small. Our results also show that the contribution to the projected changes are non-uniformly distributed among the different weather types and prevailing rotation. In total, changes under cyclonic weather types contribute to about 74% of the precipitation changes, while the anticyclonic types are summing up to 22%.
