Authenticity Testing and Detection of Eurycoma longifolia in Commercial Herbal Products Using Bar-High Resolution Melting Analysis

by
Nur Fadhila Fadzil
1,
Alina Wagiran
1,*,
Faezah Mohd Salleh
1,
Shamsiah Abdullah
2 and
Nur Hazwani Mohd Izham
1
1
Department of Biotechnology & Medical Engineering, Faculty of Biosciences and Medical Engineering, Universiti Teknologi Malaysia, Johor Bahru 81310, Malaysia
2
Faculty of Plantation and Agrotechnology, Universiti Teknologi MARA (UiTM), Shah Alam 40450, Selangor, Malaysia
*
Author to whom correspondence should be addressed.
Genes 2018, 9(8), 408; https://doi.org/10.3390/genes9080408
Submission received: 3 June 2018 / Revised: 30 July 2018 / Accepted: 7 August 2018 / Published: 12 August 2018
(This article belongs to the Special Issue DNA Barcoding and Metabarcoding of Complex Matrices)
Browse Figures
Versions Notes

Abstract

:
The present study demonstrated High Resolution Melting (HRM) analysis combined with DNA barcode (Bar-HRM) as a fast and highly sensitive technique for detecting adulterants in Eurycoma longifolia commercial herbal products. Targeting the DNA barcoding of the chloroplastic region-ribulose biphosphate carboxylase large chain (rbcL) and the nuclear ribosomal region- internal transcribed spacer 2 (ITS2), PCR amplification and HRM analysis using saturated Eva green dye as the source of fluorescence signals, was accomplished by employing a real-time cycler. The results were further validated by sequencing to identify unknown sequence from Genbank database and to generate phylogenetic tree using neighbour joint (NJ) analysis. Both of the DNA markers exhibited a distinguishable melting temperature and shape of the normalised curve between the reference and the adulterants. In the case of species identification, ITS2 was more successful in differentiating between species. Additionally, detection of admixture sample containing small traces of targeted E. longifolia DNA (w/v) can be detected as low as 5% for rbcL and less than 1% for ITS2, proving the sensitivity and versatility of the HRM analysis. In conclusion, the Bar-HRM analysis is a fast and reliable technique that can effectively detect adulterants in herbal products. Therefore, this will be beneficial for regulatory agencies in order to regulate food safety issues.

1. Introduction

According to the World Health Organization, the use of herbal products for treating diseases is practised by 70% of the population in developing countries. As a result, there are large quantities and varieties of raw materials that are sold in markets, and most of them are in processed or modified forms (dried/powdered/infusion); thus, they are impossible to morphologically authenticate using conventional tools. This creates a challenge when trying to accurately distinguish between genuine products and counterfeit ones [1,2]. Targeted species in herbal products may be substituted/adulterated with other unrelated species; poor quality/inferior substances are not only deceitful, but also a threat to consumer health and safety [3]. Hence, the development of an accurate, rapid, and reliable method for species identification and adulterant detection are crucial to ensure the quality and efficiency of the commercial herbal products.
Malaysia’s forest contains a biodiversity of medicinal plants that have a high potential in the herbal industry. Realising the economic potential of the health value of herbal/medicinal plants, Malaysia’s government declared 11 important herbs, including Eurycoma longifolia, to be commercialised to produce high-value products amounting to Ringgit Malaysia 2.2 million in Gross National Income (GNI) by 2020. According to the Malaysian Herbal Corporation, the value of the herbal industry has increased from RM7 million in 2010 and is expected to rise to RM29 billion in 2020 [4]. This indicates that there is a significant demand for herbal products (especially for natural remedies); thus, malpractices such as species substitution are suspected. The significance of marketable herbal products was demonstrated by the increase in product registration percentage (20%) with the National Pharmaceutical Control Bureau (NPCB) to fulfil the rising demand.
Eurycoma longifolia is widely acclaimed for its energy-boosting and aphrodisiac properties. It is also known to increase libido effect and it acts as a testosterone booster in males [5,6,7]. The bitterness in Tongkat Ali make it less favorable for direct consumption. Hence, it can usually be found as an additive in health supplements including capsules, tablets and beverages. The crude extract of E. longifolia was largely marketed in a mixture of tea, coffee and capsules with some of them being mixed with other herbs [8]. In Malaysia, there were about 200 various E. longifolia products distributed all over the country [9]. However, such a claim had stated that E. longifolia herbal products in packaging labels may not be true because of the depletion of the raw materials from their natural resources over time [10]. Due to the expensive market price for E. longifolia roots (20–25 US dollar/kg) and water extracts (26 USD per 60 capsules), manufacturers may intentionally substitute raw materials with cheaper sources [10,11].
Various criteria and methods of identification have been developed to authenticate medicinal plant species such as morphological analysis, macroscopic and microscopic studies, chemical profiling and simple sequence repeat markers. However, there is currently no best practice for identifying the various plant species in herbal products. The mentioned approaches have several disadvantages such as their accuracy being highly dependent on individual experience/skills, it is difficult to differentiate between closely related substitutes or morphological similarities, they are complex and imprecise, chemical variations among samples exist and impractical practices with various standards are a dilemma. On the other hand, the molecular markers method can detect differences at the DNA level and it offers numerous advantages over the conventional phenotype-based approaches since DNA is stable and detectable in all tissues regardless of the growth environment, development stages or differentiation statuses.
The internal transcribed spacer 2 (ITS2) region has been proposed as a universal barcode for the identification of medicinal plants [12] because of its high discrimination power. Since then, the ITS2 region has been shown to distinguish a wide range of plant species [12,13,14,15]. Other than that, ribulose biphosphate carboxylase large chain (rbcL), was also applied in most land plants due to the ease of amplification ad the suitability for sequencing [16,17]. Because of its universality, more than 10,000 rbcL sequences have been deposited in Genbank to be used as a core DNA barcode in plants [18].
In recent years, novel methods and advancements of molecular techniques, coupled with high resolution melting (HRM) analysis, have allowed for the application of DNA-based approaches. These fast and sensitive techniques characterise nucleic acid samples based on their disassociation behaviour for detecting small sequence differences in PCR-amplified products [19,20]. Several studies have reported the successful application of HRM technology using various DNA barcodes in medicinal plant authentication [15,21,22,23]. Previous publications also claimed that the combination of Bar-HRM analysis is low in cost, simple, highly sensitive and precise in authenticating various plant species and herbal products [24,25,26,27,28]. However, the application of HRM analysis in the authentication of herbal products is still in its initial stages; moreover, the classification and identification of herbal products are limited, especially in developing countries. Hence, this work presents the development of Bar-HRM as a reliable tool for the authentication of herbal plants with focus on ‘Asian Viagra’, E. longifolia, and its commercial herbal products.

2. Materials and Methods

2.1. Plant Materials, Herbal Products and DNA Isolation

The E. longifolia plant was obtained from the Forest Research Institute Malaysia, Kepong, Selangor, Malaysia (FRIM) and was verified by Dr. Richard Chung Cheng Kong with voucher no: (PID 010117-01). Commercial herbal products containing E. longifolia as the main ingredient on the packaging label were randomly chosen from Malaysian markets, abbreviated as P1–P6 (Table 1). In addition, five products (P7–P11) which contain E. longifolia + Camellia sinensis (tea product) and E. longifolia + Coffea (coffee product) were selected for HRM sensitivity assessment (Table 2).
For DNA isolation, approximately 100 mg of E. longifolia root, and 200 mg of the herbal product were separately ground in liquid nitrogen to a fine powder. Then the samples were extracted using NucleoSpin Plant II Kit (Macherey-Nagel, Duren, Germany) as per the manufacturer’s instructions. The yield and purity were assessed by using the Nanodrop 1000 Spectrophotometer (Thermo Fisher Scientific, Waltham, MA, USA) and visualised in 1% (w/v) agarose gel electrophoresis, viewed by Gel Documentation (Thermo Fisher Scientific-USA). Samples were then diluted to 10 ng/µL working concentration and stored at −20 °C for further use.

2.2. Real Time PCR and HRM Analyses

Real time PCR was conducted in 25 µL of the total reaction volume containing 10 µL of 2x Type-it HRM PCR master mix, 15 ng DNA for E. longifolia/30 ng DNA for herbal products, 0.2 µM of each primer set and topped up with nano-pure water. The primers used in this work were: rbcLa-Forward: 5′ATGTCACCACAAACAGAGACTAAAGC-3′ [29] and rbcLa-Reverse: 5′-GTAAAATCAAGTCCACCRCG-3′ [30]; as well as ITS2-Forward: 5′-GGG GCG GAT ATT GGC CTC CCC TTG C-3′ and ITS2-Reverse: 5′-GAC GCT TCT CCA GAC TAC AAT-3′ (accession number: KY553292.1 Eurycoma longifolia Internal Transcribed Spacer 2). Amplification was then performed by using Rotor Gene Q real time cycler (QIAGEN-Germany).HRM with pre-amplification file was chosen to set up the run. The thermocycling reaction was conducted in 36-well plates starting with a 95 °C initial step for 5 min, followed by 40 cycles of 95 °C for 30 s, 52 °C for 40 s and 72 °C for 30 s. Subsequently, HRM was performed by increasing the temperature at 0.1 °C for each step from 75 °C to 90 °C for rbcL and 80 °C to 95 °C for ITS2. The captured fluorescence signals were then analysed by using the Rotor-Gene Q Series Software version 2.3.1 (QIAGEN-Germany). From the DNA quality assessment, P5–P6 and P10–P11 yielded a very poor DNA quality (Supplementary Materials) and there was no amplification detected (Table 1 and Table 2). Hence, HRM study for these products was not proceeded.

2.3. Neighbour Joining Tree Analysis

To corroborate data obtained from the HRM analysis, real time PCR products (E. longifolia and P1–P4) were sent for purification and sequencing at 1st Base Malaysia. Sequencing was conducted in both directions with similar primers (Applied Biosystems, Foster City, CA, USA). The sequencing results were first edited by applying the Bioedit Software (version 7.2.6). Data was then checked for high similarity sequences using the basic local Alignment search tool (BLAST). Multiple sequence alignment was then performed using Jalview (version 2.9.0.1.) Finally, the neighbour-joining analysis was constructed using MEGA 6 with 1000 bootstrap replications.

2.4. HRM Sensitivity Assessment (Eurycoma longifolia + Camellia sinenesis)

In the HRM sensitivity assessment study of P7–P9, both fresh plant samples E. longifolia and C. sinensis (tea plant) were used as the genotype references. In order to evaluate the sensitivity and level of detection of adulterants in the admixture samples, E. longifolia DNA was mixed with C. sinensis DNA (w/v) in different percentages starting from 0%, 1%, 5%, 10%, 30%, 50% and 75%, in a total amount of 30 ng/µL. The mixture was vortexed slowly to homogenize the sample. This standard served as a reference to detect traces of E. longifolia in P7–P9. Lastly, real time PCR amplification and HRM analysis were performed as described above (Section 2.2).

3. Results

3.1. Bar- HRM Analysis of rbcL and ITS2 for Authentication of Eurycoma Longifolia Herbal Products

In the present study, using the shape of melting curves was more informative and time efficient for assessing the differences in targeted species within selective herbal products. The feasibility of the two DNA barcodes of rbcL and ITS2 were compared in this study. The melting curves of HRM were obtained based on the pattern of normalized temperature-shifted curves and the difference plot (Figure 1(A-i,A-ii,B-i,B-ii)). With the aid of the difference curve from the HRM analysis, any samples with close or similar melting temperatures could be differentiated with high resolution and power, compared to the conventional melting curve; by analysing both the melting curve shape and temperature at the same time [19,23]. To further examine and enhance the visualization between the herbal product samples, the difference curve was employed to distinguish subtle dissimilarities by subtracting the fluorescence of each sample with E. longifolia root as the reference.
From this experiment, the rbcL region was successfully amplified (approximately 550 bp DNA-fragments) for fresh plant and herbal products (P1–P4). The amplicons were then further analysed with HRM (Figure 1). The results indicated that two products tested (P2 and P3) had shifted normalized melting patterns (Figure 1(A-i)) and they had a high fluorescence difference from the E. longifolia baseline reference (Figure 1(A-ii)). These results demonstrated that the two herbal products possibly contained adulterants. For P2, which claimed to contain 100% pure E. longifolia, the HRM curve confidently confirmed that this product was adulterated with other species. In the case of P3, the difference in the melting shape curve revealed that this product contained another plant species not indicated in the product label (after sequencing).
For ITS2, (DNA fragments of approximately 350 bp) was successfully amplified. HRM analysis was be able to detect E. longifolia in three herbal products (P1, P2 and P4). As compared to rbcL, the ITS2 difference curve showed a greater fluorescent difference, suggesting that this DNA barcode had higher nucleotide differences; the multiple sequence alignment (Figure 2 and Figure 3) also confirmed the results. This proves that ITS2 is a more precise marker for detecting E. longifolia species compared to rbcL.

3.2. Bioinformatics Analysis

One of the shortcomings of HRM is that the number and position of mutations within the amplicon cannot be identified by this method alone [20]; hence, real time PCR products were electrophoresed, and sent for purification and sequencing to validate the HRM data. From the multiple sequence alignment, for rbcL (Figure 2), it was confirmed that P2 and P3 showed sequence dissimilarities as compared to E. longifolia. For ITS2 (Figure 3), P3 also showed a high sequence variation as compared to the reference plant. These results proves same accordance with the HRM analysis, thus confirming the results.
The identified sequences were then analysed using neighbour joining (NJ) Analysis. From the rbcL NJ analysis results (Figure 4A), P1 and P4 herbal products were clustered in the same clade as the reference samples; E. longifolia root and rbcL E. longifolia sequences extracted from NCBI (accession number EU042998.1). For the P2 herbal product, the BLAST result showed a high similarity to Morinda and Craterispermum genera (accession number AB586541.1; KC628433.1; KC628327.1) from the Rubiaceae family; while the P3 herbal product was highly similar to the Senna genus from the Fabaceae family (accession number KF425769.1; KF381138.1). Plants from these families are not used as aphrodisiacs, but they exhibit other properties in traditional practices.
On the other hand, the NJ analysis of ITS2 (Figure 4B), showed that P1, P2 and P4 herbal products were clustered in the same clade as the E. longifolia root and the ITS2 E. longifolia retrieved sequence (accession number KY553292.1) with high confidence bootstrap value. The other herbal product, P3, was highly similar to Cuminum cyminum, a species from the Apiaceae family (accession number KX108698.1; KF454474.1).
Based on the cladogram, it was proven that ITS2 was more suitable for differentiating plants at the species level as compared to rbcL, which can only distinguish up to the genus level. A claim stated that [18], the bioinformatics analysis and sequence alignment shows that rbcL has been able to discriminate plants but only up to some species, and mostly to a congeneric level. On the other hand, in a study of the DNA markers in medicinal plants, ITS2 was proven to exhibit the highest interspecific and intraspecific divergence compared to other DNA markers when distinguishing between species [12].

3.3. Detection of Eurycoma longifolia in Admixture Products

To confirm the sensitivity and detection level of the HRM assay by using rbcL and ITS2, this study was evaluated by mixing a series of different percentages of admixtures; E. longifolia with C. sinensis. As illustrated in Figure 5(A-i,A-ii,B-i,B-ii), the dissociation pattern of rbcL and ITS2 amplicon, respectively, revealed the actual degree of contamination resulting from adulteration at a specific level. This is because, as reported by several studies, amplicon dissociation pattern is influenced and shifted by the quantity of mixed contents in a sample [14,26].
The HRM method was able to detect adulterants up to 5% for rbcL and less than 1% for ITS2. This suggests that HRM is a rapid and sensitive method for detecting small amounts of E. longifolia species in a mixed sample. Tested herbal products (P7–P9) shows that E. longifolia was detected at the baseline limit at 5% using rbcL. This suggest that rbcL does not have enough sequence variations to detect subtle amounts of targeted DNA that are lower than the detection limit. For ITS2, traces of E. longifolia (P7–P9) was detectable at less than 1%, showing that ITS2 is more suitable for the detection of E. longifolia at a very low concentration.

4. Discussion

An Authentication Method Using Bar-HRM

Developing an accurate and reliable method for the rapid identification of herbal products based on plant species is now possible with HRM. Authentication up to the species and genus levels, is now conceivable based on the melting temperature (Tm) of specific PCR products. However, fraudulent product detection is not easy when the constituent species are in processed form. Normally, DNA extraction from the processed herbal products are highly degraded and with poor DNA quality. Unlike DNA barcoding, Bar-HRM employs sensitive melting curve changes caused from the release of a saturated intercalating dye from DNA duplex denaturation by increasing the temperature [27]. Another advantage of using this method is that the method is performed in a closed-tube system where HRM analysis is directly applied right after amplification in real time cycler, thus reducing carry-over contamination that will influence the positive result. Therefore, the Bar-HRM method proposed in the present study could be applied in cases where DNA barcoding has failed. Previous reports have shown the success of these combined methods for species authentication in medicinal plants or for commercial herbal products [24,25,31,32,33].
DNA that is amplified from mixed herbal products will contribute to a contaminative background that leads to poor sequencing signals, impeding species identification [14,15]; hence, authentication using DNA barcoding alone is impossible. The use of HRM has also been established with the sensitivity detection of adulterants in an admixture sample. For instance, from previous study, the detection of adulterants in medicinal plant admixtures can be assessed at concentrations as low as 1:1000 for unknown species [34]. Another finding has also recorded the detection of targeted DNA as low as 1% in herbal admixture by using HRM analysis [35]. From our study, HRM has proven to be useful in detecting subtle amount of E. longifolia depending on the type of DNA region used. The present study has also revealed that even though HRM is proven to be highly sensitive, this method requires the presence of a reference sample of the targeted species. In the case of a sample with more than one species in a product, more references must be included.

5. Conclusions

In a summary, the HRM assay proved to be a simple and reliable method for the identification of E. longifolia in tested herbal products. The use of ITS2 as a DNA barcode was more reliable than rbcL due to the high discrimination power in both post DNA barcoding and HRM analysis. The DNA barcode coupled with HRM, not only distinguished the fake products from the authentic ones, but also demonstrated the sensitive detection levels of such methods.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4425/9/8/408/s1.

Author Contributions

N.F.F. and N.H.M.I. designed and ran the experiment. A.W., N.F.F., F.M.S. and S.A. wrote and checked the manuscript. All authors read and approved the manuscript.

Funding

The research was financially supported by the Ministry of Higher Education, Malaysia under Fundamental Research Grant Scheme (QJ130000.2545.4F893).

Acknowledgments

We wish to thank Universiti Teknologi Malaysia for the experimental support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Newmaster, S.G.; Grguric, M.; Shanmughanandhan, D.; Ramalingam, S.; Raguphaty, S. DNA barcoding detects contamination and substitution in North American herbal products. BMC Med. 2013, 11, 222–235. [Google Scholar] [CrossRef] [PubMed]
  2. Veldman, S.; Otienco, J.; Gravendeed, B.; van Andel, T.; de Boer, H. Conservation of endangered wild harvested medicinal plants; use of DNA barcoding. In Novel Plant Bioresources: Application in Food, Medicine and Cosmetics, 1st ed.; Gurib-Fakim, A., Ed.; John Wiley and Son: Hoboken, NJ, USA, 2014; Volume 6, pp. 81–88. [Google Scholar]
  3. Zhang, J.; Wider, B.; Shang, H.; Li, X.; Ernst, E. Quality of herbal medicines: Challenges and solutions. Complement. Ther. Med. 2012, 20, 100–106. [Google Scholar] [CrossRef] [PubMed]
  4. Ahmad, F.; Zaidi, M.A.S.; Sulaiman, N.; Majid, F.A.A. Issues and challenges in the development of the herbal industry in Malaysia. Proc. Perkem 2015, 10, 227–238. [Google Scholar]
  5. Henkel, R.R.; Wang, R.; Bassett, S.H.; Chen, T.; Liu, N.; Zhu, Y.; Tambi, M.I. Tongkat Ali as a potential herbal supplement for physically active male and female seniors—A pilot study. Phytother. Res. 2014, 28, 544–550. [Google Scholar] [CrossRef] [PubMed]
  6. Low, B.S.; Choi, S.B.; Abdul Wahab, H.; Kumar Das, P.; Chan, K.L. Eurycomanone, the major quassinoid in Eurycoma longifolia root extract increases spermatogenesis by inhibiting the activity of phosphodiesterase and aromatase in steroidogenesis. J. Ethnopharmacol. 2013, 149, 201–207. [Google Scholar] [CrossRef] [PubMed]
  7. Tambi, M.I.M.B.; Imran, M.K.; Henkel, R.R. Standardised water-soluble extract of Eurycoma longifolia, Tongkat ali, as testosterone booster for managing men with late-onset hypogonadism? Andrologia 2012, 44, 226–230. [Google Scholar] [CrossRef] [PubMed]
  8. Zurinawati, Z.A. Medicinal plants and products Malaysian industry status report. In Proceedings of the Medicinal Herbs and Plants: Scope for Diversified and Sustainable Extraction, Bangalore, India, 22–26 July 2004. [Google Scholar]
  9. Jagananth, J.B.; Ng, L.T. Herbs—The Green Pharmacy of Malaysia; Malaysian Agricultural Research and Development Institute (MARDI): Kuala Lumpur, Malaysia, 2000; pp. 45–46. [Google Scholar]
  10. Bhat, R.; Karim, A.A. Tongkat Ali (Eurycoma longifolia Jack): A review on its ethnobotany and pharmacological importance. Fitoterapia 2010, 81, 669–679. [Google Scholar] [CrossRef] [PubMed]
  11. Kaur, I.; Kumaresan, S.; Sarmidi, M.R. A study into the effect of laboratory scale processing parameters and scale up on Eurycoma longifolia water extract yield. In Proceedings of the 17th Symposium of Malaysian chemical engineers, Penang, Malaysia, 29–30 December 2003; pp. 294–299. [Google Scholar]
  12. Chen, S.; Yao, H.; Han, J.; Liu, C.; Song, J.; Shi, L.; Zhu, Y.; Ma, X.; Gao, T.; Pang, X.; et al. Validation of the ITS2 region as a novel DNA barcode for identifying medicinal plant species. PLoS ONE 2010, 5, e8613. [Google Scholar] [CrossRef] [PubMed]
  13. Kalivas, A.; Ganopoulos, I.; Xanthopoulou, A.; Chatzopoulou, P.; Tsaftaris, A.; Madesis, P. DNA barcode ITS2 coupled with high resolution melting (HRM) analysis for taxonomic identification of Sideritis species growing in Greece. Mol. Biol. Rep. 2014, 41, 5147–5155. [Google Scholar] [CrossRef] [PubMed]
  14. Li, J.; Song, M.; Xiong, C.; Zhao, B.; Sun, W. Application of barcode high-resolution melting for rapid authentication of the medicinal plant Psammosilene tunicoides. Biotechnol. Biotechnol. Equip. 2016, 30, 790–796. [Google Scholar] [CrossRef]
  15. Xiong, C.; Hu, Z.G.; Tu, Y.; Liu, H.G.; Wang, P.; Zhao, M.M.; SHIi, Y.H.; Wu, L.; Sun, W.; Chen, S.L. ITS2 barcoding DNA region combined with high resolution melting (HRM) analysis of Hyoscyami Semen, the mature seed of Hyoscyamus niger. Chin. J. Nat. Med. 2016, 14, 898–903. [Google Scholar] [CrossRef]
  16. Li, X.; Yang, Y.; Henry, R.J.; Rossetto, M.; Wang, Y.; Chen, S. Plant DNA barcoding: From gene to genome. Biol. Rev. 2015, 90, 157–166. [Google Scholar]
  17. Hollingsworth, P.M.; Li, D.Z.; van der Bank, M.; Twyford, A.D. Telling plant species apart with DNA: From barcodes to genomes. Philos. Trans. R. Soc. Lond. B Biol. Sci. 2016, 371, 20150338. [Google Scholar] [CrossRef] [PubMed]
  18. Newmaster, S.G.; Fazekes, A.J.; Raguphaty, S. DNA barcoding in land plants: Evaluation of rbcL in a multigene tiered approach. Can. J. Bot. 2006, 84, 335–341. [Google Scholar] [CrossRef]
  19. Wittwer, C.T. High-Resolution DNA melting analysis: Advancements and limitations. Hum. Mutat. 2009, 30, 857–859. [Google Scholar] [CrossRef] [PubMed]
  20. Simko, I. High-Resolution DNA melting analysis in plant research. Trends Plant Sci. 2016, 21, 528–537. [Google Scholar] [CrossRef] [PubMed]
  21. Schmiderer, C.; Ruzicka, J.; Johannes, N. DNA-based identification of Peucedanum ostruthium specimens and detection of common adulterants by high-resolution melting curve analysis. Mol. Cell. Probes 2015, 29, 343–350. [Google Scholar] [CrossRef] [PubMed]
  22. Osathanunkul, M.; Madesis, P.; de Boer, H. Bar-HRM for authentication of plant-based medicines: Evaluation of three medicinal products derived from Acanthaceae species. PLoS ONE 2015, 10, e0128476. [Google Scholar] [CrossRef] [PubMed]
  23. Osathanunkul, M.; Suwannapoom, C.; Ounjai, S.; Rora, J.A.; Madesis, P.; de Boer, H. Refining DNA barcoding coupled high resolution melting for discrimination of 12 closely related Croton species. PLoS ONE 2015, 10, e0138888. [Google Scholar] [CrossRef] [PubMed]
  24. Madesis, P.; Ganopoulos, I.; Anagnostis, A.; Tsaftaris, A. The application of Bar-HRM analysis for authenticity testing and quantitative detection of bean crops (Leguminosae) without prior DNA purification. Food Control 2012, 25, 576–582. [Google Scholar] [CrossRef]
  25. Villa, C.; Costa, J.; Meira, L.P.P.; Oliveira, M.B.; Mafra, I. Exploiting DNA mini-barcodes as molecular markers to authenticate saffron (Crocus sativus L.). Food Control 2016, 65, 21–31. [Google Scholar] [CrossRef]
  26. Singtonat, S.; Osathanunkul, M. Fast and reliable detection of toxic Crotalaria spectabilis Roth. in Thunbergia laurifolia Lindl. Herbal products using DNA barcoding coupled with HRM analysis. BMC Complement. Altern. Med. 2015, 15, 162. [Google Scholar] [CrossRef] [PubMed]
  27. Sun, W.; Li, J.J.; Xiong, C.; Zhao, B.; Chen, S.L. The Potential power of Bar-HRM technology in herbal medicine identification. Front. Plant Sci. 2016, 7, 367. [Google Scholar] [CrossRef] [PubMed]
  28. Osathanunkul, M.; Suwannapoom, C.; Osatahnunkul, K.; Madesis, P.; de Boer, H. Evaluation of DNA barcoding coupled high resolution melting for discrimination of closely related species in phytopharmaceuticals. Phytomedicine 2016, 23, 156–165. [Google Scholar] [CrossRef] [PubMed]
  29. Levin, R.A.; Wagner, W.L.; Hoch, P.C.; Nepokroeff, M.; Pires, J.C.; Zimmer, E.A.; Sytsma, K.J. Family-level relationships of Onagraceae based on Chloroplast rbcL and ndhF data. Am. J. Bot. 2003, 90, 107–115. [Google Scholar] [CrossRef] [PubMed]
  30. Kress, W.J.; Erickson, D.L. A two-locus global DNA barcode for land plants: The coding rbcL gene complements the non-coding trnH-psbA spacer region. PLoS ONE 2007, 2, e508. [Google Scholar] [CrossRef] [PubMed]
  31. Buddhachat, K.; Osthanunkul, M.; Madesis, P.; Chomdej, S.; Ongchai, S. Authenticity analyses of Phyllanthus amarus using barcoding coupled with HRM analysis to control its quality for medicinal plant product. Gene 2015, 573, 84–90. [Google Scholar] [CrossRef] [PubMed]
  32. Costa, J.; Campos, B.; Amaral, J.S.; Nunes, M.E.; Oliveira, M.B.P.P.; Mafra, I. HRM analysis targeting ITS1 and matK loci as potential DNA mini-barcodes for the authentication of Hypericum perforatum and Hypericum androsaemum in herbal infusions. Food Control 2016, 61, 105–114. [Google Scholar] [CrossRef]
  33. Ganopoulos, I.; Madesis, P.; Darzentas, N.; Argiriou, A.; Tsaftaris, A. Barcode high resolution melting (Bar-HRM) analysis for detection and quantification of PDO “Fava Santonis” (Lathyrus clymenum) adulterants. Food Chem. 2012, 133, 505–512. [Google Scholar] [CrossRef] [PubMed]
  34. Mader, E.; Ruzicka, J.; Schmiderer, C.; Novak, J. Quantitative high-resolution melting analysis for detecting adulterations. Anal. Biochem. 2011, 409, 153–155. [Google Scholar] [CrossRef] [PubMed]
  35. Dong, X.; Jiang, C.; Yuan, Y.; Peng, D.; Luo, Y.; Zhang, Y.; Huang, L. Application of high-resolution melting analysis for authenticity testing of valuable Dendrobium commercial products. J. Sci. Food Agric. 2018, 98, 549–558. [Google Scholar] [CrossRef] [PubMed]
Genes 09 00408 g001 550

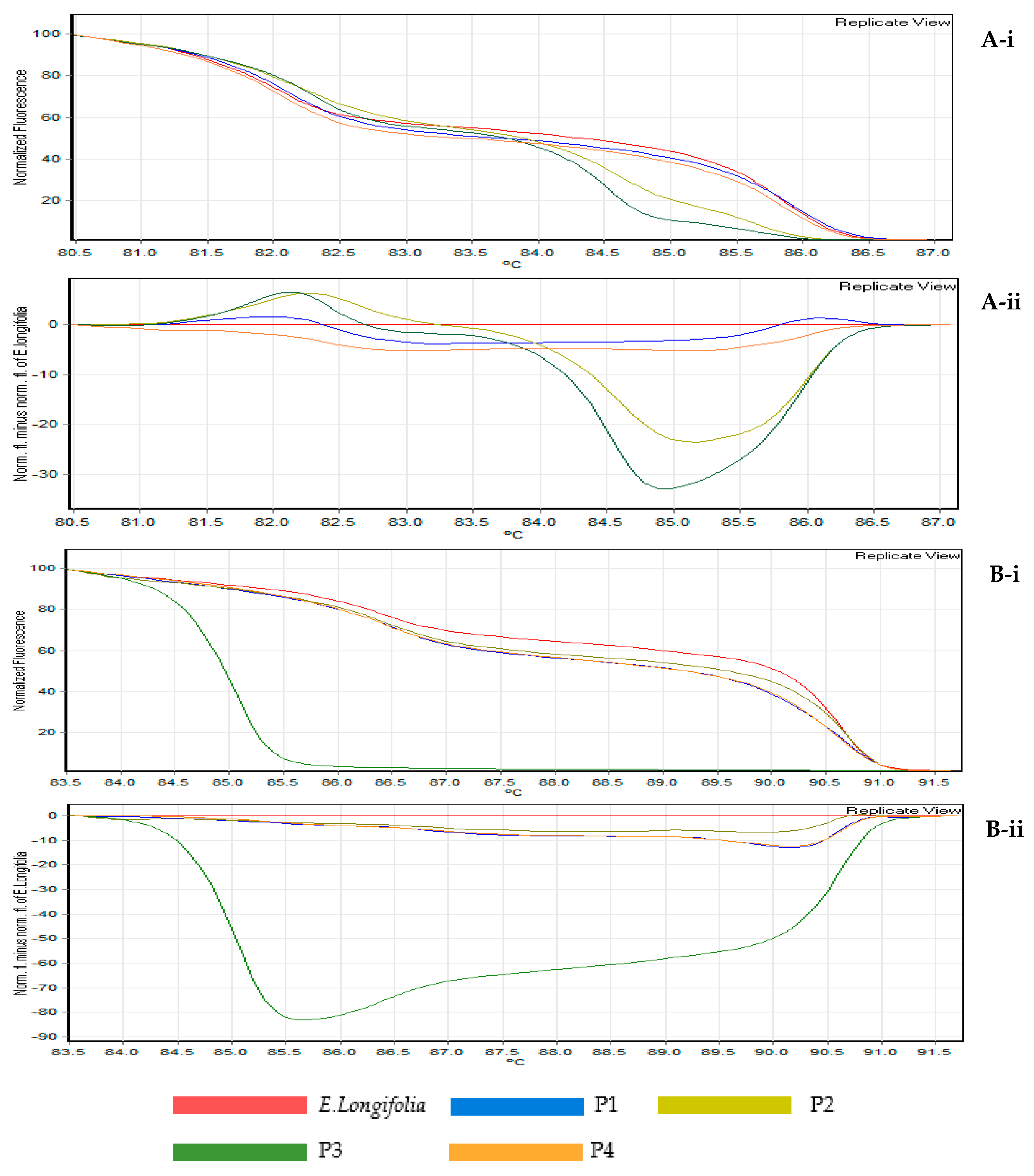

Figure 1. HRM analysis on real time PCR amplicon targeting rbcL (A-i) normalised rbcL curves, (A-ii) rbcL difference curves; and ITS2 (B-i) normalised ITS2 curves, (B-ii) ITS2 difference curves.
Figure 1. HRM analysis on real time PCR amplicon targeting rbcL (A-i) normalised rbcL curves, (A-ii) rbcL difference curves; and ITS2 (B-i) normalised ITS2 curves, (B-ii) ITS2 difference curves.
Genes 09 00408 g001
Genes 09 00408 g002 550

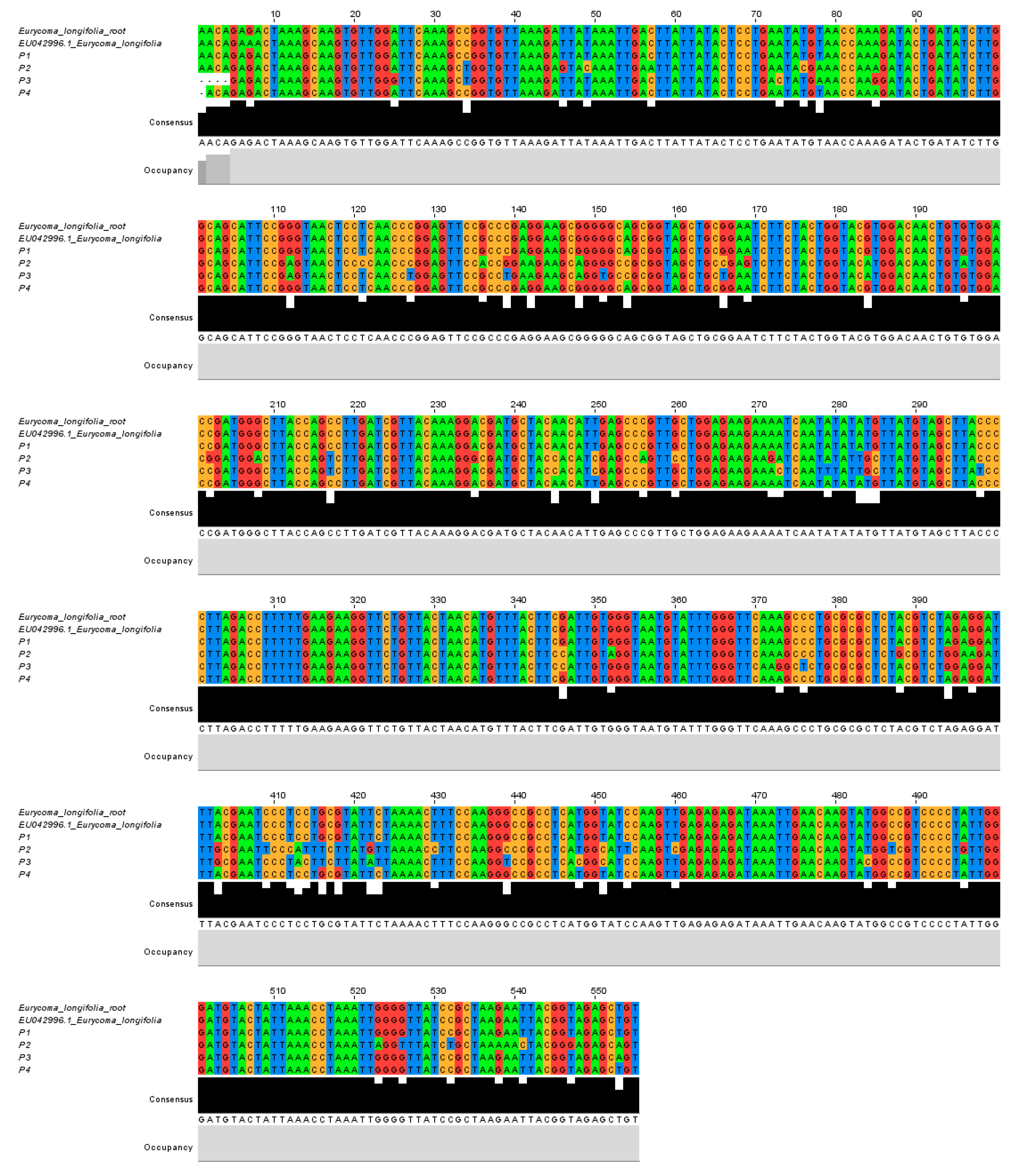

Figure 2. Multiple sequence alignment of rbcL between EU042996.1 E. longifolia extracted from NCBI database, E. longifolia root and four commercial herbal products: P1, P2, P3 and P4.
Figure 2. Multiple sequence alignment of rbcL between EU042996.1 E. longifolia extracted from NCBI database, E. longifolia root and four commercial herbal products: P1, P2, P3 and P4.
Genes 09 00408 g002
Genes 09 00408 g003 550

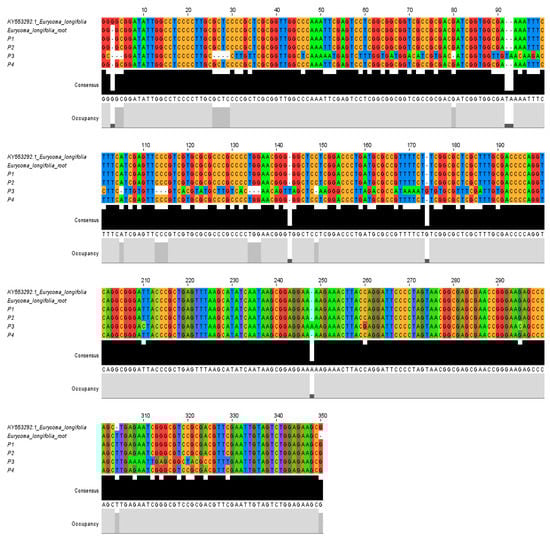

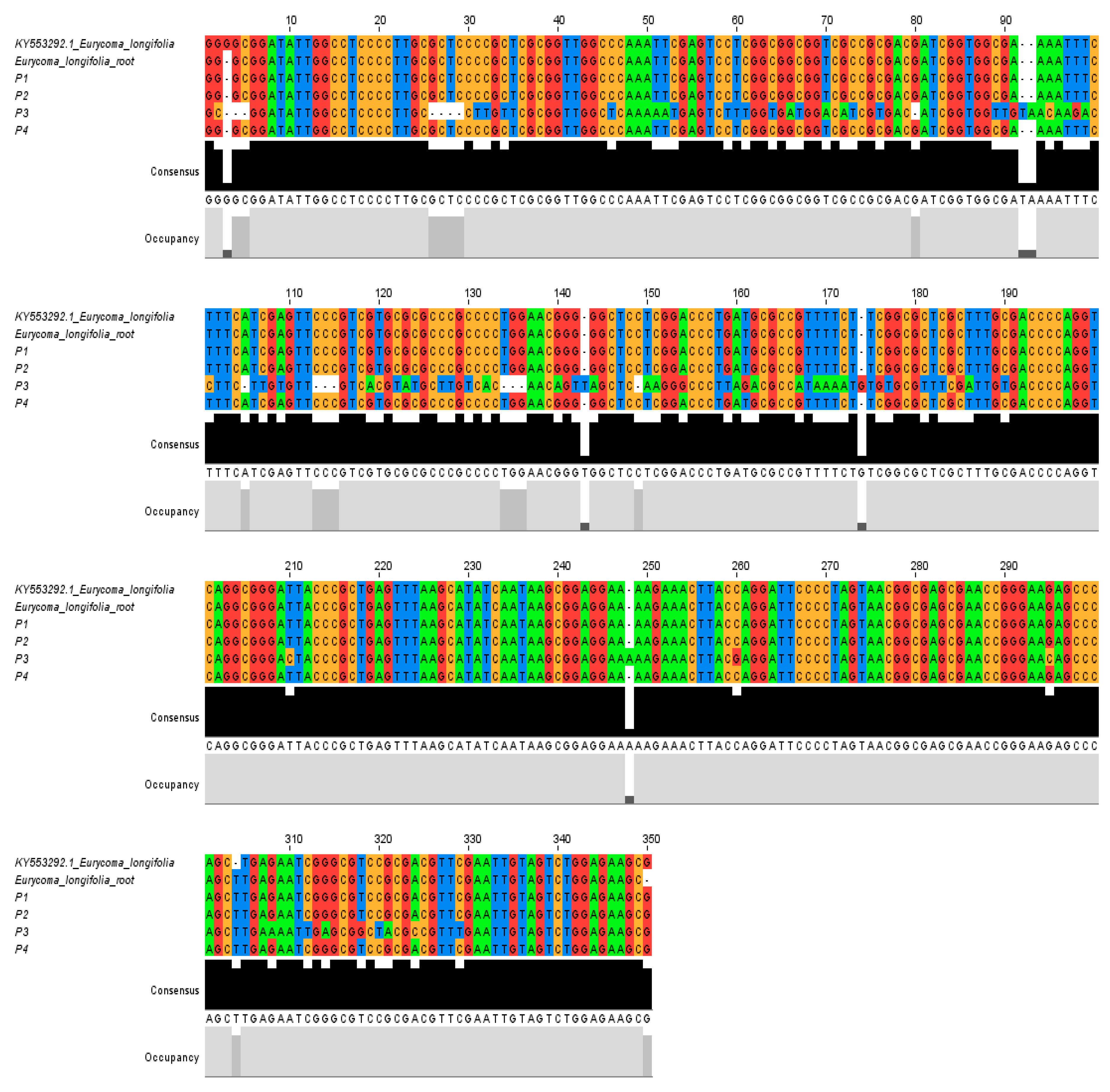

Figure 3. Multiple sequence alignment of ITS2 between KY553292.1 E. longifolia extracted from NCBI database, E. longifolia root and four commercial herbal products: P1, P2, P3 and P4.
Figure 3. Multiple sequence alignment of ITS2 between KY553292.1 E. longifolia extracted from NCBI database, E. longifolia root and four commercial herbal products: P1, P2, P3 and P4.
Genes 09 00408 g003
Genes 09 00408 g004 550

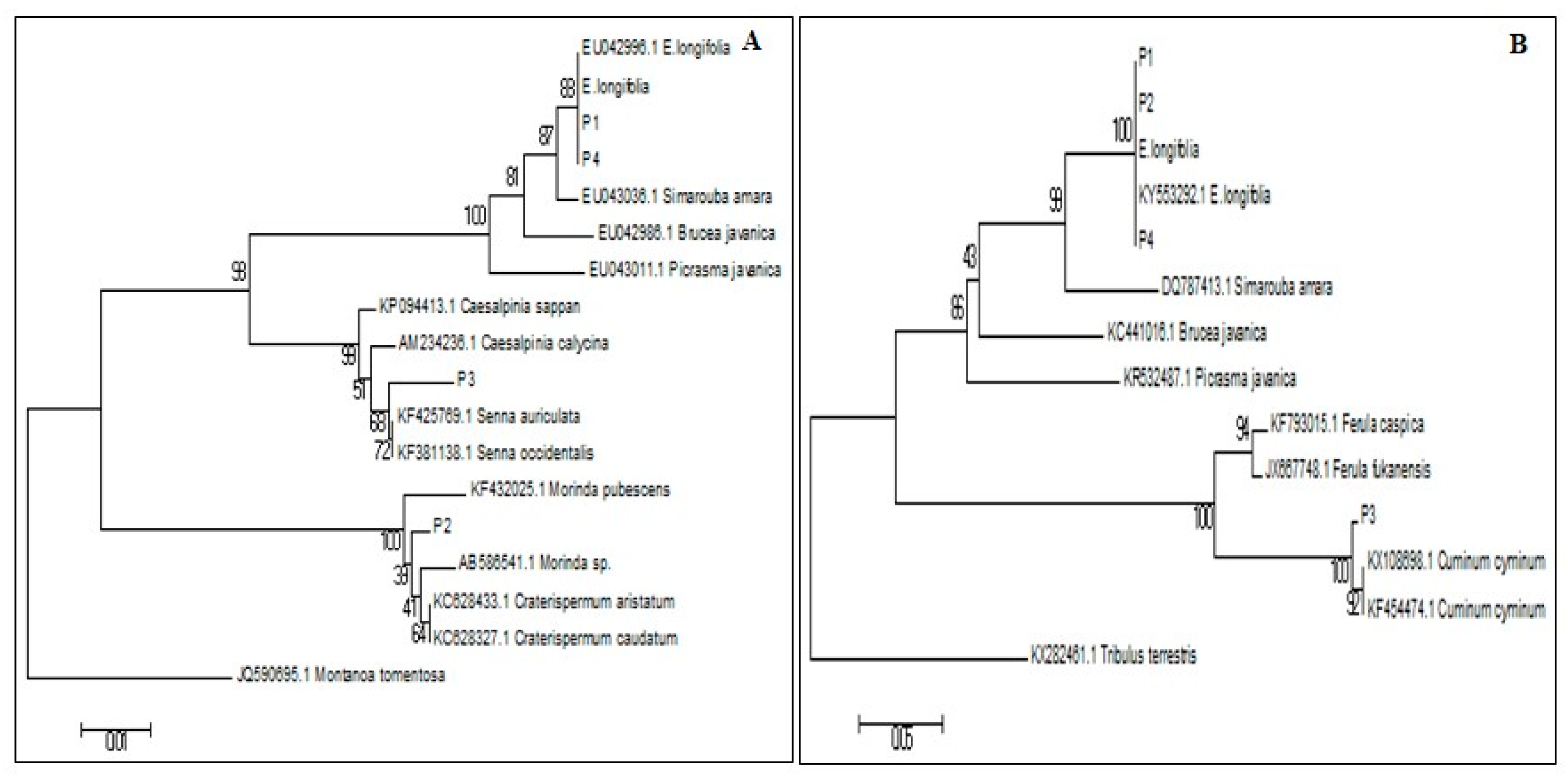

Figure 4. Phylogenetic tree of E. longifolia and commercial herbal products (P1, P2, P3, P4) with other plant species constructed from rbcL (A) and ITS2 (B) sequences using Neighbour Joining (NJ) Analysis with 1000 bootstrap replicates.
Figure 4. Phylogenetic tree of E. longifolia and commercial herbal products (P1, P2, P3, P4) with other plant species constructed from rbcL (A) and ITS2 (B) sequences using Neighbour Joining (NJ) Analysis with 1000 bootstrap replicates.
Genes 09 00408 g004
Genes 09 00408 g005 550

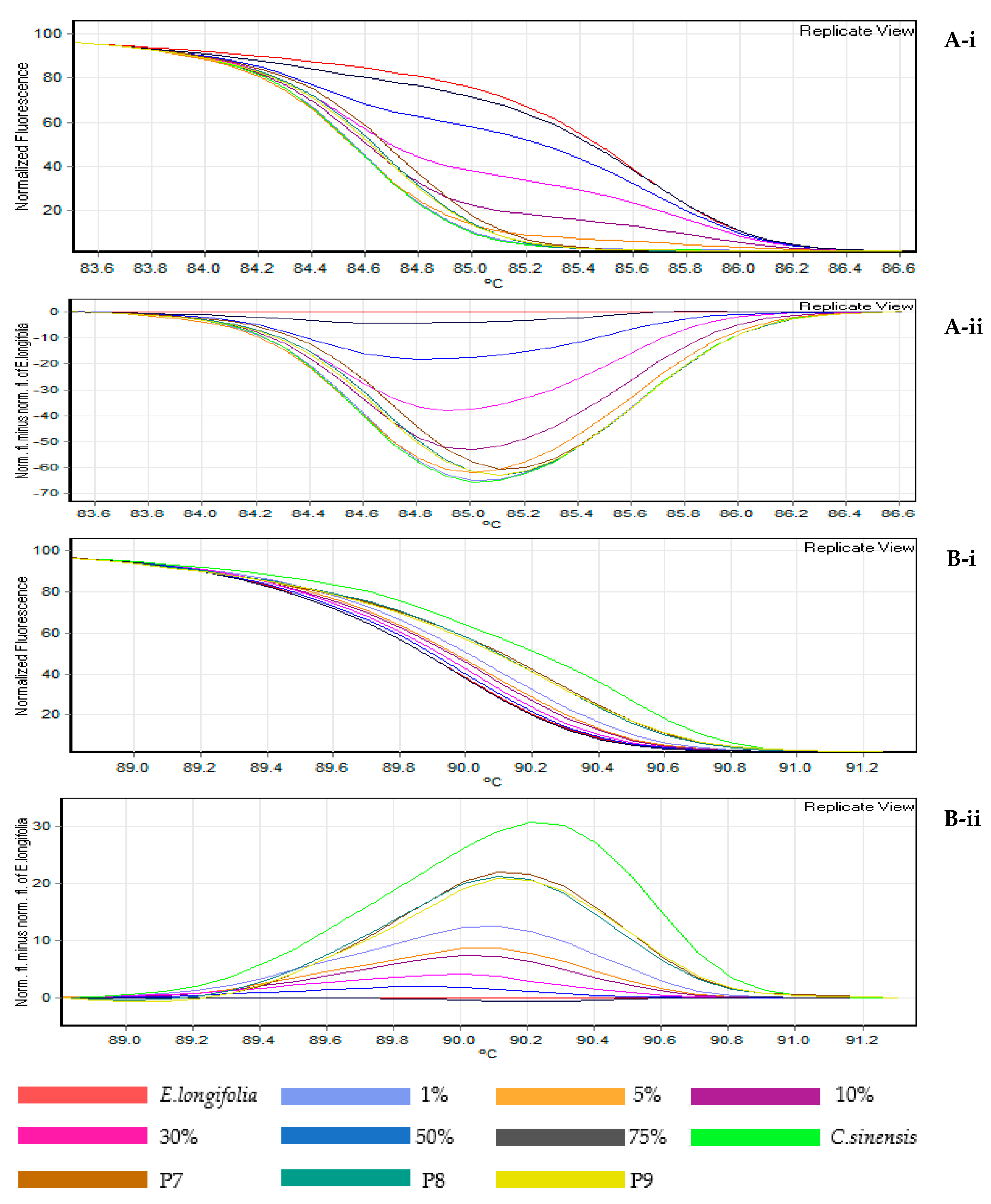

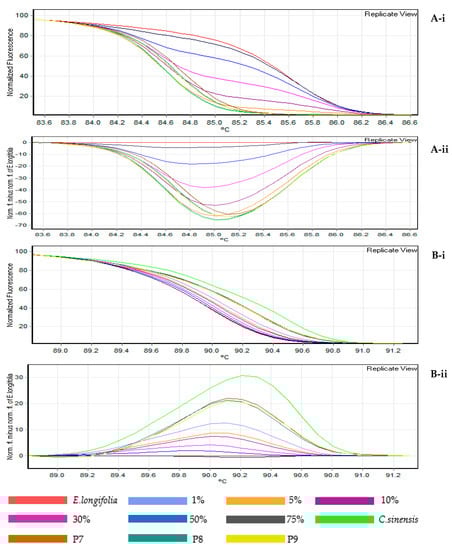

Figure 5. Adulteration of E. longifolia mixed in C. sinensis to test the sensitivity of HRM analysis in the admixture product. The mixture contained 1%, 5%, 10%, 30%, 50% and 75% E. longifolia in C. sinensis. HRM analysis targeting rbcL: (A-i) normalised rbcL curves, (A-ii) rbcL difference curves; and ITS2: (B-i) normalised ITS2 curves, (B-ii) ITS2 difference curves with E. longifolia as a reference, C. sinensis and three successfully amplified commercial admixture herbal products: P7, P8 and P9.
Figure 5. Adulteration of E. longifolia mixed in C. sinensis to test the sensitivity of HRM analysis in the admixture product. The mixture contained 1%, 5%, 10%, 30%, 50% and 75% E. longifolia in C. sinensis. HRM analysis targeting rbcL: (A-i) normalised rbcL curves, (A-ii) rbcL difference curves; and ITS2: (B-i) normalised ITS2 curves, (B-ii) ITS2 difference curves with E. longifolia as a reference, C. sinensis and three successfully amplified commercial admixture herbal products: P7, P8 and P9.
Genes 09 00408 g005
Table
Table 1. Tested commercial Eurycoma longifolia herbal products chosen randomly from the market, abbreviated as P1–P6 (Section 2.1).
Table 1. Tested commercial Eurycoma longifolia herbal products chosen randomly from the market, abbreviated as P1–P6 (Section 2.1).
SamplesType of SamplesLabelled SpeciesPurchased fromrbcLITS2
P1Tea bagE. longifoliaOnline++
P2Tea bagE. longifoliaOnline++
P3CapsuleE. longifolia
Cuminum cyminum
Alpina galangal
Zingiber officinale		Herbs store++
P4CapsuleE. longifoliaOnline++
P5BeverageE. longifoliaHerbs store--
P6BeverageE. longifoliaHerbs store--
Table
Table 2. Tested commercial tea bags and coffee instant drink powder containing traces of E. longiolia as herbal additives abbreviated as P7–P11 for the High Resolution Melting (HRM) sensitivity assessment (Section 2.4).
Table 2. Tested commercial tea bags and coffee instant drink powder containing traces of E. longiolia as herbal additives abbreviated as P7–P11 for the High Resolution Melting (HRM) sensitivity assessment (Section 2.4).
SamplesType of SamplesLabelled SpeciesPurchased fromrbcLITS2
P7Tea bagE. longifolia
Camelliasinensis		Online++
P8Tea bagE. longifolia
C. sinensis		Online++
P9Tea bagE. longifolia
C. sinensis		Online++
P10Instant coffee mixE. longifolia
Coffea		Herbs store--
P11Instant coffee
mix		E. longifolia
Coffea		Herbs store--
+ Successful amplification; - No amplification.
