Genes 2018, 9(12), 636;

Genome Based Meta-QTL Analysis of Grain Weight in Tetraploid Wheat Identifies Rare Alleles of GRF4 Associated with Larger Grains
School of Plant Sciences and Food Security, Tel Aviv University, Tel Aviv 6997801, Israel
The Robert H. Smith Faculty of Agriculture, Food and Environment, The Hebrew University of Jerusalem, Rehovot 7610001, Israel
The Institute of Plant Sciences, Agriculture Research Organization (ARO)—Volcani, Rishon LeZion 7505101, Israel
University of Saskatchewan, Saskatoon, SK S7N 5A8, Canada
Department of Agriculture, Nutrition, and Food Systems, University of New Hampshire, Durham, NH 03824, USA
Author to whom correspondence should be addressed.
Received: 1 November 2018 / Accepted: 11 December 2018 / Published: 17 December 2018


The domestication and subsequent genetic improvement of wheat led to the development of large-seeded cultivated wheat species relative to their smaller-seeded wild progenitors. While increased grain weight (GW) continues to be an important goal of many wheat breeding programs, few genes underlying this trait have been identified despite an abundance of studies reporting quantitative trait loci (QTL) for GW. Here we perform a QTL analysis for GW using a population of recombinant inbred lines (RILs) derived from the cross between wild emmer wheat accession ‘Zavitan’ and durum wheat variety ‘Svevo’. Identified QTLs in this population were anchored to the recent Zavitan reference genome, along with previously published QTLs for GW in tetraploid wheat. This genome-based, meta-QTL analysis enabled the identification of a locus on chromosome 6A whose introgression from wild wheat positively affects GW. The locus was validated using an introgression line carrying the 6A GW QTL region from Zavitan in a Svevo background, resulting in >8% increase in GW compared to Svevo. Using the reference sequence for the 6A QTL region, we identified a wheat ortholog to OsGRF4, a rice gene previously associated with GW. The coding sequence of this gene (TtGRF4-A) contains four single nucleotide polymorphisms (SNPs) between Zavitan and Svevo, one of which reveals the Zavitan allele to be rare in a core collection of wild emmer and completely absent from the domesticated emmer genepool. Similarly, another wild emmer accession (G18-16) was found to carry a rare allele of TtGRF4-A that also positively affects GW and is characterized by a unique SNP absent from the entire core collection. These results exemplify the rich genetic diversity of wild wheat, posit TtGRF4-A as a candidate gene underlying the 6A GW QTL, and suggest that the natural Zavitan and G18-16 alleles of TtGRF4-A have potential to increase wheat yields in breeding programs.
Quantitative trait loci; wild emmer wheat; GRF4; meta-QTL; grain weight; thousand kernel weight; Single nucleotide polymorphism

1. Introduction

Grain weight (GW) is an essential component of wheat yield, together with the number of grains per spike and the number of spikes per plant (i.e., fertile tillers) [1]. GW is considered to be a stable yield component, with relatively high heritability despite being determined by a number of interrelated factors, including grain size (length, width, and area), shape, and density [2]. The genetic diversity in GW among domesticated wheats (Triticum turgidum ssp. durum and Triticum aestivum) is relatively small compared to the diversity among progenitor wild emmer wheats (T. turgidum ssp. dicoccoides) due to the genetic bottleneck associated with domestication and subsequent evolution under domestication [2,3,4]. Wild emmer wheat (WEW, genome BBAA), domesticated more than 10,000 years ago, still grows naturally today in southeastern Turkey (eastern population) and in the southern Levant (western population) [5]. The western population is further divided into two subpopulations, designated Horanum and Judaicum, which differ greatly in their morphological characteristics [6]. Individuals in the Judaicum subpopulation exhibit taller, upright phenotypes with wider spikes, larger grains, and generally higher fertility than that observed within the Horanum subpopulation. The wide phenotypic variation among the WEW genepool presents an opportunity to discover novel genes and alleles relevant for wheat improvement. Even though WEW has long been recognized as an important resource for wheat improvement [7], few studies have identified the possible contribution of either WEW or domesticated emmer wheat (DEW, genome BBAA, T. turgidum ssp. dicoccum Schrank) to the yield potential of modern durum cultivars [8,9,10,11].
Grain Weight is a highly polygenic trait, and associated quantitative trait loci (QTLs) have been located on all 14 chromosomes of tetraploid wheat; however, only a few genes have been characterized [12,13]. The situation is far better in rice, where there are close to 20 known genes involved in grain size and yield regulation [14,15,16]. These genes influence rice yield in several ways, including via the number of panicles per plant (similar to number of spikes in wheat), the number of grains per panicle (similar to number of grains per spike in wheat), and GW. One example is GRF-Interacting Factor 1 (GIF1), a gene that encodes a cell wall invertase such that gif1 mutants produce seed with lower GW due to loosely packed starch granules that reduce grain density [17]. Duan et al., (2016) [18] further showed that GIF1 interacts with Growth-Regulating Factor 4 (GRF4) and that overexpression of GIF1 increases both the size and weight of grains. Further, rice genotypes with a 2 bp mutation in the GRF4 target site of miR396 produced larger grains [18,19,20].
The objective of the current study is to identify genetic factors from WEW with the potential to contribute to increased GW in domesticated wheat. To accomplish this, we conducted field experiments with a durum wheat × wild emmer Recombinant Inbred Line (RIL) population across multiple environmental conditions, performed QTL analysis, and combined the results with a reference-based meta-QTL analysis of publicly available data. The genome data was further used to associate known GW genes in rice with the results of the meta-QTL analysis, ultimately enabling the identification of rare WEW alleles located under a major meta-QTL on chromosome 6A with a positive effect on GW.

2. Materials and Methods

2.1. Tetraploid Wheat Mapping Populations

A segregating population of 137 F7 Recombinant Inbred Lines (RILs) developed via single-seed decent from a cross between elite durum wheat cv. ‘Svevo’ (Sv, hereafter) and WEW accession ‘Zavitan’ (Zv, hereafter) was used for QTL mapping, along with a previously developed high-density genetic map [21].
For the meta-QTL analysis we used thousand kernel weight (TKW) data from the following published studies: 1. Peng et al., 2003: A segregating population of 150 F2 genotypes developed from a cross between a durum cultivar, ‘Langdon’ and WEW accession ‘Hermon H52’ [22]. 2. Elouafi and Nachit 2004: A population of 114 BC1F8 backcrossed RILs was developed from a cross between durum cultivar ‘Omrabi 5’ and WEW accession ‘T. dicoccoides 600545’ [9]. 3. Peleg et al., 2011: A population of 152 F6 RILs was developed from a cross between a durum wheat cultivar ‘Langdon’ and WEW accession ‘G18-16’ [8]. 4. Thanh et al., 2013: A population of 144 F2 genotypes was developed from a cross between a domesticated emmer (T. turgidum ssp. dicoccum) ‘DCM1001’ and WEW accession ‘DCC63’ [11]. 5. Faris et al., 2014: A population of 200 F8 RILs was developed from a cross between a durum wheat cultivar ‘Ben’ (PI 596557) and domesticated emmer accession ‘PI 41025’ [23]. 6. Russo et al., 2014: A population of 136 F5 RILs was developed from a cross between a durum wheat cultivar ‘Simeto’ and domesticated emmer ‘Molise Colli’ [24]. 7. Tzarfati et al., 2014 [25]: Same population as [8]. 8. Golan et al., 2015: A population of 94 homozygous recombinant inbred substitution lines (RISL) was developed from a cross between a durum wheat cultivar ‘Langdon’ and the substitution line ‘DIC-2A’. The substitution line ‘DIC-2A’ contained the 2A chromosome from WEW accession ‘Israel-A’ [4].

2.2. Growing Conditions and Experimental Design

The Sv × Zv RILs were characterized for GW under field conditions in four environments (experiments) in Israel. Two experiments were conducted in 2014 at Rehovot (2014R) and in 2015 in Atlit (2015A). The 2014R and 2015A experiments were designed as randomized complete block design (RCBD) with five replications and experimental units consisting of 10 plants. Weekly irrigation was applied unless rains were constant. Slow release fertilizer 50 kg/ha was applied upon sowing. In Atlit the soil is brown (composed of 18.7%; sand, 22.6%; silt, 57.0%; clay and organic matter, 1.7%) while in Rehovot the soil is a brown-red, degrading sandy loam (Rhodoxeralf) composed of 76% sand, 8% silt, and 16% clay. An additional experiment was conducted at Rehovot in 2016 (2016R) using the RIL population. This experiment was designed as RCBD split-plot with three replications, with blocks consisting of two main plots (irrigation regimes: dry (350 mm) or wet (750 mm)), each containing 137 sub-plots with five plants. All experiments included 137 RILs and the two parental lines Svevo and Zavitan.
In all experiments, three to six spikes were randomly selected from each experimental unit (genotype × replication) and used for GW characterization (TKW). In 2014R and 2015A, the parental lines (Sv and Zv) were further evaluated for other grain characters (length, width, and area) using a Qualmaster Computer Vision device (VIBE Technologies, Tel Aviv, Israel).

2.3. QTL Analysis

QTL analysis was performed as described previously in [10], using the MultiQTL software (v 1.0). Significance of detected QTLs was assessed using a permutation test, followed by a genotype × environment interaction analysis (ANOVA). Quantitative trait loci were plotted against the Zavitan genome using Circos [26].

2.4. Genome-Based Meta- Quantitative Trait Loci Analysis

The meta-QTL analysis integrated TKW QTL mapping results from both the current study and eight previously published studies, including: five durum × WEW populations [4,8,9,22,25], two DEW × durum populations [23,24], and one DEW × WEW population [11]. To facilitate the identification of common QTLs, the peak markers for all detected QTLs were anchored to the Zv reference genome [27] using BLAST. Best alignments were chosen on the basis of percent identity, e-value, and agreement with genetic linkage maps for each study.

2.5. Identification of Wheat Orthologs to Yield-Related Genes in Rice

We searched the published literature for characterized yield-related genes in rice (Oryza sp.) and aligned their sequences to the Zv genome using BLAST. Best hits were chosen on the basis of percent identity, e-value and were cross-referenced to the WEW (Zv) annotation, WEW orthologs identified, and their genomic locations on the WEW genome determined.

2.6. GRF4-A Single Nucleotide Polymorphism Marker Development

Zavitan and Svevo GRF4-A sequences were obtained from relevant databases, namely and The genomic GRF4-A sequences of durum wheat ‘Langdon’ and wild emmer accession ‘G18-16’ were obtained using the following three primer pairs that collectively targeted the full coding sequence: (1) Exons 1 and 2: 5′-CCTCGCTACTACCCCTAGCTG-3′ and 5′-GCGGTGATGATGAAGGAAG-3′; (2) Exon 3: 5′-GATCGGTTTTGTTGGCTTTG-3′ and 5′-CTACTGTGCGGCATGGAGAG-3′; and Exon 4: 5′-AACTTTCGGTCTTTGACATGAA-3′ and 5′-GGCCTAGTTTTCACCCAGTG-3′.
Exon 1 single nucleotide polymorphism (SNP) markerGRF4-A sequence data with Sv-Zv SNP information confined by brackets were uploaded to the rhAmp® Genotyping Design Tool (IDT;, resulting in the following assay (catalog number CD.GT.CNST8331.1): ‘Allele Specific Primer1-CTCCCCTTCTGCCGT’, ‘Allele Specific Primer2-CTCCCCTTCTGCCGC’, and ‘Locus Specific Primer-GCACAAGAACACGCACCGAA’ (bold letter indicates SNP). We performed PCR on a PikoReal machine (Thermo Fisher Scientific, Waltham, MA, USA) according to the IDT user guide (
Exon 3 SNP marker—PCR amplicons of exon 3 were digested with one unit of the restriction enzyme MnlI. The G18-16 allele has 10 MnlI restriction sites while Zv carries 11. This polymorphism, visualized with an Advanced Analytical Fragment Analyser (Ankeny, Iowa, US), resulted in a fragment of 126 bp (G18-16) versus one of 102 bp (Zv).

2.7. Development and Evaluation of Introgression Line IL-21.1

RIL-21 from the Sv × Zv population was backcrossed to Sv three times and genotyped for the presence of the GRF4-A allele from Zv (designated GRF4-Az) using the specific marker. Then, the progeny was self-pollinated for 5 generations and a single homozygous BC3F5 GRF4-Az introgression line (IL) was genotyped with the wheat 90K iSelect SNP genotyping assay [28]. This genotype IL, designated IL-21.1, was characterized for TKW under field conditions in 2018 at Rehovot using five RCBD containing IL-21.1 and Svevo under similar conditions as 2016R experiment.

2.8. Allelic Variation Studies

The GRF4-A markers were used for diversity analysis on 34 WEW and 31 DEW accessions (Table S4).

3. Results

3.1. Phenotypic Characterization of Grain Parameters in Parental Lines

In the 2014R and 2015A experiments, the parental lines differed in every measured yield-related trait (Table 1). For example, Zv grains (10.2 mm and 9.8 mm long in 2014R and 2015A, respectively) were significantly longer (p < 0.001) than those of Sv (8.1 mm and 8.6 mm long for 2014R and 2015A, respectively). In terms of width, Zv grains were significantly narrower (p < 0.001) than those of Sv (2.8 mm and 2.4 mm vs. 3.2 mm and 3.7 mm) in 2014R and 2015A, respectively. Grain area was less consistent, with Zv grain area exceeding that of Sv in 2014R (23.3 mm2 vs. 21.6 mm2) but being less in 2015A (17.8 mm2 vs. 23.6 mm2). Most notably, TKW in Sv (61.8 g and 56.5 g) is much larger than that in Zv (45.8 g and 29.7 g) in both 2014R and 2015A, respectively. The overall variation between the two experiments can be attributed to the different environments in which the experiments were conducted (see Section 2.2).

3.2. QTL Analysis

The Sv × Zv RIL population showed a normal distribution pattern for TKW across the four environments (2014R, 2015A, 2016R_wet and 2016R_dry; Figure S1). The mean TKW for each experiment ranged from 43.2 to 49.6 g, and QTL analysis for TKW over these four environments (collectively designated ‘Avni 2018’ study) revealed 22 significant QTLs across all chromosomes except 4A and 7B (Figure S2, Figure 1 and Table S1). We found eight QTLs in which Zv had contributed to the high TKW and 14 for Sv. The largest QTL (LOD = 10.85), located on chromosome 1B, was specific to the 2015A experiment. The 6A QTL, found in three experiments (2014R, 2016R_dry and 2016R_wet; Table S2), is located on the long arm of chromosome 6A (LOD between 3.5 and 4.4), with Zv contributing the high-TKW allele. Two additional QTLs where Zv contributed the high-TKW alleles were found on chromosomes 2A (only 2014R and 2016R_wet) and 7A (only 2016R_wet and 2016R_dry).

3.3. Meta-QTL Analysis

In the meta-QTL analysis, we included the results of the QTL analysis described above (Sv × Zv RIL population), along with those of eight other previously published studies [4,8,9,11,22,23,24,25]. Across these nine independent studies, mean TKW ranged between 10–48 g among wild emmer parents and 30–74 g among domesticated parents (including DEW), while population means ranged from 29.9–58.9 g (Table S3).
To facilitate the identification of overlapping QTLs across studies, we anchored the peak marker of each TKW QTL to the WEW genome via BLAST. This process was successful in most cases, except where marker sequences were absent from public databases (e.g., wPt-9555 and gwm263 from [8]; MctcEagg84 and gwm144 from [9] or where multiple BLAST hits indicated that the peak marker could not be uniquely placed in the genome (e.g., MctcEaag350 and gwm582 from [9]; and gwm403 from [22]). In the end, no common meta-QTL was found across all studies; however, there were meta-QTLs shared by two or more studies on all but chromosome 7B. Meta-QTLs for which the wild parent contributed the high-TKW allele were found on all chromosomes except 7B, while those for which the domesticated parent contributed the high-TKW allele were found on all chromosomes except 4A, 7A, and 7B (Figure 1).
The meta-QTL on chromosome 6A (designated mQTL-GW-6A) was selected for follow-up because it showed consistent contribution of higher TKW from WEW in two studies—the current study and that of Peleg et al., 2011 [8]. Such a result suggests that this region may contain genetic diversity with breeding potential that is currently absent from the domesticated tetraploid wheat genepool.

3.4. Validation of mQTL-GW-6A Using Sv × Zv Introgression Lines

To investigate the effect of mQTL-GW-6A, we used one BC3F5 introgression line (IL-21.1) that carries most of Zv chromosome 6A (from 37–553 Mb), including the mQTL-GW-6A region (480–540 Mb). Otherwise, the background of IL-21.1 is mostly (>95%) Sv, with only small Zv introgressions (<40 Mb) on chromosomes 3B, 5B, and 6B. In the 2017R, both dry and wet environments IL-21.1 exhibited significantly higher mean TKW than Sv (dry: 66.0 g vs. 59.1 g, p = 0.03; wet: 68.1 g vs. 68.1 g, p = 0.05; Figure 2).

3.5. Wheat Orthologs to Yield-Related Genes in Rice

The extensive work in rice to identify yield-related genes can be leveraged to identify candidate wheat genes responsible for differences in TKW, including those underlying meta-QTLs like mQTL-GW-6A. To explore this possibility, the sequences of yield-related genes from rice were aligned to the WEW genome. In most cases (11 of 13 rice genes investigated; see Table 2), the wheat orthologs on both the A and B sub-genomes were positively identified. For some rice genes, such as OsGRF4, OsGW5, and OsSRS3, wheat paralogs (i.e., multiple copies within sub-genomes) were detected in addition to orthologs across sub-genomes (Table 2).
Through this analysis, we identified a candidate gene within the mQTL-GW-6A region of WEW homologous to rice Growth-Regulating Factor 4 (OsGRF4; Duan 2016; Sun et al., 2016) [18,29] on rice chromosome 2. The two best hits in the WEW genome for OsGRF4 were on chromosomes 6A (497,980,067–497,986,236 Mb; 73% identity) and 6B (517,412,655–517,414,135; 73% identity). These regions correspond to two WEW genes designated as TRIDC6AG041360 (GRF4-A) and TRIDC6BG048340 (GRF4-B).

3.6. GRF4-A Polymorphisms

Results from two durum × WEW mapping populations (Sv × Zv and Langdon × G18-16 [8]) implicate the mQTL-GW-6A locus, which includes GRF4-A, is associated with increased TKW. Sequence comparison of the GRF4-A 1,227-bp coding sequence in Zv and Sv revealed the existence of four SNPs, in positions 93, 342, 5610, and 5661 (Figure 3). The first SNP (#1) is synonymous, but the other three translate into three amino acid changes between Zv and Sv (#2 = P83S, #3 = R319G, and #4 = G336S). In comparison, WEW accession G18-16 carries a synonymous substitution of C to T in position 426 (#5) from the start codon (Figure 3). The durum accessions (Sv and Langdon) carry identical sequences to one another.

3.7. Allelic Diversity Study of GRF4-A

We genotyped a core collection of 29 wild and 27 domesticated tetraploid genotypes using a molecular marker based on the SNP #1 of GRF4-A (see Materials and Methods). The results of this screen showed that only two other WEW genotypes in the panel (WE-10 and WE-12, both from Israel; Table S4) carry the relatively rare Zv allele (#1; designated GRF4-Az) while all other accessions (both wild and domesticated) carry the Sv allele (Table S4). We have verified by sequencing that WE-10 and WE-12 carry SNP#2-4 typical for the GRF4-Az allele (Figure 3). Similarly, genotyping with a marker designed to detect the polymorphism in the third exon of G18-16 (#5; designated GRF4-Ag) showed that this allele is not present in any of the core collection genotypes, suggesting that the G18-16 GRF4-A allele is very rare.

4. Discussion

The average GW of domesticated wheat is significantly greater than that of its direct progenitor; moreover, the grain of domesticated wheat is usually wider and shorter while wild wheat has longer and narrower grains [2,4]. Because the genetic mechanisms underlying this selection process are not well understood, we initiated a genetic dissection of GW using a biparental durum × WEW mapping population. Interestingly, our multi-site field studies of the Sv × Zv population led to the identification of several RILs with greater TKW than parental durum line (Figure S1). Such transgressive segregation indicates the potential of WEW germplasm as a source of useful alleles for modern wheat breeding programs.
Our genetic dissection of TKW using the Sv × Zv mapping population identified 22 loci related to TKW (Figure 1). Eight of the QTLs had an increasing effect contributed by Zv and the rest by Sv. Of the 22 QTLs, eight were shared by more than one experiment and four were identified only in one experiment. Because our aim was to identify QTLs for which wild wheat may carry hitherto unexploited beneficial alleles, we used all available data from bi-parental tetraploid wheat populations having emmer wheat as one parental line and conducted a genome-based meta-QTL analysis (Figure 1). Until recently, meta-QTL studies relied on a consensus map constructed by either combining genetic linkage maps based on common markers via a homothetic projection process and solving conflicting markers locally [30,31] or by completely avoiding conflicting markers and instead analyzing all datasets as a single population. In the latter approach, the situation of conflicting markers is completed avoided by reducing the consensus-mapping problem to single-population ordering via construction of a synthetic distance matrix from all datasets [32,33]. In contrast to these linkage-based strategies, here we used the WEW reference genome to anchor the QTL markers to a common physical coordinate system via sequence alignment. This novel approach proved quite efficient, as we were able to find the unambiguous physical locations of most QTL markers. This strategy also allowed a straightforward comparison of results from all the QTL studies without the need for even one common marker between them. While the current study focused on TKW in wheat, the general scheme is valid for other traits. The meta-QTL analysis revealed more than 10 loci associated with higher TKW contributed by an emmer parent (Figure 1). Although all the meta-QTLs were shared by two or more studies, none were shared by all of them. It is possible that this result may be due to the nature of TKW in wheat. On one hand, TKW is a high heritable trait, relatively insensitive to environment [34]; but on the other hand, it is also multi-genic, multi-component trait [35], suggesting a high likelihood of different populations carrying different suites of relevant alleles.
For further investigation, we selected the meta-QTL on chromosome 6A that showed increased TKW conferred by the wild allele in two different populations. This locus, dubbed mQTL-GW-6A, spans a 60 Mb region (480–540 Mb) that includes 650 genes, of which 411 are high-confidence and 239 are low-confidence as defined by Avni et al., (2017) [27]. To validate the QTL result, we used an introgression line (IL-21.1) with a large region of chromosome 6A in the background of durum wheat cv. ‘Svevo’. Field-based phenotyping of this IL-21.1 supported the hypothesis that mQTL-GW-6A not only influences TKW (Figure 2) but that WEW has specific potential as a source of useful alleles in wheat breeding programs aimed at increasing yield. Although the 6A introgression in question includes the known grain weight gene TaGW2-A ([36]; located at ~230 Mb on Zavitan genome), the meta-QTL on 6A does not overlap with TaGW2; thus, we suggest that the 6A meta-QTL is independent of the TaGW2 effect. Classically, the next step in genetic dissection of a QTL region would include saturation of the region with critical recombinant plants (Distelfeld et al., 2004) [37]. This strategy is also valid in the case of mQTL-GW-6A, where further validation using backcrossed IL-21.1 progeny is needed in order to clean the background from other wild introgressions and reduce the 6A introgression. Although this approach usually allows a thorough examination of the QTL effects, including the study of tradeoffs with other yield components and genotype-by-environment interactions, the process is time consuming, typically taking a few years to complete. As an alternative, we proceed in this case with a candidate gene approach using knowledge from the literature about yield-related genes.
Studies in rice have found many genes underlying the large natural variation observed in grain size and yield [14,38]. A comparison between our meta-QTLs and Cross-referencing known grain size genes from rice to our meta-QTLs (Table 2) revealed the presence of GRF4-A, a homolog of OsGRF4 [18], within the mQTL-GW-6A region. OsGRF4 is a highly expressed transcription factor in rice panicles involved in chromatin-remodeling. OsGRF4 expression is negatively regulated by OsmiR396, which cleaves the transcript at a specific target site. In certain rice varieties, however, there is a mutation at the cleavage site which results in higher expression of OsGRF4. Rice plants with the mutated site resistant to miR396 cleavage have larger and especially longer hulls and grains due to this higher expression of OsGRF4 [18]. To further associate GRF4-A with mQTL-GW-6A, we examined the allelic differences between Sv and Zv and identified four SNPs in the coding sequence. We developed a molecular marker for the first SNP (as a representation of the GRF4-Az haplotype) and conducted an allelic diversity analysis that revealed that only 4.5% of the probed genotypes (3 out of 64 wild and domesticated genotypes, Table S4) carry the Zv allele. Interestingly, these three genotypes that carry the GRF4-Az allele cluster together (See Figure 4 in [27]) in a branch associated with the Judaicum emmer subpopulation, consisting of Zv and five other WEW accessions collected from the southern Levant. The Judaicum subpopulation has previously been shown to possess a more robust grain phenotype than the more widespread Huranum subpopulations [5,39,40]. Therefore, we suggest that the polymorphisms in GRF4-A may be associated with the well-known differences in seed morphology between the two subpopulations.
In addition to the Sv × Zv data, mQTL-GW-6A was also detected using data from a previously developed durum × WEW RIL population (Langdon × G18-16; [8]) which also found a TKW QTL on chromosome 6A contributed from WEW (G18-16) that was located in the same region as the three QTLs from our study (See Figure 1). We sequenced GRF4-A from the parental lines of that population and identified a SNP in the third exon. A molecular marker for this SNP showed that the wild G18-16 allele, GRF4-Ag, is quite rare, being entirely absent from our core collection (Table S4).

5. Conclusions

In this study, the recent assembly of the wild emmer genome is shown to open new avenues for the genome-based genetic dissection of phenotypic variation. The existence of a high quality genome facilitates co-localization of QTLs from different studies and different organisms (e.g., rice); and combining a meta-QTL study with a well-annotated genome can quickly lead to the identification of candidate genes underlying traits of interest. GRF4-A, an ortholog of the yield related rice gene OsGRF4, was found to be associated with mQTL-GW-6A, a wheat meta-QTL with a positive effect on grain size originating from WEW. An allelic diversity study using the GRF4-A markers developed in the current study show that the wild Zv (GRF4-Az) and G18-16 (GRF4-Ag) alleles are both rare, a fact that exemplifies the rich genetic diversity in wheat wild relatives. The introgression of GRF4-Az and GRF4-Ag alleles in different backgrounds are needed to assess their potential in increasing grain size and yield in cultivated wheat. Moreover, GRF4 copies seem to be valid targets for genome editing approaches. Lastly, we suggest that GRF4-Az may be related to the differences between the Huranum and Judaicum subpopulations of WEW.

Supplementary Materials

The following are available online at, Figure S1: Distributions of thousand-kernel weight (TKW) on the Svevo × Zavitan population across four environments,, Figure S2: QTL analysis for TKW across four experiments, Table S1: QTL parameters for TKW in four environments, Table S2: Significance of 6A TKW QTL between Svevo and Zavitan alleles in the RIL population, Table S3: Mean TKW of parental lines and segregating populations in the 9 independent studies used for the meta-QTL analysis, Table S4: Genotypes used for allelic diversity study with molecular marker for the presence of GRF4-Az and GRF4-Ag.

Author Contributions

Conceptualization: R.A., C.P., I.H., Z.P., and A.D.; Formal analysis, R.A., L.O., G.S., S.A., Z.P., and A.D.; Funding acquisition, Z.P. and A.D.; Project administration, A.D.; Supervision, A.D.; Writing—original draft, R.A., I.H., Z.P., and A.D.; Writing—review & editing, R.A., L.O., G.S., S.A., C.P., I.H., R.B.-D., Z.P., and A.D.


This research was funded by the United States—Israel Binational Science Foundation (BSF grant 2015409), the Chief Scientist of the Israel Ministry of Agriculture and Rural Development (grant #20-10-0066), and the U.S. Agency for International Development Middle East Research and Cooperation (grant # M34-037).


We would like to thank I. Ayalon and G. Golan for their excellent technical assistance with the experiments.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Campbell, K.G.; Bergman, C.J.; Gualberto, D.G.; Anderson, J.A.; Giroux, M.J.; Hareland, G.; Fulcher, R.G.; Sorrells, M.E.; Finney, P.L. Quantitative trait loci associated with kernel traits in a soft x hard wheat cross. Crop Sci. 1999, 39, 1184–1195. [Google Scholar] [CrossRef]
  2. Gegas, V.C.; Nazari, A.; Griffiths, S.; Simmonds, J.; Fish, L.; Orford, S.; Sayers, L.; Doonan, J.H.; Snape, J.W. A genetic framework for grain size and shape variation in wheat. Plant Cell 2010, 22, 1046–1056. [Google Scholar] [CrossRef] [PubMed]
  3. Abbo, S.; Pinhasi van-Oss, R.; Gopher, A.; Saranga, Y.; Ofner, I.; Peleg, Z. Plant domestication versus crop evolution: A conceptual framework for cereals and grain legumes. Trends Plant Sci. 2014, 19, 351–360. [Google Scholar] [CrossRef]
  4. Golan, G.; Oksenberg, A.; Peleg, Z. Genetic evidence for differential selection of grain and embryo weight during wheat evolution under domestication. J. Exp. Bot. 2015, 66, 5703–5711. [Google Scholar] [CrossRef] [PubMed][Green Version]
  5. Ozkan, H.; Brandolini, A.; Pozzi, C.; Effgen, S.; Wunder, J.; Salamini, F. A reconsideration of the domestication geography of tetraploid wheats. Theor. Appl. Genet. 2005, 110, 1052–1060. [Google Scholar] [CrossRef]
  6. Poyarkova, H.; Gerechter-Amitai, Z.K. Two variants of wild emmer (Triticum dicoccoides) native to Israel: Morphology and distribution. Can. J. Bot. 1991, 69, 2772–2789. [Google Scholar] [CrossRef]
  7. Aaronsohn, A. Agricultural and botanical explorations in Palestine. Bur. Plant Ind. Bull. USDA 1910, 180, 1–63. [Google Scholar]
  8. Peleg, Z.; Fahima, T.; Korol, A.B.; Abbo, S.; Saranga, Y. Genetic analysis of wheat domestication and evolution under domestication. J. Exp. Bot. 2011, 62, 5051–5061. [Google Scholar] [CrossRef]
  9. Elouafi, I.; Nachit, M.M. A genetic linkage map of the Durum x Triticum dicoccoides backcross population based on SSRs and AFLP markers, and QTL analysis for milling traits. Theor. Appl. Genet. 2004, 108, 401–413. [Google Scholar] [CrossRef]
  10. Nave, M.; Avni, R.; Ben-Zvi, B.; Hale, I.; Distelfeld, A. QTLs for uniform grain dimensions and germination selected during wheat domestication are co-located on chromosome 4B. Theor. Appl. Genet. 2016, 129, 1303–1315. [Google Scholar] [CrossRef]
  11. Thanh, P.T.; Vladutu, C.I.; Kianian, S.F.; Thanh, P.T.; Ishii, T.; Nitta, M.; Nasuda, S.; Mori, N. Molecular genetic analysis of domestication traits in emmer wheat. I: Map construction and QTL analysis using an F2 population. Agric. Environ. Biotechnol. 2013, 27, 3627–3637. [Google Scholar] [CrossRef]
  12. Hu, M.J.; Zhang, H.P.; Cao, J.J.; Zhu, X.F.; Wang, S.X.; Jiang, H.; Wu, Z.Y.; Lu, J.; Chang, C.; Sun, G.; et al. Characterization of an IAA-glucose hydrolase gene TaTGW6 associated with grain weight in common wheat (Triticum aestivum L.). Mol. Breed. 2016. [Google Scholar] [CrossRef]
  13. Nadolska-Orczyk, A.; Rajchel, I.K.; Orczyk, W.; Gasparis, S. Major genes determining yield-related traits in wheat and barley. Theor. Appl. Genet. 2017, 130, 1081–1098. [Google Scholar] [CrossRef] [PubMed]
  14. Huang, R.; Jiang, L.; Zheng, J.; Wang, T.; Wang, H.; Huang, Y.; Hong, Z. Genetic bases of rice grain shape: So many genes, so little known. Trends Plant Sci. 2013, 18, 218–226. [Google Scholar] [CrossRef]
  15. Zheng, J.; Zhang, Y.; Wang, C. Molecular functions of genes related to grain shape in rice. Breed. Sci. 2015, 65, 120–126. [Google Scholar] [CrossRef] [PubMed][Green Version]
  16. Xu, H.; Zhao, M.; Zhang, Q.; Xu, Z.; Xu, Q. The DENSE AND ERECT PANICLE 1 (DEP1) gene offering the potential in the breeding of high-yielding rice. Breed. Sci. 2016, 66, 659–667. [Google Scholar] [CrossRef]
  17. Wang, E.; Wang, J.; Zhu, X.; Hao, W.; Wang, L.; Li, Q.; Zhang, L.; He, W.; Lu, B.; Lin, H.; et al. Control of rice grain-filling and yield by a gene with a potential signature of domestication. Nat. Genet. 2008, 40, 1370–1374. [Google Scholar] [CrossRef]
  18. Duan, P.; Ni, S.; Wang, J.; Zhang, B.; Xu, R.; Wang, Y.; Chen, H.; Zhu, X.; Li, Y. Regulation of OsGRF4 by OsmiR396 controls grain size and yield in rice. Nat. Plants 2016, 2, 15203. [Google Scholar] [CrossRef]
  19. Che, R.; Tong, H.; Shi, B.; Liu, Y.; Fang, S.; Liu, D.; Xiao, Y.; Hu, B.; Liu, L.; Wang, H.; et al. Control of grain size and rice yield by GL2-mediated brassinosteroid responses. Nat. Plants 2015, 2, 15195. [Google Scholar] [CrossRef]
  20. Tsukaya, H. Yield increase: GRFs provide the key. Nat. Plants 2015, 2, 15210. [Google Scholar] [CrossRef]
  21. Avni, R.; Nave, M.; Eilam, T.; Sela, H.; Alekperov, C.; Peleg, Z.; Dvorak, J.; Korol, A.; Distelfeld, A. Ultra-dense genetic map of durum wheat × wild emmer wheat developed using the 90K iSelect SNP genotyping assay. Mol. Breed. 2014, 34, 1549–1562. [Google Scholar] [CrossRef]
  22. Peng, J.; Ronin, Y.; Fahima, T.; Röder, M.S.; Li, Y.; Nevo, E.; Korol, A. Domestication quantitative trait loci in Triticum dicoccoides, the progenitor of wheat. Proc. Natl. Acad. Sci. USA 2003, 100, 2489–2494. [Google Scholar] [CrossRef]
  23. Faris, J.D.; Zhang, Q.; Chao, S.; Zhang, Z.; Xu, S.S. Analysis of agronomic and domestication traits in a durum × cultivated emmer wheat population using a high-density single nucleotide polymorphism-based linkage map. Theor. Appl. Genet. 2014, 127, 2333–2348. [Google Scholar] [CrossRef]
  24. Russo, M.A.; Ficco, D.B.M.; Laido, G.; Marone, D.; Papa, R.; Blanco, A.; Gadaleta, A.; De Vita, P.; Mastrangelo, M.A. Dense durum wheat × T. dicoccum linkage map based on SNP markers for the study of seed morphology. Mol. Breed. 2014, 34, 1579–1597. [Google Scholar] [CrossRef]
  25. Tzarfati, R.; Barak, V.; Krugman, T.; Fahima, T.; Abbo, S.; Saranga, Y.; Korol, A.B. Novel quantitative trait loci underlying major domestication traits in tetraploid wheat. Mol. Breed. 2014, 34, 1613–1628. [Google Scholar] [CrossRef]
  26. Krzywinski, M.; Schein, J.; Birol, I.; Connors, J.; Gascoyne, R.; Horsman, D.; Jones, S.J.; Marra, M.A. Circos: An information aesthetic for comparative genomics. Genome Res. 2009, 19, 1639–1645. [Google Scholar] [CrossRef][Green Version]
  27. Avni, R.; Moran Nave, M.; Barad, O.; Baruch, K.; Twardziok, S.O.; Gundlach, H.; Hale, I.; Mascher, M.; Spannagl, M.; Wiebe, K.; et al. Wild emmer genome architecture and diversity elucidate wheat evolution and domestication. Science 2017, 97, 93–97. [Google Scholar] [CrossRef]
  28. Wang, S.; Wong, D.; Forrest, K.; Allen, A.; Chao, S.; Huang, B.E.; Maccaferri, M.; Salvi, S.; Milner, S.G.; Cattivelli, L.; et al. Characterization of polyploid wheat genomic diversity using a high-density 90 000 single nucleotide polymorphism array. Plant Biotechnol. J. 2014, 12, 787–796. [Google Scholar] [CrossRef][Green Version]
  29. Sun, P.; Zhang, W.; Wang, Y.; He, Q.; Shu, F.; Liu, H.; Wang, J.; Wang, J.; Yuan, L.; Deng, H. OsGRF4 controls grain shape, panicle length and seed shattering in rice. J. Integr. Plant Biol. 2016, 58, 836–847. [Google Scholar] [CrossRef][Green Version]
  30. Arcade, A.; Labourdette, A.; Falque, M.; Mangin, B.; Chardon, F.; Charcosset, A.; Joets, J. BioMercator: Integrating genetic maps and QTL towards discovery of candidate genes. Bioinformatics 2004, 20, 2324–2326. [Google Scholar] [CrossRef]
  31. Goffinet, B.; Gerber, S. Quantitative trait loci: A meta-analysis. Genetics 2000, 155, 463–473. [Google Scholar]
  32. Maccaferri, M.; Ricci, A.; Salvi, S.; Milner, S.G.; Noli, E.; Martelli, P.L.; Casadio, R.; Akhunov, E.; Scalabrin, S.; Vendramin, V.; et al. A high-density, SNP-based consensus map of tetraploid wheat as a bridge to integrate durum and bread wheat genomics and breeding. Plant Biotechnol. J. 2015, 13, 648–663. [Google Scholar] [CrossRef]
  33. Mester, D.; Ronin, Y.; Schnable, P.; Aluru, S.; Korol, A. Fast and accurate construction of ultra-dense consensus genetic maps using evolution strategy optimization. PLoS ONE 2015, 10, e0122485. [Google Scholar] [CrossRef]
  34. Bezant, J.H.; Laurie, D.A.; Pratchett, N.; Chojecki, J.; Kearsey, M.J. Mapping of QTL controlling NIR predicted hot water extract and grain nitrogen content in a spring barley cross using marker-regression. Plant Breed. 1997, 116, 141–145. [Google Scholar] [CrossRef]
  35. Cooper, M.; Woodruff, D.R.; Eisemann, R.L.; Brennan, P.S.; DeLacy, I.H. A selection strategy to accommodate genotype-by-environment interaction for grain yield of wheat: Managed-environments for selection among genotypes. Theor. Appl. Genet. 1995, 90, 492–502. [Google Scholar] [CrossRef]
  36. Simmonds, J.; Scott, P.; Brinton, J.; Mestre, T.C.; Bush, M.; del Blanco, A.; Dubcovsky, J.; Uauy, C. A splice acceptor site mutation in TaGW2-A1 increases thousand grain weight in tetraploid and hexaploid wheat through wider and longer grains. Theor. Appl. Genet. 2016, 129, 1099–1112. [Google Scholar] [CrossRef][Green Version]
  37. Distelfeld, A.; Uauy, C.; Olmos, S.; Schlatter, A.R.; Dubcovsky, J.; Fahima, T. Microcolinearity between a 2-cM region encompassing the grain protein content locus Gpc-6B1 on wheat chromosome 6B and a 350-kb region on rice chromosome 2. Funct. Integr. Genom. 2004, 4, 59–66. [Google Scholar] [CrossRef][Green Version]
  38. Lu, L.; Shao, D.; Qiu, X.; Sun, L.; Yan, W.; Zhou, X.; Yang, L.; He, Y.; Yu, S.; Xing, Y. Natural variation and artificial selection in four genes determine grain shape in rice. New Phytol. 2013, 200, 1269–1280. [Google Scholar] [CrossRef][Green Version]
  39. Ozkan, H.; Willcox, G.; Graner, A.; Salamini, F.; Kilian, B. Geographic distribution and domestication of wild emmer wheat (Triticum dicoccoides). Genet. Resour. Crop Evol. 2011, 58, 11–53. [Google Scholar] [CrossRef]
  40. Sela, H.; Ezrati, S.; Ben-Yehuda, P.; Manisterski, J.; Akhunov, E.; Dvorak, J.; Breiman, A.; Korol, A. Linkage disequilibrium and association analysis of stripe rust resistance in wild emmer wheat (Triticum turgidum ssp. dicoccoides) population in Israel. Theor. Appl. Genet. 2014, 127, 2453–2463. [Google Scholar] [CrossRef]

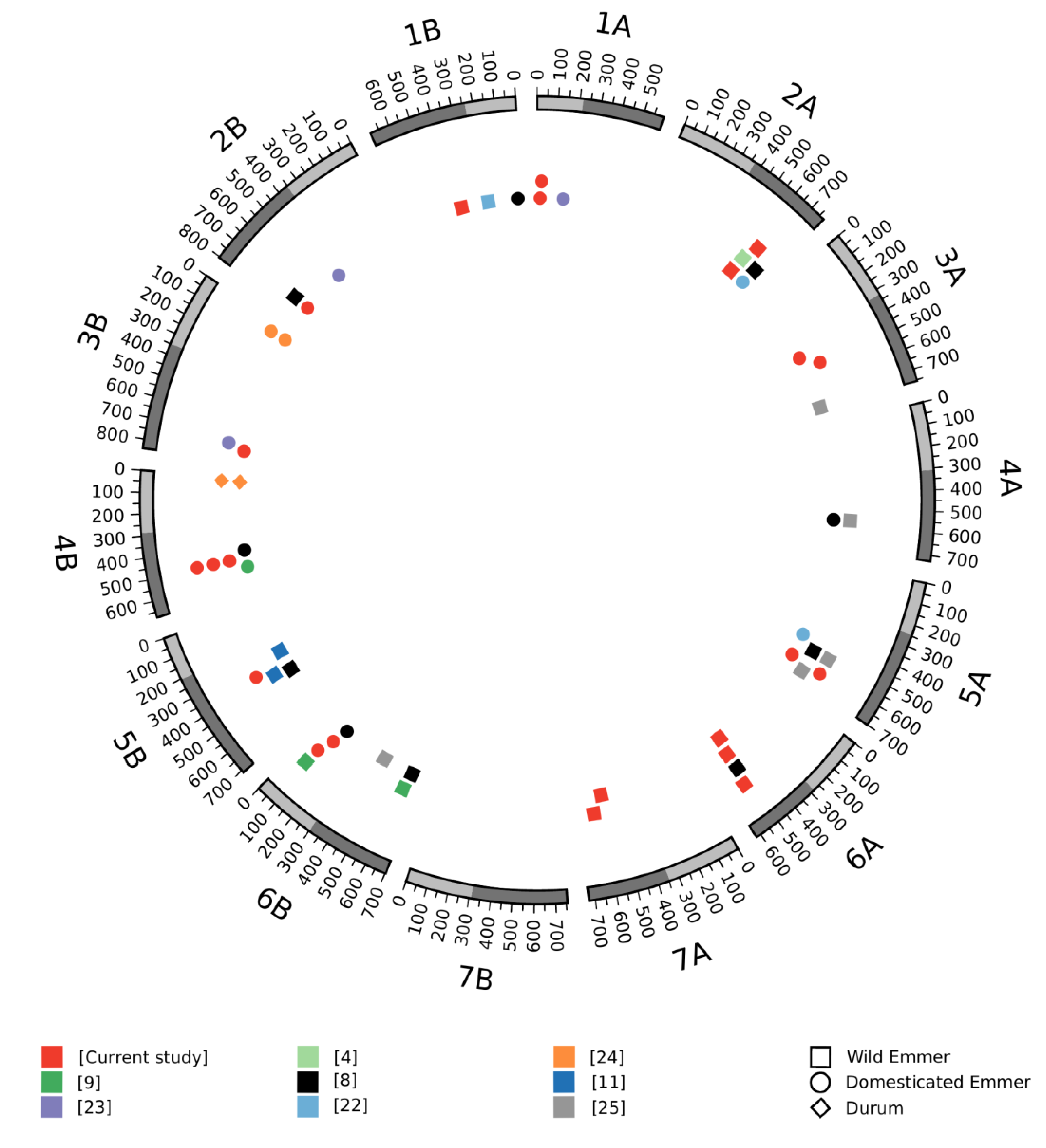

Figure 1. Meta-analysis of TKW quantitative trait loci (QTLs) from nine independent studies, using the wild emmer wheat (WEW) genome assembly as an anchor. The outer circle represents the WEW genome and the colored shapes in the inner circle represent QTLs for TKW from each of the nine studies. The different shapes (square, circle, and diamond) represent the origin (WEW, domesticated emmer wheat (DEW), or durum) of the high-TKW allele.
Figure 1. Meta-analysis of TKW quantitative trait loci (QTLs) from nine independent studies, using the wild emmer wheat (WEW) genome assembly as an anchor. The outer circle represents the WEW genome and the colored shapes in the inner circle represent QTLs for TKW from each of the nine studies. The different shapes (square, circle, and diamond) represent the origin (WEW, domesticated emmer wheat (DEW), or durum) of the high-TKW allele.
Genes 09 00636 g001
Figure 2. Comparison of TKW between durum parent Sv and IL-21.1 carrying the mQTL-GW-6A region. (A) Samples of 500 grains from the 2017R environment. (B) Boxplot showing quantile statistics for TKW from the 2017R two environments (e.g., dry and wet).
Figure 2. Comparison of TKW between durum parent Sv and IL-21.1 carrying the mQTL-GW-6A region. (A) Samples of 500 grains from the 2017R environment. (B) Boxplot showing quantile statistics for TKW from the 2017R two environments (e.g., dry and wet).
Genes 09 00636 g002

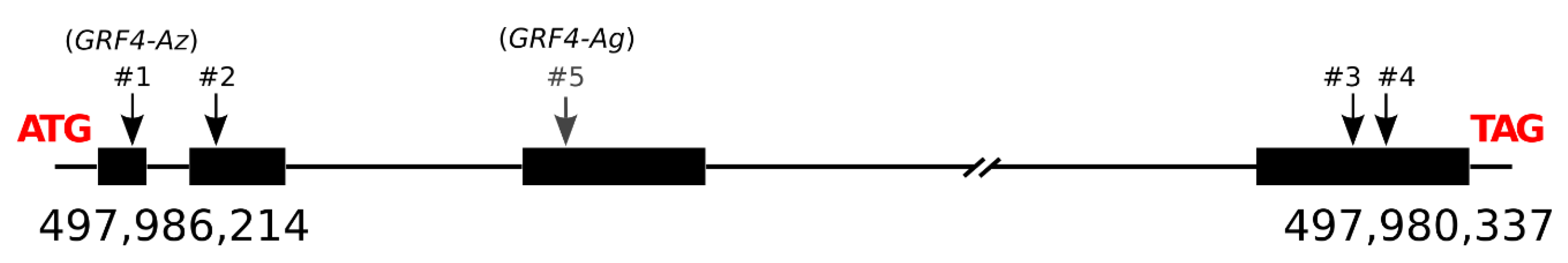

Figure 3. Schematic representation of the Zavitan GRF4-A gene (GRF4-Az). The black arrows indicate single nucleotide polymorphisms (SNPs) between Zavitan and Svevo while the gray arrow marks the unique SNP of WEW accession G18-16 (GRF4-Ag).
Figure 3. Schematic representation of the Zavitan GRF4-A gene (GRF4-Az). The black arrows indicate single nucleotide polymorphisms (SNPs) between Zavitan and Svevo while the gray arrow marks the unique SNP of WEW accession G18-16 (GRF4-Ag).
Genes 09 00636 g003
Table 1. Grain parameters of the parental lines Svevo (Sv) and Zavitan (Zv) measured in field experiments 2014R and 2015A (mean ± SE).
Table 1. Grain parameters of the parental lines Svevo (Sv) and Zavitan (Zv) measured in field experiments 2014R and 2015A (mean ± SE).
Mean spike weight (g)2014R3.9 ± 0.12.5 ± 0.1
2015A4.0 ± 0.11.6 ± 0.8
TKW (g)2014R61.9 ± 0.245.8 ± 0.1
2015A55.7 ± 0.129.1 ± 0.1
Grain area (mm2)2014R21.6 ± 0.223.3 ± 0.3
2015A23.0 ± 0.318.6 ± 0.4
Grain width (mm)2014R3.2 ± 0.032.8 ± 0.0
2015A3.7 ± 0.032.5 ± 0.0
Grain length (mm)2014R8.1 ± 0.0810.2 ± 0.1
2015A8.5 ± 0.0510.1 ± 0.1
TKW: thousand kernel weight.
Table 2. Summary of yield-related genes in rice and their WEW orthologs.
Table 2. Summary of yield-related genes in rice and their WEW orthologs.
Rice GeneRice Gene FunctionSourceWheat Chr.Wheat Alignment StartWheat Alignment EndWheat Gene FunctionWEW Gene ID
D11/DWARF11Cytochrome P450 (CYP724B1) enzymeReviewed by [14]2A561795447561798557Cytochrome P450 superfamily proteinTRIDC2AG048380
2B496938005496941148Cytochrome P450 superfamily proteinTRIDC2BG050840
D2Cytochrome P450 (CYP90D) enzymeReviewed by [14]2A48434645209969Cytochrome P450 superfamily proteinTRIDC2AG001470
2B56868655987817Cytochrome P450 superfamily proteinTRIDC2BG001370
D61BR insensitive (BRI)-like leucine-rich repeat (LRR) receptor kinaseReviewed by [14]3A465976238465979780Leucine-rich receptor-like protein kinase family proteinTRIDC3AG036670
3B453931439453935096receptor-like protein kinase 2TRIDC3BG041310
GIF1Cell wall invertaseReviewed by [14]2A503854205503855081Beta-fructofuranosidase, insoluble isoenzyme 2 (Cell wall invertase 2)TRIDC2AG042730
2B447195335447196211Beta-fructofuranosidase, insoluble isoenzyme 2 (Cell wall invertase 2)TRIDC2BG045820
GRF4/GS2Growth-Regulating Factor 4 (OsGRF4)[18,29]2A680343644680346735Growth-regulating factor 3TRIDC2AG062550
2B649416512649417723Growth-regulating factor 3TRIDC2BG066890
6A497985063497985958Growth-regulating factor 4TRIDC6AG041360
6B517412993517416246Growth-regulating factor 4TRIDC6BG048340
GS3Membrane protein with multiple domainsReviewed by [14]4A714924235714925670Grain length proteinTRIDC4AG069340
7A52837435283958Grain length proteinTRIDC7AG001510
GS5Serine carboxypeptidaseReviewed by [14]3A182355936182359086serine carboxypeptidase-like 33TRIDC3AG023140
3B212372375212373474Carboxypeptidase Y homolog ATRIDC3BG026960
GW2RING-type E3 ubiquitin ligaseReviewed by [14]6A230789449230809149Protein SIP5 (*TaGW2)TRIDC6AG027660
6B294434000294448424Protein SIP5TRIDC6BG033820
GW5Arginine-rich protein of 144 amino acidsReviewed by [14]1A142379896142381359IQ-domain 26TRIDC1AG017640
1B185320338185321816IQ-domain 26TRIDC1BG021520
3A6916002169161092IQ-domain 26TRIDC3AG013280
3B111226601111227636IQ-domain 26TRIDC3BG017740
GW8/SPL16SQUAMOSA promoter-binding protein-like 16Reviewed by [14]7A251030195251034936undescribed proteinTRIDC7AG033770
7B230000953230005263Squamosa promoter-binding-like protein 16TRIDC7BG025060
qGL3Ser/Thr phosphatase of the protein phosphatase kelch-like (PPKL) familyReviewed by [15]5A683802818683803388Bifunctional inhibitor/lipid-transfer protein/seed storage 2S albumin superfamily proteinTRIDC5AG075900
SRS3Kinesin 13 proteinReviewed by [14]1A131830406131835083Kinesin-related protein 6TRIDC1AG016970
1B142745967142751957Kinesin-related protein 6TRIDC1BG017960
3A274848912274857469Kinesin-related protein 6TRIDC3AG027550
3B295258442295261011Kinesin-related protein 6TRIDC3BG032430
DEP1G protein γ subunit[16]5A422466437422469555Guanine nucleotide-binding protein subunit gamma 3TRIDC5AG033880
5B391766206391769237undescribed proteinTRIDC5BG035790
