Genetic Analysis of the Major Capsid Protein of the Archaeal Fusellovirus SSV1: Mutational Flexibility and Conformational Change

by
Eric A. Iverson
,
David A. Goodman
,
Madeline E. Gorchels
and
Kenneth M. Stedman
*
Center for Life in Extreme Environments, Biology Department, Portland State University, P.O. Box 751, Portland, OR 97207-0751, USA
*
Author to whom correspondence should be addressed.
Genes 2017, 8(12), 373; https://doi.org/10.3390/genes8120373
Submission received: 14 November 2017 / Revised: 29 November 2017 / Accepted: 1 December 2017 / Published: 8 December 2017
(This article belongs to the Special Issue Genetics and Genomics of Extremophiles)
Browse Figures
Versions Notes

Abstract

:
Viruses with spindle or lemon-shaped virions are rare in the world of viruses, but are common in viruses of archaeal extremophiles, possibly due to the extreme conditions in which they thrive. However, the structural and genetic basis for the unique spindle shape is unknown. The best-studied spindle-shaped virus, Sulfolobus Spindle-shaped Virus 1 (SSV1), is composed mostly of the major capsid protein VP1. Similar to many other viruses, proteolytic cleavage of VP1 is thought to be critical for virion formation. Unlike half of the genes in SSV1, including the minor capsid protein gene VP3, the VP1 gene does not tolerate deletion or transposon insertion. To determine the role of the VP1 gene and its proteolysis for virus function, we developed techniques for site-directed mutagenesis of the SSV1 genome and complemented deletion mutants with VP1 genes from other SSVs. By analyzing these mutants, we demonstrate that the N-terminus of the VP1 protein is required, but the N-terminus, or entire SSV1 VP1 protein, can be exchanged with VP1s from other SSVs. However, the conserved glutamate at the cleavage site is not essential for infectivity. Interestingly, viruses containing point mutations at this position generate mostly abnormal virions.

Graphical Abstract

1. Introduction

Viruses with spindle-shaped virions are rare in the virus world except in viruses infecting archaea from extreme environments [1]. Moreover, very little is known about how these unique structures are formed. How the spindle-shaped viruses that infect thermoacidophilic archaea retain their integrity in the extreme (80 °C) temperatures and low pH (=3) of their environment is also not clear. To answer these questions, we work with model spindle-shaped viruses. These are the fuselloviruses or Sulfolobus Spindle-shaped Viruses (SSVs) [2]. The best-studied of the fuselloviruses is SSV1, originally isolated from Sulfolobus shibatae from an acidic hot spring in Beppu, Oita, Japan in the early 1980s [3,4]. SSV1 has a 15,465 bp double stranded circular DNA genome, packaged as positively supercoiled DNA in a spindle or lemon-shaped virion with a short tail at one end [3,5,6]. SSV1 infects a number of Sulfolobus species and the virus genome is integrated into the host genome on infection [7,8,9]. How the virus genome is released or how SSV1 binds to Sulfolobus is not clear. SSV1 does not lyse cells when produced, yet slows host cell growth [7]. SSV1 virions seem to form by budding through the Sulfolobus membrane [10]. Purified SSV1 virions contain virus proteins (VP) VP1 and VP3, hydrophobic capsid proteins, VP2, a DNA-binding protein, VP4, the putative tail protein and host-derived lipids [11,12]. Recently, an approximately 32Å resolution cryo-EM structure for SSV1 was determined and a novel fused-fullerene cone model for the structure was proposed [13]. This model is intriguing, as it is fundamentally geometrically similar to the capsid of human immunodeficiency virus-1 (HIV-1) [14], but not similar at all in sequence. At current resolution it is hard to determine if this model is correct. Even more recently, a comprehensive mutagenesis study of the SSV1 genome was performed, indicating that approximately 1/2 of the 35 Open Reading Frames (ORFs) in the SSV1 genome are not essential for virus function, including the minor capsid protein VP3 [15]. Interestingly, virions lacking the vp3 gene have aberrant shapes yet still fit the fused fullerene cone model. Not surprisingly, the major capsid protein gene, VP1, was shown to be essential for virus function [15].
The SSV1 VP1 protein appears to be made as a precursor. In purified SSV1 particles, the N-terminal residue of the VP1 major capsid protein is a glutamate, indicating that the protein is made as a precursor protein and is then proteolytically cleaved by an unknown protease [5,11,12]. Proteolytic cleavage of virus structural proteins is very well-known; from the polyproteins of picornaviruses, flaviviruses and retroviruses [16] to the maturation of receptor-binding proteins in orthomyxoviruses [17]. There are now 10 described SSVs from hot springs throughout the world [2,15]. All known SSVs contain VP1 genes with N-terminal extensions and conserved C-termini, including the universally conserved glutamate residue [2,15]. (Figure 1). While the C-terminus is extremely well conserved with amino acid identities between 78% and 97% to the SSV1 VP1 sequence, the sequences of the N-termini of SSV VP1s are much less so and their lengths are highly variable (Figure 1). This lack of conservation raises the questions of whether proteolysis is required, the N-terminus of the VP1 protein is required, whether a match between the N-terminus and C-terminus of the protein is necessary, and whether the conserved glutamate residue is required for virus function.
In order to address the role of the N-terminus in VP1 function, we refined the long-inverse PCR technique which we developed to delete ORFs in the SSV1 genome [15,18,19] to make partial deletions, point mutations and complement mutants in the SSV1 genome. Both complete and partial deletions of the N-terminal region of the vp1 gene of SSV1 led to non-functional virus. These deletions could be complemented with vp1 genes or portions thereof from homologous SSV vp1 genes indicating that proteolytic cleavage is necessary for virus function, but proteolysis is not specific to one type of SSV. Changing the conserved glutamate at the putative proteolytic cleavage site did not destroy activity, but virus particles with aberrant morphology were generated.

2. Materials and Methods

2.1. Strains and Cell Growth

All plasmids (Table 1) derived from EAI283 were grown in Escherichia coli strain Transformax EC100D pir+ (Epicentre, Madison, WI, USA). All plasmids derived from pAJC97 were grown in NovaBlue cells (Millipore, Burlington, MA, USA). Sulfolobus strain S441 was isolated from Lassen Volcanic National Park [8] and was used for Sulfolobus transformations and as an indicator lawn for halo assays. Sulfolobus cells were grown in Yeast-Sucrose (YS) media [20] and E. coli were grown in Lysogeny Broth (LB) with appropriate antibiotics [21,22]. Chemically competent E. coli and electrocompetent Sulfolobus were prepared and transformed as in Iverson et al. [15].

2.2. Purification of Template DNA for Long Inverse PCR from E. coli

E. coli cells harboring the pAJC97 or EAI283 SSV1 shuttle vectors (Table 1) were grown overnight in 5 mL of LB medium containing 50 μg/mL Kanamycin. Plasmid DNA was then purified from 1.5 mL of overnight culture via alkaline lysis [23]. Following ethanol precipitation, the DNA was dissolved in 30 μL diH2O with 0.01 μg of RNase A. DNA was analyzed by EcoRI restriction endonuclease digestion following the manufacturer’s protocol (New England Biolabs, Ipswich, MA, USA).

2.3. Long Inverse PCR

Long Inverse PCR (LIPCR) was used to delete the VP1 gene, portions of the VP1 gene, or to introduce single base pair mutations into the SSV1 genome [15,18,19]. All primers are listed in Table 2. For VP1 single base pair mutations, primers were designed such that ligation of the LIPCR product resulted only in the desired base pair change. Optimal concentrations of template DNA for LIPCR was determined empirically for each set of primers. LIPCR was performed as described previously [19]. Briefly, LIPCR reactions (20 μL) were prepared following the DNA polymerase manufacturer’s protocol except that the polymerase concentration was reduced from 0.02 U/μL to 0.005 U/μL. Initial annealing temperatures (Ta) for each primer pair were estimated using NEB Tm (melting temperature) prediction software (http://tmcalculator.neb.com/#!/) and were optimized experimentally. The reaction that generated the most full-length product with the least smaller products was selected. LIPCR products were purified, ligated, and transformed into chemically competent NovaBlue (Millipore, Burlington, MA, USA) or Transformax EC100D pir+ E. coli (Epicentre, Madison, WI, USA) as described previously [19].

2.4. Complementation in cis of SSV1 Mutants

SSV1 mutants lacking VP1 genes or portions thereof were constructed via LIPCR using EAI283 as template (Table 1). SSV2 and SSV9 DNA were isolated from the original Sulfolobus strains using alkaline lysis [23]. The complete VP1 genes from SSV1, SSV2 and SSV9 and the N-terminal region of VP1 from SSV9 [24,25,26] were amplified using Phusion DNA polymerase (New England Biolabs, Ipswich, MA, USA), purified with PCR Purification Kit (Thermo-Fisher, Waltham, MA, USA) and phosphorylated with T4 polynucleotide kinase according to manufacturer’s protocols (Thermo-Fisher, Waltham, MA, USA). DNA containing VP1 or fragments thereof was heat treated for 10 min at 75 °C prior to ligation reaction. LIPCR products were purified directly from the LIPCR reaction by sodium acetate/ethanol precipitation [21]. The amplified VP1 gene was mixed with LIPCR product at a molar ratio of 10:1 respectively and ligated with 5 Units of T4 DNA ligase (Thermo-Fisher, Waltham, MA, USA) for 20 h at 16 °C. 5 μL of the ligation reaction was used to transform 100 μL chemically competent Transformax EC100D pir+ E. coli (Epicentre, Madison, WI, USA).

2.5. Transformation of Sulfolobus

Sulfolobus was transformed essentially as described by Schleper and colleagues [7]. Cultures of Sulfolobus S441 (5 mL) were grown from frozen stocks for 48–72 h in a 70 °C shaking incubator. Starter cultures were transferred to 50–100 mL of fresh YS media in long neck Erlenmeyer flasks and grown until OD600 nm reached ~0.20. Then, 50 mL of cells were removed and placed on ice for 30 min. Cells were washed three times with decreasing volumes of 20 mM ice-cold sucrose as described previously [7]. After the final wash, cells were resuspended in 400 μL ice-cold 20 mM sucrose and kept on ice. Then, 100 μL of cells were added to a chilled 0.1 cm gap length electroporation cuvette (Bulldog Bio, Portsmouth, NH, USA) and 2 μL of SSV or shuttle vector DNA (100–500 ng/μL) purified from E. coli using the GeneJET plasmid purification kit (Thermo-Fisher, Waltham, MA, USA) was added to the cells. Cells were transformed by electroporation (BioRad Gene Pulser II, Bio-Rad Laboratories, Hercules, CA, USA) under the following conditions: 1.5 kV, 400 Ω, 25 μF. Immediately following electroporation, cells were resuspended in 1 mL of 70 °C YS, transferred to a 1.5 mL tube, and incubated for 1 h in a 70 °C dry incubator. Following incubation, cells were transferred to 50 mL of preheated YS in a long neck Erlenmeyer flask and grown with shaking at 70 °C.

2.6. Halo Assay to Check for Infectious Virus Production

Following electroporation of Sulfolobus with SSV DNA, halo assays were performed in duplicate 48 and 72 h post-transformation. Halo assays were performed as previously described [19] by spotting 5 μL of transformed culture on an indicator lawn of Sulfolobus strain S441. After 48 h of incubation at 75 °C, a zone of growth inhibition or halo is observed around spots of strains containing infectious virus, since virus production slows growth of the indicator strain. For all halo assays, both a positive control consisting of Sulfolobus transformed with an active SSV1 genome and an untransformed negative control were included. Halo assays were only scored if, on the same plate, negative controls did not produce halos and positive controls did. A DNA was determined to be non-infectious after at least 5 independent transformations that did not produce halos.

2.7. Confirmation of Infectious SSV DNA

Transformed cultures that produced halos were further analyzed to confirm the identity and purity of the viral DNA. Viral DNA was purified from infected Sulfolobus cells using a GeneJET kit (Thermo-Fisher, Waltham, MA, USA). Purified DNA was then amplified using DreamTaq DNA polymerase (Thermo-Fisher, Waltham, MA, USA) using primers that flank the mutated region of the viral DNA. All PCR products were confirmed using DNA sequencing. Control reactions using the DNA used in transformation of Sulfolobus and wild type SSV1 DNA were always performed. Sulfolobus cultures harboring infectious SSV1 mutants were conserved at −80 °C [20].

2.8. Transmission Electron Microscopy

For transmission electron microscopy, samples were prepared on 400-mesh carbon-Formvar-coated copper grids (Ted Pella, Redding, CA, USA). Grids were placed, carbon-Formvar down, on a 5 μL droplet of culture supernatant for 2 min. Culture supernatants were generated by centrifugation at 3000× g for 5 min. Samples were removed from the grid by wicking. Grids were then stained for 15–60 s on 5 μL of either 2% uranyl acetate stain (pH 3) or 2% sodium phosphotungstate tribasic hydrate stain (pH 6). Phosphotungstate stain was made freshly every week to ensure that the solution did not disassociate. Grids were allowed to dry in air overnight and were examined within 48 h of staining. Images were obtained at 8500 to 34,000 magnification on an FEI Tecnai F20 transmission electron microscope (TEM) (FEI Inc. Hillsboro, OR, USA). Grids were analyzed by examining randomly selected grid squares. Images were obtained with a BM UltraScan camera and stored in digital micrograph 3 (Gatan, Pleasanton, CA, USA) and TIFF formats.

2.9. Particle Analysis

The length and width of images of stained virus particles were measured in Image J [27]. Normal particle width, length, and aspect ratio were determined using the means of measurements of wild type SSV1 particles (n = 240) [15]. Any particles whose width, length, or aspect ratio was more than two standard deviations from the means were classified as abnormal.

3. Results

3.1. The N-Terminus of the SSV1 Major Capsid Protein VP1 Is Essential for Infectivity

The SSV1 VP1 gene encodes the major capsid protein [11]. Thus, it is not surprising that a complete deletion of the VP1 gene and a transposon insertion in the middle of the ORF both failed to yield infectious virus [15]. The VP1 protein appears to be proteolytically cleaved at an internal glutamate residue that is conserved in all known fuselloviruses [15] (Figure 1) to produce the mature protein [5,12]. To investigate if the encoded N-terminus is required for infectivity, this region was deleted using LIPCR while leaving the conserved glutamate intact and maintaining a start (ATG) codon (Figure 1). The construct was electroporated into Sulfolobus and infectivity tested by halo assay. Infectious virus was repeatedly not produced by this VP1-∆N-terminus mutant (EAI564), suggesting that the VP1 N-terminus is required for production of infectious virus. The N-termini of fusellovirus VP1 proteins are much less well-conserved than the C-termini, with the exception of a group of well-conserved residues just N-terminal to the conserved glutamate (Figure 1). This region was deleted from the SSV1 VP1 gene and the resulting mutant (EAI578) was also found to be non-infectious. Thus, the N-terminus of VP1 and 5 amino acids immediately N-terminal to the cleavage site appear to be essential for infectivity.

3.2. Complementation in cis of SSV1 Deletion Mutants

In order to confirm that SSV1 VP1 deletions were non-functional only due to the deletion, we complemented the mutants in cis with the SSV1 wild type VP1 gene and with homologs from other SSVs. Infectivity of the SSV1 ∆VP1 mutant could be rescued when complemented in cis with the SSV1 wild type VP1 gene, or homologous VP1 genes from either SSV2 or SSV9 (Figure 2A–D). The infectivity of the non-functional VP1-∆N-terminus mutant (EAI564) was also rescuable by complementation in cis when the VP1-N-terminus from SSV9 was added to the C-terminus of SSV1 VP1 (Figure 2C). The C-termini of the three VP1 proteins are highly similar; however, the N-terminus of SSV2-VP1 is considerably shorter (15 residues) than the other two (SSV9-VP1 65 residues and SSV1-VP1 66 residues, respectively) (Figure 1). Virions with these alternative VP1 genes had normal morphology on analysis with TEM.

3.3. Changing the Conserved Glutamate in the Major Capsid Gene VP1 Allows Infectious Virus but Generates Many Abnormal Virions

Although the presence of a N-terminus of VP1 is essential, the necessity for proteolysis at glutamate 66 for the activity of SSV1 remained unclear. Thus we investigated whether the universally conserved glutamate of VP1 itself is essential for infectivity. A single base pair change was made in the VP1 gene by LIPCR, converting the glutamate to the structurally similar but functionally distinct glutamine (EAI427; Table 1). Interestingly, viruses containing this mutation were infectious as assessed by halo assay (Figure 2E). Even when the glutamate was converted to alanine (EAI500), the virus was still infectious (Figure 2F). However, when analyzed by TEM, virions containing these point mutations had a very high proportion of abnormally shaped virions (Figure 3). Those viruses that had the E66Q substitution had 57% (n = 198) abnormal morphology and those with the E66A 81% (n = 99). Wild type SSV1 preparations have 5.4% abnormal particles (n = 240) [15]. Thus, glutamate residue 66 is not absolutely essential for SSV1 infectivity despite its universal conservation in the Fuselloviridae.

4. Discussion

4.1. The Translational Start of the VP1 Protein Is Not Clear

Here we show that the N-terminus of the SSV1 VP1 protein is required for infectivity. Since the VP1 protein in intact SSV1 virions has a glutamate at its N-terminus, the identity of the actual start codon that is used to translate the SSV1 VP1 precursor protein is not clear [5]. Based on sequence comparison (Figure 1), the presumed start codon is a TTG. ATG, TTG and GTG codons are known to be used as start codons for archaeal translation [28] but there is an in-frame ATG codon 18 nucleotides upstream of this TTG that is 9 nucleotides downstream of the transcriptional start site, a normal distance for translational initiation [29]. However, there is no clear Sulfolobus ribosome binding site at any of these potential translational start sites [30]. Thus the SSV1 VP1 gene may be misannotated. However, there is a conserved open reading frame, SSV1 ORF b115, that overlaps the first 12 codons of the predicted SSV1-VP1 gene [5]. Interestingly, there is a similar 14 codon overlap in the SSV2 genome even though the predicted N-terminus of the SSV2 VP1 gene is much shorter than that of SSV1 [26]. Whether these overlapping ORFs are translated, however, is not known. This confusion regarding the SSV1-VP1 precursor protein makes analysis of the protease and proteolysis challenging, as it is not clear what the appropriate substrate is. A replacement of the N-terminus of SSV1 with the N-terminus from SSV2 could be a useful tool to study this proteolytic process and the N-terminus of the preprotein would be better defined.

4.2. The N-Terminus of SSV1 VP1 Is Essential, But the Cleavage Site Is Not

When the entire N-terminus of SSV1 VP1 is deleted, or 5 amino acids N-terminus to the cleavage site are deleted, no viable virus was produced (Figure 1). This indicates that cleavage of the VP1-precursor is necessary and depends on the 5 amino acids next to the cleavage site. However, when a point mutation was introduced changing the conserved cleavage site glutamate (E) to either a glutamine (Q) or alanine (A) (E66Q and E66A), infectious virus particles were produced, indicating that some cleavage is taking place. It is unknown if VP1 proteolysis can still occur at this position in either of the mutants or if proteolysis occurs at one of the other well-conserved glutamate residues upstream (Figure 1). Experiments to address the site of proteolysis are underway, but yields of SSV virus preparations are notoriously low [7,11,12]. Comparative stability experiments with these active mutants are also being performed.

4.3. Virions Containing Point Mutations in VP1 Have Unusual Morphology

We previously showed that deletions of the gene for the minor capsid protein, VP3 in SSV1, led to the production of longer and thinner virions. Fully 99% of these mutant viruses were abnormal, as defined by deviating from means of length, width and aspect ratio of the wild type virus by more than 2 standard deviations [15]. Unlike VP3 deletions, virions with a mutated VP1 cleavage site had some normal and some abnormal morphologies. Often the abnormal particles had differently shaped ends, some pear-shaped. Interestingly there were fewer abnormal (57%) virions containing the E66Q mutation than those containing the E66A mutation (81%). This indicates that there may be some proteolysis at amino acid 66 and more proteolysis for the structurally similar amino acid Q than for the structurally dissimilar amino acid A.

4.4. The SSV1 VP1 N-Terminus Can Be Functionally Replaced with the SSV9 VP1 N-Terminus

Even though cleavage of the N-terminus appears to be essential for al SSVs, the lack of conservation of the N-termini led us to suspect that the amino acid sequence of the N-terminus is not critical. To confirm this, we switched the N-terminus of SSV1’s VP1 with the N-terminus of SSV9 VP1 [25] (Figure 1). Whether this can be done with the predicted N-terminus of the SSV2 VP1 protein that is much shorter than that of SSV1, remains to be determined.

4.5. Proteolysis and Assembly of SSV1

Proteolytic processing during virion assembly is common and may be the rule rather than the exception [31]. We have demonstrated that the N-terminus of VP1 SSV1 is essential for infectivity. The N-termini of fusellovirus VP1 genes are not well conserved with the exception of the essential patch of residues just upstream of the conserved glutamate (Figure 1). Complementation of ∆VP1 mutants with SSV2-VP1, which possesses a truncated N-terminus, suggests that the majority of the VP1 N-terminus can be dispensed with as long as the residues upstream of the conserved glutamate remain intact. The role of these essential residues remains mysterious. These residues might be critical for recruitment of a protease and/or may act as a scaffold, potentially via interactions with neighboring VP1 N-termini, the minor capsid protein VP3, or some other protein involved in assembly. The identity of proteases or scaffolding proteins for SSV1 is not known. The protease could be viral, cellular or even the VP1 protein itself. There are no ORFs in the SSV1 genome that have clear similarity to proteases, but there are a few known proteases in the Sulfolobus genome [32,33]. However, none of these have specificity for glutamate. Assembly is likely highly conserved among the Fuselloviridae and any protein scaffolding candidate would likely come from the set of core fusellovirus genes [15]. The hypothesis that the N-terminus of VP1 may fulfill this role is an intriguing one and awaits further research.

5. Conclusions

We show that the N-terminus of the SSV1 major capsid protein VP1 is essential for virus function, probably for assembly and proteolysis. Similar to many other viruses, proteolysis itself appears to be essential to allow the capsid proteins to form the spindle-shaped morphology. The protease that cleaves the N-terminus is unknown but may have some activity on non-conserved amino acids. The presence of a point mutation in the cleavage site leads to the production of aberrant virus particles, probably containing N-terminal extensions on VP1. The N-terminus of VP1, in addition to providing a site for proteolysis may also provide a scaffolding role. Future research will concentrate on the identification of the novel protease and role of individual amino acids in the N-terminus of SSV1 VP1 in virus assembly.

Acknowledgments

We would like to thank Kendal Chatard and Rita Clare for preparing some of the viruses for microscopy. This work was funded by grants from the National Science Foundation (MCB0702020, MCB1243963, and DMR1263339) and support from Portland State University.

Author Contributions

E.A.I. and K.M.S. conceived and designed the experiments; E.A.I., D.A.G., and M.E.G. performed the experiments; all authors analyzed the data; E.A.I., D.A.G., M.E.G. and K.M.S. wrote, edited and approved the manuscript.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Krupovic, M.; Quemin, E.R.J.; Bamford, D.H.; Forterre, P.; Prangishvili, D. Unification of the globally distributed spindle-shaped viruses of the Archaea. J. Virol. 2014, 88, 2354–2358. [Google Scholar] [CrossRef] [PubMed]
  2. Prangishvili, D. The wonderful world of archaeal viruses. Annu. Rev. Microbiol. 2013, 67, 565–585. [Google Scholar] [CrossRef] [PubMed]
  3. Martin, A.; Yeats, S.; Janekovic, D.; Reiter, W.D.; Aicher, W.; Zillig, W. SAV-1, A Temperate UV-Inducible DNA Virus-like Particle from the Archaebacterium Sulfolobus acidocaldarius Isolate B-12. EMBO J. 1984, 3, 2165–2168. [Google Scholar] [PubMed]
  4. Yeats, S.; McWilliam, P.; Zillig, W. A plasmid in the archaebacterium Sulfolobus acidocaldarius. EMBO J. 1982, 1, 1035–1038. [Google Scholar] [PubMed]
  5. Palm, P.; Schleper, C.; Grampp, B.; Yeats, S.; McWilliam, P.; Reiter, W.D.; Zillig, W. Complete nucleotide sequence of the virus SSV1 of the archaebacterium Sulfolobus shibatae. Virology 1991, 185, 242–250. [Google Scholar] [CrossRef]
  6. Nadal, M.; Mirambeau, G.; Forterre, P.; Reiter, W.D.; Duguet, M. Positively supercoiled DNA in a virus-like particle of an archaebacterium. Nature 1986, 321, 256–258. [Google Scholar] [CrossRef]
  7. Schleper, C.; Kubo, K.; Zillig, W. The particle SSV1 from the extremely thermophilic archaeon Sulfolobus is a virus-Demonstration of infectivity and of transfection with viral-DNA. Proc. Natl. Acad. Sci. USA 1992, 89, 7645–7649. [Google Scholar] [CrossRef] [PubMed]
  8. Ceballos, R.M.; Marceau, C.D.; Marceau, J.O.; Morris, S.; Clore, A.J.; Stedman, K.M. Differential virus host-ranges of the Fuselloviridae of hyperthermophilic Archaea: Implications for evolution in extreme environments. Front. Microbiol. 2012, 3. [Google Scholar] [CrossRef] [PubMed]
  9. Muskhelishvili, G.; Palm, P.; Zillig, W. SSV1-encoded site-specific recombination system in Sulfolobus shibatae. Mol. Gen. Genet. 1993, 237, 334–342. [Google Scholar] [PubMed]
  10. Quemin, E.R.J.; Chlanda, P.; Sachse, M.; Forterre, P.; Prangishvili, D.; Krupovic, M. Eukaryotic-like virus budding in Archaea. mBio 2016, 7. [Google Scholar] [CrossRef] [PubMed]
  11. Reiter, W.D.; Palm, P.; Henschen, A.; Lottspeich, F.; Zillig, W.; Grampp, B. Identification and characterization of the genes encoding 3-structural proteins of the Sulfolobus virus-like particle SSV1. Mol. Gen. Genet. 1987, 206, 144–153. [Google Scholar] [CrossRef]
  12. Quemin, E.R.J.; Pietila, M.K.; Oksanen, H.M.; Forterre, P.; Rijpstra, W.I.C.; Schouten, S.; Bamford, D.H.; Prangishvili, D.; Krupovic, M. Sulfolobus spindle-shaped Virus 1 contains glycosylated capsid proteins, a cellular chromatin protein, and host-derived lipids. J. Virol. 2015, 89, 11681–11691. [Google Scholar] [CrossRef] [PubMed]
  13. Stedman, K.M.; DeYoung, M.; Saha, M.; Sherman, M.B.; Morais, M.C. Structural insights into the architecture of the hyperthermophilic Fusellovirus SSV1. Virology 2015, 474, 105–109. [Google Scholar] [CrossRef] [PubMed]
  14. Zhao, G.; Perilla, J.R.; Yufenyuy, E.L.; Meng, X.; Chen, B.; Ning, J.; Ahn, J.; Gronenborn, A.M.; Schulten, K.; Aiken, C.; et al. Mature HIV-1 capsid structure by cryo-electron microscopy and all-atom molecular dynamics. Nature 2013, 497, 643–646. [Google Scholar] [CrossRef] [PubMed]
  15. Iverson, E.A.; Goodman, D.A.; Gorchels, M.E.; Stedman, K.M. Extreme Mutation Tolerance: Nearly Half of the Archaeal Fusellovirus Sulfolobus Spindle-Shaped Virus 1 Genes Are Not Required for Virus Function, Including the Minor Capsid Protein Gene vp3. J. Virol. 2017, 91, e02406-16. [Google Scholar] [CrossRef] [PubMed]
  16. Yost, S.A.; Marcotrigiano, J. Viral precursor polyproteins: Keys of regulation from replication to maturation. Curr. Opin. Virol. 2013, 3, 137–142. [Google Scholar] [CrossRef] [PubMed]
  17. Bertram, S.; Glowacka, I.; Steffen, I.; Kühl, A.; Pöhlmann, S. Novel insights into proteolytic cleavage of influenza virus hemagglutinin. Rev. Med. Virol. 2010, 20, 298–310. [Google Scholar] [CrossRef] [PubMed]
  18. Clore, A.J.; Stedman, K.M. The SSV1 viral integrase is not essential. Virology 2007, 361, 103–111. [Google Scholar] [CrossRef] [PubMed]
  19. Iverson, E.; Stedman, K. A genetic study of SSV1 the prototypical fusellovirus. Front. Microbiol. 2012, 3. [Google Scholar] [CrossRef] [PubMed]
  20. Zillig, W.; Kletzin, A.; Schleper, C.; Holz, I.; Janekovic, D.; Hain, J.; Lanzendorfer, M.; Kristjansson, J.K. Screening for Sulfolobales, their Plasmids and their Viruses in Icelandic Solfataras. Syst. Appl. Microbiol. 1994, 16, 609–628. [Google Scholar] [CrossRef]
  21. Green, M.R.; Sambrook, J. Molecular Cloning: A Laboratory Manual, 4th ed.; Cold Spring Harbor Laboratory Press: Cold Spring Harbor, NY, USA, 2012; ISBN 978-1-936113-41-5. [Google Scholar]
  22. Bertani, G. Lysogeny at Mid-Twentieth Century: P1, P2, and Other Experimental Systems. J. Bacteriol. 2004, 186, 595–600. [Google Scholar] [CrossRef] [PubMed]
  23. Birnboim, H.C.; Doly, J. Rapid alkaline extraction procedure for screening recombinant plasmid DNA. Nucleic Acids Res. 1979, 7, 1513–1523. [Google Scholar] [CrossRef] [PubMed]
  24. Arnold, H.P.; She, Q.; Phan, H.; Stedman, K.; Prangishvili, D.; Holz, I.; Kristjansson, J.K.; Garrett, R.; Zillig, W. The genetic element pSSVx of the extremely thermophilic crenarchaeon Sulfolobus is a hybrid between a plasmid and a virus. Mol. Microbiol. 1999, 34, 217–226. [Google Scholar] [CrossRef] [PubMed]
  25. Wiedenheft, B.; Stedman, K.; Roberto, F.; Willits, D.; Gleske, A.K.; Zoeller, L.; Snyder, J.; Douglas, T.; Young, M. Comparative genomic analysis of hyperthermophilic archaeal Fuselloviridae viruses. J. Virol. 2004, 78, 1954–1961. [Google Scholar] [CrossRef] [PubMed]
  26. Stedman, K.M.; She, Q.X.; Phan, H.; Arnold, H.P.; Holz, I.; Garrett, R.A.; Zillig, W. Relationships between fuselloviruses infecting the extremely thermophilic archaeon Sulfolobus: SSV1 and SSV2. Res. Microbiol. 2003, 154, 295–302. [Google Scholar] [CrossRef]
  27. Schneider, C.A.; Rasband, W.S.; Eliceiri, K.W. NIH Image to ImageJ: 25 years of image analysis. Nat. Methods 2012, 9, 671–675. [Google Scholar] [CrossRef] [PubMed]
  28. Belinky, F.; Rogozin, I.B.; Koonin, E.V. Selection on start codons in prokaryotes and potential compensatory nucleotide substitutions. Sci. Rep. 2017, 7, 12422. [Google Scholar] [CrossRef] [PubMed]
  29. Condò, I.; Ciammaruconi, A.; Benelli, D.; Ruggero, D.; Londei, P. Cis-acting signals controlling translational initiation in the thermophilic archaeon Sulfolobus solfataricus. Mol. Microbiol. 1999, 34, 377–384. [Google Scholar] [CrossRef] [PubMed]
  30. Torarinsson, E.; Klenk, H.-P.; Garrett, R.A. Divergent transcriptional and translational signals in Archaea. Environ. Microbiol. 2005, 7, 47–54. [Google Scholar] [CrossRef] [PubMed]
  31. Dougherty, W.G.; Semler, B.L. Expression of virus-encoded proteinases: Functional and structural similarities with cellular enzymes. Microbiol. Rev. 1993, 57, 781–822. [Google Scholar] [PubMed]
  32. Guagliardi, A.; Cerchia, L.; Rossi, M. An intracellular protease of the crenarchaeon Sulfolobus solfataricus, which has sequence similarity to eukaryotic peptidases of the CD clan. Biochem. J. 2002, 368, 357–363. [Google Scholar] [CrossRef] [PubMed]
  33. Lin, X.; Tang, J. Purification, characterization, and gene cloning of thermopsin, a thermostable acid protease from Sulfolobus acidocaldarius. J. Biol. Chem. 1990, 265, 1490–1495. [Google Scholar] [PubMed]
Genes 08 00373 g001 550

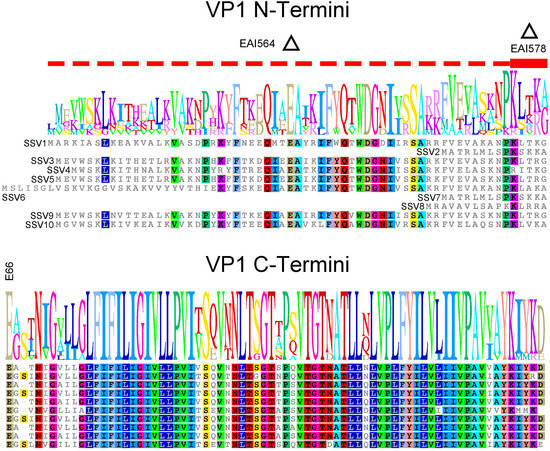

Figure 1. Amino Acid Sequence Alignment of Fusellovirus VP1 Proteins. VP1 protein sequences from Sulfolobus Spindle-shaped Virus 1 (SSV1) (top) to SSV10 (bottom) were aligned using Geneious V. 8.2 (Biomatters, Auckland, New Zealand) and edited by hand. Accession numbers are listed in reference 15. Identical amino acids are highlighted in color. Sequences present in 9/10 sequences or as an insert are also highlighted in color. A sequence logo is shown above the alignment. The alignment is split at the universally conserved glutamate (E) at position 66 in the SSV1 sequence where proteolysis occurs and labeled. The 6 amino acids that are deleted in construct EAI578 are indicated with a red bar and a delta symbol. The sequence that is deleted in construct EAI564 is indicated with a dotted red line and a delta symbol.
Figure 1. Amino Acid Sequence Alignment of Fusellovirus VP1 Proteins. VP1 protein sequences from Sulfolobus Spindle-shaped Virus 1 (SSV1) (top) to SSV10 (bottom) were aligned using Geneious V. 8.2 (Biomatters, Auckland, New Zealand) and edited by hand. Accession numbers are listed in reference 15. Identical amino acids are highlighted in color. Sequences present in 9/10 sequences or as an insert are also highlighted in color. A sequence logo is shown above the alignment. The alignment is split at the universally conserved glutamate (E) at position 66 in the SSV1 sequence where proteolysis occurs and labeled. The 6 amino acids that are deleted in construct EAI578 are indicated with a red bar and a delta symbol. The sequence that is deleted in construct EAI564 is indicated with a dotted red line and a delta symbol.
Genes 08 00373 g001
Genes 08 00373 g002 550
Figure 2. Spot on lawn “halo” assays for functional SSV1 VP1 mutants. Sulfolobus cultures infected with SSV1 containing various VP1 mutations were spotted on a lawn of uninfected Sulfolobus. The lawn and infected cultures were allowed to grow for 48 hours and then photographed. Letters indicate indicates a spotted culture of Sulfolobus infected with a SSV1 that contains the wild type VP1 gene (A); the VP1 gene from SSV9 (B); a fusion between the N-terminus of VP1 from SSV9 and the C-terminus of VP1 from SSV1 (C) the VP1 gene from SSV2 (D); a glutamine at position 66 in the SSV1 VP1 protein instead of the wild type glutamate (E), or an alanine at position 66 in the SSV1 VP1 protein instead of the wild type glutamate (F); (G) indicates an uninfected control culture spotted on the lawn.
Figure 2. Spot on lawn “halo” assays for functional SSV1 VP1 mutants. Sulfolobus cultures infected with SSV1 containing various VP1 mutations were spotted on a lawn of uninfected Sulfolobus. The lawn and infected cultures were allowed to grow for 48 hours and then photographed. Letters indicate indicates a spotted culture of Sulfolobus infected with a SSV1 that contains the wild type VP1 gene (A); the VP1 gene from SSV9 (B); a fusion between the N-terminus of VP1 from SSV9 and the C-terminus of VP1 from SSV1 (C) the VP1 gene from SSV2 (D); a glutamine at position 66 in the SSV1 VP1 protein instead of the wild type glutamate (E), or an alanine at position 66 in the SSV1 VP1 protein instead of the wild type glutamate (F); (G) indicates an uninfected control culture spotted on the lawn.
Genes 08 00373 g002
Genes 08 00373 g003 550
Figure 3. Transmission electron micrographs of SSV1 VP1 mutants. Negatively stained SSV1 mutant virions were imaged using a Tecnai F-20 (FEI) transmission electron microscope operating at 200 keV. The culture supernatant in (Panel A) was concentrated ca. 100 fold with a Vivapsin-500 (10 kDa cutoff) concentrator. (Panel A) Virions from SSV-1 containing the VP1 gene from SSV9; (Panel B) Virions from SSV-1 containing a VP1 gene with the N-terminus of the gene from SSV9; (Panel C) Virions from SSV-1 containing a VP1 gene with the E66A substitution; (Panel D) Virions from SSV-1 containing a VP1 gene with the E66Q substitution. Arrowheads in (Panels C,D) indicate “abnormal” particles.
Figure 3. Transmission electron micrographs of SSV1 VP1 mutants. Negatively stained SSV1 mutant virions were imaged using a Tecnai F-20 (FEI) transmission electron microscope operating at 200 keV. The culture supernatant in (Panel A) was concentrated ca. 100 fold with a Vivapsin-500 (10 kDa cutoff) concentrator. (Panel A) Virions from SSV-1 containing the VP1 gene from SSV9; (Panel B) Virions from SSV-1 containing a VP1 gene with the N-terminus of the gene from SSV9; (Panel C) Virions from SSV-1 containing a VP1 gene with the E66A substitution; (Panel D) Virions from SSV-1 containing a VP1 gene with the E66Q substitution. Arrowheads in (Panels C,D) indicate “abnormal” particles.
Genes 08 00373 g003
Table
Table 1. Plasmids used in this study.
Table 1. Plasmids used in this study.
PlasmidDescriptionInfectivityReference
pAJC97SSV1 shuttle vector (TOPO PCR Blunt II inserted into ORF A e178 at bp 3173)+[18]
EAI283SSV1::Tn5 mutant, EZ-Tn5 inserted at bp 3572 (ORF e178)+[15]
EAI427pAJC97 background with E66Q mutation in VP1+This Work
EAI500pAJC97 background with E66A mutation in VP1+This Work
EAI551EAI283 background with SSV1-VP1 complementation+This work
EAI566EAI283 background with SSV2-VP1 complementation+This Work
EAI553EAI283 background with SSV9-VP1 complementation+This Work
EAI557EAI283 background with N-terminus of SSV9-VP1 complementation+This Work
EAI237pAJC97 background with N-terminus of VP1 deleted−This Work
EAI564EAI283 background with N-terminus of VP1 deleted−This Work
EAI578EAI283 background with residues 61–65 deleted from VP1−This Work
A Open Reading Frame (ORF).
Table
Table 2. Primers used in this study.
Table 2. Primers used in this study.
ProductForward PrimerReverse Primer
SSV1 VP1 deletionTGA GGG ATG GAA ATC AGT TTA AAGCAA ACT CCT TAG GAG TCT CAT CC
SSV1 VP1 N-terminus deletionATG GAA GCA ACC AAC ATA GG (61) and GAA GCA ACC AAC ATA GG (54)CAA ACT CCT TAG GAG TCT CAT CC
SSV1 VP1 aa61–65 deletionGAA GCA ACC AAC ATA GGCGGG GTT TGC CTT TGC TAC
SSV1 VP1 point mutant (E66A) AGCA GCA ACC AAC ATA GGCACC TTT TGT GAG CTT GGG G
SSV1 VP1 point mutant (E66Q) BCAA GCA ACC AAC ATA GGCACC TTT TGT GAG CTT GGG G
SSV1 VP1 CGCcAGAAAGATAGCCTCACACCTTTTGTGAGCTTGGG
SSV9 VP1GAAGTTTGGTCAAAGTTAAACGATCTTTGTAGATTTTATACG
SSV2 VP1GCCACCAGACTAATGCTAAGCGTCACGATATATCTTATACGCTATGAC
SSV9 VP1 N-terminusGAAGTTTGGTCAAAGTTAAACGACCCCTAGTAAGTTTGGG
All sequences are written 5′ → 3′, bases in bold type are within the SSV1 ORF; A Highlighted base indicates mismatch generating Glu→ Ala mutation in VP1 protein; B Highlighted base indicates mismatch generating Glu→ Gln mutation in VP1 protein; C Lower case denotes introduced silent restriction endonuclease site. ATG: start codon.
