Tissue-Specific Expression of the Terpene Synthase Family Genes in Rosa chinensis and Effect of Abiotic Stress Conditions

by
Yuhang Yan
1,
Mouliang Li
1,
Xiaoni Zhang
2,
Weilong Kong
2,
Mohammed Bendahmane
3,
Manzhu Bao
1 and
Xiaopeng Fu
1,*
1
Key Laboratory of Horticultural Plant Biology, Ministry of Education, College of Horticulture and Forestry Sciences, Huazhong Agricultural University, Wuhan 430070, China
2
Guangdong Laboratory for Lingnan Modern Agriculture, Genome Analysis Laboratory of the Ministry of Agriculture, Agricultural Genomics Institute at Shenzhen, Chinese Academy of Agricultural Sciences, Shenzhen 518120, China
3
Laboratoire Reproduction et Development des Plantes, Ecole Normale Supérieure Lyon, 520074 Lyon, France
*
Author to whom correspondence should be addressed.
Genes 2022, 13(3), 547; https://doi.org/10.3390/genes13030547
Submission received: 24 February 2022 / Revised: 12 March 2022 / Accepted: 15 March 2022 / Published: 20 March 2022
(This article belongs to the Special Issue Genomic and Genetic Resources and Rose Biology and Breeding)
Browse Figures
Review Reports Versions Notes

Abstract

:
Rose (Rosa chinensis) is one of the most famous ornamental plants worldwide, with a variety of colors and fragrances. Terpene synthases (TPSs) play critical roles in the biosynthesis of terpenes. In this work, we report a comprehensive study on the genome-wide identification and characterization of the TPS family in R. chinensis. We identified 49 TPS genes in the R. chinensis genome, and they were grouped into five subfamilies (TPS-a, TPS-b, TPS-c, TPS-g and TPS-e/f). Phylogenetics, gene structure and conserved motif analyses indicated that the RcTPS genes possessed relatively conserved gene structures and the RcTPS proteins contained relatively conserved motifs. Multiple putative cis-acting elements involved in the stress response were identified in the promoter region of RcTPS genes, suggesting that some could be regulated by stress. The expression profile of RcTPS genes showed that they were predominantly expressed in the petals of open flowers, pistils, leaves and roots. Under osmotic and heat stresses, the expression of most RcTPS genes was upregulated. These data provide a useful foundation for deciphering the functional roles of RcTPS genes during plant growth as well as addressing the link between terpene biosynthesis and abiotic stress responses in roses.

1. Introduction

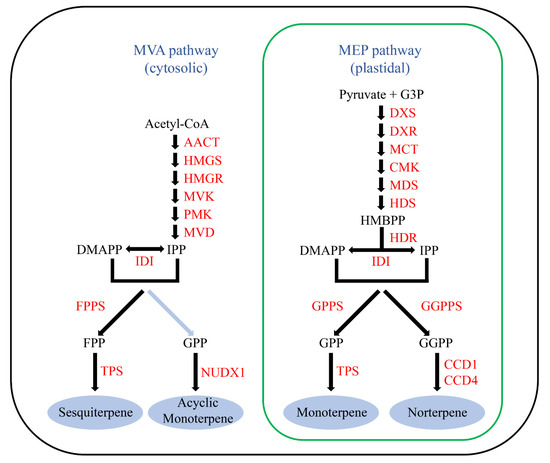

Terpene synthases (TPSs) are important enzymes involved in the biosynthesis of terpenes, a class of compounds related to plant growth and development that attract insect pollinators and respond to multiple biotic or abiotic stresses [1,2,3,4]. Generally, the precursors of terpenoids are two isomeric C5 compounds, isopentenyl diphosphate (IPP) and dimethylallyl diphosphate (DMAPP) [5]. In most plants, IPP and DMAPP are the products of two separate pathways, the cytosolic mevalonic acid (MVA) pathway and the plastid methylerythritol phosphate (MEP) pathway [6]. IPP and DMAPP are subsequently condensed into farnesyl diphosphate (FPP), geranyl diphosphate (GPP), and geranylgeranyl diphosphate (GGPP), which are the direct precursors of terpenes (Figure 1). Finally, FPP is converted into sesquiterpenes (C15) in the cytosol, while GPP and GGPP are converted into monoterpenes (C10) and diterpenes (C20), respectively, in plastids by TPSs [3,7,8]. These terpene skeletons are further modified by various enzymes, such as cytochrome P450-dependent monooxygenases (CYPs), methyltransferases, dehydrogenases and acyltransferases, to form additional compounds [9,10].
TPS proteins are classified into two types, I and II, based on their structure and reaction mechanism [7,11,12]. Type I TPS proteins contain conserved DDXXD and NSE/DTE motifs near the C-terminus and are known to play important roles in the metal-dependent ionization of prenyl diphosphate substrates [13,14,15]. Type II TPS proteins contain a DXDD motif near the N-terminus that catalyzes the formation of copalyl diphosphate (CPP) through protonation-induced cyclization of GGPP [3,16]. The TPS family is phylogenetically divided into seven subfamilies, one of which, TPS-c, represents the type II TPSs, while the remaining subfamilies, TPS-a, TPS-b, TPS-d (gymnosperm-specific), TPS-e/f, TPS-g and TPS-h (specific to Selaginella moellendorffii), are type I TPS proteins [3,7,17].
To date, the TPS family has been identified in various plant species, such as Arabidopsis thaliana [18], Vitis vinifera [19], Solanum lycopersicum [20,21], Malus domestica [22], and Eucalyptus grandis [23], Citrus sinensis [24], Setaria italica [25], Camellia sinensis [26], Dendrobium officinale [27] and Aquilaria sinensis [28]. The number of TPS genes varies widely between different species. V. vinifera has the largest known TPS gene family with as many as 69 putatively functional TPS genes, while there is only one functional TPS gene that has been identified in Physcomitrella patens [29]. Previous studies have characterized several monoterpene synthases and predicted the TPS family genes in the rose [30,31]. However, to date, no comprehensive study of the TPS family has been reported in the rose.
Rosa spp., an economically important genus belonging to the Rosaceae family, are cultivated worldwide for their high ornamental properties and cosmetic and medicinal properties [32]. Modern roses have inherited many traits, mainly floral, including their scent, from both European and Chinese lineages through years of artificial hybridization [33]. Terpenoids, benzenoids/phenylpropanoids and fatty acid derivatives are the three major classes of scented compounds in R. chinensis [31]. In particular, monoterpenes represent up to 70% percent of the scent content in some cultivars [34]. Like other plant species, in roses the sesquiterpenes and norterpenes are synthesized in cytosol and plastids, respectively [30,35]. However, instead of being synthesized by TPSs in the plastids, the acyclic monoterpenes in roses are synthesized in the cytosol by a noncanonical enzyme named NUDX1, which is different from other plants [34] (Figure 1).
Roses have to cope with many abiotic stresses, such as heat stress and water deficit caused drought stress, which severely limit their growth and flowering [36,37]. Drought stress reduces the number of petals and the length of the flower bud of roses [38]. High-temperature conditions were reported to promote flower abscission, and to decrease anthocyanin pigmentation and the size of petals in the rose [39,40]. Volatile terpenes as constituents of floral scent not only play significant roles in attracting pollinator, but they have also been shown to be involved in the response to abiotic stresses in plants [1,26], which is mainly because some of the terpenes (such as isoprene and some monoterpenes) can maintain the stability of cell membrane structure under stress conditions and eliminate the damage caused by the stress-induced accumulation of reactive oxygen species (ROS) [41,42,43]. Thus, understanding how TPS genes respond to such stresses in roses will help to develop strategies to improve their tolerance.
In this report, we identified and analyzed TPS family members in R. chinensis, a major modern roses progenitor, at the genome-wide level and investigated the gene structure, conserved motifs, phylogenetic relationships, tissue-specific expression profiles and expression patterns under abiotic stresses. The present research provides a valuable foundation that will help to understand the role of rose TPS genes during development and the stress response, as well their regulation and evolution, and will help to provide ideas for breeding new rose varieties with stronger resistance.

2. Materials and Methods

2.1. Plant Materials and Treatments

R. chinensis ‘Old Blush’ plants were grown in temperature and light-controlled growth chamber (25 °C, 60% relative humidity, 150 µE light intensity, 16 h light/8 h darkness). The plants were cultivated in separate pots (10 × 10 × 9 cm) containing a mixture of peat moss, vermiculite and perlite (3: 2: 1) and were irrigated twice a week. For heat treatment, 3-year-old rose plants were watered once before treatment and then incubated at 35 °C for 24 h, Petals were harvested at 0, 6, 12, 24 h post-treatment. For drought treatment, the plants were irrigated once before treatment using a 200 mM mannitol solution until it dripped out from the pot bottom. Petals were harvested at 0, 12, 24, 48 h post-treatment. All samples were immediately frozen in liquid nitrogen and stored at −80 °C until use. Total RNA was extracted using EASYspin plant RNA extraction kit (AidLab, Beijing, China) and genomic DNA was removed by on-column DNAse digestion. RNA was quantified using the NanoDrop 2000c spectrophotometer (Thermo Scientific, Wilmington, DE, USA) and RNA integrity was assessed by standard denaturing 1% TBE agarose gel electrophoresis. A total amount of 1 µg RNA was then reverse transcribed into cDNA using the TRUEscript RT MasterMix (AidLab, Beijing, China) with the following conditions: 42 °C for 20 min and 85 °C for 5 s. The cDNA was then diluted 10-fold and stored at −20 °C for qRT-PCR.

2.2. Identification of TPS Genes in R. chinensis

The reference rose genome sequence used in this study was downloaded from the R. chinensis ‘Old Blush’ genome website (https://lipmbrowsers.toulouse.inra.fr//pub/RchiOBHm-V2/, accessed on 24 February 2022) [31]. A. thaliana TPS (AtTPS) protein sequences were collected from the Arabidopsis Information Resource (https://www.arabidopsis.org/, accessed on 24 February 2022) [44] (Table S1). AtTPS were used as query sequences by BLASTP searches [45] (e-value 1 × 10−6) against the Rose’s protein sequences to predict the TPS family genes in R. chinensis. In parallel, we downloaded two specific TPS domains (PF03936 and PF01397) in the Pfam database (http://pfam.xfam.org/, accessed on 24 February 2022) and used HMM search tool [46] to identify the rose RcTPS genes as well. The genes obtained by the two approaches above, were compared and each predicted gene was subsequently verified through the SMART (http://smart.embl.de/, accessed on 24 February 2022) and NCBI-CDD searches (https://www.ncbi.nlm.nih.gov/cdd/, accessed on 24 February 2022) to further confirm the completeness of the TPS domain. Subcellular localization was predicted using the tools Plant-mPLoc (http://www.csbio.sjtu.edu.cn/bioinf/plantmulti/, accessed on 24 February 2022) and pLoc-mPlant (http://www.jcibioinfo.cn/pLoc-mPlant/, accessed on 24 February 2022).

2.3. Chromosomal Distribution, Duplication Event of RcTPS Genes

Duplication event of TPS family genes in rose genome was analyzed using MCScanX program with default parameters [47]. The chromosome position of each RcTPS gene was mapped on the assembled R. chinensis ‘Old Blush’ genome (https://lipmbrowsers.toulouse.inra.fr//pub/RchiOBHm-V2/, accessed on 24 February 2022) [31], using TBtools software [48].

2.4. Gene Structure, Conserved Motif and Phylogenetic Analysis

Multiple sequence alignments between the TPS protein sequences of R. chinensis, A. thaliana, S. lycopersicum and M. domestica were performed using MEGA7.0 software [49]. Neighbor-joining (NJ) method was used to construct the phylogenetic tree with bootstrap replications set to 1000 and other parameters set as default values. The information of exon-intron structures was downloaded from the R. chinensis ‘Old Blush’ genome website (https://lipmbrowsers.toulouse.inra.fr//pub/RchiOBHm-V2/, accessed on 24 February 2022) [31]. Conserved motifs of TPS proteins were analyzed using MEME program (http://www.meme-suite.org, accessed on 24 February 2022). The maximum number of predicted motifs in the parameters was set to 10, and the other parameters were set as default. The map of gene structure and conserved motifs was drawn using TBtools software.

2.5. Analysis of Cis-Acting Elements in the Promoter Region of RcTPS Genes

For each identified RcTPS gene, 2000-bp sequence located upstream ATG translation initiation codon, was extracted from the R. chinensis ‘Old Blush’ genome sequence [31], and was then submitted to the PlantCARE database (http://bioinformatics.psb.ugent.be/webtools/plantcare/html/, accessed on 24 February 2022) to predict cis-acting elements.

2.6. Gene Expression Analysis Based on Transcriptome Data

Raw transcriptome data from nine different tissues (roots, stems, leaves, stamens, pistils, green petals in the flower buds (FB_GP), color-changing petals in the flower buds (FB_CP) and pink petals in the flower buds (FB_PP), and pink petals of the open flowers (OF_PP)), were downloaded from NCBI under BioProject PRJNA546486 [50] and BioProject PRJNA351281 [51]. The SRA files were converted to FASTQ files using the SRA toolkit (http://www.ncbi.nlm.nih.gov/Traces/sra/, accessed on 24 February 2022). Then the FastQC software [52] was used to assess read quality, and Trimmomatic [53] was used to discard low quality portions of reads (QUALITY: 15, LEADING: 20, TRAILING: 20, MINLEN: 50, SLIDINGWINDOW: 5: 20). The reads were subsequently mapped to R. chinensis ‘Old Blush’ genome with HISTA2 [54] and the bam files were processed to analyze gene expression quantitatively using StringTie [55] with default parameters. Fragments per kilobase per million mapped reads (FPKM) values were used to evaluate transcript abundance of RcTPS genes. The heat map of expression profiles of RcTPS genes in different tissues was drawn using the TBtools software. The expression levels of RcTPS genes are expressed by log2-based FPKM with row standardization, other parameters were set as default parameters.

2.7. qRT-PCR Analysis of RcTPS Genes under Different Treatment

Primers used for quantitative real-time PCR (qRT-PCR) analysis were designed by NCBI primer blast (https://www.ncbi.nlm.nih.gov/tools/primer-blast/, accessed on 24 February 2022) according to the CDSs of genes (Table S5). Reaction was performed using PowerUp SYBR Green Master Mix (ABI, Carlsbad, CA, USA). qRT-PCR was carried out in 384-well plates in a 10 μl volume on QuantStudio 6 and 7 Flex Real-Time PCR system (ABI, Carlsbad, CA, USA) with the following cycling parameters: heating at 95 °C for 2 min, 40 cycles of denaturation at 95 °C for 15 s, annealing at 60 °C for 15 s, and extension at 72 °C for 1 min. Each sample was conducted with three biological replicates and melt curves were generated to check the non-specific amplification for each well. The glyceraldehyde-3-phosphate dehydrogenase (RcGAPDH) was used as housekeeping gene to normalize samples [56]. The relative expression values and error values were calculated using the comparative CT(2−ΔΔCT) method [57]. Gene expression values were log2 transformed and the TBtools software was used to generate the heatmaps. Statistical analysis was performed using one-way ANOVA along with Duncan’s multiple range test using SAS version 9.4 (SAS Institute), and P <0.05 were considered significant.

3. Results

3.1. Identification, Classification and Properties of RcTPS Genes

To identify TPS genes in the R. chinensis genome, we performed a BLASTP search using known A. thaliana TPS protein sequences as queries. To further verify the identity of the detected rose TPS sequences, the hidden Markov model (HMM) profile of the conserved C-terminal domain (PF03936) and N-terminal (PF01397) domain of TPSs was downloaded from the Pfam database [58] and used as a query in the HMM search. All putative TPS genes were further confirmed by SMART [59] and NCBI-CDD searches for the presence of the complete domain. We identified 49 TPS gene candidates in the R. chinensis ‘Old Blush’ genome (named RcTPS01 to RcTPS49; Table 1). The lengths of the proteins encoded by these RcTPS genes varied from 455 (RcTPS07) to 857 (RcTPS49) amino acids. The predicted isoelectric points ranged from 5.06 (RcTPS43) to 8.91 (RcTPS47). The protein molecular weights varied between 52.89 kDa (RcTPS07) to 98.52 kDa (RcTPS49). According to two widely used subcellular localization predictors (Plant-mPLoc [60] and pLoc-mPlant [61]), 14 RcTPS proteins were predicted to be chloroplastic TPSs. The remaining 35 RcTPS proteins were predicted as chloroplastic or cytoplasmic TPSs.

3.2. Chromosomal Distribution, Duplication Event of RcTPS Genes

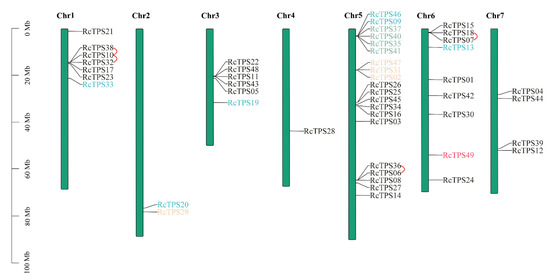

Genome chromosomal location analysis indicated that the 49 RcTPS genes were distributed on the seven rose chromosomes (Figure 2). Chromosome 5 contained the highest number (20) of RcTPS genes. So far only one TPS gene was located on chromosome 4, and two TPS genes were located on chromosome 2, the second longest rose chromosome, suggesting that there is no apparent correlation between chromosome size and RcTPS gene distribution.
To further study the evolution of rose RcTPS genes, we analyzed tandem duplication events and segmental duplication events on all seven chromosomes using the MCScanX tool. Four tandem duplication events with seven RcTPS genes were identified in the R. chinensis genome, whereas no pairs were confirmed as segmental duplications, indicating that tandem duplication events mainly contribute to the expansion of the TPS family in roses.

3.3. Phylogenetic Analysis of RcTPS Genes in R. chinensis

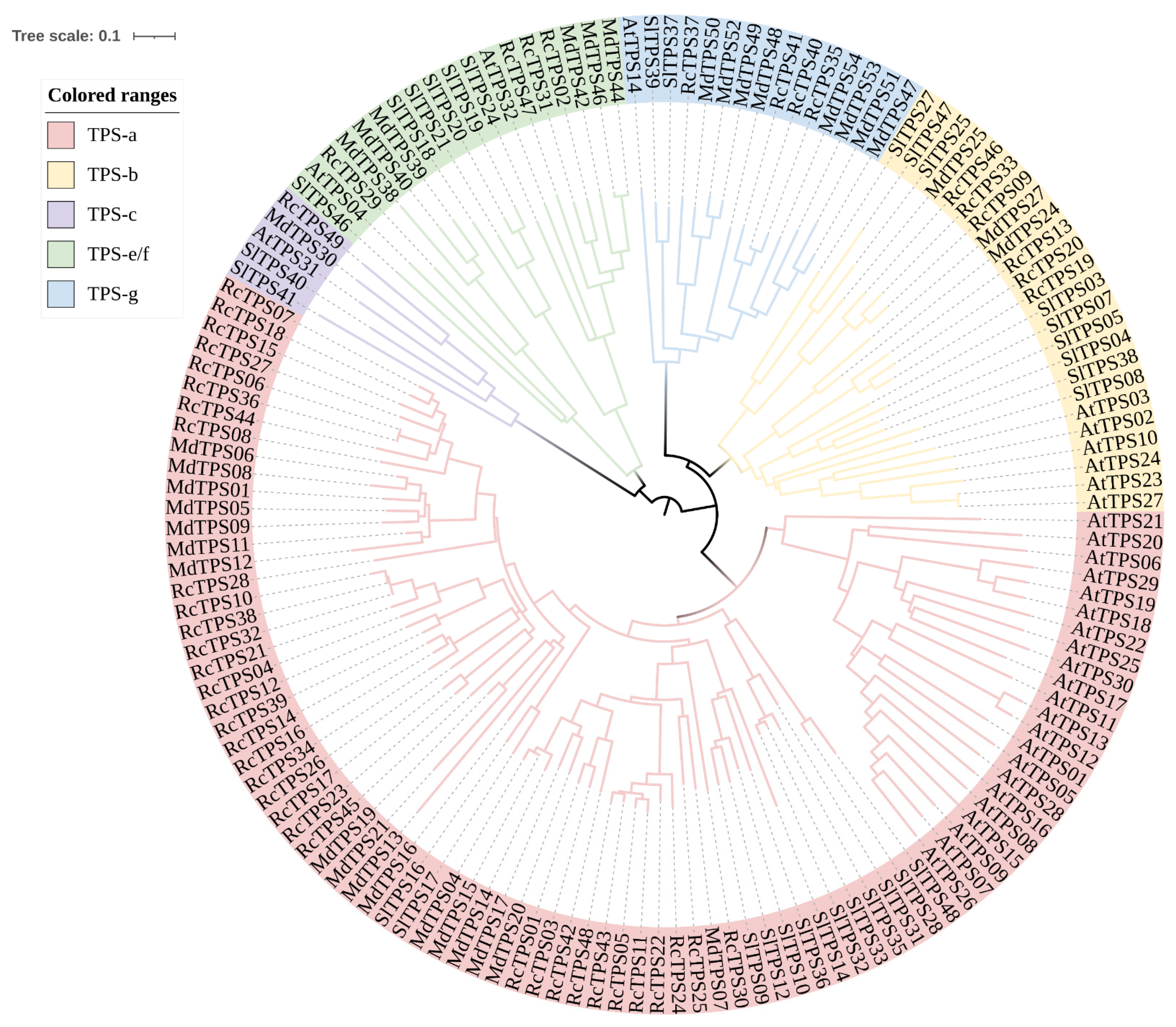

To investigate the classification and evolutionary relationships between RcTPS proteins, an unrooted phylogenetic tree was constructed based on alignments of the TPS proteins of R. chinensis, A. thaliana, S. lycopersicum and M. domestica using the neighbor-joining (NJ) method in MEGA 7.0 (Figure 3). The 49 RcTPS genes were classified into five subfamilies (TPS-a, TPS-b, TPS-c, TPS-g, TPS-e/f) based on phylogenetic analysis. Among the 49 RcTPS proteins, 48 members (RcTPS01 to RcTPS48) with high similarity could be classified as type I TPSs, whereas the remaining RcTPS49, which clustered in the same branch as AtTPS31, was classified as a type II TPS. Six TPS members (RcTPS09, RcTPS13, RcTPS19, RcTPS20, RcTPS33, RcTPS46) formed the TPS-b subfamily, 4 members (RcTPS35, RcTPS37, RcTPS40, RcTPS41) formed the TPS-g subfamily, 4 members (RcTPS02, RcTPS29, RcTPS31, RcTPS47) formed the TPS-e/f subfamily, and the remaining 34 members formed the TPS-a subfamily. The classification results were consistent with the previous report in Arabidopsis [18].

3.4. Gene Structure and Conserved Motif Analysis

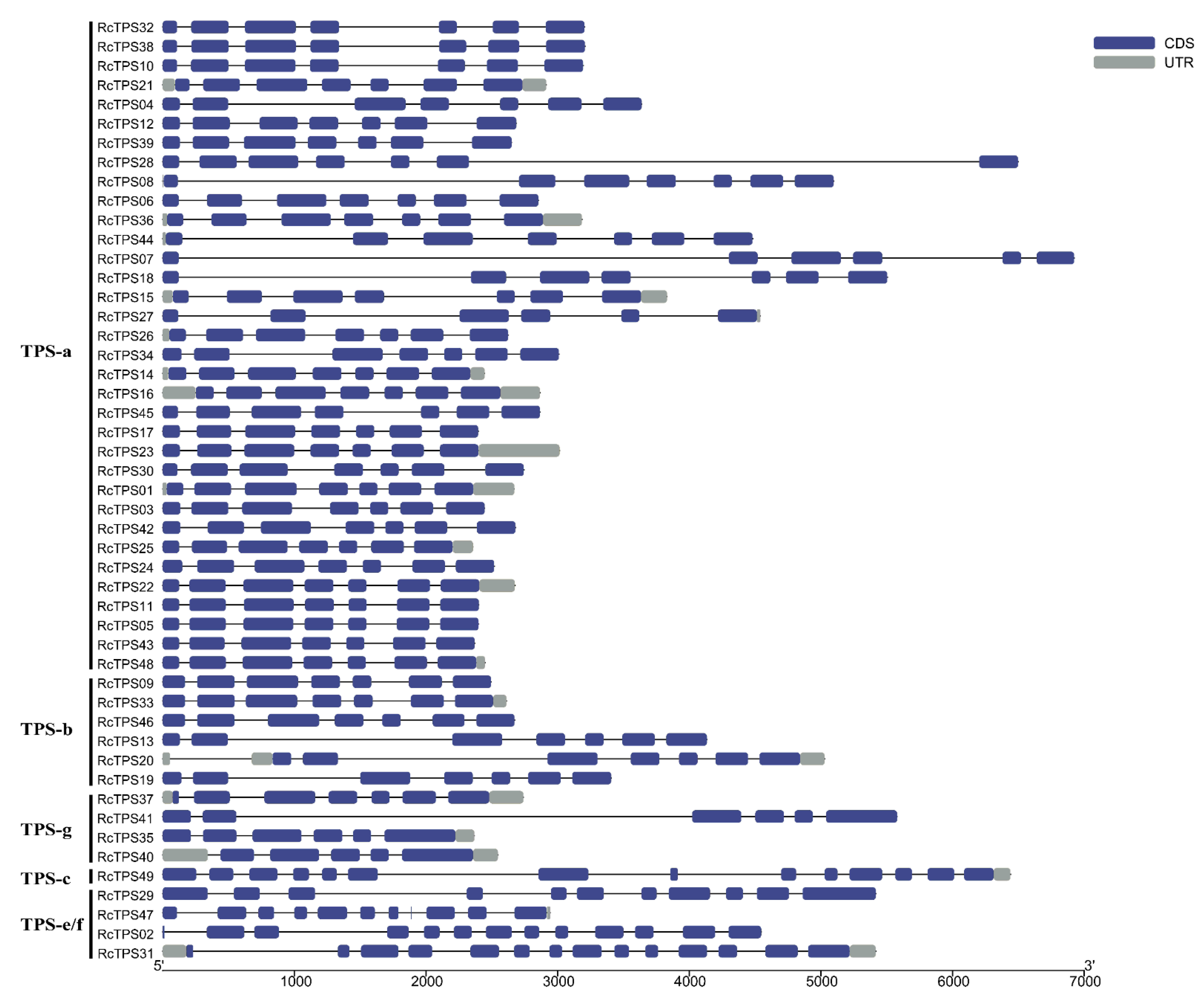

To better understand the gene structure and evolutionary relationships, the intron–exon structure of each RcTPS gene was analyzed (Figure 4). The number of exons ranged from 5 to 14, and most of the RcTPS genes that clustered in the same subfamily showed a similar gene structure. RcTPS31 and RcTPS49 had the highest number of exons (14 exons), whereas RcTPS40 contained the fewest exons (5 exons). Except for RcTPS07, RcTPS27, RcTPS35, RcTPS40 and RcTPS41, all 44 remaining RcTPS genes of the subfamilies TPS-a, TPS-b and TPS-g contained 7 coding exons. Moreover, the RcTPS genes in the TPS-e/f subfamily contained more exons (10–14), which is similar to previously reported data in V. vinifera, D. officinale and E. grandis [19,23,27].

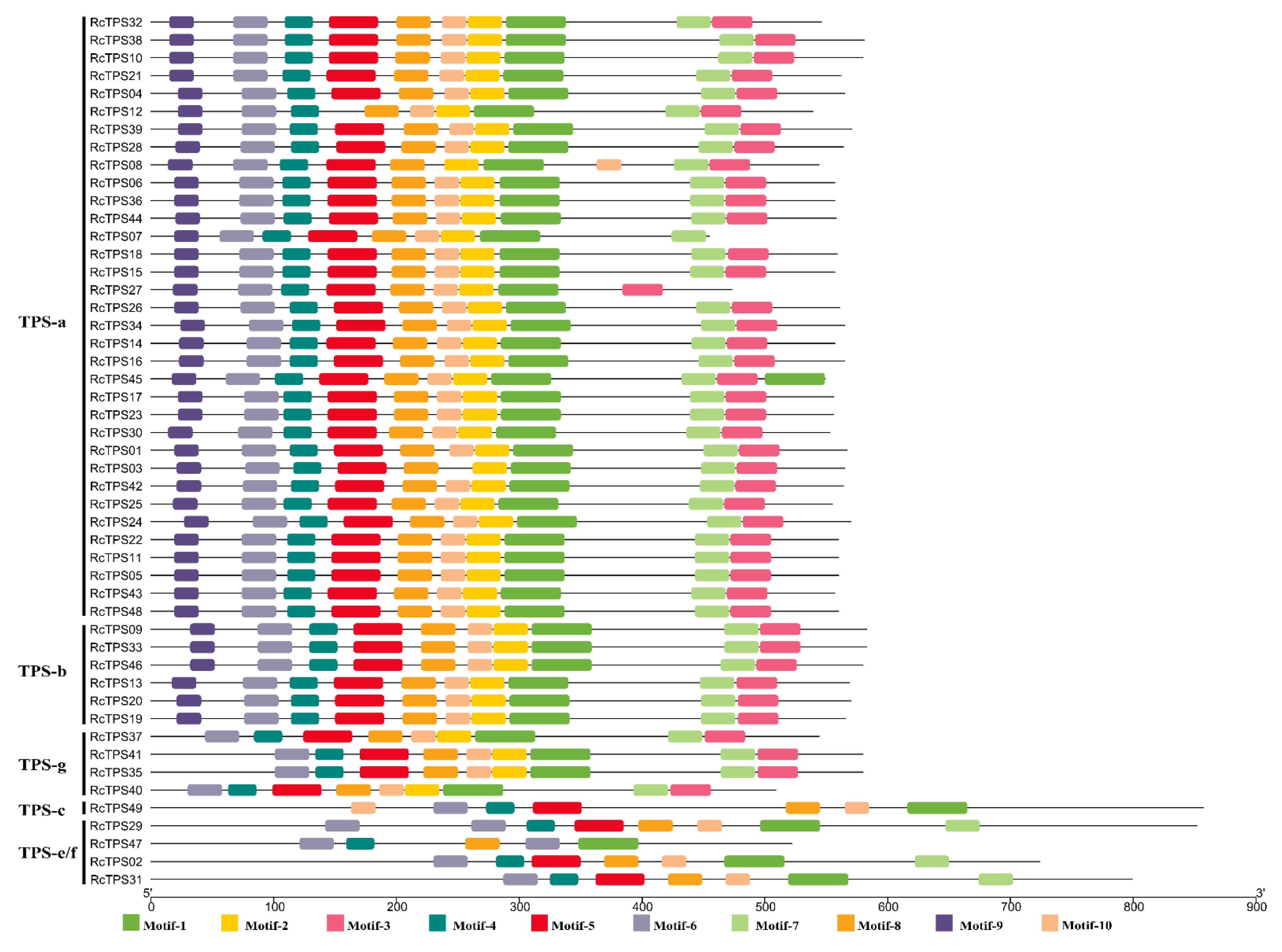

To further clarify the functional characteristics and specificities among the RcTPS proteins, 10 conserved protein motifs were identified using the MEME motif search tool. Each identified motif contained between 21 and 50 amino acids (Figure S1). Most RcTPS proteins in the same subfamily shared similar motif structures (Figure 5). Motif-1, motif-4, motif-6 and motif-8 were found in all RcTPS proteins. Motif-1 harbors an aspartate-rich region, DDXXD, representing the most typical conserved motif contained in the C-terminal of TPS proteins. Motif-7 was another important motif of the C-terminal domain in TPS proteins, which could be found in almost all RcTPS proteins of the subfamilies TPS-a, TPS-b, TPS-g and TPS-e/f. Previously, this motif, characterized by the consensus sequence (L,V)(V,L,A)(N,D)D(L,I,V)X(S,T)XXXE, was named NSE/DTE [62]. Both the DDXXD and NSE/DTE motifs are known to play an important role in cleaving prenyl diphosphate substrates by binding Mg2+ or Mn2+ at the C-terminus [1,14,15]. In rose TPSs, the DDXXD motif shows a higher level of conservation than the NSE/DTE motif. In addition, the arginine-tryptophan motif RRX8W (motif-9) was found in the N-terminus of all RcTPS-a and RcTPS-b proteins. This motif is known to play an essential role in the catalysis of monoterpene cyclization [3,15].

3.5. Analysis of Cis-Acting Elements in the Promoter Region of RcTPS Genes

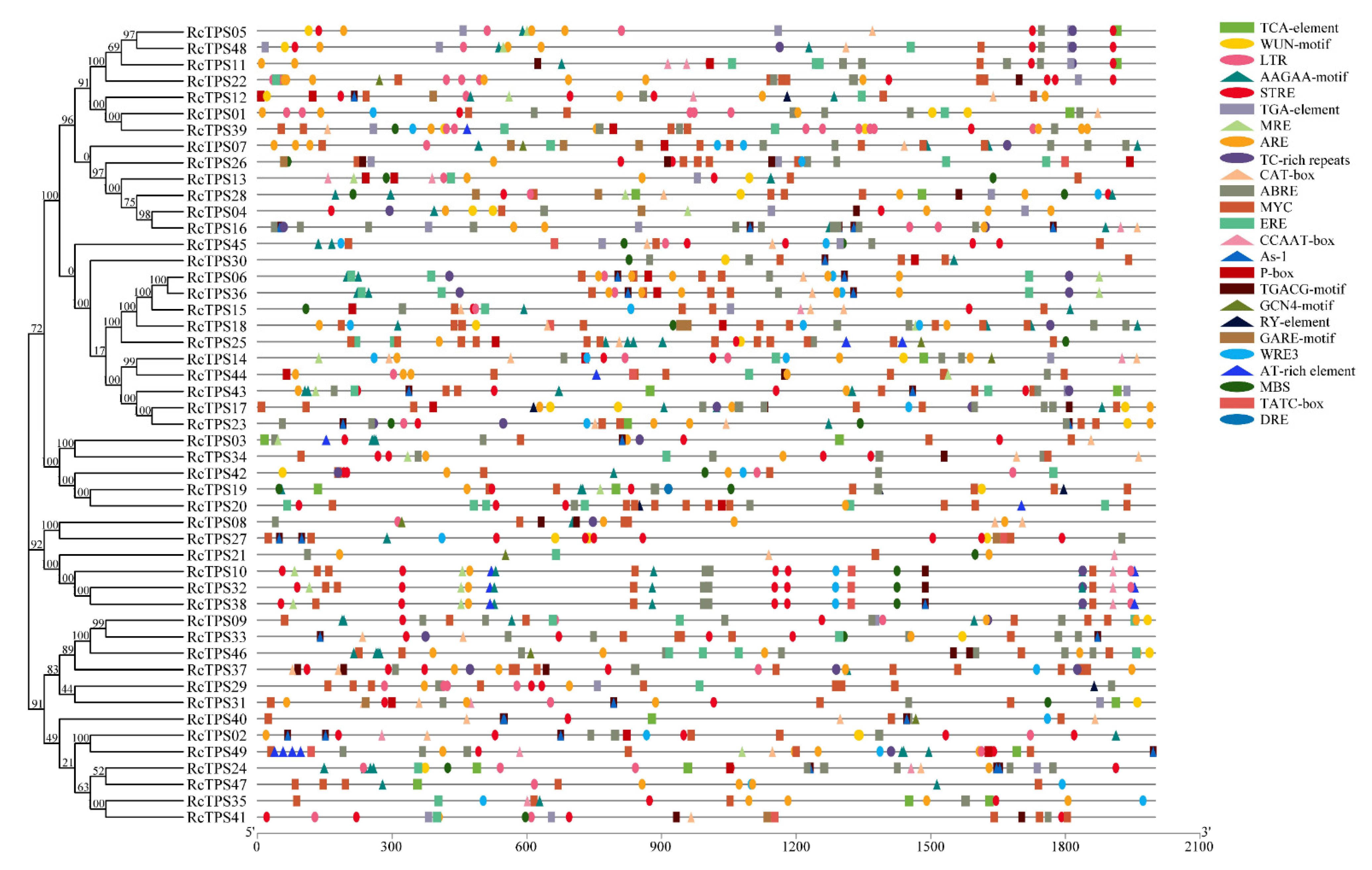

Most of the functional cis-acting elements is concentrated within proximal promoters, usually in the region from − 1,000-bp to + 200-bp relative to the transcription start site (TSS) [63]. In this study, we analyzed the 2000-bp nucleotide sequence located upstream of the ATG initiation codon for all RcTPS genes using the PlantCARE database [64]. We identified three categories of cis-acting regulatory elements that share similarities with previously reported motifs associated with plant growth and development, phytohormone response and stress responses (Figure 6). Cis-acting regulatory elements involved in plant growth and development mainly include flowering regulation elements (CCAAT-box, AT-rich element, and MRE), endosperm-specific expression elements (GCN4-motif and AAGAA-motif), a shoot and root meristem expression element (CAT-box), a seed-specific regulation element (RY-element), and a shoot-specific expression element (As-1 element). Phytohormone-responsive elements included a salicylic acid-responsive element (TCA-element), gibberellin-responsive elements (P-boxes, GARE motifs, and TATC boxes), an auxin-responsive element (TGA-element), an ethylene-responsive element (ERE), an abscisic acid-responsive element (ABRE) and jasmonic acid-responsive elements (TGACG motifs and MYCs). The stress response category included defense and stress responsiveness (TC-rich repeats), wounding responses (WRE3 and WUN-motif), anaerobic induction (ARE), drought response (MBS), dehydration response (DRE), low temperature response (LTR) and stress response (STRE) (Figure 6). These data indicate that RcTPS genes are likely regulated by multiple phytohormones and abiotic stresses.

3.6. Expression Patterns of RcTPS Genes in Different Tissues of R. chinensis

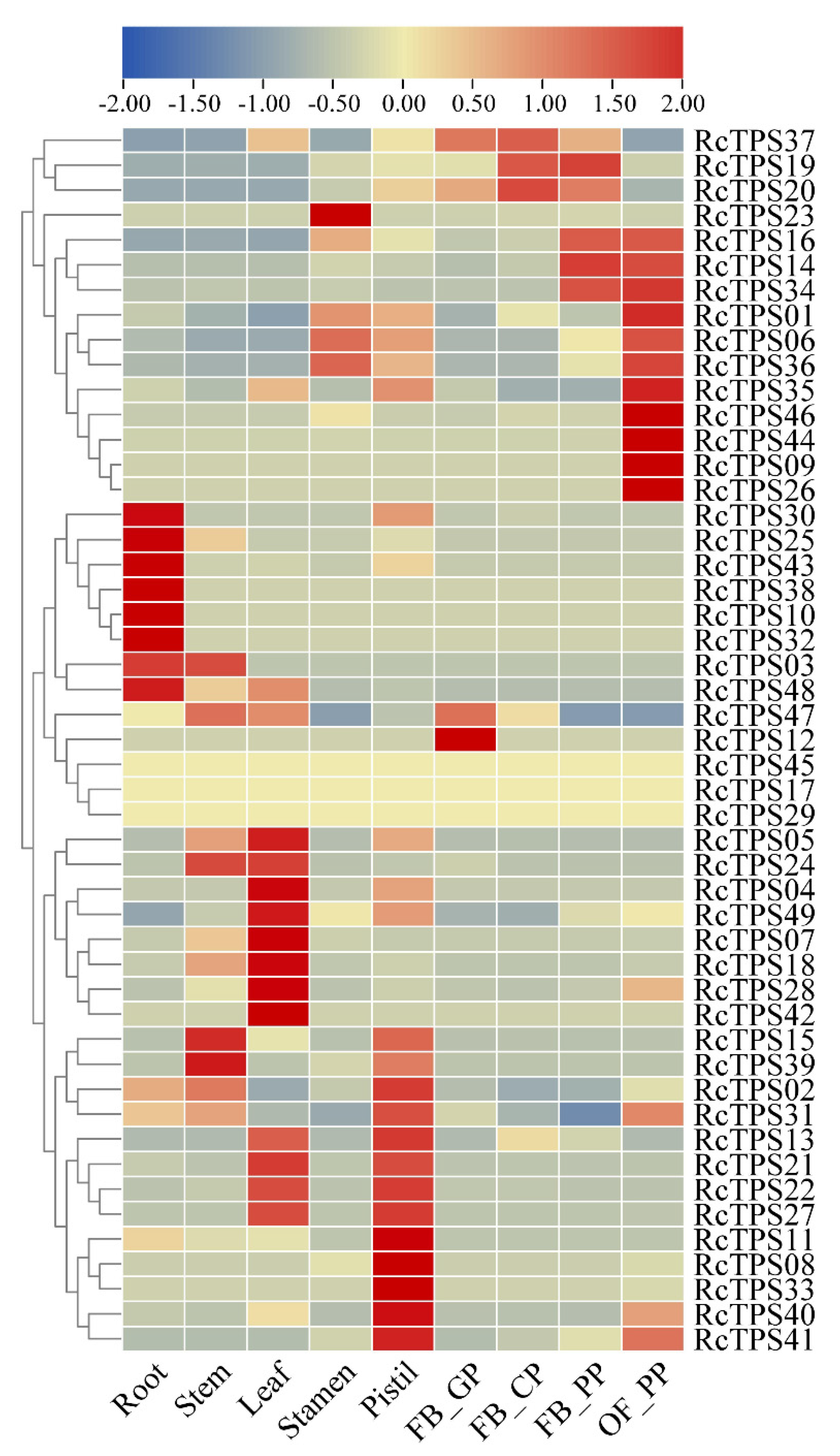

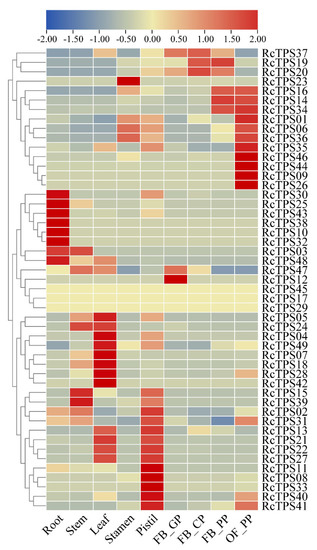

The transcriptome data of nine rose tissues, including roots, stems, leaves, stamens, pistils and flowers, at different developmental stages were downloaded from the NCBI to analyze the tissue-specific expression patterns of RcTPS genes. RcTPS17, RcTPS29 and RcTPS45 were not expressed in any of the nine analyzed tissues. Sixteen percent (8 of 49), 6% (3 of 49) and 18% (9 of 49) of the RcTPS genes showed the highest transcript abundance in roots, stems and leaves, respectively. Notably, 53% (26 of 49) of the RcTPS genes showed the highest transcript abundance in floral organs. Among them, RcTPS23 showed the highest transcript abundance in the stamen; RcTPS02, RcTPS08, RcTPS11, RcTPS13, RcTPS22, RcTPS27, RcTPS31, RcTPS33, RcTPS40 and RcTPS41 in the pistil; RcTPS12 in the green petals of the flower bud; RcTPS20 and RcTPS37 in the color-changing petals of the flower bud; RcTPS14 and RcTPS19 in the pink petals of the flower bud; and RcTPS01, RcTPS06, RcTPS09, RcTPS16, RcTPS26, RcTPS34, RcTPS35, RcTPS36, RcTPS44 and RcTPS46 in the pink petals of the open flower (Figure 7). These data show that the rose RcTPS genes are expressed in different organs and in petals at different developmental stages, suggesting their potential roles in the biosynthesis of terpenoids in different organs and during petal development.

3.7. Expression Patterns of RcTPS Genes under Abiotic Stress

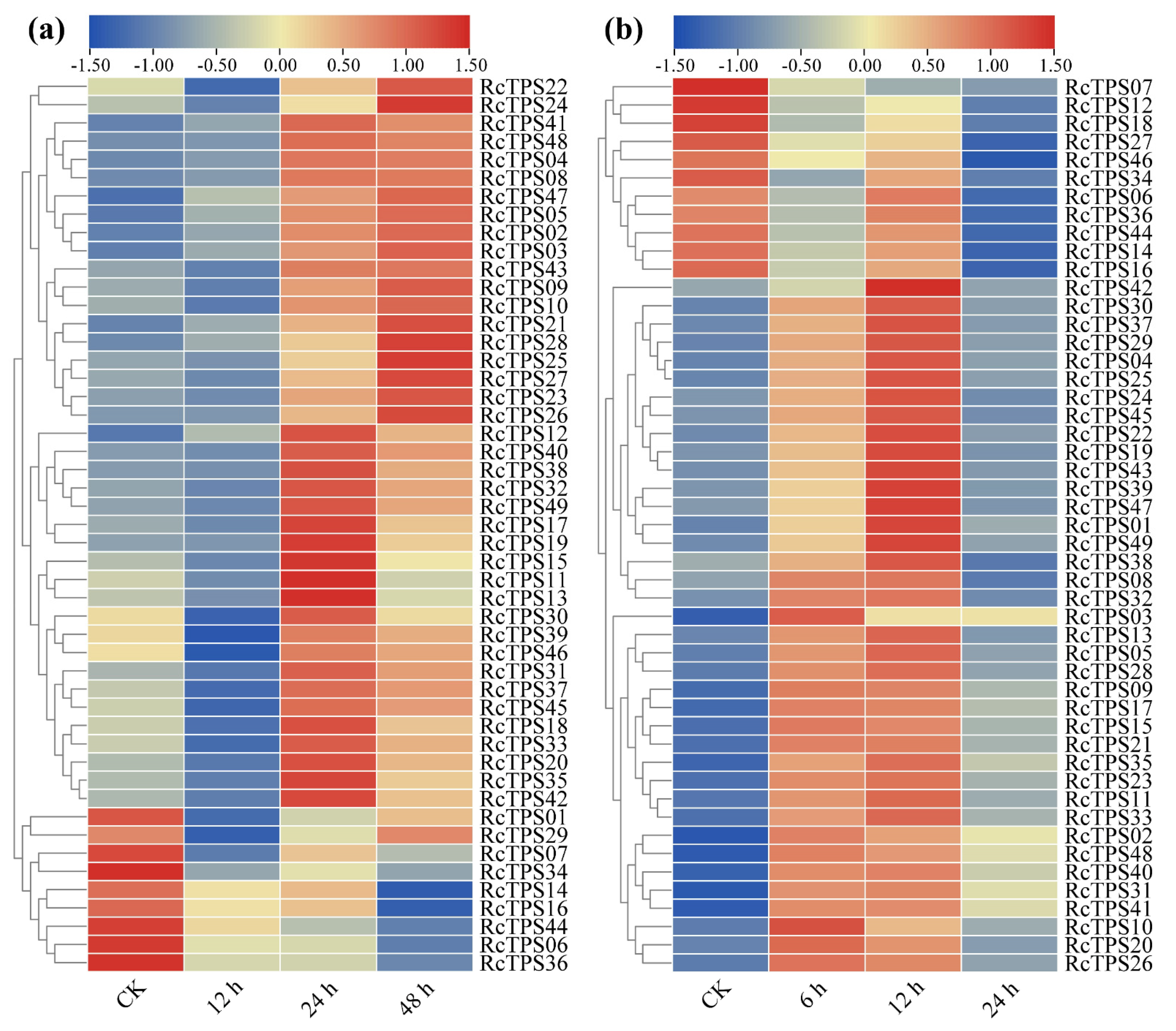

RcTPS genes harbored multiple cis-acting elements associated with the stress response. To further address whether the RcTPS genes could be regulated by abiotic stresses, we investigated their expression in the open flowers of R. chinensis under mannitol-caused osmotic stress (to mimic drought stress ) [65,66,67] and heat treatment at 35 °C. qRT–PCR analyses showed that 18% of the RcTPS genes (9 of 49) exhibited a decreasing expression trend under mannitol-induced osmotic stress, while 82% of the RcTPS genes (40 of 49) were upregulated upon mannitol treatment (Figure 8a).

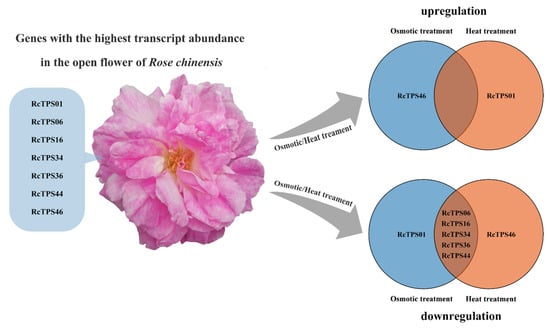

After heat treatment at 35 °C for 6 h, 78% of the RcTPS (38 of 49) genes were upregulated, but the expression levels of these genes decreased with increasing heat treatment time (Figure 8b). In contrast, 22% of the RcTPS genes (11 of 49) exhibited a decreasing trend under heat treatment. These results show that the expression of RcTPS genes is regulated by heat and osmotic stresses, which indicates that in roses, the biosynthesis of terpenoids may be affected by abiotic stresses.

4. Discussion

Roses are highly appreciated ornamental plants, mainly for their flowers and delicate fragrances [33]. For many years, roses have been used in landscape greening, food, medicine, cosmetic production and especially as cut flowers [68,69,70]. However, roses often suffer from adverse unfavorable environmental conditions such as heat, salinity and drought. Plants produce specialized metabolites to adapt to their environments [71]. Volatile terpenoids play significant roles in resisting abiotic stress conditions [1,4,72]. In previous studies, phytoalexin terpenoids have been reported to accumulate in response to drought, salinity, ultraviolet and elevated CO2 stresses [73,74,75]. Additionally, floral terpenes were reported to protect reproductive organs from oxidative stress [76,77]. Terpene synthases play a leading role in catalyzing the formation of monoterpenes, sesquiterpenes, or diterpenes from the substrates GPP, FPP, or GGPP [3]. Previous studies on floral scent have mainly focused on the characterization and functional verification of the TPS genes [78,79,80]. We show here that the expression of TPS genes is modified in response to osmotic and heat stresses.
As a mid-sized gene family, the number of genes in the TPS family in different plant species range from approximately 20 to 150 [3]. In this study, 49 TPS genes were identified in the R. chinensis genome based on BLASTP searches and two conserved TPS domains, and they were divided into five subfamilies (TPS-a, TPS-b, TPS-c, TPS-g and TPS-e/f) based on gene phylogenetic analyses. No members of the TPS-d and TPS-h subfamilies were found in this rose genome. These results are consistent with previous studies which showed that the TPS-d subfamily was specific to gymnosperms and that the TPS-h subfamily was only found in S. moellendorffii [3,15,18]. TPS-a is the largest subfamily among RcTPS proteins (34 of 49), followed by TPS-b (6 of 49), which is consistent with previously reported data in A. thaliana (22 of the 32 TPS genes were TPS-a genes), S. lycopersicum (15 of the 34 TPS genes were TPS-a genes), S. italica (21 of the 32 TPS genes were TPS-a genes) and C. sinensis (28 of the 55 TPS genes were TPS-a genes) [18,21,24,25]. Previously, the TPS-a subfamily was reported to be an angiosperm-specific clade, further divided into dicot-specific and monocot-specific subgroups, and that the TPS-a proteins are sesquiterpene synthases or diterpene synthases, while the TPS-b subfamily numbers are responsible for monoterpene or isoprene synthesis [3]. In A. thaliana, four TPS-a proteins are cytosolic sesquiterpene synthases, one is a mitochondrial sesquiterpene synthase, and the remaining TPS-a proteins are plastidial or mitochondrial diterpene synthases. Six A. thaliana TPS-b proteins are monoterpene synthases that produce myrcene or ocimene [18]. In S. lycopersicum, all 15 TPS-a proteins have been reported to be sesquiterpene synthases [20]. In our study, 34 TPS proteins that all belong to the TPS-a subfamily in R. chinensis were predicted to be sesquiterpene synthases, 10 RcTPS proteins were predicted to be monoterpene synthases, and 5 RcTPS proteins were predicted to be diterpene synthases by the Terzyme database [81]. The 10 putative monoterpene synthases contained 6 TPS-b and 4 TPS-g proteins, and the 5 putative diterpene synthases harbored 1 TPS-c and 4 TPS-e/f proteins. These findings indicate that TPS proteins within the same subfamily may share similar functions. However, further functional analyses are required to confirm this hypothesis.
It was previously reported that plant TPS genes generally exhibit conserved intron–exon structures [18,19,82]. In R. chinensis, we found that 39 out of the 44 RcTPS genes of the subfamilies TPS-a, TPS-b and TPS-g contained 7 exons. Five of the remaining RcTPS genes contained fewer exons, probably because of intron loss. In contrast, RcTPS genes in the subfamilies TPS-c and TPS-e/f contained more exons (between 10 and 14), likely because of the presence of an additional exon encoding the ancestral 200 amino acids of unknown function at the N-terminus [7,18,83]. Previously, the features of RcTPS proteins were found to be related to two domains, one each at the N-terminus (PF01397) and C-terminus (PF03936) [1,84]. All RcTPS-a and RcTPS-b proteins contained the RRX8W motif at the N-terminus, a motif shared by monoterpene synthetases in angiosperms that is known to play an important role in monoterpene cyclization [3,17]. None of the RcTPS-g members contained the RRX8W motif, since the prominent feature of this subfamily of proteins is the rifeness of acyclic monoterpenes [3]. In addition, it was previously reported that TPS-g proteins can catalyze the biosynthesis of sesquiterpenes and diterpenes [85,86]. The in vivo terpene synthase products mainly depend on their subcellular location and substrate availability [87]. The DDXXD motif was found in all RcTPS proteins. This motif plays an important role in cleaving prenyl diphosphate substrates by binding the metal cofactor (Mg2+ or Mn2+) at the C-terminus. In addition to the conserved RRX8W and DDXXD motifs, NSE/DTE was another important conserved motif at the C-terminus, whose function is the same as that of DDXXD [1,14,15]. NSE/DTE could be found in almost all RcTPS proteins of the subfamilies TPS-a, TPS-b, TPS-g and TPS-e/f.
Expression analysis of RcTPS genes in different rose tissues indicated that RcTPS genes were mainly expressed in floral organs. RcTPS17, RcTPS29 and RcTPS45 were not expressed in any of the nine analyzed tissues at the analyzed stages, suggesting strict regulation of certain terpenoid biosynthesis genes in roses. Among the 26 RcTPS genes with the highest transcript abundance in floral organs (Figure 7), 14 (RcTPS01, 06, 08, 11, 12, 14, 16, 22, 23, 26, 27, 34, 36, 44) were predicted to encode putative sesquiterpene synthases, 10 (RcTPS09, 13, 19, 20, 33, 35, 37, 40, 41, 46) encode putative monoterpene synthases, and 2 (RcTPS02 and RcTPS31) encode putative diterpene synthases. It has been reported in R. chinensis that the contents of terpenoids are very low in flower buds. When the flowers open, the contents of terpenoids gradually increase and reach a maximum in open flowers, which is consistent with the trend of the transcript abundance of RcTPS genes during flowering [88]. These data suggest that RcTPS genes play essential roles in the biosynthesis of terpenes in the flower opening process of R. chinensis. However, previous studies reported that in roses, NUDX1 is involved in acyclic monoterpene biosynthesis [34,89]. Although, NUDX and TPS pathways relay on a common precursor, namely GPP, the relationship between these two monoterpene biosynthesis pathways remains unclear.
Increasing studies have shown that TPS genes are involved in plant development and responses to biotic and abiotic stresses [1,4,72,90]. It has been reported in many plant species that TPS genes could be regulated by multiple abiotic stresses and that they may have important roles in resistance to abiotic stresses [24,25,26,27]. Bioinformatics analysis identified multiple cis-acting elements that respond to abiotic stresses in the promoter region of RcTPS genes, and the average number of cis-acting elements related to abiotic stresses in the promoter region of RcTPS genes was eight, implying that they might have potential functions in response to abiotic stress. To verify this hypothesis, the expression patterns of RcTPS genes under two abiotic stresses were analyzed. Because the water deficit and the associated osmotic stress as well as high-temperature severely limit the growth and flowering of R. chinensis, we evaluated the expression levels of RcTPS genes under osmotic stress induced by mannitol and heat stress by exposure of plants to 35 °C. Our data showed that RcTPS genes exhibited different expression levels when the plants were subjected to heat or osmotic stress conditions. Under mannitol-induced osmotic stress and heat stress, the expression levels of most RcTPS genes were upregulated, indicating that these genes might be involved in osmotic and heat responses. Among the seven RcTPS genes with the highest transcript abundance in fully developed petals in open flowers, RcTPS06, RcTPS16, RcTPS34, RcTPS36 and RcTPS44 were downregulated and RcTPS46 and RcTPS01 were upregulated following osmotic and heat stress (Figure 9). Compared to osmotic stress, the peak expression of the RcTPS genes under heat treatment occurred relatively early, suggesting that the responses of RcTPS genes vary depending on the nature of the stress applied. These data pave the way for more studies to more precisely address the link between the control of terpenoid biosynthesis and the response to abiotic stresses in roses.

5. Conclusions

Herein, 49 TPS genes were identified in R. chinensis, a rose species that has played an important role in rose domestication. We divided theses TPS genes into five subfamilies. Their chromosomal localization, phylogenetic relationship, gene structure and conserved motifs were subsequently assessed. Cis-acting element analysis and expression patterns of RcTPS genes under osmotic and heat stresses indicated that RcTPS genes were regulated by abiotic stresses and that they might be involved in stress responses in roses. This study provides a foundation for further investigation on the functional role and regulation modes of RcTPS genes in roses.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/genes13030547/s1, Figure S1: Ten conserved motifs in R. chinensis TPS proteins identified by MEME tool. Table S1: Accession number of the TPS proteins represented in phylogenetic analysis. Table S2: The FPKM values of RcTPS genes in different R. chinensis tissues. Table S3: The expression values of RcTPS genes under 200 mM mannitol treatment for 48 h. Table S4: The expression values of RcTPS genes under heat treatment (35 °C) for 24 h. Table S5: Primers used for qRT-PCR analysis. Table S6: Functional annotation of RcTPS proteins by Terzyme (http://www.nipgr.ac.in/terzyme.html, accessed on 24 February 2022).

Author Contributions

Y.Y. designed and conducted the experiments. Y.Y., X.Z., W.K., M.B.(Mohammed Bendahmane), M.B. (Manzhu Bao) and X.F. analyzed the data and wrote and/or edited the manuscript. M.L. provided help with data analysis. All authors read and approved the final manuscript.

Funding

This research was funded by National Key R&D Program of China (2019YFD1000400).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Accession numbers of all the TPS genes used in this study and the candidate RcTPS genes are listed in Table S1 and Table 1, respectively. The rose genome database is available at: https://lipmbrowsers.toulouse.inra.fr//pub/RchiOBHm-V2/, accessed on 24 February 2022.

Acknowledgments

We are grateful for those make the rose genome and transcriptome data published online.

Conflicts of Interest

The authors declare no conflict of interest.
