Characterization of Living Dental Pulp Cells in Direct Contact with Mineral Trioxide Aggregate

by
Tamaki Hattori-Sanuki
1,
Takeo Karakida
2,
Risako Chiba-Ohkuma
2,
Yasuo Miake
3,
Ryuji Yamamoto
2,
Yasuo Yamakoshi
2,* and
Noriyasu Hosoya
1
1
Department of Endodontology, School of Dental Medicine, Tsurumi University, 2-1-3 Tsurumi, Tsurumi-ku, Yokohama 230-8501, Japan
2
Department of Biochemistry and Molecular Biology, School of Dental Medicine, Tsurumi University, 2-1-3 Tsurumi, Tsurumi-ku, Yokohama 230-8501, Japan
3
Department of Anatomy, School of Dental Medicine, Tsurumi University, 2-1-3 Tsurumi, Tsurumi-ku, Yokohama 230-8501, Japan
*
Author to whom correspondence should be addressed.
Cells 2020, 9(10), 2336; https://doi.org/10.3390/cells9102336
Submission received: 5 October 2020 / Revised: 19 October 2020 / Accepted: 20 October 2020 / Published: 21 October 2020
(This article belongs to the Special Issue Dental Pulp Stem Cells and Regenerative Medicine)
Browse Figures
Review Reports Versions Notes

Abstract

:
Mineral trioxide aggregate (MTA) was introduced as a material for dental endodontic regenerative therapy. Here, we show the dynamics of living dental pulp cells in direct contact with an MTA disk. A red fluorescence protein (DsRed) was introduced into immortalized porcine dental pulp cells (PPU7) and cloned. DsRed-PPU7 cells were cultured on the MTA disk and cell proliferation, chemotaxis, the effects of growth factors and the gene expression of cells were investigated at the biological, histomorphological and genetic cell levels. Mineralized precipitates formed in the DsRed-PPU7 cells were characterized with crystal structural analysis. DsRed-PPU7 cells proliferated in the central part of the MTA disk until Day 6 and displayed a tendency to move to the outer circumference. Both transforming growth factor beta and bone morphogenetic protein promoted the proliferation and movement of DsRed-PPU7 cells and also enhanced the expression levels of odontoblastic gene differentiation markers. Mineralized precipitates formed in DsRed-PPU7 were composed of calcium and phosphate but its crystals were different in each position. Our investigation showed that DsRed-PPU7 cells in direct contact with the MTA disk could differentiate into odontoblasts by controlling cell–cell and cell–substrate interactions depending on cell adhesion and the surrounding environment of the MTA.

Graphical Abstract

1. Introduction

Mineral trioxide aggregate (MTA) is a material for dental endodontic therapy developed in the United States in the early 1990s and it was marketed as a ProRoot® MTA (Dentsply Tulsa Dental, Tulsa, OK, USA). In Japan, MTA was approved as a pulp-capping material and has been on the market since 2007. This material is hydraulic modified Portland cement that was originally developed as root-end filling material. In addition to these applications, MTA has been applied to direct pulp capping, vital pulpotomy, root canal fillings and root resorption repair [1,2]. Therefore, it has attracted attention as a new biomaterial for pulp capping instead of calcium hydroxide, which has been used until now.
MTA is mainly composed of inorganic oxides such as tricalcium silicate, dicalcium silicate and tricalcium aluminate containing bismuth oxide and plaster [3,4,5,6]. During the hydration of MTA, calcium hydroxide and calcium silicate hydrate are produced and released from MTA. Studies related to these components were conducted on the biological functionality of MTA, such as biocompatibility [1,2,3,7,8], sealing ability [1,2], antibacterial qualities [9,10], tissue engineering [11] and the mechanism of inducing apatite formation [12,13,14,15,16,17]. In addition to research related to the characteristics of MTA using mesenchymal stem cells and human dental pulp cells, many studies were conducted to investigate the effect of MTA on cytotoxicity [18,19], cell proliferation [20,21,22], gene expression [21,23,24] and apoptosis [25]. However, there are few reports that examined the dynamics of living cells in direct contact with the MTA.
The immortalized porcine dental pulp cell line (PPU7) was established [26] and has been used for endodontic research associated with laser irradiation [27]. PPU7 cells can express alkaline phosphatase (ALP) and odontoblastic marker genes that form precipitated nodules when cultured in a medium containing β-glycerophosphate and ascorbic acid. Transforming growth factor beta (TGF-β) is a signaling molecule that upregulates odontoblastic marker genes; dentin sialophosphoprotein and matrix metalloprotease 20 in PPU7 cells suggest that this cell can differentiate into odontoblasts [28]. Here, we report the direction to dentin formation by analyzing cell proliferation, chemotaxis, crystalline status, the effect of growth factors and gene expression with visualized living PPU7 cells in direct contact with an MTA disk.

2. Materials and Methods

The present study was approved by the Institutional Ethics Review Committee of the Tsurumi University School of Dental Medicine (Yokohama, Japan), Recombination DNA Experiment and Biosafety Committee of the Tsurumi University School of Dental Medicine (project identification code 1318, 1 December 2015). All experiments were conducted based on relevant guidelines and regulations.

2.1. Gene Transfection of Discosoma Species Red Fluorescent Protein (DsRed) into a Porcine Dental-Pulp Cell Line (PPU7)

The PPU7 cell line was established from porcine dental pulp cells by our group [26]. The pDsRed–Express–DR vector (Takara Bio USA Inc., Mountain View, CA, USA) containing a cytomegalovirus promoter in a multicloning site was used for gene transfection. Cells were plated at subconfluent cell densities and transfected with a pDsRed–Express–DR vector using Lipofectamine 2000 in accordance with the manufacturer’s instructions (Thermo Fisher Scientific, Waltham, MA, USA). Two days after transfection, cells were replated at low density and cultured until colonies were visible. Individual colonies consisting of stable fluorescent (DsRed-PPU7) cells were isolated with cloning cylinders and maintained in alpha Minimum Essential Medium (αMEM; Gibco/Life Technologies, Carlsbad, CA, USA) containing 10% fetal bovine serum (FBS) and antibiotics (50 U/mL of penicillin, 50 μg/mL of streptomycin, Gibco; standard medium) at 37 °C in a humidified 5% CO2 atmosphere. Then, DsRed-PPU7 cells were cultured in standard medium at 37 °C in a humidified 5% CO2 atmosphere. PPU7 cells without DsRed labeling were used as the control and were cultured in αMEM containing 10% fetal bovine serum (FBS) and the antibiotics described above.

2.2. Alkaline Phosphatase (ALP) Activity Assay of the PPU7 Cell Line

Both PPU7 and DsRed-PPU7 cells were plated on a 96-well plate at a density of 1.0 × 104 cells/well and cultured in standard medium for 24 h. The medium was then changed to a fresh standard medium. Measurement of ALP activity in each well was described previously [29]. After 72 additional hours of incubation, cells were washed once with PBS and ALP activity was assayed using 10 mM p-nitrophenylphosphate as the substrate in 100 mM 2-amino-2-methyl-1,3-propanediol-HCl buffer (pH 10.0) containing 5 mM MgCl2 and incubated for 4 minutes at room temperature. Addition of 0.2 M NaOH quenched the reaction and absorbance at 405 nm was read on a plate reader.

2.3. Changes in the Number of DsRed-PPU7 Cells on the Mineral Trioxide Aggregate (MTA) Disk

The MTA (ProRoot MTA, Dentsply Sirona Tulsa Dental Specialties, Johnson City, TN, USA) was mixed with sterile water according to the manufacturer’s instructions. An MTA disk with a 10 mm diameter and 1.8 mm thickness was prepared using a silicone mold and dried in a fume hood for 24 h followed by storage in a desiccator. Prior to the preparation of MTA disk, glass paste plates, spatulas and silicone molds for kneading were immersed in 100% ethanol and ultrasonically treated for 5 min in a fume food. The MTA disk was immersed in 5 mL of the standard medium at 37 °C in a humidified 5% CO2 atmosphere and DsRed-PPU7 (1.0 × 104) cells were gently seeded on the surface of the MTA disk. Cells were cultured for 10 days at 37 °C in a humidified 5% CO2 atmosphere with the standard medium being changed every other day. On Days 1, 3, 5, 7, 8 and 10, the MTA disk was gently placed with the cell-adhesive side down in a culture medium that had been placed in advance in a 6-well plate that was thinly coated with 0.5% agarose gel and cells were observed in a living state under an inverted fluorescence microscope (Appendix A.1). The number of cells was counted by randomly selecting nine squares (300 μm × 300 μm) using Image J software Version 1.52a (National Institutes of Health, Bethesda, MD, USA).

2.4. Correlation of Fluorescence Intensity and Cell-Proliferation Rate of DsRed-PPU7 Cells

DsRed-PPU7 cells were plated on a 96-well plate at a density of 1250 to 20,000 or 2000 cells/well and cultured in the standard medium for 24 h. Then, the medium was changed to a fresh standard medium and cells were cultured for 6 days at 37 °C in a humidified 5% CO2 atmosphere; the standard medium was changed every other day. DsRed-PPU7 cells were photographed with an exposure time of 1/8 seconds using an inverted fluorescence microscope (Biozero BZ-8100, Keyence, Osaka, Japan) and fluorescence intensity was analyzed using Image J software. Subsequently, the proliferation rate against the same cells was determined with a CellTiter 96®AQuous One Solution Cell Proliferation Assay (MTS assay; Promega Corporation, Madison, WI, USA). The coefficient of determination (R2) was calculated from a regression line prepared on the basis of fluorescence intensity or the cell proliferation rate against cell density or cell-culture days.

2.5. Characterization of DsRed-PPU7 Cells on MTA Disks

The MTA disks were plated on a 6-well plate and immersed in 5 mL of the standard medium for 3 h at 37 °C in a humidified 5% CO2 atmosphere. After changing to the new standard medium, a glass cloning cylinder with an internal diameter of 6 mm was placed in the center of the disk and 2.0 × 104 DsRed-PPU7 cells were gently seeded on the surface of the MTA disk in the cylinder. After the cells were left on the surface for 1 h, the cylinder was gently removed and cells were cultured at 37 °C in a humidified 5% CO2 atmosphere. On the next day, the medium was changed to a growth medium containing 10 mM β-glycerophosphate and 50 μM ascorbic acid in standard medium supplemented with 500 ng/mL of recombinant human bone morphogenetic protein 2 (rhBMP-2) [30], 50 nM LDN-193189 (Tocris Bioscience, Bristol, UK) which is a selective BMP signaling inhibitor, 1 ng/mL of human recombinant transforming growth factor β (rhTGF-β) or 1 μM SB-431542 (ChemScene, Monmouth Junction, NJ, USA) which is a selective inhibitor of TGF-β Type I receptor activin receptor-like kinase A. The medium was changed every two days and cells were cultured for 14 days at 37 °C in a humidified 5% CO2 atmosphere. DsRed-PPU7 cells were observed with the inverted fluorescence microscope as described in Section 2.3. Cells were photographed every 2 days for 14 days with an exposure time of 1/20 s.

2.6. Quantitative Polymerase Chain Reaction (qPCR) Analysis

Sample preparation for qPCR analysis was carried out based on our previously method [31]. Cells were extracted with a High Pure RNA Isolation Kit (Roche Diagnostics GmbH, Mannheim, Germany) and the purified total RNA (0.5 μg) was reverse-transcribed. Then, the reaction mixture composed of SYBR Green PCR Master Mix (Roche Diagnostics GmbH) was supplemented with 0.5 μM forward and reverse primers and 0.67 μL of cDNA as a template. For the specific primer setting, a Primer-BLAST (https://www.ncbi.nlm.nih.gov/tools/primer-blast/index.cgi) was used as a primer-designing tool. The specific primer sets and running conditions are shown in Table A1. Glyceraldehyde-3-phosphate dehydrogenase (Gapdh) was used as the reference gene. Each ratio was normalized to the relative quantification data of dentin sialophosphoprotein variant 1 (Dspp-v1) and 2 (Dspp-v2), matrix metalloprotease 20 (Mmp20) and Type I collagen alpha 1 chain (Col1a1) in comparison to Gapdh, which was generated on the basis of a mathematical model for relative quantification in the qPCR system.

2.7. Scanning Electron Microscopy (SEM) and Electron-Probe Microanalysis (EPMA)

On Day 14 of the cell culture, the MTA disk was cut with a razor to prepare the specimens for scanning electron microscopy (SEM) and electron-probe microanalysis (EPMA). The MTA disk was rinsed with PBS, fixed with 2.5% glutaraldehyde in 100 mM cacodylate buffer, dehydrated in ethanol and immersed in hexamethyldisilazane. Then, the surfaces were air-dried, mounted on aluminum stubs and sputter-coated with a gold layer of 300 Å thickness using an ion coater (Quick Auto Coater SC-701AT, Sanyu Electron Co., Ltd., Tokyo, Japan). Specimens were examined with a JCM-6000 (JEOL Ltd., Tokyo, Japan) scanning electron microscope.
The fixed MTA disk was substituted by propylene oxide and embedded in epoxy resin. Specimens were sliced to a thickness of approximately 1 mm using a diamond-coated rotating saw on a precision-cutting machine (Buehler IsoMet Low Speed Saw, Chicago, IL, USA). Specimens were mounted on aluminum stubs and sputter-coated with a carbon layer of 200 Å thickness using a carbon coater (Meiwafosis Co., Ltd., Tokyo, Japan). Elemental mapping of the mineralized precipitates was carried out using a JEM-8900R (JEOL Ltd., Tokyo, Japan) electron probe microanalyzer at an accelerating voltage of 20 kV and an irradiation current of 2.5 × 10–8 mA.

2.8. Statistical Analysis

All values are presented as the mean ± standard error of the mean (SEM). Statistical significance was determined using the Mann-Whitney U test for both ALP and MTS assay and Student’s t-test for the qPCR. In all cases, p < 0.05 was regarded as statistically significant.

3. Results

3.1. Comparison of PPU7 and DsRed-PPU7 Cells

In order to investigate the dynamics of dental pulp cells on an MTA disk, we used a porcine dental pulp-derived cell line (PPU7) for the present study (Appendix A.2) [26]. As a first step, we attempted to visualize PPU7 cells on MTA by introducing the DsRed–Express–DR vector into PPU7 cells. We isolated colonies consisting of stable fluorescent (DsRed-PPU7) cells after liposome transfection (Figure 1a). Subsequently, we were able to obtain stable fluorescent cells by cloning with the limiting-dilution method (Figure 1b). The inherent ALP activity of PPU7 cells with or without DsRed labeling was almost at the same level and there was no significant difference between PPU7 and DsRed-PPU7 cells (Figure 1c). We interpreted this finding as evidence that DsRed-PPU7 cells could be used in this study without problems.

3.2. Changes in the Number of DsRed-PPU7 Cells on the MTA Disk

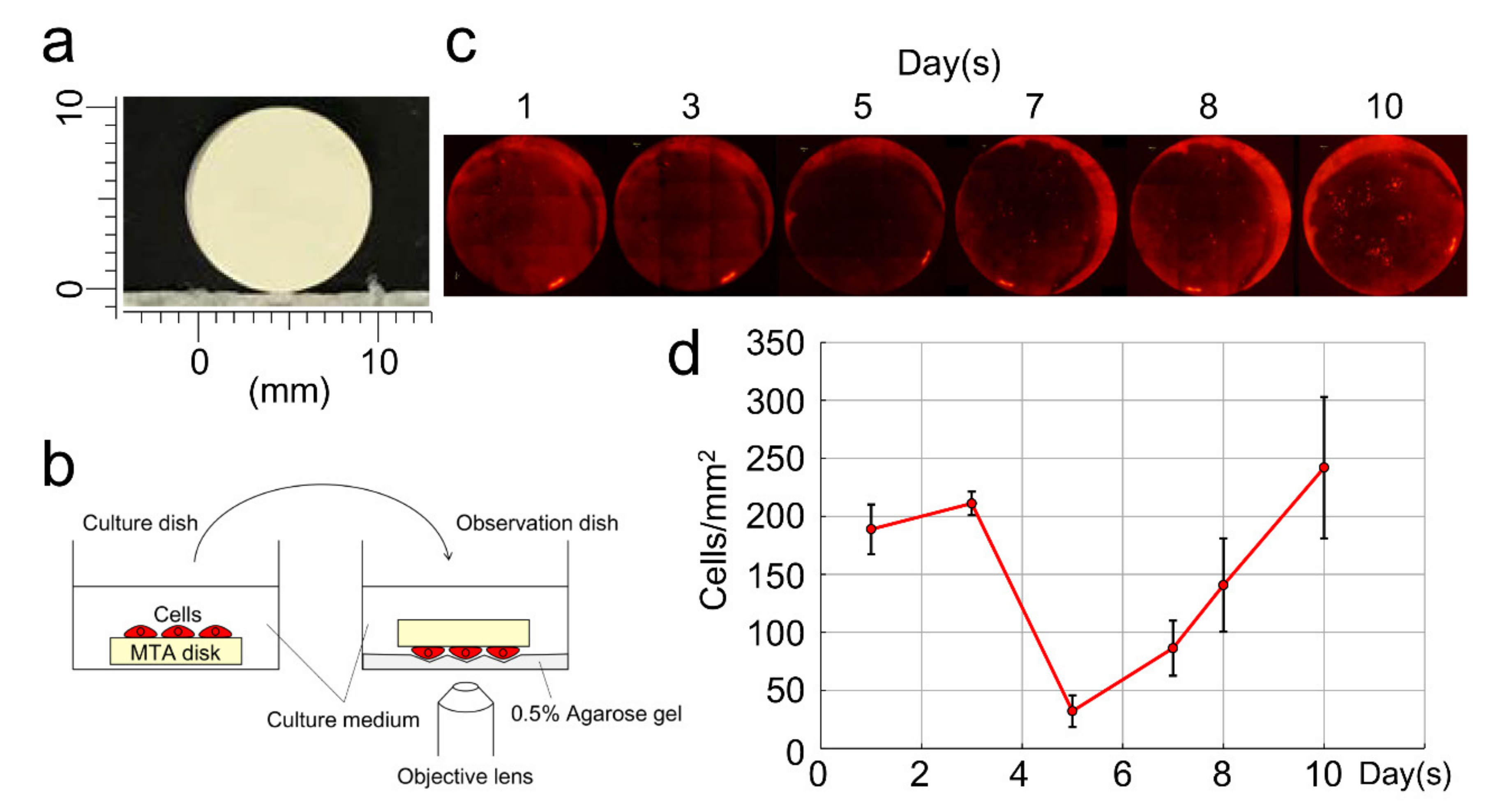

We next prepared the MTA disk (Figure 2a) and cultured DsRed-PPU7 cells on it with a standard medium for 10 days. For cell observation, we gently placed the cell-adhesion surface of the MTA disk on a plate thinly coated with 0.5% agarose gel (Figure 2b) (Appendix A.1). We counted the number of cells up to Day 10 under fluorescence microscopy using Image J software (Figure 2c) and graphed changes in the number of DsRed-PPU7 cells over time (Figure 2d). The number of cells was approximately 200 cells/mm2 on Day 1 but it was decreased to approximately 40 cells/mm2 on Day 5. The number of cells gradually increased from Day 6 onward and it recovered to almost the same number as on Day 1 on Day 9. On Day 10, the number of cells reached 1.25 times that on Day 1. Here we faced the problem that an accurate cell number could not be obtained due to cells overlapping on the MTA disk with the increase in cells. In order to solve this problem, we attempted to measure the fluorescence intensity of the cells.

3.3. Correlation between Fluorescence Intensity and Cell-Proliferation Rate of DsRed-PPU7 Cells

We investigated whether there was a correlation between cell density and fluorescence intensity and between cell density and the cell proliferation rate. We seeded DsRed-PPU7 cells on a 96-well plate at a density of 1250 to 20,000 cells/well (Figure 3a) and analyzed fluorescence intensity using Image J software the next day (Figure 3b), followed by measurement of the cell proliferation rate for the same cells by MTS assay (Figure 3c). The coefficient of determination (R2), calculated from a regression line, was 0.997 between fluorescence intensity and cell density and 0.939 between the cell proliferation rate and cell density.
We next tested whether there was a correlation between cell-culture days and fluorescence intensity or the cell proliferation rate. We seeded DsRed-PPU7 cells on a 96-well plate at a low density of 2000 cells/well and cultured them for 6 days (Figure 4a) while measuring fluorescence intensity (Figure 4b) and the cell proliferation rate (Figure 4c) every day.
The fluorescence intensity and cell proliferation rate of DsRed-PPU7 cells on Day 5 increased by 21.8 and 18.8 times, respectively, as compared with those on Day 0 but they did not increase much on Day 6. Therefore, we calculated the coefficient of determination from a regression line up to Day 5 to be 0.972 between fluorescence intensity and cell-culture days (Figure 4d) and 0.9839 between the cell proliferation rate and cell-culture days (Figure 4e).
Since there was a positive correlation between the fluorescence intensity and cell proliferation rate of DsRed-PPU7 cells, we used the fluorescence intensity for the evaluation of the cell proliferation ability in the present study.

3.4. DsRed-PPU7 Cells on the MTA Disk

Because a significant decrease in the number of DsRed-PPU7 cells was detected on Day 5 when cells were seeded directly using pipettes on the MTA disk (Figure 2b), we improved the culture method to observe DsRed-PPU7 cells on the MTA disk over time as follows. We soaked the MTA disk in the standard medium for 3 h and seeded the DsRed-PPU7 cells in a fresh standard medium using a cloning cylinder (Figure 5a). On the next day, we changed the medium to a fresh growth medium, followed by a 14-day culture period. Based on fluorescence microscopy, the fluorescence intensity of the DsRed-PPU7 cells possessed a strong signal in the central part of the MTA disk until Day 6 but the intensity was strong on the outside of the MTA disk after Day 10 (Figure 5b,c). The fluorescence intensity of the central part of the MTA disk on Day 6 was 4.25 times higher than that on Day 0. The fluorescence intensity of the central part and the outside of the MTA disk was reversed after Day 11 and the outside intensity on Day 14 was 37.5 times higher than that on Day 0 (Figure 5d). With the decrease in fluorescence intensity of the central part of the MTA disk, mineralized precipitates were evident at that location on Day 14, although no mineralized precipitates were observed on the disk cultured without cells (Figure 5e).

3.5. Effect of BMP and TGF-β on DsRed-PPU7 Cells on the MTA Disk

To further investigate the dynamics of DsRed-PPU7 cells on the MTA disk, we cultured DsRed-PPU7 cells in the presence or absence of rhBMP-2 or rhTGF-β1. Based on fluorescence microscopy, the presence of rhBMP-2 and rhTGF-β1 enhanced the fluorescence intensity of DsRed-PPU7 cells in the central part of the MTA disk on Days 6–8 (Figure 6a). Figure 6b shows the change in fluorescence intensity over time in the central part of the MTA disk. When the fluorescence intensity of DsRed-PPU7 cells on Day 0 was set to 1.0, the fluorescence intensity in the presence of rhTGF-β1 on Day 6 was the highest (4.72-fold) and it was dramatically inhibited in the presence of SB-431542, which is a selective inhibitor of TGF-β Type I receptor activin receptor-like kinase A. The presence of rhBMP-2 also increased the fluorescence intensity (3.90-fold) on Day 8 but the fluorescence intensity was suppressed in the presence of LDN-193189, which is a selective BMP signaling inhibitor. After 10 days, the cells cultured in the presence of rhTGF-β1 or rhBMP-2 began to move to the outer circumference. Even cells cultured in only the growth medium (i.e., the control) displayed the same phenomenon. On Day 14, the fluorescence intensity of DsRed-PPU7 cells in the central part of the MTA disk cultured in the presence of rhTGF-β1 or rhBMP-2 was at almost the same level as that of the control. Interestingly, the fluorescence intensity of DsRed-PPU7 cells in the central part of the MTA disk cultured in the presence of LDN-193189 or SB-431542 was almost at the same level as that cultured in the standard medium on Day 14. Those fluorescence intensities were higher than those of the control, rhTGF-β1 or rhBMP-2.

3.6. Direction of Differentiation of DsRed-PPU7 Cells on the MTA Disk

In order to observe the direction of cell differentiation, we next investigated gene expression in DsRed-PPU7 cells on Day 14. The gene expression of a panel of odontoblastic markers in DsRed-PPU7 cells on Day 14 was analyzed using qPCR (Figure 7). The expression levels of Dspp-v1, Mmp20 and Col1a1 in cells cultured with rhTGF-β1 were significantly higher (2.41-fold for Dspp-v1, 3.62-fold for Mmp20 and 1.87-fold for Col1a1) than those of the control. These mRNA levels were dramatically inhibited in the presence of SB-431542. The gene expression of DSPP-v2 was also slightly increased in the presence of TGF-β1 but there was no significant difference compared to the control.

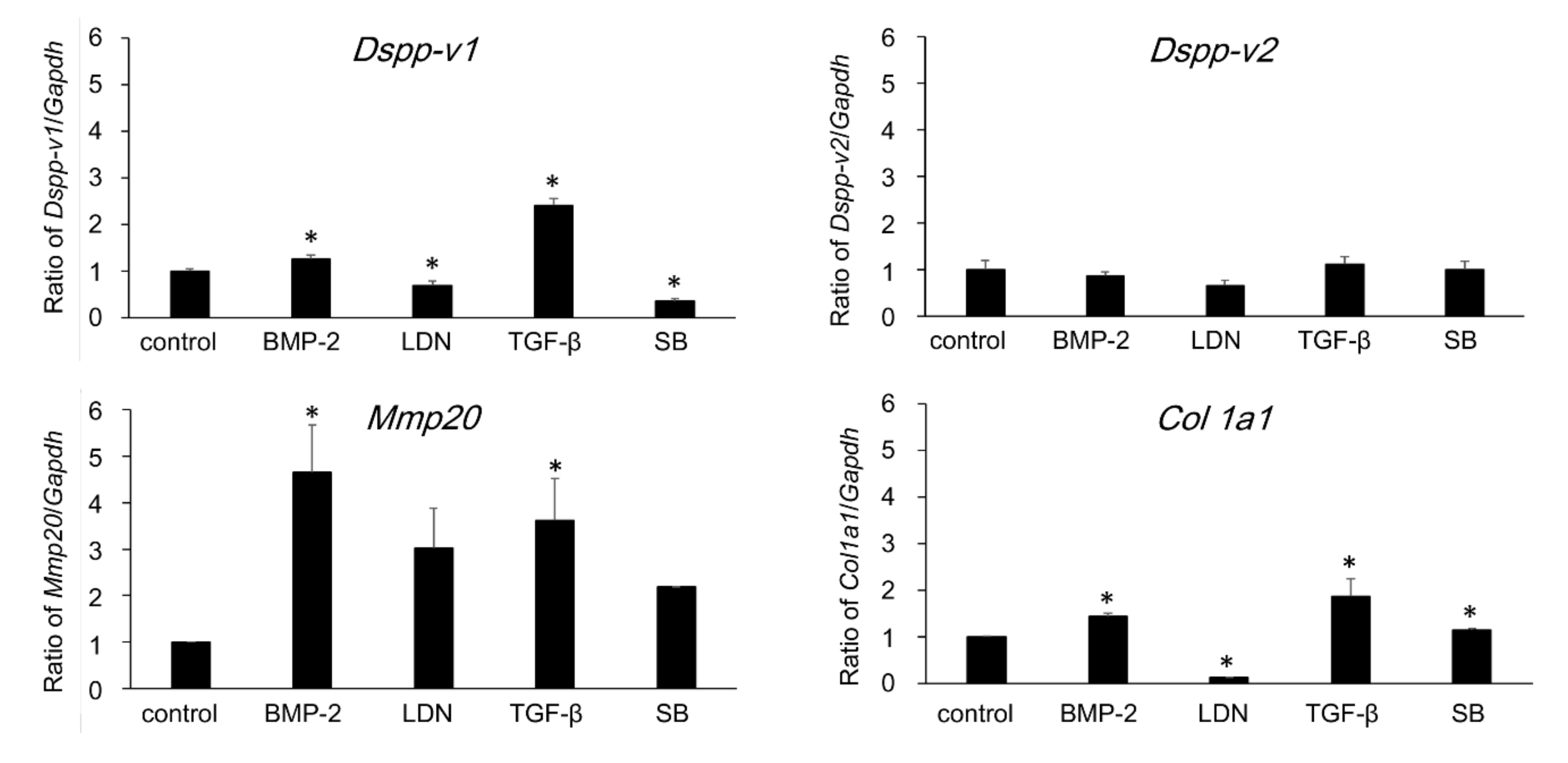

The expression level of Dspp-v1, Mmp20 and Col1a1 in cells cultured with rhBMP-2 was also significantly higher (1.26-fold for Dspp-v1, 4.65-fold for Mmp20 and 1.46-fold for Col1a1) than that of the control and this level was suppressed in the presence of LDN-193189.

3.7. Observation of Mineralized Precipitates on the MTA Disk

We further attempted to characterize the mineralized precipitates formed on the MTA disk. Both stereoscopic microscopy and scanning electron microscopy (SEM) of the mineralized precipitates on MTA disk on Day 14 revealed the presence of spherical precipitates on the surface when cells were cultured in only the growth medium (control) and in the presence of LDN-193189, rhTGF-β1 and SB-431542 (Figure 8 and Figure A1). A number of spherical precipitates were formed when cells were cultured in LDN-193189. Interestingly, few mineralized precipitates were observed on the MTA disk cultured in the presence of rhBMP-2.
We selected cells cultured in LDN-193189 for further characterization (Figure 9 and Figure A2). The SEM of the mineralized precipitates on the MTA disk mainly showed spherical precipitates with an approximate 110 μm diameter on Day 14 (Figure 9a,b). In addition to those precipitates, triangular-pyramid-shaped precipitates were observed but their size was considerably smaller than that of the spherical precipitates (Figure 9a,c). No mineralized precipitates were observed on the MTA disk when the cells were cultured in the standard medium (Figure 9d). Moreover, a number of platelike crystals formed on the surfaces of both spherical and triangular-pyramid-shaped precipitates (Figure 9e,f).

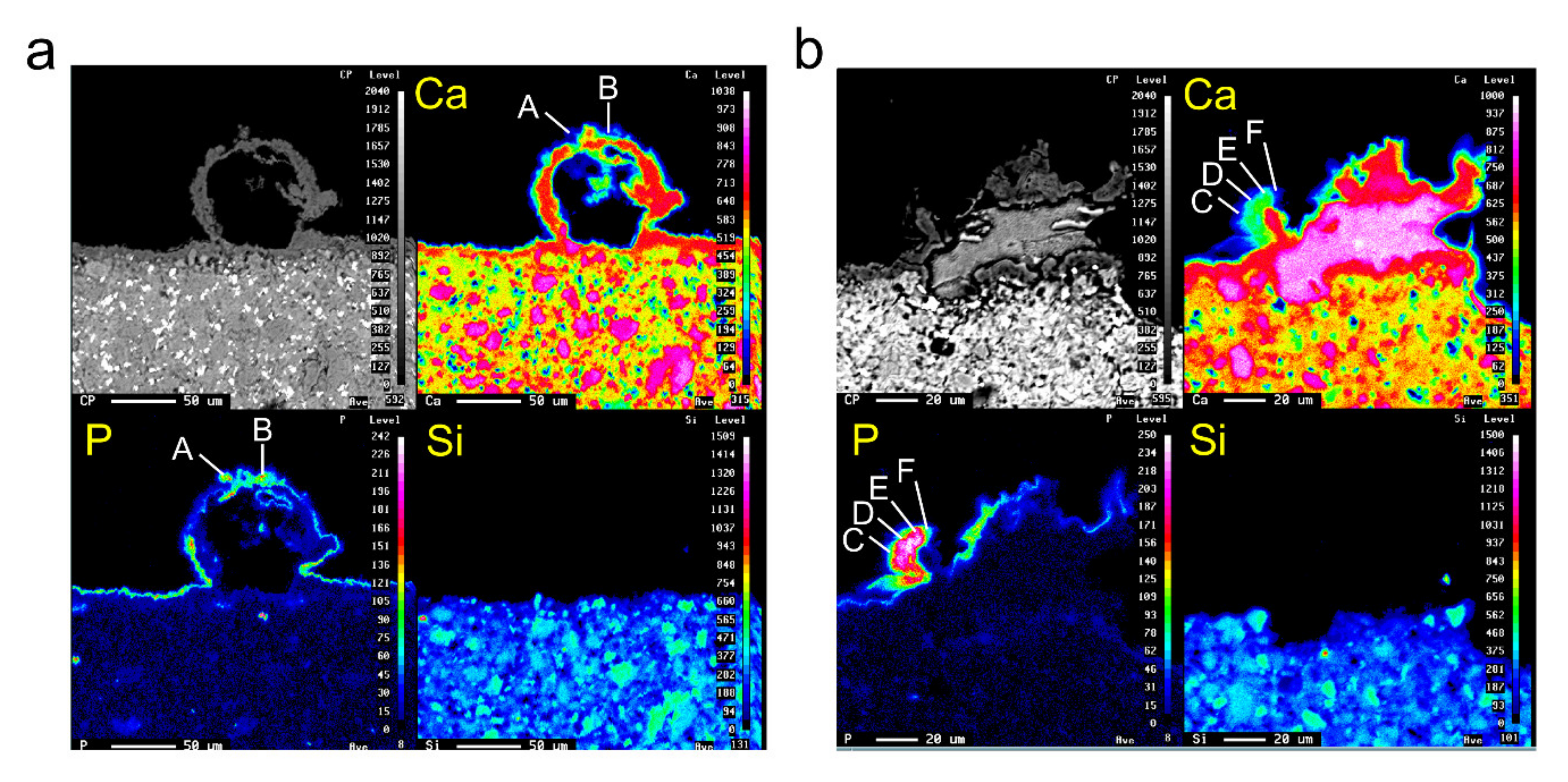

Figure 10 shows electron-probe microanalysis (EPMA)-based elemental-mapping images of representative spherical and triangular-pyramid-shaped precipitates. The spherical precipitates possessed a cavity inside and no element was detected there. The mineral precipitates on the outer circumference were composed of Ca and P (Figure 10a). The triangular-pyramid-shaped precipitates, on the other hand, possessed a high concentration of Ca inside and their outer circumference comprised mineral precipitates consisting of Ca, P and spherical precipitates (Figure 10b). No Si was detected in the spherical and triangular-pyramid-shaped precipitates. The Ca/P molar ratios of each point, calculated on the basis of fluorite, were 0.82 for A, 1.15 for B, 1.95 for C, 1.63 for D, 1.69 for E and 2.01 for F.

4. Discussion

In research on MTA, approximately 60 papers have been reviewed by a comprehensive literature survey via electronic database of PubMed/MEDLINE [32]. In studies using MTA disk, the effects of cells on elution components from disks in the same environment as that of the cells and disks with a culture insert were investigated [19,23,33]. In addition, research was carried out to examine the effects of cells seeded on the plate on eluants extracted by immersing the disks in a culture medium [21]. However, there were few reports that directly show the dynamics of living cells in contact with MTA because the direct observation of cells is difficult, as the MTA is an impermeable cured body. Our challenge was to directly observe living PPU7 cells on an opaque MTA disk.
pDsRed–Express–DR is a eukaryotic expression vector that encodes a variant of the Discosoma sp. red fluorescent protein [34]. This protein was engineered for increased solubility and reduced cytotoxicity [35]. We demonstrated that the gene transfection of the DsRed protein into PPU7 cells did not affect cell morphology or the retention of inherent ALP activity (Appendix A.3). This meant that DsRed-PPU7 cells could be used without problems in subsequent experiments.
MTA can generally be used as dental repair material with little cytotoxic injury [1,2,3,8]. However, as one of the biological properties of the MTA, when a cured MTA body is soaked in water, the pH of the solution for the sustained release of calcium hydroxide is maintained at about 12 [5,6,36,37,38]. Because of the high surface pH of the MTA, MTA causes serious cell damage to soft tissue [39]. In fact, a study using stem cells from exfoliated deciduous teeth revealed that MTA impaired cell viability and caused cell apoptosis when cells were in direct contact with MTA [25]. In the present study using DsRed-PPU7 cells, we demonstrated that cell numbers were markedly reduced after Day 3. This finding suggests that inhibition of cell growth (i.e., apoptosis/necrosis) after stimulation with MTA could be caused by the release of calcium hydroxide from the material and the induced increase in pH.
Caspase consists of extrinsic, intrinsic or perforin/granzyme pathways that cause apoptosis in cells [40,41]. During the execution phase of cell apoptosis, the caspase-3 promotes compensatory cell growth through the production of prostaglandin E2 [42,43]. In fact, we demonstrated that DsRed-PPU7 cells proliferated after Day 5 and the number of cells reached the same number on Day 10 as that on the first day. This suggests that vital pulp therapy using MTA helps dental pulp cells adapt to an environment with harmful side effects, such as apoptosis.
In general, since adhesion cells are known to overlap between cells, DsRed-PPU7 cells on MTA disks should also be considered to always be overlapping. Therefore, there was a possibility that ambiguity would occur in the count of the number of cells with respect to cell proliferation. In order to avoid this risk, we examined whether the fluorescence intensity of cells could be replaced with the cell proliferation rate. We demonstrated that there was correlation between cell proliferation and fluorescence intensity. These results enabled us to evaluate the growth rate of cells in our subsequent experiments using fluorescence intensity.
Cell chemotaxis shows positive or negative cell motility depending on the concentration gradient of chemoattractants or chemorepellents. It was reported that dentin and pulp extracellular-matrix components containing a growth factor induce the chemotaxis of dental pulp cells [44,45]. A recent study showed that MTA promotes the chemotaxis of immune-cell migration through the activation of calcium-sensing receptors [46]. We demonstrated that cells proliferated in the central portion of the MTA disk until Day 6 after the seeding of the DsRed-PPU7 cells but then cell density increased outside the MTA disk on Day 14. Moreover, mineralized precipitates were notably observed in the central portion of the MTA disk on Day 14. These findings suggest that the mineralized precipitates were produced in the presence of DsRed-PPU7 cells and the negative chemotaxis of DsRed-PPU7 cells occurred due to environmental changes in association with mineralized precipitates.
TGF-β regulates dental pulp cell differentiation and odontoblastic differentiation, which are related to ectoderm–mesenchyme molecular interactions [47,48,49,50]. MTA contains tricalcium silicate and dicalcium silicate and the hydration (i.e., curing reaction) of those components produces calcium hydroxide and calcium silicate hydrate. Therefore, MTA and calcium hydroxide dissolve the mineral components of dentin and it is associated with releasing TGF-β remains embedded in the matrix [51]. Subsequently, TGF-β leads to activate its signaling transduction pathways to promote the formation of tertiary dentinogenesis [52]. In some studies, calcium–silicate-containing silicon dioxide was shown to stimulate the TGF-β/Smad pathway [53,54]. The present study demonstrated that TGF-β1 increased fluorescence intensity on Day 8 in the central part of the DsRed-PPU7 cells on the MTA disk in the presence of TGF-β1. In addition to this, we demonstrated that fluorescence intensity of the central part of the MTA disk cultured in the presence of rhTGF-β1 or rhBMP-2 was almost at the same level as that of the control on Day 14. This finding may suggest that neither rhTGF-β1 nor rhBMP-2 affects the movement speed of DsRed-PPU7 cells. Since our findings indicate that TGF-β1 certainly enhances the cell proliferation, it is necessary to investigate the ability of cell proliferation in the presence of MTA using dentin disk as future studies.
Two Dspp splice variants (Dspp-v1 and Dspp-v2) (Appendix A.4) and matrix metalloproteases 2 and 20 (MMP2 and MMP20) are able to be candidates for odontoblast differentiation markers [28]. That study further revealed that TGF-β1 enhanced the gene expressions of Dspp-v1, Dspp-v2 and Mmp20 [28]. The present study demonstrated that the mRNA levels of Dspp-v1, Mmp20 and Col1a1 were increased in DsRed-PPU7 cells cultured in the presence of rhTGF-β1. This finding is exactly in agreement with the results of our previous research and suggests that DsRed-PPU7 cells may have differentiated in the direction of odontoblast-like cells. In addition, our finding suggests that BMP-2 enhances the expression of odontoblastic marker genes, that is, the differentiation of odontoblast-like cells.
In general, in cases where cultured cells cannot adhere onto the carrier, apoptosis signaling occurs in the cells. To avoid this, spheroids are formed by the assembly and aggregation of cells and they secure a scaffold for each other. Even if cells adhere onto the carrier, in the case that adhesion is weak, spheroids are formed by assembly and aggregation due to cell migration on the basis of the intracellular mechanical action of the cell–substrate interaction. Because spheroids formed by a single cell do not have a vascular network such as tissues and organs in vivo, a concentration gradient of material is formed inside the spheroid. As a result, the cell niche surrounding the cell drastically changes and necrosis occurs in the central part where oxygen cannot be supplied [55,56]. We demonstrated that the spherical precipitates had a cavity inside in which no elements were detected. This finding suggests that necrosis may have occurred due to the intracellular concentration distribution of substances in DsRed-PPU7 cells, cell–cell interactions and mechanical actions associated with spheroid formation. Moreover, we demonstrated that the crystals on the surface of spherical precipitates were composed of Ca and P but Ca/P molar ratios were 0.82 to 1.15. Based on these Ca/P ratios [57], our result suggests that the platelike crystals on the surface of spherical precipitates were possibly calcium phosphate crystals, such as dicalcium phosphate dihydrate, in the process of transition from the amorphous phase.
When immersing the MTA-cured body in a phosphate buffer, calcium phosphate crystals containing an apatite-like structure on the surface of MTA are precipitated by the reaction of released calcium ions from the MTA and phosphate ions in the buffer [8]. Moreover, the sustained release of Ca ions from the cured MTA body in aqueous solutions forms a Ca-leached layer on the MTA surface [58]. We observed a high Ca concentration layer inside the triangular-pyramid-shaped precipitates containing no P or Si and crystals composed of Ca and P on the Ca-leached layer. Considering the Ca/P ratios at each point (1.63–2.01) [57], our finding suggests that some of the crystals on the triangular-pyramid-shaped precipitates may possess an apatite-like structure.

5. Conclusions

One of the novelties of this study was that the observation of cells on the MTA was possible through the introduction of fluorescent protein genes. With this approach, we were able to prove that there was a correlation between cell density and fluorescence intensity and between cell density and the cell proliferation rate. Moreover, we demonstrated the cell proliferation, cytotoxicity and chemotaxis, as well as the effect of cytokines, crystals and direction of differentiation of DsRed-PPU7 cells. Thus, our investigation showed that DsRed-PPU7 cells in direct contact with the MTA disk could differentiate into odontoblasts by controlling cell–cell and cell–substrate interactions depending on cell adhesion and the surrounding environment of the MTA. Further studies and animal experiments using human dental pulp cells are required to clarify these aspects.

Author Contributions

Conceptualization: T.H.-S., N.H. and Y.Y.; formal analysis: T.H.-S., R.C.-O., T.K. and R.Y.; investigations: T.H.-S., T.K., Y.M. and Y.Y.; data curation: T.H.-S. and Y.Y.; writing—original-draft preparation: T.H.-S. and Y.Y.; writing—review and editing: Y.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by a JSPS KAKENHI Grant-in-Aid for Scientific Research (19K10176 and 18K09627).

Acknowledgments

We thank Toshie Chiba from the Research Center of Electron Microscopy, School of Dental Medicine, Tsurumi University and Mari M. Saito and Kazuo Onuma from the Department of Biochemistry and Molecular Biology, School of Dental Medicine, Tsurumi University, for their support.

Conflicts of Interest

The authors declare that there are no conflicts of interest.

Abbreviations

MTS:3-(4,5-dimethylthiazol-2-yl)-5-(3-carboxymethoxyphentl)-2-(4-sulfophenyl)-2H-tetrazolium, inner salt).
LDN4-[6-[4-(1-piperazinyl)phenyl]pyrazolo[1,5-a]pyrimidin-3-yl]-quinolinehydrochloride.
RNAribonucleic acid
mRNAmessenger ribonucleic acid
PBSphosphate buffer saline
NaOHsodium hydroxide
MgCl2magnesium chloride.
HClhydrochloric acid
CO2carbon dioxide
Cacalcium
Pphosphorus
Sisilicon
Smadhomologs of Caenorhabditis elegans (Sma) and Drosophila (Mad) proteins

Appendix A

Appendix A.1. Fluorescence Microscope Observation of DeRed-PPU7 Cells on MTA Disk

Agarose gel is widely used as a substrate for spheroid cultures maintaining the three-dimensional structure of the cells. Focusing on its transparency and noncell adhesion, we placed the cell-adhesion surface on the MTA disk into contact with the agarose gel coated on the plate. This allowed us to prevent damage that might occur when the cell-adhesive surface on the MTA disk comes into direct contact with a plate without the agarose gel coating. In addition, this technique enabled us to observe living DsRed-PPU7 cells with an inverted fluorescence microscope.

Appendix A.2. Experimental Animal Model

As experimental animals in biology, medicine, veterinary medicine, dentistry and pharmacy, small animals such as mice and rats and medium-sized animals such as dogs have been mainly used so far. On the other hand, with the development of recent somatic cloning techniques, research of genetically modified livestock with pigs has also progressed. Since pigs are relatively close to humans physiologically and anatomically, they are expected to be used as a model for future regenerative medicine. We previously established the PPU7 cell line from porcine dental pulp cells [26] and used it for dentin-regeneration research [27,28]. Hence, we used PPU7 cells for basic research to investigate the cell dynamics on the MTA disk.

Appendix A.3. Preparation of DsRed-PPU7 Cells

Alkaline phosphatase (ALP) is known as the initial marker for the differentiation of mesenchymal cells into hard tissue-forming cells such as osteoblasts or odontoblasts [59,60]. When we previously established the porcine dental pulp cell line, we selected two clones—one with high and one with low inherent ALP activity. The cell line with high inherent ALP activity (i.e., the PPU7 cell line), cultured in the presence of BMP-2 or TGF-β, further upregulated the gene-expression level of ALP but the other cell line, with low ALP activity, had no effect [26]. This finding indicates that the differentiation of PPU7 cells requires a specific high level of inherent ALP activity.

Appendix A.4. Splice Variants of Dentin Sialophosphoprotein

Dentin sialophosphoprotein (DSPP) is an important marker of odontoblastic differentiation. We previously generated two amplification products from full-length DSPP (Dspp-v1) and DSP-only (Dspp-v2) transcripts and revealed that both DSPP-v1 and DSPP-v2 products were predominantly observed in odontoblasts, whereas only a trace expression of the DSPP-v1 transcript was detected in dental pulp [31].
Cells 09 02336 g0a1 550

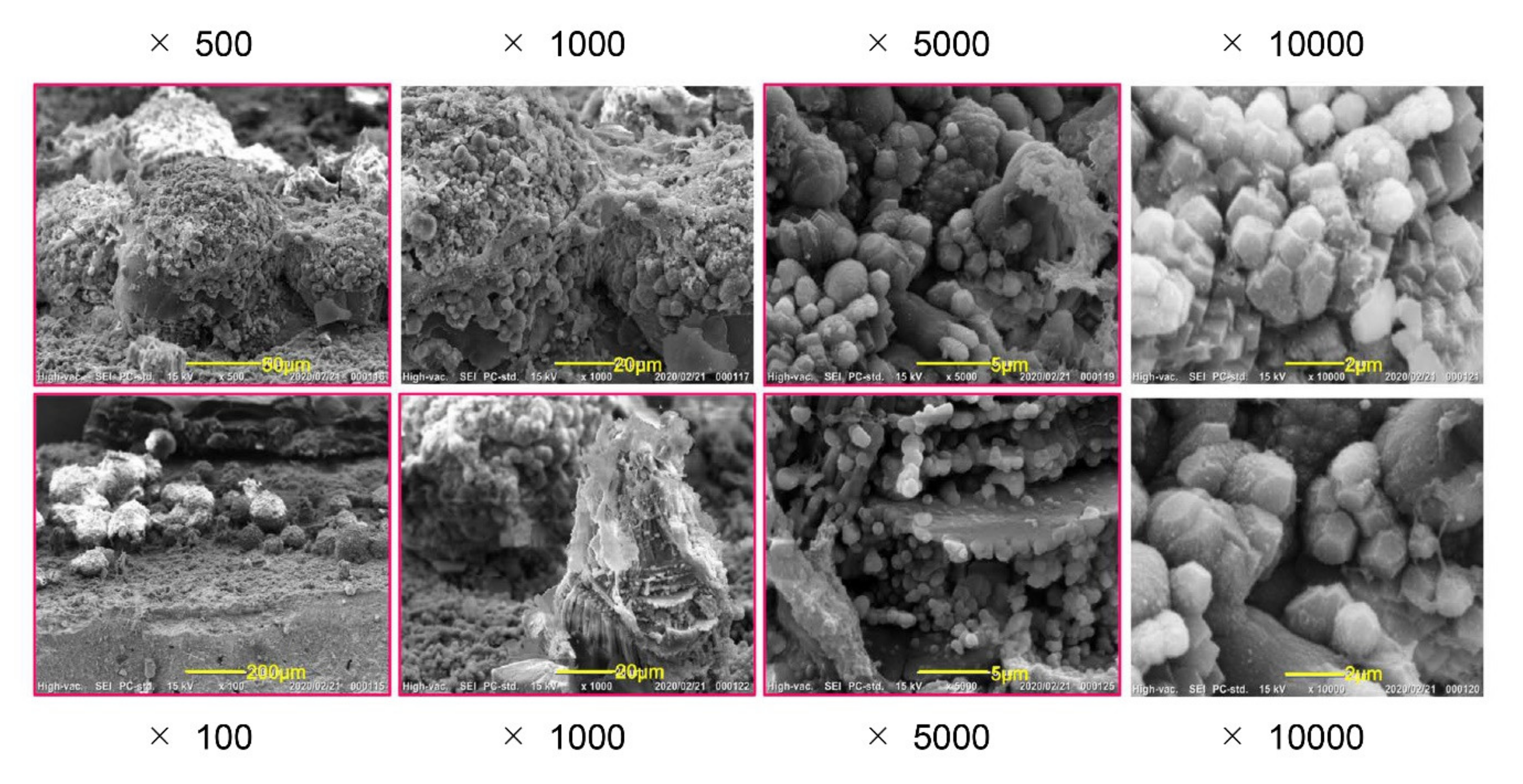

Figure A1. High magnification image (500×) of SEM observation shown in the main Figure 8b. (Scale bar: 50 μm).
Figure A1. High magnification image (500×) of SEM observation shown in the main Figure 8b. (Scale bar: 50 μm).
Cells 09 02336 g0a1
Cells 09 02336 g0a2 550
Figure A2. SEM observation of mineralized precipitates on MTA disk on day 14 cultured in the presence of LDN-193189. Each magnification and scale bar is shown in the figure. The photographs that are shown in the main Figure 9 are marked by red boxes.
Figure A2. SEM observation of mineralized precipitates on MTA disk on day 14 cultured in the presence of LDN-193189. Each magnification and scale bar is shown in the figure. The photographs that are shown in the main Figure 9 are marked by red boxes.
Cells 09 02336 g0a2
Table
Table A1. Selected primers, size of amplified product for qPCR analysis shown in the main Figure 7.
Table A1. Selected primers, size of amplified product for qPCR analysis shown in the main Figure 7.
Gene Sequence
(5′→3′) 		Size (bp) qPCR Protocol
(45 Cycles)
Dspp-v1F CCCAGAAACCCAATCAGAGA 300 Denaturation
Annealing
Extension 		95 °C, 10 s
60 °C, 10 s
72 °C, 15 s
R TATGTGTTTTGCTGGGTCCA
Dspp-v2F CCCAGAAACCCAATCAGAGA 149
R GGGAAGGAAGGGGAGAATTT
Mmp20F ATGCAGCTTACGAAGTGGCT 95
R GGGAGGACCTTGCATTTGGA
Col1a1F TGCGACGAAATCAAGAACTG 204
R TCCAGGAAGTCCAGGTTGTC
GapdhF CCATCACCATCTTCCAGGAG 346
R ACAGTCTTCTGGGTGGCAGT
F: forward and R: reverse.

References

  1. Roberts, H.W.; Toth, J.M.; Berzins, D.W.; Charlton, D.G. Mineral trioxide aggregate material use in endodontic treatment: A review of the literature. Dent. Mater. 2008, 24, 149–164. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Parirokh, M.; Torabinejad, M. Mineral Trioxide Aggregate: A Comprehensive Literature Review—Part III: Clinical Aapplications, Drawbacks, and Mechanism of Action. J. Endod. 2010, 36, 400–413. [Google Scholar] [CrossRef] [PubMed]
  3. Camilleri, J.; Pitt Ford, T.R. Mineral trioxide aggregate: A review of the constituents and biological properties of the material. Int. Endod. J. 2006, 39, 747–754. [Google Scholar] [CrossRef] [PubMed]
  4. Darvell, B.W.; Wu, R.C. “MTA”-An Hydraulic Silicate Cement: Review update and setting reaction. Dent. Mater. 2011, 27, 407–422. [Google Scholar] [CrossRef]
  5. Camilleri, J.; Montesin, F.E.; Brady, K.; Sweeney, R.; Curtis, R.V.; Ford, T.R. The constitution of mineral trioxide aggregate. Dent. Mater. 2005, 21, 297–303. [Google Scholar] [CrossRef]
  6. Dammaschke, T.; Gerth, H.U.; Züchner, H.; Schäfer, E. Chemical and physical surface and bulk material characterization of white ProRoot MTA and two Portland cements. Dent. Mater. 2005, 21, 731–738. [Google Scholar] [CrossRef]
  7. Tomás-Catalá, C.J.; Collado-González, M.; García-Bernal, D.; Oñate-Sánchez, R.E.; Forner, L.; Llena, C.; Lozano, A.; Moraleda, J.M.; Rodríguez-Lozano, F.J. Biocompatibility of New Pulp-capping Materials NeoMTA Plus, MTA Repair HP, and Biodentine on Human Dental Pulp Stem Cells. J. Endod. 2018, 44, 126–132. [Google Scholar] [CrossRef] [Green Version]
  8. Okiji, T.; Yoshiba, K. Reparative Dentinogenesis Induced by Mineral Trioxide Aggregate: A Review from the Biological and Physicochemical Points of View. Int J. Dent. 2009, 2009, 464280. [Google Scholar] [CrossRef]
  9. Eldeniz, A.U.; Hadimli, H.H.; Ataoglu, H.; Orstavik, D. Antibacterial Effect of Selected Root-End Filling Materials. J. Endod. 2006, 32, 345–349. [Google Scholar] [CrossRef]
  10. Al-Hezaimi, K.; Naghshbandi, J.; Oglesby, S.; Simon, J.H.; Rotstein, I. Comparison of Antifungal Activity of White-Colored and Gray-Colored Mineral Trioxide Aggregate (MTA) at Similar Concentrations Against Candida albicans. J. Endod. 2006, 32, 365–367. [Google Scholar] [CrossRef]
  11. Kaneko, T.; Gu, B.; Sone, P.P.; Zaw, S.Y.M.; Murano, H.; Zaw, Z.C.T.; Okiji, T. Dental Pulp Tissue Engineering Using Mesenchymal Stem Cells: A Review with a Protocol. Stem Cell Rev. Rep. 2018, 14, 668–676. [Google Scholar] [CrossRef] [PubMed]
  12. Sarkar, N.K.; Caicedo, R.; Ritwik, P.; Moiseyeva, R.; Kawashima, I. Physicochemical Basis of the Biologic Properties of Mineral Trioxide Aggregate. J. Endod. 2005, 31, 97–100. [Google Scholar] [CrossRef] [PubMed]
  13. Bozeman, T.B.; Lemon, R.R.; Eleazer, P.D. Elemental Analysis of Crystal Precipitate from Gray and White MTA. J. Endod. 2006, 32, 425–428. [Google Scholar] [CrossRef] [PubMed]
  14. Tay, F.R.; Pashley, D.H.; Rueggeberg, F.A.; Loushine, R.J.; Weller, R.N. Calcium Phosphate Phase Transformation Produced by the Interaction of the Portland Cement Component of White Mineral Trioxide Aggregate with a Phosphate-containing Fluid. J. Endod. 2007, 33, 1347–1351. [Google Scholar] [CrossRef]
  15. Reyes-Carmona, J.F.; Felippe, M.S.; Felippe, W.T. Biomineralization Ability and Interaction of Mineral Trioxide Aggregate and White Portland Cement with Dentin in a Phosphate-containing Fluid. J. Endod. 2009, 35, 731–736. [Google Scholar] [CrossRef]
  16. Han, L.; Okiji, T.; Okawa, S. Morphological and chemical analysis of different precipitates on mineral trioxide aggregate immersed in different fluids. Dent. Mater. J. 2010, 29, 512–517. [Google Scholar] [CrossRef] [Green Version]
  17. Gandolfi, M.G.; Taddei, P.; Tinti, A.; Prati, C. Apatite-forming ability (bioactivity) of ProRoot MTA. Int. Endod. J. 2010, 43, 917–929. [Google Scholar] [CrossRef]
  18. Rodrigues, E.M.; Cornélio, A.L.G.; Mestieri, L.B.; Fuentes, A.S.C.; Salles, L.P.; Rossa-Junior, C.; Faria, G.; Guerreiro-Tanomaru, J.M.; Tanomaru-Filho, M. Human dental pulp cells response to mineral trioxide aggregate (MTA) and MTA Plus: Cytotoxicity and gene expression analysis. Int. Endod. J. 2017, 50, 780–789. [Google Scholar] [CrossRef]
  19. Eid, A.A.; Gosier, J.L.; Primus, C.M.; Hammond, B.D.; Susin, L.F.; Pashley, D.H.; Tay, F.R. In Vitro Biocompatibility and Oxidative Stress Profiles of Different Hydraulic Calcium Silicate Cements. J. Endod. 2014, 40, 255–260. [Google Scholar] [CrossRef] [Green Version]
  20. Schneider, R.; Holland, G.R.; Chiego, D., Jr.; Hu, J.C.; Nör, J.E.; Botero, T.M. White Mineral Trioxide Aggregate Induces Migration and Proliferation of Stem Cells from the Apical Papilla. J. Endod. 2014, 40, 931–936. [Google Scholar] [CrossRef] [Green Version]
  21. Park, S.J.; Heo, S.M.; Hong, S.O.; Hwang, Y.C.; Lee, K.W.; Min, K.S. Odontogenic Effect of a Fast-setting Pozzolan-based Pulp Capping Material. J. Endod. 2014, 40, 1124–1131. [Google Scholar] [CrossRef]
  22. Minamikawa, H.; Yamada, M.; Deyama, Y.; Suzuki, K.; Kaga, M.; Yawaka, Y.; Ogawa, T. Effect of N-acetylcysteine on Rat Dental Pulp Cells Cultured on Mineral Trioxide Aggregate. J. Endod. 2011, 37, 637–641. [Google Scholar] [CrossRef] [PubMed]
  23. Eid, A.A.; Niu, L.N.; Primus, C.M.; Opperman, L.A.; Pashley, D.H.; Watanabe, I.; Tay, F.R. In Vitro Osteogenic/Dentinogenic Potential of an Experimental Calcium Aluminosilicate Cement. J. Endod. 2013, 39, 1161–1166. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Lee, B.N.; Lee, K.N.; Koh, J.T.; Min, K.S.; Chang, H.S.; Hwang, I.N.; Hwang, Y.C.; Oh, W.M. Effects of 3 Endodontic Bioactive Cements on Osteogenic Differentiation in Mesenchymal Stem Cells. J. Endod. 2014, 40, 1217–1222. [Google Scholar] [CrossRef] [PubMed]
  25. Tsai, C.L.; Ke, M.C.; Chen, Y.H.; Kuo, H.K.; Yu, H.J.; Chen, C.T.; Tseng, Y.C.; Chuang, P.C.; Wu, P.C. Mineral trioxide aggregate affects cell viability and induces apoptosis of stem cells from human exfoliated deciduous teeth. BMC Pharmacol. Toxicol. 2018, 19, 21. [Google Scholar] [CrossRef] [PubMed]
  26. Karakida, T.; Onuma, K.; Saito, M.M.; Yamamoto, R.; Chiba, T.; Chiba, R.; Hidaka, Y.; Fujii-Abe, K.; Kawahara, H.; Yamakoshi, Y. Potential for Drug Repositioning of Midazolam for Dentin Regeneration. Int. J. Mol. Sci. 2019, 20, 670. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Yamakawa, S.; Niwa, T.; Karakida, T.; Kobayashi, K.; Yamamoto, R.; Chiba, R.; Yamakoshi, Y.; Hosoya, N. Effects of Er:YAG and Diode Laser Irradiation on Dental Pulp Cells and Tissues. Int. J. Mol. Sci. 2018, 19, 2429. [Google Scholar] [CrossRef] [Green Version]
  28. Niwa, T.; Yamakoshi, Y.; Yamazaki, H.; Karakida, T.; Chiba, R.; Hu, J.C.; Nagano, T.; Yamamoto, R.; Simmer, J.P.; Margolis, H.C.; et al. The dynamics of TGF-β in dental pulp, odontoblasts and dentin. Sci. Rep. 2018, 8, 4450. [Google Scholar] [CrossRef] [Green Version]
  29. Nagano, T.; Oida, S.; Suzuki, S.; Iwata, T.; Yamakoshi, Y.; Ogata, Y.; Gomi, K.; Arai, T.; Fukae, M. Porcine Enamel Protein Fractions Contain Transforming Growth Factor-β1. J. Periodontol. 2006, 77, 1688–1694. [Google Scholar] [CrossRef] [Green Version]
  30. Maruoka, Y.; Oida, S.; Iimura, T.; Takeda, K.; Asahina, I.; Enomoto, S.; Sasaki, S. Production of functional human bone morphogenetic protein-2 using a baculovirus/Sf-9 insect cell system. Biochem. Mol. Biol. Int. 1995, 35, 957–963. [Google Scholar]
  31. Yamamoto, R.; Oida, S.; Yamakoshi, Y. Dentin Sialophosphoprotein-derived Proteins in the Dental Pulp. J. Dent. Res. 2015, 94, 1120–1127. [Google Scholar] [CrossRef] [PubMed]
  32. Hosoya, N.; Takigawa, T.; Horie, T.; Maeda, H.; Yamamoto, Y.; Momoi, Y.; Yamamoto, K.; Okiji, T. A review of the literature on the efficacy of mineral trioxide aggregate in conservative dentistry. Dent. Mater. J. 2019, 38, 693–700. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Takita, T.; Hayashi, M.; Takeichi, O.; Ogiso, B.; Suzuki, N.; Otsuka, K.; Ito, K. Effect of mineral trioxide aggregate on proliferation of cultured human dental pulp cells. Int. Endod. J. 2006, 39, 415–422. [Google Scholar] [CrossRef] [PubMed]
  34. Matz, M.V.; Fradkov, A.F.; Labas, Y.A.; Savitsky, A.P.; Zaraisky, A.G.; Markelov, M.L.; Lukyanov, S.A. Fluorescent proteins from nonbioluminescent Anthozoa species. Nat. Biotechnol. 1999, 17, 969–973. [Google Scholar] [CrossRef] [PubMed]
  35. Strack, R.L.; Strongin, D.E.; Bhattacharyya, D.; Tao, W.; Berman, A.; Broxmeyer, H.E.; Keenan, R.J.; Glick, B.S. A noncytotoxic DsRed variant for whole-cell labeling. Nat. Methods 2008, 5, 955–957. [Google Scholar] [CrossRef] [Green Version]
  36. Torabinejad, M.; Hong, C.U.; McDonald, F.; Pitt Ford, T.R. Physical and Chemical Properties of a New Root-End Filling Material. J. Endod. 1995, 21, 349–353. [Google Scholar] [CrossRef]
  37. Fridland, M.; Rosado, R. Mineral Trioxide Aggregate (MTA) Solubility and Porosity with Different Water-to-Powder Ratios. J. Endod. 2003, 29, 814–817. [Google Scholar] [CrossRef] [Green Version]
  38. Fridland, M.; Rosado, R. MTA Solubility: A Long Term Study. J. Endod. 2005, 31, 376–379. [Google Scholar] [CrossRef]
  39. Saidon, J.; He, J.; Zhu, Q.; Safavi, K.; Spångberg, L.S. Cell and tissue reactions to mineral trioxide aggregate and Portland cement. Oral Surg. Oral Med. Oral Pathol. Oral Radiol. 2003, 95, 483–489. [Google Scholar] [CrossRef] [Green Version]
  40. Elmore, S. Apoptosis: A Review of Programmed Cell Death. Toxicol. Pathol. 2007, 35, 495–516. [Google Scholar] [CrossRef]
  41. Harrington, H.A.; Ho, K.L.; Ghosh, S.; Tung, K.C. Construction and analysis of a modular model of caspase activation in apoptosis. Theor. Biol. Med. Model. 2008, 5, 26. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Huang, Q.; Li, F.; Liu, X.; Li, W.; Shi, W.; Liu, F.F.; O’Sullivan, B.; He, Z.; Peng, Y.; Tan, A.C.; et al. Caspase 3-mediated stimulation of tumor cell repopulation during cancer radiotherapy. Nat. Med. 2011, 17, 860–866. [Google Scholar] [CrossRef]
  43. Ohsawa, S.; Hamada, S.; Asou, H.; Kuida, K.; Uchiyama, Y.; Yoshida, H.; Miura, M. Caspase-9 Activation Revealed by Semaphorin 7A Cleavage Is Independent of Apoptosis in the Aged Olfactory Bulb. J. Neurosci. 2009, 29, 11385–11392. [Google Scholar] [CrossRef] [PubMed]
  44. Matsushita, K.; Motani, R.; Sakuta, T.; Yamaguchi, N.; Koga, T.; Matsuo, K.; Nagaoka, S.; Abeyama, K.; Maruyama, I.; Torii, M. The Role of Vascular Endothelial Growth Factor in Human Dental Pulp Cells: Induction of Chemotaxis, Proliferation, and Differentiation and Activation of the AP-1-dependent Signaling Pathway. J. Dent. Res. 2000, 79, 1596–1603. [Google Scholar] [CrossRef] [PubMed]
  45. Smith, J.G.; Smith, A.J.; Shelton, R.M.; Cooper, P.R. Recruitment of dental pulp cells by dentine and pulp extracellular matrix components. Exp. Cell Res. 2012, 318, 2397–2406. [Google Scholar] [CrossRef] [PubMed]
  46. Chang, F.; Kim, J.M.; Choi, Y.; Park, K. MTA promotes chemotaxis and chemokinesis of immune cells through distinct calcium-sensing receptor signaling pathways. Biomaterials 2018, 150, 14–24. [Google Scholar] [CrossRef]
  47. Yang, X.; van der Kraan, P.M.; van den Dolder, J.; Walboomers, X.F.; Bian, Z.; Fan, M.; Jansen, J.A. STRO-1 Selected Rat Dental Pulp Stem Cells Transfected with Adenoviral-Mediated Human Bone Morphogenetic Protein 2 Gene Show Enhanced Odontogenic Differentiation. Tissue Engi. 2007, 13, 2803–2812. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Ohazama, A.; Tucker, A.; Sharpe, P.T. Organized Tooth-specific Cellular Differentiation Stimulated by BMP4. J. Dent. Res. 2005, 84, 603–606. [Google Scholar] [CrossRef]
  49. Tjäderhane, L.; Koivumäki, S.; Pääkkönen, V.; Ilvesaro, J.; Soini, Y.; Salo, T.; Metsikkö, K.; Tuukkanen, J. Polarity of Mature Human Odontoblasts. J. Dent. Res. 2013, 92, 1011–1016. [Google Scholar] [CrossRef]
  50. Li, Y.; Lu, X.; Sun, X.; Bai, S.; Li, S.; Shi, J. Odontoblast-like cell differentiation and dentin formation induced with TGF-β1. Arch. Oral Biol. 2011, 56, 1221–1229. [Google Scholar] [CrossRef]
  51. Tomson, P.L.; Grover, L.M.; Lumley, P.J.; Sloan, A.J.; Smith, A.J.; Cooper, P.R. Dissolution of bio-active dentine matrix components by mineral trioxide aggregate. J. Dent. 2007, 35, 636–642. [Google Scholar] [CrossRef]
  52. Da Rosa, W.L.O.; Piva, E.; da Silva, A.F. Disclosing the physiology of pulp tissue for vital pulp therapy. Int. Endod. J. 2018, 51, 829–846. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Yu, J.; Xu, L.; Li, K.; Xie, N.; Xi, Y.; Wang, Y.; Zheng, X.; Chen, X.; Wang, M.; Ye, X. Zinc-modified Calcium Silicate Coatings Promote Osteogenic Differentiation through TGF-β/Smad Pathway and Osseointegration in Osteopenic Rabbits. Sci. Rep. 2017, 7, 3440. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Yu, Y.; Duan, J.; Li, Y.; Li, Y.; Jing, L.; Yang, M.; Wang, J.; Sun, Z. Silica nanoparticles induce liver fibrosis via TGF-β1/Smad3 pathway in ICR mice. Int. J. Nanomed. 2017, 12, 6045–6057. [Google Scholar] [CrossRef] [Green Version]
  55. Hirschhaeuser, F.; Menne, H.; Dittfeld, C.; West, J.; Mueller-Klieser, W.; Kunz-Schughart, L.A. Multicellular tumor spheroids: An underestimated tool is catching up again. J. Biotechnol. 2010, 148, 3–15. [Google Scholar] [CrossRef] [PubMed]
  56. Anada, T.; Fukuda, J.; Sai, Y.; Suzuki, O. An oxygen-permeable spheroid culture system for the prevention of central hypoxia and necrosis of spheroids. Biomaterials 2012, 33, 8430–8441. [Google Scholar] [CrossRef] [PubMed]
  57. Wang, L.; Nancollas, G.H. Calcium Orthophosphates: Crystallization and Dissolution. Chem. Rev. 2008, 108, 4628–4669. [Google Scholar] [CrossRef] [Green Version]
  58. Kuratate, M.; Shigetani, Y.; Han, L.; Okiji, T. Compositional Change of Mineral Trioxide Aggregate Immersed in Water: Alteration of Elemental Distribution in the Surface Layer. Jpn. J. Coservative Dent. 2009, 52, 348–354. [Google Scholar]
  59. Sloan, A.J.; Rutherford, R.B.; Smith, A.J. Stimulation of the rat dentine–pulp complex by bone morphogenetic protein-7 in vitro. Arch. Oral Biol. 2000, 45, 173–177. [Google Scholar] [CrossRef]
  60. Chen, S.; Gu, T.T.; Sreenath, T.; Kulkarni, A.B.; Karsenty, G.; MacDougall, M. Spatial Expression of Cbfa1/Runx2 Isoforms in Teeth and Characterization of Binding Sites in the DSPP Gene. Connect. Tissue Res. 2002, 43, 338–344. [Google Scholar] [CrossRef]
Cells 09 02336 g001 550

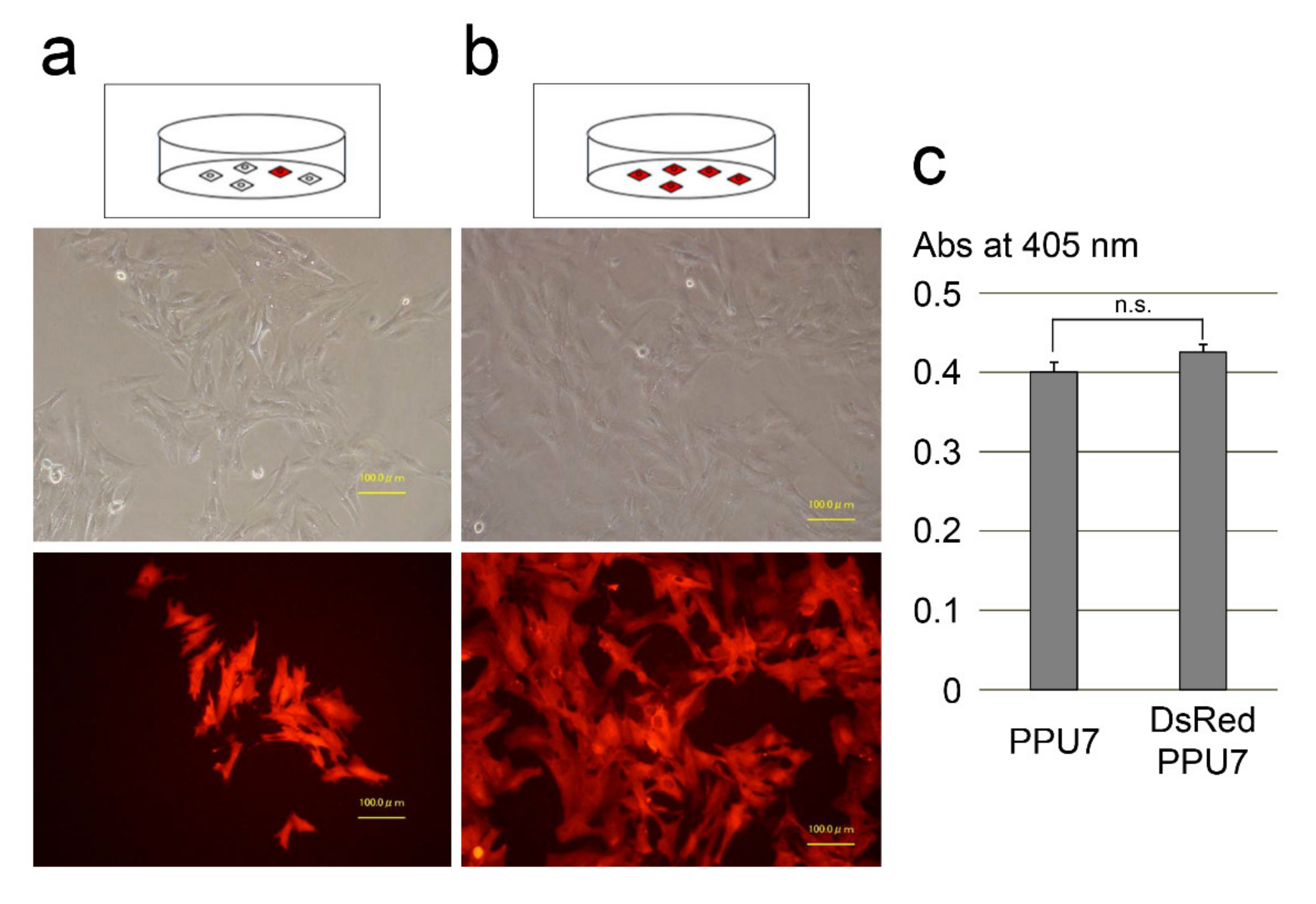

Figure 1. Gene transfection of Discosoma species’ red fluorescent protein (DsRed) into a porcine dental pulp cell line (PPU7). (a) DsRed-PPU7 cells immediately after liposome transfection (scale bar: 100 μm). (b) DsRed-PPU7 cells obtained by cloning with limited dilution (scale bar: 100 μm). (c) Inherent alkaline phosphatase (ALP) activity in cells before (PPU7) and after (DsRed-PPU7) gene transfection (n = 6). n.s., not significant difference.
Figure 1. Gene transfection of Discosoma species’ red fluorescent protein (DsRed) into a porcine dental pulp cell line (PPU7). (a) DsRed-PPU7 cells immediately after liposome transfection (scale bar: 100 μm). (b) DsRed-PPU7 cells obtained by cloning with limited dilution (scale bar: 100 μm). (c) Inherent alkaline phosphatase (ALP) activity in cells before (PPU7) and after (DsRed-PPU7) gene transfection (n = 6). n.s., not significant difference.
Cells 09 02336 g001
Cells 09 02336 g002 550
Figure 2. Cytotoxicity of mineral trioxide aggregate (MTA) based on the cell proliferation rate of DsRed-PPU7 cells cultured in standard medium. (a) MTA disk constructed using a silicon mold (10 mm in diameter with 1.8 mm thickness). (b) Schema for observation of living DsRed-PPU7 cells on MTA disks using agarose gel. (c) Fluorescence microscope image of DsRed-PPU7 cells on MTA disks on Days 1, 3, 5, 7, 8 and 10. (d) Changes in the number of DsRed-PPU7 cells on Days 1, 3, 5, 7, 8 and 10. Cells were counted by randomly selecting nine squares (300 μm × 300 μm) using Image J (n = 6).
Figure 2. Cytotoxicity of mineral trioxide aggregate (MTA) based on the cell proliferation rate of DsRed-PPU7 cells cultured in standard medium. (a) MTA disk constructed using a silicon mold (10 mm in diameter with 1.8 mm thickness). (b) Schema for observation of living DsRed-PPU7 cells on MTA disks using agarose gel. (c) Fluorescence microscope image of DsRed-PPU7 cells on MTA disks on Days 1, 3, 5, 7, 8 and 10. (d) Changes in the number of DsRed-PPU7 cells on Days 1, 3, 5, 7, 8 and 10. Cells were counted by randomly selecting nine squares (300 μm × 300 μm) using Image J (n = 6).
Cells 09 02336 g002
Cells 09 02336 g003 550

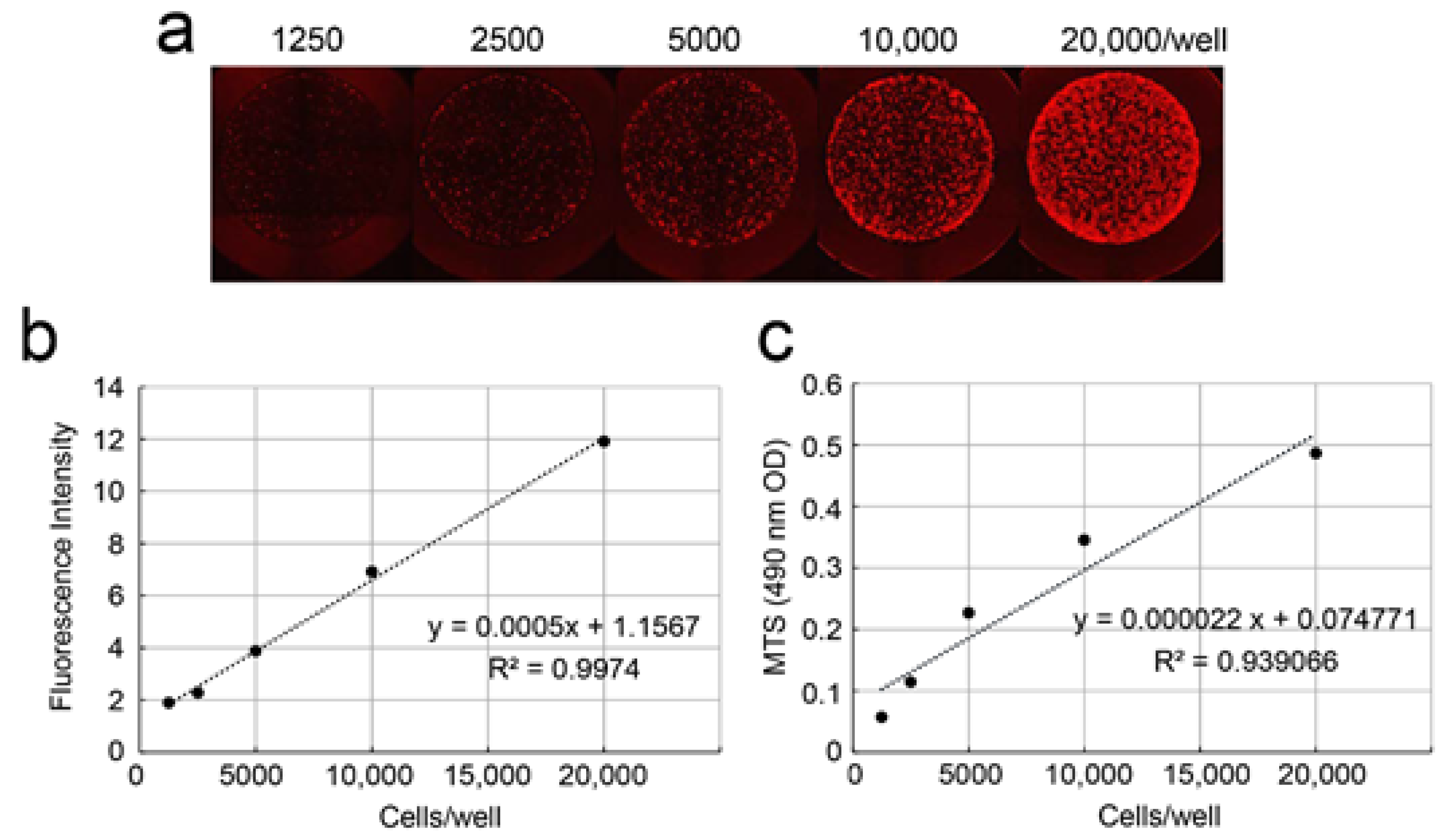

Figure 3. Correlation of fluorescence intensity and the cell proliferation rate with the cell density of DsRed-PPU7 cells. (a) Fluorescence microscope image of DsRed-PPU7 cells seeded on a 96-well plate at a density of 1250, 2500, 5000, 10,000 and 20,000 cells/well. (b) Regression line showing the correlation of the fluorescence intensity with cell density. (c) Regression line showing the correlation of cell proliferation with cell density by MTS assay.
Figure 3. Correlation of fluorescence intensity and the cell proliferation rate with the cell density of DsRed-PPU7 cells. (a) Fluorescence microscope image of DsRed-PPU7 cells seeded on a 96-well plate at a density of 1250, 2500, 5000, 10,000 and 20,000 cells/well. (b) Regression line showing the correlation of the fluorescence intensity with cell density. (c) Regression line showing the correlation of cell proliferation with cell density by MTS assay.
Cells 09 02336 g003
Cells 09 02336 g004 550

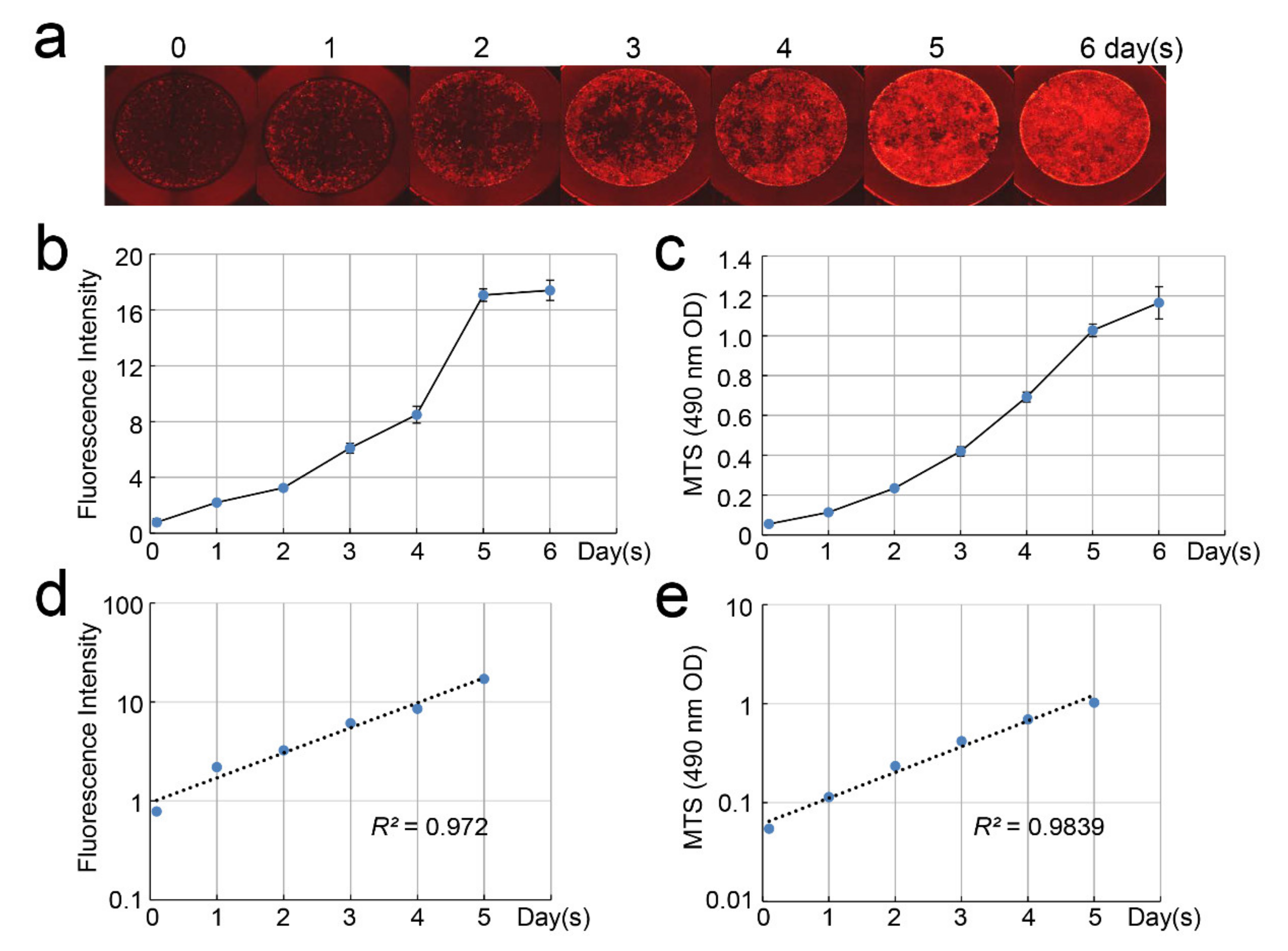

Figure 4. Correlation of fluorescence intensity and the cell proliferation rate with number of cell-culture days. (a) Fluorescence microscope image of DsRed-PPU7 cells seeded on a 96-well plate at 2000 cells/well and cultured for 6 days. (b) Changes in the fluorescence intensity of DsRed-PPU7 cells (n = 6). (c) Changes in the cell proliferation rate of DsRed-PPU7 cells based on MTS assay (n = 6). (d) Regression line showing the correlation of fluorescence intensity with culture days. (e) Regression line showing the correlation of the cell proliferation rate with culture days.
Figure 4. Correlation of fluorescence intensity and the cell proliferation rate with number of cell-culture days. (a) Fluorescence microscope image of DsRed-PPU7 cells seeded on a 96-well plate at 2000 cells/well and cultured for 6 days. (b) Changes in the fluorescence intensity of DsRed-PPU7 cells (n = 6). (c) Changes in the cell proliferation rate of DsRed-PPU7 cells based on MTS assay (n = 6). (d) Regression line showing the correlation of fluorescence intensity with culture days. (e) Regression line showing the correlation of the cell proliferation rate with culture days.
Cells 09 02336 g004
Cells 09 02336 g005 550

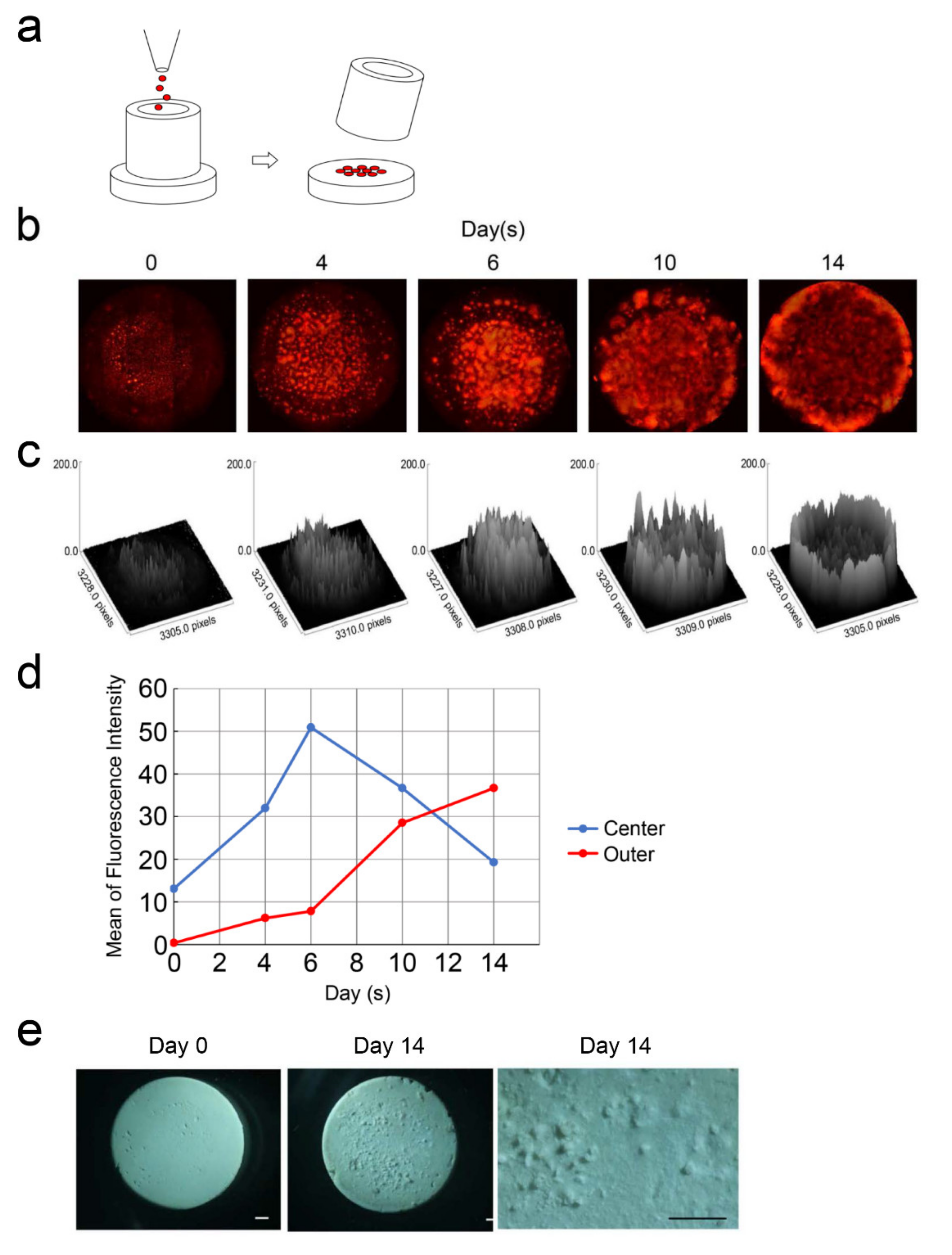

Figure 5. Chemotaxis of DsRed-PPU7 cells and mineralized precipitates on MTA disks. (a) Schema of DsRed-PPU7 cell seeding on MTA disks using a cloning cylinder. (b) Fluorescence microscope image of DsRed-PPU7 cells on MTA disks on Days 0, 4, 6, 10 and 14. (c) Three-dimensional images of fluorescence intensity of DsRed-PPU7 cells on MTA disk on Days 0, 4, 6, 10 and 14. (d) Changes in the fluorescence intensity of DsRed-PPU7 cells in the central or outer portion of MTA disks over time. (e) Stereomicroscope image of mineralized precipitates on MTA disks on Days (left) 0 and (middle) 14 and (right) a high-magnification image on Day 14 (scale bar: 1 mm).
Figure 5. Chemotaxis of DsRed-PPU7 cells and mineralized precipitates on MTA disks. (a) Schema of DsRed-PPU7 cell seeding on MTA disks using a cloning cylinder. (b) Fluorescence microscope image of DsRed-PPU7 cells on MTA disks on Days 0, 4, 6, 10 and 14. (c) Three-dimensional images of fluorescence intensity of DsRed-PPU7 cells on MTA disk on Days 0, 4, 6, 10 and 14. (d) Changes in the fluorescence intensity of DsRed-PPU7 cells in the central or outer portion of MTA disks over time. (e) Stereomicroscope image of mineralized precipitates on MTA disks on Days (left) 0 and (middle) 14 and (right) a high-magnification image on Day 14 (scale bar: 1 mm).
Cells 09 02336 g005
Cells 09 02336 g006 550

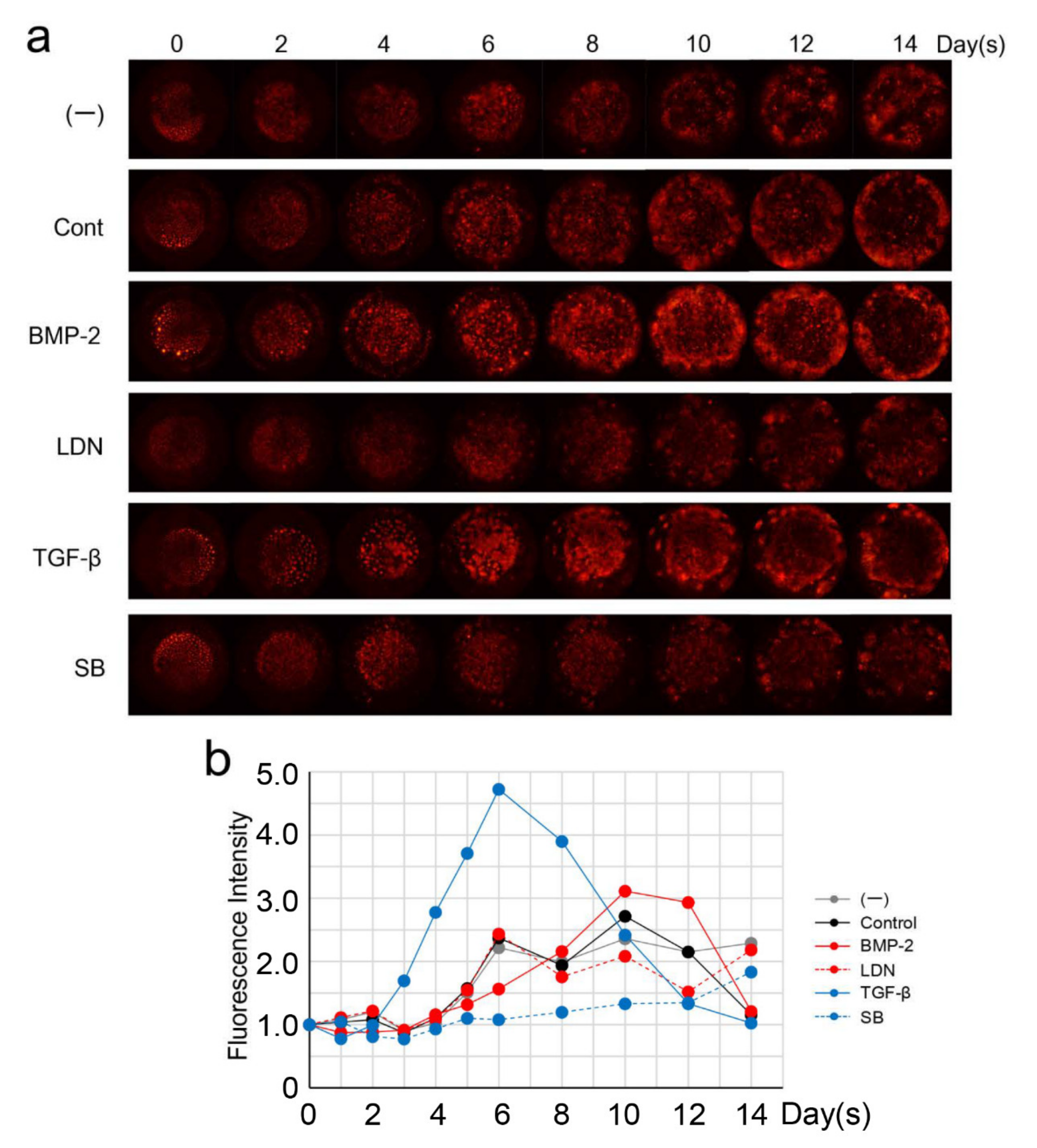

Figure 6. Effect of BMP-2 and TGF-β1 on the cell proliferation of DsRed-PPU7 cells on MTA disks. (a) Fluorescence microscope image of DsRed-PPU7 cells on MTA disks cultured in the absence (control) or presence of rhBMP-2 (BMP-2), LDN-193189 (LDN), rhTGF-β1 (TGF-β) or SB-431542 (SB). Cells were photographed every 2 days for 14 days with an exposure time of 1/20 s. DsRed-PPU7 cells were also cultured in standard medium (-) to compare with those cultured on the growth medium. (b) Changes over time in the fluorescence intensity of DsRed-PPU7 cells cultured under the above conditions.
Figure 6. Effect of BMP-2 and TGF-β1 on the cell proliferation of DsRed-PPU7 cells on MTA disks. (a) Fluorescence microscope image of DsRed-PPU7 cells on MTA disks cultured in the absence (control) or presence of rhBMP-2 (BMP-2), LDN-193189 (LDN), rhTGF-β1 (TGF-β) or SB-431542 (SB). Cells were photographed every 2 days for 14 days with an exposure time of 1/20 s. DsRed-PPU7 cells were also cultured in standard medium (-) to compare with those cultured on the growth medium. (b) Changes over time in the fluorescence intensity of DsRed-PPU7 cells cultured under the above conditions.
Cells 09 02336 g006
Cells 09 02336 g007 550
Figure 7. Effect of BMP-2, TGF-β1, LDN-193189 and SB-431542 on the expression of the odontoblastic marker gene in DsRed-PPU7 cells. qPCR analysis on Day 14 after culture in the absence (control) or presence of rhBMP-2 (BMP-2), LDN-193189 (LDN), rhTGF-β1 (TGF-β) or SB-431542 (SB) (n = 6). Dspp-v1: dentin sialophosphoprotein variant 1; Dspp-v2: dentin sialophosphoprotein variant 2; Mmp20, matrix metalloprotease 20; Col1a1: Type I collagen alpha 1 chain. All expression levels indicated an increasing or decreasing ratio when the mRNA level of the control was 1. All values are presented as the mean ± standard error (SEM); an asterisk indicates a significant difference from the control (* p < 0.05, Student’s t-test).
Figure 7. Effect of BMP-2, TGF-β1, LDN-193189 and SB-431542 on the expression of the odontoblastic marker gene in DsRed-PPU7 cells. qPCR analysis on Day 14 after culture in the absence (control) or presence of rhBMP-2 (BMP-2), LDN-193189 (LDN), rhTGF-β1 (TGF-β) or SB-431542 (SB) (n = 6). Dspp-v1: dentin sialophosphoprotein variant 1; Dspp-v2: dentin sialophosphoprotein variant 2; Mmp20, matrix metalloprotease 20; Col1a1: Type I collagen alpha 1 chain. All expression levels indicated an increasing or decreasing ratio when the mRNA level of the control was 1. All values are presented as the mean ± standard error (SEM); an asterisk indicates a significant difference from the control (* p < 0.05, Student’s t-test).
Cells 09 02336 g007
Cells 09 02336 g008 550

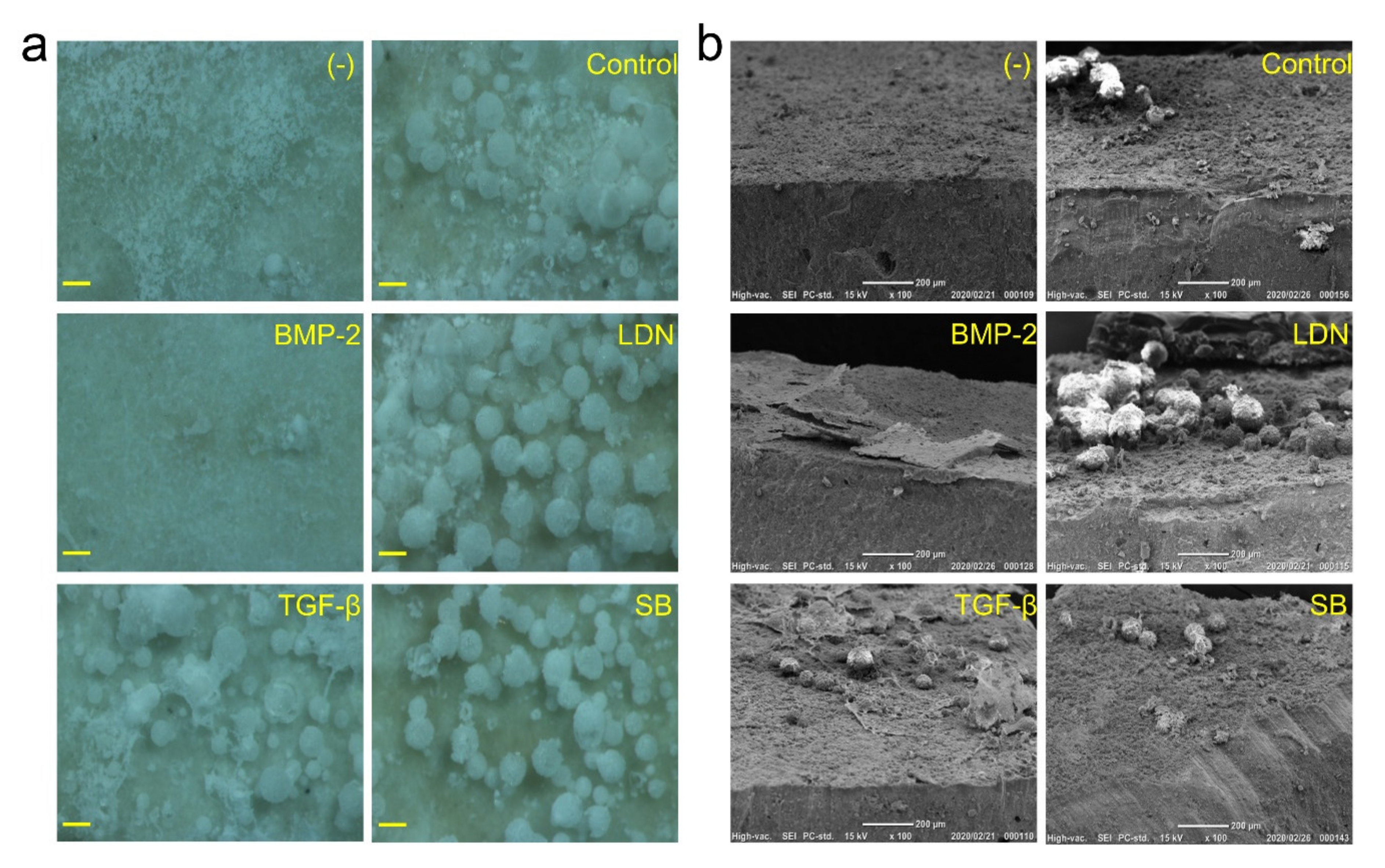

Figure 8. Morphological analysis of mineralized precipitates formed on MTA disks. (a) Stereomicroscope image and (b) SEM photograph of the surface of the MTA disk on Day 14 cultured with standard medium (-) or growth medium in the absence (control) or presence of rhBMP-2 (BMP-2), LDN-193189 (LDN), rhTGF-β1 (TGF-β) or SB-431542 (SB). (magnification: 100×; scale bar: 100 μm for stereomicroscope image and 200 μm for SEM).
Figure 8. Morphological analysis of mineralized precipitates formed on MTA disks. (a) Stereomicroscope image and (b) SEM photograph of the surface of the MTA disk on Day 14 cultured with standard medium (-) or growth medium in the absence (control) or presence of rhBMP-2 (BMP-2), LDN-193189 (LDN), rhTGF-β1 (TGF-β) or SB-431542 (SB). (magnification: 100×; scale bar: 100 μm for stereomicroscope image and 200 μm for SEM).
Cells 09 02336 g008
Cells 09 02336 g009 550

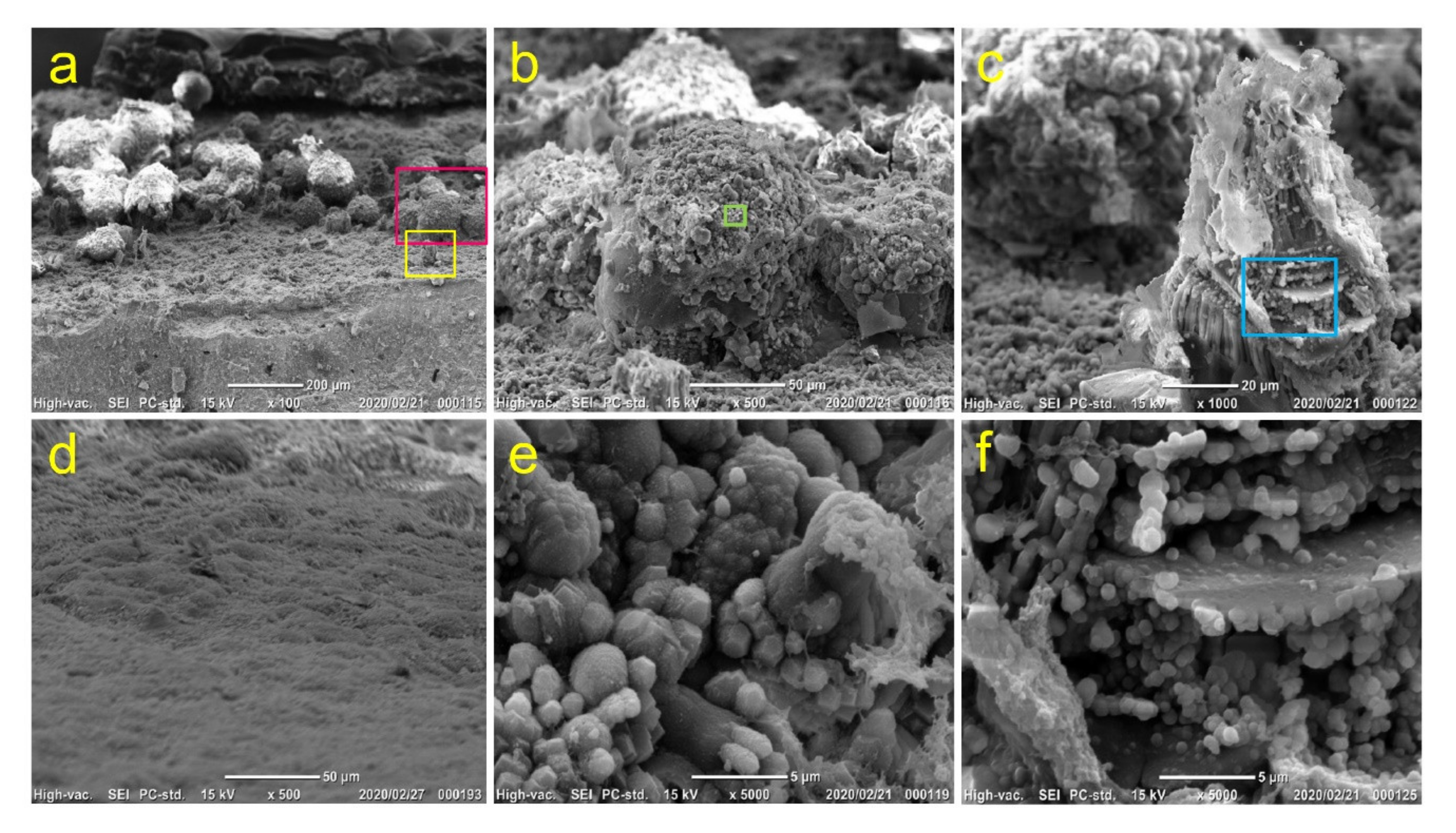

Figure 9. SEM observation of mineralized precipitates on MTA disks on Day 14 cultured in the presence of LDN-193189. (a) Surface of an MTA disk; high-magnification image of (b) red and (c) yellow boxed areas in (a); (d) MTA disk surface cultured without DsRed-PPU7 cells; high-magnification image of (e) green and (f) blue boxed areas in (b) and (c). (magnification: (a) 100×, (b,d) 500×, (c) 1000×, (e,f) 5000×; scale bar: (a) 200, (b,d) 50, (c) 20 and (e,f) 5 μm).
Figure 9. SEM observation of mineralized precipitates on MTA disks on Day 14 cultured in the presence of LDN-193189. (a) Surface of an MTA disk; high-magnification image of (b) red and (c) yellow boxed areas in (a); (d) MTA disk surface cultured without DsRed-PPU7 cells; high-magnification image of (e) green and (f) blue boxed areas in (b) and (c). (magnification: (a) 100×, (b,d) 500×, (c) 1000×, (e,f) 5000×; scale bar: (a) 200, (b,d) 50, (c) 20 and (e,f) 5 μm).
Cells 09 02336 g009
Cells 09 02336 g010 550
Figure 10. Electron-probe microanalysis (EPMA)-based elemental-mapping images of Ca, P and Si in representative mineralized precipitates. (a) Spherical and (b) triangular-pyramid-shaped precipitates (scale bar (a) 50 and (b) 20 μm). Ca/P molar ratios of each point, calculated on the basis of fluorite, were 0.82 for A, 1.15 for B, 1.95 for C, 1.63 for D, 1.69 for E and 2.01 for F.
Figure 10. Electron-probe microanalysis (EPMA)-based elemental-mapping images of Ca, P and Si in representative mineralized precipitates. (a) Spherical and (b) triangular-pyramid-shaped precipitates (scale bar (a) 50 and (b) 20 μm). Ca/P molar ratios of each point, calculated on the basis of fluorite, were 0.82 for A, 1.15 for B, 1.95 for C, 1.63 for D, 1.69 for E and 2.01 for F.
Cells 09 02336 g010
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Hattori-Sanuki, T.; Karakida, T.; Chiba-Ohkuma, R.; Miake, Y.; Yamamoto, R.; Yamakoshi, Y.; Hosoya, N. Characterization of Living Dental Pulp Cells in Direct Contact with Mineral Trioxide Aggregate. Cells 2020, 9, 2336. https://doi.org/10.3390/cells9102336

AMA Style

Hattori-Sanuki T, Karakida T, Chiba-Ohkuma R, Miake Y, Yamamoto R, Yamakoshi Y, Hosoya N. Characterization of Living Dental Pulp Cells in Direct Contact with Mineral Trioxide Aggregate. Cells. 2020; 9(10):2336. https://doi.org/10.3390/cells9102336

Chicago/Turabian Style

Hattori-Sanuki, Tamaki, Takeo Karakida, Risako Chiba-Ohkuma, Yasuo Miake, Ryuji Yamamoto, Yasuo Yamakoshi, and Noriyasu Hosoya. 2020. "Characterization of Living Dental Pulp Cells in Direct Contact with Mineral Trioxide Aggregate" Cells 9, no. 10: 2336. https://doi.org/10.3390/cells9102336

APA Style

Hattori-Sanuki, T., Karakida, T., Chiba-Ohkuma, R., Miake, Y., Yamamoto, R., Yamakoshi, Y., & Hosoya, N. (2020). Characterization of Living Dental Pulp Cells in Direct Contact with Mineral Trioxide Aggregate. Cells, 9(10), 2336. https://doi.org/10.3390/cells9102336

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
