Cells 2019, 8(9), 986; https://doi.org/10.3390/cells8090986

Article
RNA Sequencing of H3N2 Influenza Virus-Infected Human Nasal Epithelial Cells from Multiple Subjects Reveals Molecular Pathways Associated with Tissue Injury and Complications
1
Department of Otolaryngology, Yong Loo Lin School of Medicine, National University of Singapore, Singapore 119228, Singapore
2
Singapore Immunology Network (SIgN), A*STAR, Singapore 138648, Singapore
3
Center for Interventional Medicine, The Fifth Affiliated Hospital of Sun Yat-sen University, Zhuhai 519000, China
4
Division of Respiratory and Critical Care Medicine, National University Hospital, Singapore 119074, Singapore
5
Department of Medicine, Yong Loo Lin School of Medicine, National University of Singapore, Singapore 117597, Singapore
6
Institute of Molecular and Cell Biology, A*STAR, Singapore 138673, Singapore
7
Department of Microbiology and Immunology, Yong Loo Lin School of Medicine, National University of Singapore, Singapore 117545, Singapore
*
Correspondence: [email protected] (V.T.C.); [email protected] (D.Y.W.)
These authors contributed equally to this work.
These authors contributed equally to this work.
Received: 5 July 2019 / Accepted: 23 August 2019 / Published: 27 August 2019

Abstract

:
The human nasal epithelium is the primary site of exposure to influenza virus, the initiator of host responses to influenza and the resultant pathologies. Influenza virus may cause serious respiratory infection resulting in major complications, as well as severe impairment of the airways. Here, we elucidated the global transcriptomic changes during H3N2 infection of human nasal epithelial cells from multiple individuals. Using RNA sequencing, we characterized the differentially-expressed genes and pathways associated with changes occurring at the nasal epithelium following infection. We used in vitro differentiated human nasal epithelial cell culture model derived from seven different donors who had no concurrent history of viral infections. Statistical analysis highlighted strong transcriptomic signatures significantly associated with 24 and 48 h after infection, but not at the earlier 8-h time point. In particular, we found that the influenza infection induced in the nasal epithelium early and altered responses in interferon gamma signaling, B-cell signaling, apoptosis, necrosis, smooth muscle proliferation, and metabolic alterations. These molecular events initiated at the infected nasal epithelium may potentially adversely impact the airway, and thus the genes we identified could serve as potential diagnostic biomarkers or therapeutic targets for influenza infection and associated disease management.
Keywords:
influenza; H3N2 virus; human nasal epithelial cells (hNECs); RNA sequencing; transcriptomics; epithelial responses; pathogenesis

1. Introduction

The global burden of inter-pandemic influenza is high. It is estimated to affect 1 billion people annually, with 3–5 million severe cases requiring hospitalization or intensive care treatment, resulting in approximately 0.5 million deaths [1]. Worryingly, drug-resistant influenza strains are emerging at a rapid rate that will severely hamper the ability of our healthcare systems to contain influenza outbreaks [2]. Therefore, alternative strategies are needed against severe influenza infections during both seasonal and pandemic influenza outbreaks.
The normal human airway epithelium is a pseudo-stratified layer of ciliated and non-ciliated columnar cells, goblet cells, club cells, and basal cells [3]. The airway epithelium protects against airway infection via efficient mucociliary clearance (MCC), the production of inflammatory mediators and chemokines against viruses, and the recruitment of immune cells [4]. When the influenza virus breaches the defense of the human airway epithelium, it causes a myriad of innate responses by the infected host in response to viral invasion [5,6]. Among these changes are critical factors that can determine disease severity, and which may lead to the development of diagnostic, prognostic prediction markers, or anti-influenza therapies [7,8,9,10]. However, few studies have hitherto been performed in relevant models [11] and human models of influenza are not feasible due to potential severity of the infection. Therefore, the mechanistic study of viral-induced airway changes using relevant models can lead to better understanding of the development of severe complications. Additionally, we need greater clarity on the different immune responses in view of the rising prevalence of chronic diseases such as diabetes mellitus and asthma. Patients with these disorders are especially susceptible to severe influenza complications compared to healthy subjects [12]. Thus, the establishment of a baseline response against influenza infection of “healthy” tissue is beneficial to facilitate future comparative studies to better manage influenza in patients with co-morbidities.
Although the study of host responses in influenza infection is not new, current in vitro cell lines cannot accurately represent human airway infection due to the lack of key mucociliary features [13]. Hence, we have previously developed an air–liquid interface (ALI) human airway epithelial cell culture that is able to sustain influenza infection [5,6]. We have also further compared the transcriptomic responses of our infected human nasal epithelial cells (hNECs) with 15 other in vitro and in vivo influenza infection transcriptomic studies [6]. The comparison revealed that at their peak responses against influenza, the differential transcriptome signature in hNECs was highly similar to the signatures from other influenza infection models [6]. Interestingly, compared to the homogenous cell lines tested, our heterogenous hNEC model exhibited a more comparable response to the clinical influenza studies, indicating that most responses were initiated at the nasal epithelium [6]. Therefore, in this study, we aim to further utilize the hNEC model as a physiologically relevant in vitro model to clarify the nasal epithelial responses against influenza H3N2 infection, which would then facilitate the identification of the key host factors that are significant for future studies.
To establish host factors that are significantly altered in the nasal epithelium as a reference of early innate responses against influenza, the dynamic expression of the genes needs to be clearly elucidated. While there are many studies that utilize microarray analysis to identify the host responses against influenza, the limitation of the microarray is its inability to determine the full extent of gene changes due to its hybridization-based protocol [14]. The aim of this study was to utilize RNA sequencing (RNAseq) technology to not only reveal the hNEC responses (from multiple individuals) against influenza infection, but also to identify those genes with high magnitude changes to serve as potential reference markers of the innate responses of influenza infection. Given that RNAseq functions by reading virtually all the RNAs present in the samples tested, we can also discern the magnitude of each RNA change and mark them as the canonical responses. In addition, as RNAseq is not constrained by probe usage as in microarrays, they are therefore more reliable in detecting novel interactions during influenza infections of hNECs. Hence, RNAseq analysis will further augment the transcriptomic data established previously by microarray analysis. The augmented baseline can then be applied to future clinical studies and practice against influenza infection, especially for comparison against patients with other underlying co-morbidities that may be affected by more severe disease.

2. Materials and Methods

2.1. Derivation of Human Nasal Epithelial Stem/Progenitor Cells (hNESPCs) and In Vitro Differentiation of hNECs

Approval to conduct this study was obtained from the National Healthcare Group Domain-Specific Board of Singapore (DSRB Ref: D/11/228) and the institutional review board of the National University of Singapore (IRB Ref: 13-509). Written consent was obtained from donors prior to the collection of the tissue biopsies. At the time of collection, all subjects were free of symptoms of URTI. The medical backgrounds of the subjects are summarized inTable S1. The hNESPCs were isolated and enriched from the tissue biopsies according to a previously standardized protocol [5,15], which normalized the hNESPCs to a baseline state that differentiates into hNECs resembling healthy tissues if they pass the quality control checks for their differentiation [5]. Following enrichment, the hNESPCs were expanded further and subjected to ALI culture in Transwells for in vitro differentiation according to previous protocol as well [5,15]. Briefly, primary cells were subjected to isolation for selection of hNESPCs, which were enriched and expanded with Dulbecco’s Modified Eagle Medium: Nutrient Mixture F-12 (DMEM/F12) (Gibco-Invitrogen, Carlsbad, CA, USA) containing 10 ng/mL of human epithelial growth factor (EGF, Gibco-Invitrogen, Carlsbad, CA, USA), 5 μg/mL of insulin (Sigma, St. Louis, MO, USA), 0.1 nM of cholera toxin (Sigma, St. Louis, MO, USA), 0.5 μg/mL of hydrocortisone (Sigma, St. Louis, MO, USA), 2 nM/mL of 3,3′,5-triiodo-l-thyronine (T3) (Sigma, St. Louis, MO, USA), 10 μL/mL of an N-2 supplement (Gibco-Invitrogen) and 100 IU/mL of antibiotic-Antimycotic (Gibco-Invitrogen, Carlsbad, CA, USA). The expanded hNESPCs were then transferred onto 12-well 0.4 μm Transwell inserts (Corning, Corning, NY, USA). Once confluent, growth medium was discarded and 700 μL of PneumaCult™-ALI Medium with inducer supplements (STEMCELL Technologies Inc., Vancouver, Canada) was added to the basal chamber to establish ALI conditions. The cells were cultured in ALI culture for 4 weeks, with media change every 2–3 days. After 3–4 weeks of differentiation, hNECs from a total of seven donors were then subjected to influenza H3N2 virus infection.

2.2. Inoculation of Human Influenza H3N2 Virus in Fully Differentiated hNECs and Viral Quantification

The Influenza A strain used in this study is of the H3N2 subtype (A/Aichi/2/1968) (ATCC, Manassas, VA, USA). The virus was propagated using embryonated egg culture and used for all the infection in the hNECs. Prior to infection, fully differentiated hNECs were washed with 1× dPBS and infected with the H3N2 influenza virus at a multiplicity of infection (MOI) of 0.1 and incubated for 1 h at 35 °C. After the 1 h incubation, the viral inoculum was removed and the hNECs were incubated back in 35 °C. The control hNECs were harvested for apical wash and RNA prior to the infection at 0 h post-infection (hpi). The infected hNECs were then harvested for the apical wash and RNA following 8, 24, and 48 hpi incubation at 35 °C.

2.3. Viral Plaque Assay

At each infection time point, 150 µL of 1x dPBS was added and incubated in the apical chamber for 10 min at 35 °C to recover progeny viruses as the apical wash. The plaque assay for viral quantification was performed using overnight MDCK cultures (ATCC, Manassas, VA, USA) at 85–95% confluence in 24-well plates. The MDCK cells were incubated with 100 µL of serial dilutions (from 10−1 to 10−6) of virus from apical washes at 35 °C for 1 h, where plates were rocked every 15 min to ensure equal viral distribution. After incubation, the inocula were removed and replaced with 1 mL of Avicel (FMC Biopolymer, Philadelphia, PA, USA) overlay, and incubated at 35 °C for 65–72 h. After incubation, Avicel overlay were removed, and cells were fixed with 4% formaldehyde in 1× PBS for 1 h. Formaldehyde was then removed, and cells were washed with 1× PBS prior to staining with 1% crystal violet for 15 min before washing the stain away. The plaque-forming units (PFU) were calculated as follows: Number of plaques × dilution factor = number of PFU per 100 µL.

2.4. Total RNA Extraction and Real-Time Quantitative PCR

At each time point after the collection of apical wash, the hNECs were lysed using RNA lysis buffer. Total RNA was then extracted from the lysate using mirVana miRNA isolation kit (Life Technologies, Grand Island, NY, USA). The extracted total RNA was first subjected to nanodrop analysis to first ensure the RNA quality, before being submitted for RNAseq analysis. Then, 500 ng from the remaining RNA was subjected to cDNA synthesis using Maxima first-strand cDNA synthesis kit (ThermoScientific, Pittsburgh PA, USA). After this, qPCR analysis was performed to evaluate the transcriptional levels of host response genes selected based on previous microarray analysis using pre-designed primers (Sigma Aldrich). Each qPCR reaction was performed in duplicate using GoTaq-qPCR Master Mix kit (Promega, San Luis Obispo, CA, USA), and relative gene expression was calculated using the comparative method of 2-ΔΔCt normalized to the housekeeping gene PGK1. Relative gene expression levels were presented as median values and interquartile ranges, while statistical significance was determined using the Wilcoxon signed-rank test.

2.5. Library Preparation for RNAseq

All human RNAs were analyzed on the Agilent Bioanalyzer (Agilent, Santa Clara, CA, USA) or the Perkin Elmer Labchip GX system (Perkin Elmer, Waltham, MA, USA) for quality assessment with RNA Integrity Number (RIN) or RNA Quality score range from 6.8–9.7 and median of 9.0. cDNA libraries were prepared using 2 ng of total RNA and 1 µL of a 1:50,000 dilution of ERCC RNA Spike in Controls (Ambion® Thermo Fisher Scientific, Waltham, MA, USA) using SMARTSeq v2 protocol [16], except for the following modifications: (1) Use of 20 µM TSO, and (2) use of 250 pg of cDNA with 1/5 reaction of Illumina Nextera XT kit (Illumina, San Diego, CA, USA). The length distribution of the cDNA libraries was monitored using DNA High Sensitivity Reagent Kit on the Perkin Elmer Labchip GX system (Perkin Elmer, Waltham, MA, USA). Sixteen samples were subjected to an indexed PE sequencing run of 2 × 51 cycles on an Illumina HiSeq 2000 (16 samples/lane), and 65 samples to an indexed PE sequencing run of 2 ×151 cycles on an Illumina HiSeq 4000 (30 samples/lane).

2.6. RNAseq Analysis

FASTQ files were mapped to the human genome build hg38 using STAR. Gene counts were computed using featureCounts (part of the Subread package) using annotations from GENCODE version 26. Differential gene expression analysis was performed using edgeR in a paired fashion under R version 3.3.3. Multiple testing correction was done using the method of Benjamini and Hochberg and p-values (False Discovery Rate; FDR) less than 0.05 was deemed to be significant.

2.7. Geneset Enrichment Analysis

Geneset enrichment analysis using data from Gene Ontology (GO) was performed using the Bioconductor package topGO, while the analysis using Reactome Pathway was performed using the Vioconductor package ReactomePA. Both analyses were run in R version 3.3.3 using multiple testing-corrected significant differentially-expressed genes.

2.8. Luminex Assay for Cytokines and Chemokines

Luminex assay was performed on apical supernatant collected from both uninfected control and infected hNECs at 8, 24, and 48 hpi using the Multiplexing Immunoassay Human Cytokine/Chemokine Panel 1, 41-plex (Merck, cat# HCYTOMAG-60K-41, Kenilworth, NJ, USA). The panel included the detection of: Human sCD40L, EGF, FGF-2, Flt-3 ligand, Fractalkine, G-CSF, GM-CSF, GRO, IFN-α2, IFN-γ, IL-1α, IL-1β, IL-1ra, IL-2, IL-3, IL-4, IL-5, IL-6, IL-7, IL-8, IL-9, IL-10, IL-12 (p40), IL-12 (p70), IL-13, IL-15, IL-17A, IP-10, MCP-1, MCP-3, MDC (CCL22), MIP-1α, MIP-1β, PDGF-AB/BB, RANTES, TGF-α, TNF-α, TNF-β, VEGF, Eotaxin/CCL11, and PDGF-AA. Samples and standards were incubated with fluorescent-coded magnetic beads which had been pre-coated with the respective capture antibodies. After an overnight incubation at 4 °C, plates were washed twice. Biotinylated detection antibodies were incubated with the complex for 1 h, and Streptavidin-PE was then added and incubated for another 30 min. Plates were washed twice again, then beads were re-suspended with sheath fluid before acquiring on the FLEXMAP® 3D (Luminex) using xPONENT® 4.0 (Luminex) acquisition software. Data analysis was done on Bio-Plex Manager™ 6.1.1 (Bio-Rad). Standard curves were generated with a 5-PL (5-parameter logistic) algorithm, reporting values for both MFI and concentration data. Results were then expressed as mean fold change compared with uninfected control, and p-values (FDR) of less than 0.05 were considered significant.

3. Results

3.1. Influenza Virus Infection Induces Similar Responses in hNECs from Multiple Donors

Prior to analysis, the responses of all seven hNECs donors following influenza infection were plotted on a principal component analysis (PCA) plot. The PCA plot indicated a degree of variability in the responses between donors and time points (Figure 1). Nonetheless, the responses were clustered tightly enough following infection to signify their consistency of infection for further transcriptomic analysis—similar to those observed in our previous study [6].

3.2. Transcriptomic Changes Are Detected at 8 hpi, and Peak at 48 hpi

Significant gene expression changes (FDR < 0.05) of infected hNECs were detected as early as 8 hpi, and further increased at 24 and 48 hpi (Table 1; Figure 2A). Also, the number of genes decreased in a linear fashion as the fold change in expression increased, as seen in the 10x fold change genes indicated in Figure 2B, where about 10% of the significantly altered genes remained. At 8 hpi, there were 31 upregulated genes and 13 downregulated genes. The major upregulated genes were the antiviral sensors and early response genes such as IFNs, IFITs, and IFIs. Interestingly enough, interferon lambda (IFNλ) gene IFNLs was the earliest response interferon of infected hNECs, as opposed to interferons alpha or beta, at 8 hpi. At later time points, the number of gene expression changes increased substantially, with upregulation of 704 and 1080 genes, and downregulation of 217 and 758 genes at 24 and 48 hpi, respectively. There was augmented expression of antiviral effectors and inflammatory genes at both time points. IFNL remained the interferon gene with highest expression at both time points, while a marked elevation of cytokines such as CXCL10 and CXCL11 was also observed. Considering downregulated genes, proliferative and transcriptomic functions appeared to be suppressed, with diminished expression of genes such as FMO2, KLK12, and FOSB. Genes associated with metabolism, cell cycle, and DNA repair were further suppressed following infection at 24 and 48 hpi. Tables S2–S4 list the complete set of significant gene expression changes, arranged according to their fold change (Log2FC). In addition, we have also verified that the genes showing major expression changes by RNAseq generally concurred with RT-qPCR analyses. Of the 10 genes tested by qPCR at 48 hpi, all of them showed the same directional changes in expression as observed by RNAseq. Hence, seven of these genes showed a p-value of <0.05 (IL4I1, IFNL1(IL29), CXCL10, TNFSF10, IFI6, CCL24, and CYP26A1), one gene had a p-value of <0.1 (CTGF), while only two genes were not statistically significant (TGFA and ANO5) (Figure S1).

3.3. Transcriptomic Change Alterations Correlate with Viral Titer, with Intersecting Genes Remaining Consistent in Directional Changes of Expression

We then further compared the transcriptomic alterations in the hNECs over time, following influenza H3N2 infection. The number of gene expression changes mirrored the viral titer changes, which peaked at 48 hpi, and were consistent between donors (Figure 3A). Approximately two thirds of genes at 8 and 24 hpi overlapped with other time points, while about one third of genes at 48 hpi overlapped (Figure 3B). The overlapping genes displayed similar directional consistency at the significant time points. In addition, congruent with the consistent viral titer with most gene expression changes at 48 hpi, we also noted the most consistent alterations in expression of genes across donors. This is highlighted in Figure 3C, which portrays the heatmaps of the top 10 genes with the smallest p-value, together with their direction and magnitude of change. Based on these analyses, we proposed that 48 hpi represents the optimal time point for the subsequent pathway analysis to ascertain influenza-specific pathway changes.

3.4. Pathway Enrichment of Significant Gene Changes Revealed Potential Epithelium-Initiated Pathways Contributing to Influenza Pathology and Pathogenesis

We then further subjected the significant gene changes to gene set enrichment using both GO and REACTOME databases. At time points 8, 24, and 48 hpi, there were 3, 41, and 30 significant (adjusted p-value < 0.05) GO biological processes (Table S5) and 3, 93, and 74 significant (adjusted p-value < 0.05) REACTOME pathways (Table S6), respectively. At the early time of 8 hpi, interferon-mediated antiviral responses were elevated as expected. At 48 hpi, the pathways appeared to be more stabilized and consistent for both GO and REACTOME analyses, despite displaying more gene expression changes at this time point.
Responses to influenza virus skewing towards type I immunity were predominant in the GO analysis. The expected interferon-mediated functions by the epithelium validated the authenticity of our model, where we found enriched type I interferon (GO) and RIG-I (REACTOME) pathways with upregulation of nearly all significant gene members (data not shown). Besides the interferon and antiviral pathways, we identified several functions of interest initiated by the nasal epithelium that may contribute to the pathology and pathogenesis of influenza. At 48 hpi, GO pathway enrichment analysis revealed that the nasal epithelium was actively involved in initial IFNγ signaling (GO:0060333), despite not directly producing IFNγ. We also observed enriched function in apoptosis and necroptosis (GO:0008637 and GO:0060544), immune evasion (GO:0045824), and other pathways that may lead to complication events such as smooth muscle proliferation (GO:0048661) and response to fatty acid (GO:0070542) (Table 2).
For the REACTOME pathway analysis, we selected pathways that were enriched with more than 30 significant genes present in the enriched pathway, and these were generally in agreement with the GO analysis (Table 3). In addition to IFNγ signaling (877300) and apoptosis (109581), it also revealed changes in epithelial-initiated B cell receptor signaling (983705 and 1168372) and amino acid metabolism (71291) following influenza infection. It is noteworthy that these pathways were initiated at the epithelial level without the participation of immune cells, thus highlighting the relevant genes of interest for future studies.

3.5. Comparison with Established Influenza Gene Expression Signatures and Transcriptomes Revealed Consistent Upregulation of Influenza Response Genes

Given that RNAseq analysis facilitates more accurate expression changes following infection compared to hybridization technology such as microarray, we conducted further analysis on the levels of gene expression changes to enable more stringent and accurate transcriptomic analyses for future studies. By comparing these results to a previous study that identified 11 influenza-specific signatures, we verified that these 11 genes were all expressed in infected nasal epithelium later at 24 hpi, but not at 8 hpi. Furthermore, at both 24 and 48 hpi, all but one of the 11 gene signatures exhibited elevated expression of >2.5-fold change (>1.33 Log2FC) compared to uninfected control hNECs (Table 4). When we applied the higher fold change cutoff, the number of significant genes decreased by approximately 50% (Figure 4A), which was also congruent with the linear association observed earlier. Therefore, future studies on early transcriptional alterations could consider adopting the 2.5-fold change in expression as a more stringent threshold, which may be more feasible, especially for large transcriptomic studies that yield large numbers of data points.
In addition, when compared to the previous microarray study on a similar hNEC model [6], both RNAseq and microarray shared a high degree of overlap, with about one third and half of total genes from RNAseq and microarray overlapping, respectively (Figure 4B). The overlap was generally observed in genes with highly altered expression, such as CXCL10, CXCL11, and RSAD2, which were changed to a similar magnitude in both RNAseq and microarray (Table S7). When we compared the 11 influenza signature genes, RNAseq revealed a more consistent increase in magnitude, i.e., at 48 hpi, the magnitude of the gene change was generally higher than that of the microarray (Table 5). In addition, RNAseq was also able to detect novel genes with expression changes of high magnitude that were generally higher than those found by microarray only (193 genes versus 22 genes with elevated expression greater than 2.5-fold). Genes such as HEATR9, PDCD1, IL4I1, ART3, and KCNH7 were altered to a higher magnitude than the 2.5-fold threshold. Hence, RNAseq-based transcriptomic analysis may augment transcriptomic findings to identify novel gene responses against influenza in the future.

3.6. Secretory Cytokine Profiles During Influenza Virus Infection of hNECs Reveal Early Suppression of Cytokines in Apical Secretion

After deriving the transcriptomes by RNAseq, we then further investigated whether the changes in expression of genes resulted in alterations in secretory cytokines and chemokines early in the infection of hNECs. Initially, we detected significant reductions in multiple cytokines at 8 hpi, with the exception of IL-15 which was increased (Figure S2). This may reflect the initial immune suppression during influenza infection. However, at 24 and 48 hpi, less significant changes were observed, i.e., only increase in TNF-a and decrease in MDC and PDGF-AA were noted at 24 hpi. This was followed by increase in IP-10 (CXCL10) and TGF-a and decrease in PDGF-AA seen at 48 hpi. This analysis highlights changes in IP-10, TGF-a, and PDGF-AA to be significant early responses in secretory cytokines/chemokines following influenza infection.

4. Discussion

Our study has identified epithelium-initiated host responses which are found to be involved in both innate and adaptive responses. The finding is significant as we can now focus on the primary point of contact of influenza—the nasal epithelium in the study of early host responses for identifying host factors that can be utilized for diagnostic and therapeutic purposes [7]. In addition, our study also showed that it is important for reference databases to use relevant human models like the hNECs model, which contains the mucociliary component of the airways, in order to provide closely representative host responses. While there exists a high number of microarray studies that showed the host responses using similar hNEC models, there are only a small number of equivalent RNAseq studies. Compared to microarrays, RNAseq analysis can provide a more comprehensive picture of the transcriptomic landscape, and is not limited by the hybrid library variant and concentrations [14]. Hence, in order to derive accurate magnitude of gene expression changes, we performed an RNAseq analysis of H3N2 infection using the hNECs model. H3N2 influenza virus was selected, given that it is a major circulating subtype over long periods of time. In addition, relatively lower efficacy of vaccines against this subtype prompted us to study its interactions with the primary host target to elucidate the immune responses and association with adaptive immunity [17,18]. This model has been previously evaluated to be a highly clinically-relevant model that can facilitate controlled infection of nasal cells from multiple individuals. In addition, we have also previously shown—by microarray analysis—that the nasal epithelium is responsible for the initiation of host responses following influenza infection [6]. This renders the hNECs to serve as a valuable tool to analyze transcriptomics from different individuals infected under the same conditions to ensure consistent and relevant responses in humans.
Once the magnitude of gene expression changes was considered, several interesting findings emerged. Firstly, the infected hNECs were observed with strong activation of antiviral genes and early inflammatory genes leading to type I immune responses. A large number of gene expression changes were of magnitude of over 100-fold difference (Log27 to Log29 fold change). Most of the genes with high-magnitude expression changes were verified by qPCR, with statistical significance congruent with the RNAseq analysis. Secondly, despite the absence of immune cells, the infected hNECs were able to generate strong type I responses that may likely aid the recruitment of cytotoxic cells to clear the infected cells. Thirdly, in early responses of the hNECs, IFNλ genes, which represent type III interferons, were more strongly induced than the more frequently observed type I interferons (IFNα and IFNβ), while type II interferons were not produced by hNECs, in agreement with previous studies [5,19]. The induction of type III interferons may reflect an important event within the hNECs where IFNλ, the initial responders against the infection, may be more beneficial in the antiviral response [20,21]. Moreover, we also observed notable suppression of expression of certain genes following influenza infection, including suppression of proliferation and DNA repair genes, which may contribute to the pathology and pathogenesis of influenza [22]. Finally, RNAseq also unraveled expression changes of certain newly-discovered genes in response to influenza infection of the upper airway cells. Genes such as HEATR9 [23], IL4I1 [24], TNFSF13B (BAFF) [25], and PDCD1 (PD-1) [26] are recently implicated in influenza pathogenesis and mucosal defense, thereby signifying the role of the nasal epithelium against influenza infection. Furthermore, RNAseq identified altered expression of ART3 and KCNH7 genes that were not previously detected in influenza transcriptomes. These findings hence further reiterate the value of RNAseq in enhancing data on influenza transcriptomes for reference in future studies.
Via pathway enrichment analysis, we have identified known antiviral pathways to validate the hNECs responses against influenza. In addition, we have also documented the potential pathways initiated by the nasal epithelium that may contribute to influenza pathogenesis as represented by the gene expression changes listed in Table 2 and Table 3. By analyses using literature-inferred GO and REACTOME databases, we have demonstrated that the nasal epithelium can play a role in the main antiviral signaling, i.e., IFNγ responses despite not being a direct producer of IFNγ. The pathway enrichment indicated that hNECs may serve as important regulators of type II interferons. Even though the effects of IFNγ are vital to the robust clearance of influenza viruses [27], there are reports of unregulated IFNγ being a contributor to inflammatory damage [28,29]. Therefore, the over-production of IFNγ response factors such as ICAM1 and CD44 may contribute to inflammatory damage of the epithelium. Hence, production of factors such as STAT1 [28] by the hNECs is also crucial in ensuring appropriate regulation of IFNγ-mediated expression of influenza response genes to modulate inflammation and to minimize damage. The primary contact of influenza virus with the nasal epithelium may subsequently lead to damage to the airway epithelium as well. This is apparent with the clear enrichment of the pathways of apoptosis, mitochondrial apoptotic processes, and necroptosis that contribute to cell death and mechanical barrier loss during infection [5,30]. Genes such as IFI6, BAK1, CAPS8, TNFSF10, and FAS suggest active apoptotic cell death that not only destroys cells in the epithelial barrier, but may also serve to propagate the virus and to perpetuate the damage [31,32,33]. Furthermore, during virus infection, aberrant regulation of apoptosis may also lead to further injury to the epithelium and surrounding tissues [34]. On the other hand, necroptosis pathways have also been observed to be enriched in influenza-infected hNECs. Compared to apoptosis, the study of necroptosis in influenza infection is relatively new with contradicting findings [34]. RIPK3/necroptosis studies appear to generate contradictory results as to whether necroptosis protects against or is detrimental during influenza infection [35,36]. Hence, its increased expression during infection of hNECs warrants further investigation on its role in influenza-induced damage. In addition, we also noted enrichment of B-cell signaling pathways by the infected hNECs which may be vital for B-cell responses during the adaptive immune response [37]. We noted that most genes enriched in the B-cell pathways were related to antigen recognition such as proteasome subunits (PSME2, PSMB9, PSMA6, etc.) and B-cell receptor-associated genes such as DAPP1 and CARD11 [38]. However, changes in expression of certain growth factors (including EREG and FGFs) following influenza infection may lead to complications involving airway remodeling and recruitment [39,40]. Further, the effects of the growth factors were further confirmed by the enrichment of pathways related to the proliferation of smooth muscle cells also induced by the infection. Changes to airway smooth muscle cells are usually implicated in airway remodeling [41,42,43], and may also contribute to post-influenza complications. Hence, the genes found in this study may be crucial for elucidating the nasal-initiated responses that may contribute to the pathology and pathogenesis of influenza infection of the airways. Finally, another interesting pathway that may contribute to epithelial damage is the negative regulation of innate immune responses. These genes may serve as proviral factors and aid in immune evasion. For example, ADAR is a proviral factor that works in synergy with influenza NS1 to enhance viral replication [44]. TRAFD1 is a negative regulator of toll-like receptor signaling which is upregulated in influenza-infected hNECs [45]. DHX58 is a negative regulator of RIG-I/MDA5 signaling pathway [46]. CEACAM1 is involved in regulation of liver inflammation [47] and its expression appears to exert antiviral effects on influenza virus [48]. NMI binds to influenza virus NS1 and inhibits IRF7-mediated interferon signaling [49,50]. Therefore, aberrant expression of genes in this signaling pathway may directly contribute to immune evasion of influenza, culminating in viral propagation and increased epithelial damage.
We summarized the identified pathways (listed in Table 2 and Table 3) that alluded to immune evasion (negative regulation of innate immune responses), antigen processing (metabolism of amino acids and derivatives), and immunomodulation (interferon gamma signaling, B cell receptor signaling, and response to fatty acid) that may contribute to severity of influenza. There was evidence of direct pathway enrichment of potential influenza evasion strategies and/or immunomodulation with accompanying transcriptomic changes. The genes in the pathway may be analyzed for their immunomodulatory activity and whether their expression is beneficial to the virus (immune evasion) or the host (preventing cytokine storm). In addition, the infected hNECs also revealed modified responses associated with fatty acid, with many lipid signaling molecules such as leukotrienes that mediate antiviral responses and subsequent inflammation of the airway [51,52]. Such modified responses may also determine the afforded in the airway and the severity of airway inflammation and damage. In addition, the modification may also affect the lower airway responses to inflammatory mediators; hence, the changes in these pathways may also suggest a potential mechanistic link to the pathogenesis of viral-induced exacerbation of chronic inflammatory diseases. Lastly, we also noted enrichment of pathways related to amino acid metabolism, which is important in antigen processing and proteasomal degradation of foreign protein. The changes in these genes at the hNECs, the target site of influenza infection, may determine the effectiveness of antiviral responses mounted and may therefore influenza disease severity.
In addition, we also compared our RNAseq analysis against previously reported influenza-specific signatures in order to improve future transcriptomic analysis [53]. In vitro transcriptomic analysis yields a large number of differentially-expressed genes that would require additional criteria to identify functionally significant genes. By means of this comparison, we discovered that almost all influenza-specific signatures exhibited differences in expression of above 2.5-fold. Hence, we propose applying fold change of >2.5 as a threshold for future in vitro transcriptomic systems analyses, in order to increase the stringency in detecting functionally significant gene changes.
Finally, we observed that, unlike the transcriptome, there were notably fewer cytokines that were readily secreted during the acute phase of infection. Expression of cytokines was reduced at 8 hpi, except for IL-15, which interestingly is implicated in influenza-induced acute lung injury [54]. Even fewer cytokines showed altered expression at later time points. Among them, only TGF-a, IP-10 (CXCL10), and PDGF-AA were significantly altered at 24 and 48 hpi. These may be significant markers that can be detected in the secretion of influenza-infected mucosal surface that may influence the severity of influenza. IP-10 is a well-established IFNγ response gene, and serves as a useful marker for response against influenza [5,6]. TGF-a represents an important factor involved in the secretion of IL-8 in response to influenza, and may determine the early appropriate innate responses to prevent severe disease [55]. On the other hand, it is also involved in pulmonary fibrosis as a ligand of epidermal growth factor receptor (EGFR) and may contribute to complications in the lower airway [56]. PDGF-AA was found to be elevated in the cerebrospinal fluid of influenza-associated encephalopathy [57], but was consistently reduced in hNEC secretory fluid, thus warranting further investigation into its role in the infected nasal mucosa.
The establishment of a reference transcriptome based on early responses of the human nasal epithelium model serves a key role in research on critical host factors involved in influenza. As the primary host contact with the virus, not only are immune responses against influenza important, but also the alterations in non-immune functions such as metabolism, cell content, and cell cycle, which may contribute to disease severity. In terms of translational potential, the model system identified gene expression changes of significant magnitude and pathways that impact responses against influenza and its severity. These genes may represent novel targets for future diagnostic and therapeutic development. Under controlled conditions, the hNECs clinically establish the baseline for “normal” innate immune responses of the nasal epithelium against influenza viral infection. Such a baseline can be particularly crucial when studying the changes in innate immune responses against influenza, especially in patients with underlying chronic diseases who may have aberrant airway responses against influenza. Their antiviral responses may differ from “normal” subjects, and this study thus provides the basis for comparing the differential responses that culminate in more severe infections in patients with co-morbidities such as diabetes and chronic airway inflammatory diseases. Such comparative clinical studies can potentially enhance the management of influenza viral infection in patients with chronic diseases.

5. Conclusions

In conclusion, RNAseq technology allowed us to accurately quantify the magnitude of gene expression changes, as well as the relevant enriched pathways during H3N2 influenza virus infection of hNECs, which can serve as a baseline for future clinical studies. The establishment of this baseline under controlled condition elucidated the antiviral innate response by the infected nasal epithelium, and highlighted the molecular factors and abnormalities in the upper airway that may contribute to influenza severity. Furthermore, this study also culminated in the identification of novel gene signatures and host factors that may be harnessed for future research to develop influenza diagnostic markers and therapeutic targets.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4409/8/9/986/s1, Figure S1. Real-time quantitative PCR validation of genes selected from RNAseq analyses. PCR data are expressed as log2 fold change using median and interquartile range. Statistical significance was determined using Wilcoxon signed-rank test. * p < 0.05, # p < 0.1; Figure S2. LUMINEX assay of secreted cytokines/chemokines in the apical supernatant. LUMINEX data are expressed as mean fold change from uninfected control. Statistical significance was determined using FDR. * p < 0.05; Table S1. Information of seven donors of hNECs; Table S2. Significant differentially-expressed genes at 8 hpi; Table S3. Significant differentially-expressed genes at 24 hpi; Table S4. Significant differentially-expressed genes at 48 hpi; Table S5: Significant enriched pathways based on GO pathway database analysis; Table S6. Significant enriched pathways based on REACTOME pathway database analysis; Table S7. List of significant genes with altered expression at 48 hpi of influenza H3N2 infection of hNECs analyzed by RNAseq and microarray [6].

Author Contributions

All authors reviewed and edited drafts and approved the final version for submission. Conceptualization, K.S.T., Y.Y., O.R., V.T.C. and D.Y.W.; methodology, K.S.T., A.K.A., B.L., Y.Y., J.L., T.T.H, S.A.T., J.L., Y.K.O. and M.T.; software, K.S.T., A.K.A., B.L. and H.W.C.; validation, K.S.T., A.K.A., B.L., J.L., T.T.H., S.A.T., J.L., H.F.L., H.W.C. and O.R.; formal analysis, K.S.T., A.K.A. and B.L.; investigation, K.S.T., A.K.A., B.L., Y.Y., J.L., T.T.H., H.F.L. and H.W.C.; resources, Y.K.O, M.T., O.R., V.T.C. and D.Y.W.; data curation, K.S.T., A.K.A. and B.L.; writing—original draft preparation, K.S.T., A.K.A. and D.Y.W.; writing—review and editing, K.S.T., A.K.A., B.L., Y.Y., J.L., T.T.H., S.A.T., J.L., Y.K.O., M.T., H.F.L., H.W.C., O.R., V.T.C. and D.Y.W.; visualization, K.S.T., A.K.A. and B.L.; supervision, Y.K.O., M.T., H.F.L., H.W.C., O.R., V.T.C. and D.Y.W.; project administration, V.T.C. and D.Y.W.; funding acquisition, K.S.T, V.T.C. and D.Y.W.

Funding

This study was supported by grants awarded to Prof Wang De Yun by the National Medical Research Council, Singapore (NMRC/CIRG/1458/2016); Dr Yan Yan by the National Natural Science Foundation of China (Grant No.: 81870019); and Dr. Anand Kumar Andiappan by grants from the National Medical Research Council of Singapore (OFYIRG17nov065). Dr Tan Kai Sen is a recipient of fellowship support from the EAACI Research Fellowship 2019; and Dr Anand Kumar Andiappan is a recipient of fellowship support from the EAACI Research Fellowship 2017 and the ERS Short-Term Research Fellowship (STRF). SIgN Immunomonitoring platform is supported by a BMRC IAF 311006 grant and BMRC transition funds #H16/99/b0/011.

Acknowledgments

We thank the surgeons and staff in the Department of Otolaryngology, National University Hospital, Singapore. We thank H.H. Ong and T.T. He for the subject selection and recording. We thank M.C. Phoon and S.H. Lau for technical assistance in viral experiments. The authors would like to acknowledge the staff of the Immunomonitoring platform at SIgN.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. WHO. Available online: http://www.who.int/mediacentre/factsheets/fs211/en/. (accessed on 15 May 2019).
  2. Moscona, A. Oseltamivir resistance--disabling our influenza defenses. N. Engl. J. Med. 2005, 353, 2633–2636. [Google Scholar] [CrossRef] [PubMed]
  3. Liu, J.; Li, Y.Y.; Andiappan, A.K.; Yan, Y.; Tan, K.S.; Ong, H.H.; Thong, K.T.; Ong, Y.K.; Yu, F.G.; Low, H.B.; et al. Role of IL-13Ralpha2 in modulating IL-13-induced MUC5AC and ciliary changes in healthy and CRSwNP mucosa. Allergy 2018, 73, 1673–1685. [Google Scholar] [CrossRef] [PubMed]
  4. Holgate, S.T. Epithelial damage and response. Clin. Exp. Allergy 2000, 30 (Suppl. 1), 37–41. [Google Scholar] [CrossRef]
  5. Yan, Y.; Tan, K.S.; Li, C.; Tran, T.; Chao, S.S.; Sugrue, R.J.; Shi, L.; Chow, V.; Wang de, Y. Human nasal epithelial cells derived from multiple individuals exhibit differential responses to H3N2 influenza virus infection in vitro. J. Allergy Clin. Immunol. 2016, 138, 276–281. [Google Scholar] [CrossRef] [PubMed]
  6. Tan, K.S.; Yan, Y.; Koh, W.H.; Li, L.; Choi, H.; Tran, T.; Sugrue, R.J.; Wang, D.Y.; Chow, V.T. Comparative Transcriptomic and Metagenomic Analyses of Influenza Virus-Infected Nasal Epithelial Cells from Multiple Individuals Reveal Specific Nasal-Initiated Signatures. Front. Microbiol. 2018, 9, 2685. [Google Scholar] [CrossRef] [PubMed]
  7. Münk, C.F.S.A.; König, R. Systems-biology approaches to discover anti-viral effectors of the human innate immune response. Viruses 2011, 3, 1112–1130. [Google Scholar] [CrossRef] [PubMed]
  8. Stertz, S.; Shaw, M.L. Uncovering the global host cell requirements for influenza virus replication via RNAi screening. Microbes Infect. 2011, 13, 516–525. [Google Scholar] [CrossRef] [PubMed]
  9. Watanabe, T.; Watanabe, S.; Kawaoka, Y. Cellular Networks Involved in the Influenza Virus Life Cycle. Cell Host Microbe 2010, 7, 427–439. [Google Scholar] [CrossRef]
  10. Qiao, Y.; Yan, Y.; Tan, K.S.; Tan, S.S.L.; Seet, J.E.; Arumugam, T.V.; Chow, V.T.K.; Wang, Y.; Tran, T. CD151, a novel host factor of nuclear export signaling in influenza virus infection. J. Allergy Clin. Immunol. 2018, 141, 1799–1817. [Google Scholar] [CrossRef] [PubMed]
  11. Essaidi-Laziosi, M.; Brito, F.; Benaoudia, S.; Royston, L.; Cagno, V.; Fernandes-Rocha, M.; Piuz, I.; Zdobnov, E.; Huang, S.; Constant, S.; et al. Propagation of respiratory viruses in human airway epithelia reveals persistent virus-specific signatures. J. Allergy Clin. Immunol. 2018, 141, 2074–2084. [Google Scholar] [CrossRef] [PubMed]
  12. Guibas, G.V.; Tsolia, M.; Christodoulou, I.; Stripeli, F.; Sakkou, Z.; Papadopoulos, N.G. Distinction between rhinovirus-induced acute asthma and asthma-augmented influenza infection. Clin. Exp. Allergy: J. Br. Soc. Allergy Clin. Immunol. 2018, 48, 536–543. [Google Scholar] [CrossRef] [PubMed]
  13. Koban, R.; Neumann, M.; Daugs, A.; Bloch, O.; Nitsche, A.; Langhammer, S.; Ellerbrok, H. A novel three-dimensional cell culture method enhances antiviral drug screening in primary human cells. Antivir. Res. 2018, 150, 20–29. [Google Scholar] [CrossRef] [PubMed]
  14. Mantione, K.J.; Kream, R.M.; Kuzelova, H.; Ptacek, R.; Raboch, J.; Samuel, J.M.; Stefano, G.B. Comparing bioinformatic gene expression profiling methods: Microarray and RNA-Seq. Med. Sci. Monit. Basic Res. 2014, 20, 138–142. [Google Scholar] [PubMed]
  15. Zhao, X.N.; Yu, F.G.; Li, C.W.; Li, Y.Y.; Chao, S.S.; Loh, W.S.; Pan, X.L.; Shi, L.; Wang, D.Y. The use of nasal epithelial stem/progenitor cells to produce functioning ciliated cells in vitro. Am. J. Rhinol. Allergy 2012, 26, 345–350. [Google Scholar] [CrossRef] [PubMed]
  16. Picelli, S.; Faridani, O.R.; Bjorklund, A.K.; Winberg, G.; Sagasser, S.; Sandberg, R. Full-length RNA-seq from single cells using Smart-seq2. Nat. Protoc. 2014, 9, 171–181. [Google Scholar] [CrossRef] [PubMed]
  17. Lee, H.K.; Tang, J.W.; Loh, T.P.; Oon, L.L.; Koay, E.S. Predicting clinical severity based on substitutions near epitope A of influenza A/H3N2. Infect. Genet. Evol. 2015, 34, 292–297. [Google Scholar] [CrossRef] [PubMed]
  18. Ho, H.P.; Zhao, X.; Pang, J.; Chen, M.I.; Lee, V.J.; Ang, L.W.; Lin, R.V.; Gao, C.Q.; Hsu, L.Y.; Cook, A.R. Effectiveness of seasonal influenza vaccinations against laboratory-confirmed influenza-associated infections among Singapore military personnel in 2010-2013. Influenza Other Respir. Viruses 2014, 8, 557–566. [Google Scholar] [CrossRef] [PubMed]
  19. Tan, K.S.; Ong, H.H.; Yan, Y.; Liu, J.; Li, C.; Ong, Y.K.; Thong, K.T.; Choi, H.W.; Wang, D.Y.; Chow, V.T. In Vitro Model of Fully Differentiated Human Nasal Epithelial Cells Infected With Rhinovirus Reveals Epithelium-Initiated Immune Responses. J. Infect. Dis. 2018, 217, 906–915. [Google Scholar] [CrossRef] [PubMed]
  20. Davidson, S.; McCabe, T.M.; Crotta, S.; Gad, H.H.; Hessel, E.M.; Beinke, S.; Hartmann, R.; Wack, A. IFNlambda is a potent anti-influenza therapeutic without the inflammatory side effects of IFNalpha treatment. EMBO. Mol. Med. 2016, 8, 1099–1112. [Google Scholar] [CrossRef]
  21. Galani, I.E.; Triantafyllia, V.; Eleminiadou, E.E.; Koltsida, O.; Stavropoulos, A.; Manioudaki, M.; Thanos, D.; Doyle, S.E.; Kotenko, S.V.; Thanopoulou, K.; et al. Interferon-lambda Mediates Non-redundant Front-Line Antiviral Protection against Influenza Virus Infection without Compromising Host Fitness. Immunity 2017, 46, 875–890. [Google Scholar] [CrossRef]
  22. Li, N.; Parrish, M.; Chan, T.K.; Yin, L.; Rai, P.; Yoshiyuki, Y.; Abolhassani, N.; Tan, K.B.; Kiraly, O.; Chow, V.T.; et al. Influenza infection induces host DNA damage and dynamic DNA damage responses during tissue regeneration. Cell. Mol. Life Sci. 2015, 72, 2973–2988. [Google Scholar] [CrossRef] [PubMed]
  23. Stairiker, C.; Mueller, Y.; van Meurs, M.; Brouwers-Haspels, I.; Erkeland, S.; Katsikis, P.D. Heatr9 is upregulated during influenza virus infection in lung alveolar epithelial cells. J. Immunol. 2018, 200 (Suppl. 1), 109–116. [Google Scholar]
  24. Molinier-Frenkel, V.; Prevost-Blondel, A.; Castellano, F. The IL4I1 Enzyme: A New Player in the Immunosuppressive Tumor Microenvironment. Cells 2019, 8. [Google Scholar] [CrossRef] [PubMed]
  25. Wang, J.; Li, Q.; Xie, J.; Xu, Y. Cigarette smoke inhibits BAFF expression and mucosal immunoglobulin A responses in the lung during influenza virus infection. Respir. Res. 2015, 16, 37. [Google Scholar] [CrossRef] [PubMed]
  26. Rutigliano, J.A.; Sharma, S.; Morris, M.Y.; Oguin, T.H., 3rd; McClaren, J.L.; Doherty, P.C.; Thomas, P.G. Highly pathological influenza A virus infection is associated with augmented expression of PD-1 by functionally compromised virus-specific CD8+ T cells. J. Virol. 2014, 88, 1636–1651. [Google Scholar] [CrossRef]
  27. Guo, X.J.; Thomas, P.G. New fronts emerge in the influenza cytokine storm. Semin. Immunopathol. 2017, 39, 541–550. [Google Scholar] [CrossRef]
  28. Ramana, C.V.; DeBerge, M.P.; Kumar, A.; Alia, C.S.; Durbin, J.E.; Enelow, R.I. Inflammatory impact of IFN-gamma in CD8+ T cell-mediated lung injury is mediated by both Stat1-dependent and -independent pathways. Am. J. Physiol. Lung Cell. Mol. Physiol. 2015, 308, L650–L657. [Google Scholar] [CrossRef]
  29. Wiley, J.A.; Cerwenka, A.; Harkema, J.R.; Dutton, R.W.; Harmsen, A.G. Production of interferon-gamma by influenza hemagglutinin-specific CD8 effector T cells influences the development of pulmonary immunopathology. Am. J. Pathol. 2001, 158, 119–130. [Google Scholar] [CrossRef]
  30. Tian, T.; Zi, X.; Peng, Y.; Wang, Z.; Hong, H.; Yan, Y.; Guan, W.; Tan, K.S.; Liu, J.; Ong, H.H.; et al. H3N2 influenza virus infection enhances oncostatin M expression in human nasal epithelium. Exp. Cell. Res. 2018, 371, 322–329. [Google Scholar] [CrossRef]
  31. Wurzer, W.J.; Ehrhardt, C.; Pleschka, S.; Berberich-Siebelt, F.; Wolff, T.; Walczak, H.; Planz, O.; Ludwig, S. NF-kappaB-dependent induction of tumor necrosis factor-related apoptosis-inducing ligand (TRAIL) and Fas/FasL is crucial for efficient influenza virus propagation. J. Biol. Chem. 2004, 279, 30931–30937. [Google Scholar] [CrossRef]
  32. Mayank, A.K.; Sharma, S.; Nailwal, H.; Lal, S.K. Nucleoprotein of influenza A virus negatively impacts antiapoptotic protein API5 to enhance E2F1-dependent apoptosis and virus replication. Cell Death Dis. 2015, 6, e2018. [Google Scholar] [CrossRef] [PubMed]
  33. Arora, S.; Lim, W.; Bist, P.; Perumalsamy, R.; Lukman, H.M.; Li, F.; Welker, L.B.; Yan, B.; Sethi, G.; Tambyah, P.A.; et al. Influenza A virus enhances its propagation through the modulation of Annexin-A1 dependent endosomal trafficking and apoptosis. Cell Death Differ. 2016, 23, 1243–1256. [Google Scholar] [CrossRef] [PubMed]
  34. Fujikura, D.; Miyazaki, T. Programmed Cell Death in the Pathogenesis of Influenza. Int. J. Mol. Sci. 2018, 19, 2065. [Google Scholar] [CrossRef] [PubMed]
  35. Thapa, R.J.; Ingram, J.P.; Ragan, K.B.; Nogusa, S.; Boyd, D.F.; Benitez, A.A.; Sridharan, H.; Kosoff, R.; Shubina, M.; Landsteiner, V.J.; et al. DAI Senses Influenza A Virus Genomic RNA and Activates RIPK3-Dependent Cell Death. Cell Host Microbe 2016, 20, 674–681. [Google Scholar] [CrossRef] [PubMed]
  36. Kuriakose, T.; Man, S.M.; Malireddi, R.K.; Karki, R.; Kesavardhana, S.; Place, D.E.; Neale, G.; Vogel, P.; Kanneganti, T.D. ZBP1/DAI is an innate sensor of influenza virus triggering the NLRP3 inflammasome and programmed cell death pathways. Sci. Immunol. 2016, 1, aag2045. [Google Scholar] [CrossRef] [PubMed]
  37. Lam, J.H.; Baumgarth, N. The Multifaceted B Cell Response to Influenza Virus. J. Immunol. 2019, 202, 351–359. [Google Scholar] [CrossRef] [PubMed]
  38. Woods, A.; Monneaux, F.; Soulas-Sprauel, P.; Muller, S.; Martin, T.; Korganow, A.S.; Pasquali, J.L. Influenza virus-induced type I interferon leads to polyclonal B-cell activation but does not break down B-cell tolerance. J. Virol. 2007, 81, 12525–12534. [Google Scholar] [CrossRef]
  39. Ogawa, H.; Azuma, M.; Tsunematsu, T.; Morimoto, Y.; Kondo, M.; Tezuka, T.; Nishioka, Y.; Tsuneyama, K. Neutrophils induce smooth muscle hyperplasia via neutrophil elastase-induced FGF-2 in a mouse model of asthma with mixed inflammation. Clin. Exp. Allergy: J. Br. Soc. Allergy Clin. Immunol. 2018, 48, 1715–1725. [Google Scholar] [CrossRef]
  40. Tourdot, S.; Mathie, S.; Hussell, T.; Edwards, L.; Wang, H.; Openshaw, P.J.; Schwarze, J.; Lloyd, C.M. Respiratory syncytial virus infection provokes airway remodelling in allergen-exposed mice in absence of prior allergen sensitization. Clin. Exp. Allergy: J. Br. Soc. Allergy Clin. Immunol. 2008, 38, 1016–1024. [Google Scholar] [CrossRef]
  41. Qiao, Y.; Tam, J.K.C.; Tan, S.L.S.; Tai, Y.K.; Chin, C.Y.; Steward, A.G.; Ashman, L.K.; Sekiguchi, K.; Langenbach, S.Y.; Stelmack, G.; et al. CD151, a laminin receptor showing increased expression in asthma, contributes to airway hyperresponsiveness through calcium signaling. J. Allergy Clin. Immunol. 2016, 139, 82–92. [Google Scholar] [CrossRef]
  42. Salter, B.; Pray, C.; Radford, K.; Martin, J.G.; Nair, P. Regulation of human airway smooth muscle cell migration and relevance to asthma. Respir. Res. 2017, 18, 156. [Google Scholar] [CrossRef] [PubMed]
  43. Hirota, J.A.; Nguyen, T.T.; Schaafsma, D.; Sharma, P.; Tran, T. Airway smooth muscle in asthma: Phenotype plasticity and function. Pulm Pharm. 2009, 22, 370–378. [Google Scholar] [CrossRef] [PubMed]
  44. De Chassey, B.; Aublin-Gex, A.; Ruggieri, A.; Meyniel-Schicklin, L.; Pradezynski, F.; Davoust, N.; Chantier, T.; Tafforeau, L.; Mangeot, P.E.; Ciancia, C.; et al. The interactomes of influenza virus NS1 and NS2 proteins identify new host factors and provide insights for ADAR1 playing a supportive role in virus replication. PLoS Pathog. 2013, 9, e1003440. [Google Scholar] [CrossRef] [PubMed]
  45. Mashima, R.; Saeki, K.; Aki, D.; Minoda, Y.; Takaki, H.; Sanada, T.; Kobayashi, T.; Aburatani, H.; Yamanashi, Y.; Yoshimura, A. FLN29, a novel interferon- and LPS-inducible gene acting as a negative regulator of toll-like receptor signaling. J. Biol. Chem. 2005, 280, 41289–41297. [Google Scholar] [CrossRef] [PubMed]
  46. Komuro, A.; Horvath, C.M. RNA- and virus-independent inhibition of antiviral signaling by RNA helicase LGP2. J. Virol. 2006, 80, 12332–12342. [Google Scholar] [CrossRef] [PubMed]
  47. Horst, A.K.; Najjar, S.M.; Wagener, C.; Tiegs, G. CEACAM1 in Liver Injury, Metabolic and Immune Regulation. Int. J. Mol. Sci. 2018, 19. [Google Scholar] [CrossRef] [PubMed]
  48. Vitenshtein, A.; Weisblum, Y.; Hauka, S.; Halenius, A.; Oiknine-Djian, E.; Tsukerman, P.; Bauman, Y.; Bar-On, Y.; Stern-Ginossar, N.; Enk, J.; et al. CEACAM1-Mediated Inhibition of Virus Production. Cell. Rep. 2016, 15, 2331–2339. [Google Scholar] [CrossRef]
  49. Wu, X.; Wang, S.; Yu, Y.; Zhang, J.; Sun, Z.; Yan, Y.; Zhou, J. Subcellular proteomic analysis of human host cells infected with H3N2 swine influenza virus. Proteomics 2013, 13, 3309–3326. [Google Scholar] [CrossRef]
  50. Wang, J.; Yang, B.; Hu, Y.; Zheng, Y.; Zhou, H.; Wang, Y.; Ma, Y.; Mao, K.; Yang, L.; Lin, G.; et al. Negative regulation of Nmi on virus-triggered type I IFN production by targeting IRF7. J. Immunol. 2013, 191, 3393–3399. [Google Scholar] [CrossRef]
  51. Graham, A.C.; Temple, R.M.; Obar, J.J. Mast cells and influenza a virus: Association with allergic responses and beyond. Front. Immunol. 2015, 6, 238. [Google Scholar] [CrossRef]
  52. Le Bel, M.; Gosselin, J. Leukotriene B4 Enhances NOD2-Dependent Innate Response against Influenza Virus Infection. PLoS ONE 2015, 10, e0139856. [Google Scholar] [CrossRef]
  53. Andres-Terre, M.; McGuire, H.M.; Pouliot, Y.; Bongen, E.; Sweeney, T.E.; Tato, C.M.; Khatri, P. Integrated, Multi-cohort Analysis Identifies Conserved Transcriptional Signatures across Multiple Respiratory Viruses. Immunity 2015, 43, 1199–1211. [Google Scholar] [CrossRef]
  54. Nakamura, R.; Maeda, N.; Shibata, K.; Yamada, H.; Kase, T.; Yoshikai, Y. Interleukin-15 is critical in the pathogenesis of influenza a virus-induced acute lung injury. J. Virol. 2010, 84, 5574–5582. [Google Scholar] [CrossRef]
  55. Ito, Y.; Correll, K.; Zemans, R.L.; Leslie, C.C.; Murphy, R.C.; Mason, R.J. Influenza induces IL-8 and GM-CSF secretion by human alveolar epithelial cells through HGF/c-Met and TGF-alpha/EGFR signaling. Am. J. Physiol. Lung Cell. Mol. Physiol. 2015, 308, L1178–L1188. [Google Scholar] [CrossRef]
  56. Venkataraman, T.; Coleman, C.M.; Frieman, M.B. Overactive Epidermal Growth Factor Receptor Signaling Leads to Increased Fibrosis after Severe Acute Respiratory Syndrome Coronavirus Infection. J. Virol. 2017, 91. [Google Scholar] [CrossRef]
  57. Morichi, S.; Morishita, N.; Takeshita, M.; Ishida, Y.; Oana, S.; Yamanaka, G.; Kashiwagi, Y.; Kawashima, H. Vascular endothelial growth factor (VEGF) and platelet-derived growth factor (PDGF) levels in the cerebrospinal fluid of children with influenza-associated encephalopathy. J. Infect. Chemother. 2017, 23, 80–84. [Google Scholar] [CrossRef]

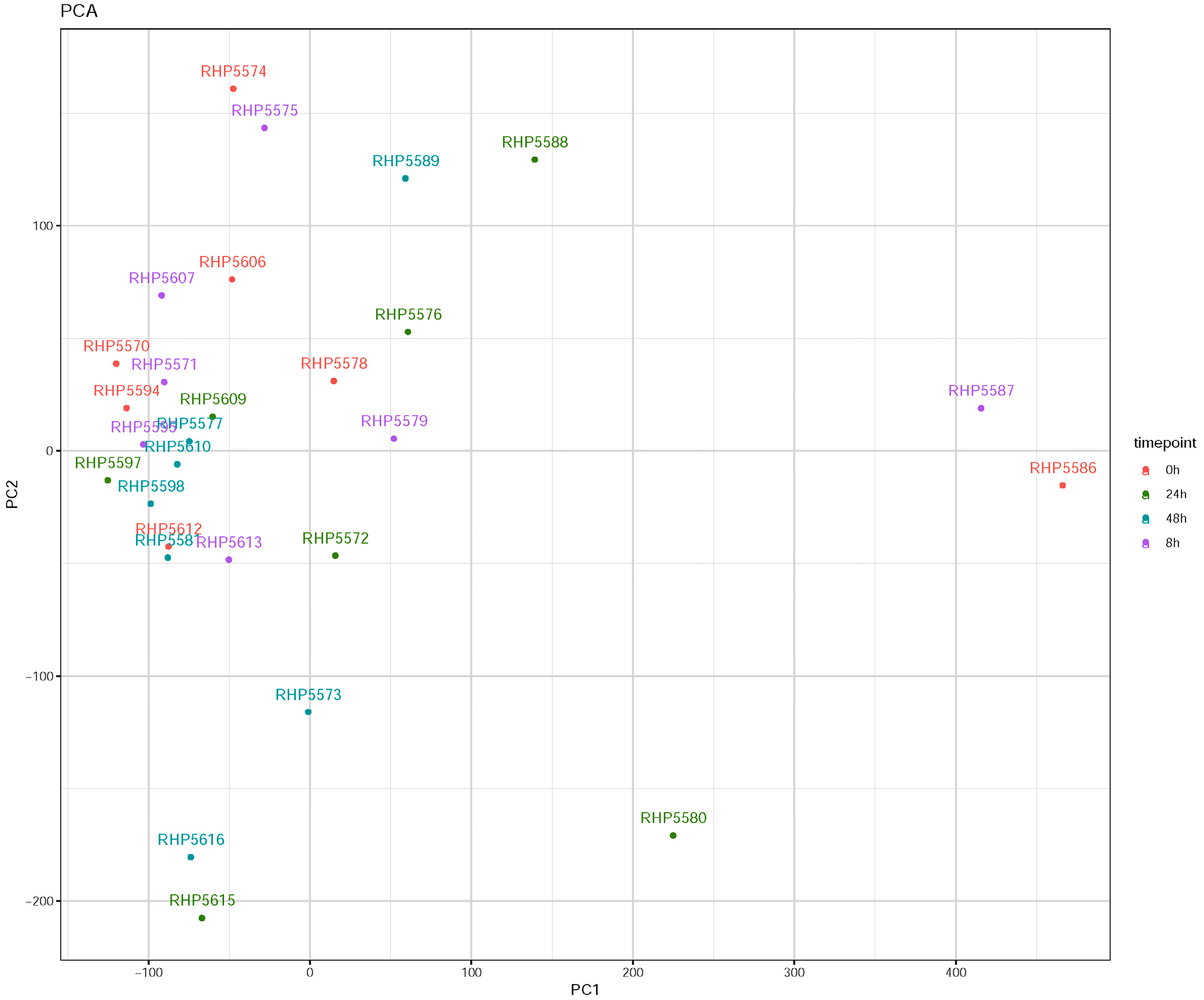

Figure 1. Principal component analysis (PCA) of hNECs from seven donors infected with influenza H3N2 virus. PCA plot of transcriptomic changes of different donor hNECs infected with influenza virus across four time points (0, 8, 24, and 48 h post-infection (hpi)). Each colored dot represents the sequencing ID of infected hNECs from a specific donor at a specific time point of infection. The majority of dots clustered closely following infection, thus signifying the consistency of infection for transcriptomic analysis.
Figure 1. Principal component analysis (PCA) of hNECs from seven donors infected with influenza H3N2 virus. PCA plot of transcriptomic changes of different donor hNECs infected with influenza virus across four time points (0, 8, 24, and 48 h post-infection (hpi)). Each colored dot represents the sequencing ID of infected hNECs from a specific donor at a specific time point of infection. The majority of dots clustered closely following infection, thus signifying the consistency of infection for transcriptomic analysis.
Cells 08 00986 g001
Figure 2. RNAseq analysis of significant gene expression changes following influenza infection. (A) Significant gene expression changes over time (FDR < 0.05). Red bars indicate the number of upregulated genes, while the blue bars indicate the number of downregulated genes. The number of significant gene expression changes peaked at 48 hpi. (B) Volcano plot showing individual points of gene expression changes over time (8, 24, and 48 hpi). The number of genes decreased in a linear fashion as the fold change increased. Genes with >10-fold difference in expression are depicted in dark red, and shown to include ~10% of the total number of significant gene changes.
Figure 2. RNAseq analysis of significant gene expression changes following influenza infection. (A) Significant gene expression changes over time (FDR < 0.05). Red bars indicate the number of upregulated genes, while the blue bars indicate the number of downregulated genes. The number of significant gene expression changes peaked at 48 hpi. (B) Volcano plot showing individual points of gene expression changes over time (8, 24, and 48 hpi). The number of genes decreased in a linear fashion as the fold change increased. Genes with >10-fold difference in expression are depicted in dark red, and shown to include ~10% of the total number of significant gene changes.
Cells 08 00986 g002

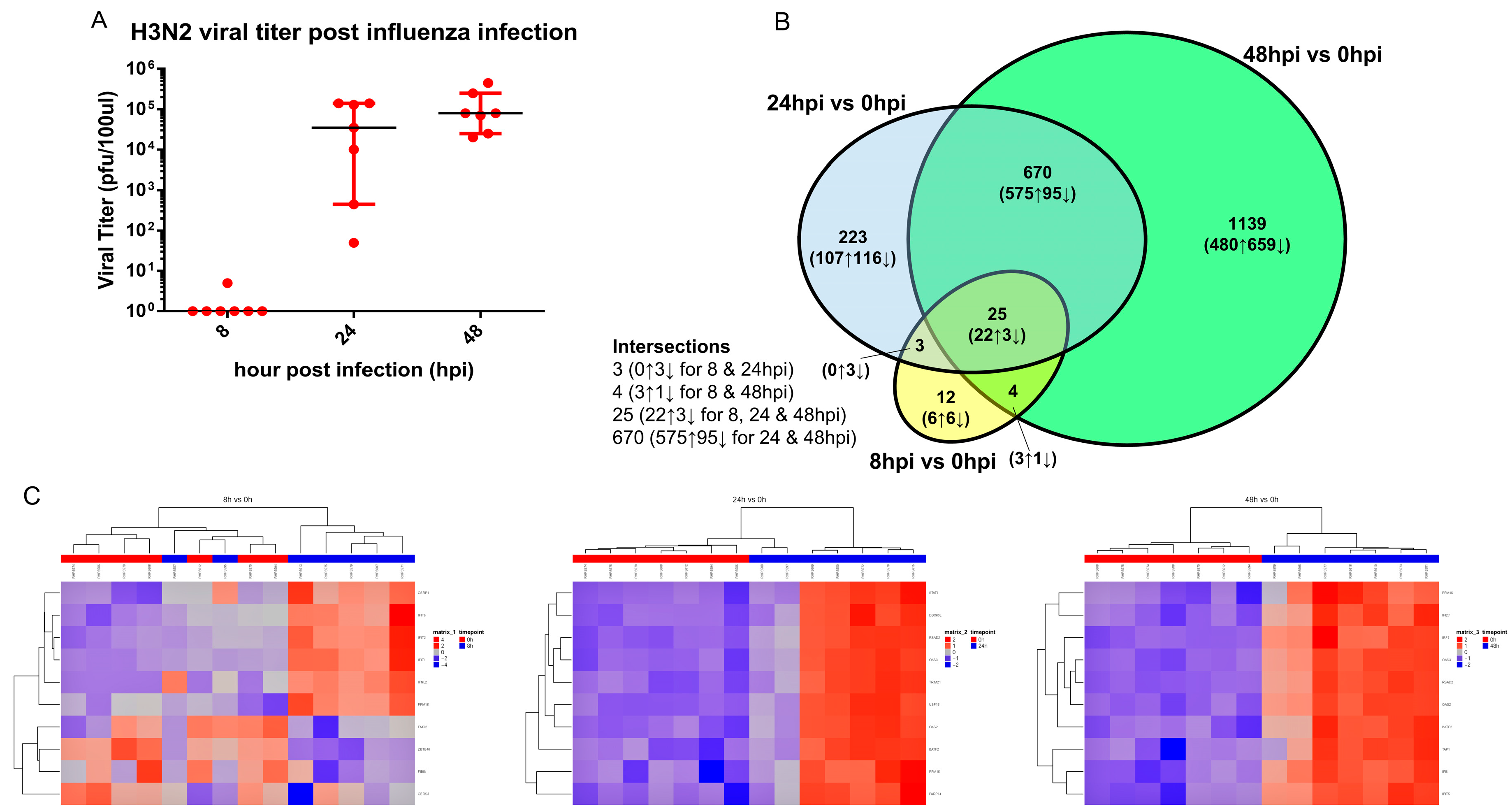

Figure 3. Viral titer and the transcriptomic change pattern post influenza H3N2 infection. (A) Viral titer retrieved from apical wash of infected hNECs 8, 24, and 48 hpi of influenza inoculation. The y-axis is presented in a Log10 scale and viral titer is presented in PFU/100 µL. Each individual point at each time point represents viral titer retrieved from in vitro-differentiated culture of a hNECs donor. (B) Venn diagram of transcriptional change pattern over time post influenza infection. Venn diagram summarizes the transcriptional pattern changes over time. For 8 and 24 hpi, about two thirds of genes overlapped with other time points, while for 48 hpi, one third of genes overlapped. The direction of the gene change in overlapping regions were consistent across the time points it is significant in. A greater number of genes were upregulated than downregulated at all time points. (C) Heatmaps of top 10 genes with smallest p-value at time points 8, 24 and 48 hpi (blue bar) compared to 0 hpi (red bar). The changes of the genes became more consistent overtime and showed same directional changes and clustering at 48 hpi.
Figure 3. Viral titer and the transcriptomic change pattern post influenza H3N2 infection. (A) Viral titer retrieved from apical wash of infected hNECs 8, 24, and 48 hpi of influenza inoculation. The y-axis is presented in a Log10 scale and viral titer is presented in PFU/100 µL. Each individual point at each time point represents viral titer retrieved from in vitro-differentiated culture of a hNECs donor. (B) Venn diagram of transcriptional change pattern over time post influenza infection. Venn diagram summarizes the transcriptional pattern changes over time. For 8 and 24 hpi, about two thirds of genes overlapped with other time points, while for 48 hpi, one third of genes overlapped. The direction of the gene change in overlapping regions were consistent across the time points it is significant in. A greater number of genes were upregulated than downregulated at all time points. (C) Heatmaps of top 10 genes with smallest p-value at time points 8, 24 and 48 hpi (blue bar) compared to 0 hpi (red bar). The changes of the genes became more consistent overtime and showed same directional changes and clustering at 48 hpi.
Cells 08 00986 g003

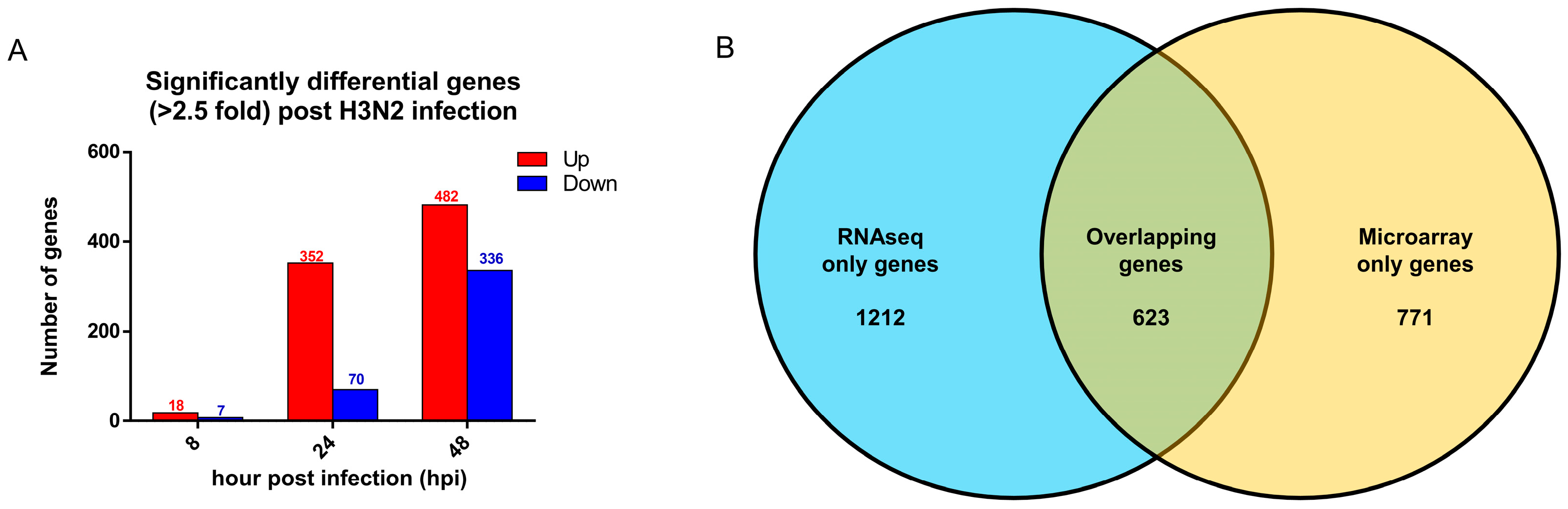

Figure 4. Significant gene expression changes (>2.5-fold change) following influenza infection. (A) Significant gene expression changes over time (FDR < 0.05) at >2.5-fold change. Red bars indicate the number of upregulated genes, while blue bars indicate the number of downregulated genes. The number of significant gene expression changes peaked at 48 hpi, with approximately half of the genes being retained following the application of the new threshold. (B) Venn diagram of significant genes found in RNAseq (blue) and microarray (yellow). A high degree of overlap was observed where 1/3 of RNAseq genes overlapped with half of the microarray genes.
Figure 4. Significant gene expression changes (>2.5-fold change) following influenza infection. (A) Significant gene expression changes over time (FDR < 0.05) at >2.5-fold change. Red bars indicate the number of upregulated genes, while blue bars indicate the number of downregulated genes. The number of significant gene expression changes peaked at 48 hpi, with approximately half of the genes being retained following the application of the new threshold. (B) Venn diagram of significant genes found in RNAseq (blue) and microarray (yellow). A high degree of overlap was observed where 1/3 of RNAseq genes overlapped with half of the microarray genes.
Cells 08 00986 g004
Table 1. Summary of RNAseq analysis across time points.
Table 1. Summary of RNAseq analysis across time points.
Time, Hours Post Infection (hpi)82448
Number of significant genes44 (31↑; 13↓)921 (704↑; 217↓)1838 (1080↑; 758↓)
Number of significant genes over 10-fold (>Log2FC of 3.4)3 (2↑; 1↓)99 (91↑; 8↓)167 (112↑; 55↓)
Highest upregulated geneIFNL2IFNL1IFNL1
Highest downregulated geneKLK12NAP1L3CYP26A1
Table 2. 48 hpi GO pathways potentially associated with influenza pathogenesis.
Table 2. 48 hpi GO pathways potentially associated with influenza pathogenesis.
GOidDescriptionAnnotatedSignificantExpectedp-Value_adjGenes
GO:0060333Interferon-gamma-mediated signaling pathway723610.359.184 × 10−11TRIM22 ↑; IRF9 ↑; TRIM38 ↑; GBP1 ↑; GBP2 ↑; HCK ↓; HLA-A ↑; HLA-B ↑; HLA-C ↑; HLA-E ↑; HLA-F ↑; HLA-G ↑; ICAM1 ↑; IRF1 ↑; IRF2 ↑; IRF6 ↑; IRF7 ↑; JAK2 ↑; MT2A ↑; OAS1 ↑; OAS2 ↑; OAS3 ↑; PML ↑; B2M ↑; PTAFR ↑; SP100 ↑; TRIM21 ↑; STAT1 ↑; TRIM25 ↑; TRIM26 ↑; CAMK2D ↑; NLRC5 ↑; TRIM5 ↑; OASL ↑; NMI ↑; CD44 ↑
GO:0008637Apoptotic mitochondrial changes812211.640.015CLU ↓; ERBB4 ↓; EYA2 ↓; IFI6 ↑; GCLC ↓; GCLM ↓; SFN ↑; SLC25A4 ↓; HK2 ↑; IFIT2 ↑; MCL1 ↑; MMP9 ↑; PLAUR ↑; PMAIP1 ↑; BAK1 ↑; SOD2 ↑; BNIP3L ↓; PLA2G6 ↓; CASP8 ↑; AIFM2 ↑; TNFSF10 ↑; NOL3 ↓
GO:0048661Positive regulation of smooth muscle cell proliferation58198.340.036NAMPT ↑; ABCC4 ↓; PPARGC1A ↓; HBEGF ↑; EREG ↑; FGFR2 ↓; ID2 ↓; IRAK1 ↑; JAK2 ↑; MMP9 ↑; NOTCH3 ↓; IRAK4 ↑; SERPINF2 ↓; PTAFR ↑; PTGS2 ↑; CCL5 ↑; STAT1 ↑; THBS1 ↑; CAMK2D ↑
GO:0045824Negative regulation of innate immune response28134.020.015ADAR ↑; TRAFD1 ↑; A2M ↓; HLA-E ↑; IFI16 ↑; LGALS9 ↑; SERPINB9 ↑; CEACAM1 ↑; SERPING1 ↑; TNFAIP3 ↑; DHX58 ↑; NLRC5 ↑; NMI ↑
GO:0070542Response to fatty acid32134.60.015PPARGC1A ↓; CREB1 ↑; CTGF ↓; ALAD ↓; GIPR ↓; PDK4 ↓; PTAFR ↑; PTGS2 ↑; TLR2 ↑; UCP2 ↓; ZC3H12A ↑; CAT ↓; CD36 ↓
GO:0060544Regulation of necroptotic process1171.580.043RBCK1 ↑; RIPK3 ↑; SLC25A4 ↓; BIRC2 ↑; BIRC3 ↑; CFLAR ↑; ARHGEF2 ↑
Table 3. 48 hpi REACTOME pathways potentially associated with influenza pathogenesis.
Table 3. 48 hpi REACTOME pathways potentially associated with influenza pathogenesis.
IDDescriptionGene RatioBg Ratiop-valuep.adjustq-valuegeneID
877300Interferon gamma signaling33/77665/46372.081 × 10−103.83 × 10−83.32 × 10−8OAS2 ↑; OAS3 ↑;IRF7 ↑; OAS1 ↑; STAT1 ↑; TRIM21 ↑; TRIM5 ↑; PML ↑; HLA-F ↑; HLA-E ↑; SP100 ↑; OASL ↑; TRIM22 ↑; TRIM25 ↑; HLA-B ↑; GBP1 ↑; HLA-C ↑; B2M ↑; TRIM38 ↑; IRF6 ↑; HLA-A ↑; IRF9 ↑; JAK2 ↑; TRIM26 ↑; IRF1 ↑; GBP2 ↑; HLA-G ↑; IRF2 ↑; CAMK2D ↑; PTAFR ↑; CD44 ↑; MT2A ↑; ICAM1 ↑
983705Signaling by the B Cell Receptor (BCR)38/776119/46372.72153 × 10−50.0014405970.001249039PSME2 ↑; BTC ↑; PSMB9 ↑; DAPP1 ↑; PSMB8 ↑; RASGRP3 ↑; RICTOR ↑; EREG ↑; PSMA6 ↑; PSMA4 ↑; MOV10 ↑; HBEGF ↑; ITPR3 ↑; PSMF1 ↑; FGF2 ↑; CARD11 ↑; PSME1 ↑; CREB1 ↑; LYN ↑; PSMB7 ↑; FGFR3 ↓; MALT1 ↑; CDKN1A ↑; PIK3AP1 ↑; AGO1 ↓; FGF1 ↓; FGFR2 ↓; FGF5 ↑; ERBB4 ↓; ITPR1 ↓; UBC ↑; NCK1 ↑; ERBB2 ↓; SH3KBP1 ↑; PSMA3 ↑; PSMA5 ↑; TRIB3 ↑; GAB1 ↑
109581Apoptosis30/77688/46374.88082 × 10−50.002279630.001976505PSME2 ↑; PSMB9 ↑; PMAIP1 ↑; TNFSF10 ↑; DSG3 ↑; PSMB8 ↑; BAK1 ↑; TICAM1 ↑; H1F0 ↑; CASP7 ↑; TLR3 ↑; CFLAR ↑; FAS ↑; PSMA6 ↑; PSMA4 ↑; PSMF1 ↑; OCLN ↑; TRAF2 ↑; XIAP ↑; PSME1 ↑; CASP8 ↑; MAGED1 ↓; SFN ↑; PSMB7 ↑; TJP1 ↑; BIRC2 ↑; UBC ↑; PLEC ↑; PSMA3 ↑; PSMA5 ↑
71291Metabolism of amino acids and derivatives40/776134/46379.37168 × 10−50.0040258040.003490489IL4I1 ↑; IDO1 ↑; PSME2 ↑; SQRDL ↑; PSMB9 ↑; PSMB8 ↑; GAMT ↓; PSMA6 ↑; SMS ↑; PSMA4 ↑; KYNU ↑; SLC5A5 ↓; PSMF1 ↑; SHMT1 ↓; ALDH7A1 ↓; AZIN2 ↑; PSME1 ↑; AFMID ↓; BBOX1 ↓; GCLC ↓; IYD ↓; ALDH4A1 ↓; FAH ↓; PSMB7 ↑; HIBCH ↓; MCCC1 ↓; ALDH18A1 ↓; TST ↓; GCLM ↓; BCAT1 ↑; PSAT1 ↑; GPT ↓; ASNS ↑; PSMA3 ↑; ADI1 ↓; PSMA5 ↑; SLC25A10 ↓; ALDH6A1 ↓
1168372Downstream signaling events of B Cell Receptor (BCR)31/77698/46370.0001805380.0048655970.004218614PSME2 ↑; BTC ↑; PSMB9 ↑; PSMB8 ↑; RASGRP3 ↑; RICTOR ↑; EREG ↑; PSMA6 ↑; PSMA4 ↑; MOV10 ↑; HBEGF ↑; PSMF1 ↑; FGF2 ↑; CARD11 ↑; PSME1 ↑; CREB1 ↑; PSMB7 ↑; FGFR3 ↓; MALT1 ↑; CDKN1A ↑; AGO1 ↓; FGF1 ↓; FGFR2 ↓; FGF5 ↑; ERBB4 ↓; UBC ↑; ERBB2 ↓; PSMA3 ↑; PSMA5 ↑; TRIB3 ↑; GAB1 ↑
Table 4. Summary of alterations in expression of influenza-specific gene signatures in infected hNECs.
Table 4. Summary of alterations in expression of influenza-specific gene signatures in infected hNECs.
Gene_NamelogCPMFDR 8 hLogFC 8 hFDR 24 hLogFC 24 hFDR 48 hLogFC 48 h
ZBP15.467096N.S.2.71 × 10−66.4192752.70 × 10−86.97086
IFI67.740724N.S.2.77 × 10−144.7807171.80 × 10−236.30199
CD385.090161N.S.1.91 × 10−85.2322782.10 × 10−105.699259
MX110.7197N.S.2.36 × 10−134.878483.48 × 10−175.339009
HERC56.743117N.S.1.05 × 10−95.0936466.89 × 10−125.28321
IFIH17.876294N.S.2.71 × 10−43.5665567.51 × 10−63.972719
HERC68.376077N.S.1.66 × 10−113.3394447.15 × 10−63.843258
RTP44.998082N.S.4.97 × 10−112.8467097.28 × 10−153.25471
PARP125.511677N.S.3.12 × 10−22.2038491.99 × 10−22.11728
LY6E8.624757N.S.2.10 × 10−61.4516848.74 × 10−121.989543
LGALS3BP11.0223N.S.1.30 × 10−30.8552311.57 × 10−81.336304
Table 5. Expression of influenza signature genes in infected hNECs at 48 hpi detected by H3N2 microarray and RNAseq.
Table 5. Expression of influenza signature genes in infected hNECs at 48 hpi detected by H3N2 microarray and RNAseq.
Gene nameMicroarray LogFC 48 hMicroarray FDR 48 hRNAseq LogFC 48 hRNAseq FDR 48 h
ZBP11.306281.04 × 10−66.970862.70 × 10−8
IFI63.786856.67 × 10−66.301991.80 × 10−23
CD383.611755.88 × 10−75.6992592.10 × 10−10
MX13.175841.57 × 10−85.3390093.48 × 10−17
HERC53.534331.65 × 10−85.283216.89 × 10−12
IFIH14.082525.01 × 10−83.9727197.51 × 10−6
HERC63.109329.16 × 10−83.8432587.15 × 10−16
RTP42.416686.25 × 10−73.254717.28 × 10−15
PARP122.027564.75 × 10−82.117281.99 × 10−2
LY6E1.119676.02 × 10−51.9895438.74 × 10−12
LGALS3BP0.8636417.59 × 10−41.3363041.57 × 10−8
Back to TopTop
