Cells 2019, 8(8), 883;

Understanding Quantitative Circadian Regulations Are Crucial Towards Advancing Chronotherapy
by 1,2,†, 1,2,†, 1,2,* and 1,2,*
HKBU Institute for Research and Continuing Education, Shenzhen 518057, China
Institute of Integrated Bioinfomedicine and Translational Science, School of Chinese Medicine, Hong Kong Baptist University, Hong Kong 999077, China
Correspondence: [email protected] (A.-P.L.); [email protected] (H.-L.Z.); Tel.: +852-3411-2962 (H.-L.Z.)
These authors contributed equally to this work.
Received: 10 May 2019 / Accepted: 9 August 2019 / Published: 13 August 2019


Circadian rhythms have a deep impact on most aspects of physiology. In most organisms, especially mammals, the biological rhythms are maintained by the indigenous circadian clockwork around geophysical time (~24-h). These rhythms originate inside cells. Several core components are interconnected through transcriptional/translational feedback loops to generate molecular oscillations. They are tightly controlled over time. Also, they exert temporal controls over many fundamental physiological activities. This helps in coordinating the body’s internal time with the external environments. The mammalian circadian clockwork is composed of a hierarchy of oscillators, which play roles at molecular, cellular, and higher levels. The master oscillation has been found to be developed at the hypothalamic suprachiasmatic nucleus in the brain. It acts as the core pacemaker and drives the transmission of the oscillation signals. These signals are distributed across different peripheral tissues through humoral and neural connections. The synchronization among the master oscillator and tissue-specific oscillators offer overall temporal stability to mammals. Recent technological advancements help us to study the circadian rhythms at dynamic scale and systems level. Here, we outline the current understanding of circadian clockwork in terms of molecular mechanisms and interdisciplinary concepts. We have also focused on the importance of the integrative approach to decode several crucial intricacies. This review indicates the emergence of such a comprehensive approach. It will essentially accelerate the circadian research with more innovative strategies, such as developing evidence-based chronotherapeutics to restore de-synchronized circadian rhythms.
circadian rhythms; transcriptional dynamics; molecular clockwork; chronotherapy

1. Introduction

Adapting to the environment across different geophysical locations is a spontaneous tendency of life on the Earth prompted by progressive evolution. Axial rotation of Earth causes day/night cycles around 24-h. This brings periodic fluctuations in light exposure, light intensity, and environmental temperature every day. It influences all organisms immensely in terms of many aspects of their physiology and behavior. To adopt such periodical changes, most organisms have been equipped with internal biological clocks that antedates day and night cycles. It facilitates them to optimize their intrinsic physiological activities and behavior. This inherent phenomenon is termed circadian rhythm. It consists of a self-sustained 24-h rhythm generator, orchestrating the internal oscillators to the external stimuli. Recent studies have suggested that circadian systems in mammals consist of several internal clocks across the entire body [1]. These clocks, located in different tissues, are connected to the central clock, known as the suprachiasmatic nucleus (SCN). This systematic network of clocks helps in balancing various physiological processes in the body.
In this review, we have sketched the fundamentals of circadian rhythms, the molecular mechanisms of the clock, and recent advancements. We have also focused on the recent advancements in temporal synchronizations among the master clock and the peripheral clocks over different tissues. Currently, the basis of such synchronizations is not very well elucidated and there are several gaps yet to be addressed. Therefore, we reviewed the panoramic standpoints of the circadian research to consolidate our understanding from molecular level to systems level. In future, such deep understanding would certainly help us in reimagining the potential scopes of chronotherapeutic interventions.

2. Molecular Insights of the Clockwork and the Feedback

Most organisms on Earth exhibit the inherent spontaneous feature to adapt to environmental entrainments differentially. Remarkably, to achieve such adaptability, most of the organisms possess an internal biological clock that predates day and night cycles and facilitates in balancing physiological activities and behavior. This inherent physiological system is known as circadian rhythm [2]. The 24-h circadian systems synchronize internal oscillators to external stimuli such as light and temperature, also known as the zeitgebers or timekeepers. This drives temporal orchestrations of multiple physiological processes [2].

2.1. The Overview of the Mammalian Circadian Clockwork and Its Regulations

Recently, core molecular mechanisms beyond the rhythmic oscillations have been well defined. This is primarily generated by two interconnected transcription/translation feedback loops (TTFLs) [2,3,4]. These loops operate together to produce robust 24-h rhythmic gene expression patterns. These canonical molecular clockworks include a core set of genes being negatively regulated through the TTFLs (Figure 1). In addition, there have been two interconnected TTFLs that have been recognized in mammalian circadian systems—the primary and the secondary TTFLs. The temporal control of the core primary TTFLs was majorly intended by four integral clock-related proteins: two activators (CLOCK and BMAL1) and two repressors (PER and CRY), along with kinases and phosphatases as rate-limiting factors to sustain the closed-loop feedback regulation. The molecular interconnection among those regulators are essential for the circadian clockworks.

2.2. Dynamics of Circadian Transcription/Translation Feedback Loops

Understanding the dynamics of the circadian transcription must provide a robust perception of the clockworks at molecular level. The two major transcriptional activators, CLOCK and BMAL1, form a heterodimeric complex (CLOCK:BMAL1) and are an essential positive regulator for mammalian circadian clockworks. This heterodimer is capable of binding to several thousand sites across the genome in a timely manner [4,5]. Recruitment of integral clock protein transcriptional repressors, PER1, PER2, CRY1, and CRY2 is facilitated upon CLOCK:BMAL1 heterodimeric complex binds to the consensus E-box DNA motifs [2,4]. This process usually occurs during the dark phase [2,4]. The most recent model suggested that cyclical repression of CLOCK:BMAL1 activity by another heterodimeric complex PER:CRY confers the rhythmicity of transcriptional output over ~24-h periodicity, which were further extended beyond CLOCK:BMAL1 target genes through circadian regulation of additional transcription factors and coregulators [6]. Also, PER and CRY proteins used to get recruited to other different sites across the genome which are usually enriched for nuclear hormone receptor-binding [6,7]. This gives PER and CRY control over the transcriptional activities of a diverse array of nuclear hormone receptors [6,7]. Thus, PER and CRY strongly demonstrate an extensive temporal regulation mediated by different TFs outside the core molecular clock loop. This has also indicated the most plausible mechanism of conveying the temporal cues to the downstream TFs through a rhythmic transcriptional regulation by clock-driven oscillations over the 24-h in a day. PER is used to regulate or limit circadian transcriptional machinery in two different modes: (1) PER facilitates a direct interaction with the CLOCK:BMAL1 to recruit some other components, including epigenetic modulators such as histone deacetylases to repress further transcriptional activation by CLOCK:BMAL1 [8]. (2) By interacting with RNA-binding proteins and helicases, PER gets recruited to the termination site of the Per1, directing transcriptional termination to limit CLOCK:BMAL1-mediated transcriptions independently [8].
A few studies have also suggested CRY as a key player in potential repression of CLOCK:BMAL1 driving the transcriptional activation [2,4]. Researchers have identified two cryptochromes, CRY1 and CRY2, in mammals. Out of those two, CRY1 has been widely studied. CRY1 alone has been found to sustain circadian rhythms and exhibit a significantly altered expression relative to CRY2. CRY2 is usually encoded by multiple clock-regulated promoter elements [9,10]. In fact, CRY1 is used to interact with CLOCK:BMAL1 heterodimer autonomously ahead of PER, and is usually found at CLOCK:BMAL1-bound sites in the early morning. Thus, CRY1-mediated transcriptional control to maintain CLOCK:BMAL1-mediated transcriptional activation is used to react as a premier molecular gatekeeper, and is presumed to be more robust, self-sustained, and independent by features. However, a thorough mechanism is not yet explained enough.
In addition to this primary core TTFL, another secondary TTFL clockwork has been recognized. This is generated through transcriptional activation by the retinoid-related orphan receptors (RORα, RORβ, and RORγ) [2,11] and repression by REV-ERBα/REV-ERBβ [12,13]. This second loop drives rhythmic changes in Bmal1 transcription and introduces a delay in Cry1 mRNA expression that counterbalances it from the CLOCK:BMAL1 heterodimer-regulated genes. These rhythmic changes in BMAL1 abundance are not primarily required to drive the core TTFL [2]. However, to maintain the circadian timing and timely ticking of the internal clocks, the second TTFL, the ROR/REV TTFL-induced delay in Cry1 expression is very crucial [12,13]. It provides an additional layer of fine-tuning of the body clocks to be maintained in a timely manner keeping pace with external cues and internal physiology. Thus, interlocking feedback loops provide robustness against noise and environmental perturbations to maintain accuracy in circadian timing. The existence of these cooperatives also helps to generate phase delays in circadian transcriptional output, which temporally regulates the expression of clock-controlled output genes and other circadian rhythm-related genes for tuning internal physiology [2]. Furthermore, there may exist several other modes of transcriptional controls beyond those two primary and secondary clockworks.

2.3. Different Modes of Circadian Transcriptional Regulation

To provide a more holistic overview about the circadian oscillation generation, interestingly, computational biologists and bioinformaticians have identified a few regulatory motifs associated with the clock-specific TFs to explain the circadian transcriptions [5,14]. Recently, a quantitative viewpoint with the TF-binding occupancy has refreshed the understanding on circadian gene regulations. This influences the degree of rhythmic oscillations over the day [14]. Therefore, the research track on the spatio-temporal regulations of the circadian genes may be accelerated through synergistic remodeling of circadian epigenetic landscapes. Besides, several genome-wide studies revealed an interesting fact that both the chromatin remodeling and RNAP-II recruitment are capable of demonstrating a daily rhythmic discrepancy at all actively expressed circadian genes, even if some genes do not undergo vigorous transcriptional variations [15,16]. Thus, a robust variation in epigenetic circumstances could fund an overall intensification in transcriptions over a specific period within the 24-h day. Thus, the dynamic behaviors of circadian gene expression are highly associated with the tuning of indigenous physiological clock/timing provided by the body’s own clock. Therefore, the transcriptional dynamics and variation in transcriptional kinetics over the 24-h a day used to be believed to exert a substantial role in the emergence of rhythmic properties in the mammalian clock [15,16].
However, a profound direction backing these challenges is that cis-acting regulatory elements play a pivotal role in restructuring the kinetics of transcriptional bursts, contributing to the circadian transcriptional variability, and/or noise [15,16]. This could be achieved through recruitment and retention of general transcriptional machinery and coregulators that facilitate restructuring the local molecular environment. Nevertheless, comprehensively decoding the detailed transcriptional snapshots and other layers of molecular regulations among the core clock and peripheral clocks remained out of reach of prevailing approaches [2]. To date, there is neither any strong scientific evidence nor any solid, comprehensive recommendation on this. The suggested tracks are limited by the complexities of more integrative algorithm developments to accommodate different layers of molecular information into a single framework. Also, only the transcriptional mode of control is not enough, and scientists must envisage more molecular complexity to understand full inclusively about circadian rhythms at the dynamic scale. Therefore, probing post-transcriptional and post-translational modifications are also quite important in addition to the transcriptional landscape.

3. Post-Transcriptional and Post-Translational Controls over the Molecular Oscillations

Post-transcriptional and post-translational modifications have been believed to a very important decisive determinant for regulating molecular clockwork/oscillation. Studies have suggested that approximately 80% of mRNA did not exhibit circadian rhythm in their de novo transcription; however, they do demonstrate circadian rhythms in their content [4]. This phenomenon states that post-transcriptional regulation certainly plays a critical role in executing circadian rhythmic features [17]. Another interesting insight about the emergence of post-translational modifications has been explained well in terms of affecting period length. The first mammalian clock gene, Tau, was identified in a mutant hamster exhibiting shortening circadian period [18]. This Tau possesses a missense mutation at the phosphorylation site of CK1ϵ, which also facilitates phosphorylation of many clock proteins, including the CRY and PER [19]. Interestingly, the patients with advanced-sleep-phase syndrome, with shorter circadian period length, have been screened to possess a missense mutation at the CK1ϵ site in their Per2 gene [20]. Later, studies supported the hypothesis that the shorter period for mutated Tau was due to gain-of-function mutation that induced hyperphosphorylation in different sites of the PER2, resulting in shorter molecular oscillation, thus shorter period length [21]. It is not only CK1ϵ; there are several other kinases that can account for affecting period length [22]. Also, different kinds of post-translational modifications are imparted into circadian period maintenance, such as ubiquitination [23,24], acetylation [25], and SUMOylation [26].
Additionally, many mutations have been identified against different types of sleep/wake rhythmic disorders [27,28,29]. In recent years, research focus has gained attention towards targeting clock genes underlying mood disorder [30,31,32] and also neurodevelopmental disorders [33,34,35] for therapeutic interventions. Moreover, multiplexed molecular interactions, feedback loops, and signaling systems together offer the stability towards circadian homeostasis. However, intense study is required to comprehensively decode multi-layered mechanisms maintaining the clockwork from the molecules to cells to systems [36].

4. Light Entrainment and Synchronization of Biological Clocks

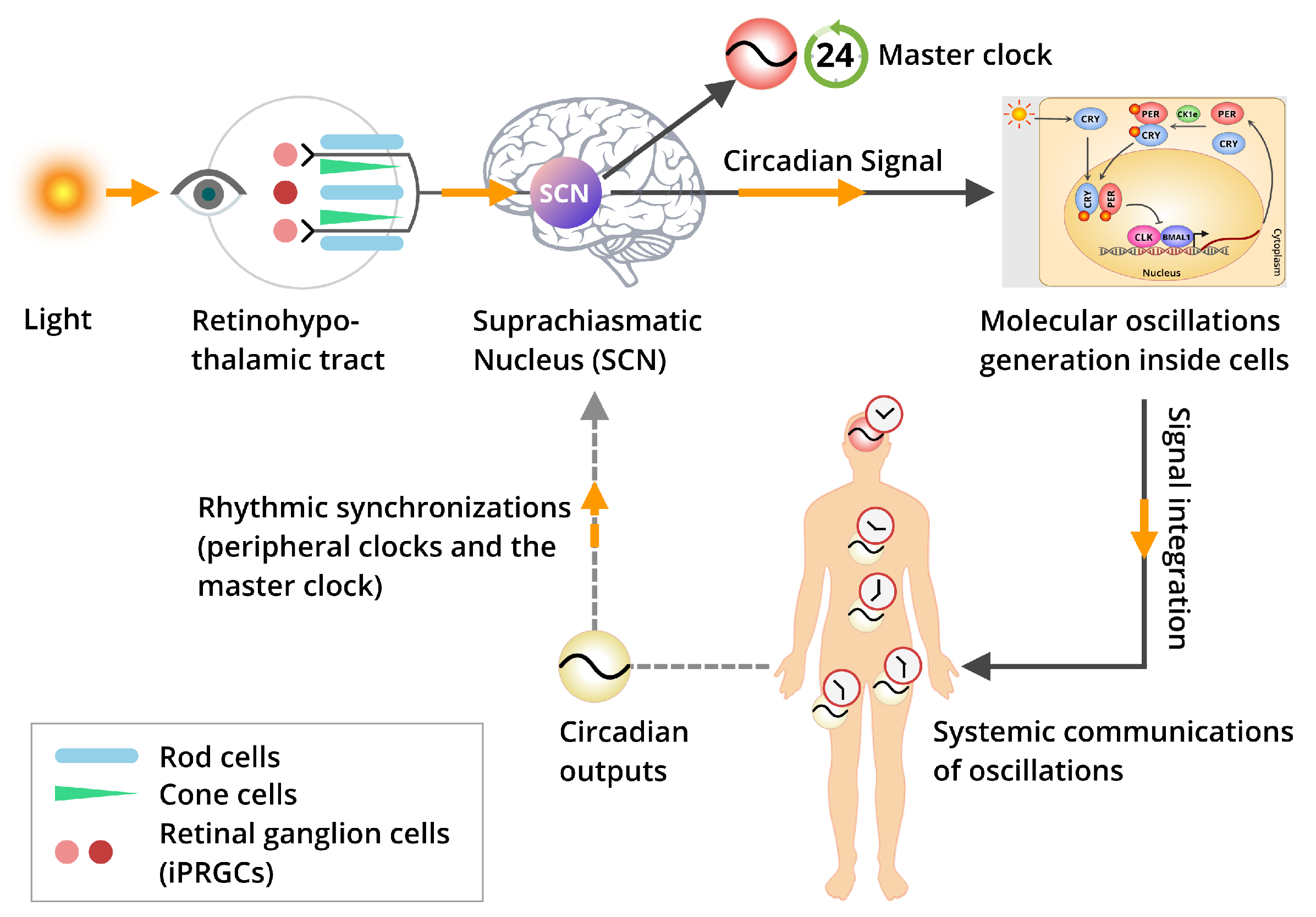

How the light or any other form of entrainments pass from environment and get received and assimilated by physiological systems is quite interesting to know, as is the entrainment influence to be further passed onto cellular and then molecular levels to generate the self-sustained oscillation. In turn, that oscillation from molecules is synchronized again to systems. Our body’s rhythmic program and indigenous circadian clock are primarily generated in the SCN, the master clock and primary timekeeper, and then synchronized with the different peripheral clocks at distal tissues (Figure 2). The tuning between the body’s internal clocks and the external entrainments are not clear yet. A wide range of studies have postulated that the retina, especially the “intrinsically photosensitive retinal ganglion cells” (ipRGCs) act as a receiver of photic signals as input and transmit these signals to the SCN to produce the first tick in the master clock [37,38,39]. Sequentially, the SCN is used to harmonize its own cellular clocks and synchronize different peripheral clocks at distal tissues to regulate their diurnal rhythms [37,38,39]. The signals from SCN has been presumed to communicate through humoral factors and the peripheral autonomic nervous system to influence the ticking of peripheral clocks [40,41,42,43]. Finally, the molecular oscillations orchestrate the rhythms from molecule to cell, and then cell to systems. Thus, the physiological circadian homeostasis is believed to be balanced from geophysical time and external entrainments to tuning the indigenous rhythms. Eventually, studies suggested that the clock-controlled circadian genes’ regulations are quite imperative in this aspect.
However, the entire program of circadian gene expression is quite extensive throughout the body and most peripheral tissues can generate apparently independent circadian oscillations [44]. This has raised a question about the efficiency of synchronization features of circadian rhythms [41]. Peripheral clocks are used to become efficiently influenced and synchronized both by the SCN and by external environmental cues, such as light, temperature, feeding habits, and physical activities. On the other hand, the peripheral clocks are used to exert a substantial influence in controlling relevant physiological outputs: metabolism, hormonal regulation, and storage functions, and so on [45]. In return, the cumulative effect of these tissue-specific timekeeping functionality constructs an ultimate feedback to the SCN. Therefore, the circadian programs at systems levels of an organism has been considered to be a network of interrelated oscillators and feedback loops. Nevertheless, the relationship between master clock and peripheral clocks as well as relationship among different tissue-specific peripheral clocks are still ambiguous [46]. Hence, the mechanism by which they all are being timely synchronized is an active area to be investigated further. Also, the comprehensive knowledge about tissue-specific circadian regulations and harmonization of those clocks need sincere attention to maximize the use of our body’s own clock. This can lead to attaining optimum physiological output and to enrich the field of chronotherapy to treat and/or reverse the numerous circadian rhythm disruption-associated disorders such as sleep disorders, mood disorders, depressions, anxieties, seasonal-affective disorders, and jet lag. Cumulatively, this arena demands the emergence of disruptive ideas to be deployed for directive advancement in real-time practice of medicine.
As mammalian circadian systems are truly complicated, it can be considered to be composed of numerous clocks as there are cells in the entire organism. Interestingly, a prominent question arises, specifically how all these clocks (virtually representing different time zones in different tissues) get synchronized to each other and to the SCN-based master clock. The SCN is a tiny region, located underneath the hypothalamus, and above the optic chiasm of the brain. It consists of a network of functionally and phenotypically differentiated cells [47]. This SCN network functions as a master pacemaker for controlling the body’s indigenous rhythms, also known as circadian rhythms, being at the top of the structural hierarchy of the circadian systems (Figure 2) [48]. Also, this region is important for rhythmic hormone secretion and locomotor activity [49].
The SCN-based master clock facilitates orchestrating the other distal tissue-specific peripheral clocks, and thus facilitates entrainments of different signals from external cues as well as internal cues. Among the external cues, the environmental light/dark cycle has a large impact in modulating the circadian systems and synchronizations of physiological parameters. Usually, the light or photic signals are received through a special type of retina-based neuronal cell, ipRGC. They stimulate the secretion of the photopigment, melanopsin. These ipRGCs transmit the photic signal to SCN directly using RHT (Figure 2). These monosynaptic RHT fibers end in the ventrolateral region of the SCN, where the neurons primarily express vasoactive intestinal polypeptide. Studies suggest that light stimulation of the retina during the night leads to the release of glutamate, an excitatory neurotransmitter and a neuropeptide, pituitary adenylate cyclase-activating protein at the synaptic terminal of the RHT, prolonging the signal transmissions up to the SCN (Figure 2) [50].
This systematic path of signal transduction activates several molecular signaling pathways that induce chromatin remodeling and influence the molecular clockwork [51]. This is how the external cues exert an impact on molecular clockwork and its component genes to influence the circadian clock-mediated phase modulations [52]. The individual cellular oscillations are integrated together to produce a persistent circadian oscillation within the SCN [52]. Also, other brain regions, such as hypothalamus, amygdala, hippocampus, habenula, and olfactory bulbs, have been reported to exhibit daily rhythms [53]. In fact, the tissues, with neuroendocrine functions, such as arcuate nucleus, the paraventricular nucleus, and the pituitary gland, have been found to produce robust circadian rhythmic effects. These different non-SCN brain regions have been suggested in assisting circadian homeostasis maintenance through neuronal circuits [54]. These circuits are critical for keeping circadian oscillations essential as well as for regulating different crucial physiological activities over the 24-h time period, including but not limited to the integration of feeding information, redox sensing, metabolisms, and reward-driven behaviors occurring on a daily basis [55]. Thus, the understanding of the circadian systems in terms of coupling among the master core pacemaker and the peripheral clocks is quite essential. It is also crucial to elucidate the multifaced network effects on different physiological activities.

5. The Inter-Relation Among the Core Circadian Pacemaker and the Peripheral Clocks

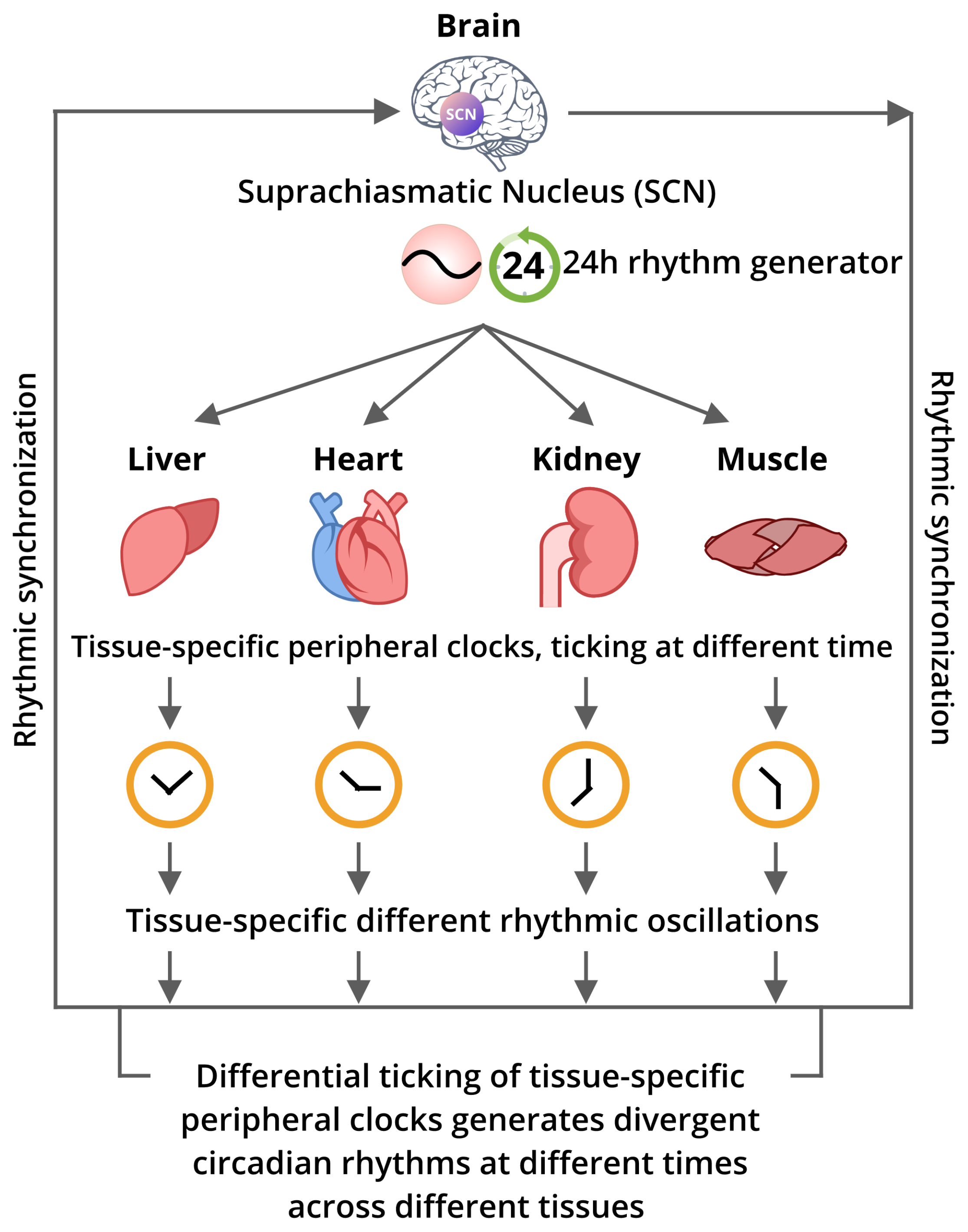

The circadian system is hierarchically organized with the SCN network-based master pacemaker in the central nervous systems. This is sequentially entrained to the light every day around the 24-h and engages in conducting a distributed network of peripheral clocks across different distal cells and tissues in the body. The master clock is vital for maintenance of the sleep/wake cycle related to dark/light exposure and also essentially maintains many other physiological activities, including learning, rewarding, and neurogenesis. Again, the peripheral clocks are entrained to the master clock. However, during aging, shift work, jet lag, and in any diseased conditions, the peripheral clocks and the master clock become de-synchronized [56,57,58,59,60,61,62]. Systematic disruptions of circadian rhythms are associated with impairment of sleep behaviors, and also molecular pathogenesis of different metabolic syndromes, obesity, diabetes, and even cancer.
An interesting perspective on how the multiple peripheral clocks located at distal tissues exert robust controls to their circadian genes’ expressions at dynamic scales is challenging to be elucidated (Figure 3). However, several microarray experiments suggested wide ranges of transcriptional controls regulating peripheral clocks, coordinating with tissue-specific functions and temporal control [63,64]. Furthermore, many experiments confirmed that circadian output is primarily controlled at the transcriptional level [65]. However, it is quite important to know how these only few components belonging to same molecular architecture are capable of such divergent gene expressions in a tissue-specific manner. Also, the mechanisms beyond their intricated temporal tuning must be enlightened further, as the transcription-driven model alone could not completely explain the divergency of circadian rhythms [2,14,66]. Thus, the smart approach demands more layers of information to be involved in a single model to investigate the complex rhythmic oscillation. Moreover, it has been believed that post-transcriptional, translational, and/or post-translational regulation must have very significant influence towards regulating the circadian output. Recently, many research groups have been engaged in genome-wide studies to examine the temporal recruitment of integral clock proteins, transcriptional machinery, and epigenetic modifications to chromatin structure to determine how the clock confers temporal control over transcriptional output [4,10,67,68]. In fact, a few studies stated that most of the circadian changes in mRNA levels may result from post-transcriptional regulation [4,5,10,14,67,68].
However, the all-encompassing mechanistic insights underpinning such divergent circadian gene regulations (transcriptionally and/or post-transcriptionally) are not yet clearly exposed. Simultaneously, another intriguing fact is still unknown, which is how these various levels of regulations and their molecular regulators are synchronized among different tissues to exert circadian controls over physiological activities. It is also important to decode the mechanisms that lead to circadian disruption-related disorders. Hence, a research approach, integrating various high-throughput biological data, may gather deep information from the molecular aspects [69]. Moreover, such advancements must augment knowledge linked to circadian biology and physiological outcomes, especially the sleep physiology.

6. Circadian Biology and Human Health

Day-to-day physiological activities, such as regulating sleep patterns, feeding behavior, hormone release, hormonal homeostasis, blood pressure, and body temperature maintenance are greatly influenced by circadian rhythms. Among them, circadian rhythm-associated sleep disorders were found to be linked with many major clinical consequences [70,71,72]. It has become a wide psycho-social and public health issue globally which is linked with various diseases [73]. Thus, many researchers are producing different tools and approaches related to chronobiology and pharmacology to modulate the period, phase and amplitude of circadian rhythms to improve human health. The discovery of the self-sustained TTFLs has led to a new paradigm in our understanding of how organisms adapt to daily environmental cues [74].

6.1. Influence of the External Factors on Circadian Homeostasis and Diseases

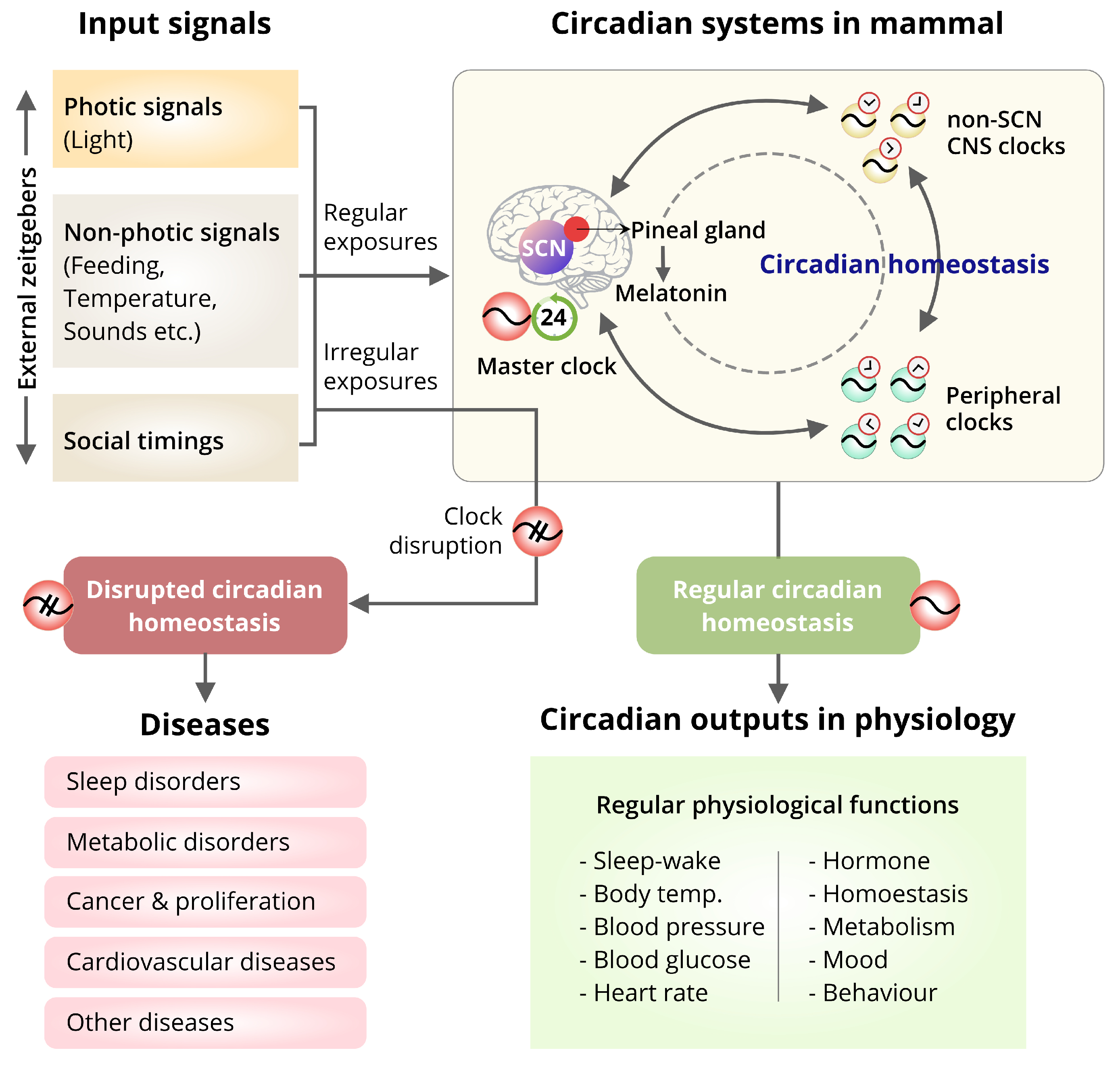

Circadian clocks are continuously interacting with external factors. The homeostasis of circadian clocks is crucial for persistence of many physiological activities, including sleep/wake cycles, feeding behavior, and body temperature [75,76]. Changes in our regular activities and feeding habits may play a part in disrupting the homeostasis of circadian rhythms and impair the associated physiological outputs (Figure 4). Disturbance of homeostasis has been reported to be associated with several physiological impairments and disease progression [42,57,77,78,79,80,81].
Precise synchronization of the circadian rhythmic systems to the 24-h a day necessitates regular adjustments driven by exposures to the various environmental time cues or zeitgebers [82,83]. Mammalian systems exhibit a typical “free-running period (FRP)” mode slightly different than 24-h [76,84,85,86]. The FRP expresses the SCN-based endogenous circadian rhythms without any corrective adjustments influenced by external cues. The interaction between circadian rhythms and its homeostasis on sleep/wake cycles were explained in the opponent process model of the sleep regulation theories [87]. This is a process in which sleep tendency increases with the duration of prior wake and is known as sleep homeostatic drive [87]. It begins to be accumulated immediately upon awakening and as the day progresses. These accumulated sleep drives are not manifested as explicit sleepiness. During daytime, the circadian rhythmic systems generate an alerting signal that counteracts the expression of sleep drive. In addition, at the end of the day, typically 1 to 2 h before the habitual bedtime, the circadian alerting signals alleviates. Thus, the balance between the two opponent processes shifts, and a person is used to feeling sleepy [87]. With the onset of sleep, those accumulated homeostatic sleep drives start dispersing. A healthy person exposed to a typical entrainment in accordance with regular, conventional schedule, the sleep homeostatic drives and the circadian rhythmic systems are synchronized with each other and with the 24-h solar day/night cycle [87].
In the mammalian circadian systems, a hormone called melatonin plays a crucial role in regulating the homeostasis and response to the light/dark cycles. Melatonin has the potential to modulate the timing of circadian rhythms and its outputs. In addition, it also plays an important role in synchronizing those circadian rhythmic outputs in accordance to the prevailing light/dark cycles. Melatonin is primarily synthesized in the pineal gland and enters to the blood stream in a rhythmic manner. The rhythmic synthesis of melatonin is driven by the SCN. Light exposure intervenes in the circadian signals to block the activities of the pineal gland [88,89,90,91]. High levels of melatonin can be found during night-time and low levels during the daytime [88,89,90,91]. Its secretion proportionally depends on the length of the darkness. Alterations in light/dark exposures or responsiveness to the seasonal changes cause a parallel change in the pattern of melatonin secretion. Those variations in melatonin secretion cause the changes of the body clocks [92,93,94]. The temporal regulation of melatonin secretion is closely associated with the timing of sleep propensity and decreases in core body temperature [95,96]. As the light/dark cycles have the greatest influence to the circadian rhythmic systems, the greatest phase delay is usually achieved when the light starts near the dim light melatonin onset (DLMO) and maximum phase advance is occurred after 7 to 8 h of light exposure after DLMO, near the core body temperature minimum [95,96]. The phase and amplitude of melatonin secretion are accounted as an arm of the biological clock [90]. The chronobiological properties of melatonin are primarily intended through SCN-based membrane G-protein-coupled MT1 and MT2 melatonin receptors [97]. The associations of various sleep-related actions presides in MT1 and MT2 receptors as well [93]. Melatonin is used to block the SCN-derived neuronal firing by acting on MT1 receptors [98]. Furthermore, the influence of melatonin on the sleep/wake cycles also shares similar mechanisms [99]. The melatonin-mediated phase-shifting effects are directed through SCN-based MT2 receptors [100]. Together, these two melatonin receptors were found to differentially modulate another SCN-based receptor: gamma-aminobutyric acid (GABA) receptors [101]. The GABA receptors were reported to influence both the phase shifts and the synchronizations of SCN clocks [102].
Frequent alterations to the exposure to the light/dark cycles facilitate the homeostatic functions of circadian rhythms to become out of synchronization with environmental timing. Furthermore, this leads to misalignments in circadian rhythmic behaviors [103,104,105,106,107,108]. The effects of circadian misalignment are compounded due to jet lag, frequent shift work, or any sort of irregular habitual behaviors such as abnormal feeding, excessive consumption of alcohol or caffeine-related interruptions to sleep that increases sleep debt to the bodies’ regular need [30,70,76,93,103,109,110,111,112].With the circadian rhythmic misalignment, the circadian alerting signals get reduced or even become absent during the daytime. Thus, during waking hours, homeostatic sleep drive may cause an anomaly in counteraction. This can also cause excessive sleepiness even when the individual has obtained a sufficient amount of sleep. The irregular habitual behaviors such as caffeine and alcohol consumption have the potential to modulate the circadian rhythms by disturbing the homeostasis. The period-lengthening effects are in response to chronic caffeine consumption habit [113,114,115] Caffeine was found to attenuate the regulation of adenylyl cyclase activity by extracellular adenosine. The activation of a G-protein subfamily, Giα subunit by adenosine was blocked by caffeine, and the production of cAMP were boosted [113,116,117]. As dynamic cAMP signaling is usually required for regular circadian timekeeping, and chronic modulation of cAMP turnover lengthens the period of cellular circadian rhythms [113,118], acute caffeine was found to reduce the rate of cAMP degradation, and facilitates in increasing calcium release from intracellular stores [113]. Similarly, alcohol consumption interacts with circadian rhythms also. Alcohol consumption is found to suppress melatonin production, thus causing reduced level of melatonin in the blood stream [119]. Low levels of melatonin have been associated with several disorders, majorly sleep disorders [89,120]. Therefore, different activities in opposition to our body’s endogenous rhythmic systems by disrupting the homeostatic drives can lead to significant circadian misalignments (Figure 4). It also causes various negative physiological consequences.

6.2. Effect of the Misalignment of the SCN-Master Clock and Peripheral Clocks on Diseases

The rhythmic oscillations are present not only in the SCN-master clock but also throughout the body. The SCN-driven output produces temporal signals broadcast widely in the different brain regions and peripheral tissues (as discussed in Section 4). Cumulatively, they exert broad effects at every level of organization, from genome regulation to control of protein synthesis, cell signaling and many other physiological functions [75]. Thus, misalignments of the synchronizations between these SCN-master clock and different tissue-specific peripheral clocks are tightly linked in diseases development across the system (Figure 4) [75,121].

6.2.1. Sleep Disorders

The circadian rhythms have been recognized as a vital signature to drive the sleep/wake cycles primarily [122,123]. Sleep has also several prominent functions in our physiology, such as maintenance of metabolic homeostasis [124], clearance of neurotoxic waste byproducts [124], and DNA repairing [125]. Sleep alterations are associated with the transcriptional changes of core circadian regulators and their DNA-binding occupancy [126,127]. The core clock components, Bmal1, Clock, Npas2, Per1, Per2, Cry1, and Cry2 have been linked to regulation of sleep onset and transition of wakefulness [128,129,130]. Targeted deletion and/or knocking-down the core clock components have been demonstrated in various alterations in sleep phenotypes including frequent increases in sleep fragmentation, sleep deprivation, and rapid switching between non-rapid eye movement and rapid eye movement sleep behavior [131]. A mutated residue (P385R) at highly conserved region was found to be associated with short sleep phenotype in human circadian transcriptional repressor DEC2 [28,132]. Clock disruptions and rhythmic desynchronizations among SCN-master clock, extra-SCN brain clocks, and peripheral clocks are largely associated with the poor sleep health and linked to neurodegenerative diseases and mood disorders [133]. The circadian rhythmic disruptions in mammals were also designated as a contributing factor in the aging process [60,61]. Disrupted core clock genes have been associated with the signature hallmark of early aging in mice [61]. Sleep and circadian rhythmic outputs are very tightly linked connecting to others physiological functions. Another distinct aspect of SCN-neuronal couplings is to rendering the rhythmic pacemakers highly stable to any stimuli causing shifts in peripheral tissue-clocks [9].

6.2.2. Metabolic Diseases

Circadian rhythms have been well studied to control several metabolic processes, including oxidative phosphorylation [134], redox homeostasis [135], and lipid metabolism [136]. In several clinical studies, circadian misalignment was introduced to human subjects in a controlled laboratory setting and severe dysregulation of glucose homeostasis, insulin secretion, and appetitive control were observed [137,138]. The liver clock is highly entrainable with feeding behaviors and presence of light. In mouse models, obesity was induced by misaligning the feeding time and the indigenous clock time [139,140]. In this case, the indigenous body clock was desynchronized with the external cues. In another experiment with rodents, the alignment of the feeding time and activity through dietary restrictions at night helps them to protect from fatty liver buildup [141]. Also, similar strategies have appeared useful in improving human metabolic health [142]. A genome-wide association study indicated that the circadian gene ablation in the pancreas leads to β-cell failure and diabetes mellitus [143]. Genetic studies showed the liver clock disruptions results in fasting-induced hypoglycemia triggered by the impaired oxidative metabolism [144]. In many cases, sleep loss itself has been implicated in metabolic and proliferative diseases, although the effects are quite hard to characterize separately from circadian disruption as the two processes are highly interlinked [75]. Among the metabolic syndromes, energy uptake and expenditure, and neuronal activation and inhibition become imbalanced [145]. Shift workers face sleep deprivation that usually reduces the production of growth hormone and melatonin, reduces insulin production, and elevates cortisol levels [146]. Ultimately, these lead to obesity, diabetes, and then several cardio-respiratory diseases. Even in experiments with clocks, mutant mice exhibit the foundation of circadian rhythm-disrupted metabolic syndromes and consequences [143]. Metabolic disorders, eating disorders, and obesity are often associated with mood disorders in humans as well [147]. Individuals suffering from mood disorders receive benefit from strict daily routines and sleep quality maintenance scheduling [55,148]. These alignments of daily routines may help in adjusting and re-synchronizing the clocks in the body to preserve the integrity of the circadian systems and physiological homeostasis [149].

6.2.3. Cancer

Clock disruptions have been marked as an exacerbating factor in tumorigenesis. Physiologically, disruption of circadian rhythms has been reported to contribute in lung tumorigenesis [81]. This is accelerated by multiple ways, including other hormonal effects, feeding behavior, metabolic alterations, as well as desynchronization of the circadian clock mechanisms. Such desynchronizations were mediated by the misalignment of the body’s indigenous clocks by external cues, which causes subsequent misalignments to other peripheral clocks residing in different tissues. In mice, whole-animal clock disruption of Per2, and Bmal1 confirmed the role of circadian rhythmic disruption that promotes lung tumorigenesis in cooperation with Kras and p53 [81]. Such homeostatic disruption caused significant activation of the expression of cMyc, p53 and Per2. Studies also suggested that genetically disrupted circadian clocks with impaired melatonin synthesis and secretion were also found to be associated with tumor development [150]. Clock disruption caused suppression of the expression of the MT1 melatonin and glucocorticoid receptors in the liver that perturbs the liver peripheral clock by suppressing the hormone receptors [150]. The temporal expressions of Per1, Bmal1 and Dbp were phase-shifted, and the expression of Per2 was significantly up-regulated in liver [150]. An emerging epidemiologic and experimental evidence has implicated the link of desynchronized clock mechanisms with the cancer progression [62]. Studies with Per2 mutant mice with severe dysregulation in cell cycle also revealed increased associations of radiation-induced lymphoma [62]. In contrast, disruption of the Cry genes in mice was implicated in tumor protection as it increased the predisposition to the cell death [151]. Again, DNA damage caused to shift the circadian oscillations by sequestrating the Cry1, mediated by deubiquitinase Herpes virus-associated ubiquitin specific protease [151]. Tumor cell glycolysis process is facilitated by the interaction among the core clock TFs and the oncogene Myc. Thus, the circadian disruption may be perceived as a sustained stressor associated with different diseases and their progressions.

6.2.4. Cardiovascular Diseases

Almost all cardiovascular variables exhibit a day/night pattern [152]. Disruption of their rhythmic behaviors caused different cardiovascular diseases. The circadian rhythmic behaviors of the heart rate and vascular blood pressure were reported to get disrupted in mice with knockout of Bmal1 and mutations in Clock, Npas2 [153]. The deletion of Bmal1 caused both the disruption of circadian clock and affects in disrupted cardiovascular rhythms. Desynchronization between the external cues and disruption of clock genes upon mutations modulate the stress related symptoms through sympathoadrenal path [153]. At molecular level, clock-mediated differential regulations were found for catecholamines and corticosteroids, driving their circadian variation [152,153]. This study strongly suggests that the clock may influence the time-dependent incidence of cardiovascular events by controlling the integration of selective asynchronous stress responses with an underlying circadian rhythm in cardiovascular function.
As the circadian clock disruptions and the diseases are tightly linked in many ways, it is quite important to understand the rhythmic processes and their anomalies deeply. However, the holistic identification and characterization of the all-inclusive molecular regulators, their networks, interplays at different layers and detailed mechanisms underpinning the circadian rhythmic oscillations and their tissue-specific synchronization are still not comprehensively understood [3,55,154]. Targeting the deep root is limited with prevailing interventions. There is no better existing approach to explain the entire dynamic landscape underlying those molecular regulators from the cellular perspective to the systems level [155,156]. The existing approaches are mostly lacking to consider the fine resolutions at the regulatory level and dynamic profiling at transcriptional, post-transcriptional, and then translational, and post-translational level. Many practices are merely based on knowledge despite lacking a strong scientific support. However, with the continuous efforts and advancements must help the scientists to deploy the thorough understanding of circadian rhythms into clinical practices including but not limited to the emergence of chronotherapeutics [20,74].

7. Recent Status of the Chronotherapy: A Potential Therapeutic Intervention

Chronotherapy is a way to treat illness according to the body’s indigenous timekeeping mechanisms of circadian clock [157]. For many years, chronotherapeutic managements for circadian rhythm-associated physiological disorders have been attempted. However, they have not emerged largely due to lack of scientific evidence. The emergence of chronotherapy aims to restore the misalignments of the SCN-master clock and the peripheral clocks with the external cues to adjust the circadian homeostasis [70,74,84]. It involves a variety of strategies that control exposure to environmental stimuli that influence the circadian homeostasis at systems level, mostly with non-pharmacological interventions [158].
To align the desynchronized SCN-clock and peripheral clocks, a behavioral approach (non-pharmacological chronotherapy) is used in which the circadian clock is reset by progressively delaying sleep/wake times by a few hours, until the desired sleep and wake times are achieved and maintained by adhering to a set sleep/wake schedule and good sleep hygiene practices [159]. One of the most commonly used non-pharmacological chronotherapy is the timed bright light exposure (BLE) to treat delayed sleeping phase syndrome [160]. BLE can reset the human circadian systems and can be predicted by the human phase-response curve. BLE in the early morning can advance the phase of the circadian rhythms, while BLE in the evening is capable of delaying the phase. In 1990, Rosenthal and colleagues showed that the study subjects had earlier sleep times and reported improvement in morning alertness after two weeks of daily morning (7:00 AM–9:00 AM) BLE at 2500 lux combined with restricted evening lights [161]. Even though the BLE is widely accepted as being effective, it is limited by the scientifically established standardized guidelines indicating the optimum exposure duration based on different clinical situations, intensity of the lights to be used and the timing of the exposure. The most commonly recommended approach is a broad-spectrum bright light of 2000–10,000 lux early morning (6:00 AM–8:00 AM) for approximately 1–3 h [162].
Such non-pharmacological chronotherapy demonstrated high degree of compliance and almost no side effects [163,164]. The behavioral approach of chronotherapeutic interventions are being used to treat mood disorders and sleep disorders by changing circadian rhythms of the patients, it is known as psychiatric chronotherapeutics [165,166]. To accomplish this intervention, external timekeeper or “zeitgeber” is needed. Based on certain evidence that light can indirectly prompt hormonal regulation, especially the distribution of the pineal hormone melatonin, through a non-visual photic input, ranging from special ganglion cells in the retina, ipRGCs to the SCN [37], light can be optimized therapeutically to reverse the disrupted circadian rhythm to treat sleep disorders especially. Light suppresses the segregation of melatonin, and thus the changes in melatonin level drive the sleep/wake rhythm in mammals [55]. Regrettably, there is no strong and straightforward evidence supporting their mechanisms. When night or darkness last longer, the length of the nocturnal melatonin segregation extends as well. Bright light in the morning advances the melatonin segregation whereas bright light in the evening delays it [55]. That is why patients treated with morning bright light get tired earlier in the evening. In patients with sleep disorders, the internal and external zeitgebers are not balanced, which leads to a shorter sleep duration and a lower sleep quality [111,158,167,168,169]. Chronotherapeutics such as BLE [158,167], wake therapy, and sleep phase advance derive benefit from the dependency of the hormonal rhythms on external zeitgebers and use artificial external ones to rebalance internal and external rhythms. Wake therapy is frequently reported as the fastest antidepressant known, and several studies proved that this antidepressive effect appears within hours [158,167].
Chronotherapeutics have a strong positive impact on reversing sleep disturbances which are one of the most frequent epiphenomena in major depression [158,167] and are associated with many good terms and healthy outcome. However, there is substantial evidence suggesting sleeping behavior, sleep architecture, and depressive symptoms significantly differ among children, adolescents, and adults, even sometimes across geography and races.
However, there is not enough scientific evidence beyond the relational effects of chronotherapeutics in various stages of lifespan, different geographical locations, or ethnic races. In future, the wide range of studies encompassing the scopes of the chronotherapy must be evolved. Also, chronotherapy will become an emerging therapeutic intervention for treating numerous clinical situations related to disturbances of the circadian rhythms.

8. Conclusions and Perspectives

In this review, we have highlighted the fundamental foundations, recent status, progressive advancements, and the potential futuristic indications to better understand the mammalian circadian clockwork, from molecules to systems. Certainly, circadian rhythms are quite complicated and systematic involving thousands of genes and multimodal regulatory layers. Eventually, understanding those deep-layered mechanisms must offer a plausible clue towards understanding the timely coordination of the different clocks. Even though it is tricky, intense, and challenging to establish a strong pathway backing for this synchronization and spatio-temporal dynamics among different clockworks within a living system, the more systematic integrity of different layers of molecular information is required to be studied altogether to understand the complex clockwork comprehensively. Thus, transcriptional, post-transcriptional, translational, post-translational, as well as wide-spectrum histone modifications, and protein–protein interactions must be studied all-inclusively to decode the deep molecular interplay among different layers of regulators for the circadian rhythm dynamics. Also, the detailed mechanistic insights for orchestration of the molecular oscillations from SCN, extra-SCN brain oscillators, and different distal peripheral tissues are yet to be vigorously studied. In addition, tissue-specific entrainments from different internal and external cues also need to be deeply investigated before making a concrete grip to modulate circadian rhythms for therapeutic purposes. Certainly, these deep insights and emerging quantitative strategies must help us to devise innovative therapeutic interventions and more precise, evidence-driven chronotherapeutics to plausibly manipulate the circadian rhythms at the dynamic scale from molecule to systems, thus to treat several disorders associated with circadian disturbances including one of the most neglected public health concerns, sleep disorders.
