Cells 2018, 7(3), 21; doi:10.3390/cells7030021

Review
Elucidating the Metabolic Plasticity of Cancer: Mitochondrial Reprogramming and Hybrid Metabolic States
1
Center for Theoretical Biological Physics, Rice University, Houston, TX 77005, USA
2
Systems, Synthetic and Physical Biology Program, Rice University, Houston, TX 77005, USA
3
Department of Molecular and Human Genetics, Baylor College of Medicine, Houston, TX 77030, USA
4
Department of Bioengineering, Rice University, Houston, TX 77005, USA
5
Department of Biosciences, Rice University, Houston, TX 77005, USA
6
Physics and Astronomy, Rice University, Houston, TX 77005, USA
7
Dan L. Duncan Comprehensive Cancer Center, Baylor College of Medicine, Houston, TX 77030, USA
*
Author to whom correspondence should be addressed.
Received: 7 February 2018 / Accepted: 8 March 2018 / Published: 13 March 2018

Abstract

:
Aerobic glycolysis, also referred to as the Warburg effect, has been regarded as the dominant metabolic phenotype in cancer cells for a long time. More recently, it has been shown that mitochondria in most tumors are not defective in their ability to carry out oxidative phosphorylation (OXPHOS). Instead, in highly aggressive cancer cells, mitochondrial energy pathways are reprogrammed to meet the challenges of high energy demand, better utilization of available fuels and macromolecular synthesis for rapid cell division and migration. Mitochondrial energy reprogramming is also involved in the regulation of oncogenic pathways via mitochondria-to-nucleus retrograde signaling and post-translational modification of oncoproteins. In addition, neoplastic mitochondria can engage in crosstalk with the tumor microenvironment. For example, signals from cancer-associated fibroblasts can drive tumor mitochondria to utilize OXPHOS, a process known as the reverse Warburg effect. Emerging evidence shows that cancer cells can acquire a hybrid glycolysis/OXPHOS phenotype in which both glycolysis and OXPHOS can be utilized for energy production and biomass synthesis. The hybrid glycolysis/OXPHOS phenotype facilitates metabolic plasticity of cancer cells and may be specifically associated with metastasis and therapy-resistance. Moreover, cancer cells can switch their metabolism phenotypes in response to external stimuli for better survival. Taking into account the metabolic heterogeneity and plasticity of cancer cells, therapies targeting cancer metabolic dependency in principle can be made more effective.
Keywords:
cancer metabolism; Warburg effect; oxidative phosphorylation; OXPHOS; mitochondrial respiration; hybrid metabolic phenotype; metabolic plasticity; tumorigenesis; metastasis; EMT; stemness

1. Introduction

In the 1920s, Warburg and co-workers observed that in the presence of oxygen, rat liver carcinoma tissues have an approximately ten-fold increase in glucose to lactate conversion as compared to normal tissues [1]. This enhanced glycolysis exhibited by cancer cells under aerobic conditions is now referred to as the ‘Warburg effect’ or aerobic glycolysis. Warburg hypothesized that the enhanced glycolysis in cancer cells was due to the damage of mitochondrial respiration [2]. Upregulation of glucose transporters and glycolytic enzymes in rapidly growing tumor cells has been well documented since then [3,4]. However, the lack of evidence showing the mitochondrial defects in several cancer models has gradually weakened this hypothesis. Nonetheless, the Warburg effect was regarded as the dominant metabolic phenotype in cancer.
Advances in the study of cancer metabolism over the last decades have changed our understanding on the effects of glycolysis and oxidative phosphorylation (OXPHOS) in cancer [4,5,6,7,8]. Increasing experimental evidence maintains a critical role for actively functional mitochondria in tumorigenesis, metastasis, cancer stemness, and therapy resistance [4,7,9,10,11,12,13]. Notably, mitochondria in cancer cells can utilize a broad range of metabolic pathways such as glucose oxidation, fatty acid β -oxidation (FAO) and glutamine oxidation to fuel the electron transport chain (ETC) for ATP production (Figure 1). For example, multiple studies showed that fatty acid can serve as a major energy source for triple negative breast cancer (TNBC) [10,14] and epithelial ovarian cancer [15]. In addition, combined mtDNA and whole-genome sequencing indicates that chromophobe renal cell carcinoma (chRCC) exhibits increased utilization of OXPHOS for ATP production relative to normal kidney [16]. Similarly, glutamine oxidation, usually driven by the oncogene MYC [17,18], also plays a critical role in energy production and promoting tumor growth in multiple cancer types [19]. It is important to note that the metabolic phenotype is not necessarily uniform across different types of tumors or even different tumors of the same type [11,13,20,21]. Due to the enhanced understanding of the importance and variability of cancer metabolism, metabolic reprogramming has attained the status of a hallmark of cancer [5,6].
In this review, we started by discussing the regulatory roles of mitochondria in determining tumor properties. Then, we review recent experimental studies towards elucidating the coupling of metabolic activities with tumor metastasis and cancer cell stemness. This experimental evidence supports the significance of OXPHOS and a hybrid (glycolysis and OXPHOS) metabolic phenotype in the subtypes of tumors. The hybrid metabolic state can provide metabolic plasticity for tumor cells to survive under different microenvironments to support tumor metastasis and therapy-resistance. Understanding the metabolic plasticity of individual tumors can help to design tumor-specific therapies including metabolic modulators to prevent the hybrid metabolic status and to sensitize tumor cells.

2. Retrograde Regulation of Tumor Properties by Mitochondria

Mitochondria contain their own genome, mitochondrial DNAs (mtDNAs), which encode mitochondrial respiratory chain complexes. In spite of the existence of mtDNAs, more than 98% of mitochondrial proteins are encoded by the nucleus genome [22], indicating obvious crosstalk between mitochondria and nucleus. Indeed, there is nucleus-to-mitochondria anterograde signaling and mitochondria-to-nucleus retrograde signaling [23]. Nuclear genomes have a dominant role in regulating replication and expression of mtDNAs [24], mitochondrial biogenesis [25], and metabolic activities. Mitochondria-to-nucleus retrograde signaling was first described in yeast [26] and later found in various organisms. This signaling governs the communication between mitochondria and the nucleus under various physiological and pathological conditions [27,28,29]. The mitochondria-to-nucleus retrograde signaling can be triggered by alterations in mtDNA copy numbers, mtDNA mutations, defects of mitochondrial respiratory chain complexes and also a change in mitochondrial reactive oxygen species (mtROS) levels [23]. Such retrograde signaling can adjust nuclear gene expressions for metabolic reconfiguration in response to these altered mitochondrial activities (Figure 2). Initial evidence for the importance of mitochondria in tumorigenesis was obtained by mtDNA depletion studies. In the 1990s, King and Attardi showed that the mtDNA in human cells can be depleted by exposing the cells to low concentrations of ethidium bromide and consequently the OXPHOS activity in the cells was repressed [30]. Initial observations from Hayashi et al., showed that the tumorigenicity of HeLa cells was lost after depletion of mtDNAs and recovered after reintroduction of mtDNAs [31]. Further studies in different cell models including ovarian, cervical carcinoma and osteogenic sarcoma showed that mtDNA-depleted cells are either poorly tumorigenic or non-tumorigenic [32]. In addition, the mtDNA-depleted brain and breast tumor cells exhibited impaired abilities to grow in an anchorage-independent manner and had increased sensitivity to cytotoxic drugs [33]. Recently, it has been shown that in melanoma and mammary carcinoma, tumor cells lacking mtDNAs, can only form tumors after acquiring mtDNAs from the host cells, which further validates the essential role of mitochondria in tumorigenesis [34]. In summary, mtDNA depletion studies from the 1990s onward have indicated the significance of mitochondrial integrity in tumorigenicity.
Results from these mtDNA depletion studies gave rise to the idea of generating transmitochondrial cybrid models (comparing different mitochondria under a common nuclear background) to understand the functional significance of mtDNA variations [10,35,36,37,38,39,40,41,42]. Using cybrid technology, Ishikawa et al., published a pioneering study which showed that reactive oxygen species (ROS) induced mtDNA mutations contribute to tumor metastatic potential [35]. Several labs including ours also used the cybrid technology to demonstrate the critical effect of mitochondria-nuclear crosstalk in regulating tumor properties in multiple cancer types [10,35,36,37,38,39,40,41,42,43,44,45]. For example, by using cybrid models, we showed that mitochondrial FAO affects the autophosphorylation of the oncoprotein c-Src in TNBC. Inhibition of FAO almost completely aborts c-Src phosphorylation and suppresses tumorigenic and migratory properties of TNBC [10]. Other proteins like Calcineurin, PKC, CamKIV, JNK, and MAPK are also regulated by alteration of mitochondrial functions [46,47,48,49]. A review on the significance of cybrid models in cancer and underlying technical aspects has previously been published by our group [37,39]. Consistent with the aforementioned mtDNA-depletion results, studies using transmitochondrial cybrid models suggest a causal role of anomalously functioning mitochondria in tumorigenesis.
Anomalously functioning mitochondria in cancer can also result from mtDNA defects, such as mtDNA mutations that are mostly heteroplasmic [50] and mtDNA copy number reduction [51]. Several studies reported the association of mtDNA sequence variations and heteroplasmy in multiple cancer models [20,50,52,53,54,55,56]. Many mtDNA variations that affect mitochondrial ETC function have been identified with potential significance in tumor properties. Experimental approaches using breeding of multiple mice strains that contain different mtDNA variations provided in vivo experimental support for the role of mtDNA in tumor properties [57,58]. However, considering the heterogeneity of most of the tumors, multiple copies of mtDNA in single cells, and mtDNA selection by frequent fission or fusion of mitochondria, the contribution of an individual mtDNA variation to tumor progression is difficult to confirm. Further analysis using functional studies, haplotype analysis and extensive single cell sequencing are necessary to understand the role of individual mtDNA variations in tumor progression.
Mitochondria can communicate their changing metabolic states to the nucleus by retrograde signaling using various mediators (Figure 2). For example, a Ca2 +/Calcineurin (Cn) [59] signaling can activate multiple oncogenic factors including AKT and PI3K and upregulate glucose transporters GLUT1 and GLUT4 and glycolytic enzymes, thus shifting cell metabolism to glycolysis [23,60]. High glycolytic activity can further activate RAS through fructose-1,6-bisphosphate and reciprocally RAS can simulate glycolysis, thus forming a positive feedback loop [61]. Metabolic stress, such as glucose deprivation, can also drive KRAS mutations and the upregulation GLUT1, and consequently support cancer cells’ survival [62].
In addition to the altered mitochondrial function, abnormal accumulation of metabolites can also facilitate malignancy and such metabolites are referred to as oncometabolites [73,78,79]. Accumulation of oncometabolites is usually due to the mutations in genes encoding metabolic enzymes in the mitochondrial TCA cycle. For example, the loss-of-function mutation of fumarate hydratase (FH) lead to an accumulation of fumarate and this accumulation increases the metastatic potential and aggressiveness of renal cancer cells; this occurs by activating the epithelial-to-mesenchymal transition (EMT) through repression of miR-200 [80]. Similarly, loss of the mitochondrial tumor suppressor succinate dehydrogenase (SDH) causes the accumulation of succinate, which then promotes metastatic properties via the stabilization of hypoxia-inducible factor-1 alpha (HIF-1 α ) and consequently the activation of HIF-dependent pathways [81]. Another mitochondrial oncometabolite generated by the TCA cycle is d-2-hydroxyglutarate (d-2HG) due to the gain-of-function mutation of isocitrate dehydrogenase (IDH). IDH mutation is commonly observed in glioma, glioblastoma, and acute myeloid leukemia (AML) [82,83]. Accumulation of d-2HG inhibits 5-methylcytosine (5mC) hydroxylase TET2 activity and leads to a global DNA hypermethylation that impairs hematopoietic differentiation in AML and gliomas [74,84]. In addition, accumulation of d-2HG represses prolyl-hydroxylation of collagen that results in a defective basement membrane that might contribute to glioma progression [74]. Moreover, high levels of d-2HG induce an EMT-like phenotype via direct upregulation of ZEB1 expression by promoting the H3K4 trimethylation of the promoter region of ZEB1 in colorectal cancer cells [72]. Finally, in addition to mutations of metabolic enzymes in the TCA cycle, accumulation of the metabolic products of dihydropyrimidine dehydrogenase (DPYD), a rate-limiting enzyme in pyrimidine degradation, has been shown to be essential for the EMT in benign breast epithelium HMLE cells. Overexpression of DPYD can in fact accelerate the EMT [85].
In summary, mitochondria-to-nucleus retrograde signaling in cancer may be an adaption mechanism by which altered mitochondrial function modulates nuclear gene expressions towards tumorigenesis and invasiveness. This is a somewhat different role for neoplastic mitochondria than originally proposed by Warburg.

3. Significance of Mitochondrial Biogenesis and Respiration in EMT and Metastasis

Metastasis accounts for most of cancer-related deaths [86]. Metabolic activities in metastasized cancer cells are usually reprogrammed to support and promote their migratory and invasive capacities [87,88]. A variety of studies have shown that metastasis associates with an enhanced mitochondrial respiration and biogenesis activity and inhibition of OXPHOS suppresses metastasis in breast and cervical cancer. For example, the metastatic propensity of TNBC MDA231 cells is largely dependent on their mitochondrial FAO activity and pharmacologic inhibition of FAO significantly represses in vivo tumor growth potential [10,14]. Highly metastatic mouse breast cancer 4T1 cells, that are usually used for the study of stage IV human breast cancer [89], exhibit both enhanced glycolytic and increased OXPHOS activities as compared to non-metastatic isogenic 67NR cells [90]. Consistently, another study shows that the circulating tumor cells (CTCs) exhibit significantly higher mitochondrial respiration and biogenesis activity compared to both the primary tumors from 4T1 cells and its lung metastases [9]. The enhanced OXPHOS in 4T1 cells is modulated by peroxisome proliferator-activated receptor gamma coactivator 1 (PGC-1)α, whose expression is associated with the EMT program in vivo, and distant metastasis and poor prognosis of patients with invasive ductal carcinomas [9]. Notably, these CTCs derived from 4T1 cells showed no decrease in their glycolytic activity, indicating a hybrid metabolic phenotype [8]. Such a hybrid metabolic phenotype has also been observed in superinvasive human cervical carcinoma and melanoma cells. Increased mitochondrial superoxide production by either ETC overload or partial ETC inhibition promotes the metastatic property and clonogenicity of SiHa human cervix squamous cell carcinoma cells [12]. Both in vitro selection of superinvasive SiHa-F3 cells and in vivo selection of supermetastatic B16-M4b cells show increased OXPHOS or production of TCA intermediates without an observable change in their lactate production rates [12]. Taken together, these results suggest an important role for mitochondrial biogenesis and respiration during metastasis and indicate that increased metastatic potentials might be specifically associated with a hybrid glycolysis/OXPHOS phenotype.
Metastases of carcinoma cells are often facilitated by EMT, a transdifferentiation program by which epithelial cancer cells lose cell–cell adhesion and concomitantly acquire mesenchymal features of migration and invasion [91]. EMT has been shown to be coupled with metabolic reprogramming [92]. Enhanced mitochondrial biogenesis and respiration has been observed during EMT in breast, pancreatic, esophageal, and lung cancer. For example, CTC from the 4T1 mammary carcinoma, as mentioned before, exhibit increased mitochondrial biogenesis and respiration that is co-induced with EMT [9]. The mesenchymal subpopulation of HMLE cells exhibits a higher OXPHOS activity as compared to their epithelial counterpart [93]. The human pancreatic cancer PANC-1 cells undergoing TGFβ-1-induced EMT show strong increases in mitochondrial mass, mtDNA content, and ROS production [94]. In the esophageal squamous cell carcinoma (ESCC) cell line TE1, high mtDNA copy number and mitochondria bioenergetic function correlate with upregulation of EMT markers and tumor invasiveness [95]. TGFβ-1 induced EMT accompanies an increase of oxygen consumption and decrease of fatty acid synthesis via SNAIL1-mediated inhibition of ACC and FASN in NSCLC A549 cells [96]. Moreover, diversion of glucose to the TCA cycle, partially due to reduction in the PDK4 expression, is necessary for TGFβ-1 induced EMT in several NSCLC cell lines including A549 and HCC827. Inhibition of PDK4 alone can induce EMT [97].
Conversely, results from other studies tend to connect enhanced glycolytic activities with EMT and metastasis. Gaude et al., shows that downregulation of mitochondrial genes associates with EMT and poor prognosis across multiple cancer types by analyzing the patients’ data from the Cancer Genome Atlas (TCGA) [98]. Fast-growing solid tumors usually face a progressively hypoxic situation that can induce and stabilize HIF-1 α . HIF-1 α is a master regulator of glycolysis [99], and also a well-known EMT inducer by upregulating EMT transcription factors (EMT-TFs), such as SNAIL and TWIST [100,101], thus potentially connecting glycolysis with EMT. Overexpression of TWIST has been shown to increase glucose consumption and lactate production and decrease mitochondrial mass in MCF10A cells [102]. Since accumulation of lactate can strongly increase the protein levels of HIF-1 α , there seems to be a positive feedback loop between HIF-1 α and glycolysis. Another study shows that metabolic stress can activate AMP-activated protein kinase (AMPK), a master regulator of mitochondrial biogenesis and respiration, and AMPK activation blocks EMT by activating FOXO3a in 4T1 and PC-3 cells; consistently, silencing AMPK promotes EMT in these cell lines [103]. Increased activity of mitochondria complex I can repress tumor growth and metastasis partly through the regulation of NAD+/NADH redox balance in MDA-MB-435 and MDA-MB-231 cells [104].
At present, it appears that the association of enhanced mitochondrial respiration or increased glycolytic activity with EMT and metastasis may be context-dependent. In all cases, however, metastasis is strongly coupled to mitochondrial activity. The discrepancies in the association of metastasis with metabolism might be attributed to the different metastatic sites. For example, primary breast cancer 4T1 cells can metastasize into liver, lung, and bone and in general liver metastases exhibit higher glycolysis and lower mitochondrial respiration relative to lung and bone metastases [90]. To further elucidate the coupling between EMT and metabolism, a rigorous and quantitative assessment of cell phenotypes and tumor microenvironment in terms of EMT and metabolism is needed. Metastasis involves cycles of EMT and the reverse process, mesenchymal-to-epithelial transition (MET) [105], in which cancer cells can exhibit a broad spectrum of hybrid epithelial/mesenchymal (E/M) phenotypes that combine partial epithelial traits, cell–cell adhesion, and partial mesenchymal traits, migratory and invasive properties [106,107,108,109,110,111]. Cancer cells in all these states appear to be capable of using various metabolic pathways, such as glycolysis and OXPHOS, including glucose, fatty acid and glutamine oxidation, and their combinations for energy production and biomass synthesis. A more accurate characterization of both EMT and metabolism phenotypes can contribute to a better understanding of their connections. Indeed, two EMT scoring methods [112,113] and an AMPK/HIF-1 signature [8] have been developed to evaluate the EMT status and OXPHOS/glycolysis activity respectively based on gene expression data across cancer types. Future work integrating both gene expression data and metabolite abundance may contribute to a better understanding of the EMT-metabolism interplay. Particular attention should be paid to the potential coupling between hybrid epithelial/mesenchymal (E/M) and hybrid glycolysis/OXPHOS phenotypes (Figure 3) [9,12,90], since these hybrid phenotypes have been proposed as ‘chief instigators’ of metastases [8,9,12,90,106,107,108,109,110,111,114,115]. Considering the aforementioned experimental work, one hypothesis regarding the coupling of EMT with metabolic activity is that high glycolytic activity promotes partial EMT [98], by which epithelial cells can transition into a hybrid E/M phenotype (Figure 3). Once induced, the hybrid E/M cells might upregulate their mitochondrial activity for more effective ATP production to facilitate their migration and invasion, as suggested by the study of 4T1 CTCs [9] since the CTC clusters are proposed to be hybrid E/M cells [114]. OXPHOS activity might stabilize the epithelial phenotype and repress partial EMT. Notably, the association of cell phenotypes—epithelial, hybrid E/M, and mesenchymal—with metabolism phenotypes needs not to be the same as the association of the processes—partial EMT, complete EMT, partial MET and complete MET—with metabolic activities (Figure 3). The hypothesis proposed here of course requires rigorous experimental tests both in vitro and in vivo.

4. Mitochondrial Dependency in Cancer Stemness

Tumor relapse is believed to be initiated by therapy-resistant cancer stem cells (CSCs), which are poorly differentiated and have the capacity for self-renewal and the generation of more differentiated progeny [116]. Increased mitochondrial mass, membrane potential and enhanced mitochondrial respiration have been widely observed in CSCs across multiple types of cancer. Due to the dependency of CSCs on mitochondrial activity, it seems that CSCs are more vulnerable to therapies targeting mitochondrial respiration [117,118,119,120]. For example, compared to the differentiated progeny that depends primarily on glycolysis, breast cancer stem cells (BCSCs) derived from MCF7, T47D, MDA-MB-231, and SUM159PT cells show a reliance on OXPHOS, characterized by more glucose consumption, less lactate production, and higher ATP content [21]. Consistently, suppression of OXPHOS by the drug XCT790, a well-established inhibitor of the estrogen-related receptor α (ERRα)–PGC-1α signaling pathway, or by the drug doxycycline, a FDA-approved antibiotic, decreases the survival and propagation of MCF7 CSCs [120]. Another study showed that increased mitochondrial mass, confers stem-like traits of MDA-MB-231 and MCF7 cells and enables their resistance to paclitaxel [121]. Indeed, high mitochondrial mass has been indicated as a metabolic biomarker for the anabolic CSCs in MCF7 cells [122]. In addition to breast cancer, the CSCs isolated from epithelial ovarian cancer patients also show enhanced OXPHOS activity [15]. These CSCs underwent apoptosis when the mitochondrial respiratory chain was repressed. Pancreatic CSCs show more dependency on OXPHOS while non-CSCs are more glycolytic, which may explain why the drug metformin, an inhibitor of mitochondrial ETC complex I, target pancreatic CSCs but not the non-CSCs [117]. Moreover, after KRas ablation, the surviving pancreatic ductal adenocarcinoma (PDAC) cells, that account for tumor relapse, rely on mitochondrial respiration and are highly sensitive to OXPHOS inhibitors [123]. Glioblastoma CSCs rely on OXPHOS and repressing OXPHOS but not glycolysis abolishes their tumorigenicity [124]. Increased mitochondrial biogenesis and elevated OXPHOS contribute to the resistance of melanoma to BRAF inhibitors [125]. Consistently, OXPHOS inhibitors decrease the prevalence of BRAF inhibitor-resistant slow-cycling melanoma cells [119]. Similarly, inhibition of OXPHOS can selectively eradicate quiescent leukemia stem cells via BCL-2 inhibition [126]. All these results support a critical role of the mitochondrial respiration and biogenesis for the survival and propagation of CSCs. Note that these findings are consistent with the correlation between cells that undergo (partial) EMT and cells that exhibit stem-like properties, if we assume as discussed above that in most cases EMT leads to enhanced OXPHOS.
CSCs exhibit elevated rates of oxygen consumption and ROS production as compared to the differentiated cells [13]. CSCs also have a more powerful antioxidant capabilities as compared to their differentiated progeny [127]. It has been shown that CSCs can maintain their ROS levels lower than those in their progeny and such moderate ROS levels in CSCs enable their tumorigenic property and radioresistance [128]. For example, melanoma cells with high PGC-1α expression, driven by the melanocyte lineage-specification transcription factor (MITF), exhibit enhanced mitochondrial respiration and ROS detoxification capacity, which enable these melanoma cells to survive under oxidative stress conditions [127].
In cancer there is never “one size fits all” and notably, there are also studies showing that CSCs prefer glycolysis. For example, BCSCs isolated from human breast cancer patients show a preference for glycolysis as characterized by increased activities of glycolytic enzymes such as lactate dehydrogenase (LDH) and pyruvate kinase M2 isoform (PKM2) [129]; this is different than the observation of BCSCs derived from cell lines as discussed before. Use of 2-deoxyglucose (2-DG), an inhibitor for glycolysis, can inhibit the proliferation of these BCSCs. The ovarian cancer spheroid cells with stem-like behaviors exhibit an increase in their glycolytic flux as compared to their parental cells [130]. Glioblastoma cells with stem-like properties exhibit a preference for glycolysis for ATP generation and maintain their stemness under hypoxia [131].
These different metabolic patterns of CSCs might be due to distinctive molecular characteristics. For example, two subpopulations of BCSCs, one is characterized by ALDHhigh and the other is characterized by CD44high/CD24low, have been observed. These two subpopulations might be interconvertible [132]. Another study shows that the EMT CSCs characterized by low expression of epithelial specific antigen (ESA), are quiescent, and exhibit lower mitochondrial mass, membrane potential, oxygen consumption, and ROS production as compared to the epithelial CSCs characterized by high ESA expression in several head and neck squamous cell carcinoma (HNSCC) cell lines [133]. Recently, a subpopulation of normal human breast stem cells (BSCs), exhibiting hybrid ALDHhigh/CD44high/CD24low expression, has been characterized and such ALDHhigh/CD44high/CD24low BSCs have the highest mammosphere formation capacity at the single cell level as compared to apparently more restrictive ALDHhigh and CD44high/CD24low BSCs [134], hinting that the extent of being stem-like varies among individual subpopulations of stem cells. It seems therefore that the metabolic activities of CSCs at least partially depend on their exact molecular characteristics. Nonetheless, the survival and propagation of CSCs is strongly affected by their mitochondrial function. Future work to characterize the molecular characteristics of different CSCs and possibly varying degree of stemness might contribute to a better understanding of the stemness-metabolism interplay.

5. Emergence of a Hybrid Metabolic Phenotype in Cancer Cells

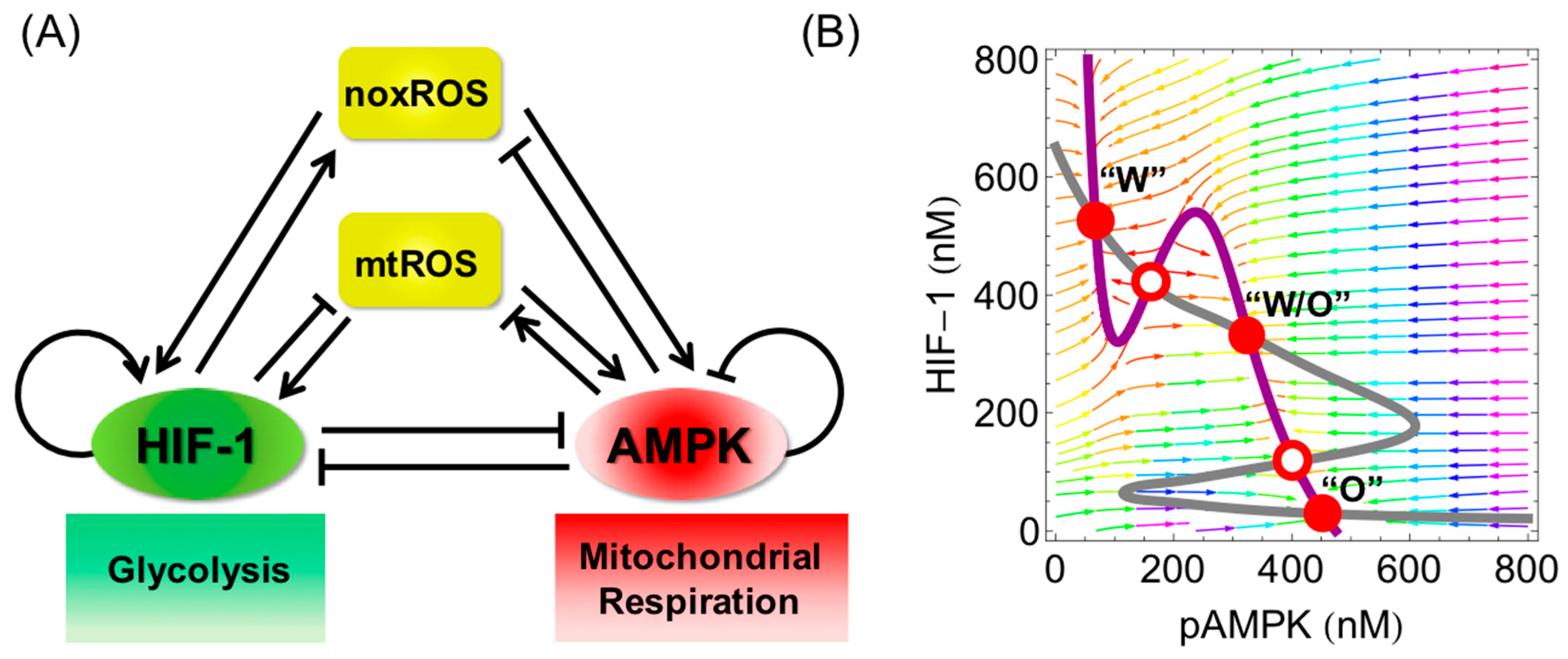

Despite the advances in understanding of the significance of mitochondria in tumorigenesis, metastasis, and stemness, it is still elusive as to how different metabolic phenotypes are orchestrated in cancer cells. To shed light upon the interplay between glycolysis and OXPHOS, we used a systems biology approach to develop a mathematical model integrating AMPK, a master regulator for mitochondrial biogenesis and respiration, HIF-1, a master regulator for glycolysis, and ROS including both mtROS and cytosol ROS (noxROS) since ROS plays a critical role in mediating the interplay between AMPK and HIF-1 (Figure 4A) [8]. The AMPK:HIF-1:ROS circuit predicts that cancer cells can acquire three stable phenotypes, a glycolysis phenotype characterized by high HIF-1 and low AMPK activities, an OXPHOS phenotype characterized by low HIF-1 and high AMPK activities and a hybrid glycolysis/OXPHOS metabolic phenotype, characterized by both high HIF-1 and high AMPK activities (Figure 4B). The model further shows that the hybrid metabolic phenotype can be promoted by elevated production rates of mtROS, stabilization of HIF-1 and regulation of oncogenes such as MYC and c-SRC [8].
The hybrid glycolysis/OXPHOS metabolic phenotype can provide several advantages to cancer cells as indicated by both the modeling and experimental studies. First, the hybrid metabolic phenotype endows cancer cells with the flexibility to utilize various kinds of available nutrients, such as glucose, fatty acid and glutamine, to satisfy the bioenergetic and biosynthetic needs for tumor development in different microenvironments. Second, cancer cells in the hybrid metabolic phenotype can efficiently produce energy by both OXPHOS and glycolysis. Meanwhile, the byproducts from glycolysis, such as lactate and pyruvate, can be utilized for biomass synthesis to facilitate cell proliferation. Third, since the hybrid metabolic phenotype maintains ROS at a moderate level, cancer cells in the hybrid metabolic phenotype can benefit from moderate ROS-mediated stress response and mutagenic events that stimulate tumorigenesis and metastasis, and avoid the detrimental effects of excessive ROS [12,35,135]. Fourth, the hybrid metabolic phenotype may be specifically associated with metastasis [9,10,12,90,134], as discussed before. Fifth, the hybrid phenotype might promote the therapy-resistance of cancer cells. For example, during metformin treatment, the resistant pancreatic CSCs emerge with an intermediate glycolytic/respiratory phenotype [117]. Collectively, cancer cells in the hybrid metabolic phenotype have a plethora of benefits over cells using only glycolysis or OXPHOS.

6. Cancer Mitochondrial Respiration Driven by Cancer-Associated Fibroblasts

It is important to recognize that metabolic reprogramming, as a hallmark of cancer, involves not only the cancer cells. Instead, cancer-associated fibroblasts (CAFs), stromal cells which often dominate the tumor microenvironment, are prone to glycolysis by which CAFs provide energy-rich metabolites to fuel the mitochondrial respiration and anabolic metabolism of cancer cells [136,137]. This coupled metabolic pattern between cancer cells and surrounding CAFs is sometimes referred to as the “reverse Warburg effect” [138,139,140,141]. With an elevated production of ROS, cancer cells can secrete ROS into surrounding microenvironment that pushes the CAFs to utilize aerobic glycolysis and produce high-energy metabolic intermediates, such as pyruvate, ketone bodies, lactate, and fatty acid. These metabolic intermediates can be transported to the cancer cells and fuel mitochondrial respiration for efficient ATP production [141,142]. The ROS secreted by cancer cells can reduce the production of caveolin-1 (Cav-1), an important structural protein that is involved in endocytosis and vesicular transport. Loss of Cav-1 in CAFs results in additional ROS production in cancer cells, thus forming a positive feedback for the oxidative stress on CAFs and consequently active mitochondrial respiration in cancer [143]. Indeed, loss of Cav-1 has been used as an independent biomarker for poor prognosis in various types of tumors [139,143]. The tumor-promoting effects of CAFs could be reversed by two inhibitors of glycolysis, 2-DG and dichloro-acetate (DCA) [141]. The aerobic glycolysis of CAFs results from the stabilization of HIF-1 α following the downregulation of the IDH3 α [144]. Consistently, IDH3 α overexpression in CAFs greatly reduces the tumor-promoting effects of CAFs in vivo. In addition, high expression of mono-carboxylate transporter (MCT) 4, that is referred to as a ‘lactate shuttle’, modulates transportation of metabolic intermediates produced in CAFs to cancer cells and correlates with poor overall survival of TNBC patients [145,146]. Taken together, the mitochondrial respiration of cancer can be promoted by the surrounding glycolytic CAFs and targeting the glycolytic events or the transportation of metabolic intermediates could weaken the tumor-promoting effects of CAFs.

7. Therapies towards Targeting the Metabolic Dependency of Cancer Cells

Recent advancement in metabolic research has made it clear that the altered metabolism in cancer is not only a secondary effect due to the signaling regulation for growth and proliferation but also can be a primary cause for tumorigenic, metastatic, and stem-like events [5,6,23,60]. Since the metabolic dependency of tumors is heterogeneous, therapies targeting metabolism may not be uniformly effective [147]. For example, ketogenic diets, which are low in glucose and other carbohydrates but high in fats, can force cancer cells to utilize mitochondrial respiration. The ketogenic diets are supposed to cause more oxidative stress in cancer cells, thus sensitizing cancer to conventional radiation and chemotherapies [148]. However, for certain types of cancer such as TNBC that shows a high dependency on FAO [10,14], the ketogenic diet may worsen the tumor status. Another proposed therapeutic strategy is activation of pyruvate dehydrogenase (PDH). However, human NSCLC tumors exhibited enhanced PDH activity as compared to adjacent benign lung [20] and PDH activity is associated with EMT and drug resistance in NSCLC A549 and HCC827 cells [97]. In such scenario, PDH activation may not be therapeutically useful and malignancy may be promoted instead. Thus, due to the heterogeneity of cancer metabolism, the metabolic therapies should be selected according to the metabolic dependency of specific cancer cells.
The emergence of a hybrid glycolysis/OXPHOS metabolic phenotype, which might primarily account for tumor metastatic potential, stem-like property, and therapy-resistance, implies that proper blockade of both glycolysis and OXPHOS may be a more promising approach since it could potentially eliminate the metastatic plasticity of cancer. Indeed, dual inhibition of cancer metabolism by metformin, (inhibitor of ETC complex 1), and 2-DG, (glycolysis blocker) has shown good effects against tumor growth and metastasis across multiple preclinical cancer models [149]. The beneficial effects of this combination therapy is also explained by our modeling analysis that shows that it can effectively drive cancer cells out of the hybrid metabolic phenotype [8]. In addition, since cancer cells are capable of switching their metabolism phenotypes during treatment, therapies blocking the metabolic switch could potentially impair tumor viability [150]. Collectively, due to the enriched metabolic plasticity of cancer, future therapeutic strategies might consider targeting the hybrid glycolysis/OXPHOS phenotype and eliminating the metabolic phenotypic transition capability of cancer cells to improve cancer treatment outcome. The proposed strategies here need to be carefully evaluated combining both experimental and theoretical modeling efforts [8,151,152,153,154,155,156].

Acknowledgments

We have benefited from insightful discussion with Sendurai A. Mani and José N. Onuchic. D.J. and H.L. were supported by the National Science Foundation (NSF) (Grants PHY-1427654 and DMS-1361411). J.H.P., K.H.J. and B.A.K. were supported by the National Cancer Institute (NCI) (R21CA173150, R21CA179720 and R03CA212816), Collaborative Faculty Research Investment Program (CFRIP), Breast Cancer Research Foundation (BCRF), Dan L Duncan Comprehensive Cancer Center (DLDCC) and Charles A. Sammons Cancer Center.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

2-DG2-deoxyglucose
5mC5-methylcytosine
AMLacute myeloid leukemia
AMPKAMP-activated protein kinase
BCSCsbreast cancer stem cells
BSCsbreast stem cells
CAFscancer-associated fibroblasts
Cav-1caveolin-1
chRCCchromophobe renal cell carcinoma
Cncalcineurin
CSCscancer stem cells
CTCscirculating tumor cells
d-2HGd-2-hydroxyglutarate
DCAdichloro-acetate
DPYDdihydropyrimidine dehydrogenase
EMTepithelial-to-mesenchymal transition
EMT-TFsEMT transcription factors
ERRαestrogen-related receptor α
ESAepithelial specific antigen
ESCCesophageal squamous cell carcinoma
ETCelectron transport chain
FAOfatty acid β -oxidation
FHfumarate hydratase
HIF-1 α hypoxia-inducible factor-1 alpha
HNSCChead and neck squamous cell carcinoma
hybrid E/Mhybrid epithelial/mesenchymal
IDHisocitrate dehydrogenase
LDHlactate dehydrogenase
METmesenchymal-to-epithelial transition
MITFmelanocyte lineage-specification transcription factor
mtROSmitochondrial reactive oxygen species
mtDNAmitochondrial DNA
noxROSNADPH oxidase-derived reactive oxygen species
OXPHOSoxidative phosphorylation
PDACpancreatic ductal adenocarcinoma
PDHpyruvate dehydrogenase
PGC-1peroxisome proliferator-activated receptor gamma coactivator 1
PKM2pyruvate kinase M2 isoform
ROSreactive oxygen species
SDHsuccinate dehydrogenase
TNBCtriple negative breast cancer
TCAtricarboxylic acid
TCGAThe Cancer Genome Atlas

References

  1. Warburg, O.; Posener, K.; Negelein, E. Über den Stoffwechsel der Carcinomzelle. Biochem. Z. 1924, 152, 309–344. [Google Scholar] [CrossRef]
  2. Warburg, O. On respiratory impairment in cancer cells. Science 1956, 124, 269–270. [Google Scholar] [PubMed]
  3. Warburg, O. On the origin of cancer cells. Science 1956, 123, 309–314. [Google Scholar] [CrossRef] [PubMed]
  4. Ward, P.S.; Thompson, C.B. Metabolic reprogramming: A cancer hallmark even warburg did not anticipate. Cancer Cell 2012, 21, 297–308. [Google Scholar] [CrossRef] [PubMed]
  5. Hanahan, D.; Weinberg, R.A. Hallmarks of Cancer: The Next Generation. Cell 2011, 144, 646–674. [Google Scholar] [CrossRef] [PubMed]
  6. Pavlova, N.N.; Thompson, C.B. The Emerging Hallmarks of Cancer Metabolism. Cell Metab. 2016, 23, 27–47. [Google Scholar] [CrossRef] [PubMed]
  7. Viale, A.; Corti, D.; Draetta, G.F. Tumors and mitochondrial respiration: A neglected connection. Cancer Res. 2015, 75, 3685–3686. [Google Scholar] [CrossRef] [PubMed]
  8. Yu, L.; Lu, M.; Jia, D.; Ma, J.; Ben-Jacob, E.; Levine, H.; Kaipparettu, B.A.; Onuchic, J.N. Modeling the Genetic Regulation of Cancer Metabolism: Interplay between Glycolysis and Oxidative Phosphorylation. Cancer Res. 2017, 77, 1564–1574. [Google Scholar] [CrossRef] [PubMed]
  9. LeBleu, V.S.; O’Connell, J.T.; Herrera, K.N.G.; Wikman-Kocher, H.; Pantel, K.; Haigis, M.C.; de Carvalho, F.M.; Damascena, A.; Chinen, L.T.D.; Rocha, R.M.; et al. PGC-1α mediates mitochondrial biogenesis and oxidative phosphorylation to promote metastasis. Nat. Cell Biol. 2014, 16, 992–1003. [Google Scholar] [CrossRef] [PubMed]
  10. Park, J.H.; Vithayathil, S.; Kumar, S.; Sung, P.-L.; Dobrolecki, L.E.; Putluri, V.; Bhat, V.B.; Bhowmik, S.K.; Gupta, V.; Arora, K.; et al. Fatty Acid Oxidation-Driven Src Links Mitochondrial Energy Reprogramming and Oncogenic Properties in Triple-Negative Breast Cancer. Cell Rep. 2016, 14, 2154–2165. [Google Scholar] [CrossRef] [PubMed]
  11. Maiuri, M.C.; Kroemer, G. Essential Role for Oxidative Phosphorylation in Cancer Progression. Cell Metab. 2015, 21, 11–12. [Google Scholar] [CrossRef] [PubMed]
  12. Porporato, P.E.; Payen, V.L.; Pérez-Escuredo, J.; De Saedeleer, C.J.; Danhier, P.; Copetti, T.; Dhup, S.; Tardy, M.; Vazeille, T.; Bouzin, C.; et al. A Mitochondrial Switch Promotes Tumor Metastasis. Cell Rep. 2014, 8, 754–766. [Google Scholar] [CrossRef] [PubMed]
  13. Peiris-Pagès, M.; Martinez-Outschoorn, U.E.; Pestell, R.G.; Sotgia, F.; Lisanti, M.P. Cancer stem cell metabolism. Breast Cancer Res. 2016, 18. [Google Scholar] [CrossRef] [PubMed]
  14. Camarda, R.; Zhou, A.Y.; Kohnz, R.A.; Balakrishnan, S.; Mahieu, C.; Anderton, B.; Eyob, H.; Kajimura, S.; Tward, A.; Krings, G.; et al. Inhibition of fatty acid oxidation as a therapy for MYC-overexpressing triple-negative breast cancer. Nat. Med. 2016, 22, 427–432. [Google Scholar] [CrossRef] [PubMed]
  15. Pastò, A.; Bellio, C.; Pilotto, G.; Ciminale, V.; Silic-Benussi, M.; Guzzo, G.; Rasola, A.; Frasson, C.; Nardo, G.; Zulato, E.; et al. Cancer stem cells from epithelial ovarian cancer patients privilege oxidative phosphorylation, and resist glucose deprivation. Oncotarget 2014, 5, 4305–4319. [Google Scholar] [CrossRef] [PubMed]
  16. Davis, C.F.; Ricketts, C.J.; Wang, M.; Yang, L.; Cherniack, A.D.; Shen, H.; Buhay, C.; Kang, H.; Kim, S.C.; Fahey, C.C.; et al. The somatic genomic landscape of chromophobe renal cell carcinoma. Cancer Cell 2014, 26, 319–330. [Google Scholar] [CrossRef] [PubMed]
  17. Wise, D.R.; DeBerardinis, R.J.; Mancuso, A.; Sayed, N.; Zhang, X.-Y.; Pfeiffer, H.K.; Nissim, I.; Daikhin, E.; Yudkoff, M.; McMahon, S.B.; et al. Myc regulates a transcriptional program that stimulates mitochondrial glutaminolysis and leads to glutamine addiction. Proc. Natl. Acad. Sci. USA 2008, 105, 18782–18787. [Google Scholar] [CrossRef] [PubMed]
  18. Gao, P.; Tchernyshyov, I.; Chang, T.-C.; Lee, Y.-S.; Kita, K.; Ochi, T.; Zeller, K.I.; De Marzo, A.M.; Van Eyk, J.E.; Mendell, J.T.; et al. c-Myc suppression of miR-23a/b enhances mitochondrial glutaminase expression and glutamine metabolism. Nature 2009, 458, 762–765. [Google Scholar] [CrossRef] [PubMed]
  19. Altman, B.J.; Stine, Z.E.; Dang, C.V. From Krebs to clinic: Glutamine metabolism to cancer therapy. Nat. Rev. Cancer 2016, 16, 619. [Google Scholar] [CrossRef] [PubMed]
  20. Hensley, C.T.; Faubert, B.; Yuan, Q.; Lev-Cohain, N.; Jin, E.; Kim, J.; Jiang, L.; Ko, B.; Skelton, R.; Loudat, L.; et al. Metabolic heterogeneity in human lung tumors. Cell 2016, 164, 681–694. [Google Scholar] [CrossRef] [PubMed]
  21. Vlashi, E.; Lagadec, C.; Vergnes, L.; Reue, K.; Frohnen, P.; Chan, M.; Alhiyari, Y.; Dratver, M.B.; Pajonk, F. Metabolic differences in breast cancer stem cells and differentiated progeny. Breast Cancer Res. Treat. 2014, 146, 525–534. [Google Scholar] [CrossRef] [PubMed]
  22. Ryan, M.T.; Hoogenraad, N.J. Mitochondrial-nuclear communications. Annu. Rev. Biochem. 2007, 76, 701–722. [Google Scholar] [CrossRef] [PubMed]
  23. Guha, M.; Avadhani, N.G. Mitochondrial Retrograde Signaling at the crossroads of tumor bioenergetics, genetics and epigenetics. Mitochondrion 2013, 13. [Google Scholar] [CrossRef] [PubMed]
  24. Bestwick, M.L.; Shadel, G.S. Accessorizing the human mitochondrial transcription machinery. Trends Biochem. Sci. 2013, 38, 283–291. [Google Scholar] [CrossRef] [PubMed]
  25. Puigserver, P.; Wu, Z.; Park, C.W.; Graves, R.; Wright, M.; Spiegelman, B.M. A cold-inducible coactivator of nuclear receptors linked to adaptive thermogenesis. Cell 1998, 92, 829–839. [Google Scholar] [CrossRef]
  26. Parikh, V.S.; Morgan, M.M.; Scott, R.; Clements, L.S.; Butow, R.A. The mitochondrial genotype can influence nuclear gene expression in yeast. Science 1987, 235, 576–580. [Google Scholar] [CrossRef] [PubMed]
  27. Zhao, Q.; Wang, J.; Levichkin, I.V.; Stasinopoulos, S.; Ryan, M.T.; Hoogenraad, N.J. A mitochondrial specific stress response in mammalian cells. EMBO J. 2002, 21, 4411–4419. [Google Scholar] [CrossRef] [PubMed]
  28. Arnold, I.; Wagner-Ecker, M.; Ansorge, W.; Langer, T. Evidence for a novel mitochondria-to-nucleus signalling pathway in respiring cells lacking i-AAA protease and the ABC-transporter Mdl1. Gene 2006, 367, 74–88. [Google Scholar] [CrossRef] [PubMed]
  29. Houtkooper, R.H.; Mouchiroud, L.; Ryu, D.; Moullan, N.; Katsyuba, E.; Knott, G.; Williams, R.W.; Auwerx, J. Mitonuclear protein imbalance as a conserved longevity mechanism. Nature 2013, 497, 451–457. [Google Scholar] [CrossRef] [PubMed]
  30. King, M.P.; Attardi, G. Human cells lacking mtDNA: Repopulation with exogenous mitochondria by complementation. Science 1989, 246, 500–503. [Google Scholar] [CrossRef] [PubMed]
  31. Hayashi, J.; Takemitsu, M.; Nonaka, I. Recovery of the missing tumorigenicity in mitochondrial DNA-less HeLa cells by introduction of mitochondrial DNA from normal human cells. Somat. Cell Mol. Genet. 1992, 18, 123–129. [Google Scholar] [CrossRef] [PubMed]
  32. Morais, R.; Zinkewich-Péotti, K.; Parent, M.; Wang, H.; Babai, F.; Zollinger, M. Tumor-forming ability in athymic nude mice of human cell lines devoid of mitochondrial DNA. Cancer Res. 1994, 54, 3889–3896. [Google Scholar] [PubMed]
  33. Cavalli, L.R.; Varella-Garcia, M.; Liang, B.C. Diminished tumorigenic phenotype after depletion of mitochondrial DNA. Cell Growth Differ. 1997, 8, 1189–1198. [Google Scholar] [PubMed]
  34. Tan, A.S.; Baty, J.W.; Dong, L.-F.; Bezawork-Geleta, A.; Endaya, B.; Goodwin, J.; Bajzikova, M.; Kovarova, J.; Peterka, M.; Yan, B.; et al. Mitochondrial Genome Acquisition Restores Respiratory Function and Tumorigenic Potential of Cancer Cells without Mitochondrial DNA. Cell Metab. 2015, 21, 81–94. [Google Scholar] [CrossRef] [PubMed]
  35. Ishikawa, K.; Takenaga, K.; Akimoto, M.; Koshikawa, N.; Yamaguchi, A.; Imanishi, H.; Nakada, K.; Honma, Y.; Hayashi, J.-I. ROS-generating mitochondrial DNA mutations can regulate tumor cell metastasis. Science 2008, 320, 661–664. [Google Scholar] [CrossRef] [PubMed]
  36. Suen, D.-F.; Narendra, D.P.; Tanaka, A.; Manfredi, G.; Youle, R.J. Parkin overexpression selects against a deleterious mtDNA mutation in heteroplasmic cybrid cells. Proc. Natl. Acad. Sci. USA 2010, 107, 11835–11840. [Google Scholar] [CrossRef] [PubMed]
  37. Kaipparettu, B.A.; Ma, Y.; Wong, L.-J.C. Functional effects of cancer mitochondria on energy metabolism and tumorigenesis: Utility of transmitochondrial cybrids. Ann. N. Y. Acad. Sci. 2010, 1201, 137–146. [Google Scholar] [CrossRef] [PubMed]
  38. Tu, Y.-F.; Kaipparettu, B.A.; Ma, Y.; Wong, L.-J.C. Mitochondria of highly metastatic breast cancer cell line MDA-MB-231 exhibits increased autophagic properties. Biochim. Biophys. Acta 2011, 1807, 1125–1132. [Google Scholar] [CrossRef] [PubMed]
  39. Vithayathil, S.A.; Ma, Y.; Kaipparettu, B.A. Transmitochondrial cybrids: Tools for functional studies of mutant mitochondria. Methods Mol. Biol. 2012, 837, 219–230. [Google Scholar] [CrossRef] [PubMed]
  40. Kaipparettu, B.A.; Ma, Y.; Park, J.H.; Lee, T.-L.; Zhang, Y.; Yotnda, P.; Creighton, C.J.; Chan, W.-Y.; Wong, L.-J.C. Crosstalk from non-cancerous mitochondria can inhibit tumor properties of metastatic cells by suppressing oncogenic pathways. PLoS ONE 2013, 8, e61747. [Google Scholar] [CrossRef] [PubMed]
  41. Wilkins, H.M.; Carl, S.M.; Swerdlow, R.H. Cytoplasmic hybrid (cybrid) cell lines as a practical model for mitochondriopathies. Redox Biol. 2014, 2, 619–631. [Google Scholar] [CrossRef] [PubMed]
  42. Walczak, J.; Partyka, M.; Duszyński, J.; Szczepanowska, J. Implications of mitochondrial network organization in mitochondrial stress signalling in NARP cybrid and Rho0 cells. Sci. Rep. 2017, 7, 14864. [Google Scholar] [CrossRef] [PubMed]
  43. Desouki, M.M.; Kulawiec, M.; Bansal, S.; Das, G.M.; Singh, K.K. Cross talk between mitochondria and superoxide generating NADPH oxidase in breast and ovarian tumors. Cancer Biol. Ther. 2005, 4, 1367–1373. [Google Scholar] [CrossRef] [PubMed]
  44. Kulawiec, M.; Owens, K.M.; Singh, K.K. mtDNA G10398A variant in African-American women with breast cancer provides resistance to apoptosis and promotes metastasis in mice. J. Hum. Genet. 2009, 54, 647–654. [Google Scholar] [CrossRef] [PubMed]
  45. Nunes, J.B.; Peixoto, J.; Soares, P.; Maximo, V.; Carvalho, S.; Pinho, S.S.; Vieira, A.F.; Paredes, J.; Rego, A.C.; Ferreira, I.L.; et al. OXPHOS dysfunction regulates integrin-β1 modifications and enhances cell motility and migration. Hum. Mol. Genet. 2015, 24, 1977–1990. [Google Scholar] [CrossRef] [PubMed]
  46. Butow, R.A.; Avadhani, N.G. Mitochondrial signaling: The retrograde response. Mol. Cell 2004, 14, 1–15. [Google Scholar] [CrossRef]
  47. Srinivasan, V.; Kriete, A.; Sacan, A.; Jazwinski, S.M. Comparing the yeast retrograde response and NF-κB stress responses: Implications for aging. Aging Cell 2010, 9, 933–941. [Google Scholar] [CrossRef] [PubMed]
  48. Jazwinski, S.M.; Kriete, A. The yeast retrograde response as a model of intracellular signaling of mitochondrial dysfunction. Front. Physiol. 2012, 3, 139. [Google Scholar] [CrossRef] [PubMed]
  49. Cagin, U.; Enriquez, J.A. The complex crosstalk between mitochondria and the nucleus: What goes in between? Int. J. Biochem. Cell Biol. 2015, 63, 10–15. [Google Scholar] [CrossRef] [PubMed]
  50. He, Y.; Wu, J.; Dressman, D.C.; Iacobuzio-Donahue, C.; Markowitz, S.D.; Velculescu, V.E.; Luis, A.D., Jr.; Kinzler, K.W.; Vogelstein, B.; Papadopoulos, N. Heteroplasmic mitochondrial DNA mutations in normal and tumour cells. Nature 2010, 464, 610–614. [Google Scholar] [CrossRef] [PubMed]
  51. Reznik, E.; Miller, M.L.; Şenbabaoğlu, Y.; Riaz, N.; Sarungbam, J.; Tickoo, S.K.; Al-Ahmadie, H.A.; Lee, W.; Seshan, V.E.; Hakimi, A.A.; et al. Mitochondrial DNA copy number variation across human cancers. eLife Sci. 2016, 5, e10769. [Google Scholar] [CrossRef] [PubMed]
  52. Jakupciak, J.P.; Maragh, S.; Markowitz, M.E.; Greenberg, A.K.; Hoque, M.O.; Maitra, A.; Barker, P.E.; Wagner, P.D.; Rom, W.N.; Srivastava, S.; et al. Performance of mitochondrial DNA mutations detecting early stage cancer. BMC Cancer 2008, 8, 285. [Google Scholar] [CrossRef] [PubMed]
  53. Covarrubias, D.; Bai, R.-K.; Wong, L.-J.C.; Leal, S.M. Mitochondrial DNA variant interactions modify breast cancer risk. J. Hum. Genet. 2008, 53, 924–928. [Google Scholar] [CrossRef] [PubMed]
  54. Fliss, M.S.; Usadel, H.; Caballero, O.L.; Wu, L.; Buta, M.R.; Eleff, S.M.; Jen, J.; Sidransky, D. Facile detection of mitochondrial DNA mutations in tumors and bodily fluids. Science 2000, 287, 2017–2019. [Google Scholar] [CrossRef] [PubMed]
  55. Bai, R.-K.; Leal, S.M.; Covarrubias, D.; Liu, A.; Wong, L.-J.C. Mitochondrial genetic background modifies breast cancer risk. Cancer Res. 2007, 67, 4687–4694. [Google Scholar] [CrossRef] [PubMed]
  56. Bai, R.-K.; Chang, J.; Yeh, K.-T.; Lou, M.A.; Lu, J.-F.; Tan, D.-J.; Liu, H.; Wong, L.-J.C. Mitochondrial DNA content varies with pathological characteristics of breast cancer. J. Oncol. 2011, 2011, 496189. [Google Scholar] [CrossRef] [PubMed]
  57. Brinker, A.E.; Vivian, C.J.; Koestler, D.C.; Tsue, T.T.; Jensen, R.A.; Welch, D.R. Mitochondrial Haplotype Alters Mammary Cancer Tumorigenicity and Metastasis in an Oncogenic Driver-Dependent Manner. Cancer Res. 2017, 77, 6941–6949. [Google Scholar] [CrossRef] [PubMed]
  58. Feeley, K.P.; Bray, A.W.; Westbrook, D.G.; Johnson, L.W.; Kesterson, R.A.; Ballinger, S.W.; Welch, D.R. Mitochondrial Genetics Regulate Breast Cancer Tumorigenicity and Metastatic Potential. Cancer Res. 2015, 75, 4429–4436. [Google Scholar] [CrossRef] [PubMed]
  59. Guha, M.; Srinivasan, S.; Biswas, G.; Avadhani, N.G. Activation of a novel calcineurin-mediated insulin-like growth factor-1 receptor pathway, altered metabolism, and tumor cell invasion in cells subjected to mitochondrial respiratory stress. J. Biol. Chem. 2007, 282, 14536–14546. [Google Scholar] [CrossRef] [PubMed]
  60. Amuthan, G.; Biswas, G.; Zhang, S.-Y.; Klein-Szanto, A.; Vijayasarathy, C.; Avadhani, N.G. Mitochondria-to-nucleus stress signaling induces phenotypic changes, tumor progression and cell invasion. EMBO J. 2001, 20, 1910–1920. [Google Scholar] [CrossRef] [PubMed]
  61. Peeters, K.; Leemputte, F.V.; Fischer, B.; Bonini, B.M.; Quezada, H.; Tsytlonok, M.; Haesen, D.; Vanthienen, W.; Bernardes, N.; Gonzalez-Blas, C.B.; et al. Fructose-1,6-bisphosphate couples glycolytic flux to activation of Ras. Nat. Commun. 2017, 8, 922. [Google Scholar] [CrossRef] [PubMed]
  62. Yun, J.; Rago, C.; Cheong, I.; Pagliarini, R.; Angenendt, P.; Rajagopalan, H.; Schmidt, K.; Willson, J.K.V.; Markowitz, S.; Zhou, S.; et al. Glucose deprivation contributes to the development of KRAS pathway mutations in tumor cells. Science 2009, 325, 1555–1559. [Google Scholar] [CrossRef] [PubMed]
  63. Dröge, W. Free radicals in the physiological control of cell function. Physiol. Rev. 2002, 82, 47–95. [Google Scholar] [CrossRef] [PubMed]
  64. Chen, Y.; Azad, M.B.; Gibson, S.B. Superoxide is the major reactive oxygen species regulating autophagy. Cell Death Differ. 2009, 16, 1040–1052. [Google Scholar] [CrossRef] [PubMed]
  65. Spange, S.; Wagner, T.; Heinzel, T.; Krämer, O.H. Acetylation of non-histone proteins modulates cellular signalling at multiple levels. Int. J. Biochem. Cell Biol. 2009, 41, 185–198. [Google Scholar] [CrossRef] [PubMed]
  66. Cantó, C.; Gerhart-Hines, Z.; Feige, J.N.; Lagouge, M.; Noriega, L.; Milne, J.C.; Elliott, P.J.; Puigserver, P.; Auwerx, J. AMPK regulates energy expenditure by modulating NAD+ metabolism and SIRT1 activity. Nature 2009, 458, 1056–1060. [Google Scholar] [CrossRef] [PubMed]
  67. Houtkooper, R.H.; Cantó, C.; Wanders, R.J.; Auwerx, J. The secret life of NAD+: An old metabolite controlling new metabolic signaling pathways. Endocr. Rev. 2010, 31, 194–223. [Google Scholar] [CrossRef] [PubMed]
  68. Rasola, A.; Bernardi, P. Mitochondrial permeability transition in Ca(2+)-dependent apoptosis and necrosis. Cell Calcium 2011, 50, 222–233. [Google Scholar] [CrossRef] [PubMed]
  69. Csordás, G.; Hajnóczky, G. SR/ER-mitochondrial local communication: Calcium and ROS. Biochim. Biophys. Acta 2009, 1787, 1352–1362. [Google Scholar] [CrossRef] [PubMed]
  70. Acin-Perez, R.; Gatti, D.L.; Bai, Y.; Manfredi, G. Protein phosphorylation and prevention of cytochrome oxidase inhibition by ATP: Coupled mechanisms of energy metabolism regulation. Cell Metab. 2011, 13, 712–719. [Google Scholar] [CrossRef] [PubMed]
  71. Chowdhury, R.; Yeoh, K.K.; Tian, Y.-M.; Hillringhaus, L.; Bagg, E.A.; Rose, N.R.; Leung, I.K.H.; Li, X.S.; Woon, E.C.Y.; Yang, M.; et al. The oncometabolite 2-hydroxyglutarate inhibits histone lysine demethylases. EMBO Rep. 2011, 12, 463–469. [Google Scholar] [CrossRef] [PubMed]
  72. Colvin, H.; Nishida, N.; Konno, M.; Haraguchi, N.; Takahashi, H.; Nishimura, J.; Hata, T.; Kawamoto, K.; Asai, A.; Tsunekuni, K.; et al. Oncometabolite D-2-Hydroxyglurate Directly Induces Epithelial-Mesenchymal Transition and is Associated with Distant Metastasis in Colorectal Cancer. Sci. Rep. 2016, 6, 36289. [Google Scholar] [CrossRef] [PubMed]
  73. Yang, M.; Soga, T.; Pollard, P.J. Oncometabolites: Linking altered metabolism with cancer. J. Clin. Investing. 2013, 123, 3652–3658. [Google Scholar] [CrossRef] [PubMed]
  74. Xu, W.; Yang, H.; Liu, Y.; Yang, Y.; Wang, P.; Kim, S.-H.; Ito, S.; Yang, C.; Wang, P.; Xiao, M.-T.; et al. Oncometabolite 2-hydroxyglutarate is a competitive inhibitor of α-ketoglutarate-dependent dioxygenases. Cancer Cell 2011, 19, 17–30. [Google Scholar] [CrossRef] [PubMed]
  75. Viscomi, C.; Bottani, E.; Civiletto, G.; Cerutti, R.; Moggio, M.; Fagiolari, G.; Schon, E.A.; Lamperti, C.; Zeviani, M. In vivo correction of COX deficiency by activation of the AMPK/PGC-1α axis. Cell Metab. 2011, 14, 80–90. [Google Scholar] [CrossRef] [PubMed]
  76. Amé, J.C.; Rolli, V.; Schreiber, V.; Niedergang, C.; Apiou, F.; Decker, P.; Muller, S.; Höger, T.; Ménissier-de Murcia, J.; de Murcia, G. PARP-2, A novel mammalian DNA damage-dependent poly(ADP-ribose) polymerase. J. Biol. Chem. 1999, 274, 17860–17868. [Google Scholar] [CrossRef] [PubMed]
  77. Cantó, C.; Menzies, K.J.; Auwerx, J. NAD(+) Metabolism and the Control of Energy Homeostasis: A Balancing Act between Mitochondria and the Nucleus. Cell Metab. 2015, 22, 31–53. [Google Scholar] [CrossRef] [PubMed]
  78. Sciacovelli, M.; Frezza, C. Oncometabolites: Unconventional triggers of oncogenic signalling cascades. Free Radic. Biol. Med. 2016, 100, 175–181. [Google Scholar] [CrossRef] [PubMed]
  79. Gentric, G.; Mieulet, V.; Mechta-Grigoriou, F. Heterogeneity in Cancer Metabolism: New Concepts in an Old Field. Antioxid. Redox Signal. 2017, 26, 462–485. [Google Scholar] [CrossRef] [PubMed]
  80. Sciacovelli, M.; Gonçalves, E.; Johnson, T.I.; Zecchini, V.R.; da Costa, A.S.H.; Gaude, E.; Drubbel, A.V.; Theobald, S.J.; Abbo, S.R.; Tran, M.G.B.; et al. Fumarate is an epigenetic modifier that elicits epithelial-to-mesenchymal transition. Nature 2016, 537, 544–547. [Google Scholar] [CrossRef] [PubMed]
  81. King, A.; Selak, M.A.; Gottlieb, E. Succinate dehydrogenase and fumarate hydratase: Linking mitochondrial dysfunction and cancer. Oncogene 2006, 25, 4675–4682. [Google Scholar] [CrossRef] [PubMed]
  82. Dang, L.; White, D.W.; Gross, S.; Bennett, B.D.; Bittinger, M.A.; Driggers, E.M.; Fantin, V.R.; Jang, H.G.; Jin, S.; Keenan, M.C.; et al. Cancer-associated IDH1 mutations produce 2-hydroxyglutarate. Nature 2009, 462, 739–744. [Google Scholar] [CrossRef] [PubMed]
  83. Ward, P.S.; Patel, J.; Wise, D.R.; Abdel-Wahab, O.; Bennett, B.D.; Coller, H.A.; Cross, J.R.; Fantin, V.R.; Hedvat, C.V.; Perl, A.E.; et al. The common feature of leukemia-associated IDH1 and IDH2 mutations is a neomorphic enzyme activity converting alpha-ketoglutarate to 2-hydroxyglutarate. Cancer Cell 2010, 17, 225–234. [Google Scholar] [CrossRef] [PubMed]
  84. Figueroa, M.E.; Abdel-Wahab, O.; Lu, C.; Ward, P.S.; Patel, J.; Shih, A.; Li, Y.; Bhagwat, N.; Vasanthakumar, A.; Fernandez, H.F.; et al. Leukemic IDH1 and IDH2 mutations result in a hypermethylation phenotype, disrupt TET2 function, and impair hematopoietic differentiation. Cancer Cell 2010, 18, 553–567. [Google Scholar] [CrossRef] [PubMed]
  85. Shaul, Y.D.; Freinkman, E.; Comb, W.C.; Cantor, J.R.; Tam, W.L.; Thiru, P.; Kim, D.; Kanarek, N.; Pacold, M.E.; Chen, W.W.; et al. Dihydropyrimidine Accumulation Is Required for the Epithelial-Mesenchymal Transition. Cell 2014, 158, 1094–1109. [Google Scholar] [CrossRef] [PubMed]
  86. Gupta, G.P.; Massagué, J. Cancer metastasis: Building a framework. Cell 2006, 127, 679–695. [Google Scholar] [CrossRef] [PubMed]
  87. Vander Heiden, M.G.; DeBerardinis, R.J. Understanding the Intersections between Metabolism and Cancer Biology. Cell 2017, 168, 657–669. [Google Scholar] [CrossRef] [PubMed]
  88. Vantaku, V.; Donepudi, S.R.; Ambati, C.R.; Jin, F.; Putluri, V.; Nguyen, K.; Rajapakshe, K.; Coarfa, C.; Battula, V.L.; Lotan, Y.; et al. Expression of ganglioside GD2, reprogram the lipid metabolism and EMT phenotype in bladder cancer. Oncotarget 2017, 8, 95620–95631. [Google Scholar] [CrossRef] [PubMed]
  89. Tao, K.; Fang, M.; Alroy, J.; Sahagian, G.G. Imagable 4T1 model for the study of late stage breast cancer. BMC Cancer 2008, 8, 228. [Google Scholar] [CrossRef] [PubMed]
  90. Dupuy, F.; Tabariès, S.; Andrzejewski, S.; Dong, Z.; Blagih, J.; Annis, M.G.; Omeroglu, A.; Gao, D.; Leung, S.; Amir, E.; et al. PDK1-Dependent Metabolic Reprogramming Dictates Metastatic Potential in Breast Cancer. Cell Metab. 2015, 22, 577–589. [Google Scholar] [CrossRef] [PubMed]
  91. Kalluri, R.; Weinberg, R.A. The basics of epithelial-mesenchymal transition. J. Clin. Investing. 2009, 119, 1420–1428. [Google Scholar] [CrossRef] [PubMed]
  92. Morandi, A.; Taddei, M.L.; Chiarugi, P.; Giannoni, E. Targeting the Metabolic Reprogramming That Controls Epithelial-to-Mesenchymal Transition in Aggressive Tumors. Front. Oncol. 2017, 7, 40. [Google Scholar] [CrossRef] [PubMed]
  93. Farris, J.C.; Pifer, P.M.; Zheng, L.; Gottlieb, E.; Denvir, J.; Frisch, S.M. Grainyhead-like 2 Reverses the Metabolic Changes Induced by the Oncogenic Epithelial-Mesenchymal Transition: Effects on Anoikis. Mol. Cancer Res. 2016, 14, 528–538. [Google Scholar] [CrossRef] [PubMed]
  94. Guo, Q. Changes in mitochondrial function during EMT induced by TGFβ-1 in pancreatic cancer. Oncol. Lett. 2017, 13, 1575–1580. [Google Scholar] [CrossRef] [PubMed]
  95. Lin, C.-S.; Lee, H.-T.; Lee, S.-Y.; Shen, Y.-A.; Wang, L.-S.; Chen, Y.-J.; Wei, Y.-H. High mitochondrial DNA copy number and bioenergetic function are associated with tumor invasion of esophageal squamous cell carcinoma cell lines. Int. J. Mol. Sci. 2012, 13, 11228–11246. [Google Scholar] [CrossRef] [PubMed]
  96. Jiang, L.; Xiao, L.; Sugiura, H.; Huang, X.; Ali, A.; Kuro-o, M.; Deberardinis, R.J.; Boothman, D.A. Metabolic reprogramming during TGFβ1-induced epithelial-to-mesenchymal transition. Oncogene 2015, 34, 3908–3916. [Google Scholar] [CrossRef] [PubMed]
  97. Sun, Y.; Daemen, A.; Hatzivassiliou, G.; Arnott, D.; Wilson, C.; Zhuang, G.; Gao, M.; Liu, P.; Boudreau, A.; Johnson, L.; et al. Metabolic and transcriptional profiling reveals pyruvate dehydrogenase kinase 4 as a mediator of epithelial-mesenchymal transition and drug resistance in tumor cells. Cancer Metab. 2014, 2, 20. [Google Scholar] [CrossRef] [PubMed]
  98. Gaude, E.; Frezza, C. Tissue-specific and convergent metabolic transformation of cancer correlates with metastatic potential and patient survival. Nat. Commun. 2016, 7, 13041. [Google Scholar] [CrossRef] [PubMed]
  99. Semenza, G.L. HIF-1: Upstream and downstream of cancer metabolism. Curr. Opin. Genet. Dev. 2010, 20, 51–56. [Google Scholar] [CrossRef] [PubMed]
  100. Zhang, L.; Huang, G.; Li, X.; Zhang, Y.; Jiang, Y.; Shen, J.; Liu, J.; Wang, Q.; Zhu, J.; Feng, X.; et al. Hypoxia induces epithelial-mesenchymal transition via activation of SNAI1 by hypoxia-inducible factor -1α in hepatocellular carcinoma. BMC Cancer 2013, 13, 108. [Google Scholar] [CrossRef] [PubMed]
  101. Yang, M.-H.; Wu, K.-J. TWIST activation by hypoxia inducible factor-1 (HIF-1): Implications in metastasis and development. Cell Cycle 2008, 7, 2090–2096. [Google Scholar] [CrossRef] [PubMed]
  102. Yang, L.; Hou, Y.; Yuan, J.; Tang, S.; Zhang, H.; Zhu, Q.; Du, Y.; Zhou, M.; Wen, S.; Xu, L.; et al. Twist promotes reprogramming of glucose metabolism in breast cancer cells through PI3K/AKT and p53 signaling pathways. Oncotarget 2015, 6, 25755–25769. [Google Scholar] [CrossRef] [PubMed]
  103. Chou, C.-C.; Lee, K.-H.; Lai, I.-L.; Wang, D.; Mo, X.; Kulp, S.K.; Shapiro, C.L.; Chen, C.-S. AMPK Reverses the Mesenchymal Phenotype of Cancer Cells by Targeting the Akt–MDM2–Foxo3a Signaling Axis. Cancer Res. 2014, 74, 4783–4795. [Google Scholar] [CrossRef] [PubMed]
  104. Santidrian, A.F.; Matsuno-Yagi, A.; Ritland, M.; Seo, B.B.; LeBoeuf, S.E.; Gay, L.J.; Yagi, T.; Felding-Habermann, B. Mitochondrial complex I activity and NAD+/NADH balance regulate breast cancer progression. J. Clin. Investing. 2013, 123, 1068–1081. [Google Scholar] [CrossRef] [PubMed]
  105. Lamouille, S.; Xu, J.; Derynck, R. Molecular mechanisms of epithelial–mesenchymal transition. Nat. Rev. Mol. Cell Biol. 2014, 15, 178–196. [Google Scholar] [CrossRef] [PubMed]
  106. Jolly, M.K.; Boareto, M.; Huang, B.; Jia, D.; Lu, M.; Ben-Jacob, E.; Onuchic, J.N.; Levine, H. Implications of the Hybrid Epithelial/Mesenchymal Phenotype in Metastasis. Front. Oncol. 2015, 5. [Google Scholar] [CrossRef] [PubMed]
  107. Jolly, M.K.; Tripathi, S.C.; Jia, D.; Mooney, S.M.; Celiktas, M.; Hanash, S.M.; Mani, S.A.; Pienta, K.J.; Ben-Jacob, E.; Levine, H. Stability of the hybrid epithelial/mesenchymal phenotype. Oncotarget 2016, 7, 27067–27084. [Google Scholar] [CrossRef] [PubMed]
  108. Bierie, B.; Pierce, S.E.; Kroeger, C.; Stover, D.G.; Pattabiraman, D.R.; Thiru, P.; Liu Donaher, J.; Reinhardt, F.; Chaffer, C.L.; Keckesova, Z.; et al. Integrin-β4 identifies cancer stem cell-enriched populations of partially mesenchymal carcinoma cells. Proc. Natl. Acad. Sci. USA 2017, 114, E2337–E2346. [Google Scholar] [CrossRef] [PubMed]
  109. Lu, M.; Jolly, M.K.; Levine, H.; Onuchic, J.N.; Ben-Jacob, E. MicroRNA-based regulation of epithelial-hybrid-mesenchymal fate determination. Proc. Natl. Acad. Sci. USA 2013, 110, 18144–18149. [Google Scholar] [CrossRef] [PubMed]
  110. Zhang, J.; Tian, X.-J.; Zhang, H.; Teng, Y.; Li, R.; Bai, F.; Elankumaran, S.; Xing, J. TGF-β–induced epithelial-to-mesenchymal transition proceeds through stepwise activation of multiple feedback loops. Sci. Signal. 2014, 7, ra91. [Google Scholar] [CrossRef] [PubMed]
  111. Jia, D.; Jolly, M.K.; Tripathi, S.C.; Den Hollander, P.; Huang, B.; Lu, M.; Celiktas, M.; Ramirez-Peña, E.; Ben-Jacob, E.; Onuchic, J.N.; et al. Distinguishing mechanisms underlying EMT tristability. Cancer Converg. 2017, 1, 2. [Google Scholar] [CrossRef]
  112. Tan, T.Z.; Miow, Q.H.; Miki, Y.; Noda, T.; Mori, S.; Huang, R.Y.-J.; Thiery, J.P. Epithelial-mesenchymal transition spectrum quantification and its efficacy in deciphering survival and drug responses of cancer patients. EMBO Mol. Med. 2014, 6, 1279–1293. [Google Scholar] [CrossRef] [PubMed]
  113. George, J.T.; Jolly, M.K.; Xu, S.; Somarelli, J.A.; Levine, H. Survival Outcomes in Cancer Patients Predicted by a Partial EMT Gene Expression Scoring Metric. Cancer Res. 2017, 77, 6415–6428. [Google Scholar] [CrossRef] [PubMed]
  114. Aceto, N.; Bardia, A.; Miyamoto, D.T.; Donaldson, M.C.; Wittner, B.S.; Spencer, J.A.; Yu, M.; Pely, A.; Engstrom, A.; Zhu, H.; et al. Circulating tumor cell clusters are oligoclonal precursors of breast cancer metastasis. Cell 2014, 158, 1110–1122. [Google Scholar] [CrossRef] [PubMed]
  115. Shibue, T.; Weinberg, R.A. EMT, CSCs, and drug resistance: The mechanistic link and clinical implications. Nat. Rev. Clin. Oncol. 2017, 14, 611–629. [Google Scholar] [CrossRef] [PubMed]
  116. Wicha, M.S.; Liu, S.; Dontu, G. Cancer stem cells: an old idea—A paradigm shift. Cancer Res. 2006, 66, 1883–1890. [Google Scholar] [CrossRef] [PubMed]
  117. Sancho, P.; Burgos-Ramos, E.; Tavera, A.; Bou Kheir, T.; Jagust, P.; Schoenhals, M.; Barneda, D.; Sellers, K.; Campos-Olivas, R.; Graña, O.; et al. MYC/PGC-1α Balance Determines the Metabolic Phenotype and Plasticity of Pancreatic Cancer Stem Cells. Cell Metab. 2015, 22, 590–605. [Google Scholar] [CrossRef] [PubMed]
  118. Lamb, R.; Ozsvari, B.; Lisanti, C.L.; Tanowitz, H.B.; Howell, A.; Martinez-Outschoorn, U.E.; Sotgia, F.; Lisanti, M.P. Antibiotics that target mitochondria effectively eradicate cancer stem cells, across multiple tumor types: Treating cancer like an infectious disease. Oncotarget 2015, 6, 4569–4584. [Google Scholar] [CrossRef] [PubMed]
  119. Roesch, A.; Vultur, A.; Bogeski, I.; Wang, H.; Zimmermann, K.M.; Speicher, D.; Körbel, C.; Laschke, M.W.; Gimotty, P.A.; Philipp, S.E.; et al. Overcoming intrinsic multidrug resistance in melanoma by blocking the mitochondrial respiratory chain of slow-cycling JARID1B(high) cells. Cancer Cell 2013, 23, 811–825. [Google Scholar] [CrossRef] [PubMed]
  120. De Luca, A.; Fiorillo, M.; Peiris-Pagès, M.; Ozsvari, B.; Smith, D.L.; Sanchez-Alvarez, R.; Martinez-Outschoorn, U.E.; Cappello, A.R.; Pezzi, V.; Lisanti, M.P.; et al. Mitochondrial biogenesis is required for the anchorage-independent survival and propagation of stem-like cancer cells. Oncotarget 2015, 6, 14777–14795. [Google Scholar] [CrossRef] [PubMed]
  121. Farnie, G.; Sotgia, F.; Lisanti, M.P. High mitochondrial mass identifies a sub-population of stem-like cancer cells that are chemo-resistant. Oncotarget 2015, 6, 30472–30486. [Google Scholar] [CrossRef] [PubMed]
  122. Lamb, R.; Bonuccelli, G.; Ozsvári, B.; Peiris-Pagès, M.; Fiorillo, M.; Smith, D.L.; Bevilacqua, G.; Mazzanti, C.M.; McDonnell, L.A.; Naccarato, A.G.; et al. Mitochondrial mass, a new metabolic biomarker for stem-like cancer cells: Understanding WNT/FGF-driven anabolic signaling. Oncotarget 2015, 6, 30453–30471. [Google Scholar] [CrossRef] [PubMed]
  123. Viale, A.; Pettazzoni, P.; Lyssiotis, C.A.; Ying, H.; Sánchez, N.; Marchesini, M.; Carugo, A.; Green, T.; Seth, S.; Giuliani, V.; et al. Oncogene ablation-resistant pancreatic cancer cells depend on mitochondrial function. Nature 2014, 514, 628–632. [Google Scholar] [CrossRef] [PubMed]
  124. Janiszewska, M.; Suvà, M.L.; Riggi, N.; Houtkooper, R.H.; Auwerx, J.; Clément-Schatlo, V.; Radovanovic, I.; Rheinbay, E.; Provero, P.; Stamenkovic, I. Imp2 controls oxidative phosphorylation and is crucial for preserving glioblastoma cancer stem cells. Genes Dev. 2012, 26, 1926–1944. [Google Scholar] [CrossRef] [PubMed]
  125. Strohecker, A.M.; White, E. Targeting Mitochondrial Metabolism by Inhibiting Autophagy in BRAF-Driven Cancers. Cancer Discov. 2014, 4, 766–772. [Google Scholar] [CrossRef] [PubMed]
  126. Lagadinou, E.D.; Sach, A.; Callahan, K.; Rossi, R.M.; Neering, S.J.; Minhajuddin, M.; Ashton, J.M.; Pei, S.; Grose, V.; O’Dwyer, K.M.; et al. BCL-2 inhibition targets oxidative phosphorylation and selectively eradicates quiescent human leukemia stem cells. Cell Stem Cell 2013, 12, 329–341. [Google Scholar] [CrossRef] [PubMed]
  127. Vazquez, F.; Lim, J.-H.; Chim, H.; Bhalla, K.; Girnun, G.; Pierce, K.; Clish, C.B.; Granter, S.R.; Widlund, H.R.; Spiegelman, B.M.; et al. PGC1α expression defines a subset of human melanoma tumors with increased mitochondrial capacity and resistance to oxidative stress. Cancer Cell 2013, 23, 287–301. [Google Scholar] [CrossRef] [PubMed]
  128. Diehn, M.; Cho, R.W.; Lobo, N.A.; Kalisky, T.; Dorie, M.J.; Kulp, A.N.; Qian, D.; Lam, J.S.; Ailles, L.E.; Wong, M.; et al. Association of reactive oxygen species levels and radioresistance in cancer stem cells. Nature 2009, 458, 780–783. [Google Scholar] [CrossRef] [PubMed]
  129. Ciavardelli, D.; Rossi, C.; Barcaroli, D.; Volpe, S.; Consalvo, A.; Zucchelli, M.; Cola, A.D.; Scavo, E.; Carollo, R.; D’Agostino, D.; et al. Breast cancer stem cells rely on fermentative glycolysis and are sensitive to 2-deoxyglucose treatment. Cell Death Dis. 2014, 5, e1336. [Google Scholar] [CrossRef] [PubMed]
  130. Liao, J.; Qian, F.; Tchabo, N.; Mhawech-Fauceglia, P.; Beck, A.; Qian, Z.; Wang, X.; Huss, W.J.; Lele, S.B.; Morrison, C.D.; et al. Ovarian Cancer Spheroid Cells with Stem Cell-Like Properties Contribute to Tumor Generation, Metastasis and Chemotherapy Resistance through Hypoxia-Resistant Metabolism. PLoS ONE 2014, 9, e84941. [Google Scholar] [CrossRef] [PubMed]
  131. Zhou, Y.; Zhou, Y.; Shingu, T.; Feng, L.; Chen, Z.; Ogasawara, M.; Keating, M.J.; Kondo, S.; Huang, P. Metabolic alterations in highly tumorigenic glioblastoma cells: Preference for hypoxia and high dependency on glycolysis. J. Biol. Chem. 2011, 286, 32843–32853. [Google Scholar] [CrossRef] [PubMed]
  132. Liu, S.; Cong, Y.; Wang, D.; Sun, Y.; Deng, L.; Liu, Y.; Martin-Trevino, R.; Shang, L.; McDermott, S.P.; Landis, M.D.; et al. Breast cancer stem cells transition between epithelial and mesenchymal states reflective of their normal counterparts. Stem Cell Rep. 2014, 2, 78–91. [Google Scholar] [CrossRef] [PubMed]
  133. Gammon, L.; Biddle, A.; Heywood, H.K.; Johannessen, A.C.; Mackenzie, I.C. Sub-sets of cancer stem cells differ intrinsically in their patterns of oxygen metabolism. PLoS ONE 2013, 8, e62493. [Google Scholar] [CrossRef] [PubMed]
  134. Colacino, J.; Azizi, E.; Brooks, M.; Fouladdel, S.; McDermott, S.P.; Lee, M.; Hill, D.; Sartor, M.; Rozek, L.; Wicha, M. Heterogeneity of normal human breast stem and progenitor cells as revealed by transcriptional profiling. bioRxiv 2017, 109751. [Google Scholar] [CrossRef]
  135. Cairns, R.A.; Harris, I.S.; Mak, T.W. Regulation of cancer cell metabolism. Nat. Rev. Cancer 2011, 11, 85. [Google Scholar] [CrossRef] [PubMed]
  136. Orimo, A.; Gupta, P.B.; Sgroi, D.C.; Arenzana-Seisdedos, F.; Delaunay, T.; Naeem, R.; Carey, V.J.; Richardson, A.L.; Weinberg, R.A. Stromal fibroblasts present in invasive human breast carcinomas promote tumor growth and angiogenesis through elevated SDF-1/CXCL12 secretion. Cell 2005, 121, 335–348. [Google Scholar] [CrossRef] [PubMed]
  137. Migneco, G.; Whitaker-Menezes, D.; Chiavarina, B.; Castello-Cros, R.; Pavlides, S.; Pestell, R.G.; Fatatis, A.; Flomenberg, N.; Tsirigos, A.; Howell, A.; et al. Glycolytic cancer associated fibroblasts promote breast cancer tumor growth, without a measurable increase in angiogenesis: Evidence for stromal-epithelial metabolic coupling. Cell Cycle 2010, 9, 2412–2422. [Google Scholar] [CrossRef] [PubMed]
  138. Pavlides, S.; Whitaker-Menezes, D.; Castello-Cros, R.; Flomenberg, N.; Witkiewicz, A.K.; Frank, P.G.; Casimiro, M.C.; Wang, C.; Fortina, P.; Addya, S.; et al. The reverse Warburg effect: Aerobic glycolysis in cancer associated fibroblasts and the tumor stroma. Cell Cycle 2009, 8, 3984–4001. [Google Scholar] [CrossRef] [PubMed]
  139. Sotgia, F.; Del Galdo, F.; Casimiro, M.C.; Bonuccelli, G.; Mercier, I.; Whitaker-Menezes, D.; Daumer, K.M.; Zhou, J.; Wang, C.; Katiyar, S.; et al. Caveolin-1−/− null mammary stromal fibroblasts share characteristics with human breast cancer-associated fibroblasts. Am. J. Pathol. 2009, 174, 746–761. [Google Scholar] [CrossRef] [PubMed]
  140. Yoshida, G.J. Metabolic reprogramming: The emerging concept and associated therapeutic strategies. J. Exp. Clin. Cancer Res. 2015, 34, 111. [Google Scholar] [CrossRef] [PubMed]
  141. Bonuccelli, G.; Whitaker-Menezes, D.; Castello-Cros, R.; Pavlides, S.; Pestell, R.G.; Fatatis, A.; Witkiewicz, A.K.; Vander Heiden, M.G.; Migneco, G.; Chiavarina, B.; et al. The reverse Warburg effect: Glycolysis inhibitors prevent the tumor promoting effects of caveolin-1 deficient cancer associated fibroblasts. Cell Cycle 2010, 9, 1960–1971. [Google Scholar] [CrossRef] [PubMed]
  142. Arcucci, A.; Ruocco, M.R.; Granato, G.; Sacco, A.M.; Montagnani, S. Cancer: An Oxidative Crosstalk between Solid Tumor Cells and Cancer Associated Fibroblasts. Biomed. Res. Int. 2016, 2016, 4502846. [Google Scholar] [CrossRef] [PubMed]
  143. Witkiewicz, A.K.; Dasgupta, A.; Nguyen, K.H.; Liu, C.; Kovatich, A.J.; Schwartz, G.F.; Pestell, R.G.; Sotgia, F.; Rui, H.; Lisanti, M.P. Stromal caveolin-1 levels predict early DCIS progression to invasive breast cancer. Cancer Biol. Ther. 2009, 8, 1071–1079. [Google Scholar] [CrossRef] [PubMed]
  144. Zhang, D.; Wang, Y.; Shi, Z.; Liu, J.; Sun, P.; Hou, X.; Zhang, J.; Zhao, S.; Zhou, B.P.; Mi, J. Metabolic reprogramming of cancer-associated fibroblasts by IDH3α downregulation. Cell Rep. 2015, 10, 1335–1348. [Google Scholar] [CrossRef] [PubMed]
  145. Whitaker-Menezes, D.; Martinez-Outschoorn, U.E.; Lin, Z.; Ertel, A.; Flomenberg, N.; Witkiewicz, A.K.; Birbe, R.C.; Howell, A.; Pavlides, S.; Gandara, R.; et al. Evidence for a stromal-epithelial “lactate shuttle” in human tumors: MCT4 is a marker of oxidative stress in cancer-associated fibroblasts. Cell Cycle 2011, 10, 1772–1783. [Google Scholar] [CrossRef] [PubMed]
  146. Witkiewicz, A.K.; Whitaker-Menezes, D.; Dasgupta, A.; Philp, N.J.; Lin, Z.; Gandara, R.; Sneddon, S.; Martinez-Outschoorn, U.E.; Sotgia, F.; Lisanti, M.P. Using the “reverse Warburg effect” to identify high-risk breast cancer patients: Stromal MCT4 predicts poor clinical outcome in triple-negative breast cancers. Cell Cycle 2012, 11, 1108–1117. [Google Scholar] [CrossRef] [PubMed]
  147. Schug, Z.T.; Vande Voorde, J.; Gottlieb, E. The Nurture of Tumors Can Drive Their Metabolic Phenotype. Cell Metab. 2016, 23, 391–392. [Google Scholar] [CrossRef] [PubMed]
  148. Allen, B.G.; Bhatia, S.K.; Anderson, C.M.; Eichenberger-Gilmore, J.M.; Sibenaller, Z.A.; Mapuskar, K.A.; Schoenfeld, J.D.; Buatti, J.M.; Spitz, D.R.; Fath, M.A. Ketogenic diets as an adjuvant cancer therapy: History and potential mechanism. Redox Biol. 2014, 2, 963–970. [Google Scholar] [CrossRef] [PubMed]
  149. Cheong, J.-H.; Park, E.S.; Liang, J.; Dennison, J.B.; Tsavachidou, D.; Nguyen-Charles, C.; Wa Cheng, K.; Hall, H.; Zhang, D.; Lu, Y.; et al. Dual inhibition of tumor energy pathway by 2-deoxyglucose and metformin is effective against a broad spectrum of preclinical cancer models. Mol. Cancer Ther. 2011, 10, 2350–2362. [Google Scholar] [CrossRef] [PubMed]
  150. Lu, C.-L.; Qin, L.; Liu, H.-C.; Candas, D.; Fan, M.; Li, J.J. Tumor cells switch to mitochondrial oxidative phosphorylation under radiation via mTOR-mediated hexokinase II inhibition—A Warburg-reversing effect. PLoS ONE 2015, 10, e0121046. [Google Scholar] [CrossRef] [PubMed]
  151. Robertson-Tessi, M.; Gillies, R.J.; Gatenby, R.A.; Anderson, A.R.A. Impact of Metabolic Heterogeneity on Tumor Growth, Invasion, and Treatment Outcomes. Cancer Res. 2015, 75, 1567–1579. [Google Scholar] [CrossRef] [PubMed]
  152. Pannala, V.R.; Dash, R.K. Mechanistic characterization of the thioredoxin system in the removal of hydrogen peroxide. Free Radic. Biol. Med. 2015, 78, 42–55. [Google Scholar] [CrossRef] [PubMed]
  153. Bordbar, A.; Yurkovich, J.T.; Paglia, G.; Rolfsson, O.; Sigurjónsson, Ó.E.; Palsson, B.O. Elucidating dynamic metabolic physiology through network integration of quantitative time-course metabolomics. Sci. Rep. 2017, 7, 46249. [Google Scholar] [CrossRef] [PubMed]
  154. Zielinski, D.C.; Jamshidi, N.; Corbett, A.J.; Bordbar, A.; Thomas, A.; Palsson, B.O. Systems biology analysis of drivers underlying hallmarks of cancer cell metabolism. Sci. Rep. 2017, 7, 41241. [Google Scholar] [CrossRef] [PubMed]
  155. Jia, D.; Jolly, M.K.; Kulkarni, P.; Levine, H. Phenotypic Plasticity and Cell Fate Decisions in Cancer: Insights from Dynamical Systems Theory. Cancers 2017, 9, 70. [Google Scholar] [CrossRef] [PubMed]
  156. Li, C.; Wang, J. Quantifying the underlying landscape and paths of cancer. J. R. Soc. Interface 2014, 11, 20140774. [Google Scholar] [CrossRef] [PubMed]

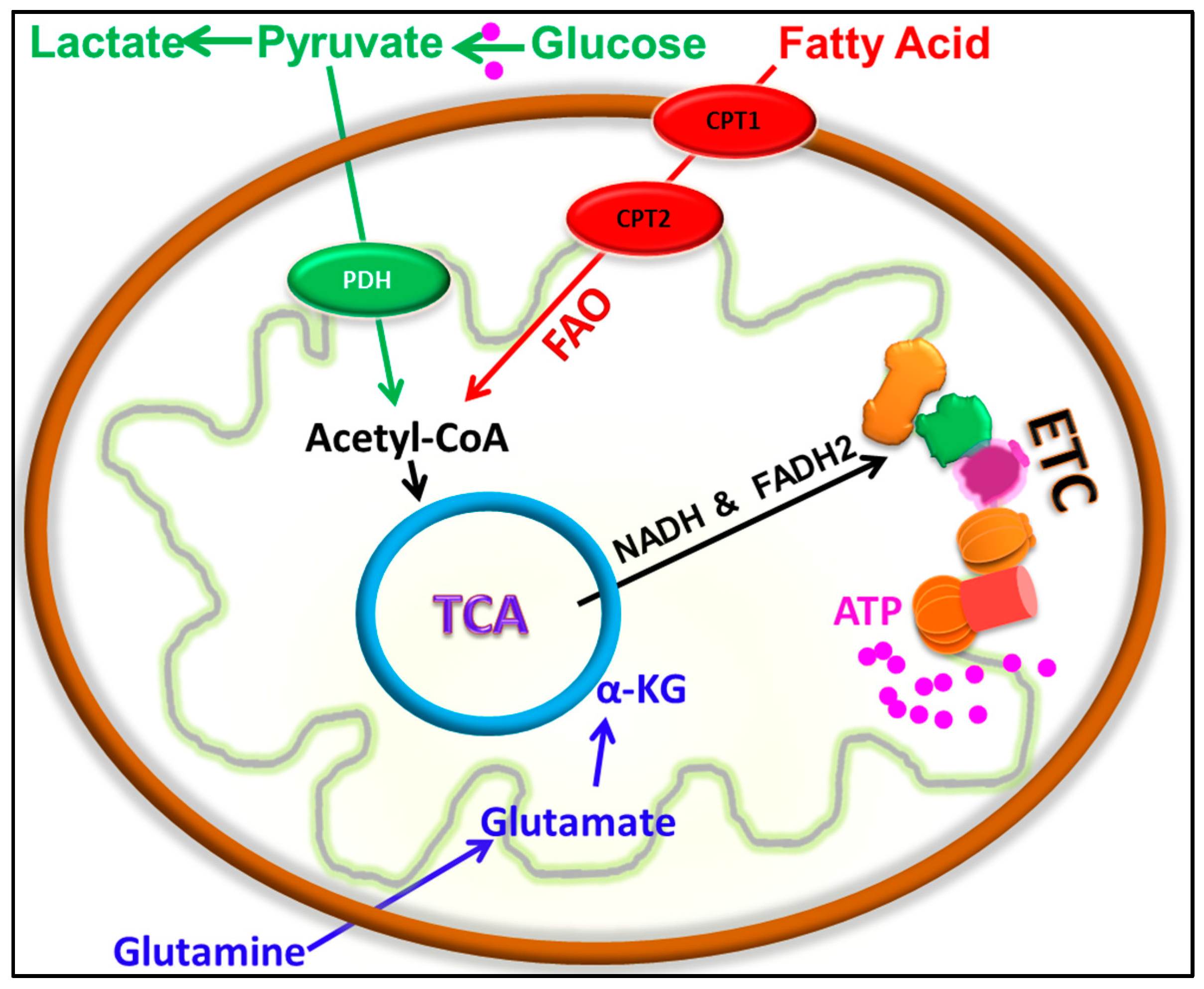

Figure 1. Major sources of mitochondrial energy pathways. Glucose, fatty acids, and glutamine are the major energy sources that support the tricarboxylic acid (TCA) cycle to generate ATP from the mitochondrial ETC.
Figure 1. Major sources of mitochondrial energy pathways. Glucose, fatty acids, and glutamine are the major energy sources that support the tricarboxylic acid (TCA) cycle to generate ATP from the mitochondrial ETC.
Cells 07 00021 g001
Figure 2. Schematic illustration of mitochondrial retrograde signaling. The illustration represents the major substrates and selected second messengers derived from mitochondrial function that play major roles in mitochondrial retrograde signaling. Retrograde signaling regulates the nuclear genome and transcriptional regulation as well as affects the posttranslational modification of proteins. Mitochondrial signals include but are not limited to ROS [63,64], Acetyl-CoA [10,65], NAD+/NADH ratio [66,67], calcium [68,69], ATP [10,70], and oncometabolites [71,72,73,74]. Availability of these regulators can be modulated by various mitochondrial properties including, mtDNA mutations, TCA activity, ETC function, and mitochondrial membrane potential. Mitochondrial signals can directly affect the nuclear genome by DNA mutation, histone modification, substrate availability etc. c-Src [10], MAPK [46], AMPK [75], PARPs [76,77], and SIRT1 [66,77] are examples of proteins that can be modified by the mitochondrial signaling. These protein modifications can further influence other protein targets and the nuclear genome.
Figure 2. Schematic illustration of mitochondrial retrograde signaling. The illustration represents the major substrates and selected second messengers derived from mitochondrial function that play major roles in mitochondrial retrograde signaling. Retrograde signaling regulates the nuclear genome and transcriptional regulation as well as affects the posttranslational modification of proteins. Mitochondrial signals include but are not limited to ROS [63,64], Acetyl-CoA [10,65], NAD+/NADH ratio [66,67], calcium [68,69], ATP [10,70], and oncometabolites [71,72,73,74]. Availability of these regulators can be modulated by various mitochondrial properties including, mtDNA mutations, TCA activity, ETC function, and mitochondrial membrane potential. Mitochondrial signals can directly affect the nuclear genome by DNA mutation, histone modification, substrate availability etc. c-Src [10], MAPK [46], AMPK [75], PARPs [76,77], and SIRT1 [66,77] are examples of proteins that can be modified by the mitochondrial signaling. These protein modifications can further influence other protein targets and the nuclear genome.
Cells 07 00021 g002
Figure 3. EMT and metabolic plasticity. As compared to the epithelial (E) and mesenchymal (M) phenotypes, the hybrid E/M phenotypes during EMT/MET may have higher metabolic plasticity.
Figure 3. EMT and metabolic plasticity. As compared to the epithelial (E) and mesenchymal (M) phenotypes, the hybrid E/M phenotypes during EMT/MET may have higher metabolic plasticity.
Cells 07 00021 g003
Figure 4. Modeling the interplay between glycolysis and OXPHOS in cancer. (A) The AMPK:HIF-1:ROS regulatory circuit. The arrows represent the excitatory regulations and the bar-headed arrows represent inhibitory regulations; (B) Nullclines and steady states in the phase space of pAMPK and HIF-1. The AMPK activity is represented by the level of phosphorylated AMPK (pAMPK) at threonine-172 of the α subunit. The gray line represents the nullcline of d h / d t = 0 , where h represents the levels of HIF-1. The purple line represents the nullcline of d A / d t = 0 , where A represents the levels of pAMPK. The intersections of these two nullclines represent the steady states of the regulatory circuit shown in (A). The arrow denotes the direction of motion in the vector field. The steady state corresponding to various initial conditions can be identified following the arrows. The red solid dots represent the stable steady states, i.e., stable metabolic phenotypes. The red hollow dots represent the unstable steady states, i.e., unstable metabolic phenotypes. “W” represents the Warburg state, i.e., aerobic glycolysis. “O” represents the OXPHOS state. “W/O” represents the hybrid glycolysis/OXPHOS state. More details of the model can be found in [8].
Figure 4. Modeling the interplay between glycolysis and OXPHOS in cancer. (A) The AMPK:HIF-1:ROS regulatory circuit. The arrows represent the excitatory regulations and the bar-headed arrows represent inhibitory regulations; (B) Nullclines and steady states in the phase space of pAMPK and HIF-1. The AMPK activity is represented by the level of phosphorylated AMPK (pAMPK) at threonine-172 of the α subunit. The gray line represents the nullcline of d h / d t = 0 , where h represents the levels of HIF-1. The purple line represents the nullcline of d A / d t = 0 , where A represents the levels of pAMPK. The intersections of these two nullclines represent the steady states of the regulatory circuit shown in (A). The arrow denotes the direction of motion in the vector field. The steady state corresponding to various initial conditions can be identified following the arrows. The red solid dots represent the stable steady states, i.e., stable metabolic phenotypes. The red hollow dots represent the unstable steady states, i.e., unstable metabolic phenotypes. “W” represents the Warburg state, i.e., aerobic glycolysis. “O” represents the OXPHOS state. “W/O” represents the hybrid glycolysis/OXPHOS state. More details of the model can be found in [8].
Cells 07 00021 g004

© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Cells EISSN 2073-4409 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
