Article

Protein Kinase A Regulates the Cell Cycle to Affect the Induction Rate in the Parthenogenetic Reproduction of the Silkworm, Bombyx mori

by
Fang Xu
1,2,†,
Wei Yu
1,†,
Chenkai Ma
1,2,
Chengjie Hu
1,2,
Chunguang Cui
2,
Xin Du
2,
Jine Chen
2,
Linbao Zhu
2,
Shaofang Yu
2,
Xingjian He
2,
Yongqiang Wang
2,* and
Xia Xu
1,2,*
1
College of Life Sciences and Medicine, Zhejiang Sci-Tech University, Hangzhou 310018, China
2
Institute of Sericulture and Tea, Zhejiang Academy of Agricultural Sciences, Hangzhou 310021, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Cells 2025, 14(11), 793; https://doi.org/10.3390/cells14110793
Submission received: 8 April 2025 / Revised: 16 May 2025 / Accepted: 26 May 2025 / Published: 28 May 2025
(This article belongs to the Special Issue Advances in Reproductive Biology: Cellular and Molecular Mechanisms)
Browse Figures
Versions Notes

Abstract

:
Protein kinase A (PKA), commonly referred to as cAMP-dependent protein kinase, exists as a heterotetramer composed of two catalytic (C) and regulatory subunits (R). This versatile kinase exhibits regulatory functions in various biological processes including growth, division, and differentiation. Although PKA is well established as a master regulator of oocyte maturation across species, its functional role in insect parthenogenesis has remained enigmatic. Here, we systematically investigated the regulatory effect of PKA in the induction of parthenogenesis in model lepidopteran Bombyx mori. Our findings demonstrated an inverse correlation between PKA activity and parthenogenetic induction efficiency in silkworms. Notably, PKA activation resulted in delayed embryonic development, whereas PKA-C1 knockdown disrupted normal cell cycle progression. These results indicated that maintaining appropriate PKA activity is essential for ensuring proper cell division process, especially in the successful induction of silkworm parthenogenesis. The evolutionary conservation of PKA across species, coupled with its critical regulatory role in parthenogenesis, positions this kinase as a promising molecular target for breeding design. Our findings establish a foundation for developing silkworm strains with enhanced parthenogenetic capacity through PKA modulation, thereby facilitating the preservation of elite production traits. These results provide novel mechanistic insights into parthenogenesis while demonstrating the potential application of PKA regulation in both genetic studies and breeding programs.

1. Introduction

Protein kinase A (PKA) is an evolutionarily conserved serine/threonine kinase that functions as a primary effector of cyclic adenosine monophosphate (cAMP) signaling [1]. PKA is heterotetramer and consists of two catalytic and regulatory subunits [2,3]. The R subunits of PKA contain cAMP-binding domains: the C subunit that releases enzyme activity when intracellular cAMP levels are elevated; conversely, when regulatory and catalytic subunits remain bound, PKA remains inactive [4]. PKA is ubiquitously expressed across various tissues and exerts pleiotropic regulatory effects upon activation [5,6]. As a central signaling mediator, activated PKA phosphorylates diverse substrate proteins [7], thereby modulating a broad spectrum of cellular processes including but not limited to gene transcription [8], energy metabolism [9], cell proliferation and differentiation [4], cell cycle progression [10,11], and programmed cell death in virtually all tissue types [12].
PKA not only promotes sperm capacitation by modulating ion channels and enzyme activity [13] but also regulates oocyte maturation and meiotic progression through the cAMP signaling pathway [13,14]. Notably, changes in PKA activity directly influence the activation state of maturation-promoting factor (MPF). This regulation occurs through the precise phosphorylation of cell cycle regulators (Wee1, Cdc25) that dictate MPF activation states, ultimately determining meiotic arrest (MII) or completion [15,16]. In insects, PKA similarly exhibits crucial regulatory functions: in the cotton bollworm (Helicoverpa armigera), PKA modulates ecdysteroid biosynthesis via the cAMP/PKA/CREB signaling pathway, thereby influencing developmental and metamorphic processes [17]. In Drosophila, PKA mutations disrupt microtubule polarity in oocytes, impairing normal oocyte development [18]. The amphibian Xenopus system further demonstrates PKA’s evolutionary versatility, where regulatory subunit injection paradoxically promotes maturation through MPF activation [19]. These findings collectively highlight PKA as a highly evolutionarily conserved protein kinase that, through intricate signaling networks (such as the cAMP/PKA/CREB pathway and MPF activation mechanisms), serves as a central regulator in key physiological processes—including germ cell maturation, hormone synthesis, and developmental metamorphosis—across diverse species.
Parthenogenesis represents an exceptional reproductive mode wherein unfertilized oocytes undergo complete embryonic development to form viable offspring [20]. In lepidopteran model Bombyx mori, this phenomenon occurs naturally at minimal frequencies (~0.003%) [21,22]. Artificial induction methods, particularly thermal stimulation (46 °C for 18 min), can significantly enhance parthenogenetic development and yield exclusively female progeny [23,24]. Cytological hypothesis demonstrated that this treatment overcomes meiotic arrest at metaphase I, triggering an equational division that mimics mitotic processes and yields genetically identical clonal offspring [25,26].
While we have previously established that the activity dynamics of maturation-promoting factor (MPF) and its downstream effector cyclin-dependent kinase 2 (Cdk2) critically regulate parthenogenetic induction rates in silkworm [27,28], the upstream regulatory role of PKA in this process remains poorly understood. Notably, although thermally induced parthenogenetic strains have been successfully implemented in sericultural production [29], the molecular mechanisms governing this reproductive mode—particularly the hierarchical relationship between PKA signaling and the MPF-Cdk2 cascade—require systematic elucidation. This knowledge gap presents a key frontier in reproductive biology, as resolving PKA’s regulatory logic could (1) optimize existing induction protocols, (2) enable genetic enhancement of parthenogenetic efficiency, and (3) provide evolutionary insights into asexual reproduction across taxa.
Here, we elucidated the crucial regulatory role of PKA on parthenogenesis induction in silkworm. The results demonstrated a significant negative correlation between PKA activity and parthenogenetic induction efficiency. Our functional analyses demonstrated that PKA activity modulation exerts bidirectional control over parthenogenetic development in silkworm. PKA activity upregulation caused embryonic developmental delays, while PKA deficiency led to cell cycle dysregulation. It established that maintaining PKA activity homeostasis was essential for normal cell division and critical for successful parthenogenesis induction. Evolutionary analysis highlighted the high conservation of PKA across species, underscoring its universal role as a key regulatory node in reproduction. These discoveries not only clarified the molecular mechanisms underlying PKA-mediated parthenogenesis in silkworms. PKA’s evolutionarily conserved nature provided novel insights for reproductive regulation studies in other species. These also demonstrated considerable potential for applications in genetic improvement and breeding technology innovation.

2. Materials and Methods

2.1. Silkworm and Cells

The parthenogenetic lines (PLs, Wu9, and Wu14) were provided by the Zhejiang Academy of Agricultural Sciences. The PLs have been stably maintained for over 30 generations through warm bath induction (46 °C, 18 min) [23]. Rearing conditions were as described previously [27,28]. The BmN cell line, originally derived from B. mori ovarian tissue [30]. BmN cells provide unique advantages for insect biotechnology due to their immortalized cell system, genetic stability, and compatibility with modern molecular tools including CRISPR/Cas9-based genome engineering. Cells were cultured on 25 cm2 Petri dishes at 27 °C in TC-100 medium (LVN1013, Livning, Beijing, China) containing 10% fetal bovine serum (FBS).

2.2. Artificially Induced Parthenogenesis

Twelve hours after eclosion, unfertilized eggs were subjected to parthenogenetic induction [23]. The unfertilized eggs were immersed in a warm bath at 46 °C for 18 min. Subsequently, these were transferred to a water bath at room temperature of 25 ° C for rapid cooling for 3 min. Successful parthenogenetic activation was as described previously [27,28]. Developmental outcomes were quantified using two parameters: pigmentation rate (%) = (pigmented/total eggs) × 100, hatching rate (%) = (hatched/total eggs) × 100. Each experimental group included 45 moths for statistical analysis. Pigmentation indicated the initiation of embryonic development, and hatching indicated the completion of the whole process of embryonic development into an individual.

2.3. Protein Structure and Phylogenetics Analysis

The online software Uniprot for sequence annotation (https://www.uniprot.org/, accessed on 20 January 2025) and Swiss-model for 3D modeling (https://swissmodel.expasy.org/, accessed on 20 January 2025) [31]. E-value cutoff for BLASTP2.14.0 was <1 × 10−10. Phylogenetic analysis was then performed using the neighbor-joining method in MEGA 11 [32], employing the Poisson correction model for evolutionary distance calculation and assessing node support through 1000 bootstrap replicates, followed by visualization refinement using the Chiplot0.1.0 (https://www.chiplot.online/, accessed on 20 January 2025) [33].

2.4. RNA Isolation, cDNA Synthesis, and qPCR Analysis

Trizol® reagent (Invitrogen, Carlsbad, CA, USA) was used to isolate total RNAs. Complementary DNA (cDNA) synthesis conditions were as described previously [27,28]. Quantitative real-time PCR (qRT-PCR) analyses were as described previously [27,28,34]. The specific primers used were listed in Table 1.

2.5. Enzyme Activity Regulation and Detection

PKA activity modulation was performed using synchronized healthy silkworm pupae (consistent pupation time) maintained at 25 °C and 80% RH incubator. PKA activity were modulated by activator (HY-B0764, MCE, Atlantic City, NJ, USA) and inhibitor (HY-15979A, MCE). The activator Bucladesine sodium salt (Dibutyryl-cAMP sodium salt, C18H23N5NaO8P) was a stable cAMP analog that activates PKA by elevating intracellular cAMP levels. Its mechanism involved mimicking endogenous cAMP to bind PKA regulatory subunits, thereby releasing catalytic subunits and enhancing PKA activity. The inhibitor H-89 dihydrochloride (C20H22BrCl2N3O2S) specifically targeted PKA by competitively binding to the ATP-binding catalytic subunits, preventing ATP binding and subsequent substrate phosphorylation. These compounds have been validated in insects and other animals, showing dose-dependent PKA activity modulation [35,36,37,38,39,40]. Different concentrations were configured as described previously [27,28], based upon which three appropriate concentrations (0.1 µM, 1 µM, and 5 µM) were finally set determined based on preliminary experiment. The administered injection was consistently 6 µL. Injection methods and enzyme activity assays were performed as previously described [27,28].

2.6. Observation of Ovariole and Embryo

The female moth had eight ovarioles. We observed the morphology by dissection 12 h after emergence. At the same time, we dissected and observed the continuous developmental morphology of the embryos. Dissection and photography were performed as described previously [27,28].

2.7. mRNA Synthesis and Cell Transfection

‘GGACAACTCTAACTTGTACATGG’ and ‘GGTTGATCAGCGAAAAAGGGCGG’ were designed single-guide RNA (sgRNA) target sites. The sgRNA templates were synthesized using T7 as described previously [41]. mRNAs synthesis and cell transfection were as described previously [28].

2.8. Cell Viability and Cycle Assay

Forty-eight hours after transfection, 100 µL cell suspension per well were added to a 96-well plate containing 10 µL of CCK-8 solution (40203ES60, YEASEN, Shanghai, China) in triplicate. Incubated at 27.5 °C for 2 h and measured absorbance at 450 nm using microplate reader to reflect the cell viability and proliferation. The cell cycle analysis was used, and the cell cycle and apoptosis analysis kit (C1052, Beyotime, Shanghai, China) were as described previously [28].

2.9. Statistical Analysis

Student’s two-tailed t-test analysis in GraphPad Prism 8.3.0. Each treatment included three independent replicates. Data were presented as means ± SEM (standard error of the mean).

3. Results

3.1. Protein Structures of PKA in Silkworm

In silkworm, we successfully identified and functionally characterized the catalytic and regulatory subunits of protein kinase A (PKA) (Figure 1). The analysis of putative structural revealed that both catalytic subunits PKA-C1 and PKA-C3 contain conserved S_TKc and S_TK_x domains, which facilitate the phosphorylation in specific substrate peptides. The regulatory subunits PKA-R1 and PKA-R2 each possess two cAMP binding sites. These binding sites play crucial roles in both PKA dissociation and activation, with cAMP binding exhibiting strong positive cooperativity in the enzyme activation process.

3.2. Evolutionary Conservation of PKA Proteins

The representative sequences evaluated were from Lepidoptera (Bombyx mori, Bombyx mandarina), Diptera (Drosophila melanogaste), Anura (Xenopus laevis), Primates (Homo sapiens), Artiodactyla (Sus scrofa), Rodentia (Mus musculus), and Araneae (Parasteatoda tepidariorum). The results indicated that these proteins were highly conserved (Figure 2). These data indicate that the functional insights from silkworm studies may extend to diverse taxonomic groups. The sequence numbers are listed in Table 2.

3.3. Pharmacological Modulators Effectively Regulated PKA Activity Without Toxic

PKA activity assays conducted at various treatment concentrations revealed a dose-dependent response: PKA activity showed significant elevation with increasing activator concentrations, while demonstrating marked reduction with higher inhibitor doses (Figure 3A,B). Simultaneous morphological examinations of the ovarioles and egg development at different concentration gradients showed that both treatments maintained normal anatomical organization—the eight ovarioles retained their characteristic bilateral abdominal arrangement. Importantly, no significant alterations in egg developmental status or morphology were observed compared with control (Figure 3C). These findings collectively demonstrate that the chemical modulators precisely control PKA activity while maintaining physiological compatibility with normal egg development processes.

3.4. PKA Activity Affected Parthenogenesis Induction

We conducted parthenogenetic induction on unfertilized eggs and quantitatively evaluated development through pigmentation and hatching rates after modulating PKA activity. Our analyses revealed that both the parthenogenetic lines Wu9 and Wu14 showed clear activity-dependent variations in developmental outcomes (Figure 4). The pharmacological inhibition of PKA consistently enhanced both pigmentation and hatching success across both lines. In contrast, PKA activation substantially hindered developmental progression, manifesting as significantly reduced pigmentation and hatching frequencies. These findings demonstrated that PKA serves as a critical regulator of parthenogenetic initiation, with its activity level exhibiting an inverse correlation with parthenogenetic induction efficiency.

3.5. Abnormal Elevation of PKA Activity Impeded Embryonic Development

We performed comprehensive morphological analyses using Wu14 eggs treated with the highest concentration (5 mM) as a representative model. Our observations spanned critical developmental stages from day 6 (characterized by complete C-shaped embryo formation) to day 9 (exhibiting fully developed morphological features) (Figure 5A). Embryos in the PKA-inhibited treatment developed synchronously, whereas PKA activation caused significant developmental delays from day 6 onward compared with the control (Figure 5B). This observation suggested that, when the PKA activity exceeds a critical threshold, it led to progressive developmental arrest or even complete cessation. These results demonstrated that PKA functions as a key coordinator of multiple biological checkpoints during parthenogenesis.

3.6. Knockdown of PKA-C1 Gene Affected Cell Cycle Transition

We investigated the effect of PKA tetramer dysregulation on cell cycle progression, focusing on PKA-C1 as a representative catalytic subunit with core kinase functionality. We knocked down the PKA-C1 gene to investigate its function in BmN cells. The mRNA expression of PKA-C1 gene was significantly down-regulated after transfection, and the double-target effect was especially significant (Figure 6A). Cell viability was not affected by PKA-C1 knockdown (Figure 6B), but PKA activity was significantly reduced (Figure 6C) and normal cell cycle progression was disrupted (Figure 6D). Tenetic perturbation induced cell cycle dysregulation in BmN cells (Figure 6E), characterized by (1) G0/G1 accumulation, (2) S phase depletion, and (3) G2/M augmentation. Although the G1-S transition showed particularly pronounced effects, the overall phenotype represents complex cell cycle dysregulation rather than simple arrest. These findings demonstrated that maintaining stable PKA activity was crucial for precise cell cycle regulation.

4. Discussion

Through comprehensive molecular characterization, we identified and functionally validated the PKA heterotetrameric complex in Bombyx mori. The R subunits function as high-affinity cAMP receptors, while the C subunits contain the conserved kinase domain responsible for phosphotransferase activity [42,43]. PKA activation is initiated through cAMP binding to R subunits, which reduces the affinity between regulatory and catalytic domains, leading to rapid release of catalytic subunits that subsequently phosphorylate nearby substrate proteins [44]. In eukaryotic cells, nearly all cAMP-mediated signaling occurs through PKA activation. The catalytic subunits transfer the γ-phosphate from ATP to serine/threonine residues on target proteins, enabling the precise regulation of protein activity through phosphorylation–dephosphorylation cycles [45].
The acquisition of oocyte developmental competence—defined as the ability to complete maturation and sustain embryonic development—constitutes an essential prerequisite for successful parthenogenetic activation [46]. Central to this process is the sophisticated interplay between the PKA signaling cascade and the core cell cycle regulators (e.g., MPF, Cdk2), which collectively orchestrate the precise spatiotemporal control of oocyte maturation events [27,28,47,48]. Our systematic functional analyses revealed that PKA serves as a critical rheostat for parthenogenesis, exhibiting dose-dependent regulatory effects. The pharmacological inhibition of PKA markedly enhanced parthenogenetic success, whereas PKA activation substantially reduced parthenogenesis rates and caused developmental delays or arrest. This aligns with established roles of PKA in regulating oocyte maturation and fertilization processes in both Drosophila and mammals [18,49]. Additional studies in Xenopus demonstrated that PKAc overexpression disrupts gastrulation through RhoA hyperactivation [50,51], collectively indicating that PKA activity must be maintained within a precise range to ensure accurate signaling during reproductive development.
The CRISPR/Cas9-mediated knockdown of PKA-C1 in BmN cells caused severe cell cycle dysregulation, characterized by significant S phase depletion, G0/G1 and G2/M phase accumulation. These findings established that intact PKA holoenzyme function is indispensable for maintaining proper cell cycle progression in lepidopteran cells. Comparative studies in Xenopus revealed PKA’s negative regulation of G2/M transition [19], while yeast studies showed that PKA promotes G1/S progression through Cln1/Cln2 phosphorylation and Cdc28-Cyclin complex formation [52]. In mammals, PKA facilitates G1/S transition via cAMP-dependent RhoA activation and p27kip1 degradation [53], further establishing PKA’s conserved role in cell cycle regulation and embryonic development.
This study systematically deciphered the pivotal regulatory role of PKA in Bombyx mori parthenogenesis, establishing a novel “PKA–cell cycle development” axis that orchestrated the transition from oocyte maturation to parthenogenesis development. We demonstrated for the first time in insects that PKA serves as a bimodal switch governing parthenogenetic efficiency through (1) the precise modulation of cell cycle checkpoints (evidenced by cell cycle disorder upon PKA-C1 knockdown), and (2) developmental timing control (embryogenesis delay upon PKA hyperactivation). These findings redefine current models by revealing PKA’s dual-context functionality conserved in the mechanism (cAMP dependence) yet specialized in outcome (thermal induction response). Beyond fundamental insights, this work pioneered kinase-targeted reproductive engineering strategies, offering tangible applications in (1) sericulture improvement via PKA activity optimization, (2) CRISPR/Cas9-based breeding of parthenogenetic strains, (3) insect biotechnology platform development. By bridging molecular genetics with applied entomology, these discoveries open new frontiers in non-canonical reproduction research and agricultural insect management.

5. Conclusions

In summary, the present study elucidated the pivotal role of protein kinase A (PKA), a conserved cAMP-dependent kinase, in regulating parthenogenesis induction in Bombyx mori. As a heterotetrameric complex, PKA is involved in diverse cellular processes, including growth, division, and differentiation, but its role in insect parthenogenesis remains largely unknown. Here, we demonstrated that PKA activity negatively correlated with parthenogenetic efficiency, where the excessive activation of PKA delays embryonic development and its inhibition disrupts cell cycle progression. These findings highlighted the necessity of tightly regulated PKA activity for normal division and successful parthenogenesis. Given PKA’s evolutionary conservation, our results suggested its broader role as a key regulatory node in reproductive strategies across species. This work not only advances our understanding of parthenogenetic mechanisms in insects but also opens new avenues for genetic manipulation and breeding applications, particularly in enhancing asexual reproduction in economically important species.

Author Contributions

Conceptualization, X.X.; methodology, C.M., C.H., C.C., S.Y. and X.H.; software, C.M., C.H., C.C. and L.Z.; validation, F.X., X.D., J.C. and L.Z.; formal analysis, F.X., X.D., J.C., S.Y., X.H. and X.X.; investigation, C.M., C.H., C.C., S.Y. and X.H.; data curation, X.D., J.C. and L.Z.; writing—original draft preparation, F.X.; writing—review and editing, W.Y., Y.W. and X.X.; visualization, W.Y.; supervision, W.Y., Y.W. and X.X.; project administration, W.Y., Y.W. and X.X.; funding acquisition, Y.W. and X.X. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Technological Grant of Zhejiang for Breeding New Agricultural Varieties (2021C02072), National Natural Science Foundation of China (32100377), and Key Scientific and the China Agriculture Research System of MOF and MARA (CARS-18).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data that support the findings of this study are available on request from the corresponding authors.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Liu, Y.; Chen, J.; Fontes, S.K.; Bautista, E.N.; Chen, Z. Physiological and pathological roles of protein kinase A in the heart. Cardiovasc. Res. 2022, 118, 386–398. [Google Scholar] [CrossRef] [PubMed]
  2. Søberg, K.; Jahnsen, T.; Rognes, T.; Skålhegg, B.S.; Laerdahl, J.K. Evolutionary paths of the cAMP-dependent protein kinase (PKA) catalytic subunits. PLoS ONE 2013, 8, e60935. [Google Scholar] [CrossRef] [PubMed]
  3. Chen, D.; Wang, J.; Cao, J.; Zhu, G. cAMP-PKA signaling pathway and anxiety: Where do we go next? Cell. Signal. 2024, 122, 111311. [Google Scholar] [CrossRef] [PubMed]
  4. Levy, I.; Horvath, A.; Azevedo, M.; de Alexandre, R.B.; Stratakis, C.A. Phosphodiesterase function and endocrine cells: Links to human disease and roles in tumor development and treatment. Curr. Opin. Pharmacol. 2011, 11, 689–697. [Google Scholar] [CrossRef]
  5. Cheng, X.; Ji, Z.; Tsalkova, T.; Mei, F. Epac and PKA: A tale of two intracellular cAMP receptors. Acta Biochim. Biophys. Sinica 2008, 40, 651–662. [Google Scholar] [CrossRef]
  6. Yang, H.; Yang, L. Targeting cAMP/PKA pathway for glycemic control and type 2 diabetes therapy. J. Mol. Endocrinol. 2016, 57, R93–R108. [Google Scholar] [CrossRef]
  7. Shabb, J.B. Physiological substrates of cAMP-dependent protein kinase. Chem. Rev. 2001, 101, 2381–2411. [Google Scholar] [CrossRef]
  8. Zambon, A.C.; Zhang, L.; Minovitsky, S.; Kanter, J.R.; Prabhakar, S.; Salomonis, N.; Vranizan, K.; Dubchak, I.; Conklin, B.R.; Insel, P.A. Gene expression patterns define key transcriptional events in cell-cycle regulation by cAMP and protein kinase. Proc. Natl. Acad. Sci. USA 2005, 102, 8561–8566. [Google Scholar] [CrossRef]
  9. Yang, J.; Zhang, X.; Yi, L.; Yang, L.; Wang, W.E.; Zeng, C.; Mi, M.; Chen, X. Hepatic PKA inhibition accelerates the lipid accumulation in liver. Nutr. Metab. 2019, 16, 69. [Google Scholar] [CrossRef]
  10. He, M.; Zhang, T.; Yang, Y.; Wang, C. Mechanisms of Oocyte Maturation and Related Epigenetic Regulation. Front. Cell. Dev. Biol. 2021, 9, 654028. [Google Scholar] [CrossRef]
  11. Nishimura, T.; Sugiura, K.; Naito, K. A-kinase anchor protein 1 (AKAP1) regulates cAMP-dependent protein kinase (PKA) localization and is involved in meiotic maturation of porcine oocytes. Biol. Reprod. 2013, 88, 85. [Google Scholar] [CrossRef] [PubMed]
  12. Leadsham, J.E.; Gourlay, C.W. cAMP/PKA signaling balances respiratory activity with mitochondria dependent apoptosis via transcriptional regulation. BMC Cell Biol. 2010, 11, 92. [Google Scholar] [CrossRef] [PubMed]
  13. Stival, C.; Graf, C.B.; Visconti, P.E.; Krapf, D. Quantification of Protein Kinase A (PKA) Activity by an in vitro Radioactive Assay Using the Mouse Sperm Derived Enzyme. Bio-Protocol 2020, 10, e3658. [Google Scholar] [CrossRef]
  14. Duncan, F.E.; Padilla-Banks, E.; Bernhardt, M.L.; Ord, T.S.; Jefferson, W.N.; Moss, S.B.; Williams, C.J. Transducin-like enhancer of split-6 (TLE6) is a substrate of protein kinase A activity during mouse oocyte maturation. Biol. Reprod. 2014, 90, 63. [Google Scholar] [CrossRef]
  15. Das, D.; Arur, S. Regulation of oocyte maturation: Role of conserved ERK signaling. Mol. Reprod. Dev. 2022, 89, 353–374. [Google Scholar] [CrossRef]
  16. Jitjumnong, J.; Tang, P.C. Improving the meiotic competence of small antral follicle-derived porcine oocytes by using dibutyryl-cAMP and melatonin. Anim. Biosci. 2024, 37, 1007–1020. [Google Scholar] [CrossRef]
  17. Jing, Y.P.; Wang, D.; Han, X.L.; Dong, D.J.; Wang, J.X.; Zhao, X.F. The Steroid Hormone 20-Hydroxyecdysone Enhances Gene Transcription through the cAMP Response Element-binding Protein (CREB) Signaling Pathway. J. Biol. Chem. 2016, 291, 12771–12785. [Google Scholar] [CrossRef]
  18. Lane, M.E.; Kalderon, D. RNA localization along the anteroposterior axis of the Drosophila oocyte requires PKA-mediated signal transduction to direct normal microtubule organization. Genes Dev. 1994, 8, 2986–2995. [Google Scholar] [CrossRef]
  19. Daar, I.; Yew, N.; Woude, G.F.V. Inhibition of mos-induced oocyte maturation by protein kinase A. J. Cell Biol. 1993, 120, 1197–1202. [Google Scholar] [CrossRef]
  20. Normark, B.B.; Kirkendall, L.R. Parthenogenesis in insects and mites. In Encyclopedia of Insects; Elsevier: Amsterdam, The Netherlands, 2009; pp. 753–757. [Google Scholar]
  21. Goldsmith, M.R.; Shimada, T.; Abe, H. The genetics and genomics of the silkworm, Bombyx mori. Annu. Rev. Entomol. 2005, 50, 71–100. [Google Scholar] [CrossRef]
  22. Liu, P.; Wang, Y.; Du, X.; Yao, L.; Li, F.; Meng, Z. Transcriptome Analysis of Thermal Parthenogenesis of the Domesticated Silkworm. PLoS ONE 2015, 10, e0135215. [Google Scholar] [CrossRef] [PubMed]
  23. Grenier, A.M.; Da Rocha, M.; Jalabert, A.; Royer, C.; Mauchamp, B.; Chavancy, G. Artificial parthenogenesis and control of voltinism to manage transgenic populations in Bombyx mori. J. Insect Physiol. 2004, 50, 751–760. [Google Scholar] [CrossRef] [PubMed]
  24. Gangopadhyay, D.; Singh, R. An Improved Method of Parthenogenetic Development and Analysis of Combining Ability in Bivoltine Breeds of the Silkworm, Bombyx mori L. Int. J. Ind. Entomol. Biomater. 2006, 13, 63–72. [Google Scholar]
  25. Strunnikov, V.A. Research on the artificial regulation of sex in animals in the USSR. Ontogenez 1978, 9, 3–19. [Google Scholar]
  26. Priyadarshini, A.; Basu, D.; Navneet, A.K.; Bhattacharya, A.; Bhattacharya, S.; Maitra, S.; Bhattacharya, S. Activation of both Mos and Cdc25 is required for G2-M transition in perch oocyte. Mol. Reprod. Dev. 2009, 76, 289–300. [Google Scholar] [CrossRef]
  27. Ma, C.; Xu, F.; Hu, C.; Cui, C.; Du, X.; Chen, J.; Zhu, L.; Yu, S.; He, X.; Yu, W.; et al. MPF regulates oocyte and embryo development during parthenogenesis induction in silkworm, Bombyx mori. Insects 2025, 16, 361. [Google Scholar] [CrossRef]
  28. Hu, C.; Jiang, Y.; Ma, C.; Xu, F.; Cui, C.; Du, X.; Chen, J.; Zhu, L.; Yu, S.; He, X.; et al. Decreased Cdk2 activity hindered embryonic development and parthenogenesis induction in silkworm, Bombyx mori L. Int. J. Mol. Sci. 2025, 26, 3341. [Google Scholar] [CrossRef]
  29. Chen, J.; Du, X.; Xu, X.; Zhang, S.; Yao, L.; He, X.; Wang, Y. Comparative proteomic analysis provides new insights into the molecular basis of thermal-induced parthenogenesis in silkworm (Bombyx mori). Insects 2023, 14, 134. [Google Scholar] [CrossRef]
  30. Khurad, A.M.; Zhang, M.J.; Deshmukh, C.G.; Bahekar, R.S.; Tiple, A.D.; Zhang, C.X. A new continuous cell line from larval ovaries of silkworm, Bombyx mori. Vitr. Cell. Dev. Biol. Anim. 2009, 45, 414–419. [Google Scholar] [CrossRef]
  31. Waterhouse, A.; Bertoni, M.; Bienert, S.; Studer, G.; Tauriello, G.; Gumienny, R.; Heer, F.T.; de Beer, T.A.P.; Rempfer, C.; Bordoli, L.; et al. SWISS-MODEL: Homology modelling of protein structures and complexes. Nucleic Acids Res. 2018, 46, W296–W303. [Google Scholar] [CrossRef]
  32. Tamura, K.; Stecher, G.; Kumar, S. MEGA11: Molecular Evolutionary Genetics Analysis Version 11. Mol. Biol. Evol. 2021, 38, 3022–3027. [Google Scholar] [CrossRef] [PubMed]
  33. Xie, J.; Chen, Y.; Cai, G.; Cai, R.; Hu, Z.; Wang, H. Tree Visualization By One Table (tvBOT): A web application for visualizing, modifying and annotating phylogenetic trees. Nucleic Acids Res. 2023, 51, W587–W592. [Google Scholar] [CrossRef] [PubMed]
  34. Teng, X.; Zhang, Z.; He, G.; Yang, L.; Li, F. Validation of reference genes for quantitative expression analysis by real-time rt-PCR in four lepidopteran insects. J. Insect Sci. 2012, 12, 60. [Google Scholar] [CrossRef] [PubMed]
  35. Yin, S.; Song, R.; Ma, J.; Liu, C.; Wu, Z.; Cao, G.; Liu, J.; Zhang, G.; Zhang, H.; Sun, R.; et al. Receptor activity-modifying protein 1 regulates mouse skin fibroblast proliferation via the Gαi3-PKA-CREB-YAP axis. Cell Commun. Signal. 2022, 20, 52. [Google Scholar] [CrossRef]
  36. Mafune, E.; Takahashi, M.; Takasugi, N. Effect of vehicles on percutaneous absorption of bucladesine (dibutyryl cyclic amp) in normal and damaged rat skin. Biol. Pharm. Bull. 1995, 18, 1539. [Google Scholar] [CrossRef]
  37. Salehi, F.; Hosseini-Zare, M.S.; Aghajani, H.; Seyedi, S.Y.; Hosseini-Zare, M.S.; Sharifzadeh, M. Effect of bucladesine, pentoxifylline, and H-89 as cyclic adenosine monophosphate analog, phosphodiesterase, and protein kinase A inhibitor on acute pain. Fundam. Clin. Pharmacol. 2017, 31, 411–419. [Google Scholar] [CrossRef]
  38. Zhang, B.; Zhang, Y.; Guan, R.; Du, M.; Yin, X.; Zhao, W.; An, S. Trehalase is required for sex pheromone biosynthesis in Helicoverpa armigera. Insect Mol. Biol. 2022, 31, 334–345. [Google Scholar] [CrossRef]
  39. Blazev, R.; Hussain, M.; Bakker, A.J.; Head, S.I.; Lamb, G.D. Effects of the PKA inhibitor H-89 on excitation-contraction coupling in skinned and intact skeletal muscle fibres. J. Muscle Res. Cell Motil. 2001, 22, 277–286. [Google Scholar] [CrossRef]
  40. Chijiwa, T.; Mishima, A.; Hagiwara, M.; Sano, M.; Hayashi, K.; Inoue, T.; Naito, K.; Toshioka, T.; Hidaka, H. Inhibition of forskolin-induced neurite outgrowth and protein phosphorylation by a newly synthesized selective inhibitor of cyclic AMP-dependent protein kinase, N-[2-(p-bromocinnamylamino)ethyl]-5-isoquinolinesulfonamide (H-89), of PC12D pheochromocytoma cells. J. Biol. Chem. 1990, 265, 5267–5272. [Google Scholar]
  41. Hu, Z.; Wang, L.; Shi, Z.; Jiang, J.; Li, X.; Chen, Y.; Li, K.; Luo, D. Customized one-step preparation of sgRNA transcription templates via overlapping PCR Using short primers and its application in vitro and in vivo gene editing. Cell Biosci. 2019, 9, 87. [Google Scholar] [CrossRef]
  42. Das, R.; Esposito, V.; Abu-Abed, M.; Anand, G.S.; Taylor, S.S.; Melacini, G. cAMP activation of PKA defines an ancient signaling mechanism. Proc. Natl. Acad. Sci. USA 2007, 104, 93–98. [Google Scholar] [CrossRef] [PubMed]
  43. Kim, C.; Cheng, C.Y.; Saldanha, S.A.; Taylor, S.S. PKA-I holoenzyme structure reveals a mechanism for cAMP-dependent activation. Cell 2007, 130, 1032–1043. [Google Scholar] [CrossRef] [PubMed]
  44. Skålhegg, B.S.; Taskén, K. Specificity in the cAMP/PKA signaling pathway. differential expression, regulation, and subcellular localization of subunits of PKA. Front. Biosci. 1997, 2, d331–d342. [Google Scholar] [CrossRef]
  45. Reikhardt, B.A.; Shabanov, P.D. Catalytic Subunit of PKA as a Prototype of the Eukaryotic Protein Kinase Family. Biochemistry 2020, 85, 409–424. [Google Scholar] [CrossRef]
  46. Cheng, W.M.; Sun, X.L.; An, L.; Zhu, S.E.; Li, X.H.; Li, Y.; Tian, J.H. Effect of different parthenogenetic activation methods on the developmental competence of in vitro matured porcine oocytes. Anim. Biotechnol. 2007, 18, 131–141. [Google Scholar] [CrossRef]
  47. Santoni, M.; Meneau, F.; Sekhsoukh, N.; Castella, S.; Le, T.; Miot, M.; Daldello, E.M. Unraveling the interplay between PKA inhibition and Cdk1 activation during oocyte meiotic maturation. Cell Rep. 2024, 43, 113782. [Google Scholar] [CrossRef]
  48. Pei, Z.; Deng, K.; Xu, C.; Zhang, S. The molecular regulatory mechanisms of meiotic arrest and resumption in Oocyte development and maturation. Reprod. Biol. Endocrinol. 2023, 21, 90. [Google Scholar] [CrossRef]
  49. Zhang, H.; Liu, Y.; Liu, J.; Chen, J.; Wang, J.; Hua, H.; Jiang, Y. cAMP-PKA/EPAC signaling and cancer: The interplay in tumor microenvironment. J. Hematol. Oncol. 2024, 17, 5. [Google Scholar] [CrossRef]
  50. Song, B.H.; Choi, S.C.; Han, J.K. Local activation of protein kinase A inhibits morphogenetic movements during Xenopus gastrulation. Dev. Dyn. 2003, 227, 91–103. [Google Scholar] [CrossRef]
  51. Park, E.; Kim, G.H.; Choi, S.C.; Han, J.K. Role of PKA as a negative regulator of PCP signaling pathway during Xenopus gastrulation movements. Dev. Biol. 2006, 292, 344–357. [Google Scholar] [CrossRef]
  52. Cazzanelli, G.; Pereira, F.; Alves, S.; Francisco, R.; Azevedo, L.; Carvalho, P.D.; Almeida, A.; Côrte-Real, M.; Oliveira, M.J.; Lucas, C.; et al. The Yeast Saccharomyces cerevisiae as a Model for Understanding RAS Proteins and their Role in Human Tumorigenesis. Cells 2018, 7, 14. [Google Scholar] [CrossRef] [PubMed]
  53. Medina, D.L.; Toro, M.J.; Santisteban, P. Somatostatin interferes with thyrotropin-induced G1-S transition mediated by cAMP-dependent protein kinase and phosphatidylinositol 3-kinase. Involvement of RhoA and cyclin E x cyclin-dependent kinase 2 complexes. J. Biol. Chem. 2000, 275, 15549–15556. [Google Scholar] [CrossRef]
Cells 14 00793 g001

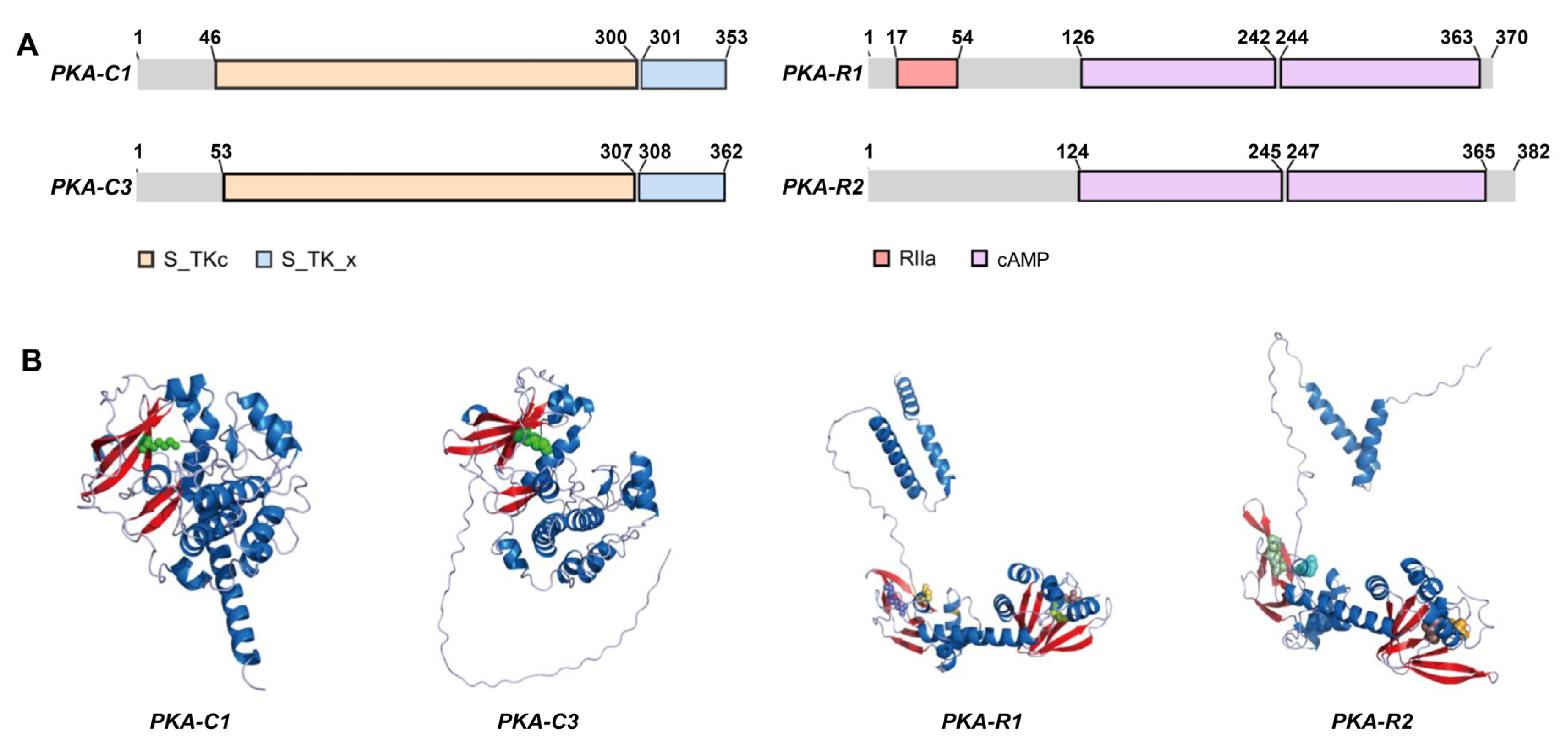

Figure 1. Predicted protein. (A) Functional domain. (B) Tertiary structure. PKA-C1 and PKA-C3 were catalytic subunits; PKA-R1 and PKA-R2 were regulatory subunits. S_TKc and S_TK_x regions were the serine/threonine protein kinases catalytic domain; RIIα region was the regulatory domain; cAMP region was the cAMP binding domain. Blue was α-helices; red was β-folded; gray was random coils.
Figure 1. Predicted protein. (A) Functional domain. (B) Tertiary structure. PKA-C1 and PKA-C3 were catalytic subunits; PKA-R1 and PKA-R2 were regulatory subunits. S_TKc and S_TK_x regions were the serine/threonine protein kinases catalytic domain; RIIα region was the regulatory domain; cAMP region was the cAMP binding domain. Blue was α-helices; red was β-folded; gray was random coils.
Cells 14 00793 g001
Cells 14 00793 g002

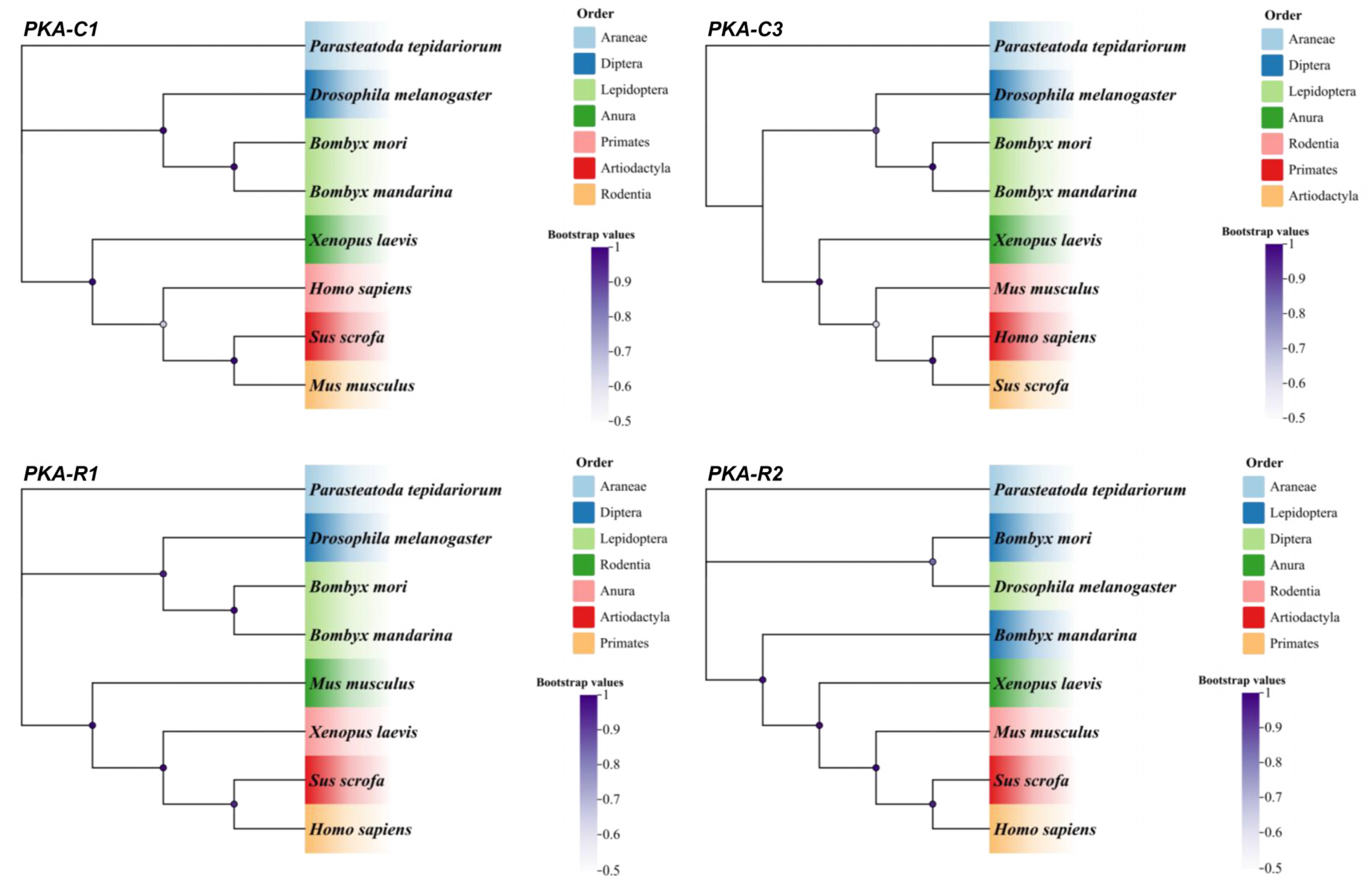

Figure 2. The phylogenetic relationship analysis. PKA-C1 and PKA-C3 were catalytic subunits; PKA-R1 and PKA-R2 were regulatory subunits.
Figure 2. The phylogenetic relationship analysis. PKA-C1 and PKA-C3 were catalytic subunits; PKA-R1 and PKA-R2 were regulatory subunits.
Cells 14 00793 g002
Cells 14 00793 g003

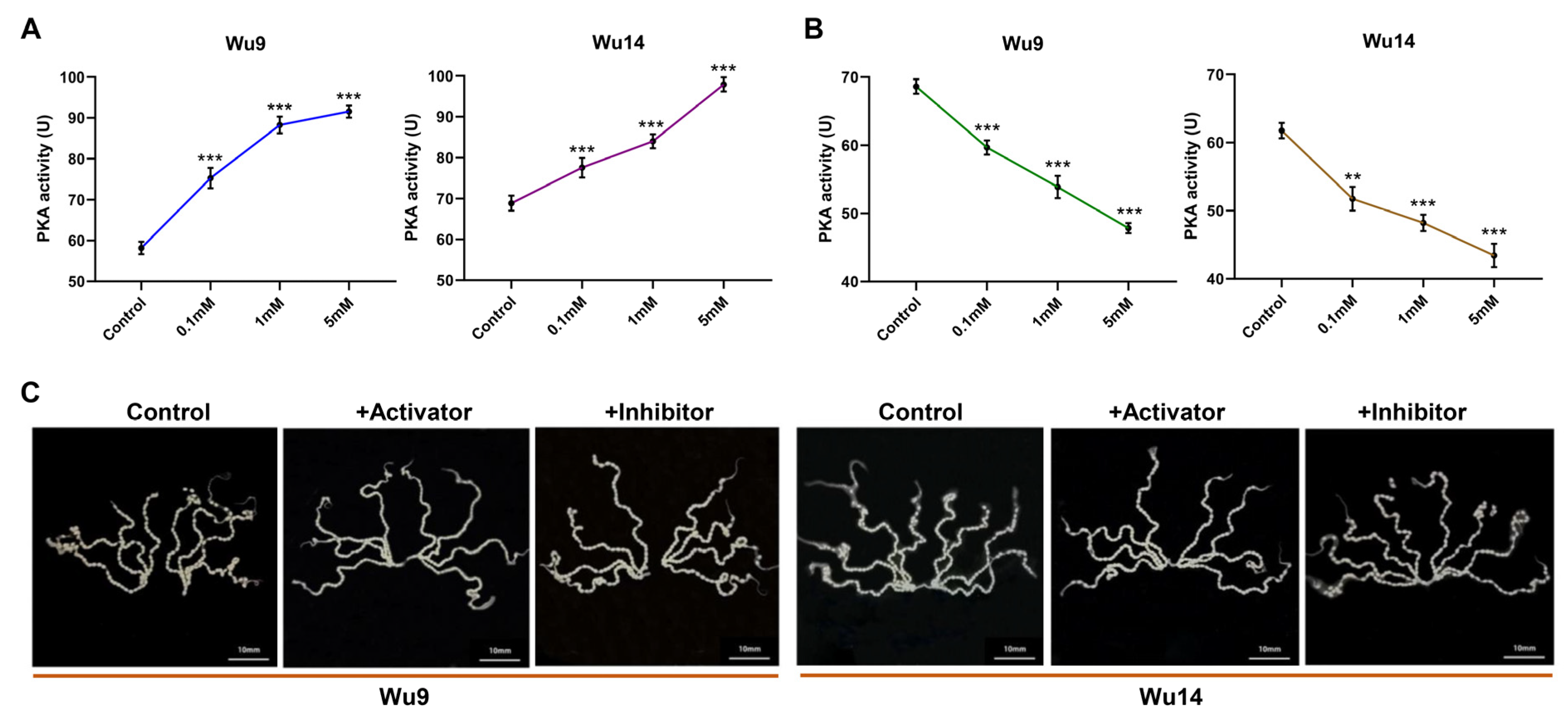

Figure 3. PKA activity. (A) Enzyme activity after activator treatment. (B) Enzyme activity after inhibitor treatment. (C) Ovarioles observation. ** p < 0.01; *** p < 0.001. The scale was 10 mm.
Figure 3. PKA activity. (A) Enzyme activity after activator treatment. (B) Enzyme activity after inhibitor treatment. (C) Ovarioles observation. ** p < 0.01; *** p < 0.001. The scale was 10 mm.
Cells 14 00793 g003
Cells 14 00793 g004

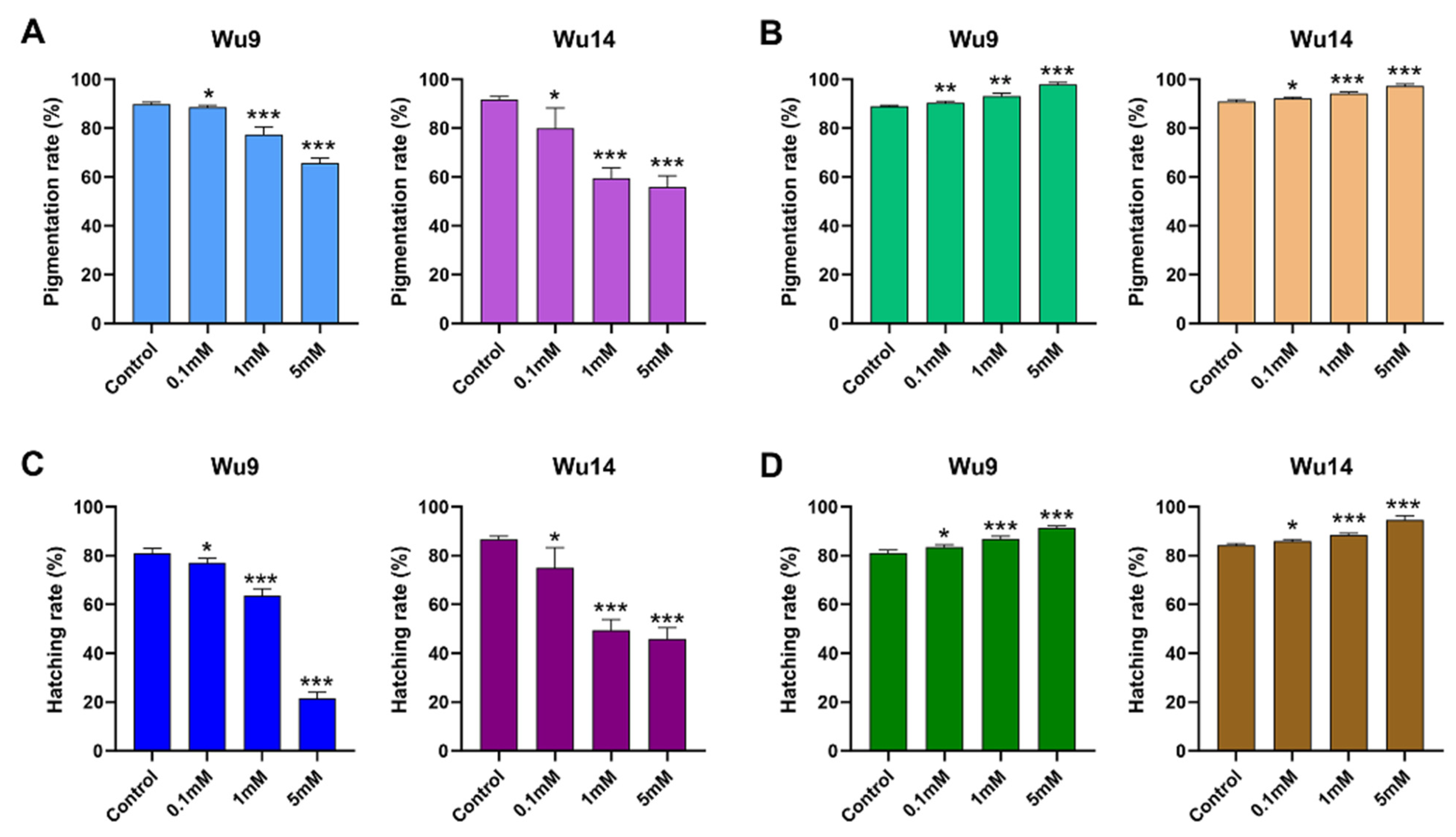

Figure 4. Parthenogenesis induction rate. (A) Pigmentation rates after activator treatment. (B) Pigmentation rates after inhibitor treatment. (C) Hatching rates after activator treatment. (D) Hatching rates after inhibitor treatment. * p < 0.05; ** p < 0.01; *** p < 0.001.
Figure 4. Parthenogenesis induction rate. (A) Pigmentation rates after activator treatment. (B) Pigmentation rates after inhibitor treatment. (C) Hatching rates after activator treatment. (D) Hatching rates after inhibitor treatment. * p < 0.05; ** p < 0.01; *** p < 0.001.
Cells 14 00793 g004
Cells 14 00793 g005

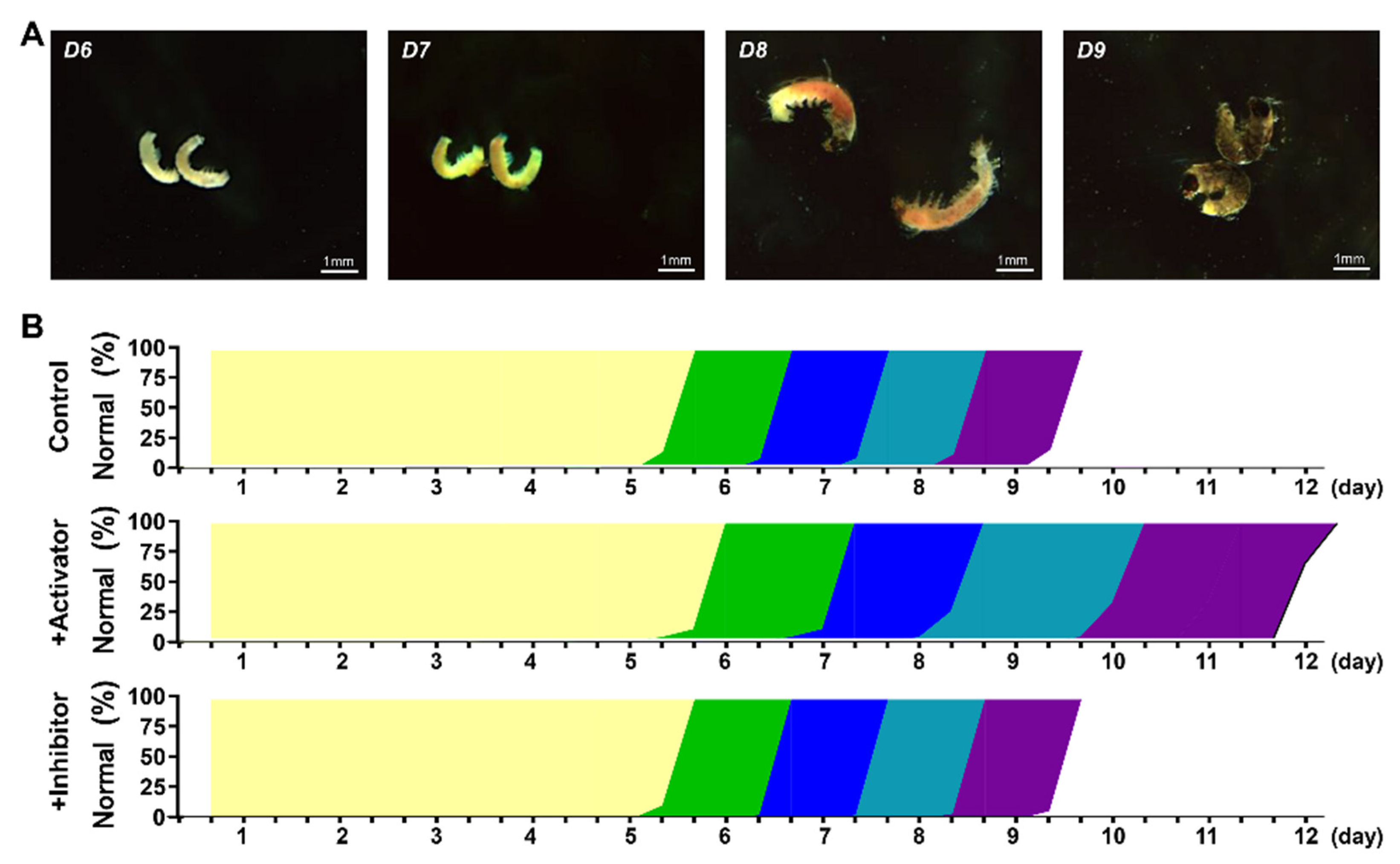

Figure 5. Development process of embryos. (A) Morphology of embryos. (B) Length of time. The scale was 1 mm. Yellow is D1~D5, green was D6, blue was D7, cyan was D8, purple was D9.
Figure 5. Development process of embryos. (A) Morphology of embryos. (B) Length of time. The scale was 1 mm. Yellow is D1~D5, green was D6, blue was D7, cyan was D8, purple was D9.
Cells 14 00793 g005
Cells 14 00793 g006

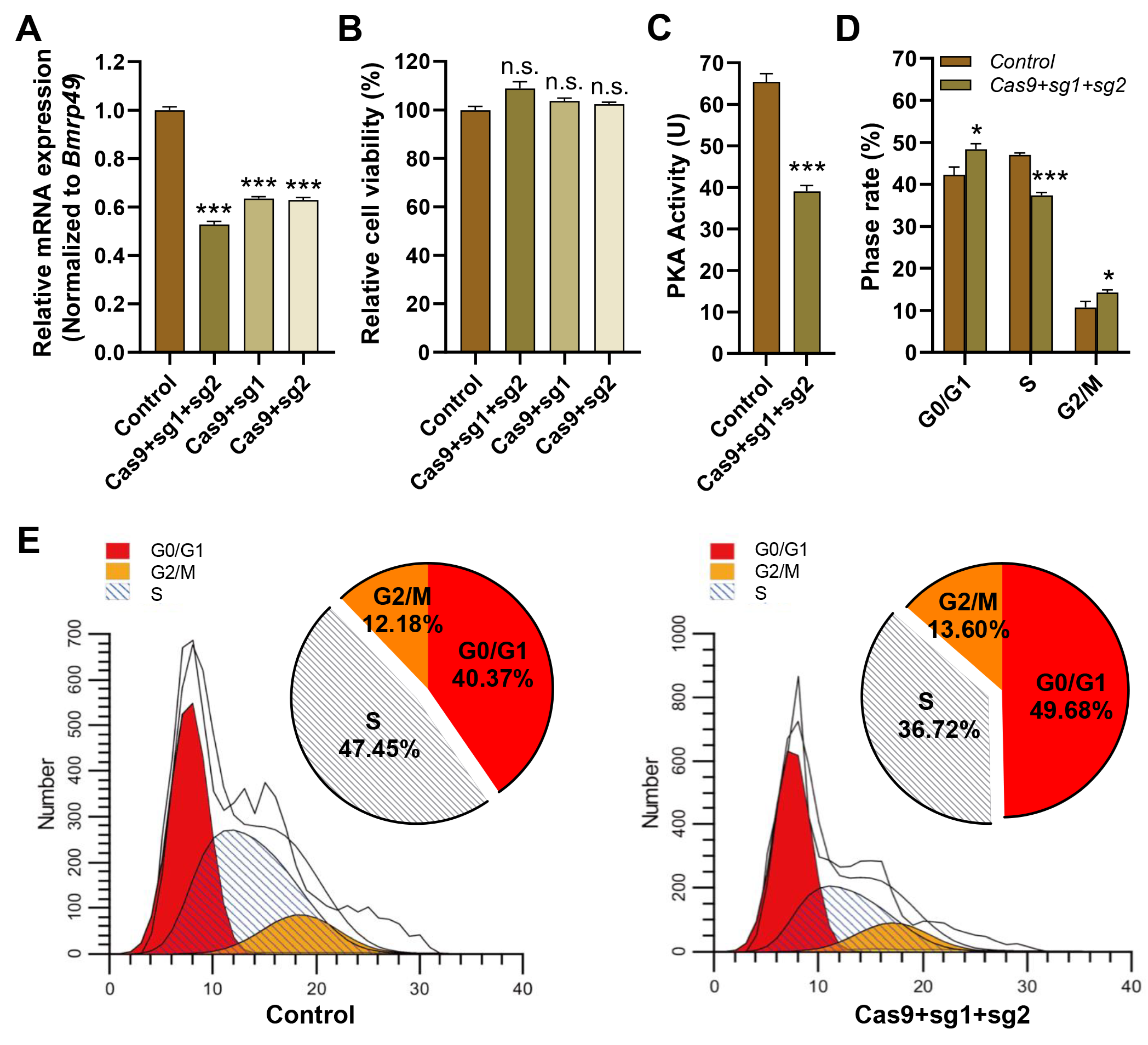

Figure 6. Knockdown of PKA-C1 gene affected cell cycle. (A) The mRNA expression of PKA-C1 gene. (B) Cell viability. (C) Enzyme activity. (D) Cell cycle. (E) Flow cytometry analysis. * p < 0.05; *** p < 0.001; n.s. p > 0.05.
Figure 6. Knockdown of PKA-C1 gene affected cell cycle. (A) The mRNA expression of PKA-C1 gene. (B) Cell viability. (C) Enzyme activity. (D) Cell cycle. (E) Flow cytometry analysis. * p < 0.05; *** p < 0.001; n.s. p > 0.05.
Cells 14 00793 g006
Table 1. Specific primers.
Table 1. Specific primers.
Primer NamePrimer Sequence (5′-3′)
qRT-PCR
BmPKA-C1-FTTCGCTGATCAACCCATTCA
BmPKA-C1-RTGCAGCGAGGTATGAATGGA
Bmrp49-FTCAATCGGATCGCTATGACA
Bmrp49-RATGACGGGTCTTCTTGTTGG
mRNA synthesis
sgRNA-C1-F1TAATACGACTCACTATAGGACAACTCTAACTTGTACAGTTTTAGAGCTAGAAATAGCAA
sgRNA-C1-F2TAATACGACTCACTATAGGTTGATCAGCGAAAAAGGGGTTTTAGAGCTAGAAATAGCAA
sgRNA-RAGCACCGACTCGGTGCCACTTTTTCAAGTTGATAACGGACTAGCCTTATTTTAACTTGCTATTTCTAGCT
Table 2. The protein sequence number.
Table 2. The protein sequence number.
Species NameGenBank Accession NumberOrder
PKA-C1PKA-C3PKA-R1PKA-R2
Bombyx moriNP_001093303.1XP_004929251.2NP_001093295.1NP_001104823.1Lepidoptera
Bombyx mandarinaXP_028034091.1XP_028043672.1XP_028029886.1XP_028029886.1Lepidoptera
Drosophila melanogasterNP_476977.1NP_524097.2NP_001014593.1NP_523671.1Diptera
Xenopus laevisNP_001080696.1XP_018101650.1XP_018091896.1NP_001084637.1Anura
Homo sapiensNP_002722.1NP_005035.1NP_001158230.1NP_001308911.1Primates
Sus scrofaXP_003123401.1XP_020935351.1XP_020941591.1NP_999423.2Artiodactyla
Mus musculusNP_032880.1NP_058675.1NP_001300902.1NP_032950.1Rodentia
Parasteatoda tepidariorumXP_015929533.1XP_042904975.1XP_015922609.1XP_015906869.1Araneae
