Calcium Signals during SARS-CoV-2 Infection: Assessing the Potential of Emerging Therapies

Institute of Biophysics, Johannes Kepler University Linz, Gruberstrasse 40, 4020 Linz, Austria
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Cells 2022, 11(2), 253;
Submission received: 11 December 2021 / Revised: 5 January 2022 / Accepted: 11 January 2022 / Published: 12 January 2022
(This article belongs to the Collection STIM and Orai Communication in Health and Disease)


Severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) is a positive-sense single-stranded RNA virus that causes coronavirus disease 2019 (COVID-19). This respiratory illness was declared a pandemic by the world health organization (WHO) in March 2020, just a few weeks after being described for the first time. Since then, global research effort has considerably increased humanity’s knowledge about both viruses and disease. It has also spawned several vaccines that have proven to be key tools in attenuating the spread of the pandemic and severity of COVID-19. However, with vaccine-related skepticism being on the rise, as well as breakthrough infections in the vaccinated population and the threat of a complete immune escape variant, alternative strategies in the fight against SARS-CoV-2 are urgently required. Calcium signals have long been known to play an essential role in infection with diverse viruses and thus constitute a promising avenue for further research on therapeutic strategies. In this review, we introduce the pivotal role of calcium signaling in viral infection cascades. Based on this, we discuss prospective calcium-related treatment targets and strategies for the cure of COVID-19 that exploit viral dependence on calcium signals.

1. Introduction

In late 2019, a novel, zoonotic coronavirus named severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) was described in southeastern China. Since then, SARS-CoV-2 caused immense damage to human lives and economies, being the causative organism of the coronavirus disease 2019 (COVID-19) pandemic [1,2,3,4]. Massive research effort has been put into the investigation of viral properties, leading to the development of several highly potent vaccines and giving hope to bring the pandemic phase to a close [5,6,7,8,9,10,11]. Nevertheless, the properties of SARS-CoV-2 have not yet been fully deciphered.
Since vaccines became widely available at the end of 2020, many countries have been struggling to immunize sufficient proportions of their population to contain further viral spread. Recurrent waves of infection paired with more infectious virus variants are still placing a severe strain on public health systems, preventing governments from abolishing safety regulations and returning their countries to a pre-pandemic state. Potential explanations for recurrent infection waves include mutations of the virus that lead to (partial) evasion of vaccine-derived antibodies, anti-vaccination movements spreading misinformation, unsubstantiated rejection/fear of COVID-19 vaccines, conspiracy theories as well as mistrust in pharmaceutical companies or public institutions [12,13,14,15,16,17]. Aside from countering these obstacles, effective post-infection treatments are required to finally put a stop to the overload of hospitals, particularly intensive care units (ICUs).
Calcium (Ca2+) as an important second messenger in excitable and non-excitable cells controls essential functions such as muscle contraction, cellular signaling processes and immune responses [18]. Intracellular and organellar calcium concentrations are tightly controlled via various pumps, ATPases, ion channels and uniporters, which have been increasingly studied over the past years. During viral infection, cellular calcium dynamics are highly affected as dysregulation of host cell signaling cascades is elicited by these infectious agents [19].
The role of calcium in virus-host cell interaction has been proven for various types of viruses, including coronaviruses. For instance, in a study from 2015, Nieto-Torres et al., discovered that the coronavirus envelope (E) protein of SARS-CoV activates the so-called NLR family pyrin domain containing 3 (NLRP3) inflammasome by functioning as a Ca2+ channel in endoplasmic reticulum Golgi apparatus intermediate compartment (ERGIC) as well as Golgi membranes [20]. Inflammasomes are protein complexes that oligomerize and form receptors upon the detection of pathogen-associated molecular pattern (PAMP) signals in host cells, activating caspases that produce cytokines and initiate pyroptotic cell death [21]. Importantly, the inflammatory signaling cascade that leads to the activation of the NLRP3 inflammasome, regulated by interleukin 1 beta (IL-1β), mainly depends on Ca2+ levels [22,23]. Due to these findings, calcium has also been considered an important factor during SARS-CoV-2 infection. Recently, Khelashvili and co-workers proposed the potential binding of calcium to six acidic residues located at the fusion protein (FP) of the SARS-CoV-2 spike protein (E819, D820, D830, D839, D843, and D848), which modulates the ability of the virus to insert into lipid membranes. Using molecular dynamics (MD) simulations they suggested that the binding of calcium enhances the interactions between the fusion peptide and the host cell membrane [24,25,26,27]. For another review on the role of Ca2+ during infection see [28].
Due to the importance of calcium in viral infections, several calcium entry and cellular signaling pathways are considered as feasible drug target sites. In this regard, the use of inhibitors specific for calcium ion channels was successfully proven to be effective against influenza A virus, Japanese encephalitis virus (JEV), hemorrhagic fever arenavirus (NWA), or ebolavirus [27,29,30,31,32]. Based on these results, this review addresses the potential positive effects of calcium-related treatment targets and strategies to modulate calcium entry and cellular signaling pathways on the outcome of SARS-CoV-2 infections and COVID-19.

2. Calcium Ion Channels and SARS-CoV-2

The pivotal role of calcium in the infection mechanisms of SARS-CoV-2 and other types of viruses warrants a detailed look at calcium ion channels. Since they are the prime mediators of calcium signaling in cells, acting in a highly spatio-temporally controlled manner by connecting different intracellular compartments and the cell interior with the extracellular milieu, it is not surprising that calcium ion channels play the most prominent roles in this regard. The following sections examine different channel types as well as auxiliary non-channel proteins and their known implications in viral infections, particularly in the SARS-CoV-2 life cycle.

2.1. Voltage-Gated Ca2+ Channels

The family of voltage-gated Ca2+ (CaV) channels enables cells to convert changes of the transmembrane potential into intracellular, Ca2+-regulated processes. CaV channels are categorized into L-, T-, P/Q-, N- and R-type channels equivalent to CaV1.1- CaV1.4, CaV3.1- CaV3.3, CaV2.1, CaV2.2, and CaV2.3, respectively [33]. Categorization of these types of channels is mainly defined via the differences in their pore-forming α1-subunit composition. The channels are predominantly found in the plasma membrane (PM) of excitable cells, as they are gated by PM depolarization via a voltage sensor and support the fastest cytosolic Ca2+ signals. Rapid entry of Ca2+ mediates a further shift of the membrane potential towards positive values, meaning that CaV channels take on essential roles in the firing of action potentials underlying pacemaker functions of neuronal or specific cardiac cells [34,35]. Relatedly, Cav channels are also indispensable for skeletal muscle contraction, force generation in the cardiovascular system, visual transduction, transcriptional regulation, neurotransmitter release as well as the secretion of hormones [35,36,37,38,39].
Voltage-gated Ca2+ channels have been targets for the treatment of several diseases as mutations in these channels show effects on different kinds of cell types ranging from neurological to cardiac dysfunctions. As the selective inhibition of CaV channel subtypes shows promising results to overcome a wide range of cellular dysfunctions by specifically addressing regions of the channel required for proper function, e.g., the pore-forming region, several drugs are being tested in the context of SARS-CoV-2 infections. A short discussion thereof is provided in Section 3.1, while more detailed information about Ca2v channel blockers is presented in [40] as well as [41].

2.2. Store-Operated Channels

First described in 1986 [42], store-operated calcium (SOC) channels in the PM provide a mechanism for raising the cytosolic calcium concentration in cells through a process termed store-operated calcium entry (SOCE). These channels open upon the depletion of the intracellular endoplasmic reticulum (ER) calcium stores via ER calcium release channels [43]. The prototypic SOC channel is known as the calcium release-activated calcium (CRAC) channel, named after the Ca2+-selective CRAC current (ICRAC) it produces [44]. The most notable features of CRAC channels are voltage independence, inward rectification including a highly positive reversal potential as well as slow activation that takes tens of seconds to minutes [43,45]. In 2005 and 2006, the key molecular components of the CRAC channel were identified: the Ca2+ sensor protein stromal interaction molecule (STIM), located in the ER membrane, and the pore-forming channel subunit Orai, residing in the PM [46,47,48,49,50].
Physiologically, the depletion of the ER calcium store is elicited through activation of cell-surface receptors by ligand binding. This causes activation of phospholipase C (PLC), which proceeds to catalyze the cleavage of phospholipid head groups to membrane-bound diacylglycerol (DAG) and cytosolic inositol trisphosphate (IP3). The latter subsequently binds to IP3 receptors in the ER membrane and as these function as non-selective cation channels, the opening allows Ca2+ to exit along the concentration gradient from the ER lumen into the cytosol. The associated dramatic decrease in the ER luminal calcium concentration [51,52,53] serves as the activation signal for the CRAC channel [54,55,56,57,58].
CRAC channels regulate intracellular Ca2+ concentrations in many types of cells, including T lymphocytes [59,60,61,62]. There, they are activated upon T cell receptor (TCR) stimulation, which elicits the above-described signaling cascade via PLC [59]. The significance of CRAC channels in correct T cell function is underlined by single point mutations within STIM and/or Orai that cause severe combined immunodeficiency (SCID). Affected patients’ T cells do not exhibit any detectable SOCE or CRAC channel activity [47,63,64,65]. Although T cell development usually occurs in the absence of functional CRAC channels, reduced antigen-specific proliferation, and impaired cytokine production, including interleukin-2 (IL-2), interferon-gamma (IFN-γ), and tumor necrosis factor-alpha (TNF-α) can be observed in these cells [65,66,67,68]. SCID patients are affected by both, recurrent and chronic viral infections, indicating a prominent involvement of CRAC channels in antiviral immunity mediated by cytotoxic T cells [64,65]. In the event of a viral infection, these T cells kill virus-infected cells in the acute phase and ensure long-term protection against reinfection through the generation and maintenance of memory T cells [69]. The generation, maintenance, and function of memory T cells depends on many different factors, including cytokines, T helper cells, or the frequency and strength of antigen–TCR interactions [70,71,72,73,74]. The most important task of memory T cells is their rapid expansion upon a secondary viral infection or viral reinfection, after which they differentiate into effector cells able to kill virus-infected cells to provide strong adaptive immune protection [75]. The role of CRAC channels in these processes is not completely understood, although it has been shown that SOCE is indispensable for the maintenance of virus-specific memory T cells as well as their ability to control viral infection. Specifically, STIM proteins were found to be pivotal for these processes [76]. Moreover, both STIM and Orai are recruited to the immunological synapse (i.e., the contact interface between T cell and antigen-presenting cell) during initial T cell activation with their expression levels—as well as ICRAC—being highly upregulated in activated T cells. The latter result provides strong evidence for a positive feedback loop where an initial TCR signal favors the expression of STIM and Orai, which then augment Ca2+ signaling during subsequent encounters with an antigen [77,78].
Despite their integral role in antiviral immunity, which likely also extends to SARS-CoV-2, several studies suggest that CRAC channels are involved in the inflammation-induced injury of pulmonary endothelial cells [79,80]. Additionally, CRAC channels are, as mentioned above, also required for the production of IL-2, IFN-γ, and TNF-α cytokines, which have been linked to worsened outcomes of COVID-19 [81,82,83]. A recent study conducted by Wu et al. supports the importance of Orai1 and STIM1 for SARS-CoV2 host cell infection and IFN-I signaling. Knockout of STIM1 led to strong resistance to SARS-CoV-2 infection as a result of enhanced IFN-I response whereas Orai1 knockout resulted in high susceptibility to SARS-CoV-2 infection via the downregulation of Ca2+ dependent antiviral transcription factors [84]. Interestingly, STIM1-knockouts and Orai1-knockouts have opposing effects on susceptibility to SARS-CoV2 infection. The discrepancy between the two different phenotypes of the STIM-KO cells compared to the Orai1-KO cells is explained by a previous paper from the same group, that showed that STIM1 KO-cells resulted in an increase in activated STING in the ER, leading to enhanced basal IFN-I secretion [85]. Based on this, trials are underway to evaluate CRAC channel inhibitors for their suitability to treat patients affected by severe COVID-19 [86] (Section 3.1 includes an in-depth discussion on this matter). It will be interesting to see whether CRAC channel inhibitors can pave the way to an effective COVID-19 treatment and thereby contribute to alleviating the strain put on healthcare systems around the globe.

2.3. Auxiliary Non-Channel Proteins

Apart from the aforementioned channel-forming proteins, awareness of the regulation thereof by diverse auxiliary proteins is on the rise. In the following, some modulators of the CRAC channel linked to SARS-CoV-2 are exemplarily discussed and highlighted in Figure 1.
HSP27|Heat shock protein 27 (HSP27) is a chaperone that interacts with a myriad of different proteins. Among the interaction partners of HSP27 is STIM1, whereby Huang et al. were able to show that a knock-down of HSP27 leads to a decrease in STIM1 expression and thereby a reduction of Ca2+ influx into the cell [87]. O’Brien and Sandhu discussed HSP27 vaccination as a treatment for different COVID-19 pathophysiologies. They propose potential therapeutic benefits such as attenuation of inflammation, reduced IL-1β and increased IL-10 levels, upregulation of the granulocyte-macrophage colony-stimulating factor (GM-CSF), and promotion of endothelial repair and regrowth by upregulated vascular endothelial growth factor (VEGF) [88].
Cav-1|Caveolin-1 is a protein that seems to have a multitude of functions in the regulation of SOC currents, from the hindrance of SOCE-activation during meiosis, to cell type-specific SOCE activation via the modulation of micro-domains associated with SOCE (for a review on this, see [89]). Depriving cells of caveolae/caveolin-1 leads to a decrease in viral uptake, viral protein expression, virion release and Cav-1 has been shown to initiate inflammatory reactions by activating leukocytes and nuclear factor-κB [90,91]. Interestingly, SARS-CoV-2 has multiple Cav-1 binding sites that might be relevant for viral transmission, whilst syncytiotrophoblasts do not express Cav-1 [92] and so far, vertical virus transmission between pregnant women and fetuses has not been observed. This led Celik et al. to suggest that a lack of caveolin expression in the syncytio-capillary barrier acts as an important factor that prevents materno-fetal transmission of SARS-CoV-2 [93].
UNC93BI|In a preprint of Onodi et al., interactions between different SARS-CoV-2 strains and pre-dendritic cells (pDC) are analyzed. SARS-CoV-2-induced pDC activation is shown to be dependent on IRAK4 and UNC93B1 proteins [94]. The latter is assumed to play a role in the early stages of STIM1 oligomerization [95].
Erp57|ERp57, a calnexin/calreticulin-associated co-chaperone [96] acts as a thiol oxidoreductase in the ER and has been shown to have a downregulating effect on SOCE via binding to STIM1 [97]. The binding of nitazoxanide to ERp57 inhibits viral replication of paramyxovirus by targeting the folding of the viral fusion protein [98] and an inhibiting effect on different coronavirus strains in vitro has been demonstrated in multiple studies [99,100,101] and specifically on SARS-CoV-2 in cell culture assays [102,103], which was reviewed in [104].
STING|A deficiency of STIM1 has been shown to cause activation of the Stimulator of IFN Genes (STING) [85], which activates the production of interferons (IFNs) and nuclear factor kappa B (NF-κB) in response to sensing cytosolic DNA as well as some viral RNA fragments. Berthelot and Lioté argue that polymorphisms of the TMEM173 gene, which encodes STING, play a role in the pathogenesis of COVID-19 [105] and point out similarities between T and B cell responses to COVID-19 and STING gain-of-function models [106]. STING is activated by rising levels of cGAMP, synthesized by the cyclic-GMP-AMP synthase (cGAS). Interestingly, acetylsalicylic acid, a cGAS-inhibitor, was associated with a decrease in ICU admission as well as mechanical ventilation of COVID-19 patients [107].
Sigma-1-receptor|Sigma 1 receptors (σ1Rs) are located in the ER membrane and have been identified to act as SOCE modulators [108,109]. These receptors also colocalize with viral replicase proteins and interact with non-structural protein 6 (Nsp6), a SARS-CoV-2 protein. Knockout as well as knockdown of the SIGMAR1 gene led to a reduction of SARS-CoV-2 replication [110]. For a review of σ1R ligands that could provide therapeutic benefits see Vela JM. 2020 [111].

2.4. Transient Receptor Potential Channels

Transient receptor potential (TRP) channels are a large family of ion channels that are commonly divided into various subgroups according to sequence homology. These are: TRPA (ankyrin), TRPM (melastatin), TRPML (mucolipin), TRPP (polycystin), TRPC (canonical) and TRPV (vanilloid) channels [112]. TRP channels respond to temperature, mechanical stimuli, Ca2+ store depletion as well as chemical signals or show constitutive activity and are regulated by lipids [112,113]. TRP channels reside in the PM as well as in the membranes of mitochondria and the ER [113]. The subgroups also differ in terms of ion selectivity, e.g., TRPM channels primarily select for monovalent cations while especially the TRPV channels TRPV5 and TRPV6 channels exhibit selectivity for Ca2+ [112]. Thus, selected TRP channel members also act as mediators of intracellular Ca2+ homeostasis [113,114].
With regard to SARS-CoV-2, it has been found that TRP channels are expressed in tissues that are frequently attacked by the virus during infection (Figure 1). Indeed, TRPML2 channels were recently shown to be involved in viral entry/endocytosis of SARS-CoV-2 into host cells. The channels thereby increase the efficiency of viral trafficking within the endosomal system [115,116,117]. Moreover, a significant amount of COVID-19-related deaths is caused by edema in the lungs that leads to acute respiratory distress syndrome (ARDS) [118,119]. In this context, there is evidence that implicates TRPV4 and TRPC6 channels in pulmonary edema as well as TRPV4 and TRPM7 channels in pulmonary fibrosis [120,121,122,123]. TRP channels are also linked to the development of a variety of COVID-19 symptoms and systemic consequences, including fever, inflammatory response, neurological alterations, myalgia, headache as well as cardiovascular and gastrointestinal complications [117]. Taken together, recent scientific evidence suggests that TRP channel members are potential targets for interfering with the life cycle of SARS-CoV-2.
TRP channels are strong contributors to Ca2+ signals during viral infection. Their involvement in intracellular Ca2+ trafficking likely means that the channels play a role in establishing a favorable environment for viruses [124,125,126]. Blockage, inhibition, and/or modulation of select TRP channels could thus prove to be effective means of therapy that are not limited to SARS-CoV-2 and COVID-19. Indeed, several substances are already in clinical trials and the use of phytochemicals and medicinal plants is also being evaluated [117,127,128,129] (Section 3.2 discusses this in more detail). Due to the many existing links between TRP channels and COVID-19, these channels must be seriously considered as targets for treatment as well as prevention. Further research in this direction is indeed required.

3. Emerging Treatment Strategies

Since the first verified case of COVID-19 infection was reported in December 2019 in Wuhan, scientists, doctors, and pharmaceutical companies all over the world have focused on the development of therapeutics against the causative pathogen SARS-CoV-2. Although vaccines based on mRNA or adenovirus technology have been approved in many countries, there is still a need for safe and effective antivirals for the treatment of acute severe or mild SARS-CoV-2 infections. Currently, an RNA-dependent RNA polymerase inhibitor named Remdesivir that was initially developed for Ebola treatment is used for the treatment of SARS-CoV-2 patients and shows improvement in symptoms in 68% of treated patients in clinical trials [130,131]. Aside from Remdesivir, different target sites for COVID-19 drug development are currently evaluated. Molnupiravir, a prodrug of the nucleoside derivative N4-hydroxycytidine, was developed as an anti-influenza drug and acts as an inhibitor of viral RNA replication by the induction of copying errors during replication [132,133,134]. Paxlovid is a prospective oral drug combination of PF-07321332 and Ritonavir, which blocks the activity of the SARS-CoV-2-3CL protease [135,136].
The regulation of calcium ions in different cell types could be an additional potent target. As mentioned previously, Ca2+ plays important roles in viral entry, gene expression and was linked to imbalanced Ca2+ homeostasis during viral infection [19,20,22,23,27,29,30,31,32]. The inhibitory effect of calcium channel blockers (CCB) during or pre-viral infections has been reported for various types of viruses and is therefore also assumed to be a potential target site for the treatment of COVID-19 infections. Verapamil, an influenza A virus inhibitor, hydrochloride, cilnidipine and manidipine, inhibitors for Japanese encephalitis virus (JEV), and the L-type CaV channel inhibitor gabapentin effective against hemorrhagic fever arenavirus (NWA) are just a few examples for reported successful CCB use after or pre-viral infections [29,30,31].

3.1. Voltage-Gated Channels

A panel of voltage-activated L-type CCBs including amlodipine, nifedipine, felodipine, verapamil and diltiazem, which are primarily used to treat cardiovascular diseases including hypertension, were selected as potential drugs to inhibit SARS-CoV-2 infection in cell culture experiments using epithelial kidney (Vero E6) and epithelial lung (Calu-3) cells. All these chemical compounds bind to the α1 subunit of L-type CaV channels, potentially inhibiting host cell entry (Figure 1). Straus et al., suggested felodipine and nifedipine as most promising candidates against SARS-CoV-2 infection due to their high selectivity, low cytotoxicity, and their high selectivity index (SI) score but they also stated it is currently unclear how the efficacious doses they used in their study could be translated into clinical use [137].
An additional study by Solaimanzadeh also suggested that nifedipine and amlodipine reduce mortality and decrease the risk of intubation for elderly patients hospitalized with COVID-19. This effect could be induced by relaxation of pulmonary smooth muscles causing pulmonary vasodilation and therefore improve the hypoxia conditions of patients under the respective treatment [138].
A retrospective clinical report of COVID-19 patients treated with amlodipine besylate was associated with a reduced fatality rate of patients with hypertension by significantly inhibiting the post-entry replication events of SARS-CoV-2 in vitro, as reported by Zhang et al. A combined treatment with chloroquine and amlodipine besylate further enhanced the inhibitory effect in Vero E6 cells [139].
Another retrospective cohort study conducted by Peng et al. investigated the potential positive effect of CCBs particularly verapamil, on patients suffering hypertension, which might be an independent risk factor during COVID-19 infection [140,141]. In this study, they demonstrated via propensity score-matching analysis, that CCB treatment is associated with lower all-cause mortality of COVID-19 patients with hypertension. They did not observe any effects of renin-angiotensin-aldosterone system (RAAS) inhibitors or beta-blockers on patients infected with SARS-CoV-2 [141].
Nifedipine was shown to have an anti-inflammatory effect by suppressing the production of IL-1α, IL-6, and IFN-γ from peripheral blood mononuclear cells [142]. IL-6 and IFN-γ, which are known as mediators of cytokine storm in patients suffering COVID-19, could therefore serve as potential target sites by nifedipine treatment. For more detailed information about cytokine storms in COVID-19 see [143].
A rather unspecific CCB study by Mahgoub et al. reported some bioisosteres of pyrimidines as novel CCBs with a potential angiotensin-converting enzyme 2 (ACE2) inhibitory effect (Figure 1). The authors tested different chemical compounds and observed a decrease in the tone of ileal contractions in a dose-dependent manner, similar to the relaxation of K+-induced contractions caused by the standard drug nifedipine. They stated that the observed spasmolytic effect might be mediated through Ca2+ channel inhibition. Therefore, several potential calcium channel blockers together with ACE2 inhibitors, which suppress ACE2 binding to SARS-CoV-2 spike receptor-binding domain (RBD), and potential anti-inflammatory activity, mediate the reduction of IL-6 and C-reactive protein (CRP) production in LPS-stimulated THP-1 cells. The properties of the mentioned agents could be used as therapeutic tools for hypersensitive patients against COVID-19 infection and anti-inflammatory activities [144].
Yang et al., identified neferine as a possible coronavirus entry inhibitor out of 89 plant-derived natural small molecules. They reported in in vitro studies that neferine effectively protects around 75% of HEK293/hACE2 and HuH7 cells from infection by different coronavirus pseudovirus particles (SARSpp) by inhibiting host cell Ca2+ channels, leading to inhibition of membrane fusion and suppression of virus entry. However, which calcium channels are specifically inhibited by neferine is not defined more precisely, as the studied cell types do express different types of calcium channels. The important role of calcium in SARS-CoV-2 entry was also reported in this study, showing that a specific chelator named BAPTA-AM significantly suppressed SARS-CoV-2 pseudovirus particle infection. Follow-up experiments in this study also showed that neferine could inhibit not only early SARS-CoV-2 pseudovirus particle infection, it was also effective against SARS-CoV-2 variants as well as two other highly pathogenic human coronaviruses, namely SARS-CoV and MERS-CoV [145].

3.2. Store-Operated Channels

Besides the use of blockers specific for L-type CaV channels, additional calcium entry pathways could also be an interesting target for antiviral drugs against COVID-19 infection. Therefore, companies such as Calcimedica specifically address the CRAC channel pathway as a potential drug target. Previous studies have shown that CRAC channels are involved in the inflammation-induced injury of pulmonary endothelial cells, leading to loss of alveolar-capillary barrier function and extravasation of fluid into the alveoli [79,80,81,146]. Proinflammatory cytokine storms induced via CRAC channel activation may contribute to severe COVID-19 progression [79,80,81,82,83]. To prevent such arising complications, CRAC channel inhibition may have potential therapeutic benefit for patients suffering from SARS-CoV-2 (Figure 1). For detailed information about blockers used for CRAC channel systems, please refer to reviews [147,148].
In a phase 2, open-label, randomized, multicenter study of patients with severe or critical COVID-19 pneumonia by Miller et al., a novel intravenously administered nanoemulsion formulation of CM4620—named Auxora—was tested as a potential therapeutic substance that specifically inhibits the CRAC channel system [86]. CM4620, which shares structural similarities with Synta66, another specific CRAC channel inhibitor, is also undergoing phase 2 clinical trials for moderate to severe acute pancreatitis. It has been shown that under acute inflammatory conditions, this compound acts on reducing inflammatory signals in the lung, protecting tissues from calcium-induced damage as well as lowering serum and pulmonary proinflammatory cytokine levels by inhibiting the CRAC channel system [79,80,83,149,150,151] ( (accessed on 11 November 2021)). The study by Miller et al. involved 30 persons and showed a seven day shorter median recovery time of patients with severe COVID-19 pneumonia compared to patients treated with standard of care and showed that only 18% of persons treated with Auxora needed intubation (50% of patients treated with standard of care were intubated). They also reported that the baseline PaO2/FiO2 of patients is linked to improved clinical outcomes of COVID-19 infection. Medication with Auxora showed the most promising results for patients with a baseline PaO2/FiO2 between 101–200 mmHg whereas no patients receiving Auxora or standard of care treatment with a baseline PaO2/FiO2 of >200 mmHg required invasive mechanical ventilation. A statistically significant difference in clinical improvement, indicated by the mean of an 8-point ordinal scale, was observed for patients treated with Auxora in comparison to standard of care after six days. The drug rapidly distributes to the lungs, where it is able to specifically inhibit CRAC channel-dependent cytokine release and it is stated to be reversible within 24 to 48 h [86]. Miller and co-workers provide a possible therapeutic method with the specific CRAC-channel inhibitor Auxora for patients suffering severe COVID-19 pneumonia, with direct effects on the pulmonary endothelium and indirect effects on proinflammatory cytokine production, but they also state that the sample size of patients in this study needs to be improved and a larger, double-blind, placebo-controlled study needs to be conducted to get further insights into the mode of action and impact of Auxora [86].

3.3. Transient Receptor Potential Channels

As already briefly mentioned in Section 2.4, there are several strategies to block, inhibit and/or modulate TRP channels currently in development. GSK2798745 is a TRPV4 antagonist that was developed to treat pulmonary edema associated with heart failure, while another substance inhibiting TRPC4 and TRPC5 targets depression and anxiety disorder [127,128]. In addition, TRP channels are also affected by various venomous toxins [152,153,154,155,156,157] which have been suggested to be used for the treatment of COVID-19, most notably resiniferatoxin (RTX) [158]. It will be interesting to see which of these candidates have the potential to be applied for COVID-19 in a widespread clinical setting.
Plants have a long history of being rich sources of active ingredients that are helpful against various kinds of disease, including viral infections. Accordingly, a recent study has shown that administration of Nigella sativa L. (black cumin) over 2 weeks reduces the severity of COVID-19 symptoms and elicited viral clearance [159]. The active compound in N. sativa seems to be thymoquinone, which shows high efficacy against SARS-CoV-2 according to recently published findings [160,161]. The link to TRP channels is provided by yet another study, which finds that N. sativa also affects the expression of TRP channels [162]. The non-psychotropic phytocannabinoid cannabidiol (CBD) also is a promising candidate compound. Wang and co-workers cultivated hundreds of different Cannabis sativa L. strains and found that those high in CBD decrease expression of ACE2 and transmembrane protease, serine 2 (TMPRSS2), which are both required for SARS-CoV-2 infection (Figure 1) [163,164]. Several TRP channels are thought to act as CBD receptors, which may explain the mechanism of action of this compound [165]. Aside from this, there are many other natural substances derived from plants that have the potential for SARS-CoV-2 inhibition, such as berbamine, resveratrol, quercetin, curcumin, spermidine, spermine, baicalin, and naringenin. Finally, dietary constituents also could play a role in the inhibition of SARS-CoV-2, as spices such as allicin, capsaicin, curcumin, gingerol, piperine, and wasabi interact with TRP channels [117,166,167]. Clearly, further research is needed to evaluate the usefulness of all these candidate substances. In any case, TRP channels seem to be the primary targets for many of them [117,168].

4. Discussion and Conclusions

Besides the state-of-the-art COVID-19 treatment drug Remdesivir, and potential antiviral drugs in different stages of testing such as Molnupiravir and Paxlovid, calcium channel blockers might be beneficial for treatment by modulating different pathological pathways of infected cells. The role of calcium during viral infection and especially in SARS-CoV-2 is increasingly studied but not yet fully understood. Therefore, the inhibition of calcium transport across membranes and inside cells is an interesting target site that may affect SARS-CoV-2 infection and can have positive effects on severe courses of COVID-19. Several specific, previously known, and newly developed calcium channel blockers target different channel types and host cell or viral compartments/pathways. A hypothetical mode of action using CCB treatment is the reduction of intracellular calcium levels, which would affect the viral calcium manipulation of host cells and inhibit viral host cell entry [137,144,145,163,164], has potential anti-inflammatory activity [86,142,144], and leads to relaxation of pulmonary smooth muscles, causing vasodilatory effects in the lungs and vascular system [138]. As knockout of STIM1, which results in increased STING activation, leads to enhanced IFN-I responses shown by Wu et al., the use of CCBs could possibly alter IFN-I levels and therefore also have positive effects on the resistance to SARS-CoV-2 infection. [84,85] Despite the observed positive effects of different CCB drugs/small molecules linked to COVID-19, none of them are currently in clinical use and only Auxora from Calcimedica completed Phase 2 clinical trials for treating acute pancreatitis ( accessed on 11 November 2021). The latter is also considered to possibly have a beneficial effect for COVID-19 patients ( (accessed on 11 November 2021)). The question as to how CCBs can be used for the treatment of viral diseases such as COVID-19 also strongly depends on the affected cell types. Since CRAC channels are widely expressed across different cell types, targeting these channels might have drastic consequences on the whole organism. The ideal timing, duration, quantitative drug management, and dose of CCBs such as Auxora are currently being tested and evaluated, whereas it is unlikely that complete inhibition of, e.g., CRAC channels is necessary to achieve positive effects as it was shown for other drug targets in the past. Due to the different functions of calcium before and during viral infections and depending on the severity of the disease, it is necessary to optimize the dose and timing of treatment—either early or late administration with CCBs to specifically target the viral life cycle, decrease viral load and to avoid a cytokine storm. Further research is needed to gain a better understanding of how and when CCBs should be used during/before viral and especially COVID-19 infections. In addition to the inhibition of specific channels mentioned in this review, side effects, such as depolarization of membrane potentials and the inhibition of CRAC channel-driven cytokine release from T cells through blocking of K+ channels or Cl channels need to be considered and could lead to beneficial outcomes of diverse viral infections (for detailed information, see commentary/reviews [169,170,171]). Apart from the inhibition of cellular calcium, hypocalcemia, which is defined as serum levels of ionic Ca2+ being below 1.18 mmol/L threshold, was reported in a number of viral diseases and also in patients suffering from COVID-19 [172,173,174,175]. Since the significance of hypocalcemia is not yet fully understood, i.e., whether it has protective or harmful effects on COVID-19 patients, clinical trials investigating the effects of calcium supplementation need to be carried out [172,176]. Despite the uncertain role of calcium supplementation, various studies reported a beneficial effect of adequate supplementation of vitamins and micronutrients on SARS-CoV-2 infection outcomes (for a detailed review on this topic, see [177]). To the authors’ knowledge, no drugs that target the auxiliary proteins described in the parts above that regulate CRAC activities are available and no mutations or polymorphisms of calcium channels or auxiliary proteins that affect host susceptibility to SARS-CoV-2 are known so far. Overall, given the multitude of indications that CCBs may contribute to a better outcome of COVID-19 disease, it might be worthwhile to focus research in this direction while keeping an eye on the future endemic state of SARS-CoV-2.

Author Contributions

Conceptualization, S.B., M.S. and H.G.; writing—original draft preparation, S.B., M.S., H.G., C.H., I.F. and M.F.; writing—review and editing, I.F. and M.F.; visualization, A.B.; supervision, M.F. and I.F.; project administration, M.F. and I.F.; funding acquisition, M.F. and I.F. All authors have read and agreed to the published version of the manuscript.


This research was funded by the Austrian Science Fund (FWF): project P 32075-B to I.F. and P 32947 to M.F., H.G. holds a PhD scholarship of the Austrian Science Fund (FWF) PhD program W1250 NanoCell.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.


We would like to thank the global health workforce for their tireless efforts.

Conflicts of Interest

The authors declare no conflict of interest.


Ab—antibody, ACE2—angiotensin-converting enzyme 2, CBD—cannabidiol, CCB—calcium channel blocker, CTL—cytotoxic T cell, DMV—double membrane vesicle, ER—endoplasmic reticulum, ERGIC—endoplasmic reticulum–Golgi intermediate compartment, ERp57—endoplasmic reticulum resident protein 57, HSP27—heat shock protein 27, IC—immune complex, NSP6—non-structural protein 6, SARS-CoV-2—severe acute respiratory syndrome coronavirus 2, STIM—stromal interaction molecule, TAP—transporter associated with antigen processing, TLR4—toll-like receptor 4, TMPRSS2—transmembrane protease serine 2, TRPML2—transient receptor potential mucolipin 2.


  1. Wang, C.; Horby, P.W.; Hayden, F.G.; Gao, G.F. A novel coronavirus outbreak of global health concern. Lancet 2020, 395, 470–473. [Google Scholar] [CrossRef] [Green Version]
  2. Zhu, N.; Zhang, D.; Wang, W.; Li, X.; Yang, B.; Song, J.; Zhao, X.; Huang, B.; Shi, W.; Lu, R.; et al. A Novel Coronavirus from Patients with Pneumonia in China, 2019. N. Engl. J. Med. 2020, 382, 727–733. [Google Scholar] [CrossRef]
  3. Zhou, P.; Yang, X.-L.; Wang, X.-G.; Hu, B.; Zhang, L.; Zhang, W.; Si, H.-R.; Zhu, Y.; Li, B.; Huang, C.-L.; et al. A pneumonia outbreak associated with a new coronavirus of probable bat origin. Nature 2020, 579, 270–273. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Hu, B.; Guo, H.; Zhou, P.; Shi, Z.L. Characteristics of SARS-CoV-2 and COVID-19. Nat. Rev. Microbiol. 2021, 19, 141–154. [Google Scholar] [CrossRef] [PubMed]
  5. Polack, F.P.; Thomas, S.J.; Kitchin, N.; Absalon, J.; Gurtman, A.; Lockhart, S.; Perez, J.L.; Pérez, G.M.; Moreira, E.D.; Zerbini, C.; et al. Safety and Efficacy of the BNT162b2 mRNA COVID-19 Vaccine. N. Engl. J. Med. 2020, 383, 2603–2615. [Google Scholar] [CrossRef] [PubMed]
  6. Baden, L.R.; El Sahly, H.M.; Essink, B.; Kotloff, K.; Frey, S.; Novak, R.; Diemert, D.; Spector, S.A.; Rouphael, N.; Creech, C.B.; et al. Efficacy and Safety of the mRNA-1273 SARS-CoV-2 Vaccine. N. Engl. J. Med. 2021, 384, 403–416. [Google Scholar] [CrossRef]
  7. Voysey, M.; Clemens, S.A.C.; Madhi, S.A.; Weckx, L.Y.; Folegatti, P.M.; Aley, P.K.; Angus, B.; Baillie, V.L.; Barnabas, S.L.; Bhorat, Q.E.; et al. Safety and efficacy of the ChAdOx1 nCoV-19 vaccine (AZD1222) against SARS-CoV-2: An interim analysis of four randomised controlled trials in Brazil, South Africa, and the UK. Lancet 2021, 397, 99–111. [Google Scholar] [CrossRef]
  8. Sadoff, J.; Gray, G.; Vandebosch, A.; Cárdenas, V.; Shukarev, G.; Grinsztejn, B.; Goepfert, P.A.; Truyers, C.; Fennema, H.; Spiessens, B.; et al. Safety and Efficacy of Single-Dose Ad26.COV2.S Vaccine against COVID-19. N. Engl. J. Med. 2021, 384, 2187–2201. [Google Scholar] [CrossRef] [PubMed]
  9. Russell, R.L.; Pelka, P.; Mark, B.L. Frontrunners in the race to develop a SARS-CoV-2 vaccine. Can. J. Microbiol. 2021, 67, 189–212. [Google Scholar] [CrossRef]
  10. Forni, G.; Mantovani, A. COVID-19 vaccines: Where we stand and challenges ahead. Cell Death Differ. 2021, 28, 626–639. [Google Scholar] [CrossRef] [PubMed]
  11. Rashedi, R.; Samieefar, N.; Masoumi, N.; Mohseni, S.; Rezaei, N. COVID-19 vaccines Mix-and-Match: The Concept, the Efficacy and the Doubts. J. Med. Virol. 2021. [Google Scholar] [CrossRef] [PubMed]
  12. Lazarus, J.V.; Ratzan, S.C.; Palayew, A.; Gostin, L.O.; Larson, H.J.; Rabin, K.; Kimball, S.; El-Mohandes, A. A global survey of potential acceptance of a COVID-19 vaccine. Nat. Med. 2021, 27, 225–228. [Google Scholar] [CrossRef]
  13. Dror, A.A.; Eisenbach, N.; Taiber, S.; Morozov, N.G.; Mizrachi, M.; Zigron, A.; Srouji, S.; Sela, E. Vaccine hesitancy: The next challenge in the fight against COVID-19. Eur. J. Epidemiol. 2020, 35, 775–779. [Google Scholar] [CrossRef]
  14. Stolle, L.B.; Nalamasu, R.; Pergolizzi, J.V., Jr.; Varrassi, G.; Magnusson, P.; LeQuang, J.; Breve, F. Fact vs. Fallacy: The Anti-Vaccine Discussion Reloaded. Adv. Ther. 2020, 37, 4481–4490. [Google Scholar] [CrossRef] [PubMed]
  15. Melton, C.; Olusanya, O.A.; Shaban-Nejad, A. Network Analysis of COVID-19 Vaccine Misinformation on Social Media. Stud. Health Technol. Inform. 2021, 287, 165–166. [Google Scholar] [CrossRef]
  16. Tatar, M.; Faraji, M.R.; Montazeri Shoorekchali, J.; Pagán, J.A.; Wilson, F.A. The role of good governance in the race for global vaccination during the COVID-19 pandemic. Sci. Rep. 2021, 11, 22440. [Google Scholar] [CrossRef] [PubMed]
  17. Omer, S.B.; Benjamin, R.M.; Brewer, N.T.; Buttenheim, A.M.; Callaghan, T.; Caplan, A.; Carpiano, R.M.; Clinton, C.; DiResta, R.; Elharake, J.A.; et al. Promoting COVID-19 vaccine acceptance: Recommendations from the Lancet Commission on Vaccine Refusal, Acceptance, and Demand in the USA. Lancet 2021, 398, 2186–2192. [Google Scholar] [CrossRef]
  18. Brini, M.; Ottolini, D.; Calì, T.; Carafoli, E. Calcium in health and disease. In Interrelations between Essential Metal Ions and Human Diseases; Sigel, A., Sigel, H., Sigel, R.K.O., Eds.; Springer: Dordrecht, The Netherlands, 2013; pp. 81–137. [Google Scholar]
  19. Zhou, Y.; Xue, S.; Yang, J.J. Calcium and viruses. In Encyclopedia of Metalloproteins; Kretsinger, R.H., Uversky, V.N., Permyakov, E.A., Eds.; Springer: New York, NY, USA, 2013; pp. 415–424. [Google Scholar]
  20. Nieto-Torres, J.L.; Verdiá-Báguena, C.; Jimenez-Guardeño, J.M.; Regla-Nava, J.A.; Castaño-Rodriguez, C.; Fernandez-Delgado, R.; Torres, J.; Aguilella, V.M.; Enjuanes, L. Severe acute respiratory syndrome coronavirus E protein transports calcium ions and activates the NLRP3 inflammasome. Virology 2015, 485, 330–339. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  21. Broz, P.; Dixit, V.M. Inflammasomes: Mechanism of assembly, regulation and signalling. Nat. Rev. Immunol. 2016, 16, 407–420. [Google Scholar] [CrossRef] [PubMed]
  22. Murakami, T.; Ockinger, J.; Yu, J.; Byles, V.; McColl, A.; Hofer, A.M.; Horng, T. Critical role for calcium mobilization in activation of the NLRP3 inflammasome. Proc. Natl. Acad. Sci. USA 2012, 109, 11282–11287. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Lee, G.S.; Subramanian, N.; Kim, A.I.; Aksentijevich, I.; Goldbach-Mansky, R.; Sacks, D.B.; Germain, R.N.; Kastner, D.L.; Chae, J.J. The calcium-sensing receptor regulates the NLRP3 inflammasome through Ca2+ and cAMP. Nature 2012, 492, 123–127. [Google Scholar] [CrossRef] [Green Version]
  24. Lai, A.L.; Freed, J.H. SARS-CoV-2 Fusion Peptide has a Greater Membrane Perturbating Effect than SARS-CoV with Highly Specific Dependence on Ca2+. J. Mol. Biol. 2021, 433, 166946. [Google Scholar] [CrossRef]
  25. Lai, A.L.; Millet, J.K.; Daniel, S.; Freed, J.H.; Whittaker, G.R. The SARS-CoV Fusion Peptide Forms an Extended Bipartite Fusion Platform that Perturbs Membrane Order in a Calcium-Dependent Manner. J. Mol. Biol. 2017, 429, 3875–3892. [Google Scholar] [CrossRef] [PubMed]
  26. Straus, R.M.; Tang, T.; Lai, L.A.; Flegel, A.; Bidon, M.; Freed, H.J.; Daniel, S.; Whittaker, R.G.; Gallagher, T. Ca2+ Ions Promote Fusion of Middle East Respiratory Syndrome Coronavirus with Host Cells and Increase Infectivity. J. Virol. 2020, 94, e00426-20. [Google Scholar] [CrossRef]
  27. Nathan, L.; Lai, A.L.; Millet, J.K.; Straus, M.R.; Freed, J.H.; Whittaker, G.R.; Daniel, S. Calcium Ions Directly Interact with the Ebola Virus Fusion Peptide To Promote Structure-Function Changes That Enhance Infection. ACS Infect. Dis. 2020, 6, 250–260. [Google Scholar] [CrossRef]
  28. Saurav, S.; Tanwar, J.; Ahuja, K.; Motiani, R.K. Dysregulation of host cell calcium signaling during viral infections: Emerging paradigm with high clinical relevance. Mol. Asp. Med. 2021, 81, 101004. [Google Scholar] [CrossRef] [PubMed]
  29. Nugent, K.M.; Shanley, J.D. Verapamil inhibits influenza A virus replication. Arch. Virol. 1984, 81, 163–170. [Google Scholar] [CrossRef] [PubMed]
  30. Wang, S.; Liu, Y.; Guo, J.; Wang, P.; Zhang, L.; Xiao, G.; Wang, W.; Diamond, S.M. Screening of FDA-Approved Drugs for Inhibitors of Japanese Encephalitis Virus Infection. J. Virol. 2017, 91, e01055-17. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. Lavanya, M.; Cuevas, D.C.; Thomas, M.; Cherry, S.; Ross Susan, R. siRNA Screen for Genes That Affect Junín Virus Entry Uncovers Voltage-Gated Calcium Channels as a Therapeutic Target. Sci. Transl. Med. 2013, 5, 204ra131. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Das, D.K.; Bulow, U.; Diehl, W.E.; Durham, N.D.; Senjobe, F.; Chandran, K.; Luban, J.; Munro, J.B. Conformational changes in the Ebola virus membrane fusion machine induced by pH, Ca2+, and receptor binding. PLoS Biol. 2020, 18, e3000626. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Wu, J.; Yan, Z.; Li, Z.; Qian, X.; Lu, S.; Dong, M.; Zhou, Q.; Yan, N. Structure of the voltage-gated calcium channel Ca(v)1.1 at 3.6 Å resolution. Nature 2016, 537, 191–196. [Google Scholar] [CrossRef] [PubMed]
  34. Clapham, D.E. Calcium signaling. Cell 2007, 131, 1047–1058. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Campiglio, M.; Flucher, B.E. The role of auxiliary subunits for the functional diversity of voltage-gated calcium channels. J. Cell. Physiol. 2015, 230, 2019–2031. [Google Scholar] [CrossRef] [PubMed]
  36. Rubaiy, H.N. A Short Guide to Electrophysiology and Ion Channels. J. Pharm. Pharm. Sci. A Publ. Can. Soc. Pharm. Sci. Soc. Can. Des. Sci. Pharm. 2017, 20, 48–67. [Google Scholar] [CrossRef] [Green Version]
  37. Dolphin, A.C. Voltage-gated calcium channels: Their discovery, function and importance as drug targets. Brain Neurosci. Adv. 2018, 2, 2398212818794805. [Google Scholar] [CrossRef]
  38. Zamponi, G.W.; Striessnig, J.; Koschak, A.; Dolphin, A.C. The Physiology, Pathology, and Pharmacology of Voltage-Gated Calcium Channels and Their Future Therapeutic Potential. Pharmacol. Rev. 2015, 67, 821–870. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Catterall, W.A. Voltage-gated calcium channels. Cold Spring Harb. Perspect. Biol. 2011, 3, a003947. [Google Scholar] [CrossRef] [PubMed]
  40. Striessnig, J. Voltage-Gated Ca2+-Channel α1-Subunit de novo Missense Mutations: Gain or Loss of Function – Implications for Potential Therapies. Front. Synaptic Neurosci. 2021, 13, 8. [Google Scholar] [CrossRef]
  41. Lee, S. Pharmacological Inhibition of Voltage-gated Ca(2+) Channels for Chronic Pain Relief. Curr. Neuropharmacol. 2013, 11, 606–620. [Google Scholar] [CrossRef] [Green Version]
  42. Putney, J.W., Jr. A model for receptor-regulated calcium entry. Cell Calcium 1986, 7, 1–12. [Google Scholar] [CrossRef]
  43. Prakriya, M.; Lewis, R.S. Store-Operated Calcium Channels. Physiol Rev. 2015, 95, 1383–1436. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Hoth, M.; Penner, R. Depletion of intracellular calcium stores activates a calcium current in mast cells. Nature 1992, 355, 353–356. [Google Scholar] [CrossRef] [PubMed]
  45. Parekh, A.B.; Penner, R. Store depletion and calcium influx. Physiol. Rev. 1997, 77, 901–930. [Google Scholar] [CrossRef] [PubMed]
  46. Roos, J.; DiGregorio, P.J.; Yeromin, A.V.; Ohlsen, K.; Lioudyno, M.; Zhang, S.; Safrina, O.; Kozak, J.A.; Wagner, S.L.; Cahalan, M.D.; et al. STIM1, an essential and conserved component of store-operated Ca2+ channel function. J. Cell Biol. 2005, 169, 435–445. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Feske, S.; Gwack, Y.; Prakriya, M.; Srikanth, S.; Puppel, S.H.; Tanasa, B.; Hogan, P.G.; Lewis, R.S.; Daly, M.; Rao, A. A mutation in Orai1 causes immune deficiency by abrogating CRAC channel function. Nature 2006, 441, 179–185. [Google Scholar] [CrossRef] [PubMed]
  48. Zhang, S.L.; Yeromin, A.V.; Zhang, X.H.; Yu, Y.; Safrina, O.; Penna, A.; Roos, J.; Stauderman, K.A.; Cahalan, M.D. Genome-wide RNAi screen of Ca(2+) influx identifies genes that regulate Ca(2+) release-activated Ca(2+) channel activity. Proc. Natl. Acad. Sci. USA 2006, 103, 9357–9362. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Liou, J.; Kim, M.L.; Heo, W.D.; Jones, J.T.; Myers, J.W.; Ferrell, J.E., Jr.; Meyer, T. STIM is a Ca2+ sensor essential for Ca2+-store-depletion-triggered Ca2+ influx. Curr. Biol. 2005, 15, 1235–1241. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  50. Vig, M.; Peinelt, C.; Beck, A.; Koomoa, D.L.; Rabah, D.; Koblan-Huberson, M.; Kraft, S.; Turner, H.; Fleig, A.; Penner, R.; et al. CRACM1 is a plasma membrane protein essential for store-operated Ca2+ entry. Science 2006, 312, 1220–1223. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  51. Berridge, M.J.; Bootman, M.D.; Roderick, H.L. Calcium signalling: Dynamics, homeostasis and remodelling. Nat. Rev. Mol. Cell Biol. 2003, 4, 517–529. [Google Scholar] [CrossRef] [Green Version]
  52. Putney, J.W., Jr. Capacitative calcium entry: Sensing the calcium stores. J. Cell Biol. 2005, 169, 381–382. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Peinelt, C.; Beck, A.; Monteilh-Zoller, M.K.; Penner, R.; Fleig, A. IP(3) receptor subtype-dependent activation of store-operated calcium entry through I(CRAC). Cell Calcium 2009, 45, 326–330. [Google Scholar] [CrossRef] [PubMed]
  54. Stathopulos, P.B.; Li, G.Y.; Plevin, M.J.; Ames, J.B.; Ikura, M. Stored Ca2+ depletion-induced oligomerization of stromal interaction molecule 1 (STIM1) via the EF-SAM region: An initiation mechanism for capacitive Ca2+ entry. J. Biol. Chem. 2006, 281, 35855–35862. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Frischauf, I.; Muik, M.; Derler, I.; Bergsmann, J.; Fahrner, M.; Schindl, R.; Groschner, K.; Romanin, C. Molecular determinants of the coupling between STIM1 and Orai channels: Differential activation of Orai1-3 channels by a STIM1 coiled-coil mutant. J. Biol. Chem. 2009, 284, 21696–21706. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Grabmayr, H.; Romanin, C.; Fahrner, M. STIM Proteins: An Ever-Expanding Family. Int. J. Mol. Sci. 2020, 22, 378. [Google Scholar] [CrossRef] [PubMed]
  57. Hirve, N.; Rajanikanth, V.; Hogan, P.G.; Gudlur, A. Coiled-Coil Formation Conveys a STIM1 Signal from ER Lumen to Cytoplasm. Cell Rep. 2018, 22, 72–83. [Google Scholar] [CrossRef] [Green Version]
  58. Schober, R.; Bonhenry, D.; Lunz, V.; Zhu, J.; Krizova, A.; Frischauf, I.; Fahrner, M.; Zhang, M.; Waldherr, L.; Schmidt, T.; et al. Sequential activation of STIM1 links Ca(2+) with luminal domain unfolding. Sci. Signal. 2019, 12. [Google Scholar] [CrossRef] [PubMed]
  59. Feske, S. Calcium signalling in lymphocyte activation and disease. Nat. Rev. Immunol. 2007, 7, 690–702. [Google Scholar] [CrossRef]
  60. Feske, S.; Skolnik, E.Y.; Prakriya, M. Ion channels and transporters in lymphocyte function and immunity. Nat. Rev. Immunol. 2012, 12, 532–547. [Google Scholar] [CrossRef] [Green Version]
  61. Hogan, P.G.; Lewis, R.S.; Rao, A. Molecular basis of calcium signaling in lymphocytes: STIM and ORAI. Annu. Rev. Immunol. 2010, 28, 491–533. [Google Scholar] [CrossRef] [Green Version]
  62. Lewis, R.S. Calcium signaling mechanisms in T lymphocytes. Annu. Rev. Immunol. 2001, 19, 497–521. [Google Scholar] [CrossRef]
  63. Picard, C.; McCarl, C.A.; Papolos, A.; Khalil, S.; Lüthy, K.; Hivroz, C.; LeDeist, F.; Rieux-Laucat, F.; Rechavi, G.; Rao, A.; et al. STIM1 mutation associated with a syndrome of immunodeficiency and autoimmunity. N. Engl. J. Med. 2009, 360, 1971–1980. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. McCarl, C.A.; Picard, C.; Khalil, S.; Kawasaki, T.; Röther, J.; Papolos, A.; Kutok, J.; Hivroz, C.; Ledeist, F.; Plogmann, K.; et al. ORAI1 deficiency and lack of store-operated Ca2+ entry cause immunodeficiency, myopathy, and ectodermal dysplasia. J. Allergy Clin. Immunol. 2009, 124, 1311–1318.e1317. [Google Scholar] [CrossRef] [Green Version]
  65. Fuchs, S.; Rensing-Ehl, A.; Speckmann, C.; Bengsch, B.; Schmitt-Graeff, A.; Bondzio, I.; Maul-Pavicic, A.; Bass, T.; Vraetz, T.; Strahm, B.; et al. Antiviral and regulatory T cell immunity in a patient with stromal interaction molecule 1 deficiency. J. Immunol. 2012, 188, 1523–1533. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. Ma, J.; McCarl, C.A.; Khalil, S.; Lüthy, K.; Feske, S. T-cell-specific deletion of STIM1 and STIM2 protects mice from EAE by impairing the effector functions of Th1 and Th17 cells. Eur. J. Immunol. 2010, 40, 3028–3042. [Google Scholar] [CrossRef] [PubMed]
  67. Oh-Hora, M.; Yamashita, M.; Hogan, P.G.; Sharma, S.; Lamperti, E.; Chung, W.; Prakriya, M.; Feske, S.; Rao, A. Dual functions for the endoplasmic reticulum calcium sensors STIM1 and STIM2 in T cell activation and tolerance. Nat. Immunol. 2008, 9, 432–443. [Google Scholar] [CrossRef] [Green Version]
  68. Beyersdorf, N.; Braun, A.; Vögtle, T.; Varga-Szabo, D.; Galdos, R.R.; Kissler, S.; Kerkau, T.; Nieswandt, B. STIM1-independent T cell development and effector function in vivo. J. Immunol. 2009, 182, 3390–3397. [Google Scholar] [CrossRef] [PubMed]
  69. Kaech, S.M.; Cui, W. Transcriptional control of effector and memory CD8+ T cell differentiation. Nat. Rev. Immunol. 2012, 12, 749–761. [Google Scholar] [CrossRef] [PubMed]
  70. Cui, W.; Liu, Y.; Weinstein, J.S.; Craft, J.; Kaech, S.M. An interleukin-21-interleukin-10-STAT3 pathway is critical for functional maturation of memory CD8+ T cells. Immunity 2011, 35, 792–805. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  71. Swain, S.L.; McKinstry, K.K.; Strutt, T.M. Expanding roles for CD4+ T cells in immunity to viruses. Nat. Rev. Immunol. 2012, 12, 136–148. [Google Scholar] [CrossRef] [PubMed]
  72. Thomsen, A.R.; Nansen, A.; Christensen, J.P.; Andreasen, S.O.; Marker, O. CD40 ligand is pivotal to efficient control of virus replication in mice infected with lymphocytic choriomeningitis virus. J. Immunol. 1998, 161, 4583–4590. [Google Scholar]
  73. Zehn, D.; King, C.; Bevan, M.J.; Palmer, E. TCR signaling requirements for activating T cells and for generating memory. Cell. Mol. Life Sci. CMLS 2012, 69, 1565–1575. [Google Scholar] [CrossRef] [PubMed]
  74. Teixeiro, E.; Daniels, M.A.; Hamilton, S.E.; Schrum, A.G.; Bragado, R.; Jameson, S.C.; Palmer, E. Different T cell receptor signals determine CD8+ memory versus effector development. Science 2009, 323, 502–505. [Google Scholar] [CrossRef] [PubMed]
  75. Cui, W.; Kaech, S.M. Generation of effector CD8+ T cells and their conversion to memory T cells. Immunol. Rev. 2010, 236, 151–166. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  76. Shaw, P.J.; Weidinger, C.; Vaeth, M.; Luethy, K.; Kaech, S.M.; Feske, S. CD4+ and CD8+ T cell-dependent antiviral immunity requires STIM1 and STIM2. J. Clin. Investig. 2014, 124, 4549–4563. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  77. Lioudyno, M.I.; Kozak, J.A.; Penna, A.; Safrina, O.; Zhang, S.L.; Sen, D.; Roos, J.; Stauderman, K.A.; Cahalan, M.D. Orai1 and STIM1 move to the immunological synapse and are up-regulated during T cell activation. Proc. Natl. Acad. Sci. USA 2008, 105, 2011–2016. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  78. Voros, O.; Panyi, G.; Hajdu, P. Immune Synapse Residency of Orai1 Alters Ca(2+) Response of T Cells. Int. J. Mol. Sci. 2021, 22, 11514. [Google Scholar] [CrossRef] [PubMed]
  79. Gandhirajan, R.K.; Meng, S.; Chandramoorthy, H.C.; Mallilankaraman, K.; Mancarella, S.; Gao, H.; Razmpour, R.; Yang, X.F.; Houser, S.R.; Chen, J.; et al. Blockade of NOX2 and STIM1 signaling limits lipopolysaccharide-induced vascular inflammation. J. Clin. Investig. 2013, 123, 887–902. [Google Scholar] [CrossRef] [PubMed]
  80. Wang, G.; Zhang, J.; Xu, C.; Han, X.; Gao, Y.; Chen, H. Inhibition of SOCs Attenuates Acute Lung Injury Induced by Severe Acute Pancreatitis in Rats and PMVECs Injury Induced by Lipopolysaccharide. Inflammation 2016, 39, 1049–1058. [Google Scholar] [CrossRef] [PubMed]
  81. Menendez, J.A. Metformin and SARS-CoV-2: Mechanistic lessons on air pollution to weather the cytokine/thrombotic storm in COVID-19. Aging 2020, 12, 8760–8765. [Google Scholar] [CrossRef] [PubMed]
  82. Feske, S.; Wulff, H.; Skolnik, E.Y. Ion Channels in Innate and Adaptive Immunity. Annu. Rev. Immunol. 2015, 33, 291–353. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  83. Waldron, R.T.; Chen, Y.; Pham, H.; Go, A.; Su, H.-Y.; Hu, C.; Wen, L.; Husain, S.Z.; Sugar, C.A.; Roos, J.; et al. The Orai Ca2+ channel inhibitor CM4620 targets both parenchymal and immune cells to reduce inflammation in experimental acute pancreatitis. J. Physiol. 2019, 597, 3085–3105. [Google Scholar] [CrossRef] [PubMed]
  84. Wu, B.; Ramaiah, A.; Garcia, G., Jr.; Hasiakos, S.; Arumugaswami, V.; Srikanth, S. ORAI1 Limits SARS-CoV-2 Infection by Regulating Tonic Type I IFN Signaling. J. Immunol. 2021, 208, 74–84. [Google Scholar] [CrossRef] [PubMed]
  85. Srikanth, S.; Woo, J.S.; Wu, B.; El-Sherbiny, Y.M.; Leung, J.; Chupradit, K.; Rice, L.; Seo, G.J.; Calmettes, G.; Ramakrishna, C.; et al. The Ca2+ sensor STIM1 regulates the type I interferon response by retaining the signaling adaptor STING at the endoplasmic reticulum. Nat. Immunol. 2019, 20, 152–162. [Google Scholar] [CrossRef] [Green Version]
  86. Miller, J.; Bruen, C.; Schnaus, M.; Zhang, J.; Ali, S.; Lind, A.; Stoecker, Z.; Stauderman, K.; Hebbar, S. Auxora versus standard of care for the treatment of severe or critical COVID-19 pneumonia: Results from a randomized controlled trial. Crit. Care 2020, 24, 502. [Google Scholar] [CrossRef]
  87. Huang, C.-Y.; Wei, P.-L.; Chen, W.-Y.; Chang, W.-C.; Chang, Y.-J. Silencing Heat Shock Protein 27 Inhibits the Progression and Metastasis of Colorectal Cancer (CRC) by Maintaining the Stability of Stromal Interaction Molecule 1 (STIM1) Proteins. Cells 2018, 7, 262. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  88. O’Brien, E.R.; Sandhu, J.K. Sex differences in COVID-19 mortality: Opportunity to develop HSP27 (HSPB1) immunotherapy to treat hyper-inflammation? Cell Stress Chaperones 2020, 25, 725–729. [Google Scholar] [CrossRef]
  89. Berlansky, S.; Humer, C.; Sallinger, M.; Frischauf, I. More Than Just Simple Interaction between STIM and Orai Proteins: CRAC Channel Function Enabled by a Network of Interactions with Regulatory Proteins. Int. J. Mol. Sci. 2021, 22, 471. [Google Scholar] [CrossRef] [PubMed]
  90. Xing, Y.; Wen, Z.; Gao, W.; Lin, Z.; Zhong, J.; Jiu, Y. Multifaceted Functions of Host Cell Caveolae/Caveolin-1 in Virus Infections. Viruses 2020, 12, 487. [Google Scholar] [CrossRef] [PubMed]
  91. Garrean, S.; Gao, X.P.; Brovkovych, V.; Shimizu, J.; Zhao, Y.Y.; Vogel, S.M.; Malik, A.B. Caveolin-1 regulates NF-kappaB activation and lung inflammatory response to sepsis induced by lipopolysaccharide. J. Immunol. 2006, 177, 4853–4860. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  92. Cai, Q.C.; Jiang, Q.W.; Zhao, G.M.; Guo, Q.; Cao, G.W.; Chen, T. Putative caveolin-binding sites in SARS-CoV proteins. Acta Pharmacol. Sin. 2003, 24, 1051–1059. [Google Scholar] [PubMed]
  93. Celik, O.; Saglam, A.; Baysal, B.; Derwig, I.E.; Celik, N.; Ak, M.; Aslan, S.N.; Ulas, M.; Ersahin, A.; Tayyar, A.T.; et al. Factors preventing materno-fetal transmission of SARS-CoV-2. Placenta 2020, 97, 1–5. [Google Scholar] [CrossRef]
  94. Onodi, F.; Bonnet-Madin, L.; Meertens, L.; Karpf, L.; Poirot, J.; Zhang, S.Y.; Picard, C.; Puel, A.; Jouanguy, E.; Zhang, Q.; et al. SARS-CoV-2 induces human plasmacytoid pre-dendritic cell diversification via UNC93B and IRAK4. J. Exp. Med. 2021, 218, e20201387. [Google Scholar] [CrossRef] [PubMed]
  95. Brinkmann, M.M.; Spooner, E.; Hoebe, K.; Beutler, B.; Ploegh, H.L.; Kim, Y.-M. The interaction between the ER membrane protein UNC93B and TLR3, 7, and 9 is crucial for TLR signaling. J. Cell Biol. 2007, 177, 265–275. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  96. Ellgaard, L.; Ruddock, L.W. The human protein disulphide isomerase family: Substrate interactions and functional properties. EMBO Rep. 2005, 6, 28–32. [Google Scholar] [CrossRef]
  97. Prins, D.; Groenendyk, J.; Touret, N.; Michalak, M. Modulation of STIM1 and capacitative Ca2+ entry by the endoplasmic reticulum luminal oxidoreductase ERp57. EMBO Rep. 2011, 12, 1182–1188. [Google Scholar] [CrossRef] [Green Version]
  98. Piacentini, S.; La Frazia, S.; Riccio, A.; Pedersen, J.Z.; Topai, A.; Nicolotti, O.; Rossignol, J.F.; Santoro, M.G. Nitazoxanide inhibits paramyxovirus replication by targeting the Fusion protein folding: Role of glycoprotein-specific thiol oxidoreductase ERp57. Sci. Rep. 2018, 8, 10425. [Google Scholar] [CrossRef]
  99. Rossignol, J.F. Nitazoxanide: A first-in-class broad-spectrum antiviral agent. Antivir. Res. 2014, 110, 94–103. [Google Scholar] [CrossRef] [Green Version]
  100. Cao, J.; Forrest, J.C.; Zhang, X. A screen of the NIH Clinical Collection small molecule library identifies potential anti-coronavirus drugs. Antivir. Res. 2015, 114, 1–10. [Google Scholar] [CrossRef] [PubMed]
  101. Rossignol, J.F. Nitazoxanide, a new drug candidate for the treatment of Middle East respiratory syndrome coronavirus. J. Infect. Public Health 2016, 9, 227–230. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  102. Wang, M.; Cao, R.; Zhang, L.; Yang, X.; Liu, J.; Xu, M.; Shi, Z.; Hu, Z.; Zhong, W.; Xiao, G. Remdesivir and chloroquine effectively inhibit the recently emerged novel coronavirus (2019-nCoV) in vitro. Cell Res. 2020, 30, 269–271. [Google Scholar] [CrossRef]
  103. Son, J.; Huang, S.; Zeng, Q.; Bricker, T.L.; Case, J.B.; Zhou, J.; Zang, R.; Liu, Z.; Chang, X.; Harastani, H.H.; et al. JIB-04 has broad-spectrum antiviral activity and inhibits SARS-CoV-2 replication and coronavirus pathogenesis. bioRxiv 2021, 2020.2009.2024.312165. [Google Scholar] [CrossRef]
  104. Santopolo, S.; Riccio, A.; Santoro, M.G. The biogenesis of SARS-CoV-2 spike glycoprotein: Multiple targets for host-directed antiviral therapy. Biochem. Biophys. Res. Commun. 2021, 538, 80–87. [Google Scholar] [CrossRef] [PubMed]
  105. Berthelot, J.-M.; Lioté, F. COVID-19 as a STING disorder with delayed over-secretion of interferon-beta. EBioMedicine 2020, 56, 102801. [Google Scholar] [CrossRef] [PubMed]
  106. Berthelot, J.M.; Lioté, F.; Maugars, Y.; Sibilia, J. Lymphocyte Changes in Severe COVID-19: Delayed Over-Activation of STING? Front. Immunol. 2020, 11, 607069. [Google Scholar] [CrossRef]
  107. Chow, J.H.; Khanna, A.K.; Kethireddy, S.; Yamane, D.; Levine, A.; Jackson, A.M.; McCurdy, M.T.; Tabatabai, A.; Kumar, G.; Park, P.; et al. Aspirin Use Is Associated With Decreased Mechanical Ventilation, Intensive Care Unit Admission, and In-Hospital Mortality in Hospitalized Patients With Coronavirus Disease 2019. Anesth. Analg. 2021, 132, 930–941. [Google Scholar] [CrossRef]
  108. Srivats, S.; Balasuriya, D.; Pasche, M.; Vistal, G.; Edwardson, J.M.; Taylor, C.W.; Murrell-Lagnado, R.D. Sigma1 receptors inhibit store-operated Ca2+ entry by attenuating coupling of STIM1 to Orai1. J. Cell Biol. 2016, 213, 65–79. [Google Scholar] [CrossRef] [PubMed]
  109. Gasparre, G.; Abate, C.; Carlucci, R.; Berardi, F.; Cassano, G. The σ(1) receptor agonist (+)-pentazocine increases store-operated Ca(2+) entry in MCF7σ(1) and SK-N-SH cell lines. Pharmacol. Rep. PR 2017, 69, 542–545. [Google Scholar] [CrossRef] [PubMed]
  110. Gordon, D.E.; Hiatt, J.; Bouhaddou, M.; Rezelj, V.V.; Ulferts, S.; Braberg, H.; Jureka, A.S.; Obernier, K.; Guo, J.Z.; Batra, J.; et al. Comparative host-coronavirus protein interaction networks reveal pan-viral disease mechanisms. Science 2020, 370, eabe9403. [Google Scholar] [CrossRef] [PubMed]
  111. Vela, J.M. Repurposing Sigma-1 Receptor Ligands for COVID-19 Therapy? Front. Pharmacol. 2020, 11, 582310. [Google Scholar] [CrossRef] [PubMed]
  112. Thakore, P.; Earley, S. Transient Receptor Potential Channels and Endothelial Cell Calcium Signaling. Compr. Physiol. 2019, 9, 1249–1277. [Google Scholar] [CrossRef] [PubMed]
  113. Park, Y.J.; Yoo, S.A.; Kim, M.; Kim, W.U. The Role of Calcium-Calcineurin-NFAT Signaling Pathway in Health and Autoimmune Diseases. Front. Immunol. 2020, 11, 195. [Google Scholar] [CrossRef] [PubMed]
  114. Soboloff, J.; Rothberg, B.S.; Madesh, M.; Gill, D.L. STIM proteins: Dynamic calcium signal transducers. Nat. Rev. Mol. Cell Biol. 2012, 13, 549–565. [Google Scholar] [CrossRef] [Green Version]
  115. Rinkenberger, N.; Schoggins, J.W. Mucolipin-2 Cation Channel Increases Trafficking Efficiency of Endocytosed Viruses. mBio 2018, 9, e02314–e02317. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  116. Zhao, Z.; Qin, P.; Huang, Y.W. Lysosomal ion channels involved in cellular entry and uncoating of enveloped viruses: Implications for therapeutic strategies against SARS-CoV-2. Cell Calcium 2021, 94, 102360. [Google Scholar] [CrossRef] [PubMed]
  117. Jaffal, S.M.; Abbas, M.A. TRP channels in COVID-19 disease: Potential targets for prevention and treatment. Chem. Biol. Interact. 2021, 345, 109567. [Google Scholar] [CrossRef]
  118. Guihur, A.; Rebeaud, M.E.; Fauvet, B.; Tiwari, S.; Weiss, Y.G.; Goloubinoff, P. Moderate Fever Cycles as a Potential Mechanism to Protect the Respiratory System in COVID-19 Patients. Front. Med. 2020, 7, 564170. [Google Scholar] [CrossRef] [PubMed]
  119. Ruan, Q.; Yang, K.; Wang, W.; Jiang, L.; Song, J. Clinical predictors of mortality due to COVID-19 based on an analysis of data of 150 patients from Wuhan, China. Intensive Care Med. 2020, 46, 846–848. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  120. Balakrishna, S.; Song, W.; Achanta, S.; Doran, S.F.; Liu, B.; Kaelberer, M.M.; Yu, Z.; Sui, A.; Cheung, M.; Leishman, E.; et al. TRPV4 inhibition counteracts edema and inflammation and improves pulmonary function and oxygen saturation in chemically induced acute lung injury. Am. J. Physiol. Lung Cell. Mol. Physiol. 2014, 307, L158–L172. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  121. Simmons, S.; Erfinanda, L.; Bartz, C.; Kuebler, W.M. Novel mechanisms regulating endothelial barrier function in the pulmonary microcirculation. J. Physiol. 2019, 597, 997–1021. [Google Scholar] [CrossRef]
  122. Rosenbaum, T.; Benítez-Angeles, M.; Sánchez-Hernández, R.; Morales-Lázaro, S.L.; Hiriart, M.; Morales-Buenrostro, L.E.; Torres-Quiroz, F. TRPV4: A Physio and Pathophysiologically Significant Ion Channel. Int. J. Mol. Sci. 2020, 21, 3837. [Google Scholar] [CrossRef] [PubMed]
  123. Xu, T.; Wu, B.M.; Yao, H.W.; Meng, X.M.; Huang, C.; Ni, M.M.; Li, J. Novel insights into TRPM7 function in fibrotic diseases: A potential therapeutic target. J. Cell. Physiol. 2015, 230, 1163–1169. [Google Scholar] [CrossRef] [PubMed]
  124. Hyser, J.M.; Estes, M.K. Pathophysiological Consequences of Calcium-Conducting Viroporins. Annu. Rev. Virol. 2015, 2, 473–496. [Google Scholar] [CrossRef] [PubMed]
  125. Omar, S.; Clarke, R.; Abdullah, H.; Brady, C.; Corry, J.; Winter, H.; Touzelet, O.; Power, U.F.; Lundy, F.; McGarvey, L.P.; et al. Respiratory virus infection up-regulates TRPV1, TRPA1 and ASICS3 receptors on airway cells. PLoS ONE 2017, 12, e0171681. [Google Scholar] [CrossRef] [Green Version]
  126. Chen, X.; Cao, R.; Zhong, W. Host Calcium Channels and Pumps in Viral Infections. Cells 2019, 9, 94. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  127. Goyal, N.; Skrdla, P.; Schroyer, R.; Kumar, S.; Fernando, D.; Oughton, A.; Norton, N.; Sprecher, D.L.; Cheriyan, J. Clinical Pharmacokinetics, Safety, and Tolerability of a Novel, First-in-Class TRPV4 Ion Channel Inhibitor, GSK2798745, in Healthy and Heart Failure Subjects. Am. J. Cardiovasc. Drugs Drugs Devices Other Interv. 2019, 19, 335–342. [Google Scholar] [CrossRef] [Green Version]
  128. Wulff, H.; Christophersen, P.; Colussi, P.; Chandy, K.G.; Yarov-Yarovoy, V. Antibodies and venom peptides: New modalities for ion channels. Nat. Rev. Drug Discov. 2019, 18, 339–357. [Google Scholar] [CrossRef] [PubMed]
  129. Brederson, J.D.; Kym, P.R.; Szallasi, A. Targeting TRP channels for pain relief. Eur. J. Pharmacol. 2013, 716, 61–76. [Google Scholar] [CrossRef] [PubMed]
  130. Grein, J.; Ohmagari, N.; Shin, D.; Diaz, G.; Asperges, E.; Castagna, A.; Feldt, T.; Green, G.; Green, M.L.; Lescure, F.-X.; et al. Compassionate Use of Remdesivir for Patients with Severe Covid-19. N. Engl. J. Med. 2020, 382, 2327–2336. [Google Scholar] [CrossRef] [PubMed]
  131. Boulware, D.R.; Pullen, M.F.; Bangdiwala, A.S.; Pastick, K.A.; Lofgren, S.M.; Okafor, E.C.; Skipper, C.P.; Nascene, A.A.; Nicol, M.R.; Abassi, M.; et al. A Randomized Trial of Hydroxychloroquine as Postexposure Prophylaxis for Covid-19. N. Engl. J. Med. 2020, 383, 517–525. [Google Scholar] [CrossRef]
  132. Fischer, W.; Eron, J.J.; Holman, W.; Cohen, M.S.; Fang, L.; Szewczyk, L.J.; Sheahan, T.P.; Baric, R.; Mollan, K.R.; Wolfe, C.R.; et al. Molnupiravir, an Oral Antiviral Treatment for COVID-19. Medrxiv Prepr. Serv. Health Sci. 2021. [Google Scholar] [CrossRef]
  133. Gordon, C.J.; Tchesnokov, E.P.; Schinazi, R.F.; Götte, M. Molnupiravir promotes SARS-CoV-2 mutagenesis via the RNA template. J. Biol. Chem. 2021, 297, 100770. [Google Scholar] [CrossRef] [PubMed]
  134. Kabinger, F.; Stiller, C.; Schmitzová, J.; Dienemann, C.; Kokic, G.; Hillen, H.S.; Höbartner, C.; Cramer, P. Mechanism of molnupiravir-induced SARS-CoV-2 mutagenesis. Nat. Struct. Mol. Biol. 2021, 28, 740–746. [Google Scholar] [CrossRef] [PubMed]
  135. Zhao, Y.; Fang, C.; Zhang, Q.; Zhang, R.; Zhao, X.; Duan, Y.; Wang, H.; Zhu, Y.; Feng, L.; Zhao, J.; et al. Crystal structure of SARS-CoV-2 main protease in complex with protease inhibitor PF-07321332. Protein Cell 2021, 1–5. [Google Scholar] [CrossRef] [PubMed]
  136. Schooley, R.T.; Carlin, A.F.; Beadle, J.R.; Valiaeva, N.; Zhang, X.Q.; Clark, A.E.; McMillan, R.E.; Leibel, S.L.; McVicar, R.N.; Xie, J.; et al. Rethinking Remdesivir: Synthesis, Antiviral Activity, and Pharmacokinetics of Oral Lipid Prodrugs. Antimicrob. Agents Chemother. 2021, 65, e0115521. [Google Scholar] [CrossRef] [PubMed]
  137. Straus, M.R.; Bidon, M.K.; Tang, T.; Jaimes, J.A.; Whittaker, G.R.; Daniel, S. Inhibitors of L-Type Calcium Channels Show Therapeutic Potential for Treating SARS-CoV-2 Infections by Preventing Virus Entry and Spread. ACS Infect. Dis. 2021, 7, 2807–2815. [Google Scholar] [CrossRef]
  138. Solaimanzadeh, I. Nifedipine and Amlodipine Are Associated With Improved Mortality and Decreased Risk for Intubation and Mechanical Ventilation in Elderly Patients Hospitalized for COVID-19. Cureus 2020, 12, e8069. [Google Scholar] [CrossRef]
  139. Zhang, L.-K.; Sun, Y.; Zeng, H.; Wang, Q.; Jiang, X.; Shang, W.-J.; Wu, Y.; Li, S.; Zhang, Y.-L.; Hao, Z.-N.; et al. Calcium channel blocker amlodipine besylate therapy is associated with reduced case fatality rate of COVID-19 patients with hypertension. Cell Discov. 2020, 6, 96. [Google Scholar] [CrossRef] [PubMed]
  140. Pan, W.; Zhang, J.; Wang, M.; Ye, J.; Xu, Y.; Shen, B.; He, H.; Wang, Z.; Ye, D.; Zhao, M.; et al. Clinical Features of COVID-19 in Patients With Essential Hypertension and the Impacts of Renin-angiotensin-aldosterone System Inhibitors on the Prognosis of COVID-19 Patients. Hypertension 2020, 76, 732–741. [Google Scholar] [CrossRef] [PubMed]
  141. Peng, C.; Wang, H.; Guo, Y.-F.; Qi, G.-Y.; Zhang, C.-X.; Chen, T.; He, J.; Jin, Z.-C. Calcium channel blockers improve prognosis of patients with coronavirus disease 2019 and hypertension. Chin Med. J. 2021, 134, 1602–1609. [Google Scholar] [CrossRef]
  142. Matsumori, A.; Nishio, R.; Nose, Y. Calcium Channel Blockers Differentially Modulate Cytokine Production by Peripheral Blood Mononuclear Cells. Circ. J. 2010, 74, 567–571. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  143. Tang, Y.; Liu, J.; Zhang, D.; Xu, Z.; Ji, J.; Wen, C. Cytokine Storm in COVID-19: The Current Evidence and Treatment Strategies. Front. Immunol. 2020, 11, 1708. [Google Scholar] [CrossRef]
  144. Mahgoub, S.; Kotb El-Sayed, M.-I.; El-Shehry, M.F.; Awad, S.M.; Mansour, Y.E.; Fatahala, S.S. Synthesis of novel calcium channel blockers with ACE2 inhibition and dual antihypertensive/anti-inflammatory effects: A possible therapeutic tool for COVID-19. Bioorganic Chem. 2021, 116, 105272. [Google Scholar] [CrossRef] [PubMed]
  145. Yang, Y.; Yang, P.; Huang, C.; Wu, Y.; Zhou, Z.; Wang, X.; Wang, S. Inhibitory effect on SARS-CoV-2 infection of neferine by blocking Ca2+-dependent membrane fusion. J. Med. Virol. 2021, 93, 5825–5832. [Google Scholar] [CrossRef] [PubMed]
  146. Vadász, I.; Sznajder, J.I. Gas Exchange Disturbances Regulate Alveolar Fluid Clearance during Acute Lung Injury. Front. Immunol. 2017, 8, 757. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  147. Jairaman, A.; Prakriya, M. Molecular pharmacology of store-operated CRAC channels. Channels 2013, 7, 402–414. [Google Scholar] [CrossRef] [Green Version]
  148. Tian, C.; Du, L.; Zhou, Y.; Li, M. Store-operated CRAC channel inhibitors: Opportunities and challenges. Future Med. Chem. 2016, 8, 817–832. [Google Scholar] [CrossRef] [Green Version]
  149. Waldherr, L.; Tiffner, A.; Mishra, D.; Sallinger, M.; Schober, R.; Frischauf, I.; Schmidt, T.; Handl, V.; Sagmeister, P.; Köckinger, M.; et al. Blockage of Store-Operated Ca2+ Influx by Synta66 is Mediated by Direct Inhibition of the Ca2+ Selective Orai1 Pore. Cancers 2020, 12, 2876. [Google Scholar] [CrossRef]
  150. Wen, L.; Voronina, S.; Javed, M.A.; Awais, M.; Szatmary, P.; Latawiec, D.; Chvanov, M.; Collier, D.; Huang, W.; Barrett, J.; et al. Inhibitors of ORAI1 Prevent Cytosolic Calcium-Associated Injury of Human Pancreatic Acinar Cells and Acute Pancreatitis in 3 Mouse Models. Gastroenterology 2015, 149, 481–492.e487. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  151. Stauderman, K.A. CRAC channels as targets for drug discovery and development. Cell Calcium 2018, 74, 147–159. [Google Scholar] [CrossRef] [PubMed]
  152. Siemens, J.; Hanack, C. Modulation of TRP ion channels by venomous toxins. Handb. Exp. Pharmacol. 2014, 223, 1119–1142. [Google Scholar] [CrossRef] [PubMed]
  153. Siemens, J.; Zhou, S.; Piskorowski, R.; Nikai, T.; Lumpkin, E.A.; Basbaum, A.I.; King, D.; Julius, D. Spider toxins activate the capsaicin receptor to produce inflammatory pain. Nature 2006, 444, 208–212. [Google Scholar] [CrossRef] [PubMed]
  154. Vellani, V.; Colucci, M.; Lattanzi, R.; Giannini, E.; Negri, L.; Melchiorri, P.; McNaughton, P.A. Sensitization of transient receptor potential vanilloid 1 by the prokineticin receptor agonist Bv8. J. Neurosci. Off. J. Soc. Neurosci. 2006, 26, 5109–5116. [Google Scholar] [CrossRef] [Green Version]
  155. Andreev, Y.A.; Kozlov, S.A.; Koshelev, S.G.; Ivanova, E.A.; Monastyrnaya, M.M.; Kozlovskaya, E.P.; Grishin, E.V. Analgesic compound from sea anemone Heteractis crispa is the first polypeptide inhibitor of vanilloid receptor 1 (TRPV1). J. Biol. Chem. 2008, 283, 23914–23921. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  156. Kitaguchi, T.; Swartz, K.J. An inhibitor of TRPV1 channels isolated from funnel Web spider venom. Biochemistry 2005, 44, 15544–15549. [Google Scholar] [CrossRef] [PubMed]
  157. Ding, J.; Xiao, Y.; Lu, D.; Du, Y.R.; Cui, X.Y.; Chen, J. Effects of SKF-96365, a TRPC inhibitor, on melittin-induced inward current and intracellular Ca2+ rise in primary sensory cells. Neurosci. Bull. 2011, 27, 135–142. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  158. Nahama, A.; Ramachandran, R.; Cisternas, A.F.; Ji, H. The role of afferent pulmonary innervation in ARDS associated with COVID-19 and potential use of resiniferatoxin to improve prognosis: A review. Med. Drug Discov. 2020, 5, 100033. [Google Scholar] [CrossRef] [PubMed]
  159. Ashraf, S.; Ashraf, S.; Akmal, R.; Ashraf, M.; Kalsoom, L.; Maqsood, A.; Imran, M.A.; Farooq, I.; Ashraf, S.; Siddiqui, U.N.; et al. Prophylactic potential of honey and Nigella sativa L. against hospital and community-based SARS-CoV-2 spread: A structured summary of a study protocol for a randomised controlled trial. Trials 2021, 22, 618. [Google Scholar] [CrossRef] [PubMed]
  160. Seadawy, M.G.; Gad, A.F.; Shamel, M.; Elharty, B.; Mohamed, M.F.; Elfiky, A.A.; Ahmed, A.; Zekri, A.R.N. In vitro: Natural compounds (Thymol, Carvacrol, Hesperidine, and Thymoquinone) against SARS-CoV2 strain isolated from Egyptian patients. Res. Sq. 2021. [Google Scholar] [CrossRef]
  161. Badary, O.A.; Hamza, M.S.; Tikamdas, R. Thymoquinone: A Promising Natural Compound with Potential Benefits for COVID-19 Prevention and Cure. Drug Des. Dev. Ther. 2021, 15, 1819–1833. [Google Scholar] [CrossRef] [PubMed]
  162. Ulasli, M.; Gurses, S.A.; Bayraktar, R.; Yumrutas, O.; Oztuzcu, S.; Igci, M.; Igci, Y.Z.; Cakmak, E.A.; Arslan, A. The effects of Nigella sativa (Ns), Anthemis hyalina (Ah) and Citrus sinensis (Cs) extracts on the replication of coronavirus and the expression of TRP genes family. Mol. Biol. Rep. 2014, 41, 1703–1711. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  163. Wang, B.; Kovalchuk, A.; Li, D.; Rodriguez-Juarez, R.; Ilnytskyy, Y.; Kovalchuk, I.; Kovalchuk, O. In search of preventive strategies: Novel high-CBD Cannabis sativa extracts modulate ACE2 expression in COVID-19 gateway tissues. Aging 2020, 12, 22425–22444. [Google Scholar] [CrossRef]
  164. Brann, D.H.; Tsukahara, T.; Weinreb, C.; Lipovsek, M.; Van den Berge, K.; Gong, B.; Chance, R.; Macaulay, I.C.; Chou, H.J.; Fletcher, R.B.; et al. Non-neuronal expression of SARS-CoV-2 entry genes in the olfactory system suggests mechanisms underlying COVID-19-associated anosmia. Sci. Adv. 2020, 6, eabc5801. [Google Scholar] [CrossRef]
  165. Storozhuk, M.V.; Zholos, A.V. TRP Channels as Novel Targets for Endogenous Ligands: Focus on Endocannabinoids and Nociceptive Signalling. Curr. Neuropharmacol. 2018, 16, 137–150. [Google Scholar] [CrossRef] [PubMed]
  166. Bousquet, J.; Czarlewski, W.; Zuberbier, T. Potential Control of COVID-19 Symptoms by Nrf2-Interacting Nutrients with TRPA1 (Transient Receptor Potential Ankyrin 1) agonist Activity. Clin. Transl. Allergy 2020. Available online: (accessed on 11 November 2021).
  167. Bousquet, J.; Czarlewski, W.; Zuberbier, T.; Mullol, J.; Blain, H.; Cristol, J.P.; De La Torre, R.; Pizarro Lozano, N.; Le Moing, V.; Bedbrook, A.; et al. Potential Interplay between Nrf2, TRPA1, and TRPV1 in Nutrients for the Control of COVID-19. Int. Arch. Allergy Immunol. 2021, 182, 324–338. [Google Scholar] [CrossRef] [PubMed]
  168. Vriens, J.; Nilius, B.; Vennekens, R. Herbal compounds and toxins modulating TRP channels. Curr. Neuropharmacol. 2008, 6, 79–96. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  169. Vaeth, M.; Kahlfuss, S.; Feske, S. CRAC Channels and Calcium Signaling in T Cell-Mediated Immunity. Trends Immunol. 2020, 41, 878–901. [Google Scholar] [CrossRef]
  170. Bakowski, D.; Murray, F.; Parekh, A.B. Store-Operated Ca2+ Channels: Mechanism, Function, Pharmacology, and Therapeutic Targets. Annu. Rev. Pharmacol. Toxicol. 2021, 61, 629–654. [Google Scholar] [CrossRef] [PubMed]
  171. Bakowski, D.; Wood, A.J.; Parekh, A.B. Sequi Ad Maius Bonum; Targeting Ion Channels in the Lung. Function 2021, 2, zqaa045. [Google Scholar] [CrossRef]
  172. Crespi, B.; Alcock, J. Conflicts over calcium and the treatment of COVID-19. Evol. Med. Public Health 2021, 9, 149–156. [Google Scholar] [CrossRef] [PubMed]
  173. Di Filippo, L.; Formenti, A.M.; Rovere-Querini, P.; Carlucci, M.; Conte, C.; Ciceri, F.; Zangrillo, A.; Giustina, A. Hypocalcemia is highly prevalent and predicts hospitalization in patients with COVID-19. Endocrine 2020, 68, 475–478. [Google Scholar] [CrossRef] [PubMed]
  174. Liu, J.; Han, P.; Wu, J.; Gong, J.; Tian, D. Prevalence and predictive value of hypocalcemia in severe COVID-19 patients. J. Infect. Public Health 2020, 13, 1224–1228. [Google Scholar] [CrossRef] [PubMed]
  175. Wu, Y.; Hou, B.; Liu, J.; Chen, Y.; Zhong, P. Risk Factors Associated With Long-Term Hospitalization in Patients With COVID-19: A Single-Centered, Retrospective Study. Front. Med. 2020, 7, 315. [Google Scholar] [CrossRef] [PubMed]
  176. Di Filippo, L.; Formenti, A.M.; Giustina, A. Hypocalcemia: The quest for the cause of a major biochemical feature of COVID-19. Endocrine 2020, 70, 463–464. [Google Scholar] [CrossRef] [PubMed]
  177. Kumar, P.; Kumar, M.; Bedi, O.; Gupta, M.; Kumar, S.; Jaiswal, G.; Rahi, V.; Yedke, N.G.; Bijalwan, A.; Sharma, S.; et al. Role of vitamins and minerals as immunity boosters in COVID-19. Inflammopharmacology 2021, 29, 1001–1016. [Google Scholar] [CrossRef] [PubMed]

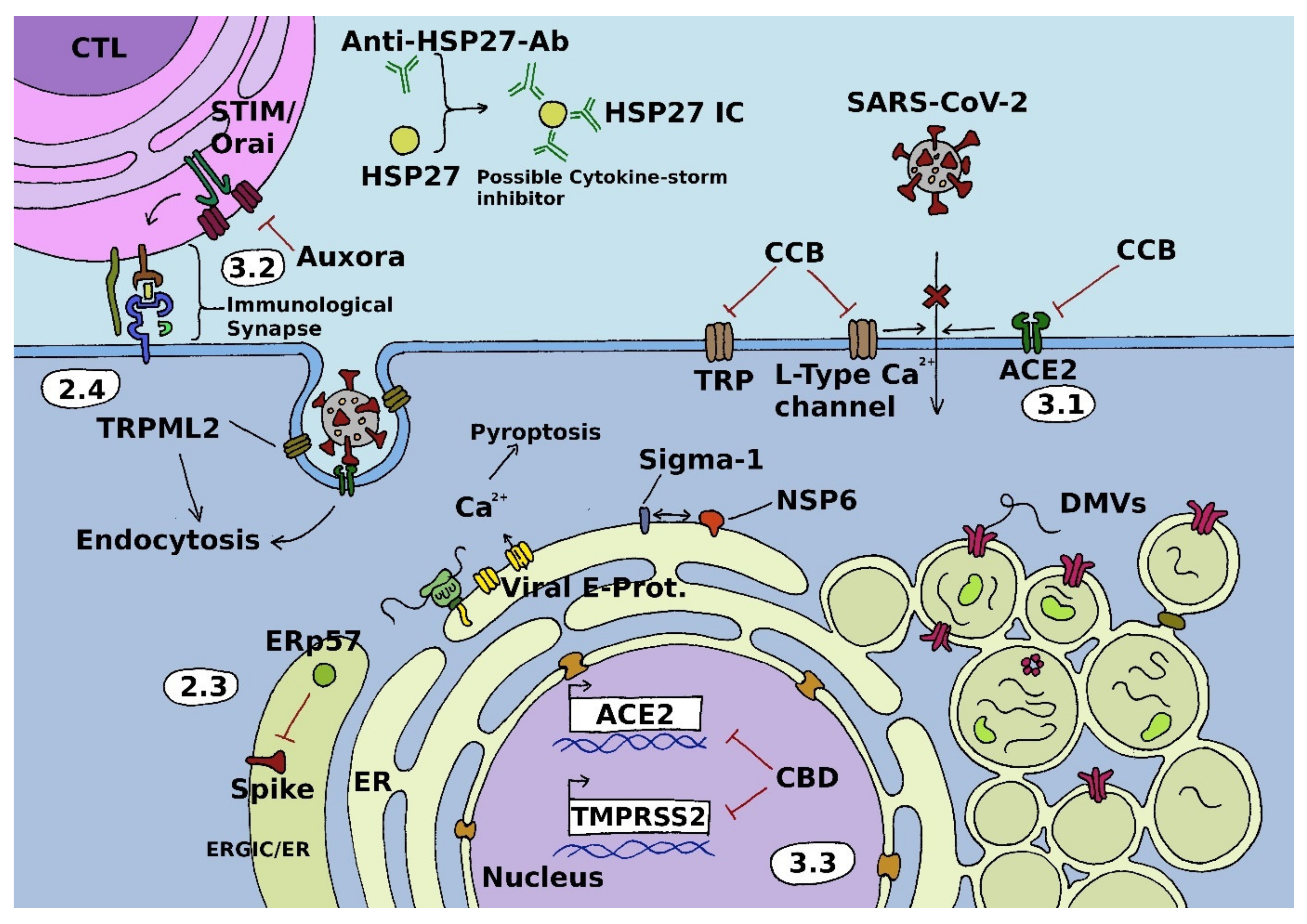

Figure 1. Strategies for inhibition of cellular calcium transport systems involved in viral infection cascades. Calcium levels dictate the activity of the NLRP3 inflammasome, eventually leading to pyroptosis of the cell. CCBs have been shown to interact with TRP, L-type Ca2+ channels as well as ACE2 and thus have the potential to inhibit SARS-CoV-2 endocytosis. Auxora is a specific inhibitor of the STIM/Orai system, which has been implicated in inflammation-induced injury of pulmonary endothelial cells as well as proinflammatory cytokine storms that contribute to severe COVID-19 disease. There is evidence that TRPML2 channels have a role in the endocytosis of SARS-CoV-2 into host cells. Potential drugs designed for these channels could be strong tools in the treatment of COVID-19. CBD decreases expression of ACE2 and TMPRSS2, which are both integral players in SARS-CoV-2 infection. Double-membrane vesicles (DMVs) are derived from ER membranes and formed by non-structural proteins (NSPs) 3–6 to facilitate viral RNA replication in separate compartments, as it would be impaired by immune-responses in the cytosol. HSP27 vaccination might attenuate inflammation and increase tissue regeneration. Inhibition of ERp57 might impair correct spike-folding during virus replication. Knockout/knockdown of the Sigma-1 receptor has been shown to reduce viral replication, Numbers in bubbles denote sections describing the indicated proteins and mechanisms in detail.
Figure 1. Strategies for inhibition of cellular calcium transport systems involved in viral infection cascades. Calcium levels dictate the activity of the NLRP3 inflammasome, eventually leading to pyroptosis of the cell. CCBs have been shown to interact with TRP, L-type Ca2+ channels as well as ACE2 and thus have the potential to inhibit SARS-CoV-2 endocytosis. Auxora is a specific inhibitor of the STIM/Orai system, which has been implicated in inflammation-induced injury of pulmonary endothelial cells as well as proinflammatory cytokine storms that contribute to severe COVID-19 disease. There is evidence that TRPML2 channels have a role in the endocytosis of SARS-CoV-2 into host cells. Potential drugs designed for these channels could be strong tools in the treatment of COVID-19. CBD decreases expression of ACE2 and TMPRSS2, which are both integral players in SARS-CoV-2 infection. Double-membrane vesicles (DMVs) are derived from ER membranes and formed by non-structural proteins (NSPs) 3–6 to facilitate viral RNA replication in separate compartments, as it would be impaired by immune-responses in the cytosol. HSP27 vaccination might attenuate inflammation and increase tissue regeneration. Inhibition of ERp57 might impair correct spike-folding during virus replication. Knockout/knockdown of the Sigma-1 receptor has been shown to reduce viral replication, Numbers in bubbles denote sections describing the indicated proteins and mechanisms in detail.
Cells 11 00253 g001
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Berlansky, S.; Sallinger, M.; Grabmayr, H.; Humer, C.; Bernhard, A.; Fahrner, M.; Frischauf, I. Calcium Signals during SARS-CoV-2 Infection: Assessing the Potential of Emerging Therapies. Cells 2022, 11, 253.

AMA Style

Berlansky S, Sallinger M, Grabmayr H, Humer C, Bernhard A, Fahrner M, Frischauf I. Calcium Signals during SARS-CoV-2 Infection: Assessing the Potential of Emerging Therapies. Cells. 2022; 11(2):253.

Chicago/Turabian Style

Berlansky, Sascha, Matthias Sallinger, Herwig Grabmayr, Christina Humer, Andreas Bernhard, Marc Fahrner, and Irene Frischauf. 2022. "Calcium Signals during SARS-CoV-2 Infection: Assessing the Potential of Emerging Therapies" Cells 11, no. 2: 253.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
