Finding Aquaporins in Annelids: An Evolutionary Analysis and a Case Study

Abstract

Aquaporins (AQPs) are a family of membrane channels facilitating diffusion of water and small solutes into and out of cells. Despite their biological relevance in osmoregulation and ubiquitous distribution throughout metazoans, the presence of AQPs in annelids has been poorly investigated. Here, we searched and annotated Aqp sequences in public genomes and transcriptomes of annelids, inferred their evolutionary relationships through phylogenetic analyses and discussed their putative physiological relevance. We identified a total of 401 Aqp sequences in 27 annelid species, including 367 sequences previously unrecognized as Aqps. Similar to vertebrates, phylogenetic tree reconstructions clustered these annelid Aqps in four clades: AQP1-like, AQP3-like, AQP8-like and AQP11-like. We found no clear indication of the existence of paralogs exclusive to annelids; however, several gene duplications seem to have occurred in the ancestors of some Sedentaria annelid families, mainly in the AQP1-like clade. Three of the six Aqps annotated in Alitta succinea, an estuarine annelid showing high salinity tolerance, were validated by RT-PCR sequencing, and their similarity to human AQPs was investigated at the level of “key” conserved residues and predicted three-dimensional structure. Our results suggest a diversification of the structures and functions of AQPs in Annelida comparable to that observed in other taxa.

1. Introduction

Estuaries, including a large variety of intertidal environments, are highly dynamic systems characterized by large salinity fluctuations due to regular or stochastic events, such as pluviosity, river flows, tides, waves and storms [1]. Regular or irregular salinity variation is thus a major ecological and evolutionary challenge faced by organisms inhabiting these environments, which exhibit adaptations at different levels of biological organization. For instance, complex excretory systems and less permeable cuticles are common [2,3,4]. At the cellular level, membrane carrier and channel proteins work together to regulate osmolarity and cell volume. Carrier proteins, for instance, function to transport ions and neutral solutes through the plasma membranes. Among them, the Na-K-2Cl (NKCC) cotransporter and Na⁺/K⁺-ATPase are known to exert a central role in osmoregulation and cell volume homeostasis [5,6]. Water is the major component of biological fluids, and water movement into and out of cells is a property of life [7]. Driven by osmotic gradients, water can cross the plasma membrane through the phospholipid bilayer (simple diffusion) or by means of specific proteinaceous pores formed by aquaporin water channels, hereafter AQPs (facilitated diffusion) [8]. Water movement through AQPs is fast and can be regulated as it occurs during fluid secretion and absorption, and in cell volume homeostasis [7]. Membranes containing AQPs are five to 100 times more permeable to water than membranes lacking AQPs [9].

AQPs are a group of membrane channels widely expressed in nature, facilitating the transport of water and a number of small solutes, such as glycerol and other polyols, urea, hydrogen peroxide, ammonia and metalloids, as well as gases of biological relevance, such as carbon dioxide and oxygen [10,11]. The tertiary and quaternary structures of AQPs are highly conserved among taxa [12,13]. The functional unit of AQPs is organized as a tetramer, with each monomer having an independent channel consisting of an extracellular and intracellular vestibule connected by an extended narrow pore [14]. Each monomer has two main constriction sites responsible for substrate selectivity: (i) the aromatic/arginine selectivity filter (ar/R; three aromatic amino acids and one arginine) and (ii) two conserved Asn-Pro-Ala motifs (NPA) in the middle of the channel, where the positive N-terminus ends of two half helices meet the two highly conserved NPA motifs [15,16,17]. Notwithstanding these shared structural features, the overall primary structure is poorly conserved. These differences are reflected in the high diversity of the AQP family, with several new members recently discovered due to the increase in publicly available genomes and transcriptomes. The high diversification of these membrane proteins is thought to be the result of a combination of factors, such as single gene or whole genome duplications, and horizontal gene transfers [13]. Based on the evolutionary relationships and function, the existing vertebrate AQPs have been classified into four main groups: (i) orthodox aquaporins, or AQP1-like (AQP0, 1, 2, 4, 5, 6), homologues that were initially believed to transport only water; (ii) aquaammoniaporins, or AQP8-like, represented by AQP8, sometimes included in the orthodox AQPs; (iii) aquaglyceroporins, or AQP3-like (AQP3, 7, 9, 10), allowing permeation of glycerol, urea and other neutral small solutes in addition to water; and (iv) superaquaporins (also called unorthodox aquaporins), or AQP11-like (AQP11 and AQP12), characterized by a distinct evolutionary pathway, intracellular localization and a substrate selectivity that is still unclear [11,13,18,19,20]. AQP1, 3, 5, 8, 9 and 11 also allow transport of hydrogen peroxide, and, for this biophysical feature, are called peroxiporins [21]. Certainly, the diversification of AQPs appears to depend on the taxa. For instance, the majority of bacteria present a single Aqp gene or just one orthodox Aqp plus one aquaglyceroporin, while peculiar Aqp paralogs were retrieved only in plants (i.e., PIPs, NIPs, TIPs, SIPs, XIPs and HIPs). In invertebrate taxa, AQPs have already been characterized in arthropods [22,23,24,25], nematodes [26] and mollusks [27,28]. It is currently assumed that invertebrate AQPs are highly similar to vertebrate AQP1 and AQP4 [29]. Thus, it is becoming evident that rapid evolutionary turnover of gene duplications and gene losses are widespread [13], supporting the role of these proteins in the evolutionary adaptation of animals and plants from environmentally dynamic areas, such as estuaries.

To date, the presence of functional AQPs in annelids has only been indirectly suggested by assessing the change in body weight of the nereidid polychaete Perinereis sp. with hormones stimulating water transport (i.e., angiotensin II and angiotensin III) in the presence or absence of tetrachloroaurate (III), an AQP blocker [30]. Moreover, three unpublished Aqp sequences of terrestrial clitellates (Oligochaeta; AC number: CAX48970.1, CAX48991.1 and CAX48991.1) are available in the nucleotide nr database and have been analyzed in a wide phylogenetic study of all prokaryotic and eukaryotic Aqps [13]. Annelids are an ecologically and morphologically diverse group among marine invertebrates, and their members occupy a wide range of environments and show diverse lifestyles. As indicated by recent phylogenetic analyses [31], which disfavors the further usage of the nonmonophyletic Polychaeta, most annelid diversity is comprised of two monophyletic groups, Sedentaria and Errantia, which are named after the predominant mobility behavior of their members. Such recent annelid phylogenetic research highlights the diversity of annelid body plans, and therefore these worms may be seen as good models to understand the relation between physiology, behavior and evolution of Bilateria in general. In this context, comparative studies on Aqps may be one way to investigate the macroevolutionary transition between annelids and related invertebrate taxa.

Scarce taxon sampling in phylogenetic analyses may hide the real abundance and diversity of Aqps among invertebrates. The high diversity of AQPs and their reported function in osmoregulation among plants and many vertebrates [11] lead us to speculate that annelid AQPs may have a similar function in relation to salinity variation, to which this invertebrate phylum undergoes in estuarine systems. The involvement of AQPs in annelid osmoregulation may also be related to the ability of some AQPs to mediate transmembrane transport of ammonia and urea [32,33], catabolites often exploited to maintain the osmotic balance [34]. The physiological significance of AQPs in annelids may be greater than just being involved in osmotic homeostasis. Vertebrate AQPs have pleiotropic relevance by intervening in several other biological processes such as metabolism and energy balance, cell proliferation and differentiation, tissue repair, cell migration, inflammation, circadian rhythm and aging [35,36,37,38].

In this work, we first searched and annotated Aqp sequences of annelids in public nucleotide, genomic and transcriptomic databases/datasets, thus identifying sequences not previously recognized as Aqps. Moreover, we analyzed the diversity of Aqp genes in some specimens of the estuarine species Alitta succinea (Annelida: Nereididae), by RT-PCR and sequencing. This species, usually associated with organogenic detritus and human-made substrates [39], was chosen because of its worldwide occurrence and salinity tolerance. Finally, we reconstructed the evolutionary history of annelid Aqps in the metazoan framework, by providing gene/transcript sequences of annelid Aqps and inferring their phylogenetic relationships.

2. Materials and Methods

2.1. Database Mining and Phylogenetic Analyses

Aqp sequences of annelids were identified through text search and BlastP/tBlastn analyses [40] in the following:

(1)

the protein database of NCBI (accessed between 8 January 2019 and 21 September 2021);

(2)

the nonredundant nucleotide (nr) and the Transcriptome Shotgun Assembly (TSA) databases available at NCBI (accessed between 8 January 2019 and 21 September 2021). In the related tBlastn analyses, a threshold of 1 × 10⁻¹⁵ for the e-values and 40% of query coverage was used;

(3)

the two annelid genomes of Capitella teleta Blake, Grassle and Eckelbarger, 2009 (v.1.0 of 23 August 2007) and Helobdella robusta Shankland, Bissen & Weisblat, 1992 (v.1.0 of 20 September 2007) available on the JGI Genome Portal (accessed between 29 November 2018 and 11 January 2019 [41]);

(4)

the PdumBase transcriptome database of Platynereis dumerilii (Audouin and Milne Edwards, 1833) available at http://140.109.48.81/platynereis/controller.php?action=home (accessed 11 March 2019) [42];

(5)

the transcriptome of Alitta succinea available in the supplementary material (available at http://dx.doi.org/10.5061/dryad.30k4v) of Kocot and coworkers [43];

(6)

the Aqp dataset of metazoans analyzed in Abascal and coworkers [13]. Sequence searches were not performed in the SRA (Sequence Read Archive) database (accessed 29 November 2020) to avoid necessary accurate assembly protocols that were not in the scope of this study.

In BlastP and tBlastn searches (accessed between 8 January 2019 and 21 September 2021), we used as queries the amino acid sequences of all known human AQPs, and those of the annelid Aqps that were progressively identified. In the genomic databases of C. teleta and H. robusta, text search was performed by searching for gene sequences with hits to protein domain database entries describing the AQP family (i.e., hits to the entries PF00230-“Major intrinsic protein” of Pfam [44], IPR000425-“MIP” of Interpro [45], and KOG0223-“Aquaporin (major intrinsic protein family)” of CDD [46]. Indeed, no one of the identified C. teleta and H. robusta Aqps was annotated as such in the genomic database.

Accession numbers or reference sources of all selected sequences are listed in the Supplementary Materials (Table S1).

The 18 Aqp transcripts identified in the A. succinea transcriptome were compared one to the other with Geneious Pro ver. 5.5.7.2 (http://www.geneious.com), to find overlapping sequence regions and to reconstruct the longest sequences putatively corresponding to distinct genes. Redundant transcripts (i.e., identical sequences of the same species), retrieved from the TSA databases were identified and eliminated in Geneious Prime Pro ver. 5.5.7.2 (http://www.geneious.com).

Aqp sequences were also searched in the available genomic and transcriptomic sequences of 31 representative species of 27 additional metazoan phyla (see Supplementary Table S2 for species list and analyzed databases). For these analyses, tBlastn searches were performed using several Aqp sequences selected among the taxa evolutionarily closest to the species under investigation as queries. No genomes/transcriptomes were found for the phyla Onychophora and Kynorincha.

Multialignment of the selected amino acid sequences was carried out with MUSCLE [47] as implemented in SeaView X [48], and it was manually trimmed and optimized. Phylogenetic inferences were performed using the overall amino acid multialignment containing all metazoan sequences and on a reduced version including only annelid Aqps. Metazoan and annelid amino acid multiple alignments of Aqp sequences are available in Supplementary Data S1 and S2 (full-length) and S3 and S4 (trimmed), respectively. Maximum likelihood (ML) trees were inferred using PhyML (accessed 23 October 2021) [49], and the robustness of nodes was estimated using an approximate likelihood ratio test (aLRT) [50]. The best amino acid substitution model was selected with the SMS routine in PhyML using both AIC and BIC as optimality criteria [51]: LG + G₄ + F was selected for the metazoan alignment, and VT + G₄ + F was selected for the annelids. Bayesian inference (BI) analysis was performed using BEAST 2.6.4 [52]. The site model was set up according to SMS selection. The tree prior was set to Birth-Death. No molecular calibration was applied, leaving strict clock at rate of 1 as prior. Four runs of Markov chain Monte Carlo (MCMC) were performed each 400 M generations long, sampled every 20,000 generations. Runs were examined for convergence in Tracer 1.7. All parameters of runs reached the effective sample size (ESS) above 100 and were combined using LogCombiner 2.6.4, to obtain ESS above 200. Burn-in phase of 30% was removed from each run. The final tree was summarized from combined runs with TreeAnnotator 2.6.4.

The final trees were edited with FigTree 1.4 [53]. In accordance with previous phylogenetic analyses, these trees were re-rooted using aquaglyceroporins, also named AQP3-like clade, which formed a highly supported monophyletic group [13,54].

2.2. Specimens Collection

Specimens of the estuarine A. succinea were obtained from Lesina Lake, located on the coast of the southwestern Adriatic Sea, Italy. The lake is subjected to marked salinity variations due to limited connections with seawater and periodic freshwater inputs, with a salinity range of 11–34 psu and a temperature range of 7–26 °C depending on the season [55,56]. Twenty specimens were collected from mud sediment using an Ekman grab. In the laboratory, animals were acclimated for 48 h in two plastic boxes of 1 L lake water under constant temperature (~20 °C), salinity (~10 psu), aeration and natural photoperiod. Ten animals were acclimated in each box, one containing Lesina Lake sediment as a food source (fed animals), and the other without sediment/food (starved animals). Depending on their size, two/three individuals of either fed or starved animals were then aliquoted in separate cryogenic vials, flash frozen in liquid nitrogen and stored at −80 °C until RNA extraction.

2.3. RNA Extraction, Aqps Cloning and Sequencing

Total RNA was extracted from the central portion of the body of two/three frozen A. succinea worms (~100 mg of tissue) from either fed or starved individuals, using TRIzol (Invitrogen, Carlsbad, CA, USA), following the manufacturer’s protocol. Multiple RNA extractions were carried out. Reverse transcription of total RNA was performed with Super Transcript III (Thermo Fisher Scientific, Carlsbad, CA, USA) in accordance with the manufacturer’s instructions. First-strand cDNA synthesis was performed using mixed random primers and oligo(dT) primers. Amplifications of Aqp cDNA were carried out using specific primers (Supplementary Table S3) manually designed on the Aqp transcripts identified in the A. succinea transcriptome of Kocot and coworkers [43]. Amplifications were performed in a 25 µL reaction volume containing 20 mM PCR buffer, 0.5 µM forward and reverse primers, 0.2 mM of each dNTP, 1.25 U/µL DreamTaq (Thermo Fisher Scientific, Carlsbad, CA, USA), 3–8 µL of template cDNA and nuclease-free water to bring the mix to a final volume of 25 µL. The amplification conditions were as follows: an initial denaturation for 3 min at 95 °C, then 30 amplification cycles (denaturation for 30 s at 95 °C; annealing for 30 s at 54–56 °C depending on the primer pair; extension for 2 min at 72 °C) followed by a final elongation step of 10 min at 72 °C (Supplementary Table S3). The amplicons obtained were cloned with TOPO TA cloning kit (Thermo Fisher Scientific, Carlsbad, CA, USA). Positive clones were sequenced according to the Sanger method at Eurofins Genomics (Ebersberg, Germany) or Microsynth AG (Balgach, Switzerland). Sequence quality checks, assembly and comparisons to the gene annotations were carried out with Geneious Prime Pro ver. 5.5.7.2 (http://www.geneious.com). The produced sequences were submitted to GenBank with Accession numbers OL752693-96.

2.4. Three-Dimensional Structural Predictions

The tertiary structure of A. succinea Aqps was predicted using Phyre2 (accessed 15 December 2020) [57], considering only the best hit models with a confidence of 100% and a coverage of at least 80%. Cartoon renderings of the proteins were produced in EzMol (accessed 23 December 2020) [58].

3. Results and Discussion

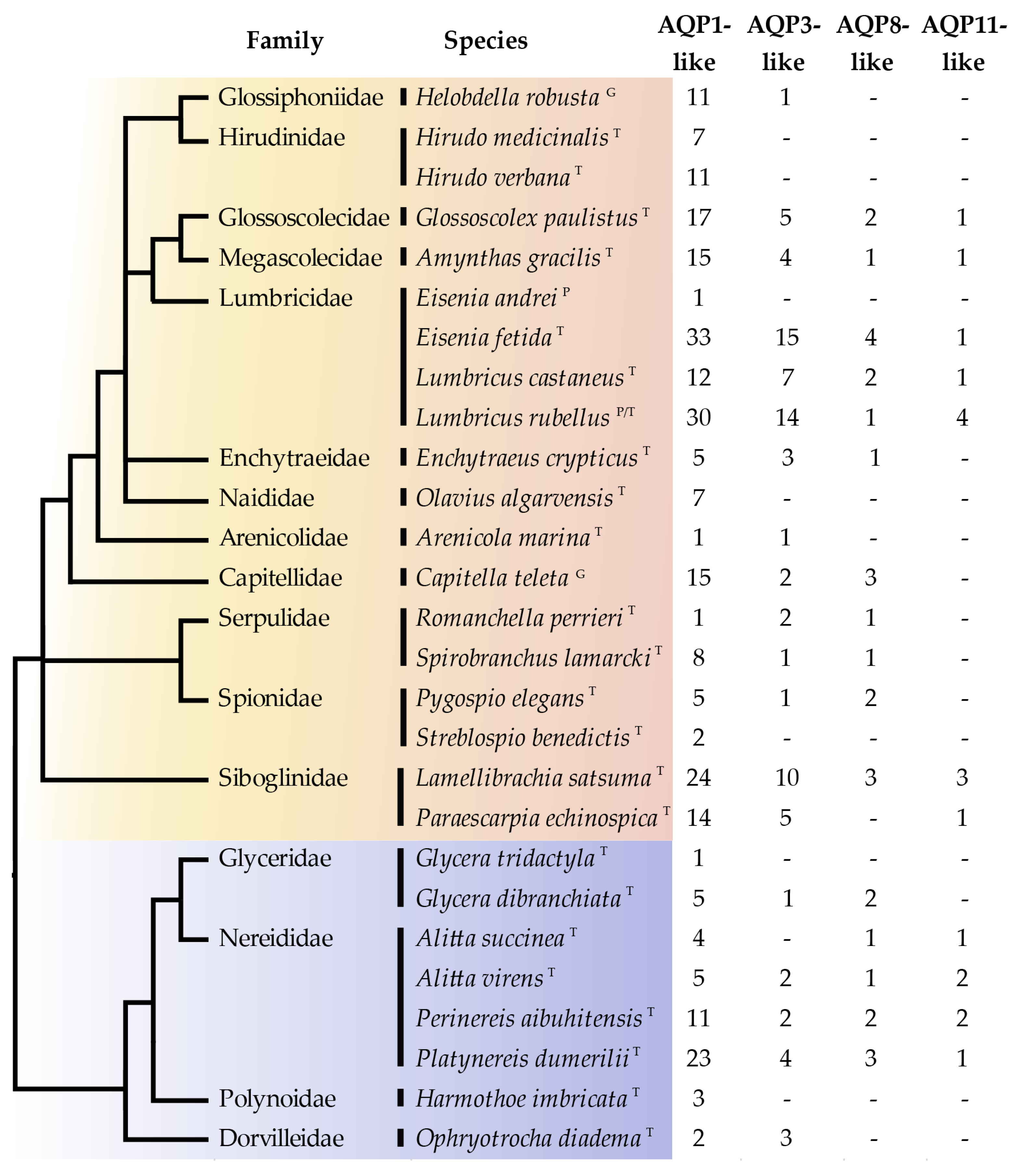

We identified a total of 401 annelid Aqps (summarized in Figure 1) from 27 annelid species, belonging to 16 families (i.e., 12 Sedentaria and four Errantia). Only three of these sequences were annotated as Aqps in the widely used nr database of NCBI (they were also present in the Abascal and coworkers Aqp phylogenetic reconstruction [13]). On the contrary, all Aqps identified in the transcriptome assemblies were indicated in the TSA database only as “transcribed RNA”, and the CDS (CoDing Sequence) annotation was also missing. The Aqps identified in the JGI genomic databases were only partially annotated, since the description line was empty; thus, they can be retrieved only searching for hits to the AQP-specific conserved domain. The distribution of the identified annelid sequences among the different Aqp groups indicates that no major Aqp clade previously found in other invertebrates/vertebrates was absent in the two main annelid groups of Errantia and Sedentaria (Figure 1). Moreover, the AQP1-like group is the most abundant one in annelids, similar to what was observed in vertebrates, see, e.g., in [13]. Numbers in Figure 1 represent only a rough estimate of the number of Aqp genes or transcripts present in each species. Indeed, on one hand, the number of genes inferred from genomic data could have been underestimated due to partial or low-quality genome assembly. On the other hand, the number of transcripts inferred from transcriptome data could have been affected by the presence of alternative splicing isoforms and by the possible low or tissue-specific expression of some Aqp genes. Finally, our similarity search approach could have hampered the identification of possible fast-evolving (and therefore highly divergent) annelid-specific Aqps.

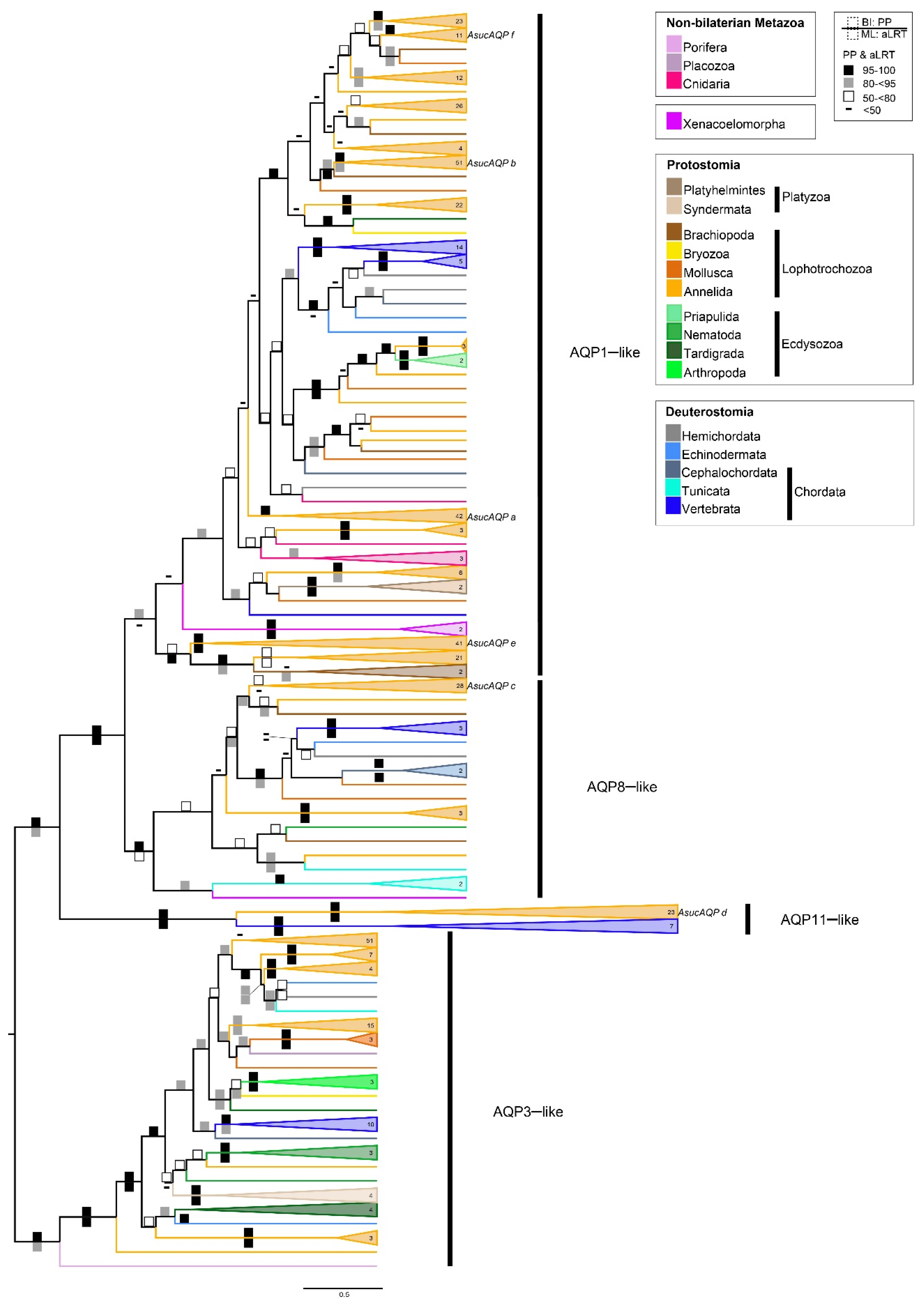

A collapsed version of our Aqp phylogenetic reconstruction of metazoans is shown in Figure 2, whereas fully annotated and midpoint-rooted trees are provided in the Supplementary Materials (Figures S1 and S2). This tree recognizes three well-supported clades, named AQP3-like, AQP8-like and AQP11-like, in accordance with the vertebrate AQPs they contain, and the nomenclature of Soto and coworkers [18]. A fourth clade, named AQP1-like, is marginally supported only by the Bayesian tree. Excluding the AQP11-like group, the phylogeny of each Aqp main group generally reflects the current metazoan tree [60,61], with poriferans and cnidarians as sister groups of Bilateria, and Xenacoelomorpha as sister group of Nephrozoa (i.e., bilaterians with nephridia). The latter is divided into two clades: Protostomia, with annelids, mollusks, bryozoans and brachiopods branching within Lophotrochozoa, and Deuterostomia (Figure 2). No Aqp genes were retrieved in 11 of the 27 additional metazoan phyla analyzed here (i.e., Ctenophora, Chaetognata, Gnathostomulida, Micrognathozoa, Gastrotricha, Phoronida, Entoprocta, Cycliophora, Rhombozoa, Nematomorpha and Loricifera, see Supplementary Table S2).

The AQP11-like clade is characterized by a very long branch and consists of two highly supported subclades, one including only annelids, and the other only vertebrates (Figure 2). Moreover, the annelid subclade consists of only a few families of both Sedentaria and Errantia groups (i.e., the families Glossoscolecidae, Megascolecidae, Lumbricidae, Siboglinidae and Nereididae, see Supplementary Figures S1 and S2). Therefore, we cannot exclude that the AQP11-like clade is an artefactual clade due to long branch attraction between fast-evolving sequences of vertebrates and annelids.

Besides the AQP11-like clade, almost all annelid clades are sister to lophotrochozoan species/clades (Figure 2 and Supplementary Figures S1 and S2), with a few exceptions characterized by a polytomy or low statistical support of the immediately previous node (e.g., the clade containing AsucAQPa). This could indicate that the absence of gene duplications occurred exclusively in the annelid ancestor, except for the ambiguous result of the clade of AsucAQPa, which contained only annelids. On the contrary, several gene duplications seem to have occurred in the ancestor of some Sedentaria families (e.g., Lumbricidae, Megascolecidae, Glossoscolecidae and Spionidae), especially in the AQP1-like clade (Supplementary Figures S1–S4). For instance, this can be observed in the clade containing AsucAQPe (Figure 2 and Figure 3, Supplementary Figures S3 and S4), consisting of a single Errantia cluster grouped to a large Sedentaria one with duplicated subclades of 2–3 taxonomic families; or the Sedentaria clade, sister to the Errantia one containing AsucAQPf, in which two rounds of duplications probably occurred in the common ancestor to Lumbricidae, Megascolecidae and Glossoscolecidae.

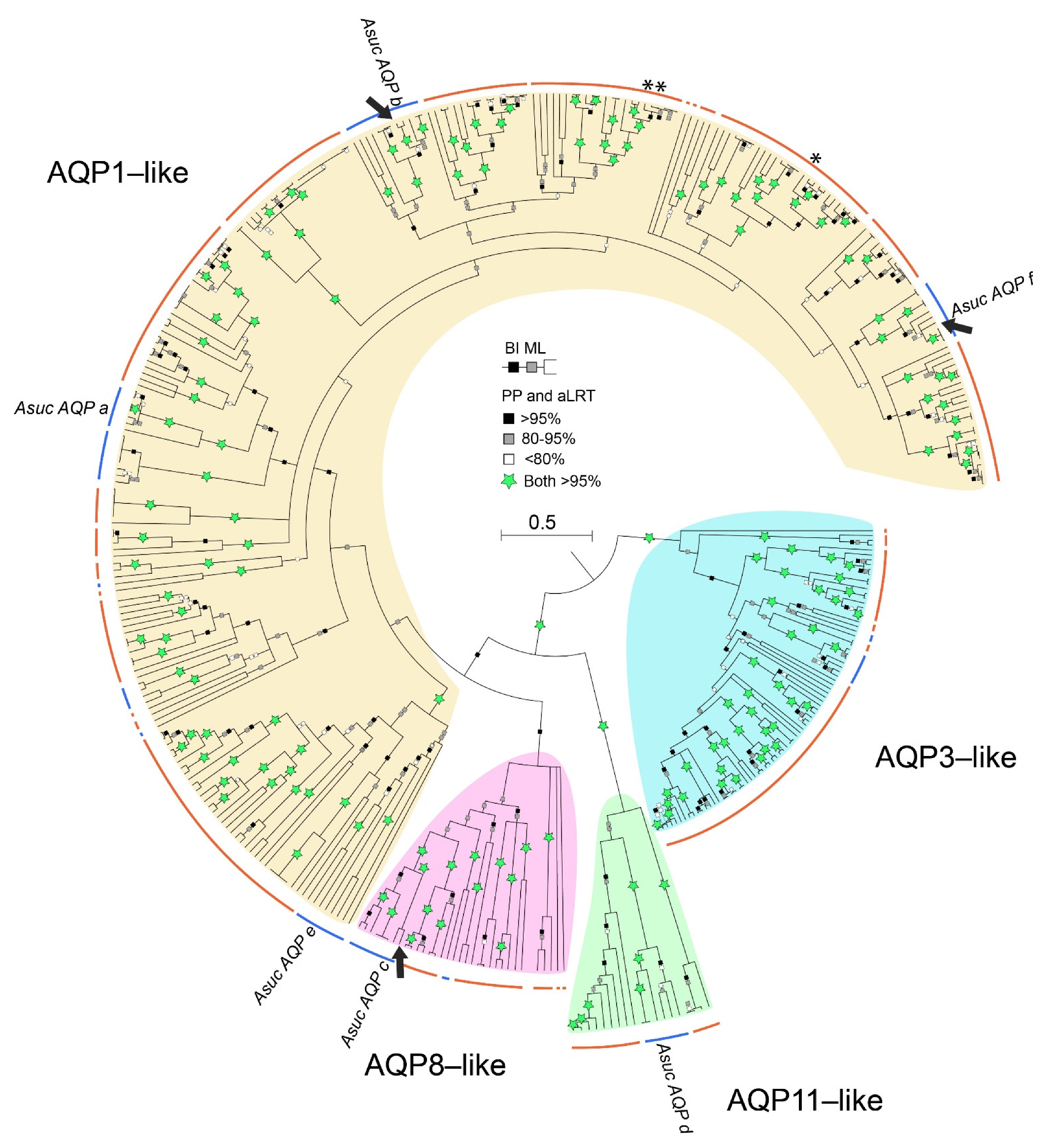

A collapsed version of the annelid Aqp tree is shown in Figure 3, whereas the fully annotated trees are provided in Supplementary Figures S3 and S4. This tree (based on 401 sequences) generally recovered the clades of Sedentaria and Errantia well separated as in the recent literature [31,59]. Clades AQP3-like and AQP11-like showed high support in both BI and ML. Most of the sequences found (271) belonged to the AQP1-like clade, showing multiple paralogs for each species. Even the three terrestrial Oligochaeta analyzed in a previous wide Aqp phylogenetic study [13] were also included in the AQP1-like clade (see asterisks in Figure 3). Noteworthy, many clades were exclusive to Sedentaria, suggesting the occurrence of several distinct gene duplication events in the ancestor of Sedentaria. The presence of numerous subclades with high support (>95%) in the AQP1-like clade of annelids, reflects what has been observed in other invertebrates [13,27]. The structure, function and body localization of AQPs of insects and mollusks have already been recognized as very similar to those of vertebrates AQP1 and AQP4, leading to the hypothesis of an orthologous relationship [27,29]. The similarity between invertebrate AQP1-like and vertebrate AQP1/AQP4 is also supported by the wide distribution of vertebrates AQP1 and AQP4 along the animal bodies and by their more basal position in several vertebrate clades of orthodox AQP.

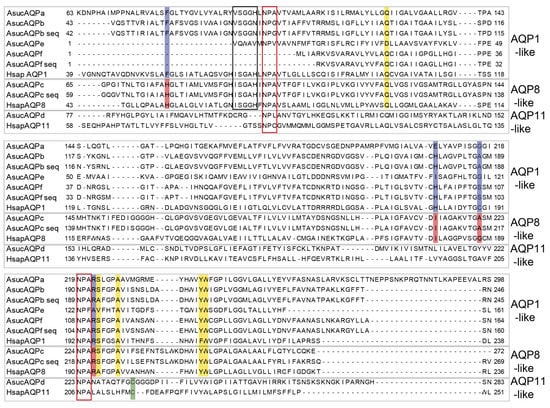

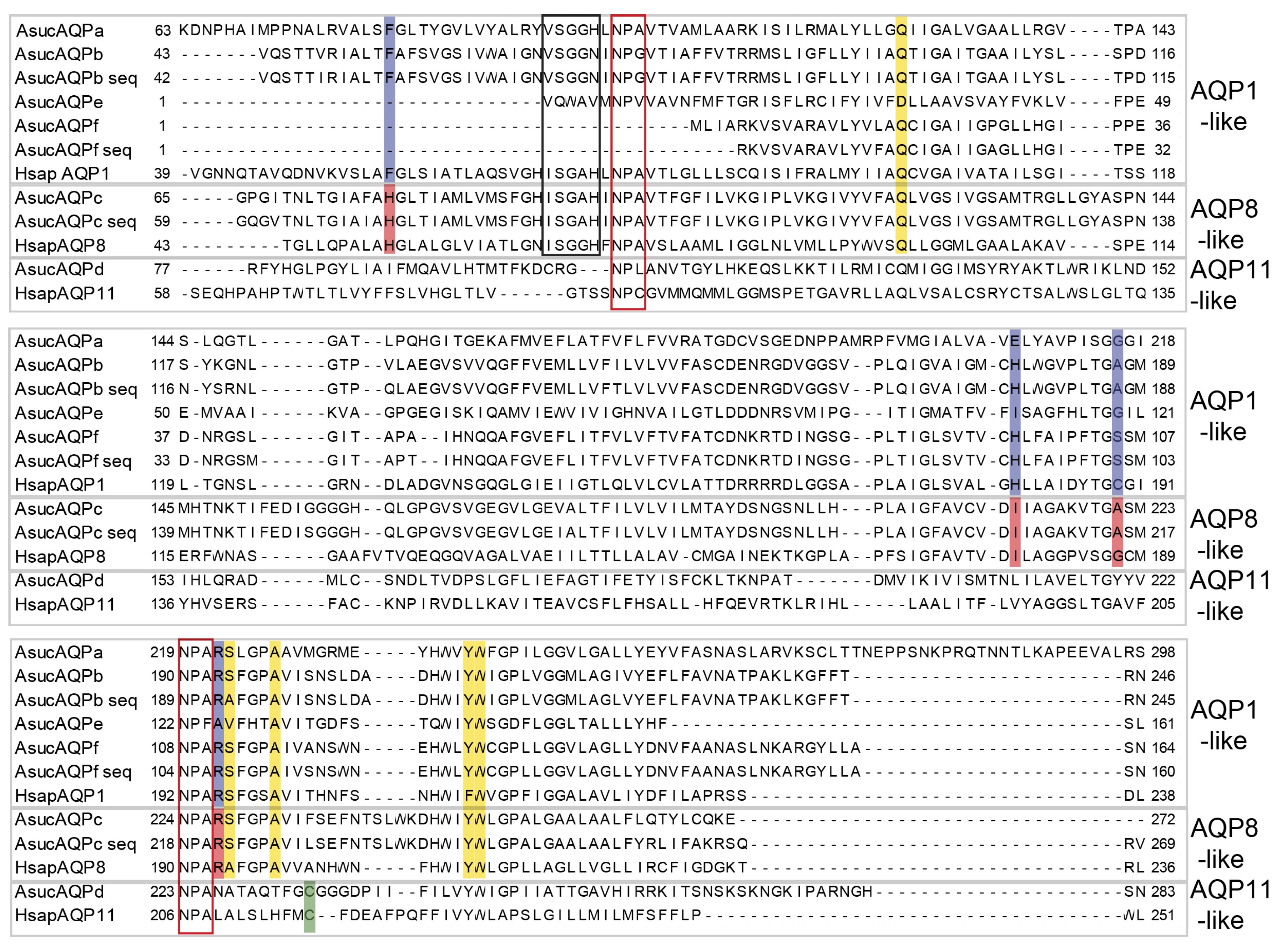

We retrieved and annotated a total of six Aqp genes from the transcriptome of A. succinea published by Kocot and coworkers [43] and named them AsucAQP from a to f (

Table 1. The six Aqp transcripts annotated in the transcriptome of A. succinea published by Kocot and coworkers [43]. Asterisk: Aqps amplified by RT-PCR and sequenced; CDS: coding sequence, corresponding to the ORF; np: not present.

Sequence	5′ UTR	CDS	3’ UTR	CDS Notes	Total bp
AsucAQPa	373	999	261		1633
AsucAQPb *	27	804	447		1278
AsucAQPc *	141	818	634		1593
AsucAQPd	248	922	np	3′ partial	1170
AsucAQPe	np	504	np	5′ and 3′ partial	504
AsucAQPf *	np	584	324	5′ partial	908

and Figure 4). These six paralogs clustered with three of the four main AQP groups of vertebrates (Figure 2 and Figure 3). Indeed, AsucAQPa, b, e and f cluster into the AQP1-like clade; AsucAQPc is inside the AQP8-like clade; and AsucAQPd belongs to the AQP11-like clade. We managed to confirm the sequence of three of these A. succinea Aqps by RT-PCR and sequencing, namely, AsucAQPb, AsucAQPc and AsucAQPf, but these cDNA amplifications occurred only in fed animals (Table 1). The starvation faced by some of our A. succinea specimens, coupled with their potentially different life stages, may have influenced the extent of expression of Aqps, and could explain why we were able to amplify these Aqps by RT-PCR only in fed animals [42,62]. Moreover, two mRNA isoforms of AsucAQPb were sequenced, differing only in the 3’UTR (see Accession Numbers OL752695-6). Few differences were found in the amino acid sequences between the three annotated transcripts AsucAQPb, c, and f from Kocot and coworkers [43] and our corresponding sequenced cDNAs (Figure 4). Indeed, we observed seven amino acid differences (95.86% identity) in AsucAQPb, 24 (95.08% identity) in AsucAQPc and seven (95.86% identity) in AsucAQPf (Figure 4). These differences can be easily explained by the intraspecies variability of A. succinea, as they do not occur in evolutionarily invariant amino acid positions of Aqps.

AsucAQPa, AsucAQPb, AsucAQPe and AsucAQPf, together with the majority of the protostome Aqps analyzed here, grouped within the AQP1-like clade (Figure 2). These Aqps, like most orthodox ones, present a very conserved ar/R region with a typical aromatic Phe in the first position, an ISSGH motif located upstream of the first NPA, and P1-P5 residues (Figure 4), which all play an important role in their structures and functions [27,63,64]. AsucAQPa, AsucAQPb and AsucAQPe presented the ISGGH motif with a substitution of the first residue with Val (Figure 4). Analysis of the five polypeptide positions (P1–P5) retrieved the residues Gln-Ser-Ala-Tyr-Trp, in almost all the AsucAQP1-like sequences (Figure 4). The ar/R region of these four Aqps displayed substitutions in the second and third residues in comparison with human AQP1 (Figure 4). The ar/R region of AsucAQPa was formed by the amino acids Phe, Glu, Gly and Arg, presenting a substitution in the second position compared with human AQP1, which displays a His (Figure 4). The AsucAQPb ar/R filter was formed by Phe, His, Ala and Arg, while human AQP1 has Cys in the third position (Figure 4). Substitutions in these more conserved regions are not infrequent in other organisms. For instance, in plant Aqps, such as Arabidopsis thaliana (L.) Heynh, or animals, such as Homo sapiens, ISSGH motifs present similar replacements. Moreover, the P1 residue retrieved as Gln in this study is represented by a Thr in organisms other than annelids [27,63]. Additionally, some freshwater pulmonated gastropods, such as Lymnaea stagnalis (Linnaeus, 1758), Stagnicola palustris (O.F. Muller, 1774) and Ladislavella occulta (Jackiewicz, 1959) show similar substitutions with amino acids with similar chemical properties (i.e., Gln instead of Thr in LsAQP1, SpAQP1 and CoAQP1). These Aqps, were already classified as genes belonging to the AQP1-like clade, suggesting that these differences do not affect their water channel function [27].

AsucAQPa was located in a clade containing only annelids, while the other paralogs (i.e., AsucAQP b, c, e and f) clustered with other lophotrocozoan taxa. AsucAQPe was recovered in the lophotrochozoan clade as well, as a sister group of the remaining sequences of the AQP1-like clade (Figure 2).

Nevertheless, the existence of AQP paralogs only in some taxa is not infrequent. For instance, Maqp and Mglp are found only in mollusks [28], while Drip, Prip and Bib are retrieved only in arthropods [65,66,67]. Considering the diversity of the Lophotrochozoa clade, inhabiting marine, freshwater or terrestrial environments, with different functional traits and body plans [68], it is tempting to hypothesize that the high diversification of AQPs relates to physiological adaptations, such as osmoregulation and desiccation. Moreover, in terms of osmoregulation, unlike vertebrates, which rely on a more complex excretory system such as nephrons, Lophotrochozoa usually display different osmoprotective mechanisms, such as those implemented at the level of the epidermis, nephridia (proto- and metanephridia) and Malpighian tubules [65]. The presence of multiple substitutions in the NPA motifs supports our idea that AQPs may have roles in the adaptations to salinity variation in estuarine systems. Moreover, the NPG box in the N-terminus of AsucAQPb (recovered only in annelids) was previously known from some plants (in the C-terminus).

Phylogenetic hypotheses placed AsucAQPc as the ortholog of vertebrate AQP8 (Figure 2). The ar/R region of AsucAQPc was formed by His, Ile, Ala and Arg, similar to the residues found in the corresponding region of mammalian AQP8 (Figure 4), an AQP featuring transport of ammonia, urea and hydrogen peroxide in addition to water [69]. The only difference was found in the third position, in which the annelid Ala is replaced by Gly in humans. The contribution of this protein to ammonia transport may be fundamental for osmoregulation, helping in regulating salt/water balance in annelids. For instance, this protein was also reported to increase the water permeability of membranes by redistributing intracellular vesicles to the plasma membrane in vertebrates [33,70,71]. Putative orthologs of AQP8 have already been found in plants (i.e., Tonoplast Intrinsic Protein (TIPs)). In fact, some authors have already debated whether the molecular similarities of these proteins were synapomorphies, supporting the hypothesis of a most recent common ancestor for both animal and plant Aqps [18], or if this was the result of similar functions in animals and plants that led through natural selection to sequence convergence [13].

AsucAQPd was retrieved in the AQPs11-like clade as a putative ortholog of vertebrates AQPs11 and AQPs12 (Figure 2), with which shared Cys in the ninth position after the second NPA motif, considered the signature of this superaquaporin group (Figure 4) [72]. Nonetheless, its presence in annelids is debatable. The long branches and a sister group position in the phylogeny considering all the non-aquaglyceroporins reflect the high divergence of vertebrate superaquaporins from the other AQPs in terms of structure and function. Their similarity with intracellular SIPs, an Aqp clade typical of plants, and a potential ancestral gene common to both clades was suggested [18]. However, when analyzing the sequences of SIPs, no conserved residues with AQP11 were found, pointing out that the association within the same clade is more likely a long branch artifact rather than a real relationship of orthology [13]. On the other hand, high variability in the overall Aqp primary structures and substitutions within the NPA motifs is common in invertebrates [73], thus potentially explaining the great difference of our AsucAQPd compared with the already known vertebrate AQP11 and AQP12. Moreover, other studies have also suggested the presence of orthologs of these vertebrate AQPs in mollusks, arthropods and nematodes [28,66,74].

No aquaglyceroporins were recovered in the A. succinea transcriptome; however, their presence was retrieved in the congeneric A. virens (Sars, 1835), as well as in the other annelids and invertebrates (Figure 2 and Figure 3) [66,73,75]. Their presumed absence may be due to low sequencing depth (e.g., only one sample [43]) which may have resulted in a limited number of genes recovered in the transcriptome. Indeed, the presence of aquaglyceroporins was associated with a change in membrane water permeability during hypoosmotic stress [76,77]. For instance, the invertebrate Caenorhabditis elegans (Maupas, 1900) (Nematoda) showed the involvement of an aquaglyceroporin (therein called Aqp-8) in response to either hyper- or hypoosmotic stress by increasing vesicle docking to the lumen of excretory cells and promoting the transport of water and osmotically active solutes to maintain intracellular homeostasis [78]. The importance of these water channels is also testified by their presence in a wide range of taxa from bacteria and archaea through all domains and kingdoms, see, e.g., in [13,74,79].

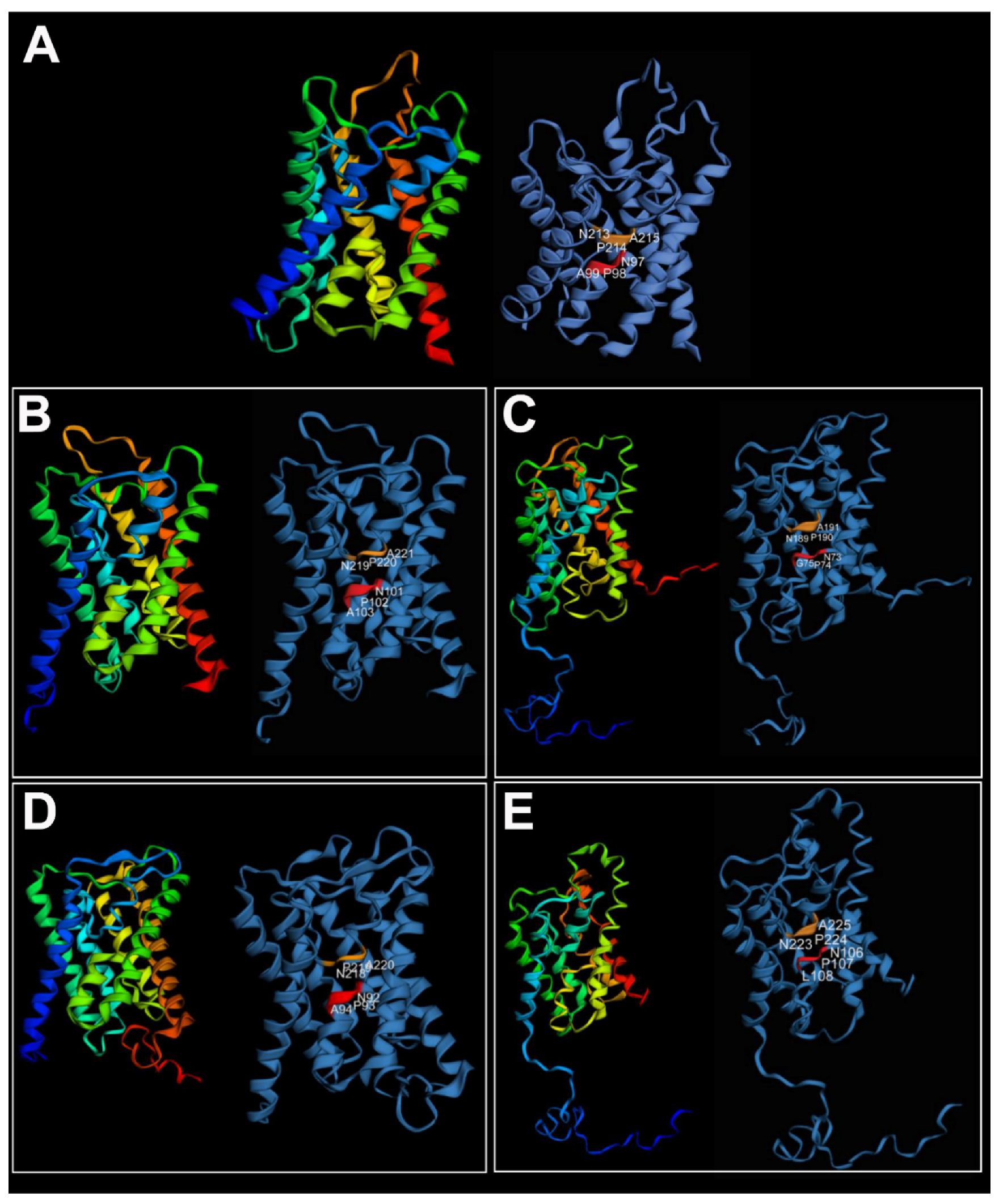

High similarity among the tertiary structures of the A. succinea Aqp genes was recovered when compared with the vertebrate AQP4. Alitta succinea Aqps consisted of six transmembrane domains plus two additional membrane-embedded α-helices, displaying the typical hourglass shape of AQPs (Figure 5).

Finally, the presence of more than one paralog in several annelid species, especially in the AQP1-like clade, may be the result of multiple recent gene duplications. These events are common in adaptive processes and may lead to co-option and to a consequently functional diversification of the genes through changes in its regulatory levels and/or in parts of the amino acid sequence not required for the current function [80]. This is the case of the Eglp of some insects (i.e., Holometabola), ortholog to vertebrate AQP4, which evolved in a glycerol facilitator, after a single mutation of His174 from the ar/R region with Ala174 [81].

4. Conclusions

The widespread presence and abundance of AQPs are the result of their relevance in a variety of biological processes, such as body water homeostasis and metabolism. We reconstructed, for the first time, the evolutionary history of annelid Aqps, and confirmed by RT-PCR/sequencing three of the six Aqps annotated in Alitta succinea, an estuarine annelid showing high salinity tolerance. Our findings are congruent with previous studies concerning the evolution of Aqps across metazoans [13,18]. Our results support the existence of four major Aqp clades (AQP1-like, AQP8-like, AQP11-like and AQP3-like), and the hypothesis of the existence of four ancestral genes, one for each of the four AQP-like clades, in the common ancestor of invertebrates and vertebrates. Moreover, a general trend towards taxon-specific gene duplications in annelids, implying the expansion of the AQP1-like clade, is also visible. Finally, we inferred the physiological roles of annelid Aqps on the basis of models already known or applied to vertebrates. Further studies on annelid AQPs are highly advisable to explore how different combinations of amino acids along their primary sequence may influence their transport selectivity. We believe that our data could stimulate and address future analyses on the expression regulation, physiological significance and functional role of AQPs in annelids, as well as provide important insights into the understanding of the osmoregulation and cell volume homeostasis of these soft-body animals marked by successful adaptive radiation.
